Einhell Expert Radial Tile Cutting Machine TE-TC 620/1 U
Product description

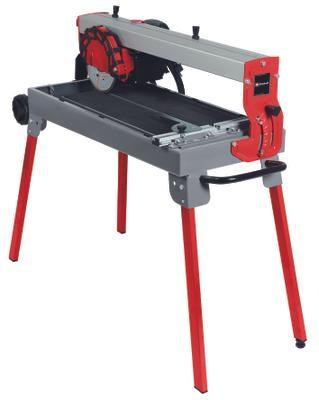

The TE-TC 620 U radial tile cutting machine is a reliable, high-quality and powerful machine for cutting wall tiles and floor tiles quickly and exactly to size. Its robust 900 W motor has ample power for driving the 200 mm diameter turbo diamond cutting wheel with ease through even hard-to-cut material. An extra-long drag length of 620 mm enables the user-friendly cutting of even large tiles. For precise, speedy cutting the TE-TC 620 U comes with a motor head which can be infinitely swiveled from 0° to 45° and has a motor guide with 6-fold ball bearing. Miter cuts, double miter cuts and longitudinal cuts can be performed with just a few moves thanks to an aluminium angle stop which can be adjusted exactly to the degree. A coolant pump ensures not only optimum cooling of the diamond wheel but also dustfree operation. In the solid water collection tank made of sheet steel there is also a dirt trap with washable filter mats for keeping coarse particles out of the pump. The large work table with non-slip rubber surface rests on a robust, folding base frame with height-adjustable foot and enables ergonomic, safe operation. Moving the machine is no problem thanks to the transport wheels and transport handle.
Extra-long drag length
Robust folding base frame
Transport wheels and handle
Height-adjustable foot
Dirt trap with washable filter mats
Large work table with non-slip rubber support
Solid water collection tank made of sheet steel
Aluminium angle stop adjustable to the degree
Motor guide with 6-fold ball bearing
Infinitely swiveling motor head from 0° - 45°
Turbo diamond cutting wheel
Technical data
Do you like to read the technical data sheet before choosing your product? You can find the most important facts and figures for Radial Tile Cutting Machine TE-TC 620/1 U here:
Angle stop max. 90 °
Angle stop min. 0 °
Continuous power S2 30 min
Cutting disc diameter 200 mm
Cutting disc holder diameter 25.4 mm
Cutting height at 45° 25 mm
Cutting height at 90° 30 mm
Idle speed max. 2950 min^-1
Max. cutting length 620 mm
Max. swivel range (cutting head) 45 °
Min. swivel range (cutting head) 0 °
Power S2 900 W
Product weight 34.4 Kg
Workbench length 610 mm
Workbench width 325 mm
