Hyundai H340VC Engine IPL Parts Diagram

Use this Hyundai H340VC IPL parts diagram to identify replacement engine parts. Click any diagram to enlarge it, then use the linked Cutsmart SKU to open the matching part page or confirm availability.

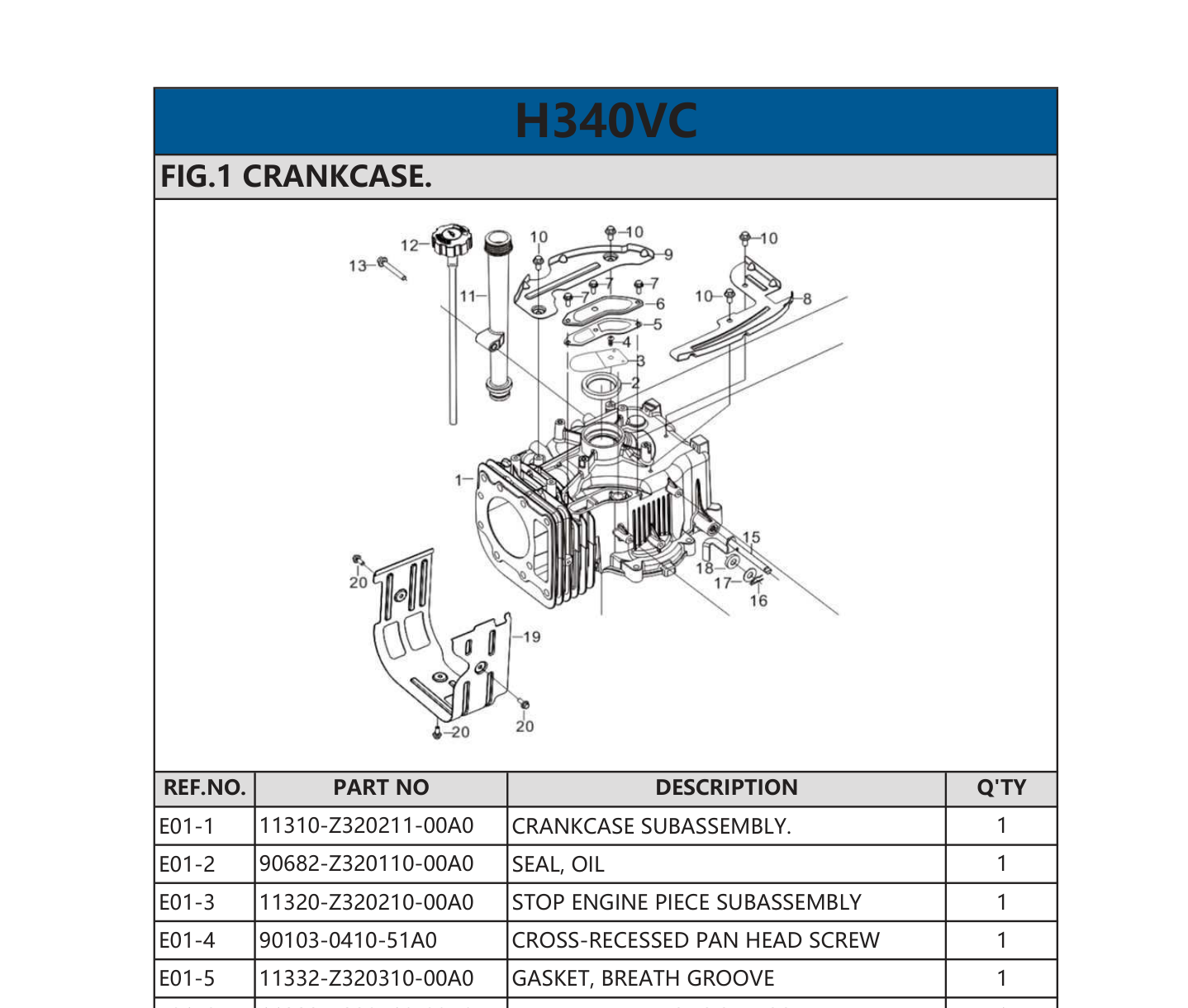

FIG.1 Crankcase

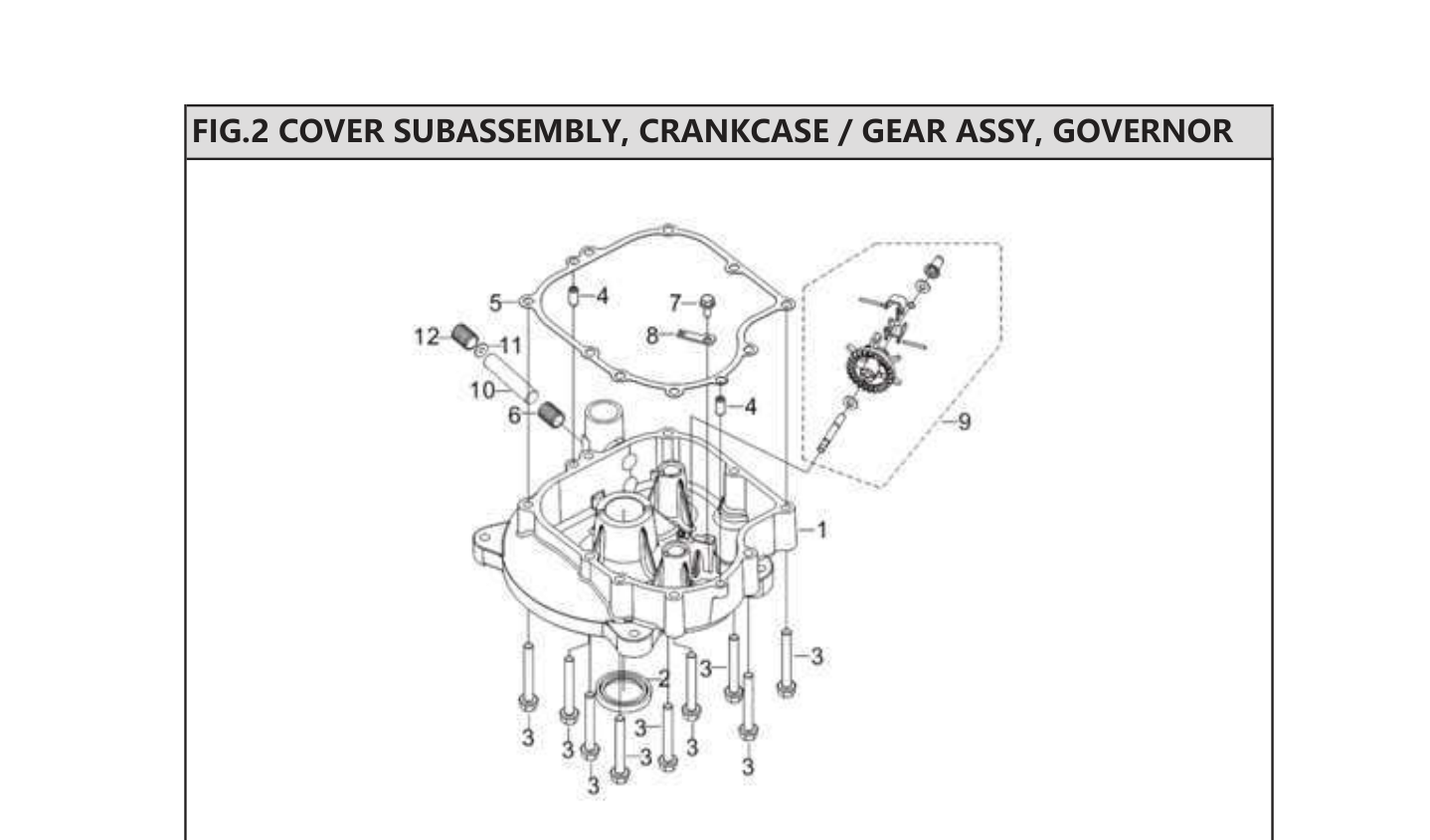

FIG.2 Cover Subassembly, Crankcase / Gear Assy, Governor

FIG.3 Head Subassembly, Cylinder / Spark Plug

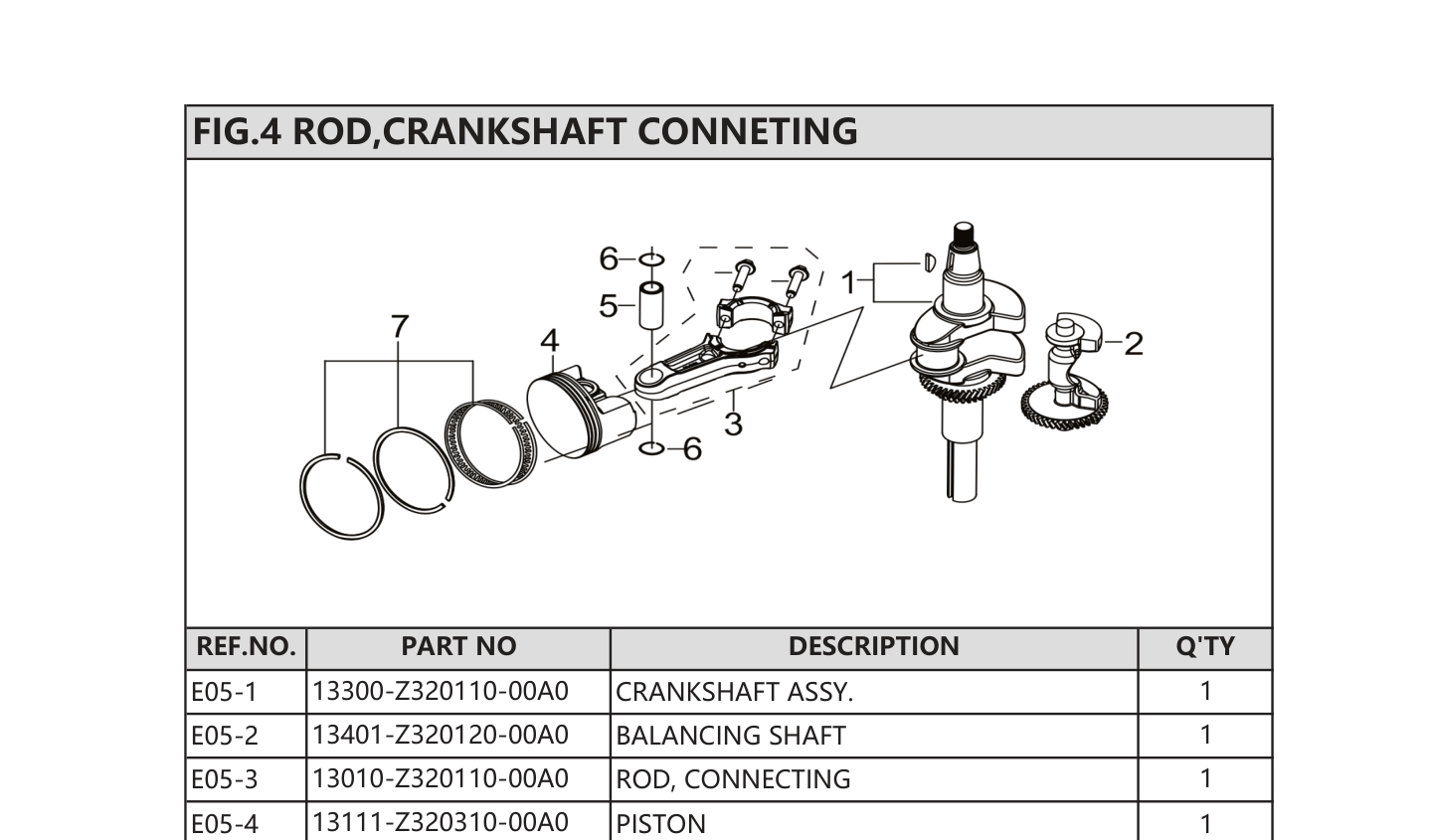

FIG.4 Rod / Crankshaft Connecting

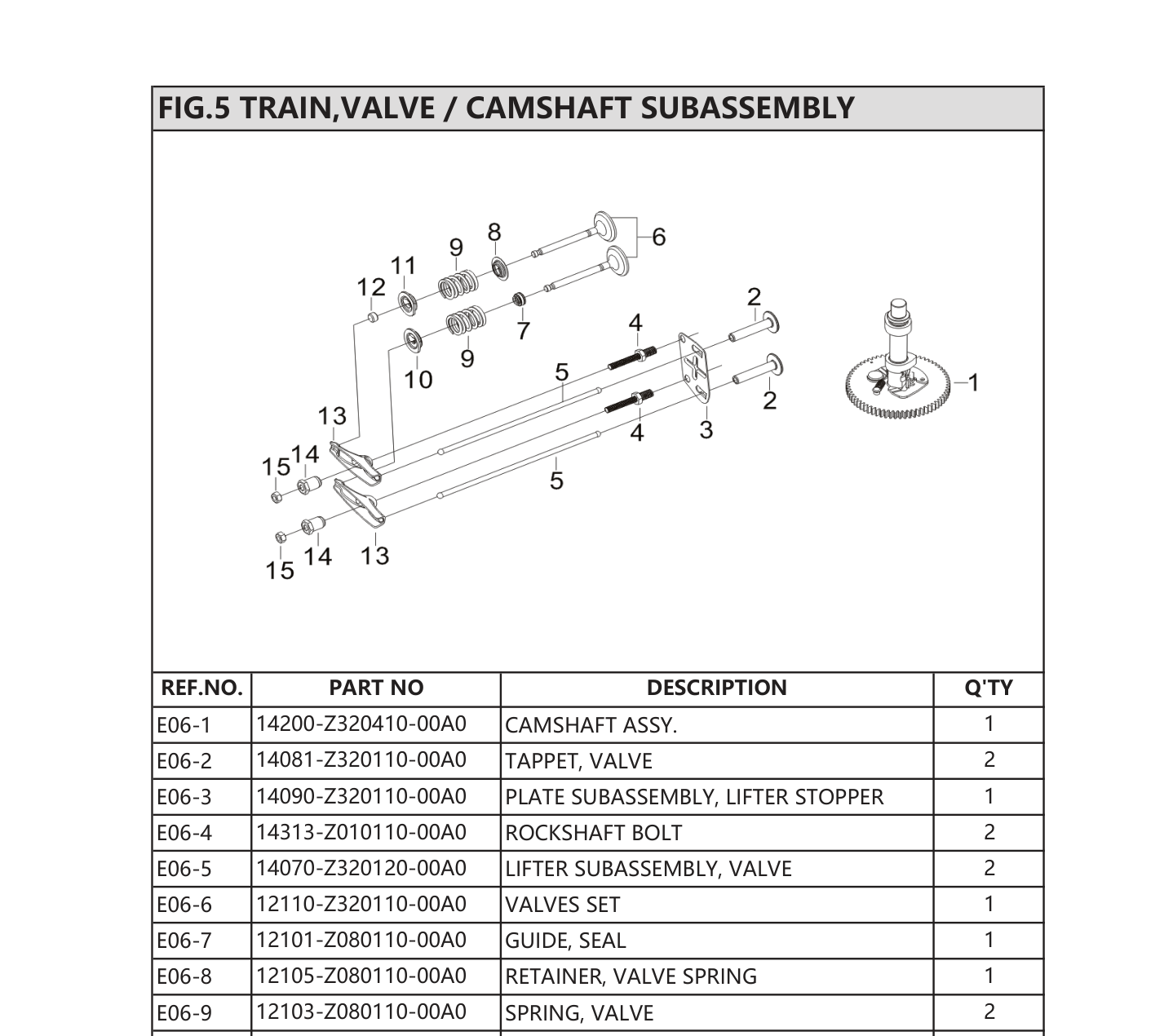

FIG.5 Train, Valve / Camshaft Subassembly

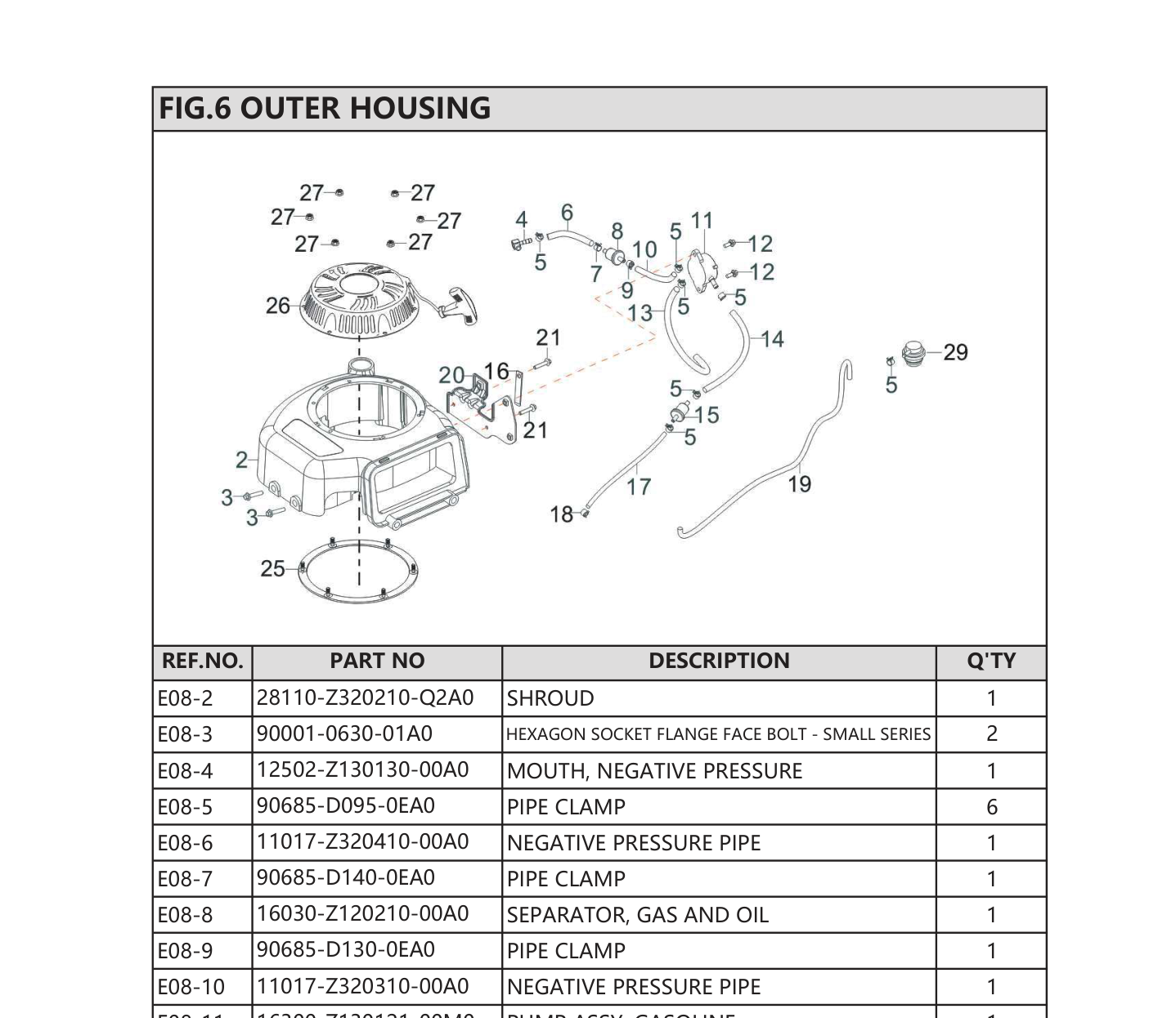

FIG.6 Outer Housing

FIG.7 Carburetor Parts

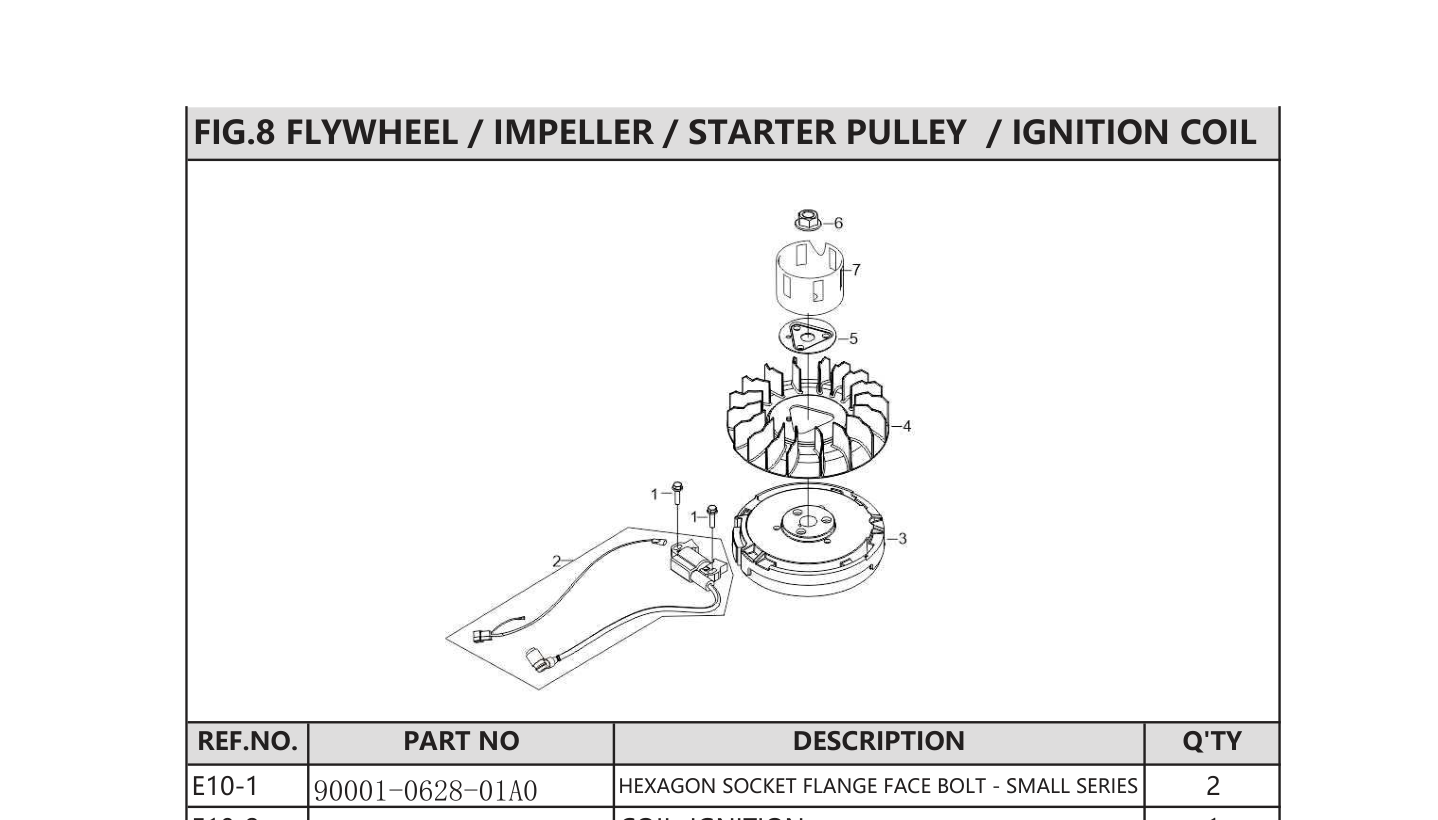

FIG.8 Flywheel / Impeller / Starter Pulley / Ignition Coil

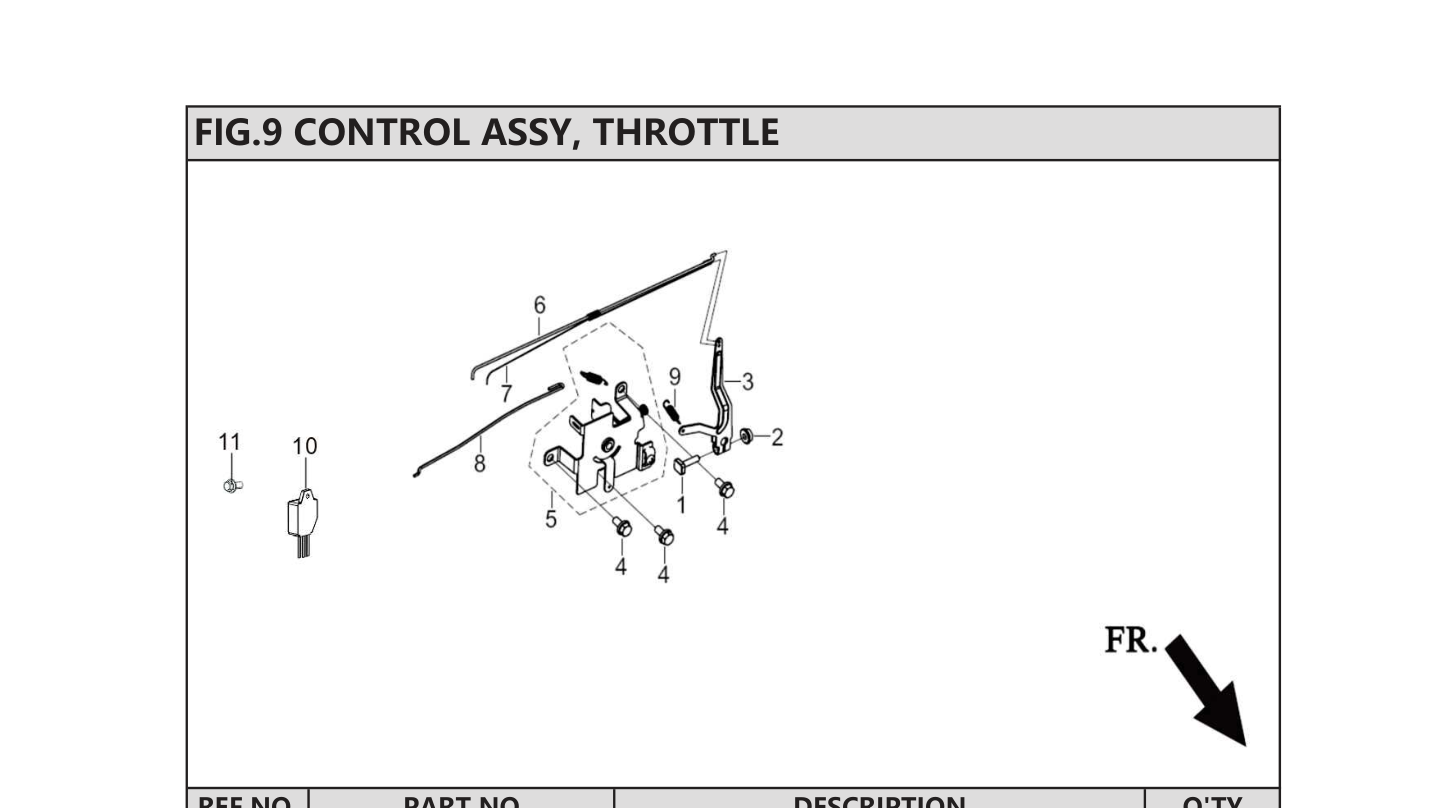

FIG.9 Control Assy, Throttle

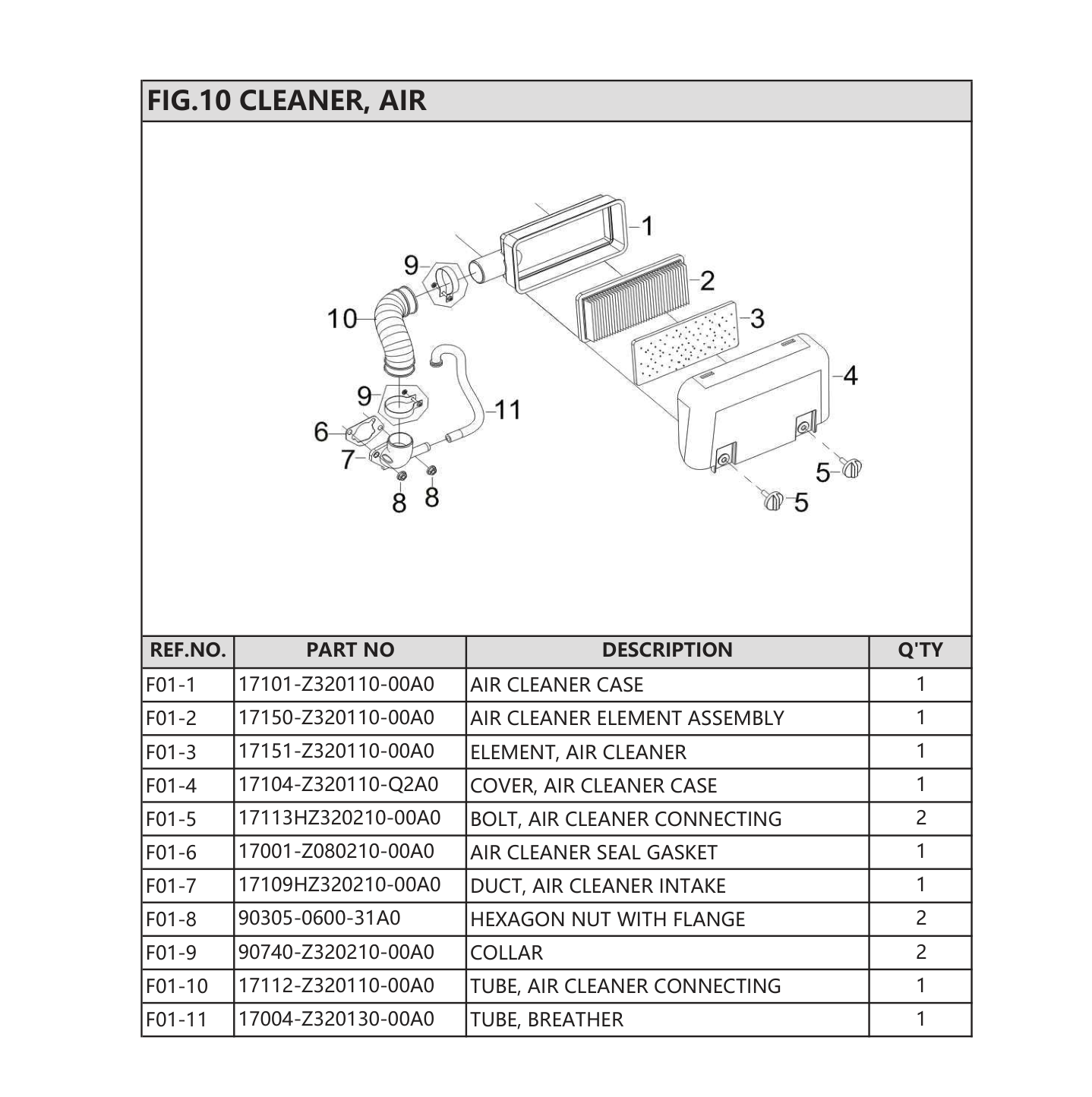

FIG.10 Cleaner, Air

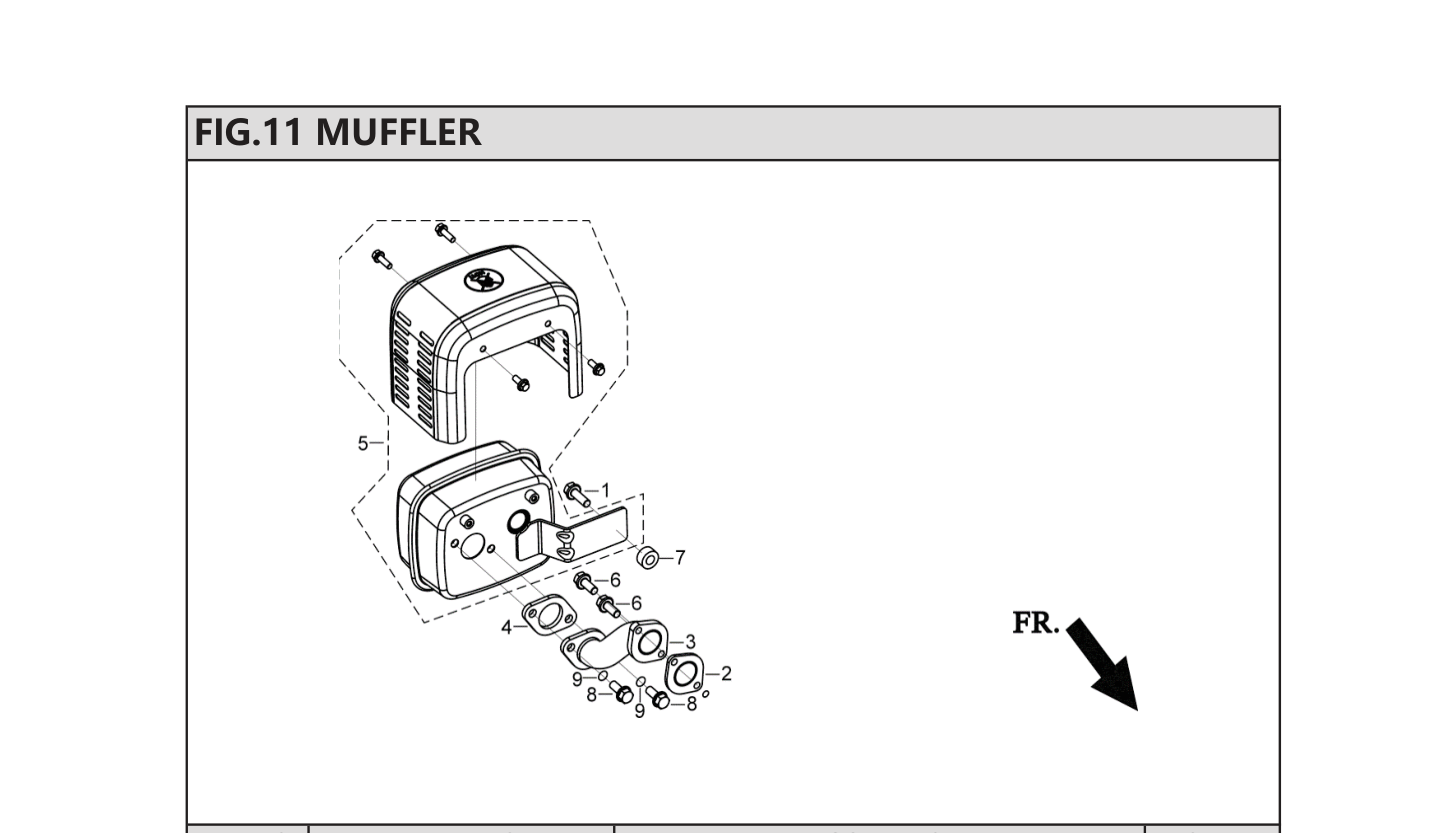

FIG.11 Muffler

FIG.12 Tank, Fuel
