Lawn Star LS 1200 EPS Electric Pole Saw IPL

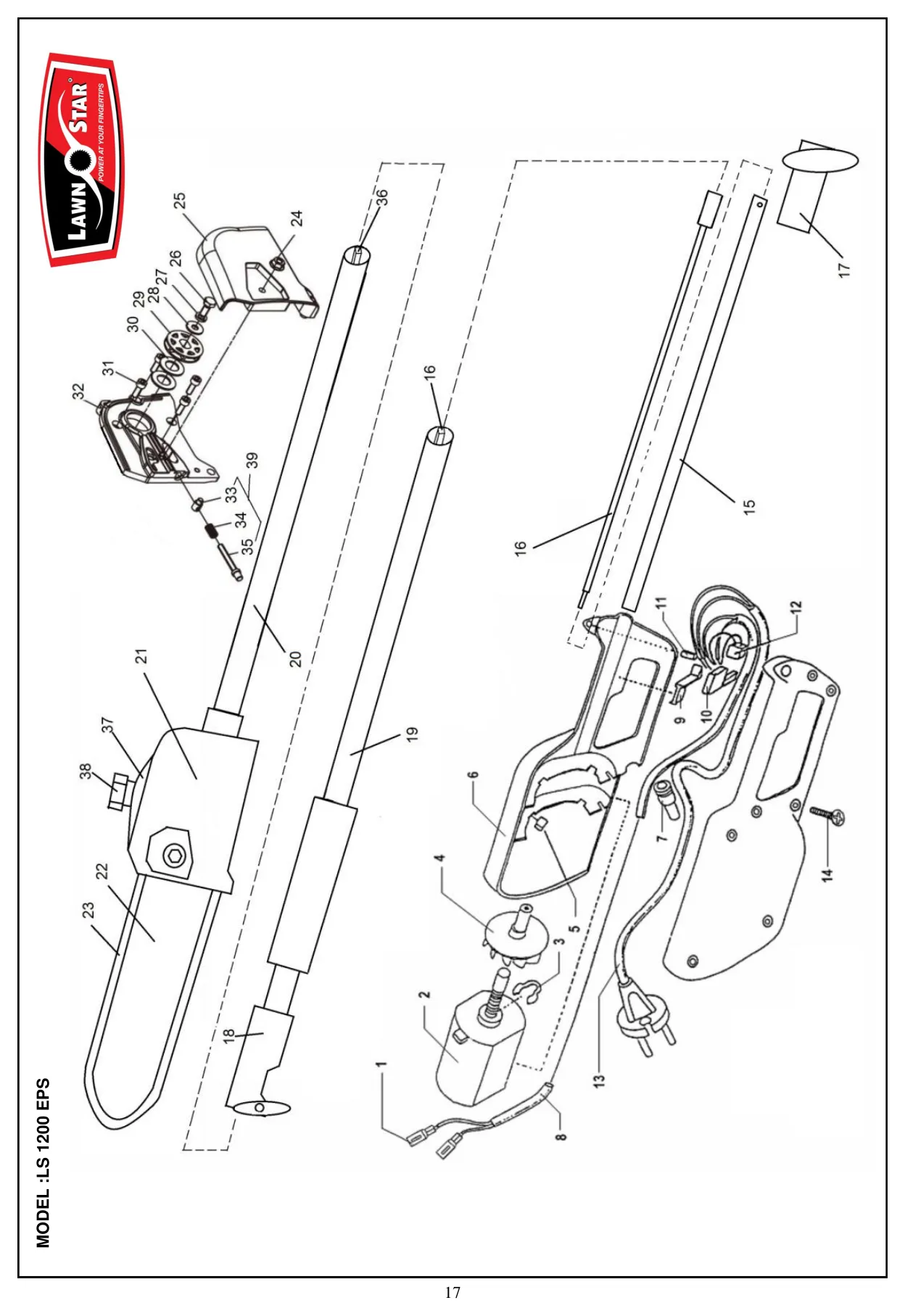

This IPL page has been prepared from the Lawn Star 2026 spare parts manual. Use the diagram reference numbers together with the parts table below.
Spare parts list
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | Connecting Terminal 4.8mm | T-551-00 | T-551-00-Online | 2 |
| 2 | Motor TM 1000 W | T-610-00 | T-610-00-Online | 1 |
| 3 | E-Clip 6.0 mm | T-144-00 | T-144-00-Online | 1 |
| 4 | Fan TM | TA-393-10 | TA-393-10-Online | 1 |
| 5 | Housing Mounts, 8.0mm , Code 10101 | T-560-00 | T-560-00-Online | 8 |
| 6 | Housing set TM (RH & LH) RAL 3001 | T-342-10 | T-342-10-Online | 1 |
| 7 | Cord Protector moulded | T-501-00 | T-501-00-Online | 1 |
| 8 | Harness , 2 x 0.75mm | T-541-00 | T-541-00-Online | 1 |
| 9 | Trigger TM | T-394-00 | T-394-00-Online | 1 |
| 10 | Switch modified | T-530-21 | T-530-21-Online | 1 |
| 11 | Pin Dia 4.0 | T-141-00 | T-141-00-Online | 1 |
| 12 | Supressor | T-520-00 | T-520-00-Online | 1 |
| 13 | Pigtail | T-510-00 | T-510-00-Online | 1 |
| 14 | Screw, HiLo,Pan Posi # 2, 4.8 x 22mm | T-150-00 | T-150-00-Online | 7 |
| 15 | Tube upper assembly(15,16,17) | TA-271-00 | TA-271-00-Online | 1 |
| 16 | Upper drive shaft | Refer to 15/19 Resolves to: TA-271-00, TA-270-00 | TA-271-00-Online TA-270-00-Online | 1 |
| 17 | Coupling upper assembly | Refer to 15 Resolves to: TA-271-00 | TA-271-00-Online | 1 |
| 18 | Coupling ext tube assy | Refer to 19 Resolves to: TA-270-00 | TA-270-00-Online | 1 |
| 19 | Extension tube assembly(16,18,19) | TA-270-00 | TA-270-00-Online | 1 |
| 20 | Pole, chain pruner | Refer to 21 Resolves to: TA-272-25 | TA-272-25-Online | 1 |
| 21 | Chain pruner assembly (20,21,22,23,32,36,37,38) | TA-272-25 | TA-272-25-Online | 1 |
| 22 | Chain bar 25cm | C-122-22 | C-122-22-Online | 1 |
| 23 | Chainsaw replacement chain pole saw (C-120-25) | 80-27122 | 80-27122-Online | 1 |
| 24 | Nut M6 GB/T 6177.1 | C-122-24 | C-122-24-Online | 1 |
| 25 | Cover, sprocket | C-122-25 | C-122-25-Online | 1 |
| 26 | Screw M6X8 | Refer to 32 | 1 | |
| 27 | Washer-Spring M6 | Refer to 32 | 1 | |
| 28 | washer M6 | Refer to 32 | 1 | |
| 29 | Chain Wheel | Refer to 32 | 1 | |
| 30 | washer M12 | Refer to 32 | 2 | |
| 31 | Screw M5X10 | Refer to 32 | 4 | |
| 32 | Housing, chain pruner assembly(24,25,26,27,28,29,30,31,32,33,34,35) | Refer to 21 Resolves to: TA-272-25 | TA-272-25-Online | 1 |
| 33 | Adjustable Nut | Refer to 32/39 Resolves to: CA-122-39 | CA-122-39-Online | 1 |
| 34 | Spring | Refer to 32/39 Resolves to: CA-122-39 | CA-122-39-Online | 1 |
| 35 | Adjustable Bolt | Refer to 32/39 Resolves to: CA-122-39 | CA-122-39-Online | 1 |
| 36 | Drive shaft chainsaw | refer to 21 Resolves to: TA-272-25 | TA-272-25-Online | 1 |
| 37 | Oil tank | C-122-37 | C-122-37-Online | 1 |
| 38 | Cap oil tank | C-122-38 | C-122-38-Online | 1 |
| 39 | Adjuster bolt assembly(33,34,35) | CA-122-39 | CA-122-39-Online | 1 |
