Lawn Star LSH 2356 P Hedge Trimmer IPL

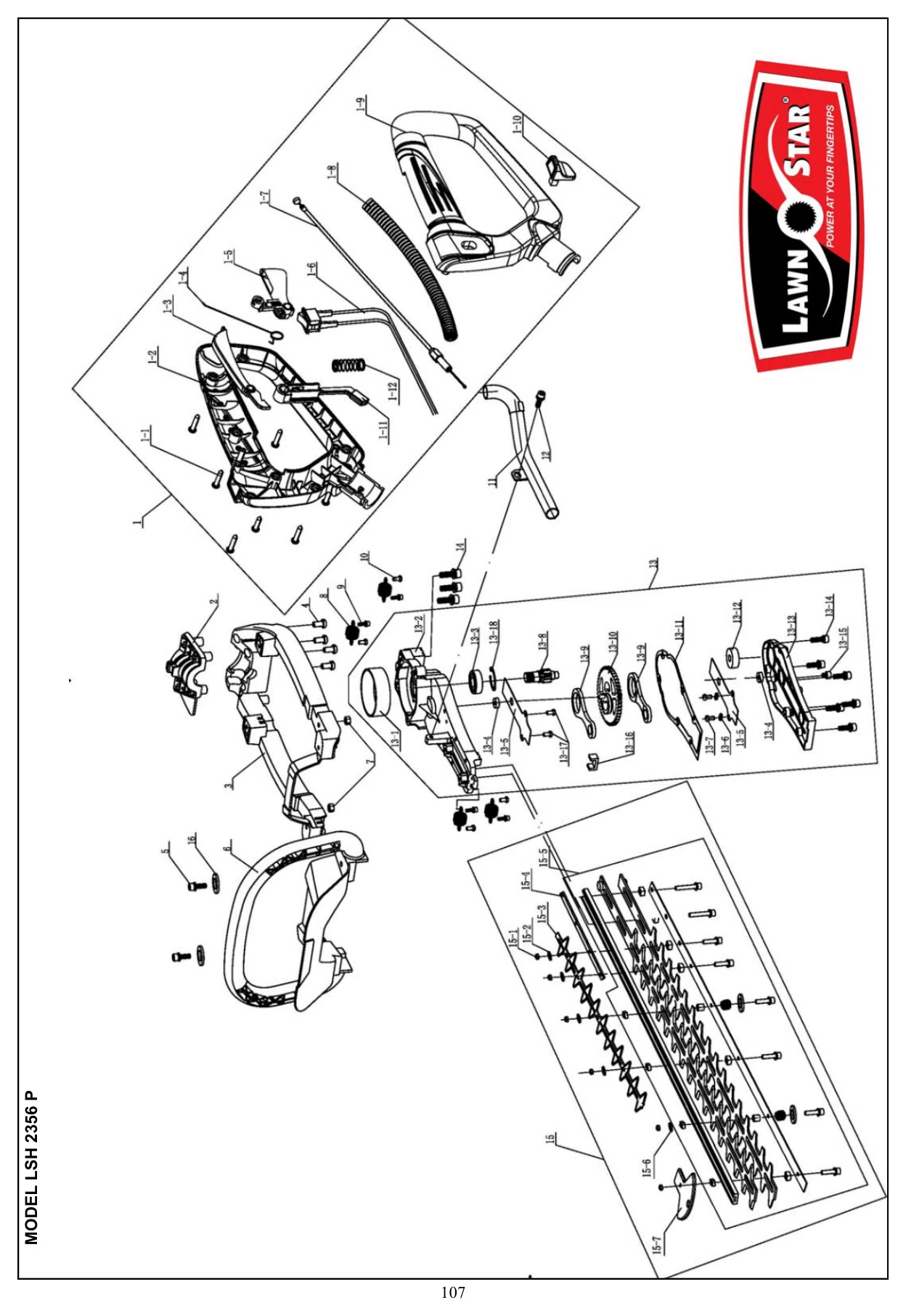

This IPL page has been prepared from the Lawn Star 2026 spare parts manual. Use the diagram reference numbers together with the parts table below.
Spare parts list
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | Rear handle and base assy | HA-235-66 | HA-235-66-Online | 1 |
| 2 | Fixing board for rear handle | H-235-67 | H-235-67-Online | 1 |
| 3 | Anti-vibraton base | H-235-68 | H-235-68-Online | 1 |
| 4 | ST4.8x16-H-F_ screw | 4 | ||
| 5 | M5x30 hex screw | 2 | ||
| 6 | Handle | H-235-71 | H-235-71-Online | 1 |
| 7 | M5 nut | 2 | ||
| 8 | Anti-vibration spring | H-235-73 | H-235-73-Online | 4 |
| 9 | M5x20_Screw | 4 | ||
| 10 | ST4.8x16-H-F_ screw | 4 | ||
| 11 | Exhaust pipe | HA-235-76 | HA-235-76-Online | 1 |
| 12 | M5x14 hex screw | 1 | ||
| 13 | Gear Case assy. | HA-235-78 | HA-235-78-Online | 1 |
| 13-1 | Clutch cover | Refer to 13 Resolves to: HA-235-78 | HA-235-78-Online | 1 |
| 13-2 | Gear Case | Refer to 13 Resolves to: HA-235-78 | HA-235-78-Online | 1 |
| 13-3 | Bearing 6001-2RS | Refer to 13 Resolves to: HA-235-78 | HA-235-78-Online | 1 |
| 13-4 | Bearing 6001-2RZ | Refer to 13 Resolves to: HA-235-78 | HA-235-78-Online | 2 |
| 13-5 | Gasket for gearcase assy. | Refer to 13 Resolves to: HA-235-78 | HA-235-78-Online | 2 |
| 13-6 | Spring washer 4 | Refer to 13 Resolves to: HA-235-78 | HA-235-78-Online | 2 |
| 13-7 | M4x8 cross head screw | Refer to 13 Resolves to: HA-235-78 | HA-235-78-Online | 2 |
| 13-8 | Small gearwheel | Refer to 13 Resolves to: HA-235-78 | HA-235-78-Online | 1 |
| 13-9 | Blade crankshaft | Refer to 13 Resolves to: HA-235-78 | HA-235-78-Online | 2 |
| 13-10 | Eccentric gearwheel | Refer to 13 Resolves to: HA-235-78 | HA-235-78-Online | 1 |
| 13-11 | Gear case gasket | Refer to 13 Resolves to: HA-235-78 | HA-235-78-Online | 1 |
| 13-12 | Bearing 6001-2RS | Refer to 13 Resolves to: HA-235-78 | HA-235-78-Online | 1 |
| 13-13 | Gear Case Cover | Refer to 13 Resolves to: HA-235-78 | HA-235-78-Online | 1 |
| 13-14 | M5x25 hex screw assy. | Refer to 13 Resolves to: HA-235-78 | HA-235-78-Online | 6 |
| 13-15 | M6X5 screw | Refer to 13 Resolves to: HA-235-78 | HA-235-78-Online | 1 |
| 13-16 | Wooden gasket | Refer to 13 Resolves to: HA-235-78 | HA-235-78-Online | 1 |
| 13-17 | M4x6 cross head screw | Refer to 13 Resolves to: HA-235-78 | HA-235-78-Online | 2 |
| 13-18 | retaining ring | Refer to 13 Resolves to: HA-235-78 | HA-235-78-Online | 1 |
| 14 | M6X30 screw | 3 | ||
| 15 | Hedge Trimmer balde assy | HA-235-98 | HA-235-98-Online | 1 |
| 16 | Flat whaser 5x12x2 | 2 |
