Lawn Star LSPS 4035 Petrol Chainsaw IPL

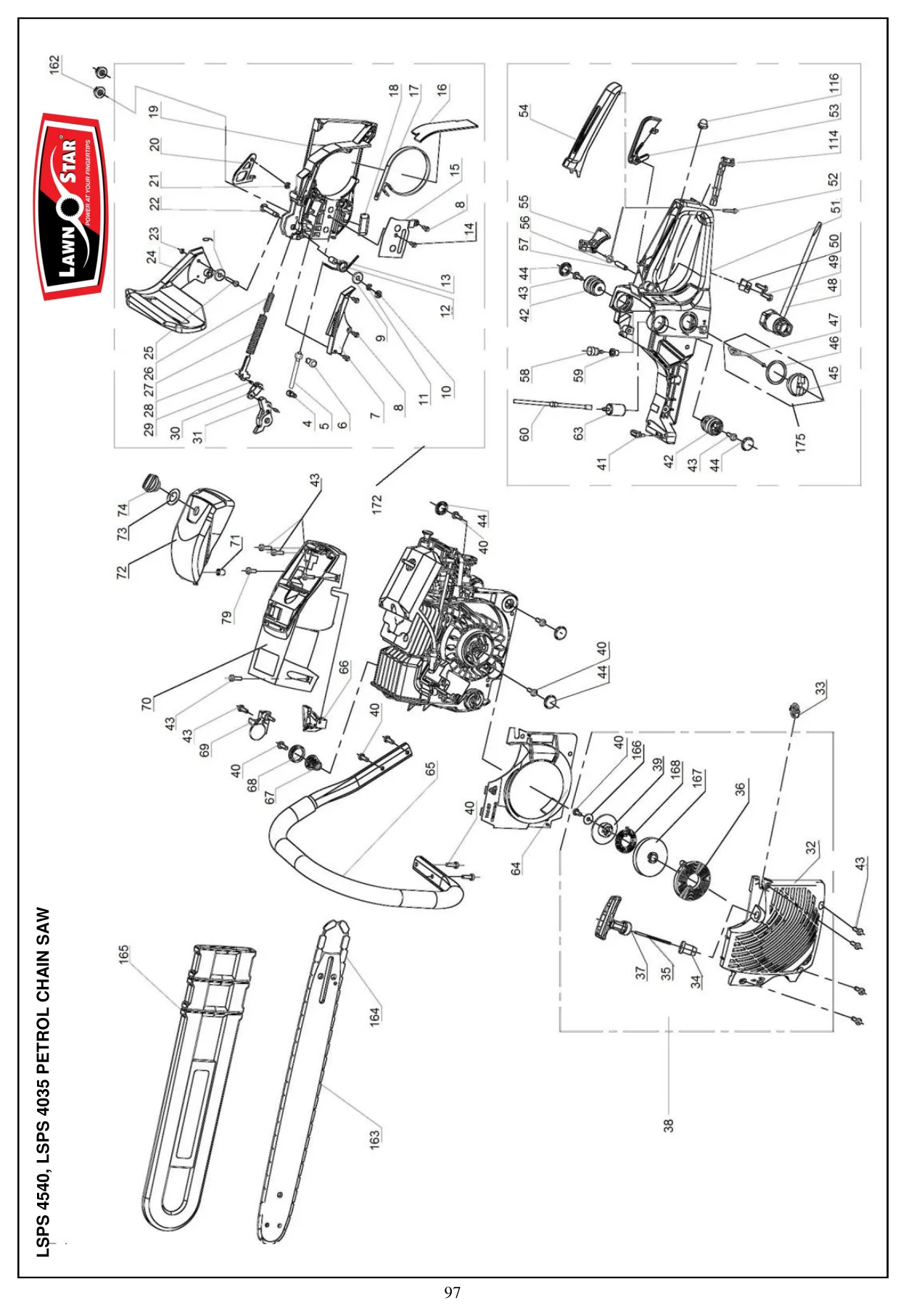

This IPL page has been prepared from the Lawn Star 2026 spare parts manual. Use the diagram reference numbers together with the parts table below.
Spare parts list
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 4 | Chain tensioner nut | refer to 172 Resolves to: CA-459-172 | CA-459-172-Online | 1 |
| 5 | Screw, chain tensioner | refer to 172 Resolves to: CA-459-172 | CA-459-172-Online | 1 |
| 6 | Chain tensioner gear | refer to 172 Resolves to: CA-459-172 | CA-459-172-Online | 1 |
| 7 | Cover, brake spring | refer to 172 Resolves to: CA-459-172 | CA-459-172-Online | 1 |
| 8 | Screw ST4.2*8-H-F | refer to 172 Resolves to: CA-459-172 | CA-459-172-Online | 5 |
| 9 | Washer 6 | 1 | ||
| 10 | Rubber washer shock absorber | refer to 172 Resolves to: CA-459-172 | CA-459-172-Online | 1 |
| 11 | Circlip 5mm | refer to 172 Resolves to: CA-459-172 | CA-459-172-Online | 1 |
| 12 | Torsion spring, chain brake | refer to 172 Resolves to: CA-459-172 | CA-459-172-Online | 1 |
| 13 | Sleeve guard | refer to 172 Resolves to: CA-459-172 | CA-459-172-Online | 1 |
| 14 | screw ST4.2*8-H-F | refer to 172 Resolves to: CA-459-172 | CA-459-172-Online | 1 |
| 15 | Cover Plate, tensioner | refer to 172 Resolves to: CA-459-172 | CA-459-172-Online | 1 |
| 16 | Dust shield | refer to 172 Resolves to: CA-459-172 | CA-459-172-Online | 1 |
| 17 | Brake coil | refer to 172 Resolves to: CA-459-172 | CA-459-172-Online | 1 |
| 18 | Guide, chain | refer to 172 Resolves to: CA-459-172 | CA-459-172-Online | 1 |
| 19 | Housing right | refer to 172 Resolves to: CA-459-172 | CA-459-172-Online | 1 |
| 20 | Plate, ratchet | refer to 172 Resolves to: CA-459-172 | CA-459-172-Online | 1 |
| 21 | Circlip 4mm | refer to 172 Resolves to: CA-459-172 | CA-459-172-Online | 1 |
| 22 | Pin, guard retaining | refer to 172 Resolves to: CA-459-172 | CA-459-172-Online | 1 |
| 23 | Circlip 3mm | refer to 172 Resolves to: CA-459-172 | CA-459-172-Online | 1 |
| 24 | Chain brake guard | refer to 172 Resolves to: CA-459-172 | CA-459-172-Online | 1 |
| 25 | Guard limit pin | refer to 172 Resolves to: CA-459-172 | CA-459-172-Online | 1 |
| 26 | Spring brake, short | refer to 172 Resolves to: CA-459-172 | CA-459-172-Online | 1 |
| 27 | Spring brake, long | refer to 172 Resolves to: CA-459-172 | CA-459-172-Online | 1 |
| 28 | Brake mechanism | refer to 172 Resolves to: CA-459-172 | CA-459-172-Online | 1 |
| 29 | Pin 3x9 | refer to 172 Resolves to: CA-459-172 | CA-459-172-Online | 1 |
| 30 | Lever chain brake | refer to 172 Resolves to: CA-459-172 | CA-459-172-Online | 1 |
| 31 | Locking lever, chain brake | refer to 172 Resolves to: CA-459-172 | CA-459-172-Online | 1 |
| 32 | cover, pull cord starter | refer to 38 Resolves to: CA-459-38 | CA-459-38-Online | 1 |
| 33 | Gland, LH adjustment | refer to 38 Resolves to: CA-459-38 | CA-459-38-Online | 1 |
| 34 | Guide, starter rope | refer to 38 Resolves to: CA-459-38 | CA-459-38-Online | 1 |
| 35 | Starter rope | refer to 38 Resolves to: CA-459-38 | CA-459-38-Online | 1 |
| 36 | Coil spring, starter | refer to 38 Resolves to: CA-459-38 | CA-459-38-Online | 1 |
| 37 | Handle, pull starter | refer to 38 Resolves to: CA-459-38 | CA-459-38-Online | 1 |
| 38 | Pull Starter Ass'y (32,33,34,35,36,37,39,40,166,167,1 68) | CA-459-38 | CA-459-38-Online | 1 |
| 39 | Pulley, starter | refer to 38 Resolves to: CA-459-38 | CA-459-38-Online | 1 |
| 40 | Screw ST4.8*16-H-F | refer to 38 Resolves to: CA-459-38 | CA-459-38-Online | 3 |
| 41 | Rubber shock oil tank | C-459-41 | C-459-41-Online | 1 |
| 42 | Anti-vibration damper | refer to 176 Resolves to: CA-459-176 | CA-459-176-Online | 3 |
| 43 | Screw M5*14 | 8 | ||
| 44 | Shock absorption dust shield | refer to 176 Resolves to: CA-459-176 | CA-459-176-Online | 3 |
| 45 | Cap, fuel tank | refer to 175 Resolves to: CA-459-175 | CA-459-175-Online | 1 |
| 46 | Washer, fuel cap | refer to 175 Resolves to: CA-459-175 | CA-459-175-Online | 1 |
| 47 | Retainer, cap | Refer to 174/5 | 2 | |
| 48 | Socket spanner | C-459-48 | C-459-48-Online | 1 |
| 49 | Screw ST2.9X5-H-C | 2 | ||
| 50 | Clip, socket spanner | C-459-50 | C-459-50-Online | 1 |
| 51 | Fuel tank | C-459-51 | C-459-51-Online | 1 |
| 52 | Screw ST4.8*15-H-F | 1 | ||
| 53 | Lever, throttle interlock | Refer to 179 Resolves to: CA-459-179 | CA-459-179-Online | 1 |
| 54 | Cover handle | Refer to 179 Resolves to: CA-459-179 | CA-459-179-Online | 1 |
| 55 | Trigger throttle | Refer to 179 Resolves to: CA-459-179 | CA-459-179-Online | 1 |
| 56 | Spring, torsion trigger | Refer to 179 Resolves to: CA-459-179 | CA-459-179-Online | 1 |
| 57 | Pin 6*25 | Refer to 179 Resolves to: CA-459-179 | CA-459-179-Online | 1 |
| 58 | Breather, fuel tank | C-459-58 | C-459-58-Online | 1 |
| 59 | Grommet, breather | C-459-59 | C-459-59-Online | 1 |
| 60 | Pipe, fuel | C-459-60 | C-459-60-Online | 1 |
| 63 | Filter, fuel | C-459-63 | C-459-63-Online | 1 |
| 64 | Cover, flywheel | C-459-64 | C-459-64-Online | 1 |
| 65 | Handle, front | C-459-65 | C-459-65-Online | 1 |
| 66 | Idle adjustment guide sleeve | C-459-66 | C-459-66-Online | 1 |
| 67 | Spring taper | C-459-67 | C-459-67-Online | 1 |
| 68 | Taper spring block | C-459-68 | C-459-68-Online | 1 |
| 69 | Chain catcher | C-459-69 | C-459-69-Online | 1 |
| 70 | Housing upper | C-459-70 | C-459-70-Online | 1 |
| 71 | Washer, rubber shock damper | C-459-71 | C-459-71-Online | 1 |
| 72 | Cover, air filter | C-459-72 | C-459-72-Online | 1 |
| 73 | Washer, seal filter knob | C-459-73 | C-459-73-Online | 1 |
| 74 | Knob, air filter | C-459-74 | C-459-74-Online | 1 |
| 114 | Switch | C-459-114 | C-459-114-Online | 1 |
| 116 | Primer bulb | C-459-116 | C-459-116-Online | 1 |
| 162 | Nut M8 | 2 | ||
| 163 | Bar chain 40cm LSPS 4540 | C-459-163 | C-459-163-Online | 1 |
| 164 | Chain 16" 3/8 57 link LSPS 4540(C-459- 164) | 80-27450 | 80-27450-Online | 1 |
| 163 | Bar chain 35cm LSPS 4035 | C-400-163 | C-400-163-Online | |
| 164 | Chain 14" 3/8 53 link LSPS 4035(C-400 -164) | 80-27403 | 80-27403-Online | |
| 165 | Guide cover 16" | C-459-165 | C-459-165-Online | 1 |
| 166 | Washer M5*16*1 | refer to 38 Resolves to: CA-459-38 | CA-459-38-Online | 1 |
| 167 | Starter wheel B | refer to 38 Resolves to: CA-459-38 | CA-459-38-Online | 1 |
| 168 | Coil spring, starter | refer to 38 Resolves to: CA-459-38 | CA-459-38-Online | 1 |
| 172 | Guide bar cover assembly (4,5,6,7,8,10,11,12,13,14,15,16,17,18,19 ,20,21,22,23,24,25,26,27,28,29,30,31) | CA-459-172 | CA-459-172-Online | 1 |
| 175 | Fuel cap assembly(45,46,47) | CA-459-175 | CA-459-175-Online | 1 |
| 176 | Damper kit(42, 44, 111) | CA-459-176 | CA-459-176-Online | 2 |
| 179 | Throttle lever assembly(53,54,55,56,57) | CA-459-179 | CA-459-179-Online | 1 |
