Lawn Star LS 196 H 196cc Horizontal Engine IPL

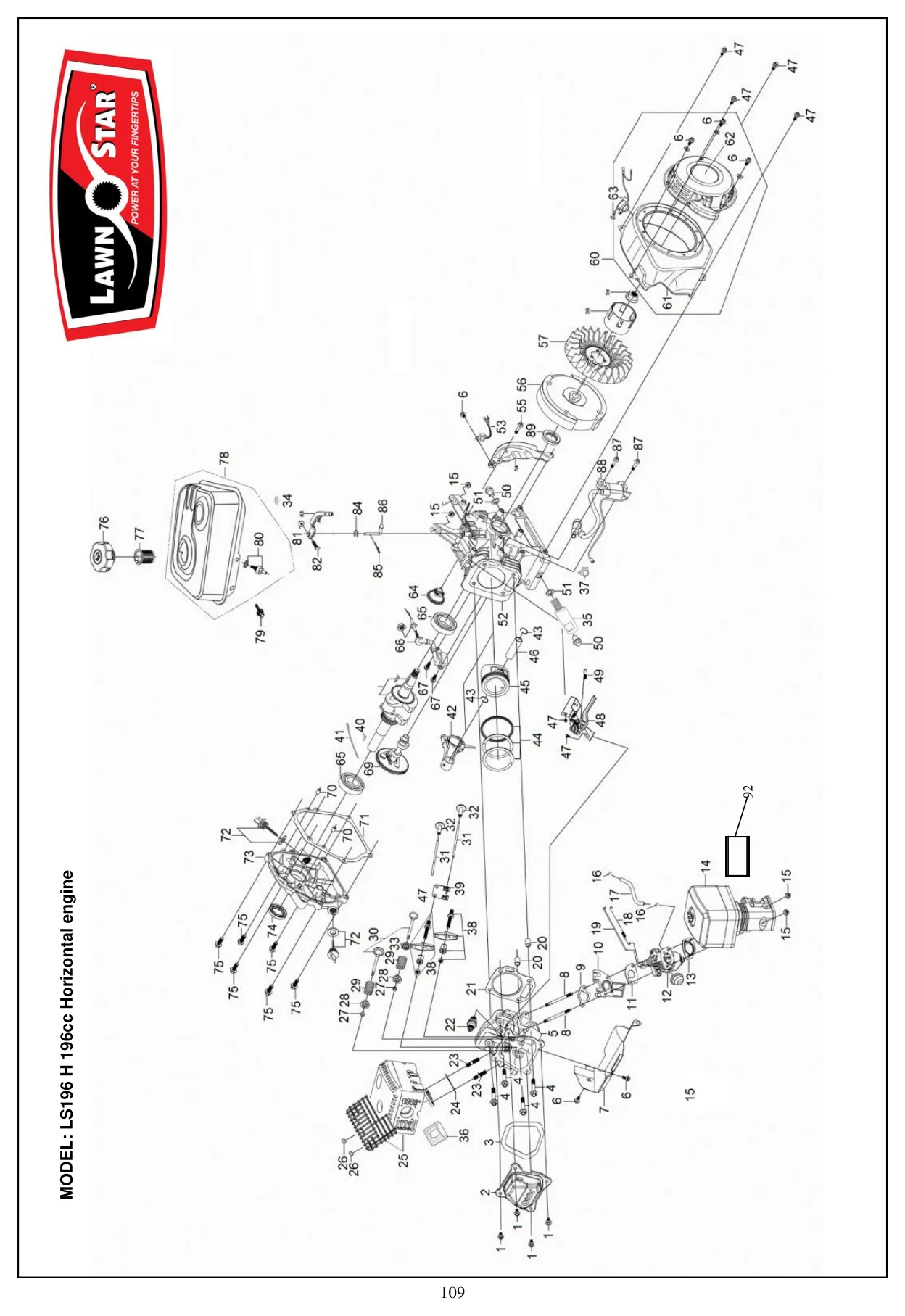

This IPL page has been prepared from the Lawn Star 2026 spare parts manual. Use the diagram reference numbers together with the parts table below.
Spare parts list
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | Hexagon bolt with flange | 6 | ||
| 2 | Cylinder head cover assy | M-601-98 | M-601-98-Online | 1 |
| 3 | Gasket for cylinder head cover | Ref to 90 Resolves to: MA 601-186 | MA-601-186-Online | 1 |
| 4 | Hexagon bolt with flange | 4 | ||
| 5 | Cylinder head | M-601-101 | M-601-101-Online | 1 |
| 6 | Hexagon bolt with flange | 6 | ||
| 7 | air deflector | M-601-103 | M-601-103-Online | 1 |
| 8 | Stud | 2 | ||
| 9 | Carburetor gasket | Ref to 90 Resolves to: MA 601-186 | MA-601-186-Online | 1 |
| 10 | Heat insulating pad for carburetor | M-601-106 | M-601-106-Online | 1 |
| 11 | Carburetor gasket | Ref to 90 Resolves to: MA 601-186 | MA-601-186-Online | 1 |
| 12 | Carburetor | M-601-108 | M-601-108-Online | 1 |
| 13 | Carburetor gasket | Ref to 90 Resolves to: MA 601-186 | MA-601-186-Online | 1 |
| 14 | Housing Air filter | M-601-110 | M-601-110-Online | 1 |
| 15 | Hexagon nut with flange | M-601-111 | M-601-111-Online | 5 |
| 16 | Pipe clip | 2 | ||
| 17 | Oil tube | M-601-113 | M-601-113-Online | 1 |
| 18 | throttle return spring | M-601-114 | M-601-114-Online | 1 |
| 19 | Throttle rod | M-601-115 | M-601-115-Online | 1 |
| 20 | Location pin | M-601-116 | M-601-116-Online | 2 |
| 21 | Gasket for cylinder head | Ref to 90 Resolves to: MA 601-186 | MA-601-186-Online | 1 |
| 22 | Spark plug | M-672-80 | M-672-80-Online | 1 |
| 23 | Stud | 2 | ||
| 24 | Outlet gasket | Ref to 90 Resolves to: MA 601-186 | MA-601-186-Online | 1 |
| 25 | Muffler | M-601-121 | M-601-121-Online | 1 |
| 26 | Hexagon nut | M-601-122 | M-601-122-Online | 2 |
| 27 | Valve adjustment cap | M-601-123 | M-601-123-Online | 2 |
| 28 | Retainer, valve spring | M-601-124 | M-601-124-Online | 2 |
| 29 | Inner spring of valve | M-601-125 | M-601-125-Online | 2 |
| 30 | Valve set | M-601-126 | M-601-126-Online | 1 |
| 31 | Push rod | M-601-127 | M-601-127-Online | 2 |
| 32 | Lifter, Valve | M-601-128 | M-601-128-Online | 2 |
| 33 | Valve oil seal | M-601-129 | M-601-129-Online | 1 |
| 34 | rubber flat gasket | Ref to 90 Resolves to: MA 601-186 | MA-601-186-Online | 2 |
| 35 | Extension bar for bleeding | M-601-131 | M-601-131-Online | 1 |
| 36 | Outlet pipe guard | M-601-132 | M-601-132-Online | 1 |
| 37 | Leaf valve limit plate | M-601-133 | M-601-133-Online | 1 |
| 38 | Valve rocker assembly | M-601-134 | M-601-134-Online | 2 |
| 39 | Plate, push rod guide | M-601-135 | M-601-135-Online | 1 |
| 40 | Key | M-601-136 | M-601-136-Online | 1 |
| 41 | Strap | M-601-137 | M-601-137-Online | 1 |
| 42 | Connecting rod | M-601-138 | M-601-138-Online | 1 |
| 43 | Circlip gudgeon pin | M-601-139 | M-601-139-Online | 2 |
| 44 | Piston ring set | M-601-140 | M-601-140-Online | 1 |
| 45 | Piston | M-601-141 | M-601-141-Online | 1 |
| 46 | Gudgeon pin | M-601-142 | M-601-142-Online | 1 |
| 47 | Hexagon bolt with flange | 7 | ||
| 48 | Throttle handle combination | M-601-144 | M-601-144-Online | 1 |
| 49 | Governing spring | M-601-145 | M-601-145-Online | 1 |
| 50 | Sealing plug screw | M-601-146 | M-601-146-Online | 2 |
| 51 | Flat washer | M-601-147 | M-601-147-Online | 3 |
| 52 | Crankcase body | M-601-148 | M-601-148-Online | 1 |
| 53 | Engine oil protector | M-601-149 | M-601-149-Online | 1 |
| 54 | Side plate | M-601-150 | M-601-150-Online | 1 |
| 55 | Hexagon bolt with flange | 1 | ||
| 56 | FLYWHEEL COMP | M-601-152 | M-601-152-Online | 1 |
| 57 | Impeller | M-601-153 | M-601-153-Online | 1 |
| 58 | Starting disc | M-601-154 | M-601-154-Online | 1 |
| 59 | Hexagon nut with flange | 1 | ||
| 60 | Manual starting assembly | M-601-156 | M-601-156-Online | 1 |
| 61 | Fan cover comp. | M-601-157 | M-601-157-Online | 1 |
| 62 | Manual starting components | M-601-158 | M-601-158-Online | 1 |
| 63 | Stop switch | M-601-159 | M-601-159-Online | 1 |
| 64 | Components of governor gear | M-601-160 | M-601-160-Online | 1 |
| 65 | Bearing | M-601-161 | M-601-161-Online | 2 |
| 66 | Oil level sensor | M-601-162 | M-601-162-Online | 1 |
| 67 | Hexagon bolt with flange | 2 | ||
| 68 | crankshaft | M-601-164 | M-601-164-Online | 1 |
| 69 | Camshaft assy | M-601-165 | M-601-165-Online | 1 |
| 70 | Location pin | 2 | ||
| 71 | Crankcase cover gasket | Ref to 90 Resolves to: MA 601-186 | MA-601-186-Online | 1 |
| 72 | Oil rule combination | M-601-168 | M-601-168-Online | 2 |
| 73 | Crankcase cover | M-601-169 | M-601-169-Online | 1 |
| 74 | Oil seal | Ref to 91 Resolves to: MA-601-187 | MA-601-187-Online | 1 |
| 75 | Hexagon bolt with flange | 6 | ||
| 76 | Tank cover | M-601-172 | M-601-172-Online | 1 |
| 77 | Pouring orifice filter screen combination | M-601-173 | M-601-173-Online | 1 |
| 78 | Tank | M-601-174 | M-601-174-Online | 1 |
| 79 | Hexagon bolt with flange | 1 | ||
| 80 | Tank oilout | M-601-176 | M-601-176-Online | 1 |
| 81 | Hexagon nut with flange | 1 | ||
| 82 | Square head set screw with flat point | 1 | ||
| 83 | Speed regulating bracket | M-601-179 | M-601-179-Online | 1 |
| 84 | Flat washer | 1 | ||
| 85 | Pin clip | 1 | ||
| 86 | Speed regulating arm | M-601-182 | M-601-182-Online | 1 |
| 87 | Hexagon bolt with flange | 2 | ||
| 88 | COIL ASSY.,IGNNTION | M-601-184 | M-601-184-Online | 1 |
| 89 | Oil seal | Ref to 91 Resolves to: MA-601-187 | MA-601-187-Online | 1 |
| 90 | Gasket kit complete (3,21,9,11,13,24,34,71) | MA 601-186 | MA-601-186-Online | |
| 91 | Oil seal kit complete(74,89) | MA-601-187 | MA-601-187-Online | |
| 92 | Air filter element | M-601-188 | M-601-188-Online |
