Husqvarna 323 L, 20051800001-20061400000 IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.

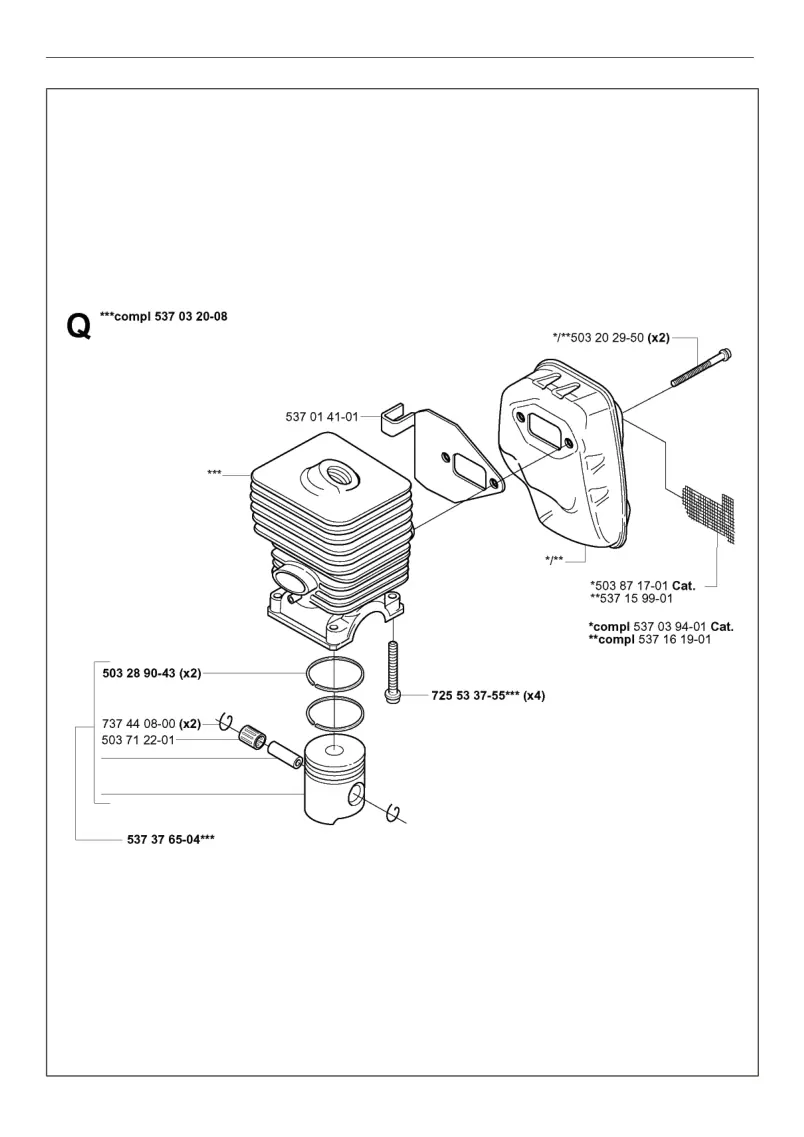

Diagram 1
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| CYLINDER 1 | 537032008 | 537032008-Online | ||
| PISTON RING 2 | 503289043 | 503289043-Online | ||
| CIRCLIP 2 | 737440800 | 737440800-Online | ||
| BEARING 1 | 503712201 | 503712201-Online | ||
| PISTON 1 | 537376504 | 537376504-Online | ||
| SCREW IHSCM 4 | 725533755 | 725533755-Online | ||
| GASKET 1 | 537014101 | 537014101-Online | ||
| MUFFLER ASSY 1 | 537161901 | 537161901-Online | ||
| MUFFLER ASSY CAT. 1 | 537039401 | 537039401-Online | ||
| SPARK ARRESTER SCREEN 1 | 537159901 | 537159901-Online | ||
| SPARK ARRESTER SCREEN CAT. 1 | 503871701 | 503871701-Online | ||
| SCREW IHSCFM 2 | 503202950 | 503202950-Online |
Diagram 2
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| FILTER HOLDER 1 | 503890301 | 503890301-Online | ||
| HUB CAP 1 | 503887901 | 503887901-Online | ||
| SCREW IHSCFT 2 | 503217550 | 503217550-Online | ||
| HEXAGON NUT 1 | 731231401 | 731231401-Online | ||
| SCREW EHHM 1 | 502206503 | 502206503-Online | ||
| KNOB 1 | 502204001 | 502204001-Online | ||
| FILTER COVER 1 | 503888001 | 503888001-Online | ||
| AIR FILTER 1 | 537186301 | 537186301-Online | ||
| SCREW IHSCFT 1 | 503217516 | 503217516-Online | ||
| CHOKE CONTROL 1 | 503962501 | 503962501-Online | ||
| CARBURETTOR ZAMA C1Q-EL24 1 | 503283401 | 503283401-Online | ||
| GASKET 1 | 503497101 | 503497101-Online | ||
| INSULATION WALL 1 | 503910901 | 503910901-Online | ||
| SCREW IHSCFM 2 | 503200325 | 503200325-Online | ||
| SQUARE NUT 2 | 503226504 | 503226504-Online | ||
| INLET PIPE 1 | 503942601 | 503942601-Online |
Diagram 3
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| BEARING HOUSING 1 | 537076501 | 537076501-Online | ||
| SCREW 1 | 725237051 | 725237051-Online | ||
| BEARING HOUSING 1 | 537076201 | 537076201-Online | ||
| SCREW IHSCFM 1 | 503200730 | 503200730-Online | ||
| BLADE SHAFT 1 | 537076401 | 537076401-Online | ||
| BALL BEARING 2 | 503250501 | 503250501-Online | ||
| CIRCLIP 1 | 735312701 | 735312701-Online | ||
| WASHER 1 | 537114601 | 537114601-Online | ||
| NUT 1 | 537114701 | 537114701-Online | ||
| DRIVER 1 | 537076301 | 537076301-Online | ||
| LABEL 1 | 537294802 | 537294802-Online | ||
| LABEL 1 | 503795601 | 503795601-Online | ||
| CLUTCH DRUM ASSY 1 | 537237501 | 537237501-Online | ||
| CIRCLIP 1 | 735311200 | 735311200-Online | ||
| DRIVE SHAFT 1 | 537351501 | 537351501-Online | ||
| TUBE 1 | 537077401 | 537077401-Online | ||
| HANDLE 1 | 537076802 | 537076802-Online | ||
| ATTACHMENT PLATE 1 | 537042501 | 537042501-Online | ||
| NUT 1 | 503222601 | 503222601-Online | ||
| SCREW 1 | 503219835 | 503219835-Online |
Diagram 4
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| FUEL TANK 1 | 537068602 | 537068602-Online | ||
| PURGE 1 | 503936601 | 503936601-Online | ||
| FUEL HOSE 2 | 537042401 | 537042401-Online | ||
| BUSHING 2 | 503735801 | 503735801-Online | ||
| FUEL FILTER 1 | 503443201 | 503443201-Online | ||
| SUSPENSION 4 | 503911001 | 503911001-Online | ||
| FUEL HOSE 1 | 503577601 | 503577601-Online | ||
| O-RING 1 | 537184901 | 537184901-Online | ||
| TANK CAP 1 | 503911802 | 503911802-Online |
Diagram 5
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| CARBURETTOR ZAMA C1Q-EL24 1 | 503283401 | 503283401-Online | ||
| SHAFT ASSY 1 | 537020901 | 537020901-Online | ||
| VALVE 1 | 537370301 | 537370301-Online | ||
| SCREW 1 | 503481801 | 503481801-Online | ||
| SCREW 1 | 503479601 | 503479601-Online | ||
| COVER 1 | 537020201 | 537020201-Online | ||
| GASKET 1 | 537020101 | 537020101-Online | ||
| DIAPHRAGM PUMP 1 | 537020001 | 537020001-Online | ||
| STRAINER 531 00 45-53 REPAIRKIT 1 | 503535701 | 503535701-Online | ||
| BALL 1 | 537012501 | 537012501-Online | ||
| SPRING 1 | 537012601 | 537012601-Online | ||
| COLLAR 1 | 503478901 | 503478901-Online | ||
| LEVER 1 | 537019801 | 537019801-Online | ||
| SCREW 1 | 503479001 | 503479001-Online | ||
| SPRING 1 | 537021001 | 537021001-Online | ||
| LEVER 1 | 537049001 | 537049001-Online | ||
| COLLAR 1 | 503481901 | 503481901-Online | ||
| SCREW 1 | 503755301 | 503755301-Online | ||
| SPRING 1 | 537019701 | 537019701-Online | ||
| VALVE 1 | 537019901 | 537019901-Online | ||
| SHAFT ASSY 1 | 537019601 | 537019601-Online | ||
| PIECE 1 | 503481101 | 503481101-Online | ||
| SCREW 1 | 537020701 | 537020701-Online | ||
| SCREW 1 | 503479201 | 503479201-Online | ||
| SCREW 1 | 537020601 | 537020601-Online | ||
| WASHER 1 | 503974001 | 503974001-Online | ||
| LIMITER CAP 1 | 537021601 | 537021601-Online | ||
| SCREW 1 | 537127801 | 537127801-Online | ||
| SPRING 1 | 503480801 | 503480801-Online | ||
| PLUG 531 00 45-53 REPAIRKIT 1 | 537020801 | 537020801-Online | ||
| VALVE 531 00 45-53 REPAIRKIT 1 | 503479701 | 503479701-Online | ||
| SPRING 531 00 45-53 REPAIRKIT 1 | 537020301 | 537020301-Online | ||
| LEVER 531 00 45-53 REPAIRKIT 1 | 503665901 | 503665901-Online | ||
| PIN RETAINING SCREW 531 00 45-53 REPAIRKIT 1 | 503480001 | 503480001-Online | ||
| SCREW 1 | 503480101 | 503480101-Online | ||
| GASKET 1 | 537020401 | 537020401-Online | ||
| DIAPHRAGM 1 | 537048901 | 537048901-Online | ||
| COVER 1 | 503974301 | 503974301-Online | ||
| SCREW 2 | 503480501 | 503480501-Online |
Diagram 6
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| SAW BLADE GUARD 323R 325RX 325RDX 1 | 537299501 | 537299501-Online | ||
| SCREW IHSCFT 4 | 503217516 | 503217516-Online | ||
| COMBINATION GUARD 1 | 503934202 | 503934202-Online | ||
| BLADE 1 | 503798801 | 503798801-Online | ||
| SAW BLADE GUARD 1 | 502272201 | 502272201-Online | ||
| ADAPTER 1 | 537293401 | 537293401-Online | ||
| CLAMP 1 | 537047501 | 537047501-Online | ||
| SCREW EHHM 2 | 725236871 | 725236871-Online | ||
| TRIMMER GUARD 323C 1 | 537189601 | 537189601-Online | ||
| TRIMMER GUARD 325CX 1 | 537076701 | 537076701-Online | ||
| SCREW IHSCT 1 | 503210716 | 503210716-Online | ||
| TRIMMER GUARD ASSY 323L 323LD 325LX 325LDX 1 | 503977101 | 503977101-Online | ||
| LINE 1 | 530052286 | 530052286-Online |
Diagram 7
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| IGNITION MODULE 1 | 537418701 | 537418701-Online | ||
| COVER 325X SERIES 1 | 537045801 | 537045801-Online | ||
| SCREW 1 | 503842902 | 503842902-Online | ||
| CLUTCH SPRING 1 | 503816001 | 503816001-Online | ||
| CLUTCH SHOE 2 | 503842801 | 503842801-Online | ||
| CLUTCH ASSY 1 | 537032201 | 537032201-Online | ||
| FLYWHEEL 1 | 537249602 | 537249602-Online | ||
| HEXAGON NUT FLANGE 1 | 731711651 | 731711651-Online | ||
| WASHER 1 | 537046701 | 537046701-Online | ||
| SPARK PLUG CAP 1 | 537239601 | 537239601-Online | ||
| SCREW IHSCT 2 | 503217116 | 503217116-Online | ||
| WASHER 1 | 537046801 | 537046801-Online | ||
| SPARK PLUG NGK BPMR 7A 1 | 503235111 | 503235111-Online | ||
| SPARK PLUG CHAMPION RCJ 7Y 1 | 503235108 | 503235108-Online |
Diagram 8
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| LABEL 323C 1 | 537353313 | 537353313-Online | ||
| LABEL 323L 1 | 537353314 | 537353314-Online | ||
| LABEL 323R 1 | 537353316 | 537353316-Online | ||
| LABEL 323RJ 1 | 537353317 | 537353317-Online | ||
| LABEL 323LD 1 | 537353315 | 537353315-Online | ||
| LABEL 325CX 1 | 537353320 | 537353320-Online | ||
| LABEL 325RX 1 | 537353324 | 537353324-Online | ||
| LABEL 325LX 1 | 537353322 | 537353322-Online | ||
| LABEL 325LDX 1 | 537353323 | 537353323-Online | ||
| LABEL 325RDX 1 | 537353325 | 537353325-Online | ||
| LABEL 325RJX 1 | 537353326 | 537353326-Online | ||
| CYLINDER COVER 1 | 503871802 | 503871802-Online | ||
| COVER 1 | 503972101 | 503972101-Online | ||
| SCREW 2 | 503961301 | 503961301-Online | ||
| SCREW IHSCFT 1 | 503217520 | 503217520-Online | ||
| HEAT PROTECTOR 1 | 537320801 | 537320801-Online | ||
| ARM PROTECTION 1 | 537104401 | 537104401-Online | ||
| SCREW CCRPANT 2 | 503213512 | 503213512-Online |
Diagram 9
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| CRANKSHAFT ASSY 1 | 503852475 | 503852475-Online | ||
| BEARING CAGE 1 | 503940203 | 503940203-Online | ||
| BEARING 1 | 503712201 | 503712201-Online |
Diagram 10
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| FILTER OIL 1 | 531009248 | 531009248-Online | ||
| HARNESS 1 | 537216301 | 537216301-Online | ||
| HARNESS USA 1 | 537216302 | 537216302-Online | ||
| FRONT PIECE 1 | 503734001 | 503734001-Online | ||
| BUCKLE 1 | 503734102 | 503734102-Online | ||
| WELT HOOK 1 | 502022802 | 502022802-Online | ||
| GREASE 1 | 503976401 | 503976401-Online | ||
| SCREWDRIVER 1 | 501600203 | 501600203-Online | ||
| STOP 1 | 502285901 | 502285901-Online | ||
| HARNESS USA 1 | 537216202 | 537216202-Online | ||
| HARNESS 1 | 537216201 | 537216201-Online | ||
| SCREW 1 | 503218316 | 503218316-Online | ||
| SUSPENSION BAIL 1 | 501783301 | 501783301-Online | ||
| TRANSPORT GUARD 200-275 MM 1 | 537312901 | 537312901-Online | ||
| GREASE 323C, 325CX 1 | 503801701 | 503801701-Online | ||
| WRENCH 1 | 502215801 | 502215801-Online | ||
| SOCKET WRENCH 1 | 502114602 | 502114602-Online |
Diagram 11
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| BEVEL GEAR ASSY 1 | 537199202 | 537199202-Online | ||
| BALL BEARING 1 | 503252401 | 503252401-Online | ||
| CIRCLIP 1 | 735312810 | 735312810-Online | ||
| NUT 1 | 503856301 | 503856301-Online | ||
| SUPPORT FLANGE 1 | 537285601 | 537285601-Online | ||
| CUP 1 | 537292601 | 537292601-Online | ||
| DRIVER ASSY 1 | 537234901 | 537234901-Online | ||
| BALL BEARING 1 | 738219800 | 738219800-Online | ||
| CLAMP.GUARD 1 | 503935501 | 503935501-Online | ||
| CIRCLIP 1 | 735312510 | 735312510-Online | ||
| CIRCLIP 1 | 735311100 | 735311100-Online | ||
| BALL BEARING 1 | 738219902 | 738219902-Online | ||
| BALL BEARING 1 | 738219900 | 738219900-Online | ||
| SCREW IHSCFM 1 | 503200712 | 503200712-Online | ||
| SCREW IHSCFM 1 | 503200725 | 503200725-Online | ||
| SCREW 1 | 725237051 | 725237051-Online | ||
| SCREW IHSCFMO 1 | 503201412 | 503201412-Online | ||
| SCREW 1 | 503201501 | 503201501-Online |
Diagram 12
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| HARNESS 1 | 537275701 | 537275701-Online | ||
| HARNESS USA 1 | 537275703 | 537275703-Online | ||
| BAND 1 | 503996101 | 503996101-Online | ||
| HIP PAD 1 | 537275901 | 537275901-Online | ||
| HIP PAD 3 | 537175401 | 537175401-Online | ||
| BUCKLE 1 | 537288401 | 537288401-Online | ||
| BUCKLE 1 | 537288301 | 537288301-Online | ||
| BAND 1 | 503996103 | 503996103-Online | ||
| RETAINER 1 | 537113501 | 537113501-Online | ||
| E-CLIP 1 | 735310920 | 735310920-Online | ||
| HOOK 1 | 502022902 | 502022902-Online | ||
| SPRING 1 | 502023801 | 502023801-Online | ||
| LOCK 1 | 502023002 | 502023002-Online | ||
| HOOK 1 | 502022801 | 502022801-Online |
Diagram 13
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| CRANKCASE 1 | 537041102 | 537041102-Online | ||
| CLUTCH COVER 1 | 537041203 | 537041203-Online | ||
| SLEEVE 1 | 537309601 | 537309601-Online | ||
| CLUTCH DRUM ASSY 323LD, 323LDX, 323RDX 1 | 503872601 | 503872601-Online | ||
| SCREW IHSCFT 2 | 503216825 | 503216825-Online | ||
| SCREW IHSCFT 1 | 503216820 | 503216820-Online | ||
| SPRING 1 | 537073601 | 537073601-Online | ||
| SCREW IHSCT 1 | 503216618 | 503216618-Online | ||
| SCREW IHSCFT 4 | 503217520 | 503217520-Online | ||
| CLUTCH DRUM ASSY 1 | 537237501 | 537237501-Online |
Diagram 14
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| HANDLE 1 | 537443802 | 537443802-Online | ||
| THROTTLE LEVER 1 | 503918101 | 503918101-Online | ||
| THROTTLE TRIGGER 1 | 503877901 | 503877901-Online | ||
| HANDLE HALF 323C,L,LD,RJ 1 | 503995601 | 503995601-Online | ||
| HANDLE HALF 325CX,LX,LDX,RJX 1 | 503995602 | 503995602-Online | ||
| O-RING 1 | 740420600 | 740420600-Online | ||
| HANDLE HALF 325CX,LX,LDX,RJX 1 | 503995502 | 503995502-Online | ||
| HANDLE HALF 323C,L,LD,RJ 1 | 503995501 | 503995501-Online | ||
| THROTTLE LOCKOUT 1 | 503878001 | 503878001-Online | ||
| RECOIL SPRING 1 | 537011301 | 537011301-Online | ||
| ABSORBER 323L,LD,RJ/325LX,LDX,RJX 1 | 503961401 | 503961401-Online | ||
| ANTIVIBRATION ELEMENT 323C/325CX 1 | 537073902 | 537073902-Online | ||
| THROTTLE CABLE ASSY 1 | 503878602 | 503878602-Online | ||
| SHORT CIRCUIT CABLE 1 | 537414201 | 537414201-Online | ||
| SCREW 1 | 503961301 | 503961301-Online | ||
| SCREW IHSCT 2 | 503216618 | 503216618-Online | ||
| SWITCH 1 | 537419001 | 537419001-Online |
Diagram 15
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| TUBE 1 | 537079901 | 537079901-Online | ||
| TUBE 1 | 503888801 | 503888801-Online | ||
| TUBE 1 | 537082701 | 537082701-Online | ||
| LABEL 1 | 537294801 | 537294801-Online | ||
| LOCKWASHER 1 | 735580810 | 735580810-Online | ||
| LABEL RJ/RJX 1 | 537101001 | 537101001-Online | ||
| SUPPORTING BEARING 1 | 503785201 | 503785201-Online | ||
| LABEL L/LX 1 | 503795601 | 503795601-Online | ||
| BEARING CAGE 1 | 503985401 | 503985401-Online | ||
| DRIVE SHAFT 1 | 537234801 | 537234801-Online | ||
| HANDLE RJ/RJX 1 | 503997801 | 503997801-Online | ||
| SQUARE NUT 1 | 502197101 | 502197101-Online | ||
| DRIVE SHAFT 1 | 537083001 | 537083001-Online | ||
| CLUTCH DRUM ASSY 1 | 537237501 | 537237501-Online | ||
| DRIVE SHAFT 1 | 537011901 | 537011901-Online | ||
| CIRCLIP 1 | 735311200 | 735311200-Online | ||
| TUBE 1 | 537011601 | 537011601-Online | ||
| SCREW IHSCT RJ/RJX 3 | 503216816 | 503216816-Online | ||
| SCREW IHSCFM 1 | 503200210 | 503200210-Online | ||
| HEXAGON NUT RJ/RJX 1 | 731231401 | 731231401-Online | ||
| LOCKING PLATE 1 | 503715401 | 503715401-Online | ||
| HOOK RJ/RJX 1 | 503941001 | 503941001-Online | ||
| SLEEVE 1 | 503708004 | 503708004-Online | ||
| SCREW IHSCFM RJ/RJX 1 | 503200716 | 503200716-Online | ||
| KNOB 1 | 502203801 | 502203801-Online | ||
| DISTANCE 1 | 503940301 | 503940301-Online | ||
| SCREW EHHM 1 | 725237951 | 725237951-Online | ||
| HANDLE 325LX 1 | 503871903 | 503871903-Online | ||
| SCREW IHSCFM 2 | 503200725 | 503200725-Online | ||
| HANDLE LOOP 323L 1 | 503871901 | 503871901-Online | ||
| CLUTCH DRUM ASSY 1 | 503872601 | 503872601-Online | ||
| WASHER 323L 1 | 503230061 | 503230061-Online | ||
| KNOB 323LX 1 | 503879001 | 503879001-Online | ||
| SCREW EHHM 325LX 1 | 725238051 | 725238051-Online | ||
| SCREW EHHM 323L 1 | 725237851 | 725237851-Online |
Diagram 16
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| KIT | 03 | 503 72 10- | 5037210-Online | 503721003 |
| HANDLE | 503 21 07- | 1 | 1-Online | 45 |
| SCREW IHSCT | 503 88 88- | 1 | 1-Online | 01 |
| TUBE | 537 23 48- | 1 | 1-Online | 01 |
| DRIVE SHAFT | 537 02 76- | 1 | 1-Online | 01 |
| LABEL | 503 21 75- | 1 | 1-Online | 25 |
| SCREW IHSCFT | 537 23 75- | 2 | 2-Online | 01 |
| 1 | 00 | 735 31 12- | 7353112-Online | 735311200 |
| CIRCLIP | 503 80 45- | 1 | 1-Online | 01 |
| BRACKET | 503 20 02- | 1 | 1-Online | 45 |
| SCREW IHSCFM | 537 17 29- | 1 | 1-Online | 01 |
| COVER | 537 17 28- | 1 | 1-Online | 01 |
| HANDLE | 503 72 43- | 1 | 1-Online | 09 |
| HANDLEBAR | 503 72 43- | 1 | 1-Online | 03 |
| 1 | 51 | 725 23 86- | 7252386-Online | 725238651 |
| SCREW EHHM | 502 20 38- | 1 | 1-Online | 01 |
| KNOB | 503 72 29- | 1 | 1-Online | 01 |
| COVER | 503 75 00- | 1 | 1-Online | 01 |
| 1 | 16 | 503 21 68- | 5032168-Online | 503216816 |
| SCREW IHSCT | 503 96 31- | 4 | 4-Online | 01 |
| BRACKET | 502 19 71- | 1 | 1-Online | 01 |
| SQUARE NUT | 731 23 14- | 1 | 1-Online | 01 |
| HEXAGON NUT | 503 94 10- | 1 | 1-Online | 01 |
| HOOK | 503 20 07- | 1 | 1-Online | 16 |
| SCREW IHSCFM | 503 88 23- | 1 | 1-Online | 01 |
| BRACKET | 502 19 95- | 1 | 1-Online | 03 |
| HANDLEBAR | 502 21 12- | 1 | 1-Online | 01 |
Diagram 17
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| SHAFT 1 | 530053800 | 530053800-Online | ||
| HEXAGON NUT 1 | 731231601 | 731231601-Online | ||
| DRIVER 1 | 530094543 | 530094543-Online | ||
| LABEL 1 | 537294802 | 537294802-Online | ||
| LABEL 1 | 503795601 | 503795601-Online | ||
| DRIVE SHAFT 1 | 537214501 | 537214501-Online | ||
| SCREW 1 | 503219825 | 503219825-Online | ||
| HANDLE 1 | 537076803 | 537076803-Online | ||
| BRACKET 1 | 530038599 | 530038599-Online | ||
| NUT 1 | 503222601 | 503222601-Online | ||
| CIRCLIP 1 | 735311200 | 735311200-Online | ||
| CLUTCH DRUM ASSY 1 | 537237501 | 537237501-Online | ||
| SPACING TUBE 1 | 537073701 | 537073701-Online | ||
| SCREW 1 | 503219835 | 503219835-Online |
Diagram 18
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| STARTER 1 | 537412101 | 537412101-Online | ||
| BRIDGE 1 | 503873302 | 503873302-Online | ||
| E-CLIP 1 | 735310820 | 735310820-Online | ||
| HEXAGON NUT FLANGE 1 | 731711651 | 731711651-Online | ||
| SPRING 1 | 503873601 | 503873601-Online | ||
| STARTER PAWL 1 | 503873502 | 503873502-Online | ||
| SCREW IHSCT 1 | 503217716 | 503217716-Online | ||
| STARTER PULLEY 1 | 537411701 | 537411701-Online | ||
| TORSION SPRING 1 | 537411501 | 537411501-Online | ||
| STARTER PULLEY ASSY 1 | 537420001 | 537420001-Online | ||
| STARTER HOUSING 1 | 537411601 | 537411601-Online | ||
| STARTER PULLEY 1 | 537411801 | 537411801-Online | ||
| SPACING SLEEVE 2 | 537379301 | 537379301-Online | ||
| RECOIL SPRING 1 | 503859001 | 503859001-Online | ||
| SCREW IHSCFT 1 | 503217520 | 503217520-Online | ||
| LABEL 325RJX 1 | 537353418 | 537353418-Online | ||
| LABEL 325RDX 1 | 537353417 | 537353417-Online | ||
| LABEL 325LDX 1 | 537353413 | 537353413-Online | ||
| LABEL 325LX 1 | 537353412 | 537353412-Online | ||
| LABEL 325RX 1 | 537353416 | 537353416-Online | ||
| LABEL 325CX 1 | 537353414 | 537353414-Online | ||
| LABEL 323RJ 1 | 537353408 | 537353408-Online | ||
| LABEL 323R 1 | 537353407 | 537353407-Online | ||
| LABEL 323LD 1 | 537353405 | 537353405-Online | ||
| LABEL 323L 1 | 537353404 | 537353404-Online | ||
| LABEL 323C 1 | 537353406 | 537353406-Online | ||
| STARTER HANDLE 1 | 537008401 | 537008401-Online | ||
| STARTER ROPE 1 | 503858901 | 503858901-Online |
