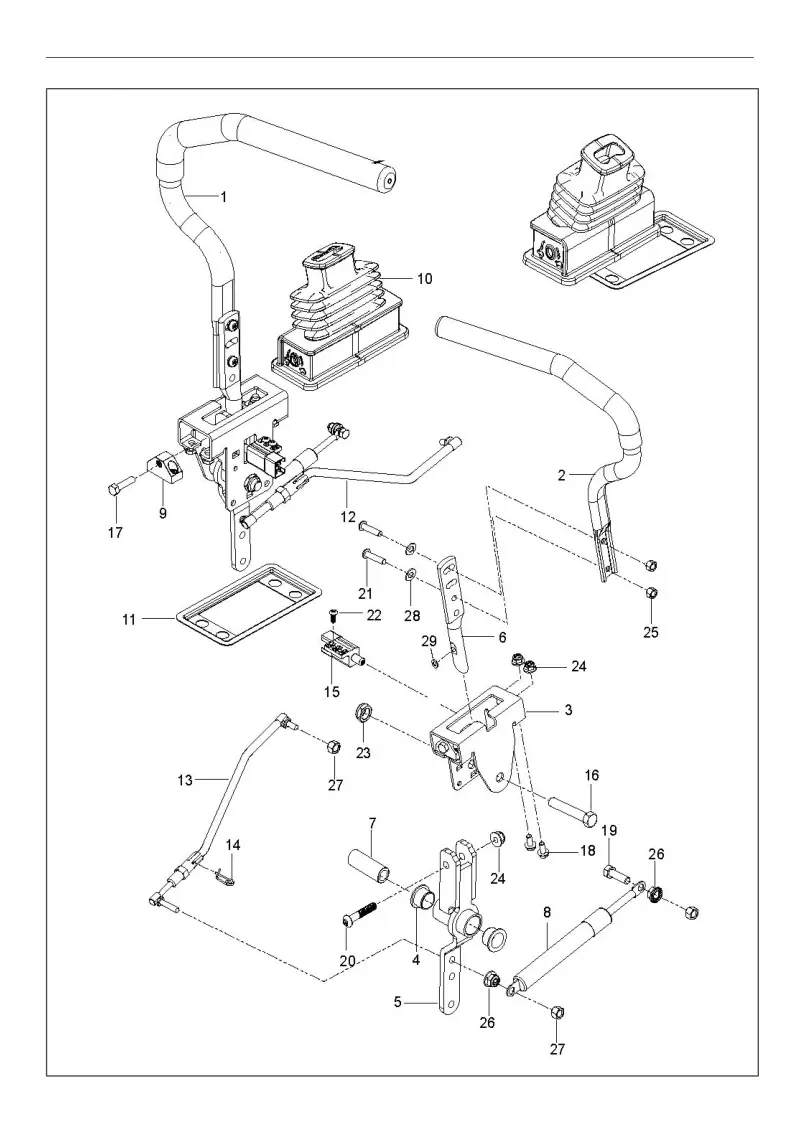

Husqvarna Z248F IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | TUBE | 598851703 | 598851703-Online | 1 |
| 2 | TUBE W/ GRIP | 598851704 | 598851704-Online | 1 |
| 3 | BRACKET | 585124705 | 585124705-Online | 2 |
| 4 | BEARING | 539131518 | 539131518-Online | 4 |
| 5 | LEVER | 576140301 | 576140301-Online | 2 |
| 6 | LEVER | 587601704 | 587601704-Online | 2 |
| 7 | SPACER | 584927201 | 584927201-Online | 2 |
| 8 | GAS SPRING | 539102720 | 539102720-Online | 2 |
| 9 | BLOCK | 581437502 | 581437502-Online | 2 |
| 10 | BOOT | 585831601 | 585831601-Online | 2 |
| 11 | FLANGE | 585488202 | 585488202-Online | 2 |
| 12 | ROD | 588604902 | 588604902-Online | 2 |
| 13 | ROD | 588605002 | 588605002-Online | 2 |
| 14 | SPRING RETAINER | 532199849 | 532199849-Online | 2 |
| 15 | SWITCH | 587601501 | 587601501-Online | 2 |
| 16 | BOLT | 596434301 | 596434301-Online | 2 |
| 17 | BOLT | 585986101 | 585986101-Online | 2 |
| 18 | BOLT | 592858702 | 592858702-Online | 8 |
| 19 | BOLT | 596580801 | 596580801-Online | 2 |
| 20 | SCREW | 587885301 | 587885301-Online | 2 |
| 21 | BOLT | 585985901 | 585985901-Online | 4 |
| 22 | SCREW | 574822701 | 574822701-Online | 2 |
| 23 | NUT | 539108010 | 539108010-Online | 2 |
| 24 | NUT | 594944401 | 594944401-Online | 10 |
| 25 | NUT | 596583702 | 596583702-Online | 4 |
| 26 | LOCK NUT | 596039201 | 596039201-Online | 4 |
| 27 | NUT | 596583702 | 596583702-Online | 4 |
| 28 | WASHER | 596204101 | 596204101-Online | 4 |
| 29 | WASHER | 587614201 | 587614201-Online | 2 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | TRANSMISSION | 510375601 | 510375601-Online | 1 |
| 2 | TRANSMISSION | 510375602 | 510375602-Online | 1 |
| 3 | LINKAGE | 574030501 | 574030501-Online | 1 |
| 4 | LINKAGE | 574030502 | 574030502-Online | 1 |
| 5 | DRIVE BELT | 539110411 | 539110411-Online | 1 |
| 6 | ROD | 585474401 | 585474401-Online | 1 |
| 7 | ROD | 585474501 | 585474501-Online | 1 |
| 8 | SPRING | 586665101 | 586665101-Online | 2 |
| 9 | SPRING | 539110342 | 539110342-Online | 2 |
| 10 | DISC | 539120080 | 539120080-Online | 2 |
| 11 | ARM | 539120079 | 539120079-Online | 2 |
| 12 | KIT | 575507001 | 575507001-Online | 1 |
| 13 | TRANSMISSION KIT | 501403602 | 501403602-Online | 2 |
| 14 | SPACING TUBE | 510184104 | 510184104-Online | 2 |
| 15 | SUPPORT | 580806502 | 580806502-Online | 2 |
| 16 | BRACKET | 580806602 | 580806602-Online | 2 |
| 17 | PIN | 587225301 | 587225301-Online | 1 |
| 18 | PIN | 539976988 | 539976988-Online | 4 |
| 19 | PIN | 587115301 | 587115301-Online | 1 |
| 20 | BOLT | 874780544 | 874780544-Online | 4 |
| 21 | SCREW | 539976934 | 539976934-Online | 2 |
| 22 | BOLT | 874780536 | 874780536-Online | 2 |
| 23 | SCREW | 539990637 | 539990637-Online | 4 |
| 24 | NUT For 97046750100 | 596583702 | 596583702-Online | 4 |
| 24 | LOCK NUT For 970458901-00, 967844801-02 970458901-01, | 873800500 | 873800500-Online | 8 |
| 25 | NUT | 539976978 | 539976978-Online | 2 |
| 26 | WASHER | 819111116 | 819111116-Online | 16 |
| 27 | WASHER | 539990118 | 539990118-Online | 4 |
| 28 | WASHER For 97046750100 | 596565301 | 596565301-Online | 8 |
| 28 | WASHER For 970458901-00, 967844801-02 970458901-01, | 819131316 | 819131316-Online | 8 |
| 29 | WASHER For 97046750100 | 596582301 | 596582301-Online | 4 |
| 29 | WASHER For 970458901-00, 967844801-02 970458901-01, | 819091016 | 819091016-Online | 4 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | PLATE | 588017102 | 588017102-Online | 1 |
| 2 | CLUTCH | 587241601 | 587241601-Online | 1 |
| 3 | TUBE | 583955701 | 583955701-Online | 1 |
| 4 | TUBE | 583955601 | 583955601-Online | 1 |
| 5 | BRACKET | 581886702 | 581886702-Online | 1 |
| 6 | ARM | 532448145 | 532448145-Online | 1 |
| 7 | SPINDLE | 582538901 | 582538901-Online | 1 |
| 8 | PULLEY | 539110311 | 539110311-Online | 1 |
| 9 | PULLEY | 587537401 | 587537401-Online | 1 |
| 10 | SPACER | 587660101 | 587660101-Online | 1 |
| 11 | HEAT SHIELD | 539132859 | 539132859-Online | 1 |
| 12 | STOP | 587633302 | 587633302-Online | 1 |
| 13 | GUARD | 587451202 | 587451202-Online | 1 |
| 14 | MUFFLER ASSY | 539131604 | 539131604-Online | 1 |
| 15 | SPRING | 532196105 | 532196105-Online | 1 |
| 16 | HOSE ASSY | 584825501 | 584825501-Online | 2 |
| 17 | CLAMP | 539101363 | 539101363-Online | 1 |
| 18 | ADAPTER | 522599001 | 522599001-Online | 1 |
| 19 | PLUG | 585807101 | 585807101-Online | 1 |
| 20 | BEARING | 501603701 | 501603701-Online | 2 |
| 21 | BOLT For 970458901-00 970458901-01, | 582539501 | 582539501-Online | 1 |
| 21 | BOLT For 97046750100 | 582539502 | 582539502-Online | 1 |
| 22 | SCREW For 97046750100 | 596433901 | 596433901-Online | 1 |
| 22 | BOLT For 970458901-00 970458901-01, | 874520656 | 874520656-Online | 1 |
| 23 | BOLT For 97046750100 | 595901601 | 595901601-Online | 1 |
| 23 | BOLT For 970458901-00 970458901-01, | 539990316 | 539990316-Online | 2 |
| 24 | SCREW | 539990208 | 539990208-Online | 2 |
| 25 | BOLT For 967844801-02 | 581332803 | 581332803-Online | 1 |
| 25 | BOLT For 970458901-00 970458901-01, | 581332804 | 581332804-Online | 1 |
| 25 | BOLT For 97046750100 | 581332806 | 581332806-Online | 1 |
| 26 | SCREW For 970458901-00 970458901-01, | 817490410 | 817490410-Online | 1 |
| 26 | SCREW For 97046750100 | 596637301 | 596637301-Online | 1 |
| 27 | BOLT For 97046750100 | 596564402 | 596564402-Online | 4 |
| 27 | BOLT For 970458901-00 970458901-01, | 874780620 | 874780620-Online | 4 |
| 28 | BOLT For 97046750100 | 596135901 | 596135901-Online | 4 |
| 28 | SCREW For 970458901-00 970458901-01, | 817490512 | 817490512-Online | 4 |
| 29 | NUT For 970458901-00 970458901-01, | 521991101 | 521991101-Online | 1 |
| 29 | NUT For 97046750100 | 521991102 | 521991102-Online | 1 |
| 30 | NUT For 97046750100 | 594944401 | 594944401-Online | 5 |
| 30 | NUT, 5/16-18, NYLOC For 970458901-00 970458901-01, | 539112899 | 539112899-Online | 5 |
| 31 | NUT | 539976979 | 539976979-Online | 2 |
| 32 | WASHER For 97046750100 | 596134901 | 596134901-Online | 2 |
| 32 | WASHER For 967844801-02 | 819121414 | 819121414-Online | 1 |
| 32 | WASHER For 970458901-00 970458901-01, | 539990692 | 539990692-Online | 2 |
| 33 | WASHER | 532126197 | 532126197-Online | 1 |
| 34 | WASHER For 97046750100 | 596238701 | 596238701-Online | 4 |
| 34 | WASHER For 970458901-00 970458901-01, | 810030600 | 810030600-Online | 4 |
| 34 | WASHER For 967844801-02 | 539990118 | 539990118-Online | 1 |
| 35 | NUT For 97046750100 967844801-02, | 532184362 | 532184362-Online | 4 |
| 36 | GASKET For 967844801-02 | 532178151 | 532178151-Online | 1 |
| 52 | PIGTAIL | 522598601 | 522598601-Online | 1 |
| 53 | INSTRUCTION | 589543901 | 589543901-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SERVICE KIT | 583810101 | 583810101-Online | 1 |
| 1 | DECK SHELL ASSY | 594705202 | 594705202-Online | 1 |
| 2 | DRIVE BELT | 582558001 | 582558001-Online | 1 |
| 3 | BLADE | 588811002 | 588811002-Online | 2 |
| 4 | COVER | 588812802 | 588812802-Online | 1 |
| 5 | COVER | 588812402 | 588812402-Online | 1 |
| 6 | MANDREL MANDREL HOUSING | 598752001 | 598752001-Online | 3 |
| 7 | WHEEL | 589527301 | 589527301-Online | 2 |
| 8 | PULLEY | 532173435 | 532173435-Online | 3 |
| 9 | PULLEY | 532196106 | 532196106-Online | 1 |
| 10 | PULLEY | 532196104 | 532196104-Online | 1 |
| 11 | PULLEY | 532193197 | 532193197-Online | 1 |
| 12 | DEFLECTOR ASSY | 593649701 | 593649701-Online | 1 |
| 13 | BUMPER | 582541103 | 582541103-Online | 1 |
| 14 | ROD | 595297001 | 595297001-Online | 2 |
| 15 | ROD | 594092501 | 594092501-Online | 1 |
| 16 | BEARING | 585323901 | 585323901-Online | 2 |
| 17 | ARM | 529470302 | 529470302-Online | 1 |
| 18 | ARM | 587140502 | 587140502-Online | 2 |
| 19 | HOSE COUPLING | 532415598 | 532415598-Online | 1 |
| 20 | COUPLING | 532416405 | 532416405-Online | 1 |
| 21 | SPRING | 582504001 | 582504001-Online | 1 |
| 22 | SPRING | 587354701 | 587354701-Online | 1 |
| 23 | STUD | 593824001 | 593824001-Online | 2 |
| 24 | SHAFT | 587256501 | 587256501-Online | 3 |
| 25 | BUSHING | 582360501 | 582360501-Online | 1 |
| 26 | ROLLER | 532176066 | 532176066-Online | 1 |
| 27 | SPRING | 532194209 | 532194209-Online | 2 |
| 28 | PIN | 532194208 | 532194208-Online | 1 |
| 29 | BOLT | 596240801 | 596240801-Online | 1 |
| 30 | BOLT | 596136201 | 596136201-Online | 1 |
| 31 | BOLT | 596434404 | 596434404-Online | 2 |
| 32 | SCREW | 584309301 | 584309301-Online | 2 |
| 33 | BOLT | 584953901 | 584953901-Online | 12 |
| 34 | BOLT | 532196539 | 532196539-Online | 2 |
| 35 | BOLT | 532170165 | 532170165-Online | 2 |
| 36 | SCREW | 588438301 | 588438301-Online | 1 |
| 37 | SCREW | 532137729 | 532137729-Online | 4 |
| 38 | BOLT | 599972501 | 599972501-Online | 1 |
| 39 | SCREW | 596637301 | 596637301-Online | 1 |
| 40 | NUT | 532409149 | 532409149-Online | 2 |
| 41 | NUT | 594944401 | 594944401-Online | 1 |
| 42 | HEXAGON NUT | 596134801 | 596134801-Online | 3 |
| 43 | LOCK NUT | 596135701 | 596135701-Online | 2 |
| 44 | NUT | 532110452 | 532110452-Online | 1 |
| 45 | LOCK NUT | 596039201 | 596039201-Online | 1 |
| 46 | NUT | 873900600 | 873900600-Online | 1 |
| 47 | WASHER | 532178515 | 532178515-Online | 1 |
| 48 | WASHER | 596320001 | 596320001-Online | 2 |
| 49 | WASHER | 532187690 | 532187690-Online | 3 |
| 51 | HOUSING ASSY COMPLETE ASSEMBLY | 534214702 | 534214702-Online | 3 |
| 52 | SPRING | 596482001 | 596482001-Online | 1 |
| 53 | PLUG NOT SHOWN | 596952201 | 596952201-Online | 6 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SEAT | 597658101 | 597658101-Online | 1 |
| 1 | SEAT For 96795390500 | 536178101 | 536178101-Online | 1 |
| 2 | BRACKET | 597330002 | 597330002-Online | 1 |
| 3 | SUPPORT PLATE | 586220802 | 586220802-Online | 1 |
| 4 | PLATE | 586221202 | 586221202-Online | 1 |
| 5 | PLATE For 967844801-02 970458901-01, | 597160003 | 597160003-Online | 1 |
| 5 | PLATE For 970458901-00 | 589481206 | 589481206-Online | 1 |
| 6 | SUPPORT | 580308202 | 580308202-Online | 1 |
| 7 | BRACKET | 590777602 | 590777602-Online | 1 |
| 8 | BOLT | 596240701 | 596240701-Online | 2 |
| 9 | SWITCH | 532192749 | 532192749-Online | 1 |
| 10 | NUT | 594944401 | 594944401-Online | 2 |
| 11 | SUPPORT LEG | 586428601 | 586428601-Online | 1 |
| 12 | BUMPER | 585989301 | 585989301-Online | 2 |
| 13 | CLIP | 539104763 | 539104763-Online | 5 |
| 14 | BOLT | 539990316 | 539990316-Online | 4 |
| 15 | SCREW | 510422701 | 510422701-Online | 2 |
| 16 | NUT | 521996502 | 521996502-Online | 2 |
| 17 | BOLT | 597781801 | 597781801-Online | 2 |
| 18 | BUMPER | 597553401 | 597553401-Online | 2 |
| 19 | BOLT | 874490512 | 874490512-Online | 4 |
| 20 | BOLT | 817000510 | 817000510-Online | 6 |
| 21 | KNOB | 597783101 | 597783101-Online | 2 |
| 22 | SERVICE KIT | 598001601 | 598001601-Online | 1 |
| 22 | BRACKET fits 970458901-01 967953901-01, | 597298202 | 597298202-Online | 1 |
| 23 | SERVICE KIT | 597658203 | 597658203-Online | 1 |
| 24 | COVER | 597959401 | 597959401-Online | 1 |
| 25 | NUT, 5/16-18, NYLOC For 970458901-00 | 539112899 | 539112899-Online | 4 |
| 26 | BOLT | 597869301 | 597869301-Online | 2 |
| 27 | BRACKET For 970458901-00 | 596992703 | 596992703-Online | 1 |
| 28 | SPRING For 970458901-00 | 589483501 | 589483501-Online | 2 |
| 29 | BOLT For 970458901-00 | 874780620 | 874780620-Online | 2 |
| 30 | BUMPER For 970458901-00 | 582478702 | 582478702-Online | 1 |
| 31 | BOLT For 970458901-00 | 539110303 | 539110303-Online | 2 |
| 32 | NUT, 5/16-18, NYLOC For 970458901-00 | 539112899 | 539112899-Online | 4 |
| 33 | WASHER For 970458901-00 | 819141614 | 819141614-Online | 1 |
| 34 | BRACKET For 970458901-00 | 590899903 | 590899903-Online | 2 |
| 35 | SCREW For 970458901-00 | 589028501 | 589028501-Online | 1 |
| 36 | NUT For 970458901-00 | 873900400 | 873900400-Online | 1 |
| 37 | ABSORBER For 970458901-00 | 539102587 | 539102587-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SEAT | 598696602 | 598696602-Online | 1 |
| 1 | SEAT For 96784480200 | 536178201 | 536178201-Online | 1 |
| 2 | BRACKET | 596992703 | 596992703-Online | 1 |
| 3 | SUPPORT PLATE | 586220802 | 586220802-Online | 1 |
| 4 | PLATE | 586221202 | 586221202-Online | 1 |
| 5 | PLATE | 589761206 | 589761206-Online | 1 |
| 6 | SUPPORT | 580308202 | 580308202-Online | 2 |
| 9 | SWITCH | 532401545 | 532401545-Online | 1 |
| 10 | SUPPORT LEG | 586428601 | 586428601-Online | 1 |
| 11 | SPACER | 535401801 | 535401801-Online | 2 |
| 12 | CLIP | 539104763 | 539104763-Online | 5 |
| 13 | BOLT | 539990316 | 539990316-Online | 4 |
| 14 | BOLT | 592858702 | 592858702-Online | 2 |
| 16 | BOLT | 539110303 | 539110303-Online | 2 |
| 18 | SCREW | 817490512 | 817490512-Online | 4 |
| 19 | BOLT | 817000510 | 817000510-Online | 6 |
| 21 | NUT, 5/16-18, NYLOC | 539112899 | 539112899-Online | 4 |
| 23 | NUT | 873350400 | 873350400-Online | 2 |
| 26 | ABSORBER | 539102587 | 539102587-Online | 2 |
| 27 | BUMPER | 582478702 | 582478702-Online | 2 |
| 28 | SEAT | 590873402 | 590873402-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | WHEEL ASSY For 96704540100 96733670300, | 579753401 | 579753401-Online | 2 |
| 1 | WHEEL For 967262601, 970458901 967262501, 967665801, | 590486601 | 590486601-Online | 2 |
| 2 | WHEEL ASSY | 576588602 | 576588602-Online | 2 |
| 3 | YOKE | 586650309 | 586650309-Online | 2 |
| 4 | FITTING | 539115638 | 539115638-Online | 2 |
| 5 | NIPPLE | 539103300 | 539103300-Online | 2 |
| 6 | BEARING | 539112660 | 539112660-Online | 2 |
| 7 | BLADE BUSHING | 539117901 | 539117901-Online | 2 |
| 8 | CAP | 595281301 | 595281301-Online | 2 |
| 9 | PLUG | 596301001 | 596301001-Online | 2 |
| 10 | SPACER | 585995401 | 585995401-Online | 2 |
| 11 | SPRING | 596388901 | 596388901-Online | 2 |
| 12 | SCREW | 596319901 | 596319901-Online | 2 |
| 13 | SCREW | 576601503 | 576601503-Online | 2 |
| 14 | NUT | 521991102 | 521991102-Online | 2 |
| 15 | NUT | 587653903 | 587653903-Online | 8 |
| 16 | WASHER | 596319801 | 596319801-Online | 2 |
| 17 | WASHER | 595316401 | 595316401-Online | 2 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SEAT 967075401, 967262601, 967262501, 967336703, | 532439822 | 532439822-Online | 1 |
| 1 | SEAT SEAT.MILSCO.15. 97045890100-01 For | 536178101 | 536178101-Online | 1 |
| 2 | BRACKET BRACKET.SEAT.PIVOT. 97045890100-01 For | 597330002 | 597330002-Online | 1 |
| 3 | SUPPORT PLATE | 586220802 | 586220802-Online | 1 |
| 4 | PLATE | 586221202 | 586221202-Online | 1 |
| 5 | PLATE | 597160003 | 597160003-Online | 1 |
| 6 | SUPPORT SUPPORT PLATE | 580308202 | 580308202-Online | 1 |
| 7 | BRACKET BRACKET.SEAT.PIVOT. 97045890100-01 For | 590777602 | 590777602-Online | 1 |
| 8 | BOLT | 596240701 | 596240701-Online | 2 |
| 9 | SWITCH SWITCH. 967262501, 967336703, For 967075401, 967262601, 967665801 | 539132140 | 539132140-Online | 1 |
| 9 | SWITCH SWITCH. 97045890100-01 For | 532401545 | 532401545-Online | 1 |
| 10 | NUT | 594944401 | 594944401-Online | 10 |
| 11 | SUPPORT LEG | 586428601 | 586428601-Online | 1 |
| 12 | BUMPER | 585989301 | 585989301-Online | 2 |
| 13 | CLIP | 539104763 | 539104763-Online | 5 |
| 14 | BOLT | 595901601 | 595901601-Online | 4 |
| 15 | SCREW | 510422702 | 510422702-Online | 2 |
| 16 | NUT NUT. 01 For 97045890100- | 521996502 | 521996502-Online | 2 |
| 17 | BOLT BOLT. 01 For 97045890100- | 597781801 | 597781801-Online | 2 |
| 18 | BUMPER BUMPER. 97045890100-01 For | 597553401 | 597553401-Online | 2 |
| 19 | BOLT BOLT. 967262501, 967336703, For 967075401, 967262601, 967665801 | 596135901 | 596135901-Online | 2 |
| 20 | BOLT | 817000510 | 817000510-Online | 6 |
| 21 | KNOB KNOB. 01 For 97045890100- | 597783101 | 597783101-Online | 2 |
| 22 | SERVICE KIT SERVICE 97045890100-01 KIT. For | 598001601 | 598001601-Online | 1 |
| 23 | SERVICE KIT | 597658203 | 597658203-Online | 1 |
| 24 | COVER COVER. 97045890100-01 For | 597959401 | 597959401-Online | 1 |
| 25 | SPRING SPRING. 967262501, 967336703, For 967075401, 967262601, 967665801 | 532198200 | 532198200-Online | 1 |
| 26 | BOLT BOLT. 01 For 97045890100- | 597869301 | 597869301-Online | 2 |
| 27 | WASHER | 501051801 | 501051801-Online | 2 |
| 28 | SPRING SPRING. 967262501, 967336703, For 967075401, 967262601, 967665801 | 589483501 | 589483501-Online | 2 |
| 29 | SCREW SCREW. 967262501, 967336703, For 967075401, 967262601, 967665801 | 525834202 | 525834202-Online | 2 |
| 30 | PLATE 967075401, 967262601, 967262501, 967336703, | 596657402 | 596657402-Online | 1 |
| 30 | BRACKET PLATE.MOUNTING. 97045890100-01 For | 597298202 | 597298202-Online | 1 |
| 31 | HANDLE HANDLE. 967262501, 967336703, For 967262601, 967665801 967075401, | 595088102 | 595088102-Online | 1 |
| 32 | BRACKET 967075401, 967262601, 967262501, 967336703, | 596958402 | 596958402-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CONSOLE ASSY For | 585522801 | 585522801-Online | 1 |
| 1 | CONSOLE ASSY | 586621201 | 586621201-Online | 1 |
| 1 | CONSOLE ASSY For | 598602606 | 598602606-Online | 1 |
| 1 | CONSOLE ASSY For | 586621203 | 586621203-Online | 1 |
| 3 | FUEL TANK ASSY Fits 2.75 filler neck | 589924702 | 589924702-Online | 1 |
| 3 | FUEL TANK ASSY For | 531016702 | 531016702-Online | 1 |
| 4 | CAP Fits 2.00 filler neck | 529989702 | 529989702-Online | 1 |
| 4 | FUEL CAP ASSY Fits 2.75 filler neck | 585124801 | 585124801-Online | 1 |
| 5 | THROTTLE CABLE | 539112438 | 539112438-Online | 1 |
| 6 | CHOKE CONTROL ASSY | 586881501 | 586881501-Online | 1 |
| 7 | IGNITION SWITCH | 539107541 | 539107541-Online | 1 |
| 8 | SWITCH | 582107602 | 582107602-Online | 1 |
| 9 | SWITCH | 587601501 | 587601501-Online | 2 |
| 10 | KNOB | 539133049 | 539133049-Online | 1 |
| 11 | CONTROL PANEL | 585522701 | 585522701-Online | 1 |
| 11 | CONTROL PANEL | 585522709 | 585522709-Online | 1 |
| 12 | BATTERY | 539102463 | 539102463-Online | 1 |
| 13 | BRACKET | 510030003 | 510030003-Online | 1 |
| 14 | BOX | 582609602 | 582609602-Online | 1 |
| 15 | COVER | 532131563 | 532131563-Online | 3 |
| 16 | INSULATOR | 539102759 | 539102759-Online | 1 |
| 17 | TANK VENT | 576618101 | 576618101-Online | 1 |
| 18 | FUEL HOSE | 586123906 | 586123906-Online | 1 |
| 19 | SOLENOID | 582042801 | 582042801-Online | 1 |
| 20 | HARNESS | 587198601 | 587198601-Online | 1 |
| 21 | HOSE | 587044550 | 587044550-Online | 1 |
| 22 | BUSHING | 532003645 | 532003645-Online | 1 |
| 23 | GROMMET | 532437492 | 532437492-Online | 1 |
| 24 | NIPPLE | 532139277 | 532139277-Online | 1 |
| 25 | HOUR METER | 586161801 | 586161801-Online | 1 |
| 26 | KEY For 967844801-02, 970458901-00 970458901-01, | 532140401 | 532140401-Online | 1 |
| 26 | KEY For 97046750100 | 532411933 | 532411933-Online | 1 |
| 27 | HARNESS | 586108201 | 586108201-Online | 1 |
| 28 | HOOK | 588839401 | 588839401-Online | 2 |
| 29 | SCREW | 545227101 | 545227101-Online | 2 |
| 30 | SCREW | 539111229 | 539111229-Online | 1 |
| 31 | SCREW | 532141841 | 532141841-Online | 2 |
| 32 | SCREW | 574822701 | 574822701-Online | 2 |
| 33 | BOLT | 539990645 | 539990645-Online | 2 |
| 34 | BOLT For 97046750100 | 595901601 | 595901601-Online | 2 |
| 34 | BOLT For 967844801-02, 970458901-00 970458901-01, | 872140506 | 872140506-Online | 2 |
| 35 | BOLT For 97046750100 | 596135801 | 596135801-Online | 2 |
| 35 | SCREW For 967844801-02, 970458901-00 970458901-01, | 817490408 | 817490408-Online | 2 |
| 36 | NUT For 97046750100 | 594944401 | 594944401-Online | 2 |
| 36 | NUT, 5/16-18, NYLOC For 967844801-02, 970458901-00 970458901-01, | 539112899 | 539112899-Online | 2 |
| 37 | NUT | 521996501 | 521996501-Online | 2 |
| 38 | NUT | 539976978 | 539976978-Online | 5 |
| 39 | HOSE CLAMP For 97046750100 | 532123487 | 532123487-Online | 1 |
| 40 | HOSE For 97046750100 | 587044810 | 587044810-Online | 1 |
| 41 | HOSE For 97046750100 | 587044818 | 587044818-Online | 1 |
| 49 | HARNESS NOT SHOWN | 586337301 | 586337301-Online | 1 |
| 50 | RELAY NOT SHOWN | 532109748 | 532109748-Online | 1 |
| 51 | HARNESS NOT SHOWN | 586548101 | 586548101-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | TUBE W/ GRIP | 590090803 | 590090803-Online | 2 |
| 1 | TUBE fits 970458901-01 967953901-01, | 598851703 | 598851703-Online | 1 |
| 2 | TUBE W/ GRIP | 590090804 | 590090804-Online | 1 |
| 3 | BRACKET | 585124705 | 585124705-Online | 2 |
| 4 | BEARING | 539131518 | 539131518-Online | 4 |
| 5 | LEVER | 576140301 | 576140301-Online | 2 |
| 6 | LEVER | 587601702 | 587601702-Online | 2 |
| 7 | SPACER | 584927201 | 584927201-Online | 2 |
| 8 | GAS SPRING | 539102720 | 539102720-Online | 2 |
| 9 | BLOCK | 581437501 | 581437501-Online | 2 |
| 10 | BOOT | 585831601 | 585831601-Online | 2 |
| 11 | FLANGE | 585488202 | 585488202-Online | 2 |
| 12 | ROD RIGHT | 588604901 | 588604901-Online | 1 |
| 13 | ROD LEFT | 588605001 | 588605001-Online | 1 |
| 14 | SPRING RETAINER | 532199849 | 532199849-Online | 2 |
| 15 | GRIP | 525392902 | 525392902-Online | 2 |
| 16 | BOLT | 874780844 | 874780844-Online | 2 |
| 17 | BOLT | 585986101 | 585986101-Online | 8 |
| 18 | BOLT | 874490512 | 874490512-Online | 4 |
| 19 | BOLT | 874780520 | 874780520-Online | 4 |
| 20 | BOLT | 585985901 | 585985901-Online | 2 |
| 21 | SCREW | 587885301 | 587885301-Online | 2 |
| 22 | NUT | 539108010 | 539108010-Online | 10 |
| 23 | NUT, 5/16-18, NYLOC | 539112899 | 539112899-Online | 4 |
| 24 | NUT | 585986001 | 585986001-Online | 4 |
| 25 | NUT | 539990585 | 539990585-Online | 2 |
| 26 | LOCK NUT | 873800500 | 873800500-Online | 2 |
| 27 | WASHER | 587614201 | 587614201-Online | 4 |
| 28 | WASHER | 819111116 | 819111116-Online | 1 |
| 29 | TUBE fits 970458901-01 967953901-01, | 598851704 | 598851704-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | DECAL For 97045890101, 96766580100 97045890100, | 529527001 | 529527001-Online | 1 |
| 2 | DECAL For 96704540100 | 539110522 | 539110522-Online | 1 |
| 2 | DECAL 96704540100, 9672620100, 9672620101, | 587595501 | 587595501-Online | 1 |
| 2 | DECAL 96704540100, 9672620100, 9672620101, | 587595601 | 587595601-Online | 1 |
| 3 | DECAL | 587220301 | 587220301-Online | 1 |
| 3 | DECAL For Edition 967953905 Special | 587220302 | 587220302-Online | 1 |
| 4 | DECAL 96726250101, 96704540100, | 539105745 | 539105745-Online | 1 |
| 5 | DECAL 96726250101, 96726260100, | 592898301 | 592898301-Online | 1 |
| 6 | DECAL | 539108385 | 539108385-Online | 1 |
| 7 | DECAL | 539108386 | 539108386-Online | 1 |
| 8 | DECAL All except 97045890101 | 539109897 | 539109897-Online | 1 |
| 8 | DECAL For 97045890101 | 539109803 | 539109803-Online | 1 |
| 9 | DECAL For 96733670300 96704540100, | 583934001 | 583934001-Online | 1 |
| 9 | DECAL 96726250101, 96726260100, 96726260101, | 590485501 | 590485501-Online | 1 |
| 9 | DECAL For 97045890101 9704589010100, | 598655401 | 598655401-Online | 1 |
| 10 | DECAL 96726250101, 9672620100, 96726260101, | 532423829 | 532423829-Online | 1 |
| 11 | DECAL For 97045890100, 97045890101 all except | 588035101 | 588035101-Online | 1 |
| 11 | DECAL RH 97045890101 - For 9704589010100, | 590209401 | 590209401-Online | 1 |
| 11 | DECAL LH 97045890101 - For 97045890100, | 590209501 | 590209501-Online | 1 |
| 12 | DECAL For 96704540100 | 581724401 | 581724401-Online | 1 |
| 12 | DECAL For 96704540100 all except | 586978801 | 586978801-Online | 1 |
| 13 | DECAL 96726260100, 96726260101, | 589357901 | 589357901-Online | 1 |
| 13 | DECAL 96704540100, 96726260100, 96726260101, | 589357902 | 589357902-Online | 1 |
| 14 | DECAL | 539112620 | 539112620-Online | 1 |
| 15 | DECAL | 577469001 | 577469001-Online | 2 |
| 16 | PAD 96766580100, 97045890100, | 587000701 | 587000701-Online | 1 |
| 17 | DECAL For 96704540100, 967336703, | 532448121 | 532448121-Online | 1 |
| 17 | DECAL 96726260100-01, 96766580100, | 590885001 | 590885001-Online | 1 |
| 18 | DECAL For 96704540100 96733670300, | 584904601 | 584904601-Online | 1 |
| 19 | DECAL For 97045890100-01 | 599749501 | 599749501-Online | 1 |
PARTNO
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 20 | DECAL For 96766580100, 96726250100-01 97045890100-01, | 591357301 | 591357301-Online | 1 |
