Husqvarna TRACTORS/RIDE MOWERS: LTH151 IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.

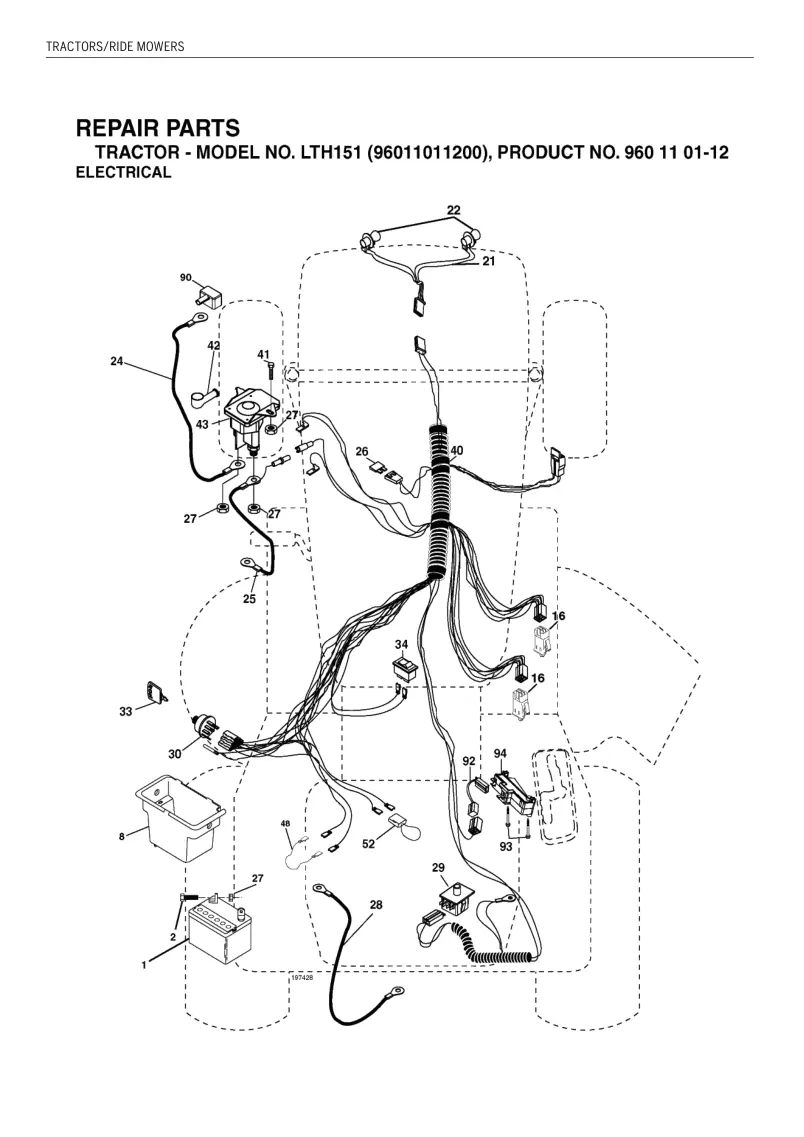

TRACTORS/RIDE MOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | BATTERY | 532144927 | 532144927-Online | 1 |
| 2 | BOLT | 874760412 | 874760412-Online | 1 |
| 8 | BATTERY BOX | 532176689 | 532176689-Online | 1 |
| 16 | MICRO SWITCH | 532176138 | 532176138-Online | 1 |
| 21 | HARNESS | 532175688 | 532175688-Online | 1 |
| 22 | BULB | 532004152 | 532004152-Online | 1 |
| 24 | CABLE | 532124780 | 532124780-Online | 1 |
| 25 | CABLE | 532146147 | 532146147-Online | 1 |
| 26 | FUSE | 532175158 | 532175158-Online | 1 |
| 27 | NUT | 873510400 | 873510400-Online | 1 |
| 28 | CABLE | 532124773 | 532124773-Online | 1 |
| 29 | SWITCH.SEAT.DP W/RAMPS | 532192749 | 532192749-Online | 1 |
| 30 | IGNITION MODULE | 532193350 | 532193350-Online | 1 |
| 33 | KEY | 532140401 | 532140401-Online | 1 |
| 34 | SWITCH | 532110712 | 532110712-Online | 1 |
| 40 | CABLE ASSY | 532197428 | 532197428-Online | 1 |
| 41 | BOLT | 871110408 | 871110408-Online | 1 |
| 42 | COVER | 532131563 | 532131563-Online | 1 |
| 43 | SOLENOID | 532192507 | 532192507-Online | 1 |
| 48 | ADAPTER | 532140844 | 532140844-Online | 1 |
| 52 | WIRE | 532141940 | 532141940-Online | 1 |
| 90 | COVER | 532180449 | 532180449-Online | 1 |
| 92 | PANEL CONTROL | 532190615 | 532190615-Online | 1 |
| 93 | SCREW | 532192540 | 532192540-Online | 1 |
| 94 | MODULE.REVERSE.ROS | 532191834 | 532191834-Online | 1 |
TRACTORS/RIDE MOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | DECK SHELL | 532192556 | 532192556-Online | 1 |
| 2 | BOLT | 872140506 | 872140506-Online | 1 |
| 3 | BRACKE | 532138017 | 532138017-Online | 1 |
| 4 | SUPPORT CARTER ARRIERE | 532192568 | 532192568-Online | 1 |
| 5 | RETAINER RING | 532124670 | 532124670-Online | 1 |
| 6 | LEVER | 532178024 | 532178024-Online | 1 |
| 7 | LOCK NUT | 873800500 | 873800500-Online | 1 |
| 8 | SCREW | 532193003 | 532193003-Online | 1 |
| 11 | RIDE ON BLADE | 532193957 | 532193957-Online | 1 |
| 13 | SHAFT ASSY | 532192872 | 532192872-Online | 1 |
| 14 | BEARING HOUSING | 532187281 | 532187281-Online | 1 |
| 15 | BEARING | 532110485 | 532110485-Online | 1 |
| 18 | BOLT | 872140505 | 872140505-Online | 1 |
| 19 | SPEC. BOLT | 532132827 | 532132827-Online | 1 |
| 20 | BAFFLE | 532400095 | 532400095-Online | 1 |
| 21 | NUT | 873680500 | 873680500-Online | 1 |
| 23 | HINGE | 532192557 | 532192557-Online | 1 |
| 24 | HUB CAP | 532105304 | 532105304-Online | 1 |
| 25 | TORSION SPRING | 532197026 | 532197026-Online | 1 |
| 26 | NUT | 532110452 | 532110452-Online | 1 |
| 27 | DEFLECTOR | 532401472 | 532401472-Online | 1 |
| 29 | SHAFT | 532131491 | 532131491-Online | 1 |
| 30 | SCREW | 532173984 | 532173984-Online | 1 |
| 31 | WASHER | 532187690 | 532187690-Online | 1 |
| 32 | PULLEY | 532153532 | 532153532-Online | 1 |
| 33 | NUT | 532400234 | 532400234-Online | 1 |
| 36 | PULLEY | 532131494 | 532131494-Online | 1 |
| 37 | PULLEY | 532193198 | 532193198-Online | 1 |
| 40 | NUT | 873680600 | 873680600-Online | 1 |
| 45 | RETAINER RING | 532124788 | 532124788-Online | 1 |
| 55 | LEVER | 532133840 | 532133840-Online | 1 |
| 56 | SPACER | 532165723 | 532165723-Online | 1 |
| 67 | KNOB | 532106932 | 532106932-Online | 1 |
| 68 | BELT | 532193214 | 532193214-Online | 1 |
| 72 | RESSORT RETOUR FREIN DE LAME | 532193216 | 532193216-Online | 1 |
| 89 | WASHER | 819131311 | 819131311-Online | 1 |
| 92 | NUT | 873800600 | 873800600-Online | 1 |
| 107 | SPACER | 532133502 | 532133502-Online | 1 |
| 108 | LEVER | 532133503 | 532133503-Online | 1 |
| 122 | ROD | 532192575 | 532192575-Online | 1 |
| 123 | ROD | 532192576 | 532192576-Online | 1 |
| 129 | WASHER | 819131312 | 819131312-Online | 1 |
| 130 | BOLT | 874780616 | 874780616-Online | 1 |
| 131 | BOLT | 872140608 | 872140608-Online | 1 |
| 144 | BELT GUIDE | 532193414 | 532193414-Online | 1 |
| 148 | SPRING | 532169022 | 532169022-Online | 1 |
| 149 | SPRING | 532165898 | 532165898-Online | 1 |
| 150 | WASHER | 819091210 | 819091210-Online | 1 |
| 152 | CABLE | 532193235 | 532193235-Online | 1 |
| 158 | SCREW | 817720408 | 817720408-Online | 1 |
| 185 | CABLE | 532188234 | 532188234-Online | 1 |
| 186 | SCREW | 817490644 | 817490644-Online | 1 |
| 187 | BELT GUIDE | 532193412 | 532193412-Online | 1 |
| 188 | BOLT | 532165891 | 532165891-Online | 1 |
| 189 | SUPPORT BRAS DE FREIN | 532192559 | 532192559-Online | 1 |
| 190 | ARM | 532192560 | 532192560-Online | 1 |
| 191 | SPACER | 532192561 | 532192561-Online | 1 |
| 193 | BELT GUIDE | 532193413 | 532193413-Online | 1 |
| 194 | GARDE DE FREIN DE LAME | 532194105 | 532194105-Online | 1 |
| 195 | WASHER | 819133210 | 819133210-Online | 1 |
| 196 | BOLT | 532193782 | 532193782-Online | 1 |
| - - | FREIN DE LAME CPT. | 532192558 | 532192558-Online | 1 |
| - - | SPINDLE | 532192870 | 532192870-Online | 1 |
| - - | HOUSING | 532193646 | 532193646-Online | 1 |
TRACTORS/RIDE MOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | DECAL | 532191150 | 532191150-Online | 1 |
| 2 | DECAL | 532140837 | 532140837-Online | 1 |
| 3 | DECAL | 532188923 | 532188923-Online | 1 |
| 4 | DECAL | 532400419 | 532400419-Online | 1 |
| 5 | DECAL | 532188925 | 532188925-Online | 1 |
| 6 | DECALC.DANGER DEFLECTEUR | 532196357 | 532196357-Online | 1 |
| 7 | DECAL | 532188921 | 532188921-Online | 1 |
| 8 | DECAL | 532182166 | 532182166-Online | 1 |
| 9 | DECAL | 532188931 | 532188931-Online | 1 |
| 10 | LABEL | 532400389 | 532400389-Online | 1 |
| 11 | DECAL | 532159736 | 532159736-Online | 1 |
| 12 | DECAL | 532159737 | 532159737-Online | 1 |
| 13 | DECAL | 532180432 | 532180432-Online | 1 |
| 14 | DECALC.SCHEMA MONTAGE | 532194302 | 532194302-Online | 1 |
| 15 | DECAL | 532196841 | 532196841-Online | 1 |
| 20 | DECAL | 532145005 | 532145005-Online | 1 |
| - - | PAD, FOOTREST LH | 532188252 | 532188252-Online | 1 |
| - - | DECAL | 532162598 | 532162598-Online | 1 |
| - - | PAD, FOOTREST RH | 532188253 | 532188253-Online | 1 |
| - - | DECAL | 532138311 | 532138311-Online | 1 |
| - - | DECAL | 532166960 | 532166960-Online | 1 |
| - - | OPERATORS MANUAL | 532400860 | 532400860-Online | 1 |
| - - | OPERATORS MANUAL | 532401459 | 532401459-Online | 1 |
| - - | OPERATORS MANUAL | 532401460 | 532401460-Online | 1 |
| - - | OPERATORS MANUAL | 532401461 | 532401461-Online | 1 |
TRACTORS/RIDE MOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | WIRE | 532159460 | 532159460-Online | 1 |
| 2 | LEVER | 532159471 | 532159471-Online | 1 |
| 3 | PIN RETAINING SCREW | 532105767 | 532105767-Online | 1 |
| 4 | RETAINER RING | 812000002 | 812000002-Online | 1 |
| 5 | WASHER | 819211621 | 819211621-Online | 1 |
| 6 | BEARING | 532120183 | 532120183-Online | 1 |
| 7 | GRIP | 532109413 | 532109413-Online | 1 |
| 8 | KNOB | 532124526 | 532124526-Online | 1 |
| 11 | LINK | 532139865 | 532139865-Online | 1 |
| 12 | LINK | 532139866 | 532139866-Online | 1 |
| 13 | RETAINER RING | 532124670 | 532124670-Online | 1 |
| 15 | LINK | 532173288 | 532173288-Online | 1 |
| 16 | NUT | 873350800 | 873350800-Online | 1 |
| 17 | BRACKET | 532175689 | 532175689-Online | 1 |
| 18 | NUT | 873800800 | 873800800-Online | 1 |
| 19 | LEVER | 532139868 | 532139868-Online | 1 |
| 20 | SPRING | 532194209 | 532194209-Online | 1 |
| 31 | BEARING | 532169865 | 532169865-Online | 1 |
| 32 | NUT | 873540600 | 873540600-Online | 1 |
| 55 | PIN | 532194208 | 532194208-Online | 1 |
TRACTORS/RIDE MOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | STEERING WHEEL | 532193651 | 532193651-Online | 1 |
| 2 | SHAFT | 532195673 | 532195673-Online | 1 |
| 3 | SPINDLE | 532169840 | 532169840-Online | 1 |
| 4 | SPINDLE | 532169839 | 532169839-Online | 1 |
| 5 | WASHER | 532124931 | 532124931-Online | 1 |
| 6 | WASHER | 532121748 | 532121748-Online | 1 |
| 7 | WASHER | 819272016 | 819272016-Online | 1 |
| 8 | RETAINER RING | 812000029 | 812000029-Online | 1 |
| 9 | BEARING COL. STRG. | 532124937 | 532124937-Online | 1 |
| 10 | ROD | 532175121 | 532175121-Online | 1 |
| 11 | WASHER | 810040600 | 810040600-Online | 1 |
| 13 | PIPE | 532136518 | 532136518-Online | 1 |
| 15 | NUT | 532145212 | 532145212-Online | 1 |
| 17 | ROD | 532190753 | 532190753-Online | 1 |
| 29 | SCREW | 817000612 | 817000612-Online | 1 |
| 32 | ROD | 532171888 | 532171888-Online | 1 |
| 33 | WASHER | 819111216 | 819111216-Online | 1 |
| 34 | WASHER | 810040500 | 810040500-Online | 1 |
| 35 | NUT | 873540500 | 873540500-Online | 1 |
| 36 | BUSHING | 532155099 | 532155099-Online | 1 |
| 37 | SCREW | 532152927 | 532152927-Online | 1 |
| 38 | HUB | 532193652 | 532193652-Online | 1 |
| 39 | WASHER | 819113812 | 819113812-Online | 1 |
| 40 | NUT | 873540600 | 873540600-Online | 1 |
| 41 | ADAPTER | 532186737 | 532186737-Online | 1 |
| 42 | SLEEVE | 532169634 | 532169634-Online | 1 |
| 43 | WASHER | 532121749 | 532121749-Online | 1 |
| 44 | SHAFT | 532190752 | 532190752-Online | 1 |
| 46 | HUB CAP | 532121232 | 532121232-Online | 1 |
| 65 | SPACER | 532160367 | 532160367-Online | 1 |
| 67 | BOLT | 872110618 | 872110618-Online | 1 |
| 68 | SHAFT | 532169827 | 532169827-Online | 1 |
| 71 | STEERING GEAR | 532175146 | 532175146-Online | 1 |
| 82 | SUPPORT ESSIEU AVANT | 532199978 | 532199978-Online | 1 |
| 88 | BOLT | 532175118 | 532175118-Online | 1 |
| 91 | SPRING | 532175553 | 532175553-Online | 1 |
| 95 | WASHER | 532188967 | 532188967-Online | 1 |
| 97 | BOLT | 874780564 | 874780564-Online | 1 |
TRACTORS/RIDE MOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SIEGE CONDUCTEUR | 532190120 | 532190120-Online | 1 |
| 2 | BRACKET | 532140551 | 532140551-Online | 1 |
| 5 | CLIP | 532145006 | 532145006-Online | 1 |
| 6 | NUT | 873800600 | 873800600-Online | 1 |
| 7 | SPRING | 532124181 | 532124181-Online | 1 |
| 8 | SCREW | 817000616 | 817000616-Online | 1 |
| 9 | WASHER | 819131614 | 819131614-Online | 1 |
| 10 | BERCEAU DE SIEGE CONDUCTEUR | 532195530 | 532195530-Online | 1 |
| 11 | WING NUT | 532166369 | 532166369-Online | 1 |
| 12 | BRACKET | 532174648 | 532174648-Online | 1 |
| 13 | BUSHING | 532121248 | 532121248-Online | 1 |
| 14 | BOLT | 872050412 | 872050412-Online | 1 |
| 15 | SPACER | 532134300 | 532134300-Online | 1 |
| 16 | SPRING | 532121250 | 532121250-Online | 1 |
| 17 | LOCKNUT | 532123976 | 532123976-Online | 1 |
| 21 | BOLT | 532171852 | 532171852-Online | 1 |
| 22 | LOCK NUT | 873800500 | 873800500-Online | 1 |
| 24 | WASHER | 819171912 | 819171912-Online | 1 |
| 25 | BOLT | 532127018 | 532127018-Online | 1 |
| 41 | STRAP | 532140675 | 532140675-Online | 1 |
TRACTORS/RIDE MOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 8 | ROD SHIFT | 532192502 | 532192502-Online | 1 |
| 10 | SPLIT PIN | 876020416 | 876020416-Online | 1 |
| 14 | WASHER | 810040400 | 810040400-Online | 1 |
| 15 | SCREW | 874490544 | 874490544-Online | 1 |
| 16 | LOCK NUT | 873800500 | 873800500-Online | 1 |
| 19 | NUT | 873800600 | 873800600-Online | 1 |
| 21 | KNOB | 532121274 | 532121274-Online | 1 |
| 22 | ROD | 532169498 | 532169498-Online | 1 |
| 24 | NUT | 873350600 | 873350600-Online | 1 |
| 25 | SPRING | 532106888 | 532106888-Online | 1 |
| 26 | WASHER | 819131316 | 819131316-Online | 1 |
| 27 | SPLIT PIN | 876020412 | 876020412-Online | 1 |
| 28 | SHAFT | 532175765 | 532175765-Online | 1 |
| 29 | COVER | 532071673 | 532071673-Online | 1 |
| 30 | BRACKET | 532174973 | 532174973-Online | 1 |
| 32 | BOLT | 874760512 | 874760512-Online | 1 |
| 34 | SHAFT | 532175578 | 532175578-Online | 1 |
| 35 | BEARING | 532120183 | 532120183-Online | 1 |
| 36 | WASHER | 819211616 | 819211616-Online | 1 |
| 37 | PIN RETAINING SCREW | 532124963 | 532124963-Online | 1 |
| 38 | PULLEY | 532179114 | 532179114-Online | 1 |
| 39 | BOLT | 872110622 | 872110622-Online | 1 |
| 41 | BELT GUIDE | 532175556 | 532175556-Online | 1 |
| 47 | PULLEY | 532127783 | 532127783-Online | 1 |
| 48 | GUIDE | 532154407 | 532154407-Online | 1 |
| 49 | BELT GUIDE | 532123205 | 532123205-Online | 1 |
| 50 | BOLT | 872110612 | 872110612-Online | 1 |
| 51 | NUT | 873680600 | 873680600-Online | 1 |
| 52 | NUT | 873680500 | 873680500-Online | 1 |
| 53 | TIGE DE TENSION POULIE | 532199652 | 532199652-Online | 1 |
| 55 | SPRING | 532105709 | 532105709-Online | 1 |
| 56 | SCREW | 817060620 | 817060620-Online | 1 |
| 57 | BELT | 532140294 | 532140294-Online | 1 |
| 59 | BELT GUIDE | 532169691 | 532169691-Online | 1 |
| 61 | SCREW | 817120614 | 817120614-Online | 1 |
| 62 | PEDAL RUBBER | 532124872 | 532124872-Online | 1 |
| 63 | PULLEY | 532175410 | 532175410-Online | 1 |
| 64 | BOLT | 532173937 | 532173937-Online | 1 |
| 65 | WASHER | 810040700 | 810040700-Online | 1 |
| 66 | TENSIONER | 532154778 | 532154778-Online | 1 |
| 69 | SCREW | 532142432 | 532142432-Online | 1 |
| 70 | BELT GUIDE | 532134683 | 532134683-Online | 1 |
| 71 | ROD | 532169183 | 532169183-Online | 1 |
| 73 | BRACKET | 532169182 | 532169182-Online | 1 |
| 74 | SPACER | 532137057 | 532137057-Online | 1 |
| 75 | WASHER | 532121749 | 532121749-Online | 1 |
| 76 | RETAINER RING | 812000001 | 812000001-Online | 1 |
| 77 | KEY | 532123583 | 532123583-Online | 1 |
| 78 | WASHER | 532121748 | 532121748-Online | 1 |
| 81 | SHAFT | 532165596 | 532165596-Online | 1 |
| 82 | SPRING | 532165711 | 532165711-Online | 1 |
| 83 | WASHER | 819171216 | 819171216-Online | 1 |
| 84 | LINK | 532169843 | 532169843-Online | 1 |
| 89 | CONSOLE, SHIFT, STL, AUTO GREY | 532194810 | 532194810-Online | 1 |
| 95 | CONTROL | 532170201 | 532170201-Online | 1 |
| 96 | RETAINER RING | 532124788 | 532124788-Online | 1 |
| 103 | NUT | 873940800 | 873940800-Online | 1 |
| 112 | WASHER | 819091210 | 819091210-Online | 1 |
| 116 | BOLT | 872140608 | 872140608-Online | 1 |
| 120 | NUT | 873900600 | 873900600-Online | 1 |
| 150 | SPACER | 532175456 | 532175456-Online | 1 |
| 151 | WASHER | 819133210 | 819133210-Online | 1 |
| 156 | WASHER | 532166002 | 532166002-Online | 1 |
| 158 | BRACKET | 532165589 | 532165589-Online | 1 |
| 159 | LEVER | 532183900 | 532183900-Online | 1 |
| 161 | BOLT | 872140406 | 872140406-Online | 1 |
| 162 | NUT | 873680400 | 873680400-Online | 1 |
| 163 | BOLT | 874780416 | 874780416-Online | 1 |
| 165 | BRACKET | 532165623 | 532165623-Online | 1 |
| 166 | SCREW | 817490510 | 817490510-Online | 1 |
| 168 | BOLT | 532165492 | 532165492-Online | 1 |
| 169 | RETAINER | 532165580 | 532165580-Online | 1 |
| 197 | SLEEVE | 532169613 | 532169613-Online | 1 |
| 198 | WASHER | 532169593 | 532169593-Online | 1 |
| 199 | SCREW | 532169612 | 532169612-Online | 1 |
| 200 | BOLT | 872140508 | 872140508-Online | 1 |
| 202 | BOLT | 872110614 | 872110614-Online | 1 |
| 205 | WASHER | 819171616 | 819171616-Online | 1 |
TRACTORS/RIDE MOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 212 | NUT | 532145212 | 532145212-Online | 1 |
| 263 | SCREW | 817000612 | 817000612-Online | 1 |
| 268 | PROTECTOR | 532182402 | 532182402-Online | 1 |
| 275 | WASHER | 819131614 | 819131614-Online | 1 |
TRACTORS/RIDE MOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CAP VALVE | 532059192 | 532059192-Online | 1 |
| 2 | NIPPLE | 532065139 | 532065139-Online | 1 |
| 3 | TIRE | 532106222 | 532106222-Online | 1 |
| 4 | HOSE | 532059904 | 532059904-Online | 1 |
| 5 | RIM | 532138336 | 532138336-Online | 1 |
| 6 | FITTING | 532124957 | 532124957-Online | 1 |
| 7 | BEARING | 532124959 | 532124959-Online | 1 |
| 8 | RIM SPROCKET | 532138337 | 532138337-Online | 1 |
| 9 | TIRE | 532106268 | 532106268-Online | 1 |
| 10 | HOSE | 532124926 | 532124926-Online | 1 |
| 11 | HUB CAP | 532175039 | 532175039-Online | 1 |
| - - | SEALING FOAM | 532144334 | 532144334-Online | 1 |
TRACTORS/RIDE MOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CONTROL THROT /CH FLAG | 532170805 | 532170805-Online | 1 |
| 2 | SCREW | 817720408 | 817720408-Online | 1 |
| 4 | MUFFLER | 532188655 | 532188655-Online | 1 |
| 8 | BOLT | 532171877 | 532171877-Online | 1 |
| 13 | GASKET | 532185909 | 532185909-Online | 1 |
| 14 | TUBE | 532148456 | 532148456-Online | 1 |
| 23 | HEAT SHIELD | 532169837 | 532169837-Online | 1 |
| 29 | SPARK ARRESTER KIT | 532137180 | 532137180-Online | 1 |
| 31 | FUEL TANK ASSY | 532184900 | 532184900-Online | 1 |
| 32 | PLUG | 532197725 | 532197725-Online | 1 |
| 33 | HOSE CLAMP | 532123487 | 532123487-Online | 1 |
| 37 | HOSE | 532137040 | 532137040-Online | 1 |
| 38 | PLUG | 532181654 | 532181654-Online | 1 |
| 40 | BUSHING | 532124028 | 532124028-Online | 1 |
| 44 | SCREW | 817670412 | 817670412-Online | 1 |
| 45 | SCREW | 817000612 | 817000612-Online | 1 |
| 46 | WASHER | 819091416 | 819091416-Online | 1 |
| 81 | NUT | 873510400 | 873510400-Online | 1 |
| 105 | SCREW | 817120616 | 817120616-Online | 1 |
| 116 | NUT | 532184362 | 532184362-Online | 1 |
| 117 | TUBE EXHAUST | 532188654 | 532188654-Online | 1 |
TRACTORS/RIDE MOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 01 02 95- | AIR FILTER | 531029501 | 531029501-Online | 1 |
| 531 62 02 98- | FILTER | 531029862 | 531029862-Online | 1 |
| 532 55 19 25- | BLADE | 532192555 | 532192555-Online | 1 |
| 531 03 02 95- | FILTER | 531029503 | 531029503-Online | 1 |
| 531 04 02 95- | SPARK PLUG | 531029504 | 531029504-Online | 1 |
| 532 94 14 02- | BELT | 532140294 | 532140294-Online | 1 |
| 532 14 19 32- | BELT | 532193214 | 532193214-Online | 1 |
TRACTORS/RIDE MOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | FRAME | 532174619 | 532174619-Online | 1 |
| 2 | PLATE | 532176554 | 532176554-Online | 1 |
| 5 | DAMPER | 532155272 | 532155272-Online | 1 |
| 9 | DASH | 532193937 | 532193937-Online | 1 |
| 10 | BOLT | 872140608 | 872140608-Online | 1 |
| 11 | DASHBOARD | 532174996 | 532174996-Online | 1 |
| 13 | DASHBOARD | 532181719 | 532181719-Online | 1 |
| 14 | SCREW | 817490608 | 817490608-Online | 1 |
| 17 | HOOD | 532188893 | 532188893-Online | 1 |
| 18 | BUMPER | 532184921 | 532184921-Online | 1 |
| 26 | NUT | 873800600 | 873800600-Online | 1 |
| 28 | GRILL | 532183538 | 532183538-Online | 1 |
| 30 | FENDER | 532193938 | 532193938-Online | 1 |
| 31 | BRACKET | 532139976 | 532139976-Online | 1 |
| 37 | SCREW | 817490508 | 817490508-Online | 1 |
| 38 | BRACKET | 532175710 | 532175710-Online | 1 |
| 39 | BRACKET PIVOT LASER LT | 532174714 | 532174714-Online | 1 |
| 58 | DUCT | 532187154 | 532187154-Online | 1 |
| 60 | BOLT | 872140606 | 872140606-Online | 1 |
| 64 | PANEL | 532154798 | 532154798-Online | 1 |
| 74 | NUT | 873680600 | 873680600-Online | 1 |
| 142 | PLATE | 532175702 | 532175702-Online | 1 |
| 143 | BRACKET | 532186689 | 532186689-Online | 1 |
| 144 | BRACKET | 532175582 | 532175582-Online | 1 |
| 145 | SHAFT | 532156524 | 532156524-Online | 1 |
| 206 | BOLT | 532170165 | 532170165-Online | 1 |
| 207 | SCREW | 817670508 | 817670508-Online | 1 |
| 208 | SCREW | 817670608 | 817670608-Online | 1 |
| 209 | SCREW | 817000612 | 817000612-Online | 1 |
| 212 | INSERT | 532183548 | 532183548-Online | 1 |
| 258 | LENS | 532185214 | 532185214-Online | 1 |
| 259 | LENS | 532185213 | 532185213-Online | 1 |
| 260 | INSERT | 532185216 | 532185216-Online | 1 |
| 261 | INSERT | 532185212 | 532185212-Online | 1 |
| 272 | VENT HOOD RH | 532188896 | 532188896-Online | 1 |
| 273 | VENT HOOD LH | 532188895 | 532188895-Online | 1 |
| 278 | SCREW | 532191611 | 532191611-Online | 1 |
| - - | PLUG | 532005479 | 532005479-Online | 1 |
| - - | PLUG | 532187801 | 532187801-Online | 1 |
