Husqvarna 120 MARK II IPL

Husqvarna 120 MARK II IPL

Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.

CHAIN SAWS

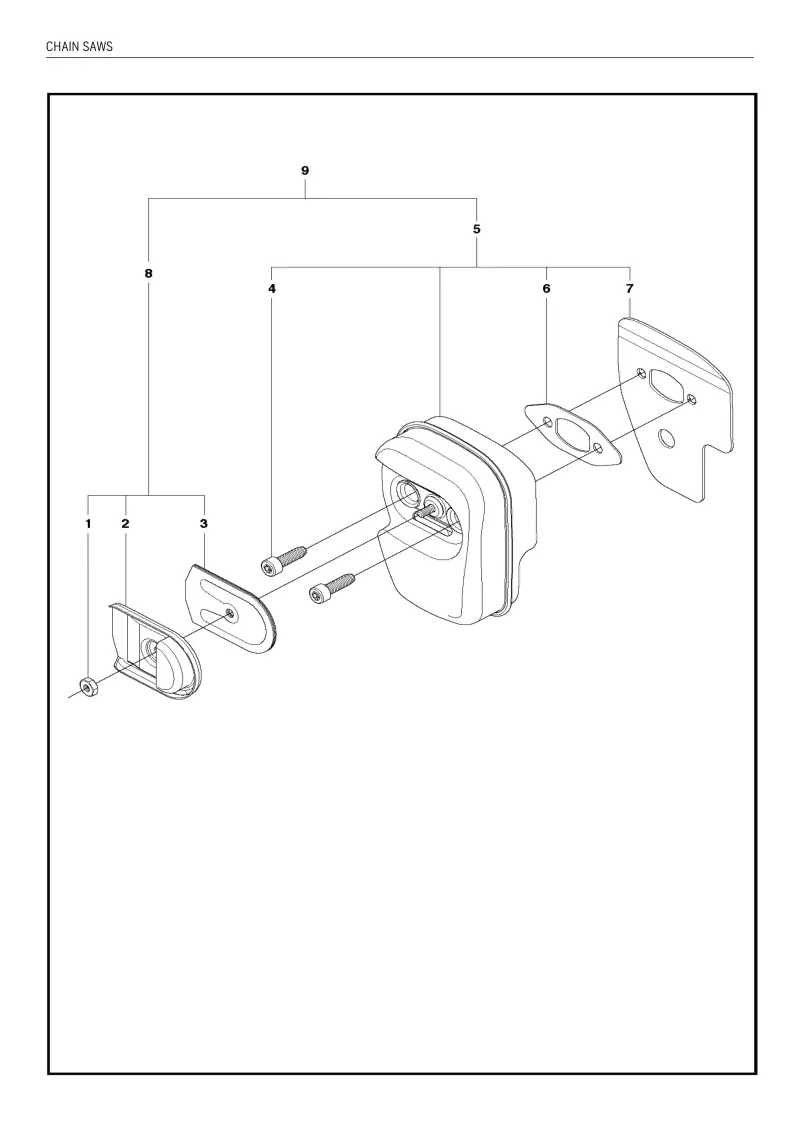

Husqvarna 120 MARK II IPL CHAIN SAWS
CHAIN SAWS diagram
RefDescriptionPart NumberCutsmart SKUQty
1NUT NUT 10MM BRASS574266401574266401-Online1
2EXHAUST PLATE545076901545076901-Online1
3SCREEN SCREEN ARRESTOR GASKET545167401545167401-Online1
4BOLT530016338530016338-Online2
5MUFFLER MUFFLER ASSY586094301586094301-Online1
6MUFFLER GASKET530054884530054884-Online1
7MUFFLER BACK PLATE545066901545066901-Online1
8KIT KIT SPARK ARRESTOR545008027545008027-Online1
9MUFFLER MUFFLER KIT COMPLETE545180843545180843-Online1

CHAIN SAWS

RefDescriptionPart NumberCutsmart SKUQty
1STARTER PULLEY KIT STD STARTER545008028545008028-Online1
2SCREW530015920530015920-Online1
3SCREW530016080530016080-Online1
4STARTER PULLEY530057890530057890-Online1
5HANDLE HANDLE ROPE ASSY545010010545010010-Online1
6SPRING CASSETTE ASSY545008013545008013-Online1
7BAFFLE545063801545063801-Online1
8FAN HOUSING545063701545063701-Online1
9SCREW SCREW 14X22.225MM SCREW M5.38-530016432530016432-Online4
10KIT KIT COMPLETE545008025545008025-Online1
11DECAL DECAL MARK II FAN HOUSING 120594914101594914101-Online1

CHAIN SAWS

RefDescriptionPart NumberCutsmart SKUQty
1KIT KIT CARB REPAIR587609701587609701-Online1
2KIT CARBURETOR GASKET573977601573977601-Online1
3PURGE AND LINE ASSEMBLY545008030545008030-Online1
4CARBURETTOR CARBURETOR586936202586936202-Online1

CHAIN SAWS

RefDescriptionPart NumberCutsmart SKUQty
2PIN. DOWEL530057950530057950-Online1
3LINK LINK FRONT530057913530057913-Online1
4SCREW SCREW TORX M3.63-1.34 X 8MM574780301574780301-Online1
5SPRING COMPRESSION530016415530016415-Online1
6SCREW SCREW BAR ADJUSTMENT530016110530016110-Online1
7RETAINER RETAINER BAR ADJUSTMENT530038593530038593-Online1
8PEN PIN BAR ADJUSTING530015826530015826-Online1
10PEN PIN BRAKE BAND530015913530015913-Online1
11BRAKE BAND530057923530057923-Online1
12COVER COVER CHAIN BRAKE525743001525743001-Online1
13SCREW545227101545227101-Online3
14NUT530015917530015917-Online2
15DECAL545118701545118701-Online1
16CHAIN BRAKE ASSY525628901525628901-Online1

CHAIN SAWS

RefDescriptionPart NumberCutsmart SKUQty
1CLUTCH530014949530014949-Online1
2WASHER530015611530015611-Online1
3CLUTCH DRUM ASSY For CLUTCH 3/8 all 6T. EXCEPT DRUM 967861902. ASSY SPUR530047061530047061-Online1
3CLUTCH DRUM For DRUM 967861902. ASSY SPUR CLUTCH .325 7T.530048132530048132-Online1
4WASHER WASHER THRUST579621501579621501-Online1
5DUST SEAL DUST SEAL OIL PUMP525318401525318401-Online1
6WORM GEAR PISTON530037820530037820-Online1
7OIL PUMP ASSY OIL PUMP ASSY COMPLETE581063901581063901-Online1
8SCREW545227101545227101-Online1
9BLOCK BLOCK OIL545227501545227501-Online1
10ELBOW530049477530049477-Online1
11SEAL545069401545069401-Online1
12SCREEN530056533530056533-Online1

CHAIN SAWS

RefDescriptionPart NumberCutsmart SKUQty
1KIT KIT CYLINDER SHIELD576543201576543201-Online1
2SCREW SCREW M5-0.8X25574320601574320601-Online3
3DECAL DECAL INSTRUCTIONS STARTING545116502545116502-Online1
4SIGN DECAL WARNING545165957545165957-Online1
NIKIT KIT CHASSIS BRASS INSERTS579173401579173401-Online1

CHAIN SAWS

RefDescriptionPart NumberCutsmart SKUQty
1SEAL SEAL 36.2 X RADIAL 3.7 BEARING 12 X581608001581608001-Online2
3KIT KIT HARDMOUNT CRANKSHAFT BEARING COMPLETE577830802577830802-Online1
4BEARING BEARING 37MM OD585621401585621401-Online2

CHAIN SAWS

RefDescriptionPart NumberCutsmart SKUQty
1BEARING576243901576243901-Online2
2CRANKSHAFT580302601580302601-Online1

CHAIN SAWS

RefDescriptionPart NumberCutsmart SKUQty
1KIT 967861912, 967861936. AND CYLINDER 967861934, KIT HARDMOUNT PISTON577831102577831102-Online1
1KIT For 967861934, 967861912, 967861936577831101577831101-Online1
2BOLT BOLT CYLINDER545081501545081501-Online4
3INSERT INSERT CYLINDER LEFT 38CC574190901574190901-Online1
4INSERT INSERT CYLINDER RIGHT 38CC574190801574190801-Online1
5PISTON RING 967861912, 967861936. 967861934, PISTON RING585040601585040601-Online1
5PISTON RING For 967861934, 967861912, 967861936530012608530012608-Online1
8LOCKING RING530015697530015697-Online2
9SPARK PLUG SPARK RCJ7Y PLUG M14X1.25503235108503235108-Online1
10KIT 967861912, 967861936. 967861934, KIT PISTON577831302577831302-Online1
10KIT For 967861934, 967861912, 967861936545081894545081894-Online1

CHAIN SAWS

RefDescriptionPart NumberCutsmart SKUQty
1HAND GUARD HAND GUARD ASSY HHS577611901577611901-Online1
2BOSS BOSS SCREW HANDGUARD545127301545127301-Online1
3REAR WHEEL545061201545061201-Online1
4SCREW545227101545227101-Online1
5GROMMET GROMMET REAR WALL545075401545075401-Online1
6BAR BAR PLATE MOUNTING545071401545071401-Online1
7CAP. SPRING HANDGUARD545071301545071301-Online1
8SPRING. HANDGUARD POSITION SPRING. POSITION HANDGUARD545071201545071201-Online1
11CHASSIS 967861912, 967861936. 967861934, CHASSIS587026801587026801-Online1
13BOLT BOLT M8 X 1.25529310301529310301-Online2
14HOSE545033501545033501-Online1
15PLUG530029868530029868-Online1
16CHECK VALVE CHECK VALVE DUCKBILL530026119530026119-Online1
17FUEL HOSE FUEL O.D. HOSE KIT LP100 5.3580727101580727101-Online1
18NIPPLE NIPPLE FITTING - FUEL LINE530023877530023877-Online1
20ISOLATOR ISOLATOR FILTER HOUSING545061901545061901-Online1
21TANK CAP ASSY TANK CAP ASSY GREY544111203544111203-Online2
22SCREW530015906530015906-Online2
23ISOLATOR ISOLATOR ASSY FRONT545033801545033801-Online1
25SPRING 967861912, 967861936. 967861934, SPRING REAR545063101545063101-Online1
25SPRING For 967861934, 967861912, 967861936577540601577540601-Online1
26FUEL FILTER ASSEMBLY FLUSHED FUEL PICKUP PRE577167201577167201-Online1
27FUEL HOSE FUEL O.D. HOSE KIT LP100 5.3580727101580727101-Online1
28SCREW SCREW PT 60/10-14530015814530015814-Online1
29CHAIN CATCHER530029850530029850-Online1
30FELLING DOG530038990530038990-Online1
31SCREW530016439530016439-Online2
32FELLING DOG FELLING ASSEMBLY DOG KIT SPIKE530014381530014381-Online1
33GROMMET 967861912, 967861936. 967861934, GROMMET580457501580457501-Online1
33BUSHING For 967861934, 967861912, 967861936503735801503735801-Online1
34SPACER PLATE592969801592969801-Online1

CHAIN SAWS

RefDescriptionPart NumberCutsmart SKUQty
1FRONT HANDLE545062401545062401-Online1
2REAR HANDLE 967861912, 967861936. 967861934, REAR HANDLE545062201545062201-Online1
2REAR HANDLE W/OVMLD 240E For 967861934, 967861912, 967861936545062202545062202-Online1
3REAR HANDLE COVER 235/235E 967861912, 967861936. 967861934, REAR HANDLE545062301545062301-Online1
3REAR HANDLE COVER W/OVMLD 240E For 967861934, 967861912, 967861936545062302545062302-Online1
4LOCKOUT- THROTTLE545062601545062601-Online1
6TRIGGER TRIGGER ASSEMBLY GRAY578246701578246701-Online1
7ISOLATOR ISOLATOR ISOLATOR ASU FRONT545033901545033901-Online1
8ISOLATION LIMITER SCREW ISOLATION M5.28 M4 SPECIAL - 1.8 LIMITER X 14.75 SCREW PL HEX545076301545076301-Online1
9SCREW SCREW PAN TRX #8-16 T25 X 15.1 PL530016433530016433-Online3
10SCREW530016349530016349-Online2
11SCREW SCREW 14X22.225MM SCREW M5.38-530016432530016432-Online2
12KIT KIT TRIGGER & LOCKOUT578862201578862201-Online1

CHAIN SAWS

RefDescriptionPart NumberCutsmart SKUQty
1FLYWHEEL FLYWHEEL ASSY575635502575635502-Online1
2WASHER WASHER CONICAL 5/16 RAMP530015127530015127-Online1
3NUT NUT HEX M8-1 RH GR8530016134530016134-Online1
4MODULE575803501575803501-Online1
5SCREW SCREW SEMS T20 M4-0.7X16MM545121901545121901-Online2
6ASSY- WIRE HARNESS545079901545079901-Online1

CHAIN SAWS

RefDescriptionPart NumberCutsmart SKUQty
1SCREW530021179530021179-Online1
2SLEEVE530059677530059677-Online1
3SPRING Spring530021180530021180-Online1
4SCREW530016080530016080-Online1
5PULLEY545058201545058201-Online1
6SPRING530042095530042095-Online1
7STARTER PULLEY EPS PULLEY) STARTER KIT (INCL.530071966530071966-Online1
8BAFFLE545063801545063801-Online1
9FAN HOUSING545063701545063701-Online1
10HANDLE HANDLE ROPE ASSY545010010545010010-Online1
11SCREW SCREW 14X22.225MM SCREW M5.38-530016432530016432-Online4
12KIT KIT COMPLETE545008024545008024-Online1
13DECAL DECAL MARK II FAN HOUSING 120594914101594914101-Online1

CHAIN SAWS

RefDescriptionPart NumberCutsmart SKUQty
1WRENCH 967861912, 967861936. 967861934, WRENCH587465401587465401-Online1
1WRENCH For 967861934, 967861912, 967861936587417201587417201-Online1

CHAIN SAWS

RefDescriptionPart NumberCutsmart SKUQty
1CARBURETTOR CARBURETOR BULB WITH PURGE586936202586936202-Online1
2THROTTLE THROTTLE WIRE577815201577815201-Online1
3AIR FILTER HOUSING575493401575493401-Online1
4AIR FILTER545061801545061801-Online1
5FILTER FILTER PLATE545151801545151801-Online1
6NUT530016101530016101-Online2
7ISOLATOR ISOLATOR FILTER HOUSING545061901545061901-Online1
8SWITCH. SPRING SWITCH SPRING545063401545063401-Online1
9SWITCH LEVER545061701545061701-Online1
10CHOKE KNOB545061601545061601-Online1
11CARB ADAPTOR SEAL545061501545061501-Online1
13ADAPTOR ADAPTOR CARBURETOR577636501577636501-Online1
15STUD-CARBURETOR545033701545033701-Online2
16CARB ADAPTOR SCREW545158301545158301-Online4
17SCREW530016080530016080-Online1
18TOP STUD-CARBURETOR545074901545074901-Online1
19GASKET KIT545081892545081892-Online1
20SCREW530016349530016349-Online1
