Husqvarna 120E MARK II IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | WRENCH WRENCH RESET CHAINBRAKE | 587465401 | 587465401-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | KIT KIT CARB REPAIR | 587609701 | 587609701-Online | 1 |
| 2 | KIT CARBURETOR GASKET | 573977601 | 573977601-Online | 1 |
| 3 | PURGE AND LINE ASSEMBLY | 545008030 | 545008030-Online | 1 |
| 4 | CARBURETTOR CARBURETOR | 586936202 | 586936202-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CLUTCH | 530014949 | 530014949-Online | 1 |
| 2 | WASHER | 530015611 | 530015611-Online | 1 |
| 3 | CLUTCH DRUM ASSY CLUTCH 3/8 6T DRUM ASSY SPUR | 530047061 | 530047061-Online | 1 |
| 4 | WASHER WASHER THRUST | 579621501 | 579621501-Online | 1 |
| 5 | DUST SEAL DUST SEAL OIL PUMP | 525318401 | 525318401-Online | 1 |
| 6 | WORM GEAR PISTON | 530037820 | 530037820-Online | 1 |
| 7 | OIL PUMP ASSY OIL PUMP ASSY COMPLETE | 581063901 | 581063901-Online | 1 |
| 8 | SCREW | 545227101 | 545227101-Online | 1 |
| 9 | BLOCK BLOCK OIL | 545227501 | 545227501-Online | 1 |
| 10 | ELBOW | 530049477 | 530049477-Online | 1 |
| 11 | SEAL | 545069401 | 545069401-Online | 1 |
| 12 | SCREEN | 530056533 | 530056533-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | KIT KIT HARDMOUNT PISTON AND BEARING CYLINDER | 577831102 | 577831102-Online | 1 |
| 2 | BOLT BOLT CYLINDER | 545081501 | 545081501-Online | 4 |
| 3 | INSERT INSERT CYLINDER LEFT 38CC | 574190901 | 574190901-Online | 1 |
| 4 | INSERT INSERT CYLINDER RIGHT 38CC | 574190801 | 574190801-Online | 1 |
| 5 | PISTON RING PISTON RING RING 38CC PISTON | 585040601 | 585040601-Online | 1 |
| 8 | LOCKING RING | 530015697 | 530015697-Online | 2 |
| 9 | SPARK PLUG SPARK RCJ7Y PLUG M14X1.25 | 503235108 | 503235108-Online | 1 |
| 10 | KIT KIT BEARING PISTON HARDMOUNT | 577831302 | 577831302-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CARBURETTOR CARBURETOR BULB WITH PURGE | 586936202 | 586936202-Online | 1 |
| 2 | THROTTLE THROTTLE WIRE | 577815201 | 577815201-Online | 1 |
| 3 | AIR FILTER HOUSING | 575493401 | 575493401-Online | 1 |
| 4 | AIR FILTER | 545061801 | 545061801-Online | 1 |
| 5 | FILTER FILTER PLATE | 545151801 | 545151801-Online | 1 |
| 6 | NUT | 530016101 | 530016101-Online | 2 |
| 7 | ISOLATOR ISOLATOR FILTER HOUSING | 545061901 | 545061901-Online | 1 |
| 8 | SWITCH. SPRING SWITCH SPRING | 545063401 | 545063401-Online | 1 |
| 9 | SWITCH LEVER | 545061701 | 545061701-Online | 1 |
| 10 | CHOKE KNOB | 545061601 | 545061601-Online | 1 |
| 11 | CARB ADAPTOR SEAL | 545061501 | 545061501-Online | 1 |
| 13 | ADAPTOR ADAPTOR CARBURETOR | 577636501 | 577636501-Online | 1 |
| 15 | STUD-CARBURETOR | 545033701 | 545033701-Online | 2 |
| 16 | CARB ADAPTOR SCREW | 545158301 | 545158301-Online | 4 |
| 17 | SCREW | 530016080 | 530016080-Online | 1 |
| 18 | TOP STUD-CARBURETOR | 545074901 | 545074901-Online | 1 |
| 19 | GASKET KIT | 545081892 | 545081892-Online | 1 |
| 20 | SCREW | 530016349 | 530016349-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 2 | PIN. DOWEL | 530057950 | 530057950-Online | 1 |
| 3 | LINK LINK FRONT | 530057913 | 530057913-Online | 1 |
| 4 | SCREW SCREW TORX M3.63-1.34 X 8MM | 574780301 | 574780301-Online | 1 |
| 5 | SPRING COMPRESSION | 530016415 | 530016415-Online | 1 |
| 6 | SCREW SCREW BAR ADJUSTMENT | 530016110 | 530016110-Online | 1 |
| 7 | RETAINER RETAINER BAR ADJUSTMENT | 530038593 | 530038593-Online | 1 |
| 8 | PEN PIN BAR ADJUSTING | 530015826 | 530015826-Online | 1 |
| 10 | PEN PIN BRAKE BAND | 530015913 | 530015913-Online | 1 |
| 11 | BRAKE BAND | 530057923 | 530057923-Online | 1 |
| 12 | COVER COVER CHAIN BRAKE | 525743001 | 525743001-Online | 1 |
| 13 | SCREW | 545227101 | 545227101-Online | 3 |
| 14 | NUT | 530015917 | 530015917-Online | 2 |
| 15 | DECAL | 545118701 | 545118701-Online | 1 |
| 16 | CHAIN BRAKE ASSY | 525628901 | 525628901-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 2 | KNOB | 579070601 | 579070601-Online | 1 |
| 3 | PIN. DOWEL | 530057950 | 530057950-Online | 1 |
| 4 | ASSY. FRONT LINK | 530057940 | 530057940-Online | 1 |
| 5 | SCREW | 574780301 | 574780301-Online | 1 |
| 6 | SPRING COMPRESSION | 530016415 | 530016415-Online | 1 |
| 8 | PEN | 530015913 | 530015913-Online | 1 |
| 9 | BRAKE BAND | 530057923 | 530057923-Online | 1 |
| 10 | COVER | 525743001 | 525743001-Online | 1 |
| 11 | SCREW | 545227101 | 545227101-Online | 3 |
| 12 | GEAR | 545060201 | 545060201-Online | 1 |
| 13 | WORM GEAR ASSY | 525884201 | 525884201-Online | 1 |
| 14 | PEN | 574201701 | 574201701-Online | 1 |
| 15 | ADJUSTER | 545065901 | 545065901-Online | 1 |
| 16 | COVER | 545059201 | 545059201-Online | 1 |
| 17 | SCREW | 545227101 | 545227101-Online | 3 |
| 18 | BEARING SLEEVE | 525354301 | 525354301-Online | 1 |
| 19 | DECAL | 545118601 | 545118601-Online | 1 |
| 20 | CHAIN BRAKE | 525611401 | 525611401-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | KIT KIT CYLINDER SHIELD | 576543201 | 576543201-Online | 1 |
| 2 | SCREW SCREW M5-0.8X25 | 574320601 | 574320601-Online | 3 |
| 3 | DECAL DECAL INSTRUCTIONS STARTING | 545116502 | 545116502-Online | 1 |
| 4 | SIGN DECAL WARNING | 545165957 | 545165957-Online | 1 |
| NI | KIT KIT CHASSIS BRASS INSERTS | 579173401 | 579173401-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SEAL SEAL 36.2 X RADIAL 3.7 BEARING 12 X | 581608001 | 581608001-Online | 2 |
| 3 | KIT KIT HARDMOUNT CRANKSHAFT BEARING COMPLETE | 577830802 | 577830802-Online | 1 |
| 4 | BEARING BEARING 37MM OD | 585621401 | 585621401-Online | 2 |
CHAIN SAWS

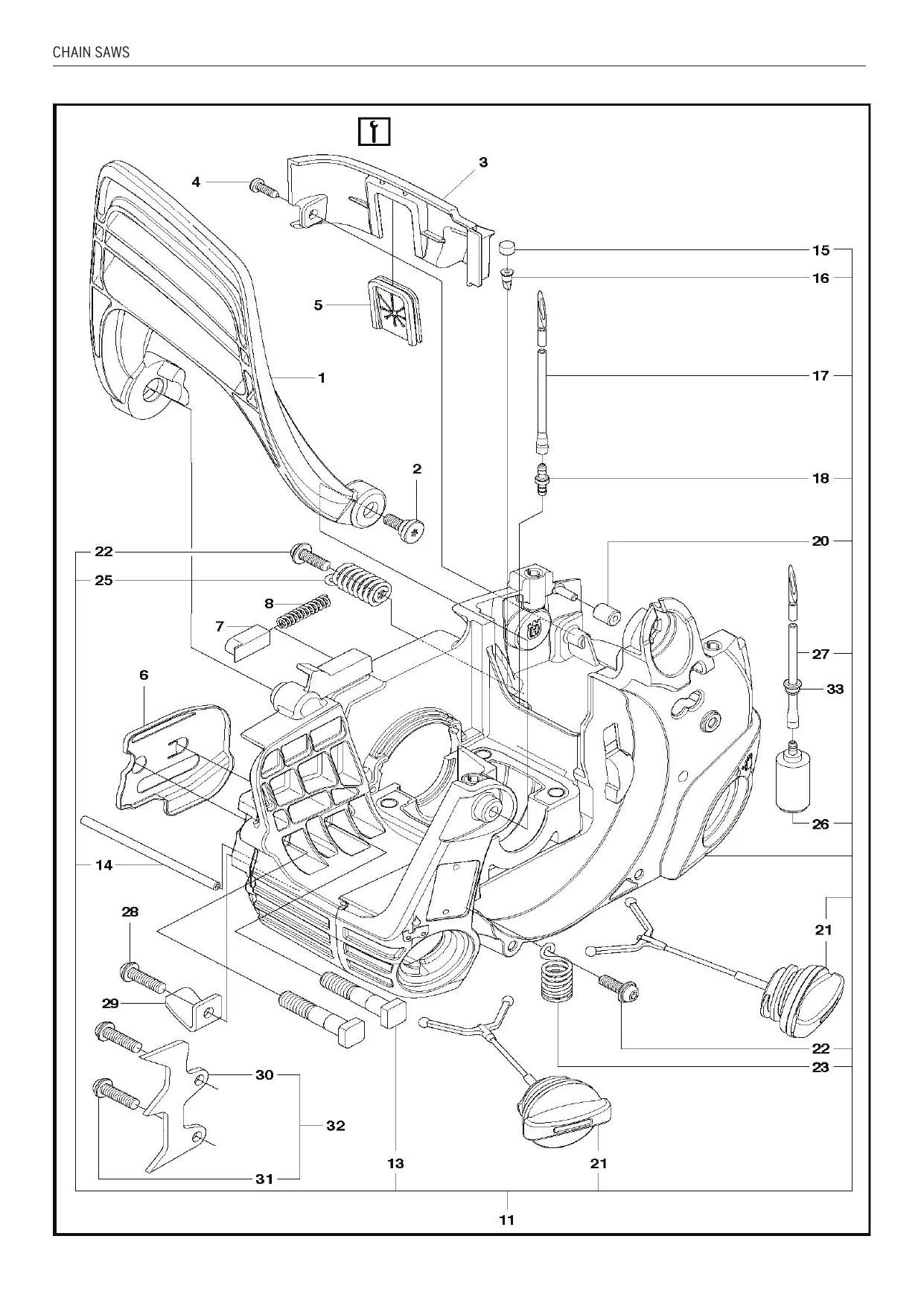

| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | HAND GUARD HAND GUARD ASSY HHS | 577611901 | 577611901-Online | 1 |
| 2 | BOSS BOSS SCREW HANDGUARD | 545127301 | 545127301-Online | 1 |
| 3 | REAR WHEEL | 545061201 | 545061201-Online | 1 |
| 4 | SCREW | 545227101 | 545227101-Online | 1 |
| 5 | GROMMET GROMMET REAR WALL | 545075401 | 545075401-Online | 1 |
| 6 | BAR BAR PLATE MOUNTING | 545071401 | 545071401-Online | 1 |
| 7 | CAP. SPRING HANDGUARD | 545071301 | 545071301-Online | 1 |
| 8 | SPRING. HANDGUARD POSITION SPRING. POSITION HANDGUARD | 545071201 | 545071201-Online | 1 |
| 11 | CHASSIS CHASSIS BEARING ASSEMBLY MACH. | 587026801 | 587026801-Online | 1 |
| 13 | BOLT BOLT M8 X 1.25 | 529310301 | 529310301-Online | 2 |
| 14 | HOSE | 545033501 | 545033501-Online | 1 |
| 15 | PLUG | 530029868 | 530029868-Online | 1 |
| 16 | CHECK VALVE CHECK VALVE DUCKBILL | 530026119 | 530026119-Online | 1 |
| 17 | FUEL HOSE FUEL O.D. HOSE KIT LP100 5.3 | 580727101 | 580727101-Online | 1 |
| 18 | NIPPLE NIPPLE FITTING - FUEL LINE | 530023877 | 530023877-Online | 1 |
| 20 | ISOLATOR ISOLATOR FILTER HOUSING | 545061901 | 545061901-Online | 1 |
| 21 | TANK CAP ASSY TANK CAP ASSY GREY | 544111203 | 544111203-Online | 2 |
| 22 | SCREW | 530015906 | 530015906-Online | 2 |
| 23 | ISOLATOR ISOLATOR ASSY FRONT | 545033801 | 545033801-Online | 1 |
| 25 | SPRING SPRING REAR ISOLATOR | 545063101 | 545063101-Online | 1 |
| 26 | FUEL FILTER ASSEMBLY FLUSHED FUEL PICKUP PRE | 577167201 | 577167201-Online | 1 |
| 27 | FUEL HOSE FUEL O.D. HOSE KIT LP100 5.3 | 580727101 | 580727101-Online | 1 |
| 28 | SCREW SCREW PT 60/10-14 | 530015814 | 530015814-Online | 1 |
| 29 | CHAIN CATCHER | 530029850 | 530029850-Online | 1 |
| 30 | FELLING DOG | 530038990 | 530038990-Online | 1 |
| 31 | SCREW | 530016439 | 530016439-Online | 2 |
| 32 | FELLING DOG FELLING ASSEMBLY DOG KIT SPIKE | 530014381 | 530014381-Online | 1 |
| 33 | GROMMET GROMMET FUEL LINE | 580457501 | 580457501-Online | 1 |
| 34 | SPACER PLATE | 592969801 | 592969801-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | FRONT HANDLE | 545062401 | 545062401-Online | 1 |
| 2 | REAR HANDLE REAR OVERMOLD HANDLE NO | 545062201 | 545062201-Online | 1 |
| 3 | REAR HANDLE COVER 235/235E REAR OVERMOLD HANDLE COVER NO | 545062301 | 545062301-Online | 1 |
| 4 | LOCKOUT- THROTTLE | 545062601 | 545062601-Online | 1 |
| 6 | TRIGGER TRIGGER ASSEMBLY GRAY | 578246701 | 578246701-Online | 1 |
| 7 | ISOLATOR ISOLATOR ISOLATOR ASU FRONT | 545033901 | 545033901-Online | 1 |
| 8 | ISOLATION LIMITER SCREW ISOLATION M5.28 M4 SPECIAL - 1.8 LIMITER X 14.75 SCREW PL HEX | 545076301 | 545076301-Online | 1 |
| 9 | SCREW SCREW PAN TRX #8-16 T25 X 15.1 PL | 530016433 | 530016433-Online | 3 |
| 10 | SCREW | 530016349 | 530016349-Online | 2 |
| 11 | SCREW SCREW 14X22.225MM SCREW M5.38- | 530016432 | 530016432-Online | 2 |
| 12 | KIT KIT TRIGGER & LOCKOUT | 578862201 | 578862201-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | FLYWHEEL FLYWHEEL ASSY | 575635502 | 575635502-Online | 1 |
| 2 | WASHER WASHER CONICAL 5/16 RAMP | 530015127 | 530015127-Online | 1 |
| 3 | NUT NUT HEX M8-1 RH GR8 | 530016134 | 530016134-Online | 1 |
| 4 | MODULE | 575803501 | 575803501-Online | 1 |
| 5 | SCREW SCREW SEMS T20 M4-0.7X16MM | 545121901 | 545121901-Online | 2 |
| 6 | ASSY- WIRE HARNESS | 545079901 | 545079901-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | NUT NUT 10MM BRASS | 574266401 | 574266401-Online | 1 |
| 2 | EXHAUST PLATE | 545076901 | 545076901-Online | 1 |
| 3 | SCREEN SCREEN ARRESTOR GASKET | 545167401 | 545167401-Online | 1 |
| 4 | BOLT | 530016338 | 530016338-Online | 2 |
| 5 | MUFFLER MUFFLER ASSY | 586094301 | 586094301-Online | 1 |
| 6 | MUFFLER GASKET | 530054884 | 530054884-Online | 1 |
| 7 | MUFFLER BACK PLATE | 545066901 | 545066901-Online | 1 |
| 8 | KIT KIT SPARK ARRESTOR | 545008027 | 545008027-Online | 1 |
| 9 | MUFFLER MUFFLER KIT COMPLETE | 545180843 | 545180843-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SCREW | 530021179 | 530021179-Online | 1 |
| 2 | SLEEVE | 530059677 | 530059677-Online | 1 |
| 3 | SPRING | 530021180 | 530021180-Online | 1 |
| 4 | SCREW | 530016080 | 530016080-Online | 1 |
| 5 | PULLEY | 545058201 | 545058201-Online | 1 |
| 6 | SPRING | 530042095 | 530042095-Online | 1 |
| 7 | STARTER PULLEY | 530071966 | 530071966-Online | 1 |
| 8 | BAFFLE | 545063801 | 545063801-Online | 1 |
| 9 | FAN HOUSING | 545063701 | 545063701-Online | 1 |
| 10 | HANDLE | 545010010 | 545010010-Online | 1 |
| 11 | SCREW | 530016432 | 530016432-Online | 4 |
| 12 | KIT FAN STARTER HOUSING - EPS | 545008024 | 545008024-Online | 1 |
| 13 | DECAL FAN HOUSING | 594914102 | 594914102-Online | 1 |
