Husqvarna 124R IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.

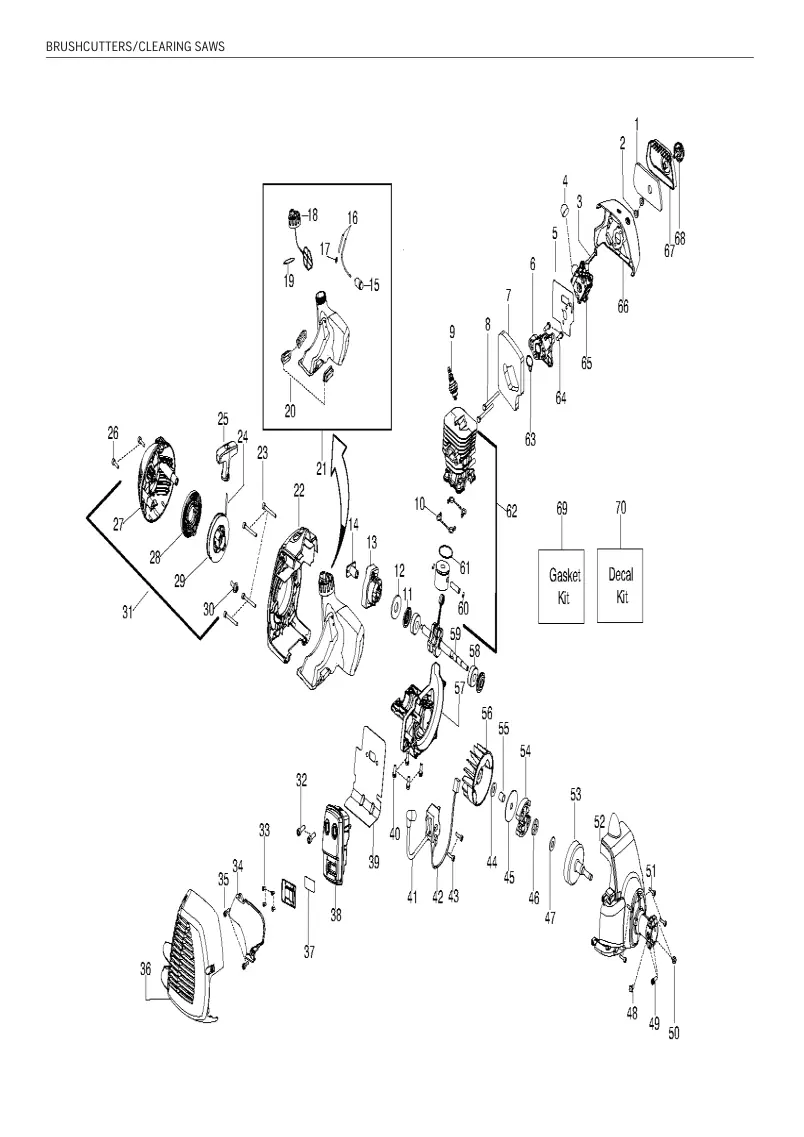

BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | AIR FILTER | 530150253 | 530150253-Online | 1 |
| 2 | NUT | 530016101 | 530016101-Online | 1 |
| 3 | LEVER | 530057844 | 530057844-Online | 1 |
| 4 | BULB | 530058709 | 530058709-Online | 1 |
| 5 | GASKET KIT | 545008086 | 545008086-Online | 1 |
| 6 | ADAPTER | 530035596 | 530035596-Online | 1 |
| 7 | GASKET KIT | 545008084 | 545008084-Online | 1 |
| 8 | BOLT | 530016400 | 530016400-Online | 1 |
| 9 | SPARK PLUG RCJ-8Y | 952030201 | 952030201-Online | 1 |
| 10 | GASKET KIT | 545008084 | 545008084-Online | 1 |
| 11 | GASKET KIT | 545008084 | 545008084-Online | 1 |
| 12 | WASHER | 530015828 | 530015828-Online | 1 |
| 13 | STARTER PAWL ATTACHMENT | 545102303 | 545102303-Online | 1 |
| 14 | COUPLING STARTER | 545099201 | 545099201-Online | 1 |
| 15 | FILTER | 530095646 | 530095646-Online | 1 |
| 16 | HOSE | 530069599 | 530069599-Online | 1 |
| 17 | NIPPLE | 530023877 | 530023877-Online | 1 |
| 18 | TANK | 530150350 | 530150350-Online | 1 |
| 19 | GASKET KIT | 545008084 | 545008084-Online | 1 |
| 20 | INSULATOR | 530059780 | 530059780-Online | 1 |
| 21 | KIT-FUEL TANK ASSY. | 545180870 | 545180870-Online | 1 |
| 22 | SHROUD | 576153201 | 576153201-Online | 1 |
| 23 | SCREW | 530016448 | 530016448-Online | 1 |
| 24 | STARTER ROPE | 545029901 | 545029901-Online | 1 |
| 25 | HANDLE | 530150318 | 530150318-Online | 1 |
| 26 | SCREW | 530016426 | 530016426-Online | 1 |
| 27 | STARTER | 545029603 | 545029603-Online | 1 |
| 28 | SPRING | 545029801 | 545029801-Online | 1 |
| 29 | STARTER PULLEY | 545029701 | 545029701-Online | 1 |
| 30 | SCREW | 530016468 | 530016468-Online | 1 |
| 31 | STARTER ASSY | 545106301 | 545106301-Online | 1 |
| 32 | BOLT | 530058982 | 530058982-Online | 1 |
| 33 | SCREW | 530015241 | 530015241-Online | 1 |
| 34 | PROTECTION HEAT SHIELD | 530150440 | 530150440-Online | 1 |
| 35 | SCREW | 530016449 | 530016449-Online | 1 |
| 36 | KIT MUFFLER GUARD | 576215001 | 576215001-Online | 1 |
| 37 | SCREEN | 545030501 | 545030501-Online | 1 |
| 38 | KIT | 574031401 | 574031401-Online | 1 |
| 39 | GASKET KIT | 545008084 | 545008084-Online | 1 |
| 40 | SCREW | 530015897 | 530015897-Online | 1 |
| 41 | IGNITION MODULE | 545046701 | 545046701-Online | 1 |
| 42 | SHORTING LEAD | 530039227 | 530039227-Online | 1 |
| 43 | SCREW | 530016456 | 530016456-Online | 1 |
| 44 | WASHER | 530016463 | 530016463-Online | 1 |
| 45 | WASHER | 530094189 | 530094189-Online | 1 |
| 46 | BEARING | 545173401 | 545173401-Online | 1 |
| 47 | WASHER - THRUST | 530016420 | 530016420-Online | 1 |
| 48 | SCREW 2010-72N SERVICE REFERENCE AND LOWER, SEE | 530015805 | 530015805-Online | 1 |
| 49 | SCREW 2010-72N SERVICE REFERENCE AND LOWER, SEE | 530015774 | 530015774-Online | 1 |
| 50 | NUT | 530015768 | 530015768-Online | 1 |
| 51 | SCREW | 530016456 | 530016456-Online | 1 |
| 52 | FAN HOUSING 2010-72N SERVICE REFERENCE AND LOWER, SEE | 545205201 | 545205201-Online | 1 |
| 53 | CLUTCH DRUM | 530150039 | 530150039-Online | 1 |
| 54 | CLUTCH ASSY | 530055122 | 530055122-Online | 1 |
| 55 | RING | 530057852 | 530057852-Online | 1 |
| 56 | FLYWHEEL | 530039242 | 530039242-Online | 1 |
| 57 | CRANKCASE | 545195601 | 545195601-Online | 1 |
| 58 | BEARING | 545013401 | 545013401-Online | 1 |
| 59 | ASSY CRANKSHAFT 28CC | 530012598 | 530012598-Online | 1 |
| 60 | CIRCLIP PISTON PIN RETAINER | 530015162 | 530015162-Online | 1 |
| 61 | PISTON RING | 530019283 | 530019283-Online | 1 |
| 62 | KIT | 545008082 | 545008082-Online | 1 |
| 63 | GASKET KIT | 545008084 | 545008084-Online | 1 |
| 64 | SCREW | 530015897 | 530015897-Online | 1 |
| 65 | KIT - CARBURETOR | 545081847 | 545081847-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 66 | AIR BOX | 545084601 | 545084601-Online | 1 |
| 67 | COVER | 530057846 | 530057846-Online | 1 |
| 68 | KNOB ASSY AIRBOX COVER | 530059796 | 530059796-Online | 1 |
| 69 | GASKET KIT | 545008084 | 545008084-Online | 1 |
| 70 | W/O DESCRIPTION | 000000000 | 000000000-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CONE 2010-72N SERVICE REFERENCE AND LOWER, SEE | 574810701 | 574810701-Online | 1 |
| 2 | CONE 2010-72N SERVICE REFERENCE AND LOWER, SEE | 574810301 | 574810301-Online | 1 |
| 3 | SCREW 2010-72N SERVICE REFERENCE AND LOWER, SEE | 530016449 | 530016449-Online | 1 |
| 4 | SCREW 2010-72N SERVICE REFERENCE AND LOWER, SEE | 530015805 | 530015805-Online | 1 |
| 5 | HANDLE | 537172802 | 537172802-Online | 1 |
| 6 | SCREW IHSCFM | 503200245 | 503200245-Online | 1 |
| 7 | CLAMP LOWER HARNESS CLAMP | 545056601 | 545056601-Online | 1 |
| 8 | SCREW | 530015940 | 530015940-Online | 1 |
| 9 | THROTTLE ASSY | 545125501 | 545125501-Online | 1 |
| 10 | HANDLEBAR | 502199503 | 502199503-Online | 1 |
| 11 | HEXAGON NUT | 731231401 | 731231401-Online | 1 |
| 12 | COVER | 537172901 | 537172901-Online | 1 |
| 13 | STAPLE | 502211201 | 502211201-Online | 1 |
| 14 | CLAMP UPPER HARNESS CLAMP | 545113301 | 545113301-Online | 1 |
| 15 | KIT | 575776101 | 575776101-Online | 1 |
| 16 | SCREW | 530015814 | 530015814-Online | 1 |
| 17 | BRACKET | 530058563 | 530058563-Online | 1 |
| 18 | BRACKET | 545058501 | 545058501-Online | 1 |
| 19 | SWITCH | 537419001 | 537419001-Online | 1 |
| 20 | THROTTLE LOCKOUT | 537160703 | 537160703-Online | 1 |
| 21 | SPRING | 537174301 | 537174301-Online | 1 |
| 22 | HEXAGON NUT | 503221013 | 503221013-Online | 1 |
| 23 | THROTTLE LOCKOUT | 506495101 | 506495101-Online | 1 |
| 24 | HANDLE HALF LH | 537160203 | 537160203-Online | 1 |
| 25 | CABLE ASSY | 545125801 | 545125801-Online | 1 |
| 26 | SPRING THROTTLE TRIG | 537174201 | 537174201-Online | 1 |
| 27 | THROTTLE CONTROL | 506495001 | 506495001-Online | 1 |
| 28 | SCREW IHSCT | 503216618 | 503216618-Online | 1 |
| 29 | SCREW IHSCFM | 503200735 | 503200735-Online | 1 |
| 30 | HANDLE HALF RH | 537160301 | 537160301-Online | 1 |
| 31 | SHAFT | 545007507 | 545007507-Online | 1 |
| 32 | HARNESS | 537216301 | 537216301-Online | 1 |
| 33 | COMBINATION GUARD | 545030901 | 545030901-Online | 1 |
| 34 | LINE | 530052286 | 530052286-Online | 1 |
| 35 | SCREW | 530015814 | 530015814-Online | 1 |
| 36 | GRASS BLADE | 504001303 | 504001303-Online | 1 |
| 37 | SUPPORT CUP | 503890101 | 503890101-Online | 1 |
| 38 | SUPPORT FLANGE | 537285601 | 537285601-Online | 1 |
| 39 | NUT | 503856301 | 503856301-Online | 1 |
| 40 | SCREW | 530016014 | 530016014-Online | 1 |
| 41 | SCREW | 545003902 | 545003902-Online | 1 |
| 42 | PLUG | 575724601 | 575724601-Online | 1 |
| 43 | DRIVER ASSY | 537234901 | 537234901-Online | 1 |
| 44 | SCREW | 530015771 | 530015771-Online | 1 |
| 45 | BRACKET | 530057554 | 530057554-Online | 1 |
| 46 | STOP | 502285901 | 502285901-Online | 1 |
| 47 | BEVEL GEAR | 530096295 | 530096295-Online | 1 |
| 48 | TRIMMER HEAD T25 | 537338306 | 537338306-Online | 1 |
