Husqvarna 125 R IPL

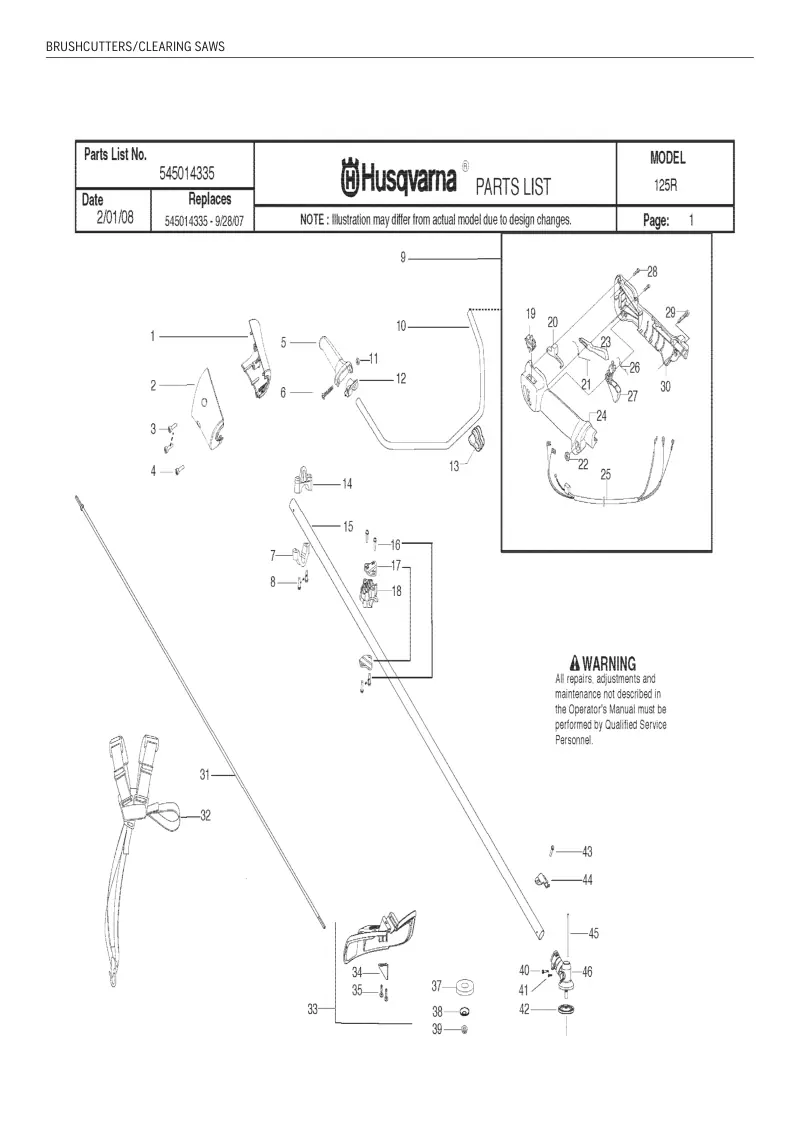

Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | COVER | 545036401 | 545036401-Online | 1 |
| 2 | COVER | 545036501 | 545036501-Online | 1 |
| 3 | SCREW | 530016448 | 530016448-Online | 1 |
| 4 | SCREW | 530016449 | 530016449-Online | 1 |
| 5 | HANDLE | 537172802 | 537172802-Online | 1 |
| 6 | SCREW IHSCFM | 503200245 | 503200245-Online | 1 |
| 7 | CLAMP | 545056601 | 545056601-Online | 1 |
| 8 | SCREW | 530015940 | 530015940-Online | 1 |
| 9 | THROTTLE ASSY | 545125501 | 545125501-Online | 1 |
| 10 | HANDLEBAR | 502199503 | 502199503-Online | 1 |
| 11 | HEXAGON NUT | 731231401 | 731231401-Online | 1 |
| 12 | COVER | 537172901 | 537172901-Online | 1 |
| 13 | STAPLE | 502211201 | 502211201-Online | 1 |
| 14 | CLAMP | 545113301 | 545113301-Online | 1 |
| 15 | KIT-DRIVESHAFT(INCL. 40.41.44.46) | 545180805 | 545180805-Online | 1 |
| 16 | SCREW | 530015814 | 530015814-Online | 1 |
| 17 | BRACKET | 530058563 | 530058563-Online | 1 |
| 18 | BRACKET | 545058501 | 545058501-Online | 1 |
| 19 | SWITCH | 537419001 | 537419001-Online | 1 |
| 20 | THROTTLE LOCKOUT | 537160701 | 537160701-Online | 1 |
| 21 | SPRING | 537174301 | 537174301-Online | 1 |
| 22 | HEXAGON NUT | 503221013 | 503221013-Online | 1 |
| 23 | THROTTLE LOCKOUT | 537160601 | 537160601-Online | 1 |
| 24 | HANDLE HALF | 537160203 | 537160203-Online | 1 |
| 25 | CABLE ASSY | 545125801 | 545125801-Online | 1 |
| 26 | SPRING THROTTLE TRIG | 537174201 | 537174201-Online | 1 |
| 27 | THROTTLE TRIGGER | 537160801 | 537160801-Online | 1 |
| 28 | SCREW IHSCT | 503216618 | 503216618-Online | 1 |
| 29 | SCREW IHSCFM | 503200735 | 503200735-Online | 1 |
| 30 | HANDLE HALF | 537160301 | 537160301-Online | 1 |
| 32 | HARNESS | 537216302 | 537216302-Online | 1 |
| 33 | COMBINATION GUARD | 545030901 | 545030901-Online | 1 |
| 34 | LINE | 530052286 | 530052286-Online | 1 |
| 35 | SCREW | 530015814 | 530015814-Online | 1 |
| 37 | SUPPORT CUP | 503890101 | 503890101-Online | 1 |
| 38 | SUPPORT FLANGE | 537285601 | 537285601-Online | 1 |
| 39 | NUT | 503856301 | 503856301-Online | 1 |
| 40 | SCREW | 530016014 | 530016014-Online | 1 |
| 41 | SCREW | 545003902 | 545003902-Online | 1 |
| 42 | DRIVER ASSY | 537234901 | 537234901-Online | 1 |
| 43 | SCREW | 530015771 | 530015771-Online | 1 |
| 44 | BRACKET | 530057554 | 530057554-Online | 1 |
| 45 | STOP | 502285901 | 502285901-Online | 1 |
| 46 | BEVEL GEAR | 530096295 | 530096295-Online | 1 |
| - | DECAL | 545098601 | 545098601-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | WRENCH | 530031159 | 530031159-Online | 1 |
| 2 | SOCKET WRENCH | 502114602 | 502114602-Online | 1 |
| 3 | TRANSPORT GUARD | 537312901 | 537312901-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | AIR FILTER | 530150253 | 530150253-Online | 1 |
| 2 | NUT | 530016101 | 530016101-Online | 1 |
| 3 | AIR BOX | 545084601 | 545084601-Online | 1 |
| 4 | LEVER | 530057844 | 530057844-Online | 1 |
| 5 | KIT | 545050402 | 545050402-Online | 1 |
| 6 | ADAPTER | 530035596 | 530035596-Online | 1 |
| 7 | GASKET | 545030101 | 545030101-Online | 1 |
| 8 | BOLT | 530016400 | 530016400-Online | 1 |
| 9 | CYLINDER | 545001001 | 545001001-Online | 1 |
| 10 | SPARK PLUG | 952030201 | 952030201-Online | 1 |
| 11 | KIT | 545050403 | 545050403-Online | 1 |
| 12 | CARRIER | 530016475 | 530016475-Online | 1 |
| 13 | SPRING | 545160301 | 545160301-Online | 1 |
| 14 | STARTER PAWL ATTACHMENT | 545102302 | 545102302-Online | 1 |
| 15 | SHAFT | 530059800 | 530059800-Online | 1 |
| 16 | FILTER | 530095646 | 530095646-Online | 1 |
| 16 | FUEL FILTER 30 530095646 pcs, plastic bag of | 530095601 | 530095601-Online | 1 |
| 17 | HOSE | 545081897 | 545081897-Online | 1 |
| 18 | TANK | 530150350 | 530150350-Online | 1 |
| 19 | O-RING | 530019293 | 530019293-Online | 1 |
| 20 | FUEL TANK ASSY | 545105105 | 545105105-Online | 1 |
| 21 | COVER | 530057851 | 530057851-Online | 1 |
| 22 | SCREW | 530016448 | 530016448-Online | 1 |
| 23 | STARTER ROPE | 545029901 | 545029901-Online | 1 |
| 24 | HANDLE | 530150318 | 530150318-Online | 1 |
| 25 | SCREW | 530016426 | 530016426-Online | 1 |
| 26 | STARTER | 545029603 | 545029603-Online | 1 |
| 27 | SPRING | 545029801 | 545029801-Online | 1 |
| 28 | STARTER PULLEY | 545029701 | 545029701-Online | 1 |
| 29 | SCREW | 530016468 | 530016468-Online | 1 |
| 30 | STARTER ASSY | 545106301 | 545106301-Online | 1 |
| 31 | INSULATOR | 530059780 | 530059780-Online | 1 |
| 32 | BOLT | 530058982 | 530058982-Online | 1 |
| 33 | SCREW | 530015496 | 530015496-Online | 1 |
| 34 | PROTECTION | 530150440 | 530150440-Online | 1 |
| 35 | SCREW | 530016449 | 530016449-Online | 1 |
| 36 | PROTECTION | 545104901 | 545104901-Online | 1 |
| 37 | SCREEN | 545030501 | 545030501-Online | 1 |
| 38 | MUFFLER ASSY | 545057501 | 545057501-Online | 1 |
| 39 | GASKET | 530057848 | 530057848-Online | 1 |
| 40 | SCREW | 530015897 | 530015897-Online | 1 |
| 41 | IGNITION MODULE | 545046701 | 545046701-Online | 1 |
| 42 | SHORTING LEAD | 530039227 | 530039227-Online | 1 |
| 43 | SCREW | 530016456 | 530016456-Online | 1 |
| 44 | WASHER | 530016463 | 530016463-Online | 1 |
| 45 | WASHER | 530094189 | 530094189-Online | 1 |
| 46 | SCREW | 530016469 | 530016469-Online | 1 |
| 47 | SCREW | 530016470 | 530016470-Online | 1 |
| 48 | NUT | 530015768 | 530015768-Online | 1 |
| 49 | SCREW | 530016456 | 530016456-Online | 1 |
| 50 | HOUSING | 545017501 | 545017501-Online | 1 |
| 51 | CLUTCH DRUM | 530150039 | 530150039-Online | 1 |
| 52 | CLUTCH | 545050405 | 545050405-Online | 1 |
| 53 | RING | 530057852 | 530057852-Online | 1 |
| 54 | FLYWHEEL | 530039242 | 530039242-Online | 1 |
| 55 | CRANKCASE | 545054601 | 545054601-Online | 1 |
| 56 | BEARING | 545013401 | 545013401-Online | 1 |
| 57 | CRANKSHAFT | 545030001 | 545030001-Online | 1 |
| 58 | CIRCLIP | 530015162 | 530015162-Online | 1 |
| 59 | PISTON RING | 530019283 | 530019283-Online | 1 |
| 60 | PISTON | 545030301 | 545030301-Online | 1 |
| 61 | GASKET | 545030101 | 545030101-Online | 1 |
| 62 | SCREW | 530015897 | 530015897-Online | 1 |
| 63 | CARBURETTOR KIT | 545081848 | 545081848-Online | 1 |
| GASKET KIT | 504811801 | 504811801-Online | 1 | |
| - | BULB | 530058709 | 530058709-Online | 1 |
| 64 | COVER | 530057846 | 530057846-Online | 1 |
| 65 | KNOB ASSY AIRBOX COVER | 530059796 | 530059796-Online | 1 |
| 66 | GASKET | 545030101 | 545030101-Online | 1 |
