Husqvarna 125 RJ IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.

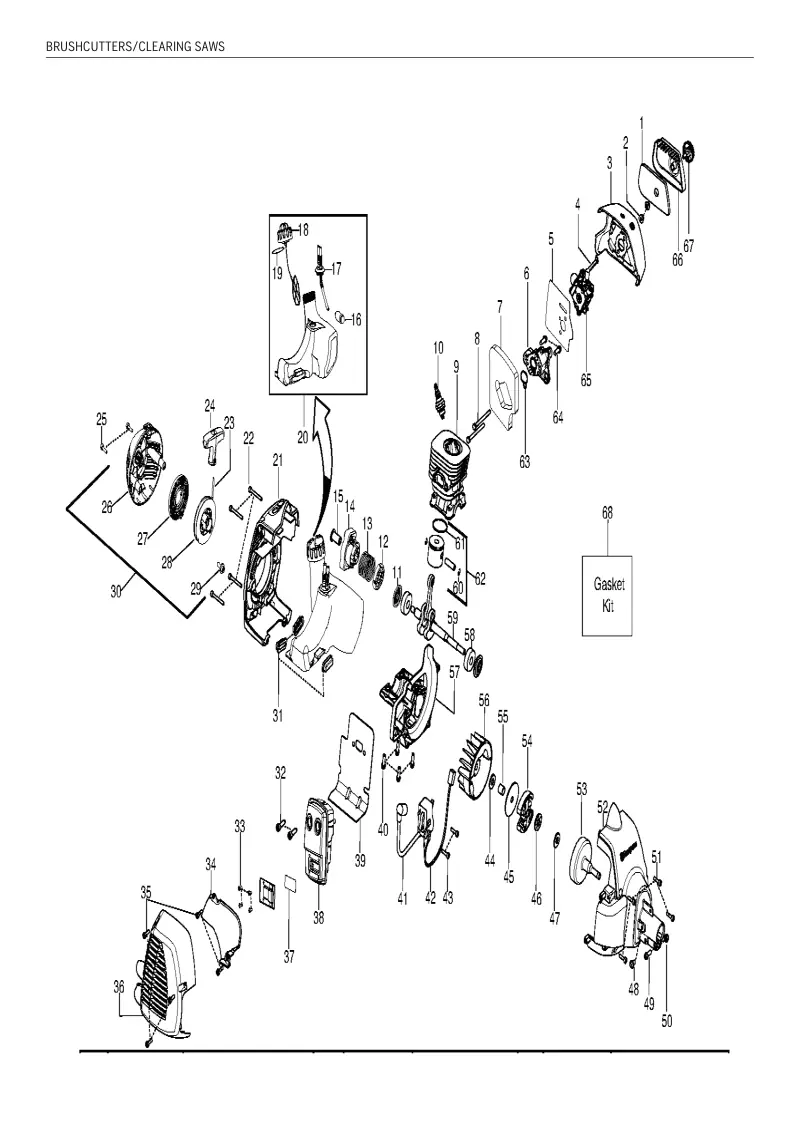

BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | AIR FILTER | 530150253 | 530150253-Online | 1 |
| 2 | NUT | 530016101 | 530016101-Online | 1 |
| 3 | AIR BOX | 545084601 | 545084601-Online | 1 |
| 4 | LEVER | 530057844 | 530057844-Online | 1 |
| 5 | KIT | 545050402 | 545050402-Online | 1 |
| 6 | ADAPTER | 530035596 | 530035596-Online | 1 |
| 7 | GASKET KIT | 545008084 | 545008084-Online | 1 |
| 8 | BOLT | 530016400 | 530016400-Online | 1 |
| 9 | CYLINDER | 545001001 | 545001001-Online | 1 |
| 10 | SPARK PLUG RCJ-8Y | 952030201 | 952030201-Online | 1 |
| 11 | KIT | 545050403 | 545050403-Online | 1 |
| 12 | CARRIER | 530016475 | 530016475-Online | 1 |
| 13 | SPRING | 545160301 | 545160301-Online | 1 |
| 14 | STARTER PAWL ATTACHMENT | 545102303 | 545102303-Online | 1 |
| 15 | SHAFT | 530059800 | 530059800-Online | 1 |
| 16 | FILTER | 530095646 | 530095646-Online | 1 |
| 17 | HOSE | 545081897 | 545081897-Online | 1 |
| 18 | TANK | 530150350 | 530150350-Online | 1 |
| 19 | GASKET KIT | 545008084 | 545008084-Online | 1 |
| 20 | FUEL TANK ASSY | 545105104 | 545105104-Online | 1 |
| 21 | COVER | 530057851 | 530057851-Online | 1 |
| 22 | SCREW | 530016448 | 530016448-Online | 1 |
| 23 | STARTER ROPE | 545029901 | 545029901-Online | 1 |
| 24 | HANDLE | 530150318 | 530150318-Online | 1 |
| 25 | SCREW | 530016426 | 530016426-Online | 1 |
| 26 | STARTER | 545029603 | 545029603-Online | 1 |
| 27 | SPRING | 545029801 | 545029801-Online | 1 |
| 28 | STARTER PULLEY | 545029701 | 545029701-Online | 1 |
| 29 | SCREW | 530016468 | 530016468-Online | 1 |
| 30 | STARTER ASSY | 545106301 | 545106301-Online | 1 |
| 31 | INSULATOR | 530059780 | 530059780-Online | 1 |
| 32 | BOLT | 530058982 | 530058982-Online | 1 |
| 33 | SCREW | 530015496 | 530015496-Online | 1 |
| 34 | PROTECTION | 530150440 | 530150440-Online | 1 |
| 35 | SCREW | 530016449 | 530016449-Online | 1 |
| 36 | PROTECTION | 545104901 | 545104901-Online | 1 |
| 37 | SCREEN | 545030501 | 545030501-Online | 1 |
| 38 | MUFFLER ASSY | 545057501 | 545057501-Online | 1 |
| 39 | GASKET KIT | 545008084 | 545008084-Online | 1 |
| 40 | SCREW | 530015897 | 530015897-Online | 1 |
| 41 | IGNITION MODULE | 545046701 | 545046701-Online | 1 |
| 42 | SHORTING LEAD | 530039227 | 530039227-Online | 1 |
| 43 | SCREW | 530016456 | 530016456-Online | 1 |
| 44 | WASHER | 530016463 | 530016463-Online | 1 |
| 45 | WASHER | 530094189 | 530094189-Online | 1 |
| 46 | BEARING | 545173401 | 545173401-Online | 1 |
| 47 | WASHER - THRUST | 530016420 | 530016420-Online | 1 |
| 48 | SCREW | 530016469 | 530016469-Online | 1 |
| 49 | SCREW | 530016470 | 530016470-Online | 1 |
| 50 | NUT | 530015768 | 530015768-Online | 1 |
| 51 | SCREW | 530016456 | 530016456-Online | 1 |
| 52 | HOUSING | 545017501 | 545017501-Online | 1 |
| 53 | CLUTCH DRUM 06282N SERVICE REFERENCE AND LOWER SEE | 530150039 | 530150039-Online | 1 |
| 54 | CLUTCH | 545050405 | 545050405-Online | 1 |
| 55 | RING | 530057852 | 530057852-Online | 1 |
| 56 | FLYWHEEL | 530039242 | 530039242-Online | 1 |
| 57 | CRANKCASE | 545054601 | 545054601-Online | 1 |
| 58 | BEARING | 545013401 | 545013401-Online | 1 |
| 59 | CRANKSHAFT | 545030001 | 545030001-Online | 1 |
| 60 | CIRCLIP PISTON PIN RETAINER | 530015162 | 530015162-Online | 1 |
| 61 | PISTON RING | 530019283 | 530019283-Online | 1 |
| 62 | PISTON | 545030301 | 545030301-Online | 1 |
| 63 | GASKET KIT | 545008084 | 545008084-Online | 1 |
| 64 | SCREW | 530015897 | 530015897-Online | 1 |
| 65 | CARBURETTOR KIT | 545081848 | 545081848-Online | 1 |
| GASKET KIT | 504811801 | 504811801-Online | 1 | |
| 66 | COVER | 530057846 | 530057846-Online | 1 |
| 67 | KNOB ASSY AIRBOX COVER | 530059796 | 530059796-Online | 1 |
| 68 | GASKET KIT | 545008084 | 545008084-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | WIRE | 545125301 | 545125301-Online | 1 |
| 2 | HANDLE RH | 545062001 | 545062001-Online | 1 |
| 3 | SCREW | 530016448 | 530016448-Online | 1 |
| 4 | SCREW | 530016449 | 530016449-Online | 1 |
| 5 | RETURN SPRING | 530016454 | 530016454-Online | 1 |
| 6 | TRIGGER | 545066001 | 545066001-Online | 1 |
| 7 | THROTTLE LOCK | 530059804 | 530059804-Online | 1 |
| 8 | RETURN SPRING | 545045601 | 545045601-Online | 1 |
| 9 | HANDLE LH | 545067001 | 545067001-Online | 1 |
| 10 | SWITCH | 545049301 | 545049301-Online | 1 |
| 11 | SCREW | 530015820 | 530015820-Online | 1 |
| 12 | HANDLE | 545139701 | 545139701-Online | 1 |
| 13 | CLAMP UPPER | 545113301 | 545113301-Online | 1 |
| 14 | CLAMP LOWER | 545056601 | 545056601-Online | 1 |
| 15 | SCREW | 530015940 | 530015940-Online | 1 |
| 16 | CLAMP | 530059185 | 530059185-Online | 1 |
| 17 | WING NUT | 530016152 | 530016152-Online | 1 |
| 18 | KIT-DRIVESHAFT | 545081889 | 545081889-Online | 1 |
| 19 | SHAFT 06282N SERVICE REFERENCE AND LOWER SEE | 545007507 | 545007507-Online | 1 |
| 20 | HARNESS | 537216201 | 537216201-Online | 1 |
| 21 | COMBINATION GUARD | 545030901 | 545030901-Online | 1 |
| 22 | LINE | 530052286 | 530052286-Online | 1 |
| 23 | SCREW | 530015814 | 530015814-Online | 1 |
| 24 | GRASS BLADE | 537149604 | 537149604-Online | 1 |
| 25 | SUPPORT CUP | 503890101 | 503890101-Online | 1 |
| 26 | SUPPORT FLANGE | 537285601 | 537285601-Online | 1 |
| 27 | NUT | 503856301 | 503856301-Online | 1 |
| 28 | SCREW | 530016014 | 530016014-Online | 1 |
| 29 | SCREW | 545003902 | 545003902-Online | 1 |
| 30 | PLUG | 575724601 | 575724601-Online | 1 |
| 31 | DRIVER ASSY | 537234901 | 537234901-Online | 1 |
| 32 | SCREW | 530015771 | 530015771-Online | 1 |
| 33 | BRACKET | 530057554 | 530057554-Online | 1 |
| 34 | STOP | 502285901 | 502285901-Online | 1 |
| 35 | BEVEL GEAR | 530096295 | 530096295-Online | 1 |
| 36 | TRIMMER HEAD | 537338306 | 537338306-Online | 1 |
