Husqvarna 128LX IPL

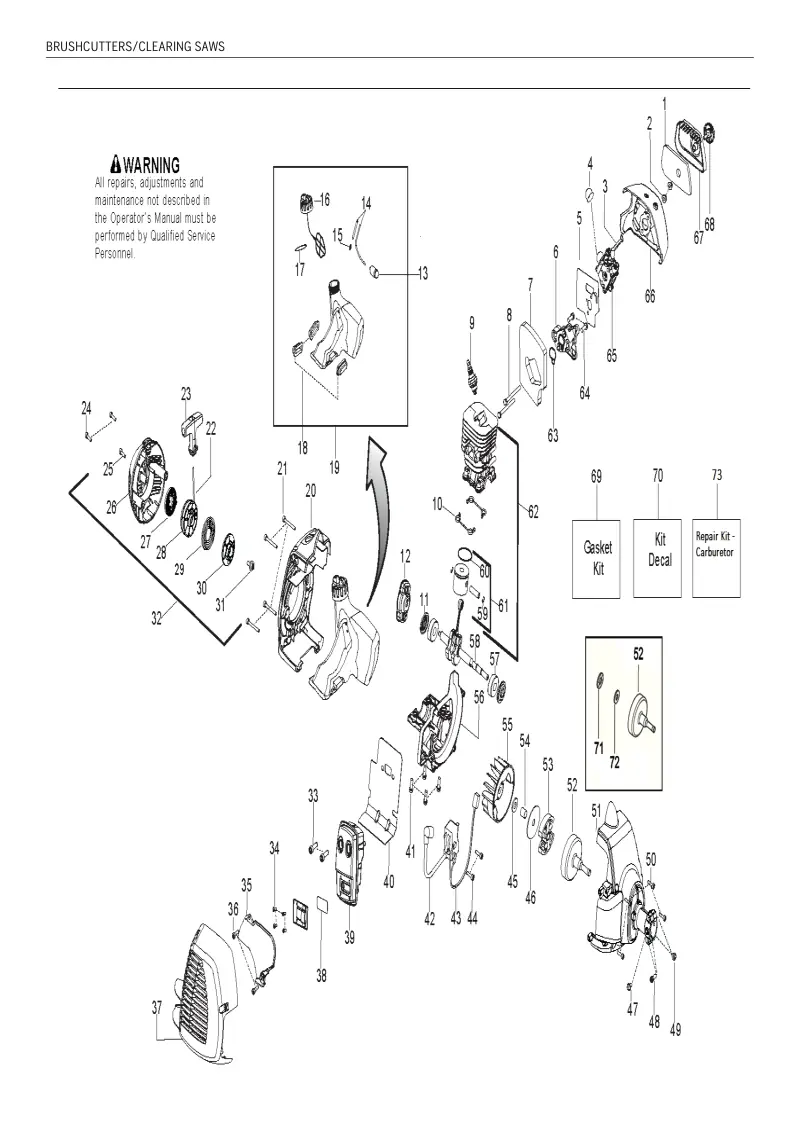

Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | AIR FILTER | 530150253 | 530150253-Online | 1 |
| 2 | NUT | 530016101 | 530016101-Online | 1 |
| 3 | LEVER | 530057844 | 530057844-Online | 1 |
| 4 | BULB | 530058709 | 530058709-Online | 1 |
| 5 | GASKET KIT | 545008084 | 545008084-Online | 1 |
| 6 | ADAPTER | 530035596 | 530035596-Online | 1 |
| 7 | GASKET KIT | 545008084 | 545008084-Online | 1 |
| 8 | BOLT | 530016400 | 530016400-Online | 1 |
| 9 | SPARK PLUG | 952030201 | 952030201-Online | 1 |
| 10 | GASKET KIT | 545008084 | 545008084-Online | 1 |
| 11 | GASKET KIT | 545008084 | 545008084-Online | 1 |
| 12 | STARTER PAWL | 503873305 | 503873305-Online | 1 |
| 13 | FUEL FILTER | 577167201 | 577167201-Online | 1 |
| 14 | HOSE | 530069599 | 530069599-Online | 1 |
| 15 | NIPPLE | 530023877 | 530023877-Online | 1 |
| 16 | TANK | 530150350 | 530150350-Online | 1 |
| 17 | GASKET KIT | 545008084 | 545008084-Online | 1 |
| 18 | INSULATOR | 530059780 | 530059780-Online | 1 |
| 19 | KIT-FUEL TANK ASSY. | 545180870 | 545180870-Online | 1 |
| 20 | SHROUD | 576153201 | 576153201-Online | 1 |
| 21 | SCREW | 530016448 | 530016448-Online | 1 |
| 22 | KIT-ROPE | 545008079 | 545008079-Online | 1 |
| 23 | STARTER HANDLE | 545043204 | 545043204-Online | 1 |
| 24 | SCREW | 530016426 | 530016426-Online | 1 |
| 25 | SCREW | 530016449 | 530016449-Online | 1 |
| 26 | HOUSING | 525455501 | 525455501-Online | 1 |
| 27 | SPRING | 545008087 | 545008087-Online | 1 |
| 28 | STARTER PULLEY | 585530301 | 585530301-Online | 1 |
| 29 | SPRING | 578465101 | 578465101-Online | 1 |
| 30 | PULLEY | 579366201 | 579366201-Online | 1 |
| 31 | SCREW | 530016468 | 530016468-Online | 1 |
| 32 | STARTER HOUSING | 579063101 | 579063101-Online | 1 |
| 33 | BOLT | 530058982 | 530058982-Online | 1 |
| 34 | SCREW | 530015241 | 530015241-Online | 1 |
| 35 | PROTECTION | 530150440 | 530150440-Online | 1 |
| 36 | SCREW | 530016449 | 530016449-Online | 1 |
| 37 | KIT | 576215001 | 576215001-Online | 1 |
| 38 | SCREEN | 545030501 | 545030501-Online | 1 |
| 39 | SERVICE KIT MUFFLER 044804007C ID CODE | 529423901 | 529423901-Online | 1 |
| 39 | KIT MUFFLER 044801007C ID CODE | 574031502 | 574031502-Online | 1 |
| 40 | GASKET KIT | 545008084 | 545008084-Online | 1 |
| 41 | SCREW | 530015897 | 530015897-Online | 1 |
| 42 | IGNITION MODULE | 545046701 | 545046701-Online | 1 |
| 43 | SHORTING LEAD | 530039227 | 530039227-Online | 1 |
| 44 | SCREW | 530016456 | 530016456-Online | 1 |
| 45 | WASHER | 530016463 | 530016463-Online | 1 |
| 46 | WASHER | 530094189 | 530094189-Online | 1 |
| 47 | SCREW | 530015805 | 530015805-Online | 1 |
| 48 | SCREW | 530015774 | 530015774-Online | 1 |
| 49 | NUT | 530015768 | 530015768-Online | 1 |
| 50 | SCREW | 530016456 | 530016456-Online | 1 |
| 51 | FAN HOUSING | 545205201 | 545205201-Online | 1 |
| 52 | CLUTCH DRUM S/N 2012-090N | 530150039 | 530150039-Online | 1 |
| 52 | KIT S/N 2012-091N | 580446601 | 580446601-Online | 1 |
| 53 | CLUTCH ASSY | 530055122 | 530055122-Online | 1 |
| 54 | RING | 530057852 | 530057852-Online | 1 |
| 55 | FLYWHEEL | 530039242 | 530039242-Online | 1 |
| 56 | CRANKCASE | 577929502 | 577929502-Online | 1 |
| 57 | BEARING | 545013401 | 545013401-Online | 1 |
| 58 | CRANKSHAFT S/N 2012-020N | 585415401 | 585415401-Online | 1 |
| 58 | CRANKSHAFT S/N 2012-021N | 585415402 | 585415402-Online | 1 |
| 59 | CIRCLIP | 530015162 | 530015162-Online | 1 |
| 60 | RING | 575227901 | 575227901-Online | 1 |
| 61 | PISTON | 545081814 | 545081814-Online | 1 |
| 62 | CYLINDER ASSY | 545008083 | 545008083-Online | 1 |
| 63 | GASKET KIT | 545008084 | 545008084-Online | 1 |
| 64 | SCREW | 530015897 | 530015897-Online | 1 |
| 65 | CARBURETTOR KIT | 545081848 | 545081848-Online | 1 |
| 66 | BASE | 576459001 | 576459001-Online | 1 |
| 67 | COVER | 530057846 | 530057846-Online | 1 |
| 68 | KNOB ASSY AIRBOX COVER | 530059796 | 530059796-Online | 1 |
| 69 | GASKET KIT | 545008084 | 545008084-Online | 1 |
| 70 | KIT | 545003352 | 545003352-Online | 1 |
| 71 | BEARING S/N 2012-090N | 545173401 | 545173401-Online | 1 |
| 72 | WASHER - THRUST S/N 2012-090N | 530016420 | 530016420-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 73 | GASKET KIT ZAMA CARBURETOR | 504811801 | 504811801-Online | 1 |
| 73 | SERVICE KIT RUIXING CARBURETOR | 599604201 | 599604201-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | THROTTLE ASSY CABLE ONLY | 574489003 | 574489003-Online | 1 |
| 1a | SHORT CIRCUIT CABLE | 584994001 | 584994001-Online | 1 |
| 2 | THROTTLE | 545223001 | 545223001-Online | 1 |
| 3 | SCREW | 530016449 | 530016449-Online | 1 |
| 4 | SCREW | 530015805 | 530015805-Online | 1 |
| 5 | RETURN SPRING | 530016454 | 530016454-Online | 1 |
| 6 | TRIGGER | 574355301 | 574355301-Online | 1 |
| 7 | THROTTLE | 574355401 | 574355401-Online | 1 |
| 8 | HOUSING | 545223201 | 545223201-Online | 1 |
| 9 | SWITCH MOMENTARY | 545049309 | 545049309-Online | 1 |
| 10 | SCREW | 530015820 | 530015820-Online | 1 |
| 11 | HANDLE | 545139701 | 545139701-Online | 1 |
| 12 | CLAMP | 545113301 | 545113301-Online | 1 |
| 13 | CLAMP | 545056601 | 545056601-Online | 1 |
| 14 | SCREW | 530015940 | 530015940-Online | 1 |
| 15 | CLAMP | 530059185 | 530059185-Online | 1 |
| 16 | WING NUT | 530016152 | 530016152-Online | 1 |
| 17 | KIT | 580446621 | 580446621-Online | 1 |
| 18 | SHAFT | 545007507 | 545007507-Online | 1 |
| 19 | HARNESS | 537216201 | 537216201-Online | 1 |
| 20 | KIT | 580446606 | 580446606-Online | 1 |
| 21 | LINE | 530052286 | 530052286-Online | 1 |
| 22 | SCREW | 530015814 | 530015814-Online | 1 |
| 23 | GRASS BLADE | 504001303 | 504001303-Online | 1 |
| 24 | SUPPORT CUP | 503890101 | 503890101-Online | 1 |
| 25 | SUPPORT FLANGE | 537285601 | 537285601-Online | 1 |
| 26 | NUT | 503856301 | 503856301-Online | 1 |
| 27 | SCREW | 530016014 | 530016014-Online | 1 |
| 28 | SCREW | 545003902 | 545003902-Online | 1 |
| 29 | PLUG | 575724601 | 575724601-Online | 1 |
| 30 | DRIVER ASSY | 537234901 | 537234901-Online | 1 |
| 31 | SCREW | 530015771 | 530015771-Online | 1 |
| 32 | BRACKET | 530057554 | 530057554-Online | 1 |
| 33 | STOP | 502285901 | 502285901-Online | 1 |
| 34 | BEVEL GEAR | 530096295 | 530096295-Online | 1 |
| 35 | TRIMMER HEAD | 537338310 | 537338310-Online | 1 |
| 36 | TRANSPORT GUARD | 537312901 | 537312901-Online | 1 |
| SOCKET | 521533001 | 521533001-Online | 1 | |
| DECAL STARTER HSG 128LX | 529589601 | 529589601-Online | 1 |
