Husqvarna 130 IPL

Husqvarna 130 IPL

Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.

CHAIN SAWS

Husqvarna 130 IPL CHAIN SAWS

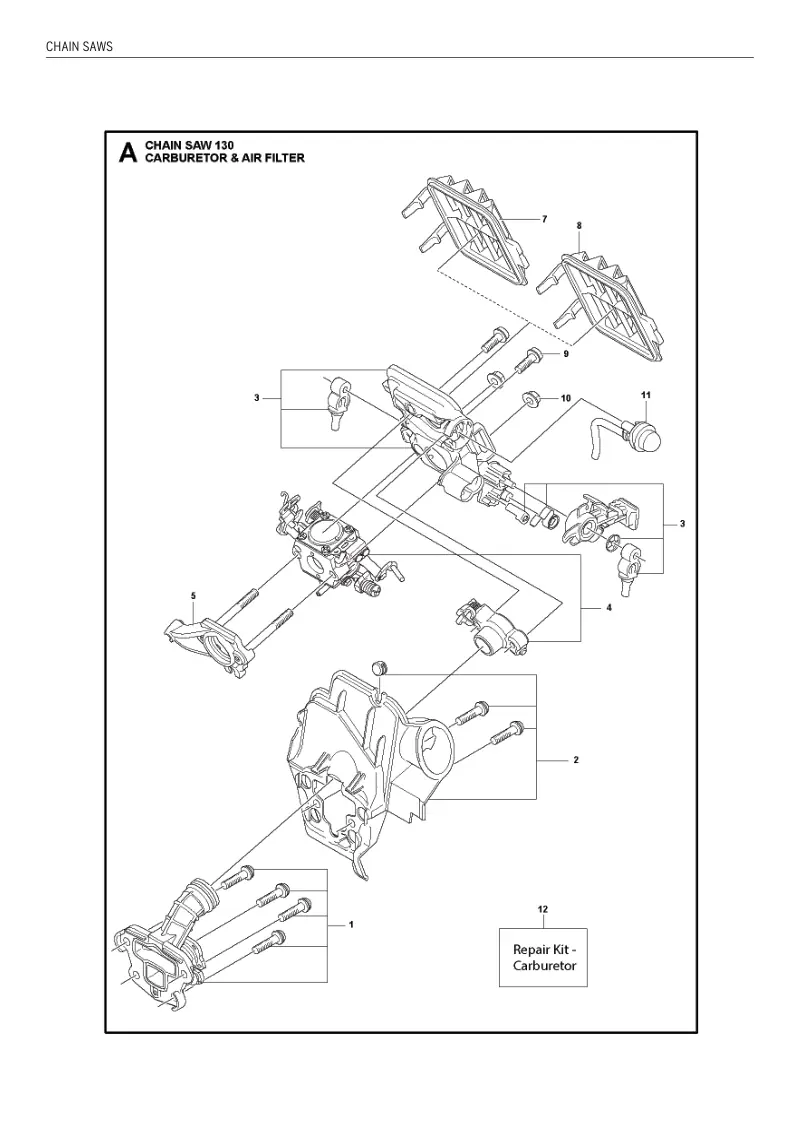

CHAIN SAWS diagram
RefDescriptionPart NumberCutsmart SKUQty
1INLET Intake Boot591463901591463901-Online1
2SERVICE KIT Insulation Wall591464401591464401-Online1
3SERVICE KIT Filter Holder591464501591464501-Online1
4CARBURETTOR KIT NA, s/n 20205099999 EU, CN, AU, NZ - up to599823701599823701-Online1
4CARBURETTOR KIT RU, 20205099999 BR - up to s/n599823702599823702-Online1
4CARBURETTOR KIT NA, 20205100001 EU, CN, AU, NZ - From s/n599823703599823703-Online1
4CARBURETTOR KIT RU, 20205100001 BR From s/n -599823704599823704-Online1
5FLANGE589289201589289201-Online1
7AIR FILTER Mesh Filter588229301588229301-Online1
8AIR FILTER Non-Woven Filter588229302588229302-Online1
9SCREW CCRPANT503217010503217010-Online2
10NUT530016101530016101-Online2
11PURGE503936601503936601-Online1
12SERVICE KIT For Ruixing Carburetors599604201599604201-Online1

CHAIN SAWS

RefDescriptionPart NumberCutsmart SKUQty
1SERVICE KIT Clutch Cover591464701591464701-Online1
2SERVICE KIT Bar Adjuster591464601591464601-Online1
3GUIDE PLATE582647601582647601-Online1
4GUIDE BUSHING590439601590439601-Online1
5BRAKE BAND ASSY544306001544306001-Online1
6NUT530015917530015917-Online2

CHAIN SAWS

RefDescriptionPart NumberCutsmart SKUQty
1SERVICE KIT OIL PUMP591466801591466801-Online1
2WASHER579621501579621501-Online1
3CLUTCH DRUM ASSY582598401582598401-Online1
4WASHER530015611530015611-Online1
5SPRING599588501599588501-Online1
6CLUTCH599588601599588601-Online1

CHAIN SAWS

RefDescriptionPart NumberCutsmart SKUQty
1SERVICE KIT Hand Guard591464801591464801-Online1
2BOSS SCREW545127301545127301-Online2
3TANK CAP ASSY544111203544111203-Online1
4GASKET589241101589241101-Online1
5SERVICE KIT Bar Plate591464901591464901-Online1
6SERVICE KIT Bar Bolt591465001591465001-Online1
7SCREW530016432530016432-Online1
8CHAIN CATCHER530029850530029850-Online1
9FELLING DOG Spike Assembly Kit530014381530014381-Online1
10SERVICE KIT Chassis591465301591465301-Online1
11SUPPORT540057301540057301-Online1
12TUBE501667401501667401-Online1

CHAIN SAWS

RefDescriptionPart NumberCutsmart SKUQty
1CRANKSHAFT ASSY588619601588619601-Online1
2BEARING KIT CRANKSHAFT BEARING SEAL &591465401591465401-Online1
3SEAL595314101595314101-Online2

CHAIN SAWS

RefDescriptionPart NumberCutsmart SKUQty
1SCREW503203476503203476-Online3
2COVER CYLINDER596394801596394801-Online1
3SERVICE KIT DECAL KIT591465501591465501-Online1

CHAIN SAWS

RefDescriptionPart NumberCutsmart SKUQty
1SERVICE KIT Cylinder Bolt591465601591465601-Online1
2SERVICE KIT Cylinder & Piston591465701591465701-Online1
3SERVICE KIT Piston Kit591465702591465702-Online1
4PISTON RING585040601585040601-Online1
5SUPPORT590409901590409901-Online1
6SPARK PLUG NGK BPMR7A503235111503235111-Online1

CHAIN SAWS

RefDescriptionPart NumberCutsmart SKUQty
1SERVICE KIT Trigger Assembly591466001591466001-Online1
2SERVICE KIT Fuel Hose592854401592854401-Online1
3FUEL FILTER503443201503443201-Online1
4BUSHING503735801503735801-Online1
5FUEL TANK ASSY501518402501518402-Online1
6SERVICE KIT Lateral Support591465801591465801-Online1
7CHECK VALVE530026119530026119-Online1
8PLUG530029868530029868-Online1
9TANK CAP ASSY544111203544111203-Online1
10GASKET589241101589241101-Online1
11THROTTLE CABLE ASSY582287001582287001-Online1

CHAIN SAWS

RefDescriptionPart NumberCutsmart SKUQty
1SERVICE KIT Anti-vibration Element591466101591466101-Online1
2SCREW530016432530016432-Online3
3HANDLE501316301501316301-Online1

CHAIN SAWS

RefDescriptionPart NumberCutsmart SKUQty
1SCREW575962601575962601-Online2
2MODULE From s/n 20205100001 -597564002597564002-Online1
2SERVICE KIT - (incl up to screws) s/n 20205099999591466501591466501-Online1
3FLYWHEEL ASSY544874202544874202-Online1
4WASHER530015127530015127-Online1
5NUT530016134530016134-Online1

CHAIN SAWS

RefDescriptionPart NumberCutsmart SKUQty
1MUFFLER ASSY501266203501266203-Online1
2SERVICE KIT Spark Arrester591175501591175501-Online1
3SCREW KIT MUFFLER591174601591174601-Online1
4GASKET501619501501619501-Online1

CHAIN SAWS

RefDescriptionPart NumberCutsmart SKUQty
1SCREW530016401530016401-Online2
2SERVICE KIT Starter Housing591466701591466701-Online1
3SPRING576657801576657801-Online1
4PULLEY588970701588970701-Online1
5SCREW530015920530015920-Online1
6BAFFLE588970601588970601-Online1
7HANDLE Handle & Rope545010010545010010-Online1
8SERVICE KIT DECAL KIT591465501591465501-Online1
