Husqvarna 135R IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.

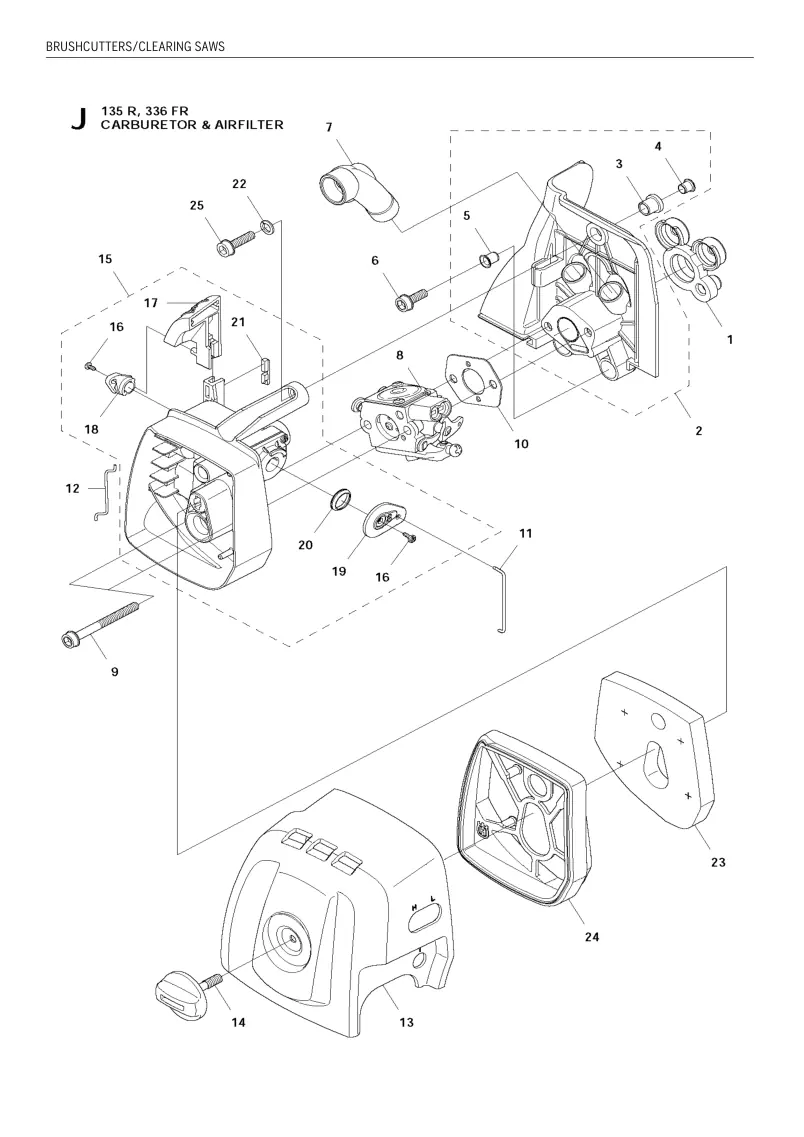

BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | INLET PIPE | 537334301 | 537334301-Online | 1 |
| 2 | INSULATION WALL | 537371202 | 537371202-Online | 1 |
| 3 | SLEEVE | 537371101 | 537371101-Online | 1 |
| 4 | TUBULAR RIVET | 544019101 | 544019101-Online | 1 |
| 5 | TUBULAR RIVET | 537373803 | 537373803-Online | 2 |
| 6 | SCREW IHSCFM | 503200316 | 503200316-Online | 2 |
| 7 | AIR DUCT | 537341301 | 537341301-Online | 1 |
| 8 | CARBURETTOR Zama C1Q-EL45 | 575729001 | 575729001-Online | 1 |
| 9 | SCREW IHSCFT | 503217550 | 503217550-Online | 2 |
| 10 | GASKET | 503497101 | 503497101-Online | 1 |
| 11 | LEVER | 537349001 | 537349001-Online | 1 |
| 12 | SLEEVING BRACKET | 544372701 | 544372701-Online | 1 |
| 13 | FILTER COVER | 575841801 | 575841801-Online | 1 |
| 14 | KNOB | 537213209 | 537213209-Online | 1 |
| 15 | FILTER HOLDER ASSY | 575863702 | 575863702-Online | 1 |
| 16 | SCREW CCRPANT | 503212906 | 503212906-Online | 15 |
| 17 | CHOKE CONTROL | 575841501 | 575841501-Online | 1 |
| 18 | CHOKE LEVER | 575841602 | 575841602-Online | 1 |
| 19 | LEVER | 544014601 | 544014601-Online | 1 |
| 20 | BELLOWS | 544014701 | 544014701-Online | 1 |
| 21 | BAR | 544025801 | 544025801-Online | 1 |
| 22 | WASHER | 503231006 | 503231006-Online | 1 |
| 23 | FILTER | 576215301 | 576215301-Online | 1 |
| 24 | FRAME | 575863801 | 575863801-Online | 1 |
| 25 | SCREW IHSCFM | 503200320 | 503200320-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CLUTCH COVER ASSY | 574842901 | 574842901-Online | 1 |
| 2 | CIRCLIP | 735312810 | 735312810-Online | 1 |
| 3 | BALL BEARING | 738210104 | 738210104-Online | 1 |
| 4 | PARALLEL PIN | 503240702 | 503240702-Online | 1 |
| 5 | CLUTCH DRUM | 537352901 | 537352901-Online | 1 |
| 6 | CIRCLIP | 735311400 | 735311400-Online | 1 |
| 7 | CLUTCH | 537340401 | 537340401-Online | 1 |
| 8 | SPRING | 537427201 | 537427201-Online | 1 |
| 9 | WASHER | 537046801 | 537046801-Online | 1 |
| 10 | WASHER | 537415701 | 537415701-Online | 1 |
| 11 | SCREW | 537418101 | 537418101-Online | 2 |
| 12 | SCREW IHSCT | 503217411 | 503217411-Online | 1 |
| 13 | ANTIVIBRATION ELEMENT | 537322701 | 537322701-Online | 1 |
| 14 | COMPRESSION SLEEVE | 537310101 | 537310101-Online | 1 |
| 15 | SCREW IHSCM | 725533355 | 725533355-Online | 1 |
| 16 | COVER | 575865801 | 575865801-Online | 1 |
| 17 | SCREW IHSCFM | 503200320 | 503200320-Online | 3 |
| 18 | SCREW | 537418101 | 537418101-Online | 3 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CYLINDER COVER ASSY Spare Screw part with Captive | 575865002 | 575865002-Online | 1 |
| 2 | SCREW IHSCFMO Captiv Screw | 573994305 | 573994305-Online | 1 |
| 3 | PROTECTIVE PLATE 336 FR | 575865701 | 575865701-Online | 1 |
| 4 | SCREW IHSCFM | 503200302 | 503200302-Online | 1 |
| 5 | MUFFLER GUARD Spare Screw part with Captive | 575864801 | 575864801-Online | 1 |
| 6 | SCREW IHSCFMO Captiv Screw | 574477003 | 574477003-Online | 2 |
| 7 | LABEL 336 FR | 576998614 | 576998614-Online | 1 |
| 8 | LABEL 135 R | 576998615 | 576998615-Online | 1 |
| 9 | DAMPER 135 R | 577231101 | 577231101-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CYLINDER ASSY | 544400601 | 544400601-Online | 1 |
| 2 | PISTON ASSY | 585998302 | 585998302-Online | 1 |
| 3 | PISTON RING | 503289054 | 503289054-Online | 2 |
| 4 | PISTON PIN | 503289119 | 503289119-Online | 1 |
| 5 | SNAP RING | 737441000 | 737441000-Online | 2 |
| 6 | NEEDLE BEARING | 503414101 | 503414101-Online | 1 |
| 7 | SCREW IHSCM | 725533355 | 725533355-Online | 1 |
| 8 | GASKET | 537333002 | 537333002-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | MUFFLER ASSY CAT | 505408601 | 505408601-Online | 1 |
| 2 | SPARK ARRESTER SCREEN | 544116801 | 544116801-Online | 1 |
| 3 | SCREW CRPANM | 724128759 | 724128759-Online | 1 |
| 4 | GASKET | 537333101 | 537333101-Online | 1 |
| 5 | AIR CONDUCTOR | 537340801 | 537340801-Online | 1 |
| 6 | SCREW IHSCFM | 503202963 | 503202963-Online | 2 |
| 7 | SCREW IHSCFM | 503200320 | 503200320-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | TUBE ASSY | 501919701 | 501919701-Online | 1 |
| 2 | TUBE | 537214101 | 537214101-Online | 1 |
| 3 | GUIDE | 537313901 | 537313901-Online | 1 |
| 4 | SPACER | 537360201 | 537360201-Online | 1 |
| 5 | SPACER | 537360202 | 537360202-Online | 1 |
| 6 | DRIVE SHAFT | 544183201 | 544183201-Online | 1 |
| 7 | KNOB | 537130403 | 537130403-Online | 1 |
| 8 | SCREW | 725233151 | 725233151-Online | 1 |
| 9 | LOOP | 505161001 | 505161001-Online | 1 |
| 10 | LOOP | 537350101 | 537350101-Online | 1 |
| 11 | SCREW IHSCFT | 503217516 | 503217516-Online | 1 |
| 12 | WIRING | 537376101 | 537376101-Online | 1 |
| 13 | LABEL | 589295101 | 589295101-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SHORT BLOCK ASSY Assembled | 594729101 | 594729101-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | STARTER ASSY | 575840801 | 575840801-Online | 1 |
| 2 | STARTER HOUSING Spare captive part screw adapted for | 575840901 | 575840901-Online | 1 |
| 3 | STARTER PULLEY | 537325003 | 537325003-Online | 1 |
| 4 | RECOIL SPRING | 503859901 | 503859901-Online | 1 |
| 5 | SCREW IHSCT | 503218876 | 503218876-Online | 1 |
| 6 | WASHER | 503230080 | 503230080-Online | 1 |
| 7 | STARTER HANDLE | 537232501 | 537232501-Online | 1 |
| 8 | STARTER ROPE | 505305125 | 505305125-Online | 1 |
| 9 | SCREW IHSCFMO Captive screw | 573994305 | 573994305-Online | 3 |
| 10 | DECAL | 577223601 | 577223601-Online | 1 |
| 11 | STARTER PAWL | 503873305 | 503873305-Online | 1 |
| 12 | STARTER PAWL | 503873502 | 503873502-Online | 11 |
| 13 | SPRING | 503873601 | 503873601-Online | 11 |
| 14 | E-CLIP | 735310820 | 735310820-Online | 11 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | HANDLE SYSTEM | 537424507 | 537424507-Online | 1 |
| 2 | HANDLE HALF HARD GRIP, GREY | 537160203 | 537160203-Online | 1 |
| 2 | HANDLE HALF SOFT TPE GRIP, GREY + BLACK | 537160209 | 537160209-Online | 1 |
| 3 | HANDLE HALF HARD GRIP, GREY | 537160301 | 537160301-Online | 1 |
| 3 | HANDLE HALF SOFT TPE GRIP, GREY + BLACK | 537160302 | 537160302-Online | 1 |
| 4 | HEXAGON NUT | 503221013 | 503221013-Online | 1 |
| 5 | WIRING ASSY | 537359602 | 537359602-Online | 1 |
| 6 | THROTTLE CABLE ASSY | 537377801 | 537377801-Online | 1 |
| 7 | SCREW IHSCT | 503216618 | 503216618-Online | 1 |
| 8 | SHORT CIRCUIT CABLE | 503878507 | 503878507-Online | 1 |
| 9 | SWITCH | 537419001 | 537419001-Online | 1 |
| 10 | THROTTLE CONTROL | 506497701 | 506497701-Online | 1 |
| 11 | SPRING THROTTLE TRIG | 537174201 | 537174201-Online | 1 |
| 12 | THROTTLE LOCKOUT | 537160701 | 537160701-Online | 1 |
| 13 | SPRING | 537174301 | 537174301-Online | 1 |
| 14 | SCREW IHSCT | 503216618 | 503216618-Online | 1 |
| 15 | SCREW IHSCFM | 503200735 | 503200735-Online | 1 |
| 16 | HANDLEBAR | 502199503 | 502199503-Online | 1 |
| 17 | HANDLE | 537172801 | 537172801-Online | 1 |
| 18 | COVER | 537172901 | 537172901-Online | 1 |
| 19 | HEXAGON NUT | 731231401 | 731231401-Online | 1 |
| 20 | SCREW IHSCFM | 503200245 | 503200245-Online | 1 |
| 21 | HANDLEBAR BRACKET | 503750002 | 503750002-Online | 1 |
| 22 | STAPLE | 502211201 | 502211201-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | HANDLEBAR BRACKET | 576277401 | 576277401-Online | 1 |
| 2 | HEXAGON NUT | 731231401 | 731231401-Online | 1 |
| 3 | SQUARE NUT | 502197101 | 502197101-Online | 1 |
| 4 | CLIP | 502286101 | 502286101-Online | 1 |
| 5 | KNOB | 502203801 | 502203801-Online | 1 |
| 6 | SCREW EHHM | 725238351 | 725238351-Online | 1 |
| 7 | COVER | 576220101 | 576220101-Online | 1 |
| 8 | LID | 576220001 | 576220001-Online | 1 |
| 9 | SCREW IHSCFM | 503200778 | 503200778-Online | 4 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | GEAR | 544216401 | 544216401-Online | 1 |
| 2 | GEAR HOUSING | 537295902 | 537295902-Online | 1 |
| 3 | BALL BEARING | 738219900 | 738219900-Online | 1 |
| 4 | SPARE PARTS KIT | 505133301 | 505133301-Online | 1 |
| 5 | BALL BEARING | 503252801 | 503252801-Online | 1 |
| 6 | CIRCLIP | 735313110 | 735313110-Online | 1 |
| 7 | BALL BEARING | 738210110 | 738210110-Online | 1 |
| 8 | BALL BEARING | 738210112 | 738210112-Online | 1 |
| 9 | CIRCLIP | 735311400 | 735311400-Online | 1 |
| 10 | CIRCLIP | 735312810 | 735312810-Online | 1 |
| 11 | MAGNET | 537147401 | 537147401-Online | 1 |
| 12 | SCREW | 503201501 | 503201501-Online | 1 |
| 13 | CLAMP | 574306801 | 574306801-Online | 1 |
| 14 | CLAMP | 544087601 | 544087601-Online | 1 |
| 15 | SCREW | 537189501 | 537189501-Online | 1 |
| 16 | LOCK NUT | 732211601 | 732211601-Online | 1 |
| 17 | SCREW IHSCFM | 503200210 | 503200210-Online | 1 |
| 18 | LOCK NUT | 574039501 | 574039501-Online | 1 |
| 19 | DRIVER | 537351402 | 537351402-Online | 1 |
| 20 | SUPPORT FLANGE | 537343501 | 537343501-Online | 1 |
| 21 | BLADE NUT | 502291101 | 502291101-Online | 1 |
| 22 | SCREW IHSCFM | 503200325 | 503200325-Online | 2 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CARBURETTOR Zama C1Q-EL45 | 575729001 | 575729001-Online | 1 |
| 2 | SCREW | 503479201 | 503479201-Online | 1 |
| 3 | VALVE | 537417201 | 537417201-Online | 1 |
| 4 | SPRING | 544372401 | 544372401-Online | 1 |
| 5 | SCREW | 503480501 | 503480501-Online | 1 |
| 6 | COVER | 503974301 | 503974301-Online | 1 |
| 7 | DIAPHRAGM | 504105601 | 504105601-Online | 1 |
| 8 | GASKET | 537020401 | 537020401-Online | 1 |
| 9 | NOZZLE ASSY | 537387301 | 537387301-Online | 1 |
| 10 | SCREW | 503480101 | 503480101-Online | 1 |
| 11 | PIN RETAINING SCREW | 503480001 | 503480001-Online | 1 |
| 12 | LEVER | 503665901 | 503665901-Online | 1 |
| 13 | VALVE | 503479701 | 503479701-Online | 1 |
| 14 | SPRING | 537020301 | 537020301-Online | 1 |
| 15 | SHAFT ASSY | 501327101 | 501327101-Online | 1 |
| 16 | VALVE | 537370301 | 537370301-Online | 1 |
| 17 | SCREW | 503481801 | 503481801-Online | 1 |
| 18 | SPRING | 544372601 | 544372601-Online | 1 |
| 19 | LEVER | 544372501 | 544372501-Online | 1 |
| 20 | COLLAR | 544427001 | 544427001-Online | 1 |
| 21 | SHAFT ASSY | 504102701 | 504102701-Online | 1 |
| 22 | SPRING | 537012601 | 537012601-Online | 1 |
| 23 | BALL | 537012501 | 537012501-Online | 1 |
| 24 | STRAINER | 503481301 | 503481301-Online | 1 |
| 25 | SCREW | 503479001 | 503479001-Online | 1 |
| 26 | SCREW | 537416901 | 537416901-Online | 1 |
| 27 | LIMITER CAP | 537417001 | 537417001-Online | 1 |
| 28 | SCREW | 537387501 | 537387501-Online | 1 |
| 29 | CLIP | 537385201 | 537385201-Online | 1 |
| 30 | THROTTLE LEVER | 576270201 | 576270201-Online | 1 |
| 31 | DIAPHRAGM PUMP | 537020001 | 537020001-Online | 1 |
| 32 | GASKET | 537020101 | 537020101-Online | 1 |
| 33 | COVER | 537020201 | 537020201-Online | 1 |
| 34 | SCREW | 537020701 | 537020701-Online | 1 |
| 35 | PIECE | 503481101 | 503481101-Online | 1 |
| 36 | SCREW | 503479601 | 503479601-Online | 1 |
| 37 | GASKET KIT Set of gaskets | 531004552 | 531004552-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CRANKCASE ASSY | 585382201 | 585382201-Online | 1 |
| 2 | BALL BEARING | 738210110 | 738210110-Online | 1 |
| 3 | SEALING RING | 503260202 | 503260202-Online | 1 |
| 4 | GASKET | 593777601 | 593777601-Online | 1 |
| 5 | SCREW IHSCFM | 503200230 | 503200230-Online | 1 |
| 6 | GUIDE BUSHING | 593806001 | 593806001-Online | 1 |
| 7 | INSERT | 537324201 | 537324201-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CRANKSHAFT ASSY | 544039001 | 544039001-Online | 1 |
| 2 | SEALING RING | 503260202 | 503260202-Online | 1 |
| 3 | BALL BEARING | 738210110 | 738210110-Online | 1 |
| 4 | NEEDLE BEARING | 503414101 | 503414101-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | TANK ASSY | 544328801 | 544328801-Online | 1 |
| 2 | SUSPENSION | 503911001 | 503911001-Online | 4 |
| 3 | TANK CAP ASSY | 590324801 | 590324801-Online | 1 |
| 4 | PURGE | 503936601 | 503936601-Online | 1 |
| 5 | FUEL HOSE | 537042412 | 537042412-Online | 2 |
| 6 | FUEL HOSE | 537052301 | 537052301-Online | 1 |
| 7 | BUSHING | 503735801 | 503735801-Online | 2 |
| 8 | O-RING | 537184901 | 537184901-Online | 1 |
| 9 | FUEL FILTER | 503443201 | 503443201-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | HARNESS | 537275702 | 537275702-Online | 1 |
| 1 | HARNESS US | 537275704 | 537275704-Online | 1 |
| 2 | BUCKLE | 537288301 | 537288301-Online | 1 |
| 3 | BUCKLE | 537288401 | 537288401-Online | 1 |
| 4 | HIP PAD | 537275901 | 537275901-Online | 1 |
| 5 | HOOK | 502022801 | 502022801-Online | 1 |
| 6 | HOOK | 502022902 | 502022902-Online | 1 |
| 7 | LOCK | 502023002 | 502023002-Online | 1 |
| 8 | SPRING | 586341001 | 586341001-Online | 1 |
| 9 | E-CLIP | 735310920 | 735310920-Online | 1 |
| 10 | BAND | 503996101 | 503996101-Online | 1 |
| 11 | RETAINER | 537113501 | 537113501-Online | 1 |
| 12 | BAND | 503996103 | 503996103-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | FLYWHEEL | 537249601 | 537249601-Online | 1 |
| 2 | HEXAGON NUT FLANGE | 731711651 | 731711651-Online | 1 |
| 3 | IGNITION MODULE | 544127001 | 544127001-Online | 1 |
| 4 | SCREW IHSCM | 503202516 | 503202516-Online | 2 |
| 5 | SPARK PLUG | 503235109 | 503235109-Online | 1 |
| 6 | CONTACT SPRING | 537239301 | 537239301-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | TOOL | 501192201 | 501192201-Online | 1 |
| 2 | FILTER OIL | 531009248 | 531009248-Online | 1 |
| 3 | GREASE | 503976501 | 503976501-Online | 1 |
| 4 | STOP | 502285901 | 502285901-Online | 1 |
| 5 | GREASE | 503801701 | 503801701-Online | 1 |
| 6 | COMBINATION WRENCH | 537362102 | 537362102-Online | 1 |
| 7 | TRANSPORT GUARD | 544359101 | 544359101-Online | 1 |
| 8 | TRANSPORT GUARD | 537312901 | 537312901-Online | 1 |
| 9 | SUPPORT CUP | 503890102 | 503890102-Online | 1 |
| 10 | HARNESS | 537216201 | 537216201-Online | 1 |
| 10 | HARNESS USA | 537216202 | 537216202-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SAW BLADE GUARD | 501320402 | 501320402-Online | 1 |
| 2 | CLAMP Spare Screw part with Captive | 574530601 | 574530601-Online | 1 |
| 3 | SCREW IHSCFMO Captive Screw | 573994304 | 573994304-Online | 2 |
| 4 | ADAPTER | 501320801 | 501320801-Online | 1 |
| 5 | BLADE GUARD | 574532601 | 574532601-Online | 1 |
| 6 | SCREW IHSCFM | 503200216 | 503200216-Online | 4 |
| 7 | LOCK NUT | 574039501 | 574039501-Online | 4 |
| 8 | SPLASH GUARD | 537331603 | 537331603-Online | 1 |
| 9 | SPLASH GUARD | 537396303 | 537396303-Online | 1 |
| 10 | BLADE | 503798802 | 503798802-Online | 1 |
| 11 | SCREW IHSCT | 503210716 | 503210716-Online | 1 |
| 12 | SNAP LOCKING | 537387201 | 537387201-Online | 4 |
| 13 | TRIMMER GUARD ASSY | 537349403 | 537349403-Online | 1 |
| 14 | SCREW IHSCFT | 503216825 | 503216825-Online | 1 |
| 15 | BLADE | 503798802 | 503798802-Online | 1 |
| 16 | RETAINER | 544124501 | 544124501-Online | 1 |
| 17 | TRIMMER GUARD ASSY | 502448101 | 502448101-Online | 1 |
| 18 | SCREW IHSCFT | 503216825 | 503216825-Online | 1 |
| 19 | BLADE | 503798802 | 503798802-Online | 1 |
