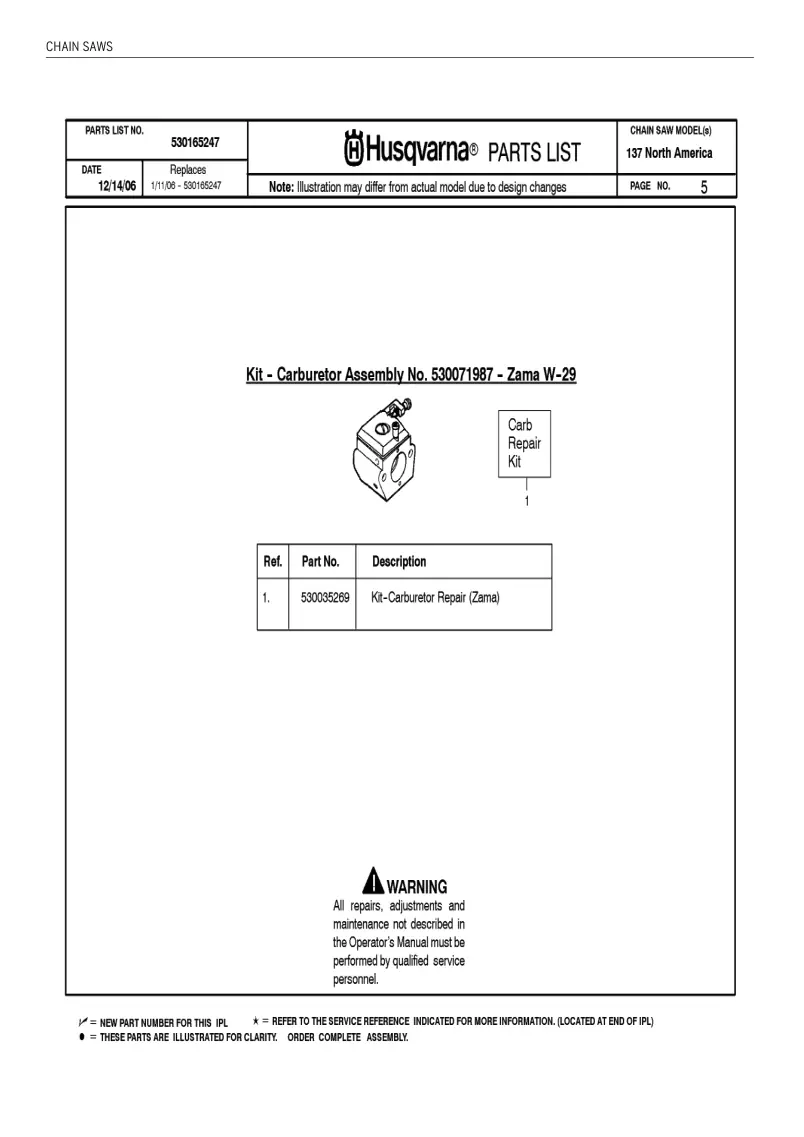

Husqvarna 137 E-SERIES IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | REPAIR KIT | 530035269 | 530035269-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | LEVER | 530071348 | 530071348-Online | 1 |
| 2 | SCREW | 530029879 | 530029879-Online | 1 |
| 3 | SCREW | 530015915 | 530015915-Online | 1 |
| 4 | SCREW | 530015911 | 530015911-Online | 1 |
| 5 | KNEE LINK | 530054741 | 530054741-Online | 1 |
| 6 | SPRING | 530016237 | 530016237-Online | 1 |
| 7 | E-CLIP | 530024419 | 530024419-Online | 1 |
| 8 | SCREW | 530016384 | 530016384-Online | 1 |
| 9 | SHAFT PIVOT | 530056531 | 530056531-Online | 1 |
| 10 | SHAFT PIVOT | 530029881 | 530029881-Online | 1 |
| 11 | SPRING | 530015910 | 530015910-Online | 1 |
| 12 | PEN | 530015913 | 530015913-Online | 1 |
| 13 | BRAKE BAND | 530052232 | 530052232-Online | 1 |
| 14 | CHAIN BRAKE ASSY | 530054802 | 530054802-Online | 1 |
| 15 | SPRING | 530029878 | 530029878-Online | 1 |
| 16 | CLUTCH COVER | 530049483 | 530049483-Online | 1 |
| 17 | PEN | 530015826 | 530015826-Online | 1 |
| 18 | RETAINER | 530038593 | 530038593-Online | 1 |
| 19 | SCREW | 530016110 | 530016110-Online | 1 |
| 20 | COVER | 530053035 | 530053035-Online | 1 |
| 21 | SCREW | 530015911 | 530015911-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 23 | BEARING | 530056363 | 530056363-Online | 1 |
| 24 | CRANKSHAFT | 530029794 | 530029794-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 24 | SPARK PLUG | 952030150 | 952030150-Online | 1 |
| 25 | CYLINDER | 530069940 | 530069940-Online | 1 |
| 26 | PISTON | 530069944 | 530069944-Online | 1 |
| 27 | PISTON RING | 530029805 | 530029805-Online | 1 |
| 28 | LOCKING RING | 530015697 | 530015697-Online | 1 |
| 29 | CRANKCASE | 530049794 | 530049794-Online | 1 |
| 30 | SCREW | 530015897 | 530015897-Online | 1 |
| 530031135 | WRENCH | 530031135 | 530031135-Online | 1 |
| 530047839 | DECAL | 530047839 | 530047839-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 30 | SCREW | 530015940 | 530015940-Online | 1 |
| 31 | INSULATOR | 530029870 | 530029870-Online | 1 |
| 32 | FUEL TANK | 530055613 | 530055613-Online | 1 |
| 33 | SCREW | 530015843 | 530015843-Online | 1 |
| 34 | HANDLE | 530059961 | 530059961-Online | 1 |
| 35 | MOVEMENT LIMITER | 530052439 | 530052439-Online | 1 |
| 36 | LIMITER | 530029984 | 530029984-Online | 1 |
| 37 | CHECK VALVE | 530026119 | 530026119-Online | 1 |
| 38 | PLUG | 530038264 | 530038264-Online | 1 |
| 39 | FUEL CAP | 530071266 | 530071266-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 17 | SILENCER | 530071511 | 530071511-Online | 1 |
| 18 | NUT | 530016359 | 530016359-Online | 1 |
| 19 | WASHER | 530055600 | 530055600-Online | 1 |
| 20 | BOLT | 530016338 | 530016338-Online | 1 |
| 21 | GASKET | 530055128 | 530055128-Online | 1 |
| 22 | COUVERCLE | 530055171 | 530055171-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | JET | 530029813 | 530029813-Online | 1 |
| 2 | SEALING | 530019203 | 530019203-Online | 1 |
| 3 | PIPE | 530029814 | 530029814-Online | 1 |
| 4 | HOSE | 530053435 | 530053435-Online | 1 |
| 5 | SCREW | 530015814 | 530015814-Online | 1 |
| 6 | ADAPTER | 530037465 | 530037465-Online | 1 |
| 7 | GASKET | 530019172 | 530019172-Online | 1 |
| 8 | CARBURETTOR | 530071987 | 530071987-Online | 1 |
| 9 | PASSAGE | 530035587 | 530035587-Online | 1 |
| 10 | SUPPORT | 530047767 | 530047767-Online | 1 |
| 11 | SCREW | 530015896 | 530015896-Online | 1 |
| 12 | HOLDER | 530036582 | 530036582-Online | 1 |
| 13 | SCREW | 530015968 | 530015968-Online | 1 |
| 14 | NUT | 530016008 | 530016008-Online | 1 |
| 15 | AIR FILTER | 530029811 | 530029811-Online | 1 |
| 16 | SCREW | 530015899 | 530015899-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CLUTCH | 530014949 | 530014949-Online | 1 |
| 2 | WASHER | 530015611 | 530015611-Online | 1 |
| 3 | CLUTCH DRUM ASSY | 530047061 | 530047061-Online | 1 |
| 4 | WASHER | 530015907 | 530015907-Online | 1 |
| 5 | OIL PICK-UP | 530014776 | 530014776-Online | 1 |
| 6 | SCREEN | 530056533 | 530056533-Online | 1 |
| 7 | SEALING | 545037101 | 545037101-Online | 1 |
| 8 | SCREW | 530015896 | 530015896-Online | 1 |
| 9 | OIL PUMP | 530014410 | 530014410-Online | 1 |
| 10 | PUMP | 530029833 | 530029833-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 22 | SCREW | 530016154 | 530016154-Online | 1 |
| 23 | CYLINDER COVER | 530059960 | 530059960-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 11 | HOSE | 545033501 | 545033501-Online | 1 |
| 12 | NUT | 530055322 | 530055322-Online | 1 |
| 13 | PROTECTION | 530055174 | 530055174-Online | 1 |
| 14 | SCREW | 530015896 | 530015896-Online | 1 |
| 15 | NUT | 530015917 | 530015917-Online | 1 |
| 16 | PLATE | 530047855 | 530047855-Online | 1 |
| 17 | SEALING | 530019228 | 530019228-Online | 1 |
| 18 | SUPPORT | 530036043 | 530036043-Online | 1 |
| 19 | BOLT | 530015877 | 530015877-Online | 1 |
| 20 | SCREW | 530015878 | 530015878-Online | 1 |
| 21 | CHAIN CATCHER | 530029850 | 530029850-Online | 1 |
| 22 | SCREW | 530015893 | 530015893-Online | 1 |
| 23 | COVER | 530052428 | 530052428-Online | 1 |
| 24 | NUT | 530015922 | 530015922-Online | 1 |
| 25 | GUIDE | 530029830 | 530029830-Online | 1 |
| 26 | CHOKE CONTROL | 530029831 | 530029831-Online | 1 |
| 27 | CRANKCASE | 530071991 | 530071991-Online | 1 |
| 28 | NUT | 530015922 | 530015922-Online | 1 |
| 29 | SCREW | 530016037 | 530016037-Online | 1 |
| 30 | TANK CAP ASSY | 501765602 | 501765602-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 14 | IGNITION MODULE | 530071967 | 530071967-Online | 1 |
| 15 | CABLE | 530403257 | 530403257-Online | 1 |
| 16 | SCREW | 530015896 | 530015896-Online | 1 |
| 17 | STOP SWITCH | 503717901 | 503717901-Online | 1 |
| 18 | FLYWHEEL ASSY | 530059637 | 530059637-Online | 1 |
| 19 | WASHER | 530015127 | 530015127-Online | 1 |
| 20 | NUT | 530016134 | 530016134-Online | 1 |
| 21 | SCREW | 545003902 | 545003902-Online | 1 |
| 22 | IGNITION MODULE | 530039239 | 530039239-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | STARTER DEVICE | 530071968 | 530071968-Online | 1 |
| 2 | STARTER PULLEY | 530071966 | 530071966-Online | 1 |
| 3 | HANDLE | 530150318 | 530150318-Online | 1 |
| 4 | STARTER ROPE | 530069232 | 530069232-Online | 1 |
| 5 | SCREW | 530021179 | 530021179-Online | 1 |
| 6 | SLEEVE | 530059677 | 530059677-Online | 1 |
| 7 | SPRING | 530021180 | 530021180-Online | 1 |
| 8 | SCREW | 530016080 | 530016080-Online | 1 |
| 9 | SPRING | 530042095 | 530042095-Online | 1 |
| 10 | BAFFLE | 530059959 | 530059959-Online | 1 |
| 11 | STARTER | 530059958 | 530059958-Online | 1 |
| 12 | SCREW | 530015893 | 530015893-Online | 1 |
| 13 | SCREW | 530015892 | 530015892-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 23 | THROTTLE ROD | 530029869 | 530029869-Online | 1 |
| 24 | HUB CAP | 530029863 | 530029863-Online | 1 |
| 25 | SCREW | 530029860 | 530029860-Online | 1 |
| 26 | SPRING | 530029861 | 530029861-Online | 1 |
| 27 | THROTTLE TRIGGER | 530069587 | 530069587-Online | 1 |
| 28 | HOSE | 530069247 | 530069247-Online | 1 |
| 29 | FILTER | 530014497 | 530014497-Online | 1 |
