Husqvarna 140 E-SERIES IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.
CHAIN SAWS

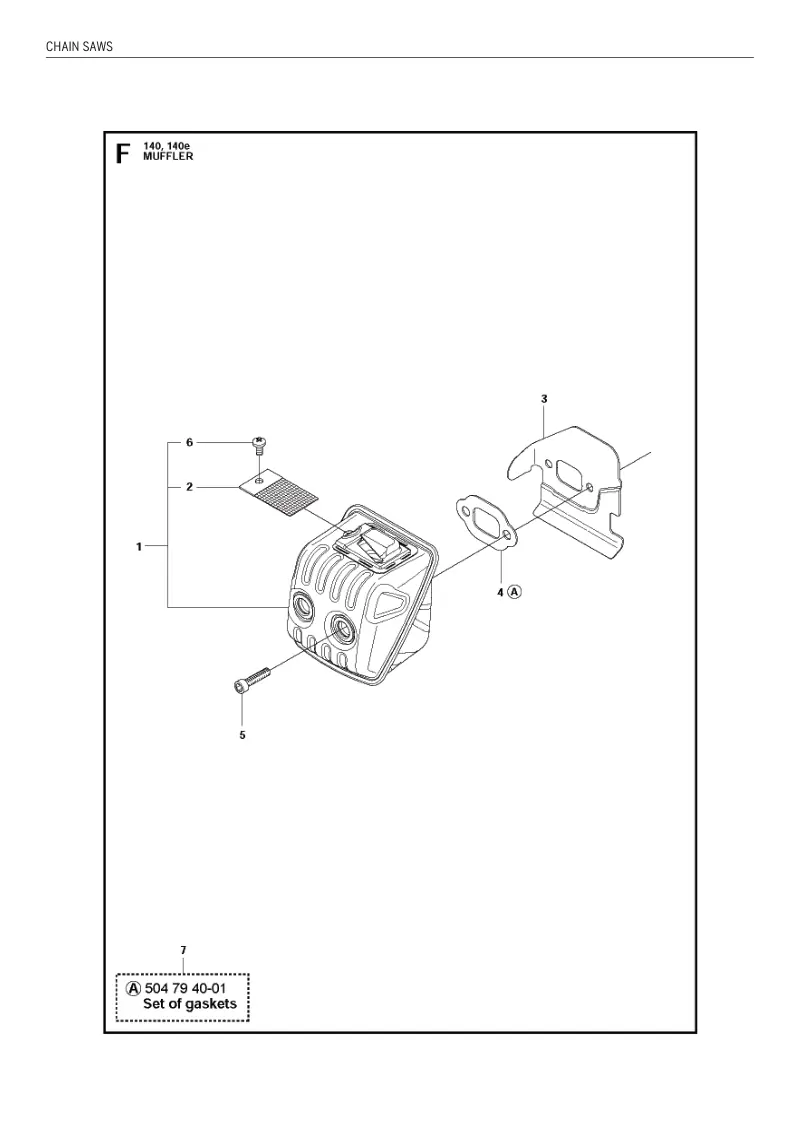

| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | MUFFLER ASSY | 544147702 | 544147702-Online | 1 |
| 2 | SCREEN | 579753301 | 579753301-Online | 1 |
| 3 | HEAT DEFLECTOR | 501323101 | 501323101-Online | 1 |
| 4 | GASKET | 579753101 | 579753101-Online | 1 |
| 5 | SCREW IHSCM | 725536855 | 725536855-Online | 2 |
| 6 | SCREW CRPANM | 724128759 | 724128759-Online | 1 |
| 7 | GASKET | 504794001 | 504794001-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | STARTER ASSY | 544287002 | 544287002-Online | 0 |
| 2 | STARTER HOUSING | 544286901 | 544286901-Online | 1 |
| 3 | SLEEVE | 537283201 | 537283201-Online | 1 |
| 4 | SPRING CASSETTE ASSY | 540057502 | 540057502-Online | 1 |
| 5 | SCREW CCRPANT | 503212810 | 503212810-Online | 1 |
| 6 | STARTER PULLEY | 537423201 | 537423201-Online | 1 |
| 7 | SPRING | 505647301 | 505647301-Online | 1 |
| 8 | DRIVER | 537423301 | 537423301-Online | 1 |
| 9 | SCREW | 537426601 | 537426601-Online | 1 |
| 10 | STARTER ROPE | 505305125 | 505305125-Online | 1 |
| 11 | STARTER HANDLE | 537232501 | 537232501-Online | 1 |
| 12 | SCREW | 503217321 | 503217321-Online | 1 |
| 13 | LABEL | 544463605 | 544463605-Online | 1 |
| 14 | AIR CONDUCTOR | 544197102 | 544197102-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 4 | WINTER KIT | 505450402 | 505450402-Online | 1 |
| 5 | SCREW CCRPANT | 503217016 | 503217016-Online | 2 |
| 6 | WINTER PLUG | 503405901 | 503405901-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CARBURETTOR | 506450501 | 506450501-Online | 1 |
| 2 | PIECE | 503481101 | 503481101-Online | 1 |
| 3 | NOZZLE ASSY | 504024001 | 504024001-Online | 1 |
| 4 | PLUG WELCH | 503535601 | 503535601-Online | 1 |
| 5 | VALVE | 503479701 | 503479701-Online | 1 |
| 6 | SPRING | 537020301 | 537020301-Online | 1 |
| 7 | LEVER | 503665901 | 503665901-Online | 1 |
| 8 | PIN RETAINING SCREW | 503480001 | 503480001-Online | 1 |
| 9 | SCREW | 504024101 | 504024101-Online | 1 |
| 10 | HUB CAP | 505535201 | 505535201-Online | 1 |
| 11 | SHAFT ASSY | 504026101 | 504026101-Online | 1 |
| 12 | COLLAR | 505110701 | 505110701-Online | 1 |
| 13 | SPRING | 504028501 | 504028501-Online | 1 |
| 14 | VALVE | 504027501 | 504027501-Online | 1 |
| 15 | SCREW | 503481801 | 503481801-Online | 1 |
| 16 | CIRCLIP | 504026701 | 504026701-Online | 1 |
| 17 | SHAFT ASSY | 504026201 | 504026201-Online | 1 |
| 18 | LEVER | 540053701 | 540053701-Online | 1 |
| 19 | SPRING | 504028301 | 504028301-Online | 1 |
| 20 | LEVER | 504026301 | 504026301-Online | 1 |
| 21 | SCREW | 503479001 | 503479001-Online | 1 |
| 22 | VALVE | 504027401 | 504027401-Online | 1 |
| 23 | SCREW | 503481801 | 503481801-Online | 1 |
| 24 | SHAFT ASSY | 504026001 | 504026001-Online | 1 |
| 25 | SPRING | 504028401 | 504028401-Online | 1 |
| 26 | LEVER | 544983101 | 544983101-Online | 1 |
| 27 | SCREW | 503479001 | 503479001-Online | 1 |
| 28 | VALVE | 504027601 | 504027601-Online | 1 |
| 29 | SCREW | 503479201 | 503479201-Online | 1 |
| 30 | SCREW | 504027301 | 504027301-Online | 1 |
| 31 | SCREW | 504909201 | 504909201-Online | 1 |
| 32 | SCREW | 504028101 | 504028101-Online | 1 |
| 33 | GASKET | 504024301 | 504024301-Online | 1 |
| 34 | DIAPHRAGM | 504024501 | 504024501-Online | 1 |
| 35 | BODY | 504024601 | 504024601-Online | 1 |
| 36 | SCREW | 504028201 | 504028201-Online | 1 |
| 37 | STRAINER | 504025001 | 504025001-Online | 1 |
| 38 | DIAPHRAGM | 504025601 | 504025601-Online | 1 |
| 39 | GASKET | 504025701 | 504025701-Online | 1 |
| 40 | COVER | 504025901 | 504025901-Online | 1 |
| 41 | SCREW | 504027801 | 504027801-Online | 1 |
| 42 | GASKET KIT | 504028601 | 504028601-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | INSULATION WALL | 504724701 | 504724701-Online | 1 |
| 2 | INSULATION WALL | 504724501 | 504724501-Online | 1 |
| 3 | INSULATION WALL | 504724401 | 504724401-Online | 1 |
| 4 | INLET PIPE | 504201201 | 504201201-Online | 1 |
| 5 | SCREW IHSCFM | 503200216 | 503200216-Online | 4 |
| 6 | CARBURETTOR | 506450501 | 506450501-Online | 1 |
| 7 | THROTTLE ROD ASSY | 544284401 | 544284401-Online | 1 |
| 8 | FILTER HOLDER | 544976401 | 544976401-Online | 1 |
| 9 | SHACKLE | 544392601 | 544392601-Online | 1 |
| 10 | GUIDE | 504712501 | 504712501-Online | 1 |
| 11 | CONTROL | 544844302 | 544844302-Online | 1 |
| 12 | SCREW | 544976601 | 544976601-Online | 1 |
| 13 | SCREW IHSCFM | 503200240 | 503200240-Online | 3 |
| 14 | AIR FILTER 44 MICRON | 544805402 | 544805402-Online | 1 |
| 14 | AIR FILTER FELT | 544805403 | 544805403-Online | 1 |
| 15 | PURGE | 503936601 | 503936601-Online | 1 |
| 16 | HOSE | 544401901 | 544401901-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CLUTCH COVER ASSY | 544194905 | 544194905-Online | 1 |
| 2 | COVER LID | 504542801 | 504542801-Online | 1 |
| 3 | BRAKE BAND ASSY | 544306001 | 544306001-Online | 1 |
| 4 | WEAR PROTECTION | 544253101 | 544253101-Online | 1 |
| 5 | GUIDE BUSHING | 503855201 | 503855201-Online | 1 |
| 6 | BRAKE SPRING | 505892601 | 505892601-Online | 1 |
| 7 | COVER LID | 544248501 | 544248501-Online | 1 |
| 8 | KNEE JOINT ASSY | 503890802 | 503890802-Online | 1 |
| 9 | PIN | 503892901 | 503892901-Online | 1 |
| 10 | E-CLIP | 735310820 | 735310820-Online | 1 |
| 11 | SCREW | 537392901 | 537392901-Online | 1 |
| 12 | GEAR ASSY | 537347201 | 537347201-Online | 1 |
| 13 | HEAT PROTECTOR | 537392601 | 537392601-Online | 1 |
| 14 | LABEL | 544357501 | 544357501-Online | 1 |
| 15 | SCREW CCRPANT | 503217010 | 503217010-Online | 1 |
| 16 | BEARING SLEEVE | 525354301 | 525354301-Online | 1 |
| 17 | WEAR PLATE | 505321001 | 505321001-Online | 1 |
| 18 | KNOB | 537347801 | 537347801-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CLUTCH | 530014949 | 530014949-Online | 1 |
| 2 | SPRING | 530094188 | 530094188-Online | 1 |
| 3 | CLUTCH DRUM ASSY | 578257101 | 578257101-Online | 1 |
| 4 | NEEDLE BEARING | 503539201 | 503539201-Online | 1 |
| 5 | WORM GEAR | 544212402 | 544212402-Online | 1 |
| 6 | PUMP PISTON | 540057901 | 540057901-Online | 1 |
| 7 | PUMP CYLINDER | 537154801 | 537154801-Online | 1 |
| 8 | OIL HOSE | 544084202 | 544084202-Online | 1 |
| 9 | WASHER | 530015611 | 530015611-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CRANKCASE ASSY | 544932503 | 544932503-Online | 1 |
| 2 | STIFFENING PLATE | 503875802 | 503875802-Online | 1 |
| 3 | BAR BOLT | 503875402 | 503875402-Online | 1 |
| 4 | BAR BOLT | 537334601 | 537334601-Online | 1 |
| 5 | BAR BOLT | 544036401 | 544036401-Online | 1 |
| 6 | NEEDLE ROLLER | 503240905 | 503240905-Online | 1 |
| 7 | CHECK VALVE | 530026119 | 530026119-Online | 1 |
| 8 | FILTER | 537403501 | 537403501-Online | 1 |
| 9 | OIL SCREEN | 544083301 | 544083301-Online | 1 |
| 10 | GUIDE PIN | 544331601 | 544331601-Online | 1 |
| 11 | SUPPORT | 503869301 | 503869301-Online | 1 |
| 12 | TANK CAP ASSY | 544111201 | 544111201-Online | 1 |
| 13 | SEALING | 537215001 | 537215001-Online | 1 |
| 14 | HOLDER | 503578901 | 503578901-Online | 1 |
| 15 | PIN | 503886301 | 503886301-Online | 1 |
| 16 | SCREW IHSCT | 503218876 | 503218876-Online | 2 |
| 17 | SUPPORT | 501007601 | 501007601-Online | 1 |
| 18 | SCREW IHSCT | 503215103 | 503215103-Online | 1 |
| 19 | CHAIN GUIDE PLATE | 544284601 | 544284601-Online | 1 |
| 20 | SCREW CCRPANT | 503217010 | 503217010-Online | 1 |
| 21 | SPIKE | 544286501 | 544286501-Online | 1 |
| 22 | SCREW IHSCFT | 503217520 | 503217520-Online | 2 |
| 23 | HAND GUARD | 544251501 | 544251501-Online | 1 |
| 24 | LOCK | 503892401 | 503892401-Online | 1 |
| 25 | SCREW | 503893001 | 503893001-Online | 2 |
| 26 | POSITION SPRING | 503436501 | 503436501-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CRANKSHAFT ASSY | 525604601 | 525604601-Online | 1 |
| 2 | BALL BEARING | 544248702 | 544248702-Online | 1 |
| 3 | SEALING | 544251201 | 544251201-Online | 1 |
| 4 | BALL BEARING | 544248802 | 544248802-Online | 1 |
| 5 | SEALING | 544251301 | 544251301-Online | 1 |
| 6 | NEEDLE BEARING | 503414101 | 503414101-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CYLINDER COVER ASSY | 504790201 | 504790201-Online | 1 |
| 2 | LABEL | 522736001 | 522736001-Online | 1 |
| 3 | SNAP LOCKING | 503894701 | 503894701-Online | 3 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CYLINDER | 504735103 | 504735103-Online | 1 |
| 2 | PISTON ASSY | 502625002 | 502625002-Online | 1 |
| 3 | PISTON RING | 544405901 | 544405901-Online | 1 |
| 4 | PISTON PIN | 544406001 | 544406001-Online | 1 |
| 5 | SNAP RING | 737441000 | 737441000-Online | 2 |
| 6 | NEEDLE BEARING | 503414101 | 503414101-Online | 1 |
| 7 | GASKET | 544396001 | 544396001-Online | 1 |
| 8 | GASKET | 544395901 | 544395901-Online | 1 |
| 9 | SCREW IHSCM | 725533355 | 725533355-Online | 4 |
| 10 | SPARK PLUG | 503235111 | 503235111-Online | 1 |
| 11 | GASKET | 504794001 | 504794001-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | FUEL TANK | 544193807 | 544193807-Online | 1 |
| 2 | SCREW CCRPANT | 503212810 | 503212810-Online | 1 |
| 3 | PARALLEL PIN | 720182520 | 720182520-Online | 1 |
| 4 | THROTTLE CONTROL | 544968501 | 544968501-Online | 1 |
| 5 | SPRING | 544099901 | 544099901-Online | 1 |
| 6 | THROTTLE LOCKOUT | 544284101 | 544284101-Online | 1 |
| 7 | HANDLE INSERT | 544284901 | 544284901-Online | 1 |
| 8 | FUEL HOSE | 544128604 | 544128604-Online | 1 |
| 9 | FUEL FILTER | 503443201 | 503443201-Online | 1 |
| 10 | RETURN HOSE | 544129701 | 544129701-Online | 1 |
| 11 | TANK CAP ASSY | 544111201 | 544111201-Online | 1 |
| 12 | SEALING | 537215001 | 537215001-Online | 1 |
| 13 | HOLDER | 503578901 | 503578901-Online | 1 |
| 14 | LABEL | 544375001 | 544375001-Online | 1 |
| 15 | SUPPORT | 501007601 | 501007601-Online | 1 |
| 16 | ANTIVIBRATION ELEMENT | 504795601 | 504795601-Online | 1 |
| 17 | GROOVED PIN | 721126339 | 721126339-Online | 1 |
| 18 | TANK VENT ASSY | 537359501 | 537359501-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | FRONT HANDLE | 544284001 | 544284001-Online | 1 |
| 2 | SCREW IHSCT | 503218876 | 503218876-Online | 3 |
| 3 | ANTIVIBRATION ELEMENT | 503898301 | 503898301-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | FLYWHEEL ASSY | 544874202 | 544874202-Online | 1 |
| 2 | STARTER PAWL | 537245601 | 537245601-Online | 1 |
| 3 | SCREW | 501819903 | 501819903-Online | 1 |
| 4 | WASHER | 503230042 | 503230042-Online | 1 |
| 5 | SPRING | 529271101 | 529271101-Online | 1 |
| 6 | NUT | 503220401 | 503220401-Online | 1 |
| 7 | IGNITION MODULE | 576705602 | 576705602-Online | 1 |
| 8 | WIRING ASSY | 510101401 | 510101401-Online | 1 |
| 9 | SCREW IHSCFM | 503200220 | 503200220-Online | 2 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | TOOL | 503558504 | 503558504-Online | 1 |
