Husqvarna 140 IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.
CHAIN SAWS

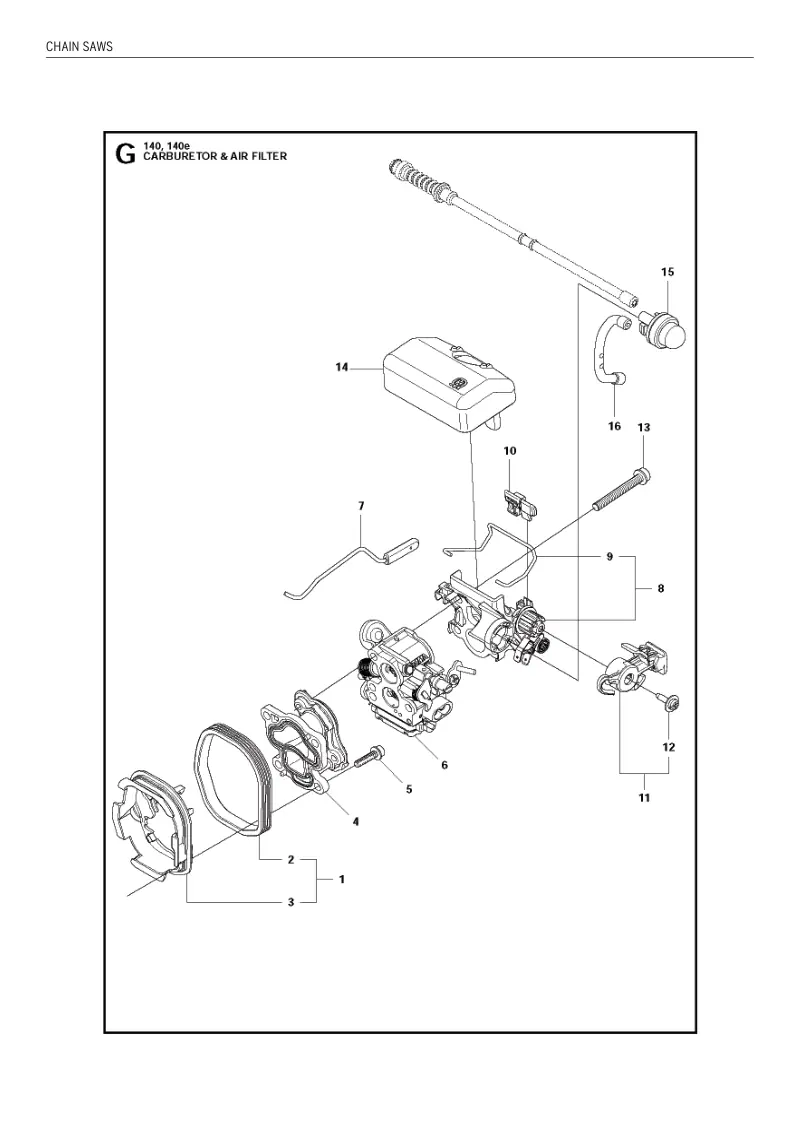

| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | INSULATION WALL | 504724701 | 504724701-Online | 1 |
| 2 | INSULATION WALL | 504724501 | 504724501-Online | 1 |
| 3 | INSULATION WALL | 504724401 | 504724401-Online | 1 |
| 4 | INLET PIPE | 504201201 | 504201201-Online | 1 |
| 5 | SCREW IHSCFM | 503200216 | 503200216-Online | 4 |
| 6 | CARBURETTOR | 506450501 | 506450501-Online | 1 |
| 7 | THROTTLE ROD ASSY | 544284401 | 544284401-Online | 1 |
| 8 | FILTER HOLDER | 544976401 | 544976401-Online | 1 |
| 9 | SHACKLE | 544392601 | 544392601-Online | 1 |
| 10 | GUIDE | 504712501 | 504712501-Online | 1 |
| 11 | CONTROL | 544844302 | 544844302-Online | 1 |
| 12 | SCREW | 544976601 | 544976601-Online | 1 |
| 13 | SCREW IHSCFM | 503200240 | 503200240-Online | 3 |
| 14 | AIR FILTER 44 MICRON | 544805402 | 544805402-Online | 1 |
| 14 | AIR FILTER FELT | 544805403 | 544805403-Online | 1 |
| 15 | PURGE | 503936601 | 503936601-Online | 1 |
| 16 | HOSE | 544401901 | 544401901-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CRANKSHAFT ASSY | 525604601 | 525604601-Online | 1 |
| 2 | BALL BEARING | 544248702 | 544248702-Online | 1 |
| 3 | SEALING | 544251201 | 544251201-Online | 1 |
| 4 | BALL BEARING | 544248802 | 544248802-Online | 1 |
| 5 | SEALING | 544251301 | 544251301-Online | 1 |
| 6 | NEEDLE BEARING | 503414101 | 503414101-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CYLINDER COVER ASSY | 504790201 | 504790201-Online | 1 |
| 2 | LABEL | 522736001 | 522736001-Online | 1 |
| 3 | SNAP LOCKING | 503894701 | 503894701-Online | 3 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | FUEL TANK | 544193807 | 544193807-Online | 1 |
| 2 | SCREW CCRPANT | 503212810 | 503212810-Online | 1 |
| 3 | PARALLEL PIN | 720182520 | 720182520-Online | 1 |
| 4 | THROTTLE CONTROL | 544968501 | 544968501-Online | 1 |
| 5 | SPRING | 544099901 | 544099901-Online | 1 |
| 6 | THROTTLE LOCKOUT | 544284101 | 544284101-Online | 1 |
| 7 | HANDLE INSERT | 544284901 | 544284901-Online | 1 |
| 8 | FUEL HOSE | 544128604 | 544128604-Online | 1 |
| 9 | FUEL FILTER | 503443201 | 503443201-Online | 1 |
| 10 | RETURN HOSE | 544129701 | 544129701-Online | 1 |
| 11 | TANK CAP ASSY | 544111201 | 544111201-Online | 1 |
| 12 | SEALING | 537215001 | 537215001-Online | 1 |
| 13 | HOLDER | 503578901 | 503578901-Online | 1 |
| 14 | LABEL | 544375001 | 544375001-Online | 1 |
| 15 | SUPPORT | 501007601 | 501007601-Online | 1 |
| 16 | ANTIVIBRATION ELEMENT | 504795601 | 504795601-Online | 1 |
| 17 | GROOVED PIN | 721126339 | 721126339-Online | 1 |
| 18 | TANK VENT ASSY | 537359501 | 537359501-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | MUFFLER ASSY | 544147702 | 544147702-Online | 1 |
| 2 | SCREEN | 579753301 | 579753301-Online | 1 |
| 3 | HEAT DEFLECTOR | 501323101 | 501323101-Online | 1 |
| 4 | GASKET | 579753101 | 579753101-Online | 1 |
| 5 | SCREW IHSCM | 725536855 | 725536855-Online | 2 |
| 6 | SCREW CRPANM | 724128759 | 724128759-Online | 1 |
| 7 | GASKET | 504794001 | 504794001-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | STARTER ASSY | 504597002 | 504597002-Online | 1 |
| 2 | STARTER | 504596901 | 504596901-Online | 1 |
| 3 | SLEEVE | 537283201 | 537283201-Online | 1 |
| 4 | SPRING CASSETTE ASSY | 540057502 | 540057502-Online | 1 |
| 5 | SCREW CCRPANT | 503212810 | 503212810-Online | 1 |
| 6 | STARTER PULLEY | 504597101 | 504597101-Online | 1 |
| 7 | SCREW IHSCT | 503217716 | 503217716-Online | 1 |
| 8 | STARTER ROPE | 505305125 | 505305125-Online | 1 |
| 9 | STARTER HANDLE | 537232501 | 537232501-Online | 1 |
| 10 | SCREW | 503217321 | 503217321-Online | 1 |
| 11 | LABEL | 504546804 | 504546804-Online | 1 |
| 12 | AIR CONDUCTOR | 544197101 | 544197101-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | TOOL | 503558504 | 503558504-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CARBURETTOR | 506450501 | 506450501-Online | 1 |
| 2 | PIECE | 503481101 | 503481101-Online | 1 |
| 3 | NOZZLE ASSY | 504024001 | 504024001-Online | 1 |
| 4 | PLUG WELCH | 503535601 | 503535601-Online | 1 |
| 5 | VALVE | 503479701 | 503479701-Online | 1 |
| 6 | SPRING | 537020301 | 537020301-Online | 1 |
| 7 | LEVER | 503665901 | 503665901-Online | 1 |
| 8 | PIN RETAINING SCREW | 503480001 | 503480001-Online | 1 |
| 9 | SCREW | 504024101 | 504024101-Online | 1 |
| 10 | HUB CAP | 505535201 | 505535201-Online | 1 |
| 11 | SHAFT ASSY | 504026101 | 504026101-Online | 1 |
| 12 | COLLAR | 505110701 | 505110701-Online | 1 |
| 13 | SPRING | 504028501 | 504028501-Online | 1 |
| 14 | VALVE | 504027501 | 504027501-Online | 1 |
| 15 | SCREW | 503481801 | 503481801-Online | 1 |
| 16 | CIRCLIP | 504026701 | 504026701-Online | 1 |
| 17 | SHAFT ASSY | 504026201 | 504026201-Online | 1 |
| 18 | LEVER | 540053701 | 540053701-Online | 1 |
| 19 | SPRING | 504028301 | 504028301-Online | 1 |
| 20 | LEVER | 504026301 | 504026301-Online | 1 |
| 21 | SCREW | 503479001 | 503479001-Online | 1 |
| 22 | VALVE | 504027401 | 504027401-Online | 1 |
| 23 | SCREW | 503481801 | 503481801-Online | 1 |
| 24 | SHAFT ASSY | 504026001 | 504026001-Online | 1 |
| 25 | SPRING | 504028401 | 504028401-Online | 1 |
| 26 | LEVER | 544983101 | 544983101-Online | 1 |
| 27 | SCREW | 503479001 | 503479001-Online | 1 |
| 28 | VALVE | 504027601 | 504027601-Online | 1 |
| 29 | SCREW | 503479201 | 503479201-Online | 1 |
| 30 | SCREW | 504027301 | 504027301-Online | 1 |
| 31 | SCREW | 504909201 | 504909201-Online | 1 |
| 32 | SCREW | 504028101 | 504028101-Online | 1 |
| 33 | GASKET | 504024301 | 504024301-Online | 1 |
| 34 | DIAPHRAGM | 504024501 | 504024501-Online | 1 |
| 35 | BODY | 504024601 | 504024601-Online | 1 |
| 36 | SCREW | 504028201 | 504028201-Online | 1 |
| 37 | STRAINER | 504025001 | 504025001-Online | 1 |
| 38 | DIAPHRAGM | 504025601 | 504025601-Online | 1 |
| 39 | GASKET | 504025701 | 504025701-Online | 1 |
| 40 | COVER | 504025901 | 504025901-Online | 1 |
| 41 | SCREW | 504027801 | 504027801-Online | 1 |
| 42 | GASKET KIT | 504028601 | 504028601-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CLUTCH | 530014949 | 530014949-Online | 1 |
| 2 | SPRING | 530094188 | 530094188-Online | 1 |
| 3 | CLUTCH DRUM ASSY | 578257101 | 578257101-Online | 1 |
| 4 | NEEDLE BEARING | 503539201 | 503539201-Online | 1 |
| 5 | WORM GEAR | 544212402 | 544212402-Online | 1 |
| 6 | PUMP PISTON | 540057901 | 540057901-Online | 1 |
| 7 | PUMP CYLINDER | 537154801 | 537154801-Online | 1 |
| 8 | OIL HOSE | 544084202 | 544084202-Online | 1 |
| 9 | WASHER | 530015611 | 530015611-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CRANKCASE ASSY | 544932503 | 544932503-Online | 1 |
| 2 | STIFFENING PLATE | 503875802 | 503875802-Online | 1 |
| 3 | BAR BOLT | 503875402 | 503875402-Online | 1 |
| 4 | BAR BOLT | 537334601 | 537334601-Online | 1 |
| 5 | BAR BOLT | 544036401 | 544036401-Online | 1 |
| 6 | NEEDLE ROLLER | 503240905 | 503240905-Online | 1 |
| 7 | CHECK VALVE | 530026119 | 530026119-Online | 1 |
| 8 | FILTER | 537403501 | 537403501-Online | 1 |
| 9 | OIL SCREEN | 544083301 | 544083301-Online | 1 |
| 10 | GUIDE PIN | 544331601 | 544331601-Online | 1 |
| 11 | SUPPORT | 503869301 | 503869301-Online | 1 |
| 12 | TANK CAP ASSY | 544111201 | 544111201-Online | 1 |
| 13 | SEALING | 537215001 | 537215001-Online | 1 |
| 14 | HOLDER | 503578901 | 503578901-Online | 1 |
| 15 | PIN | 503886301 | 503886301-Online | 1 |
| 16 | SCREW IHSCT | 503218876 | 503218876-Online | 2 |
| 17 | SUPPORT | 501007601 | 501007601-Online | 1 |
| 18 | SCREW IHSCT | 503215103 | 503215103-Online | 1 |
| 19 | CHAIN GUIDE PLATE | 544284601 | 544284601-Online | 1 |
| 20 | SCREW CCRPANT | 503217010 | 503217010-Online | 1 |
| 21 | SPIKE | 544286501 | 544286501-Online | 1 |
| 22 | SCREW IHSCFT | 503217520 | 503217520-Online | 2 |
| 23 | HAND GUARD | 544251501 | 544251501-Online | 1 |
| 24 | LOCK | 503892401 | 503892401-Online | 1 |
| 25 | SCREW | 503893001 | 503893001-Online | 2 |
| 26 | POSITION SPRING | 503436501 | 503436501-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CYLINDER | 504735103 | 504735103-Online | 1 |
| 2 | PISTON ASSY | 502625002 | 502625002-Online | 1 |
| 3 | PISTON RING | 544405901 | 544405901-Online | 1 |
| 4 | PISTON PIN | 544406001 | 544406001-Online | 1 |
| 5 | SNAP RING | 737441000 | 737441000-Online | 2 |
| 6 | NEEDLE BEARING | 503414101 | 503414101-Online | 1 |
| 7 | GASKET | 544396001 | 544396001-Online | 1 |
| 8 | GASKET | 544395901 | 544395901-Online | 1 |
| 9 | SCREW IHSCM | 725533355 | 725533355-Online | 4 |
| 10 | SPARK PLUG | 503235111 | 503235111-Online | 1 |
| 11 | GASKET | 504794001 | 504794001-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | FRONT HANDLE | 544284001 | 544284001-Online | 1 |
| 2 | SCREW IHSCT | 503218876 | 503218876-Online | 3 |
| 3 | ANTIVIBRATION ELEMENT | 503898301 | 503898301-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CLUTCH COVER ASSY | 501388201 | 501388201-Online | 0 |
| 2 | E-CLIP | 735310820 | 735310820-Online | 1 |
| 3 | PAWL | 537286601 | 537286601-Online | 1 |
| 4 | CHAIN GUIDE | 540063301 | 540063301-Online | 1 |
| 5 | BEARING SLEEVE | 537017401 | 537017401-Online | 1 |
| 6 | KNEE JOINT ASSY | 503890802 | 503890802-Online | 1 |
| 7 | BRAKE SPRING | 505892601 | 505892601-Online | 1 |
| 8 | GUIDE BUSHING | 503855201 | 503855201-Online | 1 |
| 9 | COVER LID | 544248501 | 544248501-Online | 1 |
| 10 | SCREW CCRPANT | 503217010 | 503217010-Online | 1 |
| 11 | WEAR PROTECTION | 544253101 | 544253101-Online | 1 |
| 12 | BRAKE BAND ASSY | 544306001 | 544306001-Online | 1 |
| 13 | PIN | 503892901 | 503892901-Online | 1 |
| 14 | WORM SCREW | 537397001 | 537397001-Online | 1 |
| 15 | WORM WHEEL | 537079402 | 537079402-Online | 1 |
| 16 | O-RING | 740480702 | 740480702-Online | 1 |
| 17 | WASHER | 503230063 | 503230063-Online | 1 |
| 18 | LABEL | 544376801 | 544376801-Online | 1 |
| 19 | HEXAGON NUT | 503220001 | 503220001-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | FLYWHEEL ASSY | 544874202 | 544874202-Online | 1 |
| 2 | STARTER PAWL | 537245601 | 537245601-Online | 1 |
| 3 | SCREW | 501819903 | 501819903-Online | 1 |
| 4 | WASHER | 503230042 | 503230042-Online | 1 |
| 5 | SPRING | 529271101 | 529271101-Online | 1 |
| 6 | NUT | 503220401 | 503220401-Online | 1 |
| 7 | IGNITION MODULE | 576705602 | 576705602-Online | 1 |
| 8 | WIRING ASSY | 510101401 | 510101401-Online | 1 |
| 9 | SCREW IHSCFM | 503200220 | 503200220-Online | 2 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | WINTER KIT | 505450401 | 505450401-Online | 1 |
| 2 | SCREW CCRPANT | 503217016 | 503217016-Online | 1 |
| 3 | WINTER PLUG | 503405901 | 503405901-Online | 1 |
