Husqvarna 142 RJ IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.

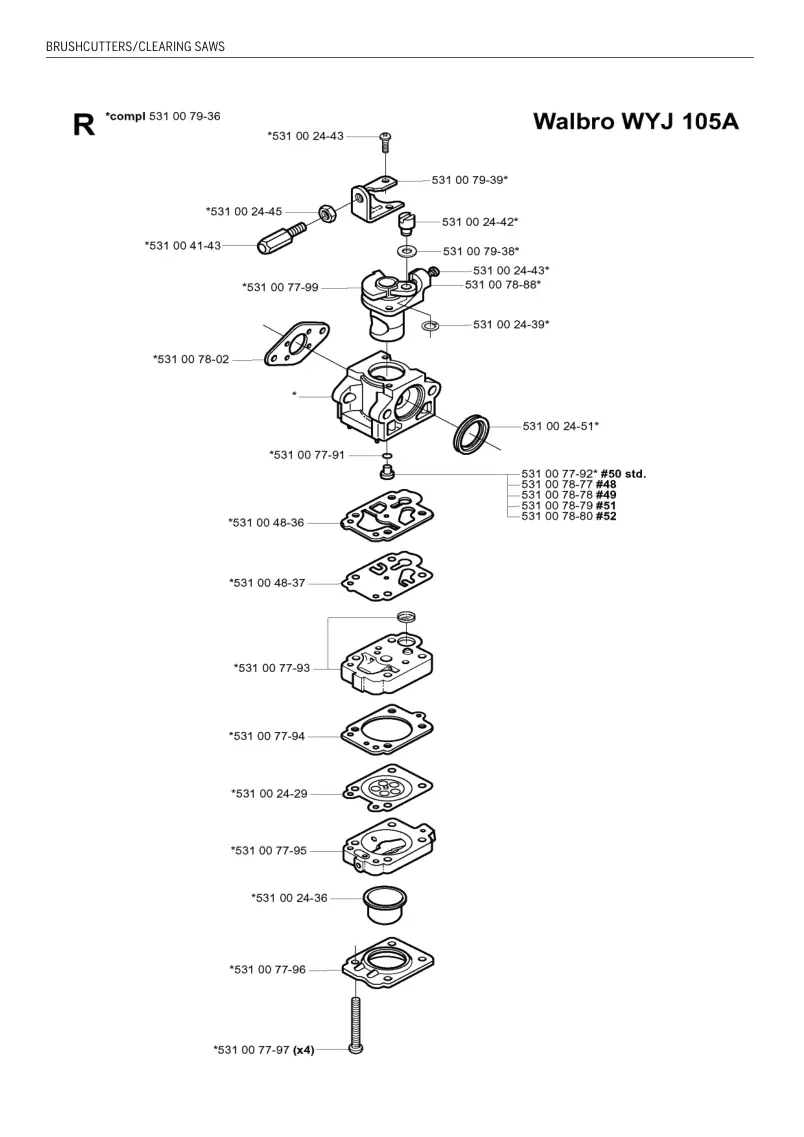

BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 36 00 79- | CARBURETTOR | 531007936 | 531007936-Online | 1 |
| 531 43 00 24- | SCREW | 531002443 | 531002443-Online | 1 |
| 531 45 00 24- | NUT | 531002445 | 531002445-Online | 1 |
| 531 43 00 41- | SCREW | 531004143 | 531004143-Online | 1 |
| 531 99 00 77- | PLUG | 531007799 | 531007799-Online | 1 |
| 531 02 00 78- | GASKET | 531007802 | 531007802-Online | 1 |
| 531 91 00 77- | RING | 531007791 | 531007791-Online | 1 |
| 531 36 00 48- | MOULDING | 531004836 | 531004836-Online | 1 |
| 531 37 00 48- | SPANNHJUL | 531004837 | 531004837-Online | 1 |
| 531 93 00 77- | HOUSING | 531007793 | 531007793-Online | 1 |
| 531 94 00 77- | GASKET | 531007794 | 531007794-Online | 1 |
| 531 29 00 24- | DIAPHRAGM | 531002429 | 531002429-Online | 1 |
| 531 95 00 77- | HOUSING | 531007795 | 531007795-Online | 1 |
| 531 36 00 24- | BULB | 531002436 | 531002436-Online | 1 |
| 531 96 00 77- | PLATE | 531007796 | 531007796-Online | 1 |
| 531 97 00 77- | SCREW | 531007797 | 531007797-Online | 4 |
| 531 80 00 78- | JET #52 | 531007880 | 531007880-Online | 1 |
| 531 79 00 78- | JET #51 | 531007879 | 531007879-Online | 1 |
| 531 78 00 78- | JET #49 | 531007878 | 531007878-Online | 1 |
| 531 77 00 78- | JET #48 | 531007877 | 531007877-Online | 1 |
| 531 92 00 77- | JET #50 STD. | 531007792 | 531007792-Online | 1 |
| 531 51 00 24- | GASKET | 531002451 | 531002451-Online | 1 |
| 531 39 00 24- | CIRCLIP | 531002439 | 531002439-Online | 1 |
| 531 88 00 78- | THROTTLE | 531007888 | 531007888-Online | 1 |
| 531 38 00 79- | WASHER | 531007938 | 531007938-Online | 1 |
| 531 42 00 24- | CONNECTION | 531002442 | 531002442-Online | 1 |
| 531 39 00 79- | BRACKET | 531007939 | 531007939-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 03 00 78- | HOUSING | 531007803 | 531007803-Online | 1 |
| 531 29 00 48- | ATTACHMENT | 531004829 | 531004829-Online | 1 |
| 503 25 20 02- | SCREW IHSCFM | 503200225 | 503200225-Online | 1 |
| 531 38 00 77- | SPACER | 531007738 | 531007738-Online | 1 |
| 531 41 00 77- | GASKET | 531007741 | 531007741-Online | 1 |
| 531 39 00 77- | PROTECTOR | 531007739 | 531007739-Online | 1 |
| 531 44 00 79- | CHOKE CONTROL | 531007944 | 531007944-Online | 1 |
| 531 05 00 78- | WASHER | 531007805 | 531007805-Online | 1 |
| 531 06 00 78- | RING | 531007806 | 531007806-Online | 1 |
| 531 07 00 78- | BRACKET | 531007807 | 531007807-Online | 1 |
| 531 09 00 78- | SCREEN | 531007809 | 531007809-Online | 1 |
| 531 10 00 78- | AIR FILTER | 531007810 | 531007810-Online | 1 |
| 531 11 00 78- | COVER | 531007811 | 531007811-Online | 1 |
| 531 51 00 41- | RETAINER RING | 531004151 | 531004151-Online | 1 |
| 531 12 00 78- | SCREW | 531007812 | 531007812-Online | 1 |
| 531 08 00 78- | SCREW | 531007808 | 531007808-Online | 1 |
| 531 40 00 79- | DECAL | 531007940 | 531007940-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 32 00 79- | TUBE | 531007932 | 531007932-Online | 1 |
| 531 30 00 79- | EYELET | 531007930 | 531007930-Online | 1 |
| 723 31 23 29- | SCREW SLPANM | 723232931 | 723232931-Online | 1 |
| 531 31 00 79- | SHAFT | 531007931 | 531007931-Online | 1 |
| 537 01 02 76- | LABEL | 537027601 | 537027601-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 27 00 79- | COVER | 531007927 | 531007927-Online | 1 |
| 725 71 23 74- | SCREW EHHM | 725237471 | 725237471-Online | 1 |
| 531 74 00 77- | BUMPER | 531007774 | 531007774-Online | 1 |
| 531 73 00 77- | BUMPER | 531007773 | 531007773-Online | 1 |
| 531 76 00 77- | WASHER | 531007776 | 531007776-Online | 1 |
| 725 01 53 70- | SCREW IHSCM | 725537001 | 725537001-Online | 1 |
| 531 28 00 79- | CLUTCH COVER | 531007928 | 531007928-Online | 1 |
| 738 19 22 01- | BALL BEARING | 738220119 | 738220119-Online | 1 |
| 723 31 23 29- | SCREW SLPANM | 723232931 | 723232931-Online | 1 |
| 735 10 31 31- | CIRCLIP | 735313110 | 735313110-Online | 1 |
| 531 26 00 79- | CLUTCH DRUM | 531007926 | 531007926-Online | 1 |
| 531 64 00 77- | SCREW | 531007764 | 531007764-Online | 1 |
| 531 63 00 77- | WASHER | 531007763 | 531007763-Online | 1 |
| 531 61 00 77- | SPRING | 531007761 | 531007761-Online | 1 |
| 531 60 00 77- | CLUTCH | 531007760 | 531007760-Online | 1 |
| 531 62 00 77- | WASHER | 531007762 | 531007762-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 45 00 77- | CYLINDER COVER | 531007745 | 531007745-Online | 1 |
| 531 42 00 79- | DECAL 142RJ | 531007942 | 531007942-Online | 1 |
| 531 43 00 79- | DECAL 152RJ | 531007943 | 531007943-Online | 1 |
| 531 48 00 77- | RETAINER RING | 531007748 | 531007748-Online | 1 |
| 531 47 00 77- | RING | 531007747 | 531007747-Online | 1 |
| 531 46 00 77- | SCREW | 531007746 | 531007746-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 67 00 77- | IGNITION MODULE | 531007767 | 531007767-Online | 1 |
| 531 66 00 77- | FLYWHEEL | 531007766 | 531007766-Online | 1 |
| 731 51 71 20- | HEXAGON NUT FLANGE | 731712051 | 731712051-Online | 1 |
| 503 25 20 25- | SCREW IHSCM | 503202525 | 503202525-Online | 1 |
| 531 01 00 24- | SLEEVE | 531002401 | 531002401-Online | 1 |
| 531 72 00 77- | PROTECTOR | 531007772 | 531007772-Online | 1 |
| 531 68 00 77- | CABLE | 531007768 | 531007768-Online | 1 |
| 531 04 00 24- | SPACER | 531002404 | 531002404-Online | 1 |
| 531 99 00 23- | SPRING | 531002399 | 531002399-Online | 1 |
| 531 98 00 23- | SPARK PLUG CONNECTION | 531002398 | 531002398-Online | 1 |
| 531 75 00 77- | CABLE | 531007775 | 531007775-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 33 00 77- | STARTER ASSY | 531007733 | 531007733-Online | 1 |
| 531 85 00 77- | PAWL | 531007785 | 531007785-Online | 1 |
| 531 86 00 77- | SPRING | 531007786 | 531007786-Online | 1 |
| 531 88 00 77- | RETAINER RING | 531007788 | 531007788-Online | 1 |
| 531 87 00 77- | PLATE | 531007787 | 531007787-Online | 1 |
| 731 01 23 18- | HEXAGON NUT | 731231801 | 731231801-Online | 1 |
| 531 84 00 77- | SCREW | 531007784 | 531007784-Online | 1 |
| 531 83 00 77- | WASHER | 531007783 | 531007783-Online | 1 |
| 531 82 00 77- | STARTER PULLEY | 531007782 | 531007782-Online | 1 |
| 531 81 00 77- | RETURN SPRING | 531007781 | 531007781-Online | 1 |
| 531 79 00 77- | STARTER ROPE | 531007779 | 531007779-Online | 1 |
| 503 16 20 25- | SCREW IHSCM | 503202516 | 503202516-Online | 1 |
| 531 78 00 77- | HANDLE | 531007778 | 531007778-Online | 1 |
| 531 80 00 77- | INSERT | 531007780 | 531007780-Online | 1 |
| 531 35 00 79- | DECAL 152RJ | 531007935 | 531007935-Online | 1 |
| 531 34 00 79- | DECAL 142RJ | 531007934 | 531007934-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 725 71 23 74- | SCREW EHHM | 725237471 | 725237471-Online | 1 |
| 531 03 00 77- | BRACKET | 531007703 | 531007703-Online | 1 |
| 734 01 11 46- | WASHER | 734114601 | 734114601-Online | 1 |
| 731 01 23 14- | HEXAGON NUT | 731231401 | 731231401-Online | 1 |
| 531 04 00 77- | BRACKET | 531007704 | 531007704-Online | 1 |
| 735 01 11 46- | SPRING WASHER | 735114601 | 735114601-Online | 1 |
| 531 05 00 77- | BLADE | 531007705 | 531007705-Online | 1 |
| 531 01 00 77- | COMBINATION GUARD | 531007701 | 531007701-Online | 1 |
| 531 06 00 77- | PROTECTOR | 531007706 | 531007706-Online | 1 |
| 725 71 23 29- | SCREW EHHM | 725232971 | 725232971-Online | 1 |
| 503 25 20 02- | SCREW IHSCFM | 503200225 | 503200225-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 65 00 77- | HOUSING | 531007765 | 531007765-Online | 1 |
| 503 20 20 02- | SCREW IHSCFM | 503200220 | 503200220-Online | 4 |
| 531 50 00 77- | SEALING RING | 531007750 | 531007750-Online | 1 |
| 531 49 00 77- | CRANKCASE | 531007749 | 531007749-Online | 1 |
| 503 40 20 02- | SCREW IHSCFM | 503200240 | 503200240-Online | 4 |
| 735 10 31 33- | CIRCLIP | 735313310 | 735313310-Online | 1 |
| 531 51 00 77- | SEALING RING | 531007751 | 531007751-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 02 00 24- | KEY | 531002402 | 531002402-Online | 1 |
| 738 25 22 02- | BALL BEARING | 738220225 | 738220225-Online | 1 |
| 531 59 00 77- | CRANKSHAFT | 531007759 | 531007759-Online | 1 |
| 531 57 00 77- | NEEDLE BEARING | 531007757 | 531007757-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 503 25 20 02- | SCREW IHSCFM | 503200225 | 503200225-Online | 4 |
| 531 57 00 77- | NEEDLE BEARING | 531007757 | 531007757-Online | 1 |
| 531 58 00 77- | RETAINER RING | 531007758 | 531007758-Online | 1 |
| 531 56 00 77- | PISTON BOLT | 531007756 | 531007756-Online | 1 |
| 531 53 00 77- | PISTON 152 | 531007753 | 531007753-Online | 1 |
| 531 52 00 77- | PISTON 142 | 531007752 | 531007752-Online | 1 |
| 531 55 00 77- | PISTON RING 152 | 531007755 | 531007755-Online | 1 |
| 531 54 00 77- | PISTON RING 142 | 531007754 | 531007754-Online | 1 |
| 531 37 00 77- | GASKET | 531007737 | 531007737-Online | 1 |
| 531 36 00 77- | CYLINDER 152 | 531007736 | 531007736-Online | 1 |
| 531 35 00 77- | CYLINDER 142 | 531007735 | 531007735-Online | 1 |
| 531 28 00 48- | SPARK PLUG | 531004828 | 531004828-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 44 00 77- | SCREW | 531007744 | 531007744-Online | 1 |
| 503 16 20 02- | SCREW IHSCFM | 503200216 | 503200216-Online | 1 |
| 531 43 00 77- | DEFLECTOR | 531007743 | 531007743-Online | 1 |
| 531 33 00 79- | MUFFLER | 531007933 | 531007933-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 503 01 97 64- | GREASE | 503976401 | 503976401-Online | 1 |
| 531 47 00 79- | HARNESS | 531007947 | 531007947-Online | 1 |
| 502 03 03 55- | TRANSPORT GUARD | 502035503 | 502035503-Online | 1 |
| 531 19 00 78- | PIN RETAINING SCREW | 531007819 | 531007819-Online | 1 |
| 502 01 21 58- | WRENCH | 502215801 | 502215801-Online | 1 |
| 502 02 03 55- | TRANSPORTSKYDD KPL | 502035502 | 502035502-Online | 1 |
| 503 02 90 18- | SUPPORT CUP | 503901802 | 503901802-Online | 1 |
| 501 01 31 40- | SPANNER OPEN-ENDED | 501314001 | 501314001-Online | 1 |
| 502 01 19 30- | COMBI TOOL | 502193001 | 502193001-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 94 00 78- | BEVEL GEAR 1=25,4MM | 531007894 | 531007894-Online | 1 |
| 725 71 23 66- | SCREW EHHM | 725236671 | 725236671-Online | 1 |
| 725 71 23 74- | SCREW EHHM | 725237471 | 725237471-Online | 1 |
| 503 41 21 83- | SCREW | 503218341 | 503218341-Online | 1 |
| 531 70 00 77- | GEAR HOUSING | 531007770 | 531007770-Online | 1 |
| 738 00 21 99- | BALL BEARING | 738219900 | 738219900-Online | 1 |
| 531 25 00 77- | GEAR | 531007725 | 531007725-Online | 1 |
| 531 26 00 77- | SHAFT | 531007726 | 531007726-Online | 1 |
| 738 00 21 02- | BALL BEARING | 738210200 | 738210200-Online | 1 |
| 735 10 31 31- | CIRCLIP | 735313110 | 735313110-Online | 1 |
| 502 01 04 55- | NUT | 502045501 | 502045501-Online | 1 |
| 531 90 00 78- | FLANGE 1=25,4MM | 531007890 | 531007890-Online | 1 |
| 531 91 00 78- | CARRIER 1=25,4MM | 531007891 | 531007891-Online | 1 |
| 531 29 00 77- | SEALING RING | 531007729 | 531007729-Online | 1 |
| 531 28 00 77- | RING | 531007728 | 531007728-Online | 1 |
| 531 30 00 77- | SHAFT | 531007730 | 531007730-Online | 1 |
| 738 00 21 00- | BALL BEARING | 738210000 | 738210000-Online | 1 |
| 735 00 31 12- | CIRCLIP | 735311200 | 735311200-Online | 1 |
| 735 10 31 27- | CIRCLIP | 735312710 | 735312710-Online | 1 |
| 738 01 21 00- | BALL BEARING | 738210001 | 738210001-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 29 00 79- | HANDLE | 531007929 | 531007929-Online | 1 |
| 531 74 00 78- | SCREW | 531007874 | 531007874-Online | 1 |
| 724 01 13 35- | SCREW CRPANM | 724133501 | 724133501-Online | 4 |
| 731 01 23 14- | HEXAGON NUT | 731231401 | 731231401-Online | 4 |
| 531 07 00 77- | HANDLE | 531007707 | 531007707-Online | 1 |
| 531 73 00 78- | LEVER | 531007873 | 531007873-Online | 1 |
| 531 75 00 78- | HANDLE | 531007875 | 531007875-Online | 1 |
| 531 64 00 78- | SCREW | 531007864 | 531007864-Online | 4 |
| 531 62 00 78- | THROTTLE LOCK | 531007862 | 531007862-Online | 1 |
| 531 45 00 79- | CABLE ASSY | 531007945 | 531007945-Online | 1 |
| 531 63 00 78- | RETURN SPRING | 531007863 | 531007863-Online | 1 |
| 531 72 00 78- | COVER | 531007872 | 531007872-Online | 1 |
| 531 76 00 78- | HANDLE | 531007876 | 531007876-Online | 1 |
| 731 05 23 14- | HEXAGON NUT | 731231405 | 731231405-Online | 2 |
| 531 46 00 79- | THROTTLE WIRE | 531007946 | 531007946-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 15 00 24- | CLIP | 531002415 | 531002415-Online | 1 |
| 531 17 00 78- | FILTER | 531007817 | 531007817-Online | 1 |
| 531 10 00 24- | VALVE | 531002410 | 531002410-Online | 1 |
| 531 17 00 24- | PAD | 531002417 | 531002417-Online | 1 |
| 531 18 00 78- | SLEEVE | 531007818 | 531007818-Online | 1 |
| 531 41 00 79- | TANK UNIT | 531007941 | 531007941-Online | 1 |
| 531 06 00 40- | GASKET | 531004006 | 531004006-Online | 1 |
| 531 14 00 78- | TANK CAP | 531007814 | 531007814-Online | 1 |
| 531 16 00 78- | PIPE | 531007816 | 531007816-Online | 1 |
| 531 11 00 24- | SLEEVE | 531002411 | 531002411-Online | 1 |
| 531 15 00 78- | HOSE | 531007815 | 531007815-Online | 1 |
