Husqvarna 155 BT IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.

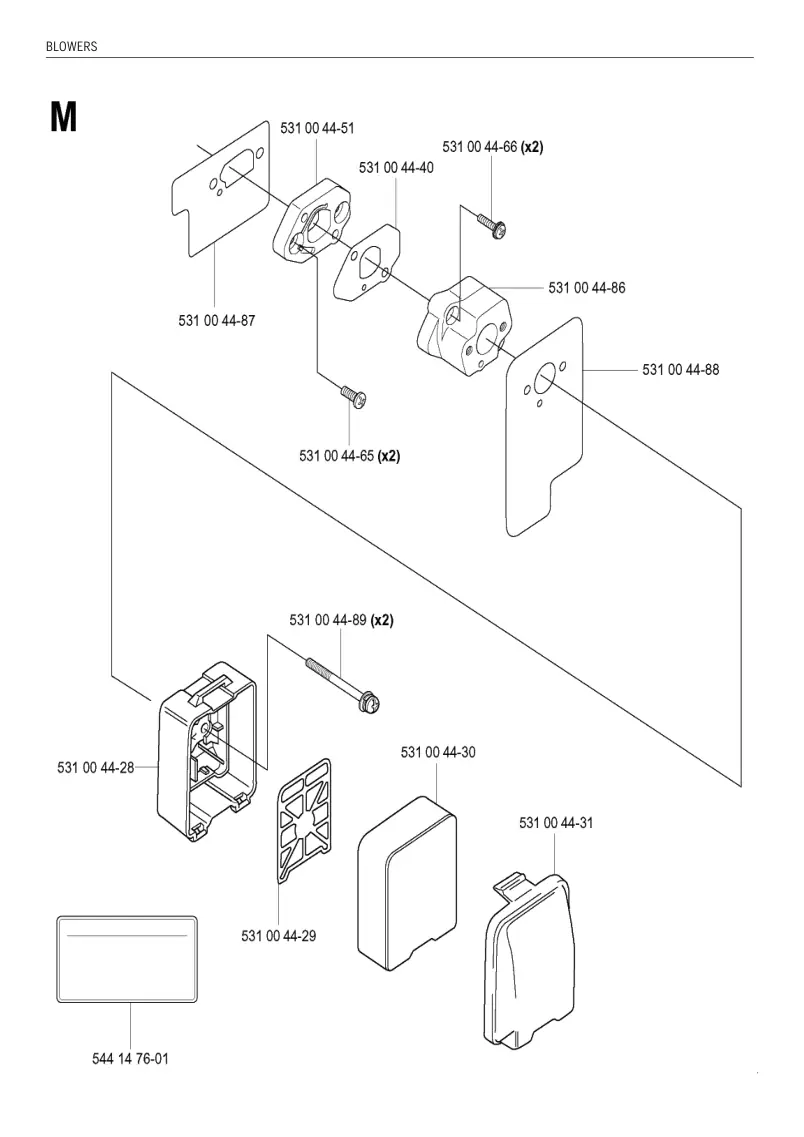

BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 51 00 44- | ADAPTER | 531004451 | 531004451-Online | 1 |
| 531 87 00 44- | GASKET | 531004487 | 531004487-Online | 1 |
| 531 28 00 44- | HOLDER | 531004428 | 531004428-Online | 1 |
| 544 01 14 76- | LABEL | 544147601 | 544147601-Online | 1 |
| 531 29 00 44- | PLATE | 531004429 | 531004429-Online | 1 |
| 531 89 00 44- | SCREW | 531004489 | 531004489-Online | 2 |
| 531 65 00 44- | SCREW | 531004465 | 531004465-Online | 2 |
| 531 40 00 44- | GASKET | 531004440 | 531004440-Online | 1 |
| 531 66 00 44- | SCREW | 531004466 | 531004466-Online | 2 |
| 531 30 00 44- | AIR FILTER | 531004430 | 531004430-Online | 1 |
| 531 31 00 44- | COVER | 531004431 | 531004431-Online | 1 |
| 531 88 00 44- | GASKET | 531004488 | 531004488-Online | 1 |
| 531 86 00 44- | SPACER | 531004486 | 531004486-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 48 00 32- | SCREW | 531003248 | 531003248-Online | 4 |
| 531 97 00 36- | CRANKCASE | 531003697 | 531003697-Online | 1 |
| 531 58 00 32- | SCREW | 531003258 | 531003258-Online | 4 |
| 531 57 00 32- | SCREW | 531003257 | 531003257-Online | 1 |
| 531 60 00 32- | GASKET | 531003260 | 531003260-Online | 1 |
| 738 25 22 02- | BALL BEARING | 738220225 | 738220225-Online | 2 |
| 531 56 00 32- | SEALING | 531003256 | 531003256-Online | 2 |
| 531 51 00 32- | GASKET | 531003251 | 531003251-Online | 1 |
| 531 53 00 32- | CRANKCASE | 531003253 | 531003253-Online | 1 |
| 531 59 00 32- | PIN RETAINING SCREW | 531003259 | 531003259-Online | 2 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 92 00 36- | CYLINDER | 531003692 | 531003692-Online | 1 |
| 531 94 00 33- | GASKET | 531003394 | 531003394-Online | 1 |
| 531 92 00 33- | SCREW | 531003392 | 531003392-Online | 4 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 84 00 44- | BLOWER NOZZLE | 531004484 | 531004484-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 99 00 36- | CARBURETTOR | 531003699 | 531003699-Online | 1 |
| 531 61 00 44- | O-RING | 531004461 | 531004461-Online | 1 |
| 531 21 00 37- | JET | 531003721 | 531003721-Online | 1 |
| 531 36 00 44- | GASKET | 531004436 | 531004436-Online | 1 |
| 531 53 00 44- | DIAPHRAGM | 531004453 | 531004453-Online | 1 |
| 531 43 00 44- | FILTER | 531004443 | 531004443-Online | 1 |
| 531 49 00 44- | PLATE | 531004449 | 531004449-Online | 1 |
| 531 46 00 44- | VALVE | 531004446 | 531004446-Online | 1 |
| 531 63 00 44- | SPRING | 531004463 | 531004463-Online | 1 |
| 531 42 00 44- | LEVER | 531004442 | 531004442-Online | 1 |
| 531 60 00 44- | PIN RETAINING SCREW | 531004460 | 531004460-Online | 1 |
| 531 57 00 44- | SCREW | 531004457 | 531004457-Online | 1 |
| 531 58 00 44- | SCREW | 531004458 | 531004458-Online | 4 |
| 531 44 00 44- | COVER | 531004444 | 531004444-Online | 1 |
| 531 55 00 44- | PRIMER | 531004455 | 531004455-Online | 1 |
| 531 48 00 44- | PLATE | 531004448 | 531004448-Online | 1 |
| 531 52 00 44- | DIAPHRAGM | 531004452 | 531004452-Online | 1 |
| 531 38 00 44- | GASKET | 531004438 | 531004438-Online | 1 |
| 531 54 00 44- | RING | 531004454 | 531004454-Online | 1 |
| 531 59 00 44- | RING | 531004459 | 531004459-Online | 1 |
| 531 64 00 44- | WASHER | 531004464 | 531004464-Online | 1 |
| 531 50 00 44- | LEVER | 531004450 | 531004450-Online | 1 |
| 531 37 00 44- | BRACKET | 531004437 | 531004437-Online | 1 |
| 531 56 00 44- | SCREW | 531004456 | 531004456-Online | 2 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 95 00 33- | SCREW | 531003395 | 531003395-Online | 2 |
| 531 10 00 37- | CYLINDER COVER | 531003710 | 531003710-Online | 1 |
| 531 09 00 37- | PLATE | 531003709 | 531003709-Online | 1 |
| 531 73 00 32- | SCREW | 531003273 | 531003273-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 83 00 33- | FLYWHEEL | 531003383 | 531003383-Online | 1 |
| 531 83 00 32- | WASHER | 531003283 | 531003283-Online | 1 |
| 531 89 00 32- | NUT | 531003289 | 531003289-Online | 1 |
| 531 84 00 33- | IGNITION COIL | 531003384 | 531003384-Online | 1 |
| 531 87 00 32- | SCREW | 531003287 | 531003287-Online | 2 |
| 531 82 00 33- | CABLE | 531003382 | 531003382-Online | 1 |
| 531 86 00 32- | GROMMET | 531003286 | 531003286-Online | 1 |
| 531 98 00 36- | RING | 531003698 | 531003698-Online | 1 |
| 503 13 23 50- | SPARK PLUG NGK BPMR 7A | 503235013 | 503235013-Online | 1 |
| 531 79 00 32- | SPRING | 531003279 | 531003279-Online | 1 |
| 531 78 00 32- | HUB CAP | 531003278 | 531003278-Online | 1 |
| 531 85 00 32- | PIPE | 531003285 | 531003285-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 07 00 37- | MUFFLER | 531003707 | 531003707-Online | 1 |
| 531 43 00 33- | SCREW | 531003343 | 531003343-Online | 2 |
| 531 23 00 37- | SCREW | 531003723 | 531003723-Online | 1 |
| 531 01 00 37- | SPARK ARRESTOR | 531003701 | 531003701-Online | 1 |
| 531 93 00 36- | GASKET | 531003693 | 531003693-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 11 00 37- | CRANKSHAFT | 531003711 | 531003711-Online | 1 |
| 531 96 00 36- | PISTON RING | 531003696 | 531003696-Online | 1 |
| 531 95 00 36- | PISTON BOLT | 531003695 | 531003695-Online | 1 |
| 531 69 00 32- | RETAINER RING | 531003269 | 531003269-Online | 2 |
| 531 70 00 32- | NEEDLE BEARING | 531003270 | 531003270-Online | 1 |
| 531 84 00 32- | KEY | 531003284 | 531003284-Online | 1 |
| 531 68 00 32- | WASHER T=0,6 MM | 531003268 | 531003268-Online | 1 |
| 531 67 00 32- | WASHER T=0,4 MM | 531003267 | 531003267-Online | 1 |
| 531 66 00 32- | WASHER T=0,2 MM | 531003266 | 531003266-Online | 1 |
| 531 65 00 32- | WASHER T=0,1 MM | 531003265 | 531003265-Online | 1 |
| 531 94 00 36- | PISTON | 531003694 | 531003694-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 31 00 37- | HOUSING | 531003731 | 531003731-Online | 1 |
| 531 27 00 37- | SCREW | 531003727 | 531003727-Online | 9 |
| 531 97 00 44- | PROTECTOR | 531004497 | 531004497-Online | 1 |
| 531 28 00 37- | HOUSING | 531003728 | 531003728-Online | 1 |
| 531 87 00 36- | ABSORBER | 531003687 | 531003687-Online | 2 |
| 531 30 00 37- | FAN | 531003730 | 531003730-Online | 1 |
| 531 86 00 36- | ABSORBER | 531003686 | 531003686-Online | 1 |
| 531 96 00 44- | SCREW | 531004496 | 531004496-Online | 2 |
| 531 79 00 36- | SCREW | 531003679 | 531003679-Online | 3 |
| 531 48 00 32- | SCREW | 531003248 | 531003248-Online | 4 |
| 732 01 25 16- | HEXAGON LOCKING NUT | 732251601 | 732251601-Online | 2 |
| 531 29 00 37- | HOUSING | 531003729 | 531003729-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 34 00 44- | HOSE | 531004434 | 531004434-Online | 1 |
| 531 33 00 44- | GROMMET | 531004433 | 531004433-Online | 1 |
| 531 47 00 33- | VALVE | 531003347 | 531003347-Online | 1 |
| 531 99 00 33- | TANK CAP | 531003399 | 531003399-Online | 1 |
| 531 26 00 37- | DECAL | 531003726 | 531003726-Online | 1 |
| 531 91 00 36- | TANK UNIT | 531003691 | 531003691-Online | 1 |
| 514 00 74 09- | FILTER | 514740900 | 514740900-Online | 1 |
| 531 32 00 44- | CLAMP | 531004432 | 531004432-Online | 1 |
| 531 35 00 44- | HOSE | 531004435 | 531004435-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 91 00 33- | HANDLE ASSY | 531003391 | 531003391-Online | 1 |
| 531 76 00 44- | CABLE ASSY | 531004476 | 531004476-Online | 1 |
| 531 49 00 32- | BAND | 531003249 | 531003249-Online | 1 |
| 531 83 00 44- | SCREW | 531004483 | 531004483-Online | 1 |
| 531 80 00 44- | BRACKET | 531004480 | 531004480-Online | 1 |
| 531 69 00 44- | LEVER | 531004469 | 531004469-Online | 1 |
| 531 77 00 44- | SCREW | 531004477 | 531004477-Online | 3 |
| 531 67 00 44- | HANDLE | 531004467 | 531004467-Online | 1 |
| 531 72 00 44- | WASHER | 531004472 | 531004472-Online | 2 |
| 531 74 00 44- | WASHER | 531004474 | 531004474-Online | 1 |
| 531 81 00 44- | BRACKET | 531004481 | 531004481-Online | 1 |
| 531 79 00 44- | NUT | 531004479 | 531004479-Online | 2 |
| 531 68 00 44- | HANDLE | 531004468 | 531004468-Online | 1 |
| 531 82 00 44- | SPACER WASHER | 531004482 | 531004482-Online | 2 |
| 531 78 00 44- | SCREW | 531004478 | 531004478-Online | 2 |
| 531 71 00 44- | SHAFT | 531004471 | 531004471-Online | 1 |
| 531 70 00 44- | LEVER | 531004470 | 531004470-Online | 1 |
| 531 73 00 44- | WASHER | 531004473 | 531004473-Online | 2 |
| 531 75 00 44- | RETAINER RING | 531004475 | 531004475-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 501 01 94 19- | NUT | 501941901 | 501941901-Online | 2 |
| 531 05 00 32- | NUT | 531003205 | 531003205-Online | 2 |
| 544 01 14 64- | BAND | 544146401 | 544146401-Online | 2 |
| 544 01 14 74- | SCREW | 544147401 | 544147401-Online | 2 |
| 531 79 00 33- | WASHER | 531003379 | 531003379-Online | 1 |
| 531 05 00 37- | FRAME | 531003705 | 531003705-Online | 1 |
| 544 01 14 65- | SCREW | 544146501 | 544146501-Online | 2 |
| 544 01 14 66- | CLIP | 544146601 | 544146601-Online | 5 |
| 544 01 14 67- | PAD | 544146701 | 544146701-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 08 00 37- | PAWL | 531003708 | 531003708-Online | 1 |
| 531 65 00 33- | RETAINER RING | 531003365 | 531003365-Online | 1 |
| 531 15 00 37- | SPRING | 531003715 | 531003715-Online | 1 |
| 531 57 00 33- | STARTER PAWL | 531003357 | 531003357-Online | 1 |
| 531 12 00 37- | STARTER PULLEY | 531003712 | 531003712-Online | 1 |
| 531 16 00 37- | RETURN SPRING | 531003716 | 531003716-Online | 1 |
| 725 01 52 93- | SCREW IHSCM | 725529301 | 725529301-Online | 4 |
| 531 06 00 37- | WASHER | 531003706 | 531003706-Online | 2 |
| 531 02 00 37- | NUT | 531003702 | 531003702-Online | 1 |
| 531 64 00 33- | SCREW | 531003364 | 531003364-Online | 1 |
| 531 14 00 37- | WASHER | 531003714 | 531003714-Online | 1 |
| 531 13 00 37- | STARTER ROPE | 531003713 | 531003713-Online | 1 |
| 544 01 14 98- | LABEL | 544149801 | 544149801-Online | 1 |
| 531 24 00 37- | COVER | 531003724 | 531003724-Online | 1 |
| 531 03 00 37- | STARTER HOUSING | 531003703 | 531003703-Online | 1 |
| 531 97 00 12- | SLEEVE | 531001297 | 531001297-Online | 1 |
| 531 60 00 33- | HANDLE | 531003360 | 531003360-Online | 1 |
| 531 58 00 33- | PLATE | 531003358 | 531003358-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 04 00 37- | HOLDER | 531003704 | 531003704-Online | 1 |
| 531 98 00 33- | THROTTLE CABLE ASSY | 531003398 | 531003398-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 15 00 32- | O-RING | 531003215 | 531003215-Online | 1 |
| 531 75 00 33- | HOLDER | 531003375 | 531003375-Online | 1 |
| 531 12 00 32- | CLAMP | 531003212 | 531003212-Online | 2 |
| 531 11 00 32- | PIPE | 531003211 | 531003211-Online | 1 |
| 531 17 00 32- | PIPE | 531003217 | 531003217-Online | 1 |
| 531 16 00 32- | PIPE | 531003216 | 531003216-Online | 1 |
| 531 13 00 32- | PIPE | 531003213 | 531003213-Online | 1 |
| 531 14 00 32- | PIPE | 531003214 | 531003214-Online | 1 |
