Husqvarna 230 IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.

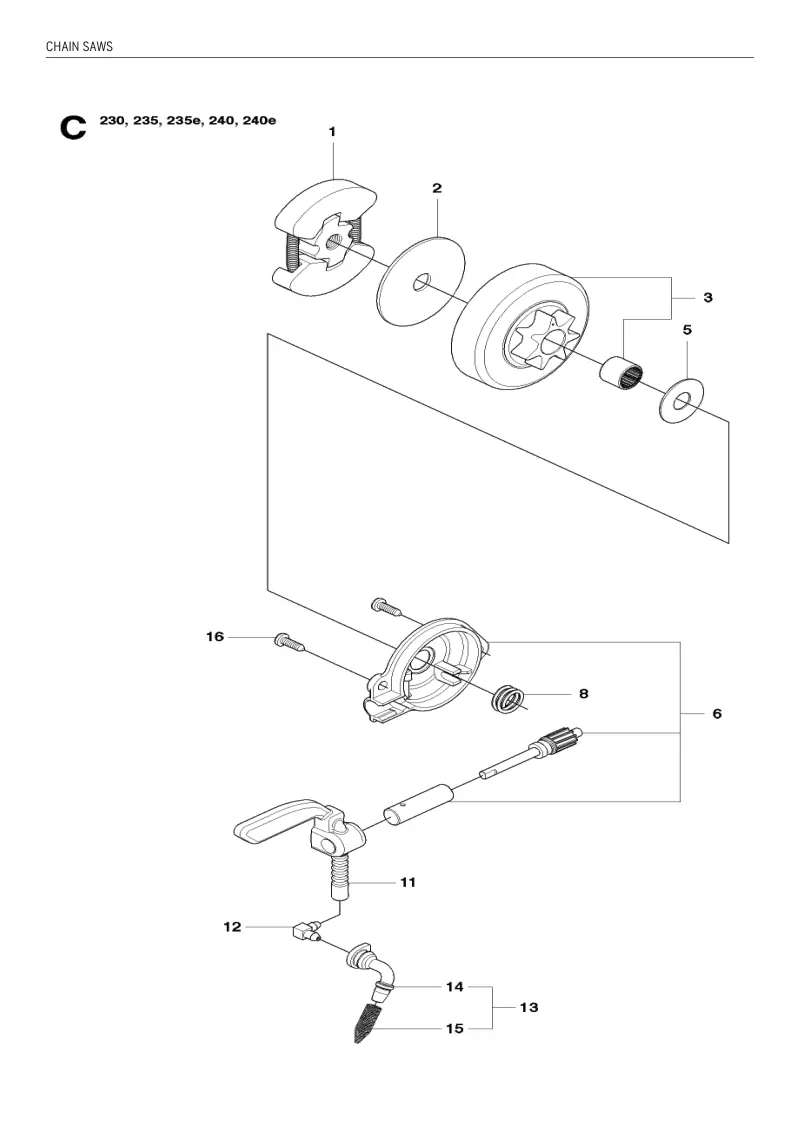

CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CLUTCH | 530014949 | 530014949-Online | 1 |
| 2 | WASHER | 530015611 | 530015611-Online | 1 |
| 3 | CLUTCH DRUM ASSY 3/8 6-Tooth | 530047061 | 530047061-Online | 1 |
| 3 | CLUTCH DRUM .325 7-tooth | 530048132 | 530048132-Online | 1 |
| 5 | WASHER | 530015907 | 530015907-Online | 1 |
| 6 | OIL PUMP | 545069301 | 545069301-Online | 1 |
| 8 | WORM GEAR | 530037820 | 530037820-Online | 1 |
| 11 | BLOCK | 545227501 | 545227501-Online | 1 |
| 12 | ELBOW | 530049477 | 530049477-Online | 1 |
| 13 | PICK UP ASSEMBLY OIL TANK | 545069501 | 545069501-Online | 1 |
| 14 | SEAL | 545069401 | 545069401-Online | 1 |
| 15 | SCREEN | 530056533 | 530056533-Online | 1 |
| 16 | SCREW | 530016064 | 530016064-Online | 2 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CARBURETTOR | 545072601 | 545072601-Online | 1 |
| 2 | PURGE AND LINE ASSEMBLY | 545008030 | 545008030-Online | 1 |
| 3 | KIT | 545008031 | 545008031-Online | 1 |
| 4 | CARBURETTOR KIT | 545008032 | 545008032-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | NUT | 530016359 | 530016359-Online | 1 |
| 2 | EXHAUST PLATE | 545076901 | 545076901-Online | 1 |
| 3 | SCREEN | 545167401 | 545167401-Online | 1 |
| 4 | BOLT | 530016338 | 530016338-Online | 2 |
| 5 | MUFFLER | 545032701 | 545032701-Online | 1 |
| 6 | MUFFLER GASKET | 530054884 | 530054884-Online | 1 |
| 7 | MUFFLER BACK PLATE | 545066901 | 545066901-Online | 1 |
| 8 | KIT | 545008027 | 545008027-Online | 1 |
| 9 | MUFFLER | 545180843 | 545180843-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | FLYWHEEL ASSY | 530039147 | 530039147-Online | 1 |
| 2 | WASHER | 530015127 | 530015127-Online | 1 |
| 3 | NUT | 530016134 | 530016134-Online | 1 |
| 4 | IGNITION MODULE | 530039143 | 530039143-Online | 1 |
| 5 | SCREW | 545121901 | 545121901-Online | 2 |
| 6 | ASSY- WIRE HARNESS | 545079901 | 545079901-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | STARTER PULLEY | 545008028 | 545008028-Online | 1 |
| 2 | SCREW | 530015920 | 530015920-Online | 1 |
| 3 | SCREW | 530016080 | 530016080-Online | 1 |
| 4 | STARTER PULLEY | 530057890 | 530057890-Online | 1 |
| 5 | HANDLE | 545010010 | 545010010-Online | 1 |
| 6 | SPRING | 530042095 | 530042095-Online | 1 |
| 7 | BAFFLE | 545063801 | 545063801-Online | 1 |
| 8 | FAN HOUSING | 545063701 | 545063701-Online | 1 |
| 9 | SCREW | 530016432 | 530016432-Online | 10 |
| 10 | KIT | 545008025 | 545008025-Online | 1 |
| 11 | DECAL | 545118503 | 545118503-Online | 1 |
| 12 | DECAL | 545165947 | 545165947-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 2 | PIN. DOWEL | 530057950 | 530057950-Online | 1 |
| 3 | ASSY. FRONT LINK | 530057940 | 530057940-Online | 1 |
| 4 | SCREW | 530015911 | 530015911-Online | 1 |
| 5 | SPRING COMPRESSION | 530016415 | 530016415-Online | 1 |
| 6 | SCREW | 530016110 | 530016110-Online | 1 |
| 7 | RETAINER | 530038593 | 530038593-Online | 1 |
| 8 | PEN | 530015826 | 530015826-Online | 1 |
| 10 | PEN | 530015913 | 530015913-Online | 1 |
| 11 | BRAKE BAND | 530057923 | 530057923-Online | 1 |
| 12 | COVER | 545071001 | 545071001-Online | 1 |
| 13 | SCREW | 530016064 | 530016064-Online | 16 |
| 14 | NUT | 530015917 | 530015917-Online | 2 |
| 15 | DECAL | 545118701 | 545118701-Online | 1 |
| 16 | CHAIN BRAKE ASSY | 545071103 | 545071103-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CARBURETTOR | 545072601 | 545072601-Online | 1 |
| 2 | THROTTLE WIRE | 545062801 | 545062801-Online | 1 |
| 3 | FILTER HOUSING | 545062101 | 545062101-Online | 1 |
| 4 | AIR FILTER | 545061801 | 545061801-Online | 1 |
| 5 | FILTER | 545151801 | 545151801-Online | 1 |
| 6 | NUT | 530016101 | 530016101-Online | 2 |
| 7 | ISOLATOR | 545061901 | 545061901-Online | 1 |
| 8 | SWITCH. SPRING | 545063401 | 545063401-Online | 1 |
| 9 | SWITCH LEVER | 545061701 | 545061701-Online | 1 |
| 10 | CHOKE KNOB | 545061601 | 545061601-Online | 1 |
| 11 | CARB ADAPTOR SEAL | 545061501 | 545061501-Online | 1 |
| 13 | CARB ADAPTOR | 545061401 | 545061401-Online | 1 |
| 15 | STUD-CARBURETOR | 545033701 | 545033701-Online | 2 |
| 16 | CARB ADAPTOR SCREW | 545158301 | 545158301-Online | 4 |
| 17 | SCREW | 530016080 | 530016080-Online | 1 |
| 18 | TOP STUD-CARBURETOR | 545074901 | 545074901-Online | 1 |
| 19 | GASKET KIT | 545081892 | 545081892-Online | 1 |
| 20 | SCREW | 530016349 | 530016349-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | FRONT HANDLE | 545062401 | 545062401-Online | 1 |
| 2 | REAR HANDLE W/OVMLD 240E | 545062202 | 545062202-Online | 1 |
| 2 | REAR HANDLE | 545062201 | 545062201-Online | 1 |
| 3 | REAR HANDLE COVER W/OVMLD 240E | 545062302 | 545062302-Online | 1 |
| 3 | REAR HANDLE COVER 235/235E | 545062301 | 545062301-Online | 1 |
| 4 | LOCKOUT- THROTTLE | 545062601 | 545062601-Online | 1 |
| 6 | ASSY TRIGGER & SPRING | 545121501 | 545121501-Online | 1 |
| 7 | ISOLATOR | 545033901 | 545033901-Online | 1 |
| 8 | ISOLATION LIMITER SCREW | 545076301 | 545076301-Online | 1 |
| 9 | SCREW | 530016433 | 530016433-Online | 3 |
| 10 | SCREW | 530016349 | 530016349-Online | 2 |
| 11 | SCREW | 530016432 | 530016432-Online | 2 |
| 12 | KIT | 545081013 | 545081013-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | BEARING | 530056363 | 530056363-Online | 2 |
| 2 | ASSEMBLY CRANKSHAFT | 530012605 | 530012605-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | KIT | 545050418 | 545050418-Online | 1 |
| 2 | BOLT | 545081501 | 545081501-Online | 4 |
| 3 | TRANSFER INSERT LEFT 34C | 545101501 | 545101501-Online | 1 |
| 4 | TRANSFER INSERT RIGHT 34CC | 545101401 | 545101401-Online | 1 |
| 5 | PISTON RING | 545101701 | 545101701-Online | 1 |
| 8 | LOCKING RING | 530015697 | 530015697-Online | 10 |
| 9 | SPARK PLUG | 503235108 | 503235108-Online | 1 |
| 10 | KIT | 545081893 | 545081893-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | WRENCH | 530031135 | 530031135-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | HANDGUARD | 545066701 | 545066701-Online | 1 |
| 2 | BOSS | 545127301 | 545127301-Online | 1 |
| 3 | REAR WHEEL | 545061201 | 545061201-Online | 1 |
| 4 | SCREW | 530016064 | 530016064-Online | 1 |
| 5 | GROMMET | 545075401 | 545075401-Online | 1 |
| 6 | BAR | 545071401 | 545071401-Online | 1 |
| 7 | CAP. SPRING HANDGUARD | 545071301 | 545071301-Online | 1 |
| 8 | SPRING. HANDGUARD POSITION | 545071201 | 545071201-Online | 1 |
| 11 | CHASSIS | 545230001 | 545230001-Online | 1 |
| 13 | BOLT | 530015877 | 530015877-Online | 11 |
| 14 | HOSE | 545033501 | 545033501-Online | 1 |
| 15 | PLUG | 530029868 | 530029868-Online | 1 |
| 16 | CHECK VALVE | 530026119 | 530026119-Online | 1 |
| 17 | LINE-RETURN PURGE | 530021132 | 530021132-Online | 1 |
| 18 | NIPPLE | 530023877 | 530023877-Online | 1 |
| 20 | ISOLATOR | 545061901 | 545061901-Online | 1 |
| 21 | FUEL CAP ASSY | 545070801 | 545070801-Online | 11 |
| 22 | SCREW | 530015906 | 530015906-Online | 11 |
| 23 | ISOLATOR | 545033801 | 545033801-Online | 1 |
| 25 | SPRING | 545063101 | 545063101-Online | 1 |
| 26 | FUEL FILTER | 577167201 | 577167201-Online | 1 |
| 27 | LINE | 545078302 | 545078302-Online | 1 |
| 28 | SCREW | 530015814 | 530015814-Online | 1 |
| 29 | CHAIN CATCHER | 530029850 | 530029850-Online | 2 |
| 30 | FELLING DOG | 530038990 | 530038990-Online | 1 |
| 31 | SCREW | 530016439 | 530016439-Online | 2 |
| 32 | FELLING DOG | 530014381 | 530014381-Online | 1 |
CHAIN SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SHIELD | 545180804 | 545180804-Online | 1 |
| 2 | SCREW. CYL SHIELD | 545070001 | 545070001-Online | 1 |
| 3 | DECAL | 545116502 | 545116502-Online | 1 |
| 4 | SIGN | 545165957 | 545165957-Online | 1 |
