Husqvarna 425BVS IPL

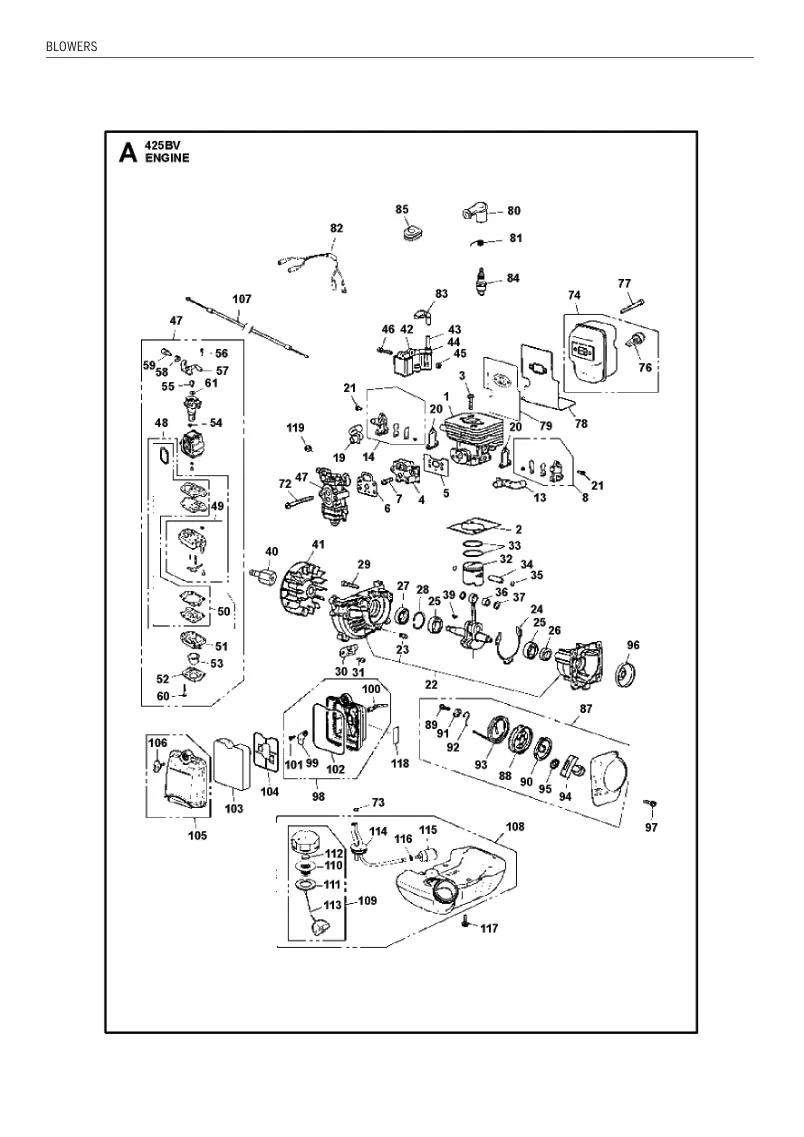

Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CYLINDER | 521611601 | 521611601-Online | 1 |
| 2 | GASKET | 521611701 | 521611701-Online | 1 |
| 3 | BOLT | 506745201 | 506745201-Online | 2 |
| 4 | INSULATOR | 521611901 | 521611901-Online | 1 |
| 5 | GASKET | 512319201 | 512319201-Online | 1 |
| 6 | GASKET | 511375801 | 511375801-Online | 1 |
| 7 | SCREW | 504114301 | 504114301-Online | 2 |
| 8 | VALBE(S)-A | 511375901 | 511375901-Online | 1 |
| 13 | PIPE | 521612701 | 521612701-Online | 1 |
| 14 | VALVE(F)-A | 511376001 | 511376001-Online | 1 |
| 19 | PIPE | 521612801 | 521612801-Online | 1 |
| 20 | GASKET | 521612901 | 521612901-Online | 2 |
| 21 | SCREW | 504119201 | 504119201-Online | 6 |
| 22 | CRANKCASE | 515381601 | 515381601-Online | 1 |
| 23 | PIN | 505296101 | 505296101-Online | 22 |
| 24 | GASKET | 515381801 | 515381801-Online | 1 |
| 25 | BEARING | 523071701 | 523071701-Online | 2 |
| 26 | SEALING | 504121501 | 504121501-Online | 1 |
| 27 | SEAL | 506612901 | 506612901-Online | 1 |
| 28 | SNAP RING | 506609901 | 506609901-Online | 1 |
| 29 | BOLT | 515388101 | 515388101-Online | 3 |
| 30 | GUARD | 515381901 | 515381901-Online | 1 |
| 31 | SCREW | 504119601 | 504119601-Online | 1 |
| 32 | PISTON | 511376101 | 511376101-Online | 1 |
| 33 | RING | 506618101 | 506618101-Online | 2 |
| 34 | PEN | 521522601 | 521522601-Online | 1 |
| 35 | RING | 505045201 | 505045201-Online | 2 |
| 36 | BEARING | 521520701 | 521520701-Online | 1 |
| 37 | WASHER | 505041001 | 505041001-Online | 2 |
| 38 | SHAFT-COMP | 521613201 | 521613201-Online | 1 |
| 39 | KEY | 506689401 | 506689401-Online | 1 |
| 40 | EXTENSION. | 515426801 | 515426801-Online | 1 |
| 41 | ROTOR | 515384501 | 515384501-Online | 1 |
| 42 | COIL | 512321901 | 512321901-Online | 1 |
| 43 | CORD | 521750701 | 521750701-Online | 1 |
| 44 | HUB CAP | 505042801 | 505042801-Online | 1 |
| 45 | SPACER | 504118601 | 504118601-Online | 2 |
| 46 | BOLT | 506745701 | 506745701-Online | 2 |
| 47 | CARBURETOR-A | 511376201 | 511376201-Online | 1 |
| 48 | GASKET KIT | 528070101 | 528070101-Online | 1 |
| 49 | CARBURETTOR BODY | 502238401 | 502238401-Online | 1 |
| 50 | GASKET KIT | 515378701 | 515378701-Online | 1 |
| 51 | BODY | 506740901 | 506740901-Online | 1 |
| 52 | COVER | 506741001 | 506741001-Online | 1 |
| 53 | PUMP | 505306701 | 505306701-Online | 1 |
| 54 | RETAINER RING | 506738601 | 506738601-Online | 1 |
| 55 | SWIVEL | 506741201 | 506741201-Online | 1 |
| 56 | SCREW | 505307901 | 505307901-Online | 2 |
| 57 | BRACKET | 506746001 | 506746001-Online | 1 |
| 58 | NUT | 506612601 | 506612601-Online | 1 |
| 60 | SCREW | 506741101 | 506741101-Online | 4 |
| 61 | WASHER | 506746101 | 506746101-Online | 1 |
| 72 | BOLT | 515390701 | 515390701-Online | 2 |
| 73 | CLIP | 506741501 | 506741501-Online | 1 |
| 74 | MUFFLER-A | 528061001 | 528061001-Online | 1 |
| 76 | ARRESTER | 506615601 | 506615601-Online | 1 |
| 77 | BOLT | 512846101 | 512846101-Online | 2 |
| 78 | GASKET | 511368401 | 511368401-Online | 1 |
| 79 | PLATE.MUFF | 511368501 | 511368501-Online | 1 |
| 80 | HUB CAP | 512444001 | 512444001-Online | 1 |
| 81 | SPRING | 505298901 | 505298901-Online | 1 |
| 82 | CORD | 512322101 | 512322101-Online | 1 |
| 83 | TUBE | 521750901 | 521750901-Online | 1 |
| 84 | SPARK PLUG | 521233401 | 521233401-Online | 1 |
| 85 | GROMMET | 515415301 | 515415301-Online | 1 |
| 87 | STARTER ASSY | 515385401 | 515385401-Online | 1 |
| 88 | REEL | 504114701 | 504114701-Online | 1 |
| 89 | SCREW | 515367101 | 515367101-Online | 1 |
| 90 | SPIRAL SPRING | 504115001 | 504115001-Online | 1 |
| 91 | COLLAR | 504114601 | 504114601-Online | 1 |
| 92 | ARM | 504114801 | 504114801-Online | 1 |
| 93 | ROPE | 504114901 | 504114901-Online | 1 |
| 94 | KNOB | 506614701 | 506614701-Online | 1 |
| 95 | PLATE.STOPPER | 515385601 | 515385601-Online | 1 |
| 96 | PULLEY | 504114401 | 504114401-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 97 | BOLT | 515391301 | 515391301-Online | 2 |
| 98 | BODY | 512322702 | 512322702-Online | 1 |
| 99 | PLATE.CHOKE | 506684301 | 506684301-Online | 1 |
| 100 | LEVER CHOKE | 521760501 | 521760501-Online | 1 |
| 101 | SCREW | 506673801 | 506673801-Online | 1 |
| 102 | PACKING | 521751301 | 521751301-Online | 1 |
| 103 | AIR FILTER | 504115301 | 504115301-Online | 1 |
| 104 | SCREEN | 521607901 | 521607901-Online | 1 |
| 105 | COVER | 523071201 | 523071201-Online | 1 |
| 106 | KNOB | 523071301 | 523071301-Online | 1 |
| 107 | CABLE | 515427701 | 515427701-Online | 1 |
| 108 | TANK | 528061501 | 528061501-Online | 1 |
| 109 | CAP | 505309601 | 505309601-Online | 1 |
| 110 | HOLDER | 515369401 | 515369401-Online | 1 |
| 111 | PACKING | 506744301 | 506744301-Online | 1 |
| 112 | FILTER | 506746801 | 506746801-Online | 1 |
| 113 | STOPPER | 506745801 | 506745801-Online | 1 |
| 114 | PIPE | 515387201 | 515387201-Online | 1 |
| 115 | FILTER | 506614601 | 506614601-Online | 1 |
| 116 | CLIP | 506707001 | 506707001-Online | 1 |
| 117 | BOLT | 515391301 | 515391301-Online | 3 |
| 118 | DECAL | 504155101 | 504155101-Online | 1 |
| 119 | HUB CAP | 513352401 | 513352401-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | VOLUTE CASE | 528896302 | 528896302-Online | 1 |
| 2 | VOLUTE COVER-A | 521840302 | 521840302-Online | 1 |
| 3 | SCREW | 505152001 | 505152001-Online | 2 |
| 4 | SCREW | 521863601 | 521863601-Online | 12 |
| 5 | GUARD | 512725702 | 512725702-Online | 1 |
| 6 | SCREW | 510478001 | 510478001-Online | 1 |
| 9 | SPRING | 521844701 | 521844701-Online | 1 |
| 10 | SHAFT | 521844801 | 521844801-Online | 1 |
| 11 | WASHER | 521844901 | 521844901-Online | 1 |
| 12 | SCREW | 512847901 | 512847901-Online | 1 |
| 13 | LEVER | 515704002 | 515704002-Online | 1 |
| 14 | SWITCH | 515705701 | 515705701-Online | 1 |
| 15 | COVER | 521840202 | 521840202-Online | 1 |
| 16 | BOLT | 515391301 | 515391301-Online | 2 |
| 17 | SCREW | 521863201 | 521863201-Online | 4 |
| 18 | FAN | 515704501 | 515704501-Online | 1 |
| 19 | NUT | 504118001 | 504118001-Online | 1 |
| 20 | WASHER | 515704701 | 515704701-Online | 2 |
| 21 | DECAL | 580660601 | 580660601-Online | 1 |
| 22 | DECAL | 580660701 | 580660701-Online | 1 |
| 23 | DECAL | 580703301 | 580703301-Online | 1 |
| 24 | TUBE | 576045501 | 576045501-Online | 1 |
| 25 | TUBE | 504064601 | 504064601-Online | 1 |
| 26 | COMBINATION WRENCH | 506686101 | 506686101-Online | 1 |
| 27 | HANDLE | 511653202 | 511653202-Online | 1 |
| 28 | SCREW | 521519401 | 521519401-Online | 2 |
| 33 | TUBE | 502444001 | 502444001-Online | 1 |
| 34 | PIPE | 521842301 | 521842301-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SCREW | 510468701 | 510468701-Online | 1 |
| 2 | SPACER | 511952101 | 511952101-Online | 1 |
| 3 | PIPE COMP | 511950501 | 511950501-Online | 1 |
| 4 | LABEL | 521842201 | 521842201-Online | 1 |
| 5 | PIPE | 521842301 | 521842301-Online | 1 |
| 6 | ELBOW | 512705001 | 512705001-Online | 1 |
| 7 | CLAMP | 521842501 | 521842501-Online | 1 |
| 8 | BAG | 521842601 | 521842601-Online | 1 |
