Husqvarna 536LIBX IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.

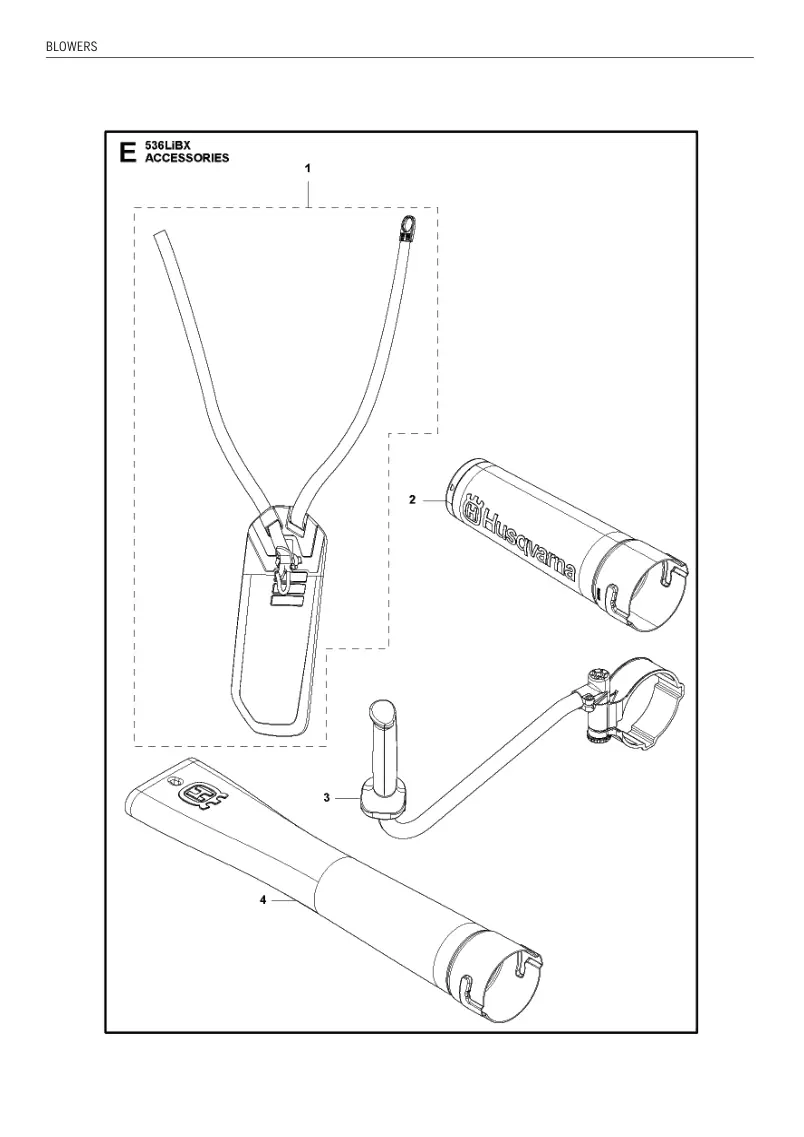

BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | HIP PAD | 587834001 | 587834001-Online | 1 |
| 2 | TUBE ASSY | 586106301 | 586106301-Online | 1 |
| 3 | HANDLE ASSY | 501715101 | 501715101-Online | 1 |
| 4 | NOZZLE | 579797501 | 579797501-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | TUBE ASSY | 586106302 | 586106302-Online | 1 |
| 2 | TUBE | 584156601 | 584156601-Online | 1 |
| 3 | FRAME | 584213701 | 584213701-Online | 1 |
| 4 | COVER | 584914701 | 584914701-Online | 1 |
| 5 | SCREW IHSCT | 579211901 | 579211901-Online | 13 |
| 6 | THROTTLE CONTROL | 579564102 | 579564102-Online | 1 |
| 7 | HANDLE INSERT | 544042003 | 544042003-Online | 2 |
| 8 | EYELET | 586514201 | 586514201-Online | 1 |
| 9 | HOUSING | 584157601 | 584157601-Online | 1 |
| 10 | HOUSING | 584157501 | 584157501-Online | 1 |
| 11 | COVER | 587203001 | 587203001-Online | 1 |
| 12 | SCREW CCRPANT | 503212813 | 503212813-Online | 1 |
| 13 | INLET | 587985101 | 587985101-Online | 1 |
| 14 | EYELET | 588009701 | 588009701-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | DECAL DECAL LEFT | 588226601 | 588226601-Online | 1 |
| 2 | DECAL DECAL RIGHT | 588226701 | 588226701-Online | 1 |
| 3 | LABEL | 503709701 | 503709701-Online | 1 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CONTROL UNIT | 587948601 | 587948601-Online | 1 |
| 2 | TRIGGER SWITCH | 578326901 | 578326901-Online | 1 |
| 3 | WIRING ASSY | 588073701 | 588073701-Online | 1 |
| 4 | DISPLAY | 587978201 | 587978201-Online | 1 |
| 5 | SPRING | 586492201 | 586492201-Online | 2 |
| 6 | KIT | 588009801 | 588009801-Online | 1 |
| 7 | WIRING ASSY | 586963901 | 586963901-Online | 1 |
| 8 | GREASE | 588176401 | 588176401-Online | 1 |
| 9 | WIRING ASSY | 587917301 | 587917301-Online | 1 |
| 10 | CABLE CLAMP | 581472301 | 581472301-Online | 1 |
| 11 | SCREW IHSCT | 579211901 | 579211901-Online | 2 |
BLOWERS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CONE | 584156501 | 584156501-Online | 1 |
| 2 | SCREW IHSCT | 579211901 | 579211901-Online | 3 |
| 3 | SPRING | 586492201 | 586492201-Online | 1 |
| 4 | SUSPENSION | 503911001 | 503911001-Online | 6 |
| 5 | SCREW IHSCM | 503202512 | 503202512-Online | 3 |
| 6 | ROTOR | 584156001 | 584156001-Online | 1 |
| 7 | MOTOR ASSY | 588009901 | 588009901-Online | 1 |
| 8 | KIT | 588010001 | 588010001-Online | 1 |
