Husqvarna 553RS IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|

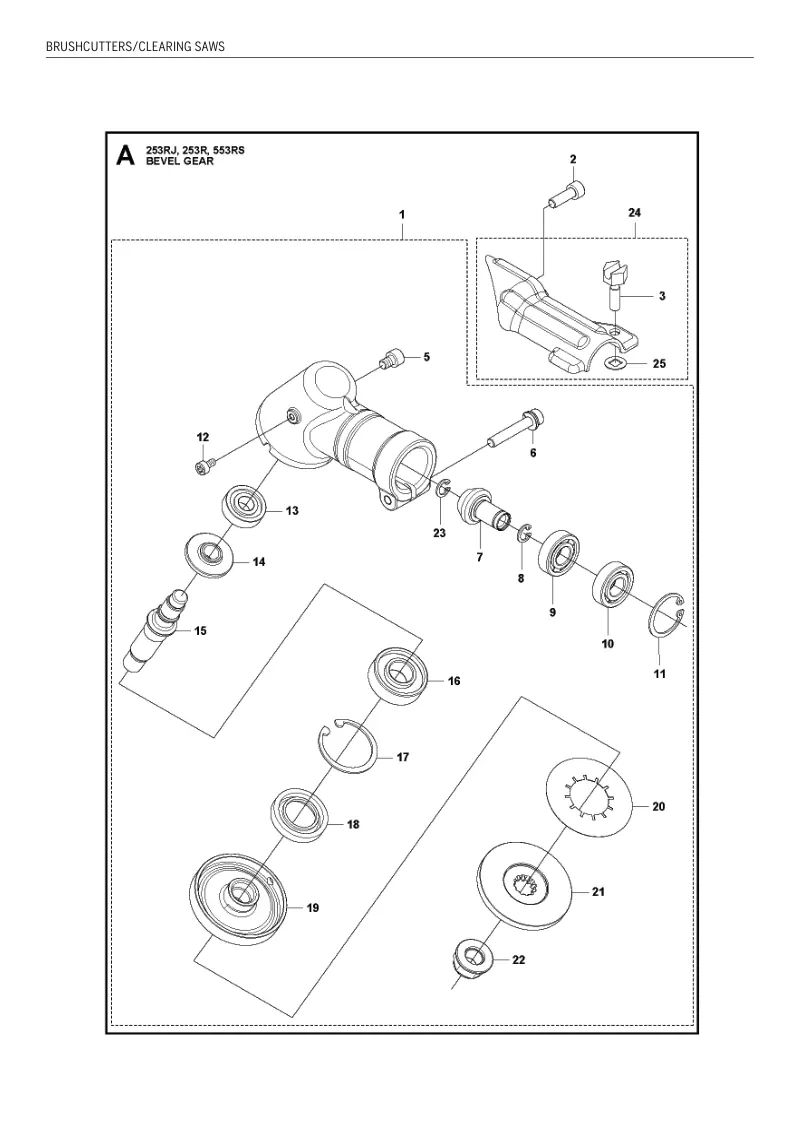

| 1 | BEVEL GEAR ASSY | 528831001 | 528831001-Online | 1 |
| 2 | BOLT | 506745601 | 506745601-Online | 1 |
| 3 | SCREW | 537189501 | 537189501-Online | 1 |
| 5 | BOLT | 521862001 | 521862001-Online | 1 |
| 6 | BOLT | 521862401 | 521862401-Online | 1 |
| 7 | PINION | 528826301 | 528826301-Online | 1 |
| 8 | SNAP RING | 516124101 | 516124101-Online | 1 |
| 9 | BEARING | 516127901 | 516127901-Online | 1 |
| 10 | BEARING | 516130001 | 516130001-Online | 1 |
| 11 | SNAP RING | 506609901 | 506609901-Online | 1 |
| 12 | BOLT | 544362701 | 544362701-Online | 1 |
| 13 | BEARING | 505170201 | 505170201-Online | 1 |
| 14 | GEAR | 528826201 | 528826201-Online | 1 |
| 15 | SHAFT,GEAR | 528815901 | 528815901-Online | 1 |
| 16 | BEARING | 516131701 | 516131701-Online | 1 |
| 17 | SNAP RING | 502849301 | 502849301-Online | 1 |
| 18 | SEAL | 521522201 | 521522201-Online | 1 |
| 19 | HOLDER | 528826401 | 528826401-Online | 1 |
| 20 | PLATE | 521656001 | 521656001-Online | 1 |
| 21 | HOLDER | 511583801 | 511583801-Online | 1 |
| 22 | BLADE NUT | 502291101 | 502291101-Online | 1 |
| 23 | SNAP RING | 516125201 | 516125201-Online | 1 |
| 24 | BRACKET | 575778801 | 575778801-Online | 1 |
| 25 | LOCKWASHER | 575677301 | 575677301-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | COVER | 528706501 | 528706501-Online | 1 |
| 2 | SCREW | 521515401 | 521515401-Online | 1 |
| 3 | AIR FILTER | 521625701 | 521625701-Online | 1 |
| 4 | AIR FILTER | 521642101 | 521642101-Online | 1 |
| 5 | SCREW | 504116501 | 504116501-Online | 2 |
| 6 | PLATE | 521834401 | 521834401-Online | 1 |
| 7 | BOLT | 521515701 | 521515701-Online | 1 |
| 8 | AIR FILTER HOLDER | 587414901 | 587414901-Online | 1 |
| 9 | GROMMET | 521625601 | 521625601-Online | 1 |
| 10 | BOLT | 515391301 | 515391301-Online | 1 |
| 14 | SCREW | 521517901 | 521517901-Online | 1 |
| 16 | TUBE | 580487501 | 580487501-Online | 1 |
| 17 | PUMP | 513789301 | 513789301-Online | 1 |
| 18 | CARBURETTOR | 586346601 | 586346601-Online | 1 |
| 19 | KNOB | 521641701 | 521641701-Online | 1 |
| 20 | PIPE | 521641501 | 521641501-Online | 1 |
| 21 | BOLT | 505040401 | 505040401-Online | 3 |
| 22 | GASKET | 521635201 | 521635201-Online | 1 |
| 23 | INSULATOR | 580762601 | 580762601-Online | 1 |
| 24 | GASKET | 521635001 | 521635001-Online | 1 |
| 25 | BRACKET | 521641801 | 521641801-Online | 1 |
| 27 | HUB CAP | 513352401 | 513352401-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | HOUSING ASSY | 521664801 | 521664801-Online | 1 |
| 2 | SNAP RING | 516126401 | 516126401-Online | 1 |
| 3 | CLAMP | 521665001 | 521665001-Online | 1 |
| 4 | ANTIVIBRATION ELEMENT | 521665201 | 521665201-Online | 1 |
| 5 | ANTIVIBRATION ELEMENT | 521665101 | 521665101-Online | 1 |
| 6 | HOUSING | 521664901 | 521664901-Online | 1 |
| 7 | SNAP RING | 516124201 | 516124201-Online | 1 |
| 8 | BEARING | 516131701 | 516131701-Online | 1 |
| 9 | SNAP RING | 502849301 | 502849301-Online | 1 |
| 10 | DRUM | 521659901 | 521659901-Online | 1 |
| 11 | SCREW | 504119601 | 504119601-Online | 1 |
| 12 | BOLT | 521862301 | 521862301-Online | 1 |
| 13 | BOLT | 515391301 | 515391301-Online | 4 |
| 14 | COVER | 525431801 | 525431801-Online | 1 |
| 15 | SCREW | 505297801 | 505297801-Online | 2 |
| 16 | WASHER | 505298101 | 505298101-Online | 2 |
| 17 | CLUTCH ASSY | 521636401 | 521636401-Online | 1 |
| 18 | WASHER | 505298001 | 505298001-Online | 2 |
| 19 | SCREW | 521517901 | 521517901-Online | 4 |
| 20 | COVER | 528815601 | 528815601-Online | 1 |
| 21 | BOLT | 523019001 | 523019001-Online | 4 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SEAL | 513238701 | 513238701-Online | 1 |
| 2 | SNAP RING | 502849301 | 502849301-Online | 1 |
| 3 | BOLT | 515388101 | 515388101-Online | 4 |
| 4 | CRANKCASE | 521635601 | 521635601-Online | 1 |
| 5 | PIN | 505296101 | 505296101-Online | 3 |
| 6 | GASKET | 512311101 | 512311101-Online | 1 |
| 7 | SEALING | 502849201 | 502849201-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CYLINDER ASSY | 582898301 | 582898301-Online | 1 |
| 2 | COVER | 575346801 | 575346801-Online | 1 |
| 3 | COVER | 575346701 | 575346701-Online | 1 |
| 4 | GASKET | 521634601 | 521634601-Online | 1 |
| 5 | SCREW | 504119201 | 504119201-Online | 1 |
| 6 | SPARK PLUG | 521233401 | 521233401-Online | 1 |
| 7 | BOLT | 506745201 | 506745201-Online | 4 |
| 8 | RING | 512311201 | 512311201-Online | 2 |
| 9 | SNAP RING | 502849801 | 502849801-Online | 2 |
| 10 | PIN | 510916901 | 510916901-Online | 1 |
| 11 | PISTON | 528774001 | 528774001-Online | 1 |
| 12 | WASHER | 513622401 | 513622401-Online | 2 |
| 13 | BEARING | 576696301 | 576696301-Online | 1 |
| 14 | GASKET | 521634301 | 521634301-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | BLADE GUARD | 585293701 | 585293701-Online | 1 |
| 2 | CLAMP | 585293801 | 585293801-Online | 1 |
| 3 | ADAPTER | 581774501 | 581774501-Online | 1 |
| 4 | GUARD | 585293901 | 585293901-Online | 1 |
| 5 | SPLASH GUARD | 537331603 | 537331603-Online | 1 |
| 6 | SPLASH GUARD | 537396303 | 537396303-Online | 1 |
| 7 | SCREW IHSCFT | 503216825 | 503216825-Online | 1 |
| 8 | BLADE | 503798801 | 503798801-Online | 1 |
| 9 | RETAINER | 544124501 | 544124501-Online | 1 |
| 10 | SNAP LOCKING | 537387201 | 537387201-Online | 4 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | COMBINATION WRENCH | 506686101 | 506686101-Online | 1 |
| 2 | TOOL | 505312001 | 505312001-Online | 1 |
| 3 | DRIVER | 506689501 | 506689501-Online | 1 |
| 4 | TRANSPORT GUARD | 544359101 | 544359101-Online | 1 |
| 5 | SUPPORT CUP | 528818101 | 528818101-Online | 1 |
| 6 | FILTER OIL | 531009248 | 531009248-Online | 1 |
| 7 | GREASE | 503976401 | 503976401-Online | 1 |
| 8 | TOOL | 501192201 | 501192201-Online | 1 |
| 9 | WRENCH | 505311901 | 505311901-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CARBURETTOR | 586346601 | 586346601-Online | 1 |
| 2 | SCREEN | 520957001 | 520957001-Online | 1 |
| 3 | COVER | 521639801 | 521639801-Online | 1 |
| 4 | SCREW | 521640001 | 521640001-Online | 1 |
| 7 | VALVE.INLET | 521085401 | 521085401-Online | 1 |
| 10 | COVER | 521639701 | 521639701-Online | 1 |
| 11 | SPRING | 513290701 | 513290701-Online | 1 |
| 12 | NEEDLE | 511479901 | 511479901-Online | 1 |
| 13 | HUB CAP | 521116901 | 521116901-Online | 1 |
| 14 | SCREW | 520977301 | 520977301-Online | 1 |
| 15 | PIN | 520977401 | 520977401-Online | 1 |
| 16 | LEVER | 520977201 | 520977201-Online | 1 |
| 17 | SHAFT | 586451501 | 586451501-Online | 1 |
| 18 | SPRING | 513225601 | 513225601-Online | 1 |
| 19 | SCREW | 513192901 | 513192901-Online | 1 |
| 20 | VALVE | 511470201 | 511470201-Online | 1 |
| 21 | SCREW | 520759801 | 520759801-Online | 1 |
| 22 | RETAINER RING | 506738601 | 506738601-Online | 1 |
| 23 | WASHER | 516524201 | 516524201-Online | 1 |
| 24 | SWIVEL | 513400801 | 513400801-Online | 1 |
| 26 | LEVER | 521645501 | 521645501-Online | 1 |
| 27 | SPRING | 586451601 | 586451601-Online | 1 |
| 28 | SPRING | 574793401 | 574793401-Online | 1 |
| 29 | BALL | 514242601 | 514242601-Online | 1 |
| 30 | SHAFT ASSY | 521645101 | 521645101-Online | 1 |
| 31 | VALVE | 522649501 | 522649501-Online | 1 |
| 32 | SPRING | 514243601 | 514243601-Online | 1 |
| 33 | SCREW ASSY | 520978801 | 520978801-Online | 1 |
| 34 | NEEDLE | 516935801 | 516935801-Online | 1 |
| 35 | SPRING | 505057901 | 505057901-Online | 1 |
| 36 | PISTON | 516935901 | 516935901-Online | 1 |
| 37 | BALL | 516936001 | 516936001-Online | 1 |
| 38 | BODY | 521640901 | 521640901-Online | 1 |
| 39 | RING | 522649401 | 522649401-Online | 1 |
| 40 | ROD | 578913201 | 578913201-Online | 1 |
| 41 | PLUG | 525555001 | 525555001-Online | 1 |
| 42 | SPACER | 586451701 | 586451701-Online | 1 |
| 43 | WASHER | 586451801 | 586451801-Online | 1 |
| 44 | BUSHING | 586451901 | 586451901-Online | 1 |
| 45 | BUSHING | 586452001 | 586452001-Online | 1 |
| 46 | SEAL | 586452101 | 586452101-Online | 1 |
| 47 | GASKET KIT | 580684801 | 580684801-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CRANKSHAFT | 521636301 | 521636301-Online | 1 |
| 2 | BALL BEARING | 521521101 | 521521101-Online | 2 |
| 3 | KEY | 506689401 | 506689401-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CYLINDER COVER | 510173201 | 510173201-Online | 1 |
| 2 | DECAL 553RS | 578423201 | 578423201-Online | 1 |
| 3 | BOLT | 521515901 | 521515901-Online | 2 |
| 4 | SCREW | 521863601 | 521863601-Online | 2 |
| 5 | LABEL | 521553601 | 521553601-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | TANK | 528775801 | 528775801-Online | 1 |
| 2 | PIPE | 511486901 | 511486901-Online | 1 |
| 3 | COLLAR | 505044501 | 505044501-Online | 1 |
| 4 | FILTER | 506742601 | 506742601-Online | 1 |
| 5 | CAP | 505309601 | 505309601-Online | 1 |
| 6 | PACKING | 506744301 | 506744301-Online | 1 |
| 7 | HOLDER | 515369401 | 515369401-Online | 1 |
| 8 | FILTER | 506746801 | 506746801-Online | 1 |
| 9 | STOPPER | 506745801 | 506745801-Online | 1 |
| 10 | BOLT | 521517001 | 521517001-Online | 4 |
| 11 | GUARD.TANK | 510173401 | 510173401-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | HANDLE BRACKET | 577983001 | 577983001-Online | 1 |
| 2 | HANDLE | 528817501 | 528817501-Online | 1 |
| 4 | HANDLE | 528817401 | 528817401-Online | 1 |
| 5 | PROTECTION | 521538701 | 521538701-Online | 1 |
| 6 | NUT | 575960601 | 575960601-Online | 1 |
| 7 | HANDLE | 537172802 | 537172802-Online | 1 |
| 8 | BOLT | 510909401 | 510909401-Online | 1 |
| 9 | COVER | 537172901 | 537172901-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | HARNESS | 537216301 | 537216301-Online | 1 |
| 2 | WELT HOOK | 502022802 | 502022802-Online | 1 |
| 3 | FRONT PIECE | 503734001 | 503734001-Online | 1 |
| 4 | BUCKLE | 503734102 | 503734102-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | COIL | 521648701 | 521648701-Online | 1 |
| 2 | HUB CAP | 521610001 | 521610001-Online | 1 |
| 3 | SPRING | 505298901 | 505298901-Online | 1 |
| 4 | BOLT | 521860901 | 521860901-Online | 2 |
| 5 | SPACER | 504118601 | 504118601-Online | 2 |
| 6 | ROTOR | 521647901 | 521647901-Online | 1 |
| 7 | NUT | 513241901 | 513241901-Online | 1 |
| 8 | CORD | 529253301 | 529253301-Online | 1 |
| 9 | TUBE | 506618201 | 506618201-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | BOLT | 521517301 | 521517301-Online | 2 |
| 2 | BOLT | 515391301 | 515391301-Online | 2 |
| 3 | MUFFLER | 521635301 | 521635301-Online | 1 |
| 4 | GASKET | 528778401 | 528778401-Online | 1 |
| 5 | PLATE | 525431701 | 525431701-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | HANGER-ASSY | 521668001 | 521668001-Online | 1 |
| 2 | SCREW | 504114301 | 504114301-Online | 1 |
| 3 | PIPE-COMP | 521660801 | 521660801-Online | 1 |
| 4 | LABEL | 589295101 | 589295101-Online | 1 |
| 5 | SHAFT | 511582201 | 511582201-Online | 1 |
| 6 | JOINT | 528826101 | 528826101-Online | 1 |
| 7 | LABEL | 505295801 | 505295801-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | PULLEY ASSY | 521648001 | 521648001-Online | 1 |
| 2 | E-RING | 513167701 | 513167701-Online | 1 |
| 3 | SPRING | 521638401 | 521638401-Online | 1 |
| 4 | RATCHET | 522651101 | 522651101-Online | 1 |
| 5 | STARTER ASSY | 525432001 | 525432001-Online | 1 |
| 6 | SCREW | 522654101 | 522654101-Online | 1 |
| 7 | PLATE CAM | 522651501 | 522651501-Online | 1 |
| 8 | SPRING | 521638001 | 521638001-Online | 1 |
| 9 | REEL | 521648101 | 521648101-Online | 1 |
| 10 | ROPE | 521637701 | 521637701-Online | 1 |
| 11 | SPRING | 521637401 | 521637401-Online | 1 |
| 12 | KNOB | 521617901 | 521617901-Online | 1 |
| 13 | BOLT | 506745601 | 506745601-Online | 4 |
| 14 | DECAL 553RS | 578423101 | 578423101-Online | 1 |
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | THROTTLE CONTROL | 522520706 | 522520706-Online | 1 |
| 2 | THROTTLE CABLE ASSY | 522036702 | 522036702-Online | 1 |
| 3 | HANDLE ASSY | 537424513 | 537424513-Online | 1 |
| 4 | HEXAGON NUT | 503221013 | 503221013-Online | 1 |
| 5 | HANDLE HALF | 537160203 | 537160203-Online | 1 |
| 6 | SWITCH | 503718201 | 503718201-Online | 1 |
| 7 | SPRING THROTTLE TRIG | 537174201 | 537174201-Online | 1 |
| 8 | THROTTLE LOCKOUT | 537160703 | 537160703-Online | 1 |
| 9 | THROTTLE CONTROL | 506497701 | 506497701-Online | 1 |
| 10 | SPRING | 537174301 | 537174301-Online | 1 |
| 11 | HANDLE HALF | 537160301 | 537160301-Online | 1 |
| 12 | SCREW IHSCT | 503216674 | 503216674-Online | 2 |
| 13 | SCREW IHSCFM | 503200782 | 503200782-Online | 1 |
