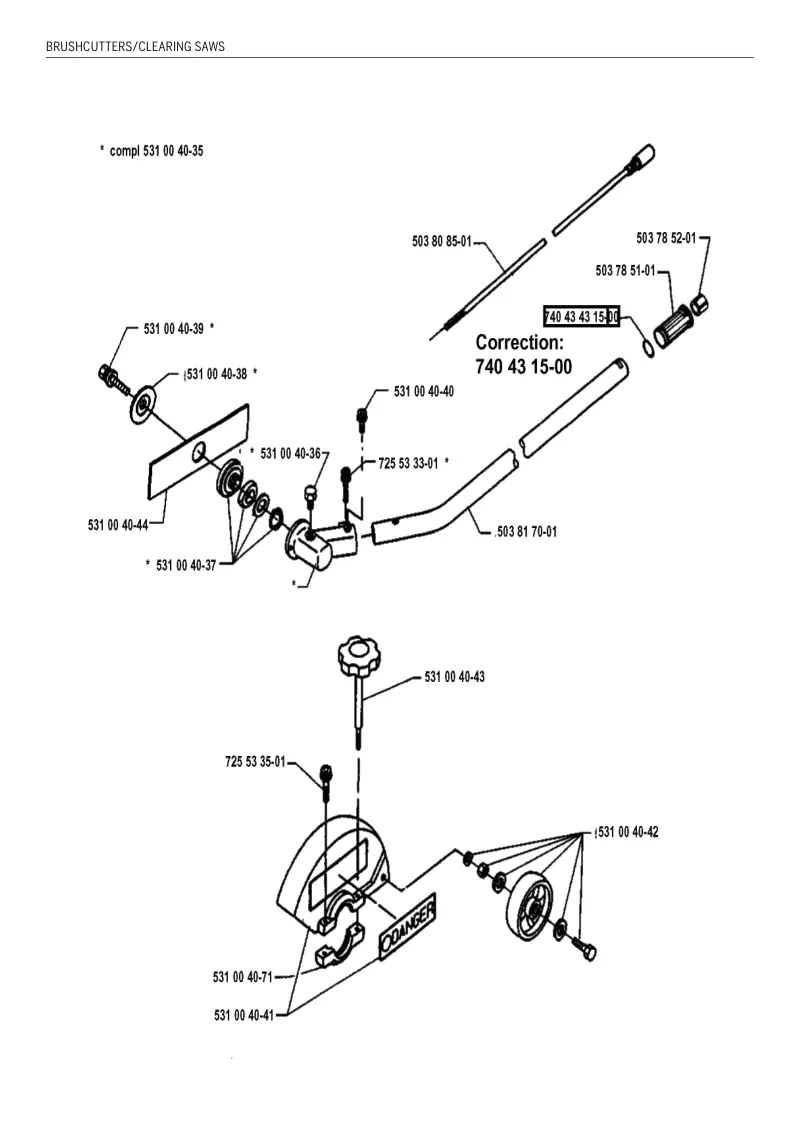

Husqvarna EDGER IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.
BRUSHCUTTERS/CLEARING SAWS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 531 35 00 40- | GEAR ASSY | 531004035 | 531004035-Online | 1 |
| 531 39 00 40- | SCREW | 531004039 | 531004039-Online | 1 |
| 531 38 00 40- | FLANGE | 531004038 | 531004038-Online | 1 |
| 531 44 00 40- | BLADE | 531004044 | 531004044-Online | 1 |
| 531 37 00 40- | BOSS | 531004037 | 531004037-Online | 1 |
| 725 01 53 35- | SCREW IHSCM | 725533501 | 725533501-Online | 1 |
| 531 71 00 40- | BRACKET | 531004071 | 531004071-Online | 1 |
| 531 41 00 40- | GUARD | 531004041 | 531004041-Online | 1 |
| 531 43 00 40- | KNOB | 531004043 | 531004043-Online | 1 |
| 531 36 00 40- | PLUG | 531004036 | 531004036-Online | 1 |
| 503 01 80 85- | SLEEVE | 503808501 | 503808501-Online | 1 |
| 531 40 00 40- | SCREW | 531004040 | 531004040-Online | 1 |
| 725 01 53 33- | SCREW IHSCM | 725533301 | 725533301-Online | 1 |
| 503 01 81 70- | TUBE | 503817001 | 503817001-Online | 1 |
| 531 42 00 40- | WHEEL ASSY | 531004042 | 531004042-Online | 1 |
| 740 00 43 15- | O-RING CORRECTION: | 740431500 | 740431500-Online | 1 |
| 503 01 78 51- | BEARING CAGE | 503785101 | 503785101-Online | 1 |
| 503 01 78 52- | SUPPORTING BEARING | 503785201 | 503785201-Online | 1 |
