Husqvarna K 770, 2017-11 IPL
Husqvarna illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.

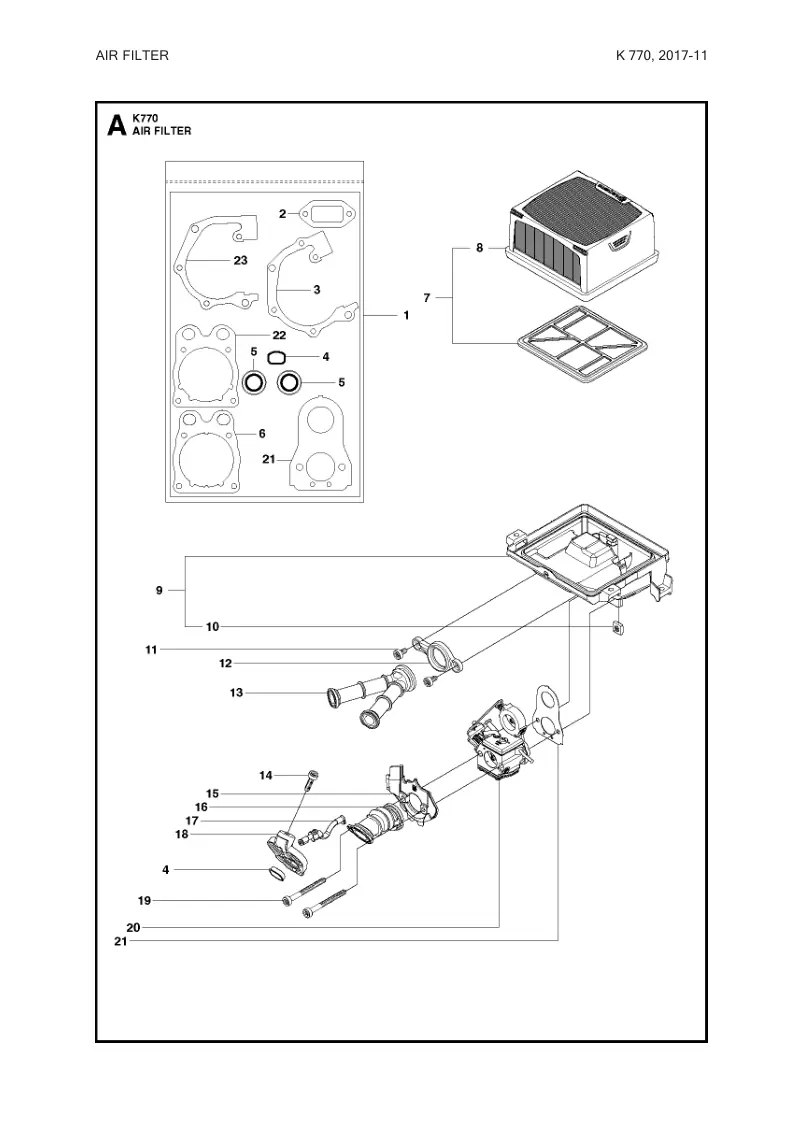

AIR FILTER
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | GASKET KIT incl. 2 - 6, 21 - 23 | 581 35 74-02 | 581357402-Online | 1 22, 5, 4, |
| 2 | GASKET | 588 93 25-01 | 588932501-Online | 1 1 |
| 3 | GASKET | 506 37 70-03 | 506377003-Online | 1 1 |
| 4 | INSERT | 544 21 93-02 | 544219302-Online | 1 1 |
| 5 | SEALING RING Blue | 503 26 02-04 | 503260204-Online | 2 1 |
| 6 | GASKET | 581 28 53-01 | 581285301-Online | 1 1 |
| 7 | AIR FILTER ASSY Incl. 8 | 574 36 23-02 | 574362302-Online | 1 8 |
| 8 | AIR FILTER ASSY | 525 47 06-02 | 525470602-Online | 1 7 |
| 9 | CARBURETTOR BRACKET Incl. 10 | 575 35 40-01 | 575354001-Online | 1 10 |
| 10 | SQUARE NUT | 503 22 65-04 | 503226504-Online | 4 9 |
| 11 | SCREW ITXSCM | 503 21 53-10 | 503215310-Online | 2 |
| 12 | FLANGE INLET PIPE | 506 37 06-01 | 506370601-Online | 1 |
| 13 | INLET PIPE | 525 73 32-01 | 525733201-Online | 1 |
| 14 | SCREW ITXSCM | 503 21 53-20 | 503215320-Online | 1 |
| 15 | HEAT SHIELD | 576 89 01-01 | 576890101-Online | 1 |
| 16 | INLET PIPE | 525 73 31-01 | 525733101-Online | 1 |
| 17 | IMPULSE HOSE | 586 22 77-01 | 586227701-Online | 1 |
| 18 | PLATE | 574 23 18-02 | 574231802-Online | 1 |
| 19 | SCREW ITXSCM | 503 21 53-56 | 503215356-Online | 2 |
| 20 | CARBURETTOR Zama C3-EL53 | 578 24 34-01 | 578243401-Online | 1 |
| 21 | CYLINDER | 506 37 67-01 | 506376701-Online | 1 1 |
| 22 | CYLINDER | 506 37 67-01 | 506376701-Online | 1 1 |
| 23 | GASKET | 506 37 70-02 | 506377002-Online | 1 1 |
BELT GUARD & PULLEY
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | BELT GUARD | 501 05 71-03 | 501057103-Online | 1 2 |
| 2 | NUT WASHER | 586 74 37-01 | 586743701-Online | 3 1 |
| 3 | SCREW EHHFM | 503 20 00-45 | 503200045-Online | 1 |
| 4 | WASHER | 503 23 01-16 | 503230116-Online | 1 |
| 5 | TBD | 588470403 | 588470403-Online | 1 6, 7, 8 |
| 6 | SCREW CITXPANT | 525 88 74-02 | 525887402-Online | 11 |
| 7 | PULLEY | 590 89 58-01 | 590895801-Online | 1 |
| 8 | CASSETTE | 505 44 54-05 | 505445405-Online | 1 |
| 9 | DRAW SPRING | 544 44 10-01 | 544441001-Online | 1 |
| 10 | BRAKE SHOE | 544 44 04-02 | 544440402-Online | 4 |
| 11 | SCREW | 590 50 38-01 | 590503801-Online | 1 |
| 12 | BELT | 544 90 84-06 | 544908406-Online | 1 |
| 13 | BEARING HOUSING ASSY | 588 99 20-01 | 588992001-Online | 1 |
| 14 | SCREW | 584 99 43-01 | 584994301-Online | 1 |
| 15 | BAR BOLT | 503 87 54-02 | 503875402-Online | 3 |
| 16 | SHAFT | 588 99 24-03 | 588992403-Online | 1 |
| 17 | BALL BEARING | 583 95 33-01 | 583953301-Online | 2 |
| 18 | SLIP RING HOLDER | 586 80 10-02 | 586801002-Online | 1 |
CARBURETOR
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CHOKE SHAFT | 593 31 00-01 | 593310001-Online | 1 |
| 2 | ROD | 506 39 65-01 | 506396501-Online | 1 |
| 3 | VALVE KIT | 593 33 29-01 | 593332901-Online | 1 |
| 4 | SPRING | 506 39 75-01 | 506397501-Online | 1 |
| 5 | CARBURETTOR Zama C3-EL53 | 578 24 34-01 | 578243401-Online | 1 |
| 6 | GASKET KIT | 506 40 99-02 | 506409902-Online | 1 |
| 7 | GASKET KIT | 506 41 00-04 | 506410004-Online | 1 |
| 8 | SPRING | 544 83 65-01 | 544836501-Online | 1 |
| 9 | THROTTLE SHAFT | 593 30 99-01 | 593309901-Online | 1 |
CLUTCH
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | BELT GUARD | 586 09 92-01 | 586099201-Online | 1 |
| 2 | BELT TENSIONER ASSY | 583 84 22-01 | 583842201-Online | 1 |
| 3 | SCREW ITXSCM | 501 98 10-20 | 501981020-Online | 2 |
| 4 | PIVOT PIN | 583 85 16-01 | 583851601-Online | 1 |
| 5 | CLUTCH ASSY | 503 74 44-06 | 503744406-Online | 1 |
| 6 | CLUTCH SPRING | 503 74 43-01 | 503744301-Online | 3 |
| 7 | DRIVING PULLEY | 590 80 59-01 | 590805901-Online | 1 |
| 8 | BALL BEARING | 525 83 18-01 | 525831801-Online | 2 |
| 9 | DUST COVER | 506 31 69-01 | 506316901-Online | 1 |
| 10 | SCREW ITXSCM | 501 98 10-01 | 501981001-Online | 1 |
| 11 | WASHER | 503 23 00-70 | 503230070-Online | 1 |
CRANKCASE
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CRANKCASE KIT Incl. 2-7, 9-11, 18 | 593 28 25-01 | 593282501-Online | 1 |
| 2 | GASKET KIT 4, 7, 12-17 | 581 35 74-02 | 581357402-Online | 1 |
| 3 | SCREW ITXSCM | 503 21 53-41 | 503215341-Online | 6 |
| 4 | SEALING RING | 503 26 02-04 | 503260204-Online | 2 |
| 5 | GUIDE BUSHING | 501 27 08-01 | 501270801-Online | 2 |
| 6 | BALL BEARING | 738 22 02-25 | 738220225-Online | 2 |
| 7 | GASKET Six hole | 506 37 70-03 | 506377003-Online | 1 |
| 8 | SQUARE NUT | 503 22 65-04 | 503226504-Online | 1 |
| 9 | SCREW ITXSCM | 503 21 53-16 | 503215316-Online | 2 |
| 10 | PLATE | 522 47 48-01 | 522474801-Online | 1 |
| 11 | SPRING RETAINER | 522 47 57-02 | 522475702-Online | 1 |
| 12 | HEAT DEFLECTOR | 588 91 51-01 | 588915101-Online | 1 |
| 13 | GASKET Five hole | 506 37 70-02 | 506377002-Online | 1 |
| 14 | CYLINDER | 506 37 67-01 | 506376701-Online | 1 |
| 15 | INSERT | 544 21 93-02 | 544219302-Online | 1 |
| 16 | GASKET | 581 28 53-01 | 581285301-Online | 1 |
| 17 | GASKET | 506 37 68-04 | 506376804-Online | 1 |
| 18 | BUFFER | 503 84 61-01 | 503846101-Online | 1 |
CRANKSHAFT
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CRANKSHAFT ASSY Incl. 2 - 4 | 502 29 50-02 | 502295002-Online | 1 2, 3, 4 |
| 2 | BALL BEARING | 738 22 02-25 | 738220225-Online | 2 |
| 3 | CUP | 537 20 33-01 | 537203301-Online | 2 |
| 4 | NEEDLE BEARING | 503 25 41-01 | 503254101-Online | 1 |
CYLINDER COVER
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SCREW ITXSCM | 503 21 53-21 | 503215321-Online | 7 |
| 2 | DECAL | 525 76 35-02 | 525763502-Online | 1 |
| 3 | FILTER COVER ASSY incl. 14 | 583 96 52-08 | 583965208-Online | 1 |
| 4 | FILTER HOLDER ASSY Incl. 5 | 574 36 21-03 | 574362103-Online | 1 |
| 4 | FILTER HOLDER ASSY Incl. 5. OIL GUARD | 574 36 21-04 | 574362104-Online | 1 |
| 5 | SEALING STRIP | 575 35 50-01 | 575355001-Online | 1 |
| 6 | SCREW ITXSCM | 503 21 53-49 | 503215349-Online | 2 |
| 7 | CYLINDER COVER | 506 36 70-03 | 506367003-Online | 1 |
| 8 | DECAL | 579 24 03-01 | 579240301-Online | 1 |
| 9 | DECAL | 574 23 16-05 | 574231605-Online | 1 |
| 9 | DECAL Rescue | 574 23 16-07 | 574231607-Online | 1 |
| 9 | DECAL Oil Guard | 574 23 16-06 | 574231606-Online | 1 |
| 10 | SCREW ITXSCM | 501 98 10-20 | 501981020-Online | 3 |
| 11 | COVER | 574 45 94-01 | 574459401-Online | 1 |
| 12 | BELLOWS | 506 37 04-01 | 506370401-Online | 1 |
| 13 | AIR NOZZLE | 525 58 43-01 | 525584301-Online | 1 |
| 14 | DECAL Generic | 586 37 93-06 | 586379306-Online | 1 |
| 15 | DECAL | 586 37 93-05 | 586379305-Online | 1 |
| 15 | DECAL Japan Only | 586 37 93-07 | 586379307-Online | 1 |
CYLINDER, PISTON & MUFFLER
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | ANTIVIBRATION ELEMENT | 579 74 42-02 | 579744202-Online | 1 |
| 2 | SCREW ITXSCM | 544 06 12-01 | 544061201-Online | 1 |
| 3 | DECOMPRESSION VALVE | 503 71 53-01 | 503715301-Online | 1 |
| 4 | PLUG | 503 55 22-01 | 503552201-Online | 1 |
| 5 | SCREW ITXSCM | 503 21 53-40 | 503215340-Online | 4 |
| 6 | SLEEVE | 576 71 76-02 | 576717602-Online | 4 |
| 7 | CYLINDER ASSY Incl. 8 - 13 | 581 47 61-03 | 581476103-Online | 1 |
| 8 | SCREW ITXSCM | 503 21 53-16 | 503215316-Online | 2 |
| 9 | BRACKET | 506 36 88-01 | 506368801-Online | 1 |
| 10 | PLATE | 574 23 18-01 | 574231801-Online | 1 |
| 11 | GASKET | 581 28 53-01 | 581285301-Online | 1 |
| 12 | PISTON ASSY Incl. 14 - 15 | 506 37 24-03 | 506372403-Online | 1 |
| 13 | NEEDLE BEARING | 503 25 56-01 | 503255601-Online | 1 |
| 14 | PISTON RING | 522 99 01-01 | 522990101-Online | 2 |
| 15 | SNAP RING | 737 43 12-00 | 737431200-Online | 2 |
| 16 | HEAT DEFLECTOR | 588 91 51-01 | 588915101-Online | 1 |
| 17 | GASKET | 588 93 25-01 | 588932501-Online | 1 |
| 18 | MUFFLER Incl. 16 -17, 19 - 23 | 592 77 83-01 | 592778301-Online | 1 |
| 19 | SCREW ITXSCM | 503 21 53-40 | 503215340-Online | 2 |
| 20 | SCREW ITXSCM | 503 21 53-56 | 503215356-Online | 1 |
| 21 | SCREW ITXSCM | 503 21 53-25 | 503215325-Online | 1 |
| 22 | WASHER | 503 23 04-02 | 503230402-Online | 1 |
| 23 | SQUARE NUT | 503 22 65-04 | 503226504-Online | 1 |
| 24 | GASKET KIT Incl. 11, 17, 25 - 30 | 581 35 74-02 | 581357402-Online | 1 |
| 25 | GASKET | 506 37 70-03 | 506377003-Online | 1 |
| 26 | INSERT | 544 21 93-02 | 544219302-Online | 1 |
| 27 | SEALING RING Blue | 503 26 02-04 | 503260204-Online | 2 |
| 28 | GASKET | 506 37 68-04 | 506376804-Online | 1 |
| 29 | CYLINDER | 506 37 67-01 | 506376701-Online | 1 |
| 30 | GASKET | 506 37 70-02 | 506377002-Online | 1 |
ENGINE
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | CRANKCASE KIT | 593 28 25-03 | 593282503-Online | 1 1 |
| 2 | CRANKCASE KIT | 593 28 25-02 | 593282502-Online | 1 |
FUEL TANK
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | FUEL TANK ASSY | 593 28 18-01 | 593281801-Online | 1 |
| 2 | PARALLEL PIN | 720 12 40-20 | 720124020-Online | 2 |
| 3 | THROTTLE CONTROL OIL GUARD | 588 08 62-02 | 588086202-Online | 1 |
| 3 | THROTTLE CONTROL | 588 08 62-01 | 588086201-Online | 1 |
| 4 | THROTTLE ROD | 579 37 92-01 | 579379201-Online | 1 |
| 5 | SPRING | 587 74 60-01 | 587746001-Online | 1 |
| 6 | THROTTLE LOCKOUT | 588 13 77-01 | 588137701-Online | 1 |
| 6 | THROTTLE LOCKOUT OIL GUARD | 588 13 77-02 | 588137702-Online | 1 |
| 7 | FUEL FILTER | 506 26 41-01 | 506264101-Online | 1 |
| 8 | HOSE CLAMP | 506 27 11-01 | 506271101-Online | 1 |
| 9 | FUEL FILTER Incl. 7 - 8 | 506 26 41-11 | 506264111-Online | 1 |
| 10 | FUEL HOSE | 581 75 62-03 | 581756203-Online | 1 |
| 10 | FUEL HOSE Oil Guard | 581 75 62-02 | 581756202-Online | 1 |
| 11 | KIT Oil Guard. Incl. 10 pins | 502 23 33-01 | 502233301-Online | 1 |
| 12 | TANK VENT VALVE ASSY | 577 31 35-01 | 577313501-Online | 1 |
| 13 | TANK VENT ASSY | 501 15 29-01 | 501152901-Online | 1 |
| 14 | CHOKE CONTROL | 544 22 90-02 | 544229002-Online | 1 |
| 15 | SCREW CITXPANT | 525 88 74-02 | 525887402-Online | 1 |
| 16 | STOP SWITCH | 506 31 86-04 | 506318604-Online | 1 |
| 17 | GROMMET | 506 37 80-01 | 506378001-Online | 1 |
| 18 | HOSE CLIP | 544 39 32-01 | 544393201-Online | 1 |
| 19 | FUEL HOSE | 581 75 61-17 | 581756117-Online | 1 |
| 20 | ELECTRONIC BOX | 544 38 41-01 | 544384101-Online | 1 |
| 21 | HOUSING | 501 01 88-01 | 501018801-Online | 1 |
| 22 | SWITCH | 501 01 94-01 | 501019401-Online | 1 |
| 23 | LID | 501 37 13-01 | 501371301-Online | 1 |
| 24 | NUT | 581 77 48-01 | 581774801-Online | 6 |
| 25 | GROUND SUPPORT | 588 19 82-01 | 588198201-Online | 1 |
| 26 | TANK CAP ASSY | 522 62 00-03 | 522620003-Online | 1 |
| 27 | GASKET | 589 24 11-01 | 589241101-Online | 1 |
| 28 | HOLDER | 503 57 89-01 | 503578901-Online | 1 |
| 29 | AIR CLEANER | 540 05 49-01 | 540054901-Online | 1 |
| 30 | FUEL HOSE | 505 19 52-01 | 505195201-Online | 1 |
| 31 | FUEL HOSE | 537 04 24-14 | 537042414-Online | 1 |
| 32 | HUB CAP | 506 39 46-02 | 506394602-Online | 1 |
| 33 | HEAT SHIELD | 506 38 15-01 | 506381501-Online | 1 |
| 34 | SCREW ITXSCM | 544 06 12-01 | 544061201-Online | 1 |
| 35 | ANTIVIBRATION ELEMENT | 537 21 03-09 | 537210309-Online | 1 |
| 36 | BAND | 544 23 82-01 | 544238201-Online | 1 |
| 37 | SCREW ITXSCT | 503 21 54-20 | 503215420-Online | 4 |
| 38 | BASEPLATE | 506 37 19-02 | 506371902-Online | 1 |
| 39 | DECAL Oil Guard | 581 09 54-02 | 581095402-Online | 1 |
| 40 | LABEL Japan Only | 506 31 30-01 | 506313001-Online | 1 |
GASKET KIT
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | TOOL | 506 38 26-01 | 506382601-Online | 1 |
| 2 | GASKET KIT Incl. 3-8, 11-12 | 581 35 74-02 | 581357402-Online | 1 |
| 3 | GASKET | 588 93 25-01 | 588932501-Online | 1 |
| 4 | GASKET | 506 37 70-03 | 506377003-Online | 1 |
| 5 | INSERT | 544 21 93-02 | 544219302-Online | 1 |
| 6 | SEALING RING Blue | 503 26 02-04 | 503260204-Online | 2 |
| 7 | GASKET | 581 28 53-01 | 581285301-Online | 1 |
| 8 | GASKET | 506 37 68-04 | 506376804-Online | 1 |
| 9 | KIT Incl. 10 Pins | 502 23 33-01 | 502233301-Online | 1 |
| 10 | KIT | 502 28 70-03 | 502287003-Online | 1 |
| 11 | CYLINDER | 506 37 67-01 | 506376701-Online | 1 |
| 12 | GASKET | 506 37 70-02 | 506377002-Online | 1 |
GROUND SUPPORT
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SCREW ITXSCT | 503 21 54-20 | 503215420-Online | 3 |
| 2 | HOSE GUARD | 577 98 16-02 | 577981602-Online | 1 |
| 3 | SCREW ITXSCM | 544 06 12-01 | 544061201-Online | 1 |
| 4 | SPRING RETAINER | 575 26 77-01 | 575267701-Online | 1 |
| 5 | GROUND SUPPORT | 522 83 23-01 | 522832301-Online | 1 |
| 6 | SQUARE NUT | 503 22 65-04 | 503226504-Online | 1 |
| 7 | SCREW ITXSCM | 503 21 53-10 | 503215310-Online | 3 |
| 8 | SCREW ITXSCM | 503 21 53-40 | 503215340-Online | 1 |
| 9 | GROUND SUPPORT | 522 83 24-01 | 522832401-Online | 1 |
| 10 | HANDLE ASSY Incl. 1,11 | 581 11 06-03 | 581110603-Online | 1 |
| 11 | STOP | 506 38 71-02 | 506387102-Online | 1 |
GUARDS
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | WHEEL GUARD 14" | 581 35 19-04 | 581351904-Online | 1 5, 6, 16, |
| 1 | WHEEL GUARD 12" | 581 35 19-03 | 581351903-Online | 1 5, 6, 16, |
| 2 | SCREW ITXSCT | 504 90 94-14 | 504909414-Online | 2 |
| 3 | HANDLE HALF | 578 19 09-01 | 578190901-Online | 1 |
| 4 | HANDLE HALF | 578 76 09-01 | 578760901-Online | 1 |
| 5 | SCREW ITXSCT | 504 90 94-10 | 504909410-Online | 1 |
| 6 | STOP | 581 62 03-01 | 581620301-Online | 1 |
| 7 | DISC | 584 43 77-01 | 584437701-Online | 1 |
| 8 | SUPPORT FLANGE | 584 43 83-01 | 584438301-Online | 1 |
| 9 | FLANGE Diam 105mm | 583 87 44-02 | 583874402-Online | 2 |
| 9 | FLANGE WASHER | 506 07 09-02 | 506070902-Online | 2 |
| 10 | BUSHING Diam 20/25, 4mm | 578 39 82-01 | 578398201-Online | 1 |
| 10 | BUSHING Diam 30, 5 mm | 581 60 54-03 | 581605403-Online | 1 |
| 10 | KIT Diam 20 mm | 506 37 96-20 | 506379620-Online | 1 |
| 10 | KIT Diam 22, 2 mm | 506 37 96-22 | 506379622-Online | 1 |
| 11 | SCREW | 590 50 38-01 | 590503801-Online | 1 |
| 12 | SCREW ITXSCM | 544 21 84-30 | 544218430-Online | 4 |
| 13 | SLEEVE 12", Shiny | 584 43 82-01 | 584438201-Online | 4 |
| 13 | SLEEVE 14", Black | 584 43 82-02 | 584438202-Online | 4 |
| 14 | SPRING | 584 43 81-01 | 584438101-Online | 4 |
| 15 | SHIM | 584 43 78-01 | 584437801-Online | 2 |
| 16 | LINING | 584 43 79-01 | 584437901-Online | 1 |
| 17 | LINING | 584 43 80-01 | 584438001-Online | 1 |
| 18 | DECAL 12" | 581 11 77-05 | 581117705-Online | 1 |
| 18 | DECAL 14" | 581 11 77-06 | 581117706-Online | 1 |
| 19 | DECAL 12" | 584 99 26-01 | 584992601-Online | 1 |
| 19 | DECAL 14" | 584 99 26-02 | 584992602-Online | 1 |
| 20 | WASHER | 582 23 31-01 | 582233101-Online | 4 |
| 21 | WASHER | 582 23 32-01 | 582233201-Online | 4 |
HOSE
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | HOSE KIT Incl. 2, 5 - 7 & Hose Guard | 581 47 62-12 | 581476212-Online | 1 |
| 2 | NIPPLE Incl. 3, 4 | 581 47 83-01 | 581478301-Online | 1 |
| 3 | FILTER | 506 29 88-01 | 506298801-Online | 1 |
| 4 | O-RING | 505 10 35-01 | 505103501-Online | 1 |
| 5 | HOSE CLAMP | 581 78 35-01 | 581783501-Online | 2 |
| 6 | HOSE | 578 19 81-01 | 578198101-Online | 1 |
| 7 | VALVE ASSY Incl. 8, 18, 19 | 578 24 33-02 | 578243302-Online | 1 |
| 8 | SCREW ITXSCM | 503 21 53-41 | 503215341-Online | 1 |
| 9 | HOSE KIT Incl. 10 - 16 | 581 72 15-02 | 581721502-Online | 1 |
| 10 | HOSE CLAMP | 506 49 87-04 | 506498704-Online | 3 |
| 11 | HOSE 800 mm | 578 19 83-05 | 578198305-Online | 1 |
| 12 | SCREW ITXSCM | 504 63 46-01 | 504634601-Online | 2 |
| 13 | HOUSING | 578 19 07-01 | 578190701-Online | 1 |
| 14 | NIPPLE | 576 79 84-01 | 576798401-Online | 2 |
| 15 | HOUSING | 578 19 08-01 | 578190801-Online | 1 |
| 16 | HOSE CLAMP | 583 83 30-01 | 583833001-Online | 1 |
| 17 | COUPLER USA, Canada | 503 26 60-03 | 503266003-Online | 1 |
| 17 | COUPLER | 503 26 60-04 | 503266004-Online | 1 |
| 19 | SQUARE NUT | 503 22 65-04 | 503226504-Online | 1 |
| 18 | LEVER ASSY With O-rings | 581 35 70-01 | 581357001-Online | 1 |
IGNITION SYSTEM
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | SCREW CITXPANT | 525 88 74-02 | 525887402-Online | 2 |
| 2 | STOP SWITCH | 506 31 86-04 | 506318604-Online | 1 |
| 3 | CABLE | 586 49 72-01 | 586497201-Online | 1 |
| 4 | SPARK PLUG RCJ 6 Y | 503 23 51-11 | 503235111-Online | 1 |
| 5 | SPARK PLUG CAP | 501 48 54-02 | 501485402-Online | 1 |
| 6 | IGNITION MODULE Incl. 5, 7 - 8 | 580 38 05-01 | 580380501-Online | 1 |
| 7 | IGNITION CABLE | 506 38 78-34 | 506387834-Online | 1 |
| 8 | ISOLERHATT | 505 27 75-16 | 505277516-Online | 1 |
| 9 | SCREW ITXSCM | 503 21 53-20 | 503215320-Online | 2 |
| 10 | CABLE | 506 37 85-01 | 506378501-Online | 1 |
| 11 | WASHER | 503 23 01-01 | 503230101-Online | 1 |
| 12 | HEXAGON NUT Incl. 14 - 19 | 503 22 10-11 | 503221011-Online | 1 |
| 13 | FLYWHEEL ASSY | 587 70 21-02 | 587702102-Online | 1 |
| 14 | SCREW IHSCM | 725 53 29-56 | 725532956-Online | 1 |
| 15 | WEIGHT | 574 25 09-01 | 574250901-Online | 1 |
| 16 | WASHER | 503 23 00-42 | 503230042-Online | 2 |
| 17 | SPRING | 576 49 26-01 | 576492601-Online | 2 |
| 18 | PAWL | 501 67 32-03 | 501673203-Online | 2 |
| 19 | SCREW | 506 00 69-01 | 506006901-Online | 2 |
| 20 | CABLE Oil Guard | 544 38 49-01 | 544384901-Online | 1 |
| 21 | CABLE HOLDER | 577 24 28-01 | 577242801-Online | 1 |
RESCUE
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | WASHER | 503 14 29-02 | 503142902-Online | 1 |
| 2 | STARTER HANDLE | 506 29 75-02 | 506297502-Online | 1 |
| 3 | DECAL | 593 22 32-01 | 593223201-Online | 2 |
| 4 | DECAL | 593 22 34-01 | 593223401-Online | 1 |
| 5 | DECAL | 588 98 76-02 | 588987602-Online | 1 |
| 6 | DECAL | 588 98 76-01 | 588987601-Online | 1 |
| 7 | HANDLE HALF | 578 76 09-02 | 578760902-Online | 1 |
| 8 | ROD | 588 75 46-01 | 588754601-Online | 1 |
| 9 | HANDLE HALF | 578 19 09-01 | 578190901-Online | 1 |
| 10 | WASHER | 576 29 40-01 | 576294001-Online | 1 |
| 11 | HANDLE BRACKET | 588 75 47-01 | 588754701-Online | 1 |
| 12 | NUT CAP | 588 90 81-01 | 588908101-Online | 2 |
| 13 | SHOULDER STRAP | 586 45 60-01 | 586456001-Online | 1 |
| 14 | BRACKET | 588 73 14-01 | 588731401-Online | 1 |
| 15 | SQUARE NUT | 503 22 65-04 | 503226504-Online | 2 |
| 16 | SCREW ITXSCM | 503 21 53-16 | 503215316-Online | 2 |
STARTER
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1 | STARTER Incl. 2 - 15 | 574 36 20-05 | 574362005-Online | 1 |
| 2 | SCREW ITXSCT | 510 26 92-22 | 510269222-Online | 1 |
| 3 | O-RING | 740 43 13-00 | 740431300-Online | 1 |
| 4 | SEALING | 510 00 08-01 | 510000801-Online | 1 |
| 5 | SPACING SLEEVE | 506 26 31-01 | 506263101-Online | 1 |
| 6 | COMPRESSION SPRING | 506 25 30-01 | 506253001-Online | 1 |
| 7 | STARTER PULLEY | 506 25 81-03 | 506258103-Online | 1 |
| 8 | SCREW CITXPANT | 525 88 74-02 | 525887402-Online | 2 |
| 9 | RECOIL SPRING | 506 25 89-01 | 506258901-Online | 1 |
| 10 | CORD | 506 33 56-15 | 506335615-Online | 1 |
| 10 | STARTER CORD 50 m | 506 33 56-50 | 506335650-Online | 1 |
| 11 | STARTER HANDLE ASSY | 584 25 79-02 | 584257902-Online | 1 |
| 12 | STARTER COVER | 525 44 60-01 | 525446001-Online | 1 |
| 13 | SCREW ITXSCM | 501 98 10-20 | 501981020-Online | 4 |
| 14 | DECAL | 525 57 11-01 | 525571101-Online | 1 |
| 15 | COOLING AIR CONDUCTOR | 501 85 94-01 | 501859401-Online | 1 |
