Flymo SimplyGlide 360 IPL
Flymo illustrated parts list prepared for Cutsmart IPL lookup. Use the diagram reference number, part number, or linked Cutsmart SKU to identify the correct spare part.
Illustrations

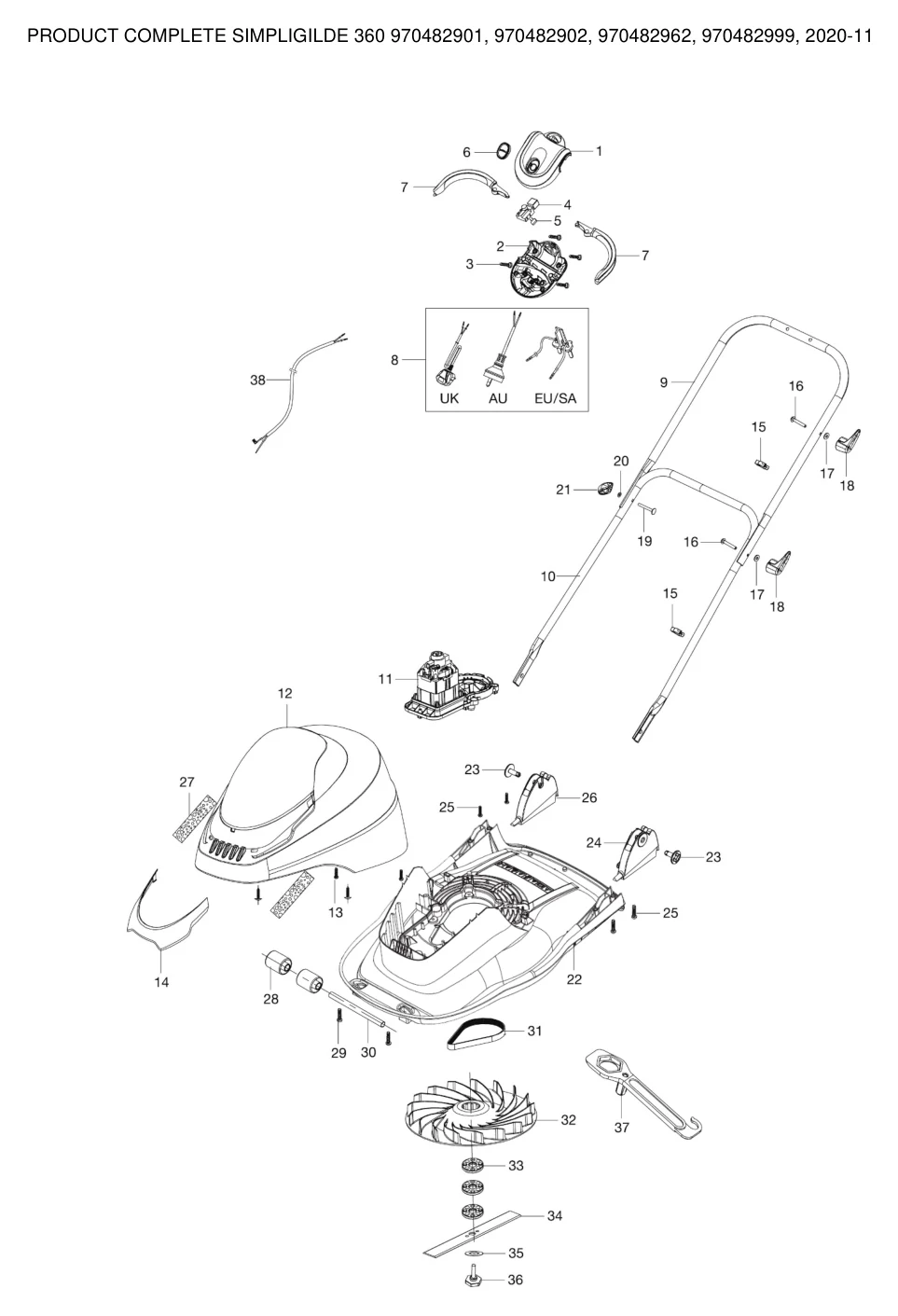

Product Complete parts
| Ref | Description | Part Number | Cutsmart SKU | Qty |
|---|---|---|---|---|
| 1, 2 | Switchbox (UK, AU) | 529 62 70-01 | 5296270-01-Online | 1 |
| 1, 2 | Switchbox (EU, SA) | 529 82 77-01 | 5298277-01-Online | 1 |
| 3 | Screws | 577 29 83-01 | 5772983-01-Online | 6 |
| 4 | Switch | 513 12 16-00 | 5131216-00-Online | 1 |
| 5 | Capacitor | 522 72 09-02 | 5227209-02-Online | 1 |
| 6 | Start Button | 599 83 65-01 | 5998365-01-Online | 1 |
| 7 | Levers | 599 84 99-01 | 5998499-01-Online | 2 |
| 8 | Mains Cable (UK) | 512 80 31-05 | 5128031-05-Online | 1 |
| 8 | Mains Cable (AU / NZ) | 529 82 82-01 | 5298282-01-Online | 1 |
| 8 | Switchbox Connector (EU / SA) | 529 82 83-01 | 5298283-01-Online | 1 |
| 12 - 14 | Motor Cowl Kit | 529 62 77-01 | 5296277-01-Online | 1 |
| 15 | Cable Clips | 577 29 84-01 | 5772984-01-Online | 2 |
| 16 - 18 | Cable Hook Kit | 599 83 63-01 | 5998363-01-Online | 1 |
| 19 - 21 | Wing Knob Kit | 599 83 54-01 | 5998354-01-Online | 1 |
| 23 | Fixing Pin Kit | 529 62 75-01 | 5296275-01-Online | 2 |
| 24- 26 | Handle Bracket Kit | 529 62 76-01 | 5296276-01-Online | 1 |
| 27 | Air Filter Kit | 529 62 78-01 | 5296278-01-Online | 2 |
| 28 - 30 | Roller Kit | 529 62 83-01 | 5296283-01-Online | 2 |
| 31 | Belt | 529 62 84-01 | 5296284-01-Online | 1 |
| 32 | Impeller | 529 62 86-01 | 5296286-01-Online | 1 |
| 33 | Washers | 529 36 32-90 | 5293632-90-Online | 3 |
| 34 | Blade (FLY096) | 529 37 08-90 | 5293708-90-Online | 1 |
| 35, 36 | Blade Bolt Kit | 529 62 87-01 | 5296287-01-Online | 1 |
| 37 | Spanner | 529 62 88-01 | 5296288-01-Online | 1 |
| 38 | Power Cable | 529 63 22-01 | 5296322-01-Online | 1 |
