Titantec HT230H IPL Parts Diagram

Titantec HT230H IPL Parts Diagram

Titantec HT230H IPL Parts Diagram

Machine SKU: TT-HT230H-Online

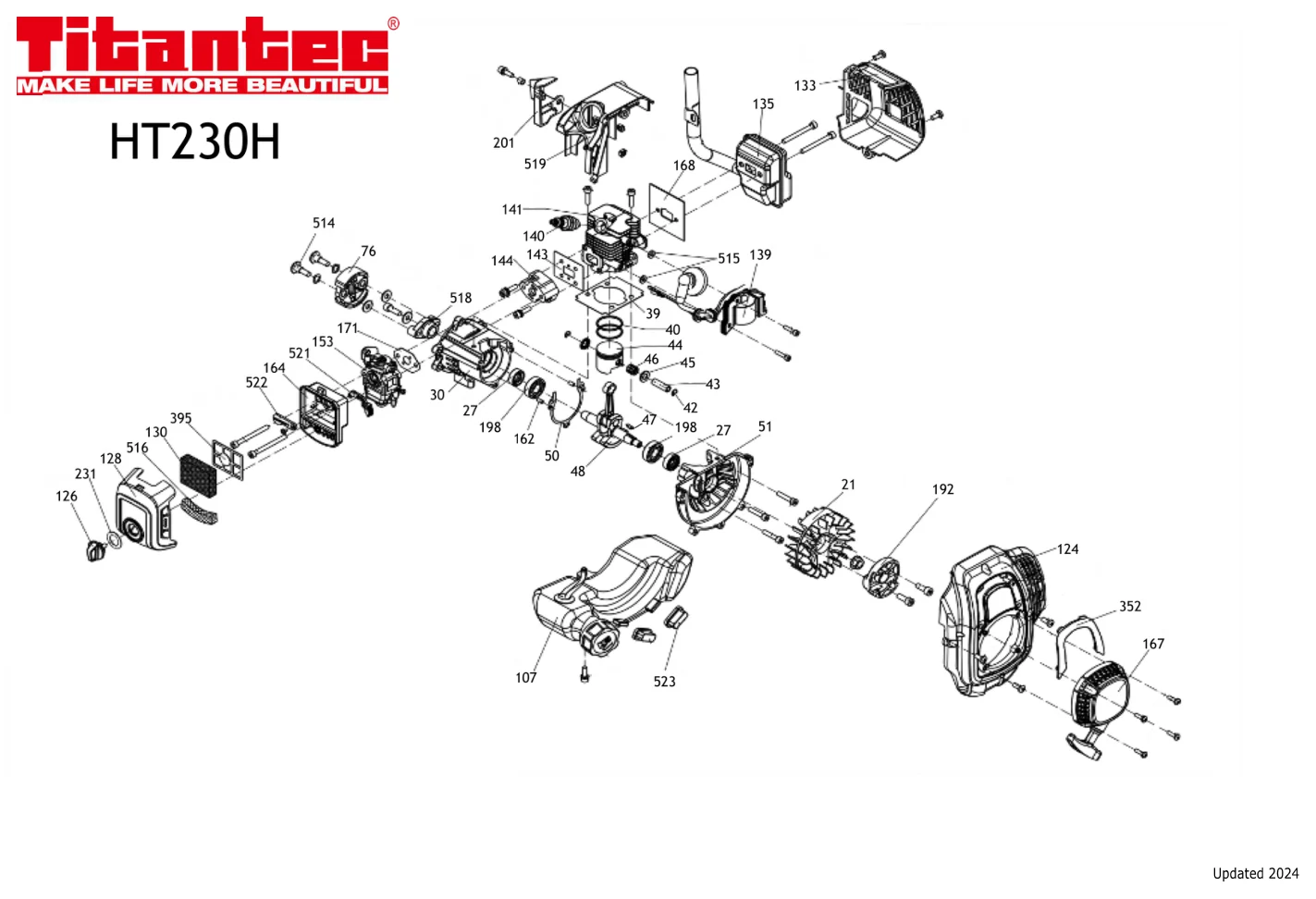

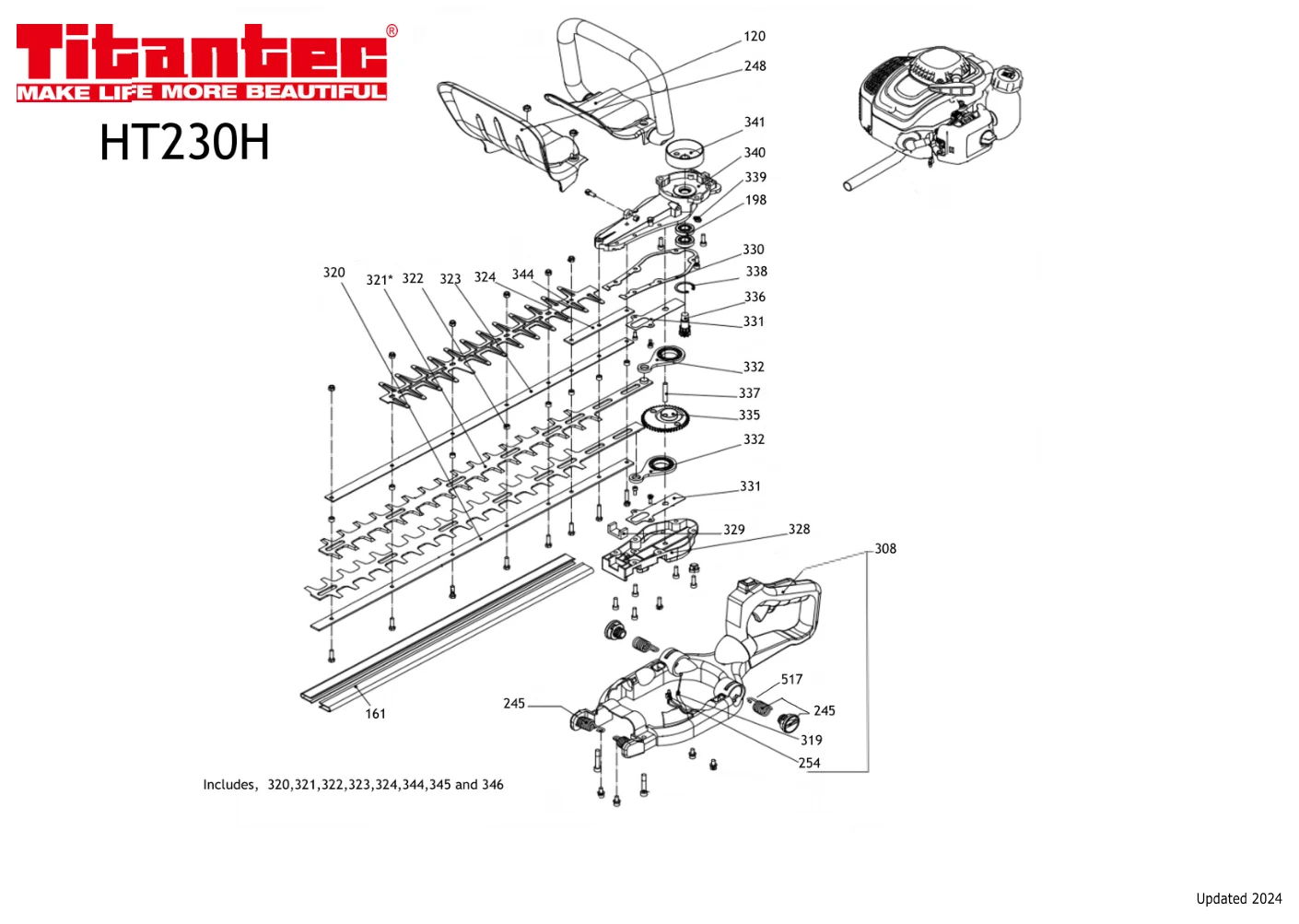

Titantec HT230H IPL exploded view 1 Titantec HT230H IPL exploded view 2

HT230H parts list

RefDescriptionPart numberCutsmart SKU
21FywheelTT02113TT-02113-Online
201windshield PadTT20102TT-20102-Online
27oil seal 12x22x7TT02701TT-02701-Online
231sealing ringTT23102TT-23102-Online
30Left CrankcaseTT03012TT-03012-Online
245spring seatTT24502TT-24502-Online
39Gasket, CylinderTT03902TT-03902-Online
248Protective plateTT24803TT-24803-Online
40Piston RingTT04013TT-04013-Online
254Flameout cableTT25403TT-25403-Online
42Snap Ring, Piston PinTT04202TT-04202-Online
308Down cover handleTT30802TT-30802-Online
43Piston PinTT04313TT-04313-Online
319throttle cableTT31902TT-31902-Online
44PistonTT04413TT-04413-Online
320down layer - thinTT32001TT-32001-Online
45anti friction padTT04506TT-04506-Online
321bladeTT32101TT-32101-Online
46Needle bearingTT04613TT-04613-Online
322wear railTT32201TT-32201-Online
47KeyTT04702TT-04702-Online
323thick steel stripTT32301TT-32301-Online
48CrankshaftTT04813TT-04813-Online
324layer aluminiumTT32401TT-32401-Online
50Gasket, CrankcaseTT05011TT-05011-Online
328cover gearcaseTT32801TT-32801-Online
51Right CrankcaseTT05112TT-05112-Online
329wool feltTT32901TT-32901-Online
76ClutchTT07608TT-07608-Online
330gasket gearcaseTT33001TT-33001-Online
107fuel tankTT10709TT-10709-Online
331washerTT33101TT-33101-Online
120HandleTT12006TT-12006-Online
332connecting rodTT33201TT-33201-Online
124Cover, CylinderTT12409TT-12409-Online
335eccentric gearTT33501TT-33501-Online
126KnobTT12607TT-12607-Online
336drive gearTT33602TT-33602-Online
128Cover FilterTT12810TT-12810-Online
337axle pinTT33702TT-33702-Online
130elementTT13009TT-13009-Online
338snap ring 28TT33801TT-33801-Online
133cover mufflerTT13307TT-13307-Online
339grease fittingTT33901TT-33901-Online
135mufflerTT13508TT-13508-Online
340gearcaseTT34001TT-34001-Online
139coilTT13913TT-13913-Online
341drumTT34101TT-34101-Online
140spark plug BM6ATT14001TT-14001-Online
344blade mouthguardTT34401TT-34401-Online
141cylinderTT14113TT-14113-Online
352Decorated frameTT35202TT-35202-Online
143gasket inlet pipeTT14308TT-14308-Online
395anti spray plateTT39502TT-39502-Online
144insulatorTT14409TT-14409-Online
514step boltTT51401TT-51401-Online
153carbTT15313TT-15313-Online
515Insulation padTT51501TT-51501-Online
161coverTT16102TT-16102-Online
516Coarse spong filterTT51601TT-51601-Online
162Pin 4x8TT16203TT-16203-Online
517anti vibration springTT51701TT-51701-Online
164air filter seatTT16407TT-16407-Online
518Clutch seatTT51801TT-51801-Online
167starter assyTT16708TT-16708-Online
519Cover cylinderTT51901TT-51901-Online
168gasket mufflerTT16807TT-16807-Online
521Throttle leverTT52101TT-52101-Online
171gasket carburetorTT17102TT-17102-Online
522throttle baffleTT52201TT-52201-Online
192pulleyTT19205TT-19205-Online
523Damper fuel fankTT52301TT-52301-Online
198Bearing 6001ZTT19802TT-19802-Online
