Titantec BC520T IPL Parts Diagram

Titantec BC520T IPL Parts Diagram

Titantec BC520T IPL Parts Diagram

Machine SKU: TT-BC520T-Online

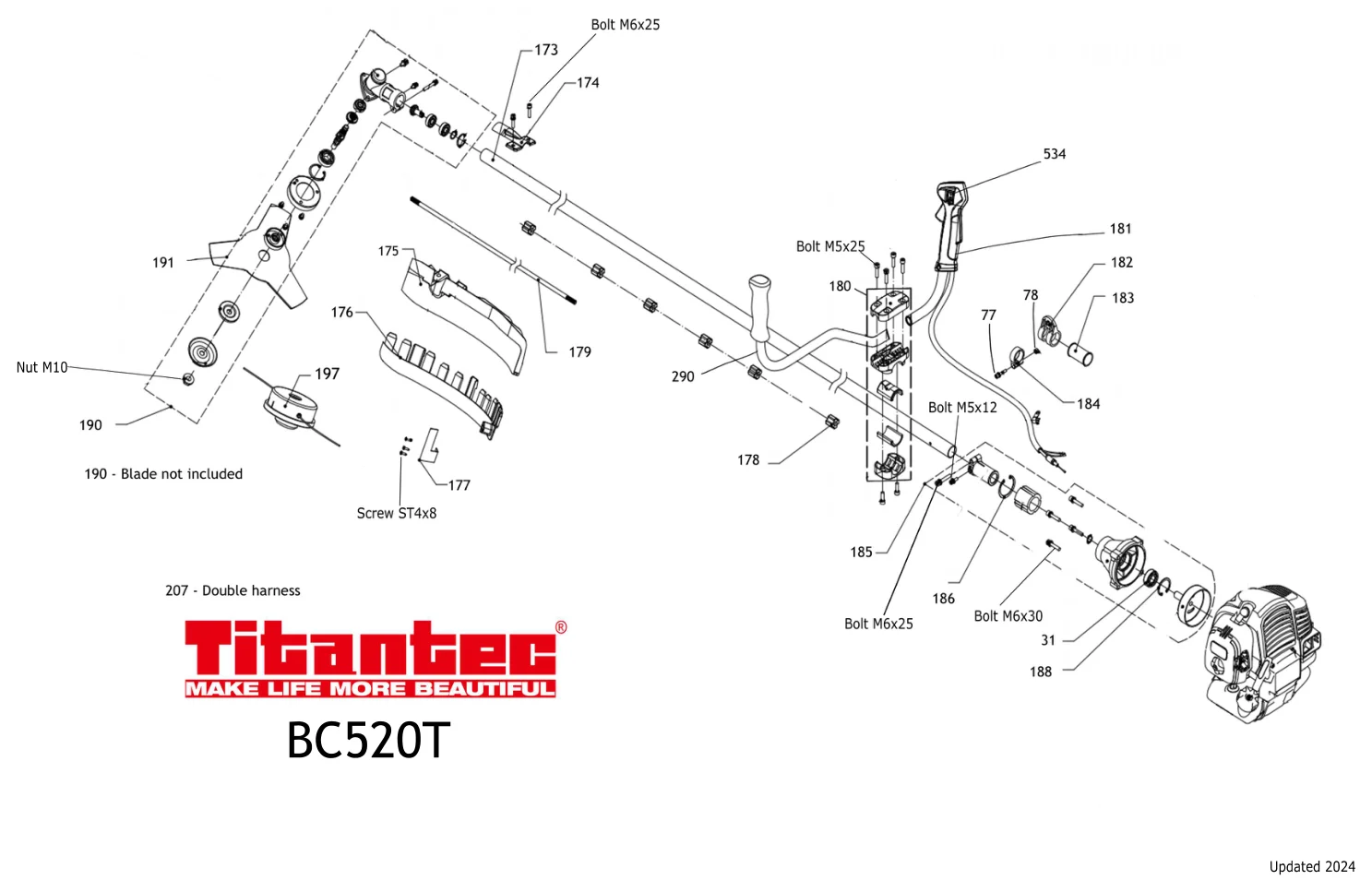

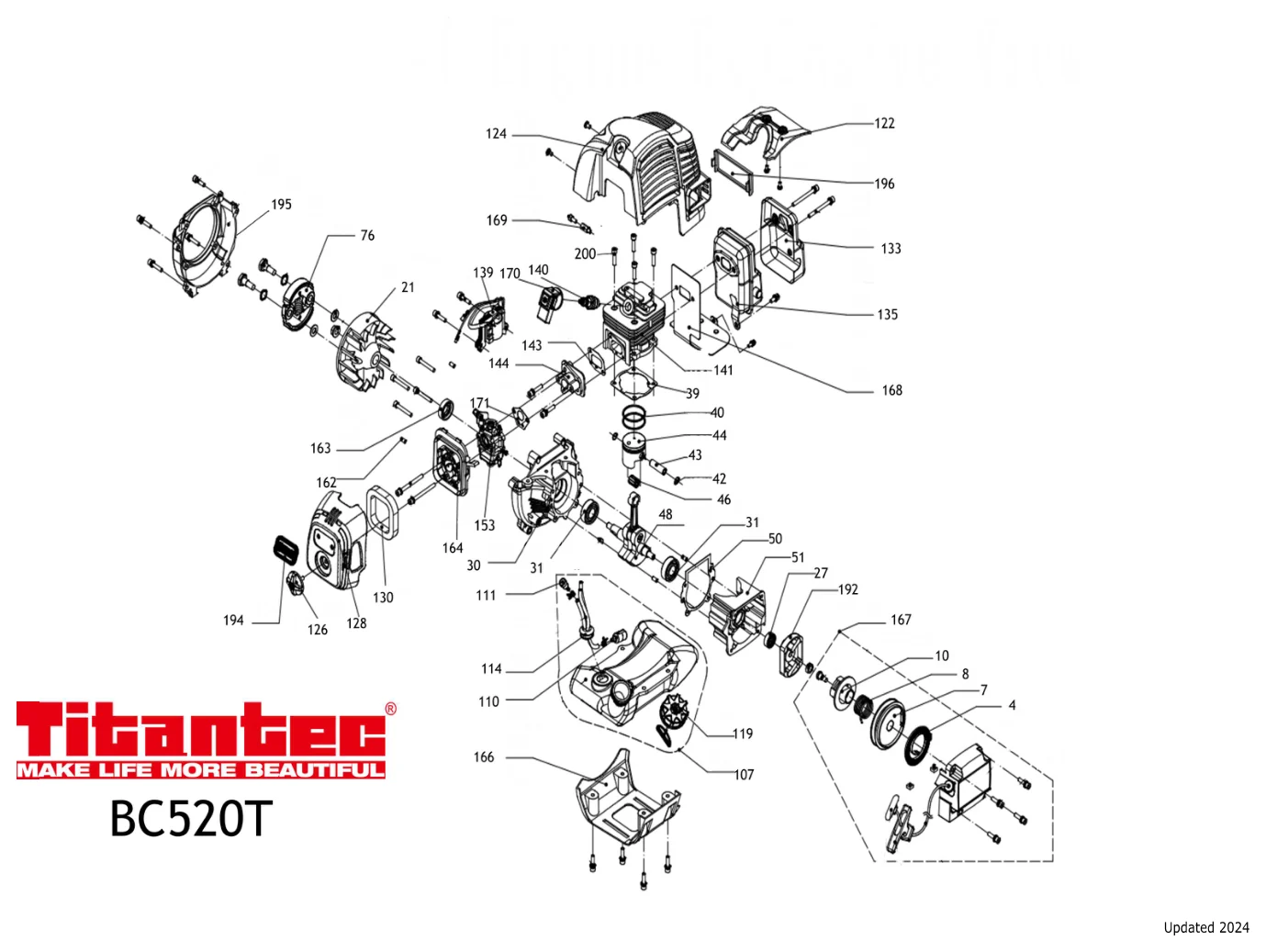

Titantec BC520T IPL exploded view 1 Titantec BC520T IPL exploded view 2

BC520T parts list

RefDescriptionPart numberCutsmart SKU
4SpringTT00401TT-00401-Online
153CarbTT15302TT-15302-Online
7ReelTT00701TT-00701-Online
162Pin 5x10TT16201TT-16201-Online
8Torsion SpringTT00801TT-00801-Online
163Oil seal 15x30x7TT16301TT-16301-Online
10RatchetTT01001TT-01001-Online
164Air Filter SupporterTT16401TT-16401-Online
21FywheelTT02102TT-02102-Online
166Bracket, TankTT16601TT-16601-Online
27Oil seal 12x22x7TT02701TT-02701-Online
167Starter assyTT16701TT-16701-Online
30Left CrankcaseTT03002TT-03002-Online
168Gasket mufflerTT16801TT-16801-Online
31Bearing 6202TT03102TT-03102-Online
169BoltTT16902TT-16902-Online
39Gasket, CylinderTT03901TT-03901-Online
170Cap, Spark PlugTT17001TT-17001-Online
40Piston RingTT04002TT-04002-Online
171Gasket carburetorTT17101TT-17101-Online
42Snap Ring, Piston PinTT04201TT-04201-Online
173Aluminum PipeTT17301TT-17301-Online
43Piston PinTT04302TT-04302-Online
174Guard BracketTT17401TT-17401-Online
44PistonTT04402TT-04402-Online
175GuardTT17501TT-17501-Online
46Needle bearingTT04602TT-04602-Online
176Shield RimTT17601TT-17601-Online
48CrankshaftTT04802TT-04802-Online
177Small BladeTT17701TT-17701-Online
50Gasket, CrankcaseTT05001TT-05001-Online
178Oil BearingTT17801TT-17801-Online
51Right CrankcaseTT05102TT-05102-Online
179Drive ShaftTT17901TT-17901-Online
76ClutchTT07601TT-07601-Online
180Handle Bracket AssyTT18001TT-18001-Online
77BoltTT07701TT-07701-Online
181Throttle AssyTT18101TT-18101-Online
78NutTT07801TT-07801-Online
182Harness HangerTT18201TT-18201-Online
107Fuel tankTT10701TT-10701-Online
183Hanger TubeTT18301TT-18301-Online
110Fuel FilterTT11001TT-11001-Online
184ClaspTT18401TT-18401-Online
111BalancerTT11101TT-11101-Online
185Housing AssyTT18501TT-18501-Online
114Pipe SeatTT11401TT-11401-Online
186Snap Ring φ45TT18601TT-18601-Online
119Cap fuel filterTT11901TT-11901-Online
188Snap Ring φ35TT18801TT-18801-Online
122Top CoverTT12201TT-12201-Online
190Housing assyTT19001TT-19001-Online
124Cover, CylinderTT12401TT-12401-Online
191Blade 3TTT19101TT-19101-Online
126KnobTT12601TT-12601-Online
192PulleyTT19201TT-19201-Online
128Cover FilterTT12801TT-12801-Online
194BadgeTT19401TT-19401-Online
130ElementTT13001TT-13001-Online
195Side coverTT19501TT-19501-Online
133Muffler Heat ShieldTT13302TT-13302-Online
196BadgeTT19601TT-19601-Online
135MufflerTT13501TT-13501-Online
197Nylon headTT19701TT-19701-Online
139CoilTT13902TT-13902-Online
200Cylinder BoltsTT20001TT-20001-Online
140Spark plug BM6ATT14001TT-14001-Online
207Double HarnessTT20701TT-20701-Online
141CylinderTT14102TT-14102-Online
290HandleTT29001TT-29001-Online
143Gasket inlet pipeTT14301TT-14301-Online
534On/off swtich with coilTT53401TT-53401-Online
144Inlet pipeTT14402TT-14402-Online
