Tandem Backpack Blower EB600 (Old type) IPL Parts Diagram

Tandem Backpack Blower EB600 (Old type) IPL Parts Diagram

Tandem Backpack Blower EB600 (Old type) IPL Parts Diagram

Same cleaned format as the previous one: diagram pages rotated the right way round, Tandem machine SKU header/pages removed, and clickable xxxxx-Online SKU links added in the tables below. Rows without a confirmed ERP part number are left without a clickable SKU.

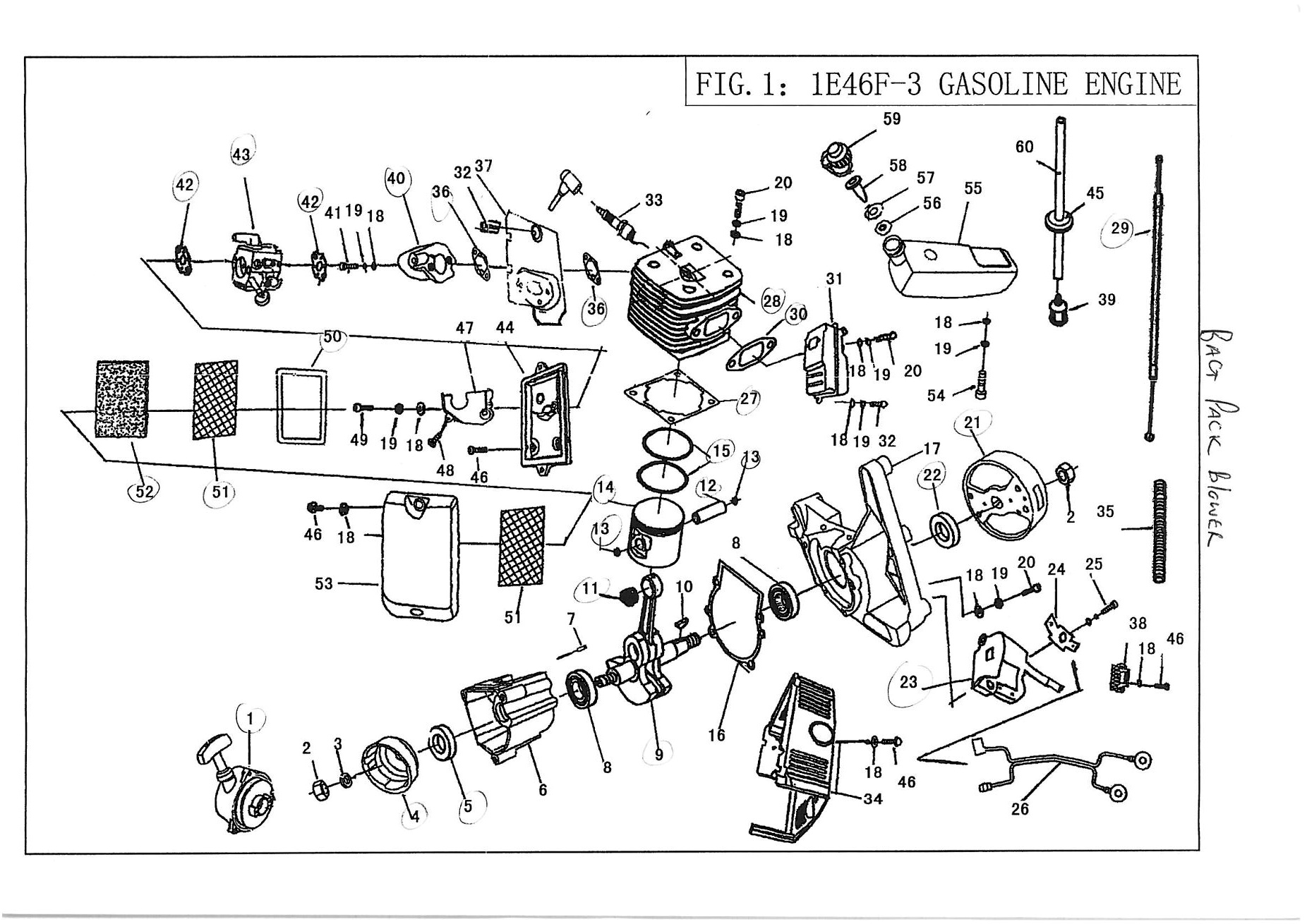

Diagram page 1

EB600 old type diagram page 1
Cleaned and correctly rotated diagram page

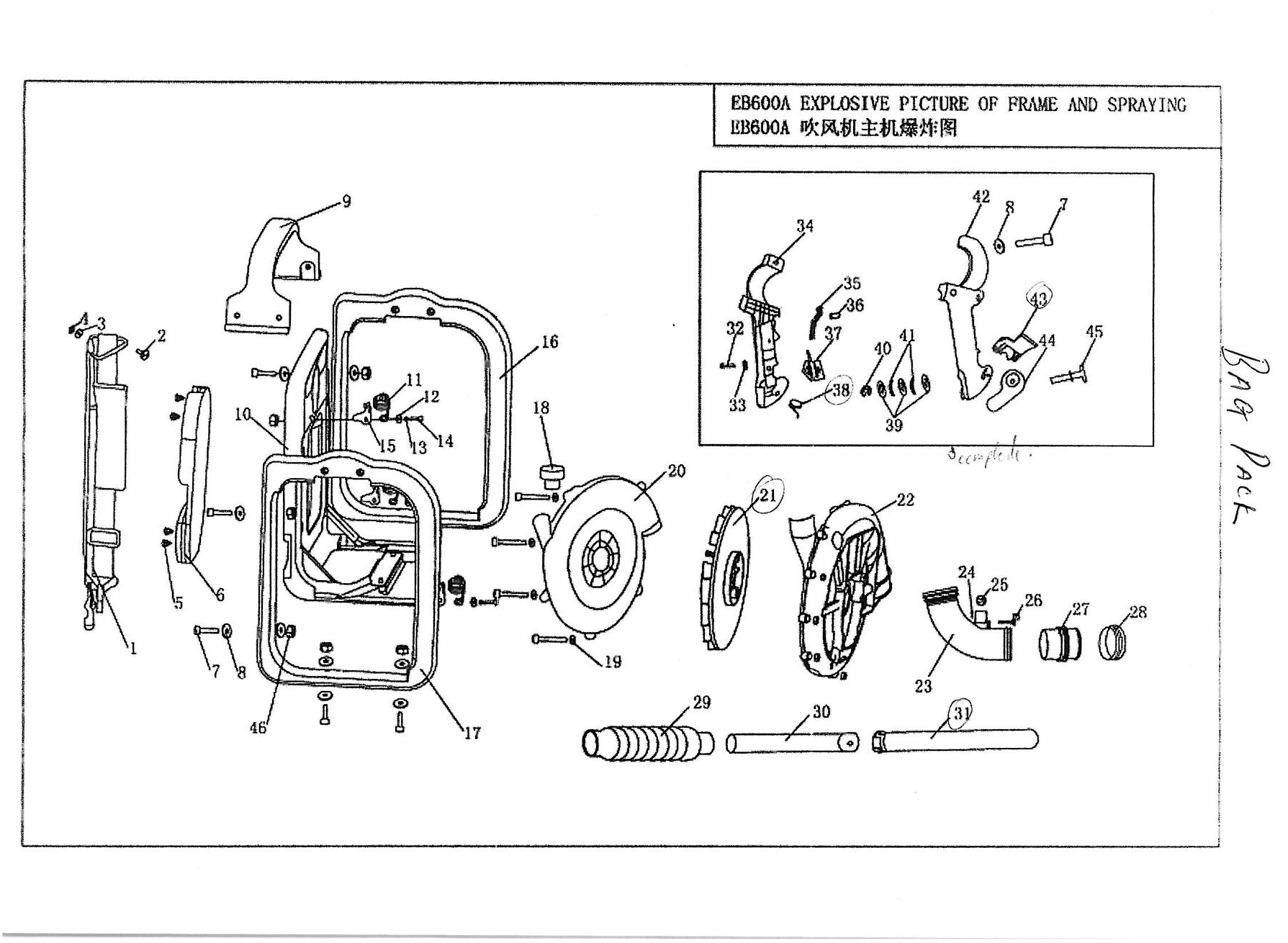

Diagram page 2

EB600 old type diagram page 2
Cleaned and correctly rotated diagram page

Clickable Parts List — Engine (Figure 1)

RefCutsmart SKUERP No.DescriptionQty
1-18866-Online8866STARTER1
1-26083-Online6083NUT M81
1-34253-Online4253WASHER81
1-42813-Online2813RATCHET1
1-52881-Online2881OIL SEAL1
1-62811-Online2811REAR HALF CRANK CASE1
1-74569-Online4569PIN B4X102
1-81787-Online1787BALL BEARING2
1-92638-Online2638CRANK SHAFT COMP1
1-104563-Online4563KEY1
1-110623-Online0623NEEDLE BEARING1
1-120191-Online0191PISTON PIN1
1-134550-Online4550PISTON PIN CIRCLIP2
1-142639-Online2639PISTON1
1-152921-Online2921PISTON RING2
1-162903-Online2903CRANK CASE GASKET1
1-172812-Online2812FRONT HALF CRANK CASE1
1-184413-Online4413WASHERS13
1-197813-Online7813WASHERS13
1-201164-Online1164SCREW9
1-212810-Online2810MAGNETO STATOR1
1-222882-Online2882OIL SEAL1
1-232809-Online2809MAGNETO ROTOR1
1-24CONNECTOR1
1-251848-Online1848SCREW2
1-262912-Online2912INNER LID1
1-272901-Online2901CYLINDER WASHER1
1-282941-Online2941CYLINDER1
1-292848-Online2848CABLE COMP1
1-302640-Online2640GASKET1
1-312885-Online2885MUFFLER COMP1
1-321167-Online1167SCREW2
1-330555-Online0555SPARK PLUG BPMR7A1
1-348648-Online8648COVER1
1-350010-Online0010TUBE1
1-362902-Online2902CYLINDER WASHER2
1-372892-Online2892BOARD1
1-382927-Online2927LINE CLIP1
1-396587-Online6587CLEANER1
1-402915-Online2915INLET MANIFOLD1
1-414373-Online4373SCREW2
1-422898-Online2898GASKET4
1-431991-Online1991CARBURETOR H1191
1-442922-Online2922LINKER1
1-457877-Online7877PRIMARY CORD GROMMET1
1-461173-Online1173SCREW M5*202
1-472982-Online2982BLOCK1
1-482786-Online2786SCREW1
1-494459-Online4459SCREW M5*502
1-502878-Online2878RUBBER SEAL1
1-512793-Online2793CORE1
1-522860-Online2860BOARD2
1-533028-Online3028COVER1
1-541167-Online1167SCREW M5*164
1-552829-Online2829FUEL TANK1
1-560243-Online0243RUBBER LID1
1-577989-Online7989PLASTIC LID1
1-580862-Online0862AIR INLET PLUG1
1-59FUEL TANK LID1
1-602718-Online2718OUTLET FUEL PIPE1

Clickable Parts List — Frame / Spraying (Figure 2)

RefCutsmart SKUERP No.DescriptionQty
2-11826-Online1826BELT ASS'Y2
2-24450-Online4450SCREW M6X122
2-33015-Online3015WASHER62
2-44305-Online4305NUT M62
2-50157-Online0157PLASTIC CLIP4
2-66984-Online6984BACK MAT1
2-71173-Online1173SCREW M5X2028
2-86536-Online6536WASHERS41
2-96983-Online6983HANDLE1
2-106980-Online6980FRAME1
2-113725-Online3725ANTI-VIBRATE SPRING3
2-125582-Online5582WASHER56
2-137813-Online7813WASHER523
2-141164-Online1164SCREW M5X258
2-152900-Online2900SPRING SUPPORT3
2-166982-Online6982RIGHT FRAME1
2-176981-Online6981LEFT FRAME1
2-181886-Online1886PAN CASE PLUG1
2-194413-Online4413WASHER510
2-208645-Online8645VOLUTE CASE1
2-218643-Online8643IMPELLER1
2-228644-Online8644VOLUTE CASE1
2-238675-Online8675FAN JOINT1
2-247808-Online7808PIN 1X81
2-256450-Online6450STOPPER1
2-266451-Online6451STOPPER AXIS1
2-276462-Online6462CONNECTOR1
2-280540-Online0540RUBBER PLUG1
2-298674-Online8674HOSE1
2-308015-Online8015PIPE1
2-317657-Online7657LONG JOINT TUBE1
2-324318-Online4318SCREW ST2.9*185
2-335083-Online5083WASHER35
2-343047-Online3047RIGHT CONTROL CASE1
2-352913-Online2913CONTACT1
2-363049-Online3049AXIS SLEEVE1
2-371026-Online1026SWITCH1
2-382917-Online2917RETURN SPRING1
2-393015-Online3015WASHER63
2-406074-Online6074AXIS CLIP1
2-416098-Online6098SADDLE WASHER 62
2-423048-Online3048LEFT CONTROL CASE1
2-430954-Online0954HANDLE (1)1
2-440995-Online0995HANDLE (2)1
2-452974-Online2974HANDLE AXIS1
2-464419-Online4419NUT M524
