Tandem Brushcutter XLI520 IPL Parts Diagram

Use this IPL to identify replacement parts. The original source pages are shown first, followed by a cleaned Hyundai-style clickable parts list. Click a Cutsmart SKU to open the matching product by SKU.

Suggested machine SKU: BRUSHCUTTER-XLI520-Online

Open machine/store option

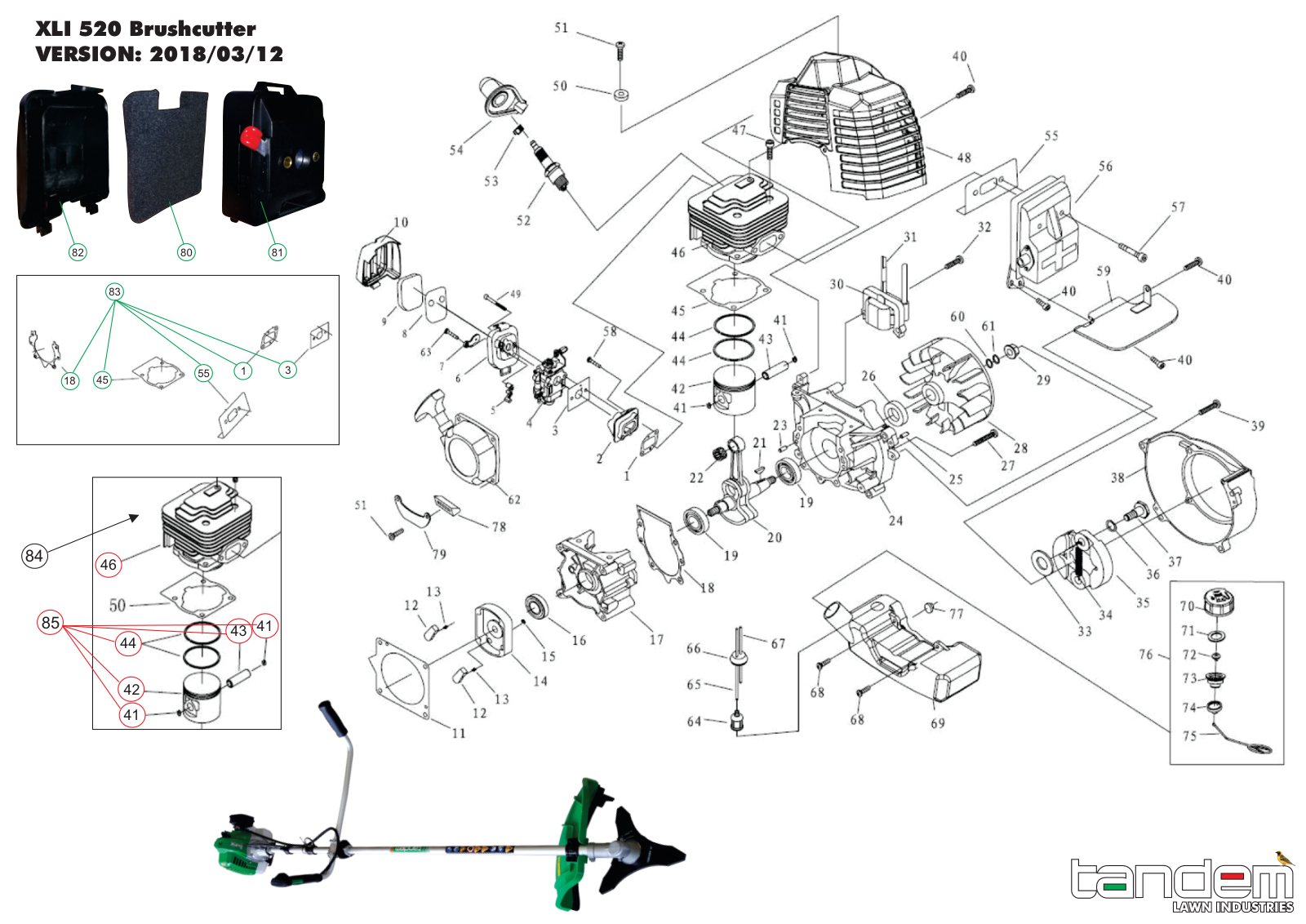

IPL source page 1

Tandem Brushcutter XLI520 IPL Parts Diagram source page 1

Click or tap page to enlarge

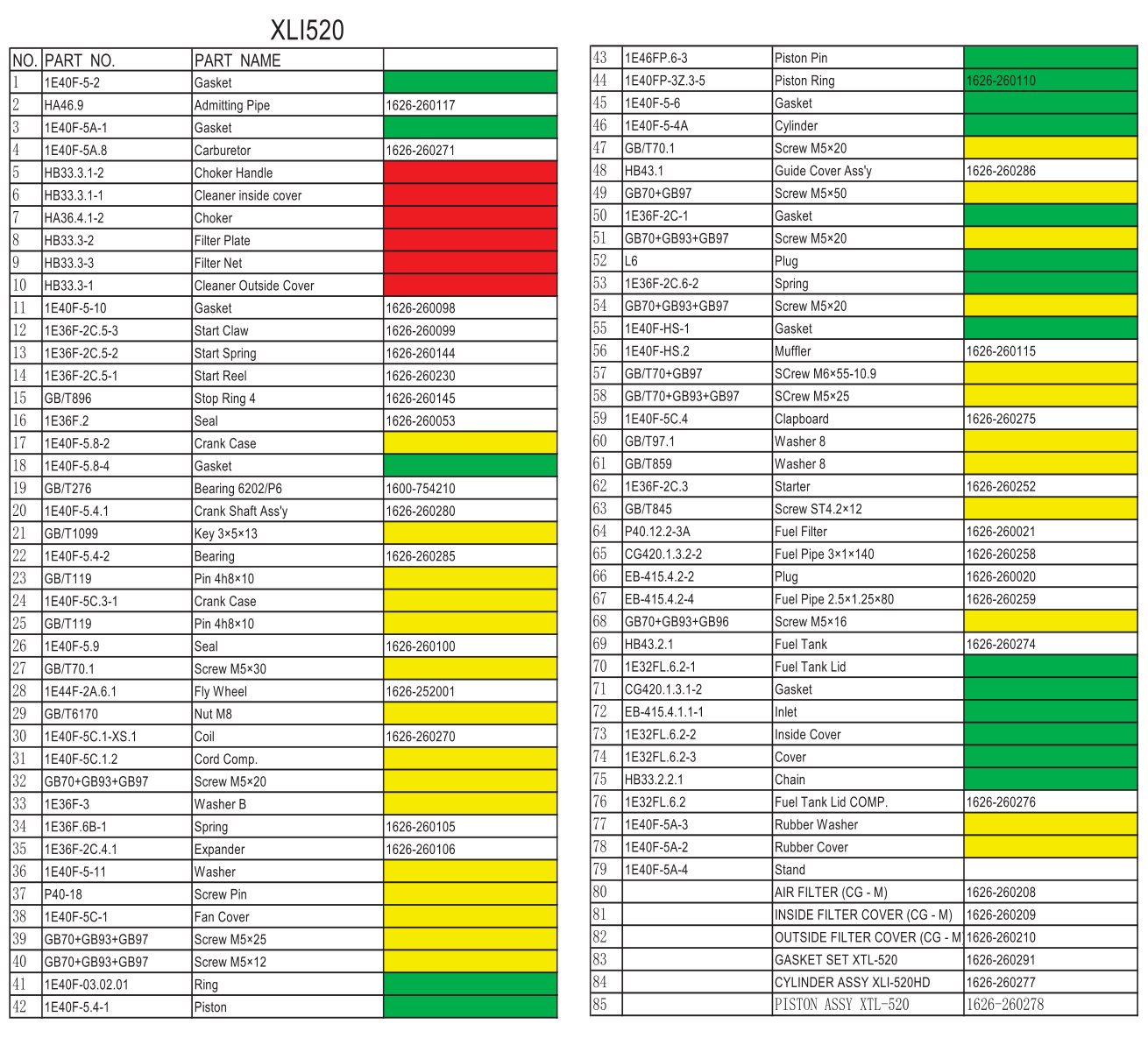

IPL source page 2

Tandem Brushcutter XLI520 IPL Parts Diagram source page 2

Click or tap page to enlarge

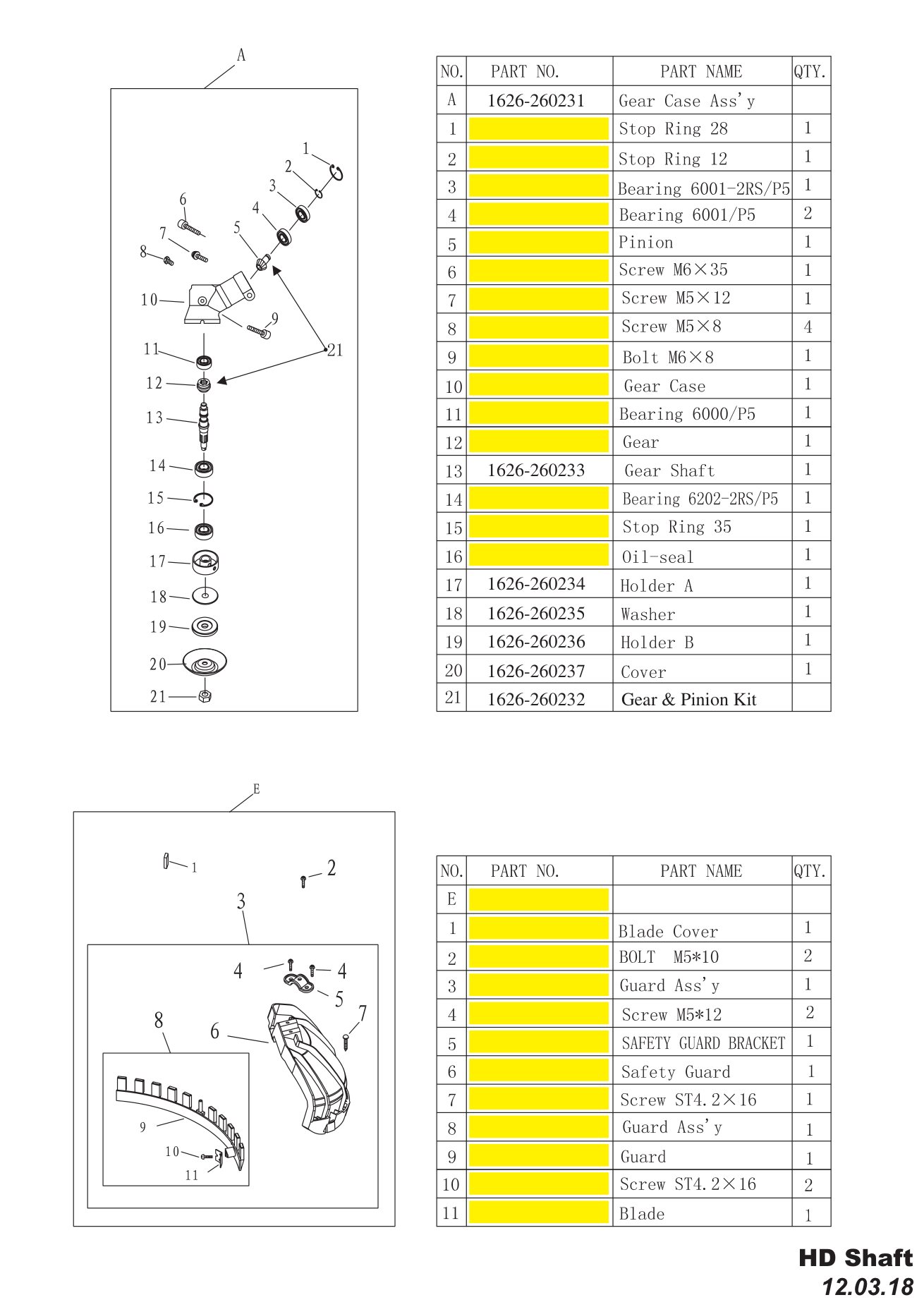

IPL source page 3

Tandem Brushcutter XLI520 IPL Parts Diagram source page 3

Click or tap page to enlarge

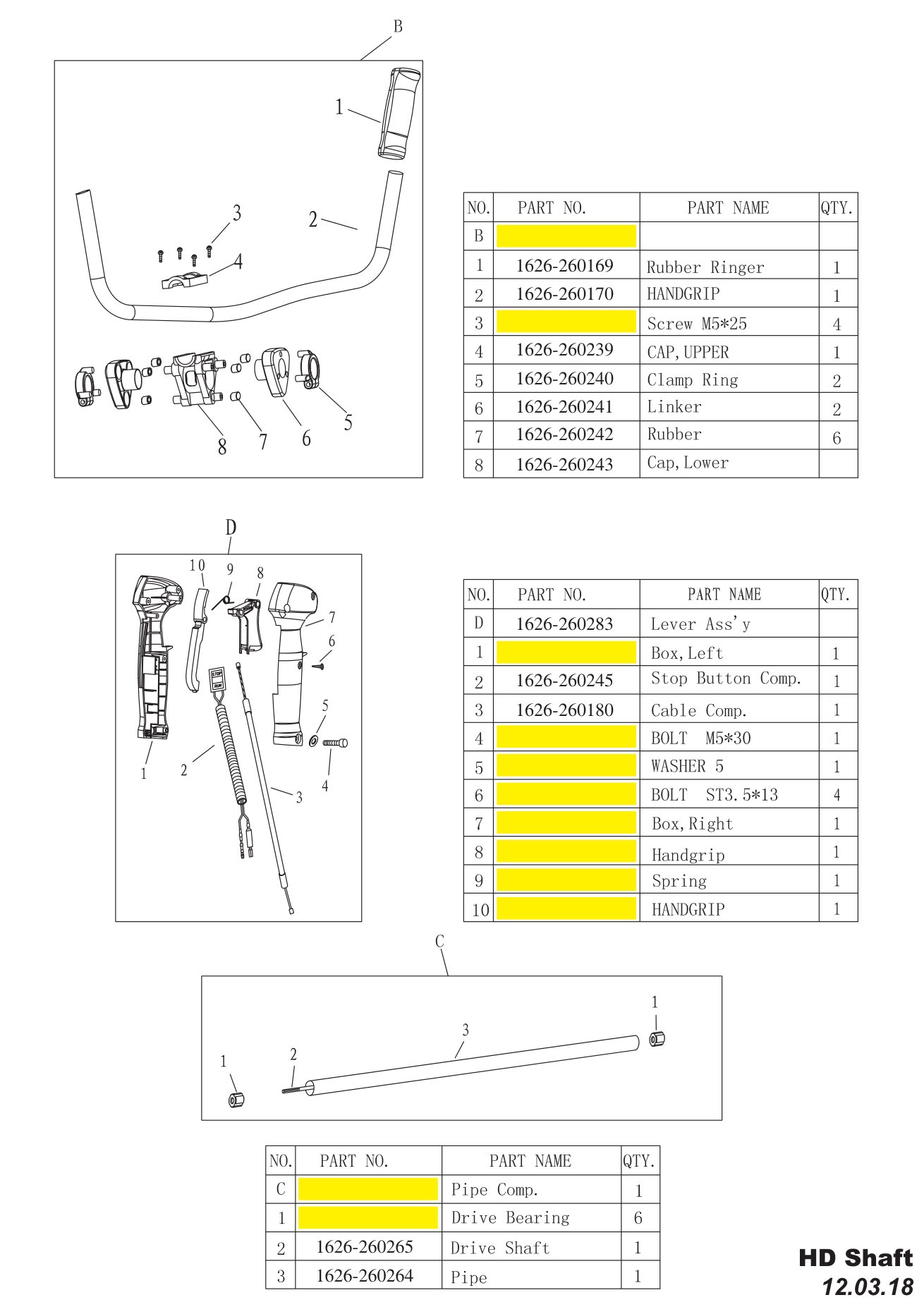

IPL source page 4

Tandem Brushcutter XLI520 IPL Parts Diagram source page 4

Click or tap page to enlarge

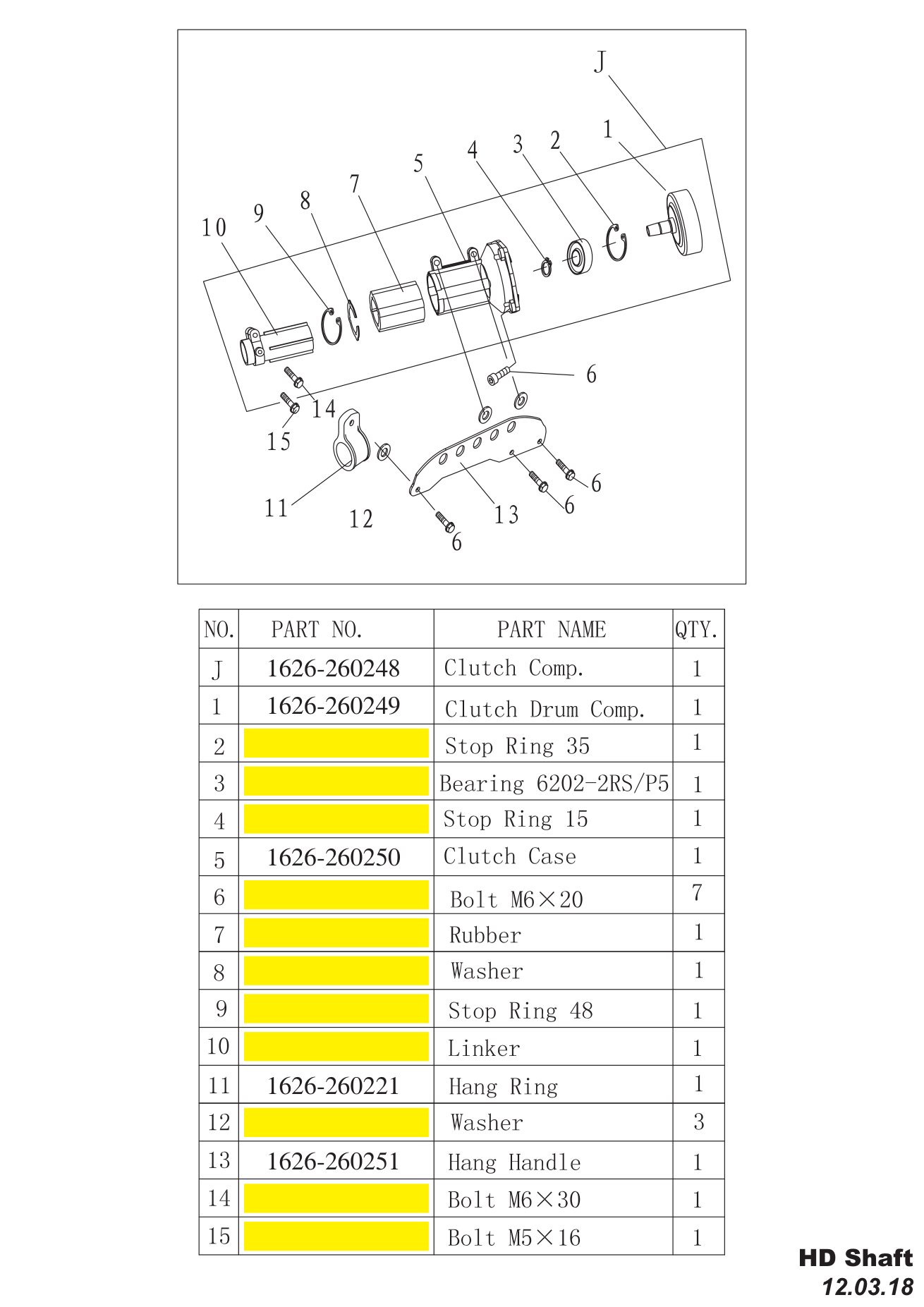

IPL source page 5

Tandem Brushcutter XLI520 IPL Parts Diagram source page 5

Click or tap page to enlarge

Clickable parts list

Main engine and fuel system - source page 2

Ref	Source Part No.	Description	Cutsmart Part No.	Qty	Cutsmart SKU
1	1E40F-5-2	Gasket		1
2	HA46.9	Admitting Pipe	1626-260117	1	Tan-1626-260117@online
3	1E40F-5A-1	Gasket		1
4	1E40F-5A.8	Carburetor	1626-260271	1	Tan-1626-260271@online
5	HB33.1-2	Choker Handle		1
6	HB33.1-1	Cleaner inside cover		1
7	HA36.4-2	Choker		1
8	HB33.-2	Filter Plate		1
9	HB33.-3	Filter Net		1
10	HB33.-1	Cleaner Outside Cover		1
11	1E40F-5-10	Gasket	1626-260098	1	Tan-1626-260098@online
12	1E36F-2C.5-3	Start Claw	1626-260099	2	Tan-1626-260099@online
13	1E36F-2C.5-2	Start Spring	1626-260144	1	Tan-1626-260144@online
14	1E36F-2C.5-1	Start Reel	1626-260230	1	Tan-1626-260230@online
15	GB/T896	Stop Ring 4	1626-260145	1	Tan-1626-260145@online
16	1E36F.2	Seal	1626-260053	1	Tan-1626-260053@online
17	1E40F-5.8-2	Crank Case		1
18	1E40F-5.8-4	Gasket		1
19	GB/T276	Bearing 6202/P6	1600-754210	1	Tan-1600-754210@online
20	1E40F-5.4.1	Crank Shaft Assy	1626-260280	1	Tan-1626-260280@online
21	GB/T1099	Key 3x5x13		1
22	1E40F-5.4-2	Bearing	1626-260285	1	Tan-1626-260285@online
23	GB/T119	Pin 4h8x10		1
24	1E40F-5C.3-1	Crank Case		1
25	GB/T119	Pin 4h8x10		1
26	1E40F-5.9	Seal	1626-260100	1	Tan-1626-260100@online
27	GB/T70.1	Screw M5x30		4
28	1E44F-2A.6.1	Fly Wheel	1626-252001	1	Tan-1626-252001@online
29	GB/T6170	Nut M8		1
30	1E40F-5C.1-XS.1	Coil	1626-260270	1	Tan-1626-260270@online
31	1E40F-5C.1.2	Cord Comp.		1
32	GB70+GB93+GB97	Screw M5x20		2
33	1E36F-3	Washer B		2
34	1E36F.6B-1	Spring	1626-260105	1	Tan-1626-260105@online
35	1E36F-2C.4.1	Expander	1626-260106	2	Tan-1626-260106@online
36	1E40F-5-11	Washer		2
37	P40-18	Screw Pin		2
38	1E40F-5C-1	Fan Cover		1
39	GB70+GB93+GB97	Screw M5x25		4
40	GB70+GB93+GB97	Screw M5x12		5
41	1E40F-03.02.01	Ring		2
42	1E40F-5.4-1	Piston		1
43	1E46FP.6-3	Piston Pin		1
44	1E40FP.3Z.3-5	Piston Ring	1626-260110	2	Tan-1626-260110@online
45	1E40F-5-6	Gasket		1
46	1E40F-5.4A	Cylinder		1
47	GB/T70.1	Screw M5x20		4
48	HB4.1	Guide Cover Assy	1626-260286	1	Tan-1626-260286@online
49	GB70+GB97	Screw M5x50		2
50	1E36F-2C-1	Gasket		1
51	GB70+GB93+GB97	Screw M5x20		4
52	L6	Plug		1
53	1E36F-2C.6.2	Spring		1
54	GB70+GB93+GB97	Screw M5x20		7
55	1E40F-HS-1	Gasket		1
56	1E40F-HS.2	Muffler	1626-260115	1	Tan-1626-260115@online
57	GB/T70+GB97	Screw M6x55-10.9		2
58	GB/T70+GB93+GB97	Screw M5x25		2
59	1E40F-5C.4	Clapboard	1626-260275	1	Tan-1626-260275@online
60	GB/T97.1	Washer 8		1
61	GB/T859	Washer 8		1
62	1E36F-2C.3	Starter	1626-260252	1	Tan-1626-260252@online
63	GB/T845	Screw ST4.2x12		1
64	P40.12.23A	Fuel Filter	1626-260021	1	Tan-1626-260021@online
65	CG420.1.3.2	Fuel Pipe 3x1x140	1626-260258	1	Tan-1626-260258@online
66	EB-415.4.2-2	Plug	1626-260020	1	Tan-1626-260020@online
67	EB-415.4.2-4	Fuel Pipe 2.5x1.25x80	1626-260259	1	Tan-1626-260259@online
68	GB70+GB93+GB96	Screw M5x16		2
69	HB43.2.1	Fuel Tank	1626-260274	1	Tan-1626-260274@online
70	1E32FL.6.2-1	Fuel Tank Lid		1
71	CG420.1.3.1-2	Gasket		1
72	EB-415.4.1.1-1	Inlet		1
73	1E32FL.6.2-2	Inside Cover		1
74	1E32FL.6.2-3	Cover		1
75	HB3.2.1	Chain		1
76	1E32FL.6.2	Fuel Tank Lid COMP.	1626-260276	1	Tan-1626-260276@online
77	1E40F-5A-3	Rubber Washer		1
78	1E40F-5A-2	Rubber Cover		1
79	1E40F-5A-4	Stand		1
80		AIR FILTER (CG - M)	1626-260208		Tan-1626-260208@online
81		INSIDE FILTER COVER (CG - M)	1626-260209		Tan-1626-260209@online
82		OUTSIDE FILTER COVER (CG - M)	1626-260210		Tan-1626-260210@online
83		GASKET SET XTL-520	1626-260291		Tan-1626-260291@online
84		CYLINDER ASSY XLI-520HD	1626-260277		Tan-1626-260277@online
85		PISTON ASSY XTL-520	1626-260278		Tan-1626-260278@online

Gear case assembly A - source page 3

Ref	Source Part No.	Description	Cutsmart Part No.	Qty	Cutsmart SKU
A	1626-260231	Gear Case Assy	1626-260231		Tan-1626-260231@online
A-1		Stop Ring 28		1
A-2		Stop Ring 12		1
A-3		Bearing 6001-2RS/P5		1
A-4		Bearing 6001/P5		2
A-5		Pinion		1
A-6		Screw M6x35		1
A-7		Screw M5x12		1
A-8		Screw M5x8		4
A-9		Bolt M6x8		1
A-10		Gear Case		1
A-11		Bearing 6000/P5		1
A-12		Gear		1
A-13	1626-260233	Gear Shaft	1626-260233	1	Tan-1626-260233@online
A-14		Bearing 6202-2RS/P5		1
A-15		Stop Ring 35		1
A-16		Oil-seal		1
A-17	1626-260234	Holder A	1626-260234	1	Tan-1626-260234@online
A-18	1626-260235	Washer	1626-260235	1	Tan-1626-260235@online
A-19	1626-260236	Holder B	1626-260236	1	Tan-1626-260236@online
A-20	1626-260237	Cover	1626-260237	1	Tan-1626-260237@online
A-21	1626-260232	Gear & Pinion Kit	1626-260232		Tan-1626-260232@online

Blade guard assembly E - source page 3

Ref	Description	Qty
E	Blade Cover	1
E-2	BOLT M5x10	2
E-3	Guard Assy	1
E-4	Screw M5x12	2
E-5	SAFETY GUARD BRACKET	1
E-6	Safety Guard	1
E-7	Screw ST4.2x16	1
E-8	Guard Assy	1
E-9	Guard	1
E-10	Screw ST4.2x16	2
E-11	Blade	1

Handlebar assembly B - source page 4

Ref	Source Part No.	Description	Cutsmart Part No.	Qty	Cutsmart SKU
B-1	1626-260169	Rubber Ringer	1626-260169	1	Tan-1626-260169@online
B-2	1626-260170	HANDGRIP	1626-260170	1	Tan-1626-260170@online
B-3		Screw M5x25		4
B-4	1626-260239	CAP, UPPER	1626-260239	1	Tan-1626-260239@online
B-5	1626-260240	Clamp Ring	1626-260240	2	Tan-1626-260240@online
B-6	1626-260241	Linker	1626-260241	2	Tan-1626-260241@online
B-7	1626-260242	Rubber	1626-260242	6	Tan-1626-260242@online
B-8	1626-260243	Cap, Lower	1626-260243		Tan-1626-260243@online

Throttle/lever assembly D - source page 4

Ref	Source Part No.	Description	Cutsmart Part No.	Qty	Cutsmart SKU
D	1626-260283	Lever Assy	1626-260283		Tan-1626-260283@online
D-1		Box, Left		1
D-2	1626-260245	Stop Button Comp.	1626-260245	1	Tan-1626-260245@online
D-3	1626-260180	Cable Comp.	1626-260180	1	Tan-1626-260180@online
D-4		BOLT M5x30		1
D-5		WASHER 5		1
D-6		BOLT ST3.5x13		4
D-7		Box, Right		1
D-8		Handgrip		1
D-9		Spring		1
D-10		HANDGRIP		1

Shaft pipe assembly C - source page 4

Ref	Source Part No.	Description	Cutsmart Part No.	Qty	Cutsmart SKU
C		Pipe Comp.		1
C-1		Drive Bearing		6
C-2	1626-260265	Drive Shaft	1626-260265	1	Tan-1626-260265@online
C-3	1626-260264	Pipe	1626-260264	1	Tan-1626-260264@online

Clutch assembly J - source page 5

Ref	Source Part No.	Description	Cutsmart Part No.	Qty	Cutsmart SKU
J	1626-260248	Clutch Comp.	1626-260248	1	Tan-1626-260248@online
J-1	1626-260249	Clutch Drum Comp.	1626-260249	1	Tan-1626-260249@online
J-2		Stop Ring 35		1
J-3		Bearing 6202-2RS/P5		1
J-4		Stop Ring 15		1
J-5	1626-260250	Clutch Case	1626-260250	1	Tan-1626-260250@online
J-6		Bolt M6x20		7
J-7		Rubber		1
J-8		Washer		1
J-9		Stop Ring 48		1
J-10		Linker		1
J-11	1626-260221	Hang Ring	1626-260221	1	Tan-1626-260221@online
J-12		Washer		3
J-13	1626-260251	Hang Handle	1626-260251	1	Tan-1626-260251@online
J-14		Bolt M6x30		1
J-15		Bolt M5x16		1
