Victa VSR38 FER SD VC550 38 Inch Ride On Mower IPL Parts Diagram

Victa VSR38 FER SD VC550 38 Inch Ride On Mower IPL Parts Diagram

Victa VSR38 FER SD VC550 38 Inch Ride On Mower IPL Parts Diagram

Use this IPL to identify replacement parts. Each section shows the exploded diagram first, followed by a clickable HTML parts list. Click a Cutsmart SKU to open the matching product by SKU.

Brand section: Victa   |   Suggested machine SKU: VSR38-Online

Open machine/store option

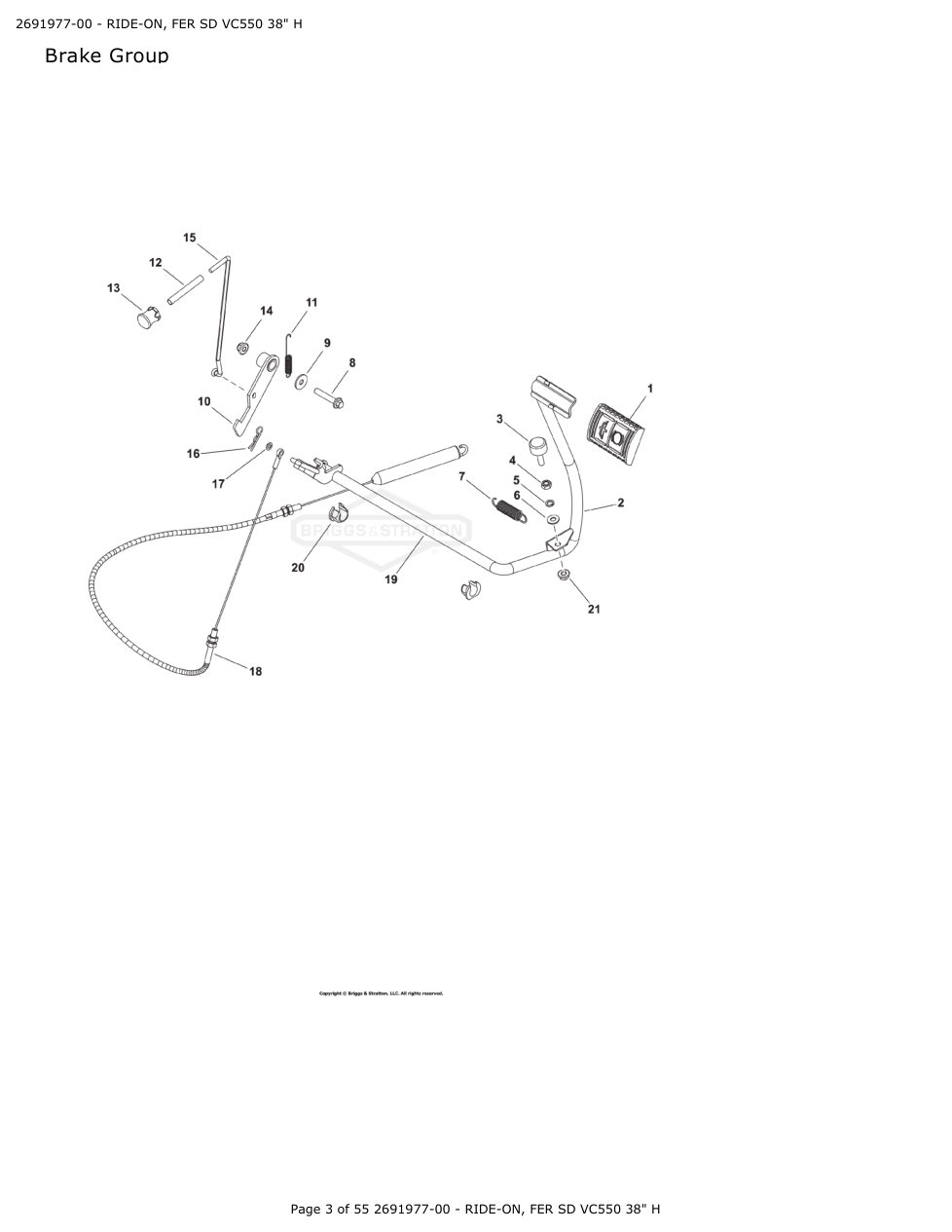

Brake Group

Victa VSR38 FER SD VC550 38 Inch Ride On Mower IPL Parts Diagram Brake Group diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1PEDAL BRAKE8010095780100957-Online1
2LEVER ASSEMBLY, BRAKE8010127780101277-Online1
3DAMPER PAD8010087880100878-Online1
4NUT HEX M8NUTHEXM8-Online1
5WASHER, SPRING M8Vic-WASHER,SPRINGM8@online1
6WASHER, FLAT M8Vic-WASHER,FLATM8@online1
7SPRING, BRAKE LEVER8010127680101276-Online1
8BOLT, HEX FLANGE - M8x45Vic-BOLT,M8x45-Online1
9x 2MMWASHER, FLAT 8.4ID x 24ODVic-WASHER,FLAT8.4IDx24OD@online1
10HOOK, PARKING BRAKE8010120480101204-Online1
11SPRING, RETURN - PARK — BRAKE8010120380101203-Online1
12SLEEVE, PARKING ROD1
13KNOB, PARK BRAKE8010120580101205-Online1
14LOCKNUT, HEX FLANGE - M8Vic-LOCKNUT,M8-Online1
15ROD, PARKING BRAKE8010120280101202-Online1
16R CLIP 10 DIA SHAFT X 2mm — DIA8010095480100954-Online1
17WASHER, FLAT M6 x 1.2mmVic-WASHER,FLATM6x1.2mm@online1
18CABLE, BRAKE8010127880101278-Online1
19E-CLIP 12 DIA x 1.2mmE-CLIP12DIAx1.2mm-Online1
20BUSH OPEN SNAP-ON8010095880100958-Online2
21NUT HEX M8NUTHEXM8-Online1

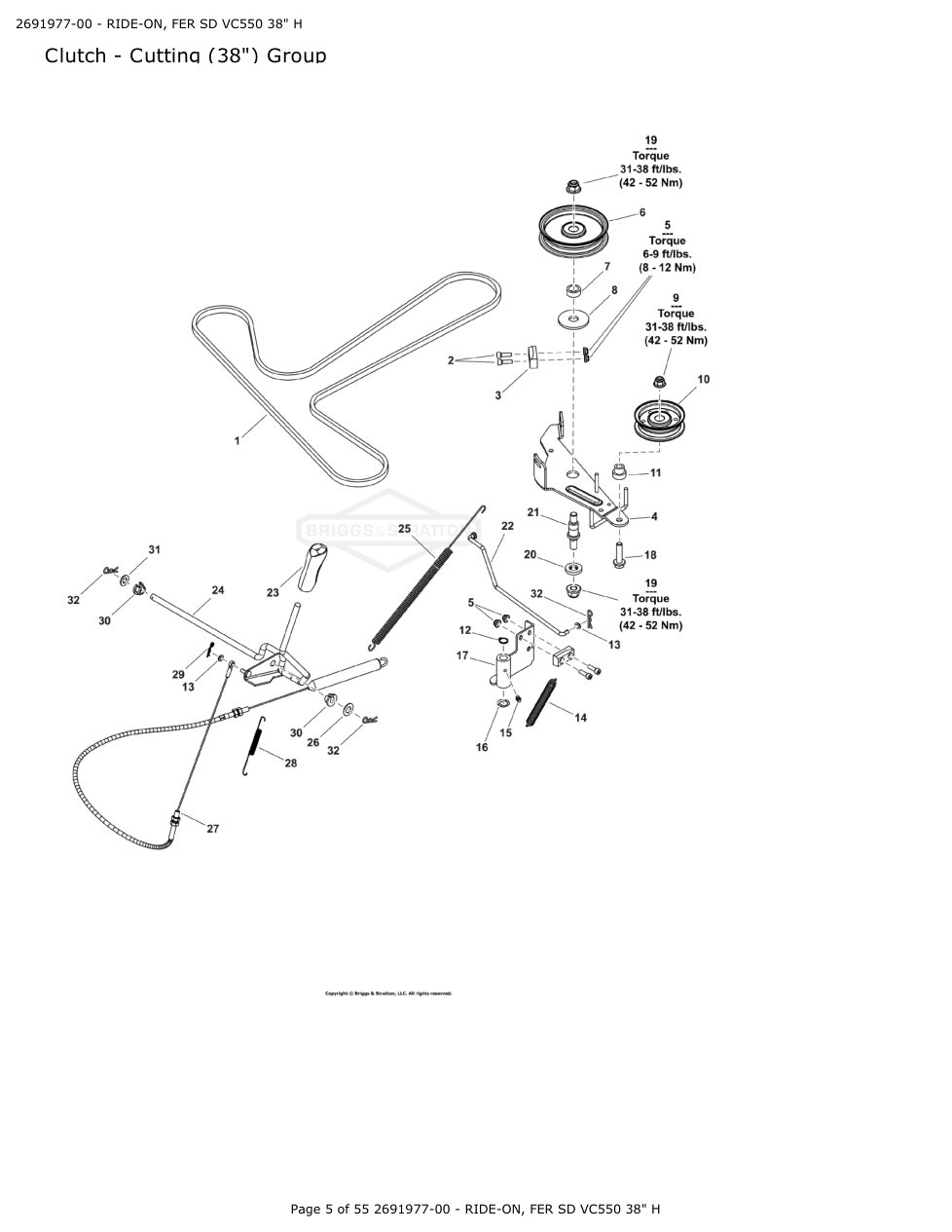

Clutch - Cutting (38") Group

Victa VSR38 FER SD VC550 38 Inch Ride On Mower IPL Parts Diagram Clutch - Cutting (38") Group diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1V-BELT, 48x9008010162180101621-Online1
2SCREW, SOCKET HEAD CAP — M6X204
3BRAKE SHOE8010086780100867-Online2
4BRACKET, PIVOT ARM8010116780101167-Online1
5LOCKNUT HEX FLANGE M6LOCKNUTHEXFLANGEM6-Online4
6PULLEY, IDLER8010117080101170-Online1
7BUSH, IDLER PULLEY8010116080101160-Online1
8WASHER, FLAT8010115880101158-Online1
9LOCKNUT HEX FLANGE — M10x1.258010070780100707-Online1
10PULLEY, TENSION8010130280101302-Online1
11BUSH, TENSION PULLEY8010129580101295-Online1
12CIRCLIP EXTERNAL 13MM8010077980100779-Online1
13WASHER, FLAT M6 x 1.2mmVic-WASHER,FLATM6x1.2mm@online1
14SPRING EXT DRIVE8010116480101164-Online2
15GREASE NIPPLE, M68010081380100813-Online1
16WASHER, WAVE M14x0.4MMVic-WASHER,WAVEM14x0.4MM@online1
17BRACKET, BRAKE ARM8010116680101166-Online1
18BOLT, HEX FLANGE8010066580100665-Online1
19LOCKNUT HEX FLANGE — M12X1.252
20BUSH, IDLER ARM8010115980101159-Online1
21SHAFT, IDLER PULLEY8010116180101161-Online1
22ROD, CUTTING - R (38")8010115380101153-Online1
23HANDLE8010116280101162-Online1
24LEVER ASSEMBLY, CLUTCH8010116980101169-Online1
25SPRING, EXTENSION - LEFT — BRAKE8010115480101154-Online1
26x 1MMWASHER, FLAT 12.4ID x 24ODVic-WASHER,FLAT12.4IDx24OD@online1
27CABLE, CUTTING CLUTCH8010116880101168-Online1
28SPRING, CLUTCH LEVER8010115780101157-Online1
29R CLIP 6 DIA SHAFT X 1.4mm — DIA8010095680100956-Online1
30BUSH, OPEN - SNAP ON2
31WASHER, FLAT M10 X 2Vic-WASHER,FLATM10X2@online1
32R CLIP 10 DIA SHAFT X 2mm — DIA8010095480100954-Online3

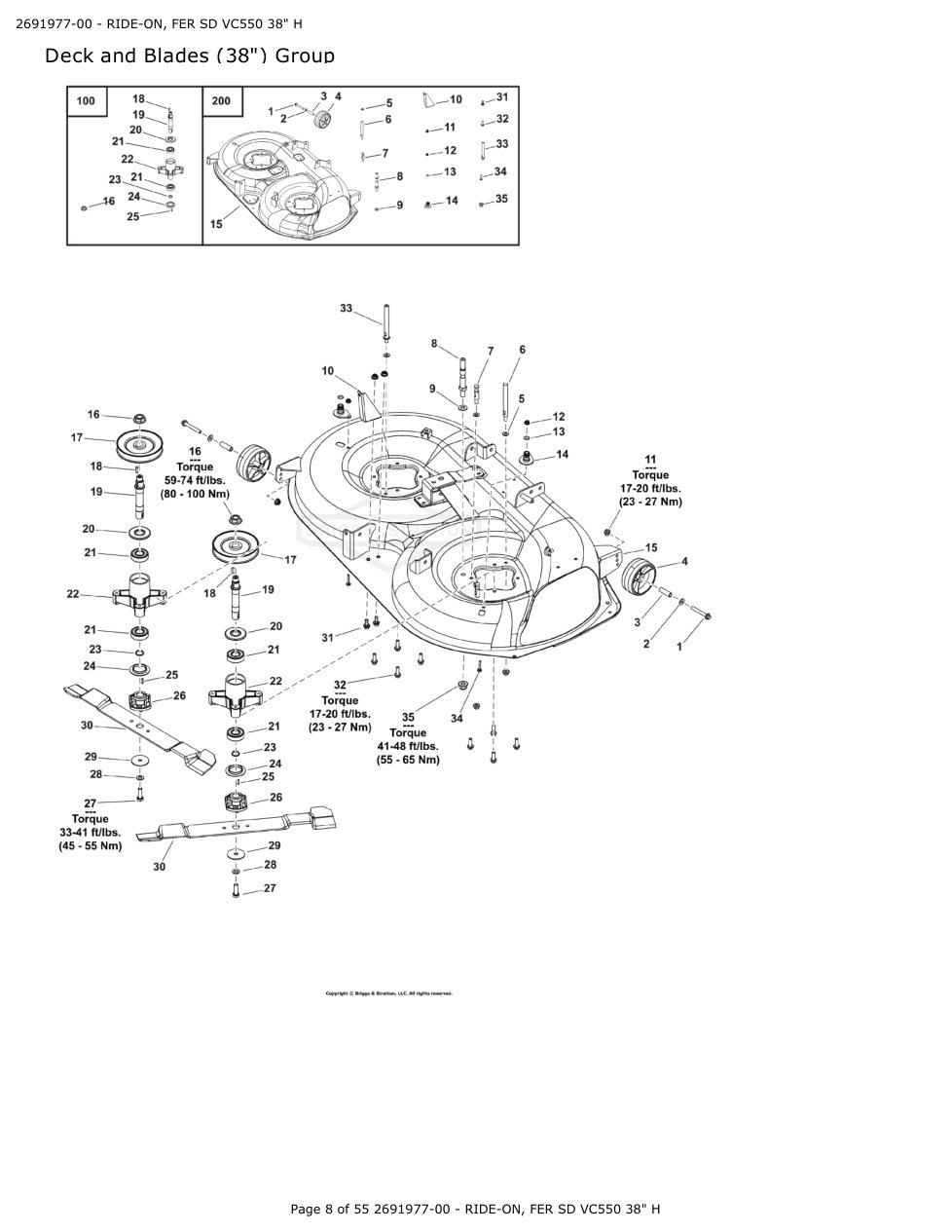

Deck and Blades (38") Group

Victa VSR38 FER SD VC550 38 Inch Ride On Mower IPL Parts Diagram Deck and Blades (38") Group diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1( Included with — Ref. No. 200 )80100673 BOLT, HEX FLANGE - M8x60Vic-80100673BOLT,M8x60-Online2
2( Included with — Ref. No. 200 )WASHER, FLAT M8Vic-WASHER,FLATM8@online2
3( Included with — Ref. No. 200 )80101317 BUSH, AXLEVic-80101317BUSH,AXLE@online2
4( Included with — Ref. No. 200 )80101316 WHEEL, LEVELINGVic-80101316WHEEL,LEVELING@online2
5( Included with — 17OD x 1.6 Ref. No. 200 )WASHER, FLAT 8.1ID xVic-WASHER,FLAT8.1IDx@online3
6( Included with — Ref. No. 200 )80101165 STUD80101165STUD-Online1
7( Included with — Ref. No. 200 )80101163 POST, TENSION SPRINGVic-80101163POST,TENSIONSPRING@online1
8( Included with — Ref. No. 200 )80101152 POST, RIGHT BRAKEVic-80101152POST,RIGHTBRAKE@online1
9( Included with — Ref. No. 200 )WASHER, FLAT - M12x2mmVic-WASHER,M12x2mm-Online1
10( Included with — Ref. No. 200 )80101156 BRACKET, CABLE SUPPORTVic-80101156BRACKET,CABLESUPPORT@online1
11( Included with — Ref. No. 200 )LOCKNUT HEX FLANGE M8LOCKNUTHEXFLANGEM8-Online7
12( Included with — Ref. No. 200 )LOCKNUT HEX FLANGE M6LOCKNUTHEXFLANGEM6-Online2
13( Included with — Ref. No. 200 )O-RING 11.2 DIA x 1.8 DIAO-RING11.2DIAx1.8DIA-Online2
14( Included with — HOSE Ref. No. 200 )80100988 CONNECTION, WATERVic-80100988CONNECTION,WATER@online2
15( Included with — Ref. No. 200 )80101225 DECK - 38"Vic-80101225DECK-38"@online1
162mm80100990 NUT HEX FLANGE M16 x80100990NUTHEXFLANGEM16x-Online2
1780100997 PULLEY CUTTING80100997PULLEYCUTTING-Online2
18( Included with — Ref. No. 100 )80100814 KEY FLAT 6 x 6 x 18mm80100814KEYFLAT6x6x18mm-Online2
19( Included with — Ref. No. 100 )80100985 SPINDLE BLADE80100985SPINDLEBLADE-Online2
20( Included with — Ref. No. 100 )80101319 COVER DUST TOP BEARING80101319COVERDUSTTOPBEARING-Online2
21( Included with — Ref. No. 100 )80100805 BEARING 6204-2RZ80100805BEARING6204-2RZ-Online4
22HOUSING BEARING — ( Included with Ref. No. 100 )2
23( Included with — Ref. No. 100 )80100778 CIRCLIP EXTERNAL 19 DIA80100778CIRCLIPEXTERNAL19DIA-Online2
24( Included with — BEARING Ref. No. 100 )80100995 COVER DUST BOTTOM80100995COVERDUSTBOTTOM-Online2
25( Included with — Ref. No. 100 )80100815 KEY WOODRUFF 4×16mmVic-80100815KEYWOODRUFF4×16mm@online2
2680100984 SLEEVE LOCKING80100984SLEEVELOCKING-Online2
271-1/4 (10.9 GRADE)80100670 BOLT, HEX HEAD 3/8"-24 xVic-80100670BOLT,HEXHEAD3/8"-24x@online2
28WASHER, FLAT M10 X 2Vic-WASHER,FLATM10X2@online2
29OD x 2.5mm80100986 WASHER, FLAT 10 ID x 48Vic-80100986WASHER,FLAT10IDx48@online2
3080101670 BLADE BAR, 38"Vic-80101670BLADEBAR,38"@online2
31( Included with — Ref. No. 200 )BOLT, HEX FLANGE - M8x16Vic-BOLT,M8x16-Online2
32BOLT, HEX FLANGE HEAD — ( Included with M8 x 25 Ref. No. 200 )8
33( Included with — Ref. No. 200 )80101155 STUD80101155STUD-Online1
34SCREW, PAN HEAD — ( Included with PHILLIPS - M6x30 Ref. No. 200 )2
35LOCKNUT HEX FLANGE — ( Included with M12X1.25 Ref. No. 200 )1
100( Incl. Ref. Nos. — 18-25 )80104195 KIT, SPINDLE ASSYVic-80104195KIT,SPINDLEASSY@online
200( Incl. Ref. Nos. 1- — 15 & 31-35 )80102238 KIT, DECK ASSY 38"Vic-80102238KIT,DECKASSY38"@online

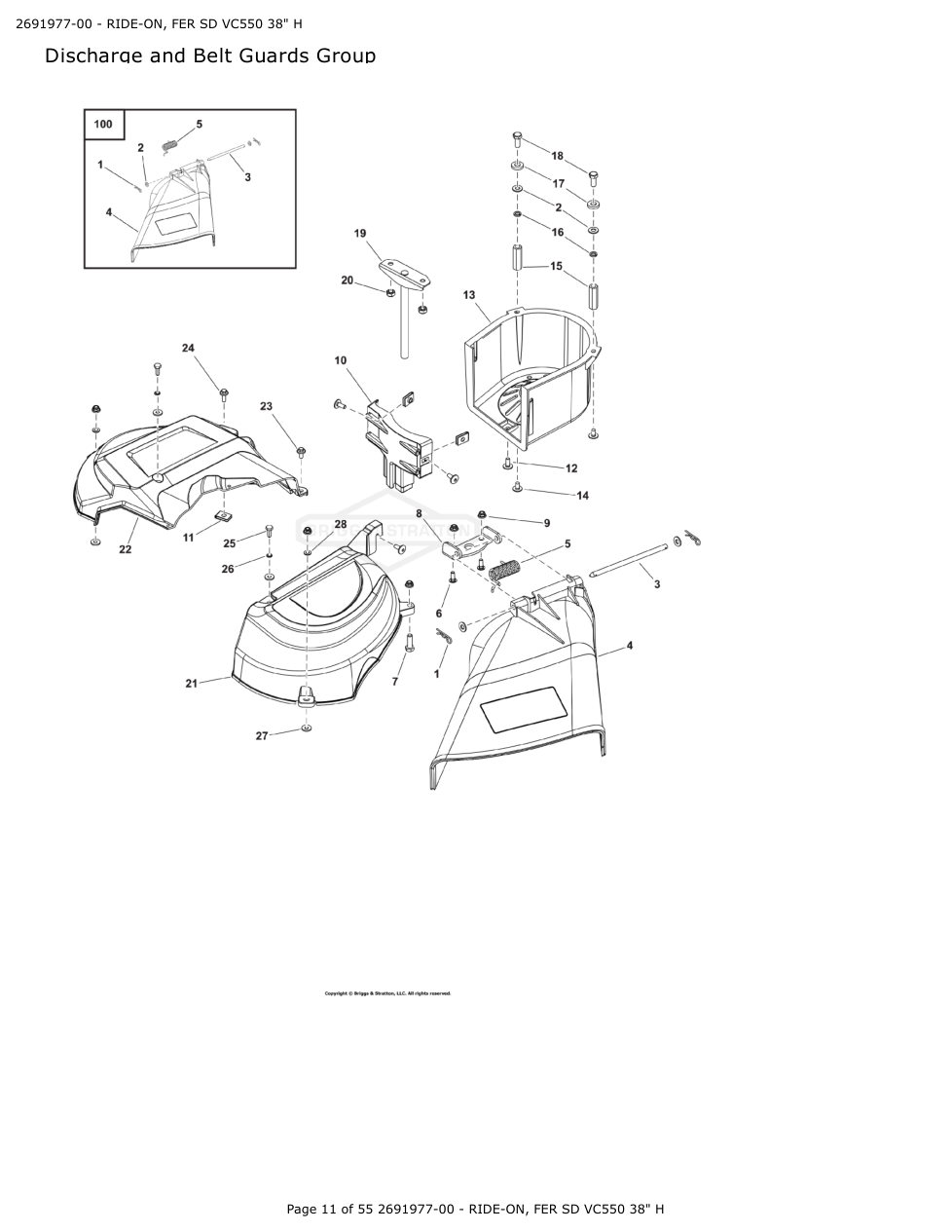

Discharge and Belt Guards Group

Victa VSR38 FER SD VC550 38 Inch Ride On Mower IPL Parts Diagram Discharge and Belt Guards Group diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1( Included with Ref. 2 — 2mm DIA No. 100 )80100954 R CLIP 10 DIA SHAFT X80100954RCLIP10DIASHAFTX-Online
2( Included with Ref. 4 — 17OD x 1.6 No. 100 )WASHER, FLAT 8.1ID xVic-WASHER,FLAT8.1IDx@online
3( Included with Ref. 1 — No. 100 )80101252 PIN SIDE DISCHARGE80101252PINSIDEDISCHARGE-Online
4GUARD SIDE DISCHARGE — ( Included with Ref. 1 No. 100 )
5( Included with Ref. 1 — DISCHARGE No. 100 )80101200 TORSION SPRING SIDE80101200TORSIONSPRINGSIDE-Online
6BOLT, SQ NECK HALF — ROUND HEAD M6X162
7BOLT, HEX HEAD - M8x25Vic-BOLT,M8x25-Online1
880101201 HINGE, EJECTOR CHUTEVic-80101201HINGE,EJECTORCHUTE@online1
9LOCKNUT HEX FLANGE M6LOCKNUTHEXFLANGEM6-Online5
10COVER, BELT - REAR1
11U-NUT M6U-NUTM6-Online3
12SCREW, FLAT HEAD — SOCKET CAP M6×164
1320101249 COVER, BELT - FRONTVic-20101249COVER,FRONT-Online2
14SCREW, FLAT HEAD — SOCKET CAP M6X122
15ROD, HEXAGONAL2
16WASHER, SPRING M8Vic-WASHER,SPRINGM8@online2
17OD x 4MMWASHER, FLAT 10.1 ID x 20Vic-WASHER,FLAT10.1IDx20@online2
18BOLT, HEX HEAD - M8x20Vic-BOLT,M8x20-Online2
1980100847 PIN, BELT GUIDEVic-80100847PIN,BELTGUIDE@online1
20LOCKNUT HEX M8LOCKNUTHEXM8-Online2
2180101248 COVER BELT - R.H.80101248COVERBELT-R.H.-Online1
2280101247 COVER BELT - L.H.80101247COVERBELT-L.H.-Online1
23BOLT, HEX FLANGE - M6x12Vic-BOLT,M6x12-Online1
24BOLT, HEX FLANGE M6×16Vic-BOLT,HEXFLANGEM6×16@online1
25SCREW, HEX HEAD - M6x16Vic-SCREW,M6x16-Online2
26WASHER, SPRING M6Vic-WASHER,SPRINGM6@online2
27WASHER, FLAT M6 x 1.5mmVic-WASHER,FLATM6x1.5mm@online4
28WASHER, FLAT M6 x 1.2mmVic-WASHER,FLATM6x1.2mm@online2
100( Incl. Ref. Nos. 1, — 2, 3, 4 & 5 )80107182 KIT, DISCHARGE GUARDVic-80107182KIT,DISCHARGEGUARD@online

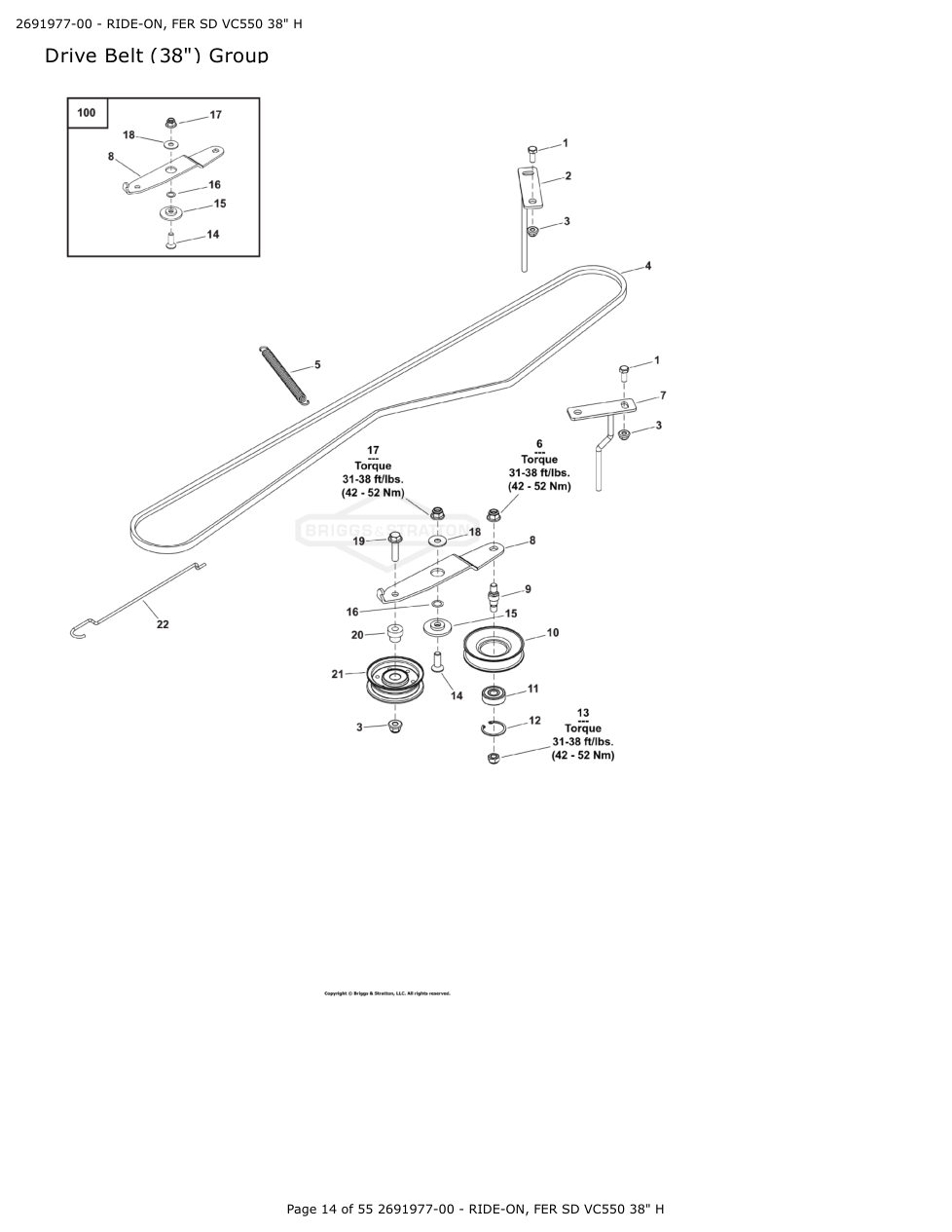

Drive Belt (38") Group

Victa VSR38 FER SD VC550 38 Inch Ride On Mower IPL Parts Diagram Drive Belt (38") Group diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1BOLT, HEX HEAD - — M8x202
280101266 GUIDE, PIN BELT - L.H.Vic-80101266GUIDE,L.H.-Online1
3LOCKNUT HEX FLANGE — M82
480100821 V-BELT, LG4-890Vic-80100821V-BELT,890-Online1
580101151 SPRING, EXTENSIONVic-80101151SPRING,EXTENSION@online1
6M10x1.2580100707 LOCKNUT HEX FLANGE80100707LOCKNUTHEXFLANGE-Online2
780101265 GUIDE, PIN BELT - R.H.Vic-80101265GUIDE,R.H.-Online1
8( Included with Ref. No. 1 — DRIVING 100 )80101263 ARM, TENSION -Vic-80101263ARM,TENSION-@online
9PULLEY80101150 SHAFT, TENSIONVic-80101150SHAFT,TENSION@online1
1080100876 PULLEY TENSION RER80100876PULLEYTENSIONRER-Online1
1180100806 BEARING 6301-2RS80100806BEARING6301-2RS-Online1
12CIRCLIP INTERNAL — 37MM1
13M10x1.2580100706 LOCKNUT HEX80100706LOCKNUTHEX-Online1
14SCREW, CSKCAP - — ( Included with Ref. No. 1 M10x30 100 )
15( Included with Ref. No. 1 — TENSION ARM 100 )80101262 BUSH, DRIVING -Vic-80101262BUSH,DRIVING-@online
16WASHER — ( Included with Ref. No. 1 100 )
17- M10 100 )NUT, FLANGE LOCKING ( Included with Ref. No. 1Vic-NUT,FLANGELOCKING(IncludedwithRef.No.1@online
18WASHER, FLAT — ( Included with Ref. No. 1 100 )
1980100665 BOLT, HEX FLANGEVic-80100665BOLT,HEXFLANGE@online1
20PULLEY80101295 BUSH, TENSIONVic-80101295BUSH,TENSION@online1
2180101302 PULLEY, TENSIONVic-80101302PULLEY,TENSION@online1
2280101261 PULL ROD80101261PULLROD-Online1
100ARM ASSY FER 15, 16, 17 & 18 )80107692 KIT, DRIVING TENSION ( Incl. Ref. Nos. 8, 14,Vic-80107692KIT,DRIVINGTENSION(Incl.Ref.Nos.8,14,@online

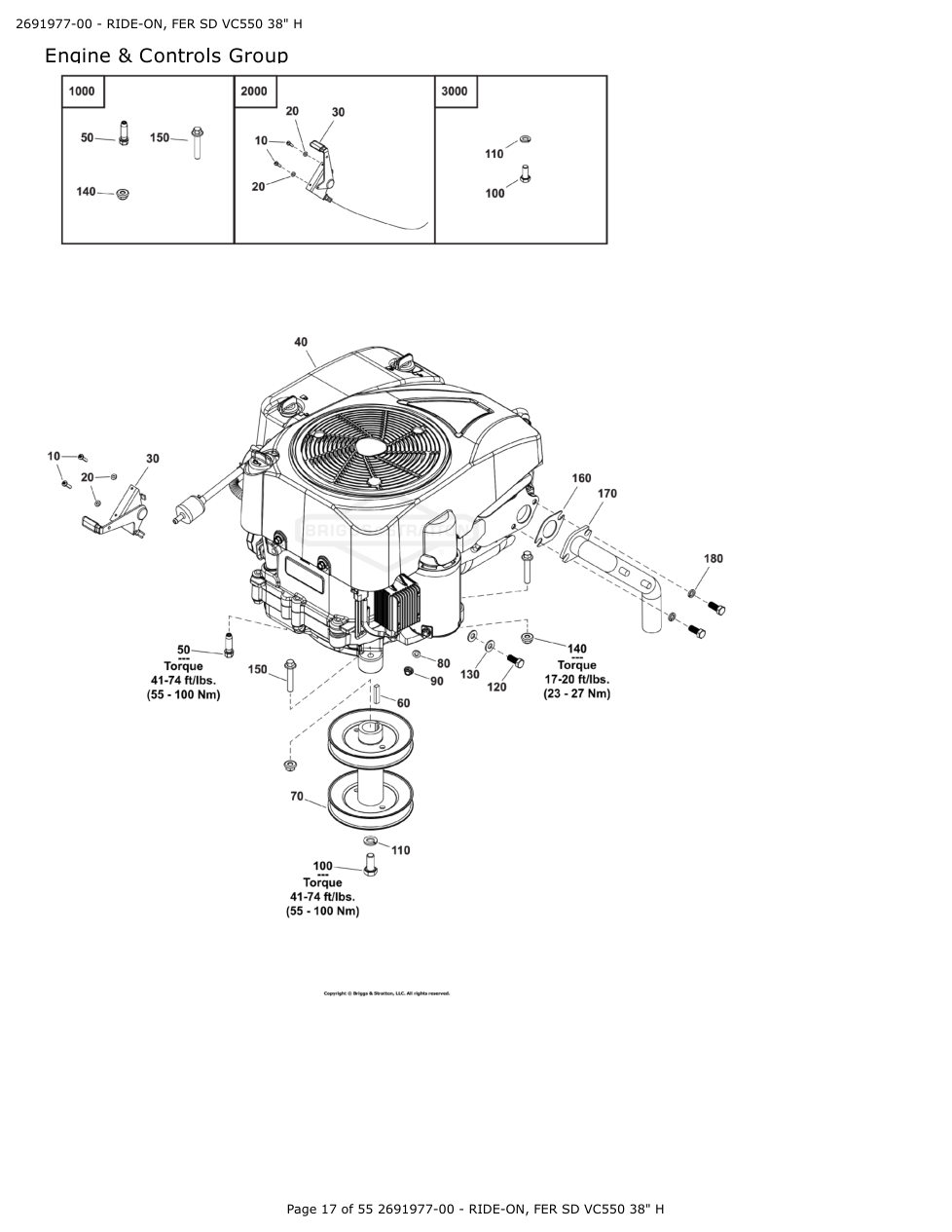

Engine & Controls Group

Victa VSR38 FER SD VC550 38 Inch Ride On Mower IPL Parts Diagram Engine & Controls Group diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
10SCREW, PHILLIPS — ( Included with Ref. No. 200 PAN HEAD )2
20WASHER, FLAT - — ( Included with Ref. No. 200 M4 )2
30THROTTLE CABLE — ( Included with Ref. No. 200 )1
40( Refer to Note: *) ( Engine — VICTA style may vary from COMMERCIAL illustration )80110319 * ENGINE, VC550Vic-80110319*ENGINE,VC550@online1
50( Included with Ref. No. 100 — )SCREW 3/8"Vic-SCREW3/8"@online1
6080100869 KEY FLAT 6.35×30Vic-80100869KEYFLAT6.35×30@online1
7080101326 PULLEY, DRIVEVic-80101326PULLEY,DRIVE@online1
80x 1.2mmWASHER, FLAT M6Vic-WASHER,FLATM6@online1
90LOCKNUT HEX — FLANGE M61
100BOLT, HEX HEAD — ( Included with Ref. No. 300 )1
110WASHER, SPRING — ( Included with Ref. No. 300 )1
120BOLT, 5/16"Vic-BOLT,5/16"@online3
130WASHER, FLAT M8Vic-WASHER,FLATM8@online2
140LOCKNUT HEX — ( Included with Ref. No. 100 FLANGE M8 )3
150- M8x45 )BOLT, HEX FLANGE ( Included with Ref. No. 100Vic-BOLT,HEXFLANGE(IncludedwithRef.No.100@online3
16080114835 GASKET, EXHAUSTVic-80114835GASKET,EXHAUST@online1
550
170CONNECTION 55080114836 EXHAUST80114836EXHAUST-Online1
180WASHER, SPRING — 5/16"2
1000( Incl. Ref. Nos. 5, 14 & 15 ) — HARDWARE80116090 KIT, ENGINE 550Vic-80116090KIT,ENGINE550@online
2000( Incl. Ref. Nos. 1, 2 & 3 ) — CABLE ASSY FER80104191 KIT, THROTTLEVic-80104191KIT,THROTTLE@online
3000( Incl. Ref. Nos. 10 & 11 ) — ENGINE PULLEY80104193 KIT, HARDWAREVic-80104193KIT,HARDWARE@online

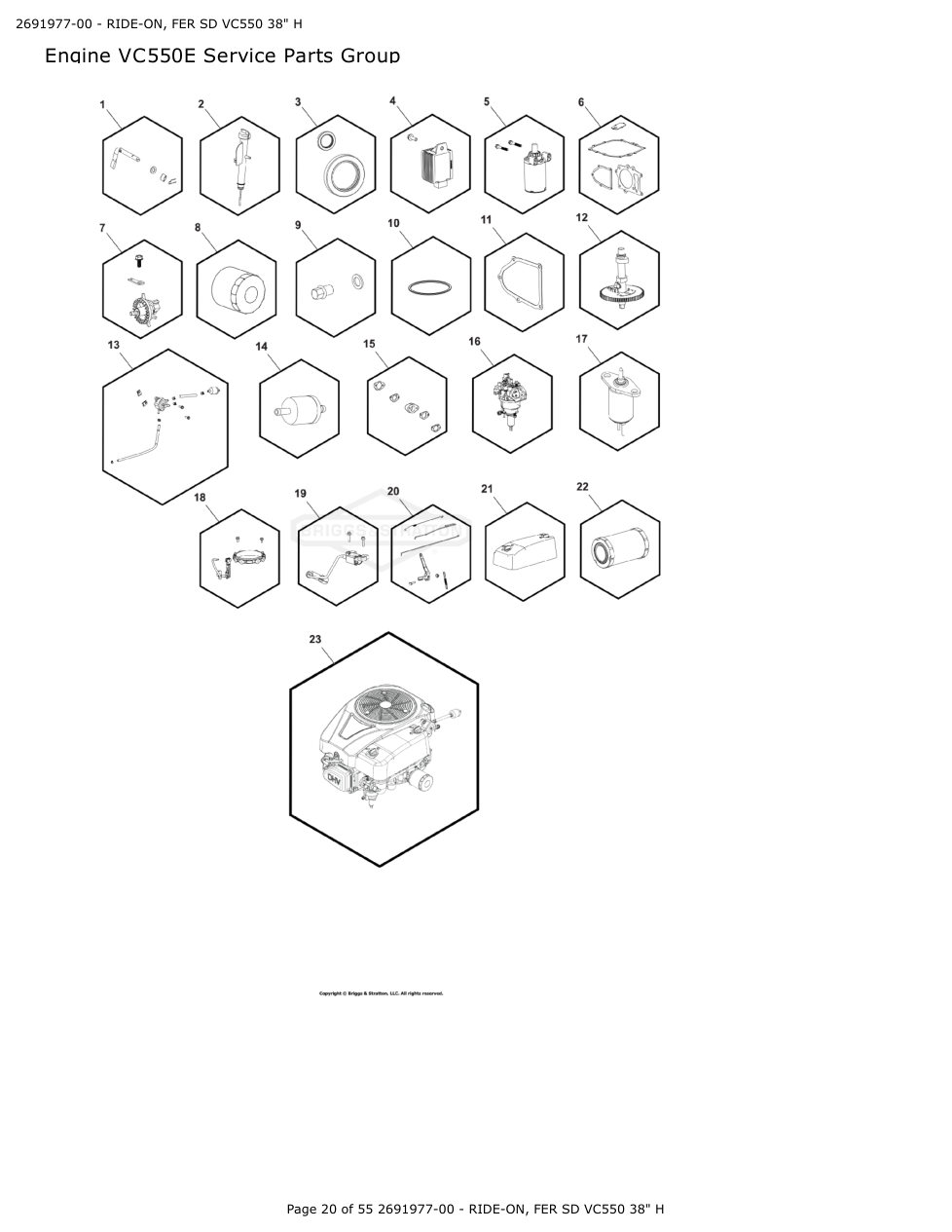

Engine VC550E Service Parts Group

Victa VSR38 FER SD VC550 38 Inch Ride On Mower IPL Parts Diagram Engine VC550E Service Parts Group diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1KIT, GOVERNOR ARM 5508012287280122872-Online1
2KIT, DIPSTICK 5508012287480122874-Online1
3KIT, OIL SEAL 5508012287680122876-Online1
4KIT, REGULATOR 5508012287880122878-Online1
5KIT, STARTER MOTOR 5508012288080122880-Online1
6KIT, GASKET 5508012288680122886-Online1
7KIT, GOVERNOR GEAR 5508012288380122883-Online1
8KIT, OIL FILTER VC550E8012262880122628-Online1
9KIT, DRAIN PLUG 6708012288580122885-Online1
10KIT, O-RING OIL PUMP 5508012288880122888-Online1
11KIT, GASKET ROCKER COVER8012288980122889-Online1
550
12KIT, CAMSHAFT 5508012289280122892-Online1
13KIT, FUEL PUMP, FILTER & — LINES 5508012289480122894-Online1
14KIT, FILTER FUEL 550/6708012289680122896-Online1
15KIT, GASKETS CARBURETOR8012289780122897-Online1
550
16KIT, CARBURETOR 5508012289980122899-Online1
17KIT, SOLENOID FUEL SHUT — OFF 5508012290180122901-Online1
18KIT, CHARGE COIL 5508012290380122903-Online1
19KIT, IGNITION COIL 5508012290580122905-Online1
20KIT, GOVERNOR 5508012290780122907-Online1
21KIT, COVER AIR CLEANER — VC550E8012290980122909-Online1
22KIT, AIR CLEANER ELEMENT — VC550E8011213280112132-Online1
23SERVICE ENGINE, VC550E8011282580112825-Online1

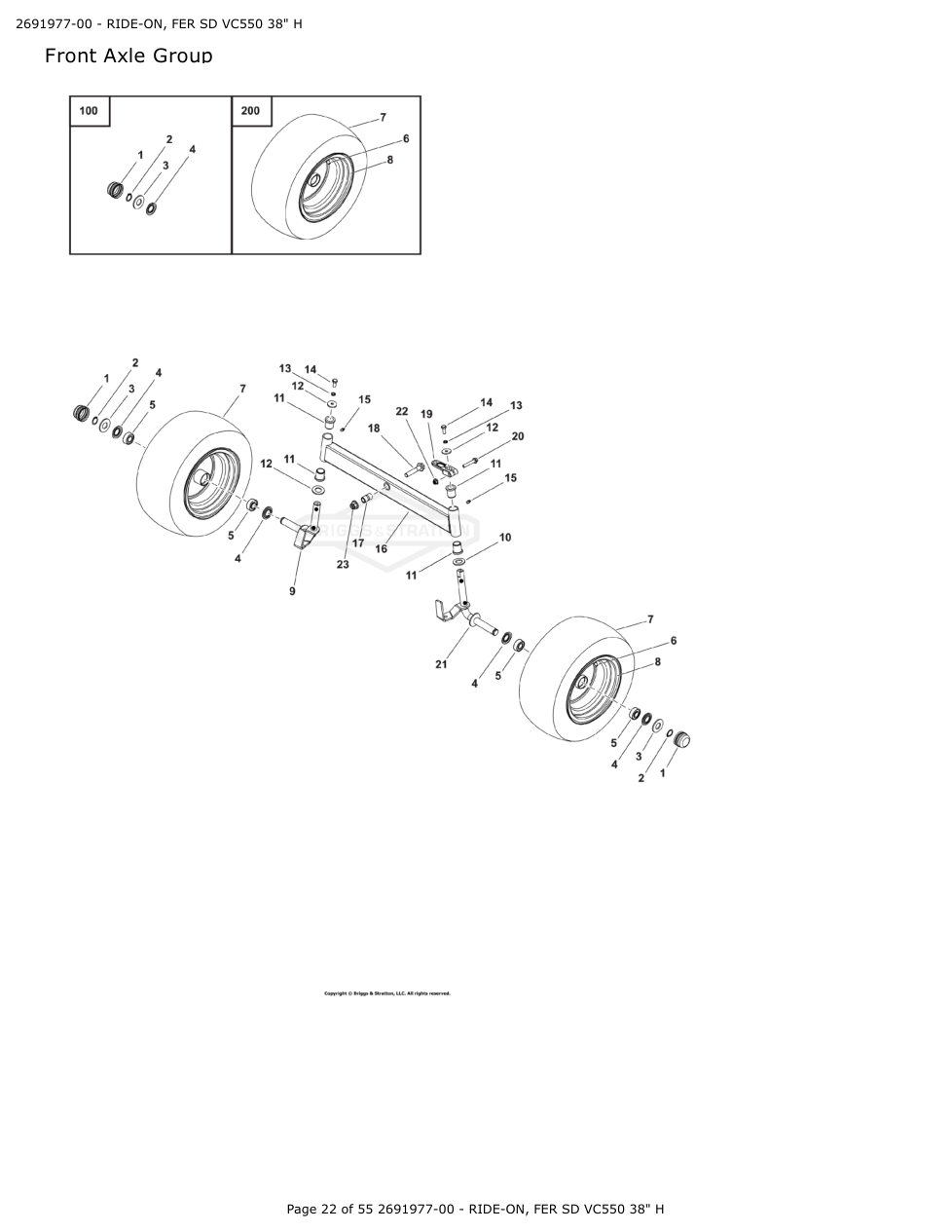

Front Axle Group

Victa VSR38 FER SD VC550 38 Inch Ride On Mower IPL Parts Diagram Front Axle Group diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1HUB COVER — ( Included with Ref. No. 100 )2
2( Included with — Ref. No. 100 )80100778 CIRCLIP EXTERNAL 19 DIA80100778CIRCLIPEXTERNAL19DIA-Online2
3WASHER, FLAT — ( Included with Ref. No. 100 )2
4WASHER, BEARING — ( Included with RETAINER - FRONT WHEEL Ref. No. 100 )4
580100804 BEARING80100804BEARING-Online4
6CYCLE VALVE, FRONT TIRE — ( Included with Ref. No. 200 )2
7TIRE, FRONT — ( Included with Ref. No. 200 )2
8RIM, FRONT WHEEL — ( Included with Ref. No. 200 )2
980101186 STUB AXLE, L.H. FRONTVic-80101186STUBAXLE,L.H.FRONT@online1
1037OD X 2.5WASHER, FLAT 20.5ID XVic-WASHER,FLAT20.5IDX@online2
11BUSH STEERING4
12WASHER, CLUTCH2
13WASHER, SPRING M8Vic-WASHER,SPRINGM8@online2
14BOLT, HEX HEAD M8 x 20Vic-BOLT,HEXHEADM8x20@online2
1580100813 GREASE NIPPLE, M6Vic-80100813GREASENIPPLE,M6@online2
1680101184 FRONT AXLE SUB-ASSEMBLY80101184FRONTAXLESUB-ASSEMBLY-Online1
1780100886 BUSH PIVOT80100886BUSHPIVOT-Online1
1880100677 BOLT, HEX FLANGEVic-80100677BOLT,HEXFLANGE@online1
19TURNING ARM1
20BOLT, HEX FLANGE - M8x45Vic-BOLT,M8x45-Online1
2180101185 STUB AXLE, R.H. FRONTVic-80101185STUBAXLE,R.H.FRONT@online1
22LOCKNUT HEX FLANGE M8LOCKNUTHEXFLANGEM8-Online1
23LOCKNUT HEX FLANGE — M12X1.251
100( Incl. Ref. Nos. — FRONT WHEEL 1, 2, 3 & 4 )80102234 KIT, HUBCAP & HARDWARE,Vic-80102234KIT,HUBCAP&HARDWARE,@online
200( Incl. Ref. Nos. — 6, 7 & 8 )80100628 KIT, FRONT WHEEL ASSYVic-80100628KIT,FRONTWHEELASSY@online

Fuel Tank Group

Victa VSR38 FER SD VC550 38 Inch Ride On Mower IPL Parts Diagram Fuel Tank Group diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1LEVER, FUEL TANK CAP — ( Included with Ref. No. 20 )1
2O-RING — ( Included with Ref. No. 20 )1
3CAP, FUEL TANK — ( Included with Ref. No. 20 )1
4FILTER, FUEL TANK CAP — ( Included with Ref. No. 20 )1
5SEAL, FUEL TANK CAP — ( Included with Ref. No. 20 )1
6GASKET, FUEL CAP — ( Included with Ref. No. 20 )1
7SPRING, FUEL TANK CAP — ( Included with Ref. No. 20 )1
8( Included with Ref. — No. 20 )WASHER, FLAT - M5Vic-WASHER,M5-Online1
9SPLIT PIN — ( Included with Ref. No. 20 )1
10INLET80101335 FILTER, FUEL - TANKVic-80101335FILTER,TANK-Online1
1180101307 TANK, FUELVic-80101307TANK,FUEL@online1
12FUEL HOSE80101289 CLIP, 10mm ID SPRING -Vic-80101289CLIP,10mmIDSPRING-@online1
13HOSE, FUEL1
14BOLT, NON STANDARD - — FUEL TANK1
15WIRE SPRING - FUEL — HOSE80101290 CLIP, 10mm DIA DOUBLEVic-80101290CLIP,10mmDIADOUBLE@online1
16BOLT, HEX FLANGE M8 xVic-BOLT,HEXFLANGEM8x@online2
20
17BOLT, HEX HEAD - M8x16Vic-BOLT,M8x16-Online4
18BRACKET, SUPPORT - — FUEL TANK2
19LOCKNUT HEX FLANGE — M88
100( Incl. Ref. Nos. 1, — TANK 2, 3, 4, 5, 6, 7, 8 & 9)80100853 CAP ASSEMBLY, FUELVic-80100853CAPASSEMBLY,FUEL@online1

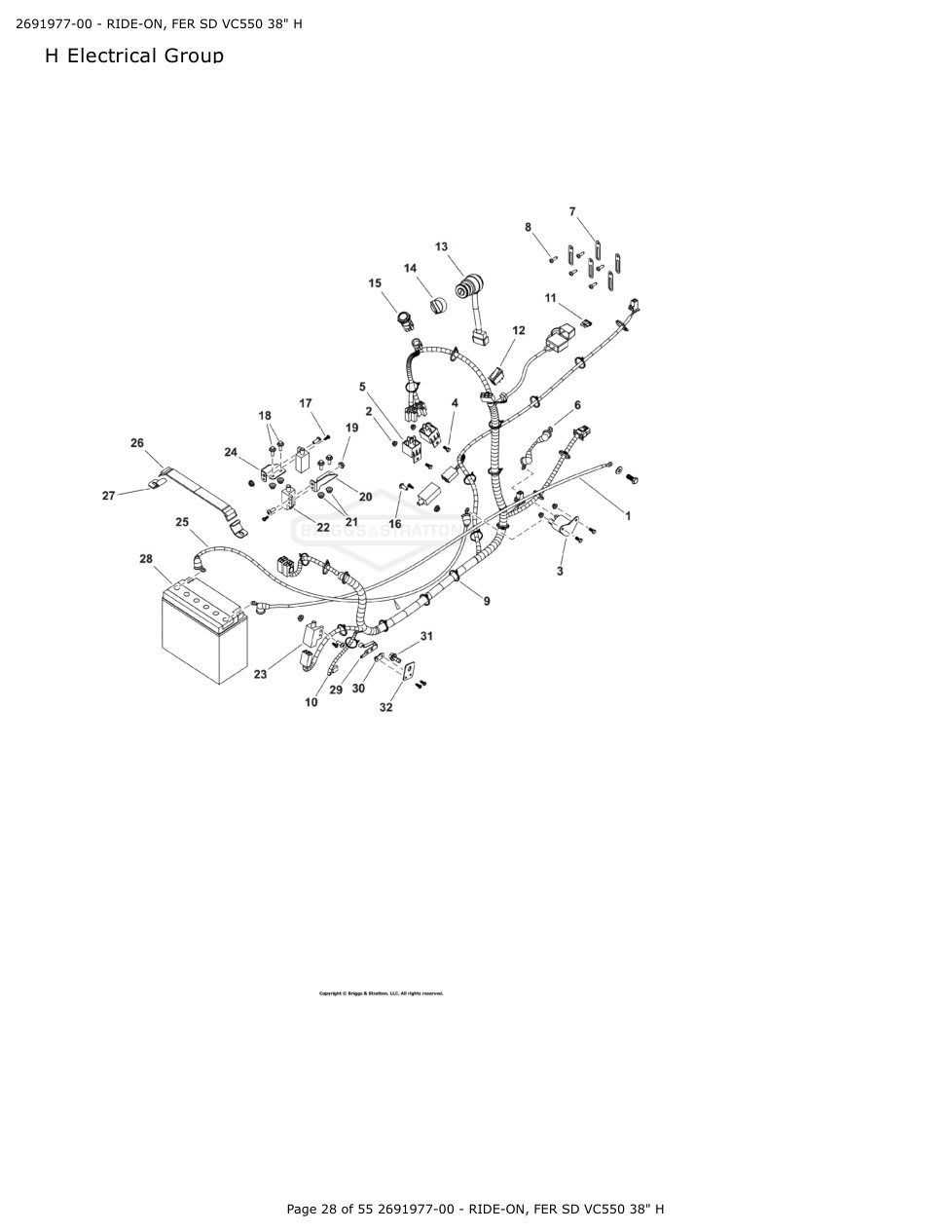

H Electrical Group

Victa VSR38 FER SD VC550 38 Inch Ride On Mower IPL Parts Diagram H Electrical Group diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1WIRING HARNESS, GROUND8010763280107632-Online1
2LOCKNUT, HEX FLANGE - M5Vic-LOCKNUT,M5-Online4
3RELAY, STARTING ST188F8010130580101305-Online1
4SCREW, HEX HEAD - M5x16Vic-SCREW,M5x16-Online4
5RELAY - JD19148010081780100817-Online2
6WIRING HARNESS, POWER1
7CLIP, IGNITION COIL5
8SCREW5
9CABLE TIE 3.2 x 140mmCABLETIE3.2x140mm-Online20
10HARNESS ASSEMBLY8010763680107636-Online1
11FUSE, 15 AMP-32VVic-FUSE,15AMP-32V@online1
12SWITCH, WIRING8010131380101313-Online1
13SWITCH, ROTARY WITH KEY8010103480101034-Online1
14KEY8010085480100854-Online1
15SWITCH, RE-SETTING8010763880107638-Online1
16SCREW, PHILIPS FLAT HEAD — M6X164
17SCREW, PAN HEAD6
18BOLT, HEX FLANGE M6X16Vic-BOLT,HEXFLANGEM6X16@online4
19NUT HEX FLANGE M6NUTHEXFLANGEM6-Online4
20BRACKET, SWITCH - R.H.1
21LOCKNUT HEX FLANGE M6LOCKNUTHEXFLANGEM6-Online4
22SWITCH SEAT DOUBLE NC8010103080101030-Online2
23SWITCH PUSH O/C8010103380101033-Online2
24BRACKET, SWITCH - L.H.1
25BATTERY CABLE8011996280119962-Online1
26STRAP BATTERY1
27HOOK, BATTERY TIE DOWN2
28BATTERY 12V 18AhBATTERY12V18Ah-Online1
29BRACKET, CONTACT - — SWITCH1
30INSULATING STRIP1
31BOLT, HEX FLANGE - M8x16Vic-BOLT,M8x16-Online1
32BRACKET, SWITCH1

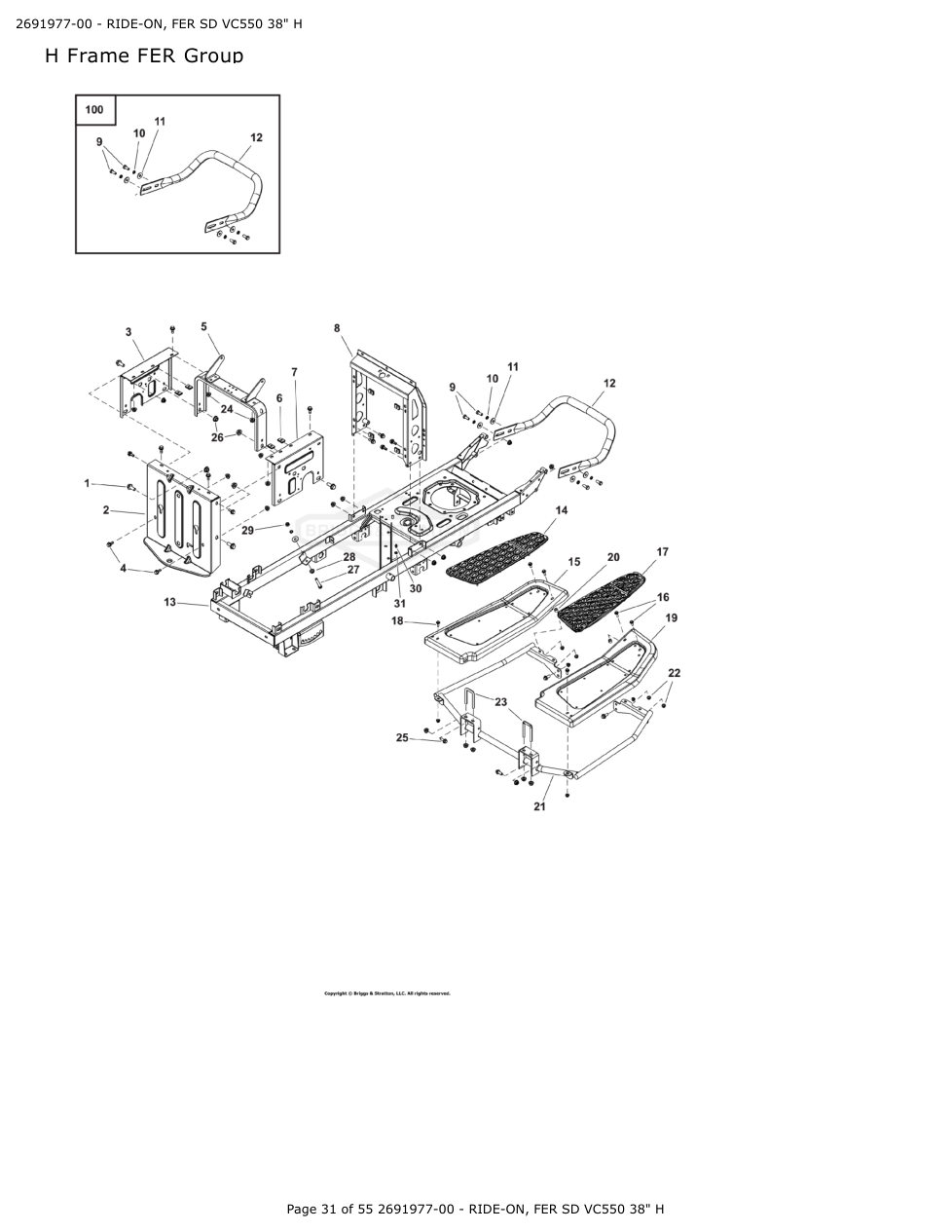

H Frame FER Group

Victa VSR38 FER SD VC550 38 Inch Ride On Mower IPL Parts Diagram H Frame FER Group diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1x 1.25 x 25BOLT, HEX FLANGE M10Vic-BOLT,HEXFLANGEM10@online4
2REAR BRACKET1
3LEFT BRACKET1
4BOLT, HEX FLANGE - — M8x1612
5SEAT BRACKET1
6U-NUT M6U-NUTM6-Online8
7RIGHT BRACKET1
8STEERING BRACKET1
9( Included with Ref.BOLT, HEX HEAD M8 xVic-BOLT,HEXHEADM8x@online4
20No. 100 )Vic-No.100)@online
10( Included with Ref. — No. 100 )WASHER, SPRING M8Vic-WASHER,SPRINGM8@online5
11( Included with Ref. — 24OD x 2MM No. 100 )WASHER, FLAT 8.4ID xVic-WASHER,FLAT8.4IDx@online5
12BUMPER, FRONT — ( Included with Ref. No. 100 )1
1380101269 FRAME80101269FRAME-Online1
14L.H.80101176 COVER, FOOTBOARD -Vic-80101176COVER,FOOTBOARD-@online1
1580101175 FOOTBOARD, L.H.Vic-80101175FOOTBOARD,L.H.@online1
16BOLT, HEX FLANGE - — M6x162
17R.H.80101178 COVER, FOOTBOARD -Vic-80101178COVER,FOOTBOARD-@online1
18BOLT, HEX FLANGE — M6×164
1980101174 FOOTBOARD, R.H.Vic-80101174FOOTBOARD,R.H.@online1
20FOOTBOARD80101177 BUSH, SPACER -Vic-80101177BUSH,SPACER-@online2
21BRACKET, FOOT — SUPPORT1
22LOCKNUT HEX FLANGE — M68
2380101173 U-BOLT, M8Vic-80101173U-BOLT,M8@online2
24LOCKNUT HEX FLANGE — M82
25BOLT, HEX FLANGE M8 xVic-BOLT,HEXFLANGEM8x@online4
20
261.25NUT HEX FLANGE 10 xNUTHEXFLANGE10x-Online4
27BOLT, HEX - M8x50Vic-BOLT,M8x50-Online1
28NUT HEX M8NUTHEXM8-Online1
29NUT HEX M8NUTHEXM8-Online1
3080100813 GREASE NIPPLE, M6Vic-80100813GREASENIPPLE,M6@online1
311.2mmWASHER, FLAT M6 xVic-WASHER,FLATM6x@online1
100( Incl. Ref. Nos. 9, — HARDWARE FER 10, 11 & 12 )80107693 KIT, BUMPER &Vic-80107693KIT,BUMPER&@online

H Hood Cover Group

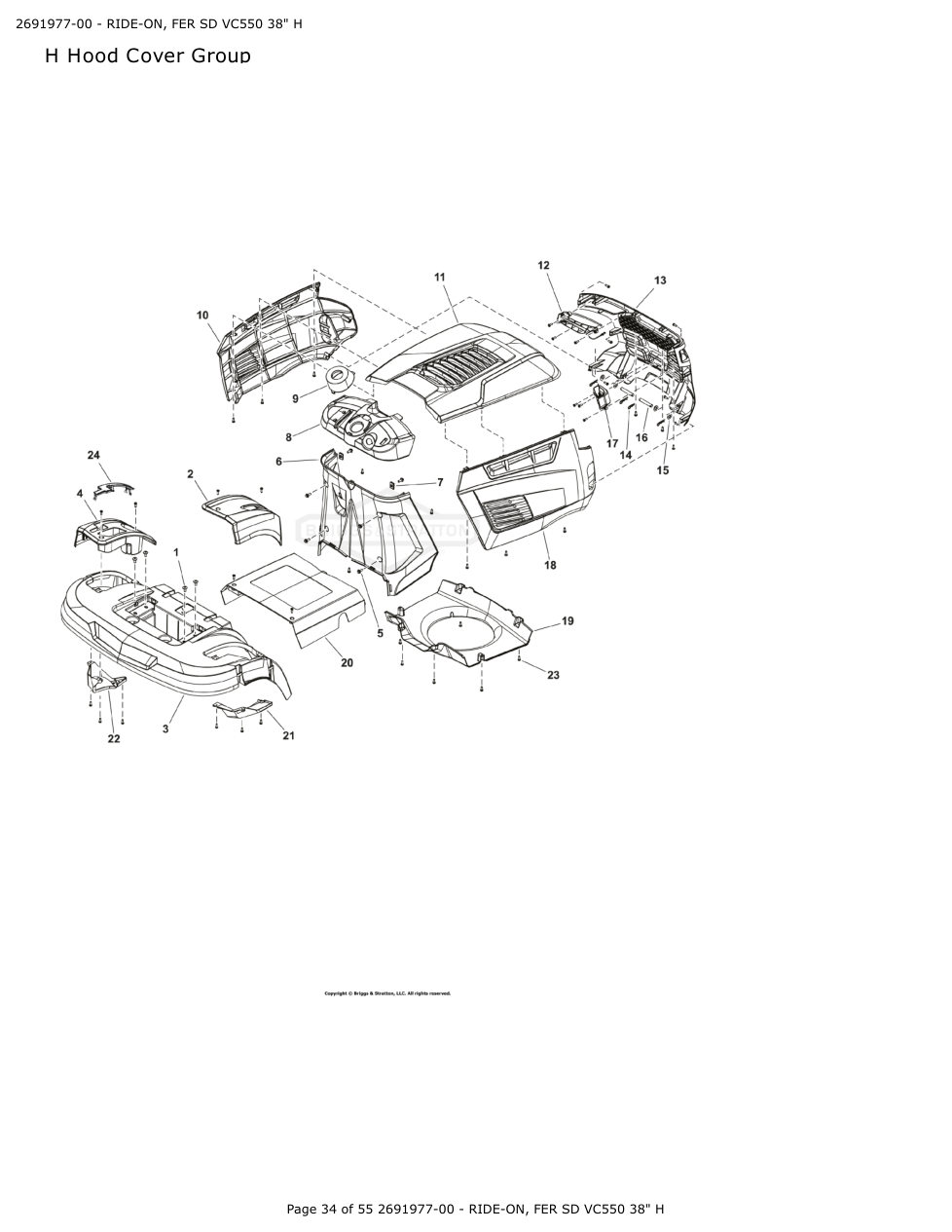

Victa VSR38 FER SD VC550 38 Inch Ride On Mower IPL Parts Diagram H Hood Cover Group diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1SCREW, FLAT HEAD SOCKET — CAP M6×164
2COVER, LIFT8010590480105904-Online1
3COVER, REAR - FER8010122680101226-Online1
4COVER, SHIFT8010590980105909-Online1
5BOLT, HEX FLANGE M6×16Vic-BOLT,HEXFLANGEM6×16@online6
6COVER, STEERING COLUMN1
7U-NUT M6U-NUTM6-Online2
8DASHBOARD8010750880107508-Online1
9CAP, STEERING SHAFT8010590780105907-Online1
10PANEL, ENGINE - L.H.8010751180107511-Online1
11COVER/HOOD, ENGINE8010751280107512-Online1
12HEADLIGHT ASSEMBLY, LED8010751580107515-Online1
13COVER, FRONT - ENGINE8010751380107513-Online1
14R CLIP 10 DIA SHAFT X 2mm — DIA8010095480100954-Online4
15WASHER, FLAT M10 X 2Vic-WASHER,FLATM10X2@online4
16PIN8010124180101241-Online2
17HEADLIGHT ASSEMBLY, LED - — RHS8010751480107514-Online1
18PANEL, ENGINE - R.H.8010750980107509-Online1
19SHROUD, ENGINE8010751080107510-Online1
20COVER, FLOOR8010759280107592-Online1
21COVER PLATE, RIGHT8010122880101228-Online1
22COVER PLATE, LEFT8010122980101229-Online1
23HD TYPE ABSCREW, ST No.10x16 PH PANVic-SCREW,STNo.10x16PHPAN@online43
24COVER PLATE8012661980126619-Online1

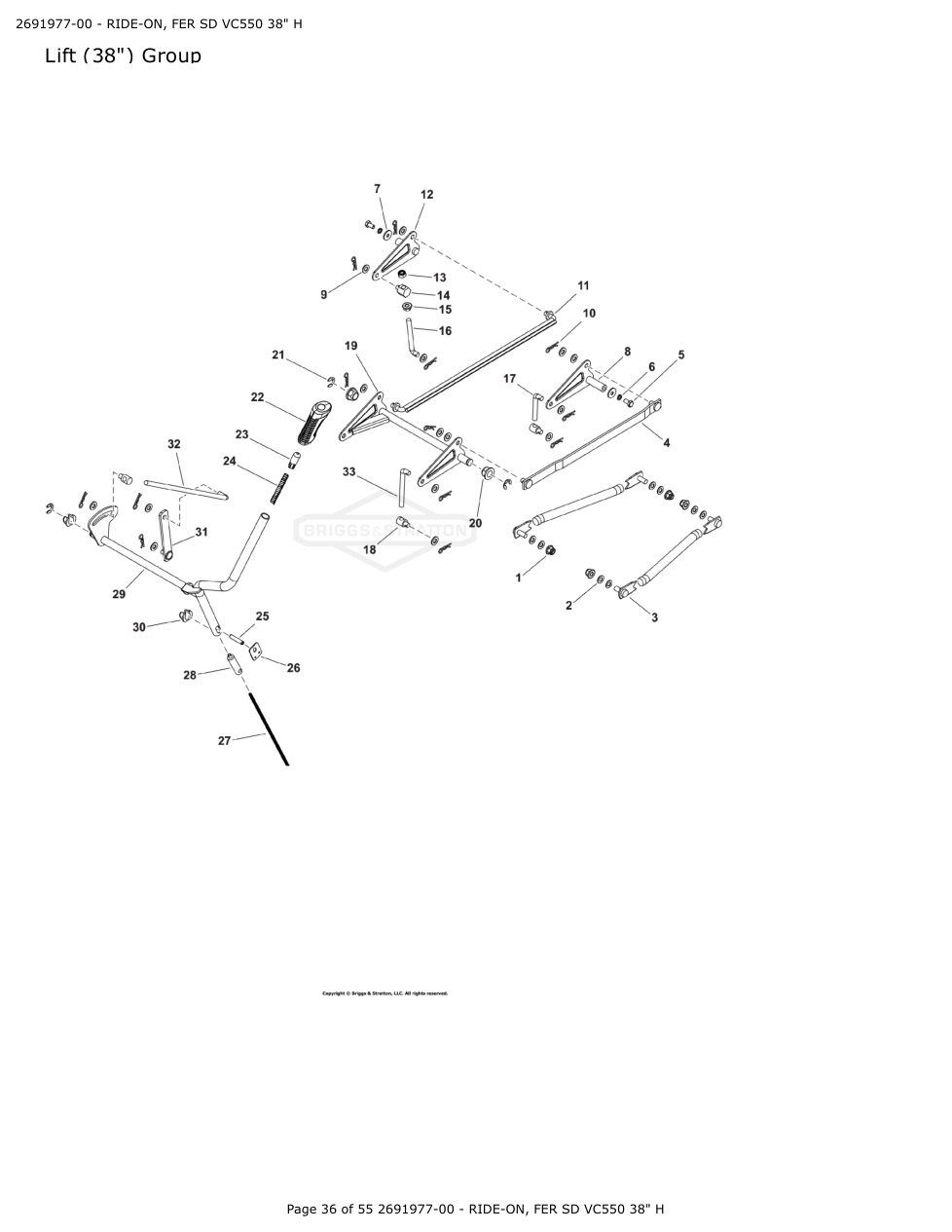

Lift (38") Group

Victa VSR38 FER SD VC550 38 Inch Ride On Mower IPL Parts Diagram Lift (38") Group diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1LOCKNUT HEX FLANGE — M10x1.258010070780100707-Online4
2WASHER, FLAT 10.2ID x 19OD — x 1.6MM8010086280100862-Online8
3ROD, FRONT8010121580101215-Online2
4PUSH ROD ASSEMBLY, R.H.8010127980101279-Online1
5BOLT, HEX HEAD - M8x16Vic-BOLT,M8x16-Online2
6WASHER, SPRING M8Vic-WASHER,SPRINGM8@online2
72MMWASHER, FLAT 8.4ID x 24OD xVic-WASHER,FLAT8.4IDx24ODx@online2
8FRONT ARM, R.H.8010121780101217-Online1
9WASHER, FLAT M10 X 2Vic-WASHER,FLATM10X2@online15
10R CLIP 10 DIA SHAFT X 2mm — DIA8010095480100954-Online13
11PUSH ROD ASSEMBLY, L.H.8010121880101218-Online1
12FRONT ARM, L.H.1
13LOCKNUT HEX M10x1.258010070680100706-Online1
14PIN, ADJUSTING8010120980101209-Online1
15NUT HEX FLANGE 10 x 1.25NUTHEXFLANGE10x1.25-Online1
16ROD, ADJUSTING - FRONT — L.H.8010121080101210-Online1
17ROD ADJUSTING8010098080100980-Online1
18PIN ADJUSTING8010097980100979-Online3
19REAR ARM ASSEMBLY8010121980101219-Online1
20BUSH HEXAGON8010097880100978-Online2
21E-CLIP 12 DIA x 1.2mmE-CLIP12DIAx1.2mm-Online3
22HANDLE LIFT8010096880100968-Online1
23BUTTON LIFT8010096780100967-Online1
24SPRING, COMPRESSION - — BUTTON8010121480101214-Online1
25PIN, SPRING8010080280100802-Online1
26RIVET JOINT8010122380101223-Online1
27CABLE8010122280101222-Online1
28PIN8010122180101221-Online1
29LEVER ASSEMBLY - LIFT8010122480101224-Online1
30BUSH OPEN SNAP-ON8010095880100958-Online2
31LINK, L.H.8010122080101220-Online1
32ROD, LIFTING8010121380101213-Online1
33ROD, ADJUSTING8010121280101212-Online1

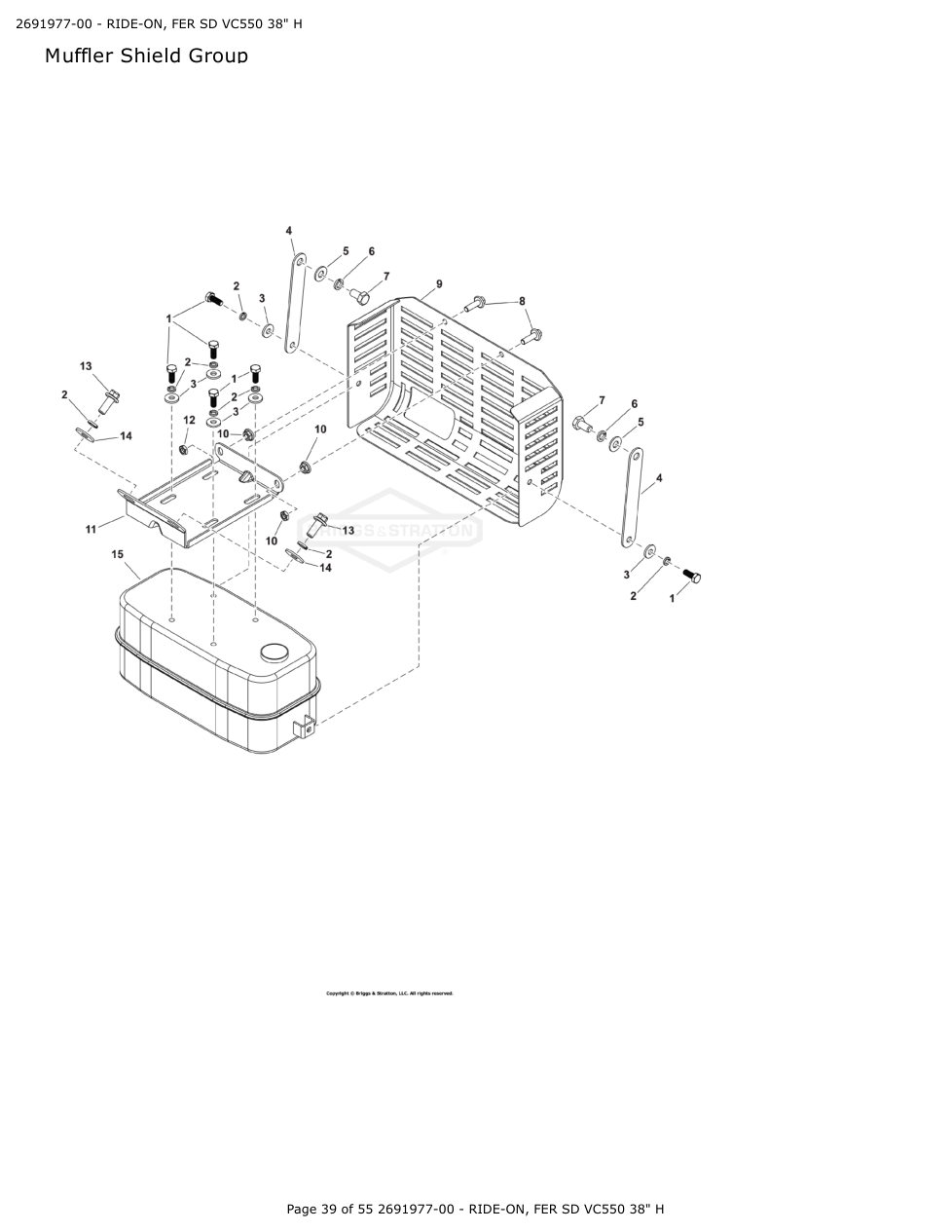

Muffler Shield Group

Victa VSR38 FER SD VC550 38 Inch Ride On Mower IPL Parts Diagram Muffler Shield Group diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1SCREW, HEX HEAD - M6x16Vic-SCREW,M6x16-Online6
2WASHER, SPRING M6Vic-WASHER,SPRINGM6@online6
3WASHER, FLAT M6 x 1.5mmVic-WASHER,FLATM6x1.5mm@online6
4ROD, CONNECTING - — MUFFLER8010114980101149-Online2
5WASHER, FLAT M8Vic-WASHER,FLATM8@online2
6WASHER, SPRING M8Vic-WASHER,SPRINGM8@online4
7BOLT, HEX HEAD - M8x16Vic-BOLT,M8x16-Online2
8BOLT, HEX FLANGE M6x20Vic-BOLT,HEXFLANGEM6x20@online2
9GUARD, MUFFLER8010130480101304-Online1
10NUT HEX FLANGE M6NUTHEXFLANGEM6-Online2
11BRACKET, MUFFLER8010114880101148-Online1
12LOCKNUT, HEX - M6Vic-LOCKNUT,M6-Online2
13BOLT, HEX FLANGE M8 x 20Vic-BOLT,HEXFLANGEM8x20@online2
14x 2MMWASHER, FLAT 8.4ID x 24ODVic-WASHER,FLAT8.4IDx24OD@online2
15MUFFLER8010130380101303-Online1

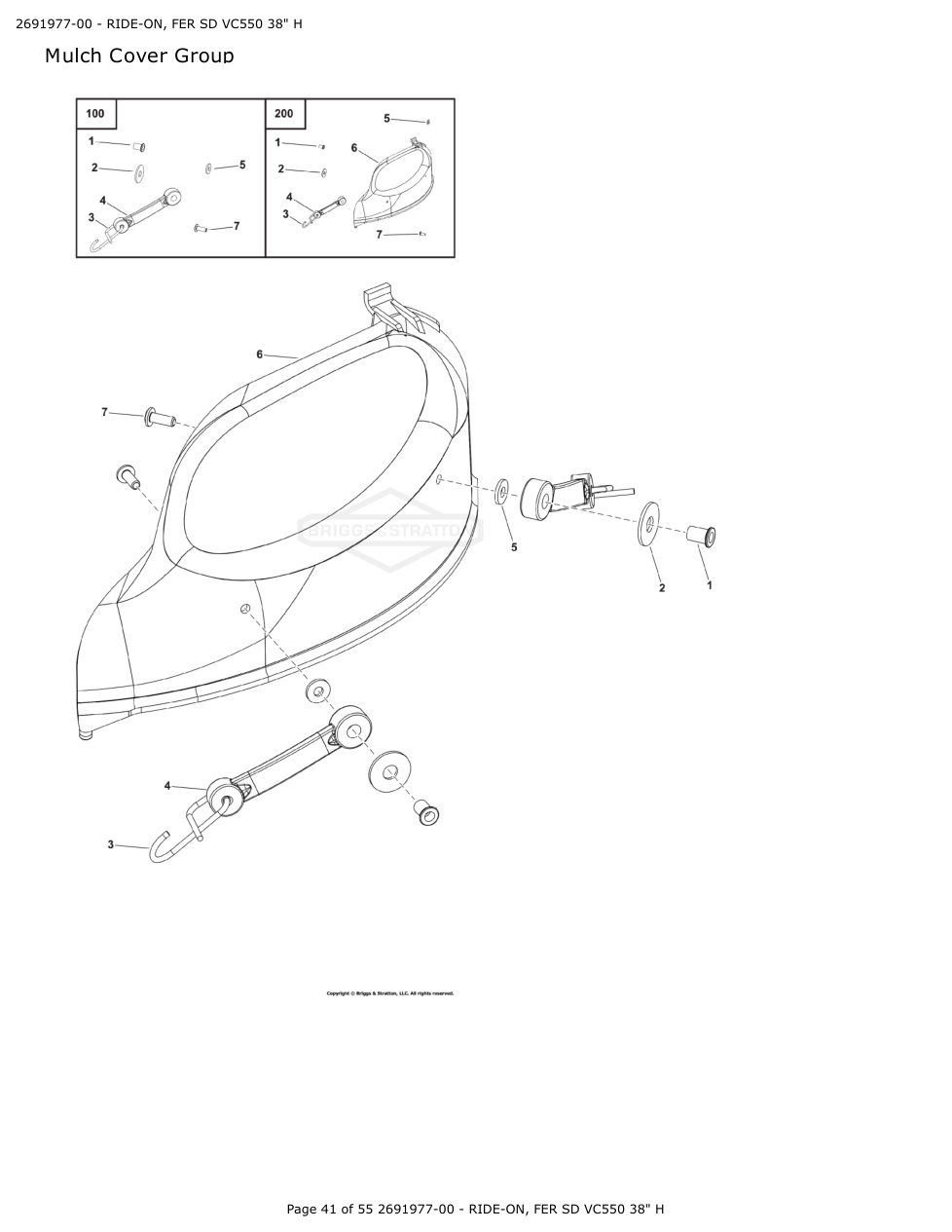

Mulch Cover Group

Victa VSR38 FER SD VC550 38 Inch Ride On Mower IPL Parts Diagram Mulch Cover Group diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1( Included with Ref. No. 2 — 100 & 200 )NUTSERT, M6x13.5Vic-NUTSERT,M6x13.5@online
2WASHER, FLAT — ( Included with Ref. No. 2 100 & 200 )
3HOOK, MULCH PLUG — ( Included with Ref. No. 2 100 & 200 )
4STRAP, MULCH PLUG — ( Included with Ref. No. 2 100 & 200 )
5( Included with Ref. No. 2 — 1.5mm 100 & 200 )WASHER, FLAT M6 xVic-WASHER,FLATM6x@online
6MULCH PLUG — ( Included with Ref. No. 1 200 )
7SCREW, PHILIPS FLAT — ( Included with Ref. No. 2 HEAD M6X16 100 & 200 )
100( Incl. Ref. Nos. 1, 2, 3, — MULCH PLUG 4, 5 & 7 )80107611 KIT, STRAP ASSYVic-80107611KIT,STRAPASSY@online
200( Incl. Ref. Nos. 1, 2, 3, — STRAPS 4, 5, 6 & 7 )80106801 KIT, MULCH PLUG &Vic-80106801KIT,MULCHPLUG&@online

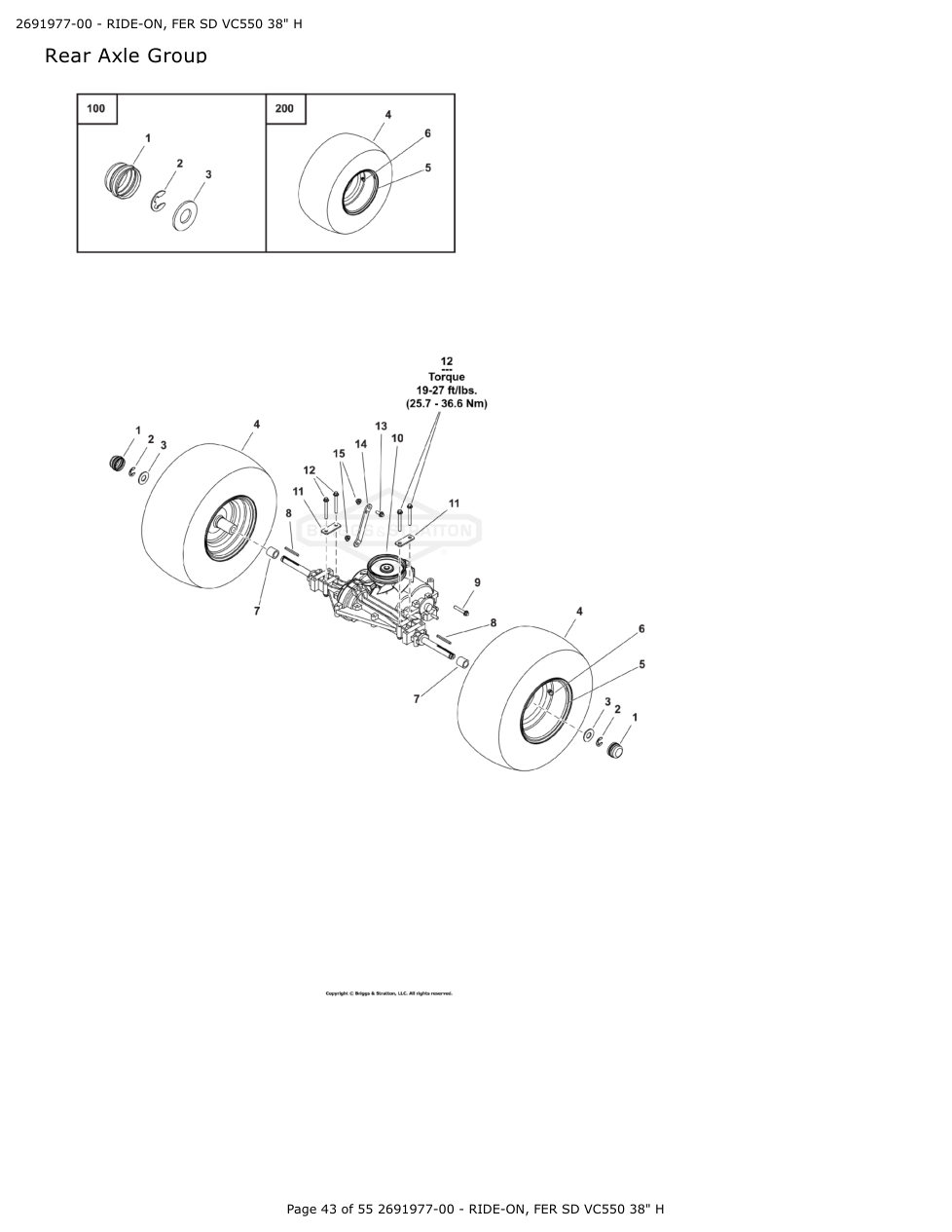

Rear Axle Group

Victa VSR38 FER SD VC550 38 Inch Ride On Mower IPL Parts Diagram Rear Axle Group diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1HUB COVER — ( Included with Ref. No. 100 )2
2E CLIP — ( Included with Ref. No. 100 )2
3WASHER, FLAT — ( Included with Ref. No. 100 )2
4TIRE, REAR — ( Included with Ref. No. 200 )2
5RIM, REAR WHEEL — ( Included with Ref. No. 200 )2
6CYCLE VALVE, FRONT TIRE — ( Included with Ref. No. 200 )2
7AXLE80101292 TUBE, SPACER - REARVic-80101292TUBE,REAR-Online2
880101294 KEY, FLATVic-80101294KEY,FLAT@online2
9BOLT, HEX FLANGE - M8x50Vic-BOLT,M8x50-Online1
10T280101293 TRANSAXLE HYDRO - GEAR80101293TRANSAXLEHYDRO-GEAR-Online1
11TIE PLATE2
12BOLT, HEX HEAD M8X70Vic-BOLT,HEXHEADM8X70@online4
13BOLT, HEX FLANGE M8 x 20Vic-BOLT,HEXFLANGEM8x20@online1
14CONNECTING PLATE1
15LOCKNUT HEX FLANGE M8LOCKNUTHEXFLANGEM8-Online6
100( Incl. Ref. Nos. 1, — HARDWARE, REAR WHEEL 2&3)80104194 KIT, HUBCAP &Vic-80104194KIT,HUBCAP&@online
200( Incl. Ref. Nos. 4, — 5&6)80100629 KIT, REAR WHEEL ASSYVic-80100629KIT,REARWHEELASSY@online

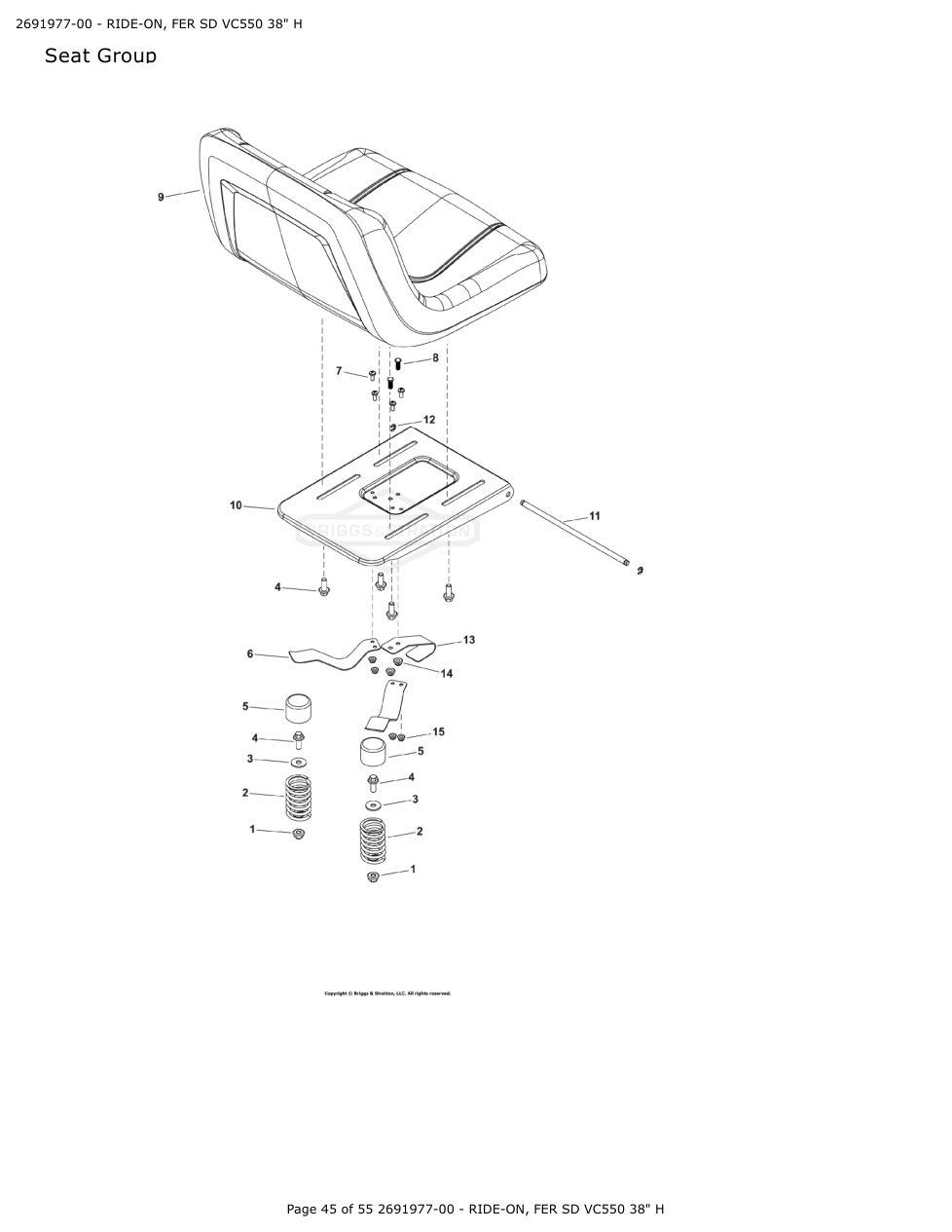

Seat Group

Victa VSR38 FER SD VC550 38 Inch Ride On Mower IPL Parts Diagram Seat Group diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1LOCKNUT HEX FLANGE M8LOCKNUTHEXFLANGEM8-Online2
2SPRING, SEAT8010120680101206-Online2
32MMWASHER, FLAT 8.4ID x 24OD xVic-WASHER,FLAT8.4IDx24ODx@online2
4BOLT, HEX FLANGE M8 x 20Vic-BOLT,HEXFLANGEM8x20@online6
5CAP, SPRING8010130680101306-Online2
6SPRING, LEAF8010131180101311-Online2
7SCREW, PAN HEAD - M5x12Vic-SCREW,M5x12-Online4
8SCREW, PAN HEAD PHILLIPS - — M6 x 162
9SEAT - 38" AND 42"8010096680100966-Online1
10PLATE, SEAT MOUNTING8010120880101208-Online1
11PIN, SEAT PIVOT8010120780101207-Online1
120.8mmE CLIP EXTERNAL 6 DIA xECLIPEXTERNAL6DIAx-Online2
13CONTACT SEAT SWITCH8010102580101025-Online1
14LOCKNUT HEX FLANGE M6LOCKNUTHEXFLANGEM6-Online2
15LOCKNUT, HEX FLANGE - M5Vic-LOCKNUT,M5-Online4

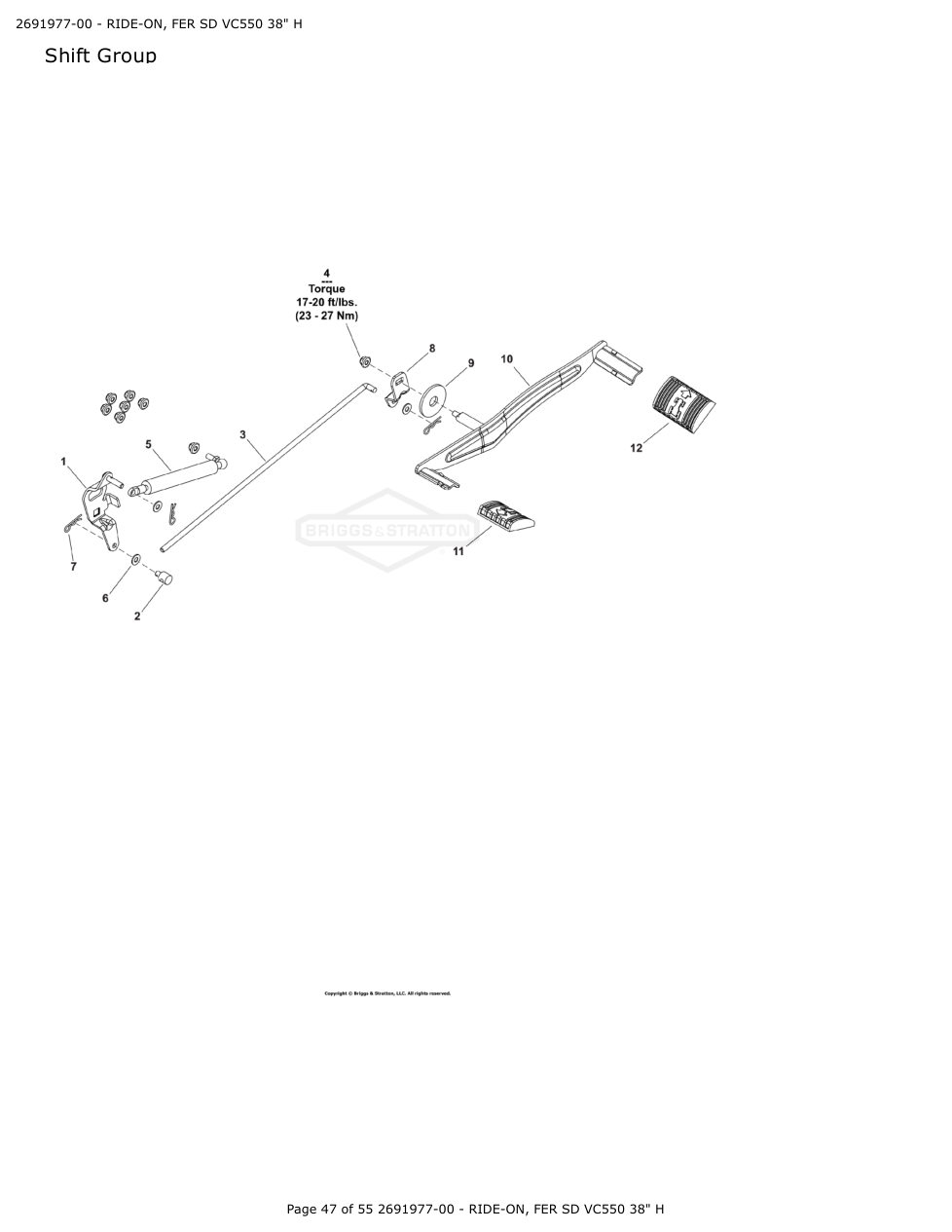

Shift Group

Victa VSR38 FER SD VC550 38 Inch Ride On Mower IPL Parts Diagram Shift Group diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1CONTROL ARM1
2PIN GEAR SHIFT8010095580100955-Online1
3ROD, SHIFT8010127180101271-Online1
4LOCKNUT HEX FLANGE M8LOCKNUTHEXFLANGEM8-Online8
5DAMPER8010129180101291-Online1
6WASHER, FLAT M8Vic-WASHER,FLATM8@online3
7R CLIP 10 DIA SHAFT X — 2mm DIA8010095480100954-Online3
8BRACKET, SHIFT ARM1
9WASHER, FLAT8010115880101158-Online1
10LEVER, PEDAL801001275801001275-Online1
11PEDAL, REVERSE8010127080101270-Online1
12PEDAL, FORWARD8010127380101273-Online1

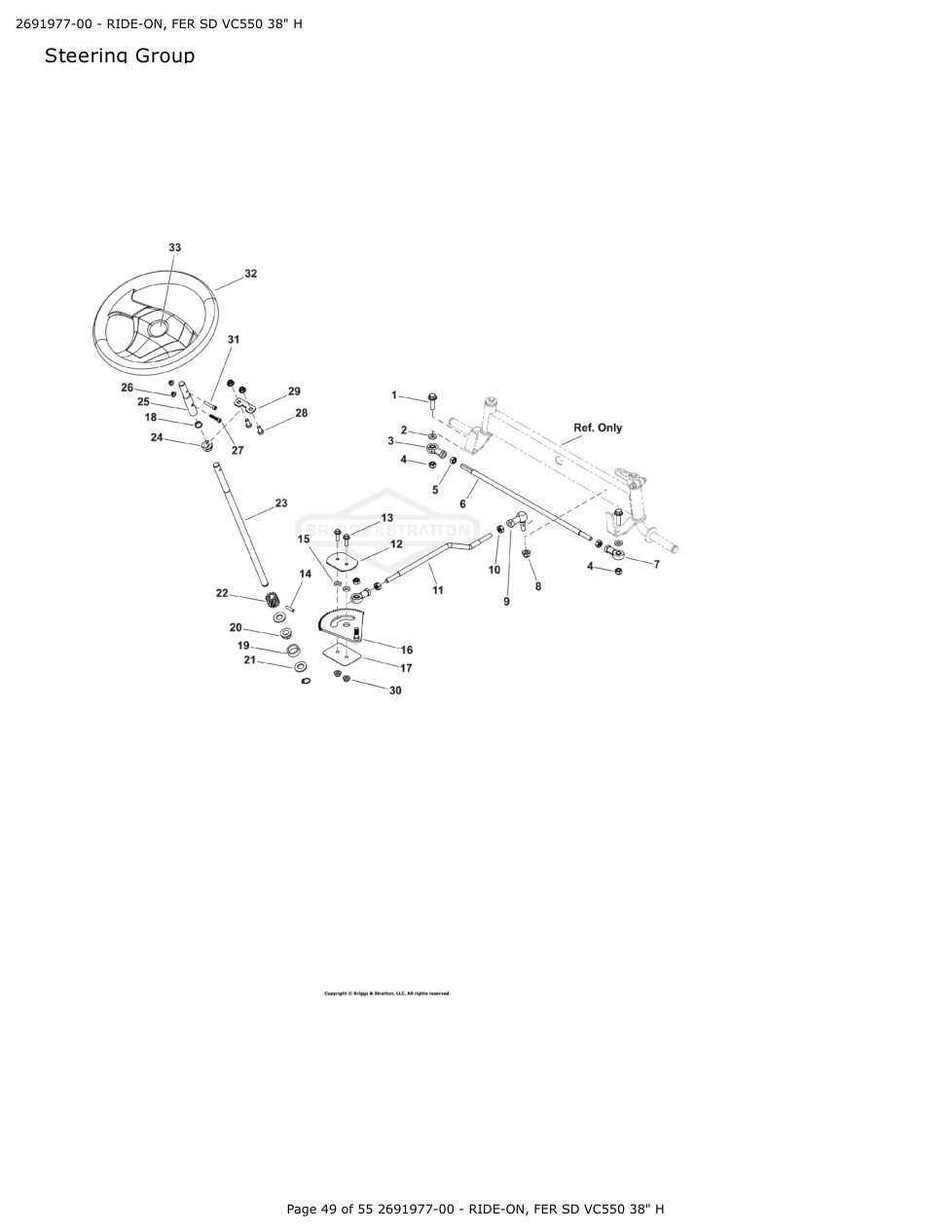

Steering Group

Victa VSR38 FER SD VC550 38 Inch Ride On Mower IPL Parts Diagram Steering Group diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
1BOLT, HEX FLANGE - M10x35Vic-BOLT,M10x35-Online2
2x 4MMWASHER, FLAT 10.1 ID x 20 ODVic-WASHER,FLAT10.1IDx20OD@online2
3ROD END BEARING - L.H.8010081180100811-Online1
4LOCKNUT HEX M10x1.258010070680100706-Online3
5NUT, M10 HEX8010070580100705-Online1
6ROD, PULL1
7BEARING, ROD END8010081280100812-Online2
8NUT, M10 LOCKINGVic-NUT,M10LOCKING@online1
9TIE ROD END - M108010081080100810-Online1
10NUT, HEX M10 x 1.5Vic-NUT,HEXM10x1.5@online3
11TIE ROD8010119280101192-Online1
12PLATE, TIE - TOP8010119680101196-Online1
13BOLT, HEX FLANGE HEAD M8 xVic-BOLT,HEXFLANGEHEADM8x@online2
25
14ROLL PIN 6DIA X 268010080180100801-Online1
15BUSH, STEERING RACK8010118980101189-Online2
16STEERING RACK8010119980101199-Online1
17PLATE, TIE - TOP1
18CIRCLIP, EXTERNAL2
19BUSH, NYLON1
20BUSH HEXAGON8010097880100978-Online1
21x3WASHER, FLAT 32OD x 16.5IDVic-WASHER,FLAT32ODx16.5ID@online2
22PINION, STEERING8010119080101190-Online1
23STEERING COLUMN8010118880101188-Online1
24BUSH OPEN SNAP-ON8010095880100958-Online1
25STEERING COLUMN — EXTENSION ROD1
26LOCKNUT HEX FLANGE M6LOCKNUTHEXFLANGEM6-Online2
27SCREW, SOCKET HEAD CAP - — M6x30mm1
28BOLT, HEX HEAD - M8x20Vic-BOLT,M8x20-Online2
29PLATE, STEERING COLUMN1
30LOCKNUT HEX FLANGE M8LOCKNUTHEXFLANGEM8-Online4
31SCREW, SOCKET HEAD CAP — M6X35MM1
32STEERING WHEEL8010119780101197-Online1
33CAP, STEERING WHEEL8010119880101198-Online1

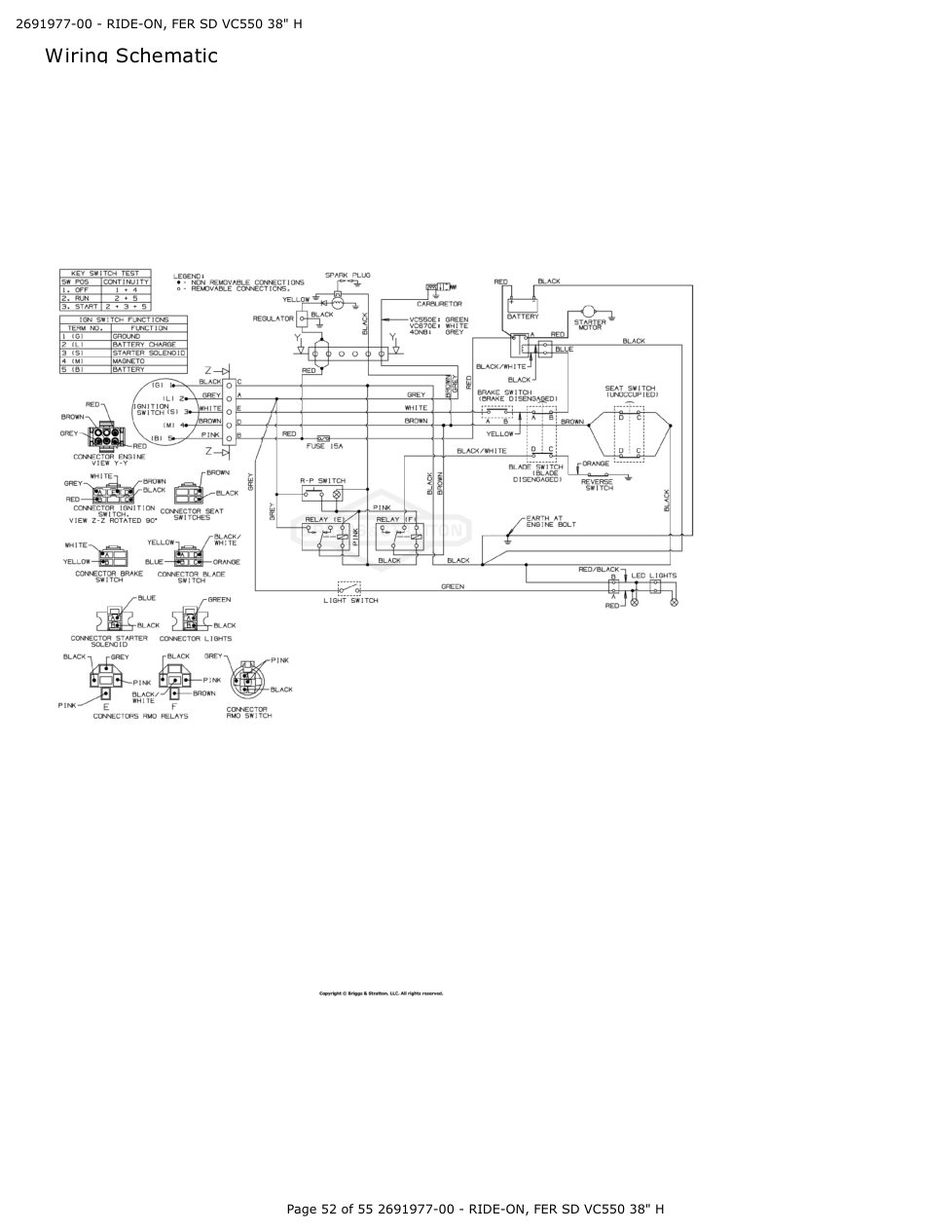

Wiring Schematic

Victa VSR38 FER SD VC550 38 Inch Ride On Mower IPL Parts Diagram Wiring Schematic diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.

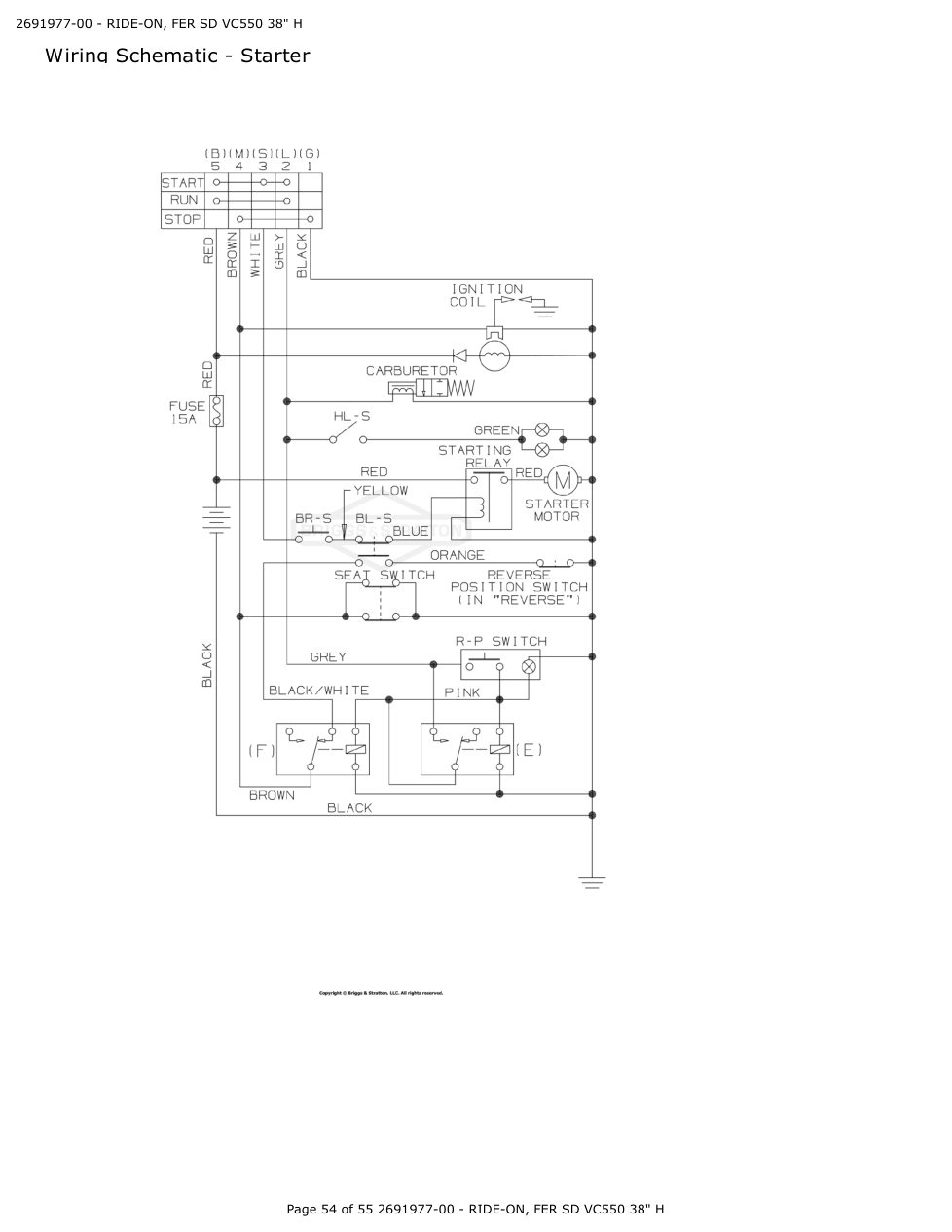

Wiring Schematic - Starter

Victa VSR38 FER SD VC550 38 Inch Ride On Mower IPL Parts Diagram Wiring Schematic - Starter diagram
Click or tap diagram to enlarge
RefDescriptionPart NumberCutsmart SKUQty
No clickable part rows were parsed for this section yet.
\n
\n
