Worx WX065 IPL Parts Diagram & Parts List

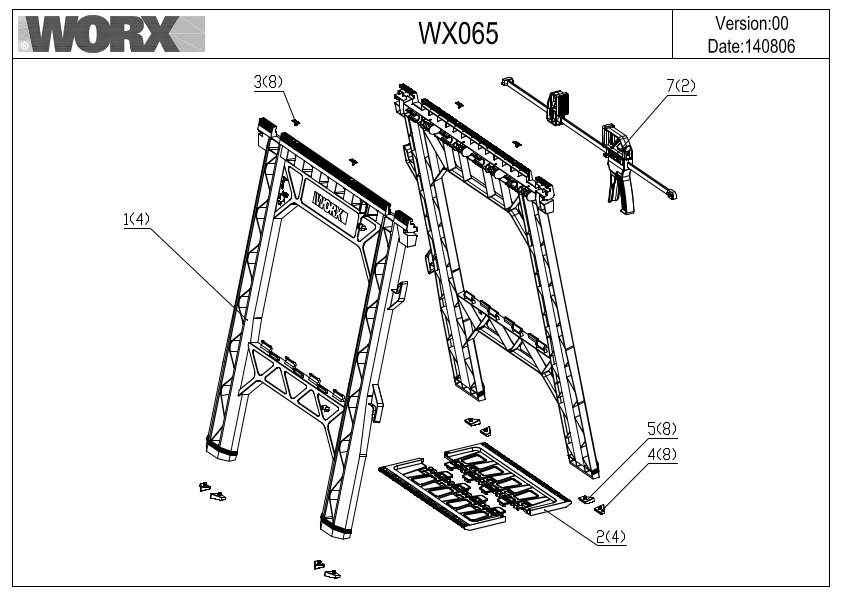

Use the exploded drawing and parts table below to identify Worx WX065 replacement parts.
Click any Cutsmart SKU to open the product lookup page.
| Ref | Description | Part Number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | Bracket | 60038415 | 4 | 60038415-Online |
| 2 | Arm Board | 60038416 | 4 | 60038416-Online |
| 3 | Brake Disc | 60038417 | 8 | 60038417-Online |
| 4 | Feet Mat 1 | 60038418 | 8 | 60038418-Online |
| 5 | Feet Mat 2 | 60038419 | 8 | 60038419-Online |
| 7 | Quick Clamp Assembly | 60038420 | 2 | 60038420-Online |
SKU convention used in this article: Worx part number with WRX- prefix and @online suffix. Links use the Cutsmart SKU resolver, not fixed product slugs.
Source drawing file(s): WX065 exploded drawing.pdf
