Worx WX696.9 IPL Parts Diagram & Parts List

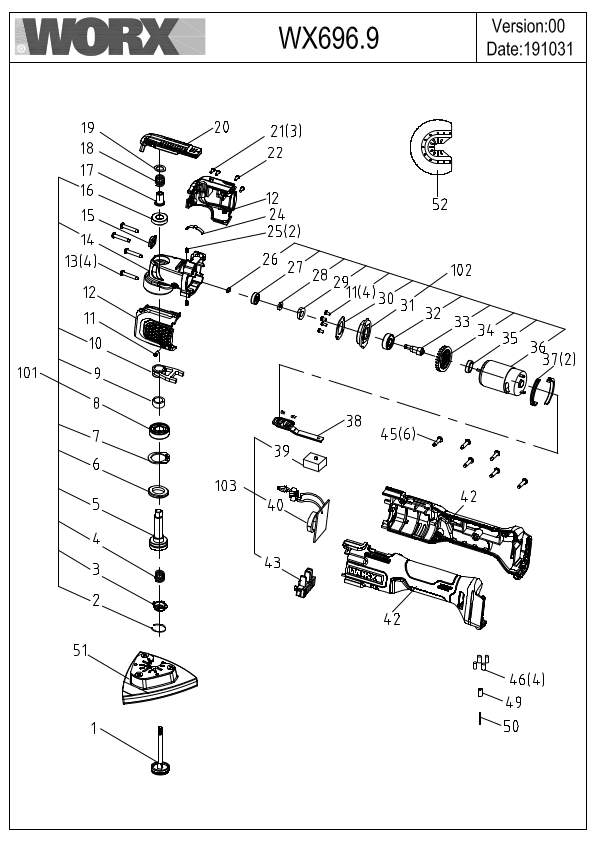

Use the exploded drawing and parts table below to identify Worx WX696.9 replacement parts.
Click any Cutsmart SKU to open the product lookup page.
| Ref | Description | Part Number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | Platen bolt assembly | 50040295 | 1 | 50040295-Online |
| 2 | Steel Wire Spring | 60055797 | 1 | 60055797-Online |
| 3 | Orientation Sleeve | 50023998 | 1 | 50023998-Online |
| 4 | Tower Spring | 60055799 | 1 | 60055799-Online |
| 5 | Output Shaft | 60055800 | 1 | 60055800-Online |
| 6 | Sealing Ring | 60055801 | 1 | 60055801-Online |
| 7 | Elastic Collar D=28 | 60055802 | 1 | 60055802-Online |
| 8 | Deep Ball Bearing | 60055803 | 1 | 60055803-Online |
| 9 | Iron Sets | 60055804 | 1 | 60055804-Online |
| 10 | Shifting Fork | 60055805 | 1 | 60055805-Online |
| 11 | Screw M3*8 | 60055806 | 6 | 60055806-Online |
| 12 | Left/Right Head Housing | 60055807 | 1 | 60055807-Online |
| 13 | Self Tapping Screw ST4*25 | 60055808 | 4 | 60055808-Online |
| 14 | Gear Box | 60055809 | 1 | 60055809-Online |
| 15 | Lampshade | 60055810 | 1 | 60055810-Online |
| 16 | Deep Ball Bearing | 60055811 | 1 | 60055811-Online |
| 17 | Lock Nut | 50035140 | 1 | 50035140-Online |
| 18 | Spring | 60055813 | 1 | 60055813-Online |
| 19 | Wear Reducing Gasket | 60055814 | 1 | 60055814-Online |
| 20 | Spanner | 50035139 | 1 | 50035139-Online |
| 21 | Screw ST3*16 | 60055816 | 3 | 60055816-Online |
| 22 | Self Tapping Screw ST3*8 | 60055817 | 1 | 60055817-Online |
| 24 | Position Piece | 50015055 | 1 | 50015055-Online |
| 25 | Screw M4*6 | 60055819 | 2 | 60055819-Online |
| 26 | Split Washer | 60055820 | 1 | 60055820-Online |
| 27 | Bearing | 60055821 | 1 | 60055821-Online |
| 28 | Gasket | 60055822 | 1 | 60055822-Online |
| 29 | Back Balance | 60055823 | 1 | 60055823-Online |
| 30 | Bearing Block | 60055824 | 1 | 60055824-Online |
| 31 | Middle Cover | 60055825 | 1 | 60055825-Online |
| 32 | Bearing | 60055826 | 1 | 60055826-Online |
| 33 | Eccentric Shaft | 60055827 | 1 | 60055827-Online |
| 34 | Fan | 60055828 | 1 | 60055828-Online |
| 35 | Rubber Sleeve | 60055829 | 1 | 60055829-Online |
| 36 | Motor | 60055830 | 1 | 60055830-Online |
| 37 | Shock Absorber Ring | 60055831 | 2 | 60055831-Online |
| 38 | Switch Push Button | 60055832 | 1 | 60055832-Online |
| 39 | Switch | 60055833 | 1 | 60055833-Online |
| 40 | Speed Circuit Board | 60056828 | 1 | 60056828-Online |
| 42 | Left/Right Housing | 60056829 | 1 | 60056829-Online |
| 43 | Terminal | 50024441 | 1 | 50024441-Online |
| 45 | Self Tapping Screw ST4*16 | 60055837 | 6 | 60055837-Online |
| 46 | Rubber Column | 60055838 | 4 | 60055838-Online |
| 49 | Rubber wheel | 60056830 | 1 | 60056830-Online |
| 50 | Cylindrical pin | 60056831 | 1 | 60056831-Online |
| 51 | Sanding Pad (triangular) | 50035436 | 1 | 50035436-Online |
| 52 | Semicircle Saw Blade | 50031241 | 1 | 50031241-Online |
| 101 | Gear Housing Assembly | 60055839 | 1 | 60055839-Online |
| 102 | Motor Set | 60055840 | 1 | 60055840-Online |
| 103 | Switch Circuit Board Assembly | 60056832 | 1 | 60056832-Online |
SKU convention used in this article: Worx part number with WRX- prefix and @online suffix. Links use the Cutsmart SKU resolver, not fixed product slugs.
Source drawing file(s): WX696.9 Exploded Drawing.pdf
