Worx WX812.9 IPL Parts Diagram & Parts List

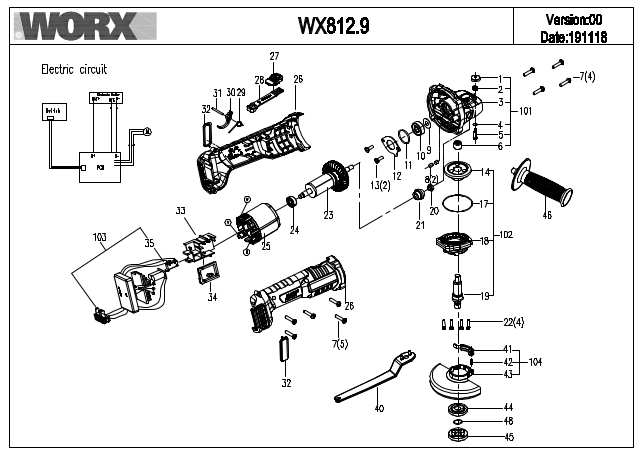

Use the exploded drawing and parts table below to identify Worx WX812.9 replacement parts.
Click any Cutsmart SKU to open the product lookup page.
| Ref | Description | Part Number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | Spindle lock | 50025752 | 1 | 50025752-Online |
| 2 | Compression spring | 50035809 | 1 | 50035809-Online |
| 3 | Fore Housing | 50035864 | 1 | 50035864-Online |
| 4 | O ring | 50025508 | 1 | 50025508-Online |
| 5 | Small shaft | 50022798 | 1 | 50022798-Online |
| 6 | Needle Bearing | 50020377 | 1 | 50020377-Online |
| 7 | Screw | 50027339 | 9 | 50027339-Online |
| 8 | Felt seal | 50001040 | 2 | 50001040-Online |
| 9 | Washer | 50038351 | 1 | 50038351-Online |
| 10 | Ball Bearing | 50025751 | 1 | 50025751-Online |
| 12 | Press plate | 50025750 | 1 | 50025750-Online |
| 13 | Screw | 50028230 | 2 | 50028230-Online |
| 14 | Main Gear | 50035811 | 1 | 50035811-Online |
| 17 | Seal ring | 50009079 | 1 | 50009079-Online |
| 18 | Fore Cover | 50040148 | 1 | 50040148-Online |
| 19 | Spindle | 50027194 | 1 | 50027194-Online |
| 20 | Nut | 50004369 | 1 | 50004369-Online |
| 21 | Pinion | 50035808 | 1 | 50035808-Online |
| 22 | Screw washer assembly | 50034010 | 4 | 50034010-Online |
| 23 | Rotor | 50046286 | 1 | 50046286-Online |
| 23 | Rotor | 50040569 | 1 | 50040569-Online |
| 24 | Ball Bearing 606 | 50036271 | 1 | 50036271-Online |
| 25 | Stator | 50046287 | 1 | 50046287-Online |
| 25 | Stator | 50040156 | 1 | 50040156-Online |
| 26 | Housing | 50040153 | 1 | 50040153-Online |
| 27 | Trigger | 50047106 | 1 | 50047106-Online |
| 28 | Switch Lever | 50036268 | 1 | 50036268-Online |
| 29 | Torsional Spring | 50040151 | 1 | 50040151-Online |
| 30 | Sliding Block | 50041121 | 1 | 50041121-Online |
| 31 | Cylindrical Pin | 50027793 | 1 | 50027793-Online |
| 32 | Dustproof Cover | 50040155 | 2 | 50040155-Online |
| 33 | Switch Box | 50040152 | 1 | 50040152-Online |
| 34 | Switch Box Cover | 50040149 | 1 | 50040149-Online |
| 35 | Switch | 50040570 | 1 | 50040570-Online |
| 40 | Spanner | 50014526 | 1 | 50014526-Online |
| 41 | Wheel guard lever | 50014652 | 1 | 50014652-Online |
| 42 | pin | 50014653 | 1 | 50014653-Online |
| 43 | Wheel guard | 50014651 | 1 | 50014651-Online |
| 44 | Inner flange | 50004287 | 1 | 50004287-Online |
| 45 | Outer flange | 50004282 | 1 | 50004282-Online |
| 46 | Side handle | 50040147 | 1 | 50040147-Online |
| 48 | O-ring | 50000746 | 1 | 50000746-Online |
| 101 | Fore Housing Assembly | 50036339 | 1 | 50036339-Online |
| 102 | Fore Cover Assembly | 50040649 | 1 | 50040649-Online |
| 103 | PCB | 50046288 | 1 | 50046288-Online |
| 103 | PCB | 50040154 | 1 | 50040154-Online |
| 104 | Wheel guard SDS | 50014650 | 1 | 50014650-Online |
SKU convention used in this article: Worx part number with WRX- prefix and @online suffix. Links use the Cutsmart SKU resolver, not fixed product slugs.
Source drawing file(s): WX812.9 Exploded Drawing.pdf
