Illustrated Parts List
48"-60" Parts Manual - 930107EX
This Hustler IPL page converts the source parts manual into a mobile-friendly Joomla article with clickable Cutsmart SKU links. Each part number is linked as HLR-[part number]@online where a valid part number is available.
Model: 930107EXModel: 930115EXModel: 930784EXModel: 933523EXModel: 933531EXModel: 932814EXModel: 932822EXModel: 932830EXModel: 602900Model: 114241+14 more modelsSKU prefix: HLR-SKU links use /qr?sku=
How to use this page: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the product through the QR resolver. Tap/click diagrams to enlarge them.
Sections
Frame-S/N 11120947 & HigherFrame-S/N Prior To 11120947FootrestHydraulic TransmissionTransmission AssemblyTransmission Service PartsSteering-S/N 13023176 & HigherSteering-S/N 12120454-12121264, S/N 12121536-13023175Steering-S/N Prior To 12120454, S/N 12121265-12121535Steering Sub-AssemblyBrakeWheel & Tire-13 X 5 Front TireFront Tire Breakdown-13 X 5 TireDrive Wheel BreakdownEngine, Kawasaki-S/N 12040665 & HigherEngine, Kawasaki-S/N 12040665 & HigherEngine, Kawasaki-S/N Prior To 12040665Fuel System, Kawasaki-S/N Prior To 12040665Engine Service Parts, KawasakiFuel Tanks-S/N 12040665 & HigherFuel Tank & Fender-S/N Prior To 12040665Fuel Tank Service Parts-Dual Tank Mowers-S/N 12040665 &Fuel Tank Service Parts-Single Tank Mowers-S/N Prior ToBatteryInstrument Panel-60"Instrument Panel-48"/54"48" Service Deck48" Deck Pulleys & Spindles48" Deck54" Service Deck54" Deck Pulleys & Spindles54" Deck60" Service Deck60" Deck Pulleys & Spindles60" DeckSpindle AssemblyDeck LiftDeck Mounting HardwareSeat, StandardSeat Service PartsOptional ROPSROPS-FoldableFrame-S/N 11120947 & Higher
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | HOT DECAL | 602041 | 1 | 602041-Online |
| 2 | ENGINE COMPARTMENT DECAL | 601967 | 1 | 601967-Online |
| 3 | TOW VALVE DECAL | 601099 | 1 | 601099-Online |
| 4 | MADE IN USA DECAL | 727172 | 1 | 727172-Online |
| 5 | FASTRAK DECAL | 784710 | 1 | 784710-Online |
| 6 | SERIAL NO. / SPEC DECAL | N/A | 3 | No SKU |
| 7 | 3/8-16 THREAD HEX RIVET NUT | 600994 | 2 | 600994-Online |
| 8 | 3/8-16 THREAD RIVET NUT | 808493 | 8 | 808493-Online |
| 9 | FUEL INDICATOR DECAL | 791848 | 1 | 791848-Online |
| 10 | CN .312-18 X .200 MAX THK | 601069 | 2 | HT601069-Online |
| 11 | PUMP BELT WARNING DECAL | 600899 | 1 | 600899-Online |
| 12 | 5/16-18 THREAD RIVET NUT | 808485 | 1 | HT808485-Online |
| 13 | LS STEERING DECAL | 785139 | 1 | 785139-Online |
| 14 | RS STEERING DECAL | 785220 | 1 | 785220-Online |
| 15 | DECK HEIGHT DECAL | 785154 | 1 | 785154-Online |
| 16 | SAFE OPERATION DECAL | 601993 | 1 | 601993-Online |
| 17 | 48" FRAME (WITH DECALS & RIVET NUTS) | 551421 | 1 | 551421-Online |
| 17 | 54" FRAME (WITH DECALS & RIVET NUTS) | 551422 | 1 | 551422-Online |
| 17 | 60" FRAME (WITH DECALS & RIVET NUTS) | 551423 | 1 | 551423-Online |
Frame-S/N Prior To 11120947
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | HOT DECAL | 602041 | 1 | 602041-Online |
| 2 | ENGINE COMPARTMENT DECAL | 601967 | 1 | 601967-Online |
| 3 | TOW VALVE DECAL | 601099 | 1 | 601099-Online |
| 4 | MADE IN USA DECAL | 727172 | 1 | 727172-Online |
| 5 | FASTRAK DECAL | 784710 | 1 | 784710-Online |
| 6 | SERIAL NO. / SPEC DECAL | N/A | 3 | No SKU |
| 7 | 3/8-16 THREAD HEX RIVET NUT | 600994 | 2 | 600994-Online |
| 8 | 3/8-16 THREAD RIVET NUT | 808493 | 8 | 808493-Online |
| 9 | CN .312-18 X .200 MAX THK | 601069 | 2 | HT601069-Online |
| 10 | PUMP BELT WARNING DECAL | 600899 | 1 | 600899-Online |
| 11 | 5/16-18 THREAD RIVET NUT | 808485 | 1 | HT808485-Online |
| 12 | LS STEERING DECAL | 785139 | 1 | 785139-Online |
| 13 | RS STEERING DECAL | 785220 | 1 | 785220-Online |
| 14 | DECK HEIGHT INDICATOR DECAL | 785154 | 1 | 785154-Online |
| 15 | SAFE OPERATION DECAL | 601993 | 1 | 601993-Online |
| 16 | 54" FRAME (WITH DECALS & RIVET NUTS) | 550657 | 1 | 550657-Online |
| 16 | 48" FRAME (WITH DECALS & RIVET NUTS) | 550656 | 1 | 550656-Online |
| 16 | 60" FRAME (WITH DECALS & RIVET NUTS) | 550780 | 1 | 550780-Online |
Footrest
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FLOOR PAN | 108840 | 1 | 108840-Online |
| 2 | CB .375-16 X .75 STD ZN | 011320 | 2 | 011320-Online |
| 3 | NT .375-16 HX ZY NL | 086660 | 2 | HT086660-Online |
| 4 | FW .406 X .812 X .060 SAE | 767954 | 4 | HT767954-Online |
| 5 | CB .375-16 X 1.00 G5 ZNY | 025395 | 2 | HT025395-Online |
| 6 | NT .375-16 HX G5 ZNY | 054502 | 2 | HT054502-Online |
| 7 | HUSTLER ID DECAL | 602407 | 1 | 602407-Online |
| 8 | STEP TREAD, UPPER | 785485 | 2 | 785485-Online |
| 9 | STEP TREAD, LOWER | 785493 | 2 | 785493-Online |
Hydraulic Transmission
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .312-18 X 2.50 HX G5 | 710087 | 4 | HT710087-Online |
| 2 | CS .312-18 X 2.25 HX G5 | 038828 | 4 | 038828-Online |
| 3 | FW .343 X .687 X .051/.080H | 768523 | 16 | HT768523-Online |
| 4 | BELT, A-SEC 40.5" EL | 600979 | 1 | HT600979-Online |
| 5 | FW .625 X 1.00 X .134 ZNYC | 028118 | 2 | HT028118-Online |
| 6 | IDLER PULLEY | 786848 | 2 | 786848-Online |
| 7 | CS .625-11 X 1.50 HX G5 | 794446 | 1 | HT794446-Online |
| 8 | CS .625-11 X 1.75 HX G5 | 025007 | 1 | HT025007-Online |
| 9 | FW .781 X 1.25 X .024 ZN | 704791 | 1 | 704791-Online |
| 10 | BUSHING | 781153 | 2 | HT781153-Online |
| 11 | PUMP IDLER | 107881 | 1 | HT107881-Online |
| 12 | FW .760 X 1.625 X .08 ZNYC | 025296 | 1 | HT025296-Online |
| 13 | SB .750 X 2.00 SH .625-11 | 601084 | 1 | HT601084-Online |
| 14 | SPRING 1/4 COIL PL 1.23 | 036384 | 1 | HT036384-Online |
| 15 | TRANSMISSION SUB-ASSEMBLY | N/A | 1 | No SKU |
| 16 | NT .312-18 HX G5 ZNYC | 034272 | 8 | HT034272-Online |
| 17 | WIRE TIE | 000331 | 2 | 000331-Online |
| 18 | CP .062D X 1.00 LG HML Z | 048553 | 2 | 048553-Online |
| 19 | TOW LINK ROD | 601088 | 2 | 601088-Online |
| 20 | NT .250-20 HX ZY NL | 068551 | 2 | HT068551-Online |
| 21 | FW .281 X .625 X .051/.080 HD ZN/YL | 768515 | 4 | HT768515-Online |
| 22 | OVERFLOW TANK (WITH CAP) | 600759 | 1 | HT600759-Online |
| 22 | OVERFLOW TANK CAP | 600767 | 1 | 600767-Online |
| 23 | CS .250-20 X .75 HX G5 | 055939 | 2 | 055939-Online |
Transmission Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | LS TRANSMISSION ZT3100 | 604432 | 1 | 604432-Online |
| 2 | RS TRANSMISSION ZT3100 | 604431 | 1 | 604431-Online |
| 3 | NT .312-18 HX G5 ZNYC | 034272 | 2 | HT034272-Online |
| 4 | FW .343 X .687 X .051/.080H | 768523 | 4 | HT768523-Online |
| 5 | BALL STUD | 781922 | 2 | 781922-Online |
| 6 | STEERING DAMPER | 600221 | 2 | HT600221-Online |
| 7 | HYDRAULIC FITTING, 45 DEG | 600880 | 2 | 600880-Online |
| 8 | SPRING CLAMP | 601001 | 4 | 601001-Online |
| 9 | OVERFLOW HOSE | 601018 | 2 | 601018-Online |
| 10 | CS .375-16 X 2.00 G5 ZNYC | 016410 | 2 | HT016410-Online |
| 11 | FW .406 X .812 X .060 SAE | 767954 | 2 | HT767954-Online |
| 12 | SPACER TUBE | 600987 | 1 | HT600987-Online |
| 13 | CAP LOCK | 601426 | 1 | 601426-Online |
Transmission Service Parts
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FAN/PULLEY KIT | 601941 | 1 | 601941-Online |
| 2 | RETAINING CLIP | 600972 | 1 | HT600972-Online |
| 3 | BRAKE ARM | 601221 | 1 | 601221-Online |
| 4 | PUMP ARM | 604871 | 1 | 604871-Online |
| 5 | OIL FILTER | 600976 | 1 | HT600976-Online |
| 6 | 4-BOLT HUB KIT | 601433 | 1 | 601433-Online |
| 7 | LS FILTER GUARD | 600975 | 1 | HT600975-Online |
| 7 | RS FILTER GUARD (NOT SHOWN) | 600974 | 1 | HT600974-Online |
| 8 | O-RING | 603223 | 1 | 603223-Online |
| 9 | CHARGE COVER KIT (WITH O-RING) | 603572 | 1 | 603572-Online |
Steering-S/N 13023176 & Higher
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | LOCK COLLAR 0.757 ID | 784439 | 2 | HT784439-Online |
| 2 | NT .312-24 HX NL ZN | 023655 | 2 | HT023655-Online |
| 3 | FW .343 X .687 X .051/.080H | 768523 | 13 | HT768523-Online |
| 4 | PUMP ROD | 600981 | 2 | HT600981-Online |
| 5 | CS .375-16 X 1.375 HX G5 | 005116 | 2 | HT005116-Online |
| 6 | NT .375-16 HX JAM G5 Z | 706168 | 2 | HT706168-Online |
| 7 | CS .250-20 X .75 HX G5 | 055939 | 4 | 055939-Online |
| 8 | FW .281 X .625 X .051/.080H | 768515 | 8 | HT768515-Online |
| 9 | STEER TUBE SUPPORT | 108968 | 2 | 108968-Online |
| 10 | CS .312-18 X 1.00 HX G5 | 036236 | 1 | 036236-Online |
| 11 | PLATED PIVOT TUBE | 361295 | 1 | 361295-Online |
| 12 | LW .312 INT-EXT TOOTH | 029876 | 2 | 029876-Online |
| 13 | NT .312-18 HX G5 ZNYC | 034272 | 2 | HT034272-Online |
| 14 | BALL STUD | 781922 | 2 | 781922-Online |
| 15 | NT .250-20 HX G5 ZNYC | 024927 | 4 | HT024927-Online |
| 16 | SPACER | 604456 | 2 | 604456-Online |
| 17 | NT .312-24 HX ZNYC | 041152 | 2 | HT041152-Online |
Steering-S/N 12120454-12121264, S/N 12121536-13023175
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | LOCK COLLAR .757 ID | 784439 | 2 | HT784439-Online |
| 2 | NT .312-24 HX NL ZN | 023655 | 2 | HT023655-Online |
| 3 | FW .343 X .687 X .051/.080H | 768523 | 17 | HT768523-Online |
| 4 | STEERING DAMPER | 600221 | 2 | HT600221-Online |
| 5 | PUMP ROD | 600981 | 2 | HT600981-Online |
| 6 | BALL STUD | 781922 | 4 | 781922-Online |
| 7 | CS .250-20 X .75 HX G5 | 055939 | 4 | 055939-Online |
| 8 | FW .281 X .625 X .051/.080H | 768515 | 8 | HT768515-Online |
| 9 | STEER TUBE SUPPORT | 108968 | 2 | 108968-Online |
| 10 | CS .375-16 X 1.375 HX G5 | 005116 | 2 | HT005116-Online |
| 11 | NT .375-16 HX JAM G5 Z | 706168 | 2 | HT706168-Online |
| 12 | CS .312-18 X 1.00 HX G5 | 036236 | 1 | 036236-Online |
| 13 | PLATED PIVOT TUBE | 361295 | 1 | 361295-Online |
| 14 | LW .312 INT-EXT TOOTH | 029876 | 2 | 029876-Online |
| 15 | NT .312-18 HX G5 ZNYC | 034272 | 4 | HT034272-Online |
| 16 | NT .250-20 HX G5 ZN | 024927 | 4 | HT024927-Online |
| 17 | SPACER | 604456 | 2 | 604456-Online |
| 18 | NT .312-24 HX ZNYC | 041152 | 2 | HT041152-Online |
| 19 | CAP LOCK | 601426 | 1 | 601426-Online |
Steering-S/N Prior To 12120454, S/N 12121265-12121535
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | LOCK COLLAR .750 | 784439 | 2 | HT784439-Online |
| 2 | NT .312-24 HX NL ZN | 023655 | 2 | HT023655-Online |
| 3 | FW .343 X .687 X .051/.080 HD ZN/YL | 768523 | 17 | HT768523-Online |
| 4 | STEERING DAMPER | 600221 | 2 | HT600221-Online |
| 5 | PUMP ROD | 600981 | 2 | HT600981-Online |
| 6 | BALL STUD DAMPER | 781922 | 4 | 781922-Online |
| 7 | CS .250-20 X 2.00 HX G5 ZN | 704163 | 2 | 704163-Online |
| 8 | FW .281 X .625 X .051/.080 HD ZN/YL | 768515 | 12 | HT768515-Online |
| 9 | NT .250-20 HX ZN NL | 068551 | 2 | HT068551-Online |
| 10 | PUMP ARM | 109318 | 2 | HT109318-Online |
| 11 | NT .312-18 HX G5 ZNYC | 034272 | 4 | HT034272-Online |
| 12 | NT .312-24 HX ZNYC | 041152 | 2 | HT041152-Online |
| 13 | CS .250-20 X .75 HX G5 ZN | 055939 | 4 | 055939-Online |
| 14 | STEER TUBE SUPPORT | 108968 | 2 | 108968-Online |
| 15 | CS .375-16 X 1.375 HX G5 ZN | 005116 | 2 | HT005116-Online |
| 16 | NT .375-16 HX JAM GR5 ZN | 706168 | 2 | HT706168-Online |
| 17 | CS .312-18 X 1.00 HX G5 ZN | 036236 | 1 | 036236-Online |
| 18 | PIVOT TUBE | 361295 | 1 | 361295-Online |
| 19 | LW .312 INT-EXT TOOTH ZN | 029876 | 2 | 029876-Online |
| 20 | NT .250-20 HX GR5 ZN | 024927 | 4 | HT024927-Online |
| 21 | CAP LOCK | 601426 | 1 | 601426-Online |

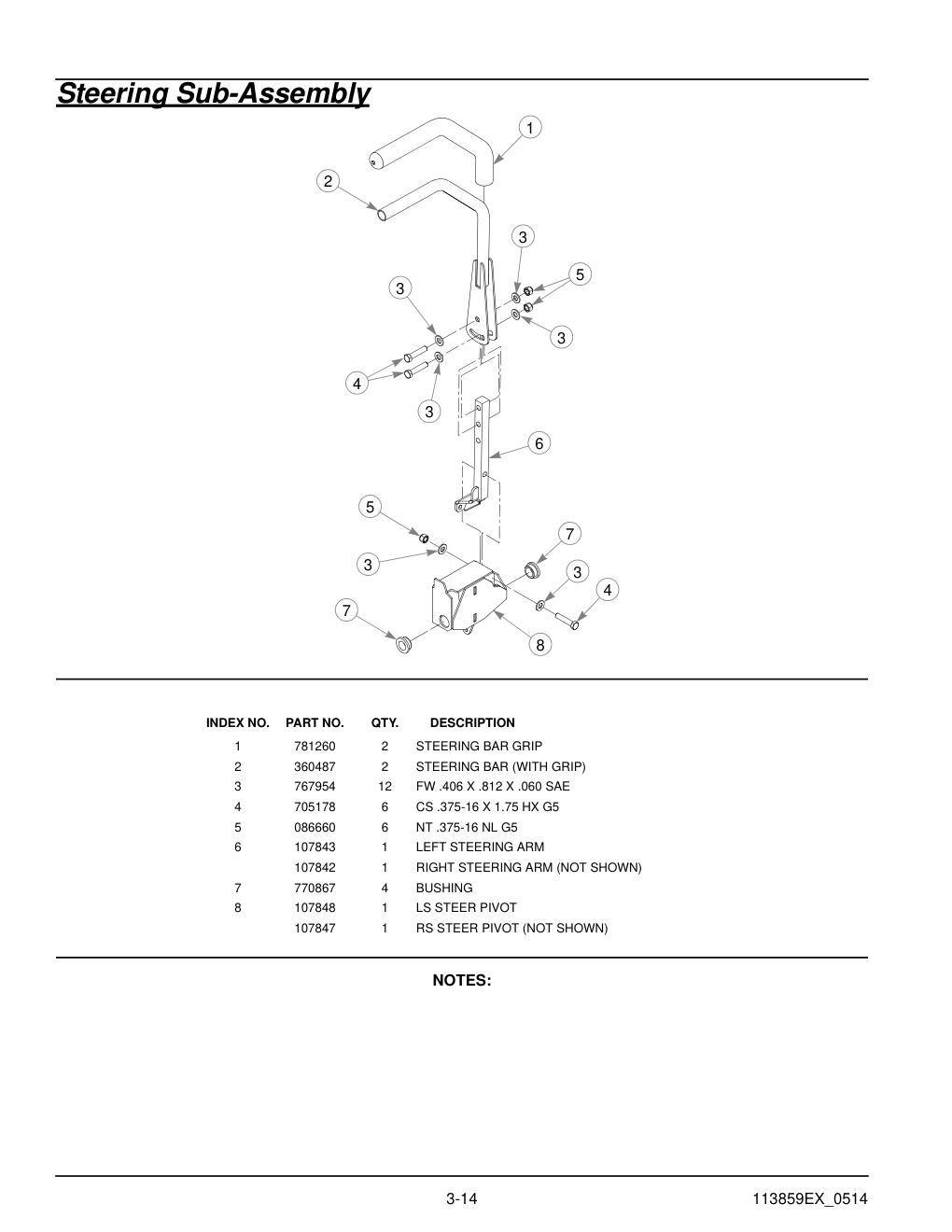

Steering Sub-Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STEERING BAR GRIP | 781260 | 2 | 781260-Online |
| 2 | STEERING BAR (WITH GRIP) | 360487 | 2 | 360487-Online |
| 3 | FW .406 X .812 X .060 SAE | 767954 | 12 | HT767954-Online |
| 4 | CS .375-16 X 1.75 HX G5 | 705178 | 6 | HT705178-Online |
| 5 | NT .375-16 NL G5 | 086660 | 6 | HT086660-Online |
| 6 | LEFT STEERING ARM | 107843 | 1 | HT107843-Online |
| 6 | RIGHT STEERING ARM (NOT SHOWN) | 107842 | 1 | HT107842-Online |
| 7 | BUSHING | 770867 | 4 | HT770867-Online |
| 8 | LS STEER PIVOT | 107848 | 1 | 107848-Online |
| 8 | RS STEER PIVOT (NOT SHOWN) | 107847 | 1 | 107847-Online |
Brake
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .375-16 NL G5 | 086660 | 4 | HT086660-Online |
| 2 | FW .406 X .812 X .060 SAE | 767954 | 12 | HT767954-Online |
| 3 | SWITCH | 601087 | 2 | HT601087-Online |
| 4 | CS .375-16 X 3.50 HX G5 Z | 005108 | 2 | HT005108-Online |
| 5 | BRAKE ROD ASSEMBLY | 601410 | 2 | 601410-Online |
| 6 | NT .375-16 HX G5 ZNY | 054502 | 2 | HT054502-Online |
| 7 | NT .312-24 HX NL ZN | 023655 | 4 | HT023655-Online |
| 8 | FW .343 X .687 X .051/.080H | 768523 | 8 | HT768523-Online |
| 9 | BUSHING | 765339 | 4 | HT765339-Online |
| 10 | LS BRAKE BELL CRANK | 107893 | 1 | HT107893-Online |
| 11 | RS BRAKE BELL CRANK | 107892 | 1 | HT107892-Online |
| 12 | CS .375-16 X 1.50 HX G5 | 080655 | 2 | HT080655-Online |
| 13 | SHORT BRAKE LINK ROD | 600991 | 2 | 600991-Online |
| 14 | SPRING | 601131 | 2 | HT601131-Online |
| 15 | LS BRAKE SPRING LINK | 109203 | 1 | 109203-Online |
| 15 | RS BRAKE SPRING LINK (NOT SHOWN) | 109202 | 1 | HT109202-Online |
| 16 | CS .250-20 X .75 HX G5 | 055939 | 2 | 055939-Online |
| 17 | NT .250-20 HX FL LK ZNY | 016816 | 2 | 016816-Online |
| 18 | OVERTRAVEL SPRING | 601051 | 2 | HT601051-Online |

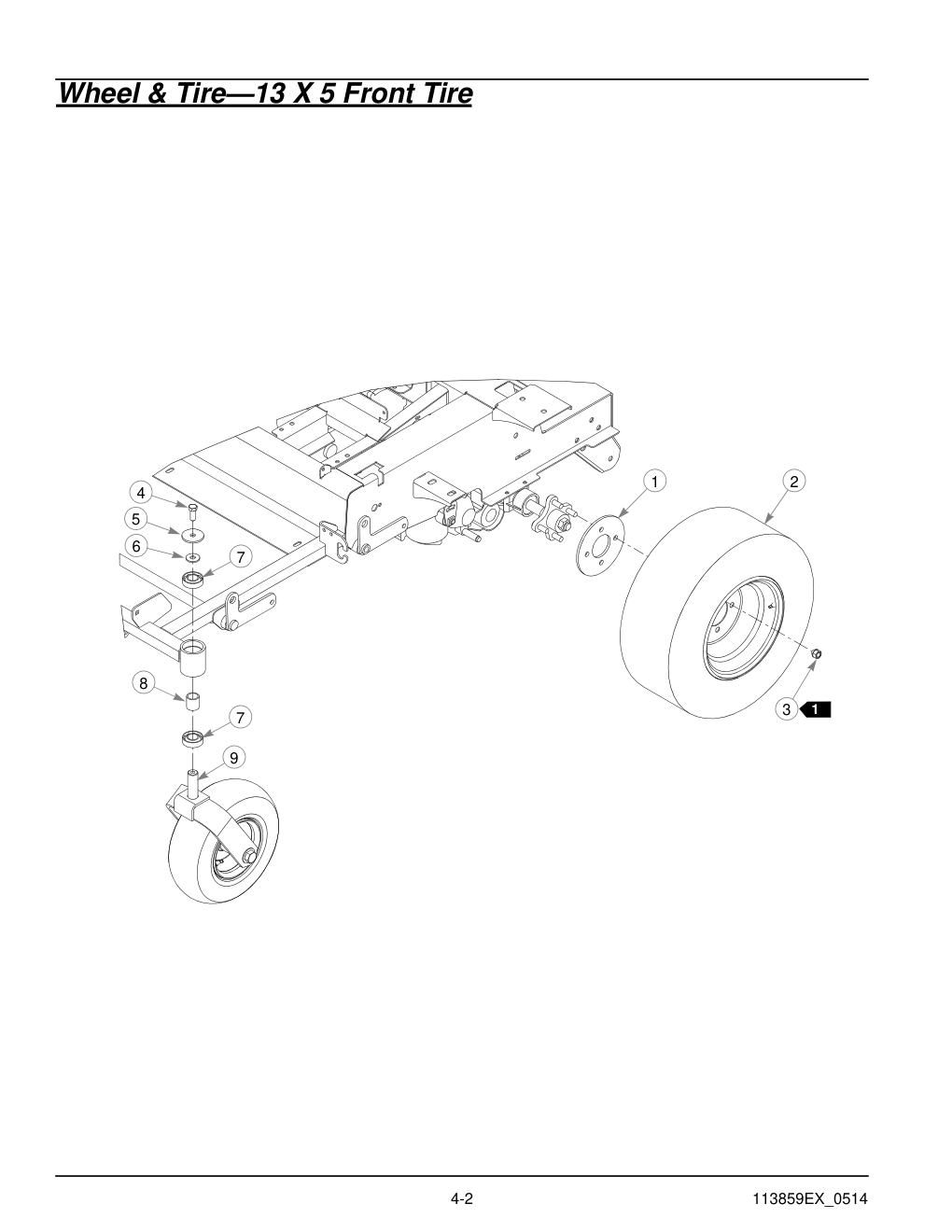

Wheel & Tire-13 X 5 Front Tire
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | WHEEL BACKUP PLATE | 111875 | 2 | 111875-Online |
| 2 | TIRE/WHEEL ASSEMBLY (48" MOWER) | 600668 | 2 | HT600668-Online |
| 2 | TIRE/WHEEL ASSEMBLY (54"/60" MOWERS) | 601349 | 2 | 601349-Online |
| 3 | WHEEL NUT | 061077 | 8 | HT061077-Online |
| 4 | CS .500-13 X 1.25 HX G5 ZN | 705954 | 2 | HT705954-Online |
| 5 | FW .510 X 2.15 X .187 SPL | 344267 | 2 | HT344267-Online |
| 6 | FW .531 X 1.375 X .125 ZNY | 712976 | 2 | HT712976-Online |
| 7 | BEARING | 784223 | 4 | HT784223-Online |
| 8 | SPACER | 784603 | 2 | HT784603-Online |
| 9 | FRONT TIRE ASSEMBLY | N/A | 1 | No SKU |
Front Tire Breakdown-13 X 5 Tire
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FORK | 366625 | 1 | HT366625-Online |
| 2 | CS .750-10 X 8.00 HX G5 | 786731 | 1 | HT786731-Online |
| 3 | FW .760 X 1.625 X .08 ZNYC | 025296 | 2 | HT025296-Online |
| 4 | NT .750-10 HX ZY NL | 061101 | 1 | HT061101-Online |
| 5 | TIRE/WHEEL 13 X 5.00 | 605038 | 1 | 605038-Online |
| 6 | TIRE 13 X 5.00 (SMOOTH) | 605039 | 1 | 605039-Online |
| 6 | TIRE 13 X 5.00 (RIBBED) | 747402 | 1 | 747402-Online |
| 7 | WHEEL BEARING | 786103 | 2 | HT786103-Online |
| 8 | WHEEL | 786079 | 1 | HT786079-Online |
| 9 | VALVE STEM | 019521 | 1 | HT019521-Online |
Drive Wheel Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIRE 20 X 12-10 | 601348 | 1 | 601348-Online |
| 2 | WHEEL | 601347 | 1 | 601347-Online |
| 3 | TIRE VALVE | 019521 | 1 | HT019521-Online |
| 1 | TIRE 20 X 10-10 | 600684 | 1 | HT600684-Online |
| 2 | WHEEL | 600700 | 1 | HT600700-Online |
| 3 | TIRE VALVE | 019521 | 1 | HT019521-Online |
Engine, Kawasaki-S/N 12040665 & Higher
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KAWASAKI FS651V, FS691V, FS730V ENGINE | N/A | 1 | No SKU |
| 2 | WIRE TIE | 000331 | 3 | 000331-Online |
| 3 | LW .312 INT-EXT TOOTH | 029876 | 1 | 029876-Online |
| 4 | NEGATIVE BATTERY CABLE | 796219 | 1 | 796219-Online |
| 5 | FW .343 X .687 X .051/.080H | 768523 | 9 | HT768523-Online |
| 6 | CS M8 X 1.25 X 16 HX G10.9 | 720516 | 3 | 720516-Online |
| 7 | RED BATTERY CABLE BOOT | 771428 | 1 | 771428-Online |
| 8 | NT .250-20 HX G5 ZNYC | 024927 | 4 | HT024927-Online |
| 9 | FW .281 X .625 X .051/.080 HD ZN/YL | 768515 | 6 | HT768515-Online |
| 10 | POSITIVE BATTERY CABLE | 601062 | 1 | 601062-Online |
| 11 | POSITIVE BATTERY CABLE | 601312 | 1 | 601312-Online |
| 12 | NT #10-32 HX ZN | 044255 | 1 | 044255-Online |
| 13 | CS .250-20 X .75 HX G5 | 055939 | 2 | 055939-Online |
| 14 | STARTER SOLENOID | 030817 | 1 | HT030817-Online |
| 15 | MUFFLER | 602704 | 1 | 602704-Online |
| 16 | NT .375-16 HX FLK ZNYC | 016899 | 1 | HT016899-Online |
| 17 | LOOP CLAMP | 000398 | 1 | HT000398-Online |
| 18 | FW .406 X .812 X .060 SAE | 767954 | 5 | HT767954-Online |
| 19 | CS .375-16 X 1.00 HX G5 | 036244 | 1 | HT036244-Online |
| 20 | CABLE GUIDE | 113970 | 1 | 113970-Online |
| 21 | CS .375-16 X 1.25 HX G5 P85 | 602580 | 4 | 602580-Online |
Engine, Kawasaki-S/N 12040665 & Higher
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 22 | HOSE CLAMP | 000323 | 2 | 000323-Online |
| 23 | 1/4" FUEL LINE | 015818 | 8" | HT015818-Online |
| 24 | OIL DRAIN VALVE | 796524 | 1 | HT796524-Online |
| 25 | CB .312-18 X .75 FUL ZN | 016253 | 4 | 016253-Online |
| 26 | NT .312-18 HX G5 ZNYC | 034272 | 6 | HT034272-Online |
| 27 | EXHAUST MOUNT | 112828 | 1 | 112828-Online |
| 28 | PULLEY | 799429 | 1 | HT799429-Online |
| 29 | KEY 1/4 SQ X 0.66 LG | 712372 | 1 | HT712372-Online |
| 30 | CLUTCH HARNESS PIGTAIL | 791251 | 1 | HT791251-Online |
| 31 | CLUTCH KIT | 601784K | 1 | 601784K-Online |
| 32 | FW .453 X 1.12 X .119 HRD | 602680 | 1 | 602680-Online |
| 33 | CS .437-20 X 3.25 HX G5 P85 | 601834 | 1 | 601834-Online |
| 34 | CLUTCH ANCHOR | 113946 | 1 | HT113946-Online |
| 35 | CS .312-18 X 1.00 HX G5 | 036236 | 2 | 036236-Online |
Engine, Kawasaki-S/N Prior To 12040665
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KAWASAKI FS651V & FS691V ENGINE | N/A | 1 | No SKU |
| 2 | WIRE TIE | 000331 | 3 | 000331-Online |
| 3 | POSITIVE BATTERY CABLE | 601062 | 1 | 601062-Online |
| 4 | LW .312 INT-EXT TOOTH | 029876 | 1 | 029876-Online |
| 5 | NEGATIVE BATTERY CABLE | 796219 | 1 | 796219-Online |
| 6 | FW .343 X .687 X .051/.080H | 768523 | 9 | HT768523-Online |
| 7 | CS M8 X 1.25 X 16 HX G10.9 | 720516 | 3 | 720516-Online |
| 8 | OIL DRAIN VALVE | 796524 | 1 | HT796524-Online |
| 9 | FW .406 X .812 X .060 SAE | 767954 | 5 | HT767954-Online |
| 10 | CS .375-16 X 1.25 HX G5 P85 | 602580 | 4 | 602580-Online |
| 11 | PULLEY | 799429 | 1 | HT799429-Online |
| 12 | KEY 1/4 SQ X 0.66 LG | 712372 | 1 | HT712372-Online |
| 13 | CLUTCH HARNESS PIGTAIL | 791251 | 1 | HT791251-Online |
| 14 | CLUTCH KIT | 601784K | 1 | 601784K-Online |
| 15 | FW .453 X 1.12 X .119 HRD | 602680 | 1 | 602680-Online |
| 16 | CS .437-20 X 3.25 HX G5 P85 | 601834 | 1 | 601834-Online |
| 17 | NT .312-18 HX G5 ZNYC | 034272 | 6 | HT034272-Online |
| 18 | CLUTCH ANCHOR | 113946 | 1 | HT113946-Online |
| 19 | CS .312-18 X 1.00 HX G5 | 036236 | 2 | 036236-Online |
| 20 | CABLE GUIDE | 113970 | 1 | 113970-Online |
| 21 | LOOP CLAMP | 000398 | 1 | HT000398-Online |
| 22 | CS .375-16 X 1.00 HX G5 | 036244 | 1 | HT036244-Online |
| 23 | MUFFLER | 602704 | 1 | 602704-Online |
| 24 | RED BATTERY CABLE BOOT | 771428 | 1 | 771428-Online |
| 25 | NT .250-20 HX G5 ZNYC | 024927 | 4 | HT024927-Online |
| 26 | FW .281 X .625 X .051/.080 HD ZN/YL | 768515 | 6 | HT768515-Online |
| 27 | POSITIVE BATTERY CABLE | 601312 | 1 | 601312-Online |
| 28 | CS .250-20 X .75 HX G5 | 055939 | 2 | 055939-Online |
| 29 | CB .312-18 X .75 FUL ZN | 016253 | 4 | 016253-Online |
| 30 | NT #10-32 HX ZN | 044255 | 1 | 044255-Online |
| 31 | STARTER SOLENOID | 030817 | 1 | HT030817-Online |
| 32 | EXHAUST MOUNT | 112828 | 1 | 112828-Online |
| 33 | NT .375-16 HX FLK ZNYC | 016899 | 1 | HT016899-Online |
Fuel System, Kawasaki-S/N Prior To 12040665
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 34 | HOSE CLAMP | 000323 | 4 | 000323-Online |
| 35 | CLAMP, 3/16" | 603112 | 2 | 603112-Online |
| 36 | VACUUM BREAKER | 603114 | 1 | 603114-Online |
| 37 | 3/16" VAPOR LINE | 603326 | 18" | 603326-Online |
| 38 | 1/4" FUEL/VAPOR LINE | 015818 | 42" | HT015818-Online |
| 39 | VACUUM BREAKER FILTER | 603161 | 1 | 603161-Online |
Engine Service Parts, Kawasaki
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | AIR FILTER | 603059 | 1 | 603059-Online |
| 2 | PRE FILTER | 603058 | 1 | 603058-Online |
| 3 | OIL FILTER | 602581 | 1 | 602581-Online |
| 4 | IN-LINE FUEL FILTER | 068478 | 1 | 068478-Online |
Fuel Tanks-S/N 12040665 & Higher
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FUEL CAP, 3.5" | 779306 | 2 | HT779306-Online |
| 2 | RS FUEL TANK ASSEMBLY | 601320 | 1 | 601320-Online |
| 3 | LS FUEL TANK ASSEMBLY | 601321 | 1 | 601321-Online |
| 4 | FW .406 X 1.00 X .12 HRD Z | 712919 | 8 | HT712919-Online |
| 5 | CS .375-16 X .75 HX G5 | 055822 | 8 | HT055822-Online |
| 6 | HOSE CLAMP | 000323 | 4 | 000323-Online |
| 7 | 1/4" FUEL LINE | 015818 | 35" | HT015818-Online |
| 8 | CS .312-18 X .75 HX G5 | 034280 | 2 | HT034280-Online |
| 9 | FW .343 X .687 X .051/.080H | 768523 | 4 | HT768523-Online |
| 10 | FUEL VALVE 3-WAY | 745059 | 1 | HT745059-Online |
| 11 | WIRE TIE | 000331 | 1 | 000331-Online |
| 12 | NT .312-18 HX G5 ZNYC | 034272 | 2 | HT034272-Online |
| 13 | LOOP CLAMP | 000398 | 2 | HT000398-Online |
Fuel Tank & Fender-S/N Prior To 12040665
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RATCHETING GAS CAP 3.5" | 602916 | 1 | 602916-Online |
| 2 | LS FUEL TANK ASSEMBLY | 603544 | 1 | 603544-Online |
| 3 | WIRE TIE | 000331 | 1 | 000331-Online |
| 4 | CS .312-18 X .75 HX G5 | 034280 | 1 | HT034280-Online |
| 5 | FW .343 X .687 X .051/.080H | 768523 | 1 | HT768523-Online |
| 6 | LOOP CLAMP | 043570 | 1 | 043570-Online |
| 7 | NT .312-18 HX FLK ZNYC | 016832 | 1 | 016832-Online |
| 8 | FW .406 X 1.00 X .12 HRD Z | 712919 | 8 | HT712919-Online |
| 9 | CS .375-16 X .75 HX G5 | 055822 | 8 | HT055822-Online |
| 10 | RS FENDER | 602909 | 1 | 602909-Online |

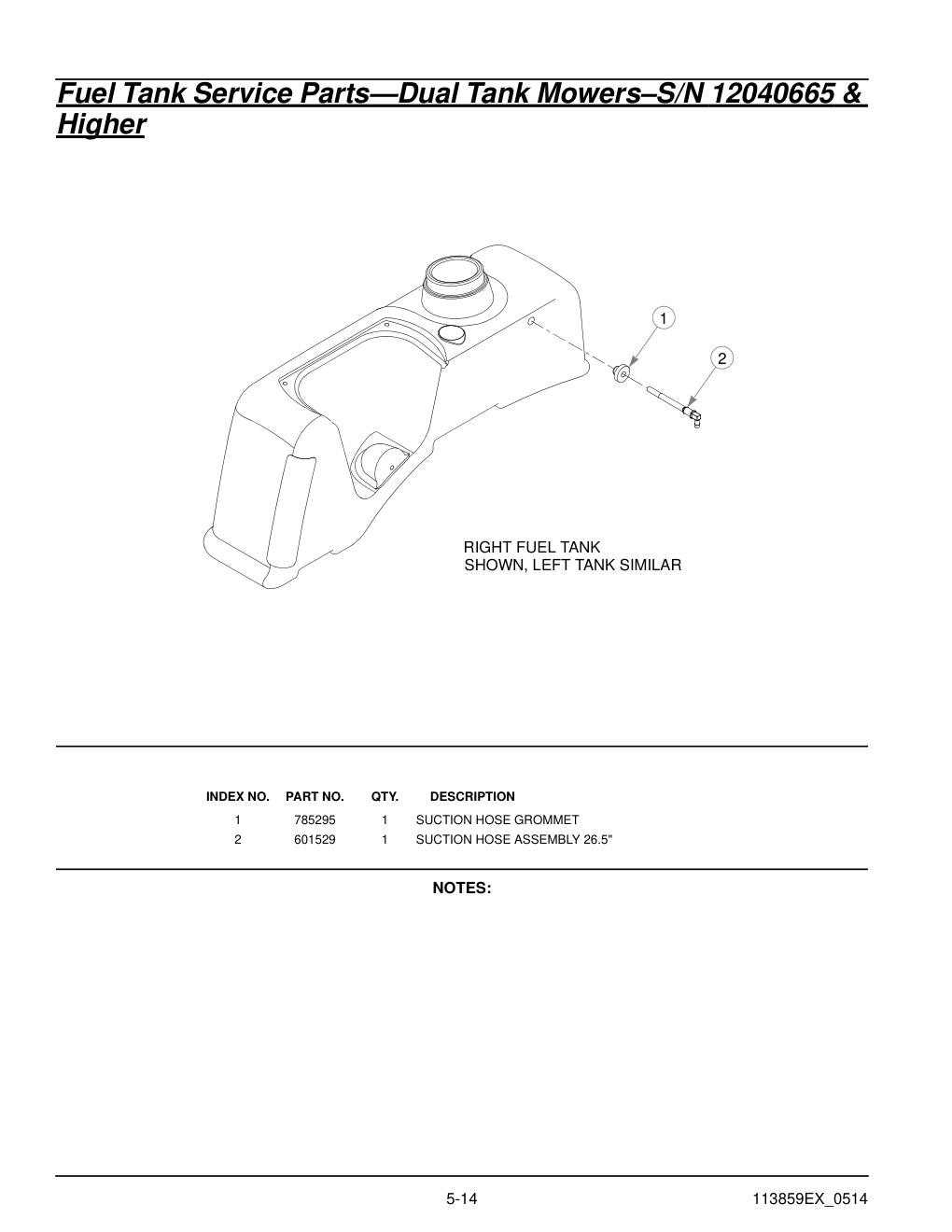

Fuel Tank Service Parts-Dual Tank Mowers-S/N 12040665 &
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SUCTION HOSE GROMMET | 785295 | 1 | HT785295-Online |
| 2 | SUCTION HOSE ASSEMBLY 26.5" | 601529 | 1 | 601529-Online |
Fuel Tank Service Parts-Single Tank Mowers-S/N Prior To
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | VENT FITTING | 604199 | 1 | 604199-Online |
| 2 | GROMMET | 604200 | 1 | 604200-Online |
| 3 | SUCTION HOSE GROMMET | 785295 | 1 | HT785295-Online |
| 4 | SUCTION HOSE 26.5" | 601529 | 1 | 601529-Online |
Battery
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .312-18 X 4.00 HX G5 | 714618 | 2 | HT714618-Online |
| 2 | FW .343 X .687 X .051/.080H | 768523 | 2 | HT768523-Online |
| 3 | BATTERY CLAMP STRAP | 348417 | 1 | 348417-Online |
| 4 | CS .250-20 X .75 HX G5 | 055939 | 2 | 055939-Online |
| 5 | LW .250 INT-EXT TOOTH Z | 029868 | 4 | 029868-Online |
| 6 | NT .250-20 HX G5 ZNYC | 024927 | 2 | HT024927-Online |
| 7 | RED BATTERY CABLE BOOT | 771428 | 1 | 771428-Online |
| 8 | GM 1.50 X 2.12 X 1.75 | 794644 | 2 | 794644-Online |
| 9 | WIRE TIE (NOT SHOWN) | 000331 | 1 | 000331-Online |
Instrument Panel-60"
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CHOKE CABLE | 601095 | 1 | HT601095-Online |
| 2 | PTO SWITCH | 776476 | 1 | HT776476-Online |
| 3 | KEY ASSEMBLY | 785808 | 1 | 785808-Online |
| 4 | IGNITION SWITCH | 045898 | 1 | HT045898-Online |
| 5 | HOUR METER | 769166 | 1 | HT769166-Online |
| 6 | RED INDICATOR LIGHT | 712257 | 1 | HT712257-Online |
| 7 | NT #10-24 HX NL ZN | 059832 | 4 | 059832-Online |
| 8 | SEALED RELAY (WITH BRACKET) | 601053 | 2 | HT601053-Online |
| 9 | CB 10-24 X .500 ZYNC | 601098 | 4 | 601098-Online |
| 10 | INSTRUMENT PANEL (WITH DECAL) | 551398 | 1 | 551398-Online |
| 11 | FW .219 X .500 X .048 ZNYC | 704932 | 2 | HT704932-Online |
| 12 | THROTTLE CABLE | 601094 | 1 | HT601094-Online |
| 13 | CS .250-20 X .500 HX G5 | 055947 | 3 | 055947-Online |
| 14 | FW .281 X .625 X .051/.080 HD ZN/YL | 768515 | 3 | HT768515-Online |
| 15 | INSTRUMENT PANEL DECAL | 603915 | 1 | 603915-Online |
| 16 | WIRE TIE | 000331 | 6 | 000331-Online |
| 17 | WIRE HARNESS | 602430 | 1 | 602430-Online |
| 18 | CLUTCH CONNECTOR REPAIR KIT | 114052 | 1 | HT114052-Online |
Instrument Panel-48"/54"
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CHOKE CABLE | 601095 | 1 | HT601095-Online |
| 2 | PTO SWITCH | 776476 | 1 | HT776476-Online |
| 3 | HOUR METER | 769166 | 1 | HT769166-Online |
| 4 | KEY ASSEMBLY | 785808 | 1 | 785808-Online |
| 5 | IGNITION SWITCH | 045898 | 1 | HT045898-Online |
| 6 | RED INDICATOR LIGHT | 712257 | 1 | HT712257-Online |
| 7 | WIRE HARNESS | 602430 | 1 | 602430-Online |
| 8 | CB 10-24 X .500 ZYNC | 601098 | 4 | 601098-Online |
| 9 | INSTRUMENT PANEL (WITH DECAL) | 550454 | 1 | 550454-Online |
| 10 | FW .219 X .500 X .048 ZNYC | 704932 | 2 | HT704932-Online |
| 11 | NT #10-24 HX NL ZN | 059832 | 4 | 059832-Online |
| 12 | THROTTLE CABLE | 601094 | 1 | HT601094-Online |
| 13 | CS .250-20 X .500 HX G5 | 055947 | 3 | 055947-Online |
| 14 | FW .281 X .625 X .051/.080H | 768515 | 3 | HT768515-Online |
| 15 | INSTRUMENT PANEL DECAL | 602233 | 1 | 602233-Online |
| 16 | WIRE TIE | 000331 | 6 | 000331-Online |
| 17 | SEALED RELAY (WITH BRACKET) | 601053 | 2 | HT601053-Online |
| 18 | CLUTCH CONNECTOR REPAIR KIT | 114052 | 1 | HT114052-Online |
48" Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 48" DECK (WITH DECALS & HARDWARE) | 550752 | 1 | 550752-Online |
| 2 | CN .312-18 X .20 MAX THK | 601069 | 4 | HT601069-Online |
| 3 | THROWN OBJECTS DECAL | 601892 | 1 | 601892-Online |
| 4 | DECK DANGERS DECAL | 601837 | 2 | 601837-Online |
| 5 | MADE IN U.S.A. DECAL | 727172 | 1 | 727172-Online |
| 6 | BELT ROUTING DECAL | 781419 | 1 | 781419-Online |
| 7 | DISCHARGE CHUTE DECAL | 601624 | 1 | 601624-Online |

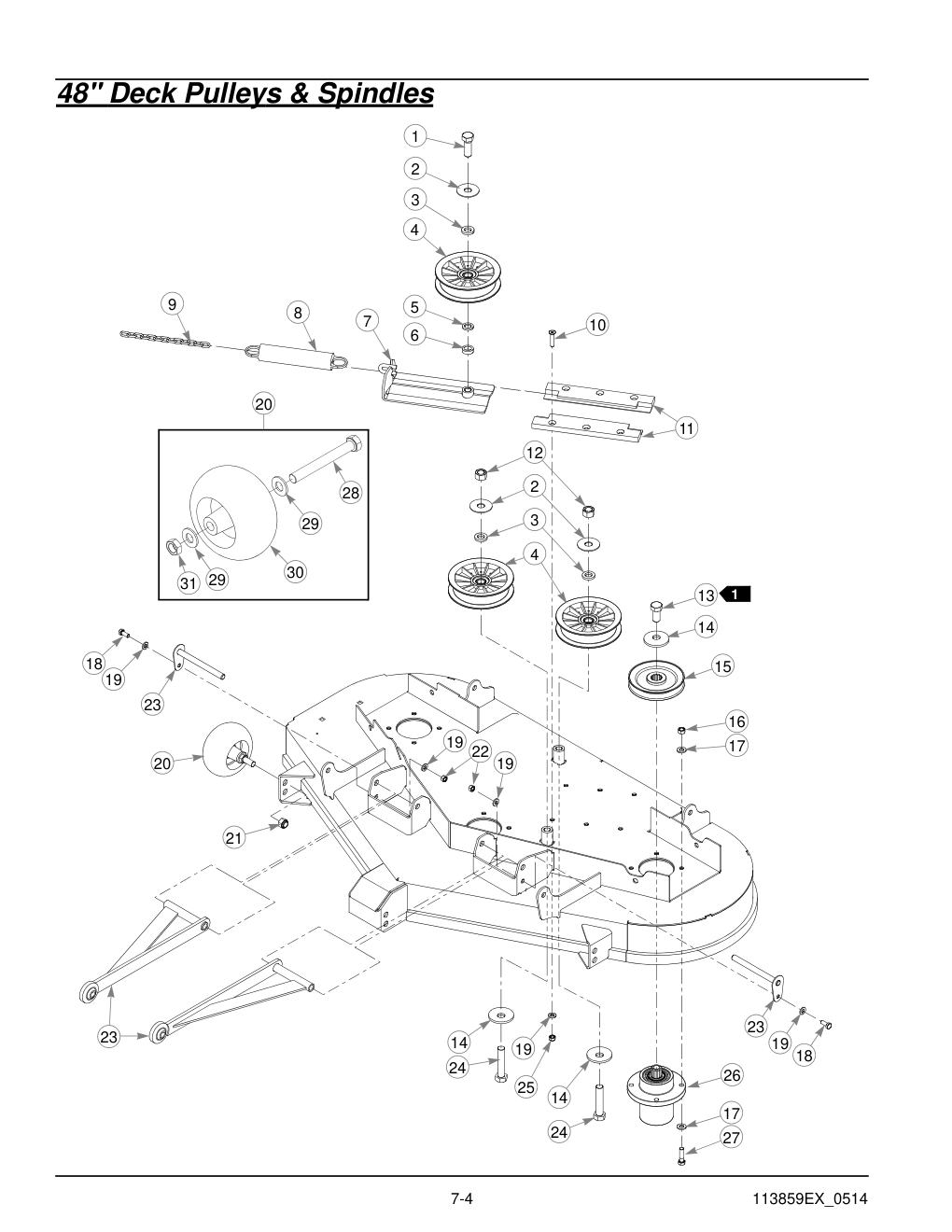

48" Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11 X 1.75 HX G5 | 025007 | 1 | HT025007-Online |
| 2 | FW .656 X 2.00 X .078 ZNYC | 046821 | 3 | HT046821-Online |
| 3 | FW .650 X 1.125 X .18 ZNYC G5 | 797449 | 3 | 797449-Online |
| 4 | IDLER PULLEY 5.0" OD | 784504 | 3 | HT784504-Online |
| 5 | FW .625 X 1.00 X .134 ZNYC | 028118 | 1 | HT028118-Online |
| 6 | DECK IDLER SPACER | 600296 | 1 | HT600296-Online |
| 7 | DECK IDLER SLIDE | 350884 | 1 | HT350884-Online |
| 8 | TENSION SPRING | 781302 | 1 | 781302-Online |
| 9 | CHAIN, 13 LINK | 259812 | 1 | HT259812-Online |
| 10 | CS .312-18 X 1.50 FLT SH ZY | 797910 | 6 | HT797910-Online |
| 11 | UHMW IDLER SLIDE | 601434 | 2 | 601434-Online |
| 12 | NT .625-11 HX G5 ZNYC | 016972 | 2 | HT016972-Online |
| 13 | CS .625-11 X 1.25 HX G5 Z | 781872 | 3 | HT781872-Online |
| 14 | CW .631 X 2.25 X .187 PNT | 782474 | 5 | HT782474-Online |
| 15 | DRIVE PULLEY 5.19 OP | 792689 | 3 | HT792689-Online |
| 16 | NT .375-16 HX G5 ZNY | 054502 | 12 | HT054502-Online |
| 17 | FW .406 X .812 X .060 SAE | 767954 | 24 | HT767954-Online |
| 18 | CS .312-18 X .75 HX G5 | 034280 | 2 | HT034280-Online |
| 19 | FW .343 X .687 X .051/.080H | 768523 | 10 | HT768523-Online |
| 20 | PLASTIC WHEEL ASSEMBLY (INCLUDES HARDWARE) | 788166 | 4 | HT788166-Online |
| 21 | NT .500-13 HX G8 ZY NL | 781567 | 4 | HT781567-Online |
| 22 | NT .312-18 HX G5 ZNYC | 034272 | 2 | HT034272-Online |
| 23 | PULLER & PIN (S/N 13030774 & HIGHER) | 113716 | 2 | 113716-Online |
| 23 | RS PULLER & PIN (S/N PRIOR TO 13030774) | 109247 | 1 | HT109247-Online |
| 23 | LS PULLER & PIN (S/N PRIOR TO 13030774) | 109248 | 1 | HT109248-Online |
| 24 | CS .625-11 X 3.00 FULL HX G5 | 783738 | 2 | HT783738-Online |
| 25 | NT .312-18 HX ZY NL | 058776 | 6 | HT058776-Online |
| 26 | BLADE SPINDLE | 783506 | 3 | 783506-Online |
| 27 | CS .375-16 X 1.375 HX G5 | 005116 | 12 | HT005116-Online |
| 28 | CS .500-13 X 4.25 HX G5 | 781708 | 1 | HT781708-Online |
| 29 | FW .531 X 1.063 X .090 SAE | 767962 | 2 | HT767962-Online |
| 30 | PLASTIC WHEEL | 031997 | 1 | HT031997-Online |
| 31 | NT .500-13 HX JAM ZNYC | 053199 | 1 | HT053199-Online |

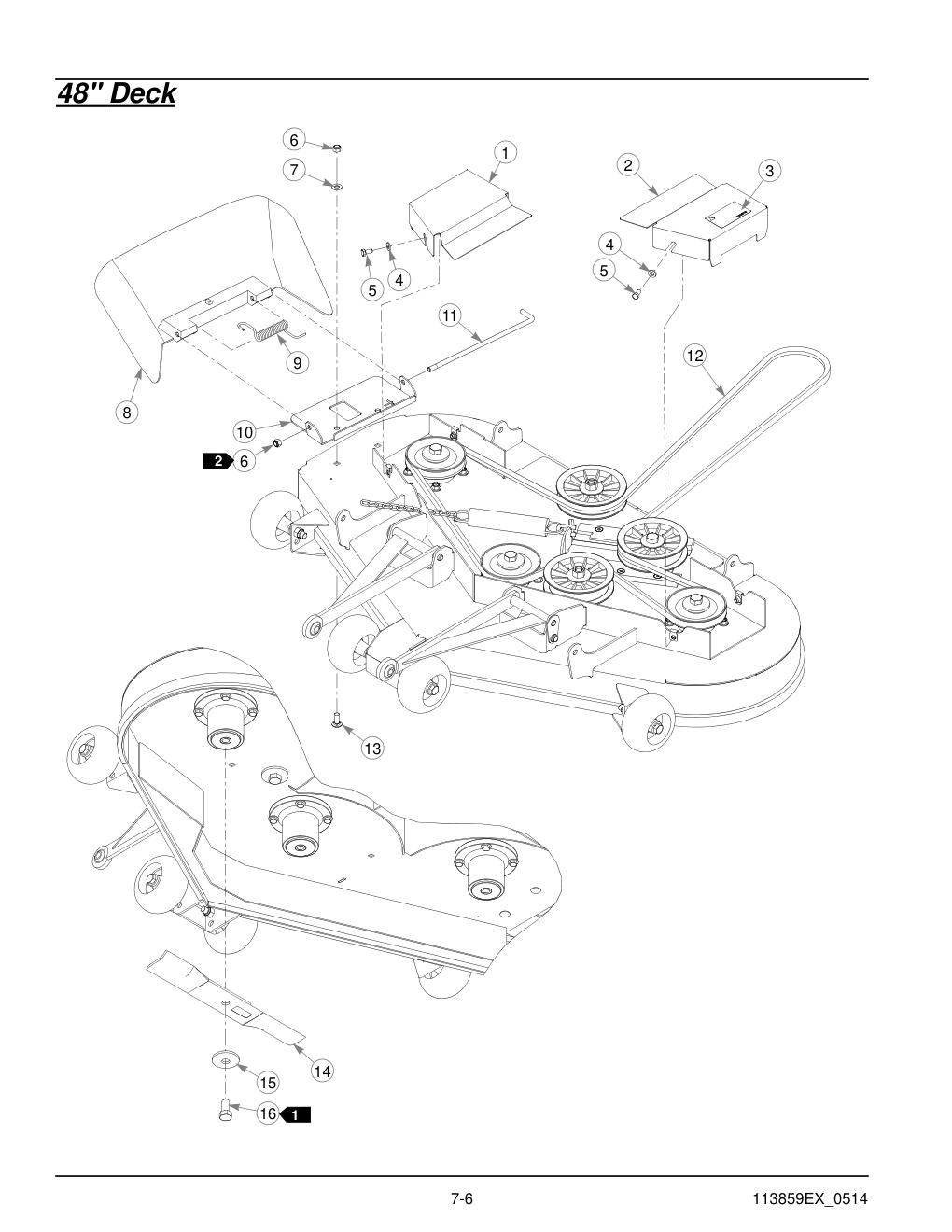

48" Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RS PULLEY COVER | 108149 | 1 | HT108149-Online |
| 2 | LS PULLEY COVER (WITH DECAL) | 550107 | 1 | HT550107-Online |
| 3 | 48" DECK ID DECAL | 793976 | 1 | 793976-Online |
| 4 | FW .343 X .687 X .051/.080H | 768523 | 4 | HT768523-Online |
| 5 | CS .312-18 X .625 HX G5 | 064006 | 4 | 064006-Online |
| 6 | NT .375-16 HXZY NL | 086660 | 3 | HT086660-Online |
| 7 | FW .406 X .812 X .060 SAE | 767954 | 2 | HT767954-Online |
| 8 | DISCHARGE CHUTE | 601806 | 1 | 601806-Online |
| 9 | TORSION SPRING | 601824 | 1 | 601824-Online |
| 10 | CHUTE BRACKET | 112448 | 1 | HT112448-Online |
| 11 | CHUTE PIN | 601843 | 1 | 601843-Online |
| 12 | BELT, B 143" EL | 791335 | 1 | HT791335-Online |
| 13 | CB .375-16 X 1.00 STD CD | 025395 | 2 | HT025395-Online |
| 14 | BLADE, 16.50"-L-F-CW | 601123 | 3 | HT601123-Online |
| 14 | BLADE, 16.50"-GAT-F-CW | 796631 | 3 | 796631-Online |
| 14 | BLADE, 16.50"-MUL-F-CW | 796623 | 3 | HT796623-Online |
| 14 | BLADE, F16.50"-H-F-CW | 795757 | 3 | HT795757-Online |
| 15 | CW .631 X 2.250 X .187 PNT | 782474 | 3 | HT782474-Online |
| 16 | CS .625-11 X 1.25 HX G5 Z | 781872 | 3 | HT781872-Online |
54" Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 54" DECK (WITH DECALS & HARDWARE) | 550753 | 1 | 550753-Online |
| 2 | CN .312-18 X .20 MAX THK | 601069 | 4 | HT601069-Online |
| 3 | DECK DANGERS DECAL | 601837 | 2 | 601837-Online |
| 4 | THROWN OBJECTS DECAL | 601892 | 1 | 601892-Online |
| 5 | MADE IN U.S.A. DECAL | 727172 | 1 | 727172-Online |
| 6 | BELT ROUTING DECAL | 781419 | 1 | 781419-Online |
| 7 | DISCHARGE CHUTE DECAL | 601624 | 1 | 601624-Online |
54" Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11 X 1.75 HX G5 | 025007 | 1 | HT025007-Online |
| 2 | FW .656 X 2.00 X .078 ZNYC | 046821 | 3 | HT046821-Online |
| 3 | FW .650 X 1.125 X .18 ZNYC G5 | 797449 | 3 | 797449-Online |
| 4 | IDLER PULLEY 5.0" OD | 784504 | 3 | HT784504-Online |
| 5 | FW .625 X 1.00 X .134 ZNYC | 028118 | 1 | HT028118-Online |
| 6 | DECK IDLER SPACER | 600296 | 1 | HT600296-Online |
| 7 | DECK IDLER SLIDE | 350884 | 1 | HT350884-Online |
| 8 | TENSION SPRING | 781302 | 1 | 781302-Online |
| 9 | CHAIN, 13 LINK | 259812 | 1 | HT259812-Online |
| 10 | CS .312-18 X 1.50 FLT SH ZY | 797910 | 6 | HT797910-Online |
| 11 | UHMW IDLER SLIDE | 601434 | 2 | 601434-Online |
| 12 | NT .625-11 HX G5 ZNYC | 016972 | 2 | HT016972-Online |
| 13 | CS .625-11 X 1.25 HX G5 Z | 781872 | 3 | HT781872-Online |
| 14 | CW .631 X 2.25 X .187 PNT | 782474 | 5 | HT782474-Online |
| 15 | DRIVE PULLEY 5.68 OP | 786889 | 3 | HT786889-Online |
| 16 | NT .375-16 HX G5 ZNY | 054502 | 12 | HT054502-Online |
| 17 | FW .406 X .812 X .060 SAE | 767954 | 24 | HT767954-Online |
| 18 | CS .312-18 X .75 HX G5 | 034280 | 2 | HT034280-Online |
| 19 | FW .343 X .687 X .051/.080H | 768523 | 10 | HT768523-Online |
| 20 | PLASTIC WHEEL ASSEMBLY (INCLUDES HARDWARE) | 788166 | 4 | HT788166-Online |
| 21 | NT .500-13 HX G8 ZY NL | 781567 | 4 | HT781567-Online |
| 22 | PULLER & PIN (S/N 13030774 & HIGHER) | 113716 | 2 | 113716-Online |
| 22 | RS PULLER & PIN (S/N PRIOR TO 13030774) | 109247 | 1 | HT109247-Online |
| 22 | LS PULLER & PIN (S/N PRIOR TO 13030774) | 109248 | 1 | HT109248-Online |
| 23 | NT .312-18 HX G5 ZNYC | 034272 | 2 | HT034272-Online |
| 24 | CS .625-11 X 3.00 FULL HX G5 | 783738 | 2 | HT783738-Online |
| 25 | NT .312-18 HX ZY NL | 058776 | 6 | HT058776-Online |
| 26 | BLADE SPINDLE | 783506 | 3 | 783506-Online |
| 27 | CS .375-16 X 1.375 HX G5 | 005116 | 12 | HT005116-Online |
| 28 | CS .500-13 X 4.25 HX G5 | 781708 | 1 | HT781708-Online |
| 29 | FW .531 X 1.063 X .090 SAE | 767962 | 2 | HT767962-Online |
| 30 | PLASTIC WHEEL | 031997 | 1 | HT031997-Online |
| 31 | NT .500-13 HX JAM ZNYC | 053199 | 1 | HT053199-Online |
54" Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RS PULLEY COVER | 108124 | 1 | HT108124-Online |
| 2 | LS PULLEY COVER (WITH DECAL) | 550109 | 1 | 550109-Online |
| 3 | 54" DECK ID DECAL | 799171 | 1 | 799171-Online |
| 4 | FW .343 X .687 X .051/.080H | 768523 | 4 | HT768523-Online |
| 5 | CS .312-18 X .625 HX G5 | 064006 | 4 | 064006-Online |
| 6 | NT .375-16 HXZY NL | 086660 | 3 | HT086660-Online |
| 7 | FW .406 X .812 X .060 SAE | 767954 | 2 | HT767954-Online |
| 8 | DISCHARGE CHUTE | 601806 | 1 | 601806-Online |
| 9 | TORSION SPRING | 601824 | 1 | 601824-Online |
| 10 | CHUTE BRACKET | 112448 | 1 | HT112448-Online |
| 11 | CHUTE PIN | 601843 | 1 | 601843-Online |
| 12 | BELT, B 152" EL | 789388 | 1 | HT789388-Online |
| 13 | CB .375-16 X 1.00 STD CD | 025395 | 2 | HT025395-Online |
| 14 | BLADE, 18.50"-L-F-CW | 601124 | 3 | HT601124-Online |
| 14 | BLADE, 18.50"-GAT-F-CW | 797712 | 3 | HT797712-Online |
| 14 | BLADE, F18.50"-H-F-CW | 797696 | 3 | 797696-Online |
| 14 | BLADE, 18.50"-MUL-F-CW | 797704 | 3 | HT797704-Online |
| 15 | CW .631 X 2.250 X .187 PNT | 782474 | 3 | HT782474-Online |
| 16 | CS .625-11 X 1.25 HX G5 Z | 781872 | 3 | HT781872-Online |

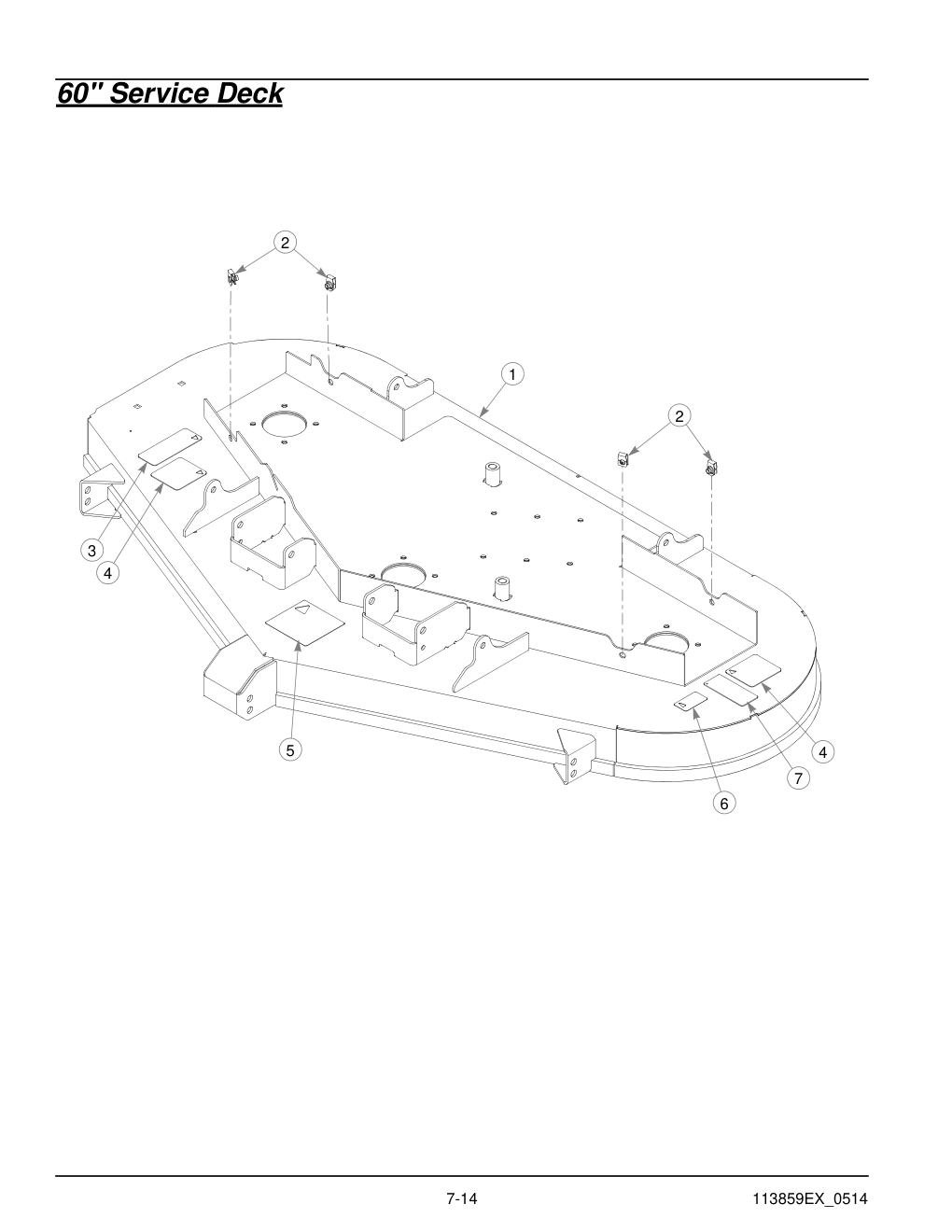

60" Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 60" DECK (WITH DECALS & HARDWARE) | 550754 | 1 | 550754-Online |
| 2 | CN .312-18 X .20 MAX THK | 601069 | 4 | HT601069-Online |
| 3 | DISCHARGE CHUTE DECAL | 601624 | 1 | 601624-Online |
| 4 | DECK DANGERS DECAL | 601837 | 2 | 601837-Online |
| 5 | BELT ROUTING DECAL | 781419 | 1 | 781419-Online |
| 6 | MADE IN U.S.A. DECAL | 727172 | 1 | 727172-Online |
| 7 | THROWN OBJECTS DECAL | 601892 | 1 | 601892-Online |
60" Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11 X 1.75 HX G5 | 025007 | 1 | HT025007-Online |
| 2 | FW .656 X 2.00 X .078 ZNYC | 046821 | 3 | HT046821-Online |
| 3 | FW .650 X 1.125 X .18 ZNYC G5 | 797449 | 3 | 797449-Online |
| 4 | IDLER PULLEY 5.0" OD | 784504 | 3 | HT784504-Online |
| 5 | FW .625 X 1.00 X .134 ZNYC | 028118 | 1 | HT028118-Online |
| 6 | DECK IDLER SPACER | 600296 | 1 | HT600296-Online |
| 7 | DECK IDLER SLIDE | 350884 | 1 | HT350884-Online |
| 8 | TENSION SPRING | 781302 | 1 | 781302-Online |
| 9 | CHAIN, 13 LINK | 259812 | 1 | HT259812-Online |
| 10 | CS .312-18 X 1.50 FLT SH ZY | 797910 | 6 | HT797910-Online |
| 11 | UHMW IDLER SLIDE | 601434 | 2 | 601434-Online |
| 12 | NT .625-11 HX G5 ZNYC | 016972 | 2 | HT016972-Online |
| 13 | CS .625-11 X 1.25 HX G5 Z | 781872 | 3 | HT781872-Online |
| 14 | CW .631 X 2.25 X .187 PNT | 782474 | 5 | HT782474-Online |
| 15 | DECK DRIVE PULLEY | 601447 | 3 | 601447-Online |
| 16 | NT .375-16 HX G5 ZNY | 054502 | 12 | HT054502-Online |
| 17 | FW .406 X .812 X .060 SAE | 767954 | 24 | HT767954-Online |
| 18 | FW .343 X .687 X .051/.080H | 768523 | 10 | HT768523-Online |
| 19 | NT .312-18 HX G5 ZNYC | 034272 | 2 | HT034272-Online |
| 20 | CS .312-18 X .75 HX G5 | 034280 | 2 | HT034280-Online |
| 21 | HEAVY DUTY PULLER (S/N 13024750 & HIGHER) | 109444 | 2 | HT109444-Online |
| 21 | RS PULLER & PIN (S/N PRIOR TO 13024750) | 112893 | 1 | 112893-Online |
| 21 | LS PULLER & PIN (S/N PRIOR TO 13024750) | 112894 | 1 | 112894-Online |
| 22 | NT .500-13 HX G8 ZY NL | 781567 | 4 | HT781567-Online |
| 23 | NT .312-18 HX ZY NL | 058776 | 6 | HT058776-Online |
| 24 | CS .625-11 X 3.00 FULL HX G5 | 783738 | 2 | HT783738-Online |
| 25 | CS .375-16 X 1.375 HX G5 | 005116 | 12 | HT005116-Online |
| 26 | BLADE SPINDLE | 783506 | 3 | 783506-Online |
| 27 | PLASTIC WHEEL ASSEMBLY (INCLUDES HARDWARE) | 788166 | 4 | HT788166-Online |
| 28 | CS .500-13 X 4.25 HX G5 | 781708 | 1 | HT781708-Online |
| 29 | FW .531 X 1.063 X .090 SAE | 767962 | 2 | HT767962-Online |
| 30 | PLASTIC WHEEL | 031997 | 1 | HT031997-Online |
| 31 | NT .500-13 HX JAM ZNYC | 053199 | 1 | HT053199-Online |

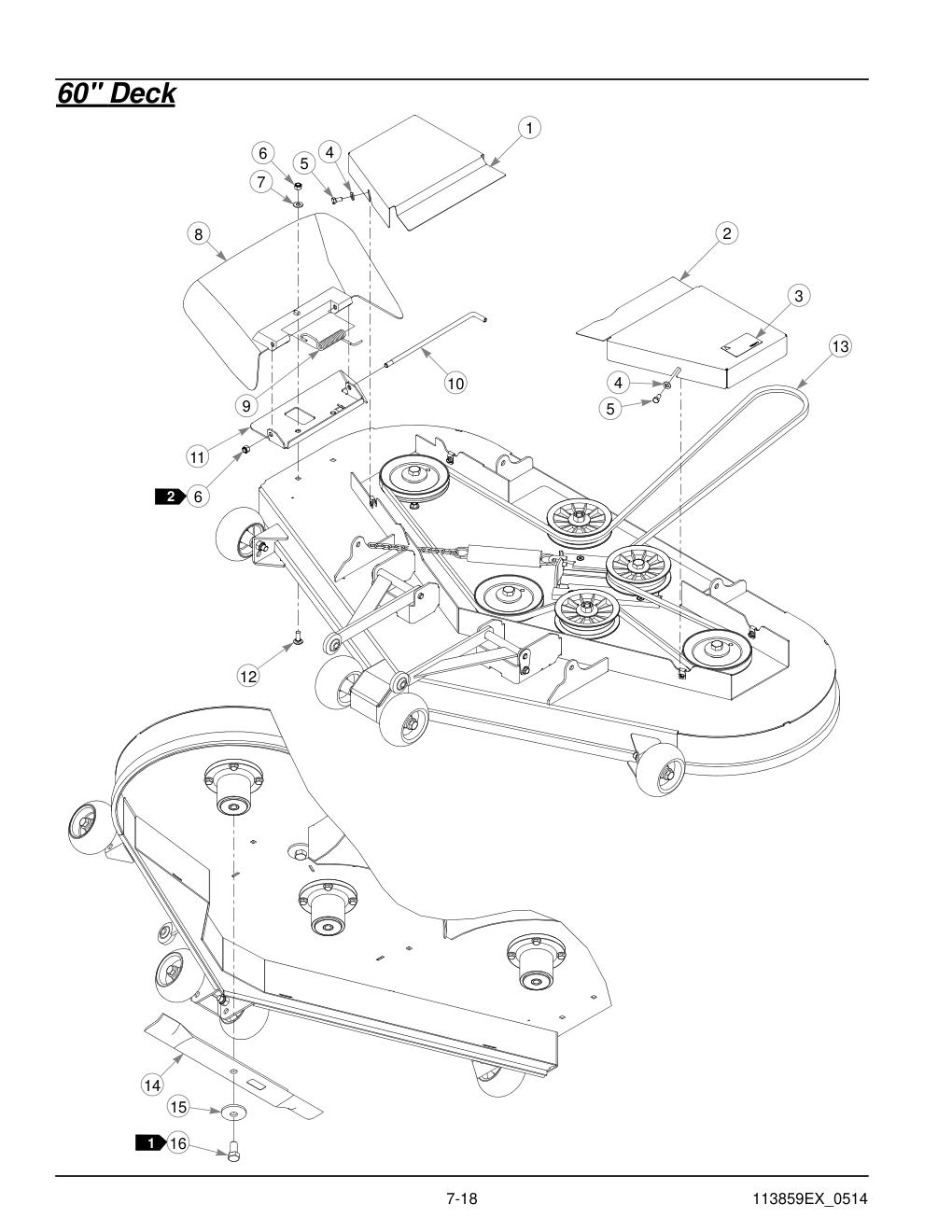

60" Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RS PULLEY COVER | 109310 | 1 | HT109310-Online |
| 2 | LS PULLEY COVER (WITH DECAL) | 550111 | 1 | HT550111-Online |
| 3 | 60" DECK DECAL | 786277 | 1 | 786277-Online |
| 4 | FW .343 X .687 X .051/.080H | 768523 | 4 | HT768523-Online |
| 5 | CS .312-18 X .625 HX G5 | 064006 | 4 | 064006-Online |
| 6 | NT .375-16 HXZY NL | 086660 | 3 | HT086660-Online |
| 7 | FW .406 X .812 X .060 SAE | 767954 | 2 | HT767954-Online |
| 8 | DISCHARGE CHUTE | 601806 | 1 | 601806-Online |
| 9 | TORSION SPRING | 601824 | 1 | 601824-Online |
| 10 | CHUTE PIN | 601843 | 1 | 601843-Online |
| 11 | CHUTE BRACKET | 112451 | 1 | 112451-Online |
| 12 | CB .375-16 X 1.00 G5 ZNY | 025395 | 2 | HT025395-Online |
| 13 | BELT, B 165.56" EL | 782292 | 1 | HT782292-Online |
| 14 | BLADE, F20.50"-L-F-CW | 600901 | 3 | HT600901-Online |
| 14 | BLADE, 20.50"-MUL-F-CW | 794214 | 3 | HT794214-Online |
| 14 | BLADE, 20.50"-GAT-F-CW | 794230 | 3 | HT794230-Online |
| 14 | BLADE, F20.50"-H-F-CW | 794685 | 3 | HT794685-Online |
| 15 | CW .631 X 2.250 X .187 PNT | 782474 | 3 | HT782474-Online |
| 16 | CS .625-11 X 1.25 HX G5 Z | 781872 | 3 | HT781872-Online |
Spindle Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | BLADE SPINDLE RING RETAINER | 783548 | 1 | HT783548-Online |
| 2 | BLADE SPINDLE BEARING | 783555 | 2 | 783555-Online |
| 3 | BLADE SPINDLE SPACER | 783530 | 1 | HT783530-Online |
| 4 | BLADE SPINDLE HOUSING | 783514 | 1 | HT783514-Online |
| 5 | BLADE SPINDLE SHAFT | 783522 | 1 | HT783522-Online |
Deck Lift
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STOP HANDLE | 348318 | 1 | HT348318-Online |
| 2 | HEIGHT ADJUSTMENT STOP | 348284 | 1 | HT348284-Online |
| 3 | DECK LIFT INDICATOR | 784488 | 1 | HT784488-Online |
| 4 | NT .437-14 HX FLG ZN | 704643 | 16 | HT704643-Online |
| 5 | FW .781 X1.50 X.120 ZNYC | 601681 | 6 | 601681-Online |
| 6 | CLIP E, 1.00 X .625 X .050 | 781294 | 7 | HT781294-Online |
| 7 | CS .312-18 X 1.50 FLTHR G | 756270 | 1 | 756270-Online |
| 8 | NT .312-18 HX G5 ZNYC | 034272 | 1 | HT034272-Online |
| 9 | DECK LEVELER YOKE | 348458 | 1 | HT348458-Online |
| 10 | FW .531 X 1.063 X .090 SAE | 767962 | 6 | HT767962-Online |
| 11 | STRAIGHT GREASE FITTING | 015495 | 4 | HT015495-Online |
| 12 | DECK LIFT SPRING | 782995 | 2 | HT782995-Online |
| 13 | CE .750 X 2.25 X 1.75 HEADLESS | 781229 | 1 | 781229-Online |
| 14 | DECK LIFT CHAIN (3 LINKS) | 360131 | 4 | HT360131-Online |
| 15 | CS .437-14 X 1.750 HX G5 ZNYC | 055749 | 7 | HT055749-Online |
| 16 | CS .437-14 X 1.750 FULTH | 781831 | 1 | HT781831-Online |
Deck Mounting Hardware
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 17 | CS .500-13X 2.00 GR ZN | 078949 | 2 | HT078949-Online |
| 18 | NT .500-13 HX G5 ZN | 008193 | 2 | HT008193-Online |
Seat, Standard
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STANDARD SEAT | 793661 | 1 | 793661-Online |
| 2 | CS .437-20 X 1.00 HX G8 ZNYC | 797076 | 2 | 797076-Online |
| 3 | FW .440 X 1.00 X .083 ZNY | 017129 | 4 | 017129-Online |
| 4 | SEAT BELT | 601444 | 1 | 601444-Online |
| 5 | SEAT BELT CROSS BAR | 794610 | 1 | 794610-Online |
| 6 | NT .437-20 HX G5 ZNYC | 704635 | 2 | 704635-Online |
| 7 | BATTERY WARNINGS DECAL | 601815 | 1 | 601815-Online |
| 8 | SEAT PAN STOP | 109240 | 1 | 109240-Online |
| 9 | CS .312-18 X .875 HX G5 ZN | 064014 | 3 | 064014-Online |
| 10 | FW .343 X .687 X .051/.080H | 768523 | 18 | HT768523-Online |
| 11 | NT .312-18 HX ZY NL | 058776 | 7 | HT058776-Online |
| 12 | WIRE TIE | 000331 | 2 | 000331-Online |
| 13 | CS .312-18 X .75 HX G5 | 034280 | 3 | HT034280-Online |
| 14 | SEAT LATCH ASSEMBLY | 603884 | 1 | 603884-Online |
| 15 | SEAT PAN (WITH DECAL) | 550855 | 1 | 550855-Online |
| 16 | NT .312-18 HX G5 ZNYC | 034272 | 3 | HT034272-Online |
| 17 | CS .375-16 X 1.25 HX G5 ZN | 052860 | 2 | HT052860-Online |
| 18 | FW .406 X .812 X .060 SAE | 767954 | 2 | HT767954-Online |
| 19 | SEAT SPRING 150 LB/IN | 601450 | 2 | 601450-Online |
| 20 | CS .312-18 X 1.25 HX G5 | 079186 | 2 | 079186-Online |
Seat Service Parts
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | LS ARMREST ASSEMBLY, ROUND (WITH BRACKET) | 797464 | 1 | 797464-Online |
| 2 | RS ARMREST ASSEMBLY, ROUND (WITH BRACKET) | 797472 | 1 | 797472-Online |
| 3 | ARMREST STOP ASSEMBLY | 793273 | 1 | 793273-Online |
| 4 | MOLDED ARMRESTS SET ROUND STYLE W/O BRACKET | 797480 | 1 | 797480-Online |
| 5 | SLIDE KIT | 793307 | 1 | 793307-Online |
| 6 | SEAT SWITCH | 793315 | 1 | 793315-Online |
| 7 | LS ARMREST KIT (PLASTIC BACK SEATS) | 604458 | 1 | 604458-Online |
| 8 | RS ARMREST KIT (PLASTIC BACK SEATS) | 604459 | 1 | 604459-Online |
Optional ROPS
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | ROPS KIT (WITH SEATBELT & HARDWARE) | 603278 | 1 | 603278-Online |
| 2 | CS .500-13 X 1.00 HX G5 ZN | 016527 | 2 | 016527-Online |
| 3 | FW .531 X 1.063 X .090 SAE | 767962 | 10 | HT767962-Online |
| 4 | NT .500-13 UNT LK G8 ZN | 023317 | 4 | 023317-Online |
| 5 | CS .500-13 X 3.25 HX G5 | 077859 | 4 | 077859-Online |
| 6 | ROPS DECAL | 601979 | 1 | 601979-Online |
ROPS-Foldable
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | ROPS KIT (WITH DECALS, SEAT BELT & HARDWARE) | 601439 | 1 | 601439-Online |
| 2 | CS .500-13 X 3.50 HX G5 | 061812 | 1 | 061812-Online |
| 3 | ROPS STOP | 601472 | 1 | 601472-Online |
| 4 | NT .500-13 UNT LK G8 ZN | 023317 | 6 | 023317-Online |
| 5 | HAND KNOB | 601470 | 2 | 601470-Online |
| 6 | LYNCH PIN W/ LANYARD | 601471 | 2 | 601471-Online |
| 7 | CS .500-13 X 3.25 HX G5 | 077859 | 5 | 077859-Online |
| 8 | FW .531 X 1.063 X .090 SAE | 767962 | 8 | HT767962-Online |
| 9 | ROPS DECAL | 601635 | 2 | 601635-Online |
