Illustrated Parts List
Hustler Super Z Parts Manual - 929927
This Hustler IPL page converts the source parts manual into a mobile-friendly Joomla article with clickable Cutsmart SKU links. Each part number is linked as HLR-[part number]@online where a valid part number is available.
Model: 929927Model: 929935Model: 929943Model: 929950Model: 930024Model: 930875Model: 931048Model: 929935EXModel: 929943EXModel: 929950EX+46 more modelsSKU prefix: HLR-SKU links use /qr?sku=
How to use this page: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the product through the QR resolver. Tap/click diagrams to enlarge them.

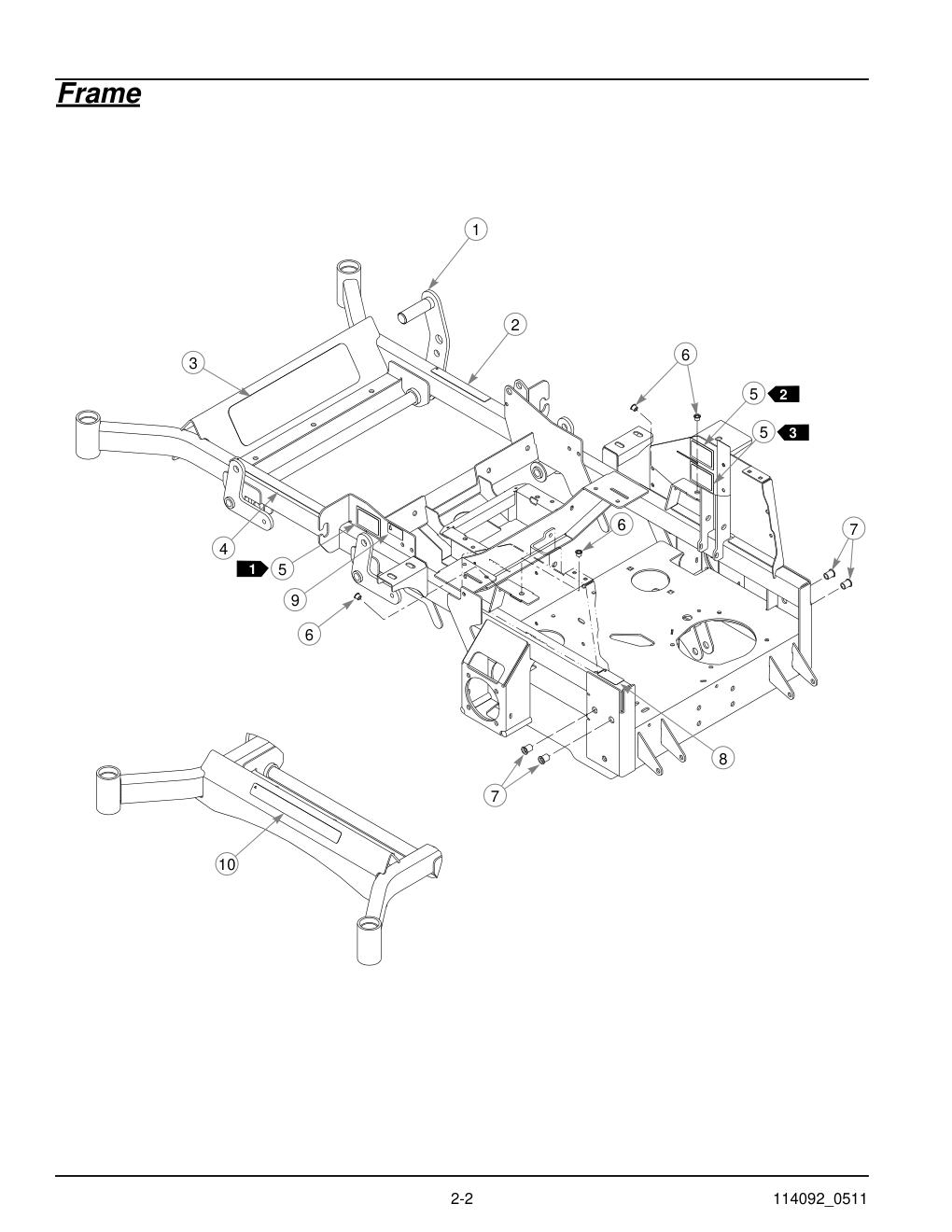

Sections
FrameFootrestHydraulic Components & FittingsHydraulic Component MountingHydraulic Line ConnectionsHoodPump DriveSteeringSteeringBrakeWheel & TireWheel & Tire BreakdownEngine, Kaw FX850VEngine, Kaw FX1000VEngine GuardFuel SystemBatteryInstrument Panel60" Service Deck60" Deck Pulleys & Spindles60" Deck66" Service Deck66" Deck Pulleys & Spindles66" Deck72" Service Deck72" Deck Pulleys & Spindles72" DeckDeck LiftDeck Mounting60" RD Service Deck60" RD Deck Pulleys60" RD Deck Spindles60" RD Deck60" RD Deck72" RD Service Deck72" RD Deck Pulleys72" RD DeckSpindles72" RD Deck72" RD DeckRD Deck LiftRD Deck MountingSeatSeat, SuspensionROPSFrame
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FRAME 60” (WITH DECALS & HARDWARE) | 550820 | 1 | 550820-Online |
| 1 | FRAME 66” (WITH DECALS & HARDWARE) | 550821 | 1 | 550821-Online |
| 1 | FRAME 72” (WITH DECALS & HARDWARE) | 550822 | 1 | 550822-Online |
| 2 | DECK HEIGHT INDICATOR DECAL | 781427 | 1 | 781427-Online |
| 3 | STEP TREAD | 602323 | 1 | 602323-Online |
| 4 | SAFE OPERATION DECAL | 601993 | 1 | 601993-Online |
| 5 | TURF PRODUCTS SERIAL NO. PLATE | N/A | 3 | No SKU |
| 6 | 3/8-16 THREAD RIVET NUT | 808493 | 4 | 808493-Online |
| 7 | 1/2-13 THREAD RIVET NUT | 600961 | 4 | 600961-Online |
| 8 | HOT DECAL | 602041 | 1 | 602041-Online |
| 9 | MADE IN USA DECAL | 727172 | 1 | 727172-Online |
| 10 | HUSTLER ID DECAL | 602407 | 1 | 602407-Online |
Footrest
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FLOOR PLATE (WITH STEP TREADS) | 550817 | 1 | 550817-Online |
| 2 | LOWER STEP TREAD | 785493 | 2 | 785493-Online |
| 3 | BUMPER | 781880 | 5 | HT781880-Online |

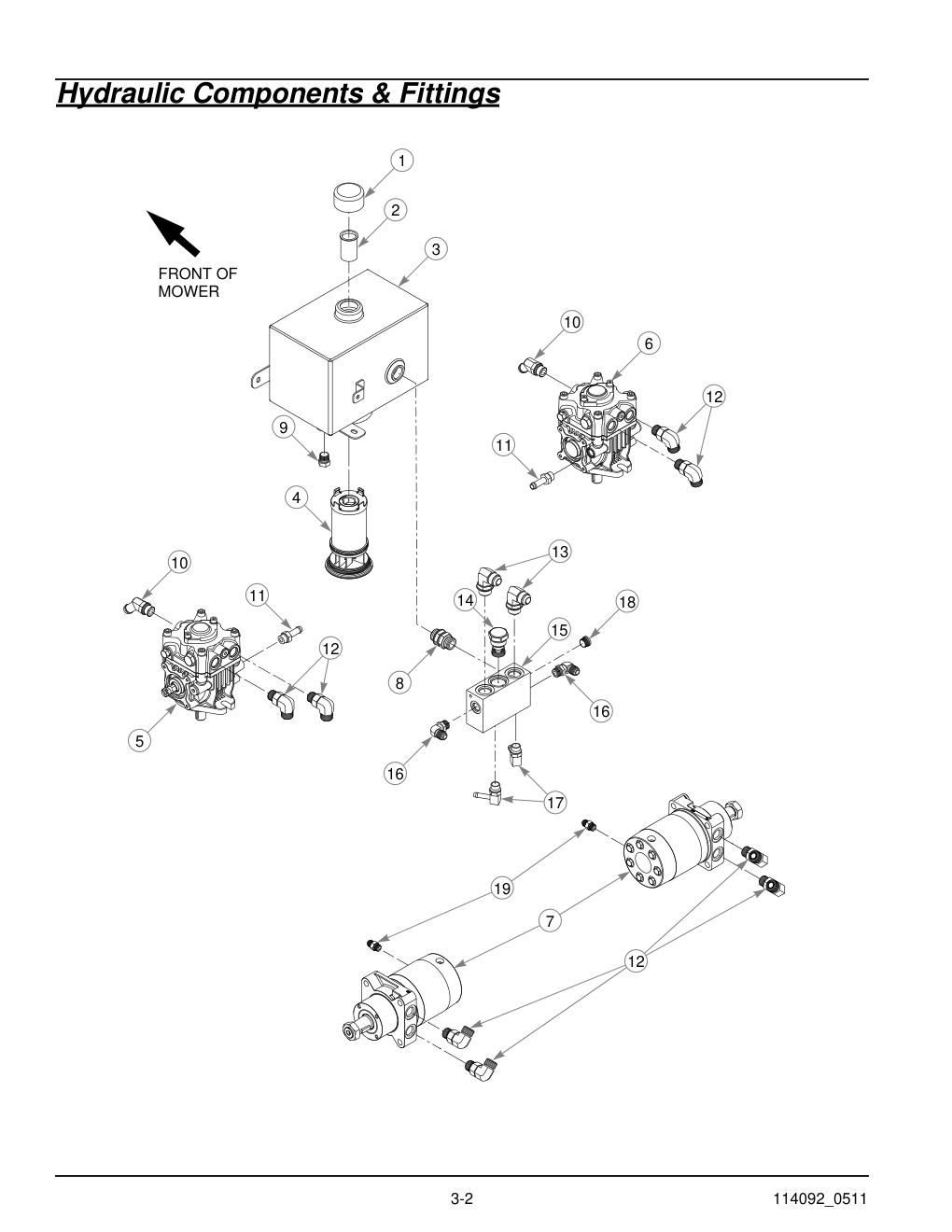

Hydraulic Components & Fittings
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | BREATHER CAP | 032763 | 1 | HT032763-Online |
| 2 | STRAINER | 032771 | 1 | 032771-Online |
| 3 | HYDRAULIC RESERVOIR | 602767 | 1 | 602767-Online |
| 4 | FILTER, HYDRAULIC SUCTION | 602768X | 1 | 602768X-Online |
| 5 | PUMP | 602556 | 1 | 602556-Online |
| 6 | PUMP | 602964 | 1 | 602964-Online |
| 7 | MOTOR | 602714 | 2 | 602714-Online |
| 8 | FTG, -12MORB/-12MORB STR | 603039 | 1 | 603039-Online |
| 9 | FTG, STR-8MORB/HEX | 781658 | 1 | 781658-Online |
| 10 | FTG, -10MORB/-12BT 45° | 774968 | 2 | 774968-Online |
| 11 | FTG, -8MORB/-8BT STR | 601523 | 2 | 601523-Online |
| 12 | FTG, -10MORB/-10MORFS 90° | 602443 | 8 | 602443-Online |
| 13 | FTG, -12MORB/-12MJIC 90° | 603189 | 2 | 603189-Online |
| 14 | CHECK VALVE | 603053 | 1 | 603053-Online |
| 15 | MANIFOLD, CASE DRAIN | 603000 | 1 | 603000-Online |
| 16 | FTG, -8MORB/-8MJIC, 90° | 771311 | 2 | 771311-Online |
| 17 | FTG, -8MORB/-6BT 90° | 603190 | 2 | 603190-Online |
| 18 | FTG, -8MORB HEX PLUG | 603123 | 1 | 603123-Online |
| 19 | FTG, -6MORB/-6MJIC STR | 779132 | 2 | 779132-Online |

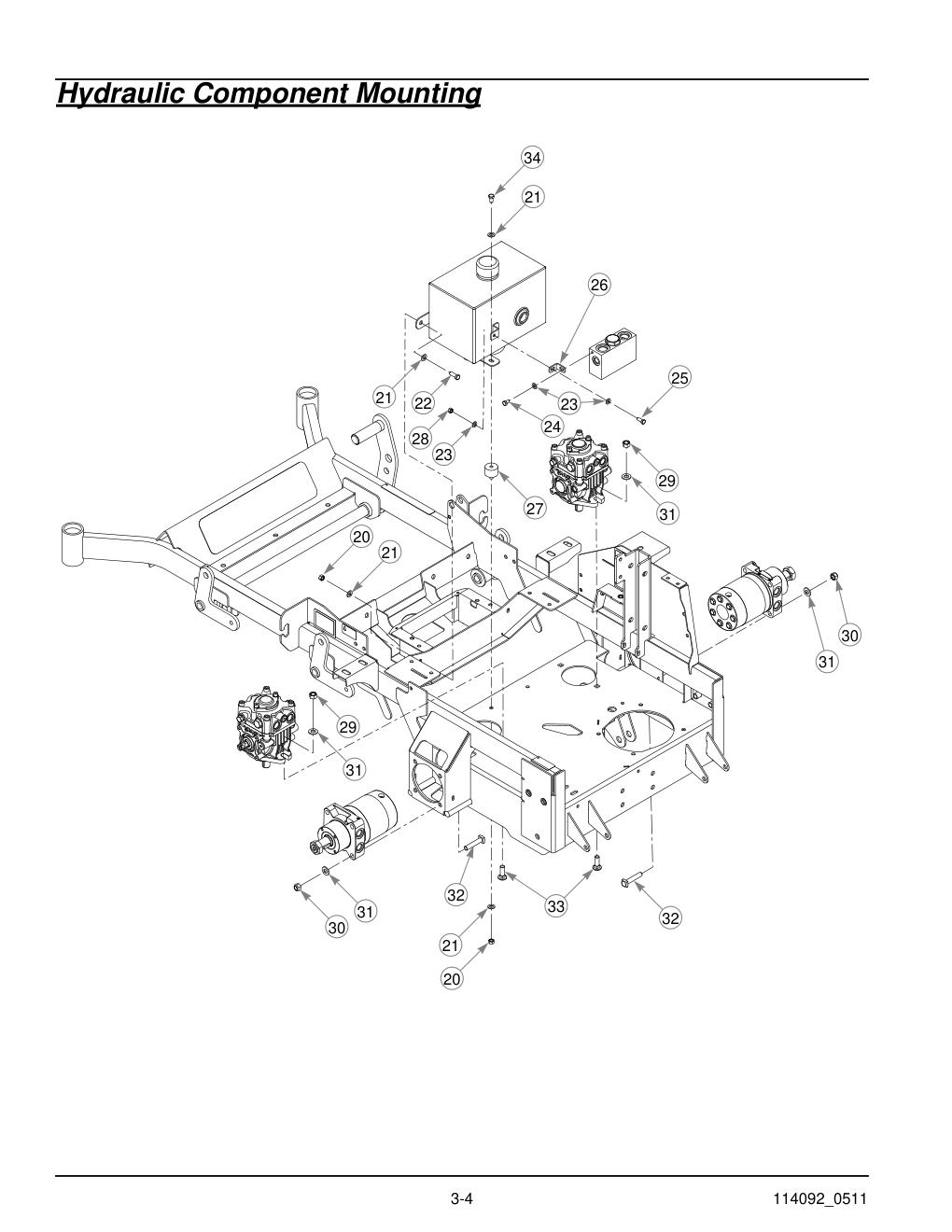

Hydraulic Component Mounting
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 20 | NT .375-16 HX GRD 5 ZNY | 054502 | 5 | HT054502-Online |
| 21 | FW .406 X .812 X .060 SAE | 767954 | 10 | HT767954-Online |
| 22 | CS .375-16 X 1.000 HX G5 | 036244 | 4 | HT036244-Online |
| 23 | FW .343 X .687 X .051/.080H | 768523 | 3 | HT768523-Online |
| 24 | CS .312-18 X .500 HXG8 | 068346 | 1 | 068346-Online |
| 25 | CS .312-18 X .750 HX G5 | 034280 | 1 | HT034280-Online |
| 26 | SUPPORT BRACKET | 113623 | 1 | 113623-Online |
| 27 | VIBRATION MOUNT | 601571 | 1 | 601571-Online |
| 28 | NT .312-18 HX G5 ZNYC | 034272 | 1 | HT034272-Online |
| 29 | NT .500-13 HX G5 ZNYC | 008193 | 4 | HT008193-Online |
| 30 | NT .500-13 UNT LK G8 ZN | 023317 | 8 | 023317-Online |
| 31 | FW .531 X 1.063 X .090 SAE | 767962 | 12 | HT767962-Online |
| 32 | CS .500-13 X 2.500 SQ G5 | 602256 | 8 | 602256-Online |
| 33 | CB .500-13 X 1.500 FULL | 028274 | 4 | 028274-Online |
| 34 | CS .375-16 X .625 HX G5 | 056069 | 1 | 056069-Online |

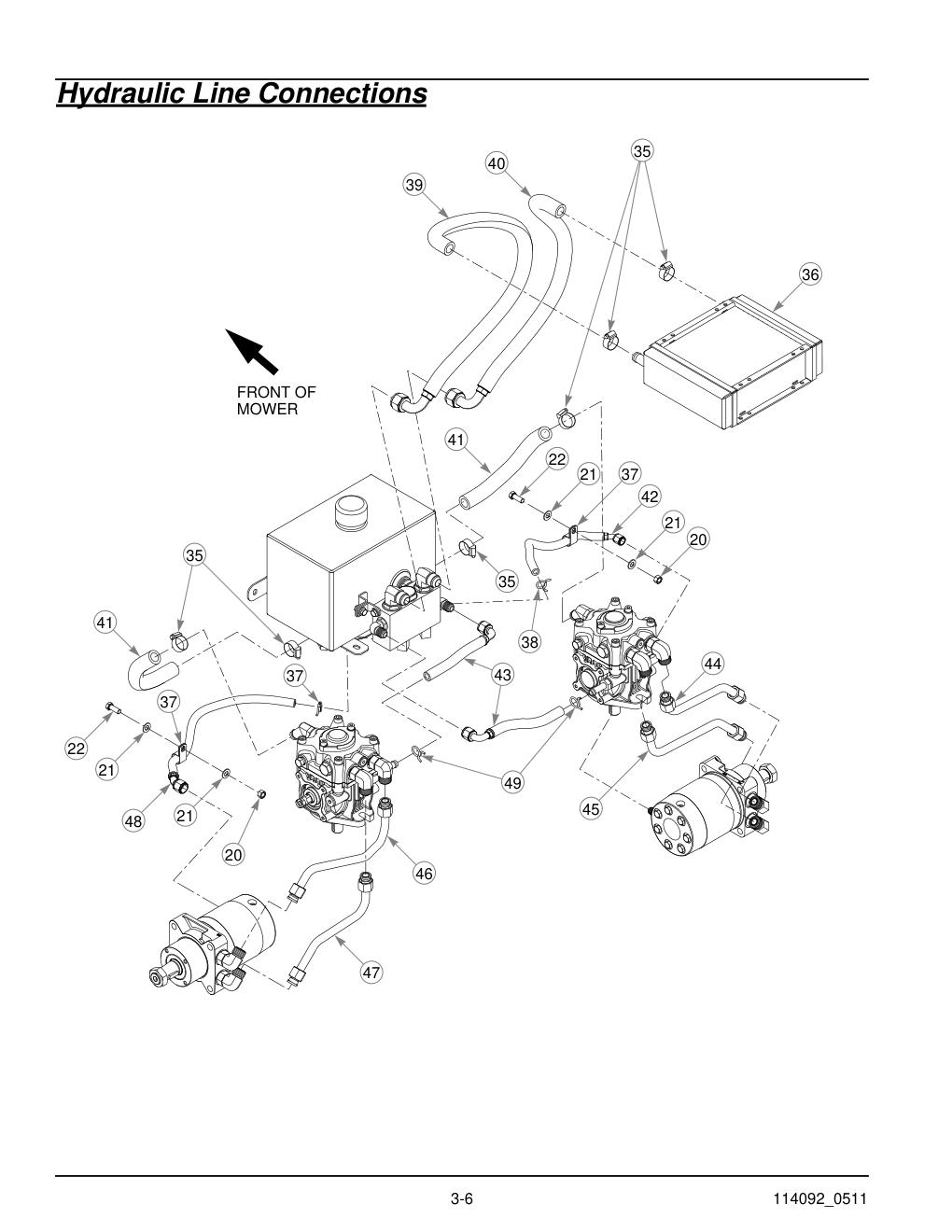

Hydraulic Line Connections
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 35 | HOSE CLAMP | 700484 | 6 | 700484-Online |
| 36 | HYDRAULIC OIL COOLER, 8" FAN | 602709 | 1 | 602709-Online |
| 37 | LOOP CLAMP | 043570 | 2 | 043570-Online |
| 38 | SPRING CLAMP | 601617 | 2 | 601617-Online |
| 39 | HOSE, TO COOLER | 603046 | 1 | 603046-Online |
| 40 | HOSE, FROM COOLER | 603047 | 1 | 603047-Online |
| 41 | HOSE, PUMP SUCTION | 603045 | 2 | 603045-Online |
| 42 | HOSE, R MOTOR CASE DRAIN | 603044 | 1 | 603044-Online |
| 43 | HOSE, PUMP CASE DRAIN | 603042 | 2 | 603042-Online |
| 44 | TUBE, RP-TM RH LOOP | 602876 | 1 | 602876-Online |
| 45 | TUBE, LP-BM RH LOOP | 602875 | 1 | 602875-Online |
| 46 | TUBE, RP-TM LH LOOP | 602874 | 1 | 602874-Online |
| 47 | TUBE, LP-BM LH LOOP | 602873 | 1 | 602873-Online |
| 48 | HOSE, L MOTOR CASE DRAIN | 603043 | 1 | 603043-Online |
| 49 | SPRING CLAMP | 601001 | 2 | 601001-Online |
Hood
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | AIR SCOOP | 114038 | 1 | 114038-Online |
| 2 | LATCH | 791384 | 1 | 791384-Online |
| 3 | CS .250-20 X 4.500 HX G5 | 603229 | 4 | 603229-Online |
| 4 | FAN, 9" | 603066 | 1 | 603066-Online |
| 5 | OIL COOLER COVER (WITH DECALS) | 550860 | 1 | 550860-Online |
| 6 | COOLER MOUNT FIREWALL | 114040 | 1 | 114040-Online |
| 7 | CB .312-18 X .750 FUL ZN | 016253 | 12 | 016253-Online |
| 8 | CS .250-20 X 4.000 HX G5 | 603228 | 2 | 603228-Online |
| 9 | UPPER COOLER MOUNT | 114039 | 1 | 114039-Online |
| 10 | FW .343 X .687 X .051/.080H | 768523 | 12 | HT768523-Online |
| 11 | NT .312-18 HX G5 ZNYC | 034272 | 12 | HT034272-Online |
| 12 | FRONT SCREEN MOUNT BRACKET | 114141 | 1 | 114141-Online |
| 13 | REAR SCREEN MOUNT BRACKET | 114142 | 1 | 114142-Online |
| 14 | NUTSERT, 1/4-20 THREAD | 808477 | 1 | 808477-Online |
| 15 | CS .250-20 X .750 HX G5 | 055939 | 1 | 055939-Online |
| 16 | SCREEN | 114165 | 1 | 114165-Online |
| 17 | NT .250-20 HXZY NL | 068551 | 6 | HT068551-Online |
| 18 | NT .375-16 HX GRD 5 ZNY | 054502 | 4 | HT054502-Online |
| 19 | FW .406 X .812 X .060 SAE | 767954 | 8 | HT767954-Online |
| 20 | CS .375-16 X 1.000 HX G5 | 036244 | 4 | HT036244-Online |
| 21 | FOAM TAPE, 7.75" | 033035 | 2 | 033035-Online |
| 22 | WIRE TIE, SMALL/SHORT | 000331 | 1 | 000331-Online |
| 23 | WIRE TIE, SMALL/LONG | 000430 | 2 | 000430-Online |
| 24 | FW .281 X .625 X .051/.080H | 768515 | 1 | HT768515-Online |
| 25 | HYPERDRIVE DECAL | 603290 | 2 | 603290-Online |

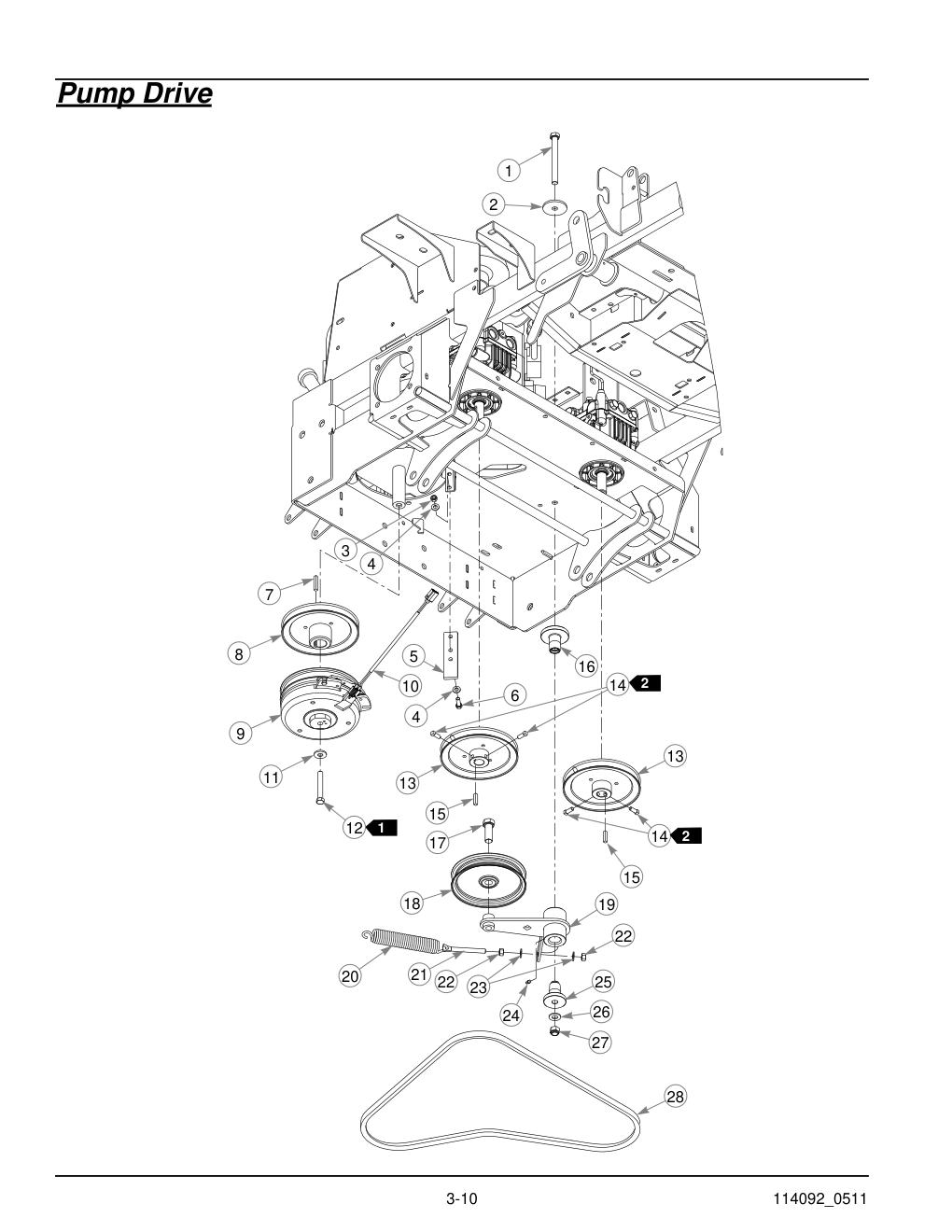

Pump Drive
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .500-13 X 5.000 HX G5 | 051151 | 1 | HT051151-Online |
| 2 | FW .510 X 2.15 X .187 SPL | 344267 | 1 | HT344267-Online |
| 3 | NT .312-18 HX G5 ZNYC | 034272 | 2 | HT034272-Online |
| 4 | FW .343 X .687 X .051/.080H | 768523 | 4 | HT768523-Online |
| 5 | CLUTCH ANCHOR | 113347 | 1 | HT113347-Online |
| 6 | CS .312-18 X 1.000 HX G5 | 036236 | 2 | 036236-Online |
| 7 | KEY 1/4 SQ X 1.50 LG | 212076 | 1 | HT212076-Online |
| 8 | PULLEY 7.0 OD X 1.125 SHFT | 602755 | 1 | 602755-Online |
| 9 | CLUTCH KIT | 601278K | 1 | 601278K-Online |
| 10 | CLUTCH HARNESS PIGTAIL | 791251 | 1 | HT791251-Online |
| 11 | FW .453 X 1.12 X .119 HRD | 602680 | 1 | 602680-Online |
| 12 | CS .437-20 X 3.00 HXG5 | 785048 | 1 | HT785048-Online |
| 13 | PULLEY 7.0 OD X .875 BORE | 602754 | 2 | 602754-Online |
| 14 | SS .312-18 X .750 SQ-HD | 083196 | 4 | 083196-Online |
| 15 | KEY 1/4 SQ X 1.12 LONG | 210146 | 2 | HT210146-Online |
| 16 | IDLER PIVOT BUSHING | 602880 | 1 | 602880-Online |
| 17 | CS .625-11 X 1.750 HX G5 | 025007 | 1 | HT025007-Online |
| 18 | IDLER PULLEY, NHI 6.0" | 781385 | 1 | HT781385-Online |
| 19 | TENSIONER | 113403 | 1 | 113403-Online |
| 20 | IDLER SPRING | 601016 | 1 | HT601016-Online |
| 21 | EB, .375-16 X 3.00 FULTHD | 601486 | 1 | 601486-Online |
| 22 | NT .375-16 HX GRD 5 ZNY | 054502 | 2 | HT054502-Online |
| 23 | FW .406 X .812 X .060 SAE | 767954 | 2 | HT767954-Online |
| 24 | GREASE FITTING STRAIGHT | 015495 | 1 | HT015495-Online |
| 25 | IDLER PIVOT BUSHING | 602879 | 1 | 602879-Online |
| 26 | FW .531 X 1.063 X .090 SAE | 767962 | 1 | HT767962-Online |
| 27 | NT .500-13 HX G8 ZY NL | 781567 | 1 | HT781567-Online |
| 28 | BELT, B COG 69.36 EL | 602762 | 1 | 602762-Online |

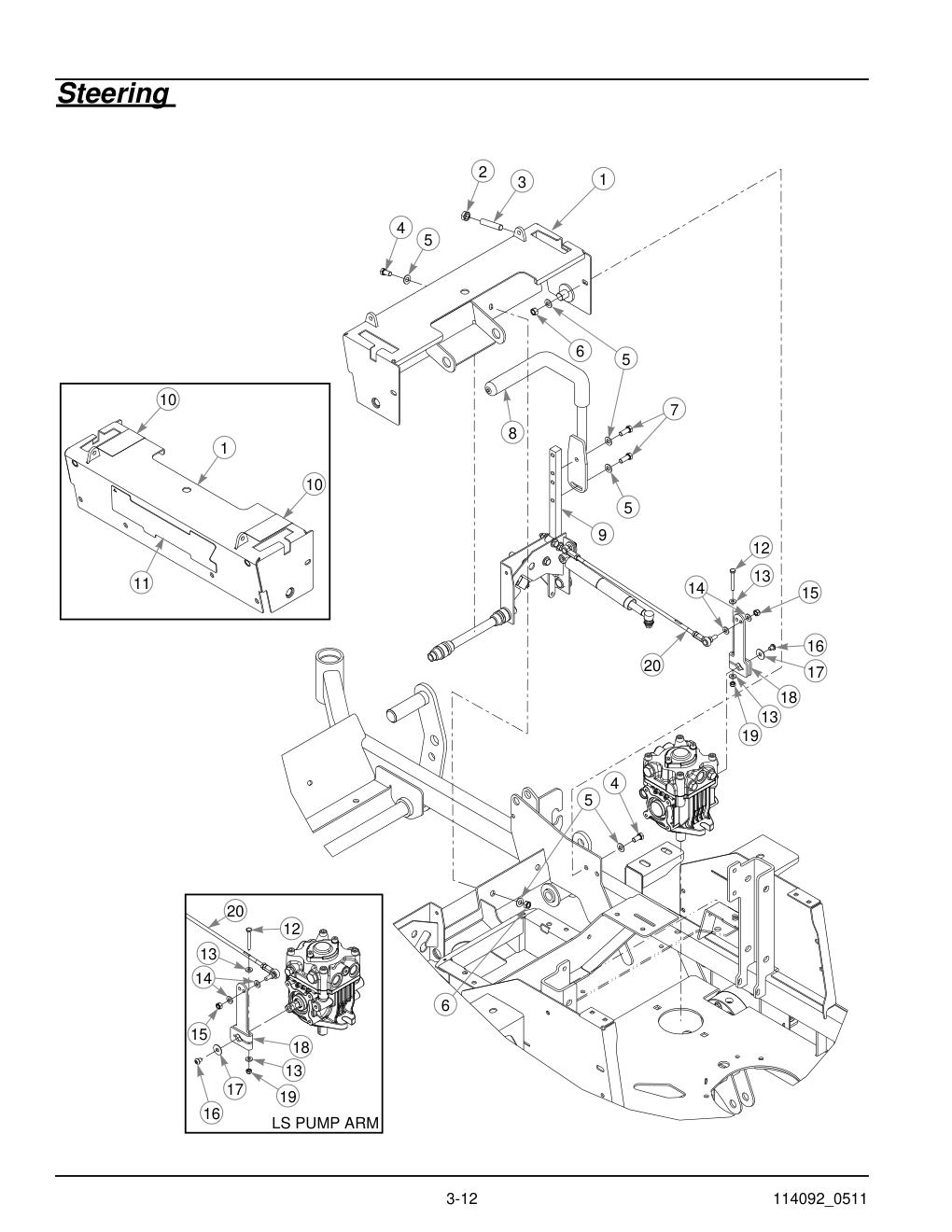

Steering
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STEERING COVER (WITH DECALS) | 550818 | 1 | 550818-Online |
| 2 | NT .500-13 HX JAM ZNYC | 053199 | 2 | HT053199-Online |
| 3 | SS 1/2-13 X 2.50 SH ZNYC | 603055 | 2 | 603055-Online |
| 4 | CS .375-16 X .750 HX G5 | 055822 | 6 | HT055822-Online |
| 5 | FW .406 X .812 X .060 SAE | 767954 | 28 | HT767954-Online |
| 6 | NT .375-16 HX GRD 5 ZNY | 054502 | 6 | HT054502-Online |
| 7 | CS .375-16 X 1.000 HX G5 | 036244 | 4 | HT036244-Online |
| 8 | HANDLE | 109839 | 2 | 109839-Online |
| 9 | STEERING ARM | 113575 | 2 | 113575-Online |
| 10 | WEAR TAPE | 722199 | 2 | 722199-Online |
| 11 | SUPER Z DECAL | 603227 | 1 | 603227-Online |
| 12 | CS .250-20X2.00 HX G5 Z | 704163 | 2 | 704163-Online |
| 13 | FW .281 X .625 X .051/.080H | 768515 | 4 | HT768515-Online |
| 14 | FW .343 X .687 X .051/.080H | 768523 | 12 | HT768523-Online |
| 15 | NT .312-24 HX NL ZN | 023655 | 4 | HT023655-Online |
| 16 | CS M8-1.25 X 10 G10.9 SHBH | 603272 | 2 | 603272-Online |
| 17 | FW .344 X 1.00 X .06 ZNYC | 079210 | 2 | 079210-Online |
| 18 | PUMP ARM | 114067 | 2 | 114067-Online |
| 19 | NT .250-20 HXZY NL | 068551 | 2 | HT068551-Online |
| 20 | PUMP ROD ADJUSTER | 781286 | 2 | HT781286-Online |
Steering
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 21 | NT .375-16 HXZY NL | 086660 | 6 | HT086660-Online |
| 22 | CS .375-16 X 1.750 HX G5 | 705178 | 6 | HT705178-Online |
| 23 | RS STEERING BOX | 112898 | 1 | 112898-Online |
| 24 | FW .750 X 1.500 X .156 ZN | 603078 | 2 | 603078-Online |
| 25 | BUSHING | 781153 | 6 | HT781153-Online |
| 26 | BALL STUD | 781922 | 4 | 781922-Online |
| 27 | STEER PIVOT TUBE | 113007 | 1 | 113007-Online |
| 28 | LOCK COLLAR, 0.757 ID | 784439 | 2 | HT784439-Online |
| 29 | LS STEERING BOX | 112899 | 1 | 112899-Online |
| 30 | NT .312-18 HX G5 ZNYC | 034272 | 2 | HT034272-Online |
| 31 | DAMPER | 603192 | 2 | 603192-Online |
| 32 | SWITCH | 601087 | 2 | HT601087-Online |
| 33 | FW .344 X 1.00 X.12 HRD Z | 712927 | 2 | HT712927-Online |
| 34 | STEER LEVER BUSHING | 348862 | 4 | HT348862-Online |
| 35 | SS .500-13 X 2.00 SH ZY | 797738 | 2 | 797738-Online |
| 36 | LW .312 INT-EXT TOOTH | 029876 | 2 | 029876-Online |
| 37 | NT .312-18 HXFLK ZNYC | 016832 | 2 | 016832-Online |
| 38 | GM .750 X .188 X 1.00 X .12 | 047456 | 2 | 047456-Online |

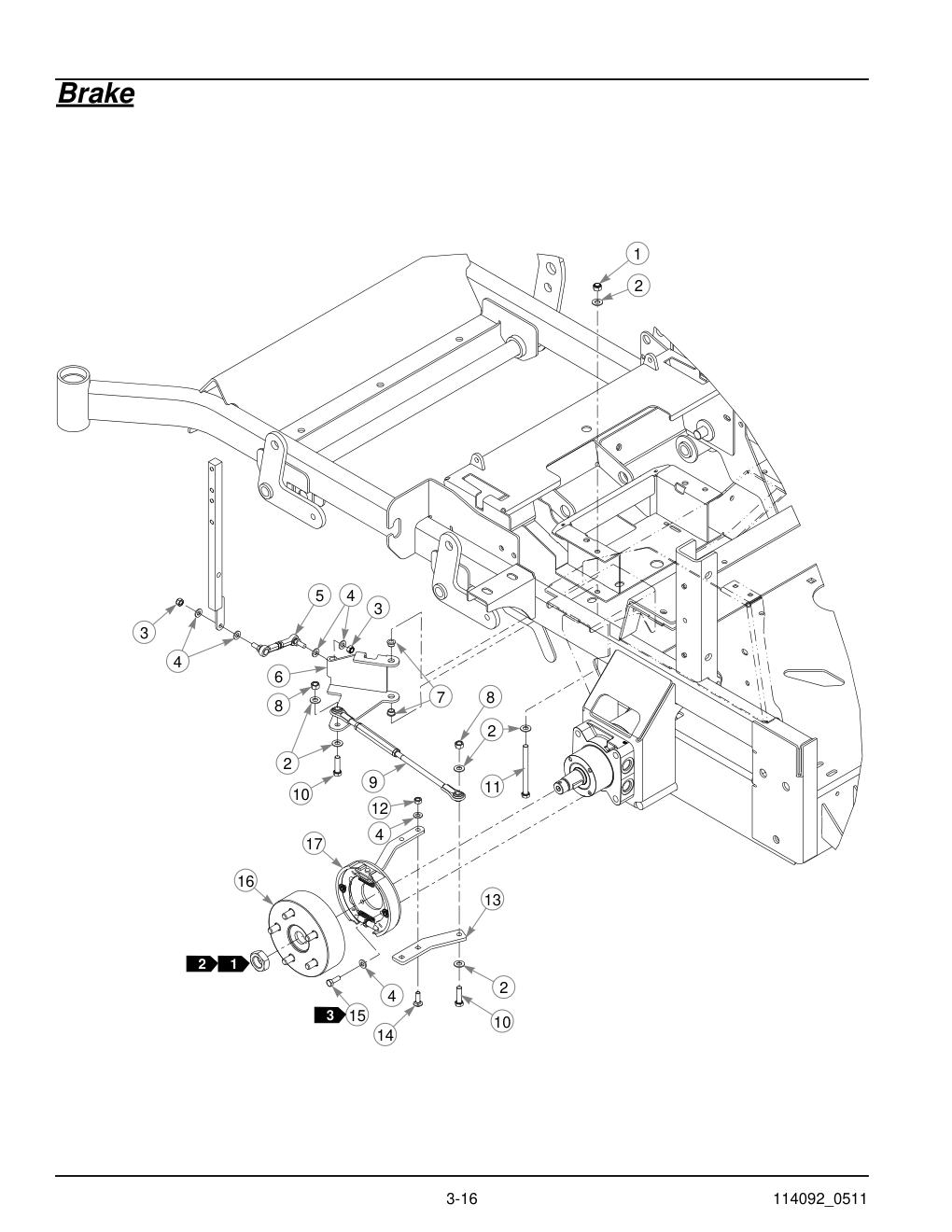

Brake
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .375-16 HXZY NL | 086660 | 2 | HT086660-Online |
| 2 | FW .406 X .812 X .060 SAE | 767954 | 12 | HT767954-Online |
| 3 | NT .312-24 HX NL ZN | 023655 | 4 | HT023655-Online |
| 4 | FW .343 X .687 X .051/.080H | 768523 | 20 | HT768523-Online |
| 5 | BRAKE ROD | 781583 | 2 | HT781583-Online |
| 6 | LS BRAKE BELLCRANK | 112907 | 1 | 112907-Online |
| 6 | RS BRAKE BELLCRANK (NOT SHOWN) | 112906 | 1 | 112906-Online |
| 7 | BUSHING | 765339 | 4 | HT765339-Online |
| 8 | NT .375-16 HX GRD 5 ZNY | 054502 | 4 | HT054502-Online |
| 9 | BRAKE LINK TURNBUCKLE | 350397 | 2 | 350397-Online |
| 10 | CS .375-16 X 1.375 HX G5 | 005116 | 4 | HT005116-Online |
| 11 | CS .375-16 X 4.500 HX G5 | 052514 | 2 | 052514-Online |
| 12 | NT .312-18 HX G5 ZNYC | 034272 | 4 | HT034272-Online |
| 13 | BRAKE ARM | 111309 | 2 | HT111309-Online |
| 14 | CB .312-18 X 1.000 FULL ZN | 037887 | 4 | HT037887-Online |
| 15 | CS .312-18 X .875 HX G5 ZN | 064014 | 8 | 064014-Online |
| 16 | HUB ASSY | 602384 | 2 | 602384-Online |
| 17 | BRAKE ASSY | 602383 | 2 | 602383-Online |

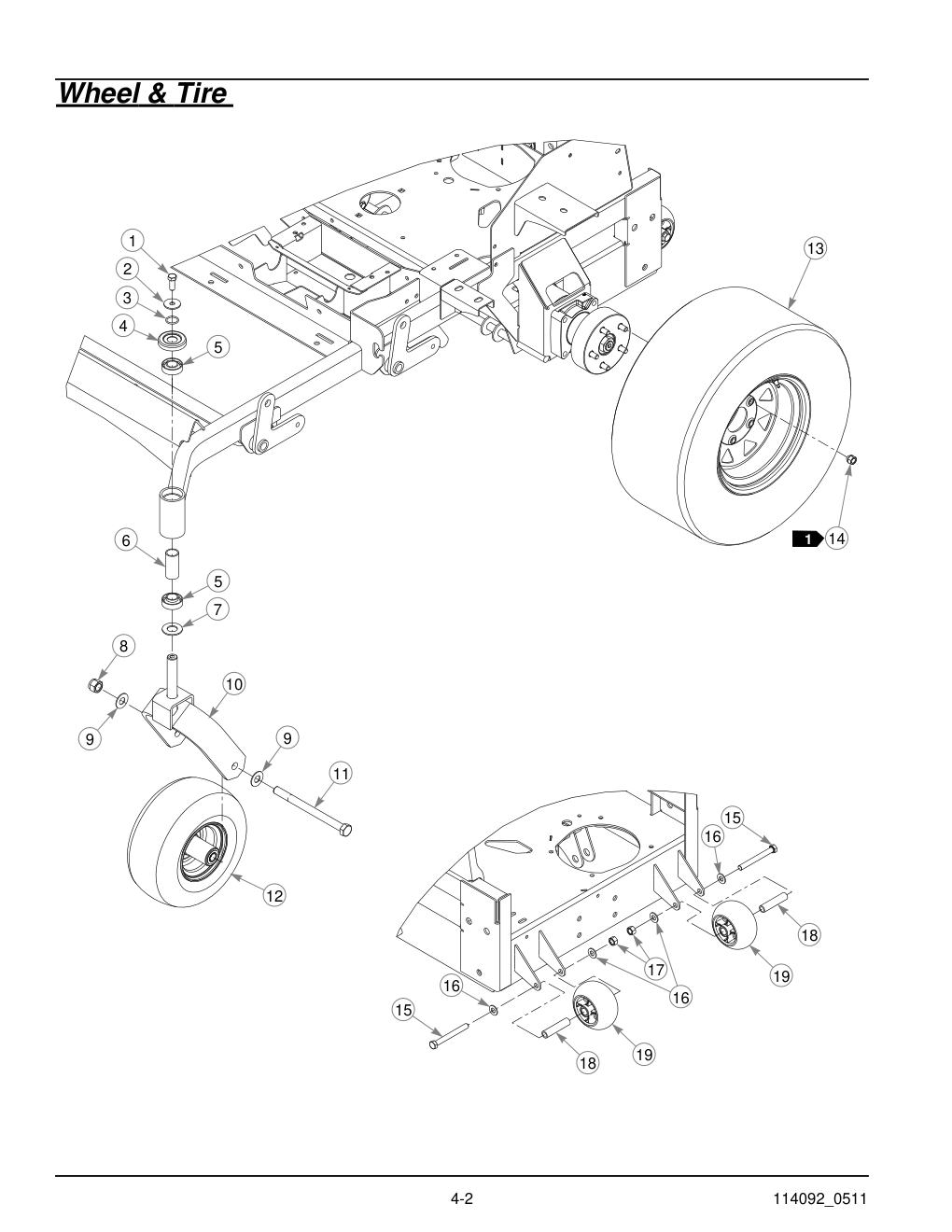

Wheel & Tire
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 14 061077 | NUT | 10 | WHEEL | 10-Online |

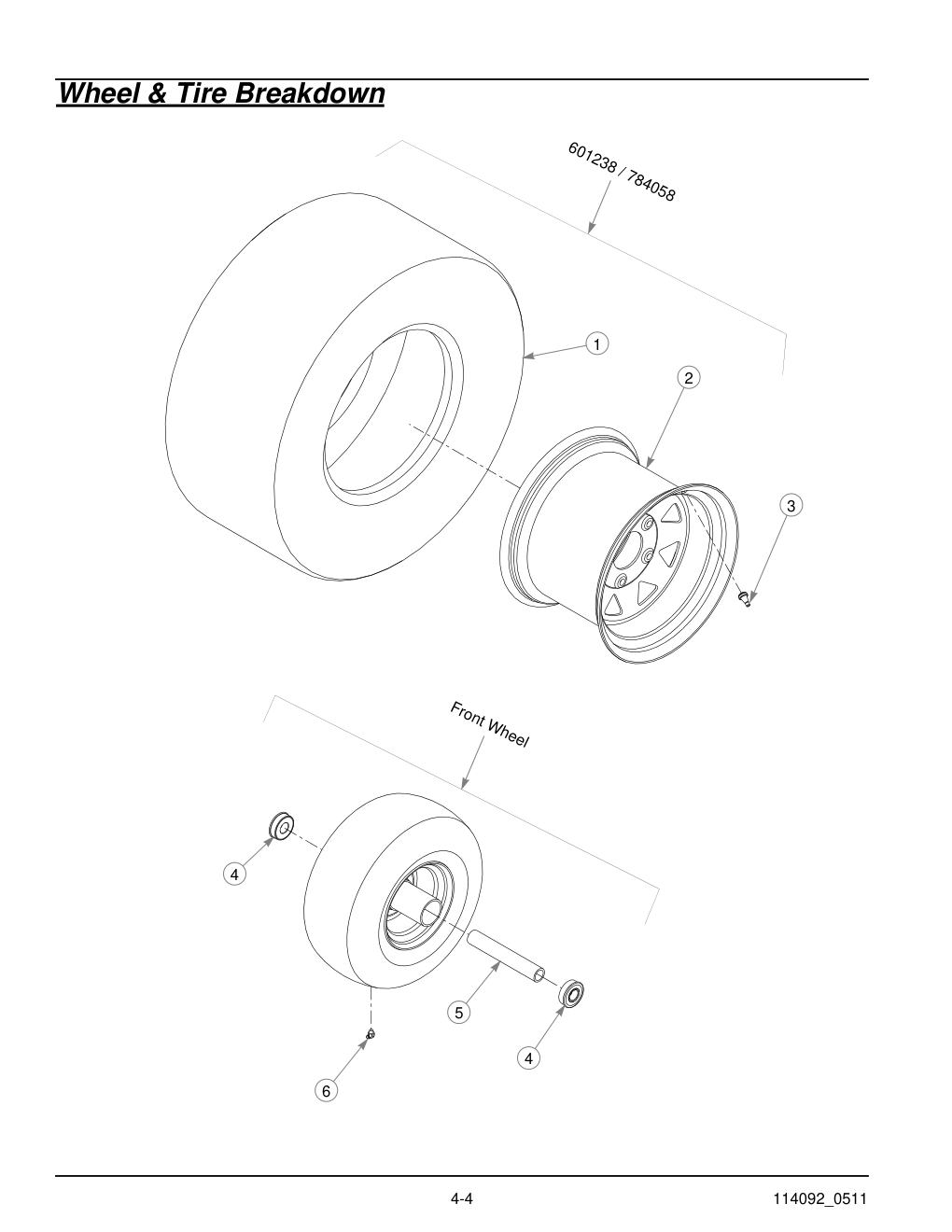

Wheel & Tire Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIRE 24 X 12-12 | 781245 | 1 | HT781245-Online |
| 2 | WHEEL 12 X 8.50 | 796250 | 1 | 796250-Online |
| 2 | WHEEL 12 X 8.50 | 784066 | 1 | HT784066-Online |
| 3 | TIRE VALVE TR-412 GOODY | 019521 | 1 | HT019521-Online |
| 4 | BEARING CAPS | 039677 | 2 | HT039677-Online |
| 5 | BEARING, 3/4" ROLLER | 782771 | 1 | HT782771-Online |
| 6 | GREASE FITTING 45 DEG | 015511 | 1 | HT015511-Online |

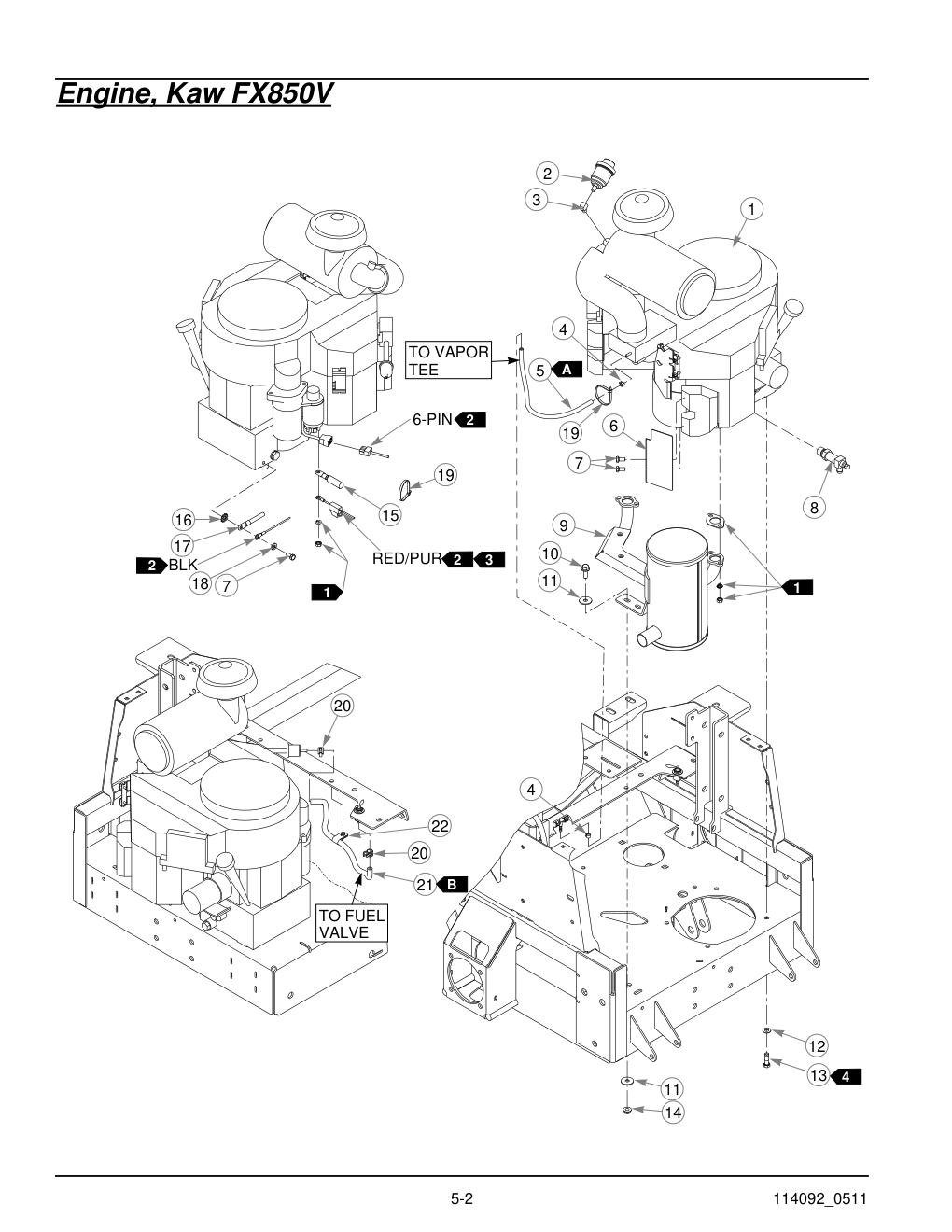

Engine, Kaw FX850V
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KAW FX850V ENGINE | N/A | 1 | No SKU |
| 2 | AIR FILTER INDICATOR | 788943 | 1 | HT788943-Online |
| 3 | ELBOW STREET FITTING | 601216 | 1 | 601216-Online |
| 4 | CLAMP, 3/16" | 603112 | 2 | 603112-Online |
| 5 | 3/16" VAPOR LINE | 603326 | 22" | 603326-Online |
| 6 | HEAT SHIELD | 113714 | 1 | 113714-Online |
| 7 | CS M8 X 1.25 X 16 G10.9 HX | 720516 | 3 | 720516-Online |
| 8 | OIL DRAIN VALVE | 796524 | 1 | HT796524-Online |
| 9 | MUFFLER | 602774 | 1 | 602774-Online |
| 10 | CS .375-16 X 1.000 HXFLK | 029751 | 2 | 029751-Online |
| 11 | FW .391 X 1.250 X .060 ZNY | 705137 | 4 | 705137-Online |
| 12 | FW .406 X .812 X .060 SAE | 767954 | 4 | HT767954-Online |
| 13 | CS .375-16 X 1.25 HXG5 P85 | 602580 | 4 | 602580-Online |
| 14 | NT .375-16 HXFLK ZNYC | 016899 | 2 | HT016899-Online |
| 15 | RED POSITIVE BATTERY CABLE | 786632 | 1 | 786632-Online |
| 16 | LW .312 INT-EXT TOOTH | 029876 | 1 | 029876-Online |
| 17 | NEGATIVE BATTERY CABLE | 796219 | 1 | 796219-Online |
| 18 | FW .343 X .687 X .051/.080H | 768523 | 1 | HT768523-Online |
| 19 | WIRE TIE, SMALL/SHORT | 000331 | 2 | 000331-Online |
| 20 | HOSE CLAMP | 000323 | 2 | 000323-Online |
| 21 | 1/4" FUEL LINE | 015818 | 12" | HT015818-Online |
| 22 | LOOP CLAMP | 000398 | 1 | HT000398-Online |

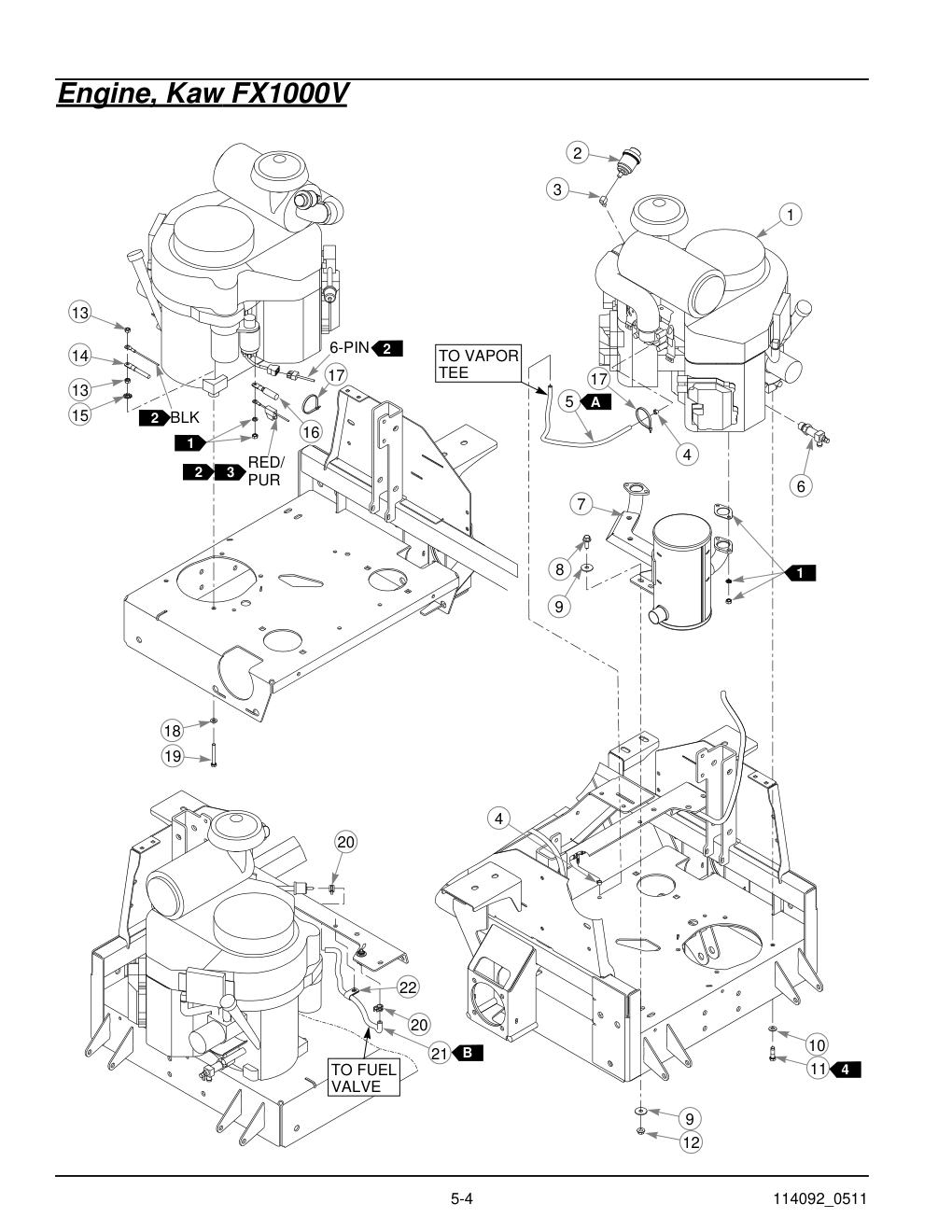

Engine, Kaw FX1000V
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KAW FX1000V ENGINE | N/A | 1 | No SKU |
| 2 | AIR FILTER INDICATOR | 788943 | 1 | HT788943-Online |
| 3 | ELBOW STREET FITTING | 601216 | 1 | 601216-Online |
| 4 | CLAMP, 3/16" | 603112 | 2 | 603112-Online |
| 5 | 3/16" VAPOR LINE | 603326 | 23" | 603326-Online |
| 6 | OIL DRAIN VALVE | 796524 | 1 | HT796524-Online |
| 7 | MUFFLER | 602775 | 1 | 602775-Online |
| 8 | CS .375-16 X 1.000 HXFLK | 029751 | 2 | 029751-Online |
| 9 | FW .391 X 1.250 X .060 ZNY | 705137 | 4 | 705137-Online |
| 10 | FW .406 X .812 X .060 SAE | 767954 | 3 | HT767954-Online |
| 11 | CS .375-16 X 1.25 HXG5 P85 | 602580 | 3 | 602580-Online |
| 12 | NT .375-16 HXFLK ZNYC | 016899 | 2 | HT016899-Online |
| 13 | NT .312-18 HX G5 ZNYC | 034272 | 2 | HT034272-Online |
| 14 | NEGATIVE BATTERY CABLE | 796219 | 1 | 796219-Online |
| 15 | LW .312 INT-EXT TOOTH | 029876 | 1 | 029876-Online |
| 16 | RED POSITIVE BATTERY CABLE | 786632 | 1 | 786632-Online |
| 17 | WIRE TIE, SMALL/SHORT | 000331 | 2 | 000331-Online |
| 18 | FW .343 X .687 X .051/.080H | 768523 | 1 | HT768523-Online |
| 19 | CS .312-18 X 2.50 HX G5 Z | 710087 | 1 | HT710087-Online |
| 20 | HOSE CLAMP | 000323 | 2 | 000323-Online |
| 21 | 1/4" FUEL LINE | 015818 | 12" | HT015818-Online |
| 22 | LOOP CLAMP | 000398 | 1 | HT000398-Online |
Engine Guard
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | HEAT SHIELD | 113429 | 1 | 113429-Online |
| 1 | HEAT SHIELD | 114036 | 1 | 114036-Online |
| 2 | NT .375-16 HX GRD 5 ZNY | 054502 | 4 | HT054502-Online |
| 3 | FW .406 X .812 X .060 SAE | 767954 | 12 | HT767954-Online |
| 4 | HEAT SHIELD SPACER | 603076 | 4 | 603076-Online |
| 5 | ENGINE GUARD | 113573 | 1 | 113573-Online |
| 6 | BUMPER PANEL, RS | 113843 | 1 | 113843-Online |
| 7 | BUMPER PANEL, LS | 113844 | 1 | 113844-Online |
| 8 | 3/8-16 THREAD RIVET NUT | 808493 | 4 | 808493-Online |
| 9 | CS .375-16 X .750 HX G5 | 055822 | 4 | HT055822-Online |
| 10 | CS .375-16 X 1.25 HX G5 ZN | 052860 | 4 | HT052860-Online |
| 11 | FW .531 X 1.063 X .090 SAE | 767962 | 4 | HT767962-Online |
| 12 | CS .500-13 X 1.250 HX G5 ZN | 705954 | 4 | HT705954-Online |
| 13 | HEAT DEFLECTOR | 113858 | 1 | 113858-Online |
| 14 | CN .312-18 X .200 MAX THK | 601069 | 2 | HT601069-Online |
| 15 | FW .343 X .687 X .051/.080H | 768523 | 2 | HT768523-Online |
| 16 | CS .312-18 X .875 HX G5 ZN | 064014 | 2 | 064014-Online |
Fuel System
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RATCHETING GAS CAP, 3.5" | 602916 | 2 | 602916-Online |
| 2 | RS FUEL TANK | 603142 | 1 | 603142-Online |
| 3 | LS FUEL TANK | 603143 | 1 | 603143-Online |
| 4 | FW .344 X 1.00 X .12 HRD Z | 712927 | 10 | HT712927-Online |
| 5 | CS .375-16 X .750 HX G5 | 055822 | 10 | HT055822-Online |
| 6 | HOSE CLAMP | 000323 | 10 | 000323-Online |
| 7 | 1/4" FUEL LINE | 015818 | 110" | HT015818-Online |
| 8 | FUEL VALVE 3-WAY | 745059 | 1 | HT745059-Online |
| 9 | PLASTIC TEE, 1/4" | 603025 | 1 | 603025-Online |
| 10 | CS .312-18 X 1.000 HX G5 | 036236 | 3 | 036236-Online |
| 11 | FW .343 X .687 X .051/.080H | 768523 | 6 | HT768523-Online |
| 12 | HOSE CLAMP | 043570 | 3 | 043570-Online |
| 13 | NT .312-18 HX G5 ZNYC | 034272 | 3 | HT034272-Online |
| 14 | VACUUM BREAKER | 603024 | 1 | 603024-Online |
| 15 | WIRE TIE, SMALL/SHORT | 000331 | 2 | 000331-Online |
| 16 | ROLLOVER VALVE & GROMMET | 603158 | 1 | 603158-Online |
| 17 | VACUUM BREAKER FILTER | 603161 | 1 | 603161-Online |
| 18 | SUCTION HOSE GROMMET | 785295 | 1 | HT785295-Online |
| 19 | SUCTION HOSE 33.5 | 601530 | 1 | 601530-Online |

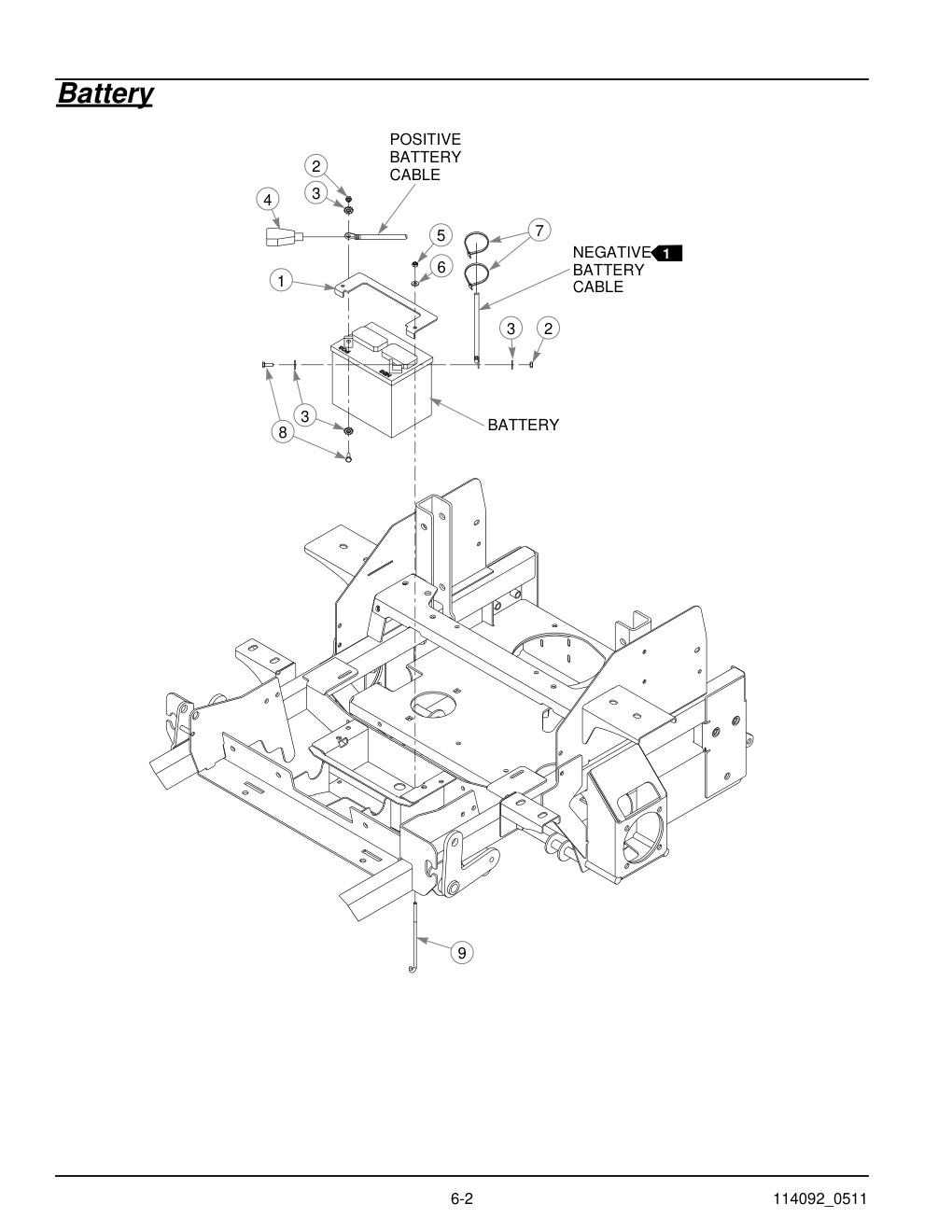

Battery
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | BATTERY STRAP | 113147 | 1 | 113147-Online |
| 2 | NT .250-20 HX GR.5 ZNYC | 024927 | 2 | HT024927-Online |
| 3 | LW .250 INT-EXT TOOTH Z | 029868 | 4 | 029868-Online |
| 4 | RED BATTERY CABLE BOOT | 771428 | 1 | 771428-Online |
| 5 | NT .250-20 HXZY NL | 068551 | 2 | HT068551-Online |
| 6 | FW .281 X .625 X .051/.080H | 768515 | 2 | HT768515-Online |
| 7 | WIRE TIE, SMALL/SHORT | 000331 | 2 | 000331-Online |
| 8 | CS .250-20 X .750 HX G5 | 055939 | 2 | 055939-Online |
| 9 | BATTERY CLAMP ROD | 793489 | 2 | 793489-Online |

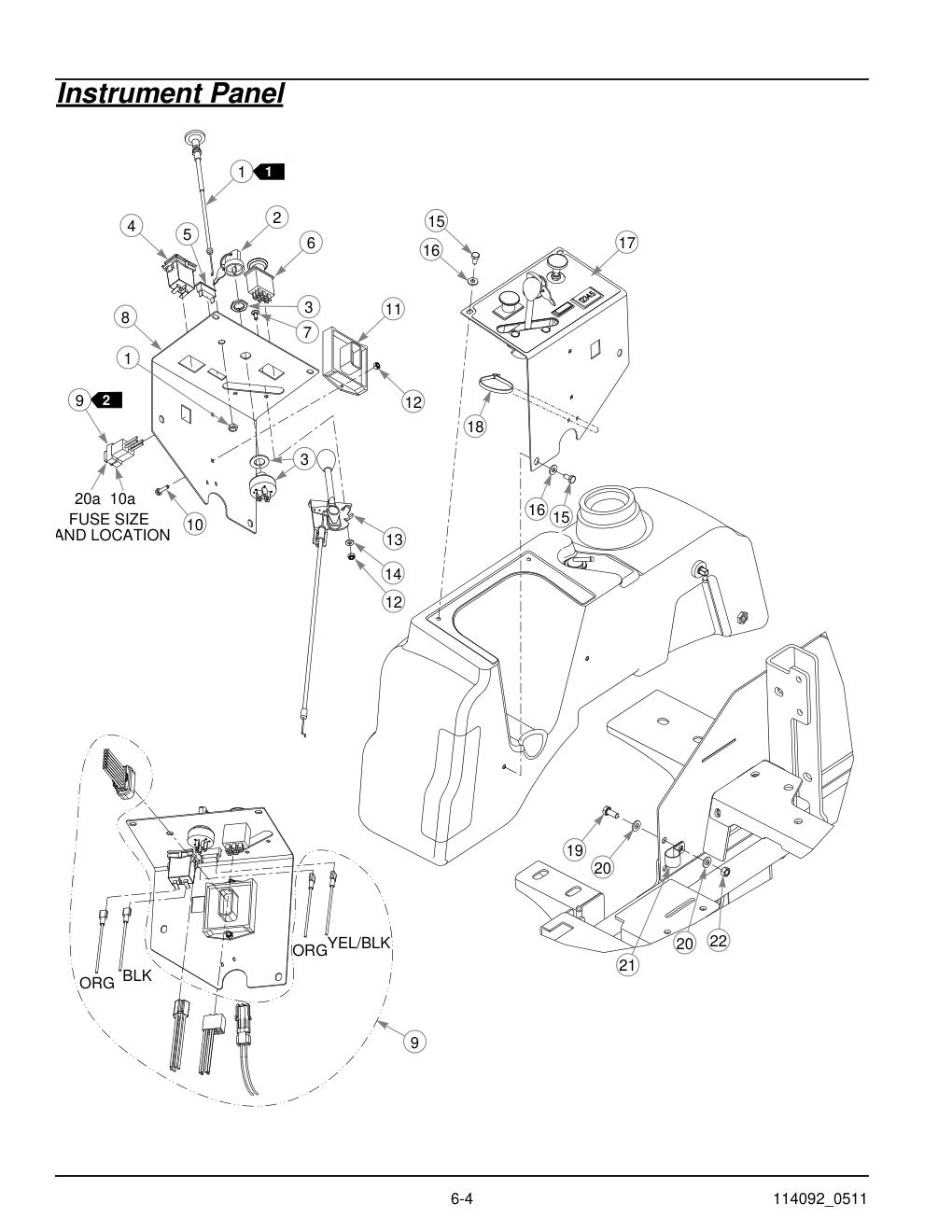

Instrument Panel
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CHOKE CABLE | 603087 | 1 | 603087-Online |
| 1 | CHOKE CABLE | 786657 | 1 | HT786657-Online |
| 2 | KEY ASSEMBLY | 785808 | 1 | 785808-Online |
| 3 | IGNITION SWITCH | 045898 | 1 | HT045898-Online |
| 4 | HOUR METER | 603002 | 1 | 603002-Online |
| 5 | RED INDICATOR LIGHT | 712257 | 1 | HT712257-Online |
| 6 | PTO SWITCH | 776476 | 1 | HT776476-Online |
| 7 | CB 10-24 X .500 ZYNC | 601098 | 2 | 601098-Online |
| 8 | INSTRUMENT PANEL (WITH DECAL) | 550856 | 1 | 550856-Online |
| 9 | WIRE HARNESS | 603125 | 1 | 603125-Online |
| 10 | CS 10-24 X .750 HXFLK ZN | 063198 | 2 | 063198-Online |
| 11 | IGNITION CONTROLLER | 601554 | 1 | 601554-Online |
| 12 | NT #10-24 HX NL ZN | 059832 | 4 | 059832-Online |
| 13 | THROTTLE CABLE | 603409 | 1 | 603409-Online |
| 14 | FW .219 X .500 X .048 ZNYC | 704932 | 2 | HT704932-Online |
| 15 | CS .250-20 X .500 HX G5 | 055947 | 4 | 055947-Online |
| 16 | FW .281 X .625 X .051/.080H | 768515 | 4 | HT768515-Online |
| 17 | INSTRUMENT PANEL DECAL | 603056 | 1 | 603056-Online |
| 18 | WIRE TIE, SMALL/LONG | 000430 | 1 | 000430-Online |
| 19 | CS .312-18 X .750 HX G5 | 034280 | 1 | HT034280-Online |
| 20 | FW .343 X .687 X .051/.080H | 768523 | 2 | HT768523-Online |
| 21 | HOSE CLAMP | 043570 | 1 | 043570-Online |
| 22 | NT .312-18 HX G5 ZNYC | 034272 | 1 | HT034272-Online |
| 23 | WIRE TIE, SMALL/SHORT | 000331 | 4 | 000331-Online |

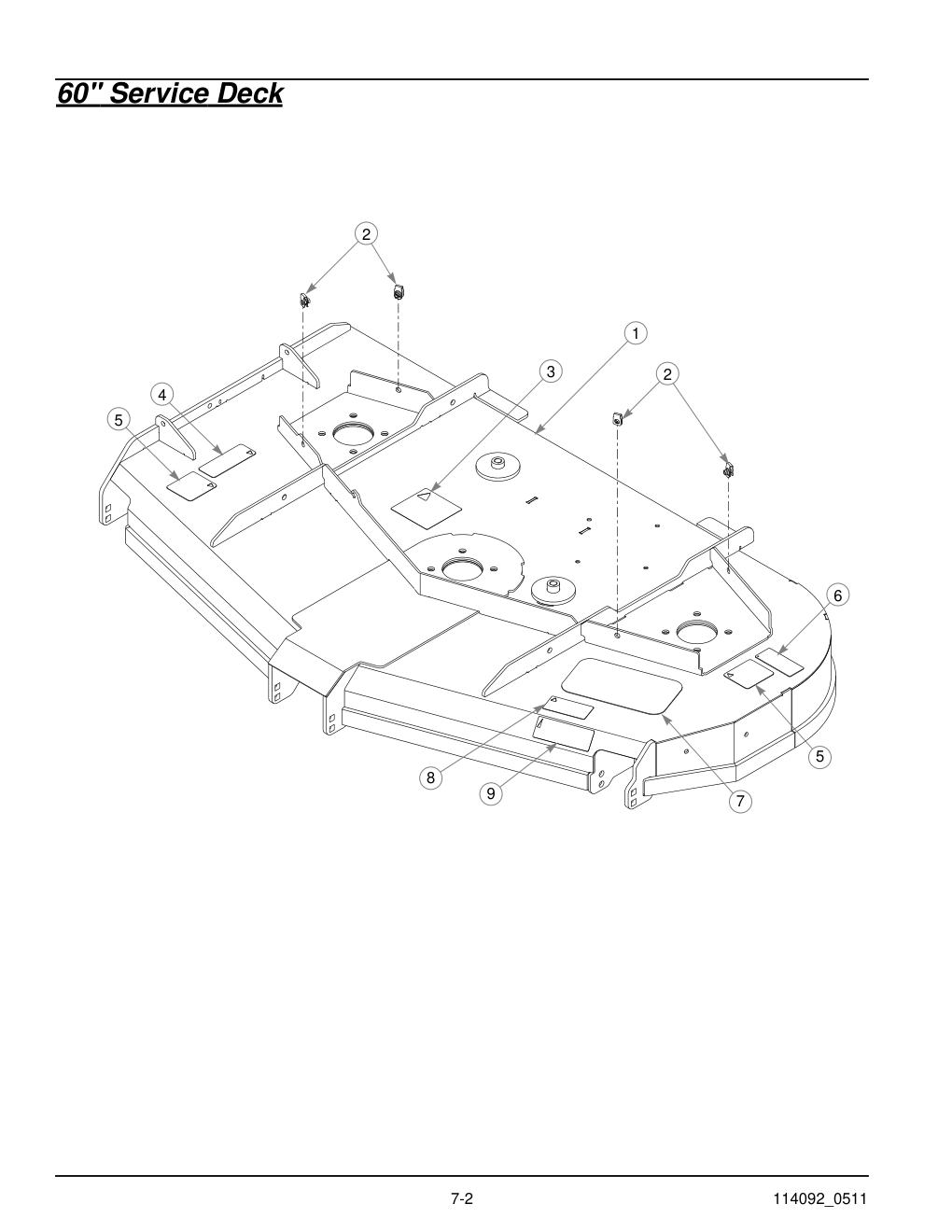

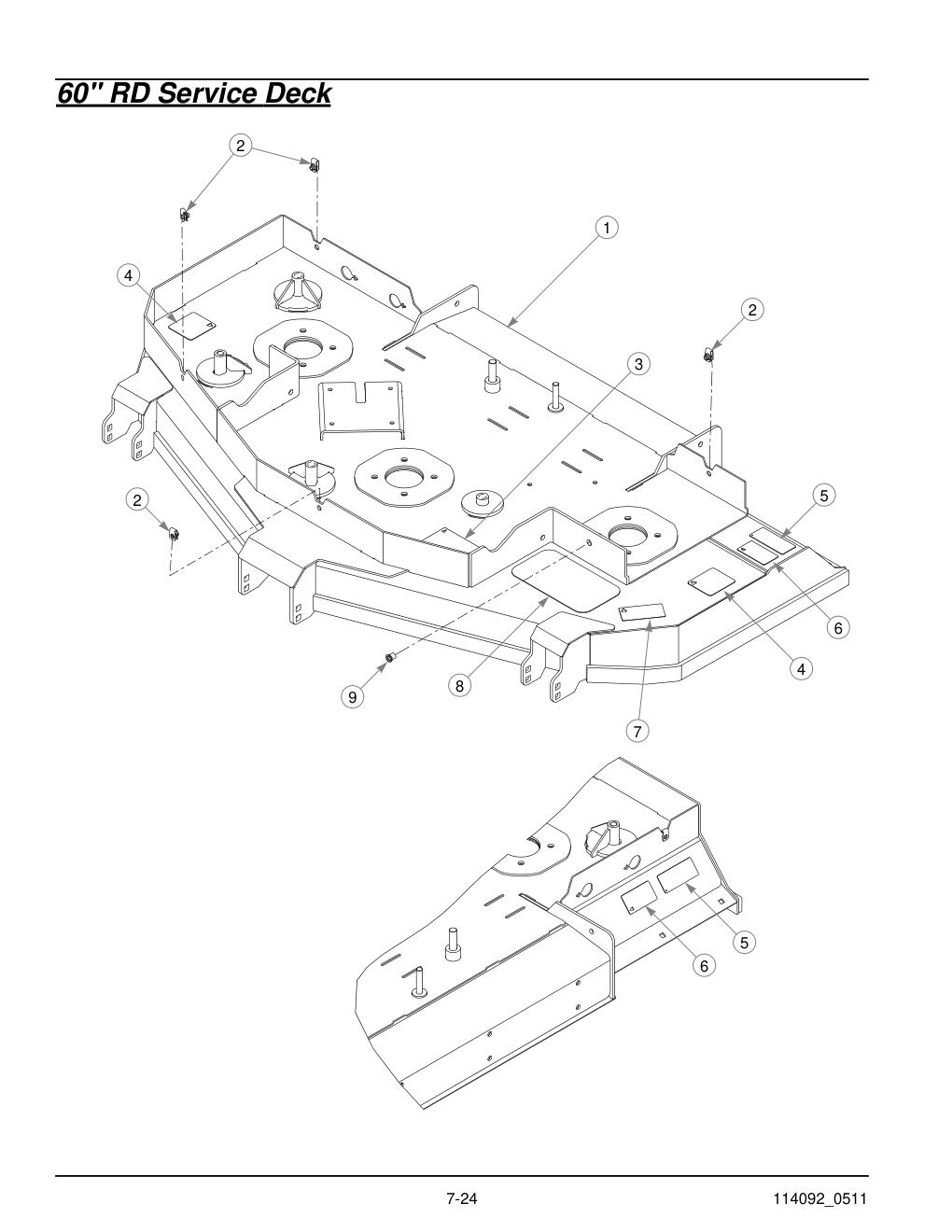

60" Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DECK, 60" (WITH DECALS & HARDWARE) | 550739 | 1 | 550739-Online |
| 2 | CN .312-18 X .200 MAX THK | 601069 | 4 | HT601069-Online |
| 3 | BELT ROUTING DECAL | 781419 | 1 | 781419-Online |
| 4 | DISCHARGE CHUTE DECAL | 601624 | 1 | 601624-Online |
| 5 | DECK DANGERS DECAL | 601837 | 2 | 601837-Online |
| 6 | THROWN OBJECTS DECAL | 601892 | 1 | 601892-Online |
| 7 | STEP TREAD 5.00 X 9.00 | 359547 | 1 | 359547-Online |
| 8 | 60" DECK DECAL | 786277 | 1 | 786277-Online |
| 9 | VX4 TECHNOLOGY DECAL | 603092 | 1 | 603092-Online |

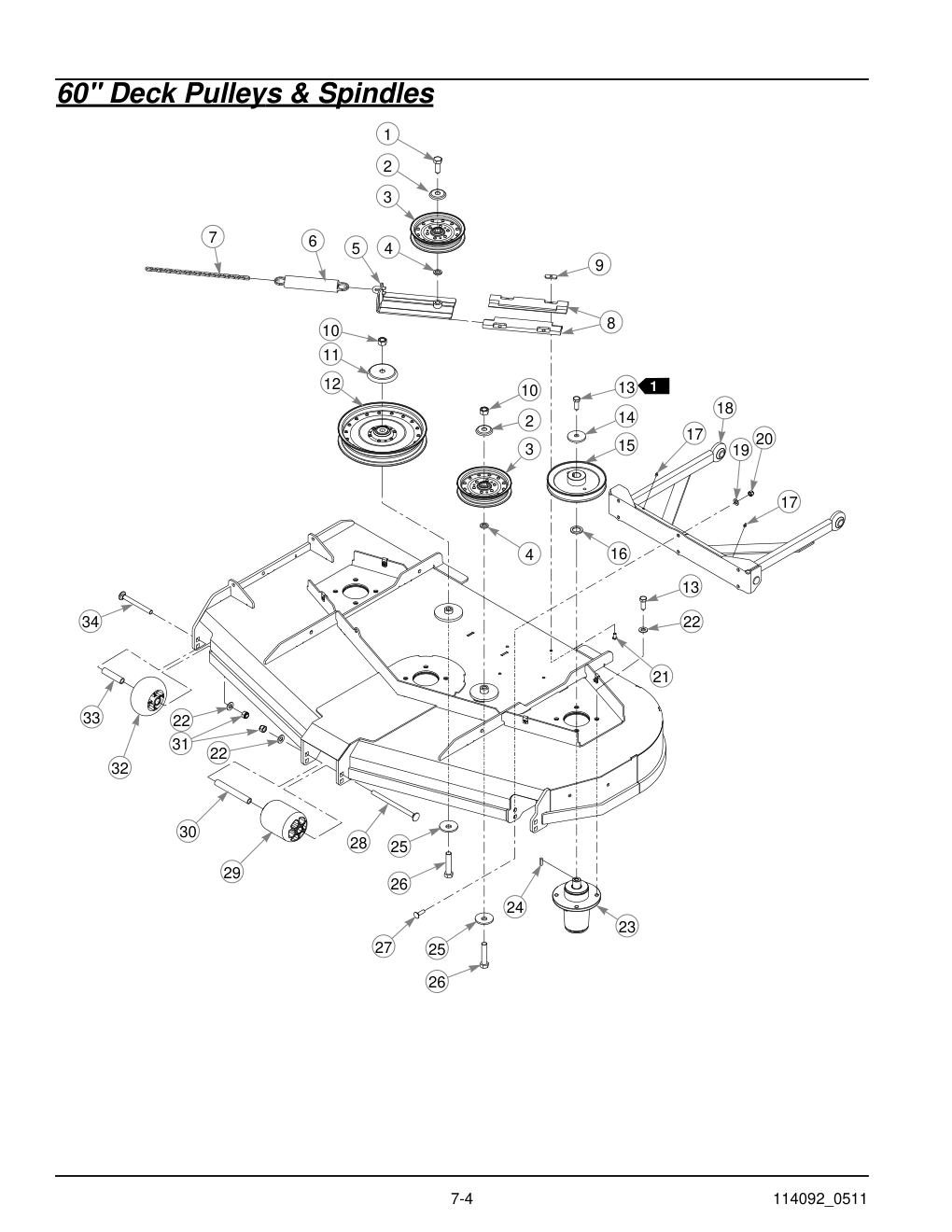

60" Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11 X 1.500 HX G5 | 794446 | 1 | HT794446-Online |
| 2 | IDLER DUST SHIELD SM | 602935 | 2 | 602935-Online |
| 3 | IDLER, 6.0" RIVETED | 602821 | 2 | 602821-Online |
| 4 | FW .625 X 1.00 X .134 ZNYC | 028118 | 2 | HT028118-Online |
| 5 | DECK IDLER SLIDE | 350884 | 1 | HT350884-Online |
| 6 | TENSION SPRING | 781302 | 1 | 781302-Online |
| 7 | CHAIN | 373191 | 1 | HT373191-Online |
| 8 | UHMW IDLER SLIDE | 602936 | 2 | 602936-Online |
| 9 | WN .312-18 ZN | 603023 | 4 | 603023-Online |
| 10 | NT .625-11 HX G5 ZNYC | 016972 | 2 | HT016972-Online |
| 11 | IDLER DUST SHIELD LG | 602963 | 1 | 602963-Online |
| 12 | IDLER, 10.0" RIVETED | 602743 | 1 | 602743-Online |
| 13 | CS .500-13 X 1.250 HX G5 ZN | 705954 | 15 | HT705954-Online |
| 14 | CW .515 X 2.25 X .204 BLK | 752386 | 3 | HT752386-Online |
| 15 | PULLEY, DRIVE 7.402 OP | 602745 | 3 | 602745-Online |
| 16 | FW 1.030 X 1.500 X .134 ZN | 045765 | 3 | HT045765-Online |
| 17 | GREASE FITTING STRAIGHT | 015495 | 2 | HT015495-Online |
| 18 | PUSHER | 113340 | 1 | 113340-Online |
| 19 | FW .406 X .812 X .060 SAE | 767954 | 6 | HT767954-Online |
| 20 | NT .375-16 HXZY NL | 086660 | 6 | HT086660-Online |
| 21 | CS .312-18 X .625 BH ZN | 603022 | 4 | 603022-Online |
| 22 | FW .531 X 1.063 X .090 SAE | 767962 | 15 | HT767962-Online |
| 23 | BLADE SPINDLE | 601630 | 3 | 601630-Online |
| 24 | KEY 1/4 SQ X 1.00 | 212472 | 3 | HT212472-Online |
| 25 | CW .631 X 2.250 X .187 PNT | 782474 | 2 | HT782474-Online |
| 26 | CS .625-11 X 3.00 FULL HX | 783738 | 2 | HT783738-Online |
| 27 | CB .375-13 X 1.250 G5 ZN | 603113 | 6 | 603113-Online |
| 28 | CB .50-13 X 7.50 STD ZN | 602338 | 1 | 602338-Online |
| 29 | ANTI-SCALP WHEEL | 602341 | 1 | 602341-Online |
| 30 | ANTI-SCALP SPACER 5.73 | 602344 | 1 | 602344-Online |
| 31 | NT .500-13 HX G8 ZY NL | 781567 | 3 | HT781567-Online |
| 32 | SIDE ANTI-SCALP WHEEL | 602263 | 2 | 602263-Online |
| 33 | ANTI-SCALP SPACER 3.22 | 602345 | 2 | 602345-Online |
| 34 | CB .500-13 X 5.00 ZNYC | 603049 | 2 | 603049-Online |

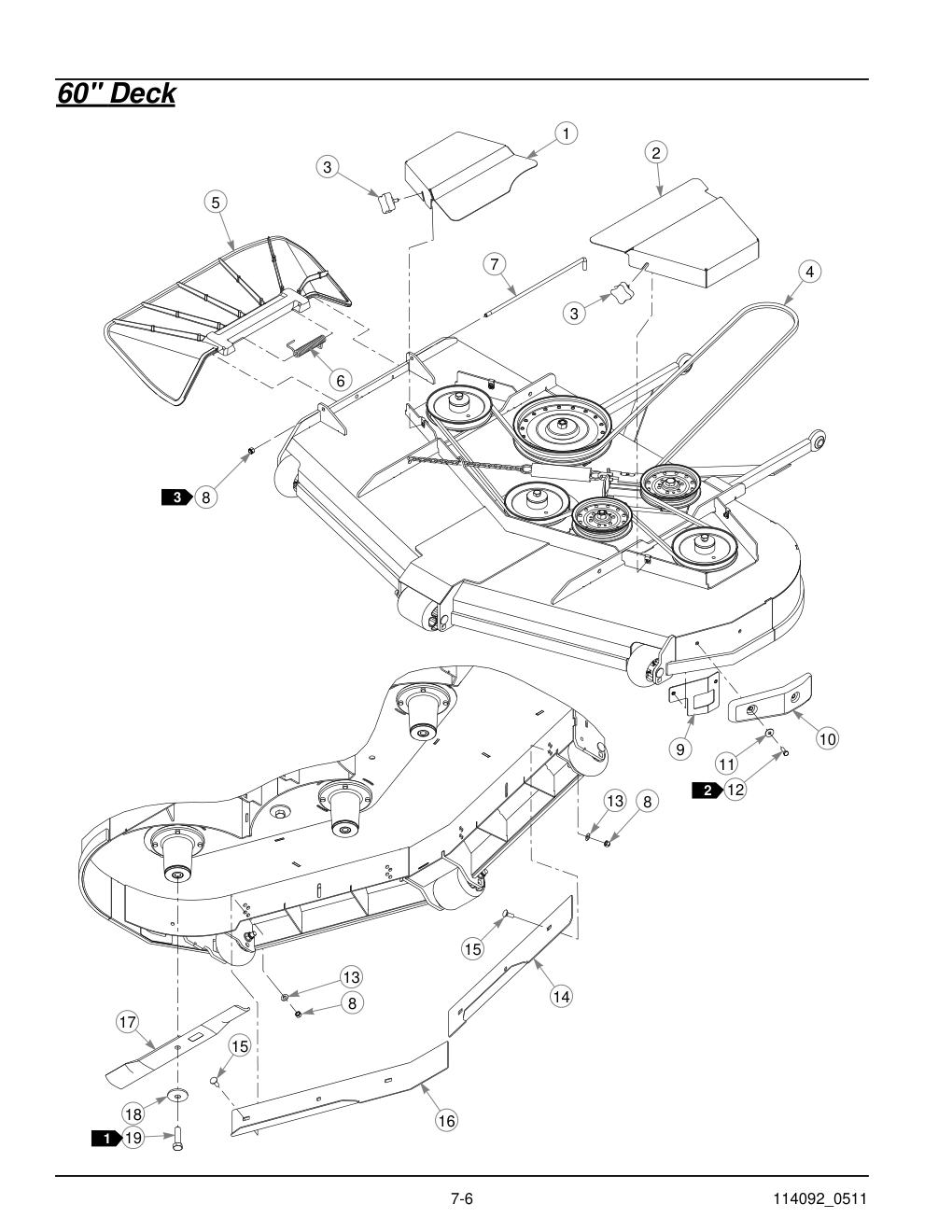

60" Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RS PULLEY COVER 60" | 112933 | 1 | 112933-Online |
| 2 | LS PULLEY COVER 60" | 112934 | 1 | 112934-Online |
| 3 | KNOB 5/16-18 X 3/4" | 792002 | 4 | HT792002-Online |
| 4 | B-SEC BELT | 602744 | 1 | 602744-Online |
| 5 | DISCHARGE CHUTE LG | 602891 | 1 | 602891-Online |
| 6 | TORSION SPRING | 602435 | 1 | 602435-Online |
| 7 | CHUTE PIN | 602432 | 1 | 602432-Online |
| 8 | NT .375-16 HX ZY NL | 086660 | 7 | HT086660-Online |
| 9 | BACKING PLATE | 113563 | 1 | 113563-Online |
| 10 | RUBBER BUMPER | 602817 | 1 | 602817-Online |
| 11 | FW .344 X 1.00 X.06 Z | 079210 | 2 | 079210-Online |
| 12 | CS .312-18 X 0.875 HX G5 | 064014 | 2 | 064014-Online |
| 13 | FW .406 X .812 X .060 SAE | 767954 | 6 | HT767954-Online |
| 14 | RS INNER WALL ADJ. 60" | 113180 | 1 | HT113180-Online |
| 15 | CB .375-16 X 1.00 STD CD | 025395 | 6 | HT025395-Online |
| 16 | LS INNER WALL ADJ. 60" | 113179 | 1 | HT113179-Online |
| 17 | BLADE, F20.50" EHN-F-CW | 602771 | 3 | 602771-Online |
| 18 | CW .631 X 2.250 X .187 PNT | 782474 | 3 | HT782474-Online |
| 19 | CS .625-11 X 2.25 HX G5 ZY | 601983 | 3 | 601983-Online |

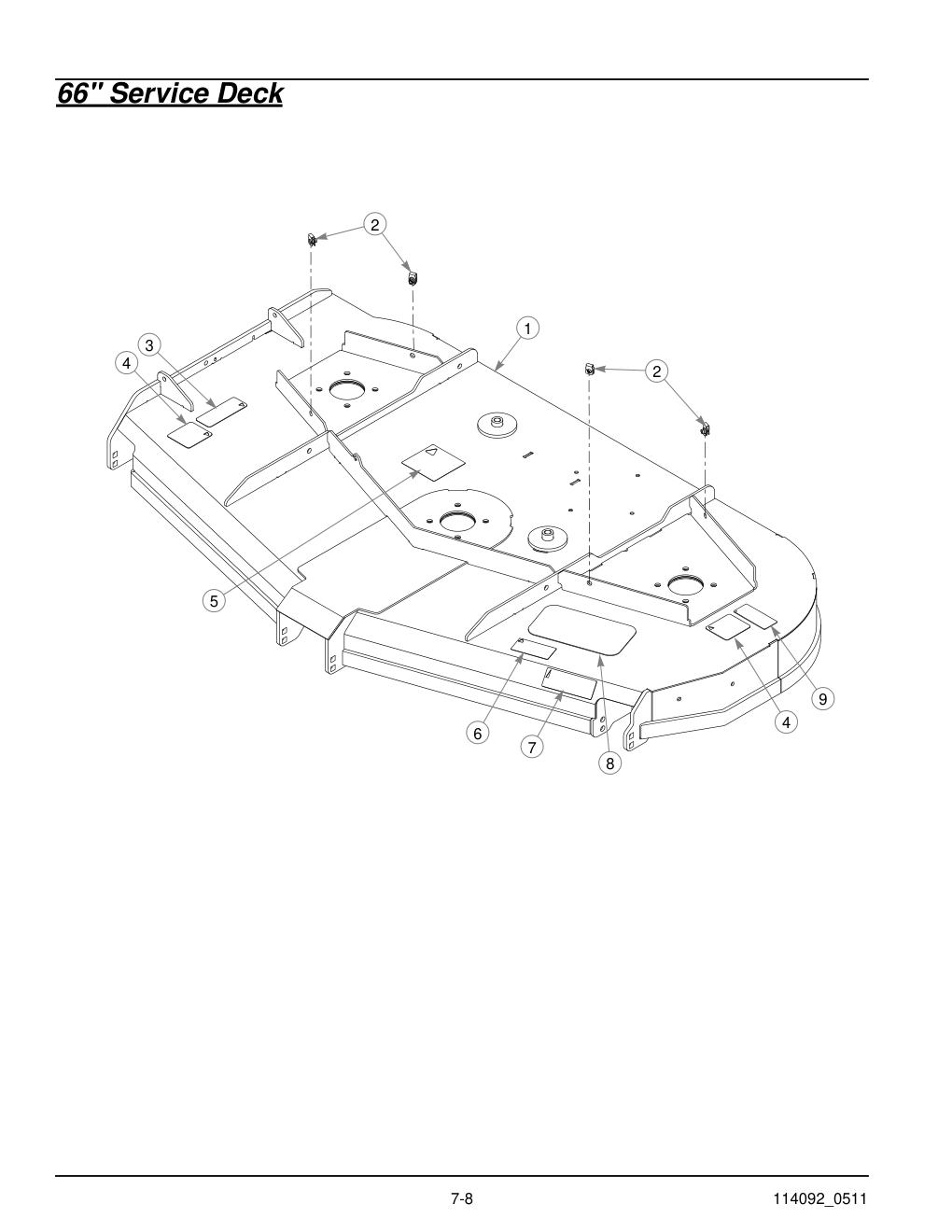

66" Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 66" DECK (WITH DECALS & HARDWARE) | 550750 | 1 | 550750-Online |
| 2 | CN .312-18 X .200 MAX THK | 601069 | 4 | HT601069-Online |
| 3 | DISCHARGE CHUTE DECAL | 601624 | 1 | 601624-Online |
| 4 | DECK DANGERS DECAL | 601837 | 2 | 601837-Online |
| 5 | BELT ROUTING DECAL | 781419 | 1 | 781419-Online |
| 6 | 66" DECK ID DECAL | 799189 | 1 | 799189-Online |
| 7 | VX4 TECHNOLOGY DECAL | 603092 | 1 | 603092-Online |
| 8 | STEP TREAD 5.00 X 9.00 | 359547 | 1 | 359547-Online |
| 9 | THROWN OBJECTS DECAL | 601892 | 1 | 601892-Online |

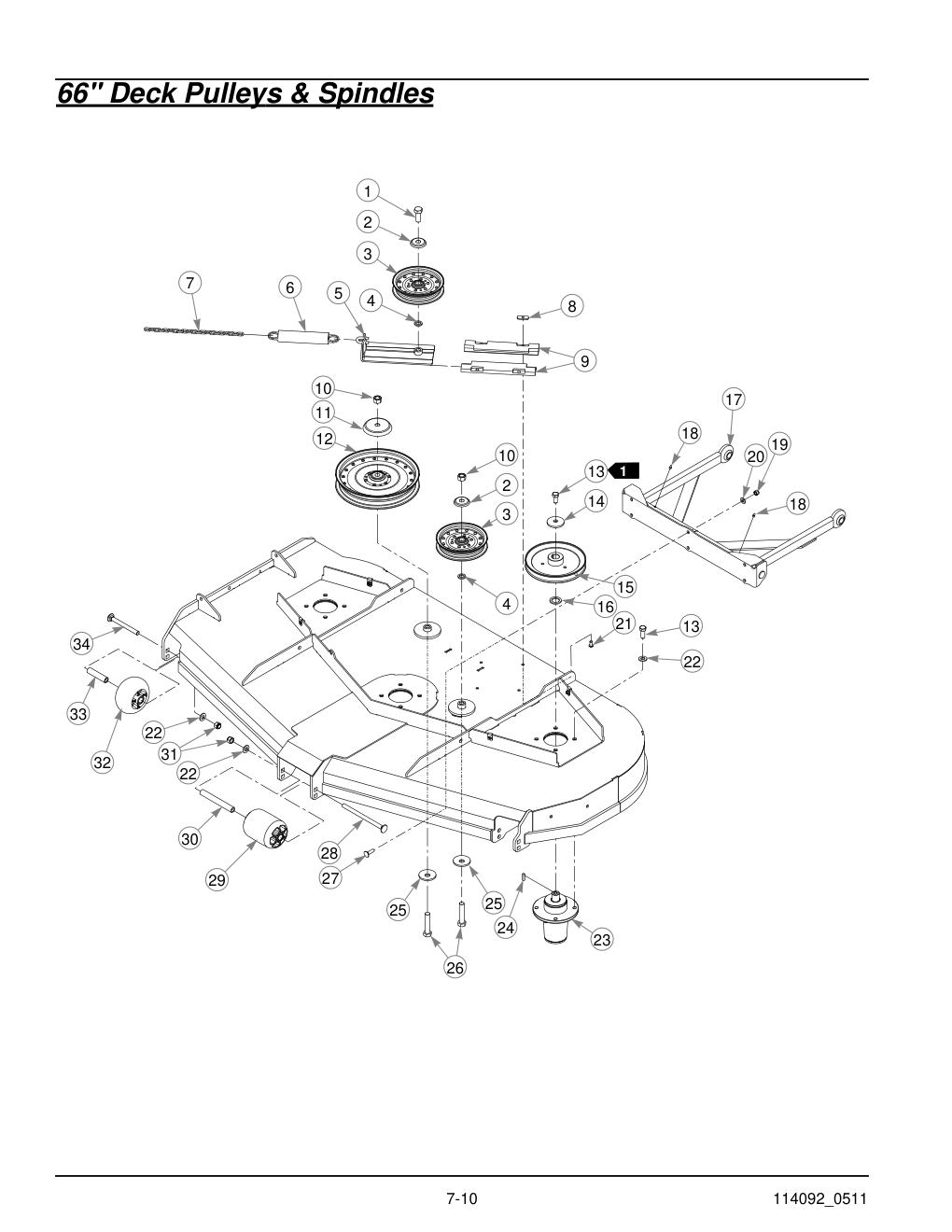

66" Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11 X 1.500 HX G5 | 794446 | 1 | HT794446-Online |
| 2 | IDLER DUST SHIELD SM | 602935 | 2 | 602935-Online |
| 3 | IDLER, 6.0" RIVETED | 602821 | 2 | 602821-Online |
| 4 | FW .625 X 1.00 X .134 ZNYC | 028118 | 2 | HT028118-Online |
| 5 | DECK IDLER SLIDE | 350884 | 1 | HT350884-Online |
| 6 | TENSION SPRING | 781302 | 1 | 781302-Online |
| 7 | CHAIN | 373191 | 1 | HT373191-Online |
| 8 | WN .312-18 ZN | 603023 | 4 | 603023-Online |
| 9 | UHMW IDLER SLIDE | 602936 | 2 | 602936-Online |
| 10 | NT .625-11 HX G5 ZNYC | 016972 | 2 | HT016972-Online |
| 11 | IDLER DUST SHIELD LG | 602963 | 1 | 602963-Online |
| 12 | IDLER, 10.0" RIVETED | 602743 | 1 | 602743-Online |
| 13 | CS .500-13 X 1.250 HX G5 ZN | 705954 | 15 | HT705954-Online |
| 14 | CW .515 X 2.25 X .204 BLK | 752386 | 3 | HT752386-Online |
| 15 | DRIVE PULLEY 7.85 EFF | 602859 | 3 | 602859-Online |
| 16 | FW 1.030 X 1.500 X .134 ZN | 045765 | 3 | HT045765-Online |
| 17 | PUSHER | 113340 | 1 | 113340-Online |
| 18 | GREASE FITTING STRAIGHT | 015495 | 2 | HT015495-Online |
| 19 | NT .375-16 HXZY NL | 086660 | 6 | HT086660-Online |
| 20 | FW .406 X .812 X .060 SAE | 767954 | 6 | HT767954-Online |
| 21 | CS .312-18 X .625 BH ZN | 603022 | 4 | 603022-Online |
| 22 | FW .531 X 1.063 X .090 SAE | 767962 | 15 | HT767962-Online |
| 23 | BLADE SPINDLE | 601630 | 3 | 601630-Online |
| 24 | KEY 1/4 SQ X 1.00 | 212472 | 3 | HT212472-Online |
| 25 | CW .631 X 2.250 X .187 PNT | 782474 | 2 | HT782474-Online |
| 26 | CS .625-11 X 3.00 FULL HX | 783738 | 2 | HT783738-Online |
| 27 | CB .375-13 X 1.250 G5 ZN | 603113 | 6 | 603113-Online |
| 28 | CB .50-13 X 7.50 STD ZN | 602338 | 1 | 602338-Online |
| 29 | ANTI-SCALP WHEEL | 602341 | 1 | 602341-Online |
| 30 | ANTI-SCALP SPACER 5.73 | 602344 | 1 | 602344-Online |
| 31 | NT .500-13 HX G8 ZY NL | 781567 | 3 | HT781567-Online |
| 32 | SIDE ANTI-SCALP WHEEL | 602263 | 2 | 602263-Online |
| 33 | ANTI-SCALP SPACER 3.22 | 602345 | 2 | 602345-Online |
| 34 | CB .500-13 X 5.00 ZNYC | 603049 | 2 | 603049-Online |

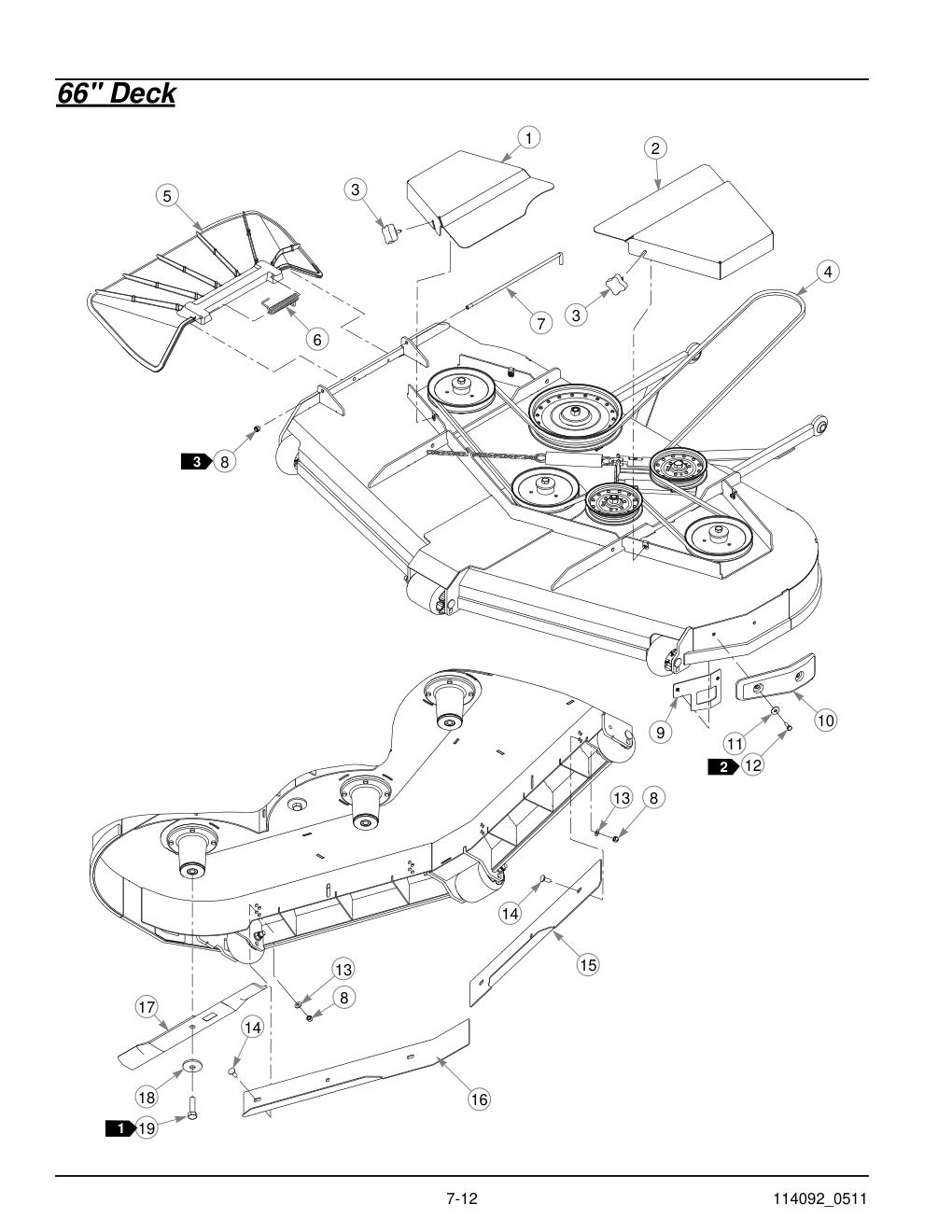

66" Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RS PULLEY COVER | 113335 | 1 | 113335-Online |
| 2 | LS PULLEY COVER | 113336 | 1 | 113336-Online |
| 3 | KNOB 5/16-18 X 3/4" | 792002 | 4 | HT792002-Online |
| 4 | B-SEC BELT | 602860 | 1 | 602860-Online |
| 5 | DISCHARGE CHUTE LG | 602891 | 1 | 602891-Online |
| 6 | TORSION SPRING | 602435 | 1 | 602435-Online |
| 7 | CHUTE PIN | 602432 | 1 | 602432-Online |
| 8 | NT .375-16 HXZY NL | 086660 | 7 | HT086660-Online |
| 9 | BACKING PLATE | 113563 | 1 | 113563-Online |
| 10 | RUBBER BUMPER | 602817 | 1 | 602817-Online |
| 11 | FW .344 X 1.00 X .06 ZNYC | 079210 | 2 | 079210-Online |
| 12 | CS .312-18 X .875 HX G5 ZN | 064014 | 2 | 064014-Online |
| 13 | FW .406 X .812 X .060 SAE | 767954 | 6 | HT767954-Online |
| 14 | CB .375-16X 1.00 G5 ZNY | 025395 | 6 | HT025395-Online |
| 15 | RS INNER WALL ADJ. 66" | 113333 | 1 | 113333-Online |
| 16 | LS INNER WALL ADJ. 66" | 113334 | 1 | 113334-Online |
| 17 | BLADE, F22.50" EHN-F-CW | 602864 | 3 | 602864-Online |
| 18 | CW .631 X 2.250 X .187 PNT | 782474 | 3 | HT782474-Online |
| 19 | CS .625-11 X 2.25 HX G5 ZY | 601983 | 3 | 601983-Online |

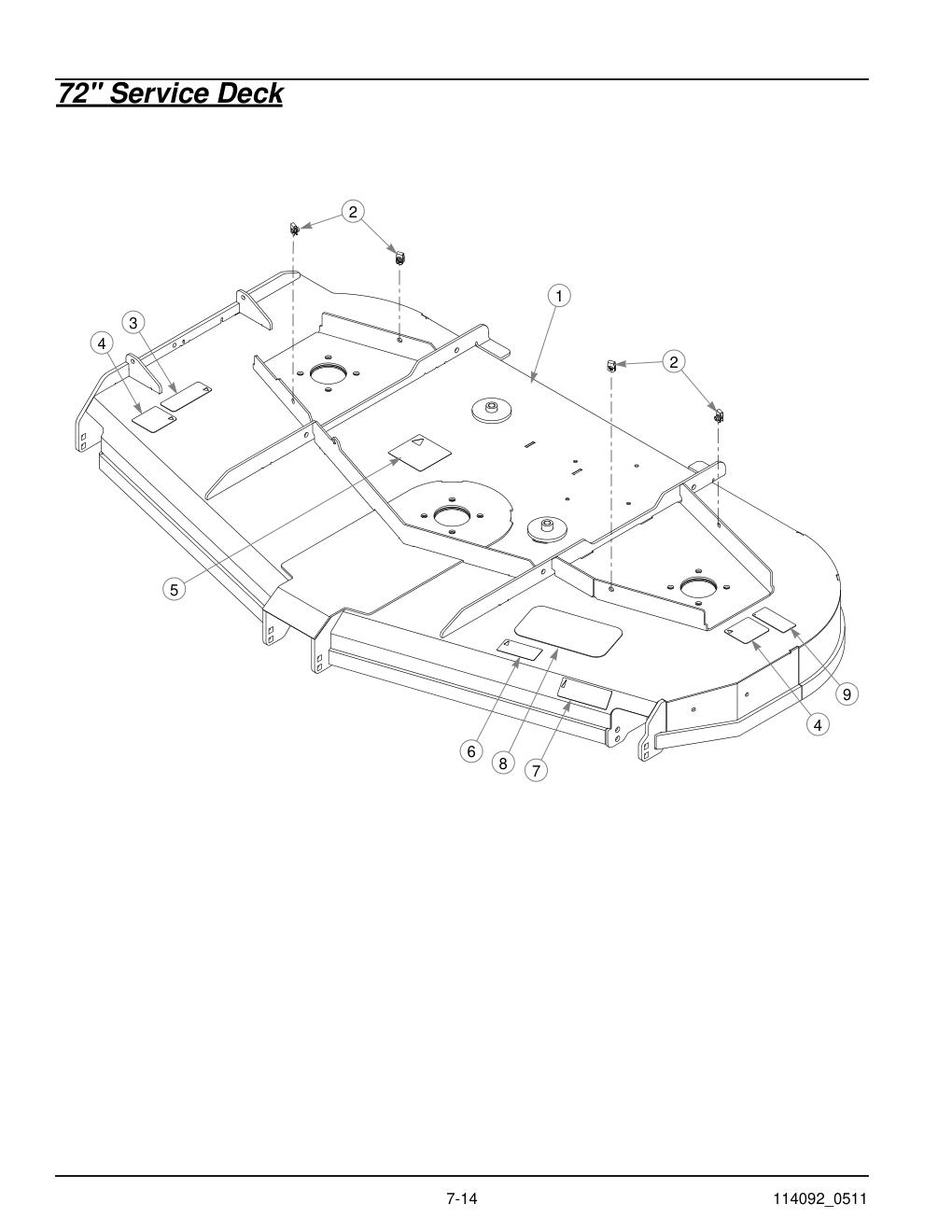

72" Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 72" VX4 DECK (WITH DECALS & HARDWARE) | 550751 | 1 | 550751-Online |
| 2 | CN .312-18 X .200 MAX THK | 601069 | 4 | HT601069-Online |
| 3 | DISCHARGE CHUTE DECAL | 601624 | 1 | 601624-Online |
| 4 | DECK DANGERS DECAL | 601837 | 2 | 601837-Online |
| 5 | BELT ROUTING DECAL | 781419 | 1 | 781419-Online |
| 6 | 72" DECK ID DECAL | 786285 | 1 | 786285-Online |
| 7 | VX4 TECHNOLOGY DECAL | 603092 | 1 | 603092-Online |
| 8 | STEP TREAD 5.00 X 9.00 | 359547 | 1 | 359547-Online |
| 9 | THROWN OBJECTS DECAL | 601892 | 1 | 601892-Online |

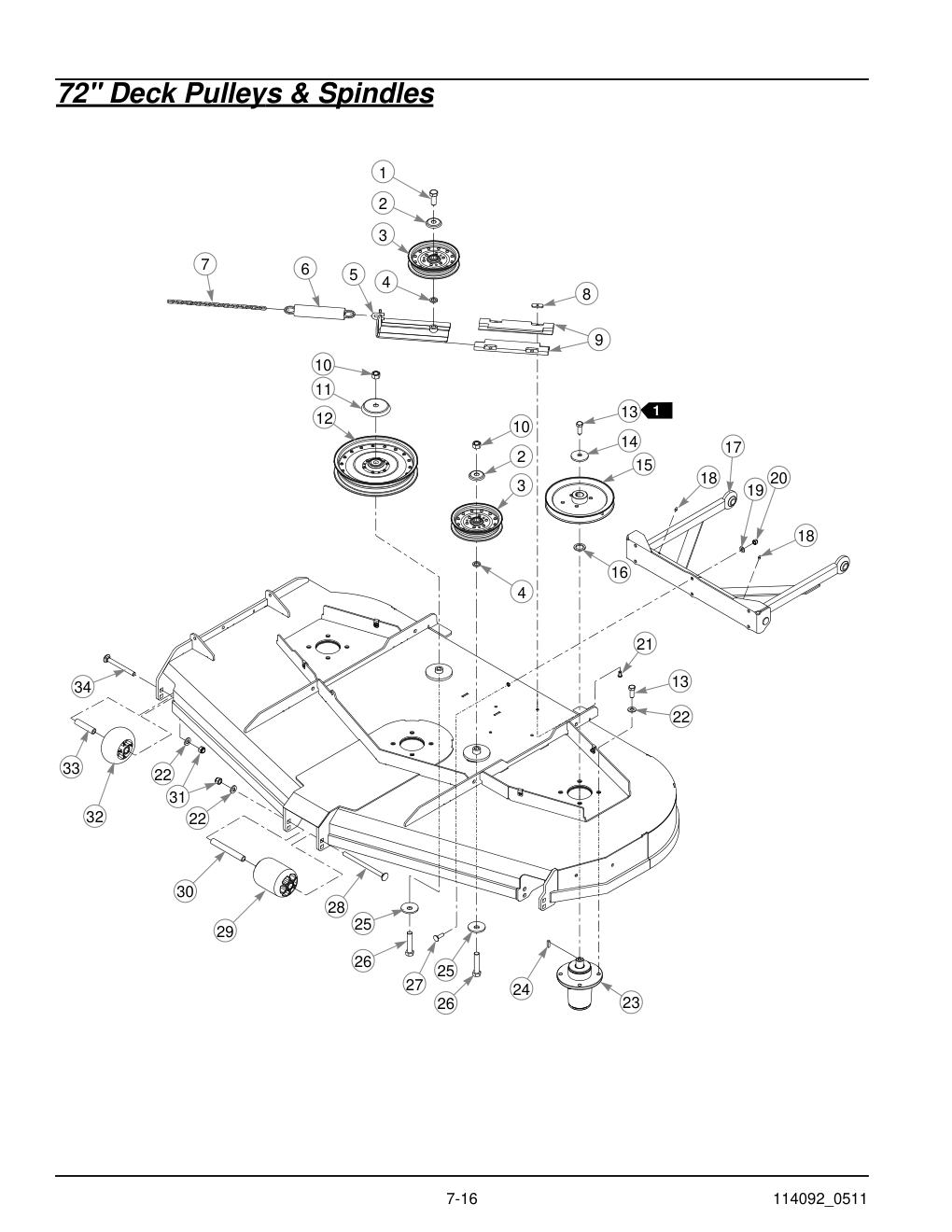

72" Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11 X 1.500 HX G5 | 794446 | 1 | HT794446-Online |
| 2 | IDLER DUST SHIELD SM | 602935 | 2 | 602935-Online |
| 3 | IDLER, 6.0" RIVETED | 602821 | 2 | 602821-Online |
| 4 | FW .625 X 1.00 X .134 ZNYC | 028118 | 2 | HT028118-Online |
| 5 | DECK IDLER SLIDE | 350884 | 1 | HT350884-Online |
| 6 | TENSION SPRING | 781302 | 1 | 781302-Online |
| 7 | CHAIN | 373191 | 1 | HT373191-Online |
| 8 | WN .312-18 ZN | 603023 | 4 | 603023-Online |
| 9 | UHMW IDLER SLIDE | 602936 | 2 | 602936-Online |
| 10 | NT .625-11 HX G5 ZNYC | 016972 | 2 | HT016972-Online |
| 11 | IDLER DUST SHIELD LG | 602963 | 1 | 602963-Online |
| 12 | IDLER, 10.0" RIVETED | 602743 | 1 | 602743-Online |
| 13 | CS .500-13 X 1.250 HX G5 ZN | 705954 | 15 | HT705954-Online |
| 14 | CW .515 X 2.25 X .204 BLK | 752386 | 3 | HT752386-Online |
| 15 | DRIVE PULLEY, 8.652 OP | 602746 | 3 | 602746-Online |
| 16 | FW 1.030 X 1.500 X .134 ZN | 045765 | 3 | HT045765-Online |
| 17 | PUSHER | 113340 | 1 | 113340-Online |
| 18 | GREASE FITTING STRAIGHT | 015495 | 2 | HT015495-Online |
| 19 | FW .406 X .812 X .060 SAE | 767954 | 6 | HT767954-Online |
| 20 | NT .375-16 HXZY NL | 086660 | 6 | HT086660-Online |
| 21 | CS .312-18 X .625 BH ZN | 603022 | 4 | 603022-Online |
| 22 | FW .531 X 1.063 X .090 SAE | 767962 | 15 | HT767962-Online |
| 23 | BLADE SPINDLE | 601630 | 3 | 601630-Online |
| 24 | KEY 1/4 SQ X 1.00 | 212472 | 3 | HT212472-Online |
| 25 | CW .631 X 2.250 X .187 PNT | 782474 | 2 | HT782474-Online |
| 26 | CS .625-11 X 3.00 FULL HX | 783738 | 2 | HT783738-Online |
| 27 | CB .375-13 X 1.250 G5 ZN | 603113 | 6 | 603113-Online |
| 28 | CB .50-13 X 7.50 STD ZN | 602338 | 1 | 602338-Online |
| 29 | ANTI-SCALP WHEEL | 602341 | 1 | 602341-Online |
| 30 | ANTI-SCALP SPACER 5.73 | 602344 | 1 | 602344-Online |
| 31 | NT .500-13 HX G8 ZY NL | 781567 | 3 | HT781567-Online |
| 32 | SIDE ANTI-SCALP WHEEL | 602263 | 2 | 602263-Online |
| 33 | ANTI-SCALP SPACER 3.22 | 602345 | 2 | 602345-Online |
| 34 | CB .500-13 X 5.00 ZNYC | 603049 | 2 | 603049-Online |

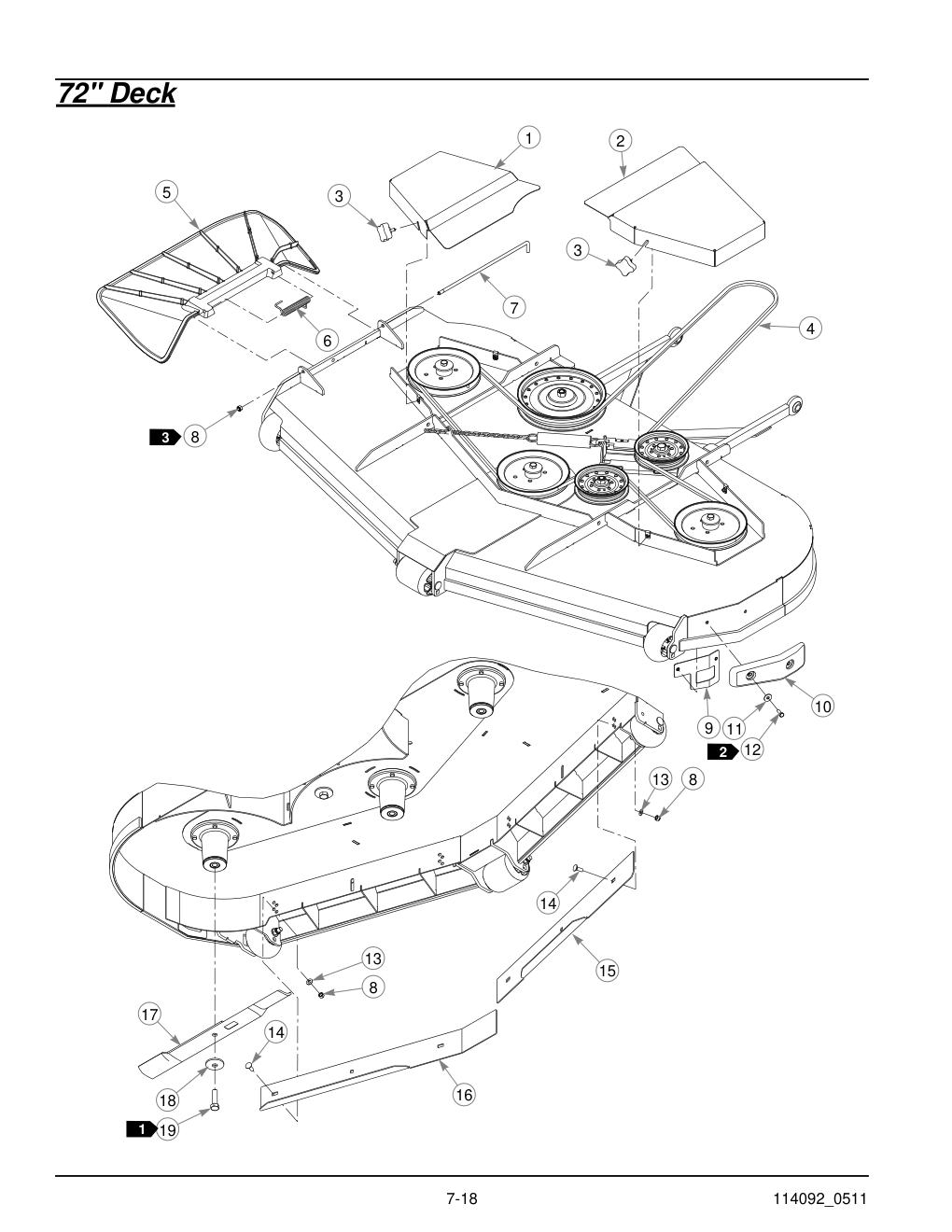

72" Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RS PULLEY COVER | 112935 | 1 | 112935-Online |
| 2 | LS PULLEY COVER | 112936 | 1 | 112936-Online |
| 3 | KNOB 5/16-18 X 3/4" | 792002 | 4 | HT792002-Online |
| 4 | B-SEC BELT | 602747 | 1 | 602747-Online |
| 5 | DISCHARGE CHUTE LG | 602891 | 1 | 602891-Online |
| 6 | TORSION SPRING | 602435 | 1 | 602435-Online |
| 7 | CHUTE PIN | 602432 | 1 | 602432-Online |
| 8 | NT .375-16 HXZY NL | 086660 | 7 | HT086660-Online |
| 9 | BACKING PLATE | 113563 | 1 | 113563-Online |
| 10 | RUBBER BUMPER | 602817 | 1 | 602817-Online |
| 11 | FW .344 X 1.00 X .06 ZNYC | 079210 | 2 | 079210-Online |
| 12 | CS .312-18 X .875 HX G5 ZN | 064014 | 2 | 064014-Online |
| 13 | FW .406 X .812 X .060 SAE | 767954 | 6 | HT767954-Online |
| 14 | CB .375-16X 1.00 G5 ZNY | 025395 | 6 | HT025395-Online |
| 15 | RS INNER WALL ADJ. 72" | 112931 | 1 | HT112931-Online |
| 16 | LS INNER WALL ADJ. 72" | 112932 | 1 | HT112932-Online |
| 17 | BLADE, F24.50"-EHN-F-CW | 602857 | 3 | 602857-Online |
| 18 | CW .631 X 2.250 X .187 PNT | 782474 | 3 | HT782474-Online |
| 19 | CS .625-11 X 2.25 HX G5 ZY | 601983 | 3 | 601983-Online |
Deck Lift
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DECK HEIGHT PIN | 600437 | 1 | 600437-Online |
| 2 | STOP HANDLE | 348318 | 1 | HT348318-Online |
| 3 | DECK LIFT INDICATOR | 602898 | 1 | 602898-Online |
| 4 | DECK LIFT SPRING | 603184 | 2 | 603184-Online |
| 5 | CS .437-14 X 1.750 HX G5 | 055749 | 7 | HT055749-Online |
| 6 | DECK LIFT CHAIN | 348391 | 4 | HT348391-Online |
| 7 | NT .437-14 HX FLG ZN | 704643 | 16 | HT704643-Online |
| 8 | E CLIP 1.00 X .625 X .05 | 781294 | 6 | HT781294-Online |
| 9 | GREASE FITTING STRAIGHT | 015495 | 4 | HT015495-Online |
| 10 | CS .625-11 X 1.25 HX G5 Z | 781872 | 1 | HT781872-Online |
| 11 | FW .625 X 1.5000 X .105 ZN | 704783 | 1 | 704783-Online |
| 12 | DECK LEVELER YOKE | 348458 | 1 | HT348458-Online |
| 13 | NT .312-18 HX G5 ZNYC | 034272 | 1 | HT034272-Online |
| 14 | CS .312-18 X 1.50 FLTHR G | 756270 | 1 | 756270-Online |
| 15 | CS .437-14 X 1.750 FULTH | 781831 | 1 | HT781831-Online |
| 16 | CE .750 X 2.25 X 1.75 HEAD | 781229 | 1 | 781229-Online |

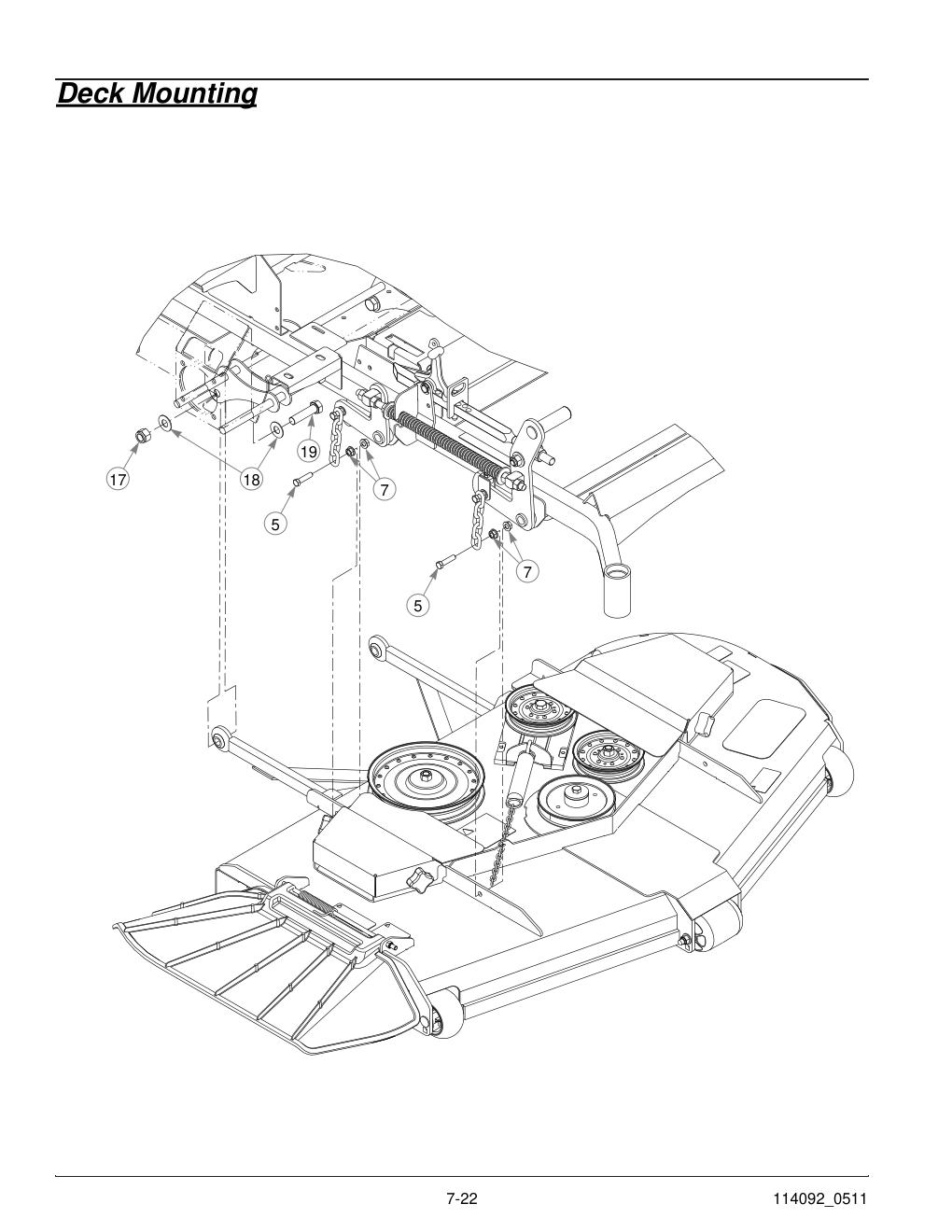

Deck Mounting
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 17 | NT .750-10 HXZY NL | 061101 | 2 | HT061101-Online |
| 18 | FW .760 X 1.625 X .08 ZNYC | 025296 | 4 | HT025296-Online |
| 19 | CS .750-10 X 3.000 HX G5 | 051169 | 2 | 051169-Online |
60" RD Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 60" RD DECK (WITH DECALS & HARDWARE) | 550935 | 1 | 550935-Online |
| 2 | CN .312-18 X .200 MAX THK | 601069 | 4 | HT601069-Online |
| 3 | 2 BELT ROUTING DECAL | 603349 | 1 | 603349-Online |
| 4 | DECK DANGERS DECAL | 601837 | 2 | 601837-Online |
| 5 | THROWN OBJECTS DECAL | 601892 | 2 | 601892-Online |
| 6 | RUBBER FLAP DECAL | 603391 | 2 | 603391-Online |
| 7 | 60" DECK DECAL | 786277 | 1 | 786277-Online |
| 8 | STEP TREAD 5.00 X 9.00 | 359547 | 1 | 359547-Online |
| 9 | RIVET NUT, HX 5/16-18 TH | 792887 | 1 | 792887-Online |

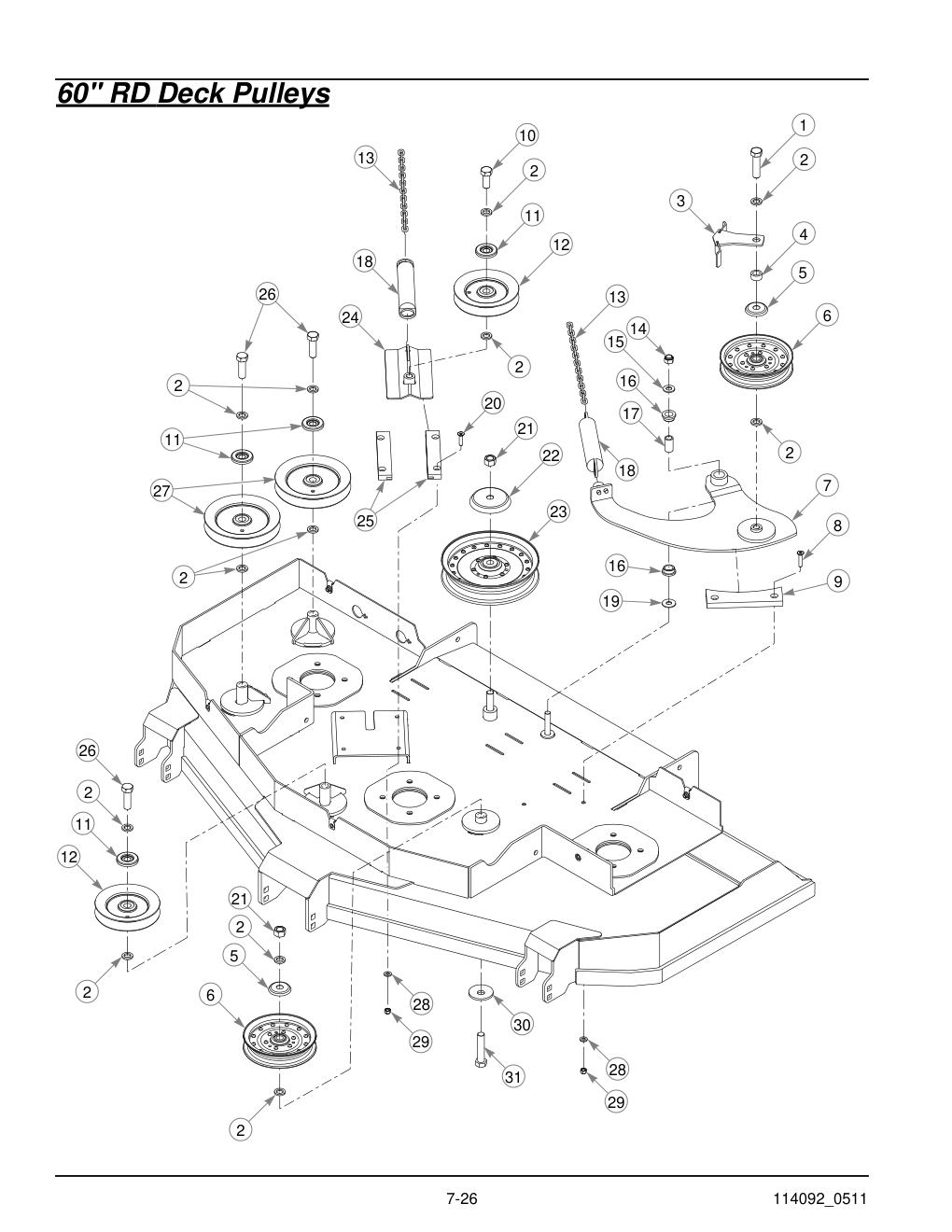

60" RD Deck Pulleys
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11 X 2.500 HX G5 | 025015 | 1 | HT025015-Online |
| 2 | FW .625 X 1.00 X .134 ZNYC | 028118 | 12 | HT028118-Online |
| 3 | BELT GUIDE | 113088 | 1 | 113088-Online |
| 4 | DECK IDLER SPACER 1/2"LG | 603256 | 1 | 603256-Online |
| 5 | IDLER DUST SHIELD SM | 602935 | 2 | 602935-Online |
| 6 | IDLER, 6.0" RIVETED | 602821 | 2 | 602821-Online |
| 7 | RD DECK IDLER ARM | 114133 | 1 | 114133-Online |
| 8 | CS .312-18 X 1.50 FLT SH ZY | 797910 | 2 | HT797910-Online |
| 9 | IDLER GUIDE | 601779 | 1 | 601779-Online |
| 10 | CS .625-11 X 1.500 HX G5 | 794446 | 1 | HT794446-Online |
| 11 | DUST SHIELD WITH OFFSET | 603057 | 4 | 603057-Online |
| 12 | PULLEY, V-IDLER HBB 5.0" | 602672 | 2 | 602672-Online |
| 13 | CHAIN | 373191 | 2 | HT373191-Online |
| 14 | NT .500-13 HX G8 ZY NL | 781567 | 1 | HT781567-Online |
| 15 | FW .531 X 1.063 X .090 SAE | 767962 | 13 | HT767962-Online |
| 16 | BUSHING | 770867 | 2 | HT770867-Online |
| 17 | BUSHING | 109549 | 1 | HT109549-Online |
| 18 | TENSION SPRING | 781302 | 2 | 781302-Online |
| 19 | FW .500 X 1.250 X .075 ZNY | 704759 | 1 | 704759-Online |
| 20 | CS .312-18 X 1.250 FLT SH | 784199 | 4 | HT784199-Online |
| 21 | NT .625-11 HX G5 ZNYC | 016972 | 2 | HT016972-Online |
| 22 | IDLER DUST SHIELD LG | 602963 | 1 | 602963-Online |
| 23 | IDLER, 8.0" RIVETED | 602838 | 1 | 602838-Online |
| 24 | IDLER SLIDE | 114105 | 1 | 114105-Online |
| 25 | IDLER SLIDE UHMW RT & LT | 601619 | 2 | 601619-Online |
| 26 | CS .625-11 X 2.00 HX G5 Z | 016642 | 3 | 016642-Online |
| 27 | 6" HB IDLER PULLEY | 796714 | 2 | HT796714-Online |
| 28 | FW .343 X .687 X .051/.080H | 768523 | 6 | HT768523-Online |
| 29 | NT .312-18 HXZY NL | 058776 | 6 | HT058776-Online |
| 30 | CW .631 X 2.250 X .187 PNT | 782474 | 1 | HT782474-Online |
| 31 | CS .625-11 X 3.00 FULL HX | 783738 | 1 | HT783738-Online |

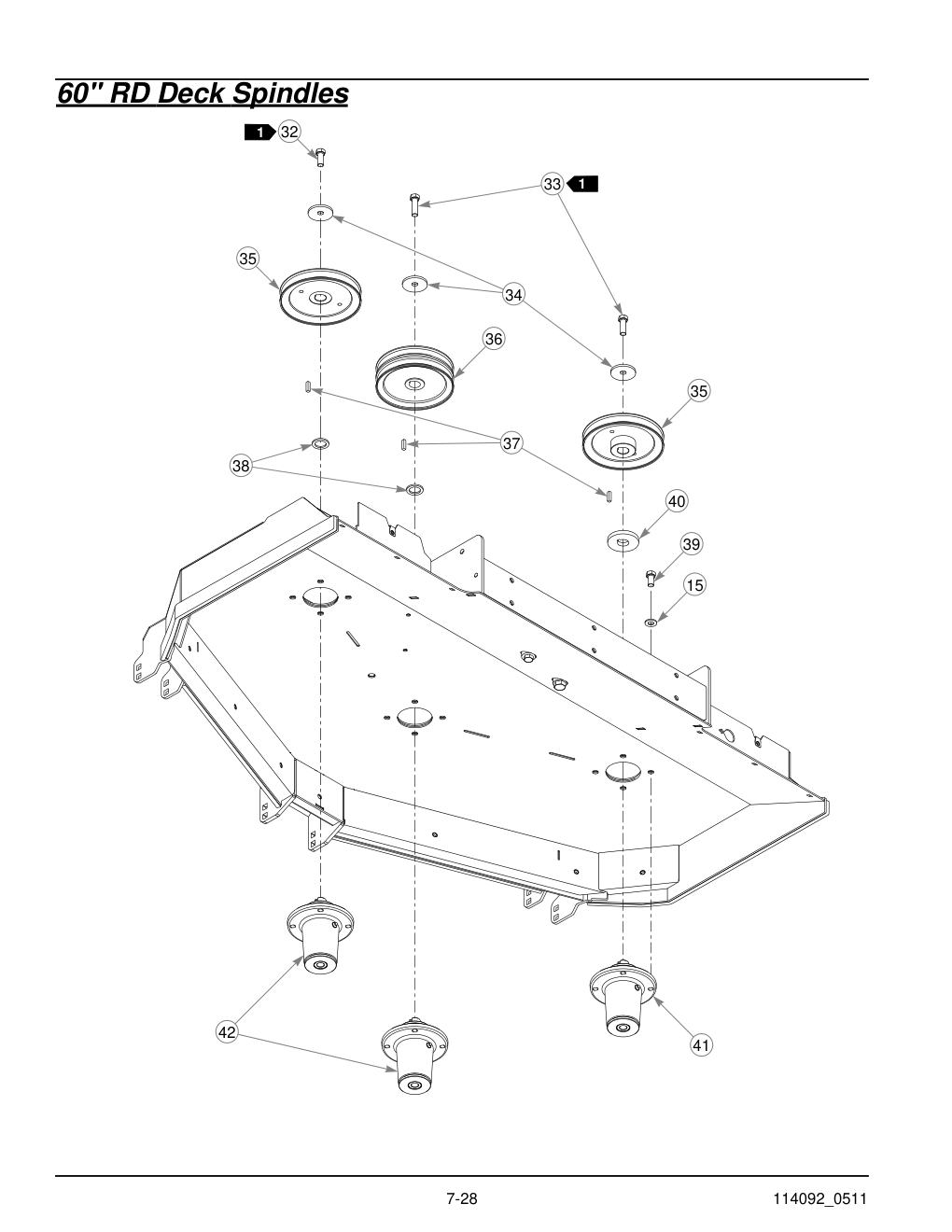

60" RD Deck Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 32 | CS .500-13 X 1.250 HX G5 ZN | 705954 | 1 | HT705954-Online |
| 33 | CS .500-13 X 1.750 HX G5 | 017616 | 2 | HT017616-Online |
| 34 | CW .515 X 2.25 X .204 BLK | 752386 | 3 | HT752386-Online |
| 35 | PULLEY, DRIVE 7.00 EFF | 602745 | 2 | 602745-Online |
| 36 | PULLEY | 770388 | 1 | 770388-Online |
| 37 | KEY 1/4 SQ X 1.00 | 212472 | 3 | HT212472-Online |
| 38 | FW 1.030 X 1.500 X .134 ZN | 045765 | 2 | HT045765-Online |
| 39 | CS .500-13 X 1.00 HX G5 ZN | 016527 | 12 | 016527-Online |
| 40 | SPACER | 114108 | 1 | 114108-Online |
| 41 | BLADE SPINDLE CCW | 601819 | 1 | 601819-Online |
| 42 | BLADE SPINDLE CW | 601630 | 2 | 601630-Online |

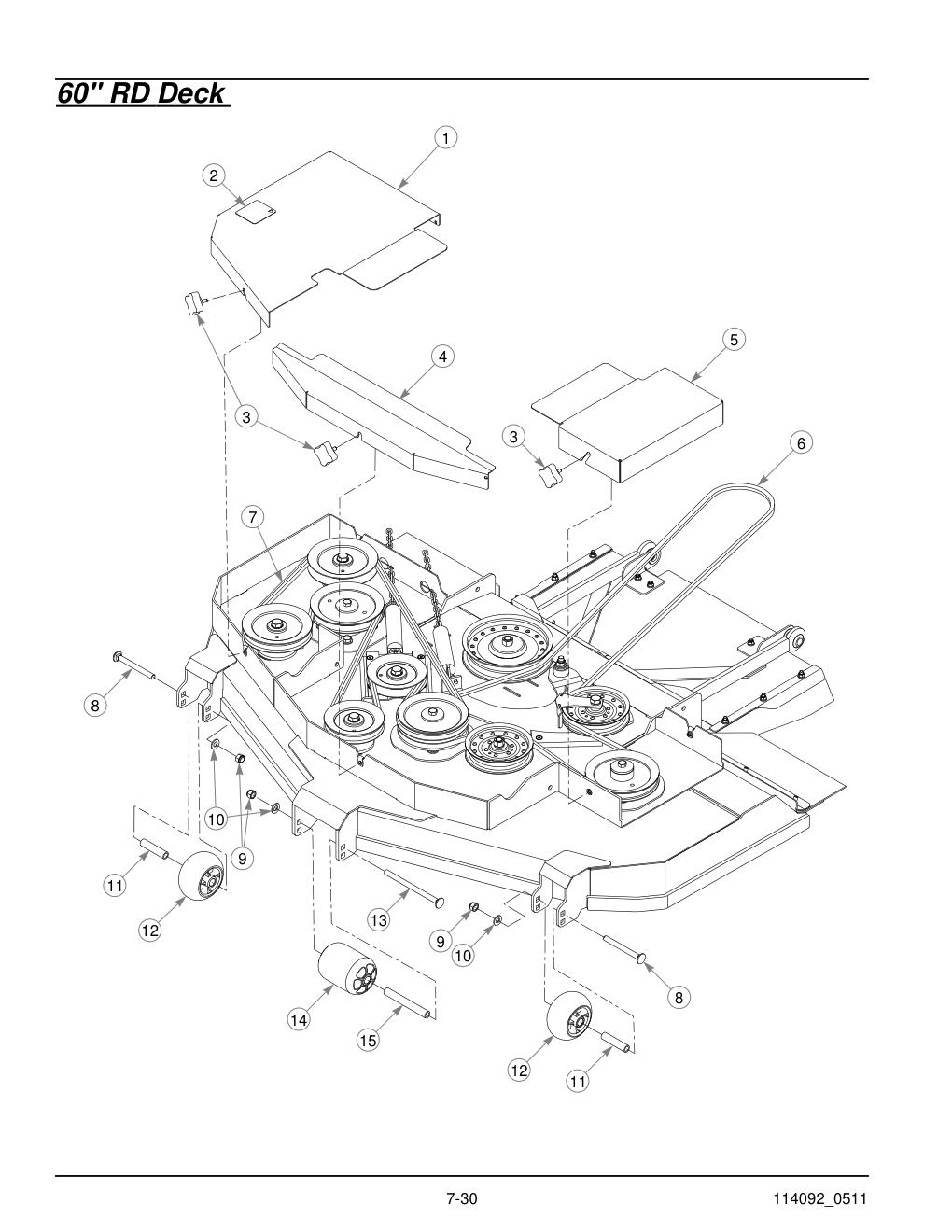

60" RD Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RS 60" RD PULLEY COVER (WITH DECALS) | 550937 | 1 | 550937-Online |
| 2 | DECK DANGERS DECAL | 601837 | 1 | 601837-Online |
| 3 | KNOB 5/16-18 X 3/4" | 792002 | 5 | HT792002-Online |
| 4 | CENTER 60" PULLEY COVER | 550938 | 1 | 550938-Online |
| 5 | LS 60" RD PULLEY COVER | 550936 | 1 | 550936-Online |
| 6 | BELT, B 152" EL | 789388 | 1 | HT789388-Online |
| 7 | BELT, B 138" EL | 027284 | 1 | 027284-Online |
| 8 | CB .500-13 X 5.00 ZNYC | 603049 | 2 | 603049-Online |
| 9 | NT .500-13 HX G8 ZY NL | 781567 | 3 | HT781567-Online |
| 10 | FW .531 X 1.063 X .090 SAE | 767962 | 3 | HT767962-Online |
| 11 | ANTI-SCALP SPACER 3.22 | 602345 | 2 | 602345-Online |
| 12 | SIDE ANTI-SCALP WHEEL | 602263 | 2 | 602263-Online |
| 13 | CB .50-13 X 7.50 STD ZN | 602338 | 1 | 602338-Online |
| 14 | ANTI-SCALP WHEEL | 602341 | 1 | 602341-Online |
| 15 | ANTI-SCALP SPACER 5.73 | 602344 | 1 | 602344-Online |

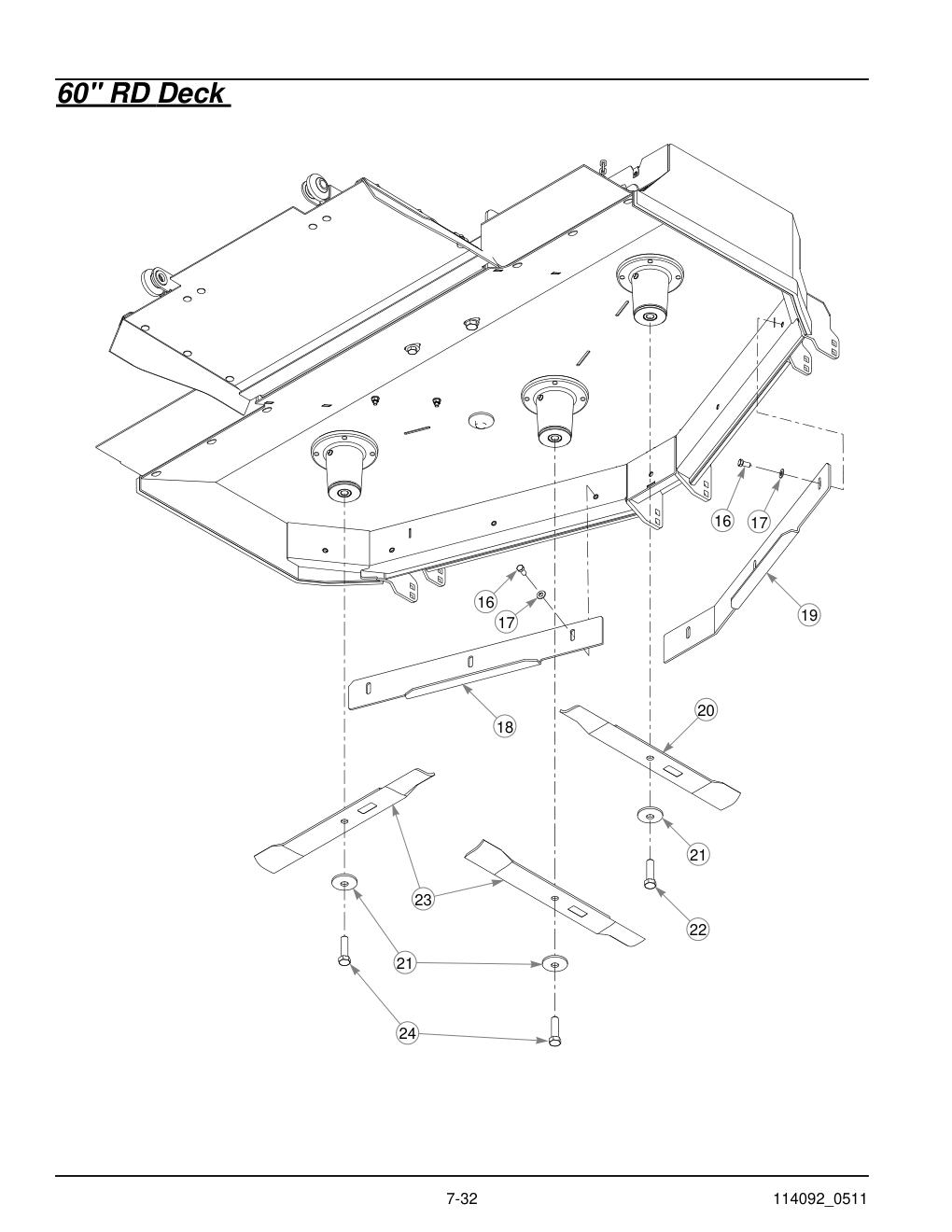

60" RD Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 16 | CS .375-16 X .750 HX G5 | 055822 | 6 | HT055822-Online |
| 17 | FW .406 X .812 X .060 SAE | 767954 | 6 | HT767954-Online |
| 18 | LS 60" ADJUSTABLE BAFFLE | 114205 | 1 | 114205-Online |
| 19 | RS 60" ADJUSTABLE BAFFLE | 114204 | 1 | 114204-Online |
| 20 | BLADE, F20.50"-L-F-CCW | 795633 | 1 | HT795633-Online |
| 21 | CW .631 X 2.250 X .187 PNT | 782474 | 3 | HT782474-Online |
| 22 | CS .625-11 X 2.25 LH H5Y | 601999 | 1 | 601999-Online |
| 23 | BLADE, F20.50"-L-F-CW | 600901 | 2 | HT600901-Online |
| 24 | CS .625-11 X 2.25 HX G5 ZY | 601983 | 2 | 601983-Online |

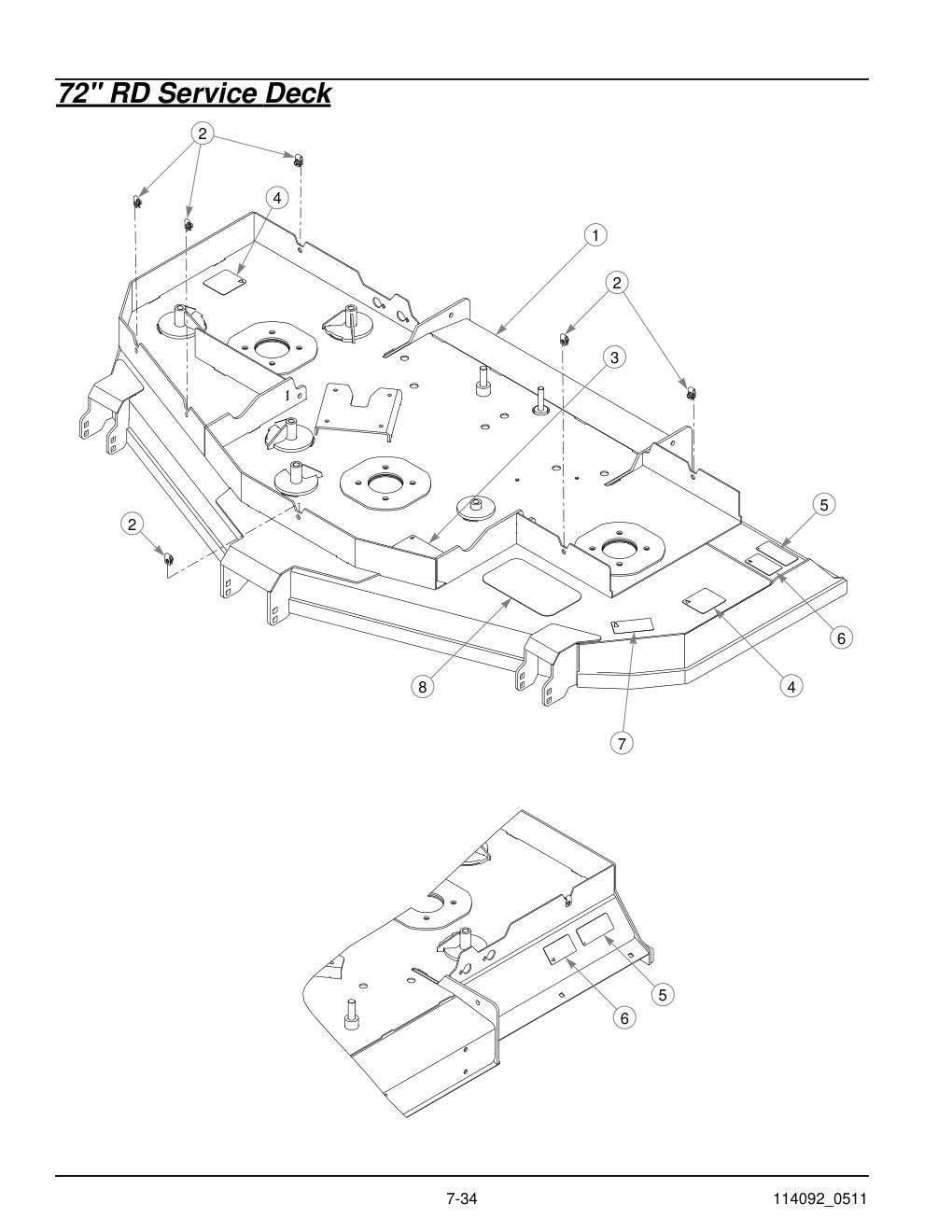

72" RD Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 72" RD DECK (WITH DECALS & HARDWARE) | 551049 | 1 | 551049-Online |
| 2 | CN .312-18 X .200 MAX THK | 601069 | 6 | HT601069-Online |
| 3 | 2 BELT ROUTING DECAL | 603349 | 1 | 603349-Online |
| 4 | DECK DANGERS DECAL | 601837 | 2 | 601837-Online |
| 5 | THROWN OBJECTS DECAL | 601892 | 2 | 601892-Online |
| 6 | RUBBER FLAP DECAL | 603391 | 2 | 603391-Online |
| 7 | 72" DECK ID DECAL | 786285 | 1 | 786285-Online |
| 8 | STEP TREAD 5.00 X 9.00 | 359547 | 1 | 359547-Online |

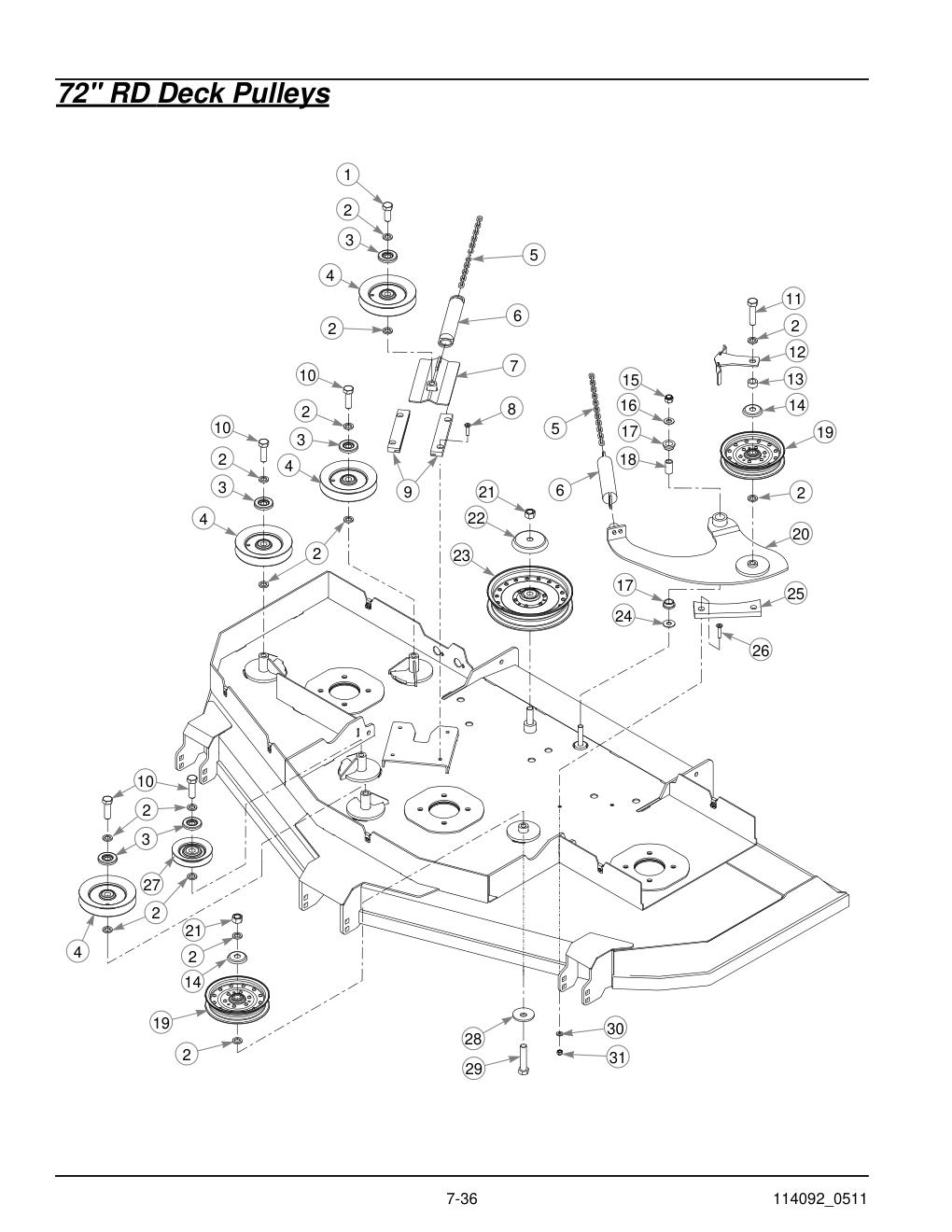

72" RD Deck Pulleys
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11 X 1.500 HX G5 | 794446 | 1 | HT794446-Online |
| 2 | FW .625 X 1.00 X .134 ZNYC | 028118 | 14 | HT028118-Online |
| 3 | DUST SHIELD WITH OFFSET | 603057 | 5 | 603057-Online |
| 4 | PULLEY, V-IDLER HBB 5.0" | 602672 | 4 | 602672-Online |
| 5 | CHAIN | 373191 | 2 | HT373191-Online |
| 6 | TENSION SPRING | 781302 | 2 | 781302-Online |
| 7 | IDLER SLIDE | 114105 | 1 | 114105-Online |
| 8 | CS .312-18 X 1.250 FLT SH | 784199 | 4 | HT784199-Online |
| 9 | IDLER SLIDE UHMW RT & LT | 601619 | 2 | 601619-Online |
| 10 | CS .625-11 X 2.00 HX G5 Z | 016642 | 4 | 016642-Online |
| 11 | CS .625-11 X 2.500 HX G5 | 025015 | 1 | HT025015-Online |
| 12 | BELT GUIDE | 113088 | 1 | 113088-Online |
| 13 | DECK IDLER SPACER 1/2"LG | 603256 | 1 | 603256-Online |
| 14 | IDLER DUST SHIELD SM | 602935 | 2 | 602935-Online |
| 15 | NT .500-13 HX G8 ZY NL | 781567 | 1 | HT781567-Online |
| 16 | FW .531 X 1.063 X .090 SAE | 767962 | 13 | HT767962-Online |
| 17 | BUSHING | 770867 | 2 | HT770867-Online |
| 18 | BUSHING | 109549 | 1 | HT109549-Online |
| 19 | IDLER, 6.0" RIVETED | 602821 | 2 | 602821-Online |
| 20 | RD DECK IDLER ARM | 114133 | 1 | 114133-Online |
| 21 | NT .625-11 HX G5 ZNYC | 016972 | 2 | HT016972-Online |
| 22 | IDLER DUST SHIELD LG | 602963 | 1 | 602963-Online |
| 23 | IDLER, 8.0" RIVETED | 602838 | 1 | 602838-Online |
| 24 | FW .500 X 1.250 X .075 ZNY | 704759 | 1 | 704759-Online |
| 25 | IDLER GUIDE | 601779 | 1 | 601779-Online |
| 26 | CS .312-18 X 1.50 FLT SH ZY | 797910 | 2 | HT797910-Online |
| 27 | IDLER PULLEY, NHI 4.288" | 788364 | 1 | 788364-Online |
| 28 | CW .631 X 2.250 X .187 PNT | 782474 | 1 | HT782474-Online |
| 29 | CS .625-11 X 3.00 FULL HX | 783738 | 1 | HT783738-Online |
| 30 | FW .343 X .687 X .051/.080H | 768523 | 6 | HT768523-Online |
| 31 | NT .312-18 HXZY NL | 058776 | 6 | HT058776-Online |
72" RD DeckSpindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 32 | CS .500-13 X 1.250 HX G5 ZN | 705954 | 1 | HT705954-Online |
| 33 | CW .515 X 2.25 X .204 BLK | 752386 | 3 | HT752386-Online |
| 34 | DRIVE PULLEY, 8.652 OP | 602746 | 2 | 602746-Online |
| 35 | FW 1.030 X 1.500 X .134 ZN | 045765 | 1 | HT045765-Online |
| 36 | CS .500-13 X 1.750 HX G5 | 017616 | 1 | HT017616-Online |
| 37 | DOUBLE PULLEY, 8.41" | 603226 | 1 | 603226-Online |
| 38 | KEY 1/4 SQ X 1.00 | 212472 | 3 | HT212472-Online |
| 39 | CS .500-13 X 1.500 HX G5 | 074252 | 1 | HT074252-Online |
| 40 | SPACER | 114108 | 1 | 114108-Online |
| 41 | CS .500-13 X 1.00 HX G5 ZN | 016527 | 12 | 016527-Online |
| 42 | BLADE SPINDLE CCW | 601819 | 1 | 601819-Online |
| 43 | BLADE SPINDLE CW | 601630 | 2 | 601630-Online |

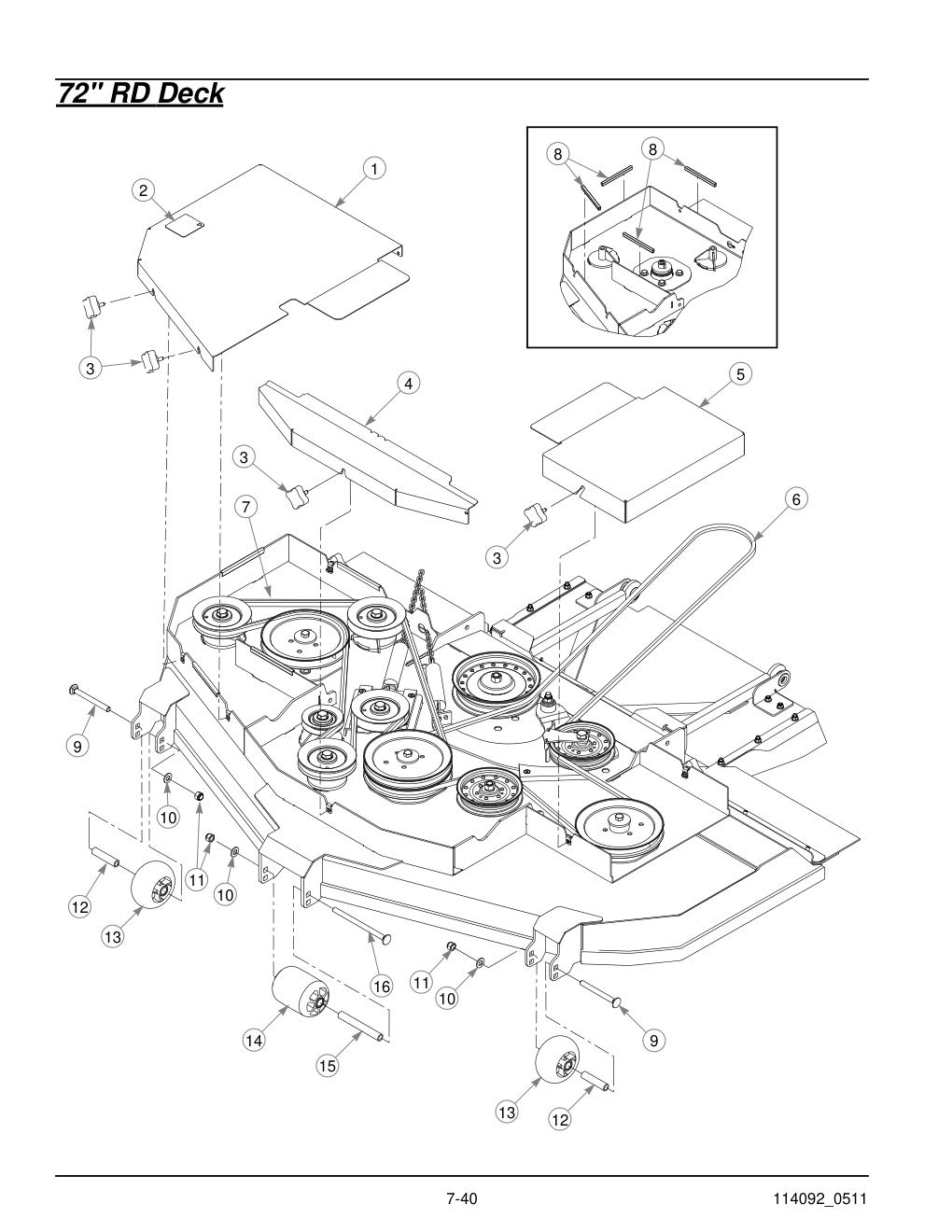

72" RD Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RS PULLEY COVER (WITH DECAL) | 551050 | 1 | 551050-Online |
| 2 | DECK DANGERS DECAL | 601837 | 1 | 601837-Online |
| 3 | KNOB 5/16-18 X 3/4" | 792002 | 6 | HT792002-Online |
| 4 | CENTER PULLEY COVER | 114209 | 1 | 114209-Online |
| 5 | LS PULLEY COVER | 114490 | 1 | 114490-Online |
| 6 | BELT, B 165.56" EL | 782292 | 1 | HT782292-Online |
| 7 | BELT, HBB SECTION 140.3 | 603422 | 1 | 603422-Online |
| 8 | FLEX TRIM | 111339 | 4 | 111339-Online |
| 9 | CB .500-13 X 5.00 ZNYC | 603049 | 2 | 603049-Online |
| 10 | FW .531 X 1.063 X .090 SAE | 767962 | 3 | HT767962-Online |
| 11 | NT .500-13 HX G8 ZY NL | 781567 | 3 | HT781567-Online |
| 12 | ANTI-SCALP SPACER 3.22 | 602345 | 2 | 602345-Online |
| 13 | SIDE ANTI-SCALP WHEEL | 602263 | 2 | 602263-Online |
| 14 | ANTI-SCALP WHEEL | 602341 | 1 | 602341-Online |
| 15 | ANTI-SCALP SPACER 5.73 | 602344 | 1 | 602344-Online |
| 16 | CB .50-13 X 7.50 STD ZN | 602338 | 1 | 602338-Online |

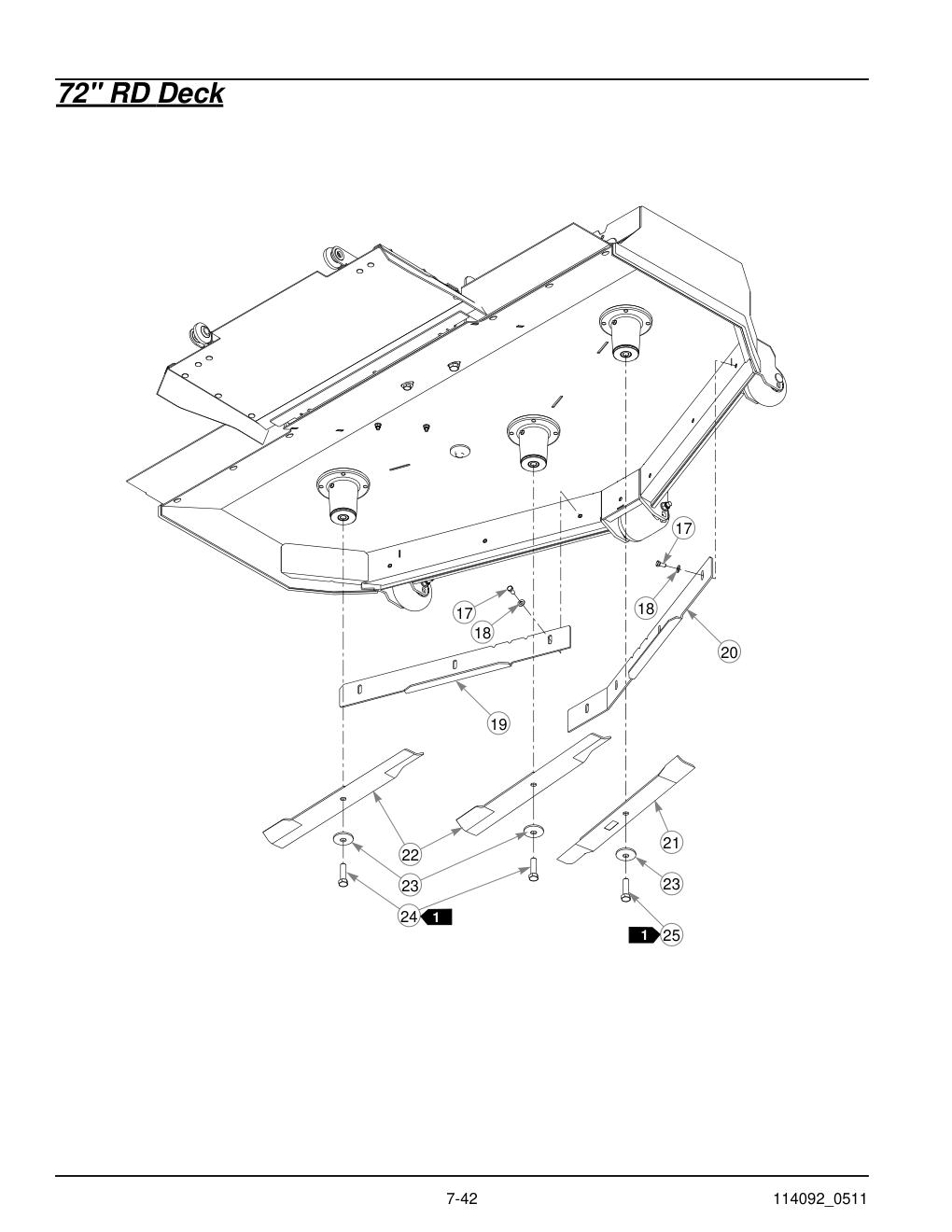

72" RD Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 17 | CS .375-16 X .750 HX G5 | 055822 | 7 | HT055822-Online |
| 18 | FW .406 X .812 X .060 SAE | 767954 | 7 | HT767954-Online |
| 19 | LS ADJUSTABLE BAFFLE | 114492 | 1 | 114492-Online |
| 20 | RS ADJUSTABLE BAFFLE | 114491 | 1 | 114491-Online |
| 21 | BLADE, F23.86-L-F-CCW | 796508 | 1 | HT796508-Online |
| 22 | BLADE, F23.86-L-F-CW | 796839 | 2 | HT796839-Online |
| 23 | CW .631 X 2.250 X .187 PNT | 782474 | 3 | HT782474-Online |
| 24 | CS .625-11 X 2.25 HX G5 ZY | 601983 | 2 | 601983-Online |
| 25 | CS .625-11 X 2.25 LH H5Y | 601999 | 1 | 601999-Online |

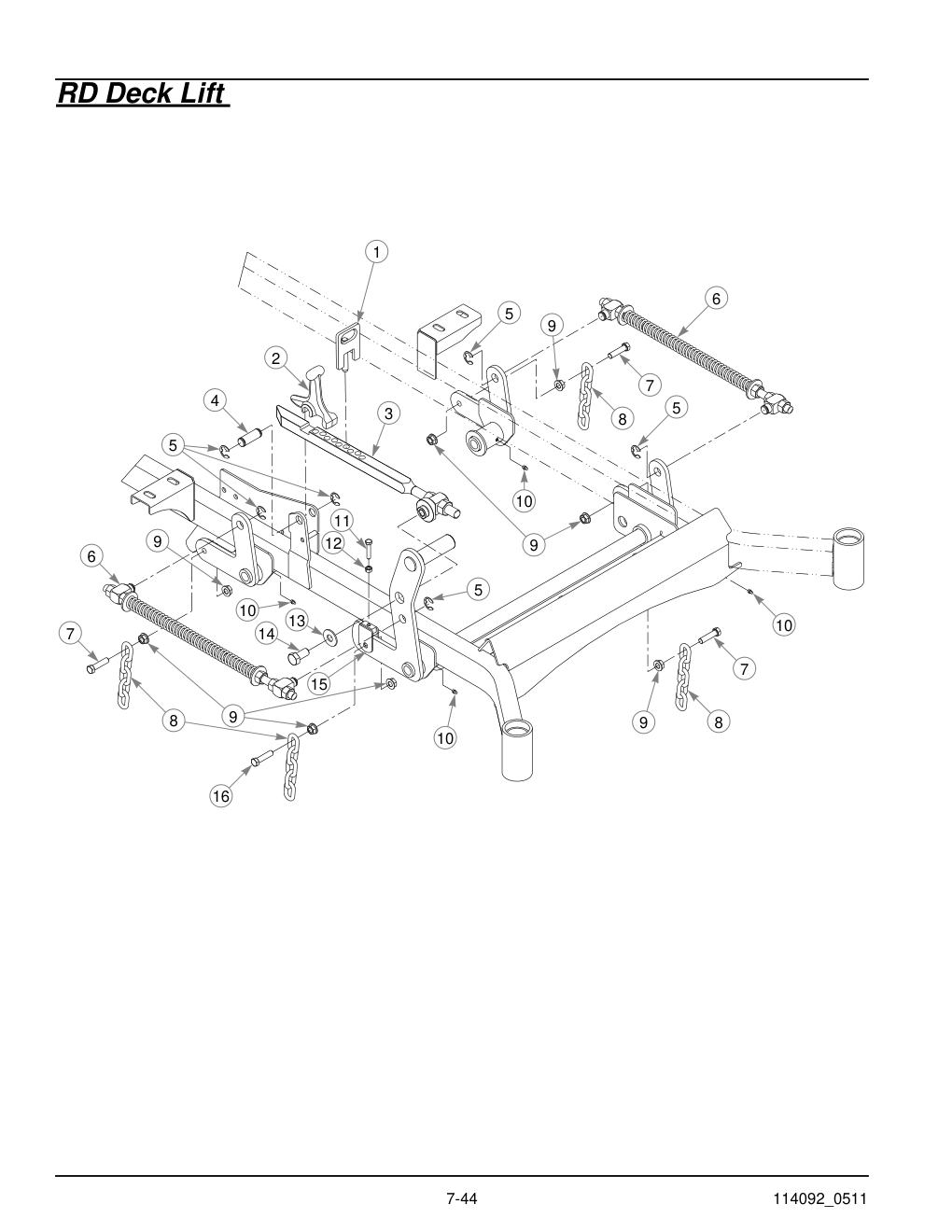

RD Deck Lift
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DECK HEIGHT PIN | 600437 | 1 | 600437-Online |
| 2 | STOP HANDLE | 348318 | 1 | HT348318-Online |
| 3 | DECK LIFT INDICATOR | 602898 | 1 | 602898-Online |
| 4 | CE .750 X 2.25 X 1.75 HEAD | 781229 | 1 | 781229-Online |
| 5 | E CLIP 1.00 X .625 X .05 | 781294 | 6 | HT781294-Online |
| 6 | DECK LIFT SPRING | 603184 | 2 | 603184-Online |
| 7 | CS .437-14 X 1.750 HX G5 | 055749 | 7 | HT055749-Online |
| 8 | DECK LIFT CHAIN | 348391 | 4 | HT348391-Online |
| 9 | NT .437-14 HX FLG ZN | 704643 | 16 | HT704643-Online |
| 10 | GREASE FITTING STRAIGHT | 015495 | 4 | HT015495-Online |
| 11 | CS .312-18 X 1.50 FLTHR G | 756270 | 1 | 756270-Online |
| 12 | NT .312-18 HX G5 ZNYC | 034272 | 1 | HT034272-Online |
| 13 | FW .625 X 1.5000 X .105 ZN | 704783 | 1 | 704783-Online |
| 14 | CS .625-11 X 1.25 HX G5 Z | 781872 | 1 | HT781872-Online |
| 15 | DECK LEVELER YOKE | 348458 | 1 | HT348458-Online |
| 16 | CS .437-14 X 1.750 FULTH | 781831 | 1 | HT781831-Online |

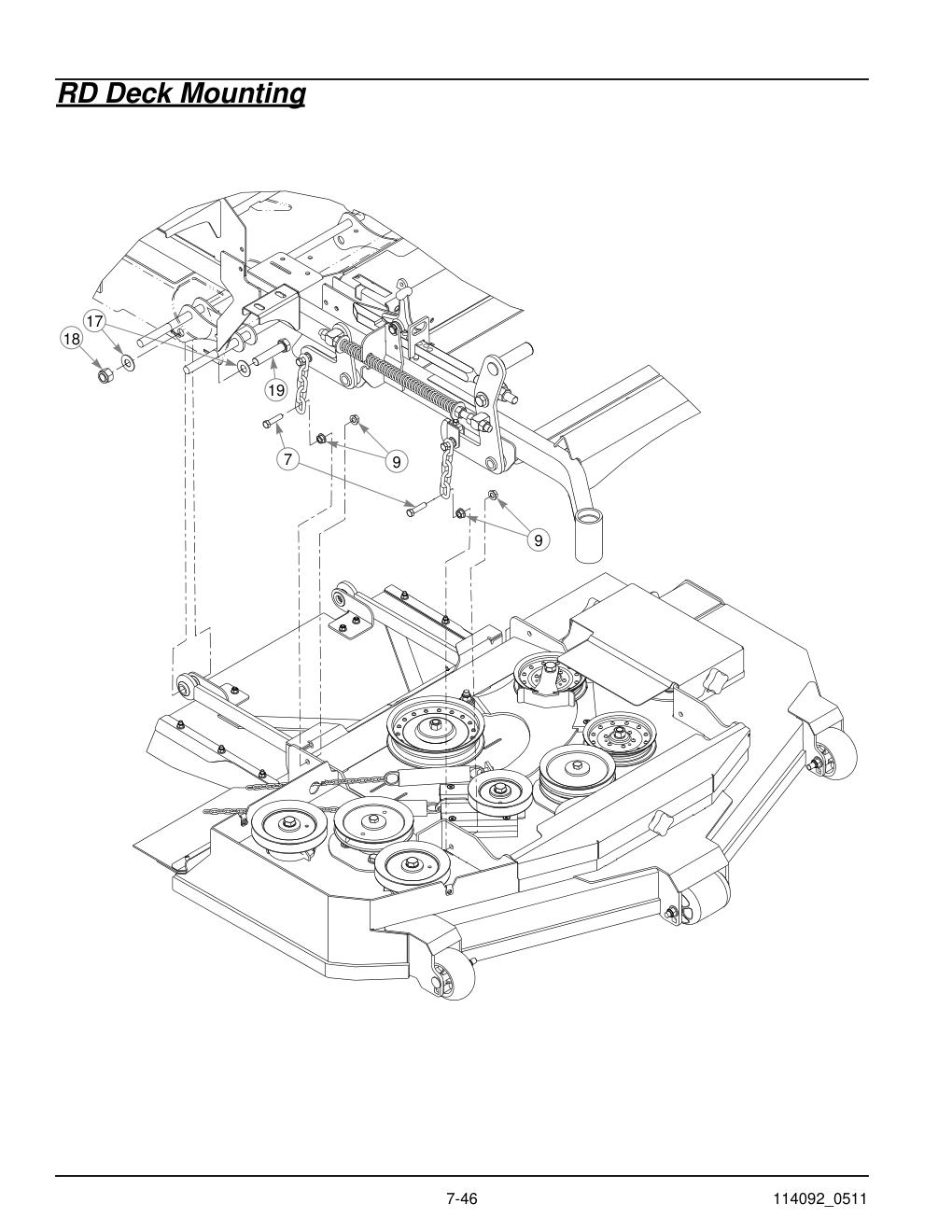

RD Deck Mounting
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 17 | FW .760 X 1.625 X .08 ZNYC | 025296 | 4 | HT025296-Online |
| 18 | NT .750-10 HXZY NL | 061101 | 2 | HT061101-Online |
| 19 | CS .750-10 X 3.500 HX G5 | 789115 | 2 | 789115-Online |

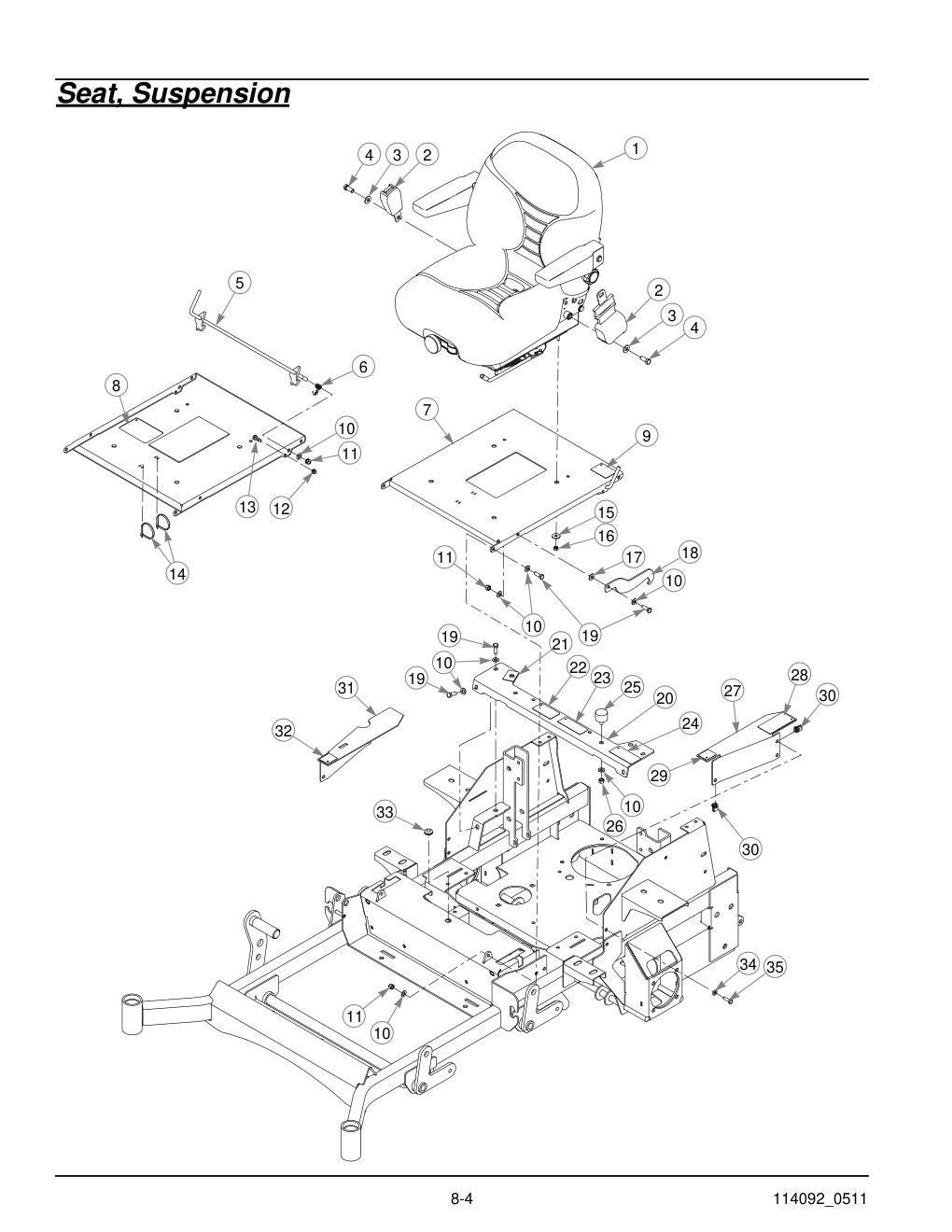

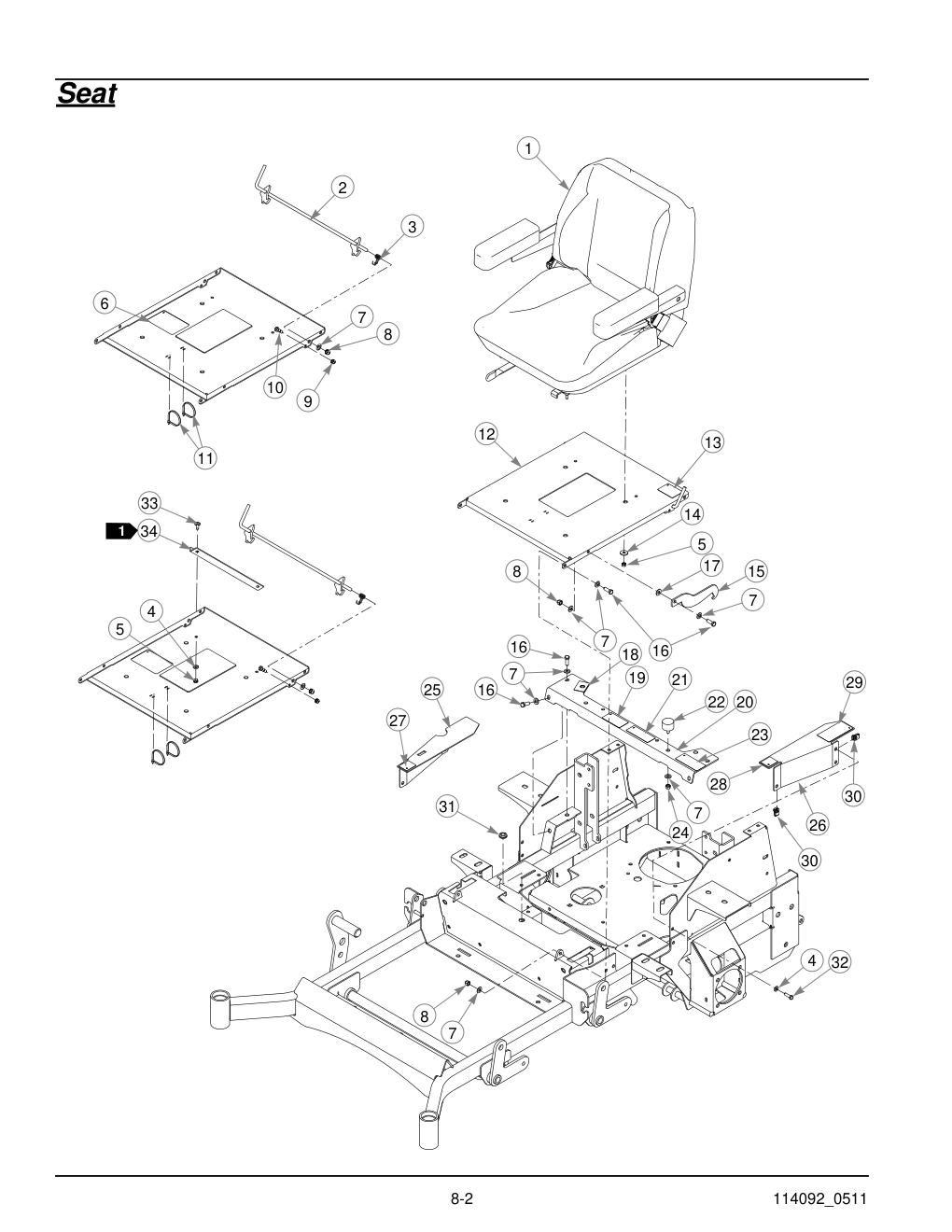

Seat
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SEAT, PREMIUM | 602966 | 1 | 602966-Online |
| 2 | SEAT LATCH | 113157 | 1 | 113157-Online |
| 3 | TORSION SPRING | 783910 | 1 | HT783910-Online |
| 4 | FW .343 X .687 X .051/.080H | 768523 | 5 | HT768523-Online |
| 5 | NT .312-18 HX G5 ZNYC | 034272 | 4 | HT034272-Online |
| 6 | BATTERY WARNINGS DECAL | 601815 | 1 | 601815-Online |
| 7 | FW .406 X .812 X .060 SAE | 767954 | 15 | HT767954-Online |
| 8 | NT .375-16 HXZY NL | 086660 | 5 | HT086660-Online |
| 9 | NT .312-18 HXZY NL | 058776 | 1 | HT058776-Online |
| 10 | SB .375 X .375 SH .312-18 | 754358 | 1 | 754358-Online |
| 11 | WIRE TIE, SMALL/SHORT | 000331 | 2 | 000331-Online |
| 12 | SEAT PAN, SZ (WITH DECALS) | 550815 | 1 | 550815-Online |
| 13 | ARMREST WARNING DECAL | 785188 | 1 | 785188-Online |
| 14 | FW .344 X 1.00 X.12 HRD Z | 712927 | 4 | HT712927-Online |
| 15 | SEAT PAN STOP (PLATED) | 350421 | 2 | 350421-Online |
| 16 | CS .375-16 X 1.000 HX G5 | 036244 | 8 | HT036244-Online |
| 17 | FIBER WASHER | 724716 | 2 | 724716-Online |
| 18 | FUEL INDICATOR DECAL | 791848 | 1 | 791848-Online |
| 19 | HYDRAULIC PRESSURE DECAL | 601968 | 1 | 601968-Online |
| 20 | SEAT SUPPORT, SZ (WITH DECALS) | 550816 | 1 | 550816-Online |
| 21 | DECAL, HOT/SYN HYDRO OIL | 601058 | 1 | 601058-Online |
| 22 | VIBRATION MOUNT | 601650 | 2 | 601650-Online |
| 23 | ENGINE COMPARTMENT DECAL | 601967 | 1 | 601967-Online |
| 24 | NT .375-16 HX GRD 5 ZNY | 054502 | 2 | HT054502-Online |
| 25 | RS FRAME COVER (WITH DECALS) | 550824 | 1 | 550824-Online |
| 26 | LS FRAME COVER (WITH DECALS) | 550823 | 1 | 550823-Online |
| 27 | RS STEERING DECAL | 785220 | 1 | 785220-Online |
| 28 | LS STEERING DECAL | 785139 | 1 | 785139-Online |
| 29 | PUMP BELT WARNING DECAL | 600899 | 1 | 600899-Online |
| 30 | CN .312-18 X .200 MAX THK | 601069 | 5 | HT601069-Online |
| 31 | GM .50 X 1.00 X .75 X .12 | 080358 | 1 | 080358-Online |
| 32 | CS .312-18 X 1.000 HX G5 | 036236 | 5 | 036236-Online |
| 33 | CB .312-18 X .750 FUL ZN | 016253 | 2 | 016253-Online |
| 34 | SEAT STOP | 113713 | 1 | 113713-Online |
Seat, Suspension
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| SLIDE KIT | SEAT CUSHION KIT SEAT BACK PANEL KIT SEAT SWITCH ONE ARMREST (ROUND STYLE W/O BRACKET) ONE ARMREST (SQUARE STYLE W/O BRACKET) ARMREST STOP ASSEMBLY SEAT WEIGHT-ADJUSTMENT KIT SEAT DRAIN REPLACEMENT SPRING AND SADDLE KIT | KNOBKIT | BACK CUSHION KIT | KNOBKIT-Online |
| 793307 | 793299 797571 793315 797480 793265 793273 601458 602076 603040 | 793323 | 793281 | 793323-Online |

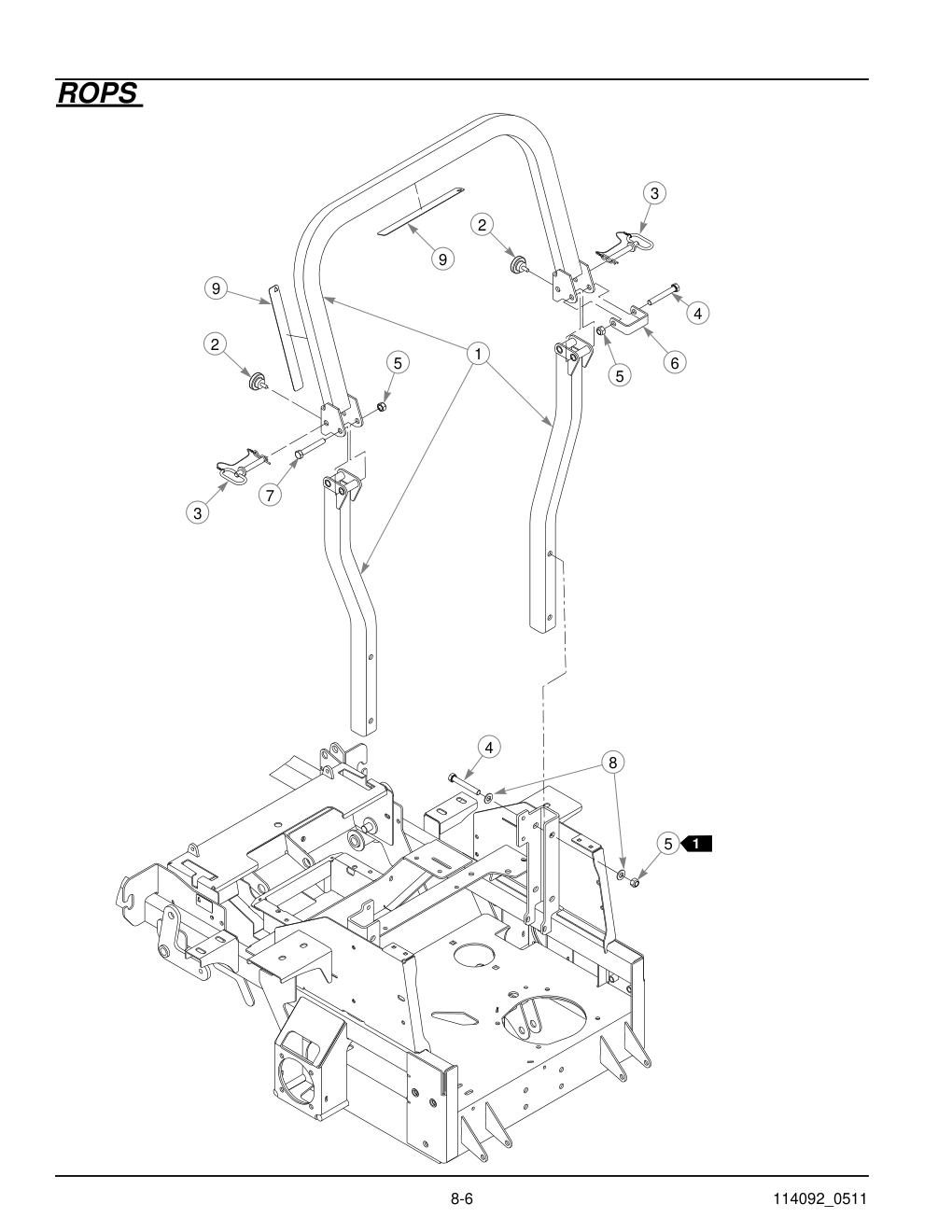

ROPS
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SUPER Z ROPS KIT (WITH DECALS & HARDWARE) | 603338 | 1 | 603338-Online |
| 2 | HAND KNOB | 601470 | 2 | 601470-Online |
| 3 | LYNCH PIN W/ LANYARD | 601471 | 2 | 601471-Online |
| 4 | CS .500-13 X 3.500 HX G5 | 061812 | 5 | 061812-Online |
| 5 | NT .500-13 UNT LK G8 ZN | 023317 | 6 | 023317-Online |
| 6 | ROPS STOP | 603099 | 1 | 603099-Online |
| 7 | CS .500-13 X 3.250 HX G5 | 077859 | 1 | 077859-Online |
| 8 | FW .531 X 1.063 X .090 SAE | 767962 | 8 | HT767962-Online |
| 9 | ROP’S DECAL | 601635 | 2 | 601635-Online |
