Illustrated Parts List
60" Diesel Z Parts Manual - 938183EX - HTHDZS060SHIS773LE - 607407
This Hustler IPL page converts the source parts manual into a mobile-friendly Joomla article with clickable Cutsmart SKU links. Each part number is linked as HLR-[part number]@online where a valid part number is available.
Model: 607407Model: 938183EXSKU prefix: HLR-SKU links use /qr?sku=
How to use this page: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the product through the QR resolver. Tap/click diagrams to enlarge them.

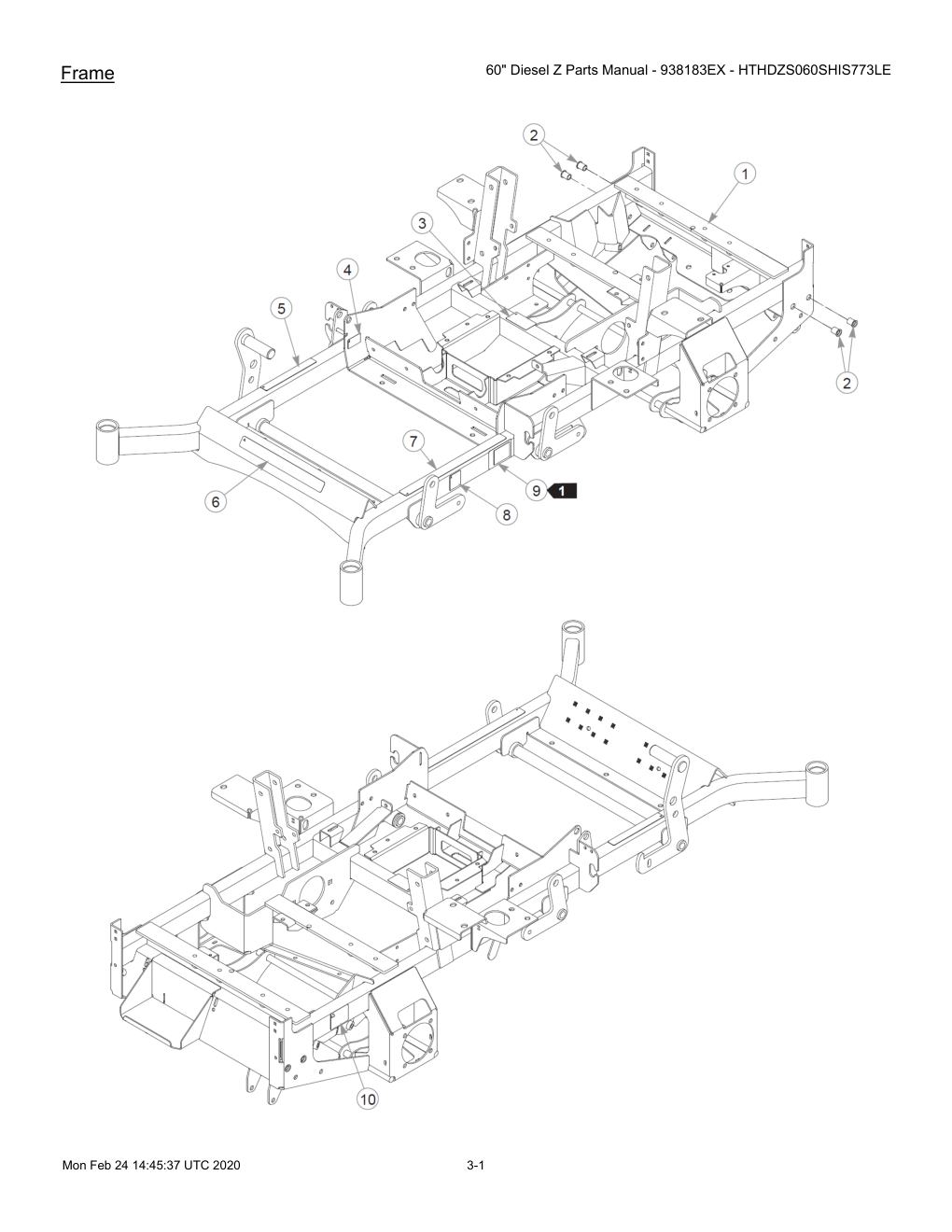

Sections
FrameFootrestEngine Cover (Multi-Page)Radiator & Air Cleaner SupportHydraulic System (Multi-Page)Pump BreakdownHydraulic Filter and Reservoir Assembly BreakdownManifold Assembly BreakdownWheel Motor BreakdownSteeringSteering Cover Assembly (Multi-Page)RS Steering Box Assembly BreakdownLS Steering Box Assembly BreakdownBrakeWheels & TiresFront Wheel Assembly BreakdownDrive Wheel BreakdownEngine, Oil Filter, Fuel Filter & Muffler - S/N 19060988 & Higher (Multi-Page)Engine, Oil Filter, Fuel Filter & Muffler - S/N 19060988 & Higher (Multi-Page)Engine, Oil Filter, Fuel Filter & Muffler - S/N Prior to 19060988 (Multi-Page)Engine, Oil Filter, Fuel Filter & Muffler - S/N Prior to 19060988 (Multi-Page)Fuel SystemAir CleanerCooling SystemBelt Drive & ClutchBelt Drive & ClutchInstrument Panel & Wire HarnessInstrument Panel & Wire HarnessBatteryService DeckDeck Pulleys & SpindlesSpindle Assembly Service Parts - 607407Deck Belt, Discharge Chute, Pulley Covers & BladesDeck Lift & Mounting Hardware (Multi-Page)SeatSeat Service PartsROPS & FirewallFrame
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SERVICE FRAME, 60" HDZ | 551153 | 1 | 551153-Online |
| 2 | RIVET NUT, 1/2-13 THREAD | 600961 | 4 | 600961-Online |
| 3 | DECAL, HYDRAULIC PRESS | 601968 | 1 | 601968-Online |
| 4 | DECAL, ANSI COMPLIANCE | 603363 | 1 | 603363-Online |
| 5 | DECAL, DECK HEIGHT INDI | 781427 | 1 | 781427-Online |
| 6 | DECAL, HUSTLER ID | 602407 | 1 | 602407-Online |
| 7 | DECAL, SAFE OPERATION | 601993 | 1 | 601993-Online |
| 8 | DECAL, DBA 115 ISO | 607782 | 1 | 607782-Online |
| 9 | SERIAL NUMBER / SPEC. DECAL | N/A | 1 | No SKU |
| 10 | DECAL, BELT ROUTING | 601596 | 1 | 601596-Online |

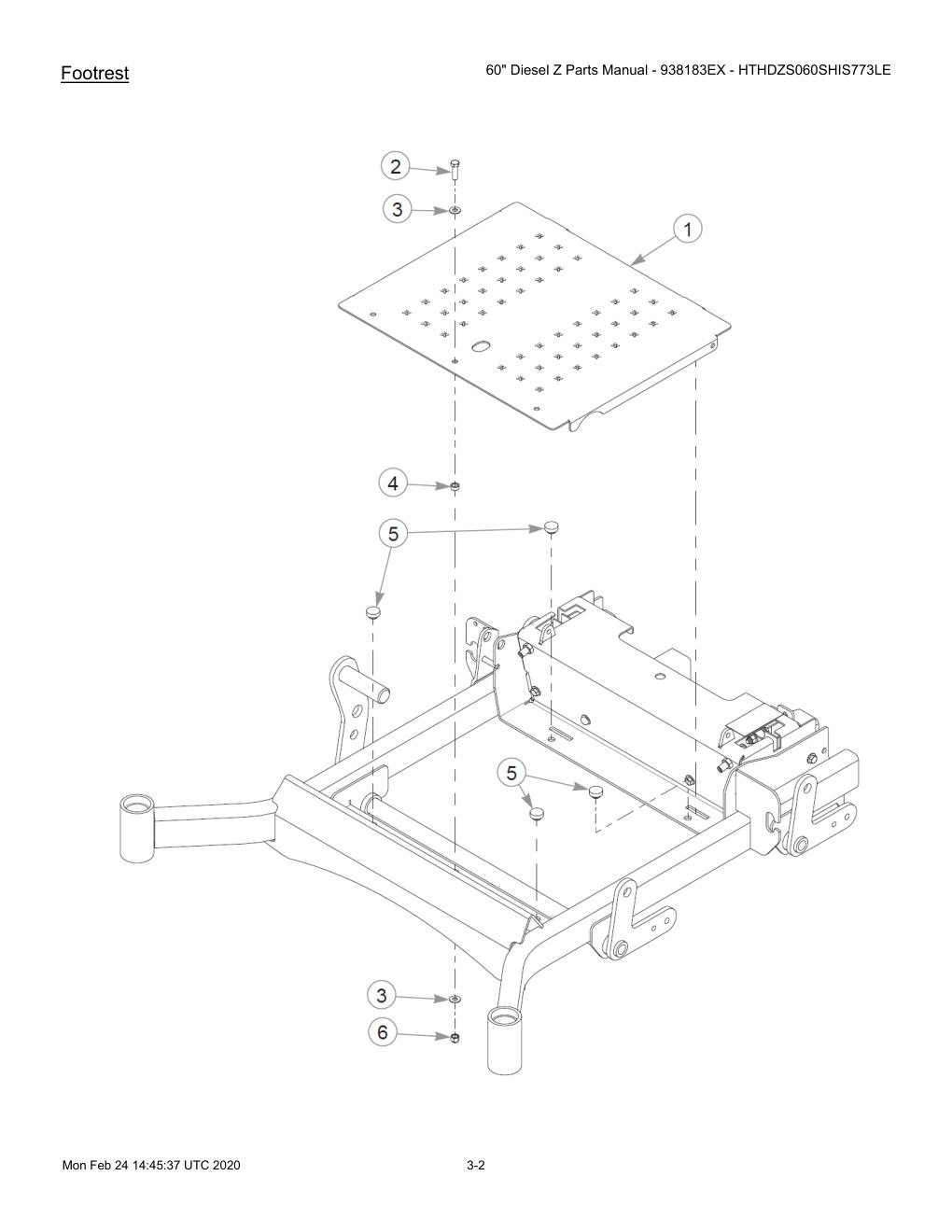

Footrest
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FLOORPAN, SERVICE | 551139 | 1 | 551139-Online |
| 2 | CS .375-16X1.25 HX G5 ZY | 052860 | 1 | HT052860-Online |
| 3 | FW 0.379X.82X.06 HD ZY | 767954 | 2 | HT767954-Online |
| 4 | SPACER, DECK LIFT LINK | 118900 | 1 | HT118900-Online |
| 5 | BUMPER, .500x 1.00x .31 | 781880 | 4 | HT781880-Online |
| 6 | NT .375-16NLG8 | 086660 | 1 | HT086660-Online |

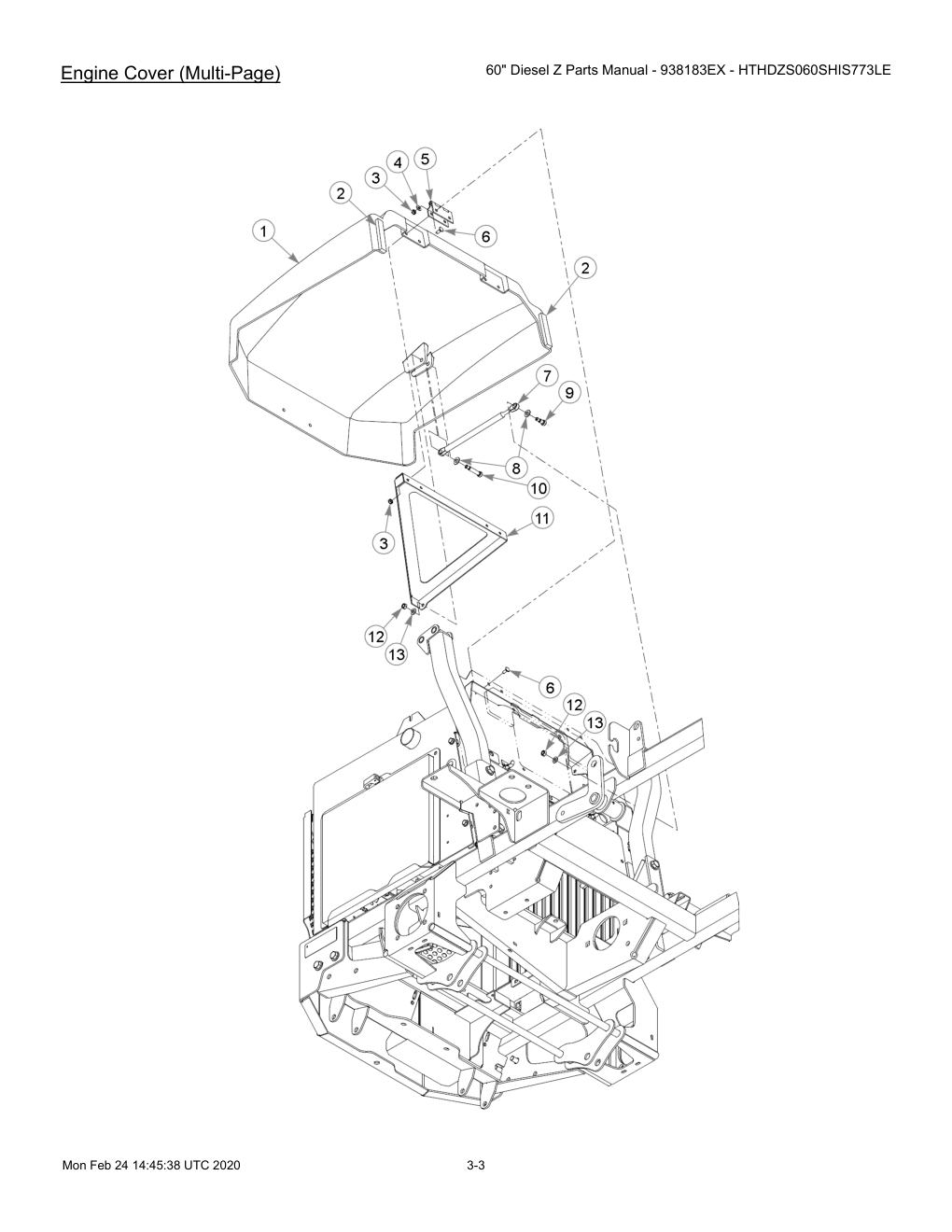

Engine Cover (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | HOOD, HDZ | 601363 | 1 | 601363-Online |
| 2 | SEAL 3/8x3/4 SOLD BY FT | 713198 | 2 | 713198-Online |
| 3 | NT .250-20 HXZY NL | 068551 | 8 | HT068551-Online |
| 4 | FW 0.281SAE | 768515 | 10 | HT768515-Online |
| 5 | HINGE, 3"X3" ZN W/ HOLES | 601364 | 2 | 601364-Online |
| 6 | CB .250-20 X .625 ZNYC | 601503 | 8 | 601503-Online |
| 7 | GAS SPRING, HDZ HOOD | 601564 | 1 | 601564-Online |
| 8 | FW 0.379X.82X.06 HD ZY | 767954 | 2 | HT767954-Online |
| 9 | SB0.375X0.500SH0.312-18 | 063297 | 1 | 063297-Online |
| 10 | SB .375 X 1.50SH .312-18 | 601379 | 1 | 601379-Online |
| 11 | LIFT SUPPORT W/A | 109745 | 1 | 109745-Online |
| 12 | NT .312-18HXG5 | 034272 | 2 | HT034272-Online |
| 13 | FW 0.343SAE | 768523 | 6 | HT768523-Online |
| 14 | SCREEN, RS W/A HDZ | 109341 | 1 | 109341-Online |
| 15 | LATCH, HEAVY DUTY SWELL | 791384 | 1 | 791384-Online |
| 16 | NT .312-18NLG5 | 058776 | 2 | HT058776-Online |
| 17 | LATCH STRIKER W/A | 109722 | 1 | 109722-Online |
| 18 | BUMPER, .500x 1.00x .31 | 781880 | 2 | HT781880-Online |
| 19 | FW 0.344X1.00X.12 HD ZY | 712927 | 2 | HT712927-Online |
| 20 | CS .312-18X1.000HXG5 | 036236 | 4 | 036236-Online |
| 21 | RADIATOR SCREEN W/A HDZ | 109137 | 1 | 109137-Online |
| 22 | WEATHERSTRIP .12X.75 | 033035 | 2 | 033035-Online |
| 23 | WEATHERSTRIP .12X.75 | 033035 | 1 | 033035-Online |
| 24 | WEATHERSTRIP .12X.75 | 033035 | 2 | 033035-Online |
| 25 | WEATHERSTRIP .12X.75 | 033035 | 1 | 033035-Online |
| 26 | PANEL, FIREWALL ACCESS | 109136 | 1 | 109136-Online |
| 27 | CS .250-20X0.75 HX G5 ZY | 055939 | 4 | 055939-Online |
| 28 | LATCH BRACKET | 124364-1 | 1 | 124364-1-Online |
| 29 | LW .250 INTEXT ZY | 029868 | 2 | 029868-Online |
| 30 | LATCH, SLAM SOUTHCO | 601373 | 1 | 601373-Online |
| 31 | RIVET .188 DIA BLK HD | 601089 | 2 | 601089-Online |
| 32 | OVER CNTR CATCH W/LCK H | 758821 | 1 | 758821-Online |
| 33 | COVER, REAR W/A HDZ | 109413 | 1 | 109413-Online |
| 34 | NT .250-20HXG5 | 024927 | 2 | HT024927-Online |
| 35 | CN .312-18x.200 MAX THK | 601069 | 2 | HT601069-Online |
| 36 | FENDER, INNER PANEL | 109559 | 1 | 109559-Online |
Radiator & Air Cleaner Support
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | RADIATOR SUPPORT, | 551141 | 1 | 551141-Online |
| 2 | FAN WARNING DECAL | 763805CE | 1 | 763805CE-Online |
| 3 | GM 1.50 X 2.12 X 1.75 | 794644 | 3 | 794644-Online |
| 4 | NT .312-18HXG5 | 034272 | 10 | HT034272-Online |
| 5 | FW 0.343SAE | 768523 | 14 | HT768523-Online |
| 6 | RADIATOR SUPPORT PAD | 601558 | 1 | 601558-Online |
| 7 | CB .312-18X .750 FUL ZN | 016253 | 6 | 016253-Online |
| 8 | CN .312-18x.200 MAX THK | 601069 | 4 | HT601069-Online |
| 9 | CS .312-18X1.000HXG5 | 036236 | 4 | 036236-Online |
| 10 | DECAL, ENGINE COMPART | 601967 | 1 | 601967-Online |
| 11 | DECAL, SPARK ARRESTOR | 601908 | 1 | 601908-Online |
| 12 | DECAL, 50 STATE DIESEL | 607133 | 1 | 607133-Online |
| 13 | AIR CLEANER MOUNT, | 551142 | 1 | 551142-Online |
| 14 | GM .31X.81X.56X.18 | 031666 | 2 | 031666-Online |
| 15 | GUARD, REAR ENGINE W/A | 109105 | 1 | 109105-Online |
| 16 | DECAL, BATTERY WARNINGS | 601815 | 1 | 601815-Online |
| 17 | DECAL, HOT | 602041 | 1 | 602041-Online |
| 18 | OVERFLOW BOTTLE MOUNT | 551143 | 1 | 551143-Online |
| 19 | FW .531 x 1.063 x .175 | 767962 | 4 | HT767962-Online |
| 20 | CS .500-13X1.25 HX G5 ZY | 705954 | 4 | HT705954-Online |

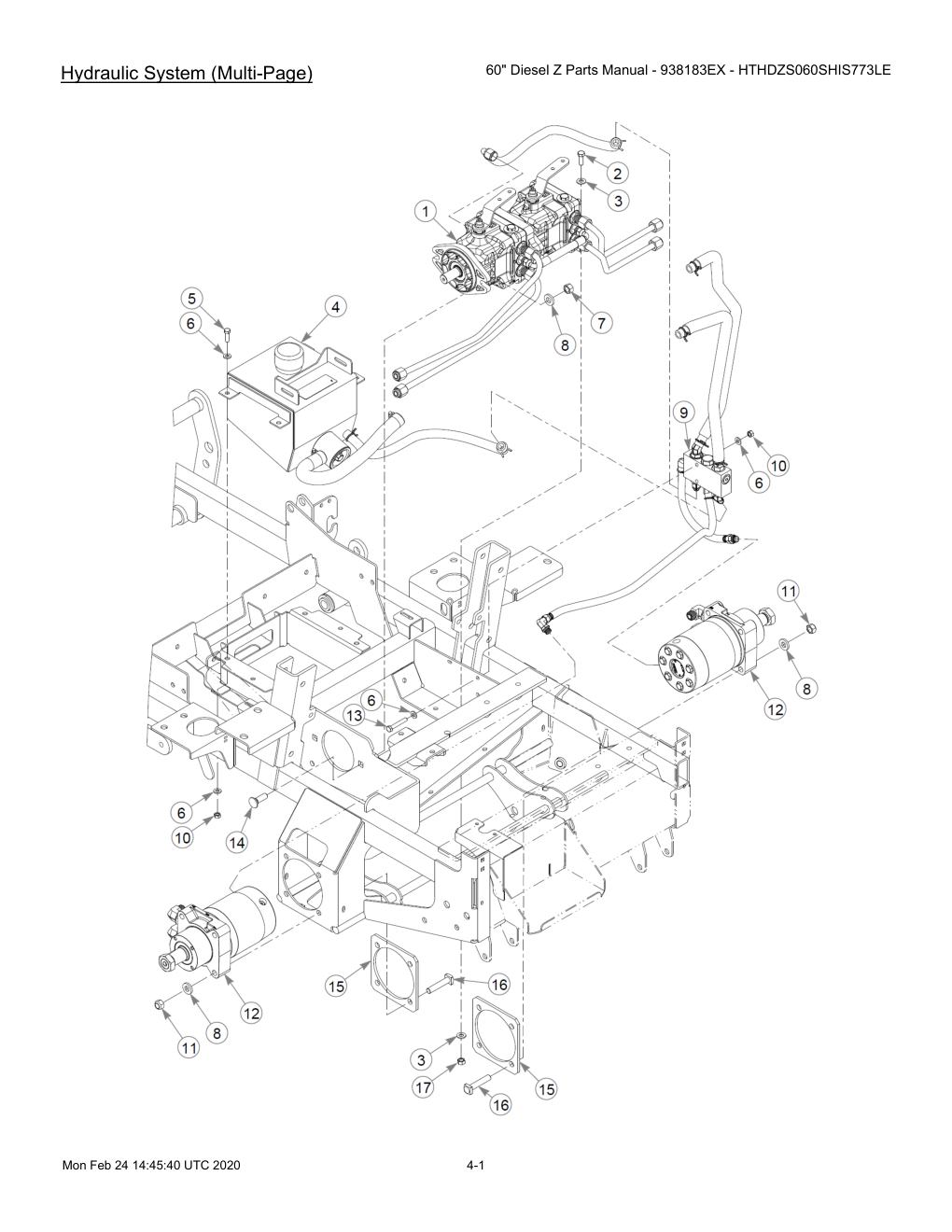

Hydraulic System (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 2 | CS .375-16X1.00 HX G5 ZY | 036244 | 5 | HT036244-Online |
| 3 | FW 0.379X.82X.06 HD ZY | 767954 | 7 | HT767954-Online |
| 5 | CS .312-18X1.000HXG5 | 036236 | 4 | 036236-Online |
| 6 | FW 0.343SAE | 768523 | 12 | HT768523-Online |
| 7 | NT .500-13HXG5 | 008193 | 2 | HT008193-Online |
| 8 | FW .531 x 1.063 x .175 | 767962 | 10 | HT767962-Online |
| 10 | NT .312-18HXG5 | 034272 | 6 | HT034272-Online |
| 11 | NT .500-13UNTG8 | 023317 | 8 | 023317-Online |
| 11 | REFER TO "WHEEL MOTOR ASSEMBLY BREAKDOWN" | 12 | 2 | 12-Online |
| 13 | CS .312-18X2.000HXG5 | 064345 | 2 | 064345-Online |
| 14 | CB .500-13X 1.500 FULL | 028274 | 2 | 028274-Online |
| 15 | GUSSET, INT | 115816 | 2 | 115816-Online |
| 16 | CS .500-13X2.500 SQ G5 | 602256 | 8 | 602256-Online |
| 17 | NT .375-16HXG5 | 054502 | 2 | HT054502-Online |
| 18 | CS .250-20X2.000HXG5 | 704163 | 4 | 704163-Online |
| 19 | FW 0.281SAE | 768515 | 16 | HT768515-Online |
| 20 | NT .250-20 HXZY NL | 068551 | 8 | HT068551-Online |
| 21 | SCREEN, OIL COOLER | 109401 | 1 | 109401-Online |
| 22 | OIL COOLER FOR 8" FAN | 601356 | 1 | 601356-Online |
| 23 | FOOT, ELECTRIC FAN | 601538 | 4 | 601538-Online |
| 24 | CS .250-20X1.000HXG5 | 056077 | 4 | 056077-Online |
| 25 | FAN, ELECTRIC 8" 12VDC | 601357 | 1 | 601357-Online |
| 26 | NT .375-16HXG5 | 016899 | 3 | HT016899-Online |
| 27 | CLIP - HOSE - SINGLE(FS) | 043570 | 2 | 043570-Online |
| 28 | HOSE CLAMP 1" (FS) | 045088 | 1 | 045088-Online |
| 29 | WIRE TIE, SMALL/SHORT | 000331 | 2 | 000331-Online |

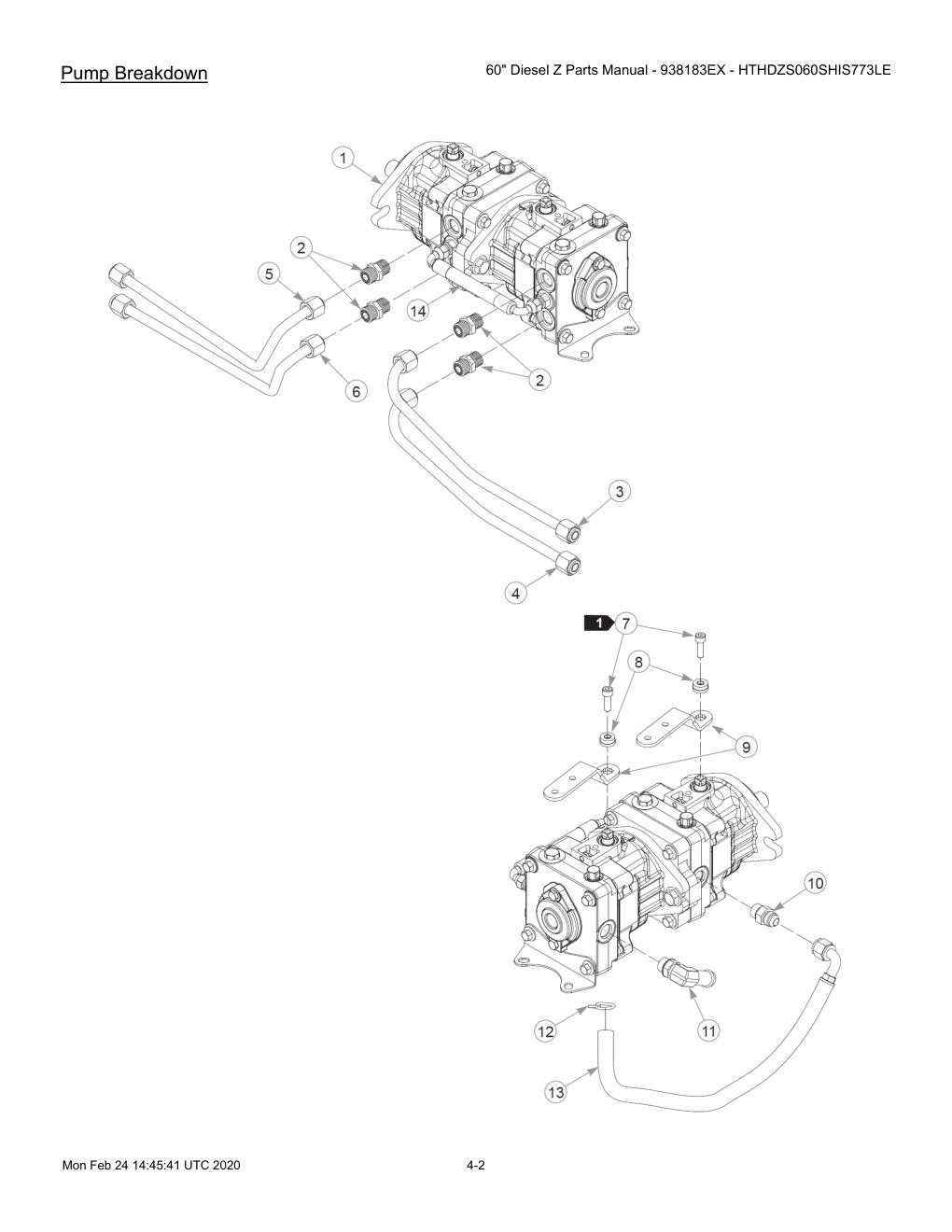

Pump Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PUMP, 21CC TANDEM | 603650 | 1 | 603650-Online |
| Not Shown | SEAL KIT, HG TANDEM 21 | 600934 | 1 | 600934-Online |
| 2 | FTG, STR-8MORB/-8MS | 781534 | 4 | 781534-Online |
| 3 | TUBE, TP-TM RH LOOP | 603701 | 1 | 603701-Online |
| 4 | TUBE, BP-BM RH LOOP | 603700 | 1 | 603700-Online |
| 5 | TUBE, TP-TM, LH LOOP | 603699 | 1 | 603699-Online |
| 6 | TUBE, BP-BM LH LOOP | 603698 | 1 | 603698-Online |
| 7 | CS M8-1.25x25 SH BO NY | 795377 | 2 | 795377-Online |
| 8 | RETAINER, PUMP ARM HYDR | 795369 | 2 | 795369-Online |
| 9 | PUMP ARM, HDZ | 109118 | 2 | 109118-Online |
| 10 | FTG,STR-8MORB/-8MJIC | 771337 | 1 | 771337-Online |
| 11 | FTG, -8MORB/-12 BEAD | 601524 | 1 | 601524-Online |
| 12 | SPRING CLAMP, .75" DIA | 601001 | 1 | 601001-Online |
| 13 | HOSE, CASE DRAIN PUMP | 601520 | 1 | 601520-Online |
| 14 | HOSE,LP PUMP TO PUMP | 796060 | 1 | 796060-Online |

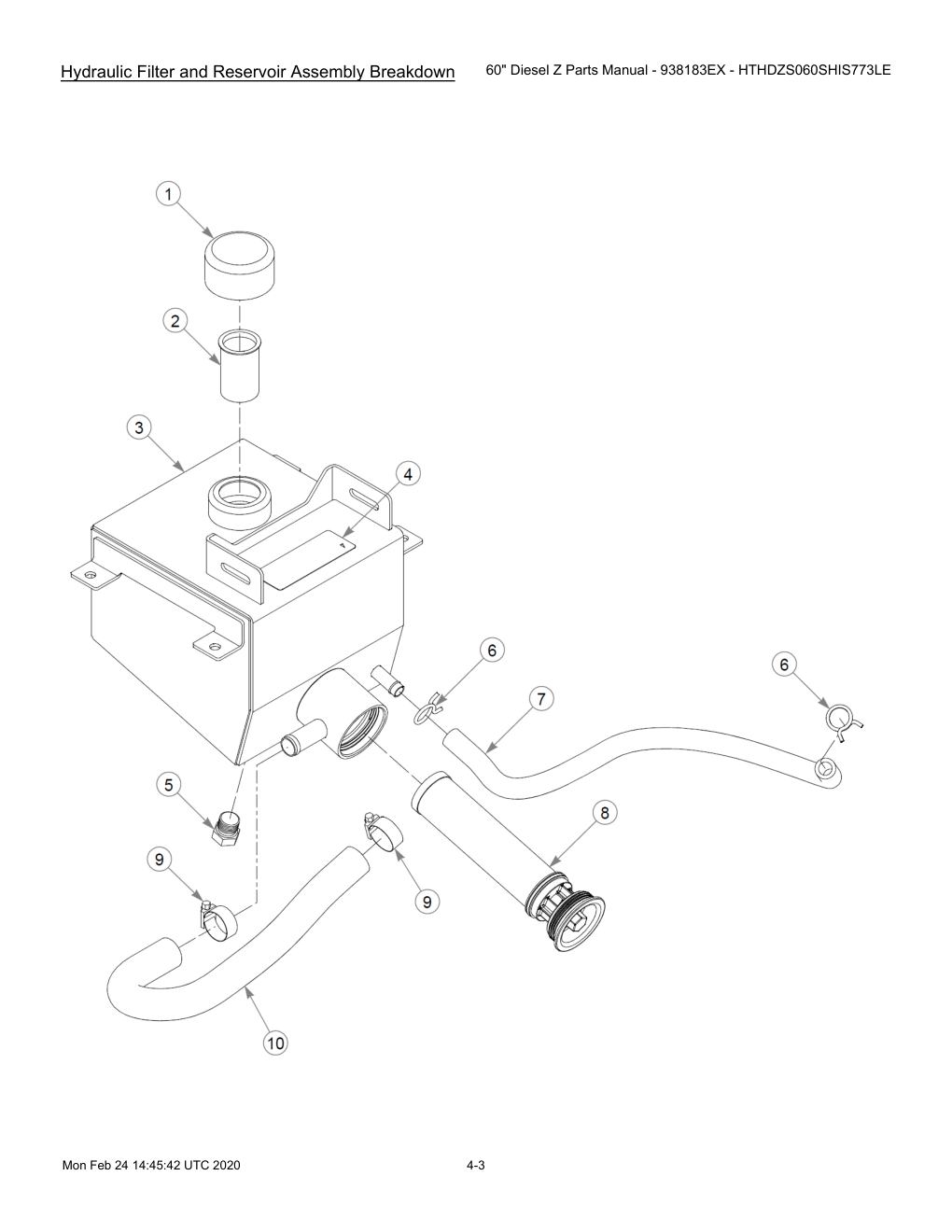

Hydraulic Filter and Reservoir Assembly Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CAP, BREATHER | 032763 | 1 | HT032763-Online |
| 2 | STRAINER | 032771 | 1 | 032771-Online |
| 3 | RESERVOIR W/A HDZ | 549345 | 1 | 549345-Online |
| 4 | DECAL, HOT & HYD OIL | 779280 | 1 | 779280-Online |
| 5 | FTG, -8MORB/HEX PLUG | 781658 | 1 | 781658-Online |
| 6 | SPRING CLAMP, .75" DIA | 601001 | 2 | 601001-Online |
| 7 | HOSE, RETURN MANI BLOCK | 601570 | 1 | 601570-Online |
| 8 | FILTER ELEMENT | 601413X | 1 | 601413X-Online |
| 9 | CLAMP, HOSE (FS) | 700484 | 2 | 700484-Online |
| 10 | HOSE, SUCTION HDZ HYDRO | 601517 | 1 | 601517-Online |

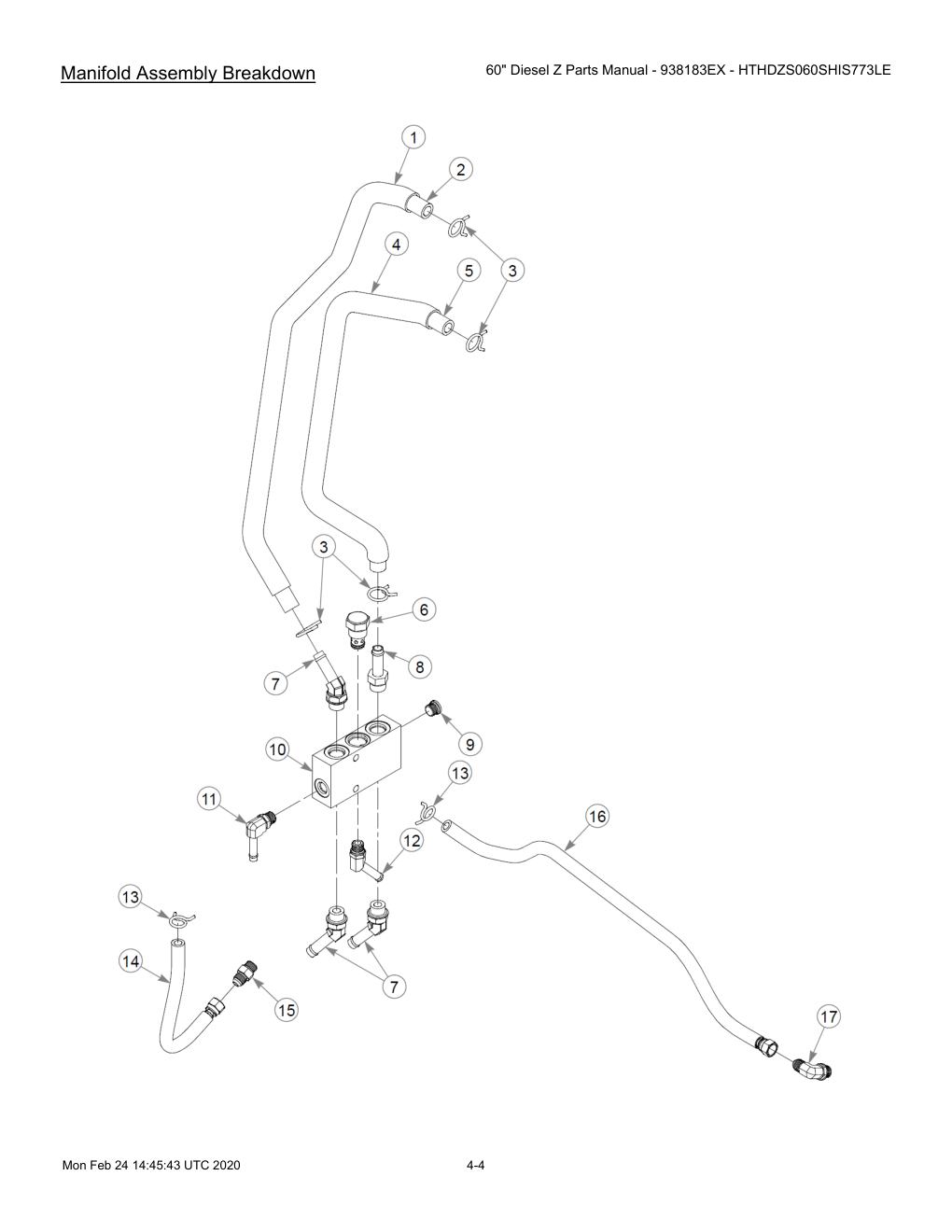

Manifold Assembly Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | HOSE GUARD, BLOCK TO | 601583 | 1 | 601583-Online |
| 2 | HOSE, MANIFOLD BLOCK | 601521 | 1 | 601521-Online |
| 3 | SPRING CLAMP, .75" DIA | 601001 | 4 | 601001-Online |
| 4 | HOSE GUARD, COOLER TO | 601584 | 1 | 601584-Online |
| 5 | HOSE, RETURN COOLER | 601522 | 1 | 601522-Online |
| 6 | VALVE, CARTRIDGE CHECK | 601568 | 1 | 601568-Online |
| 7 | FTG, -8MORB/-8BEAD | 601592 | 3 | 601592-Online |
| 8 | FTG, -8MORB/-8BT STR | 601523 | 1 | 601523-Online |
| 9 | FTG, PLUG -8MORB/HEX | 601569 | 1 | 601569-Online |
| 10 | MANIFOLD, CASE DRAIN | 601476 | 1 | 601476-Online |
| 11 | FTG, 90°-6MORB/-6BT | 787465 | 1 | 787465-Online |
| 12 | FTG, 45°-6MORB/-6BT | 784108 | 1 | 784108-Online |
| 13 | SPRING CLAMP, 5/8" DIA. | 601617 | 2 | 601617-Online |
| 14 | HOSE, CASE DRAIN RIGHT | 603697 | 1 | 603697-Online |
| 15 | FTG, -6MORB/-6MJIC STR | 779132 | 1 | 779132-Online |
| 16 | HOSE, CASE DRAIN LEFT | 603722 | 1 | 603722-Online |
| 17 | FTG, 90-6MORB/-6MJI | 795922 | 1 | HT795922-Online |

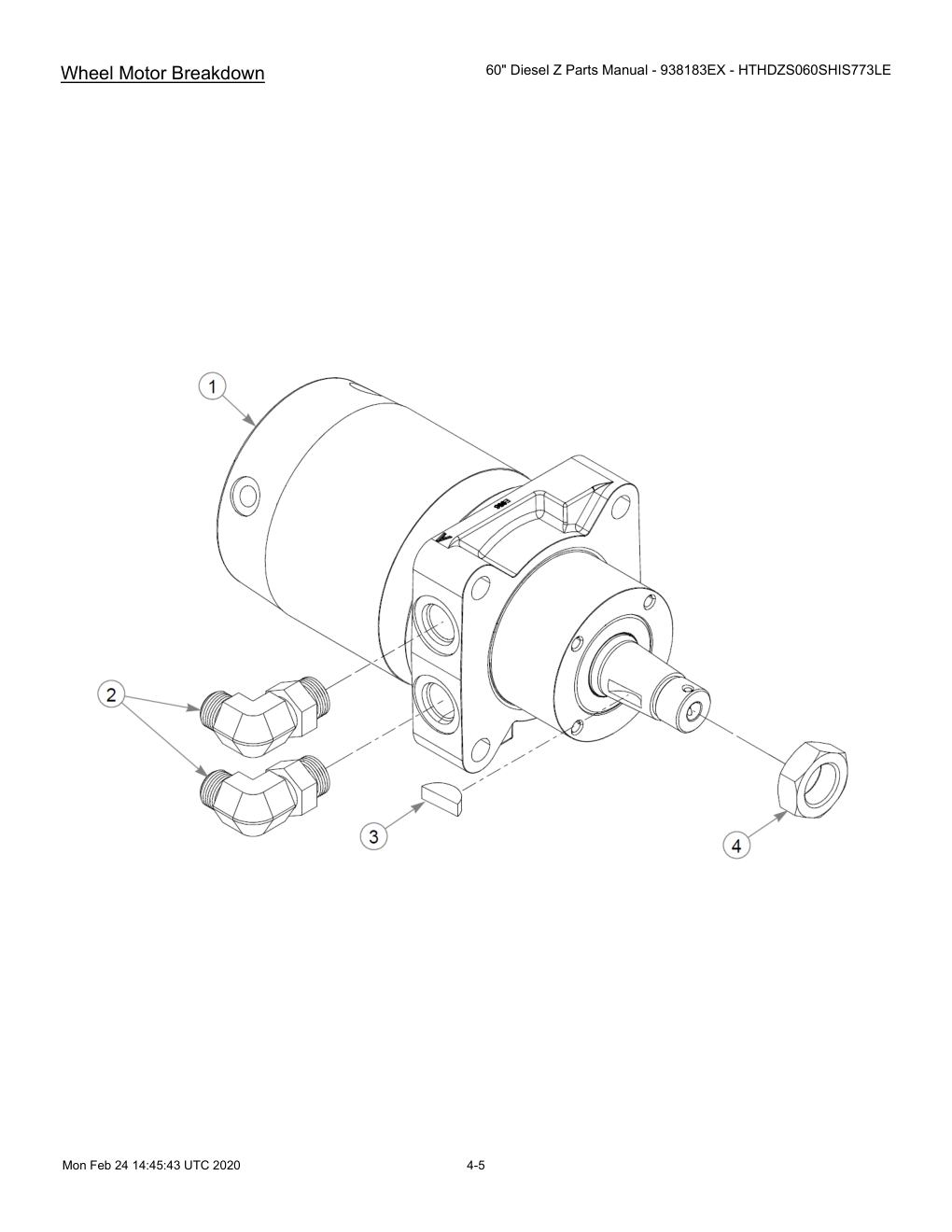

Wheel Motor Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | MOTOR, PARKER TG0335 | 603663 | 1 | 603663-Online |
| 2 | FTG, 90°-10MORB/-8MORFS | 781526 | 2 | 781526-Online |
| 3 | ROSS WOODRUFF KEY | 064337 | 1 | HT064337-Online |
| 4 | ROSS NUT | 065516 | 1 | HT065516-Online |
| 5 | ROSS VITON SEAL KIT | 748806 | 1 | HT748806-Online |

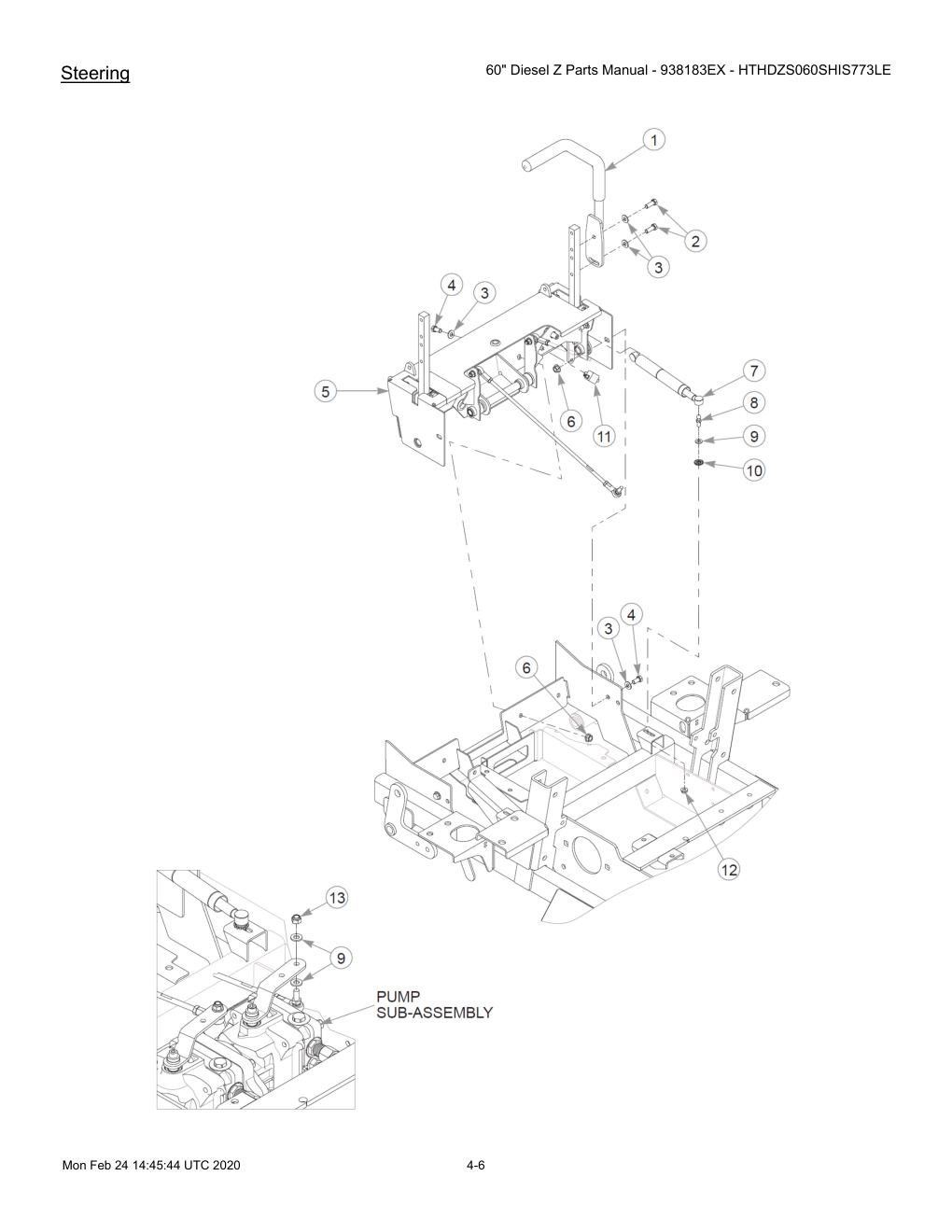

Steering
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | HANDLE, Z W/A | 109839 | 2 | 109839-Online |
| Not Shown | GRIP, STEERING BAR | 781260 | 2 | 781260-Online |
| 2 | CS .375-16X1.00 HX G5 ZY | 036244 | 4 | HT036244-Online |
| 3 | FW 0.379X.82X.06 HD ZY | 767954 | 10 | HT767954-Online |
| 4 | CS .375-16X0.75 HX G5 ZY | 055822 | 6 | HT055822-Online |
| 5 | STEERING COVER ASSEMBLY | N/A | 1 | No SKU |
| 6 | NT .375-16HXG5 | 016899 | 6 | HT016899-Online |
| 7 | DAMPER, CENTERING | 795351 | 2 | 795351-Online |
| 8 | BALL STUD | 781922 | 2 | 781922-Online |
| 9 | FW 0.343SAE | 768523 | 6 | HT768523-Online |
| 10 | LW .312 INTEXT ZY | 029876 | 2 | 029876-Online |
| 11 | SWITCH, PLUNGER N.O. | 601087 | 2 | HT601087-Online |
| 12 | NT .312-18FLKG5 | 016832 | 2 | 016832-Online |
| 13 | NT 0.312-24 NL G8 | 023655 | 2 | HT023655-Online |

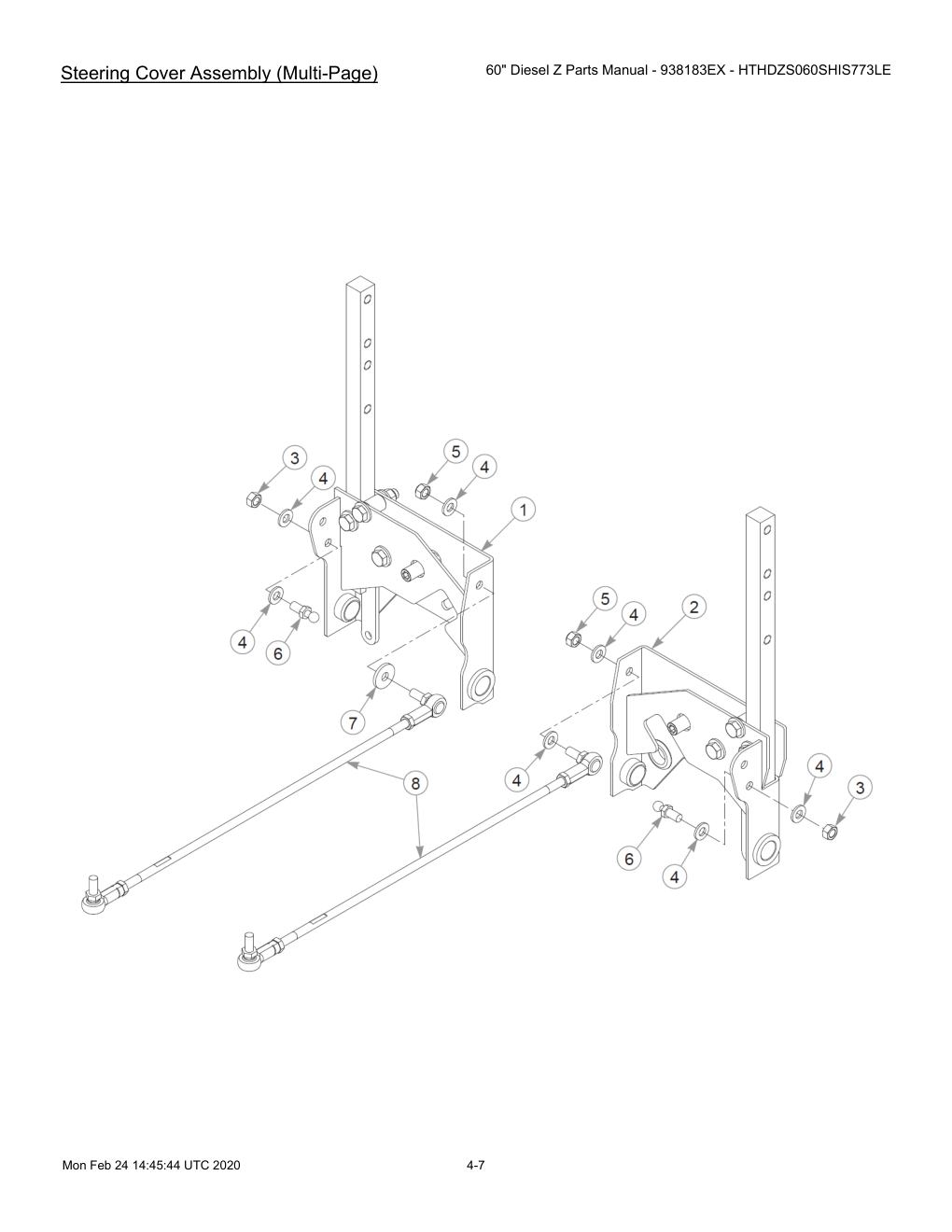

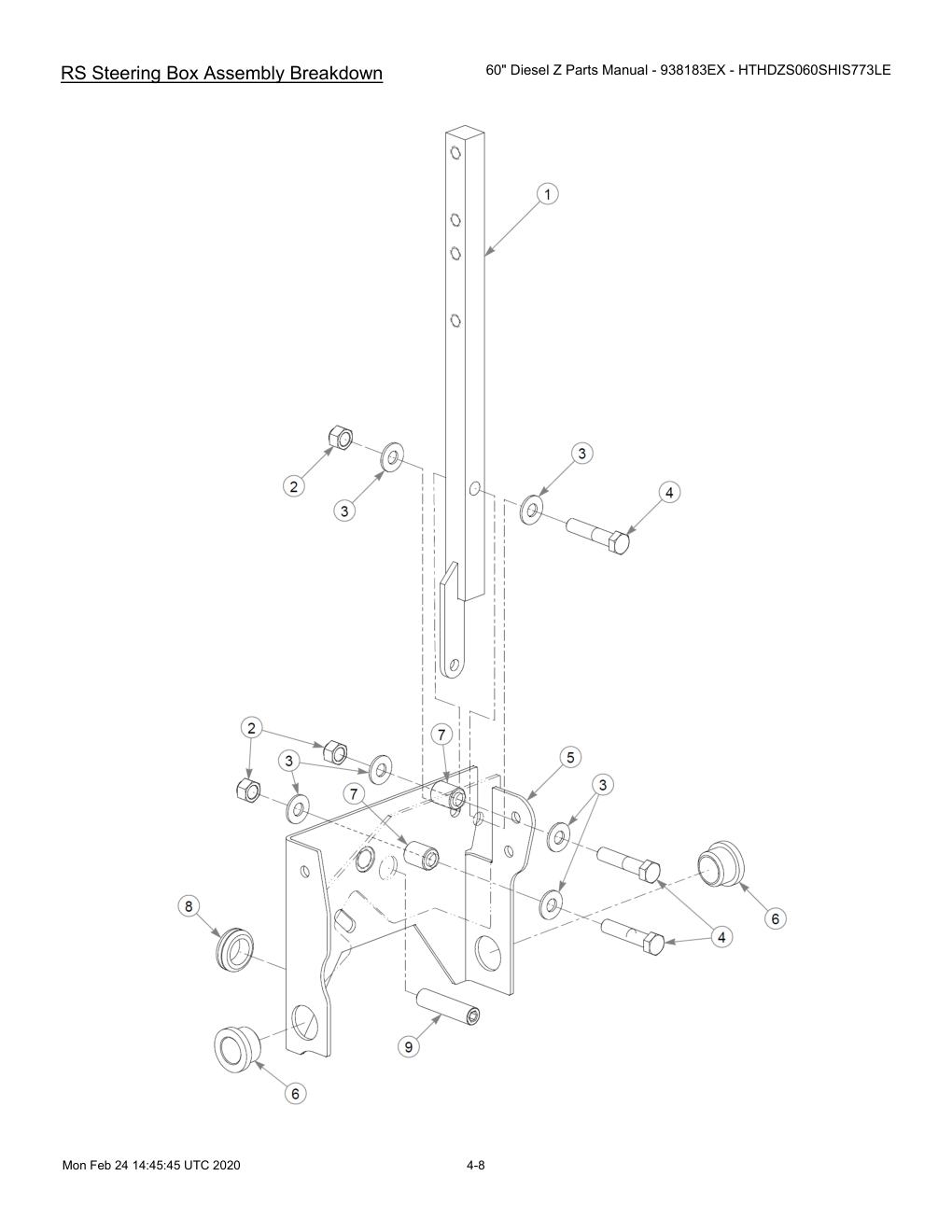

Steering Cover Assembly (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | LS STEERING BOX ASSEMBLY | N/A | 1 | No SKU |
| 2 | RS STEERING BOX ASSEMBLY | N/A | 1 | No SKU |
| 3 | NT .312-18HXG5 | 034272 | 2 | HT034272-Online |
| 4 | FW 0.343SAE | 768523 | 7 | HT768523-Online |
| 5 | NT 0.312-24 NL G8 | 023655 | 2 | HT023655-Online |
| 6 | BALL STUD | 781922 | 2 | 781922-Online |
| 7 | FW 0.344X1.00X.12 HD ZY | 712927 | 1 | HT712927-Online |
| 8 | PUMP ROD ADJUSTER ASSY | 781286 | 2 | HT781286-Online |
| 9 | STEERING COVER, SERVICE | 551135 | 1 | 551135-Online |
| 10 | BUSHING, UHMW | 781153 | 2 | HT781153-Online |
| 11 | LOCK COLLAR,0.757 ID(FS) | 784439 | 2 | HT784439-Online |
| 12 | FW .750X1.50X.16 ZY | 603078 | 2 | 603078-Online |
| 13 | STEER PIVOT TUBE | 108813 | 1 | 108813-Online |
| 14 | NT .500-13JAMG5 | 053199 | 2 | HT053199-Online |
| 15 | SS .500-13X 2.50 SH ZNYC | 603055 | 2 | 603055-Online |
| 16 | DECAL, HDZ | 605089 | 1 | 605089-Online |
| 17 | GM .50X1.00X.75X.12 | 080358 | 1 | 080358-Online |
| 18 | POLYURETHANE 2" (FS) | 722199 | 14 cm | 722199-Online |
RS Steering Box Assembly Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STEERING ARM W/A | NSS | 1 | NSS-Online |
| 2 | NT .375-16NLG8 | 086660 | 3 | HT086660-Online |
| 3 | FW 0.379X.82X.06 HD ZY | 767954 | 6 | HT767954-Online |
| 4 | CS .375-16X1.750HXG5 | 705178 | 3 | HT705178-Online |
| 5 | STEERING BOX W/A, RH | 112898 | 1 | 112898-Online |
| 6 | BUSHING, UHMW | 781153 | 2 | HT781153-Online |
| 7 | STEERLEVER BUSHING (PLA | 348862 | 2 | HT348862-Online |
| 8 | GM .750X.188X1.00X.12 | 047456 | 1 | 047456-Online |
| 9 | SS .500-13X2.000SH | 797738 | 1 | 797738-Online |

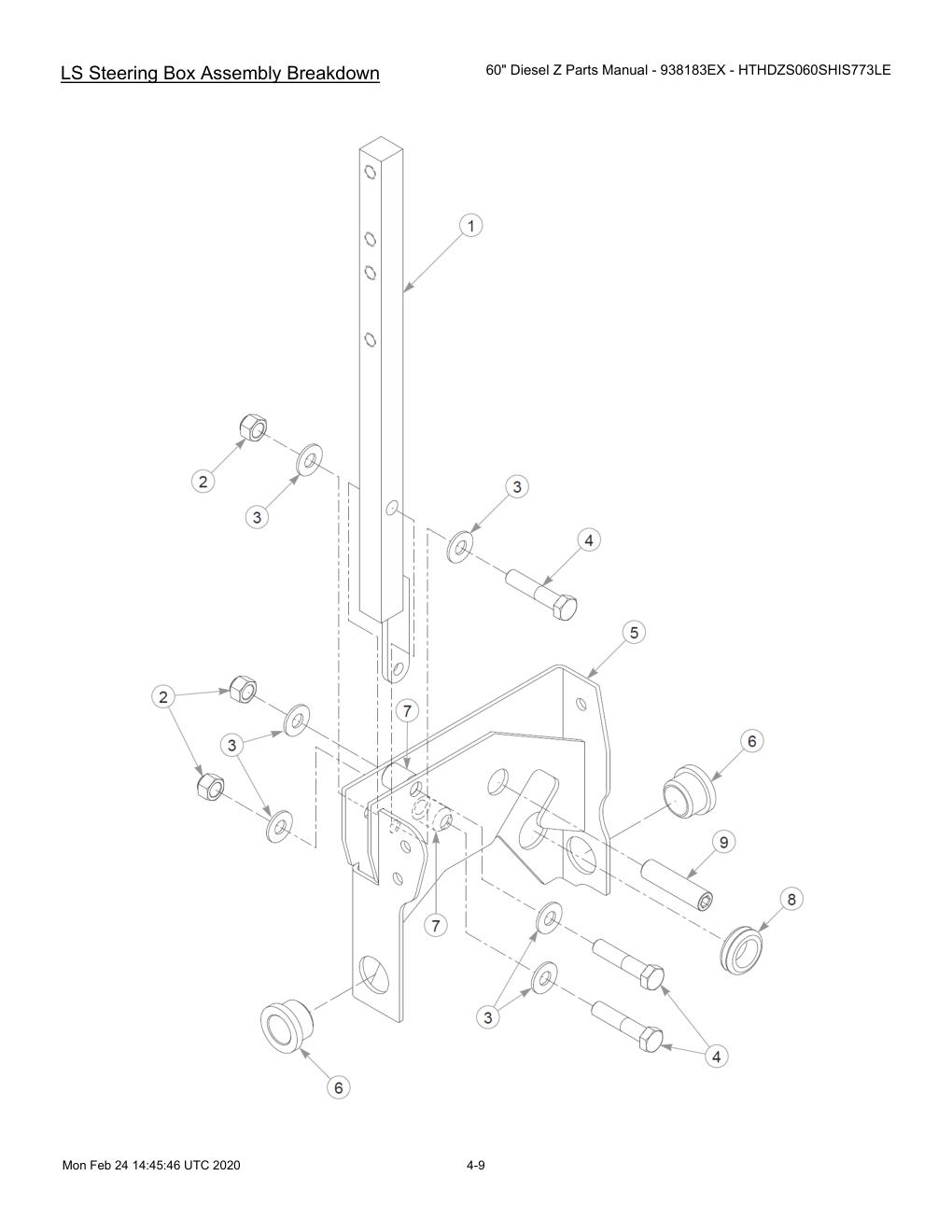

LS Steering Box Assembly Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STEERING ARM W/A | NSS | 1 | NSS-Online |
| 2 | NT .375-16NLG8 | 086660 | 3 | HT086660-Online |
| 3 | FW 0.379X.82X.06 HD ZY | 767954 | 6 | HT767954-Online |
| 4 | CS .375-16X1.750HXG5 | 705178 | 3 | HT705178-Online |
| 5 | STEERING BOX W/A LH | 112899 | 1 | 112899-Online |
| 6 | BUSHING, UHMW | 781153 | 2 | HT781153-Online |
| 7 | STEERLEVER BUSHING (PLA | 348862 | 2 | HT348862-Online |
| 8 | GM .750X.188X1.00X.12 | 047456 | 1 | 047456-Online |
| 9 | SS .500-13X2.000SH | 797738 | 1 | 797738-Online |

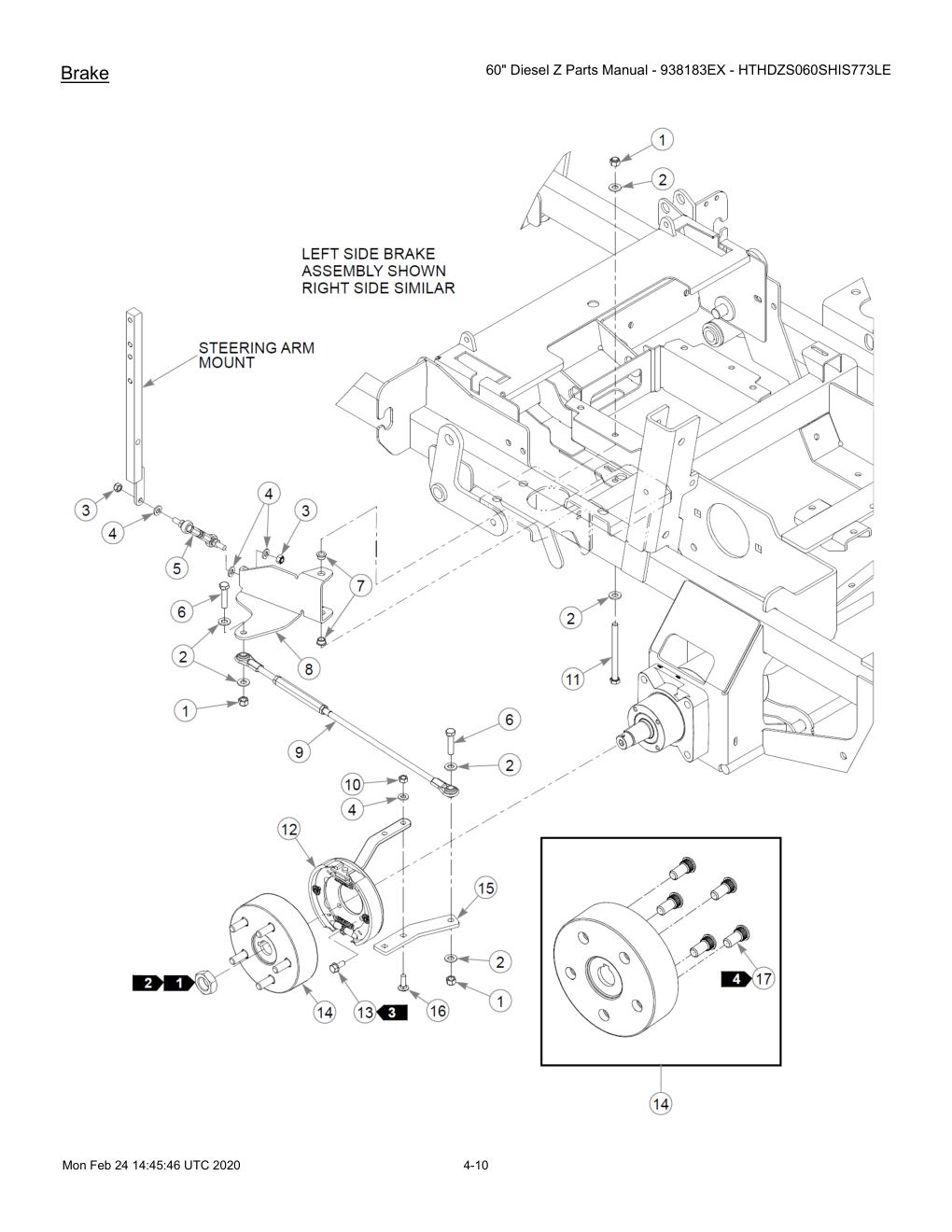

Brake
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .375-16NLG8 | 086660 | 6 | HT086660-Online |
| 2 | FW 0.379X.82X.06 HD ZY | 767954 | 12 | HT767954-Online |
| 3 | NT 0.312-24 NL G8 | 023655 | 4 | HT023655-Online |
| 4 | FW 0.343SAE | 768523 | 10 | HT768523-Online |
| 5 | BRAKE ROD ASSEMBLY | 781583 | 2 | HT781583-Online |
| 6 | CS .375-16X1.500HXG5 | 080655 | 4 | HT080655-Online |
| 7 | BUSHING,IGUS#0608 (FS) | 765339 | 4 | HT765339-Online |
| 8 | BRAKE BELLCRANK, LS HDZ | 115123 | 1 | 115123-Online |
| Not Shown | BRAKE BELLCRANK, RS HDZ | 115124 | 1 | 115124-Online |
| 9 | BRAKE TURNBUCKLE ASSY | 603673 | 2 | 603673-Online |
| 10 | NT .312-18HXG5 | 034272 | 4 | HT034272-Online |
| 11 | CS .375-16X4.500HXG5 | 052514 | 2 | 052514-Online |
| 12 | BRAKE ASSY, PARKER | 602383 | 2 | 602383-Online |
| 13 | CS .312-18X.75HXG8 FL | 604461 | 8 | 604461-Online |
| 14 | HUB ASSY, PARKER | 602384 | 2 | 602384-Online |
| 15 | BRAKE ARM,Z4 | 111309 | 2 | HT111309-Online |
| 16 | CB .312-18X 1.000 FUL YZ | 037887 | 4 | HT037887-Online |
| 17 | STUD 1/2-20 X 1 1/2" | 606124 | 5 | 606124-Online |
| Not Shown | STUD, WHEEL LUG 1/2-20 | 601085 | 5 | HT601085-Online |

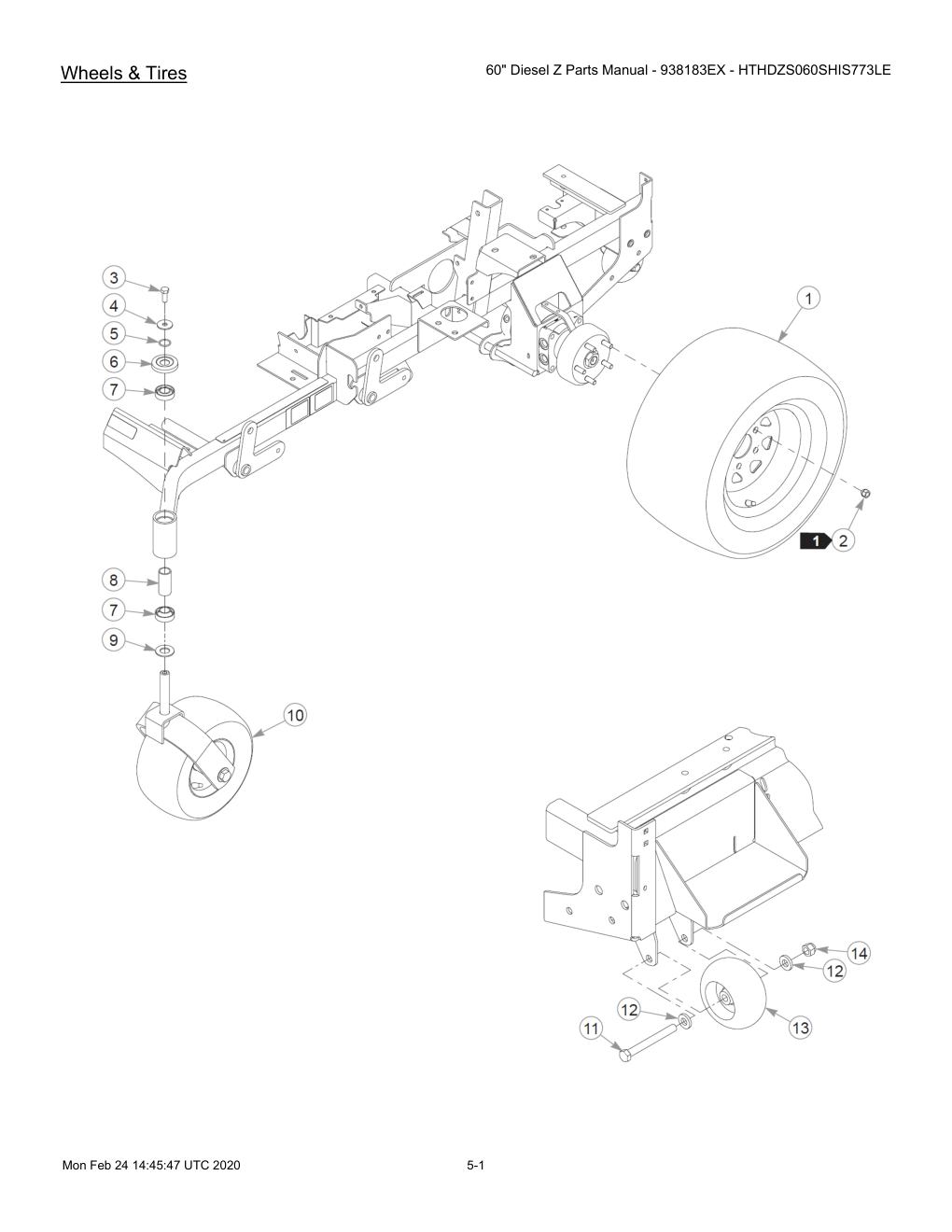

Wheels & Tires
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIR/WHL 24X12.00-12 SLV | 606968 | 2 | 606968-Online |
| 2 | WHEEL NUT | 061077 | 10 | HT061077-Online |
| 3 | CS .500-13X1.25 HX G5 ZY | 705954 | 2 | HT705954-Online |
| 4 | FW .515X1.65X.12 HD ZY | 798603 | 2 | 798603-Online |
| 5 | O-RING, SAE-14 | 601375 | 2 | 601375-Online |
| 6 | DUST CAP, SZ CASTER | 603153 | 2 | 603153-Online |
| 7 | BEARING | 784223 | 4 | HT784223-Online |
| 8 | SPACER, 1.07x1.312x2.79 | 387035 | 2 | HT387035-Online |
| 9 | BEARING DISC, FORK | 603164 | 2 | 603164-Online |
| 10 | FRONT WHEEL ASSEMBLY | N/A | 2 | No SKU |
| 11 | CS .500-13X4.500HXG5 | 068239 | 2 | HT068239-Online |
| 12 | FW .531 x 1.063 x .175 | 767962 | 4 | HT767962-Online |
| 13 | ANTI-SCALP WHEEL | 031997 | 2 | HT031997-Online |
| 14 | NT .500-13NLG5 | 781567 | 2 | HT781567-Online |

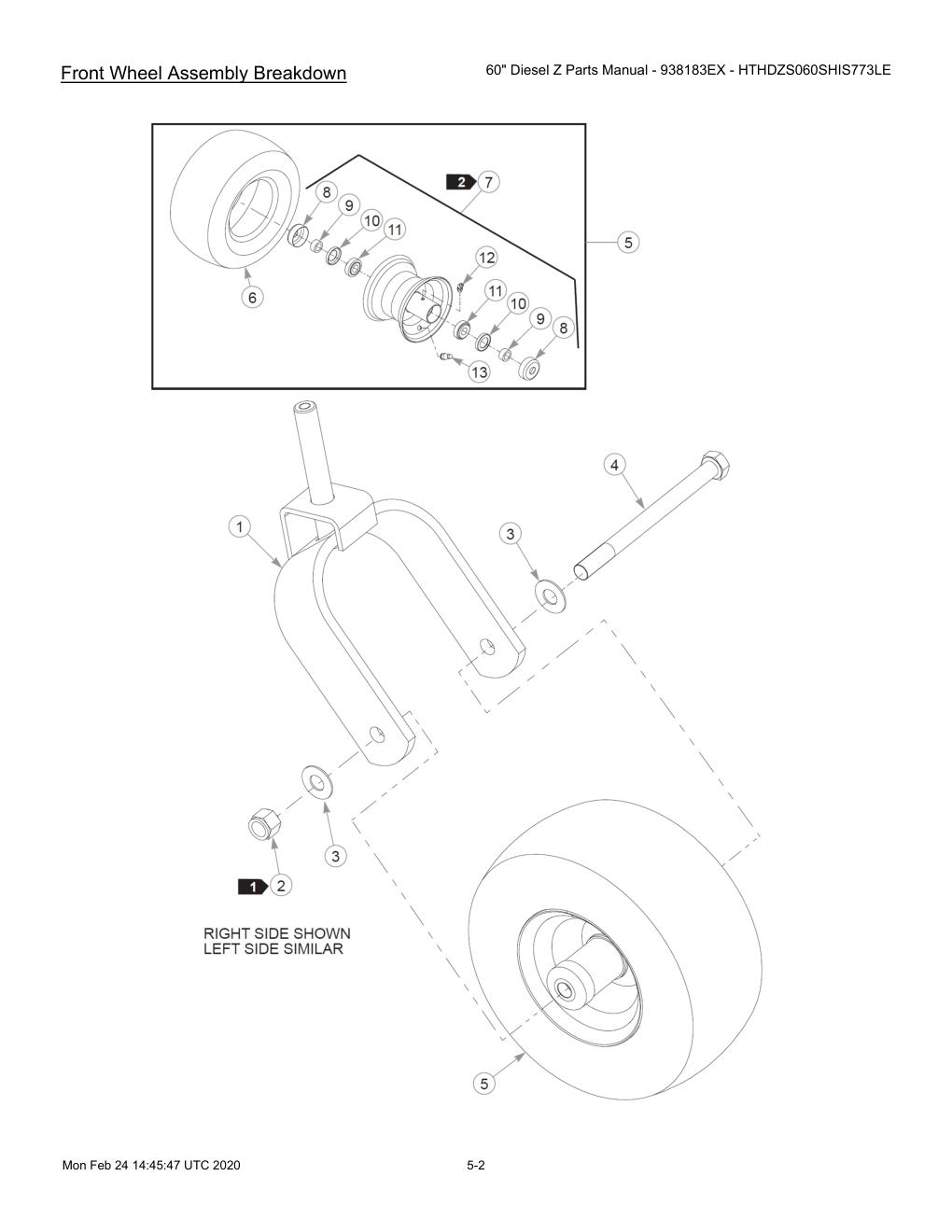

Front Wheel Assembly Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FORK W/A, STANDARD | 113621 | 1 | 113621-Online |
| 2 | NT .750-10 HX ZY NL GR B | 061101 | 1 | HT061101-Online |
| 3 | FW .760X1.63X0.08 ZY | 025296 | 2 | HT025296-Online |
| 4 | CS .750-10X9.50 HX G5 ZY | 041475 | 1 | HT041475-Online |
| 5 | TIR/WHL 13X6.50-6 SLV | 606744 | 1 | 606744-Online |
| 6 | TIR 13X6.50-6 B4R SMTH | 604843 | 1 | 604843-Online |
| 7 | WHL 6X4.50 SLV | 606751 | 1 | 606751-Online |
| 8 | DUST CAP, 0.752 ID | 606815 | 2 | 606815-Online |
| 9 | SPACER, 0.531 | 606778 | 2 | 606778-Online |
| 10 | SEAL | 606780 | 2 | 606780-Online |
| 11 | BEARING, TAPERED ROLLER | 606753 | 2 | 606753-Online |
| 12 | GREASE FITTING, M8X1.0 | 606126 | 1 | 606126-Online |
| 13 | TIRE VALVE TR-412 GOODY | 019521 | 1 | HT019521-Online |

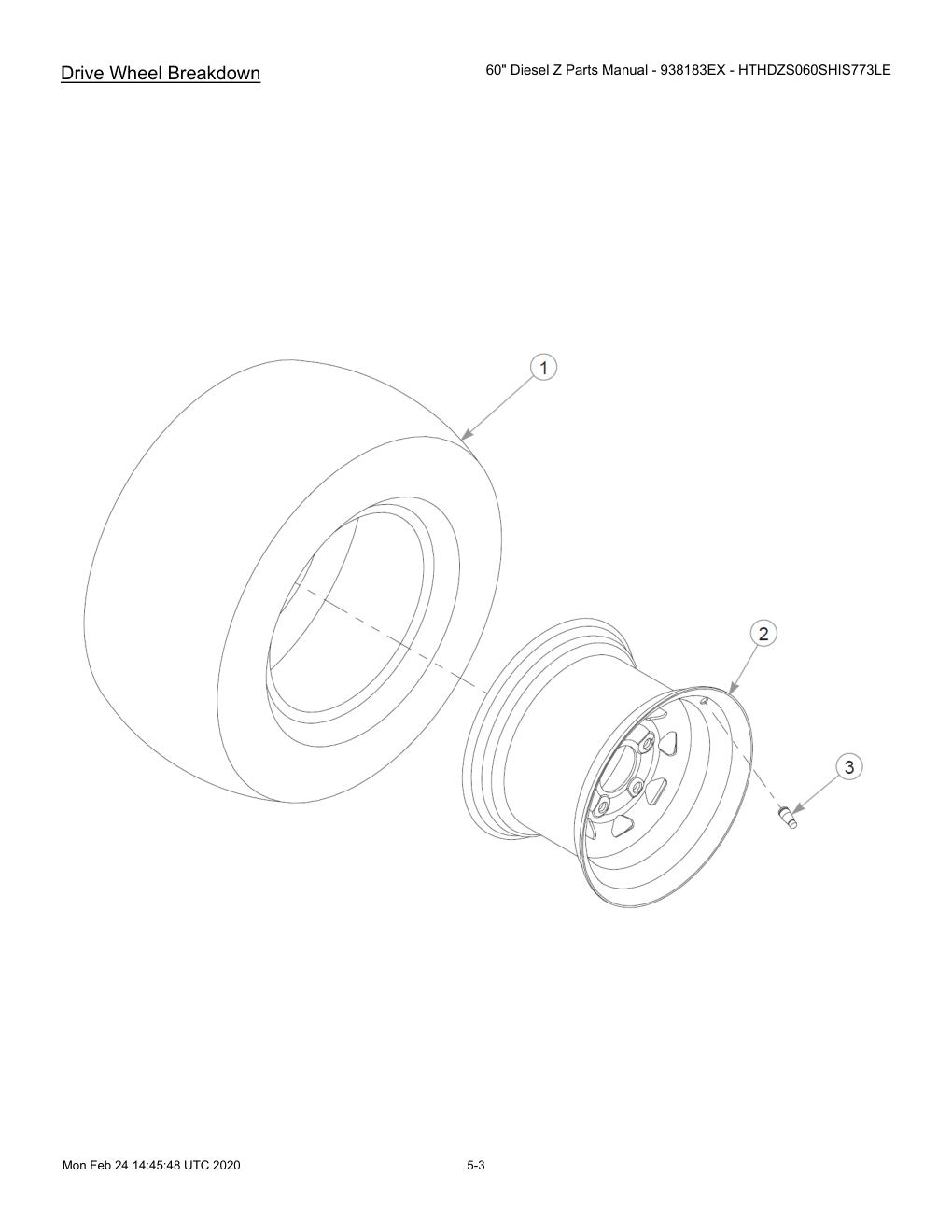

Drive Wheel Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIR 24X12.00-12 B4R GRMR | 606967 | 1 | 606967-Online |
| 2 | WHL 12X8.50 5X4.5 SLV | 606820 | 1 | 606820-Online |
| 3 | TIRE VALVE TR-412 GOODY | 019521 | 1 | HT019521-Online |

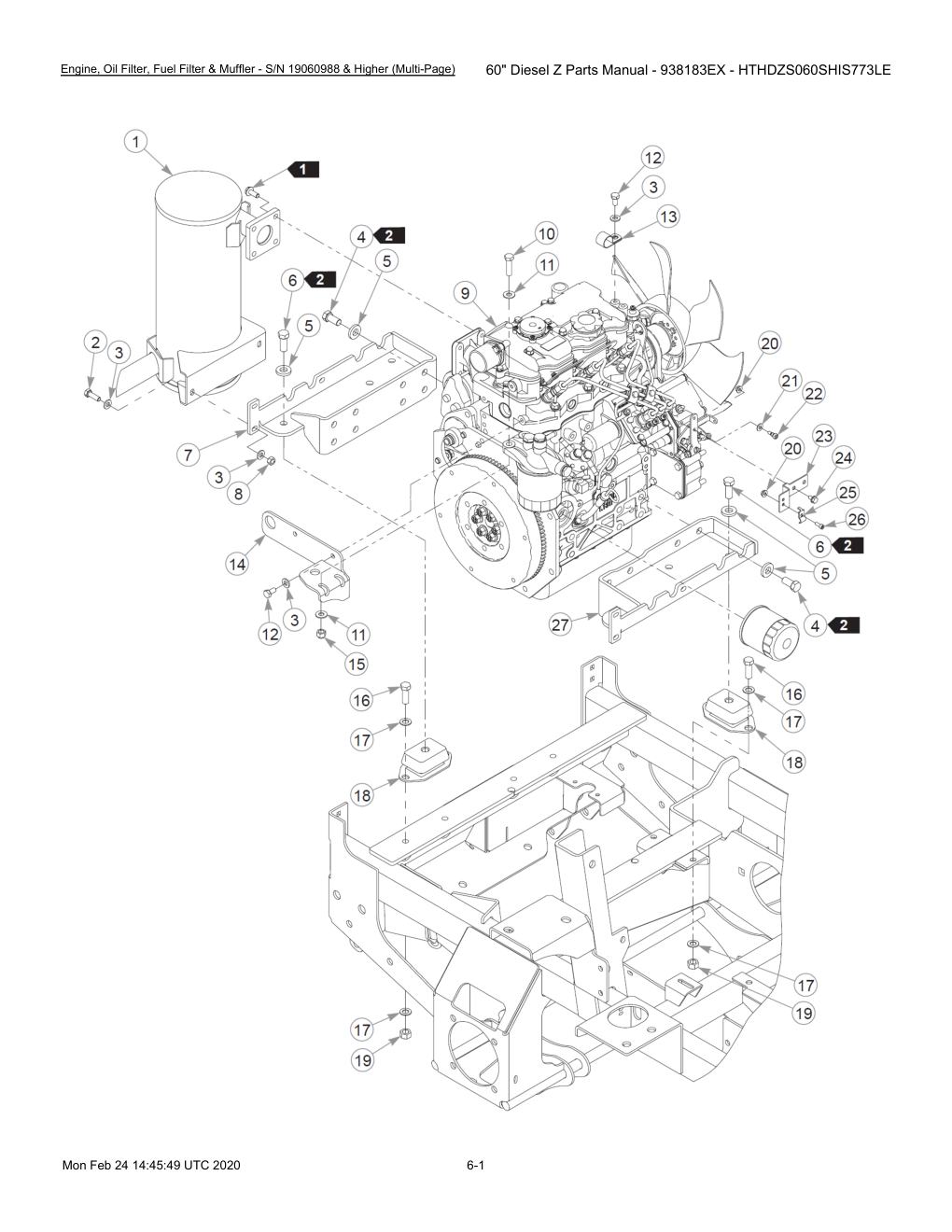

Engine, Oil Filter, Fuel Filter & Muffler - S/N 19060988 & Higher (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | MUFFLER, ISM S773L HDZ | 601361 | 1 | 601361-Online |
| 2 | CS .312-18X1.000HXG5 | 036236 | 2 | 036236-Online |
| 3 | FW 0.343SAE | 768523 | 10 | HT768523-Online |
| 4 | CS M12-1.25 X 25 ZN | 601428 | 16 | 601428-Online |
| 5 | FW .531 x 1.063 x .175 | 767962 | 20 | HT767962-Online |
| 6 | CS M12-1.75 x 30 G8.8 ZN | 602196 | 4 | 602196-Online |
| 7 | MOTOR MOUNT W/A, REAR | 111045 | 1 | 111045-Online |
| 8 | NT .312-18HXG5 | 034272 | 2 | HT034272-Online |
| 9 | ENG, S773L DSL ISM138681 | 601355 | 1 | 601355-Online |

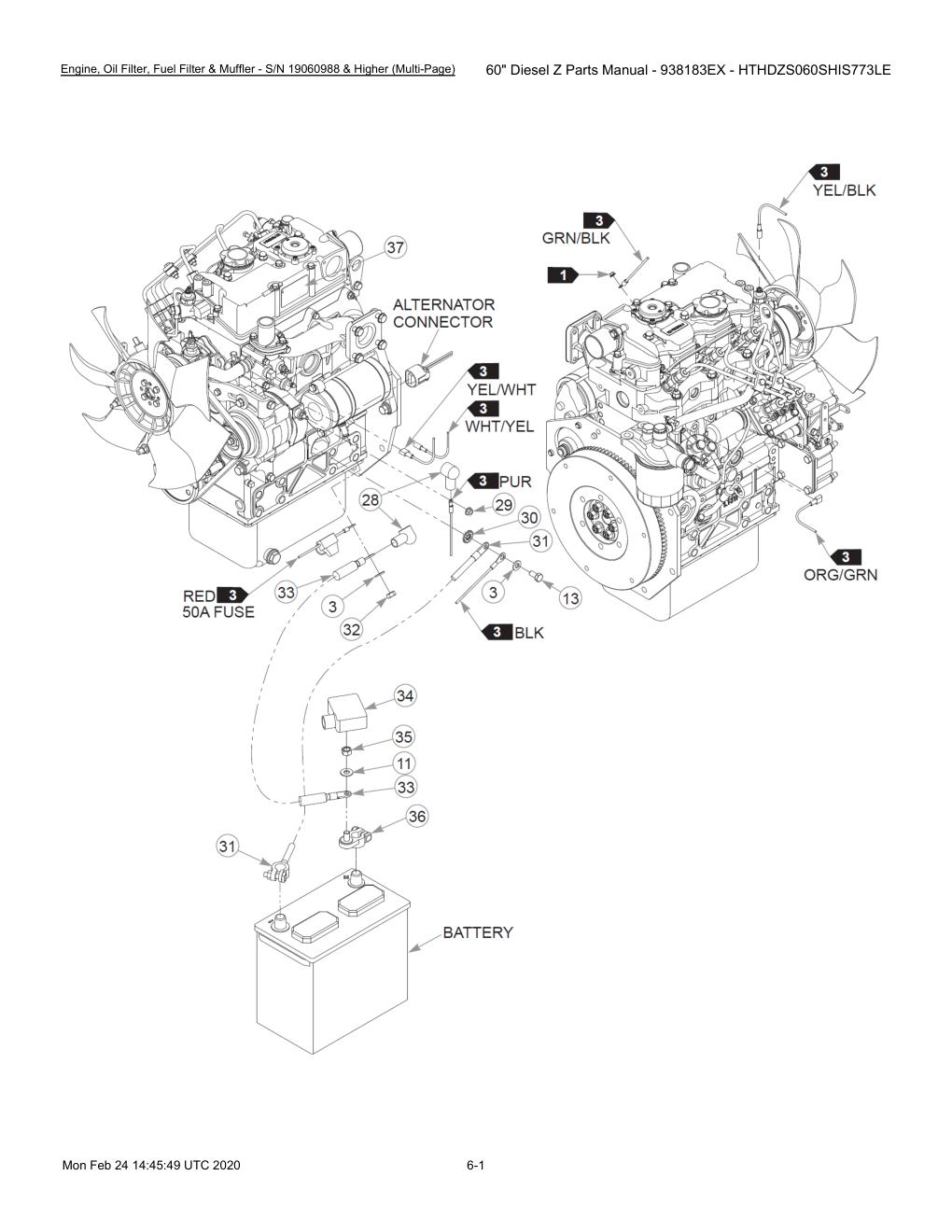

Engine, Oil Filter, Fuel Filter & Muffler - S/N 19060988 & Higher (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 34 | BOOT, POSITIVE BATTERY | 601381 | 1 | 601381-Online |
| 35 | NT .375-16HXG5 | 054502 | 1 | HT054502-Online |
| 36 | POST, POS BAT MARINE | 601380 | 1 | 601380-Online |
| 37 | DECAL, CAUTION | 606453 | 1 | 606453-Online |
| 38 | FUEL LINE, 5/16" | 791400 | 30" | 791400-Online |
| 39 | HOSE CLAMP, 1/4" - 5/8" | 601693 | 4 | 601693-Online |
| 40 | FUEL PRIMER BULB, 5/16" | 601378 | 1 | 601378-Online |
| 41 | CLAMP, 3/16 FUEL | 603112 | 2 | 603112-Online |
| 42 | VAPOR LINE, 3/16" | 603326 | 13" | 603326-Online |
| 43 | ENGINE OIL FILTER | 140517020 | 1 | HT140517020-Online |

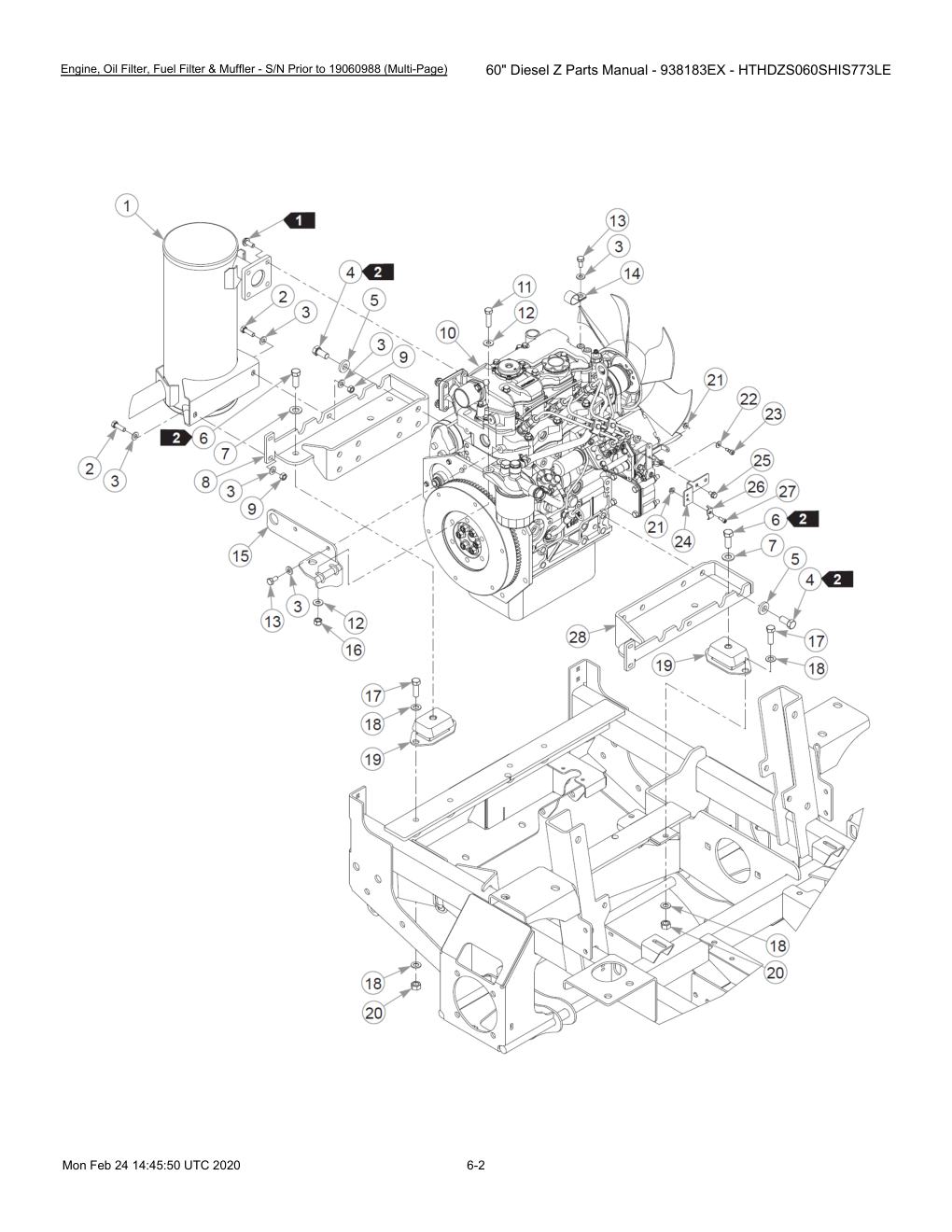

Engine, Oil Filter, Fuel Filter & Muffler - S/N Prior to 19060988 (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | MUFFLER, ISM S773L HDZ | 601361 | 1 | 601361-Online |
| 2 | CS .312-18X1.000HXG5 | 036236 | 2 | 036236-Online |
| 3 | FW 0.343SAE | 768523 | 9 | HT768523-Online |
| 4 | CS M12-1.25 X 25 ZN | 601428 | 16 | 601428-Online |
| 5 | FW .531 x 1.063 x .175 | 767962 | 16 | HT767962-Online |
| 6 | CS M12-1.75 x 30 G8.8 ZN | 602196 | 4 | 602196-Online |
| 7 | FW .531x1.00x.090 ZY | 004168 | 4 | HT004168-Online |
| 8 | MOTOR MOUNT W/A, REAR | 111045 | 1 | 111045-Online |
| 9 | NT .312-18HXG5 | 034272 | 2 | HT034272-Online |
| 10 | ENG, S773L DSL ISM138681 | 601355 | 1 | 601355-Online |
Engine, Oil Filter, Fuel Filter & Muffler - S/N Prior to 19060988 (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 34 | CABLE, POS 9" | 601539 | 1 | 601539-Online |
| 35 | BOOT, POSITIVE BATTERY | 601381 | 1 | 601381-Online |
| 36 | NT .375-16HXG5 | 054502 | 1 | HT054502-Online |
| 37 | POST, POS BAT MARINE | 601380 | 1 | 601380-Online |
| 38 | DECAL, CAUTION | 606453 | 1 | 606453-Online |
| 39 | FUEL LINE, 5/16" | 791400 | 30" | 791400-Online |
| 40 | HOSE CLAMP, 1/4" - 5/8" | 601693 | 4 | 601693-Online |
| 41 | FUEL PRIMER BULB, 5/16" | 601378 | 1 | 601378-Online |
| 42 | CLAMP, 3/16 FUEL | 603112 | 2 | 603112-Online |
| Not Shown | HOSE CLAMP, 7/16 SPRING | 041483 | 2 | 041483-Online |
| 43 | VAPOR LINE, 3/16" | 603326 | 13" | 603326-Online |
| Not Shown | FUEL LINE, 3/16" | 038398 | 13" | 038398-Online |
| 44 | O-RING, HDZ REMOTE OIL | 601567 | 1 | 601567-Online |
| 45 | ADAPTER, REMOTE OIL | 601526 | 1 | 601526-Online |
| 46 | HOSE CLAMP 1" (FS) | 045088 | 1 | 045088-Online |
| 47 | CS .250-20X0.50 HX G5 ZY | 055947 | 2 | 055947-Online |
| 48 | FW 0.281SAE | 768515 | 2 | HT768515-Online |
| 49 | FILTER HEAD, HDZ | 601487 | 1 | 601487-Online |
| 50 | FTG, STR-6MORB/-6MS | 792150 | 2 | 792150-Online |
| 51 | FTG, -6MORB/-6MJIC STR | 779132 | 2 | 779132-Online |
| 52 | HOSE, OIL FILTER RELOC | 601546 | 1 | 601546-Online |
| 53 | HOSE, OIL FILTER RELOC | 601547 | 1 | 601547-Online |
| 54 | ENGINE OIL FILTER | 140517020 | 1 | HT140517020-Online |
| 55 | FILTER, FUEL SPIN ON | 130366120 | 1 | HT130366120-Online |

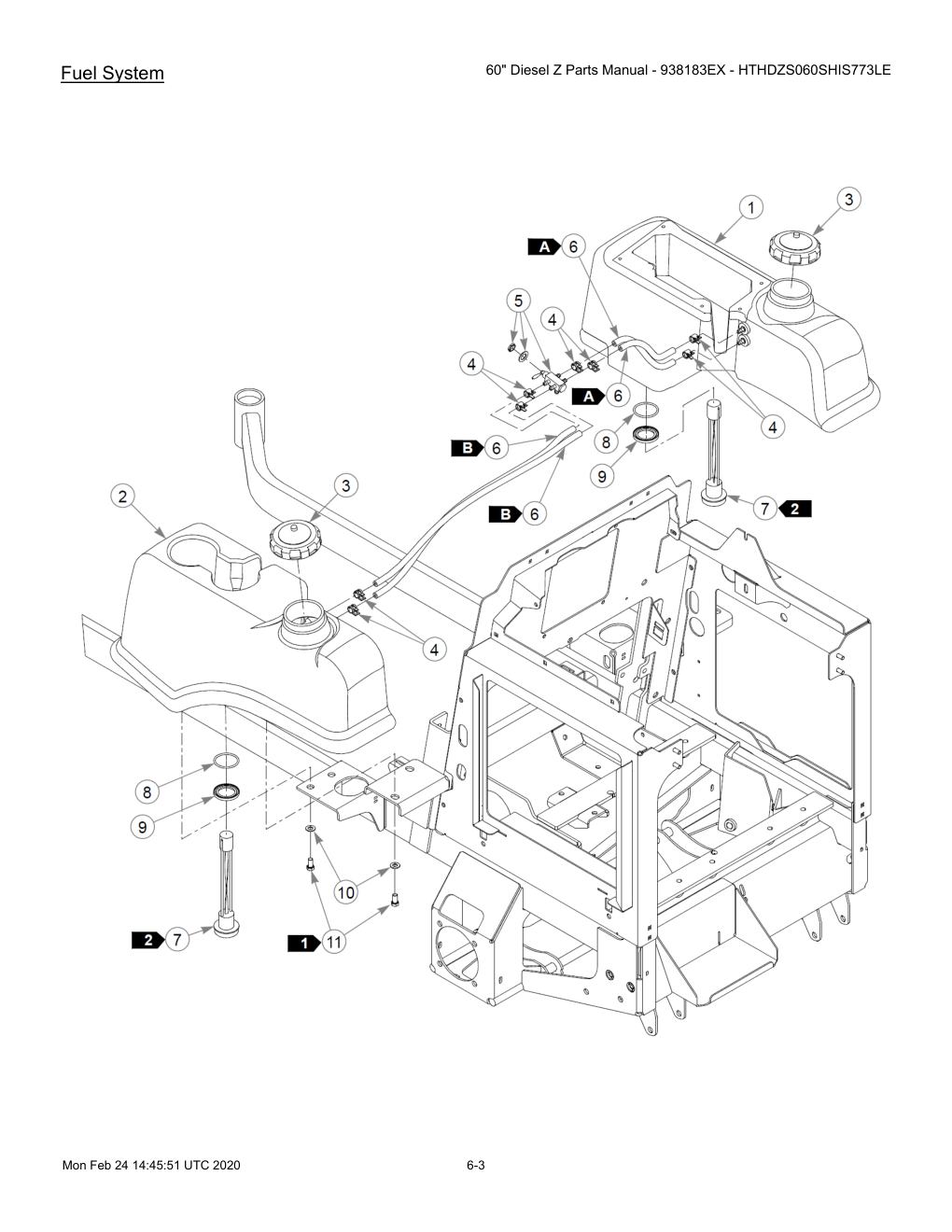

Fuel System
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FUEL TANK, FENDER, RH | 603778 | 1 | 603778-Online |
| 2 | FUEL TANK, FENDER, LH | 603779 | 1 | 603779-Online |
| 3 | CAP, 3 1/2" YELLOW FUEL | 798470 | 2 | HT798470-Online |
| 4 | CLIP, HOSE CLAMP | 000323 | 8 | 000323-Online |
| 5 | FUEL VALVE SDZ | 795542 | 1 | 795542-Online |
| 6 | FUEL LINE, 1/4" | 015818 | 71 in | HT015818-Online |
| 7 | SVC KIT, FUEL GAUGE | 603780K | 2 | 603780K-Online |
| 8 | O-RING, VITON -225 SIZE | 602069 | 2 | 602069-Online |
| 9 | SEAL WASHER | 603835 | 2 | 603835-Online |
| 10 | FW 0.379X.82X.06 HD ZY | 767954 | 8 | HT767954-Online |
| 11 | CS .375-16X0.75 HX G5 ZY | 055822 | 8 | HT055822-Online |

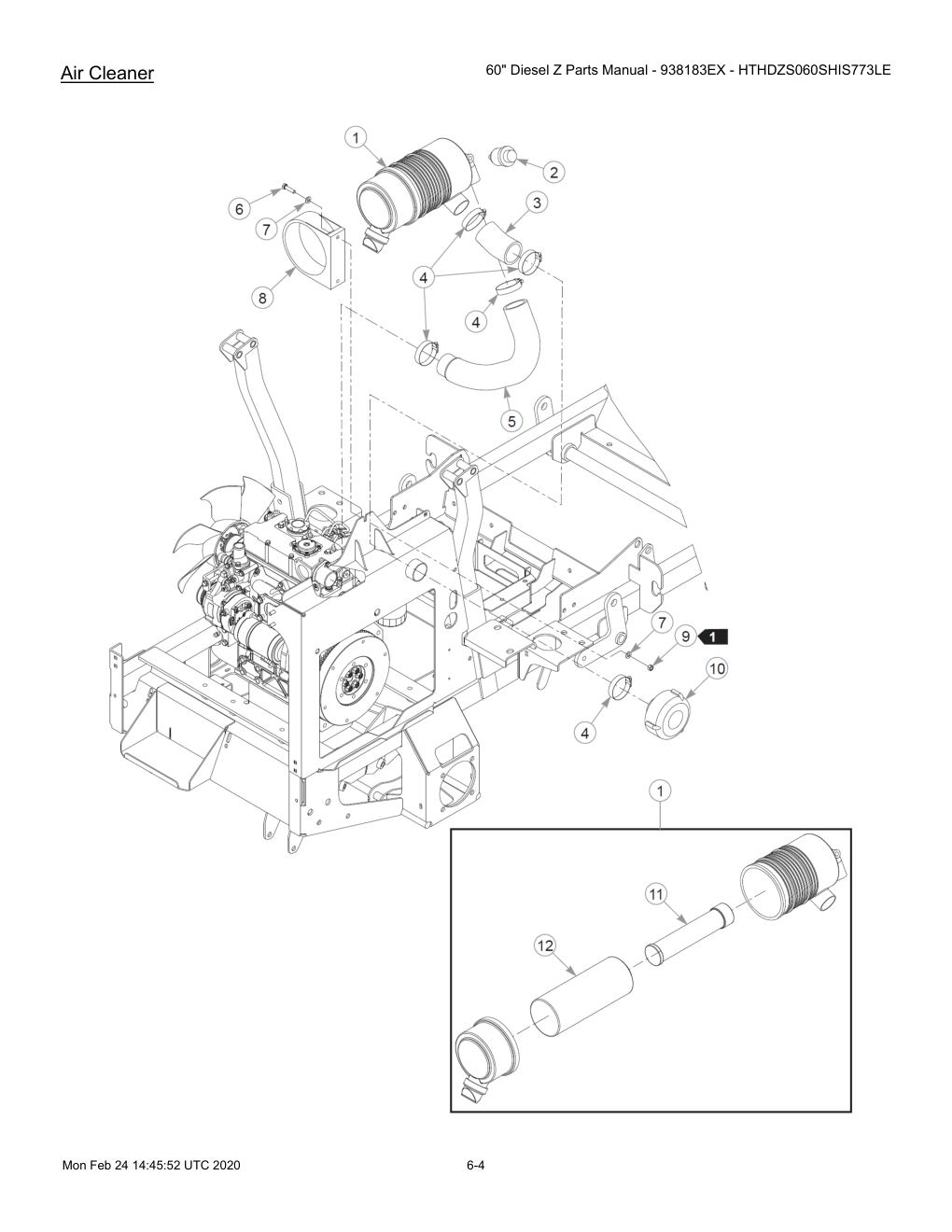

Air Cleaner
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | AIR CLEANER, DONALDSON | 782763 | 1 | HT782763-Online |
| Not Shown | COVER END, W/ LATCHES | 600910 | 1 | 600910-Online |
| 2 | AIR FILTER INDICATOR,25 | 795138 | 1 | 795138-Online |
| 3 | HOSE, FRESH AIR INTK HDZ | 601359 | 1 | 601359-Online |
| 4 | HOSE CLAMP (FS) | 057661 | 5 | 057661-Online |
| 5 | HOSE, INTAKE HDZ | 601360 | 1 | 601360-Online |
| 6 | CS .312-18X1.250HXG5 | 079186 | 2 | 079186-Online |
| 7 | FW 0.343SAE | 768523 | 4 | HT768523-Online |
| 8 | BAND, AIR CLEANER MOUNT | 785741 | 1 | 785741-Online |
| 9 | NT .312-18HXG5 | 034272 | 2 | HT034272-Online |
| 10 | ENGINE CENTRIFICAL PREC | 775353 | 1 | HT775353-Online |
| 11 | AIR FILTER - SAFETY | 785279 | 1 | 785279-Online |
| 12 | AIR FILTER - MAIN | 785261 | 1 | 785261-Online |

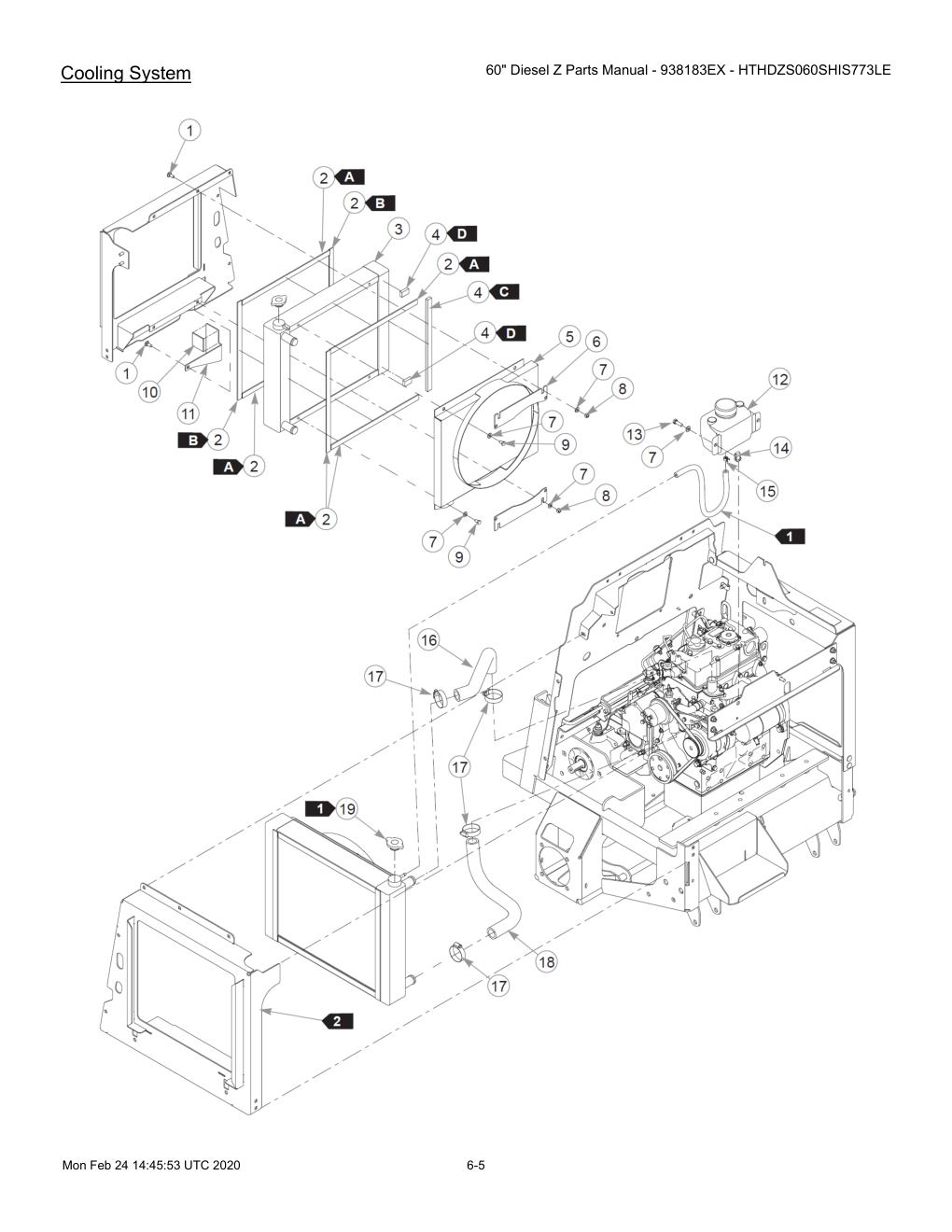

Cooling System
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CB .312-18X .750 FUL ZN | 016253 | 4 | 016253-Online |
| 2 | WEATHERSTRIP .12X.75 | 033035 | 111" | 033035-Online |
| 3 | RADIATOR, HDZ ISM 773 | 601295 | 1 | 601295-Online |
| 4 | SEAL 3/8x3/4 SOLD BY FT | 713198 | 17" | 713198-Online |
| 5 | SHROUD W/A, HDZ 773 | 109144 | 1 | 109144-Online |
| 6 | PLATE, RAD MNT TOP HDZ | 108977 | 2 | 108977-Online |
| 7 | FW 0.343SAE | 768523 | 10 | HT768523-Online |
| 8 | NT .312-18HXG5 | 034272 | 4 | HT034272-Online |
| 9 | CS .312-18X0.500HXG5 | 068346 | 4 | 068346-Online |
| 10 | RADIATOR SUPPORT PAD | 606946 | 1 | 606946-Online |
| 11 | RADIATOR BRACKET | 124556-3 | 1 | 124556-3-Online |
| 12 | BOTTLE, OVERFLOW RAD | 601358 | 1 | 601358-Online |
| Not Shown | CAP, RECOVERY TANK (VEN | 763367 | 1 | 763367-Online |
| 13 | CS .312-18X1.000HXG5 | 036236 | 2 | 036236-Online |
| 14 | CN .312-18x.200 MAX THK | 601069 | 2 | HT601069-Online |
| 15 | HOSE CLAMP, 7/16 SPRING | 041483 | 1 | 041483-Online |
| 16 | HOSE, UPPER RADIATOR HDZ | 601353 | 1 | 601353-Online |
| 17 | HOSE CLAMP | 713040 | 4 | 713040-Online |
| 18 | HOSE, LOWER RADIATOR HDZ | 601354 | 1 | 601354-Online |
| 19 | CAP, RADIATOR YDZ TO FIT | 600320 | 1 | 600320-Online |

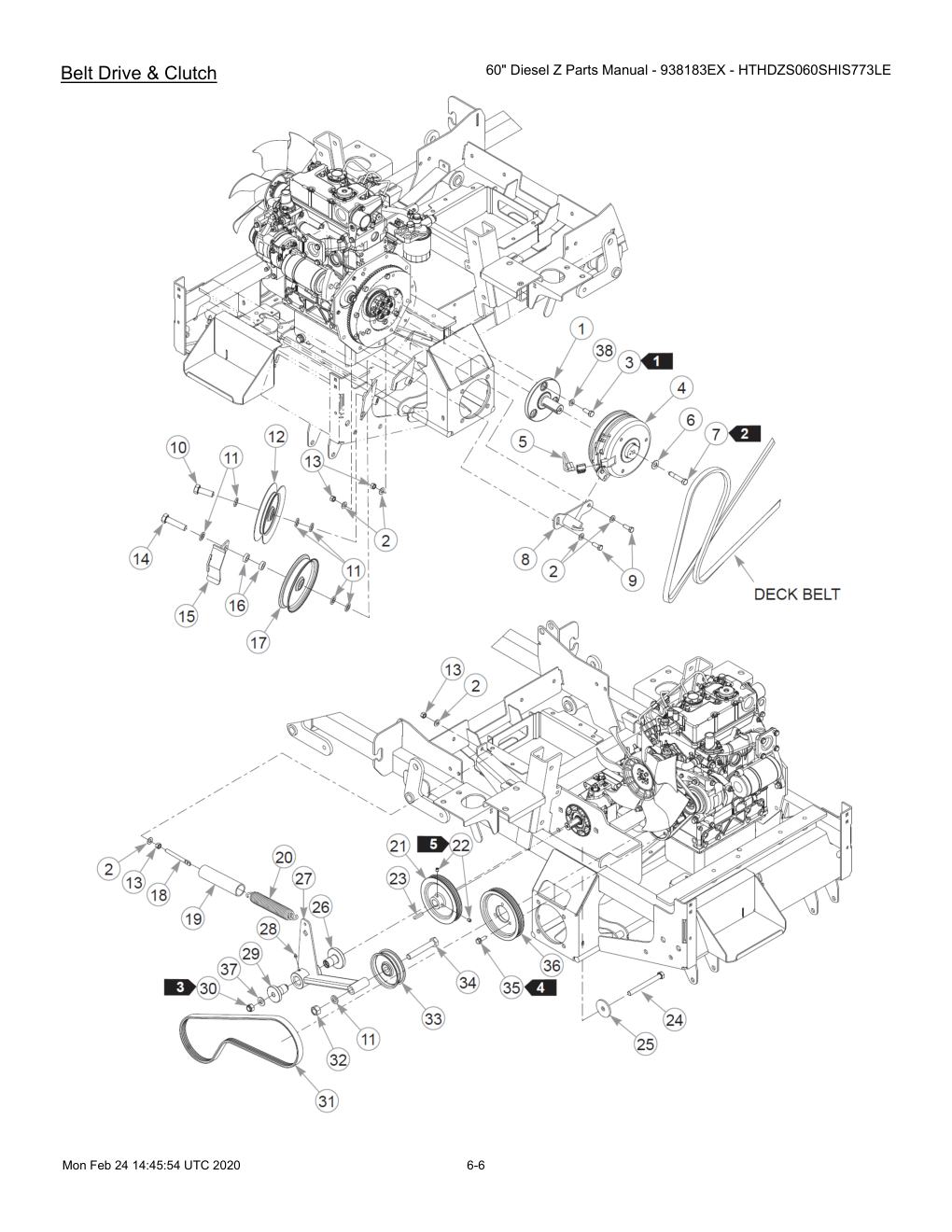

Belt Drive & Clutch
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STUB SHAFT, ISM 773 | 601279 | 1 | 601279-Online |
| 2 | FW 0.379X.82X.06 HD ZY | 767954 | 6 | HT767954-Online |
| 3 | CS M10-1.50X25 HX ZN | 038836 | 3 | 038836-Online |
| 4 | CLUTCH KIT | 601278K | 1 | 601278K-Online |
| 5 | HARNESS, CLUTCH PIGTAIL | 791251 | 1 | HT791251-Online |
| 6 | FW .453X1.12X.12 HRD ZY | 602680 | 1 | 602680-Online |
| 7 | CS .437-20X2.250 HXG5P85 | 778217 | 1 | 778217-Online |
| 8 | CLUTCH ANCHOR W/A | 109725 | 1 | 109725-Online |
| 9 | CS .375-16X1.00 HX G5 ZY | 036244 | 2 | HT036244-Online |
| 10 | CS .62511X1.750HXG5 | 025007 | 1 | HT025007-Online |
| 11 | FW 0.625X1.00X.13 ZY | 028118 | 7 | HT028118-Online |
| 12 | PULLEY, 6" HB IDLER RD | 796714 | 1 | HT796714-Online |
| 13 | NT .375-16HXG5 | 054502 | 4 | HT054502-Online |
| 14 | CS .625-11X2.500HXG5 | 025015 | 1 | HT025015-Online |
| 15 | BELT GUIDE, W/A | 113088 | 1 | 113088-Online |
| 16 | SPACER, DECK IDLER | 600296 | 2 | HT600296-Online |
| 17 | PULLEY, IDLER NHI 6.00" | 781385 | 1 | HT781385-Online |
| 18 | EB, .375-16X3.00 FULTHD | 601486 | 1 | 601486-Online |
| 19 | TUBE, 1.500 X .12W CLR | 601722 | 1 | 601722-Online |
| 20 | IDLER SPRING | 601016 | 1 | HT601016-Online |
| 21 | PULLEY, 5.625" MICRO V | 601422 | 1 | 601422-Online |
| 22 | SS .312-18 X .312 SH BO | 600122 | 2 | HT600122-Online |
| 23 | KEY, 1/4 X 1.375 LONG | 601713 | 1 | 601713-Online |
| 24 | CS .500-13X5.000HXG5 | 051151 | 1 | HT051151-Online |
| 25 | FW .510X2.15X.19 ZY | 344267 | 1 | HT344267-Online |
| 26 | BUSHING, IDLER PIVOT | 602880 | 1 | 602880-Online |
| 27 | IDLER ARM, W/A | 115117 | 1 | 115117-Online |
| 28 | GREASE FITTING STRAIGHT | 015495 | 1 | HT015495-Online |
| 29 | BUSHING, IDLER PIVOT | 602879 | 1 | 602879-Online |
| 30 | NT .500-13NLG5 | 781567 | 1 | HT781567-Online |
| 31 | BELT, 4 RIB "PVL" | 601424 | 1 | 601424-Online |
| 32 | NT .625-11 HX G5 ZNYC | 016972 | 1 | HT016972-Online |
| 33 | PULLEY, 4" FLAT IDLER | 601488 | 1 | 601488-Online |
Belt Drive & Clutch
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 34 | CS .625-11X4.000HXG5 | 047712 | 1 | 047712-Online |
| 35 | CS M8-1.25X20FLG10.9 | 720177 | 3 | 720177-Online |
| 36 | PULLEY, 6.0" MICRO V | 601423 | 1 | 601423-Online |
| 37 | FW .531 x 1.063 x .175 | 767962 | 1 | HT767962-Online |
| 38 | FW 0.406X1.00X.12 HD ZY | 712919 | 3 | HT712919-Online |

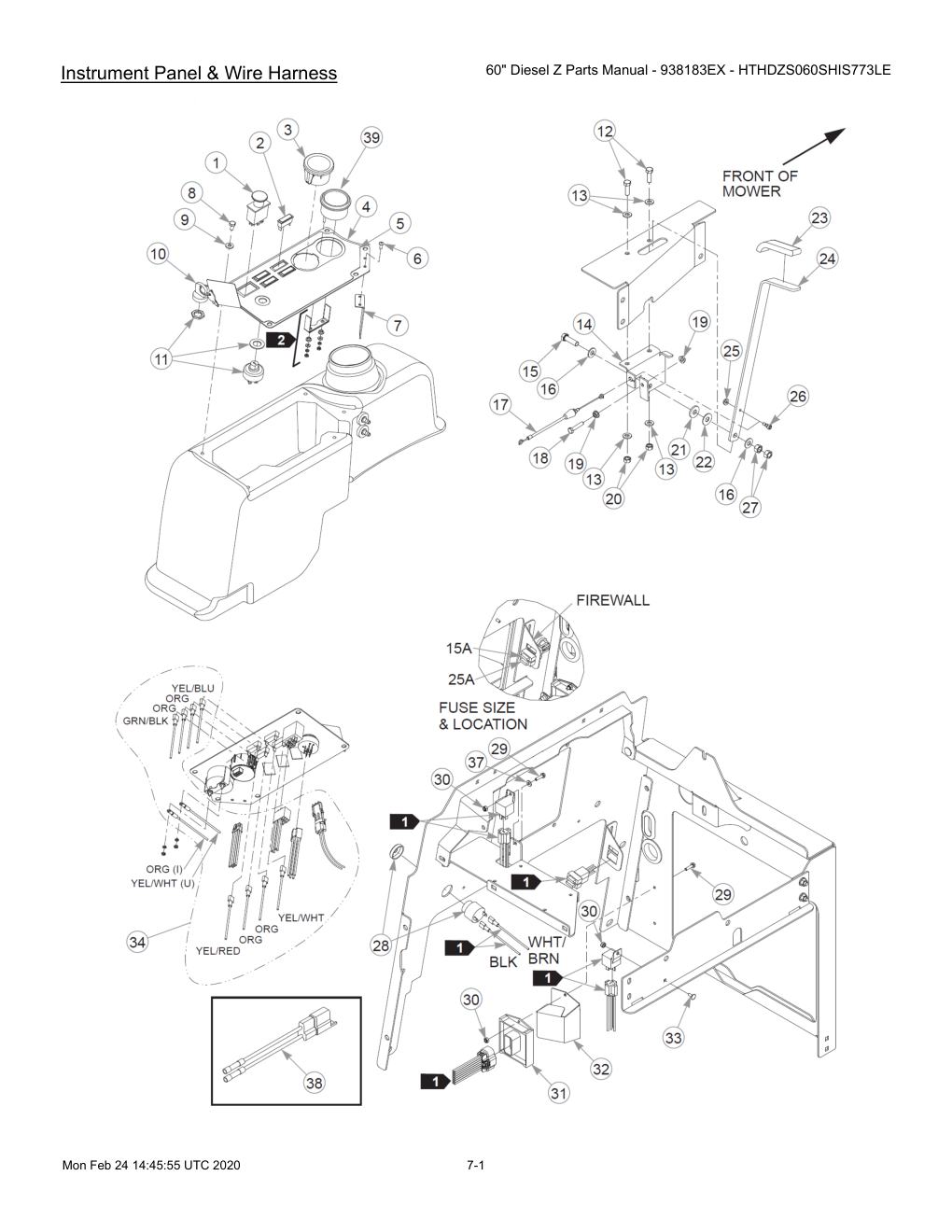

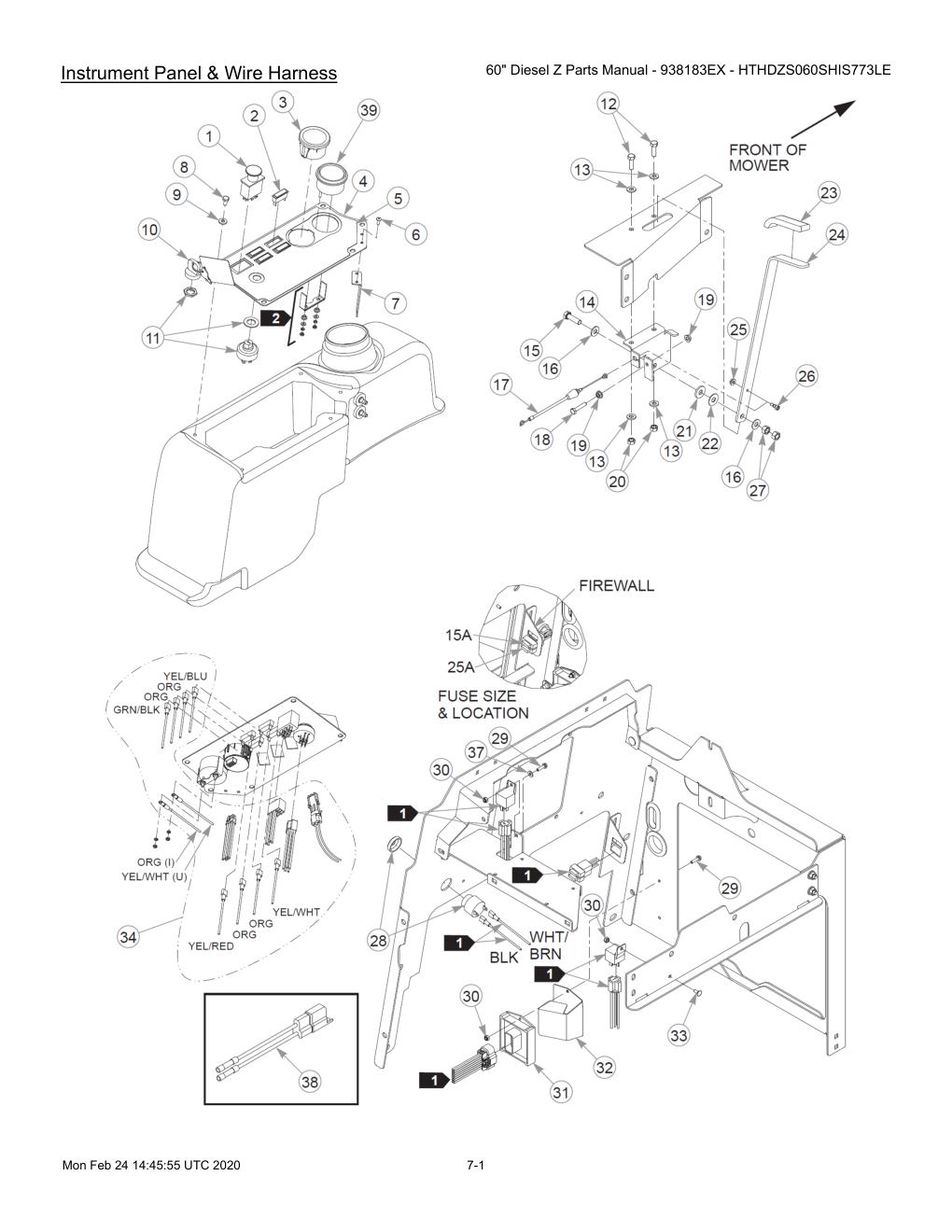

Instrument Panel & Wire Harness
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SWITCH, PTO 6201-321 | 776476 | 1 | HT776476-Online |
| 2 | INDICATOR LIGHT, RED(FS) | 712257 | 4 | HT712257-Online |
| 3 | GAUGE, FUEL/HOURMETER | 606068 | 1 | 606068-Online |
| 4 | SVC, HDZ INST PANEL | 553713 | 1 | 553713-Online |
| 5 | DECAL, INST PANEL HDZ | 606442 | 1 | 606442-Online |
| 6 | RIVET .188 DIA BLK HD | 601089 | 2 | 601089-Online |
| 7 | COVER, HDZ FUEL TANK | 109729 | 1 | 109729-Online |
| 8 | CS .250-20X0.50 HX G5 ZY | 055947 | 5 | 055947-Online |
| 9 | FW 0.281SAE | 768515 | 5 | HT768515-Online |
| 10 | KEY ASSEMBLY | 785808 | 1 | 785808-Online |
| 11 | IGNITION SWITCH | 045898 | 1 | HT045898-Online |
| 12 | CS .312-18X1.000HXG5 | 036236 | 2 | 036236-Online |
| 13 | FW 0.343SAE | 768523 | 4 | HT768523-Online |
| 14 | THROTTLE LEVER PLATE | 109421 | 1 | 109421-Online |
| 15 | CS .375-16X1.25 HX G5 ZY | 052860 | 1 | HT052860-Online |
| 16 | FW 0.379X.82X.06 HD ZY | 767954 | 2 | HT767954-Online |
| 17 | THROTTLE CABLE, HDZ | 601362 | 1 | 601362-Online |
| 18 | CS .250-20X1.25 HX FLTRD | 603968 | 1 | 603968-Online |
| 19 | NT .250-20FLKG5 | 016816 | 2 | 016816-Online |
| 20 | NT .312-18HXG5 | 034272 | 2 | HT034272-Online |
| 21 | FW 0.406X1.00X.12 HD ZY | 712919 | 1 | HT712919-Online |
| 22 | FW .406X1.000X.06 NYLON | 601507 | 1 | 601507-Online |
| 23 | GRIP, BLACK .18x.94x4.0 | 603830 | 1 | 603830-Online |
| 24 | THROTTLE LEVER, HDZ | 115151 | 1 | 115151-Online |
| 25 | NT #10-24 HXFLK ZN | 016774 | 1 | 016774-Online |
| 26 | SB .250Dx.250L 10-24 ZN | 601493 | 1 | 601493-Online |
| 27 | NT .375-16HXG5 | 054502 | 2 | HT054502-Online |
| 28 | ALARM, ULTRA LOUD WARBL | 794347 | 1 | 794347-Online |
| 29 | CS #10-24X0.750FLKG5 | 063198 | 3 | 063198-Online |
| 30 | NT #10-24 HX NL ZN | 059832 | 4 | 059832-Online |
| 31 | CONTROLLER, HDZ S773L | 601368 | 1 | 601368-Online |
| 32 | MODULE COVER, HDZ | 119556 | 1 | 119556-Online |
| 33 | CB 10-24 X .500 ZYNC | 601098 | 1 | 601098-Online |
| 34 | WIRE HARNESS, HDZ | 604744 | 1 | 604744-Online |
| 35 | WIRE TIE, SMALL/LONG | 000430 | 3 | 000430-Online |
| 36 | WIRE TIE, SMALL/SHORT | 000331 | 8 | 000331-Online |
Instrument Panel & Wire Harness
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 37 | FW 0.219X.50X.05 ZY | 704932 | 1 | HT704932-Online |
| 38 | KIT, CLUTCH CONN. REP. | 114052 | 1 | HT114052-Online |
| 39 | GUAGE, TEMP HDZ | 385710011 | 1 | 385710011-Online |

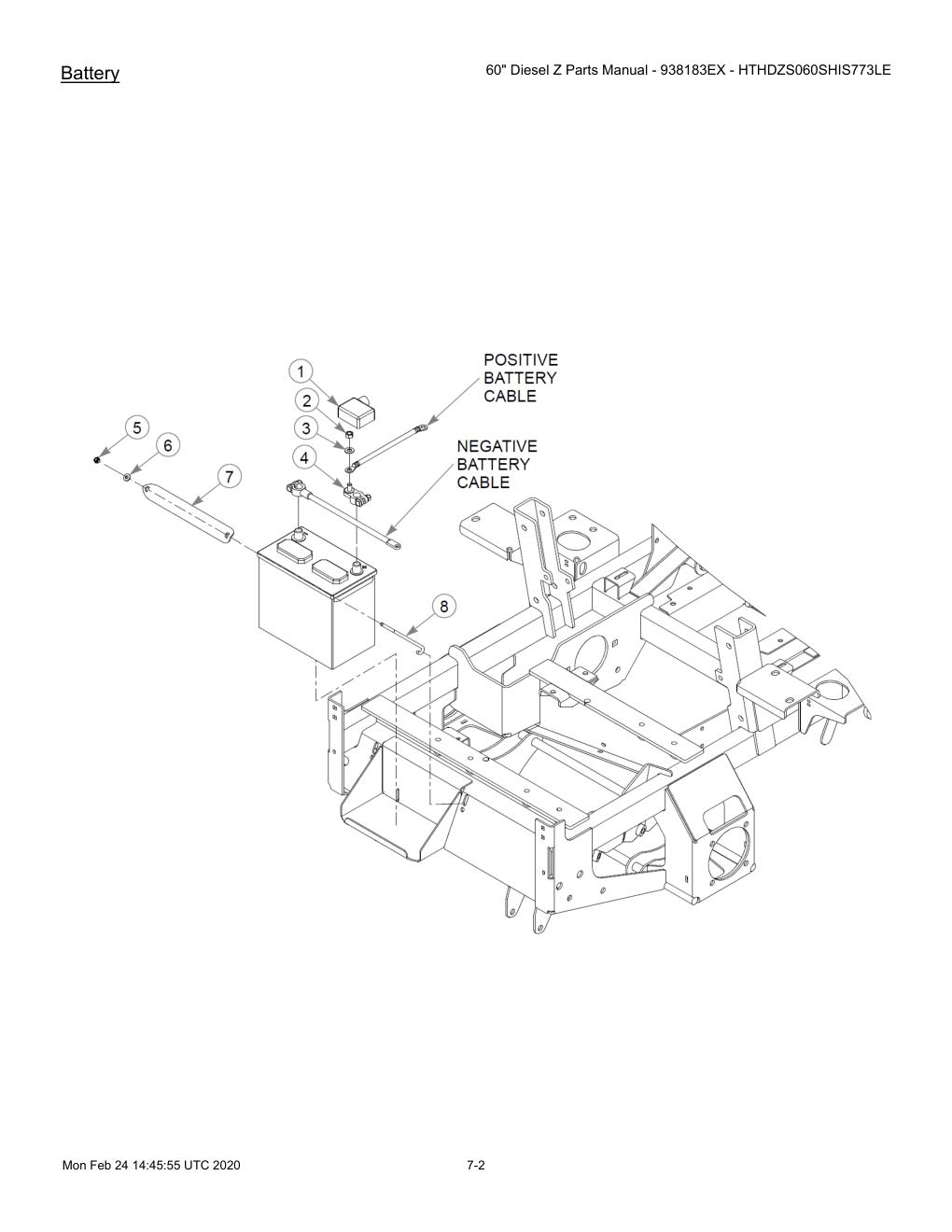

Battery
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | BOOT, POSITIVE BATTERY | 601381 | 1 | 601381-Online |
| 2 | NT .375-16HXG5 | 054502 | 1 | HT054502-Online |
| 3 | FW 0.379X.82X.06 HD ZY | 767954 | 1 | HT767954-Online |
| 4 | POST, POS BAT MARINE | 601380 | 1 | 601380-Online |
| 5 | NT .250-20 HXZY NL | 068551 | 2 | HT068551-Online |
| 6 | FW 0.281SAE | 768515 | 2 | HT768515-Online |
| 7 | CLAMP, BATTERY HOLDDOWN | 109108 | 1 | 109108-Online |
| 8 | BATTERY CLAMP ROD | 793489 | 2 | 793489-Online |
| 9 | WIRE TIE, SMALL/SHORT | 000331 | 1 | 000331-Online |

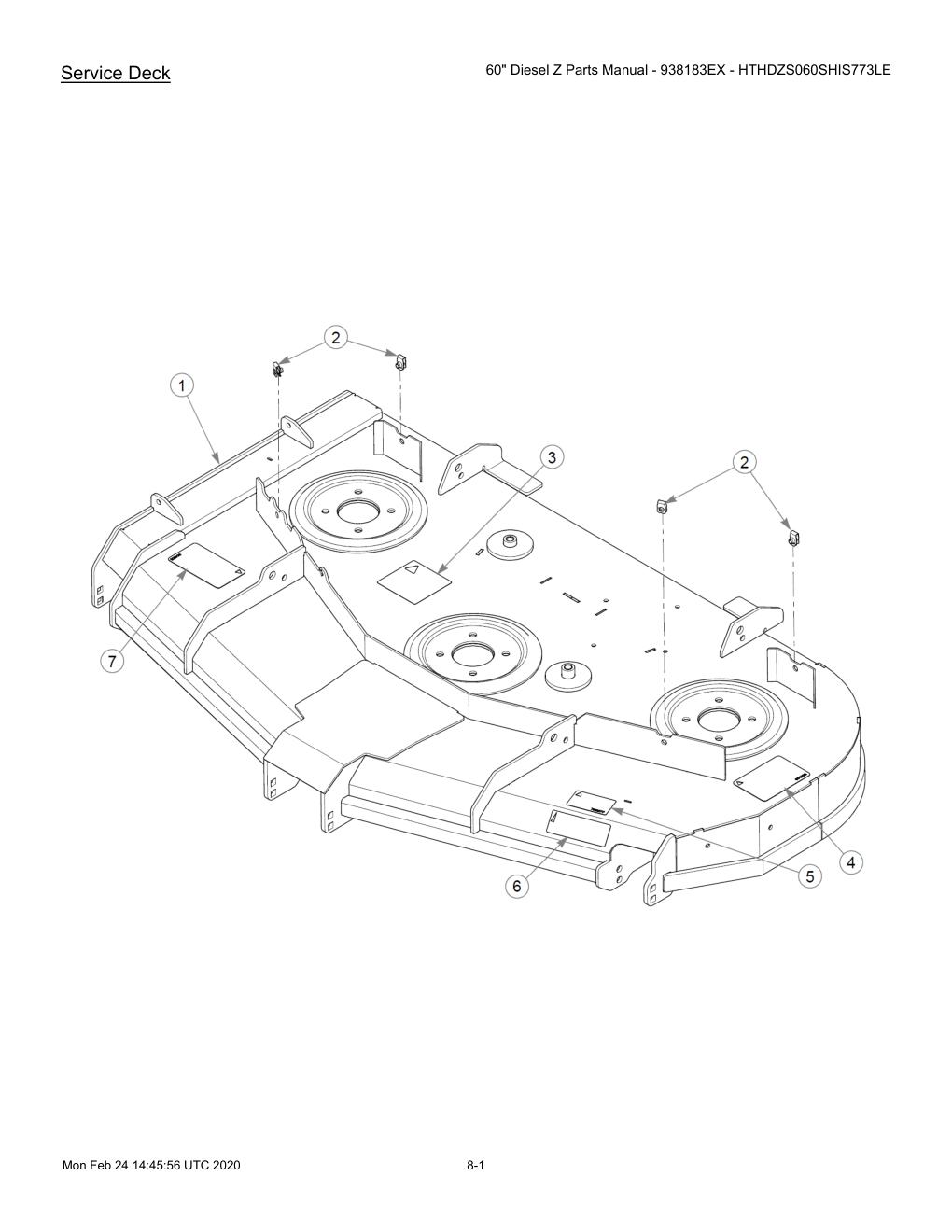

Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 60" SERVICE DECK | 554032 | 1 | 554032-Online |
| 2 | CN .312-18x.200 MAX THK | 601069 | 4 | HT601069-Online |
| 3 | DECAL, BELT ROUTING | 781419 | 1 | 781419-Online |
| 4 | DECAL, DANGER / OBJECTS | 604222 | 1 | 604222-Online |
| 5 | DECAL, 60 DECK ID | 786277 | 1 | 786277-Online |
| 6 | DECAL, VX4 TECHNOLOGY | 603092 | 1 | 603092-Online |
| 7 | DECAL, DANGER / CHUTE | 604221 | 1 | 604221-Online |

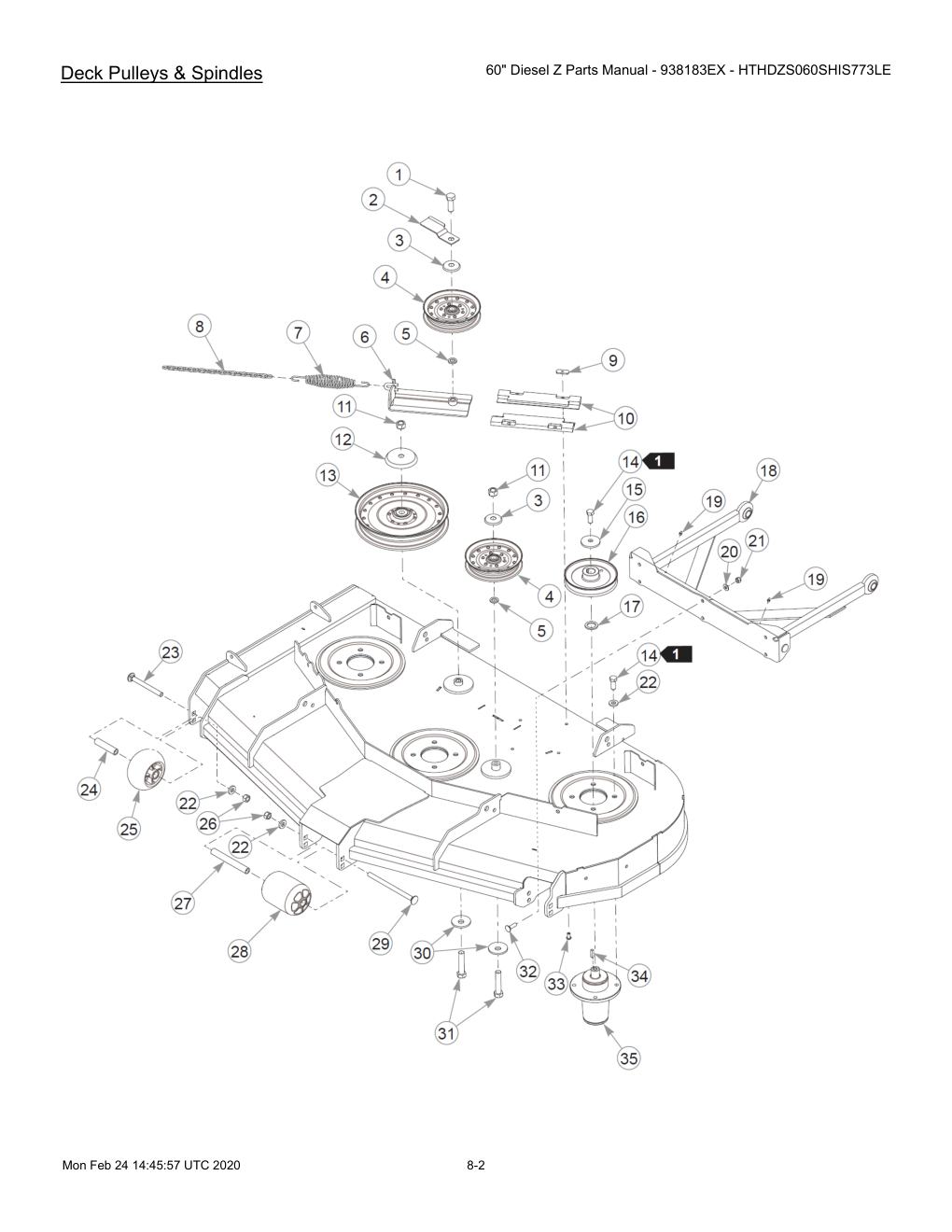

Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .62511X1.750HXG5 | 025007 | 1 | HT025007-Online |
| 2 | GUIDE, BELT | 606460 | 1 | 606460-Online |
| 3 | DUST SHIELD, IDLER SM | 602935 | 2 | 602935-Online |
| 4 | IDLER, 6.0" RIVETED | 602821 | 2 | 602821-Online |
| 5 | FW 0.625X1.00X.13 ZY | 028118 | 2 | HT028118-Online |
| 6 | SLIDE, DECK IDLER | 350884 | 1 | HT350884-Online |
| 7 | IDLER SPRING | 781302 | 1 | 781302-Online |
| 8 | CHAIN, 21 LINK | 373191 | 1 | HT373191-Online |
| 9 | WN .312-18 ZN | 603023 | 4 | 603023-Online |
| 10 | IDLER SLIDE, UHMW | 602936 | 2 | 602936-Online |
| 11 | NT .625-11 HX G5 ZNYC | 016972 | 2 | HT016972-Online |
| 12 | DUST SHIELD, IDLER LG | 602963 | 1 | 602963-Online |
| 13 | IDLER, 10.0" RIVETED | 602743 | 1 | 602743-Online |
| 14 | CS .500-13X1.25 HX G5 ZY | 705954 | 15 | HT705954-Online |
| 15 | CW .515X 2.25X .204 BLK | 752386 | 3 | HT752386-Online |
| 16 | PULLEY, DECK DRIVE | 770842 | 3 | HT770842-Online |
| 17 | FW 1.030X1.50X.13 HD ZY | 045765 | 3 | HT045765-Online |
| 18 | PUSHER W/A, HZ/SZ | 113340 | 1 | 113340-Online |
| 19 | GREASE FITTING STRAIGHT | 015495 | 2 | HT015495-Online |
| 20 | NT .375-16NLG8 | 086660 | 6 | HT086660-Online |
| 21 | FW 0.379X.82X.06 HD ZY | 767954 | 6 | HT767954-Online |
| 22 | FW .531 x 1.063 x .175 | 767962 | 15 | HT767962-Online |
| 23 | CB .50-13X4.75 STD ZN | 607288 | 2 | 607288-Online |
| 24 | SPACER, ANTI-SCALP 3.22 | 602345 | 2 | 602345-Online |
| 25 | WHEEL, ANTI-SCALP | 602263 | 2 | 602263-Online |
| 26 | NT .500-13NLG5 | 781567 | 3 | HT781567-Online |
| 27 | SPACER, ANTI- SCALP 5.73 | 602344 | 1 | 602344-Online |
| 28 | WHEEL, ANTI-SCALP | 602341 | 1 | 602341-Online |
| 29 | CB .50-13 X 7.50 STD ZN | 602338 | 1 | 602338-Online |
| 30 | CW .678 X 2.250 X .187 | 782474 | 2 | HT782474-Online |
| 31 | CS .625-11X3.000HXG5 | 783738 | 2 | HT783738-Online |
| 32 | CB .375-16X 1.00 G5 ZNY | 025395 | 6 | HT025395-Online |
| 33 | CS .312-18X.625 BH ZN | 603022 | 4 | 603022-Online |
| 34 | KEY 1/4 SQ X 1.00 LG(FS) | 212472 | 3 | HT212472-Online |
| 35 | SPINDLE ASSY, DUCTILE | 607407 | 3 | 607407-Online |

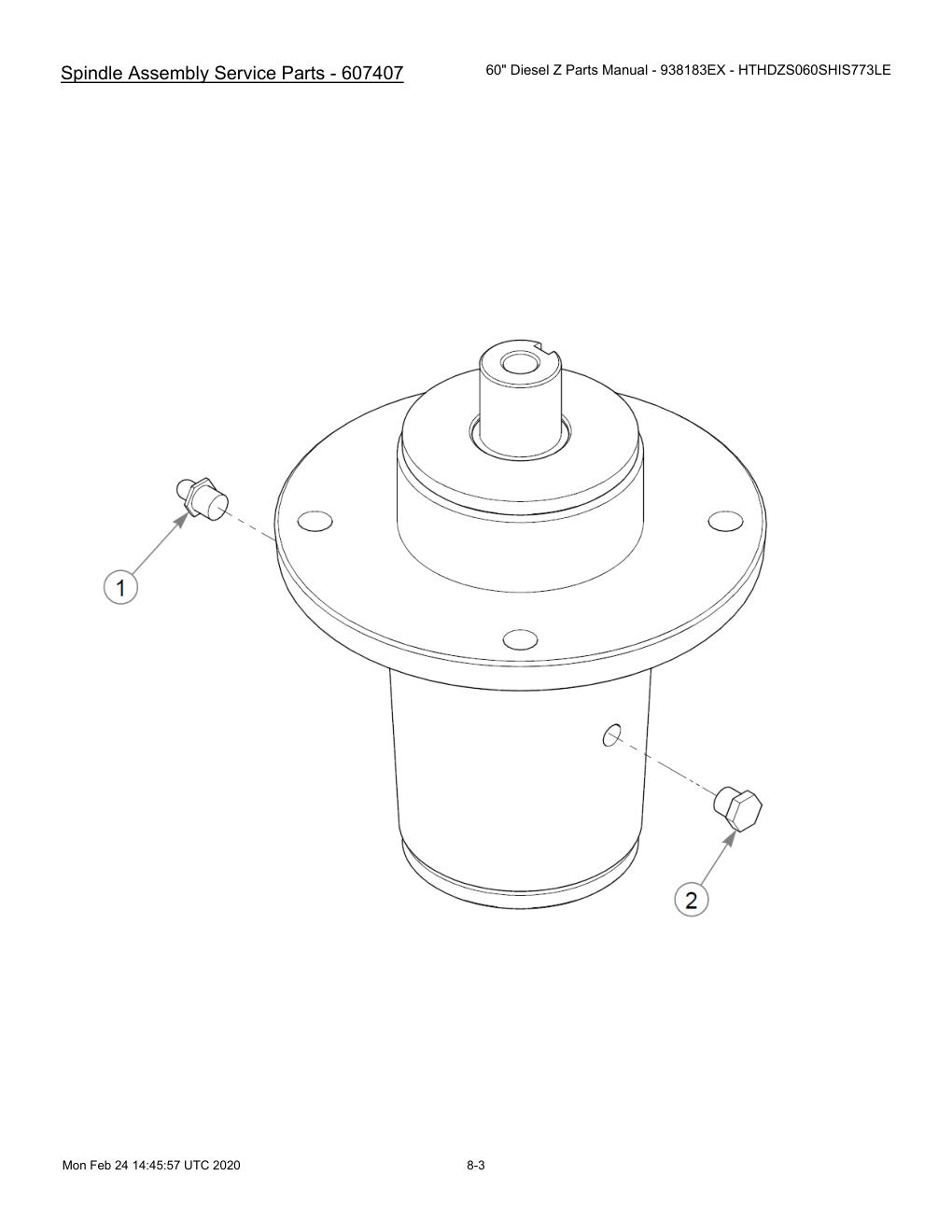

Spindle Assembly Service Parts - 607407
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | GREASE ZERK | 607477 | 1 | 607477-Online |
| 2 | RELIEF FITTING | 607478 | 1 | 607478-Online |

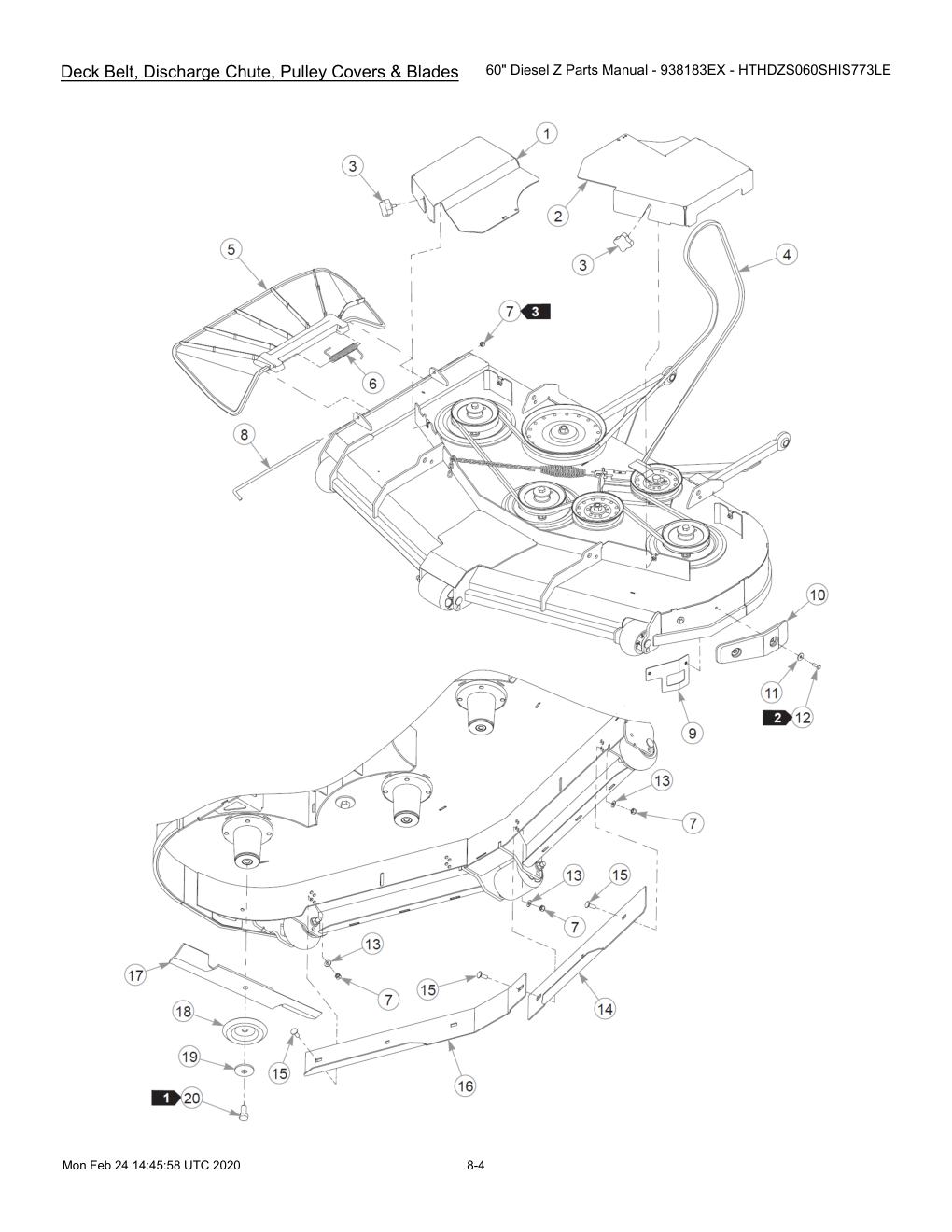

Deck Belt, Discharge Chute, Pulley Covers & Blades
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PULLEY COVER, RS 60" | 123684-1 | 1 | 123684-1-Online |
| 2 | PULLEY COVER, LS 60" | 123685-1 | 1 | 123685-1-Online |
| 3 | KNOB,5/16-18 X 3/4"MALE | 792002 | 4 | HT792002-Online |
| 4 | DECK BELT | 603688 | 1 | 603688-Online |
| 5 | CHUTE, DISCHARGE LG | 602891 | 1 | 602891-Online |
| 6 | SPRING, TORSION | 602435 | 1 | 602435-Online |
| 7 | NT .375-16NLG8 | 086660 | 7 | HT086660-Online |
| 8 | PIN, CHUTE | 602432 | 1 | 602432-Online |
| 9 | BACKING PLATE W/A | 113563 | 1 | 113563-Online |
| 10 | RUBBER BUMPER | 602817 | 1 | 602817-Online |
| 11 | FW 0.344X1.0X0.06 ZY | 079210 | 2 | 079210-Online |
| 12 | CS .312-18X0.875HXG5 | 64014 | 2 | 64014-Online |
| 13 | FW 0.379X.82X.06 HD ZY | 767954 | 6 | HT767954-Online |
| 14 | ADJ BAFFLE LS 60" VX4 | 123961-1 | 1 | 123961-1-Online |
| 15 | CB .375-16X 1.00 G5 ZNY | 025395 | 6 | HT025395-Online |
| 16 | ADJ BAFFLE RS 60" VX4 | 123960-1 | 1 | 123960-1-Online |
| 17 | BLADE, F20.50" EHN-F-CW | 602771 | 3 | 602771-Online |
| Not Shown | BLADE,20.50"-L-F-CW | 793794 | 3 | HT793794-Online |
| Not Shown | BLADE,20.50"-MUL-F-CW | 794214 | 3 | HT794214-Online |
| Not Shown | BLADE,20.50"GAT-F-CW | 794230 | 3 | HT794230-Online |
| Not Shown | BLADE, F20.50"-H-F-CW | 794685 | 3 | HT794685-Online |
| 18 | SHIELD, BLADE BOLT | 114988 | 3 | HT114988-Online |
| 19 | CW .678 X 2.250 X .187 | 782474 | 3 | HT782474-Online |
| 20 | CS .625-11X1.250HXG5 | 781872 | 3 | HT781872-Online |

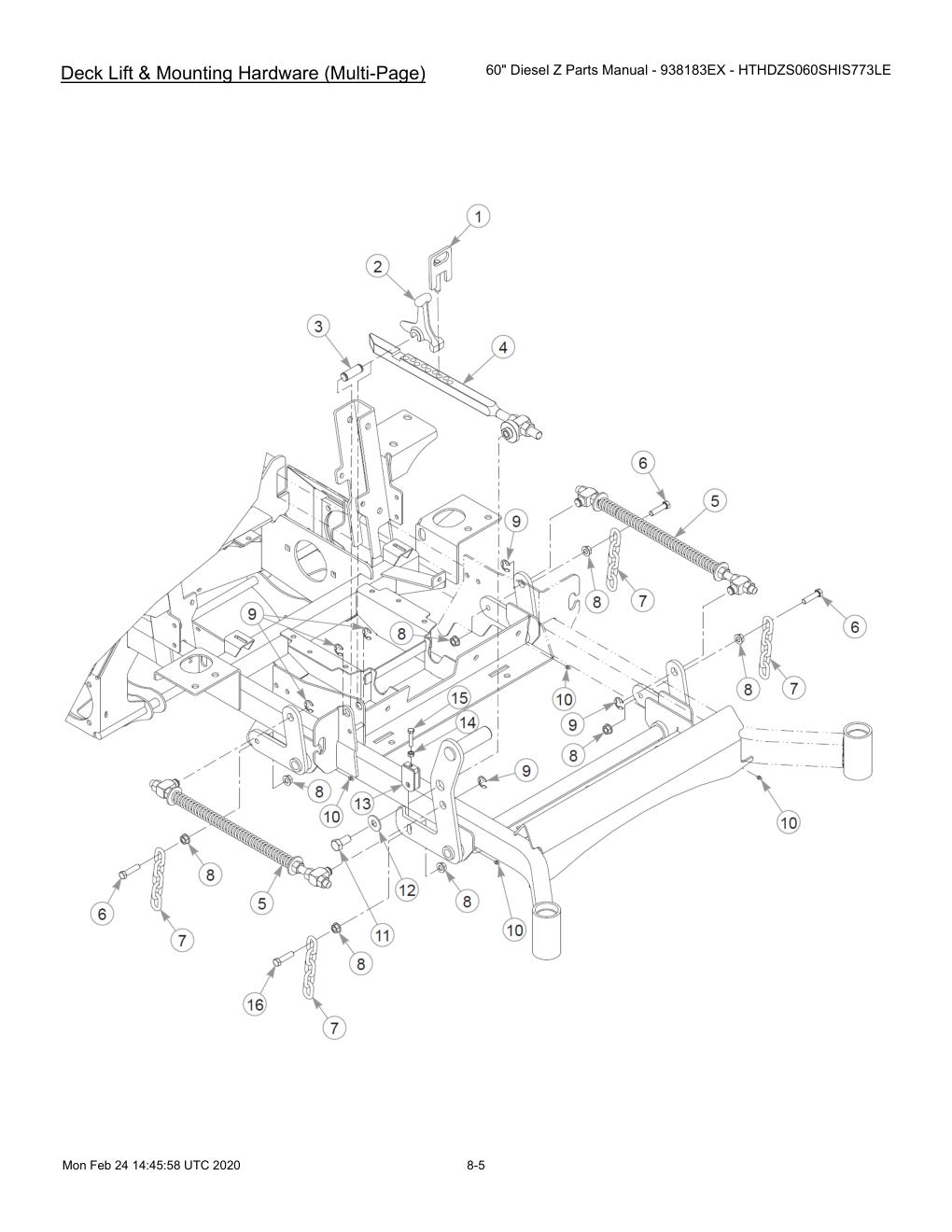

Deck Lift & Mounting Hardware (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PIN, DECK HEIGHT W/A | 600437 | 1 | 600437-Online |
| 2 | HANDLE, STOP | 348318 | 1 | HT348318-Online |
| 3 | CE .750X2.25 X1.75 HEAD | 781229 | 1 | 781229-Online |
| 4 | DECK LIFT | 602898 | 1 | 602898-Online |
| 5 | DECK LIFT SPRING S/A | 603184 | 2 | 603184-Online |
| 6 | CS .437-14X1.750HXG5 | 055749 | 7 | HT055749-Online |
| 7 | CHAIN, DECK LIFT | 348391 | 4 | HT348391-Online |
| 8 | NT .437-14FLKG5 | 704643 | 16 | HT704643-Online |
| 9 | CLIP E, 1.00 X.625X .05 | 781294 | 6 | HT781294-Online |
| 10 | GREASE FITTING STRAIGHT | 015495 | 4 | HT015495-Online |
| 11 | CS .625-11X1.250HXG5 | 781872 | 1 | HT781872-Online |
| 12 | FW 0.625X1.500X0.105 | 704783 | 1 | 704783-Online |
| 13 | YOKE W/A, DECK LEVELER | 348458 | 1 | HT348458-Online |
| 14 | NT .312-18HXG5 | 034272 | 1 | HT034272-Online |
| 15 | CS .312-18X1.500HXG5 | 756270 | 1 | 756270-Online |
| 16 | CS .437-14x1.75 FULTHG5 | 781831 | 1 | HT781831-Online |
| 17 | NT .750-10 HX ZY NL GR B | 061101 | 2 | HT061101-Online |
| 18 | FW .760X1.63X0.08 ZY | 025296 | 4 | HT025296-Online |
| 19 | CS .750-10X3.000HXG5 | 051169 | 2 | 051169-Online |

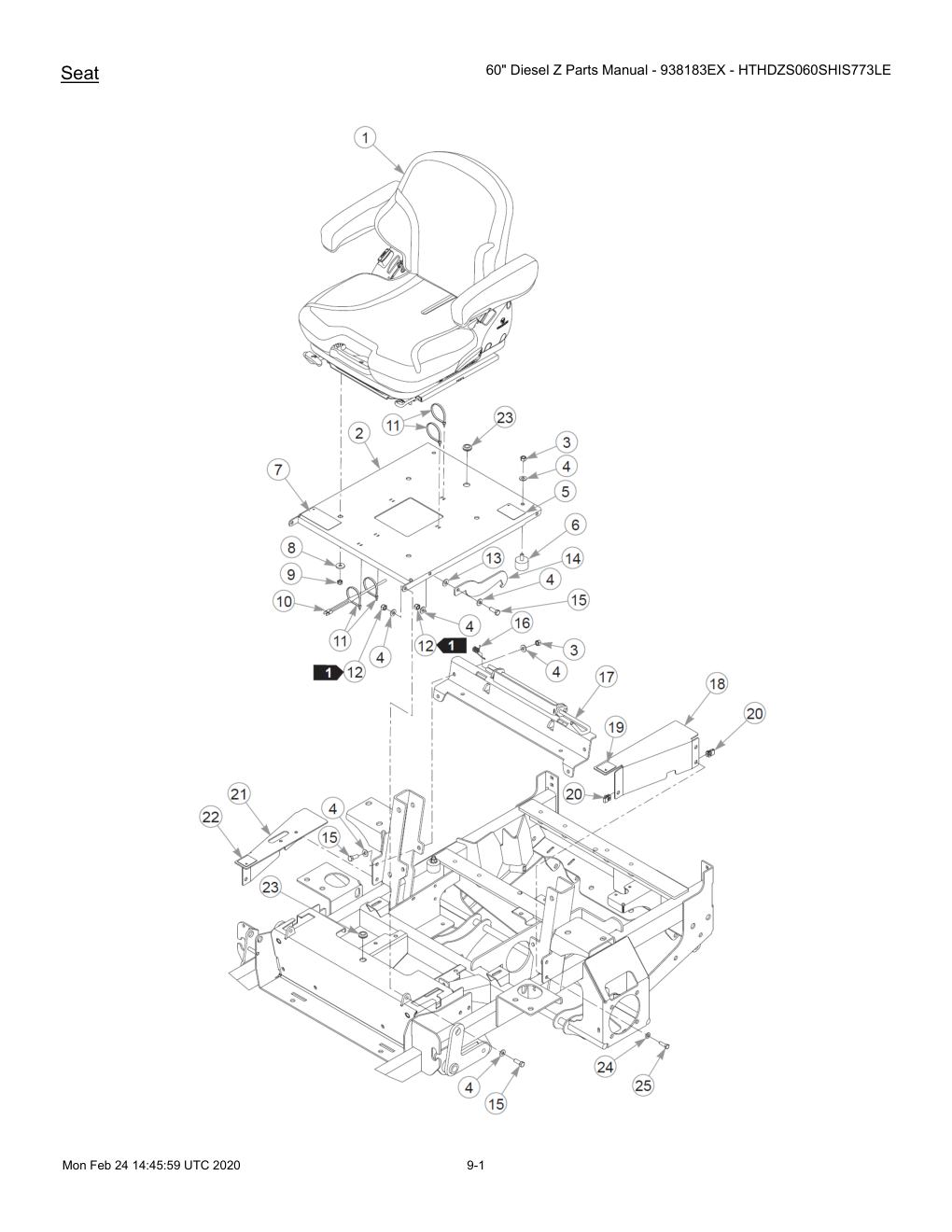

Seat
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SEAT, GRAMMER W ISOLATOR | 605696 | 1 | 605696-Online |
| 2 | SEAT PAN, SERVICE | 551136 | 1 | 551136-Online |
| 3 | NT .375-16HXG5 | 054502 | 6 | HT054502-Online |
| 4 | FW 0.379X.82X.06 HD ZY | 767954 | 16 | HT767954-Online |
| 5 | DECAL, Z ARMREST WARNING | 785188 | 1 | 785188-Online |
| 6 | VIBRATION MOUNT 70DURO | 601650 | 2 | 601650-Online |
| 7 | DECAL, PUMP BELT WARNING | 600899 | 1 | 600899-Online |
| 8 | FW 0.344X1.00X.12 HD ZY | 712927 | 4 | HT712927-Online |
| 9 | NT .312-18NLG5 | 058776 | 4 | HT058776-Online |
| 10 | PIGTAIL, SEAT SWITCH | 604439 | 1 | 604439-Online |
| 11 | WIRE TIE, SMALL/SHORT | 000331 | 4 | 000331-Online |
| 12 | NT .375-16NLG8 | 086660 | 3 | HT086660-Online |
| 13 | WASHER, FIBER (FS) | 724716 | 1 | 724716-Online |
| 14 | SEAT PAN STOP (PLATED) | 350421 | 1 | 350421-Online |
| 15 | CS .375-16X1.00 HX G5 ZY | 036244 | 7 | HT036244-Online |
| 16 | SPRING,TORSION - DIESEL | 795583 | 1 | 795583-Online |
| 17 | SEAT CATCH W/A | 109684 | 1 | 109684-Online |
| 18 | LH FRAME COVER, SERVICE | 551138 | 1 | 551138-Online |
| 19 | DECAL, STEERING L.S. | 785139 | 1 | 785139-Online |
| 20 | CN .312-18x.200 MAX THK | 601069 | 6 | HT601069-Online |
| 21 | RH FRAME COVER, SERVICE | 551137 | 1 | 551137-Online |
| 22 | DECAL, STEERING R.S. | 785220 | 1 | 785220-Online |
| 23 | GM .50X1.00X.75X.12 | 080358 | 2 | 080358-Online |
| 24 | FW 0.343SAE | 768523 | 6 | HT768523-Online |
| 25 | CS .312-18X1.000HXG5 | 036236 | 6 | 036236-Online |
Seat Service Parts
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| Not Shown | SEAT, GRAMMER W ISOLATOR | 605696 | 1 | 605696-Online |
| 1 | CUSHION KIT, BACK, EXCEL | 605750 | 1 | 605750-Online |
| 2 | ARMREST, RIGHT | 604938 | 1 | 604938-Online |
| 3 | ARMREST, LEFT | 604937 | 1 | 604937-Online |
| 4 | SEAT BELT | 604941 | 1 | 604941-Online |
| 5 | CUSHION KIT, SEAT, EXCEL | 605752 | 1 | 605752-Online |
| 6 | KIT, SEAT SWITCH | 604973 | 1 | 604973-Online |
| 7 | KIT, SLIDE | 119287 | 1 | 119287-Online |
| 8 | KIT, ISOLATOR | 119288 | 1 | 119288-Online |
| 9 | SVC, SEAT HANDLE KIT | 607248 | 1 | 607248-Online |

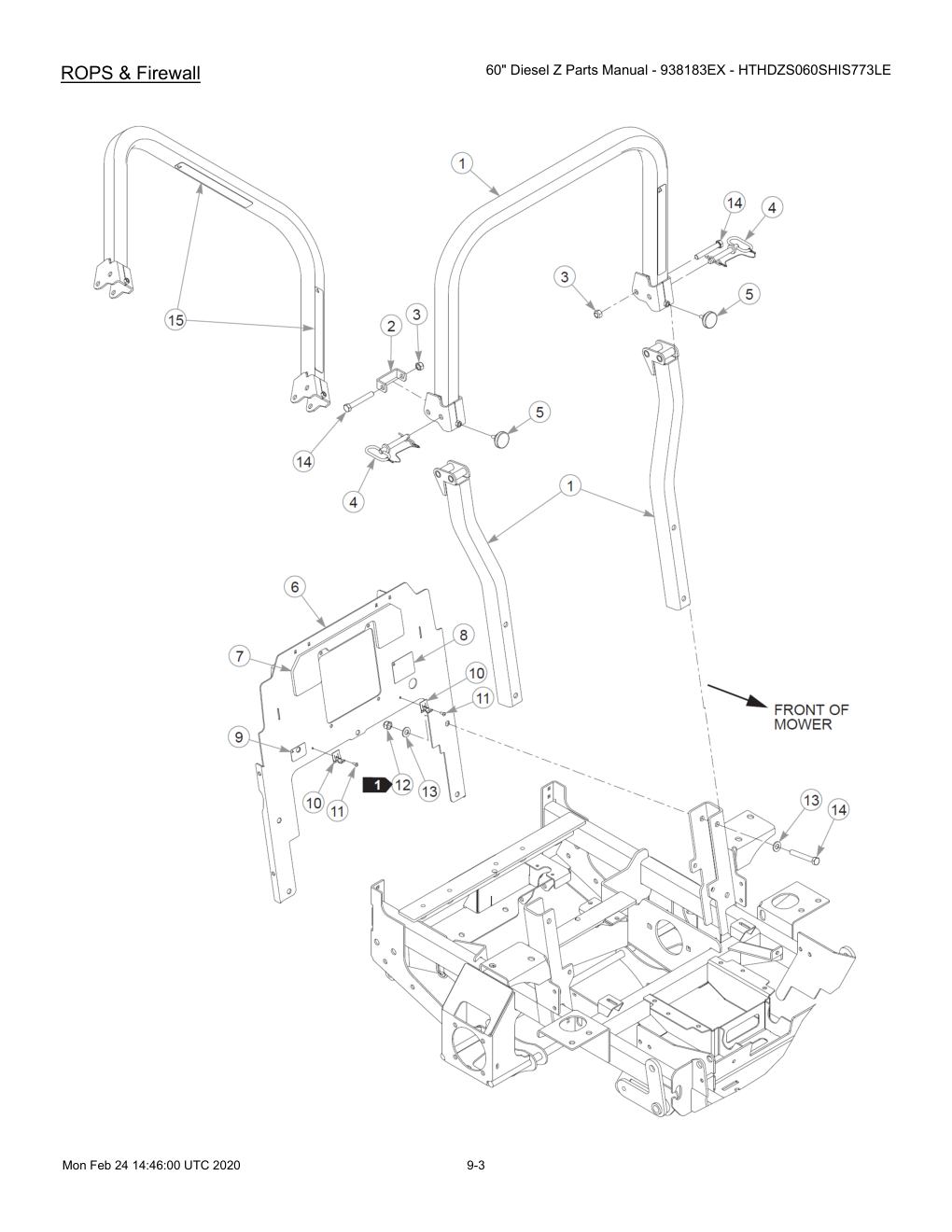

ROPS & Firewall
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KIT, ROPS HDZ | 603473 | 1 | 603473-Online |
| 2 | ROPS STOP | 601472 | 1 | 601472-Online |
| 3 | NT .500-13UNTG8 | 023317 | 2 | 023317-Online |
| 4 | LYNCH PIN W/ LANYARD | 601471 | 2 | 601471-Online |
| 5 | KNOB, HAND FOR ROPS | 601470 | 2 | 601470-Online |
| 6 | FIREWALL ASSY, SERVICE | 551140 | 1 | 551140-Online |
| 7 | SEAT PAD, FIREWALL | 601559 | 1 | 601559-Online |
| 8 | DECAL, CHECK ENG OIL | 601377 | 1 | 601377-Online |
| 9 | DECAL, FUEL VALVE HDZ | 601246 | 1 | 601246-Online |
| 10 | LUDWIG SNAP FASTNER A-1 | 010306 | 2 | 010306-Online |
| 11 | RIVET .188 DIA BLK HD | 601089 | 2 | 601089-Online |
| 12 | NT .500-13NLG5 | 781567 | 4 | HT781567-Online |
| 13 | FW .531 x 1.063 x .175 | 767962 | 8 | HT767962-Online |
| 14 | CS .500-13X3.50 HX G5 ZY | 061812 | 6 | 061812-Online |
| 15 | DECAL, ROP'S | 601635 | 2 | 601635-Online |
