Illustrated Parts List
Hustler Z Parts Manual - S/N HIGHER THAN 07020000 - 747782
This Hustler IPL page converts the source parts manual into a mobile-friendly Joomla article with clickable Cutsmart SKU links. Each part number is linked as HLR-[part number]@online where a valid part number is available.
Model: 747782Model: 789537Model: 796235Model: 796680Model: 602202Model: 793661SKU prefix: HLR-SKU links use /qr?sku=
How to use this page: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the product through the QR resolver. Tap/click diagrams to enlarge them.

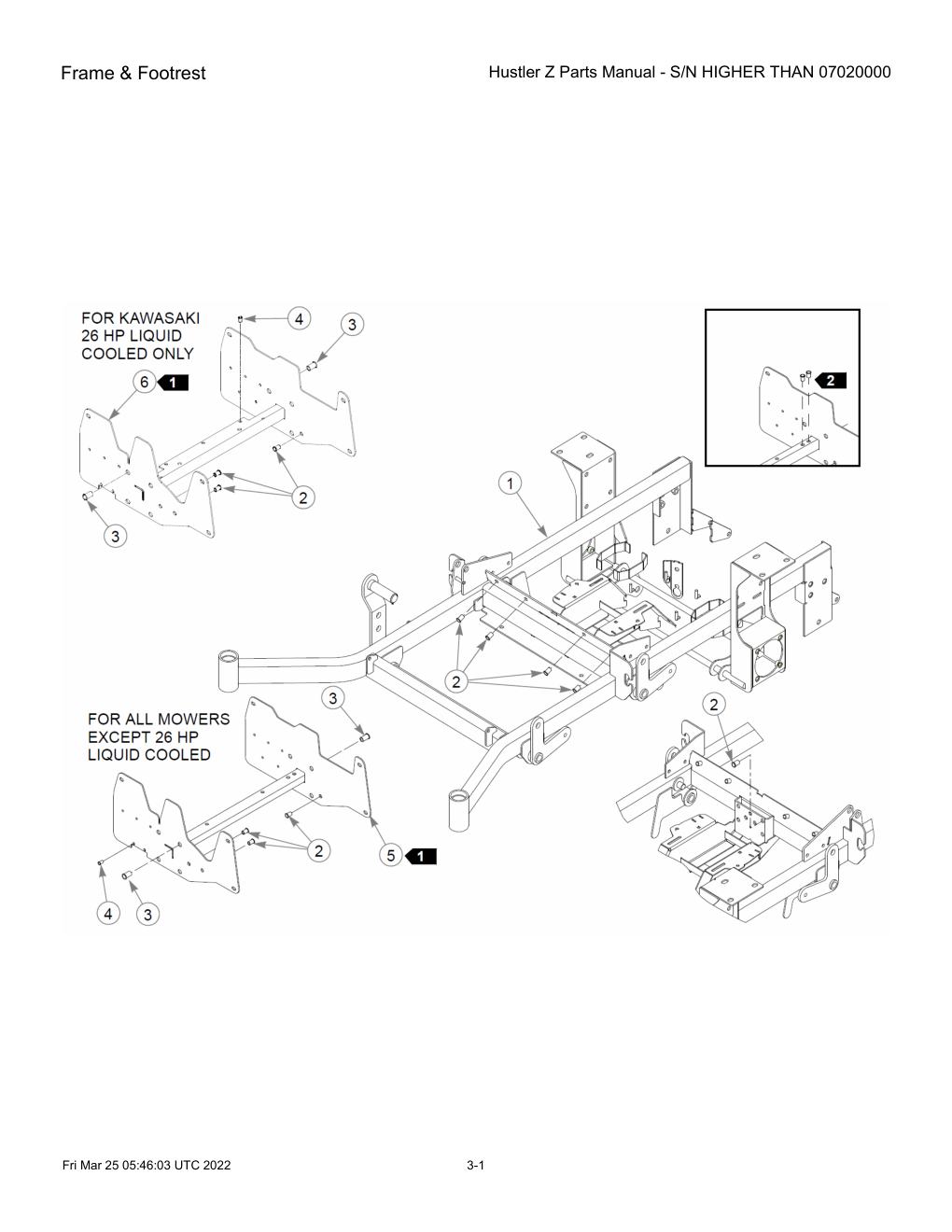

Sections
Frame & FootrestFootrest AssemblyPump Belt, Clutch & Pulleys InstallationHydraulic System Installation - S/N 07120009 & HigherHydraulic System Installation - S/N Prior to 07120009Hydraulic Pump Service PartsSteering & Park Brake Assembly - S/N 07120009 & HigherSteering & Park Brake Assembly - S/N 07120009 & HigherSteering & Park Brake Assembly - S/N Prior to 07120009Steering & Park Brake Assembly - S/N Prior to 07120009Steering Sub-AssemblyKawasaki Engine Installation (Remote Air Cleaner)Kawasaki Engine Installation (Remote Air Cleaner)Kawasaki 25 HP Engine Installation (With HD Air Cleaner)Kawasaki 26 HP Engine InstallationKawasaki 29 HP Engine Installation (With HD Air Cleaner)Honda Engine InstallationKohler Engine InstallationFuel System Installation (Air Cooled Engines)Fuel System Installation (Liquid Cooled Engines)Instrument Panel Assembly (Air Cooled)Instrument Panel Assembly (Liquid Cooled)BatteryFront Wheel AssemblyFront Wheel Assembly Breakdown - 747782Optional Semi-Pneumatic Tire/Wheel - 789537Drive Wheel AssemblyAnti-Rollover Wheel Assembly72" Side Discharge XR7 Deck Assembly72" Side Discharge XR7 Deck Pulley Assembly66" Side Discharge XR7 Deck Assembly66" Side Discharge Deck Pulley Assembly (XR7)60" Side Discharge XR7 Deck Assembly60" Side Discharge XR7 Deck Pulley Assembly54" Side Discharge XR7 Deck Assembly54" Side Discharge XR7 Deck Pulley AssemblySide Discharge Deck - "A" AdaptorsSide Discharge Deck - "B" Adaptors54" Rear Discharge Deck Assembly - S/N 08100000 & Higher54" Rear Discharge Deck Assembly - S/N 08010000 to 0810000054" Rear Discharge Deck Assembly - S/N Prior to 0801000054" Rear Discharge Deck Pulley Assembly - S/N 08100000 & Higher54" Rear Discharge Deck Pulley Assembly - S/N 08100000 & Higher54" Rear Discharge Deck Pulley Assembly - S/N Prior to 08100000Spindle Assembly - 796235Spindle Assembly - 796680Deck InstallationDeck Lift AssemblySeat Installation - S/N 09120554 & HigherSeat Installation - S/N 08010000 - 09120554Seat Installation - S/N Prior to 08010000Seat Service Parts - 602202Seat Service Parts - 793661ROPS InstallationMower Decals54" Side Discharge XR7 Deck Decals72", 66" & 60" Side Discharge XR7 Deck Decals54" Rear Discharge Deck DecalsFrame & Footrest
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | MOWER FRAME (54" SIDE DISCHARGE) | 548032 | 1 | 548032-Online |
| REF | FRAME W/A,60" CRATED XR7 | 547760 | 1 | 547760-Online |
| REF | FRAME W/A,66" CRATED XR7 | 547752 | 1 | 547752-Online |
| REF | FRAME W/A 54" HZ RD | 548545 | 1 | 548545-Online |
| 2 | RIVET NUT, 3/8-16 THREA | 808493 | 13 | 808493-Online |
| 3 | RIVET NUT, 1/2-13 THREAD | 600961 | 8 | 600961-Online |
| 4 | RIVET NUT, 1/4-20 THREA | 808477 | 2 | 808477-Online |
| REF | RIVET NUT, 1/4-20 THREA | 808477 | 3 | 808477-Online |
| 5 | SEAT SUPPORT MMZ/XR7 | 547950 | 1 | 547950-Online |

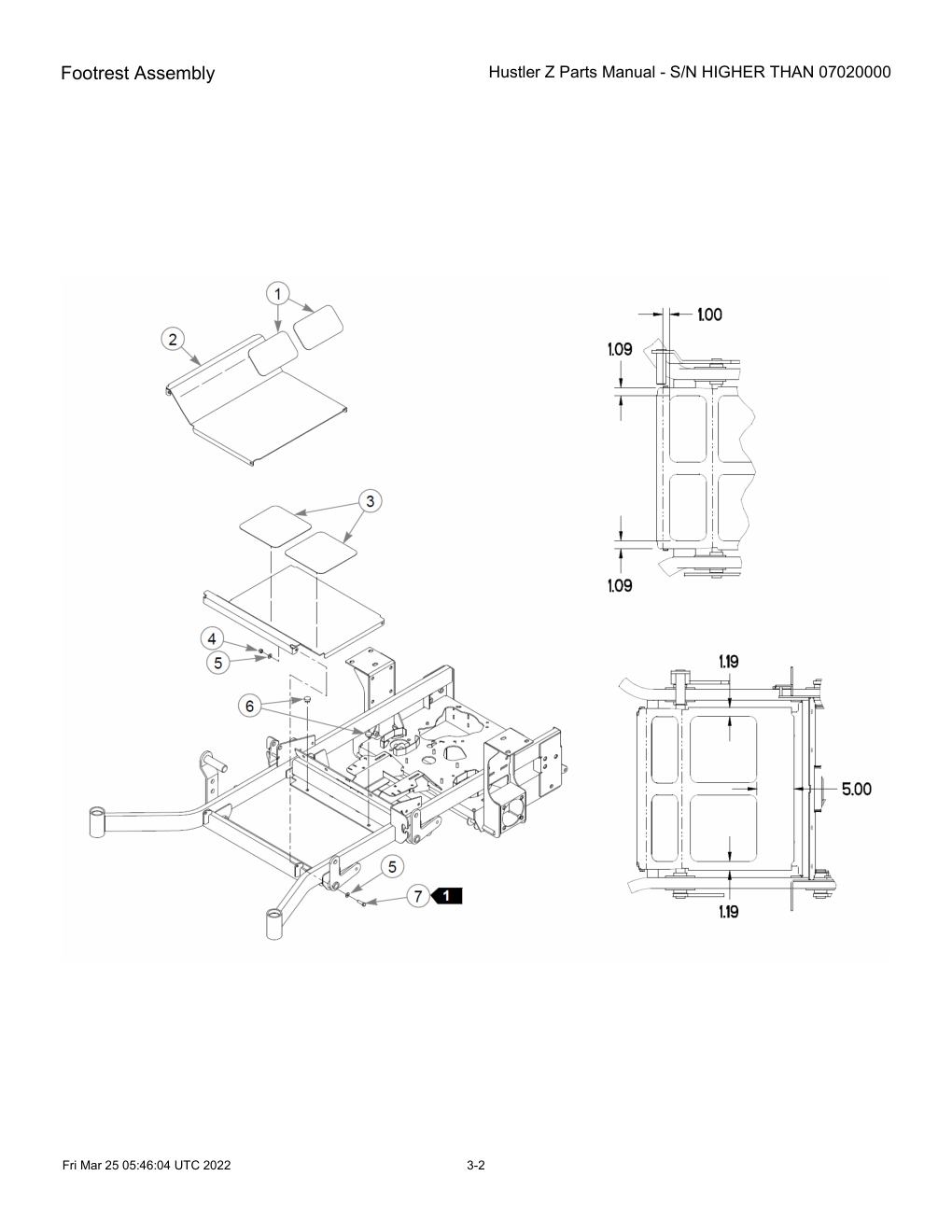

Footrest Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STEP TREAD 5.00 x 9.00 | 359547 | 2 | 359547-Online |
| 2 | FLOOR, PLATE MMZ | 395533 | 1 | 395533-Online |
| 3 | STEP TREAD, PLATFORM 9" | 305615 | 2 | 305615-Online |
| 4 | NT .375-16NLG8 | 086660 | 2 | HT086660-Online |
| 5 | FW 0.379X.82X.06 HD ZN | 767954 | 4 | HT767954-Online |
| 6 | BUMPER, .500x 1.00x .31 | 781880 | 2 | HT781880-Online |
| 7 | CS .375-16X1.25 HX G5 ZN | 052860 | 2 | HT052860-Online |

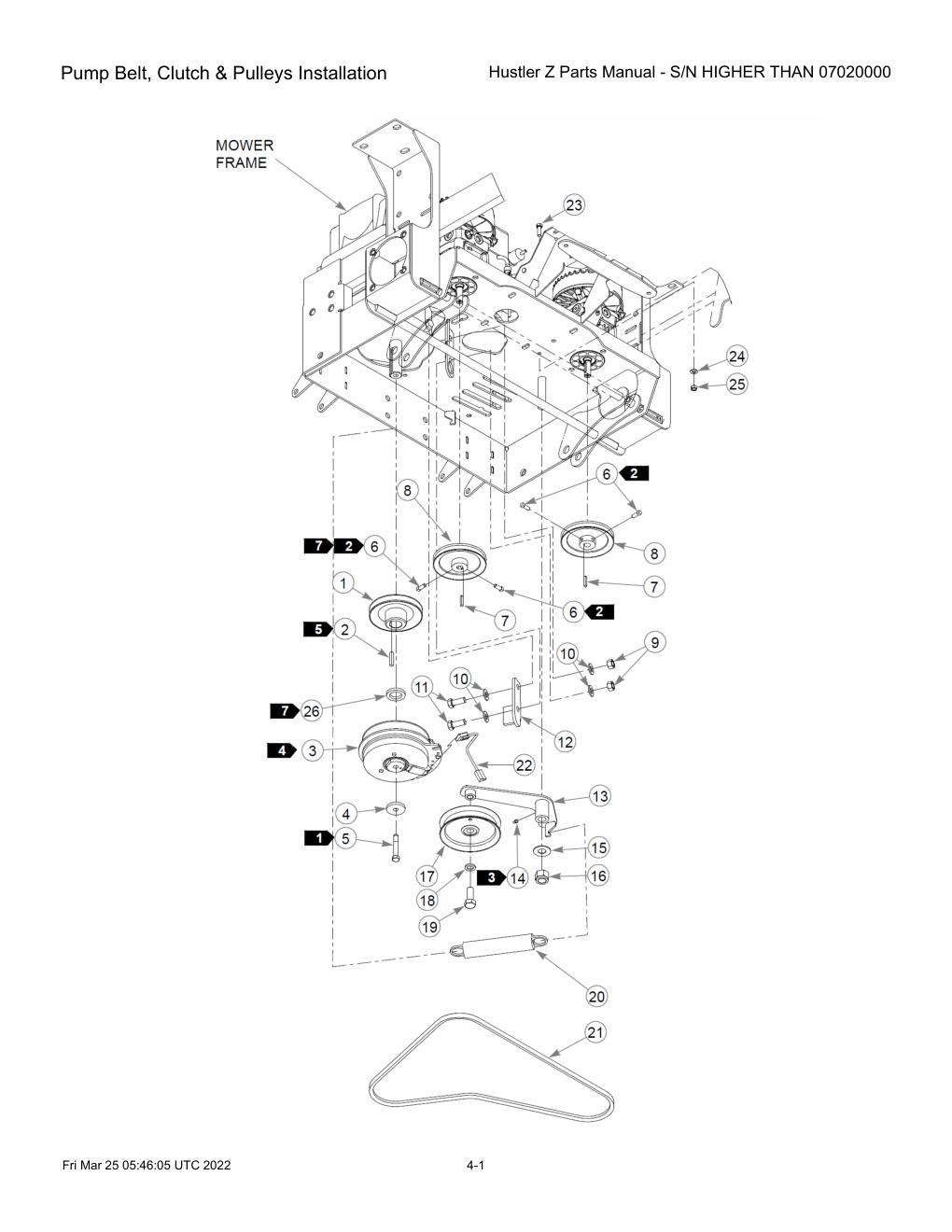

Pump Belt, Clutch & Pulleys Installation
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PULLEY, ENGINE SC SINGL | 779876 | 1 | HT779876-Online |
| 2 | KEY 1/4 SQ X 1.50 LG(FS) | 212076 | 1 | HT212076-Online |
| 3 | CLUTCH KIT | 601311K | 1 | 601311K-Online |
| 4 | FW 0.468X1.75X0.25 ZN | 783829 | 1 | 783829-Online |
| 5 | CS .437-20X2.50 HXG5 P85 | 785659 | 1 | HT785659-Online |
| 6 | SS .312-18X0.750SQ | 083196 | 4 | 083196-Online |
| 7 | KEY 5mm x30mm RADIUS EN | 768127 | 2 | 768127-Online |
| 8 | PULLEY | 768705 | 2 | 768705-Online |
| REF | PULLEY & FAN W/A | 325308 | 2 | 325308-Online |
| 9 | NT .500-13HXG5 | 008193 | 2 | HT008193-Online |
| 10 | FW .531 x 1.063 x .175 | 767962 | 4 | HT767962-Online |
| 11 | CS .500-13X1.25 HX G5 ZN | 705954 | 2 | HT705954-Online |
| 12 | ANGLE, CLUTCH ANCHOR MM | 366765 | 1 | 366765-Online |
| 13 | PUMP IDLER ARM W/A MMZ | 349761 | 1 | 349761-Online |
| 14 | GREASE FITTING STRAIGHT | 015495 | 1 | HT015495-Online |
| 15 | FW .760X1.63X0.08 ZN | 025296 | 1 | HT025296-Online |
| 16 | NT .750-10 HX ZN NL GR B | 061101 | 1 | HT061101-Online |
| 17 | PULLEY, IDLER NHI 5.00" | 781856 | 1 | HT781856-Online |
| 18 | FW 0.625X1.00X.13 ZN | 028118 | 1 | HT028118-Online |
| 19 | CS .625-11X1.250HXG5 | 781872 | 1 | HT781872-Online |
| 20 | IDLER SPRING | 601016 | 1 | HT601016-Online |
| 21 | DRIVE BELT | 781443 | 1 | HT781443-Online |
| Not Shown | 20PK, DRIVE BELT | 781443X | 1 | 781443X-Online |
| 22 | HARNESS, CLUTCH PIGTAIL | 791251 | 1 | HT791251-Online |
| 23 | CS .312-18X1.000HXG5 | 036236 | 1 | 036236-Online |
| 24 | FW 0.343SAE | 768523 | 1 | HT768523-Online |
| 25 | NT .312-18HXG5 | 034272 | 1 | HT034272-Online |
| 26 | FW 1.156X1.75X.25 ZN | 797654 | 1 | 797654-Online |

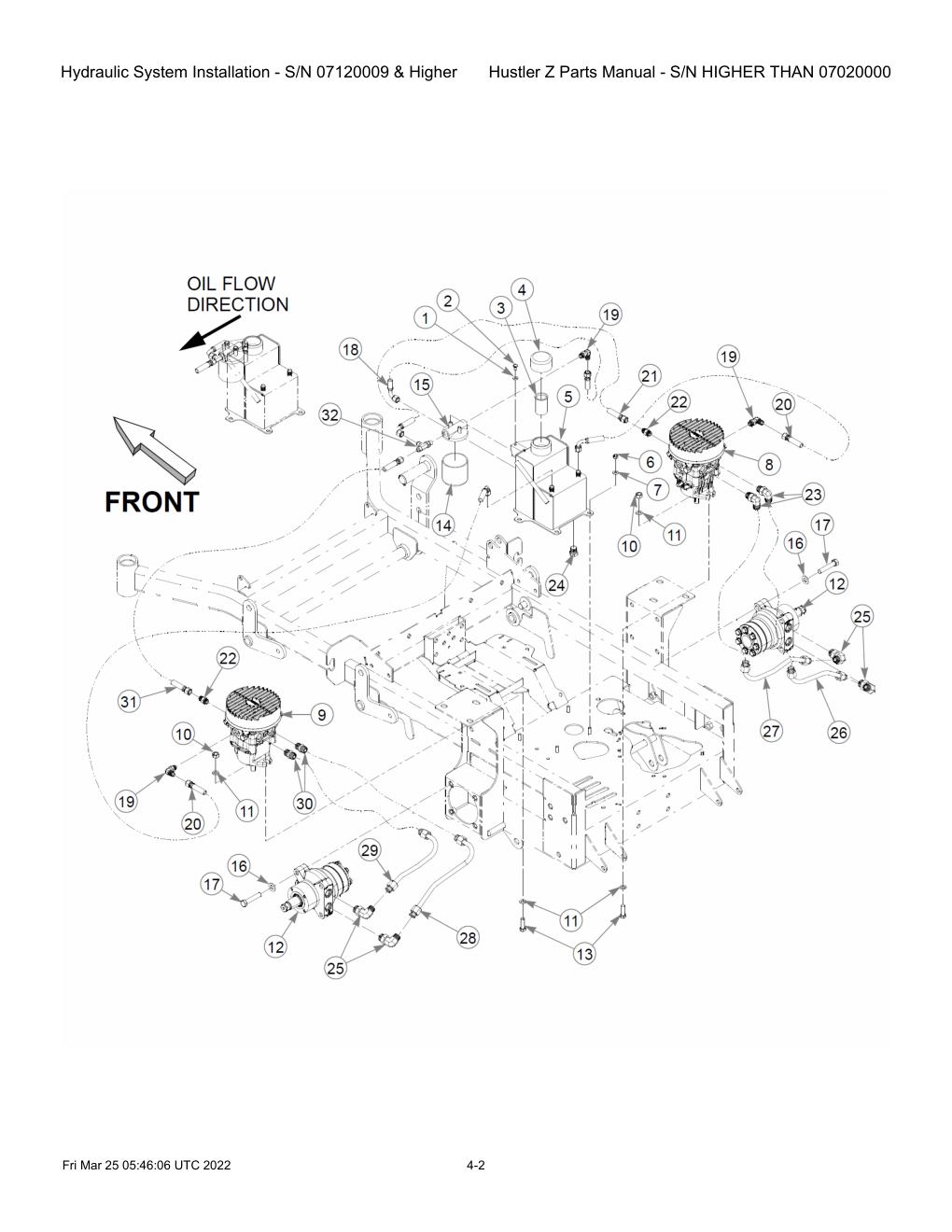

Hydraulic System Installation - S/N 07120009 & Higher
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FW 0.281SAE | 768515 | 2 | HT768515-Online |
| 2 | CS .250-20X0.50 HX G5 ZN | 055947 | 2 | 055947-Online |
| 3 | STRAINER | 032771 | 1 | 032771-Online |
| 4 | CAP, BREATHER | 032763 | 1 | HT032763-Online |
| 5 | RESERVOIR, HYDRAULIC | 548636 | 1 | 548636-Online |
| 6 | NT .312-18HXG5 | 034272 | 4 | HT034272-Online |
| 7 | FW 0.343SAE | 768523 | 4 | HT768523-Online |
| 8 | PUMP, HYD 12CC W/ FAN | 601133 | 1 | 601133-Online |
| 9 | PUMP, HYD 12CC W/ FAN | 601134 | 1 | 601134-Online |
| 10 | NT .437-14HXG5 | 041707 | 4 | 041707-Online |
| 11 | FW 0.453X.81X.06 ZN | 704742 | 8 | 704742-Online |
| 12 | MOTOR, TF0240 PARKER | 602382 | 2 | 602382-Online |
| REF | MOTOR, HGM-15E-3138 | 600922 | 2 | 600922-Online |
| 13 | CS .437-14X1.375HXG5 | 705186 | 4 | 705186-Online |
| 14 | HYDRAULIC OIL FILTER | 768341 | 1 | HT768341-Online |
| 15 | FILTER HEAD ZINGA BF SE | 768333 | 1 | 768333-Online |
| 16 | FW .531 x 1.063 x .175 | 767962 | 8 | HT767962-Online |
| 17 | CS .500-13X2.500HXG5 | 008573 | 8 | 008573-Online |
| 18 | SUCTION HOSE, RES TO | 781575 | 1 | 781575-Online |
| 19 | FTG 90, -6 O-RING/- | 763946 | 3 | 763946-Online |
| 20 | CASE DRAIN ASSY, YDZ | 601252 | 2 | 601252-Online |
| 21 | HYDRO HOSE, PUSHLOC 15. | 781591 | 1 | 781591-Online |
| 22 | FTG, -6MORB/-6MJIC STR | 779132 | 2 | 779132-Online |
| 23 | FTG, 90°-8MORB/-8MORFS | 781542 | 2 | 781542-Online |
| 24 | FTG, -8MORB/HEX PLUG | 781658 | 1 | 781658-Online |
| 25 | FTG, 90°-10MORB/-8MORFS | 781526 | 4 | 781526-Online |
| 26 | HYDRO TUBE, -Rloop/R | 781500 | 1 | 781500-Online |
| 27 | TUBE, LP-TM RT LOOP | 600915 | 1 | 600915-Online |
| 28 | HYDRO TUBE,-Lloop/R | 781484 | 1 | 781484-Online |
| 29 | HYDRO TUBE,-Lloop/L | 781476 | 1 | 781476-Online |
| 30 | FTG, STR-8MORB/-8MS | 781534 | 2 | 781534-Online |
| 31 | HYDRO HOSE, PUSHLOC 9.0 | 781518 | 1 | 781518-Online |
| 32 | FTG T,-6 O-RING/-6J | 763953 | 1 | HT763953-Online |
| REF | HYDRAULIC KIT (INCLUDES 16-31) | N/A | 1 | No SKU |
Hydraulic System Installation - S/N Prior to 07120009
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FW 0.281SAE | 768515 | 2 | HT768515-Online |
| 2 | CS .250-20X0.50 HX G5 ZN | 055947 | 2 | 055947-Online |
| 3 | STRAINER | 032771 | 1 | 032771-Online |
| 4 | CAP, BREATHER | 032763 | 1 | HT032763-Online |
| 5 | RESERVOIR, HYDRAULIC | 548636 | 1 | 548636-Online |
| 6 | NT .312-18HXG5 | 034272 | 4 | HT034272-Online |
| 7 | FW 0.343SAE | 768523 | 4 | HT768523-Online |
| 8 | PUMP, HYD-GEAR PG-1KCC | 781062 | 1 | HT781062-Online |
| 9 | PUMP, HYD-GEAR PG-1HCC | 781047 | 1 | 781047-Online |
| 10 | NT .437-14HXG5 | 041707 | 4 | 041707-Online |
| 11 | FW 0.453X.81X.06 ZN | 704742 | 8 | 704742-Online |
| 12 | WHEEL MOTOR, MB 15 | 781054 | 2 | 781054-Online |
| 13 | CS .437-14X1.375HXG5 | 705186 | 4 | 705186-Online |
| 14 | HYDRAULIC OIL FILTER | 768341 | 1 | HT768341-Online |
| 15 | FILTER HEAD ZINGA BF SE | 768333 | 1 | 768333-Online |
| 16 | SUCTION HOSE, RES TO | 781575 | 1 | 781575-Online |
| 17 | FTG 90, -6 O-RING/- | 763946 | 3 | 763946-Online |
| 18 | HOSE, -6STR -6 90, PL 1 | 778985 | 2 | 778985-Online |
| 19 | HYDRO HOSE, PUSHLOC 15. | 781591 | 1 | 781591-Online |
| 20 | FTG, -6MORB/-6MJIC STR | 779132 | 2 | 779132-Online |
| 21 | FTG, 45-8MORB/-8MSL | 781559 | 1 | 781559-Online |
| 22 | FTG, 90°-8MORB/-8MORFS | 781542 | 1 | 781542-Online |
| 23 | FTG, -8MORB/HEX PLUG | 781658 | 1 | 781658-Online |
| 24 | FTG, 90°-10MORB/-8MORFS | 781526 | 4 | 781526-Online |
| 25 | HYDRO TUBE, -Rloop/R | 781500 | 1 | 781500-Online |
| 26 | HYDRO TUBE, MMZ-Rloop/L | 781492 | 1 | 781492-Online |
| 27 | HYDRO TUBE,-Lloop/R | 781484 | 1 | 781484-Online |
| 28 | HYDRO TUBE,-Lloop/L | 781476 | 1 | 781476-Online |
| 29 | FTG, STR-8MORB/-8MS | 781534 | 2 | 781534-Online |
| 30 | HYDRO HOSE, PUSHLOC 9.0 | 781518 | 1 | 781518-Online |
| 31 | FTG T,-6 O-RING/-6J | 763953 | 1 | HT763953-Online |
| REF | MMZ HYDRAULIC KIT (INCLUDES 16-31) | N/A | 1 | No SKU |

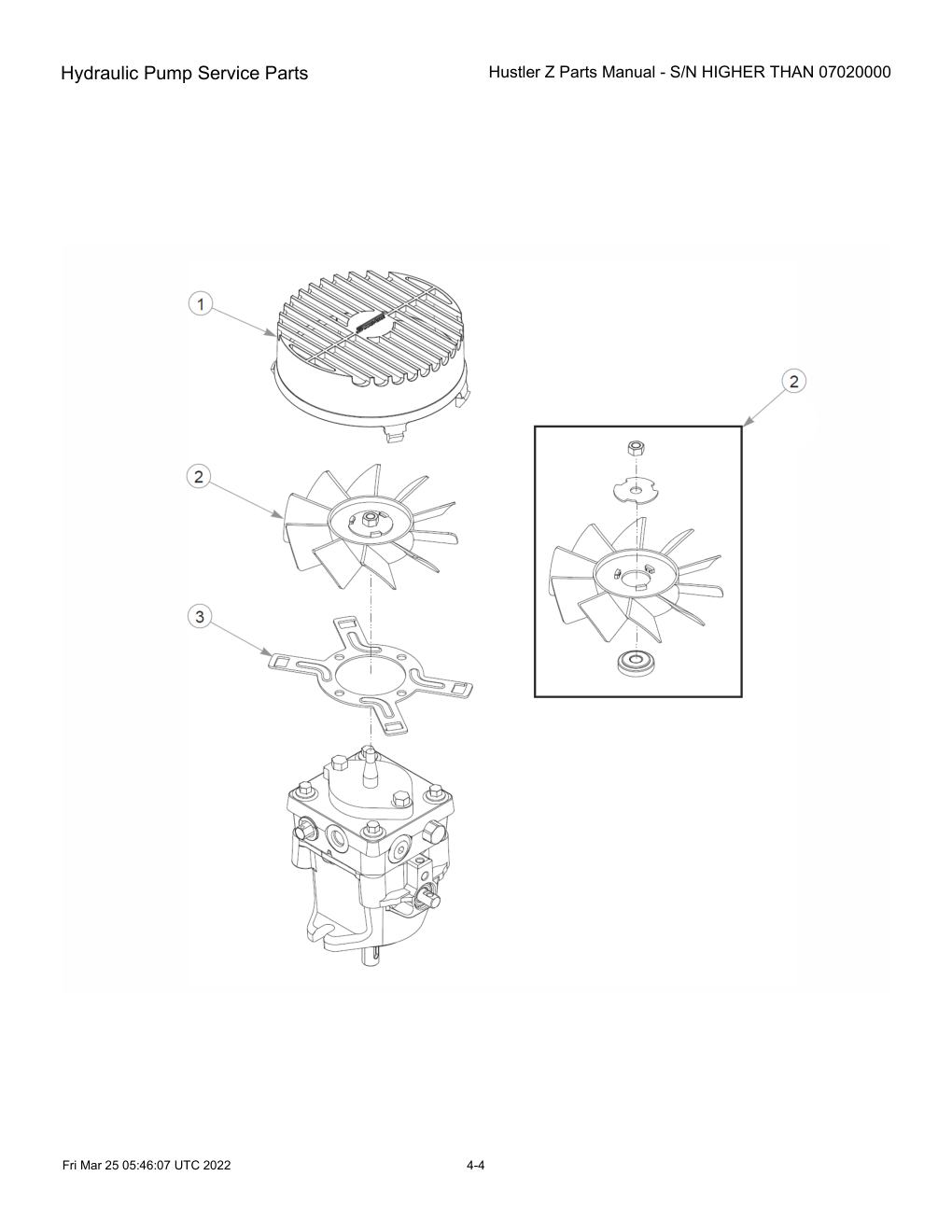

Hydraulic Pump Service Parts
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FAN SHROUD, PUMP PJ | 601877 | 1 | 601877-Online |
| 2 | FAN KIT, PUMP PJ | 601878 | 1 | 601878-Online |
| 3 | BRACKET, PJ PUMP SHROUD | 601879 | 1 | 601879-Online |
| 4 | SEAL KIT, PG/PJ PUMPS | 780718 | 1 | HT780718-Online |
Steering & Park Brake Assembly - S/N 07120009 & Higher
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STEERING CONTROL PANEL | 348987 | 1 | 348987-Online |
| 2 | SS .500-13X1.750SH | 781716 | 2 | 781716-Online |
| 3 | NT .500-13JAMG5 | 053199 | 2 | HT053199-Online |
| 4 | CS .375-16X0.75 HX G5 ZN | 055822 | 8 | HT055822-Online |
| 5 | FW 0.379X.82X.06 HD ZN | 767954 | 26 | HT767954-Online |
| 6 | FW 0.343SAE | 768523 | 30 | HT768523-Online |
| 7 | NT 0.312-24 NL G8 | 023655 | 6 | HT023655-Online |
| 8 | PUMP ROD ADJUSTER ASSY | 781286 | 2 | HT781286-Online |
| 9 | DAMPER, STEERING | 600221 | 2 | HT600221-Online |
| 10 | BALL STUD | 781922 | 4 | 781922-Online |
| 11 | LW .312 INTEXT ZN | 029876 | 2 | 029876-Online |
| 12 | PUMP ARM, BDP-10(PLATED | 367557 | 2 | 367557-Online |
| 13 | CS .250-20X2.000HXG5 | 704163 | 2 | 704163-Online |
| 14 | FW 0.281SAE | 768515 | 4 | HT768515-Online |
| 15 | NT .250-20 HXZY NL | 068551 | 2 | HT068551-Online |
| 16 | CS .375-16X4.750HXG5 | 782979 | 2 | 782979-Online |
| 17 | CS #10-24X0.750FLKG5 | 063198 | 4 | 063198-Online |
| 18 | SWITCH, PUSH BUTTON | 781211 | 2 | HT781211-Online |
| 19 | PIVOT, ADJUSTABLE W/A | 348797 | 2 | 348797-Online |
| 20 | CS .375-16X1.00 HX G5 ZN | 036244 | 6 | HT036244-Online |
| 21 | NT #10-24 HX NL ZN | 059832 | 4 | 059832-Online |
| 22 | NT .312-18HXG5 | 034272 | 8 | HT034272-Online |
| 23 | NT .375-16HXG5 | 054502 | 4 | HT054502-Online |
| 24 | BRAKE ARM EXTENSION | 101766 | 2 | 101766-Online |
| 25 | CS .375-16X1.38 HX G5 ZN | 005116 | 4 | HT005116-Online |
| 26 | BRAKE LINK TURNBUCKLE A | 350397 | 2 | 350397-Online |
| 27 | BRAKE PIVOT ARM LH | 350330 | 1 | 350330-Online |
| 28 | BRAKE PIVOT ARM RH(with | 350264 | 1 | 350264-Online |
| 29 | BUSHING,IGUS#0608 (FS) | 765339 | 4 | HT765339-Online |
| 30 | NT .375-16NLG8 | 086660 | 2 | HT086660-Online |
| 31 | BRAKE ASSY LH | 600925 | 1 | 600925-Online |
| Not Shown | BRAKE ASSY RH | 600924 | 1 | 600924-Online |
| 32 | WHEEL HUB, HYDROGEAR | 600923 | 2 | 600923-Online |
| 33 | CS .312-18X1.000HXG5 | 036236 | 4 | 036236-Online |
| 34 | CS .312-18X0.875HXG5 | 064014 | 8 | 064014-Online |
| 35 | NUT, HG MOTOR 15E | 601289 | 2 | 601289-Online |
Steering & Park Brake Assembly - S/N 07120009 & Higher
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 36 | KEY, HG MOTOR 15E | 601290 | 2 | 601290-Online |

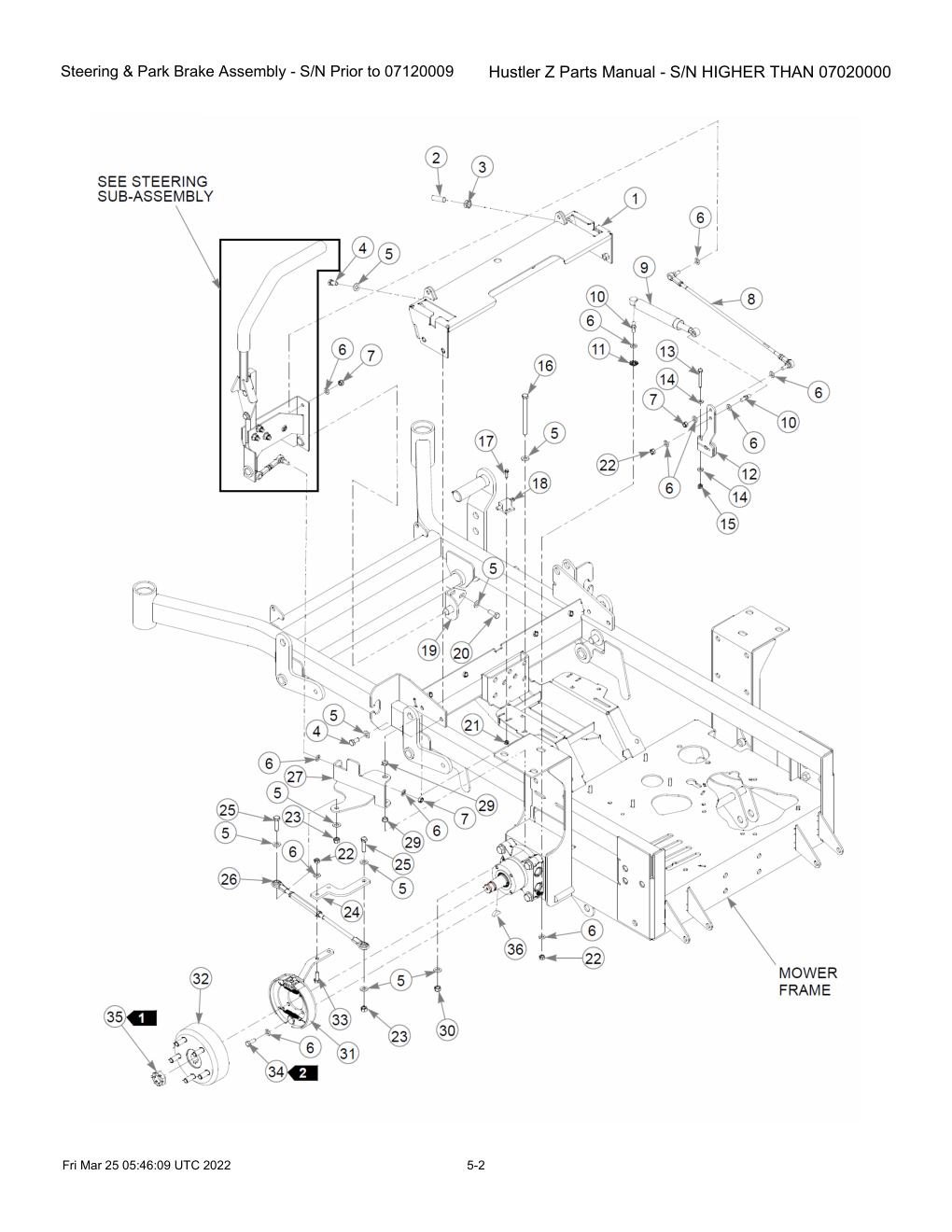

Steering & Park Brake Assembly - S/N Prior to 07120009
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STEERING CONTROL PANEL | 348987 | 1 | 348987-Online |
| 2 | SS .500-13X1.750SH | 781716 | 2 | 781716-Online |
| 3 | NT .500-13JAMG5 | 053199 | 2 | HT053199-Online |
| 4 | CS .375-16X0.75 HX G5 ZN | 055822 | 8 | HT055822-Online |
| 5 | FW 0.379X.82X.06 HD ZN | 767954 | 26 | HT767954-Online |
| 6 | FW 0.343SAE | 768523 | 30 | HT768523-Online |
| 7 | NT 0.312-24 NL G8 | 023655 | 6 | HT023655-Online |
| 8 | PUMP ROD ADJUSTER ASSY | 781286 | 2 | HT781286-Online |
| 9 | DAMPER, STEERING | 600221 | 2 | HT600221-Online |
| 10 | BALL STUD | 781922 | 4 | 781922-Online |
| 11 | LW .312 INTEXT ZN | 029876 | 2 | 029876-Online |
| 12 | PUMP ARM, BDP-10(PLATED | 367557 | 2 | 367557-Online |
| 13 | CS .250-20X2.000HXG5 | 704163 | 2 | 704163-Online |
| 14 | FW 0.281SAE | 768515 | 4 | HT768515-Online |
| 15 | NT .250-20 HXZY NL | 068551 | 2 | HT068551-Online |
| 16 | CS .375-16X4.750HXG5 | 782979 | 2 | 782979-Online |
| 17 | CS #10-24X0.750FLKG5 | 063198 | 4 | 063198-Online |
| 18 | SWITCH, PUSH BUTTON | 781211 | 2 | HT781211-Online |
| 19 | PIVOT, ADJUSTABLE W/A | 348797 | 2 | 348797-Online |
| 20 | CS .375-16X1.00 HX G5 ZN | 036244 | 6 | HT036244-Online |
| 21 | NT #10-24 HX NL ZN | 059832 | 4 | 059832-Online |
| 22 | NT .312-18HXG5 | 034272 | 8 | HT034272-Online |
| 23 | NT .375-16HXG5 | 054502 | 4 | HT054502-Online |
| 24 | BRAKE ARM EXTENSION MMZ | 350272 | 2 | 350272-Online |
| 25 | CS .375-16X1.38 HX G5 ZN | 005116 | 4 | HT005116-Online |
| 26 | BRAKE LINK TURNBUCKLE A | 350397 | 2 | 350397-Online |
| 27 | BRAKE PIVOT ARM LH | 350330 | 1 | 350330-Online |
| 28 | BRAKE PIVOT ARM RH(with | 350264 | 1 | 350264-Online |
| 29 | BUSHING,IGUS#0608 (FS) | 765339 | 4 | HT765339-Online |
| 30 | NT .375-16NLG8 | 086660 | 2 | HT086660-Online |
| 31 | BRAKE ASSEMBLY L.H. (MM | 781112 | 1 | 781112-Online |
| Not Shown | BRAKE ASSEMBLY R.H. (MM | 781351 | 1 | 781351-Online |
| 32 | BRAKE DRUM-HUB ASSEMBLY | 781765 | 2 | 781765-Online |
| 33 | CS .312-18X1.000HXG5 | 036236 | 4 | 036236-Online |
| 34 | CS .312-18X0.875HXG5 | 064014 | 8 | 064014-Online |
| 35 | ROSS NUT | 065516 | 2 | HT065516-Online |
Steering & Park Brake Assembly - S/N Prior to 07120009
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 36 | ROSS WOODRUFF KEY | 064337 | 2 | HT064337-Online |
Steering Sub-Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | GRIP, STEERING BAR | 781260 | 2 | 781260-Online |
| 2 | HANDLE, Z W/A | 109839 | 2 | 109839-Online |
| 3 | FW 0.379X.82X.06 HD ZN | 767954 | 16 | HT767954-Online |
| 4 | CS .375-16X1.00 HX G5 ZN | 036244 | 4 | HT036244-Online |
| 5 | CS .375-16X1.750HXG5 | 705178 | 6 | HT705178-Online |
| 6 | NT 0.312-24 NL G8 | 023655 | 2 | HT023655-Online |
| 7 | FW 0.343SAE | 768523 | 4 | HT768523-Online |
| 8 | STEERING ARM MNT W/A (P | 348946 | 2 | 348946-Online |
| 9 | STEERLEVER SUPT W/A LH( | 348888 | 1 | 348888-Online |
| REF | STEERLEVER SUPT W/A RH( | 348714 | 1 | 348714-Online |
| 10 | BUSHING, UHMW | 781153 | 4 | HT781153-Online |
| 11 | SS .500-13X1.750SH | 781716 | 2 | 781716-Online |
| 12 | BRAKE ROD ASSEMBLY | 781583 | 2 | HT781583-Online |
| 13 | NT .375-16NLG8 | 086660 | 6 | HT086660-Online |
| 14 | STEERLEVER BUSHING (PLA | 348862 | 4 | HT348862-Online |

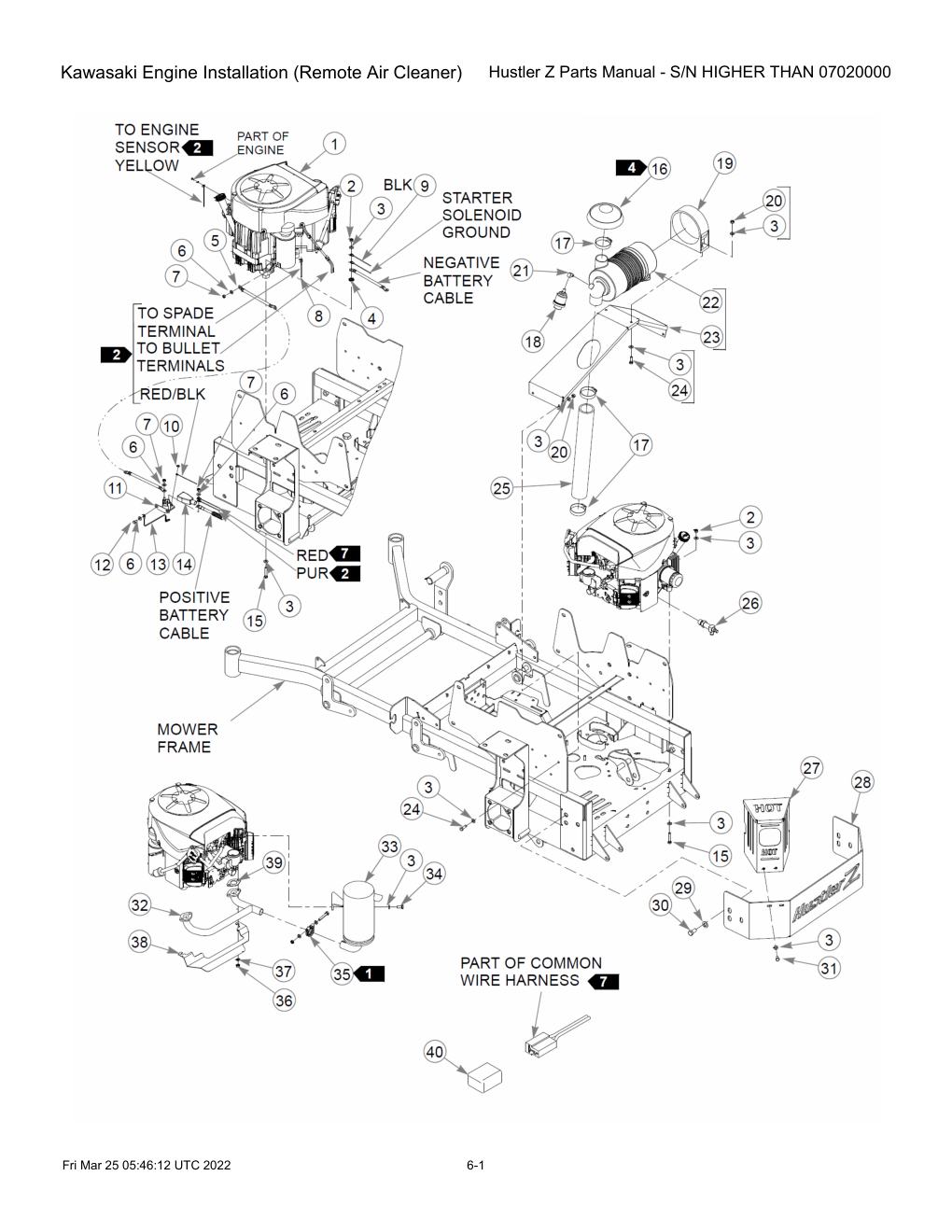

Kawasaki Engine Installation (Remote Air Cleaner)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 2 | NT .312-18NLG5 | 058776 | 4 | HT058776-Online |
| 3 | FW 0.343SAE | 768523 | 24 | HT768523-Online |
| 4 | LW .312 INTEXT ZN | 029876 | 1 | 029876-Online |
| 5 | BATTERY CABLE, POS red | 792762 | 1 | 792762-Online |
| 6 | FW 0.281SAE | 768515 | 5 | HT768515-Online |
| 7 | NT .250-20HXG5 | 024927 | 3 | HT024927-Online |
| 8 | WIRE HARNESS, ADAPTER | 799312 | 1 | 799312-Online |
| 9 | WIRE HARNESS, COMMON AC | 799320 | 1 | 799320-Online |
| 10 | NT #10-32HXG5 | 044255 | 1 | 044255-Online |
| 11 | STARTER SOLENOID | 030817 | 1 | HT030817-Online |
| 12 | CS .250-20X0.50 HX G5 ZN | 055947 | 2 | 055947-Online |
| 13 | STARTER RELAY GROUND WI | 792192 | 1 | 792192-Online |
| 14 | BATTERY CBL BOOT-RED(FS) | 771428 | 1 | 771428-Online |
| 15 | CS .312-18X1.750HXG5 | 050161 | 4 | 050161-Online |
| 16 | CAP, DONALDSON AIR CLEA | 786673 | 1 | 786673-Online |
| 17 | HOSE CLAMP (FS) | 057661 | 3 | 057661-Online |
| 18 | AIR FILTER INDICATOR | 788943 | 1 | HT788943-Online |
| 19 | BAND, AIR CLEANER MOUNT | 785741 | 1 | 785741-Online |
| 20 | NT .312-18HXG5 | 034272 | 6 | HT034272-Online |
| 21 | FTG, ELBOW, STREET | 601216 | 1 | 601216-Online |
| 22 | AIR CLEANER, DONALDSON | 782763 | 1 | HT782763-Online |
| Not Shown | COVER END, W/ LATCHES | 600910 | 1 | 600910-Online |
| 23 | BRACKET W/A, REMOTE AIR | 366443 | 1 | 366443-Online |
| 24 | CS .312-18X1.000HXG5 | 036236 | 6 | 036236-Online |
| 25 | HOSE, REMOTE AIR FILTER | 786038 | 1 | 786038-Online |
| 26 | VALVE,OIL DRAIN M20x2.5 | 796524 | 1 | HT796524-Online |
| 27 | MUFFLER GUARD W/A MMZ | 350371 | 1 | 350371-Online |
| 28 | ENGINE CAGE MOUNT PLATE | 349704 | 1 | 349704-Online |
| 29 | FW .531 x 1.063 x .175 | 767962 | 4 | HT767962-Online |
| 30 | CS .500-13X1.000HXG5 | 016527 | 4 | 016527-Online |
| 31 | CS .312-18X0.625HXG5 | 064006 | 2 | 064006-Online |
| 32 | MANIFOLD,23/25 KAW MMZ | 781732 | 1 | 781732-Online |
| 33 | MUFFLER,23/25 KAW MMZ | 781724 | 1 | 781724-Online |
| 34 | CS M8-1.25X20FLG10.9 | 720177 | 2 | 720177-Online |
Kawasaki Engine Installation (Remote Air Cleaner)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 35 | KAW (23) CLAMP, EXHAUST | 782649 | 1 | 782649-Online |
| 36 | NT M8-1.25 HX STAINLESS | 782664 | 4 | 782664-Online |
| 37 | LW0.312SPLIT | 017004 | 4 | 017004-Online |
| 38 | HEAT SHIELD | 360693 | 1 | 360693-Online |
| 39 | KAW (23) GASKET, MUF(FS) | 780841 | 2 | HT780841-Online |
| 40 | CAP, HUSTLRZ FAN CON(FS) | 789131 | 1 | 789131-Online |

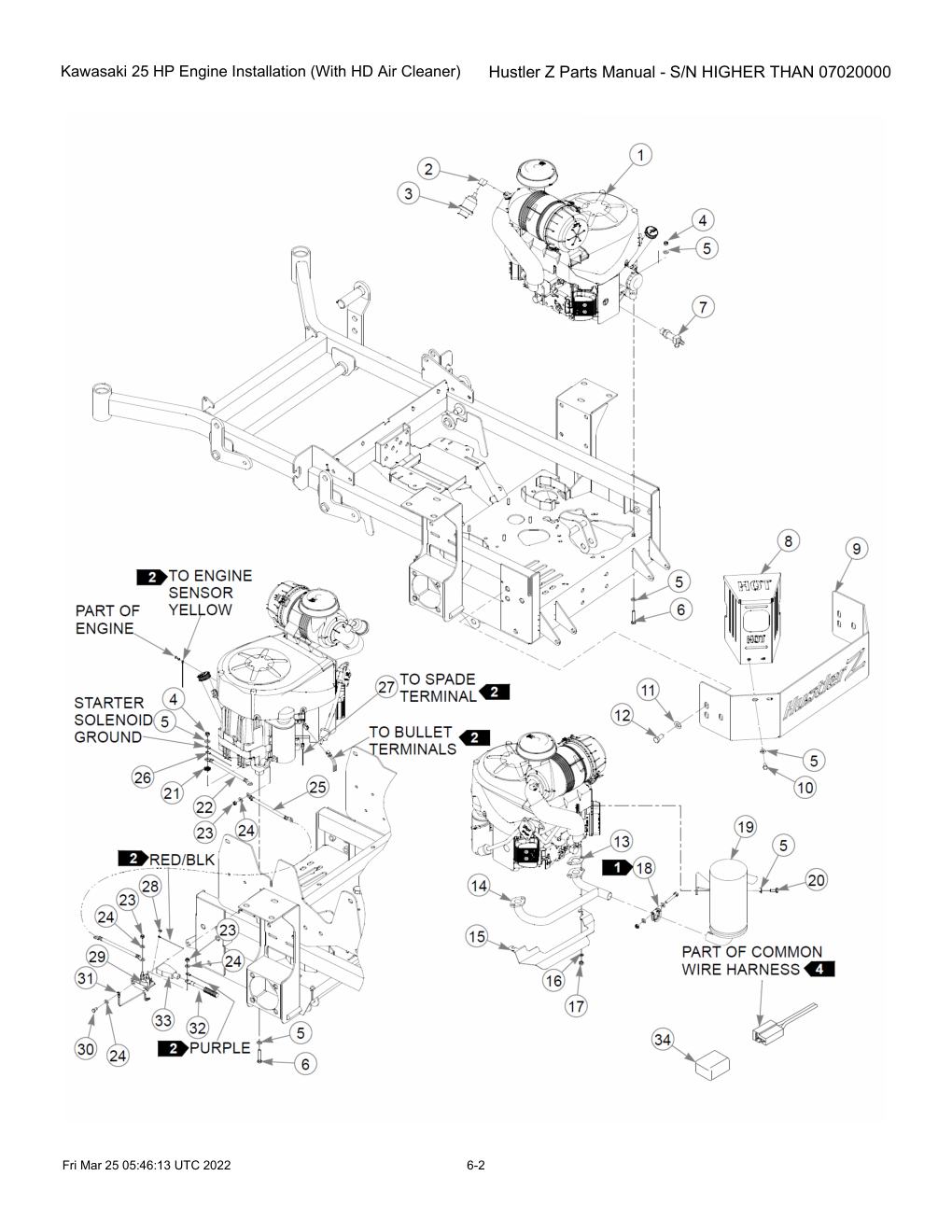

Kawasaki 25 HP Engine Installation (With HD Air Cleaner)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 2 | FTG, 90 1/8NPT BRASS | 601257 | 1 | 601257-Online |
| 3 | AIR FILTER INDICATOR | 788943 | 1 | HT788943-Online |
| 4 | NT .312-18NLG5 | 058776 | 4 | HT058776-Online |
| 5 | FW 0.343SAE | 768523 | 12 | HT768523-Online |
| 6 | CS .312-18X1.750HXG5 | 050161 | 4 | 050161-Online |
| 7 | VALVE,OIL DRAIN M20x2.5 | 796524 | 1 | HT796524-Online |
| 8 | MUFFLER GUARD W/A MMZ | 350371 | 1 | 350371-Online |
| 9 | ENGINE CAGE MOUNT PLATE | 349704‘ | 1 | No SKU |
| 10 | CS .312-18X0.625HXG5 | 064006 | 2 | 064006-Online |
| 11 | FW .531 x 1.063 x .175 | 767962 | 4 | HT767962-Online |
| 12 | CS .500-13X1.000HXG5 | 016527 | 4 | 016527-Online |
| 13 | KAW (23) GASKET, MUF(FS) | 780841 | 2 | HT780841-Online |
| 14 | MANIFOLD,23/25 KAW MMZ | 781732 | 1 | 781732-Online |
| 15 | HEAT SHIELD | 360693 | 1 | 360693-Online |
| 16 | LW0.312SPLIT | 017004 | 4 | 017004-Online |
| 17 | NT M8-1.25 HX STAINLESS | 782664 | 4 | 782664-Online |
| 18 | KAW (23) CLAMP, EXHAUST | 782649 | 1 | 782649-Online |
| 19 | MUFFLER,23/25 KAW MMZ | 781724 | 1 | 781724-Online |
| 20 | CS M8-1.25X20FLG10.9 | 720177 | 2 | 720177-Online |
| 21 | LW .312 INTEXT ZN | 029876 | 1 | 029876-Online |
| 22 | BATTERY CABLE,NEG 36" D | 796219 | 1 | 796219-Online |
| 23 | NT .250-20HXG5 | 024927 | 3 | HT024927-Online |
| 24 | FW 0.281SAE | 768515 | 5 | HT768515-Online |
| 25 | BATTERY CABLE, POS red | 792762 | 1 | 792762-Online |
| 26 | WIRE HARNESS, COMMON AC | 799320 | 1 | 799320-Online |
| 27 | WIRE HARNESS, ADAPTER | 799312 | 1 | 799312-Online |
| 28 | NT #10-32HXG5 | 044255 | 1 | 044255-Online |
| 29 | STARTER SOLENOID | 030817 | 1 | HT030817-Online |
| 30 | CS .250-20X0.50 HX G5 ZN | 055947 | 2 | 055947-Online |
| 31 | STARTER RELAY GROUND WI | 792192 | 1 | 792192-Online |
| 32 | BATTERY CABLE POSITIVE | 744276 | 1 | 744276-Online |
| 33 | BATTERY CBL BOOT-RED(FS) | 771428 | 1 | 771428-Online |
| 34 | CAP, HUSTLRZ FAN CON(FS) | 789131 | 1 | 789131-Online |
Kawasaki 26 HP Engine Installation
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 2 | MANIFOLD, EXH 26HP KAW | 796748 | 1 | 796748-Online |
| 3 | KAW (23) GASKET, MUF(FS) | 780841 | 2 | HT780841-Online |
| 4 | LW0.312SPLIT | 017004 | 4 | 017004-Online |
| 5 | NT M8-1.25 HX STAINLESS | 782664 | 4 | 782664-Online |
| 6 | MUFFLER, 26HP KAW LC | 796755 | 1 | 796755-Online |
| 7 | CLAMP, MUFFLER 1.50" | 785378 | 1 | HT785378-Online |
| 8 | FW .531 x 1.063 x .175 | 767962 | 14 | HT767962-Online |
| 9 | CS .500-13X1.000HXG5 | 016527 | 10 | 016527-Online |
| 10 | NT .500-13HXG5 | 008193 | 4 | HT008193-Online |
| 11 | CS .250-20X0.625HXG5 | 064329 | 2 | 064329-Online |
| 12 | FW 0.281X.50X.06 ZN | 073866 | 4 | 073866-Online |
| 13 | SCREEN SUPPORT W/A | 104133 | 1 | 104133-Online |
| 14 | OVER CNTR LATCH ZINC PL | 010470 | 1 | 010470-Online |
| 15 | NT #10-24 HX ZN | 035626 | 2 | 035626-Online |
| 16 | MS #10-24 X .375 RD SL | 030437 | 2 | 030437-Online |
| 17 | NT .250-20HXG5 | 024927 | 3 | HT024927-Online |
| 18 | WEATHERSTRIP .12X.75 | 033035 | 2 | 033035-Online |
| 19 | WEATHERSTRIP .12X.75 | 033035 | 2 | 033035-Online |
| 20 | VALVE,OIL DRAIN M20x2.5 | 796524 | 1 | HT796524-Online |
| 21 | BAFFLE, ENGINE AIR | 109566 | 1 | 109566-Online |
| 22 | CS .250-20X0.75 HX G5 ZN | 055939 | 3 | 055939-Online |
| 23 | FW 0.281SAE | 768515 | 3 | HT768515-Online |
| 24 | FW 0.343SAE | 768523 | 4 | HT768523-Online |
| 25 | CS M8-1.25X20 HX G8.8 | 028035 | 4 | 028035-Online |
| 26 | ENGINE GUARD 26KAWLCHZ | 109717 | 1 | 109717-Online |
| 27 | LW .312 INTEXT ZN | 029876 | 1 | 029876-Online |
| 28 | CS M8-1.25X16HX FL10.9 | 720516 | 1 | 720516-Online |
| 29 | LW0.312SPLIT | 017004 | 1 | 017004-Online |
| 30 | NT M8-1.25 X 10 HX ZNYC | 077545 | 1 | 077545-Online |
| 31 | WIRE HARNESS, KAW LC 26 | 799338 | 1 | 799338-Online |
| 32 | CAP, HUSTLRZ FAN CON(FS) | 789131 | 1 | 789131-Online |
Kawasaki 29 HP Engine Installation (With HD Air Cleaner)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 2 | HEAT SHIELD, CABLES | 109743 | 1 | 109743-Online |
| 3 | CS M8-1.25X16HX FL10.9 | 720516 | 3 | 720516-Online |
| 4 | MUFFLER | 788018 | 1 | 788018-Online |
| 5 | CLAMP, MUFFLER 1.50" | 785378 | 1 | HT785378-Online |
| 6 | MANIFOLD, 29/31 KAW | 601550 | 1 | 601550-Online |
| 7 | KAW (23) GASKET, MUF(FS) | 780841 | 2 | HT780841-Online |
| 8 | LW0.312SPLIT | 017004 | 1 | 017004-Online |
| 9 | NT M8-1.25 HX STAINLESS | 782664 | 1 | 782664-Online |
| 10 | CS .375-16X1.00 HXF G5ZN | 029751 | 2 | 029751-Online |
| 11 | FW 0.391X1.25X.06 ZN | 705137 | 4 | 705137-Online |
| 12 | NT .375-16 FLKG5 | 016899 | 2 | HT016899-Online |
| 13 | VALVE,OIL DRAIN M20x2.5 | 796524 | 1 | HT796524-Online |
| 14 | NT .312-18HXG5 | 034272 | 4 | HT034272-Online |
| 15 | FW 0.343SAE | 768523 | 12 | HT768523-Online |
| 16 | EXHAUST HEAT SHIELD | 109749 | 1 | 109749-Online |
| 17 | HEAT SHIELD, MMZ TALL B | 338475 | 1 | 338475-Online |
| 18 | ENGINE GUARD, HUSTLER Z | 337394 | 1 | 337394-Online |
| 19 | CB .312-18X .750 FUL ZN | 016253 | 4 | 016253-Online |
| 20 | FW .531 x 1.063 x .175 | 767962 | 6 | HT767962-Online |
| 21 | CS .500-13X1.000HXG5 | 016527 | 6 | 016527-Online |
| 22 | CS .375-16X1.25HXG8ZYP85 | 602580 | 4 | 602580-Online |
| 23 | HEAT SHIELD, MMZ ROLLER | 377994 | 1 | 377994-Online |
| 24 | FTG, ELBOW, STREET | 601216 | 1 | 601216-Online |
| 25 | AIR FILTER INDICATOR | 788943 | 1 | HT788943-Online |
| 26 | LW .312 INTEXT ZN | 029876 | 1 | 029876-Online |
| 27 | WIRE HARNESS, COMMON AC | 799320 | 1 | 799320-Online |
| 28 | WIRE HARNESS, KAWI 29,31 | 601561 | 1 | 601561-Online |
| 29 | CAP, HUSTLRZ FAN CON(FS) | 789131 | 1 | 789131-Online |
Honda Engine Installation
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 2 | NT .312-18NLG5 | 058776 | 4 | HT058776-Online |
| 3 | FW 0.343SAE | 768523 | 23 | HT768523-Online |
| 4 | WIRE HARNESS, COMMON AC | 799320 | 1 | 799320-Online |
| 5 | LW .312 INTEXT ZN | 029876 | 1 | 029876-Online |
| 6 | NT M8-1.25 X 10 HX ZNYC | 077545 | 1 | 077545-Online |
| 7 | LW0.312SPLIT | 017004 | 5 | 017004-Online |
| 8 | WIRE HARNESS ADAPTER | 799304 | 1 | 799304-Online |
| 9 | CS .312-18X1.750HXG5 | 050161 | 4 | 050161-Online |
| 10 | CAP, DONALDSON AIR CLEA | 786673 | 1 | 786673-Online |
| 11 | HOSE CLAMP (FS) | 057661 | 3 | 057661-Online |
| 12 | BAND, AIR CLEANER MOUNT | 785741 | 1 | 785741-Online |
| 13 | NT .312-18HXG5 | 034272 | 6 | HT034272-Online |
| 14 | AIR CLEANER, DONALDSON | 782763 | 1 | HT782763-Online |
| 15 | BRACKET W/A, REMOTE AIR | 366443 | 1 | 366443-Online |
| 16 | CS .312-18X1.000HXG5 | 036236 | 9 | 036236-Online |
| 17 | HOSE, REMOTE AIR FILTER | 785675 | 1 | 785675-Online |
| 18 | VALVE,OIL DRAIN M14x | 787689 | 1 | 787689-Online |
| 19 | HOSE, 1/2" LOW PRESSURE | 787713 | 1 | HT787713-Online |
| 20 | MUFFLER GUARD W/A, MMZ | 382168 | 1 | 382168-Online |
| 21 | HEAT SHIELD, MMZ ROLLER | 377994 | 1 | 377994-Online |
| 22 | ENGINE CAGE MOUNT PLATE | 365742 | 1 | 365742-Online |
| 23 | FW .531 x 1.063 x .175 | 767962 | 4 | HT767962-Online |
| 24 | CS .500-13X1.000HXG5 | 016527 | 4 | 016527-Online |
| 25 | LW .250 MED SPRING ZN | 017038 | 2 | 017038-Online |
| 26 | NT .250-20HXG5 | 024927 | 2 | HT024927-Online |
| 27 | RECTIFIER,HONDA 20 AMP | 785477 | 1 | 785477-Online |
| 28 | FW 0.281SAE | 768515 | 2 | HT768515-Online |
| 29 | CS .250-20X1.000HXG5 | 056077 | 2 | 056077-Online |
| 30 | MUFFLER, 18/20/24 HONDA | 784843 | 1 | 784843-Online |
| 31 | CS M8-1.25X20FLG10.9 | 720177 | 2 | 720177-Online |
| 32 | CLAMP, MUFFLER 1.50" | 785378 | 1 | HT785378-Online |
| 33 | HONDA (20) GASKET, MUFF | 785543 | 2 | 785543-Online |
| 34 | NT M8-1.25 HX STAINLESS | 782664 | 4 | 782664-Online |
| 35 | MANIFOLD,18/20/24 HONDA | 784959 | 1 | 784959-Online |
| 36 | CAP, HUSTLRZ FAN CON(FS) | 789131 | 1 | 789131-Online |

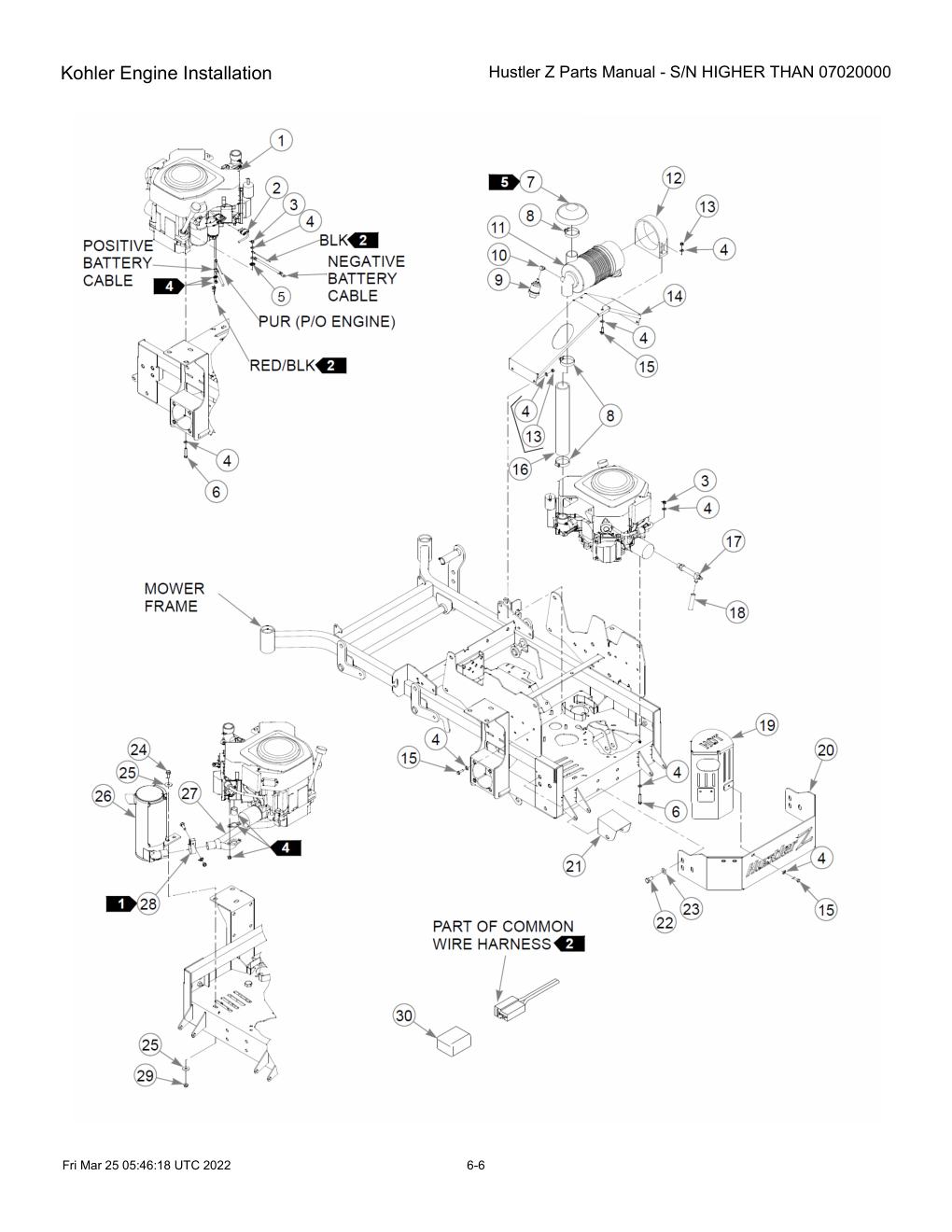

Kohler Engine Installation
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 2 | WIRE HARNESS, COMMON AC | 799320 | 1 | 799320-Online |
| 3 | NT .312-18NLG5 | 058776 | 4 | HT058776-Online |
| 4 | FW 0.343SAE | 768523 | 29 | HT768523-Online |
| 5 | LW .312 INTEXT ZN | 029876 | 1 | 029876-Online |
| 6 | CS .312-18X1.750HXG5 | 050161 | 4 | 050161-Online |
| 7 | CAP, DONALDSON AIR CLEA | 786673 | 1 | 786673-Online |
| 8 | HOSE CLAMP (FS) | 057661 | 3 | 057661-Online |
| 9 | AIR FILTER INDICATOR | 788943 | 1 | HT788943-Online |
| 10 | FTG, ELBOW, STREET | 601216 | 1 | 601216-Online |
| 11 | AIR CLEANER, DONALDSON | 782763 | 1 | HT782763-Online |
| 12 | BAND, AIR CLEANER MOUNT | 785741 | 1 | 785741-Online |
| 13 | NT .312-18HXG5 | 034272 | 6 | HT034272-Online |
| 14 | BRACKET W/A, REMOTE AIR | 366443 | 1 | 366443-Online |
| 15 | CS .312-18X1.000HXG5 | 036236 | 9 | 036236-Online |
| 16 | HOSE,15"STRAIGHT REMOTE | 795310 | 1 | HT795310-Online |
| 17 | VALVE,OIL DRAIN 3/8-18 | 796672 | 1 | 796672-Online |
| 18 | HOSE, 1/2" LOW PRESSURE | 787713 | 1 | HT787713-Online |
| 19 | MUFFLER GUARD W/A, MMZ | 382168 | 1 | 382168-Online |
| 20 | ENGINE CAGE MOUNT PLATE | 365742 | 1 | 365742-Online |
| 21 | HEAT SHIELD, MMZ ROLLER | 377994 | 1 | 377994-Online |
| 22 | CS .500-13X1.000HXG5 | 016527 | 4 | 016527-Online |
| 23 | FW .531 x 1.063 x .175 | 767962 | 4 | HT767962-Online |
| 24 | CS .375-16X1.00 HXF G5ZN | 029751 | 2 | 029751-Online |
| 25 | FW 0.391X1.25X.06 ZN | 705137 | 4 | 705137-Online |
| 26 | MUFFLER | 788018 | 1 | 788018-Online |
| 27 | MANIFOLD, Z KOHLER 27-2 | 788026 | 1 | 788026-Online |
| 28 | CLAMP, MUFFLER 1.50" | 785378 | 1 | HT785378-Online |
| 29 | NT .375-16 FLKG5 | 016899 | 2 | HT016899-Online |
| 30 | CAP, HUSTLRZ FAN CON(FS) | 789131 | 1 | 789131-Online |

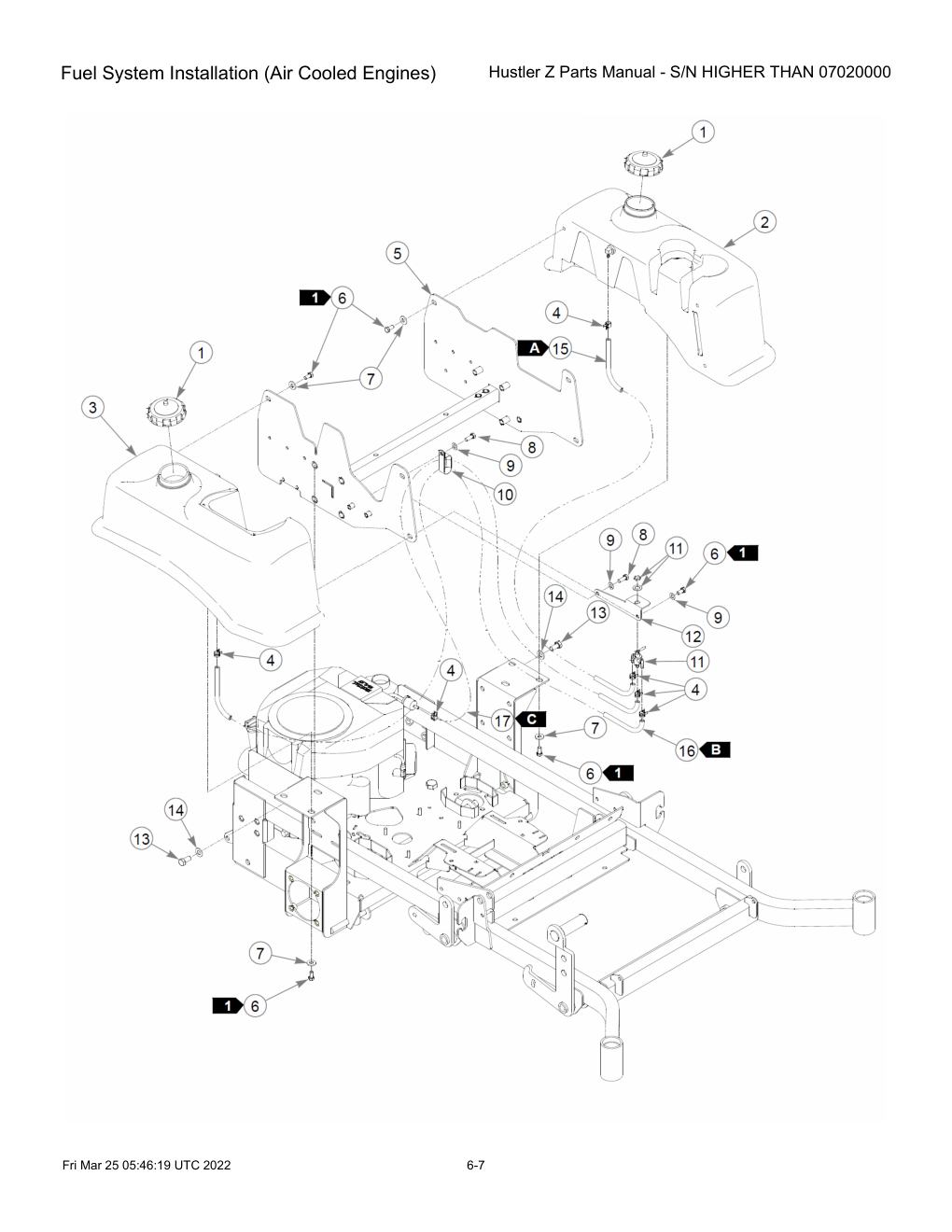

Fuel System Installation (Air Cooled Engines)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FUEL CAP,3.5" | 779306 | 2 | HT779306-Online |
| 2 | FUEL TANK, LT MMZ | 793240 | 1 | 793240-Online |
| 3 | FUEL TANK, RT MMZ | 793232 | 1 | 793232-Online |
| 4 | CLIP, HOSE CLAMP | 000323 | 6 | 000323-Online |
| 5 | SEAT SUPPORT W/A MMZ/XR7 | 106732 | 1 | 106732-Online |
| 6 | CS .375-16X0.75 HX G5 ZN | 055822 | 12 | HT055822-Online |
| 7 | FW 0.406X1.00X.12 HD ZN | 712919 | 11 | HT712919-Online |
| 8 | CS .375-16X1.00 HX G5 ZN | 036244 | 2 | HT036244-Online |
| 9 | FW 0.379X.82X.06 HD ZN | 767954 | 3 | HT767954-Online |
| 10 | CLAMP, 1.75"DIA RBR COAT | 797035 | 1 | 797035-Online |
| 11 | FUEL VALVE, 3-WAY NYLON | 797084 | 1 | 797084-Online |
| 12 | BRACKET, FUEL SHUT-OFF | 347989 | 1 | 347989-Online |
| 13 | CS .500-13X1.25 HX G5 ZN | 705954 | 8 | HT705954-Online |
| 14 | FW .531 x 1.063 x .175 | 767962 | 8 | HT767962-Online |
| 15 | FUEL LINE, 1/4" | 015818 | 1 | HT015818-Online |
| 16 | FUEL LINE, 1/4" | 015818 | 1 | HT015818-Online |
| 17 | FUEL LINE, 1/4" | 015818 | 1 | HT015818-Online |
| 18 | WIRE TIE, SMALL/SHORT | 000331 | 3 | 000331-Online |

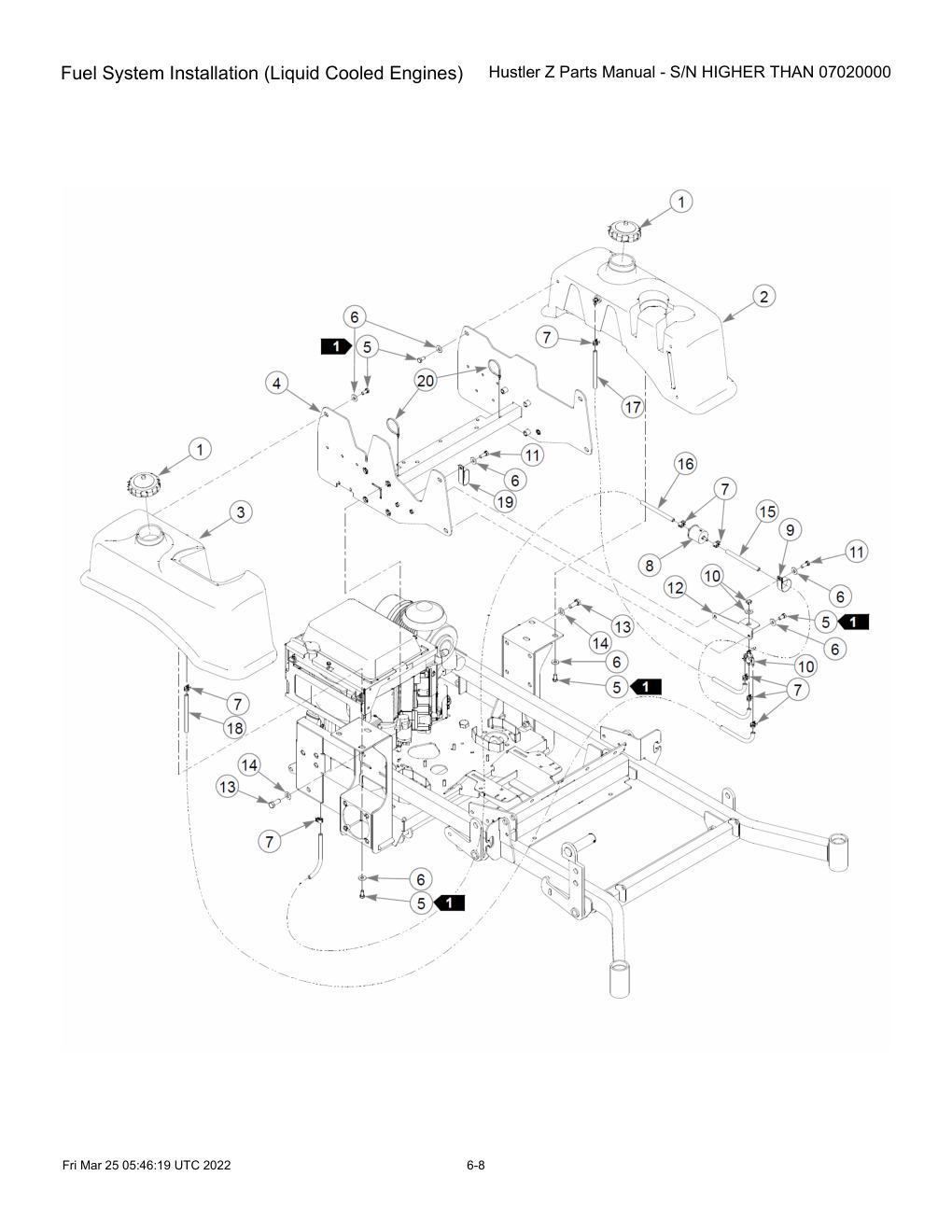

Fuel System Installation (Liquid Cooled Engines)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FUEL CAP,3.5" | 779306 | 2 | HT779306-Online |
| 2 | FUEL TANK, LT MMZ | 793240 | 1 | 793240-Online |
| 3 | FUEL TANK, RT MMZ | 793232 | 1 | 793232-Online |
| 4 | SEAT SUPPORT, 26KAW HZ | 109678 | 1 | 109678-Online |
| 5 | CS .375-16X0.75 HX G5 ZN | 055822 | 12 | HT055822-Online |
| 6 | FW 0.406X1.00X.12 HD ZN | 712919 | 14 | HT712919-Online |
| 7 | CLIP, HOSE CLAMP | 000323 | 8 | 000323-Online |
| 8 | FUEL FILTER - IN LINE | 068478 | 1 | 068478-Online |
| 9 | CLAMP, 1.75"DIA RBR COAT | 797035 | 1 | 797035-Online |
| 10 | FUEL VALVE, 3-WAY NYLON | 797084 | 1 | 797084-Online |
| 11 | CS .375-16X1.00 HX G5 ZN | 036244 | 2 | HT036244-Online |
| 12 | BRACKET, FUEL SHUT-OFF | 347989 | 1 | 347989-Online |
| 13 | CS .500-13X1.25 HX G5 ZN | 705954 | 8 | HT705954-Online |
| 14 | FW .531 x 1.063 x .175 | 767962 | 8 | HT767962-Online |
| 15 | FUEL LINE, 1/4" | 015818 | 6" | HT015818-Online |
| 16 | FUEL LINE, 1/4" | 015818 | 26.75" | HT015818-Online |
| 17 | FUEL LINE, 1/4" | 015818 | 45.38" | HT015818-Online |
| 18 | FUEL LINE, 1/4" | 015818 | 29" | HT015818-Online |
| 19 | HOSE CLAMP 1" (FS) | 045088 | 1 | 045088-Online |
| 20 | WIRE TIE, SMALL/SHORT | 000331 | 3 | 000331-Online |
Instrument Panel Assembly (Air Cooled)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SWITCH, PTO 6201-321 | 776476 | 1 | HT776476-Online |
| 2 | KEY ASSEMBLY | 785808 | 1 | 785808-Online |
| 3 | IGNITION SWITCH | 045898 | 1 | HT045898-Online |
| 4 | CABLE, CHOKE | 785030 | 1 | HT785030-Online |
| REF | CABLE, CHOKE | 786657 | 1 | HT786657-Online |
| 5 | INDICATOR LIGHT, RED(FS) | 712257 | 1 | HT712257-Online |
| 6 | WIRE TIE, SMALL/LONG | 000430 | 3 | 000430-Online |
| 7 | FW 0.219X.50X.05 ZN | 704932 | 8 | HT704932-Online |
| 8 | MS#10-24X0.625HX | 714998 | 3 | 714998-Online |
| 9 | CB 10-24 X .500 ZYNC | 601098 | 2 | 601098-Online |
| 10 | NT #10-24 HX NL ZN | 059832 | 5 | 059832-Online |
| 11 | HOUR METER | 769166 | 1 | HT769166-Online |
| 12 | CABLE, THROTTLE | 778365 | 1 | HT778365-Online |
| REF | CABLE, THRTL LG HNDL 60" | 601675 | 1 | 601675-Online |
| 13 | CS .250-20X0.50 HX G5 ZN | 055947 | 3 | 055947-Online |
| 14 | FW 0.281SAE | 768515 | 3 | HT768515-Online |
| 15 | Instrument Panel | 106633 | 1 | 106633-Online |
| 16 | RELAY, SEALED W/BRACKET | 601053 | 6 | HT601053-Online |
| 17 | BRACKET, RELAY | 107920 | 1 | 107920-Online |
| 18 | RIVET .188 DIA BLK HD | 601089 | 2 | 601089-Online |
| REF | DELAY MODULE | 762195 | 1 | HT762195-Online |

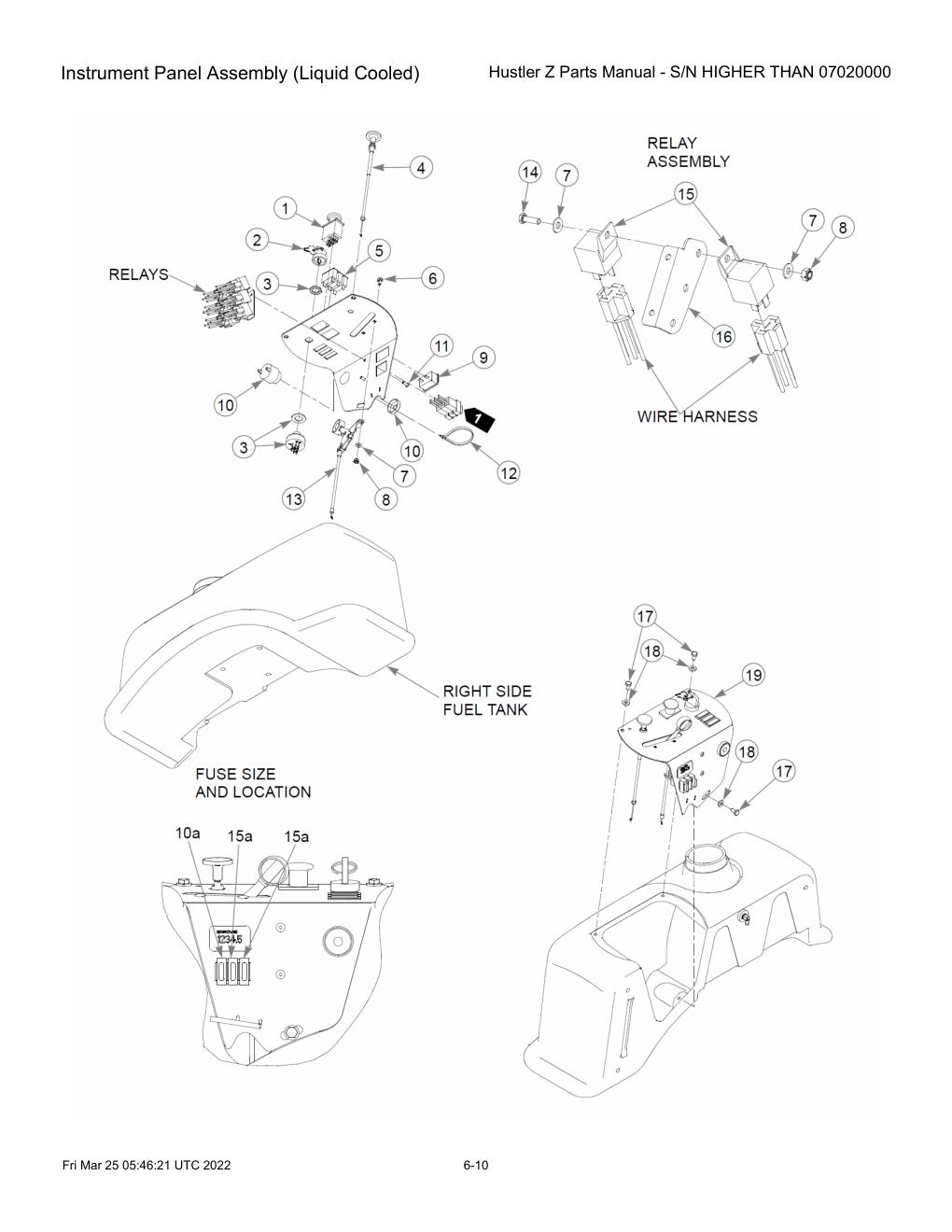

Instrument Panel Assembly (Liquid Cooled)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SWITCH, PTO 6201-321 | 776476 | 1 | HT776476-Online |
| 2 | KEY ASSEMBLY | 785808 | 1 | 785808-Online |
| 3 | IGNITION SWITCH | 045898 | 1 | HT045898-Online |
| 4 | CABLE, CHOKE | 785030 | 1 | HT785030-Online |
| 5 | INDICATOR LIGHT, RED(FS) | 712257 | 3 | HT712257-Online |
| 6 | CB 10-24 X .500 ZYNC | 601098 | 2 | 601098-Online |
| 7 | FW 0.219X.50X.05 ZN | 704932 | 8 | HT704932-Online |
| 8 | NT #10-24 HX NL ZN | 059832 | 5 | 059832-Online |
| 9 | HOUR METER | 769166 | 1 | HT769166-Online |
| 10 | ALARM, ULTRA LOUD WARBL | 794347 | 1 | 794347-Online |
| 11 | RIVET .188 DIA BLK HD | 601089 | 2 | 601089-Online |
| 12 | WIRE TIE, SMALL/LONG | 000430 | 3 | 000430-Online |
| 13 | CABLE, THROTTLE | 787788 | 1 | 787788-Online |
| 14 | MS#10-24X0.625HX | 714998 | 3 | 714998-Online |
| 15 | RELAY, SEALED W/BRACKET | 601053 | 6 | HT601053-Online |
| 16 | BRACKET, RELAY | 107920 | 1 | 107920-Online |
| 17 | CS .250-20X0.50 HX G5 ZN | 055947 | 3 | 055947-Online |
| 18 | FW 0.281SAE | 768515 | 3 | HT768515-Online |
| 19 | Instrument Panel | 106633 | 1 | 106633-Online |
| REF | DELAY MODULE | 762195 | 1 | HT762195-Online |

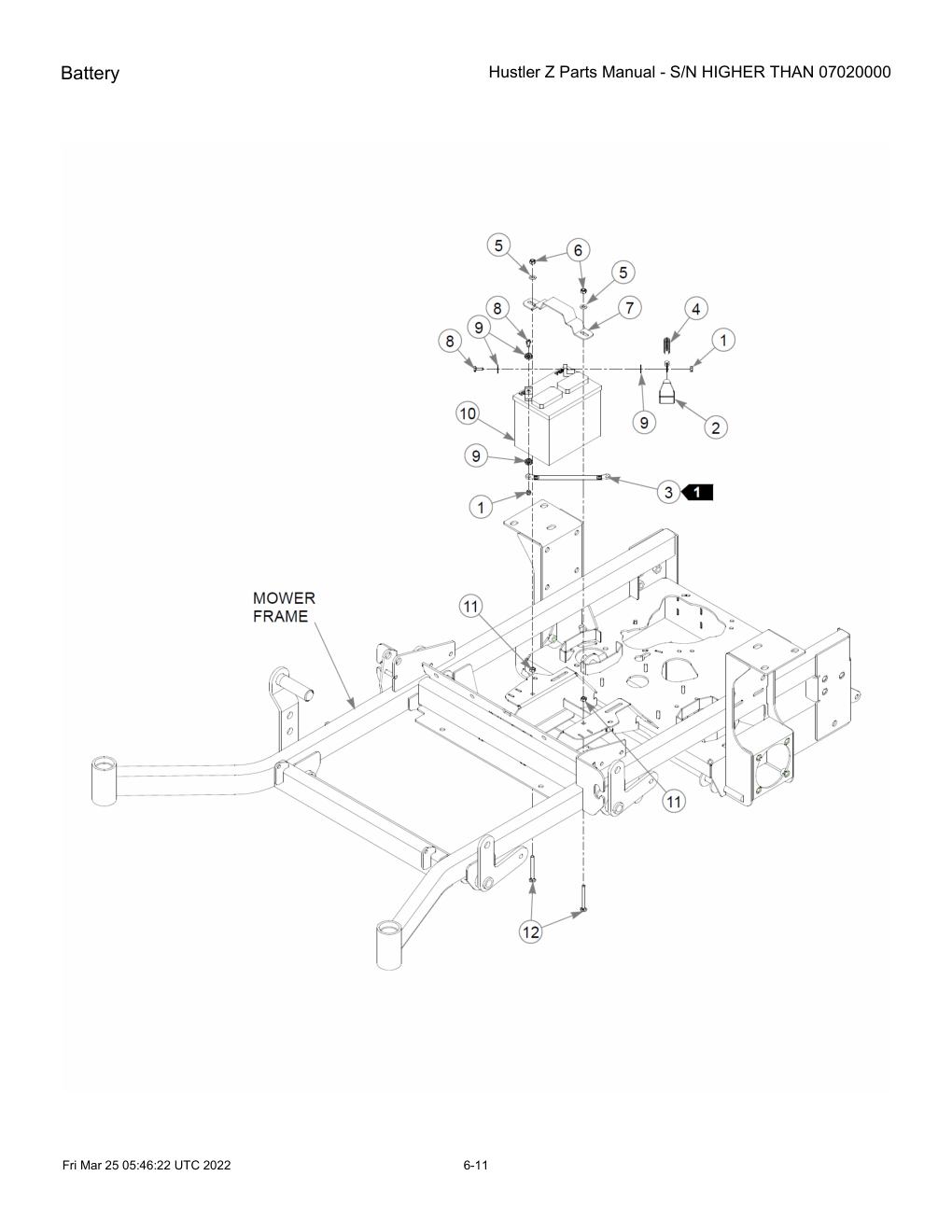

Battery
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .250-20HXG5 | 024927 | 2 | HT024927-Online |
| 2 | BATTERY CBL BOOT-RED(FS) | 771428 | 1 | 771428-Online |
| 3 | BATTERY CABLE,NEG 36" D | 796219 | 1 | 796219-Online |
| 4 | BATTERY CABLE POSITIVE | 744276 | 1 | 744276-Online |
| 5 | FW 0.343SAE | 768523 | 3 | HT768523-Online |
| 6 | NT .312-18NLG5 | 058776 | 2 | HT058776-Online |
| 7 | STRAP, BATTERY CLAMP | 348417 | 1 | 348417-Online |
| 8 | CS .250-20X0.75 HX G5 ZN | 055939 | 2 | 055939-Online |
| 9 | LW .250 INTEXT ZN | 029868 | 4 | 029868-Online |
| 10 | BATTERY VU1LH-8 | N/A | 1 | No SKU |
| 11 | NT .312-18HXG5 | 034272 | 2 | HT034272-Online |
| 12 | CB .312-18X 3.00 FUL ZN | 779850 | 2 | 779850-Online |

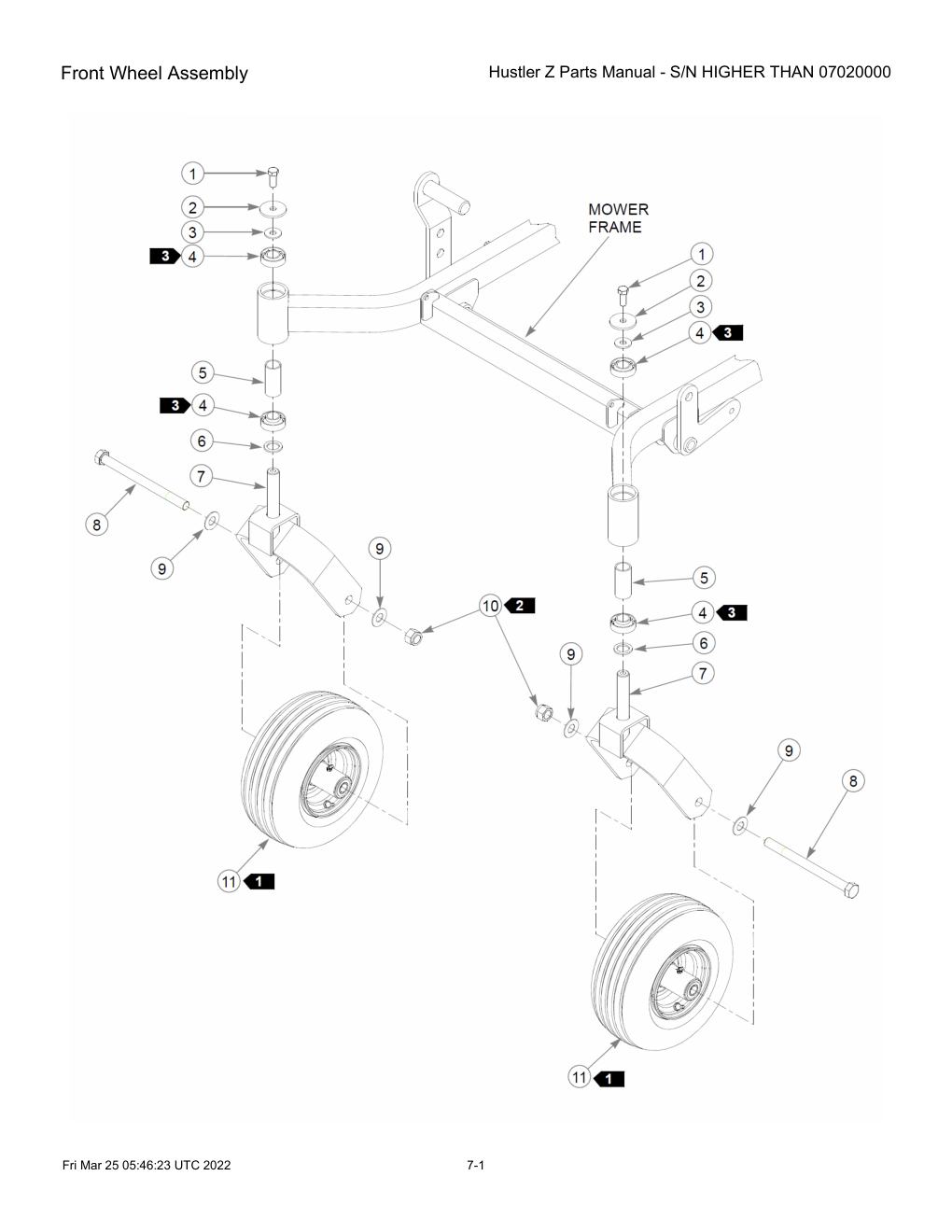

Front Wheel Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .500-13X1.25 HX G5 ZN | 705954 | 2 | HT705954-Online |
| 2 | FW .510X2.15X.19 ZN | 344267 | 2 | HT344267-Online |
| 3 | FW 0.531X1.38X.12 ZN | 712976 | 2 | HT712976-Online |
| 4 | BEARING | 784223 | 4 | HT784223-Online |
| 5 | SPACER, 1.07x1.312x2.79 | 387035 | 2 | HT387035-Online |
| 6 | FW 1.030X1.50X.13 HD ZN | 045765 | 2 | HT045765-Online |
| 7 | FORK W/A MMZ 60" | 349266 | 2 | HT349266-Online |
| 8 | CS .750-10X9.50 HX G5 ZN | 041475 | 2 | HT041475-Online |
| 9 | FW .760X1.63X0.08 ZN | 025296 | 4 | HT025296-Online |
| 10 | NT .750-10 HX ZN NL GR B | 061101 | 2 | HT061101-Online |
| 11 | TIR 13X6.50-6 B4R RIB | 607734 | 2 | 607734-Online |
| REF | S/C TO 607317 | 789537 | 2 | 789537-Online |

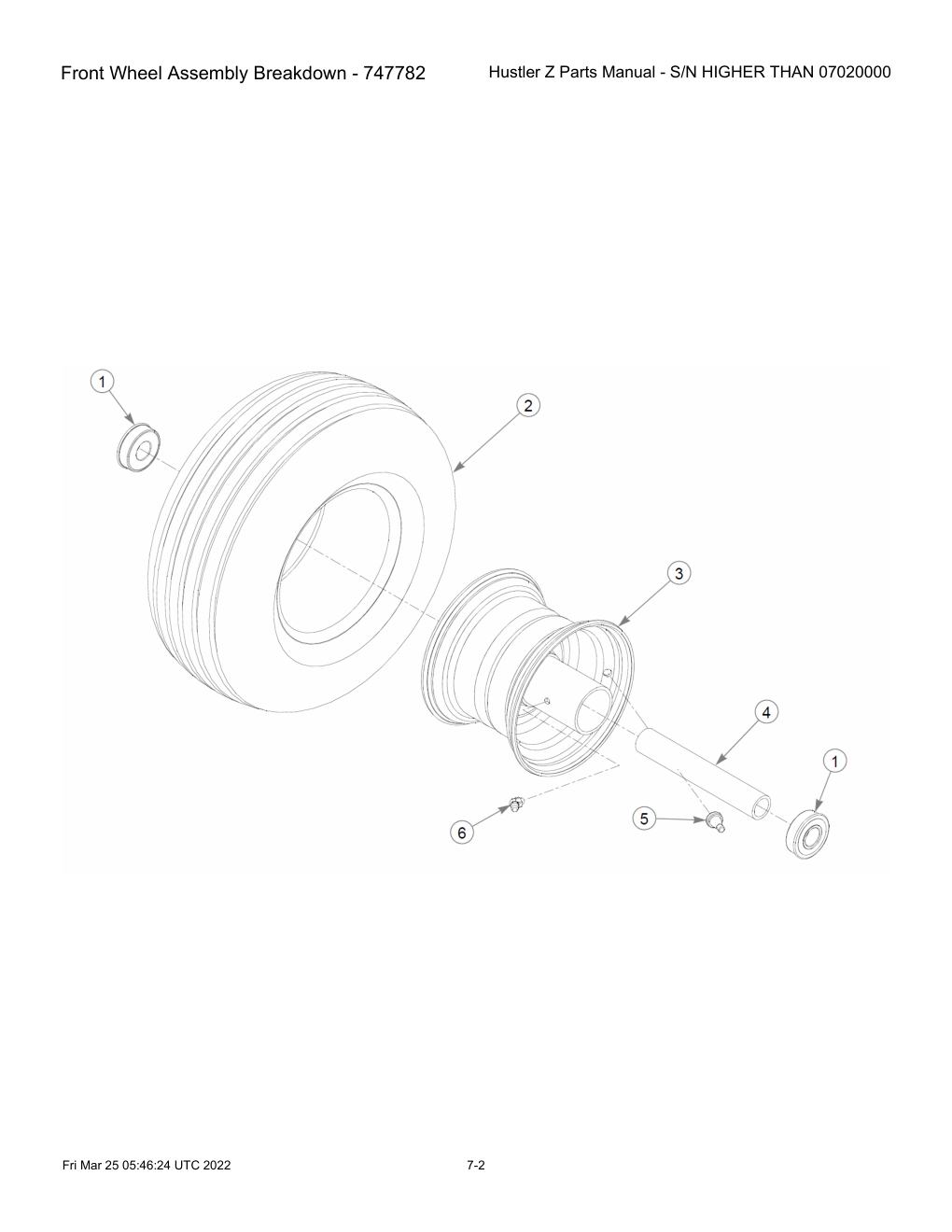

Front Wheel Assembly Breakdown - 747782
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | WHEEL BEARING | 039677 | 2 | HT039677-Online |
| 2 | TIR 13X6.50-6 B4R RIB | 747741 | 1 | 747741-Online |
| 3 | WHL 6X4.50 SLV | 606751 | 1 | 606751-Online |
| 4 | SPACER, BEARING (SERV P | 782771 | 1 | HT782771-Online |
| 5 | TIRE VALVE TR-412 GOODY | 019521 | 1 | HT019521-Online |
| 6 | GREASE FITTING 45° DEG 1/4" | 015511 | 1 | HT015511-Online |

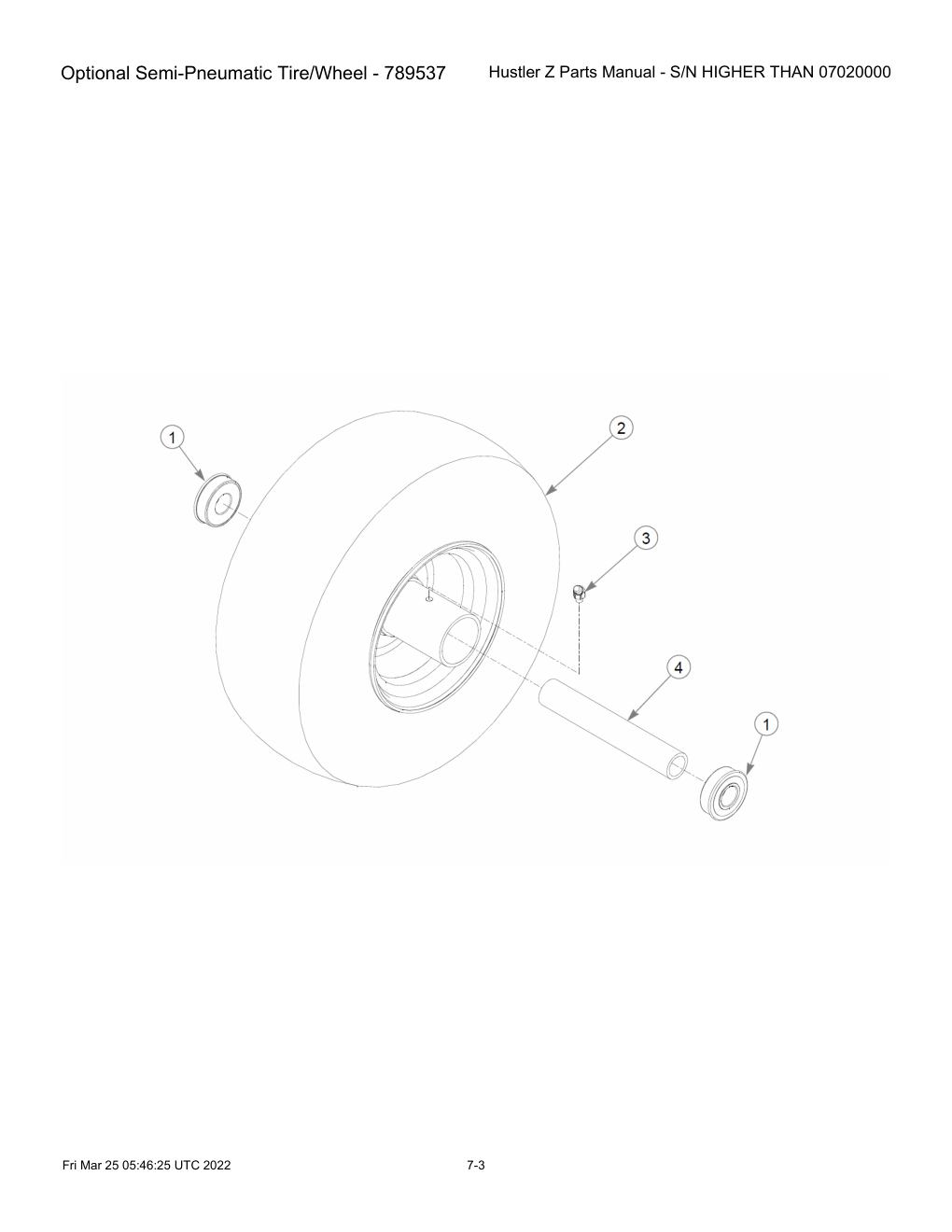

Optional Semi-Pneumatic Tire/Wheel - 789537
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | WHEEL BEARING | 039677 | 2 | HT039677-Online |
| 2 | S/C TO 607317 | 789537 | 1 | 789537-Online |
| 3 | GREASE FITTING 45° DEG 1/4" | 015511 | 1 | HT015511-Online |
| 4 | SPACER, BEARING (SERV P | 782771 | 1 | HT782771-Online |

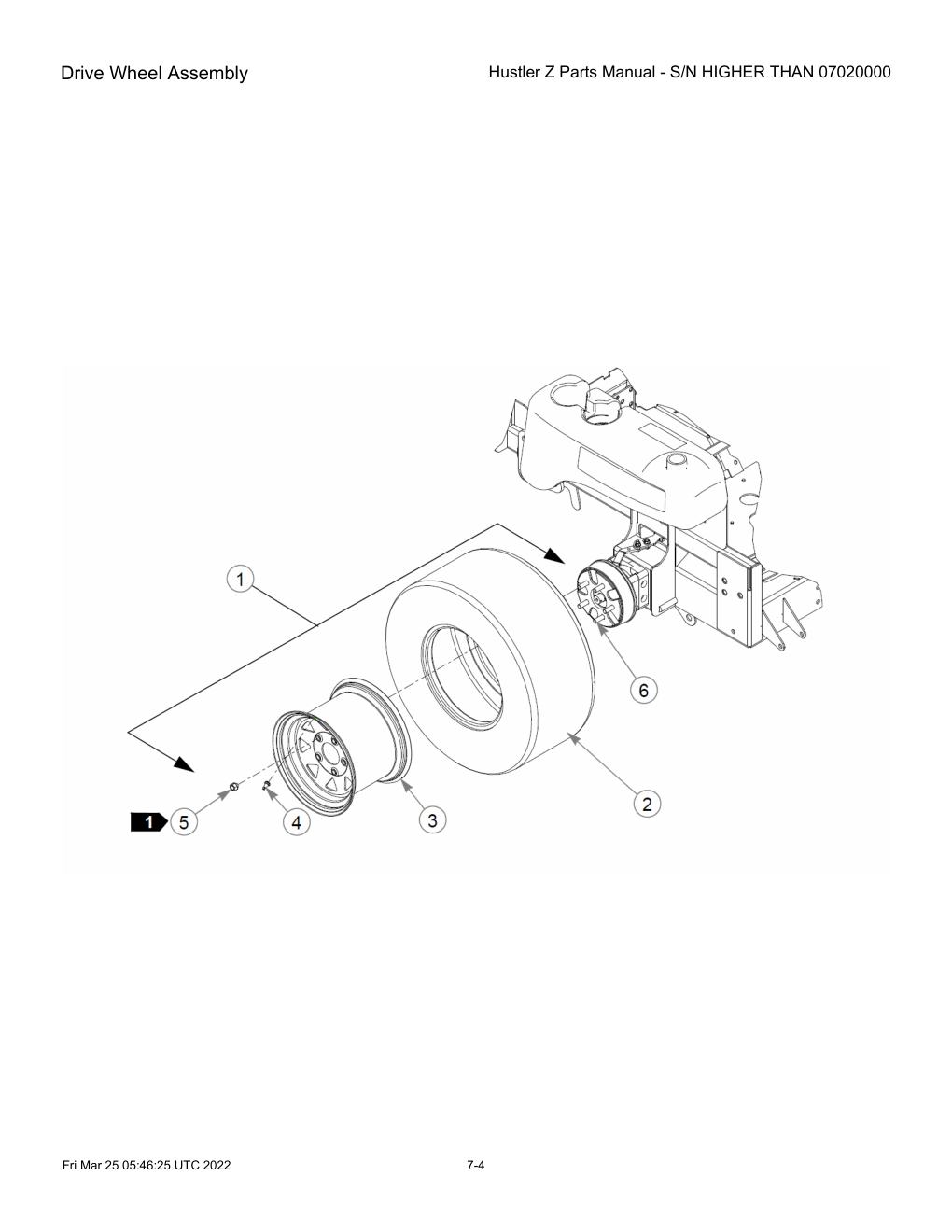

Drive Wheel Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIR/WHL 24X12.00-12 SLV | 784058 | 1 | HT784058-Online |
| REF | S/C TO 606968 | 601238 | 1 | 601238-Online |
| REF | TIR/WHL 24X9.50-12 SLV | 782078 | 1 | 782078-Online |
| 2 | TIR 24X9.50-12 B4R LTFT | 782284 | 1 | 782284-Online |
| 3 | WHL 12X7.00 5X4.5 SLV | 606821 | 1 | 606821-Online |
| 4 | TIRE VALVE TR-412 GOODY | 019521 | 1 | HT019521-Online |
| 5 | WHEEL NUT | 061077 | 5 | HT061077-Online |
| 6 | STUD, 1/2" WHEEL LUG | 770859 | 5 | 770859-Online |

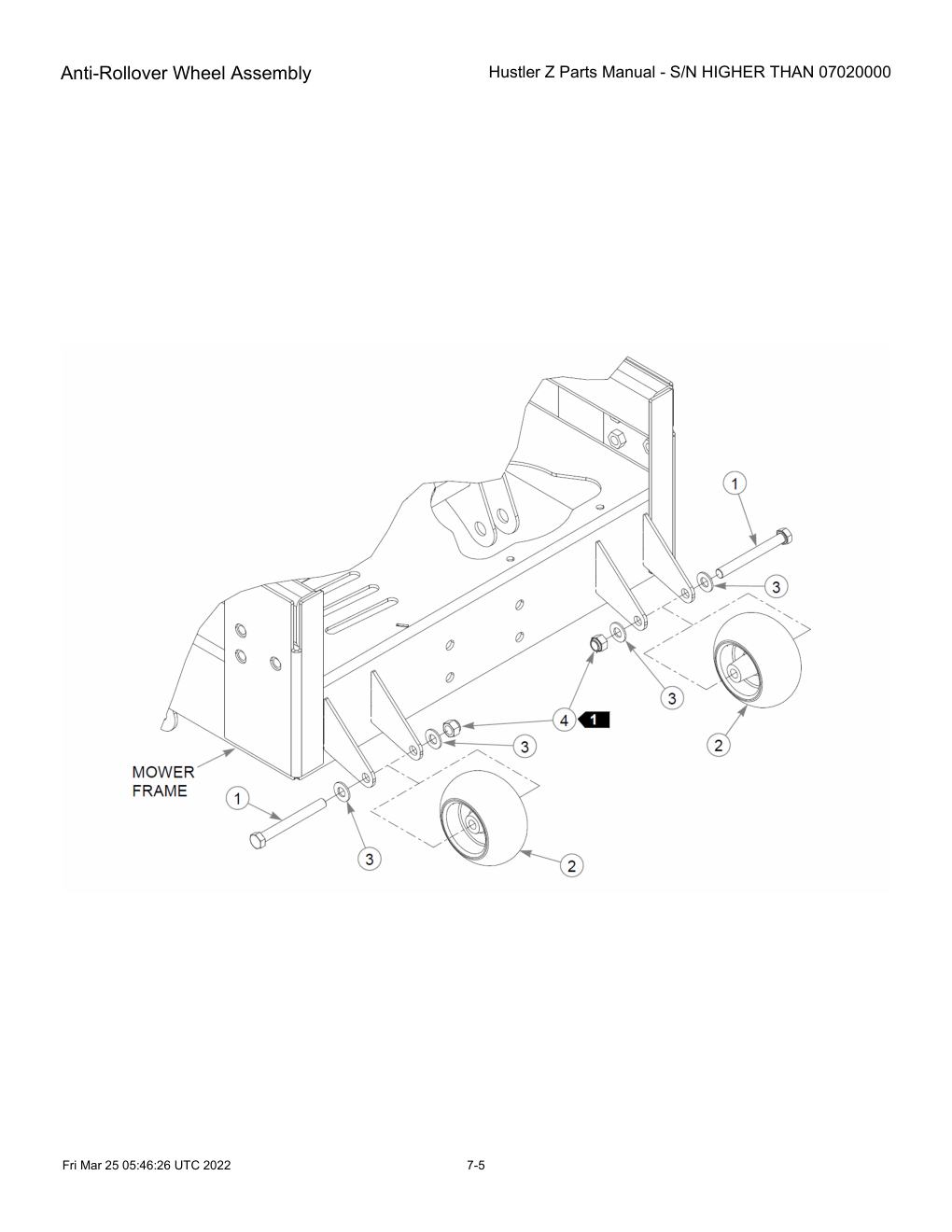

Anti-Rollover Wheel Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .500-13X4.500HXG5 | 068239 | 2 | HT068239-Online |
| 2 | ANTI-SCALP WHEEL | 031997 | 2 | HT031997-Online |
| 3 | FW .531 x 1.063 x .175 | 767962 | 4 | HT767962-Online |
| 4 | NT .500-13NLG5 | 781567 | 2 | HT781567-Online |

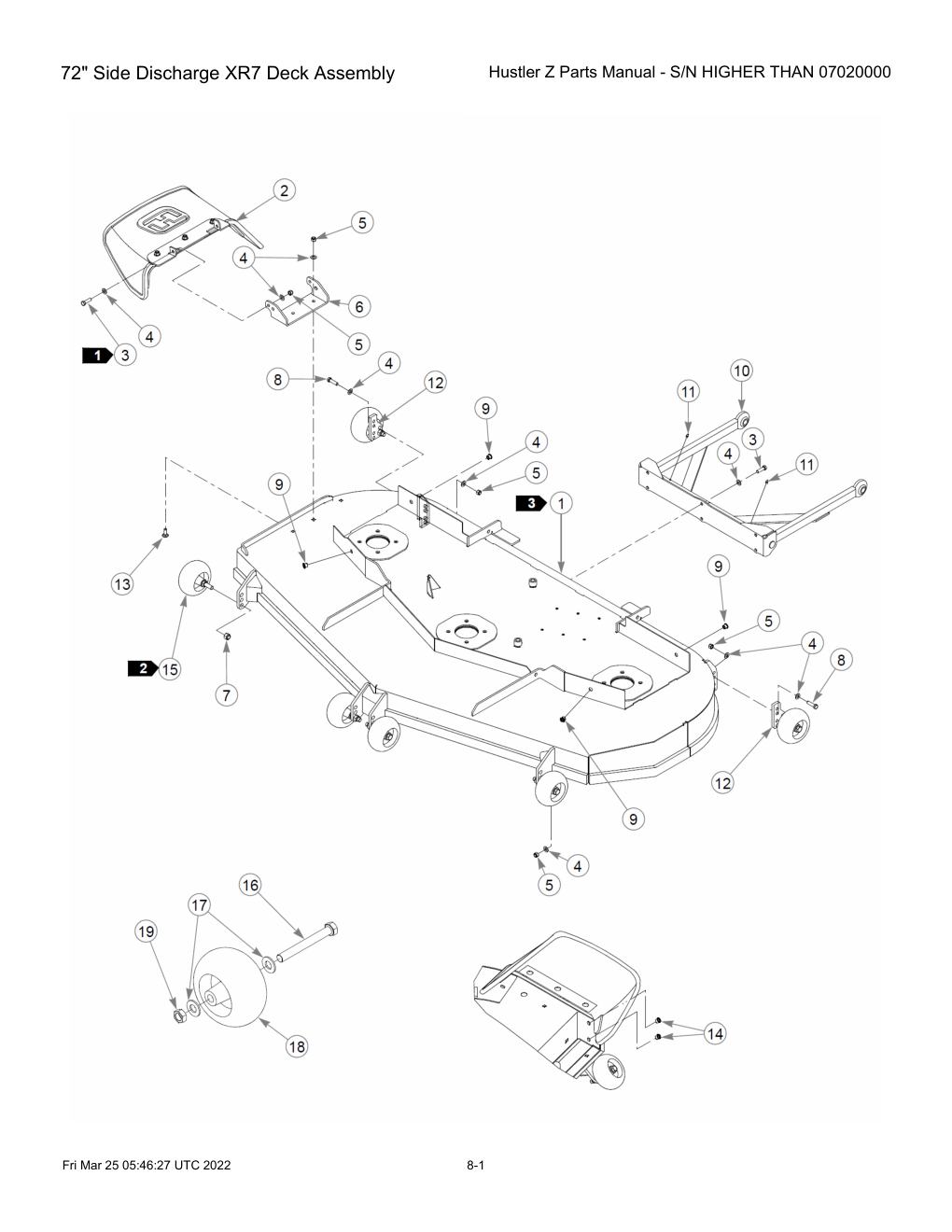

72" Side Discharge XR7 Deck Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 72" SERVICE DECK | 548453 | 1 | 548453-Online |
| 2 | CHUTE RUBBER ASSEMBLY | 798694 | 1 | HT798694-Online |
| 3 | CS .375-16X1.25 HX G5 ZN | 052860 | 8 | HT052860-Online |
| 4 | FW 0.379X.82X.06 HD ZN | 767954 | 26 | HT767954-Online |
| 5 | NT .375-16NLG8 | 086660 | 14 | HT086660-Online |
| 6 | BRACKET, DISCHARGE CHUTE | 103010 | 1 | 103010-Online |
| 7 | NT .500-13NLG5 | 781567 | 6 | HT781567-Online |
| 8 | CS .375-16X1.38 HX G5 ZN | 005116 | 4 | HT005116-Online |
| 9 | RIVET NUT, 5/16-18 THRE | 808485 | 4 | HT808485-Online |
| 10 | MMZ PUSHER W/A | 314104 | 1 | HT314104-Online |
| 11 | GREASE FITTING STRAIGHT | 015495 | 2 | HT015495-Online |
| 12 | ANTI-SCALP BRACKET, REAR | 103184 | 2 | 103184-Online |
| 13 | CB .375-16X 1.00 G5 ZN | 025395 | 2 | HT025395-Online |
| 14 | RIVET NUT, 3/8-16 THREA | 808493 | 2 | 808493-Online |
| 15 | WHEEL ASSY, ANTI SCALP | 788166 | 6 | HT788166-Online |
| 16 | CS .500-13X4.25 HX G5 ZN | 781708 | 6 | HT781708-Online |
| 17 | FW .531 x 1.063 x .175 | 767962 | 12 | HT767962-Online |
| 18 | ANTI-SCALP WHEEL | 031997 | 6 | HT031997-Online |
| 19 | NT .500-13JAMG5 | 053199 | 6 | HT053199-Online |

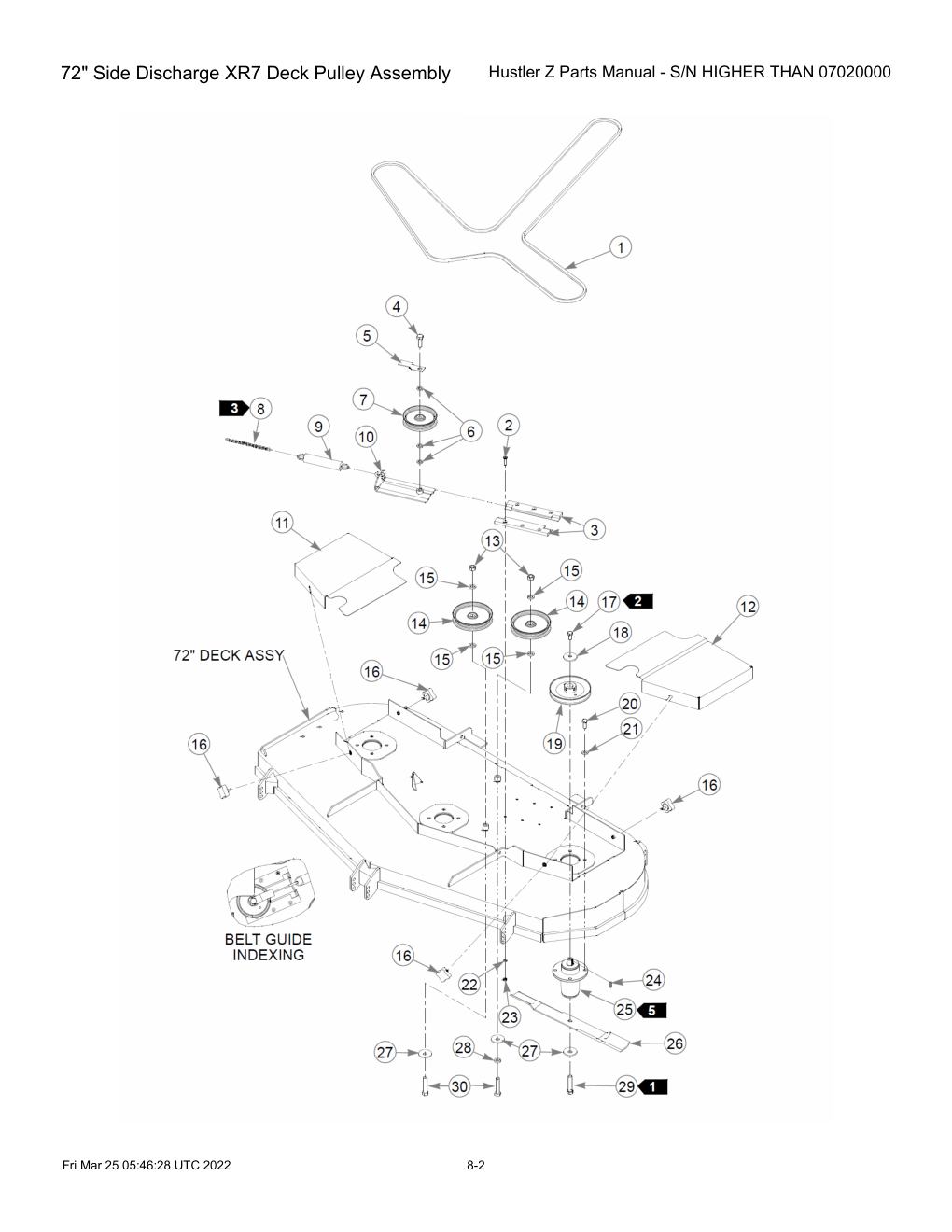

72" Side Discharge XR7 Deck Pulley Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DECK BELT | 784207 | 1 | HT784207-Online |
| Not Shown | 20PK, DECK BELT | 784207X | 1 | 784207X-Online |
| 2 | CS .312-18x1.50FLT SH ZN | 797910 | 6 | HT797910-Online |
| 3 | IDLER SLIDE, UHMW | 601434 | 2 | 601434-Online |
| 4 | CS .62511X1.750HXG5 | 025007 | 1 | HT025007-Online |
| 5 | GUIDE, DECK BELT IDLER | 347443 | 1 | HT347443-Online |
| 6 | FW 0.625X1.00X.13 ZN | 028118 | 3 | HT028118-Online |
| 7 | PULLEY, IDLER NHI 5.00" | 781856 | 1 | HT781856-Online |
| 8 | CHAIN, 13 LINK | 259812 | 1 | HT259812-Online |
| 9 | IDLER SPRING | 781302 | 1 | 781302-Online |
| 10 | SLIDE, DECK IDLER | 350884 | 1 | HT350884-Online |
| 11 | PULLEY COVER, RH 72" XR7 | 107620 | 1 | 107620-Online |
| 12 | PULLEY COVER, LH 72" XR7 | 107621 | 1 | 107621-Online |
| 13 | NT .625-11 HX G5 ZN | 016972 | 2 | HT016972-Online |
| 14 | PULLEY, IDLER NHI 6.00" | 781385 | 2 | HT781385-Online |
| 15 | FW .630X1.13X.18 ZN | 797449 | 4 | 797449-Online |
| 16 | KNOB,5/16-18 X 3/4"MALE | 792002 | 4 | HT792002-Online |
| 17 | CS .500-13X1.000HXG5 | 016527 | 3 | 016527-Online |
| 18 | CW .505 X 1.625 X .140 | 752386 | 3 | HT752386-Online |
| 19 | PULLEY, DRIVE(723486) B | 538850 | 3 | HT538850-Online |
| 20 | CS .500-13X1.25 HX G5 ZN | 705954 | 12 | HT705954-Online |
| 21 | FW .531 x 1.063 x .175 | 767962 | 12 | HT767962-Online |
| 22 | FW 0.343SAE | 768523 | 6 | HT768523-Online |
| 23 | NT .312-18NLG5 | 058776 | 6 | HT058776-Online |
| 24 | KEY 1/4 SQ X 1.00 LG(FS) | 212472 | 3 | HT212472-Online |
| 25 | SPINDLE ASSY, 3" PILOT | 601630 | 3 | 601630-Online |
| REF | SPINDLE HOUSING ASSY | 796235X | 3 | 796235X-Online |
| 26 | BLADE, F24.50"-H-F-CW | 798702 | 3 | 798702-Online |
| 27 | CW .678 X 2.250 X .187 | 782474 | 5 | HT782474-Online |
| 28 | FW .656X 1.250X.250 ZN | 769257 | 1 | HT769257-Online |
| 29 | CS .625-11X3.000HXG5 | 029934 | 3 | HT029934-Online |
| 30 | CS .625-11X3.000HXG5 | 783738 | 2 | HT783738-Online |

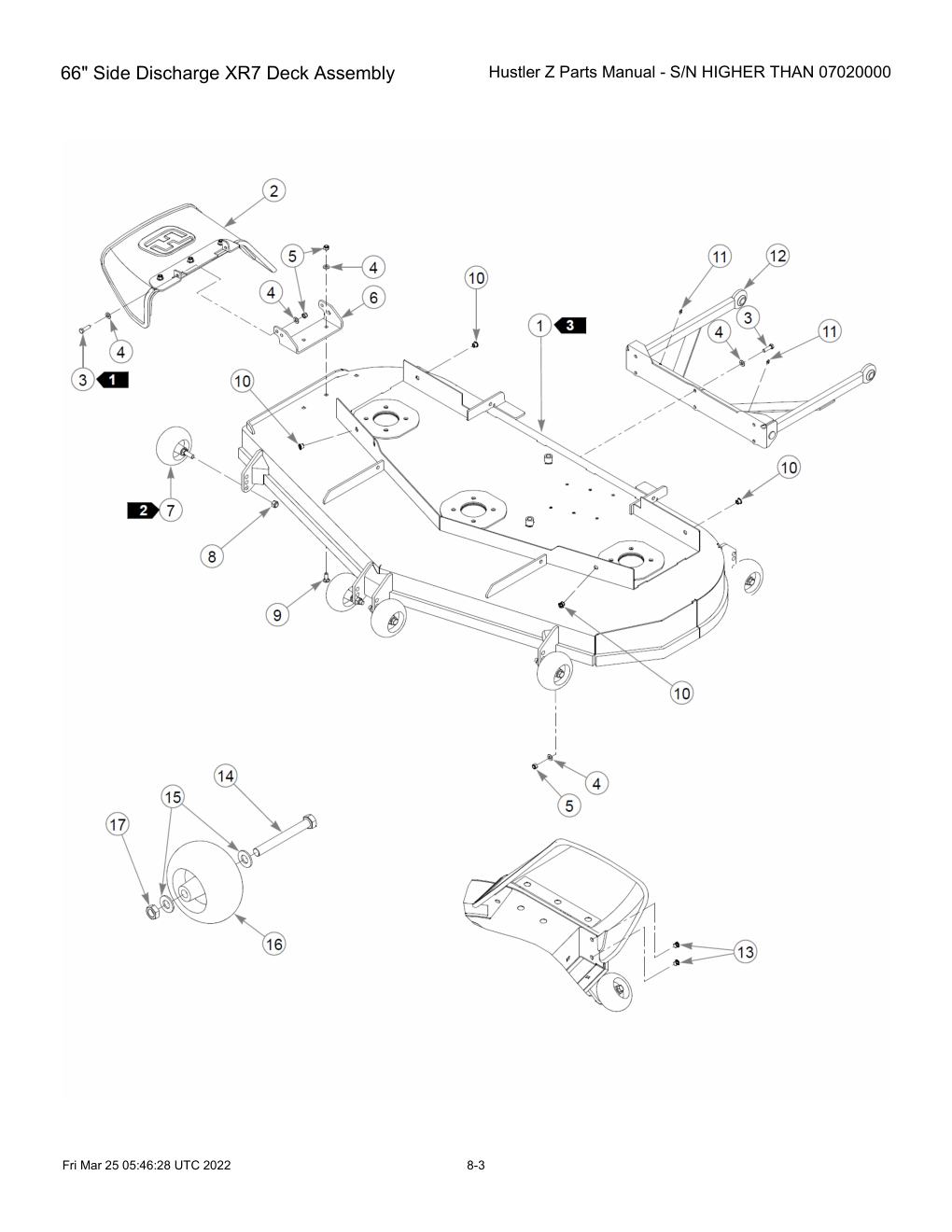

66" Side Discharge XR7 Deck Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 66" SERVICE DECK | 548446 | 1 | 548446-Online |
| 2 | CHUTE RUBBER ASSEMBLY | 798694 | 1 | HT798694-Online |
| 3 | CS .375-16X1.25 HX G5 ZN | 052860 | 8 | HT052860-Online |
| 4 | FW 0.379X.82X.06 HD ZN | 767954 | 18 | HT767954-Online |
| 5 | NT .375-16NLG8 | 086660 | 10 | HT086660-Online |
| 6 | BRACKET, DISCHARGE CHUTE | 103010 | 1 | 103010-Online |
| 7 | WHEEL ASSY, ANTI SCALP | 788166 | 6 | HT788166-Online |
| 8 | NT .500-13NLG5 | 781567 | 6 | HT781567-Online |
| 9 | CB .375-16X 1.00 G5 ZN | 025395 | 2 | HT025395-Online |
| 10 | RIVET NUT, 5/16-18 THRE | 808485 | 4 | HT808485-Online |
| 11 | GREASE FITTING STRAIGHT | 015495 | 2 | HT015495-Online |
| 12 | MMZ PUSHER W/A | 314104 | 1 | HT314104-Online |
| 13 | RIVET NUT, 3/8-16 THREA | 808493 | 2 | 808493-Online |
| 14 | CS .500-13X4.25 HX G5 ZN | 781708 | 6 | HT781708-Online |
| 15 | FW .531 x 1.063 x .175 | 767962 | 12 | HT767962-Online |
| 16 | ANTI-SCALP WHEEL | 031997 | 6 | HT031997-Online |
| 17 | NT .500-13JAMG5 | 053199 | 6 | HT053199-Online |

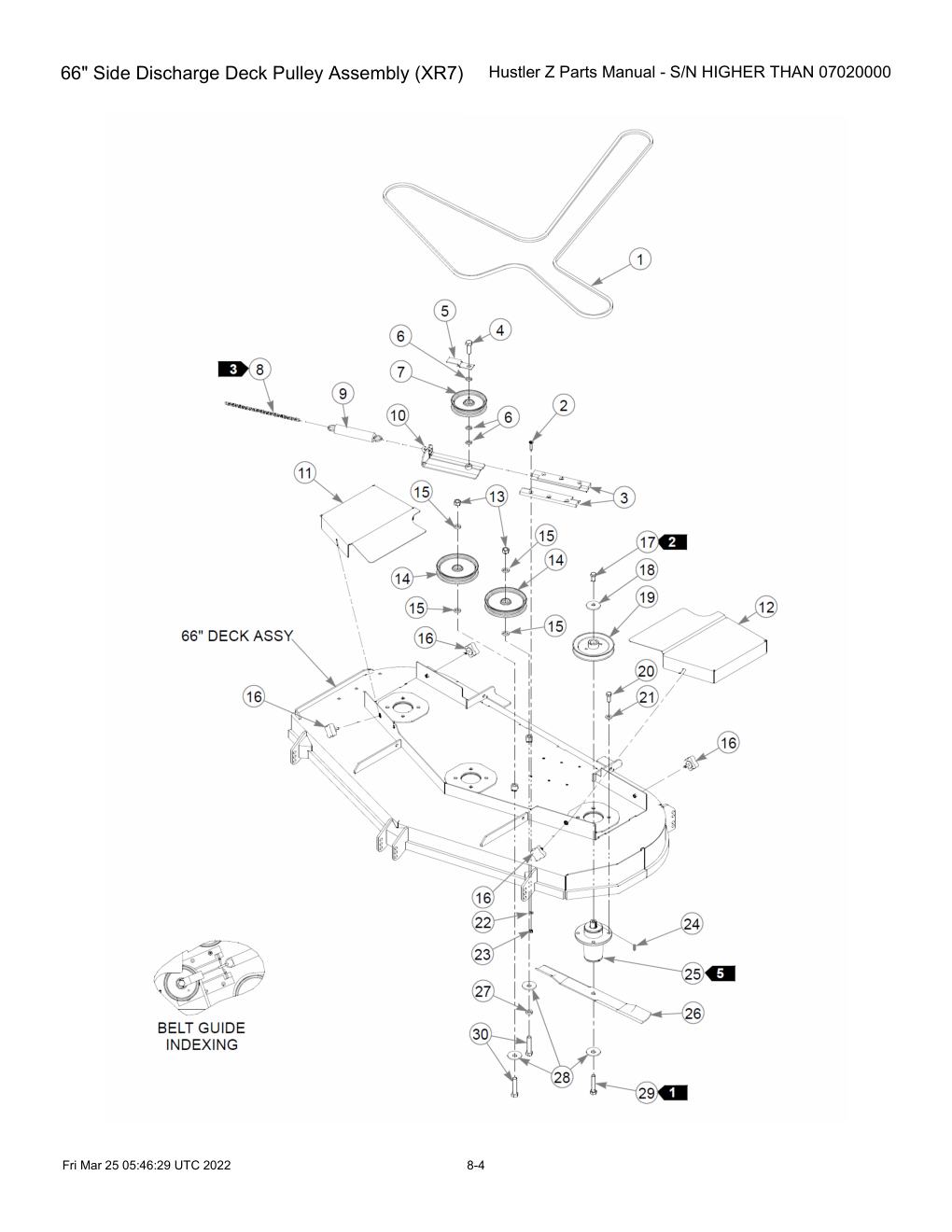

66" Side Discharge Deck Pulley Assembly (XR7)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DECK BELT | 797936 | 1 | 797936-Online |
| 2 | CS .312-18x1.50FLT SH ZN | 797910 | 6 | HT797910-Online |
| 3 | IDLER SLIDE, UHMW | 601434 | 2 | 601434-Online |
| 4 | CS .62511X1.750HXG5 | 025007 | 1 | HT025007-Online |
| 5 | GUIDE, DECK BELT IDLER | 347443 | 1 | HT347443-Online |
| 6 | FW 0.625X1.00X.13 ZN | 028118 | 3 | HT028118-Online |
| 7 | PULLEY, IDLER NHI 5.00" | 781856 | 1 | HT781856-Online |
| 8 | CHAIN, 21 LINK | 373191 | 1 | HT373191-Online |
| 9 | IDLER SPRING | 781302 | 1 | 781302-Online |
| 10 | SLIDE, DECK IDLER | 350884 | 1 | HT350884-Online |
| 11 | Pulley Cover, RS 66" XR7 | 103721 | 1 | 103721-Online |
| 12 | Pulley Cover, LS 66" XR7 | 103739 | 1 | 103739-Online |
| 13 | NT .625-11 HX G5 ZN | 016972 | 2 | HT016972-Online |
| 14 | PULLEY, IDLER NHI 6.00" | 781385 | 2 | HT781385-Online |
| 15 | FW .630X1.13X.18 ZN | 797449 | 4 | 797449-Online |
| 16 | KNOB,5/16-18 X 3/4"MALE | 792002 | 4 | HT792002-Online |
| 17 | CS .500-13X1.000HXG5 | 016527 | 3 | 016527-Online |
| 18 | CW .505 X 1.625 X .140 | 752386 | 3 | HT752386-Online |
| 19 | PULLEY, B-SEC 6.32 EOD | 798975 | 3 | 798975-Online |
| 20 | CS .500-13X1.25 HX G5 ZN | 705954 | 12 | HT705954-Online |
| 21 | FW .531 x 1.063 x .175 | 767962 | 12 | HT767962-Online |
| 22 | FW 0.343SAE | 768523 | 6 | HT768523-Online |
| 23 | NT .312-18NLG5 | 058776 | 6 | HT058776-Online |
| 24 | KEY 1/4 SQ X 1.00 LG(FS) | 212472 | 3 | HT212472-Online |
| 25 | SPINDLE ASSY, 3" PILOT | 601630 | 3 | 601630-Online |
| REF | SPINDLE HOUSING ASSY | 796235X | 3 | 796235X-Online |
| 26 | BLADE, F22.50"-H-F-CW | 798496 | 3 | 798496-Online |
| 27 | FW .656X 1.250X.250 ZN | 769257 | 1 | HT769257-Online |
| 28 | CW .678 X 2.250 X .187 | 782474 | 5 | HT782474-Online |
| 29 | CS .625-11 X 2.25 HXG5ZN | 601983 | 3 | 601983-Online |
| 30 | CS .625-11X3.000HXG5 | 783738 | 2 | HT783738-Online |

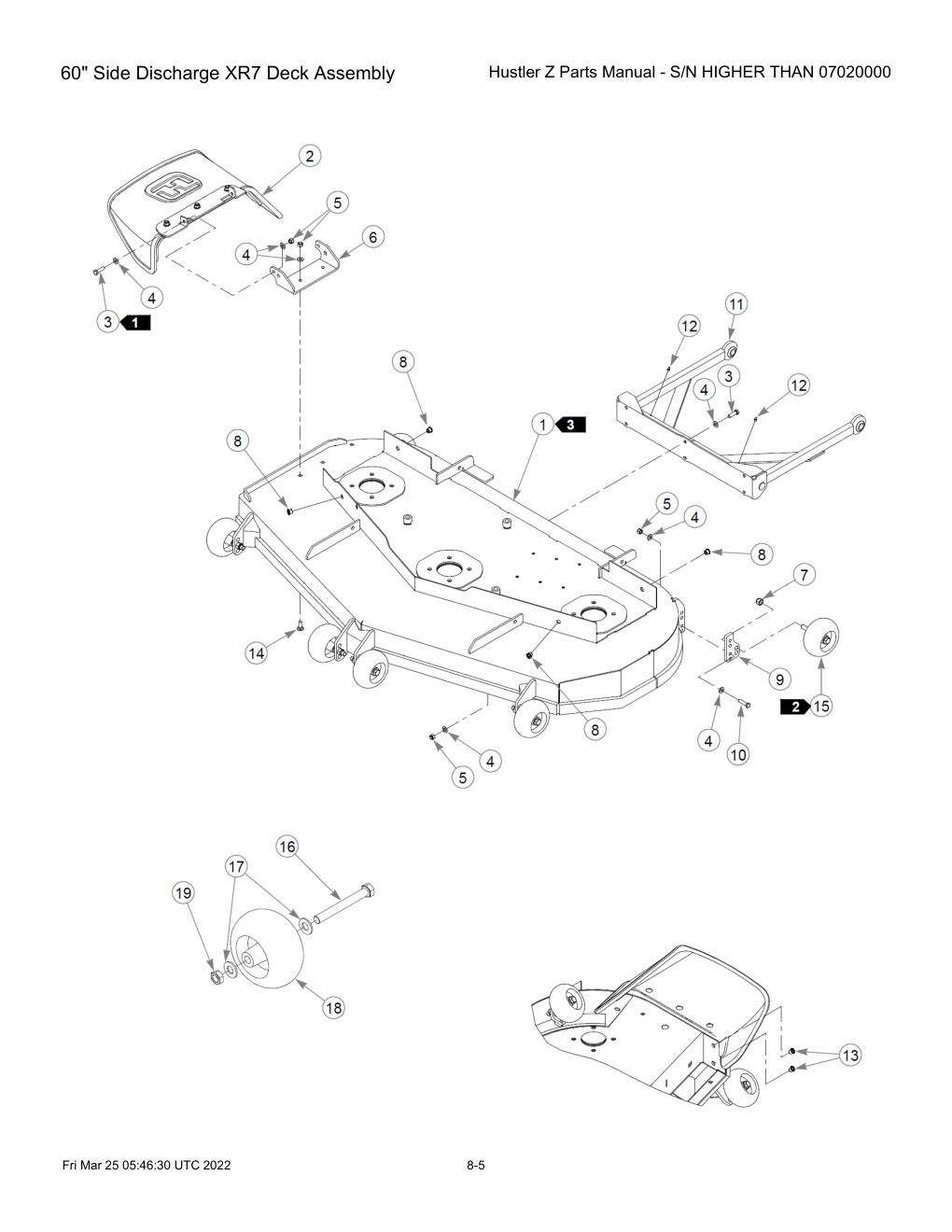

60" Side Discharge XR7 Deck Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 60" SERVICE DECK | 548438 | 1 | 548438-Online |
| 2 | CHUTE RUBBER ASSEMBLY | 798694 | 1 | HT798694-Online |
| 3 | CS .375-16X1.25 HX G5 ZN | 052860 | 8 | HT052860-Online |
| 4 | FW 0.379X.82X.06 HD ZN | 767954 | 26 | HT767954-Online |
| 5 | NT .375-16NLG8 | 086660 | 14 | HT086660-Online |
| 6 | BRACKET, DISCHARGE CHUTE | 103010 | 1 | 103010-Online |
| 7 | NT .500-13NLG5 | 781567 | 6 | HT781567-Online |
| 8 | RIVET NUT, 5/16-18 THRE | 808485 | 4 | HT808485-Online |
| 9 | ANTI-SCALP BRACKET, REAR | 103184 | 2 | 103184-Online |
| 10 | CS .375-16X1.38 HX G5 ZN | 005116 | 4 | HT005116-Online |
| 11 | MMZ PUSHER W/A | 314104 | 1 | HT314104-Online |
| 12 | GREASE FITTING STRAIGHT | 015495 | 2 | HT015495-Online |
| 13 | RIVET NUT, 3/8-16 THREA | 808493 | 2 | 808493-Online |
| 14 | CB .375-16X 1.00 G5 ZN | 025395 | 2 | HT025395-Online |
| 15 | WHEEL ASSY, ANTI SCALP | 788166 | 4 | HT788166-Online |
| 16 | CS .500-13X4.25 HX G5 ZN | 781708 | 6 | HT781708-Online |
| 17 | FW .531 x 1.063 x .175 | 767962 | 12 | HT767962-Online |
| 18 | ANTI-SCALP WHEEL | 031997 | 6 | HT031997-Online |
| 19 | NT .500-13JAMG5 | 053199 | 6 | HT053199-Online |

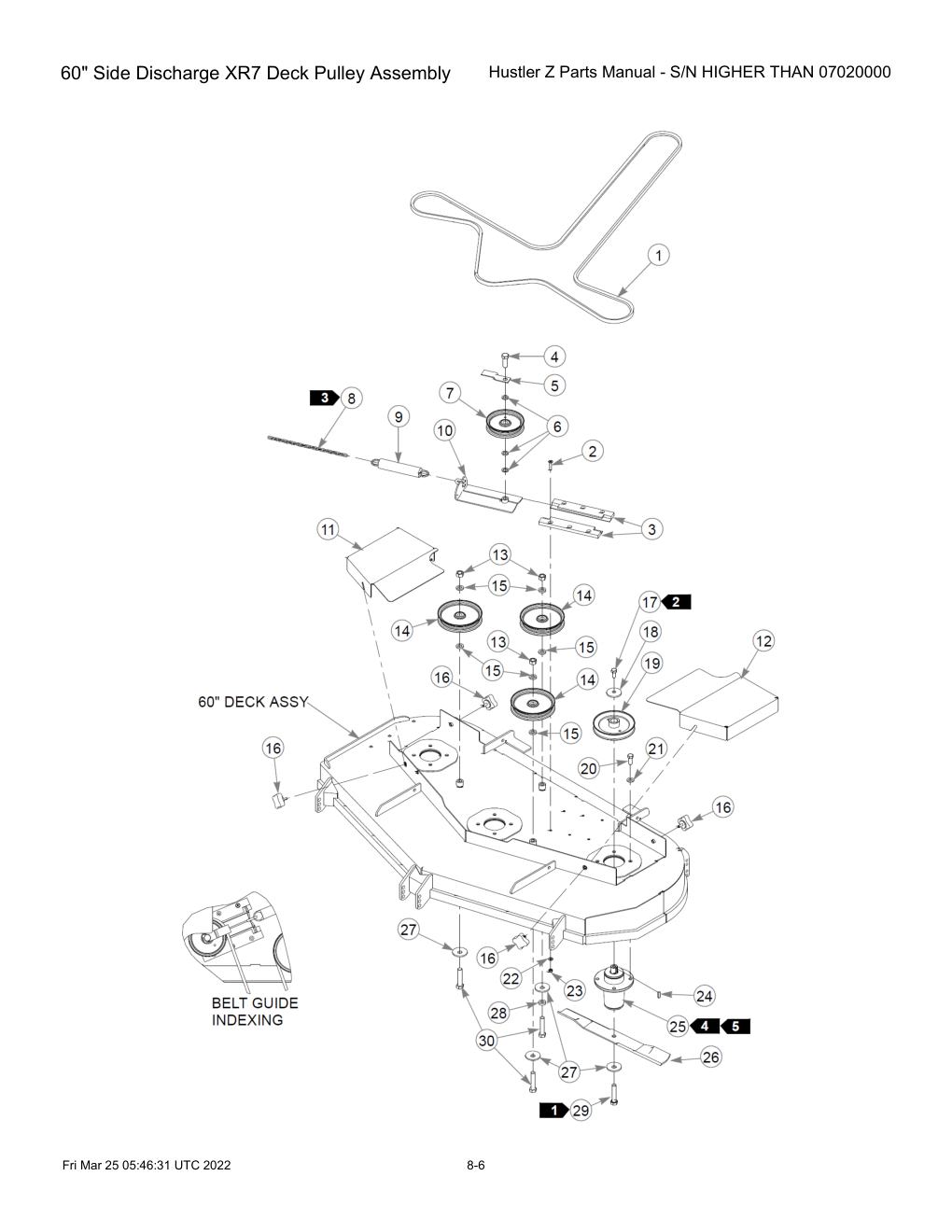

60" Side Discharge XR7 Deck Pulley Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DECK BELT | 797720 | 1 | HT797720-Online |
| Not Shown | 20PK, DECK BELT | 797720X | 1 | 797720X-Online |
| 2 | CS .312-18x1.50FLT SH ZN | 797910 | 6 | HT797910-Online |
| 3 | IDLER SLIDE, UHMW | 601434 | 2 | 601434-Online |
| 4 | CS .62511X1.750HXG5 | 025007 | 1 | HT025007-Online |
| 5 | GUIDE, DECK BELT IDLER | 347443 | 1 | HT347443-Online |
| 6 | FW 0.625X1.00X.13 ZN | 028118 | 3 | HT028118-Online |
| 7 | PULLEY, IDLER NHI 5.00" | 781856 | 1 | HT781856-Online |
| 8 | CHAIN, 21 LINK | 373191 | 1 | HT373191-Online |
| 9 | IDLER SPRING | 781302 | 1 | 781302-Online |
| 10 | SLIDE, DECK IDLER | 350884 | 1 | HT350884-Online |
| 11 | PULLEY COVER,RH (XR7) | 103192 | 1 | 103192-Online |
| 12 | PULLEY COVER, LH (XR7) | 103200 | 1 | 103200-Online |
| 13 | NT .625-11 HX G5 ZN | 016972 | 3 | HT016972-Online |
| 14 | PULLEY, IDLER NHI 6.00" | 781385 | 3 | HT781385-Online |
| 15 | FW .630X1.13X.18 ZN | 797449 | 6 | 797449-Online |
| 16 | KNOB,5/16-18 X 3/4"MALE | 792002 | 4 | HT792002-Online |
| 17 | CS .500-13X1.000HXG5 | 016527 | 3 | 016527-Online |
| 18 | CW .505 X 1.625 X .140 | 752386 | 3 | HT752386-Online |
| 19 | PULLEY, DECK DRIVE | 770842 | 3 | HT770842-Online |
| 20 | CS .500-13X1.25 HX G5 ZN | 705954 | 12 | HT705954-Online |
| 21 | FW .531 x 1.063 x .175 | 767962 | 12 | HT767962-Online |
| 22 | FW 0.343SAE | 768523 | 6 | HT768523-Online |
| 23 | NT .312-18NLG5 | 058776 | 6 | HT058776-Online |
| 24 | KEY 1/4 SQ X 1.00 LG(FS) | 212472 | 3 | HT212472-Online |
| 25 | SPINDLE ASSY, 3" PILOT | 601630 | 3 | 601630-Online |
| REF | SPINDLE HOUSING ASSY | 796235X | 3 | 796235X-Online |
| 26 | BLADE, F20.50"-H-F-CW | 794685 | 3 | HT794685-Online |
| 27 | CW .678 X 2.250 X .187 | 782474 | 6 | HT782474-Online |
| 28 | FW .656X 1.250X.250 ZN | 769257 | 1 | HT769257-Online |
| 29 | CS .625-11 X 2.25 HXG5ZN | 601983 | 3 | 601983-Online |
| 30 | CS .625-11X3.000HXG5 | 783738 | 3 | HT783738-Online |

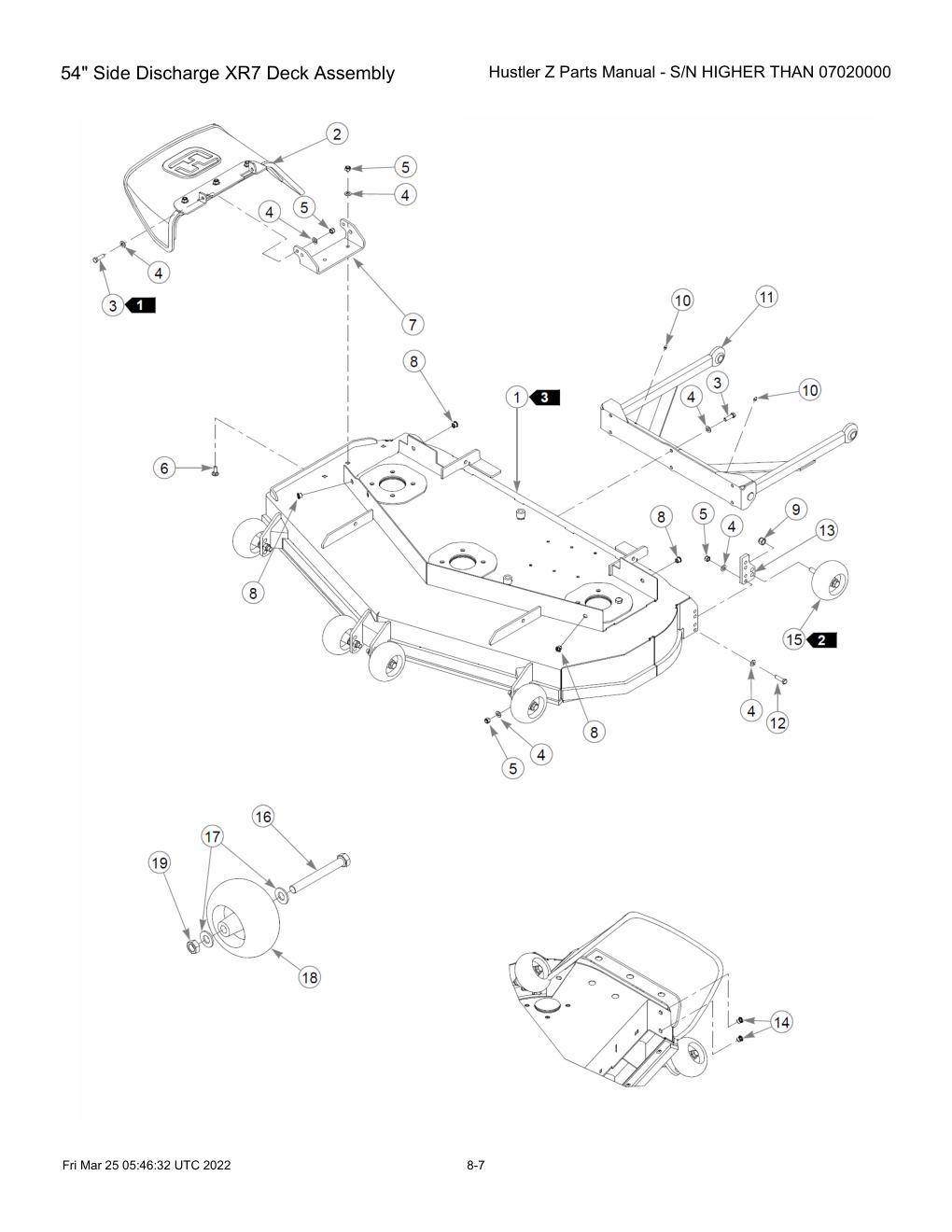

54" Side Discharge XR7 Deck Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 54" SERVICE DECK | 548420 | 1 | 548420-Online |
| 2 | CHUTE RUBBER ASSEMBLY | 798694 | 1 | HT798694-Online |
| 3 | CS .375-16X1.25 HX G5 ZN | 052860 | 8 | HT052860-Online |
| 4 | FW 0.379X.82X.06 HD ZN | 767954 | 26 | HT767954-Online |
| 5 | NT .375-16NLG8 | 086660 | 14 | HT086660-Online |
| 6 | CB .375-16X 1.00 G5 ZN | 025395 | 2 | HT025395-Online |
| 7 | BRACKET, DISCHARGE CHUTE | 103010 | 1 | 103010-Online |
| 8 | RIVET NUT, 5/16-18 THRE | 808485 | 4 | HT808485-Online |
| 9 | NT .500-13NLG5 | 781567 | 6 | HT781567-Online |
| 10 | GREASE FITTING STRAIGHT | 015495 | 2 | HT015495-Online |
| 11 | MMZ PUSHER W/A | 314104 | 1 | HT314104-Online |
| 12 | CS .375-16X1.38 HX G5 ZN | 005116 | 4 | HT005116-Online |
| 13 | ANTI-SCALP BRACKET, REAR | 103184 | 2 | 103184-Online |
| 14 | RIVET NUT, 3/8-16 THREA | 808493 | 2 | 808493-Online |
| 15 | WHEEL ASSY, ANTI SCALP | 788166 | 6 | HT788166-Online |
| 16 | CS .500-13X4.25 HX G5 ZN | 781708 | 6 | HT781708-Online |
| 17 | FW .531 x 1.063 x .175 | 767962 | 12 | HT767962-Online |
| 18 | ANTI-SCALP WHEEL | 031997 | 6 | HT031997-Online |
| 19 | NT .500-13JAMG5 | 053199 | 6 | HT053199-Online |

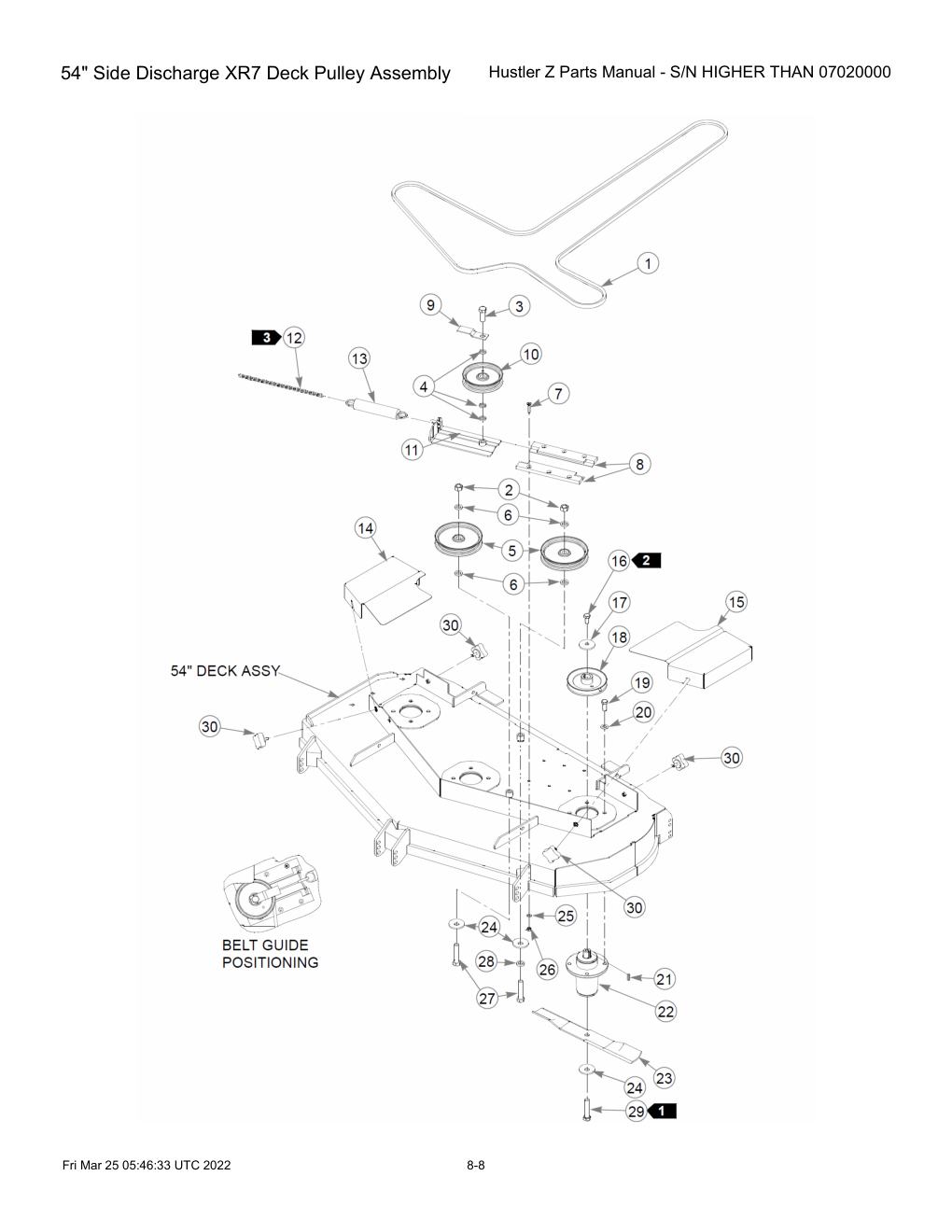

54" Side Discharge XR7 Deck Pulley Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DECK BELT | 797928 | 1 | 797928-Online |
| 2 | NT .625-11 HX G5 ZN | 016972 | 2 | HT016972-Online |
| 3 | CS .62511X1.750HXG5 | 025007 | 1 | HT025007-Online |
| 4 | FW 0.625X1.00X.13 ZN | 028118 | 3 | HT028118-Online |
| 5 | PULLEY, IDLER NHI 6.00" | 781385 | 2 | HT781385-Online |
| 6 | FW .630X1.13X.18 ZN | 797449 | 4 | 797449-Online |
| 7 | CS .312-18x1.50FLT SH ZN | 797910 | 6 | HT797910-Online |
| 8 | IDLER SLIDE, UHMW | 601434 | 2 | 601434-Online |
| 9 | GUIDE, DECK BELT IDLER | 347443 | 1 | HT347443-Online |
| 10 | PULLEY, IDLER NHI 5.00" | 781856 | 1 | HT781856-Online |
| 11 | SLIDE, DECK IDLER | 350884 | 1 | HT350884-Online |
| 12 | CHAIN, 21 LINK | 373191 | 1 | HT373191-Online |
| 13 | IDLER SPRING | 781302 | 1 | 781302-Online |
| 14 | PULLEY COVER, RS 54" | 103986 | 1 | 103986-Online |
| 15 | PULLEY COVER, LS 54" | 103994 | 1 | 103994-Online |
| 16 | CS .500-13X1.000HXG5 | 016527 | 3 | 016527-Online |
| 17 | CW .505 X 1.625 X .140 | 752386 | 3 | HT752386-Online |
| 18 | PULLEY, B-SEC 5.44 EOD | 798967 | 3 | HT798967-Online |
| 19 | CS .500-13X1.25 HX G5 ZN | 705954 | 12 | HT705954-Online |
| 20 | FW .531 x 1.063 x .175 | 767962 | 12 | HT767962-Online |
| 21 | KEY 1/4 SQ X 1.00 LG(FS) | 212472 | 3 | HT212472-Online |
| 22 | SPINDLE ASSY, 3" PILOT | 601630 | 3 | 601630-Online |
| REF | SPINDLE HOUSING ASSY | 796235X | 3 | 796235X-Online |
| 23 | BLADE, F18.50"-H-F-CW | 797696 | 3 | 797696-Online |
| 24 | CW .678 X 2.250 X .187 | 782474 | 5 | HT782474-Online |
| 25 | FW 0.343SAE | 768523 | 6 | HT768523-Online |
| 26 | NT .312-18NLG5 | 058776 | 6 | HT058776-Online |
| 27 | CS .625-11X3.000HXG5 | 783738 | 2 | HT783738-Online |
| 28 | FW .656X 1.250X.250 ZN | 769257 | 1 | HT769257-Online |
| 29 | CS .625-11 X 2.25 HXG5ZN | 601983 | 3 | 601983-Online |
| 30 | KNOB,5/16-18 X 3/4"MALE | 792002 | 4 | HT792002-Online |

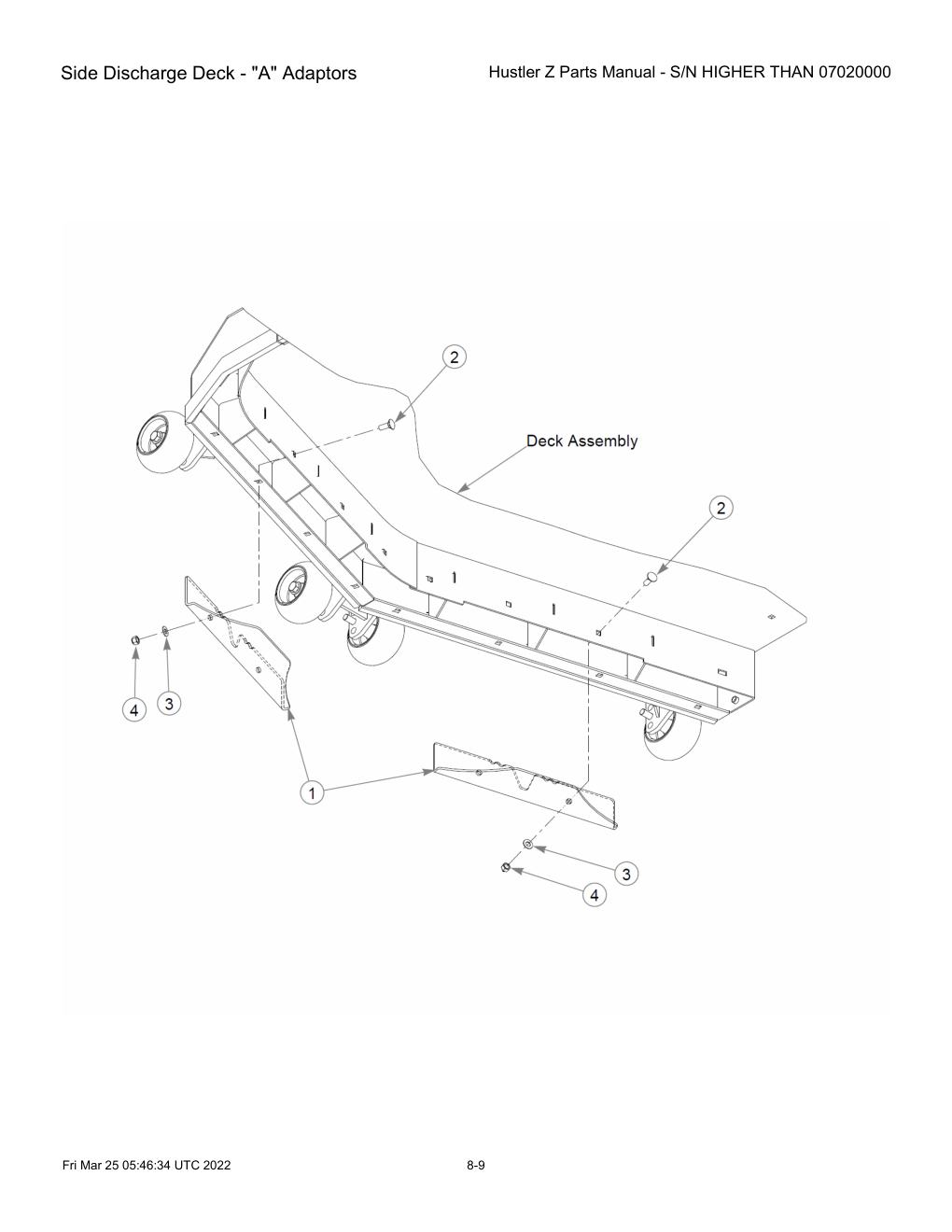

Side Discharge Deck - "A" Adaptors
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FLOOR BAFFLE, AIR FLOW | 108531 | 2 | 108531-Online |
| REF | BAFFLE, "A", 60" XR7 | 108516 | 2 | 108516-Online |
| REF | FLOOR, AIR FLOW | 108619 | 2 | 108619-Online |
| 2 | CB .375-16X 1.00 G5 ZN | 025395 | 4 | HT025395-Online |
| 3 | FW 0.379X.82X.06 HD ZN | 767954 | 4 | HT767954-Online |
| 4 | NT .375-16NLG8 | 086660 | 4 | HT086660-Online |
Side Discharge Deck - "B" Adaptors
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | AIR FLOW BAFFLE, RS 66" | 108533 | 1 | 108533-Online |
| REF | BAFFLE, "B" RIGHT 60" | 108518 | 1 | 108518-Online |
| REF | AIR FLOW BAFFLE, RS 54" | 108621 | 1 | 108621-Online |
| REF | AIR FLOW BAFFLE, LS 66" | 108532 | 1 | 108532-Online |
| 2 | BAFFLE, "B" LEFT 60" | 108517 | 1 | 108517-Online |
| REF | AIR FLOW BAFFLE, LS 54" | 108620 | 1 | 108620-Online |
| 3 | AIR LIFT DEFLECTOR 66" | 108221 | 1 | 108221-Online |
| REF | AIR LIFT DEFLECTOR 60" | 108212 | 1 | 108212-Online |
| REF | AIR LIFT DEFLECTOR 54" | 108254 | 1 | 108254-Online |
| 4 | CB .375-16X 1.00 G5 ZN | 025395 | 6 | HT025395-Online |
| 5 | FW 0.379X.82X.06 HD ZN | 767954 | 8 | HT767954-Online |
| 6 | NT .375-16NLG8 | 086660 | 6 | HT086660-Online |
| 7 | CS .375-16X1.00 HXF G5ZN | 029751 | 2 | 029751-Online |

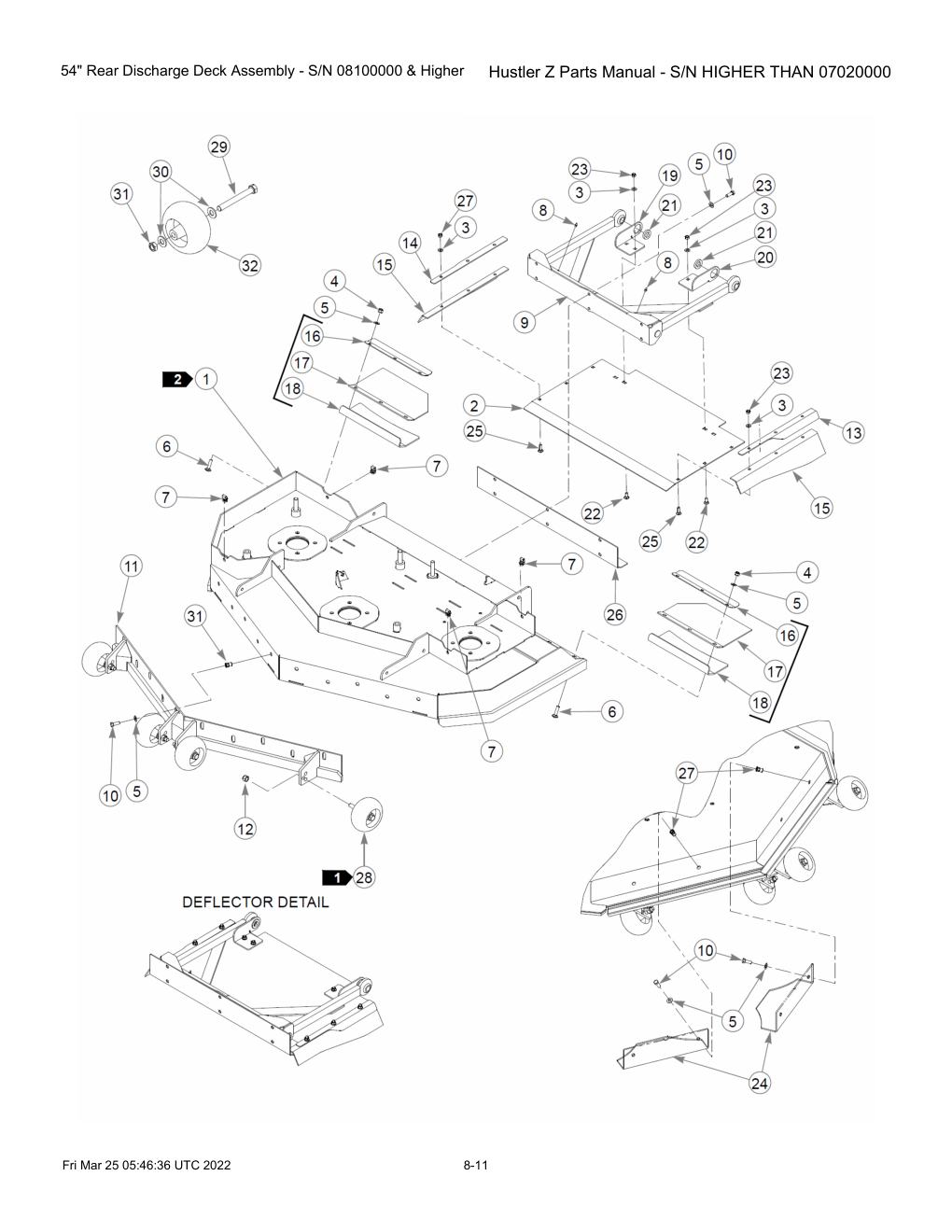

54" Rear Discharge Deck Assembly - S/N 08100000 & Higher
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DECK, W/A 54" Z RD | 549733 | 1 | 549733-Online |
| 2 | DISCHARGE SHIELD | 109490 | 1 | 109490-Online |
| 3 | FW 0.343SAE | 768523 | 10 | HT768523-Online |
| 4 | NT .375-16NLG8 | 086660 | 6 | HT086660-Online |
| 5 | FW 0.379X.82X.06 HD ZN | 767954 | 26 | HT767954-Online |
| 6 | CB .375-16X 1.50 STD G5 | 710194 | 6 | 710194-Online |
| 7 | CN .312-18x.200 MAX THK | 601069 | 4 | HT601069-Online |
| 8 | GREASE FITTING STRAIGHT | 015495 | 2 | HT015495-Online |
| 9 | PUSHER W/A | 349803 | 1 | 349803-Online |
| 10 | CS .375-16X1.00 HX G5 ZN | 036244 | 20 | HT036244-Online |
| 11 | ANGLE, FRONT 54" W/A | 107975 | 1 | 107975-Online |
| 12 | NT .500-13NLG5 | 781567 | 4 | HT781567-Online |
| 13 | CLAMP ANGLE LS | 109486 | 1 | 109486-Online |
| 14 | CLAMP ANGLE RS | 109487 | 1 | 109487-Online |
| 15 | SIDE FLAP, RUBBER | 601483 | 2 | 601483-Online |
| 16 | ANGLE, RD DISCHARGE FLAP | 107972 | 2 | 107972-Online |
| 17 | RUBBER, RD DISCHARGE CHU | 601017 | 2 | 601017-Online |
| 18 | ANGLE, DECK STIFFENER | 107973 | 2 | 107973-Online |
| 19 | CHUTE BRACKET | 109482 | 1 | 109482-Online |
| 20 | CHUTE BRACKET | 109483 | 1 | 109483-Online |
| 21 | FW .781X1.38X.25 ZN | 778399 | 2 | 778399-Online |
| 22 | CB .312-18X .750 FUL ZN | 016253 | 4 | 016253-Online |
| 23 | NT .312-18NLG5 | 058776 | 10 | HT058776-Online |
| 24 | BAFFLE, INNER | 107978 | 2 | 107978-Online |
| 25 | CB .312-18X 1.000 FUL ZN | 037887 | 6 | HT037887-Online |
| 26 | SHIELD MTG ANGLE | 109491 | 1 | 109491-Online |
| 27 | RIVET NUT, 3/8-16 THREAD | 600994 | 14 | 600994-Online |
| 28 | WHEEL ASSY, ANTI SCALP | 788166 | 4 | HT788166-Online |
| 29 | CS .500-13X4.25 HX G5 ZN | 781708 | 4 | HT781708-Online |
| 30 | FW .531 x 1.063 x .175 | 767962 | 8 | HT767962-Online |
| 31 | NT .500-13JAMG5 | 053199 | 4 | HT053199-Online |
| 32 | ANTI-SCALP WHEEL | 031997 | 4 | HT031997-Online |

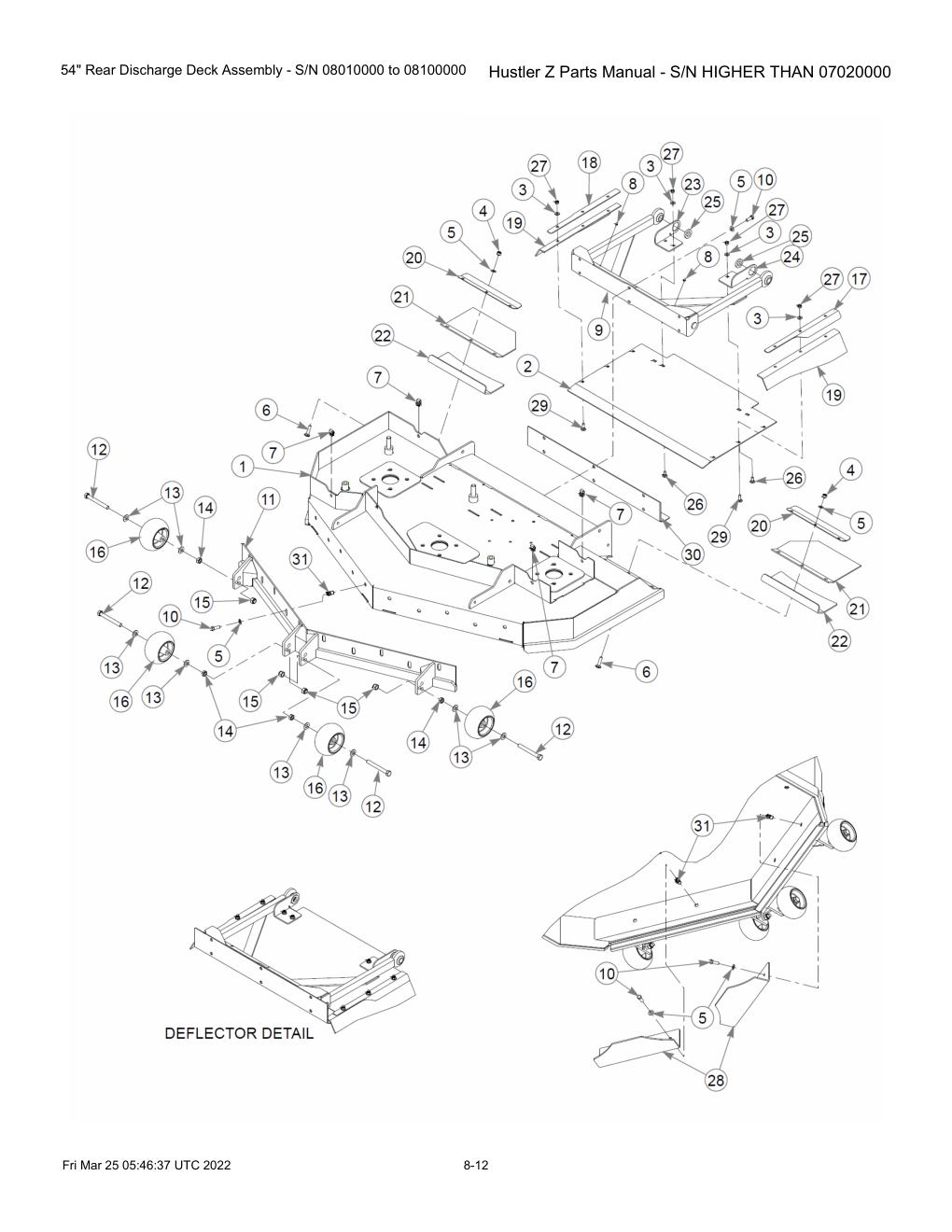

54" Rear Discharge Deck Assembly - S/N 08010000 to 08100000
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 54" RD SERVICE DECK | 548644 | 1 | 548644-Online |
| 2 | DISCHARGE SHIELD | 109490 | 1 | 109490-Online |
| 3 | FW 0.343SAE | 768523 | 10 | HT768523-Online |
| 4 | NT .375-16NLG8 | 086660 | 6 | HT086660-Online |
| 5 | FW 0.379X.82X.06 HD ZN | 767954 | 26 | HT767954-Online |
| 6 | CB .375-16X 1.50 STD G5 | 710194 | 6 | 710194-Online |
| 7 | CN .312-18x.200 MAX THK | 601069 | 4 | HT601069-Online |
| 8 | GREASE FITTING STRAIGHT | 015495 | 2 | HT015495-Online |
| 9 | PUSHER W/A | 349803 | 1 | 349803-Online |
| 10 | CS .375-16X1.00 HX G5 ZN | 036244 | 20 | HT036244-Online |
| 11 | ANGLE, FRONT 54" W/A | 107975 | 1 | 107975-Online |
| 12 | CS .500-13X4.25 HX G5 ZN | 781708 | 4 | HT781708-Online |
| 13 | FW .531 x 1.063 x .175 | 767962 | 8 | HT767962-Online |
| 14 | NT .500-13JAMG5 | 053199 | 4 | HT053199-Online |
| 15 | NT .500-13NLG5 | 781567 | 4 | HT781567-Online |
| 16 | ANTI-SCALP WHEEL | 031997 | 4 | HT031997-Online |
| 17 | CLAMP ANGLE LS | 109486 | 1 | 109486-Online |
| 18 | CLAMP ANGLE RS | 109487 | 1 | 109487-Online |
| 19 | SIDE FLAP, RUBBER | 601483 | 2 | 601483-Online |
| 20 | ANGLE, RD DISCHARGE FLAP | 107972 | 2 | 107972-Online |
| 21 | RUBBER, RD DISCHARGE CHU | 601017 | 2 | 601017-Online |
| 22 | ANGLE, DECK STIFFENER | 107973 | 2 | 107973-Online |
| 23 | CHUTE BRACKET | 109482 | 1 | 109482-Online |
| 24 | CHUTE BRACKET | 109483 | 1 | 109483-Online |
| 25 | FW .781X1.38X.25 ZN | 778399 | 2 | 778399-Online |
| 26 | CB .312-18X .750 FUL ZN | 016253 | 4 | 016253-Online |
| 27 | NT .312-18NLG5 | 058776 | 10 | HT058776-Online |
| 28 | BAFFLE, INNER | 107978 | 2 | 107978-Online |
| 29 | CB .312-18X 1.000 FUL ZN | 037887 | 6 | HT037887-Online |
| 30 | SHIELD MTG ANGLE | 109491 | 1 | 109491-Online |
| 31 | RIVET NUT, 3/8-16 THREAD | 600994 | 14 | 600994-Online |
| REF | WHEEL ASSY, ANTI SCALP | 788166 | 4 | HT788166-Online |

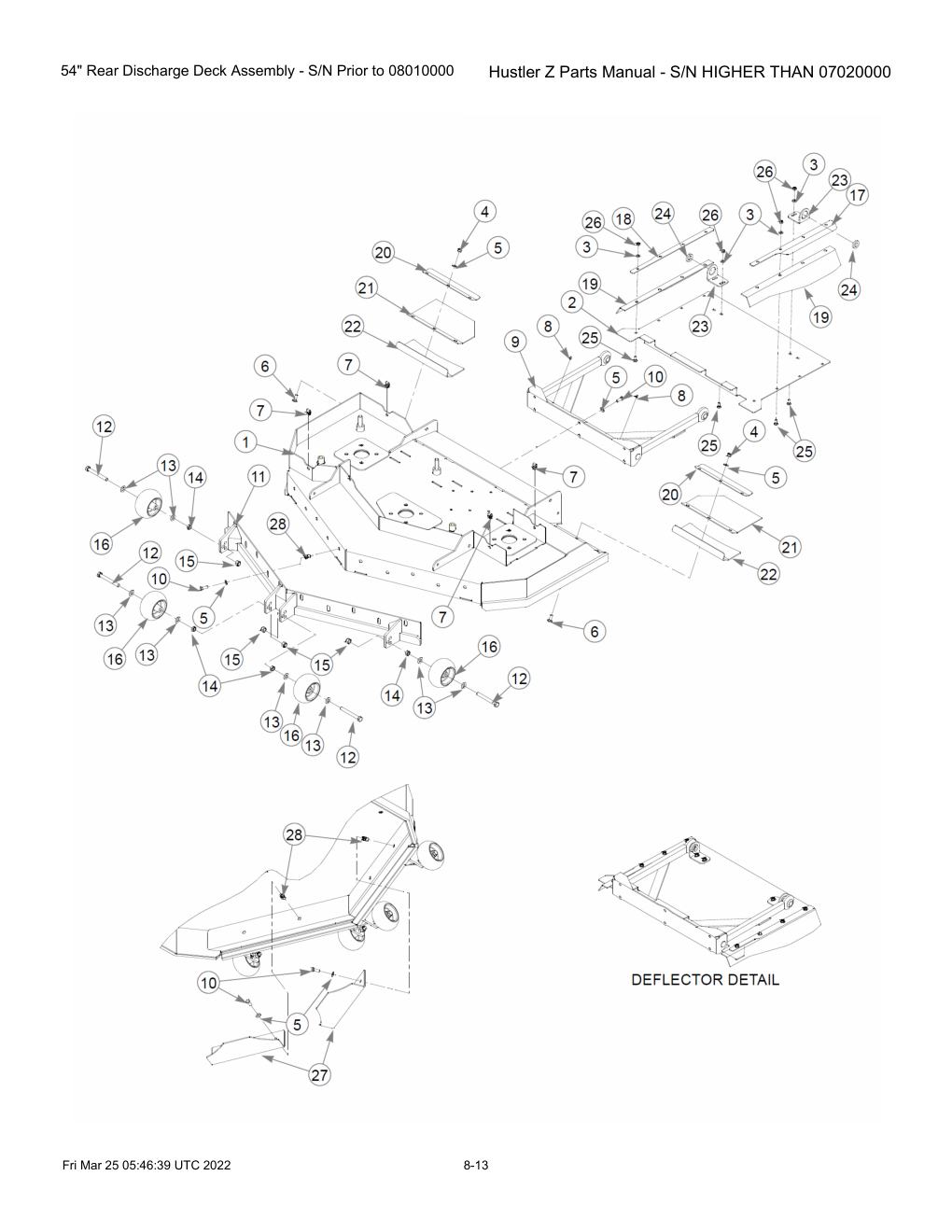

54" Rear Discharge Deck Assembly - S/N Prior to 08010000
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | 54" RD SERVICE DECK | 548644 | 1 | 548644-Online |
| 2 | GRASS SHIELD,54" RD | 108066 | 1 | 108066-Online |
| 3 | FW 0.343SAE | 768523 | 12 | HT768523-Online |
| 4 | NT .375-16NLG8 | 086660 | 6 | HT086660-Online |
| 5 | FW 0.379X.82X.06 HD ZN | 767954 | 26 | HT767954-Online |
| 6 | CB .375-16X 1.00 G5 ZN | 025395 | 12 | HT025395-Online |
| 7 | CN .312-18x.200 MAX THK | 601069 | 4 | HT601069-Online |
| 8 | GREASE FITTING STRAIGHT | 015495 | 2 | HT015495-Online |
| 9 | PUSHER W/A | 349803 | 1 | 349803-Online |
| 10 | CS .375-16X1.00 HX G5 ZN | 036244 | 20 | HT036244-Online |
| 11 | ANGLE, FRONT 54" W/A | 107975 | 1 | 107975-Online |
| 12 | CS .500-13X4.25 HX G5 ZN | 781708 | 4 | HT781708-Online |
| 13 | FW .531 x 1.063 x .175 | 767962 | 8 | HT767962-Online |
| 14 | NT .500-13JAMG5 | 053199 | 4 | HT053199-Online |
| 15 | NT .500-13NLG5 | 781567 | 4 | HT781567-Online |
| 16 | ANTI-SCALP WHEEL | 031997 | 4 | HT031997-Online |
| 17 | ANG, RD DEFL CLAMP LS | 106724 | 1 | 106724-Online |
| 18 | ANG, RD DEFL CLAMP RS | 106666 | 1 | 106666-Online |
| 19 | SIDE FLAP, RUBBER | 601113 | 2 | 601113-Online |
| 20 | ANGLE, RD DISCHARGE FLAP | 107972 | 2 | 107972-Online |
| 21 | RUBBER, RD DISCHARGE CHU | 601017 | 2 | 601017-Online |
| 22 | ANGLE, DECK STIFFENER | 107973 | 2 | 107973-Online |
| 23 | BRACKET, RD DECK GUARD | 106591 | 2 | 106591-Online |
| 24 | FW .781X1.38X.25 ZN | 778399 | 2 | 778399-Online |
| 25 | CB .312-18X .750 FUL ZN | 016253 | 12 | 016253-Online |
| 26 | NT .312-18NLG5 | 058776 | 12 | HT058776-Online |
| 27 | BAFFLE, INNER | 107978 | 2 | 107978-Online |
| 28 | RIVET NUT, 3/8-16 THREAD | 600994 | 14 | 600994-Online |
| REF | WHEEL ASSY, ANTI SCALP | 788166 | 4 | HT788166-Online |

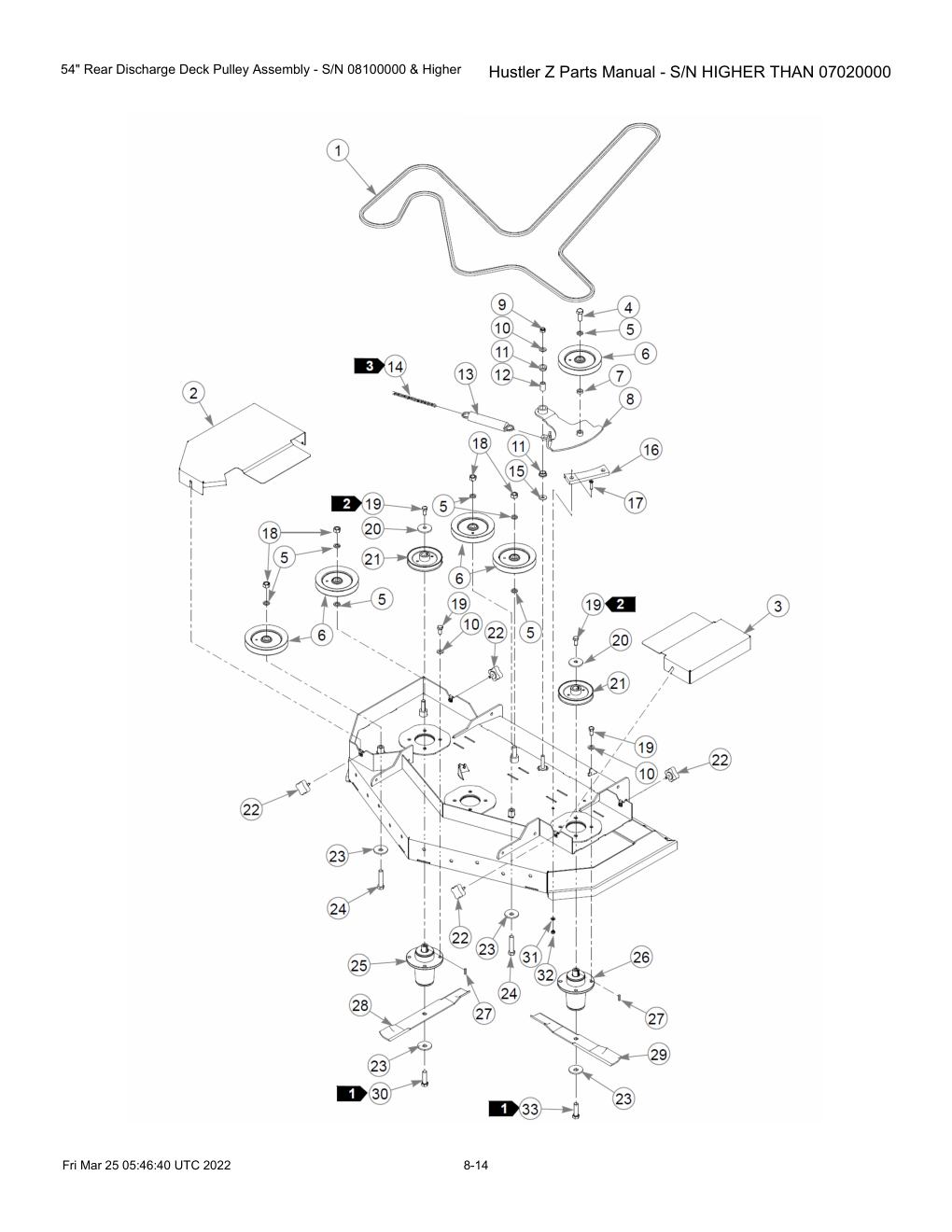

54" Rear Discharge Deck Pulley Assembly - S/N 08100000 & Higher
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DECK BELT | 601015 | 1 | 601015-Online |
| 2 | PULLEY COVER, RH | 110449 | 1 | 110449-Online |
| 3 | PULLEY COVER, LH | 110448 | 1 | 110448-Online |
| 4 | CS .625-11X1.500HXG5 | 794446 | 1 | HT794446-Online |
| 5 | FW 0.625X1.00X.13 ZN | 028118 | 7 | HT028118-Online |
| 6 | PULLEY, 6" HB IDLER RD | 796714 | 5 | HT796714-Online |
| 7 | SPACER, DECK IDLER | 600296 | 1 | HT600296-Online |
| 8 | IDLER ARM W/A | 109948 | 1 | 109948-Online |
| 9 | NT .500-13NLG5 | 781567 | 1 | HT781567-Online |
| 10 | FW .531 x 1.063 x .175 | 767962 | 13 | HT767962-Online |
| 11 | BUSHING, PLAS .750x1(FS) | 770867 | 2 | HT770867-Online |
| 12 | BUSHING, IDLER PIVOT | 109549 | 1 | HT109549-Online |
| 13 | IDLER SPRING | 781302 | 1 | 781302-Online |
| 14 | CHAIN, 13 LINK | 259812 | 1 | HT259812-Online |
| 15 | FW 0.500X1.25X.08 ZN | 704759 | 1 | 704759-Online |
| 16 | IDLER GUIDE, UHMW | 601779 | 1 | 601779-Online |
| 17 | CS .312-18x1.50FLT SH ZN | 797910 | 2 | HT797910-Online |
| 18 | NT .625-11 HX G5 ZN | 016972 | 4 | HT016972-Online |
| 19 | CS .500-13X1.000HXG5 | 016527 | 15 | 016527-Online |
| 20 | CW .505 X 1.625 X .140 | 752386 | 3 | HT752386-Online |
| 21 | PULLEY, B-SEC 5.44 EOD | 798967 | 3 | HT798967-Online |
| 22 | KNOB,5/16-18 X 3/4"MALE | 792002 | 4 | HT792002-Online |
| 23 | CW .678 X 2.250 X .187 | 782474 | 5 | HT782474-Online |
| 24 | CS .625-11X3.000HXG5 | 783738 | 2 | HT783738-Online |
| 25 | SPINDLE ASSY, 3" PILOT | 601819 | 1 | 601819-Online |
| REF | SPINDLE ASSY,RD DECK LI | 796680X | 1 | 796680X-Online |
| 26 | SPINDLE ASSY, 3" PILOT | 601630 | 2 | 601630-Online |
| REF | SPINDLE HOUSING ASSY | 796235X | 2 | 796235X-Online |
| 27 | KEY 1/4 SQ X 1.00 LG(FS) | 212472 | 3 | HT212472-Online |
| 28 | BLADE, F18.50-L-F-CCW | 601013 | 1 | 601013-Online |
54" Rear Discharge Deck Pulley Assembly - S/N 08100000 & Higher
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 29 | BLADE F18.50"-L-F-CW | 601012 | 2 | 601012-Online |
| 30 | CS .625-11X3.000LHHX G5 | 796722 | 1 | 796722-Online |
| 31 | FW 0.343SAE | 768523 | 1 | HT768523-Online |
| 32 | NT .312-18NLG5 | 058776 | 1 | HT058776-Online |
| 33 | CS .625-11X3.000HXG5 | 029934 | 2 | HT029934-Online |

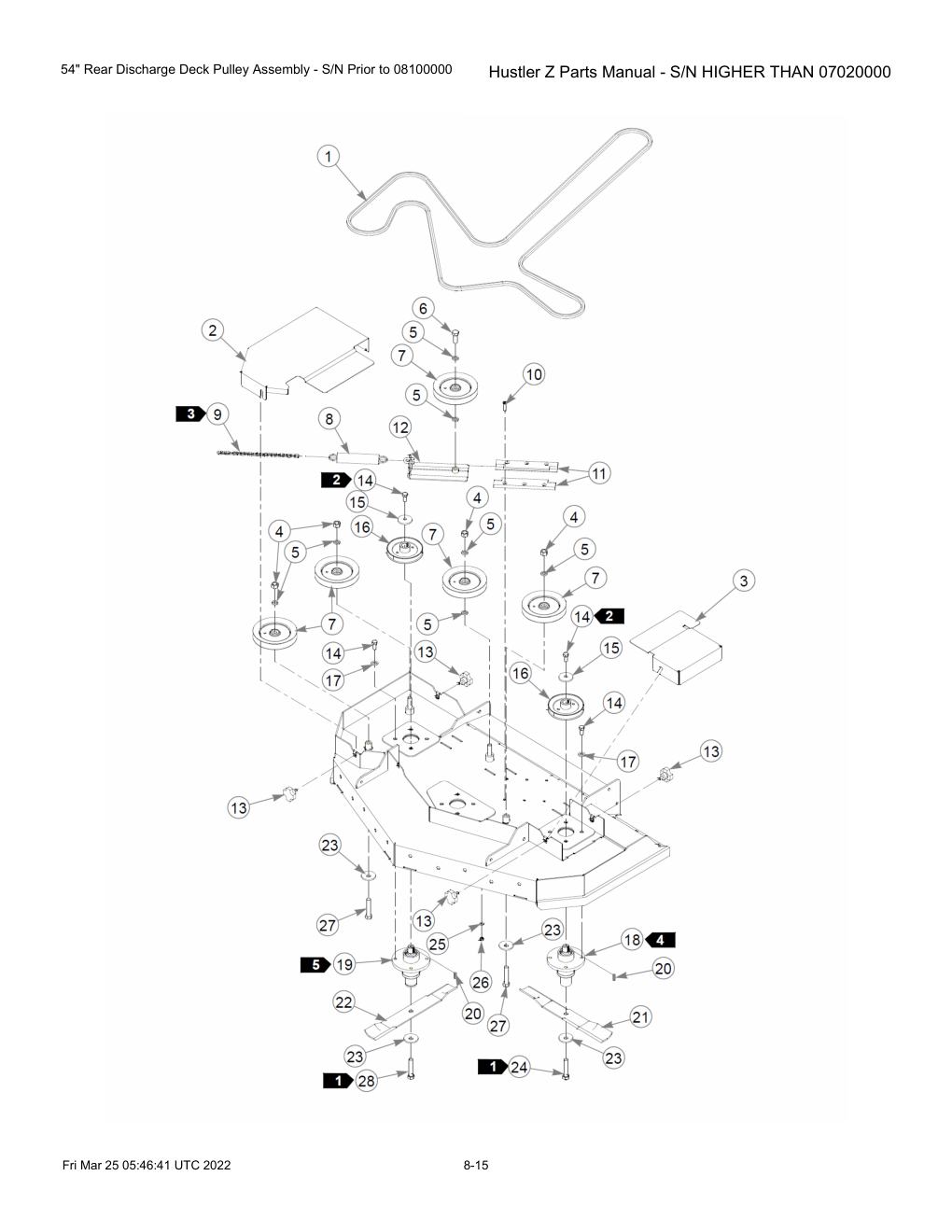

54" Rear Discharge Deck Pulley Assembly - S/N Prior to 08100000
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DECK BELT | 601015 | 1 | 601015-Online |
| 2 | PULLEY COVER, RS | 107945 | 1 | 107945-Online |
| 3 | PULLEY COVER, LS | 107946 | 1 | 107946-Online |
| 4 | NT .625-11 HX G5 ZN | 016972 | 4 | HT016972-Online |
| 5 | FW 0.625X1.00X.13 ZN | 028118 | 7 | HT028118-Online |
| 6 | CS .625-11X1.500HXG5 | 794446 | 1 | HT794446-Online |
| 7 | PULLEY, 6" HB IDLER RD | 796714 | 5 | HT796714-Online |
| 8 | IDLER SPRING | 781302 | 1 | 781302-Online |
| 9 | CHAIN, 21 LINK | 373191 | 1 | HT373191-Online |
| 10 | CS .312-18x1.50FLT SH ZN | 797910 | 6 | HT797910-Online |
| 11 | IDLER SLIDE, UHMW | 601434 | 2 | 601434-Online |
| 12 | SLIDE, DECK IDLER | 350884 | 1 | HT350884-Online |
| 13 | KNOB,5/16-18 X 3/4"MALE | 792002 | 4 | HT792002-Online |
| 14 | CS .500-13X1.000HXG5 | 016527 | 15 | 016527-Online |
| 15 | CW .505 X 1.625 X .140 | 752386 | 3 | HT752386-Online |
| 16 | PULLEY, B-SEC 5.44 EOD | 798967 | 3 | HT798967-Online |
| 17 | FW .531 x 1.063 x .175 | 767962 | 12 | HT767962-Online |
| 18 | SPINDLE ASSY, 3" PILOT | 601630 | 2 | 601630-Online |
| REF | SPINDLE HOUSING ASSY | 796235X | 2 | 796235X-Online |
| 19 | SPINDLE ASSY, 3" PILOT | 601819 | 1 | 601819-Online |
| REF | SPINDLE ASSY,RD DECK LI | 796680X | 1 | 796680X-Online |
| 20 | KEY 1/4 SQ X 1.00 LG(FS) | 212472 | 3 | HT212472-Online |
| 21 | BLADE F18.50"-L-F-CW | 601012 | 2 | 601012-Online |
| 22 | BLADE, F18.50-L-F-CCW | 601013 | 1 | 601013-Online |
| 23 | CW .678 X 2.250 X .187 | 782474 | 5 | HT782474-Online |
| 24 | CS .625-11X3.000HXG5 | 029934 | 2 | HT029934-Online |
| 25 | FW 0.343SAE | 768523 | 4 | HT768523-Online |
| 26 | NT .312-18NLG5 | 058776 | 4 | HT058776-Online |
| 27 | CS .625-11X3.000HXG5 | 783738 | 2 | HT783738-Online |
| 28 | CS .625-11X3.000LHHX G5 | 796722 | 1 | 796722-Online |

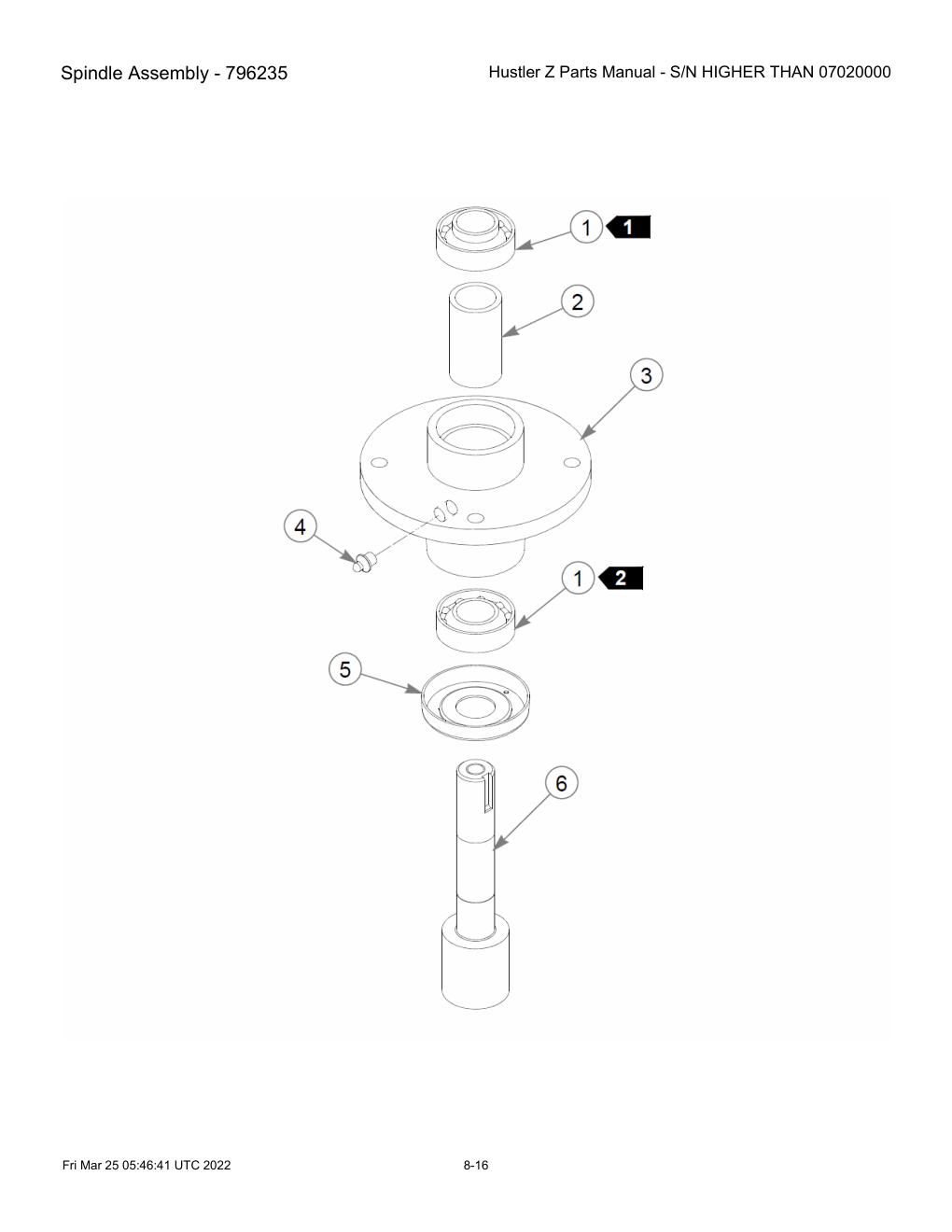

Spindle Assembly - 796235
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | BEARING W/O COLLAR | 077123 | 2 | 077123-Online |
| 2 | BLADE SPINDLE BUSHING | 766204 | 1 | HT766204-Online |
| 3 | CAST SPINDLE HOUSING | 034843 | 1 | HT034843-Online |
| 4 | GREASE FITTING | 012005 | 1 | HT012005-Online |
| 5 | BEARING DUST COVER | 600893 | 1 | 600893-Online |
| 6 | SPINDLE SHAFT SADDLELES | 796227 | 1 | HT796227-Online |

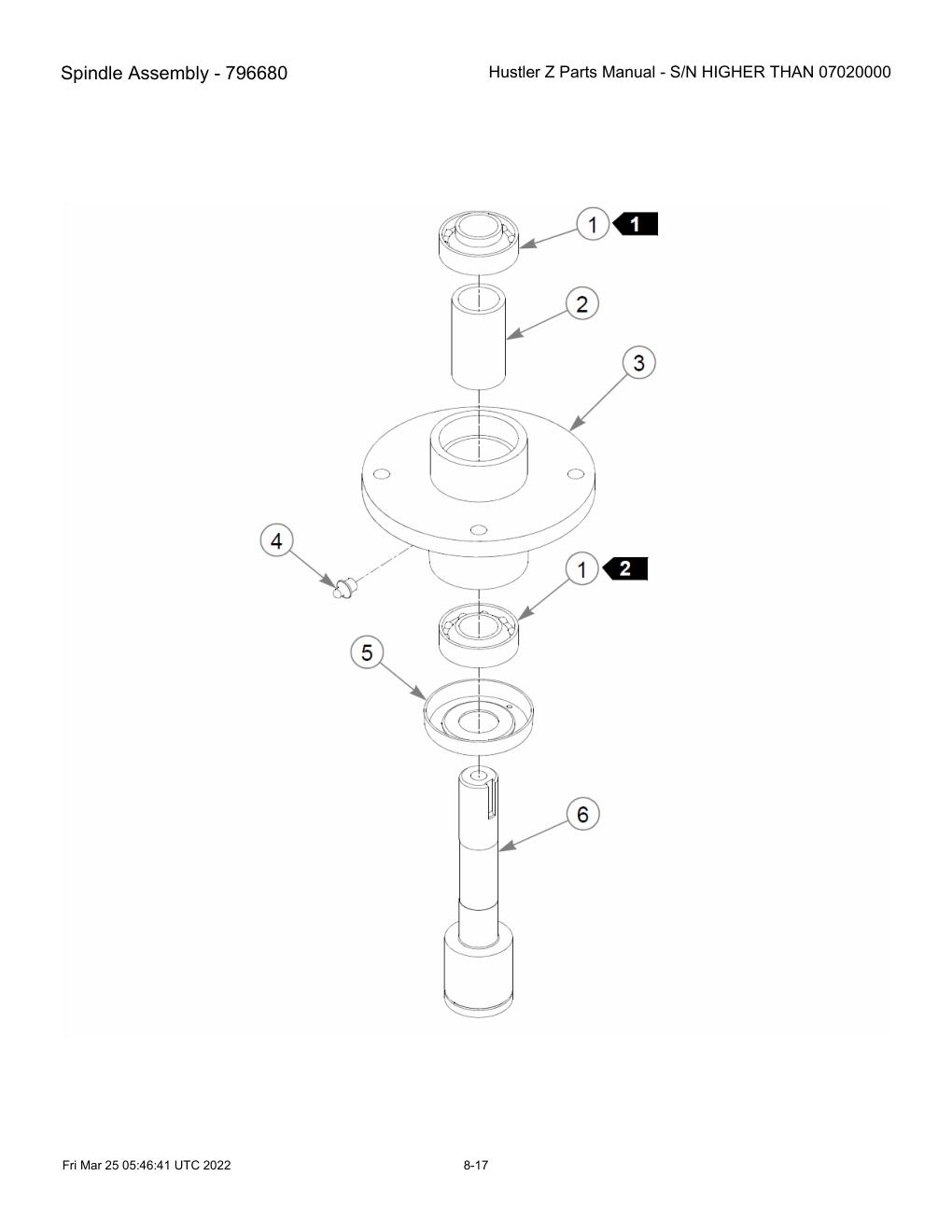

Spindle Assembly - 796680
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | BEARING W/O COLLAR | 077123 | 2 | 077123-Online |
| 2 | BLADE SPINDLE BUSHING | 766204 | 1 | HT766204-Online |
| 3 | CAST SPINDLE HOUSING | 034843 | 1 | HT034843-Online |
| 4 | GREASE FITTING | 012005 | 1 | HT012005-Online |
| 5 | BEARING DUST COVER | 600893 | 1 | 600893-Online |
| 6 | SPINDLE SHAFT (ASSY 796 | 796698 | 1 | 796698-Online |
Deck Installation
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .437-14X1.750HXG5 | 055749 | 4 | HT055749-Online |
| 2 | NT .750-10 HX ZN NL GR B | 061101 | 2 | HT061101-Online |
| 3 | FW .760X1.63X0.08 ZN | 025296 | 4 | HT025296-Online |
| 4 | CS .750-10X3.000HXG5 | 051169 | 2 | 051169-Online |
| 5 | NT .437-14FLKG5 | 704643 | 8 | HT704643-Online |

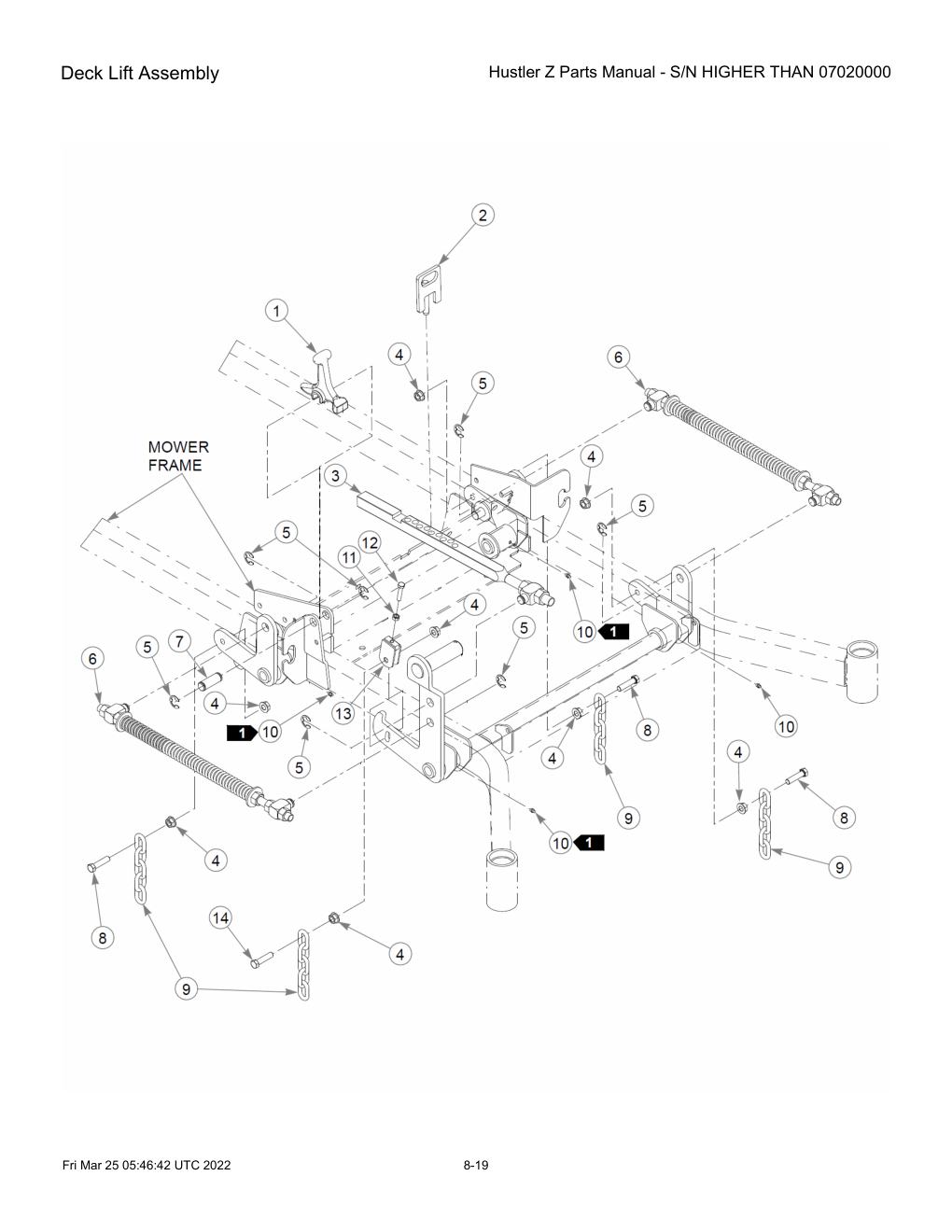

Deck Lift Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | HANDLE, STOP | 348318 | 1 | HT348318-Online |
| 2 | PIN, DECK HEIGHT W/A | 600437 | 1 | 600437-Online |
| 3 | KIT, DECK LIFT BAR & PIN | 783001K | 1 | 783001K-Online |
| 4 | NT .437-14FLKG5 | 704643 | 8 | HT704643-Online |
| 5 | CLIP E, 1.00 X.625X .05 | 781294 | 7 | HT781294-Online |
| 6 | DECK LIFT SPRING S/A | 782995 | 2 | HT782995-Online |
| 7 | CE .750X2.25 X1.75 HEAD | 781229 | 1 | 781229-Online |
| 8 | CS .437-14X1.750HXG5 | 055749 | 3 | HT055749-Online |
| 9 | CHAIN, DECK LIFT | 348391 | 4 | HT348391-Online |
| 10 | GREASE FITTING STRAIGHT | 015495 | 4 | HT015495-Online |
| 11 | NT .312-18HXG5 | 034272 | 1 | HT034272-Online |
| 12 | CS .312-18X1.500HXG5 | 756270 | 1 | 756270-Online |
| 13 | YOKE W/A, DECK LEVELER | 348458 | 1 | HT348458-Online |
| 14 | CS .437-14x1.75 FULTHG5 | 781831 | 1 | HT781831-Online |

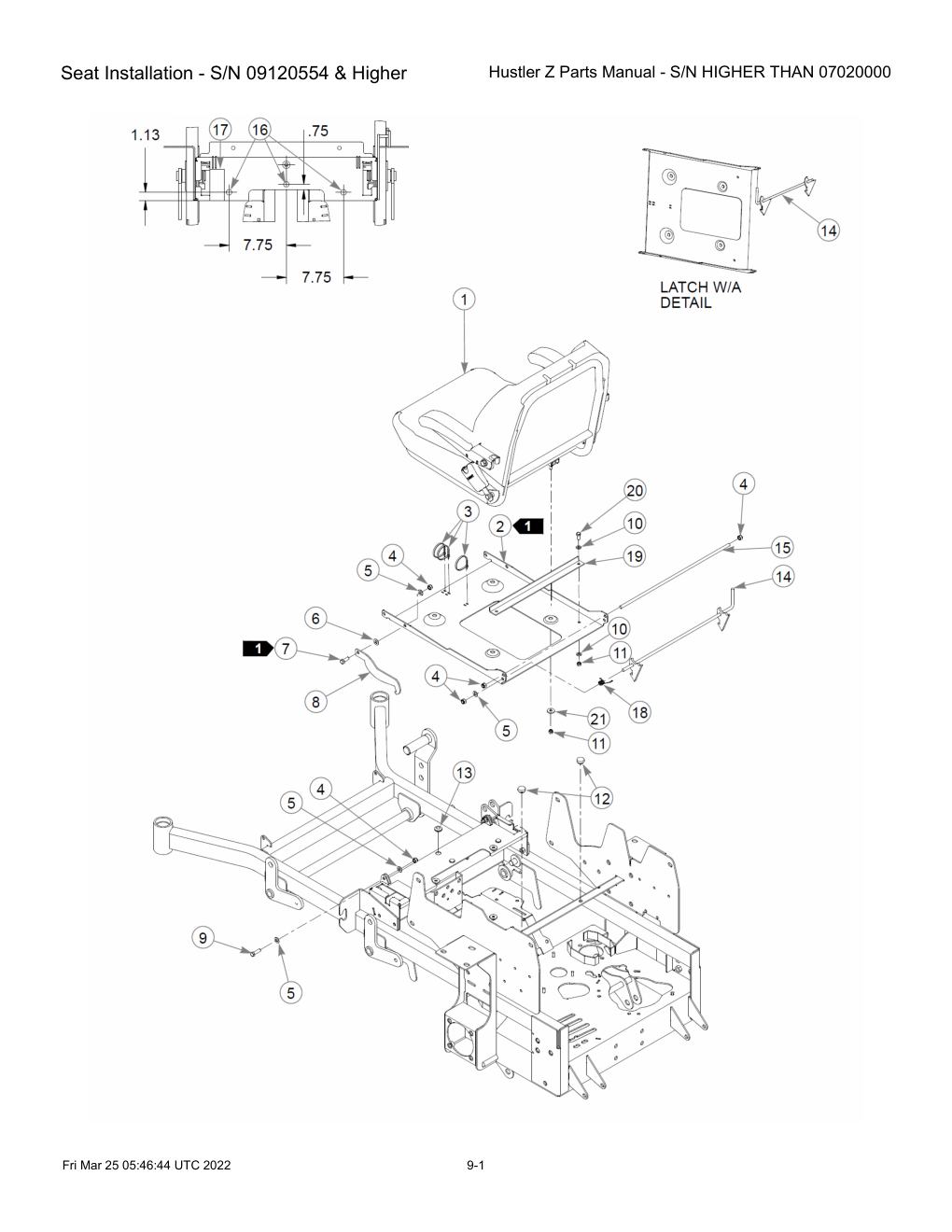

Seat Installation - S/N 09120554 & Higher
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SEAT, STANDARD | 602202 | 1 | 602202-Online |
| 2 | SEAT PAN, MMZ | 109307 | 1 | 109307-Online |
| 3 | WIRE TIE, SMALL/SHORT | 000331 | 3 | 000331-Online |
| 4 | NT .375-16NLG8 | 086660 | 6 | HT086660-Online |
| 5 | FW 0.379X.82X.06 HD ZN | 767954 | 6 | HT767954-Online |
| 6 | WASHER, FIBER (FS) | 724716 | 1 | 724716-Online |
| 7 | SEAT PAN STOP (PLATED) | 350421 | 1 | 350421-Online |
| 8 | CS .375-16X1.00 HX G5 ZN | 036244 | 1 | HT036244-Online |
| 9 | CS .375-16X1.25 HX G5 ZN | 052860 | 2 | HT052860-Online |
| 10 | FW 0.343SAE | 768523 | 4 | HT768523-Online |
| 11 | NT .312-18HXG5 | 034272 | 6 | HT034272-Online |
| 12 | BUMPER, .500x 1.00x .31 | 781880 | 2 | HT781880-Online |
| 13 | GM .50X1.00X.75X.12 | 080358 | 1 | 080358-Online |
| 14 | LATCH W/A | 109274 | 1 | 109274-Online |
| 15 | STOP ROD, SEAT LATCH | 109283 | 1 | 109283-Online |
| 16 | BUMPER, RUBBER | 781617 | 3 | 781617-Online |
| 17 | POLYURETHANE 2" (FS) | 722199 | 1 | 722199-Online |
| 18 | SPRING, TORSION | 783910 | 1 | HT783910-Online |
| 19 | SEAT STOP, YDZ | 108851 | 1 | 108851-Online |
| 20 | CS .312-18X0.750HXG5 | 034280 | 4 | HT034280-Online |
| 21 | FW 0.344X1.00X.12 HD ZN | 712927 | 4 | HT712927-Online |

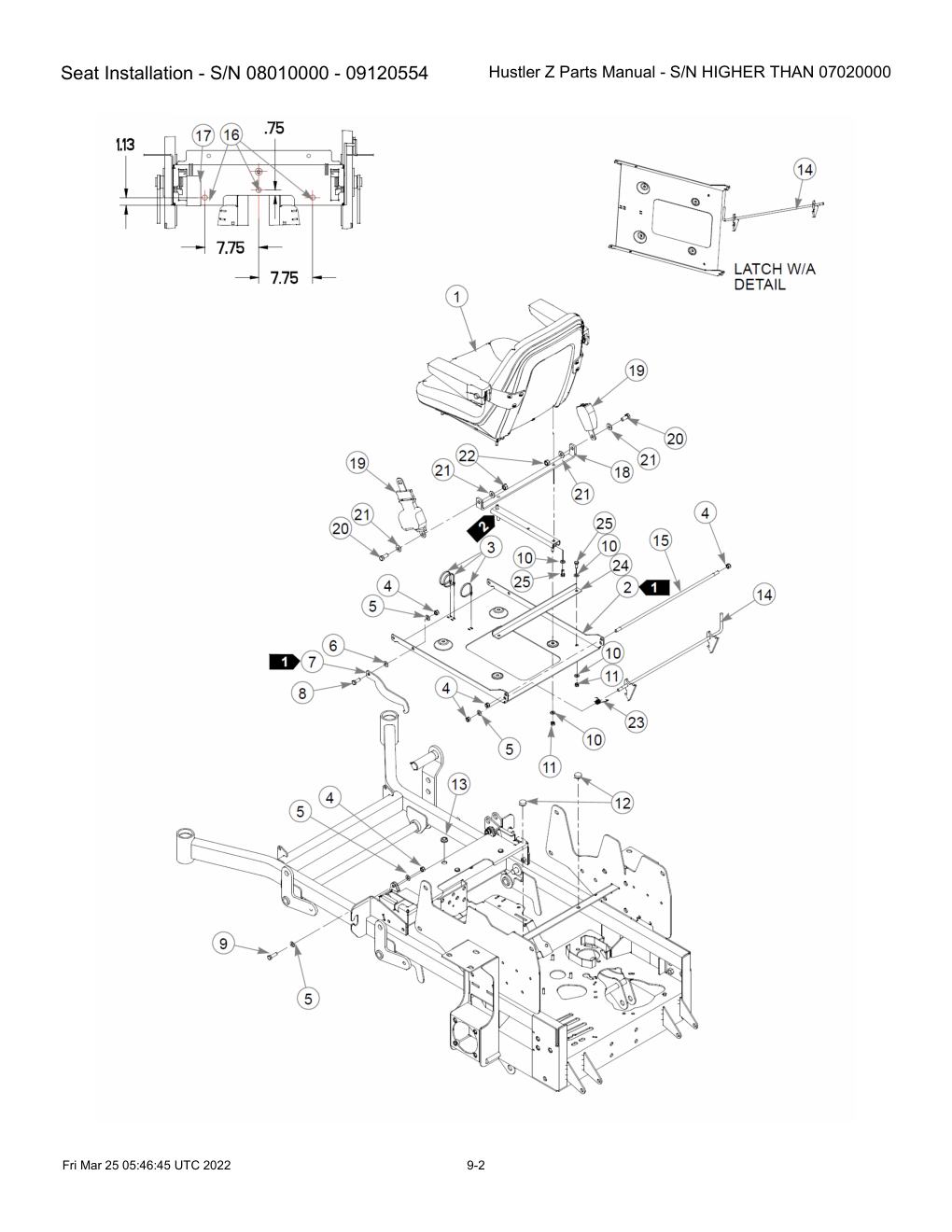

Seat Installation - S/N 08010000 - 09120554
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SEAT, MICHIGAN STANDARD | 793661 | 1 | 793661-Online |
| 2 | SEAT PAN, MMZ | 109307 | 1 | 109307-Online |
| 3 | WIRE TIE, SMALL/SHORT | 000331 | 3 | 000331-Online |
| 4 | NT .375-16NLG8 | 086660 | 6 | HT086660-Online |
| 5 | FW 0.379X.82X.06 HD ZN | 767954 | 6 | HT767954-Online |
| 6 | WASHER, FIBER (FS) | 724716 | 1 | 724716-Online |
| 7 | SEAT PAN STOP (PLATED) | 350421 | 1 | 350421-Online |
| 8 | CS .375-16X1.00 HX G5 ZN | 036244 | 1 | HT036244-Online |
| 9 | CS .375-16X1.25 HX G5 ZN | 052860 | 2 | HT052860-Online |
| 10 | FW 0.343SAE | 768523 | 10 | HT768523-Online |
| 11 | NT .312-18HXG5 | 034272 | 6 | HT034272-Online |
| 12 | BUMPER, .500x 1.00x .31 | 781880 | 2 | HT781880-Online |
| 13 | GM .50X1.00X.75X.12 | 080358 | 1 | 080358-Online |
| 14 | LATCH W/A | 109274 | 1 | 109274-Online |
| 15 | STOP ROD, SEAT LATCH | 109283 | 1 | 109283-Online |
| 16 | BUMPER, RUBBER | 781617 | 3 | 781617-Online |
| 17 | POLYURETHANE 2" (FS) | 722199 | 1 | 722199-Online |
| 18 | BAR, SEAT BELT CROSS | 794610 | 1 | 794610-Online |
| 19 | SEAT BELT | 601444 | 1 | 601444-Online |
| 20 | CS .437-20X1.000HXG8 | 797076 | 2 | 797076-Online |
| 21 | FW .440X1.00X0.08 ZN | 017129 | 6 | 017129-Online |
| 22 | NT .437-20HXG5 | 704635 | 2 | 704635-Online |
| 23 | SPRING, TORSION | 783910 | 1 | HT783910-Online |
| 24 | SEAT STOP, YDZ | 108851 | 1 | 108851-Online |
| 25 | CS .312-18X0.750HXG5 | 034280 | 4 | HT034280-Online |

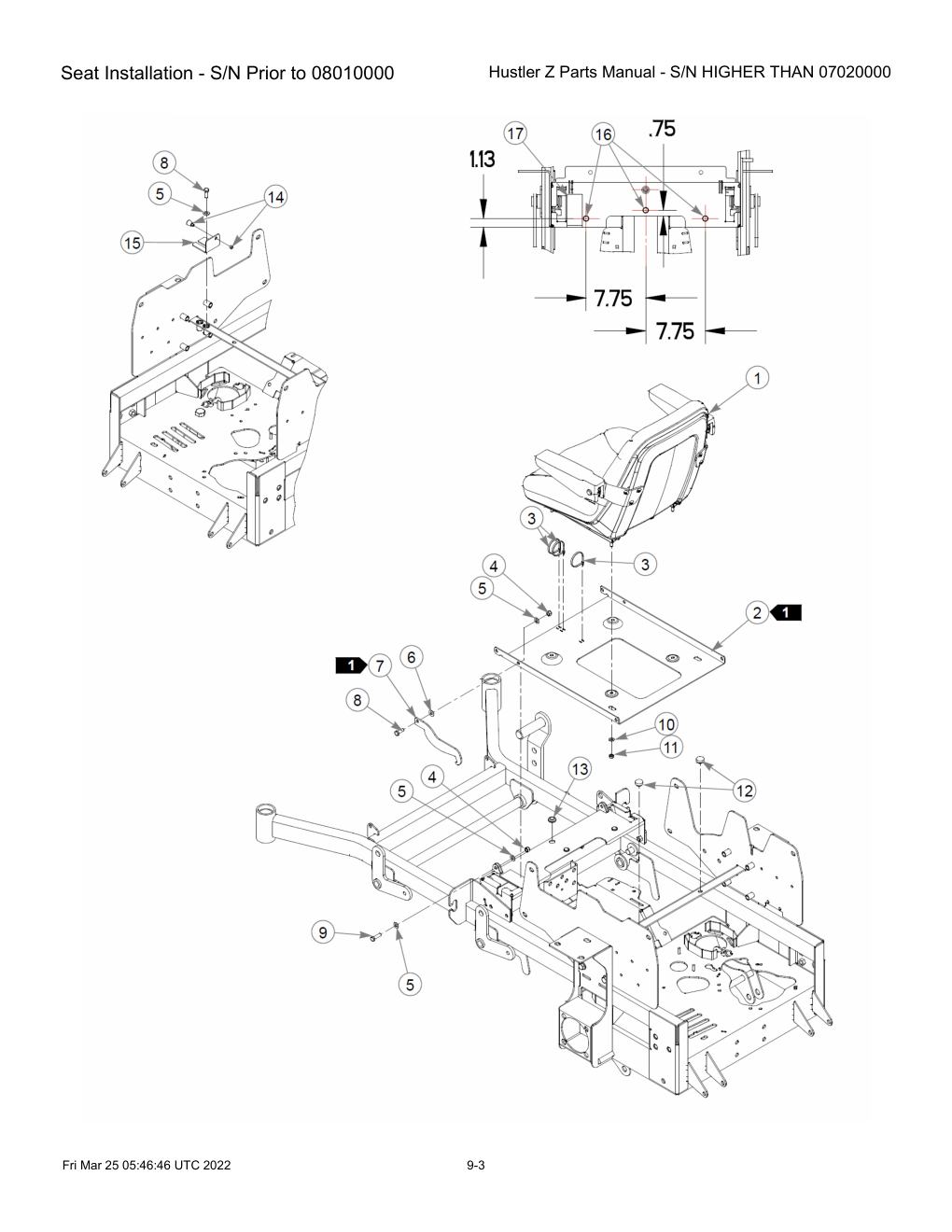

Seat Installation - S/N Prior to 08010000
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SEAT, MICHIGAN STANDARD | 793661 | 1 | 793661-Online |
| 2 | SEAT PAN MMZ | 350041 | 1 | 350041-Online |
| 3 | WIRE TIE, SMALL/SHORT | 000331 | 3 | 000331-Online |
| 4 | NT .375-16NLG8 | 086660 | 3 | HT086660-Online |
| 5 | FW 0.379X.82X.06 HD ZN | 767954 | 7 | HT767954-Online |
| 6 | WASHER, FIBER (FS) | 724716 | 1 | 724716-Online |
| 7 | SEAT PAN STOP (PLATED) | 350421 | 1 | 350421-Online |
| 8 | CS .375-16X1.00 HX G5 ZN | 036244 | 3 | HT036244-Online |
| 9 | CS .375-16X1.25 HX G5 ZN | 052860 | 2 | HT052860-Online |
| 10 | FW 0.343SAE | 768523 | 4 | HT768523-Online |
| 11 | NT .312-18HXG5 | 034272 | 4 | HT034272-Online |
| 12 | BUMPER, .500x 1.00x .31 | 781880 | 2 | HT781880-Online |
| 13 | GM .50X1.00X.75X.12 | 080358 | 1 | 080358-Online |
| 14 | LATCH SPRING PLUNGER(FS) | 748756 | 1 | 748756-Online |
| 15 | BRACKET, SEAT LATCH | 350462 | 1 | 350462-Online |
| 16 | BUMPER, RUBBER | 781617 | 3 | 781617-Online |
| 17 | POLYURETHANE 2" (FS) | 722199 | 1 | 722199-Online |

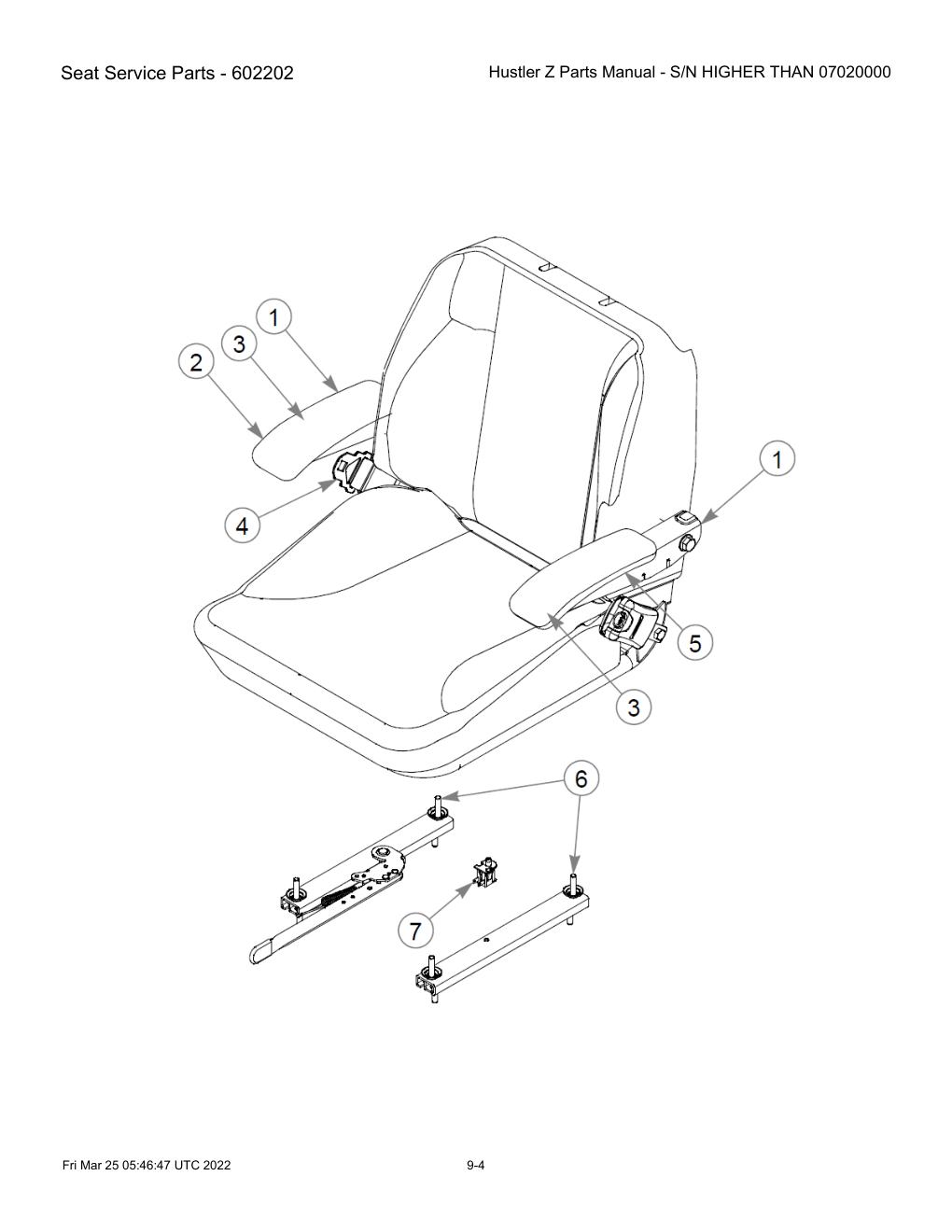

Seat Service Parts - 602202
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SET OF ARMRESTS | 603134 | 1 | 603134-Online |
| 2 | ARMREST, RH, SEATS INC | 603130 | 1 | 603130-Online |
| 3 | ARM PAD, SEATS INC | 603131 | 2 | 603131-Online |
| 4 | SEAT BELT KIT, SEATS INC | 603133 | 1 | 603133-Online |
| 5 | ARMREST, LH, SEATS INC | 603151 | 1 | 603151-Online |
| 6 | TRACK SET, SEATS INC | 603128 | 1 | 603128-Online |
| 7 | SEAT SWITCH, SEATS INC | 603129 | 1 | 603129-Online |

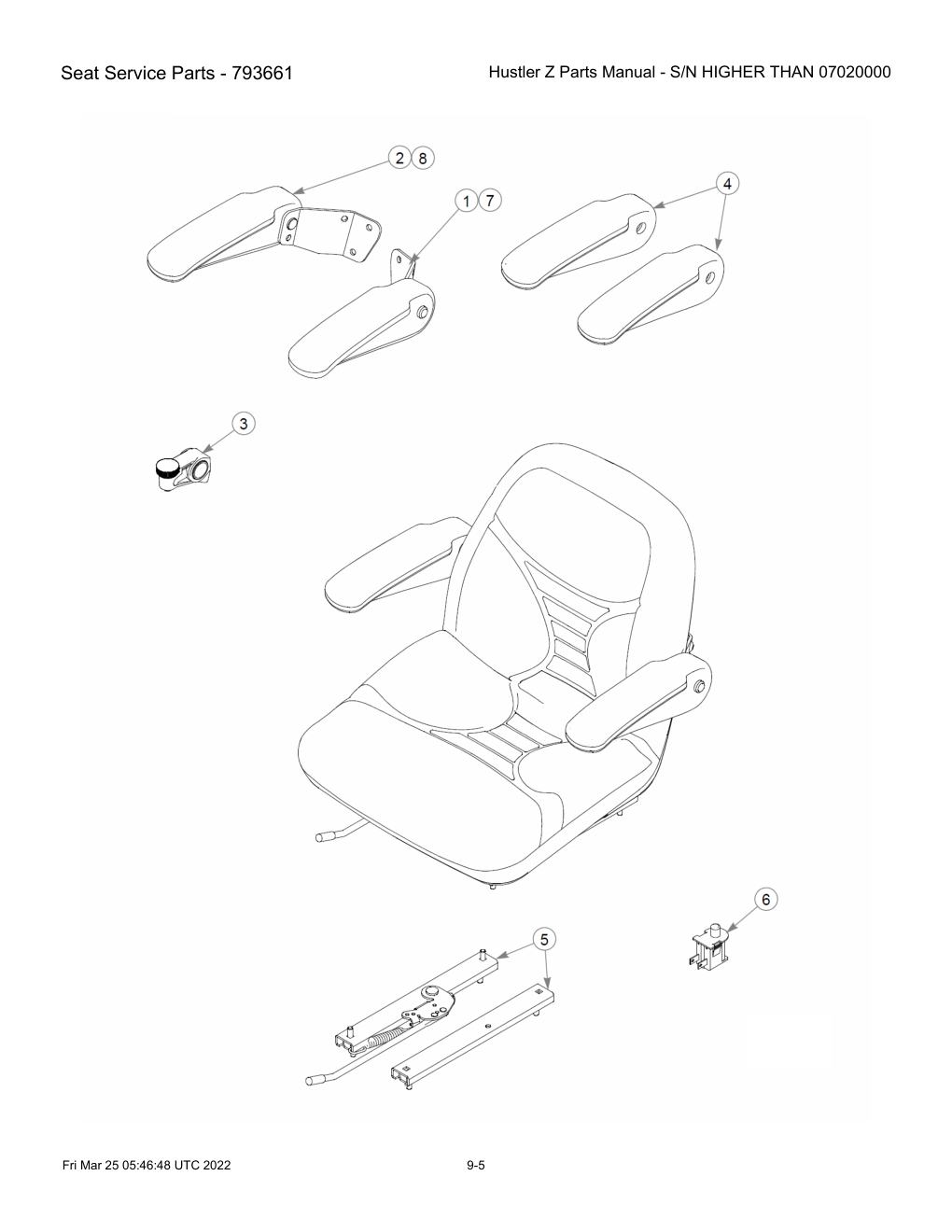

Seat Service Parts - 793661
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | ARMREST ASSY LH RND | 797464 | 1 | 797464-Online |
| 2 | ARMREST ASSY RH RND | 797472 | 1 | 797472-Online |
| 3 | ARMREST,STOP ASSY | 793273 | 1 | 793273-Online |
| 4 | 2 ARMRESTS, MOLDED RND | 797480 | 1 | 797480-Online |
| 5 | SLIDE KIT | 793307 | 1 | 793307-Online |
| 6 | SWITCH, SNAP MOUNT | 793315 | 1 | 793315-Online |
| 7 | EXT. ARMREST KIT L.H. | 604458 | 1 | 604458-Online |
| 8 | EXT. ARMREST KIT R.H. | 604459 | 1 | 604459-Online |
ROPS Installation
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KIT, MMZ FOLD ROPS(SN#) | 601126 | 1 | 601126-Online |
| 2 | LYNCH PIN W/ LANYARD | 601471 | 2 | 601471-Online |
| 3 | KNOB, HAND FOR ROPS | 601470 | 2 | 601470-Online |
| 4 | ROPS WARNING DECAL | 601560 | 1 | 601560-Online |
| 5 | CS .500-13X3.50 HX G5 ZN | 061812 | 5 | 061812-Online |
| 6 | ROPS STOP | 601472 | 1 | 601472-Online |
| 7 | NT .500-13UNTG8 | 023317 | 6 | 023317-Online |
| 8 | CS .500-13X3.250HXG5 | 077859 | 1 | 077859-Online |
| 9 | FW .531 x 1.063 x .175 | 767962 | 4 | HT767962-Online |
| 10 | SPACER WASHER FOR ROPS | 601473 | 2 | 601473-Online |
| 11 | ENGINE CAGE MOUNT PLATE | 349704 | 1 | 349704-Online |

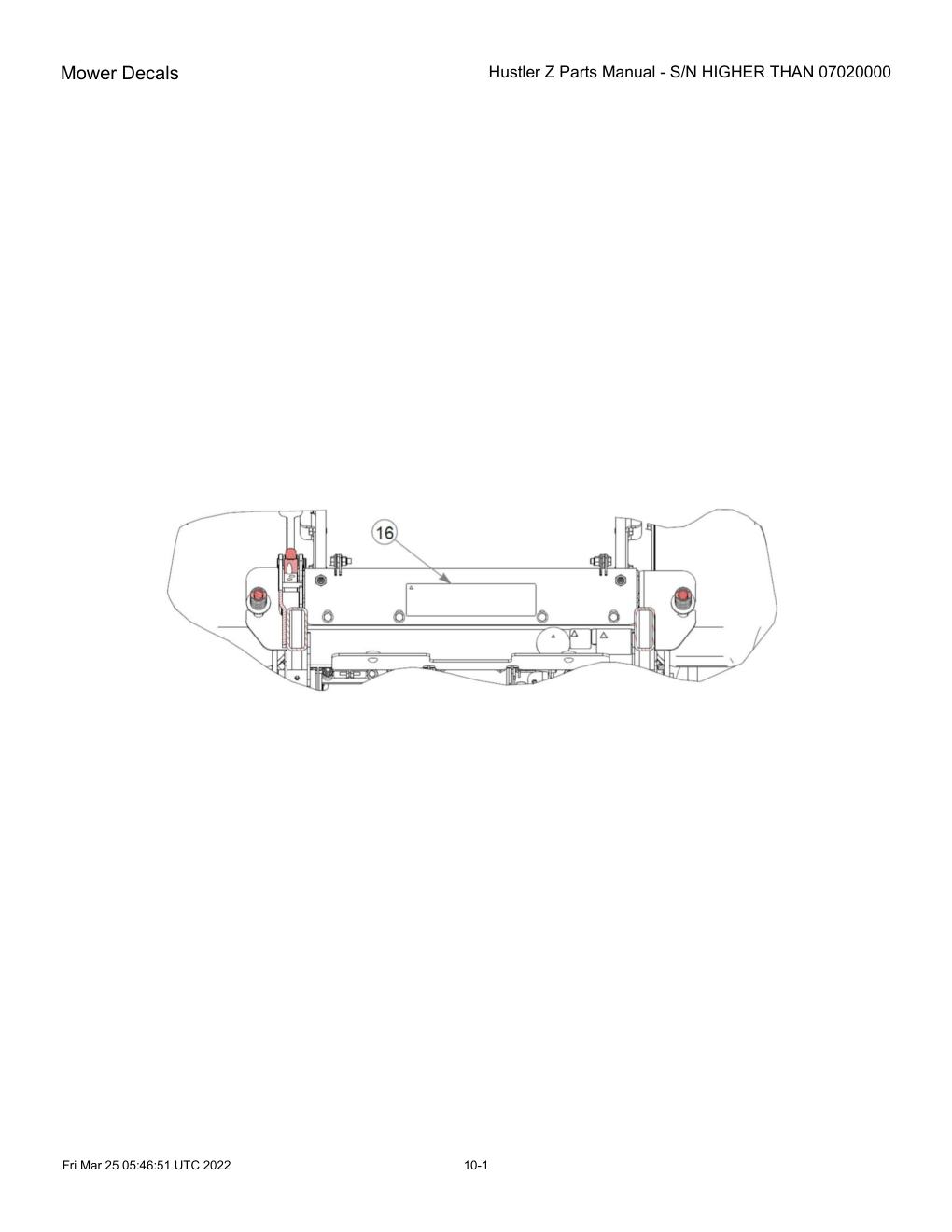

Mower Decals
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DECAL, DECK HEIGHT INDI | 781427 | 1 | 781427-Online |
| 2 | DECAL, HOT & HYD OIL | 779280 | 1 | 779280-Online |
| 3 | DECAL, INSTRUMENT PANEL | 784702 | 1 | 784702-Online |
| REF | DECAL, INSTRUMENT PNL 3 | 789503 | 1 | 789503-Online |
| 4 | DECAL, HYD PRESSURE | 727008 | 1 | 727008-Online |
| 5 | DECAL, FUEL INDICATOR-MM | 791830 | 1 | 791830-Online |
| 6 | DECAL, Z OPERATION | 782136 | 1 | 782136-Online |
| 7 | DECAL, ENGINE COMPARTME | 788968 | 1 | 788968-Online |
| 8 | DECAL, Z ARMREST WARNING | 785188 | 1 | 785188-Online |
| 9 | DECAL, Z SERVICE | 782128 | 1 | 782128-Online |
| 10 | DECAL, BATTERY | 727016 | 1 | 727016-Online |
| 11 | DECAL, STABILIZER | 771436 | 1 | 771436-Online |
| 12 | DECAL 'MADE IN U.S.A.' | 727172 | 1 | 727172-Online |
| 13 | TURF PROD SERIAL NO PLATE | N/A | 1 | No SKU |
| 14 | FIRST ZERO TURN DECAL | 782573 | 1 | 782573-Online |
| 15 | HUSTLER NAME PLATE | 793588 | 1 | 793588-Online |
| 16 | DECAL, HUSTLER Z ID | 786426 | 1 | 786426-Online |
| 17 | DECAL, PUMP BELT WARNING | 600899 | 1 | 600899-Online |
54" Side Discharge XR7 Deck Decals
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DECAL, 54" DECK ID | 799171 | 1 | 799171-Online |
| 2 | DECAL, MOWER DECK QUICK | 760637 | 1 | 760637-Online |
| 3 | DECAL, DEFLECTOR SHIELD | 727420 | 1 | 727420-Online |
| 4 | DECAL 'MADE IN U.S.A.' | 727172 | 1 | 727172-Online |
| 5 | DECAL, BELT & PULLEY | 727453 | 2 | 727453-Online |
| 6 | DECAL, WHIRLING BLADES | 727438 | 2 | 727438-Online |
| 7 | DECAL, BELT ROUTING | 781419 | 1 | 781419-Online |
| 8 | Decal, Deck XR7 ID | 799353 | 2 | 799353-Online |
| 9 | STEP TREAD 5.00 x 9.00 | 359547 | 1 | 359547-Online |
| 10 | DECAL, FUSION | 797845 | 1 | 797845-Online |
72", 66" & 60" Side Discharge XR7 Deck Decals
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DECAL, 72 DECK ID | 786285 | 1 | 786285-Online |
| REF | DECAL, Z 66" DECK ID | 799189 | 1 | 799189-Online |
| REF | DECAL, 60 DECK ID | 786277 | 1 | 786277-Online |
| 2 | DECAL, MOWER DECK QUICK | 760637 | 1 | 760637-Online |
| 3 | DECAL, DEFLECTOR SHIELD | 727420 | 1 | 727420-Online |
| 4 | DECAL 'MADE IN U.S.A.' | 727172 | 1 | 727172-Online |
| 5 | DECAL, BELT & PULLEY | 727453 | 2 | 727453-Online |
| 6 | DECAL, WHIRLING BLADES | 727438 | 2 | 727438-Online |
| 7 | DECAL, BELT ROUTING | 799395 | 1 | 799395-Online |
| REF | DECAL, BELT ROUTING | 781419 | 1 | 781419-Online |
| 8 | Decal, Deck XR7 ID | 799353 | 2 | 799353-Online |
| 9 | STEP TREAD 5.00 x 9.00 | 359547 | 1 | 359547-Online |
| 10 | DECAL, FUSION | 797845 | 1 | 797845-Online |

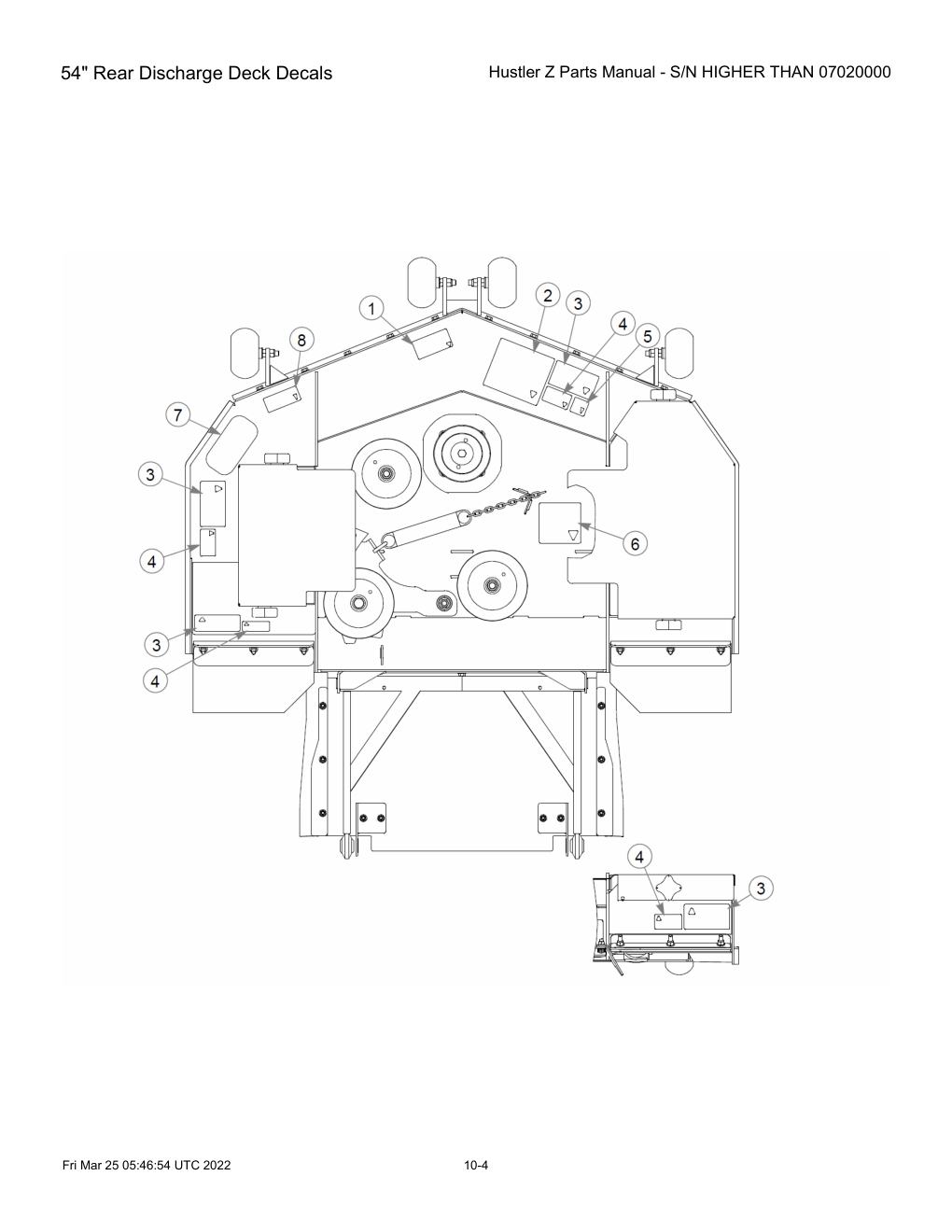

54" Rear Discharge Deck Decals
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DECAL, 54" DECK ID | 799171 | 1 | 799171-Online |
| 2 | DECAL, MOWER DECK QUICK | 760637 | 1 | 760637-Online |
| 3 | DECAL, WHIRLING BLADES | 727438 | 4 | 727438-Online |
| 4 | DECAL, BELT & PULLEY | 727453 | 4 | 727453-Online |
| 5 | DECAL 'MADE IN U.S.A.' | 727172 | 1 | 727172-Online |
| 6 | DECAL, RD DECK RTG | 796953 | 1 | 796953-Online |
| 7 | STEP TREAD MINI FST DEC | 794503 | 1 | 794503-Online |
| 8 | DECAL, FUSION | 797845 | 1 | 797845-Online |
