Illustrated Parts List
Super 104 Parts Manual - 940544EX - HTSWSR104KAWFX1000VEFIE
This Hustler IPL page converts the source parts manual into a mobile-friendly Joomla article with clickable Cutsmart SKU links. Each part number is linked as HLR-[part number]@online where a valid part number is available.
Model: 940544EXModel: 607876Model: 607877Model: 607407Model: 607408Model: 607710SKU prefix: HLR-SKU links use /qr?sku=
How to use this page: match the reference number on the diagram to the parts table, then click the Cutsmart SKU to open the product through the QR resolver. Tap/click diagrams to enlarge them.
Sections
FrameEngine GuardPump Drive, Drive Belt & ClutchHydraulic ComponentsHydraulic Filter & Reservoir Assembly BreakdownLS Pump Assembly BreakdownRS Pump Assembly BreakdownWheel Motor BreakdownOil Cooler SupportSteeringSteering Assembly (Multi-Page)LS Steering Box AssemblyRS Steering Box AssemblyBrakeWheels & TiresFront Wheel AssemblyDrive Wheel AssemblyEngine & MufflerEngine Service Parts - FX1000V EFIFuel SystemLS Fuel Tank Service Parts - 607876RS Fuel Tank Service Parts - 607877Instrument Panel & Wire HarnessBatteryDeck, Deck Belt & Wing (Multi-Page)Center Service DeckCenter Deck Idlers, Idler Slides, Pulleys & Spindles - S/N 20094353 & HIGHER (Multi-Page)Center Deck Idlers, Idler Slides, Pulleys & Spindles - S/N 20094353 & HIGHER (Multi-Page)Center Deck Idlers, Idler Slides, Pulleys & Spindles - S/N PRIOR TO 20094353 (Multi-Page)Center Deck Idlers, Idler Slides, Pulleys & Spindles - S/N PRIOR TO 20094353 (Multi-Page)Center Deck Belt, Blades & Step (Multi-Page)Center Deck Belt, Blades & Step (Multi-Page)Deck Lift & Mounting Hardware (Multi-Page)Deck Lift & Mounting Hardware (Multi-Page)Dust ShieldRight Side Service DeckRight Side Deck Pulleys & SpindlesRight Side Deck & Blades (Multi-Page)Right Side Deck & Blades (Multi-Page)Wing Lift System (Multi-Page)Manifold Block BreakdownLeft Side Service DeckLeft Side Deck Pulleys & SpindlesLeft Side Deck & Blades (Multi-Page)Left Side Deck & Blades (Multi-Page)Spindle Assembly Service Parts - 607407 & 607408Seat & Floor PanSeat Service Parts - 607710ROPSFrame
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SVC FRAME | 554297 | 1 | 554297-Online |
| 2 | RIVET NUT, 3/8-16 THREA | 808493 | 4 | 808493-Online |
| 3 | SERIAL NUMBER / SPEC DECAL | N/A | 2 | No SKU |
| 4 | DECAL, HOT | 602041 | 2 | 602041-Online |
| 5 | RIVET NUT, 1/2-13 THREAD | 600961 | 4 | 600961-Online |
| 6 | BUMPER, .500x 1.00x .31 | 781880 | 4 | HT781880-Online |
| 7 | DECAL, HUSTLER ID | 602407 | 1 | 602407-Online |
| 8 | DECAL, SAFE OPERATION | 601993 | 1 | 601993-Online |
| 9 | GREASE FITTING STRAIGHT | 015495 | 4 | HT015495-Online |
| 10 | DECAL, DBA 115 ISO | 607782 | 1 | 607782-Online |
Engine Guard
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CB .375-16X 1.00 G5 ZN | 025395 | 4 | HT025395-Online |
| 2 | MUFFLER GUARD | 124573-3 | 1 | 124573-3-Online |
| 3 | NT .375-16HXG5 | 054502 | 4 | HT054502-Online |
| 4 | FW 0.379X.82X.06 HD ZN | 767954 | 4 | HT767954-Online |
| 5 | NT .375-16NLG8 | 086660 | 4 | HT086660-Online |
| 6 | FW 0.391X1.25X.06 ZN | 705137 | 8 | 705137-Online |
| 7 | SVC, BUMPER WITH DECAL | 554278 | 1 | 554278-Online |
| 8 | DECAL, H LOGO | 606807 | 1 | 606807-Online |
| 9 | CS .500-13X1.25 HX G5 ZN | 705954 | 4 | HT705954-Online |
| 10 | FW .531 x 1.063 x .175 | 767962 | 8 | HT767962-Online |
| 11 | PLASTIC BUMPER, CENTER | 606657 | 1 | 606657-Online |
| 12 | PLASTIC BUMPER, LH | 606658 | 1 | 606658-Online |
| 13 | PLASTIC BUMPER, RH | 606659 | 1 | 606659-Online |
| 14 | CS .375-16X2.000HXG5 | 016410 | 2 | HT016410-Online |
| 15 | CS .375-16X1.12 HX G5 Z | 005132 | 2 | 005132-Online |
| 16 | WHEEL, ANTI-SCALP | 602263 | 2 | 602263-Online |
| 17 | SPACER, ANTI-SCALP 3.22 | 602345 | 2 | 602345-Online |
| 18 | CS .500-13X4.500HXG5 | 068239 | 2 | HT068239-Online |
| 19 | HEAT SHIELD, MMZ ROLLER | 377994 | 2 | 377994-Online |
| 20 | NT .500-13HXG5 | 008193 | 2 | HT008193-Online |
Pump Drive, Drive Belt & Clutch
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .500-13X5.000HXG5 | 051151 | 1 | HT051151-Online |
| 2 | FW .510X2.15X.19 ZN | 344267 | 1 | HT344267-Online |
| 3 | BUSHING, IDLER PIVOT | 602880 | 1 | 602880-Online |
| 4 | CS .62511X1.750HXG5 | 025007 | 1 | HT025007-Online |
| 5 | PULLEY, 6" FLAT IDLER | 603783 | 1 | 603783-Online |
| 6 | TENSIONER | 115536 | 1 | HT115536-Online |
| 7 | BUSHING, IDLER PIVOT | 602879 | 1 | 602879-Online |
| 8 | FW .531 x 1.063 x .175 | 767962 | 1 | HT767962-Online |
| 9 | NT .500-13NLG5 | 781567 | 1 | HT781567-Online |
| 10 | GREASE FITTING STRAIGHT | 015495 | 1 | HT015495-Online |
| 11 | IDLER SPRING | 601016 | 1 | HT601016-Online |
| 12 | EB, .375-16X3.00 FULTHD | 601486 | 1 | 601486-Online |
| 13 | NT .375-16HXG5 | 054502 | 2 | HT054502-Online |
| 14 | FW 0.379X.82X.06 HD ZN | 767954 | 2 | HT767954-Online |
| 15 | CS .312-18X1.000HXG5 | 036236 | 2 | 036236-Online |
| 16 | FW 0.343SAE | 768523 | 4 | HT768523-Online |
| 17 | CLUTCH ANCHOR | 113347 | 1 | HT113347-Online |
| 18 | NT .312-18HXG5 | 034272 | 2 | HT034272-Online |
| 19 | PULLEY 7.35 OPx1.125SHFT | 602755 | 1 | 602755-Online |
| 20 | KEY 1/4 SQ X 1.50 LG(FS) | 212076 | 1 | HT212076-Online |
| 21 | CLUTCH KIT, CMS250 | 606936K | 1 | 606936K-Online |
| 22 | HARNESS, CLUTCH PIGTAIL | 791251 | 1 | HT791251-Online |
| 23 | FW .453X1.12X.12 HRD ZN | 602680 | 1 | 602680-Online |
| 24 | CS .437-20X3.00 HXG5 P85 | 785048 | 1 | HT785048-Online |
| 25 | DRIVE BELT | 603904 | 1 | 603904-Online |
| 26 | PULLEY 7.35 OPx0.875SHFT | 602754 | 2 | 602754-Online |
| 27 | SS .312-18X0.750SQ | 083196 | 4 | 083196-Online |
| 28 | KEY 1/4 SQ X 1.12 LONG | 210146 | 2 | HT210146-Online |

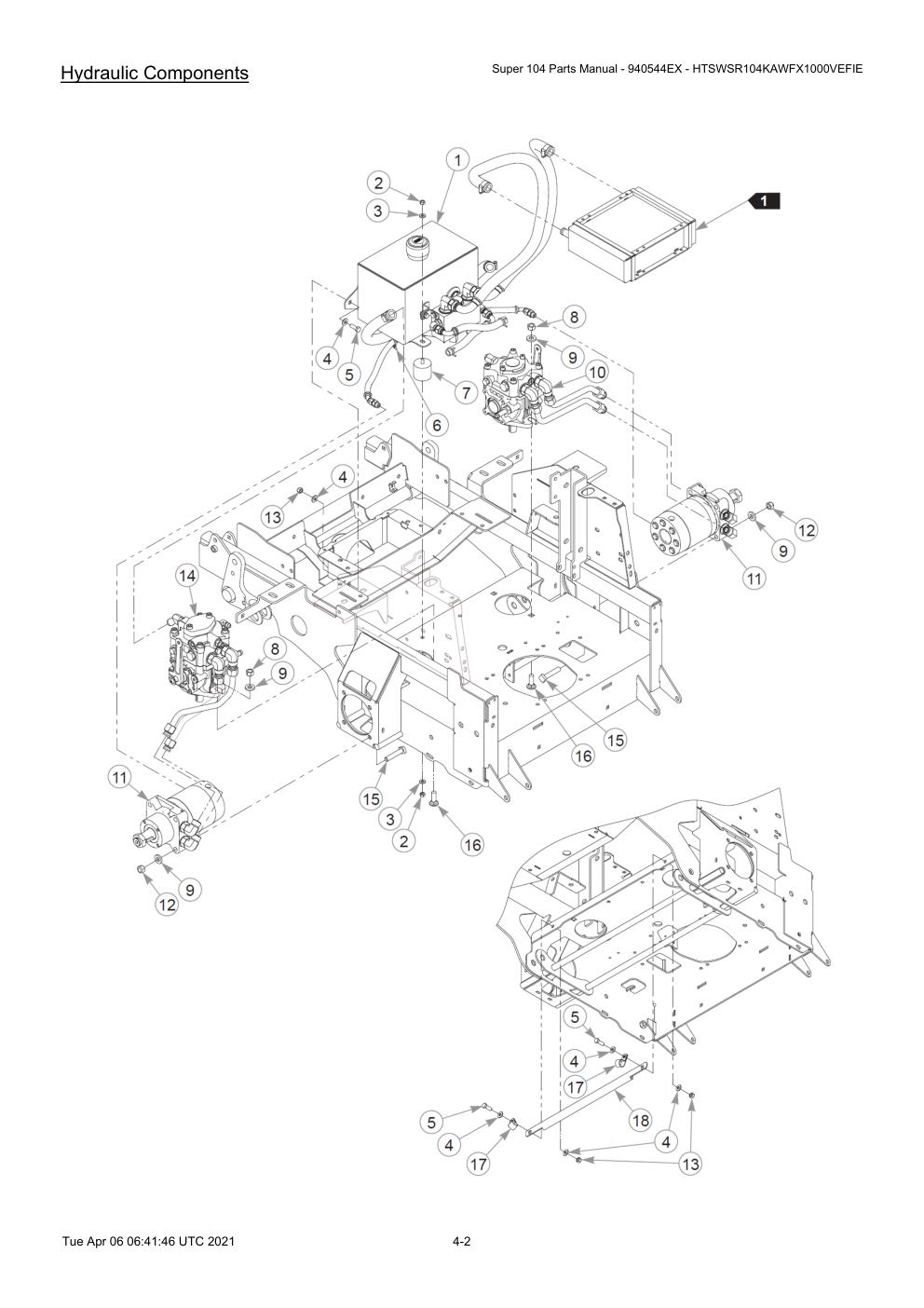

Hydraulic Components
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 2 | NT .312-18HXG5 | 034272 | 2 | HT034272-Online |
| 3 | FW 0.343SAE | 768523 | 2 | HT768523-Online |
| 4 | FW 0.379X.82X.06 HD ZN | 767954 | 8 | HT767954-Online |
| 5 | CS .375-16X1.00 HX G5 ZN | 036244 | 4 | HT036244-Online |
| 6 | WIRE TIE, SMALL/SHORT | 000331 | 1 | 000331-Online |
| 7 | VIBRATION MOUNT | 604320 | 1 | 604320-Online |
| 8 | NT .500-13HXG5 | 008193 | 4 | HT008193-Online |
| 9 | FW .531 x 1.063 x .175 | 767962 | 12 | HT767962-Online |
| 9 | REFER TO "RS PUMP ASSEMBLY BREAKDOWN" | 10 | 1 | 10-Online |
| 9 | REFER TO "WHEEL MOTOR BREAKDOWN" | 11 | 2 | 11-Online |
| 12 | NT .500-13UNTG8 | 023317 | 8 | 023317-Online |
| 13 | NT .375-16HXG5 | 054502 | 4 | HT054502-Online |
| 13 | REFER TO "LS PUMP ASSEMBLY BREAKDOWN" | 14 | 1 | 14-Online |
| 15 | CS .500-13X2.500 SQ G5 | 602256 | 8 | 602256-Online |
| 16 | CB .500-13X 1.500 FULL | 028274 | 4 | 028274-Online |
| 17 | CLIP - HOSE - SINGLE(FS) | 043570 | 2 | 043570-Online |
| 18 | BELT GUIDE | 119384 | 1 | 119384-Online |
Hydraulic Filter & Reservoir Assembly Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CAP, BREATHER | 032763 | 1 | HT032763-Online |
| 2 | STRAINER | 032771 | 1 | 032771-Online |
| 3 | RESERVOIR, HYDRAULIC | 606173 | 1 | 606173-Online |
| 4 | CLAMP, HOSE (FS) | 700484 | 6 | 700484-Online |
| 5 | HOSE, PUMP SUCTION | 603045 | 2 | 603045-Online |
| 6 | HOSE, TO COOLER | 603046 | 1 | 603046-Online |
| 7 | FTG,-12MORB/-12MJIC 90° | 603189 | 2 | 603189-Online |
| 8 | HOSE, FROM COOLER | 603047 | 1 | 603047-Online |
| 9 | FTG, -12MORB/-12MORB STR | 603039 | 1 | 603039-Online |
| 10 | CHECK VALVE | 603053 | 1 | 603053-Online |
| 11 | FTG,-8MORB HEX PLUG | 603123 | 1 | 603123-Online |
| 12 | FTG, -8MORB/-8MJIC, 90° | 771311 | 2 | 771311-Online |
| 13 | HOSE, PUMP CASE DRAIN | 603042 | 2 | 603042-Online |
| 14 | MANIFOLD, CASE DRAIN | 603000 | 1 | 603000-Online |
| 15 | SPRING CLAMP, .75" DIA | 601001 | 2 | 601001-Online |
| 16 | SUPPORT BRACKET | 113623 | 1 | 113623-Online |
| 17 | CS .312-18X0.750HXG5 | 034280 | 1 | HT034280-Online |
| 18 | FW 0.343SAE | 768523 | 3 | HT768523-Online |
| 19 | CS .312-18X0.500HXG5 | 068346 | 1 | 068346-Online |
| 20 | NT .312-18HXG5 | 034272 | 1 | HT034272-Online |
| 21 | FTG, -8MORB/HEX PLUG | 781658 | 1 | 781658-Online |
| 22 | HYDRAULIC OIL FILTER | 602768X | 1 | 602768X-Online |
| 23 | FTG,-8MORB/-6BT 90° | 603190 | 2 | 603190-Online |
| 24 | SPRING CLAMP, 5/8" DIA. | 601617 | 2 | 601617-Online |
| 25 | FTG, -6MORB/-6MJIC STR | 779132 | 2 | 779132-Online |
| 26 | HOSE, L MOTOR CASE DRAIN | 603043 | 1 | 603043-Online |
| 27 | HOSE, R MOTOR CASE DRAIN | 603044 | 1 | 603044-Online |
LS Pump Assembly Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | PUMP, DDC20 W/ IMP - HH | 603895 | 1 | 603895-Online |
| 2 | FTG, 90-6MORB/-6MJI | 795922 | 1 | HT795922-Online |
| 3 | FTG, -8MORB/-8BT STR | 601523 | 1 | 601523-Online |
| 4 | FTG, -10MORB/-12BT 45° | 774968 | 1 | 774968-Online |
| 5 | CS .250-20X1.500HXG5 | 008581 | 1 | 008581-Online |
| 6 | FW 0.281SAE | 768515 | 1 | HT768515-Online |
| 7 | PUMP ARM , SUPER Z | 602732 | 1 | 602732-Online |
| 8 | FW 0.344X1.0X0.06 ZN | 079210 | 1 | 079210-Online |
| 9 | CS M8-1.25x10 G10.9 SHBH | 603272 | 1 | 603272-Online |
| 10 | NT .250-20 HXZY NL | 068551 | 1 | HT068551-Online |
| 11 | FTG, -6MORB/-6MJIC STR | 779132 | 1 | 779132-Online |
| 12 | FTG,-10MORB/-10MORFS 90° | 602443 | 2 | 602443-Online |
| 13 | TUBE, LP-BM LH LOOP | 602873 | 1 | 602873-Online |
| 14 | TUBE, RP-TM LH LOOP | 602874 | 1 | 602874-Online |
RS Pump Assembly Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TUBE, RP-TM RH LOOP | 602876 | 1 | 602876-Online |
| 2 | TUBE, LP-BM RH LOOP | 602875 | 1 | 602875-Online |
| 3 | PUMP, DANFOSS DDC20 - HH | 602964 | 1 | 602964-Online |
| 4 | FTG, -8MORB/-8BT STR | 601523 | 1 | 601523-Online |
| 5 | FTG,-10MORB/-10MORFS 90° | 602443 | 2 | 602443-Online |
| 6 | CS .250-20X1.500HXG5 | 008581 | 1 | 008581-Online |
| 7 | FW 0.281SAE | 768515 | 1 | HT768515-Online |
| 8 | PUMP ARM , SUPER Z | 602732 | 1 | 602732-Online |
| 9 | FW 0.344X1.0X0.06 ZN | 079210 | 1 | 079210-Online |
| 10 | CS M8-1.25x10 G10.9 SHBH | 603272 | 1 | 603272-Online |
| 11 | NT .250-20 HXZY NL | 068551 | 1 | HT068551-Online |
| 12 | FTG, -10MORB/-12BT 45° | 774968 | 1 | 774968-Online |
| 13 | SEAL KIT, DANFOSS DDC20 | 603362 | 1 | 603362-Online |
Wheel Motor Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | MOTOR, TG0360 - HH | 603898 | 1 | 603898-Online |
| 2 | FTG,-10MORB/-10MORFS 90° | 602443 | 2 | 602443-Online |
Oil Cooler Support
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | AIR SCOOP, OIL COOLER | 124302-1 | 1 | 124302-1-Online |
| 2 | LATCH, HEAVY DUTY SWELL | 791384 | 1 | 791384-Online |
| 3 | OIL COOLER MOUNT | 125826-1 | 1 | 125826-1-Online |
| 4 | NT .312-18FLKG5 | 016832 | 16 | 016832-Online |
| 5 | SVC, OIL COOLER COVER | 554388 | 1 | 554388-Online |
| 6 | DECAL, HYPERDRIVE | 606909 | 2 | 606909-Online |
| 7 | CB .312-18X .750 FUL ZN | 016253 | 16 | 016253-Online |
| 8 | BRACKET, COOLER MOUNT | 117725 | 2 | 117725-Online |
| 9 | SVC, COOLER MOUNT | 554389 | 1 | 554389-Online |
| 10 | DECAL, HUSTLER ID | 602407 | 1 | 602407-Online |
| 11 | CS .250-20X4.500 HX G5 | 603229 | 4 | 603229-Online |
| 12 | FAN, 9" 12V | 603066 | 1 | 603066-Online |
| 13 | CS .250-20X4.000 HX G5 | 603228 | 2 | 603228-Online |
| 14 | OIL COOLER, HYD 8" FAN | 602709 | 1 | 602709-Online |
| 15 | WEATHERSTRIP .12X.75 | 033035 | 15.5" | 033035-Online |
| 16 | BRACKET, SCRN MNT FNT | 124390-1 | 1 | 124390-1-Online |
| 17 | BRACKET, SCRN MNT RR | 124389-1 | 1 | 124389-1-Online |
| 18 | NT .250-20 HXZY NL | 068551 | 6 | HT068551-Online |
| 19 | SCREEN ASSY SZ COOLER | 114165 | 1 | 114165-Online |
| 20 | RIVET NUT, 1/4-20 THREA | 808477 | 1 | 808477-Online |
| 21 | FW 0.281SAE | 768515 | 1 | HT768515-Online |
| 22 | CS .250-20X0.75 HX G5 ZN | 055939 | 1 | 055939-Online |
| 23 | NT .375-16HXG5 | 054502 | 4 | HT054502-Online |
| 24 | FW 0.379X.82X.06 HD ZN | 767954 | 8 | HT767954-Online |
| 25 | CS .375-16X1.00 HX G5 ZN | 036244 | 4 | HT036244-Online |
| 26 | WIRE TIE, SMALL/SHORT | 000331 | 1 | 000331-Online |
| 27 | WIRE TIE, SMALL/LONG | 000430 | 2 | 000430-Online |
Steering
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DECAL, USA, F&D | 608127 | 1 | 608127-Online |
| 2 | REFER TO "STEEING COVER ASSEMBLY" | N/A | 1 | No SKU |
| 3 | DECAL, SUPER 104 | 608101 | 1 | 608101-Online |
| 4 | W/A, STEERING ARM | 604339 | 2 | 604339-Online |
| Not Shown | GRIP, STEERING BAR | 781260 | 2 | 781260-Online |
| 5 | CS .375-12X1.50 HX G5 ZN | 604365 | 4 | 604365-Online |
| 6 | FW 0.379X.82X.06 HD ZN | 767954 | 12 | HT767954-Online |
| 7 | NT .375-16HXG5 | 054502 | 4 | HT054502-Online |
| 8 | CS .375-16X1.00 HX G5 ZN | 036244 | 2 | HT036244-Online |
| 9 | NT .375-16 FLKG5 | 016899 | 4 | HT016899-Online |
| 10 | SWITCH, PLUNGER N.O. | 601087 | 2 | HT601087-Online |
| 11 | DAMPER, STEERING | 603192 | 2 | 603192-Online |
| 12 | BALL STUD | 781922 | 2 | 781922-Online |
| 13 | FW 0.343SAE | 768523 | 6 | HT768523-Online |
| 14 | LW .312 INTEXT ZN | 029876 | 2 | 029876-Online |
| 15 | CS .375-16X0.75 HX G5 ZN | 055822 | 2 | HT055822-Online |
| 16 | NT .312-18FLKG5 | 016832 | 2 | 016832-Online |
| 17 | NT 0.312-24 NL G8 | 023655 | 2 | HT023655-Online |
Steering Assembly (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STEERING BOX SUB, RH | 604295 | 1 | 604295-Online |
| 2 | STEERING BOX SUB, LH | 604296 | 1 | 604296-Online |
| 3 | NT 0.312-24 NL G8 | 023655 | 2 | HT023655-Online |
| 4 | FW 0.343SAE | 768523 | 6 | HT768523-Online |
| 5 | NT .312-18HXG5 | 034272 | 2 | HT034272-Online |
| 6 | BALL STUD | 781922 | 2 | 781922-Online |
| 7 | FW 0.344X1.00X.12 HD ZN | 712927 | 2 | HT712927-Online |
| 8 | PUMP ROD ADJUSTER ASSY | 781286 | 2 | HT781286-Online |
| 9 | STEERING COVER W/A, SZ | 112895 | 1 | 112895-Online |
| 10 | BUSHING | 608000 | 2 | HT608000-Online |
| 11 | FW .750X1.50X.16 ZN | 603078 | 2 | 603078-Online |
| 12 | LOCK COLLAR,0.757 ID(FS) | 784439 | 2 | HT784439-Online |
| 13 | STEER PIVOT TUBE, SZ | 113007 | 1 | 113007-Online |
| 14 | GM .50X1.00X.75X.12 | 080358 | 1 | 080358-Online |
| 15 | NT .500-13JAMG5 | 053199 | 2 | HT053199-Online |
| 16 | SS .500-13X 2.50 SH ZN | 603055 | 2 | 603055-Online |
| 17 | POLYURETHANE 2" (FS) | 722199 | 11" | 722199-Online |
LS Steering Box Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STEERING ARM W/A | 607152 | 1 | 607152-Online |
| 2 | NT .375-16NLG8 | 086660 | 3 | HT086660-Online |
| 3 | FW 0.379X.82X.06 HD ZN | 767954 | 6 | HT767954-Online |
| 4 | CS .375-16X1.750HXG5 | 705178 | 3 | HT705178-Online |
| 5 | STEERING BOX W/A LH | 112899 | 1 | 112899-Online |
| 6 | BUSHING | 608000 | 2 | HT608000-Online |
| 7 | STEERLEVER BUSHING (PLA | 348862 | 2 | HT348862-Online |
| 8 | GM .750X.188X1.00X.12 | 047456 | 1 | 047456-Online |
| 9 | SS .500-13X2.000SH | 797738 | 1 | 797738-Online |

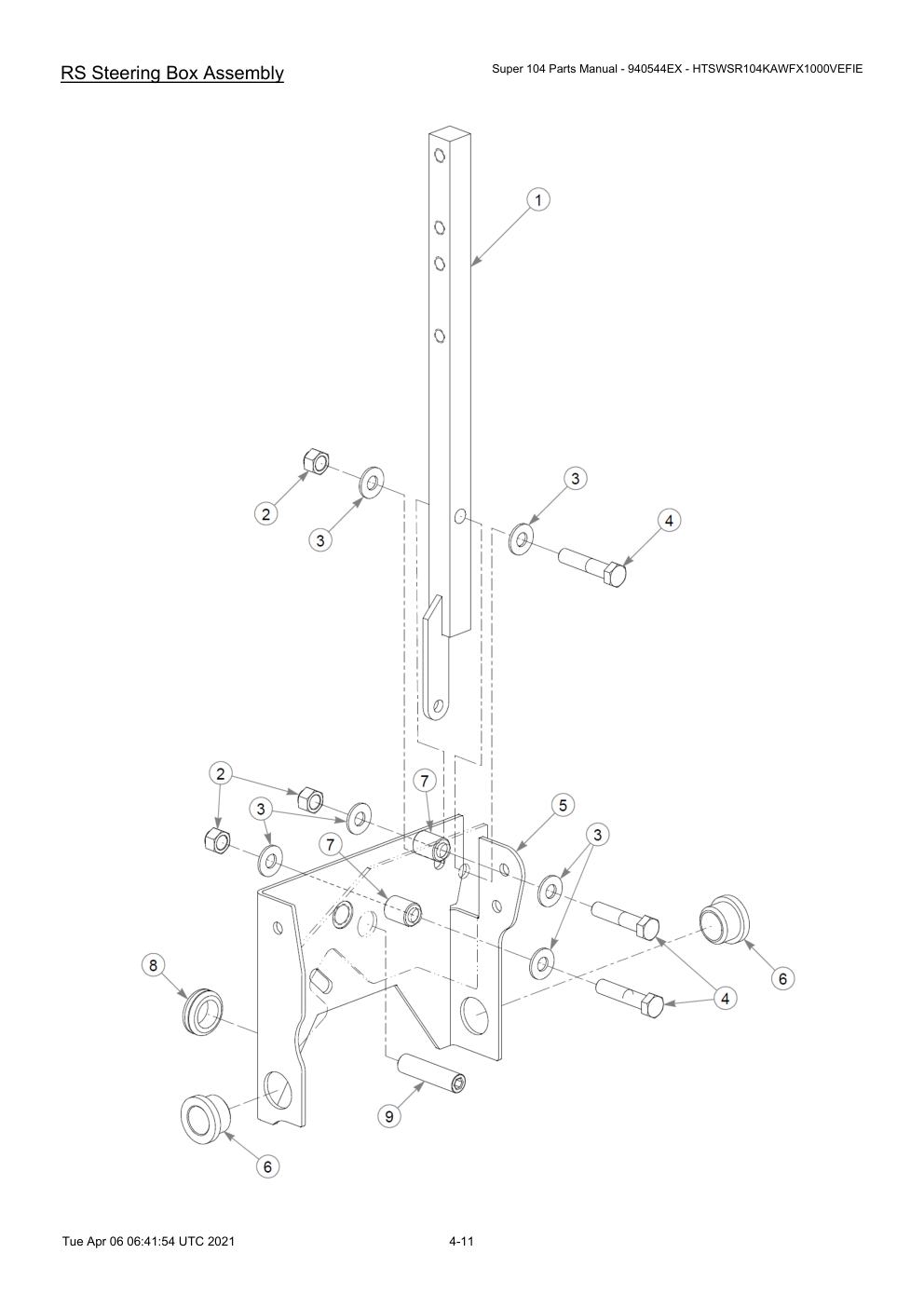

RS Steering Box Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | STEERING ARM W/A | 607152 | 1 | 607152-Online |
| 2 | NT .375-16NLG8 | 086660 | 3 | HT086660-Online |
| 3 | FW 0.379X.82X.06 HD ZN | 767954 | 6 | HT767954-Online |
| 4 | CS .375-16X1.750HXG5 | 705178 | 3 | HT705178-Online |
| 5 | STEERING BOX W/A, RH | 112898 | 1 | 112898-Online |
| 6 | BUSHING | 608000 | 2 | HT608000-Online |
| 7 | STEERLEVER BUSHING (PLA | 348862 | 2 | HT348862-Online |
| 8 | GM .750X.188X1.00X.12 | 047456 | 1 | 047456-Online |
| 9 | SS .500-13X2.000SH | 797738 | 1 | 797738-Online |

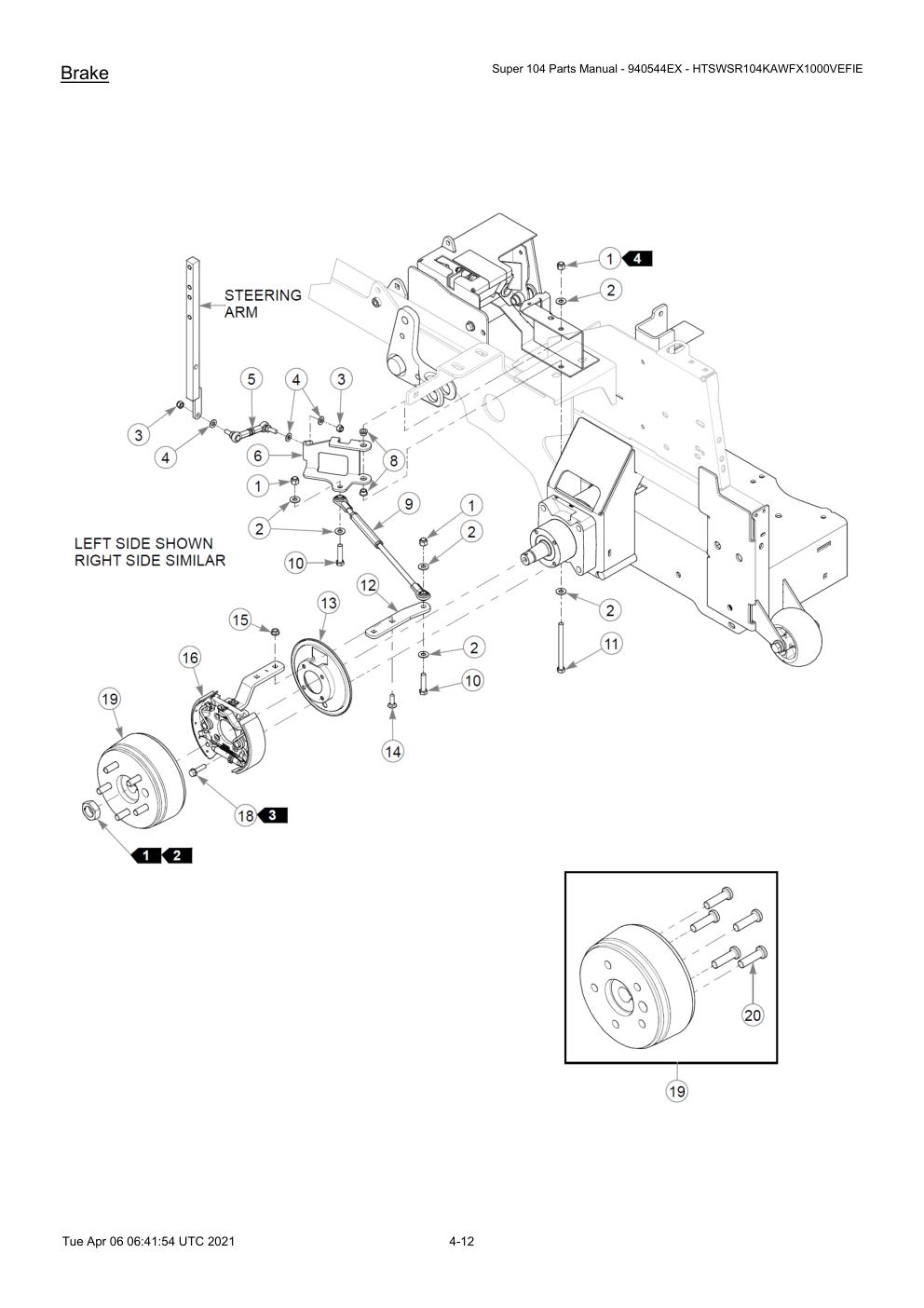

Brake
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | NT .375-16NLG8 | 086660 | 6 | HT086660-Online |
| 2 | FW 0.379X.82X.06 HD ZN | 767954 | 12 | HT767954-Online |
| 3 | NT 0.312-24 NL G8 | 023655 | 4 | HT023655-Online |
| 4 | FW 0.343SAE | 768523 | 6 | HT768523-Online |
| 5 | BRAKE ROD ASSEMBLY | 781583 | 2 | HT781583-Online |
| 6 | BELLCRANK, LH | 126647-3 | 1 | 126647-3-Online |
| 7 | BELLCRANK, RH | 126648-3 | 1 | 126648-3-Online |
| 8 | BUSHING,IGUS#0608 (FS) | 765339 | 4 | HT765339-Online |
| 9 | BRAKE LINK TURNBUCKLE A | 350397 | 2 | 350397-Online |
| 10 | CS .375-16X1.625HXG5 | 705160 | 4 | 705160-Online |
| 11 | CS .375-16X4.500HXG5 | 052514 | 2 | 052514-Online |
| 12 | EXTENSION, BRAKE ARM | 126349-3 | 2 | 126349-3-Online |
| 13 | DUST SHIELD | 607896 | 2 | 607896-Online |
| 14 | CB .312-18X 1.000 FUL ZN | 037887 | 4 | HT037887-Online |
| 15 | NT .312-18FLKG5 | 016832 | 4 | 016832-Online |
| 16 | BRAKE ASSY, LH | 607894 | 1 | 607894-Online |
| 17 | BRAKE ASSY, RH | 607895 | 1 | 607895-Online |
| 18 | CS .312-18X1.25HXG8 FL | 607328 | 8 | 607328-Online |
| 19 | DRUM HUB ASSEMBLY | 607893 | 2 | 607893-Online |
| 20 | STUD 1/2-20 X 1 1/2" | 606124 | 5 | 606124-Online |
Wheels & Tires
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIR/WHL 26X12.00-12 BLK | 607537 | 2 | 607537-Online |
| 2 | WHEEL NUT | 061077 | 10 | HT061077-Online |
| 3 | DUST CAP | 606722 | 2 | 606722-Online |
| 4 | NT 1.00-8 HX ZN NL | 606721 | 2 | 606721-Online |
| 5 | CW 1.00 X 2.00 X .13 | 606720 | 6 | 606720-Online |
| 6 | BEARING, TAPERED ROLLER | 606717 | 4 | 606717-Online |
| 7 | RACE, TAPERED ROLLER | 606716 | 4 | 606716-Online |
| 8 | GREASE PLUG | 606817 | 2 | 606817-Online |
| 9 | SEAL 2.063 X 3.00 | 606718 | 2 | 606718-Online |
| 10 | REFER TO "FRONT WHEEL ASSEMBLY" | N/A | 2 | No SKU |
| 11 | CS .500-13X4.500HXG5 | 068239 | 2 | HT068239-Online |
| 12 | FW .531 x 1.063 x .175 | 767962 | 4 | HT767962-Online |
| 13 | SPACER, ANTI-SCALP 3.22 | 602345 | 2 | 602345-Online |
| 14 | WHEEL, ANTI-SCALP | 602263 | 2 | 602263-Online |
| 15 | NT .500-13HXG5 | 008193 | 2 | HT008193-Online |
Front Wheel Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | W/A, CASTER FORK | 123647-1 | 1 | 123647-1-Online |
| 2 | NT .750-10 HX ZN NL GR B | 061101 | 1 | HT061101-Online |
| 3 | FW .760X1.63X0.08 ZN | 025296 | 2 | HT025296-Online |
| 4 | CS .750-10X9.50 HX G5 ZN | 041475 | 1 | HT041475-Online |
| 5 | TIR/WHL 15X6.00-6 BLK | 607528 | 1 | 607528-Online |
| 6 | GREASE FITTING, M8X1.0 | 606126 | 2 | 606126-Online |
| 7 | TIRE VALVE TR-412 GOODY | 019521 | 1 | HT019521-Online |

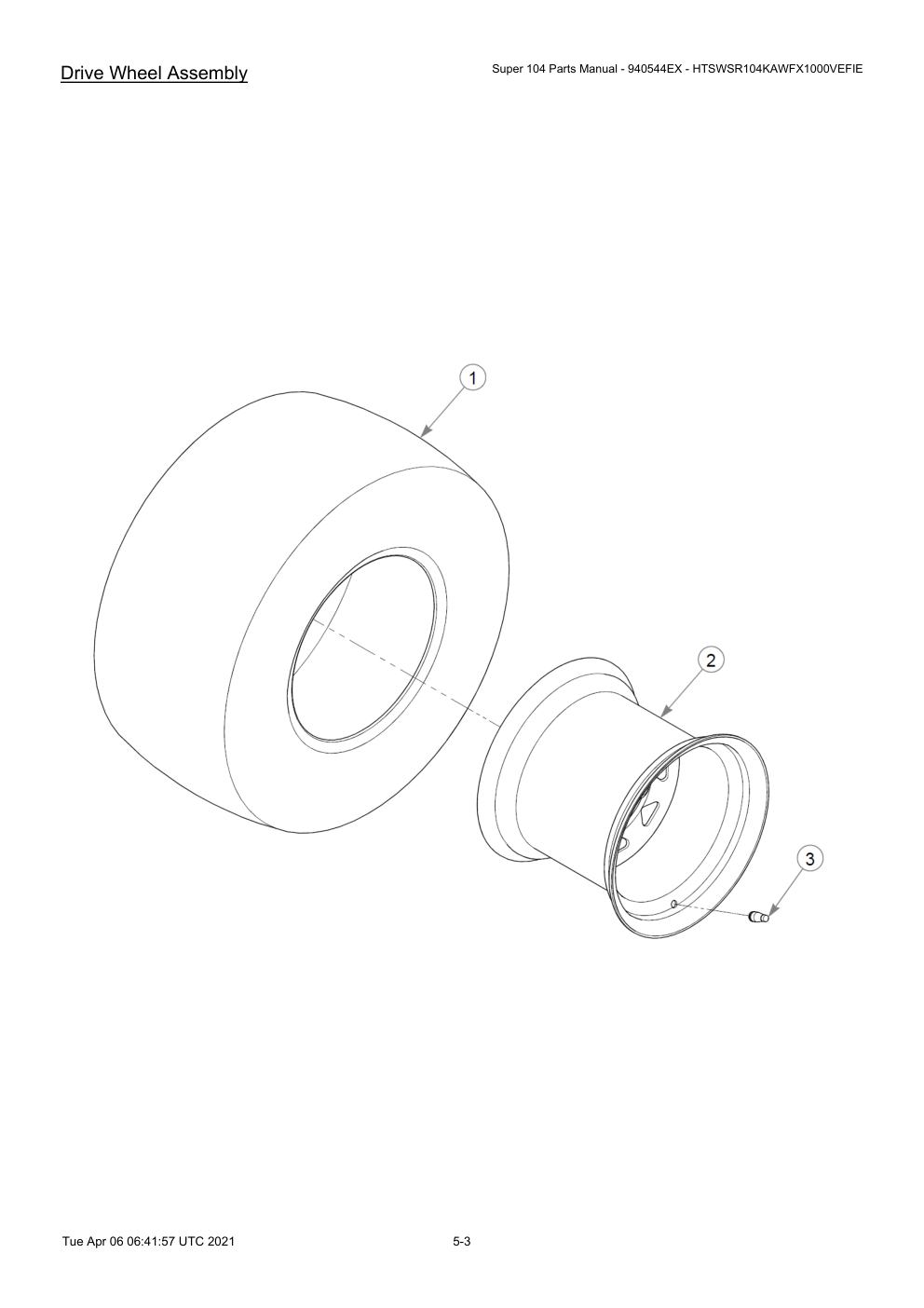

Drive Wheel Assembly
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | TIR 26X12.00-12 B6R GRMR | 603775 | 1 | 603775-Online |
| 2 | WHEEL ASSY, 12 X 10.50 | 607538 | 1 | 607538-Online |
| 3 | TIRE VALVE TR-412 GOODY | 019521 | 1 | HT019521-Online |
Engine & Muffler
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 2 | AIR FILTER INDICATOR | 788943 | 1 | HT788943-Online |
| 3 | FTG, ELBOW, STREET | 601216 | 1 | 601216-Online |
| 4 | BRACKET, MUFFLER RT | 122504 | 1 | 122504-Online |
| 5 | BRACKET, MUFFLER LFT | 122505 | 1 | 122505-Online |
| 6 | CS M8-1.25X16HX FL10.9 | 720516 | 6 | 720516-Online |
| 7 | MUFFLER, FX1000V | 606040 | 1 | 606040-Online |
| 8 | NT .312-18HXG5 | 034272 | 2 | HT034272-Online |
| 9 | FW 0.343SAE | 768523 | 3 | HT768523-Online |
| 10 | WIRE TIE, SMALL/SHORT | 000331 | 3 | 000331-Online |
| 11 | HOSE CLAMP 1" (FS) | 045088 | 1 | 045088-Online |
| 12 | CB .312-18X 1.250 ZN | 602827 | 1 | 602827-Online |
| 13 | FW 0.379X.82X.06 HD ZN | 767954 | 4 | HT767954-Online |
| 14 | CS .375-16X1.25HXG8ZYP85 | 602580 | 4 | 602580-Online |
| 15 | BATTERY CABLE, NEGATIVE | 606440 | 1 | 606440-Online |
| 16 | LW .312 INTEXT ZN | 029876 | 1 | 029876-Online |
| 17 | BATTERY CABLE, POSITIVE | 606439 | 1 | 606439-Online |
| 18 | VALVE,OIL DRAIN M20x2.5 | 796524 | 1 | HT796524-Online |
| 19 | CLIP, HOSE CLAMP | 000323 | 2 | 000323-Online |
| 20 | VAPOR LINE, 3/16" | 603326 | 13" | 603326-Online |
| 21 | FUEL LINE, 1/4" | 015818 | 17" | HT015818-Online |
| 22 | FUEL LINE THERMAL SHIELD | 605215 | 16" | 605215-Online |
Engine Service Parts - FX1000V EFI
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | AIR FILTER - MAIN | 785261 | 1 | 785261-Online |
| 2 | AIR FILTER - SAFETY | 785279 | 1 | 785279-Online |
| 3 | ENGINE OIL FILTER | 603138 | 1 | 603138-Online |
| 4 | FILTER, KAWASAKI FUEL | 604558 | 1 | 604558-Online |
Fuel System
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CAP, 3.5" RATCHETING GAS | 603807 | 2 | 603807-Online |
| 2 | FUEL TANK ASM, LH FENDER | 607876 | 1 | 607876-Online |
| 3 | FUEL TANK ASM, RH FENDER | 607877 | 1 | 607877-Online |
| 4 | CLIP, HOSE CLAMP | 000323 | 4 | 000323-Online |
| 5 | FUEL LINE, 1/4" | 015818 | 46" | HT015818-Online |
| 6 | FUEL LINE THERMAL SHIELD | 605215 | 45" | 605215-Online |
| 7 | FUEL VALVE 3-WAY | 745059 | 1 | HT745059-Online |
| 8 | GM 1.12X1.75X1.37X.12 | 706531 | 1 | 706531-Online |
| 9 | VAPOR LINE, 3/16" | 603326 | 56" | 603326-Online |
| 10 | TEE, 3/16" PLASTIC | 604281 | 2 | 604281-Online |
| 11 | WIRE TIE, SMALL/SHORT | 000331 | 1 | 000331-Online |
| 12 | VAPOR SYSTEM FILTER | 604323 | 1 | 604323-Online |
| 13 | NT .312-18FLKG5 | 016832 | 3 | 016832-Online |
| 14 | CLIP - HOSE - SINGLE(FS) | 043570 | 3 | 043570-Online |
| 15 | FW 0.343SAE | 768523 | 3 | HT768523-Online |
| 16 | CS .312-18X1.000HXG5 | 036236 | 3 | 036236-Online |
| 17 | CS .375-16X0.75 HX G5 ZN | 055822 | 10 | HT055822-Online |
| 18 | FW 0.406X1.00X.12 HD ZN | 712919 | 10 | HT712919-Online |
| 19 | SUPPORT WA - FUEL LINE | 125855-1 | 1 | 125855-1-Online |
| 20 | DECAL, FUEL INDICATOR- M | 791848 | 1 | 791848-Online |
| 21 | COVER, FUEL LINES | 123182 | 1 | 123182-Online |
| 22 | COVER, FUEL SENDER | 123181 | 1 | 123181-Online |
| 23 | CS .250-20X0.50 HX G5 ZN | 055947 | 4 | 055947-Online |
| 24 | FW 0.281SAE | 768515 | 4 | HT768515-Online |

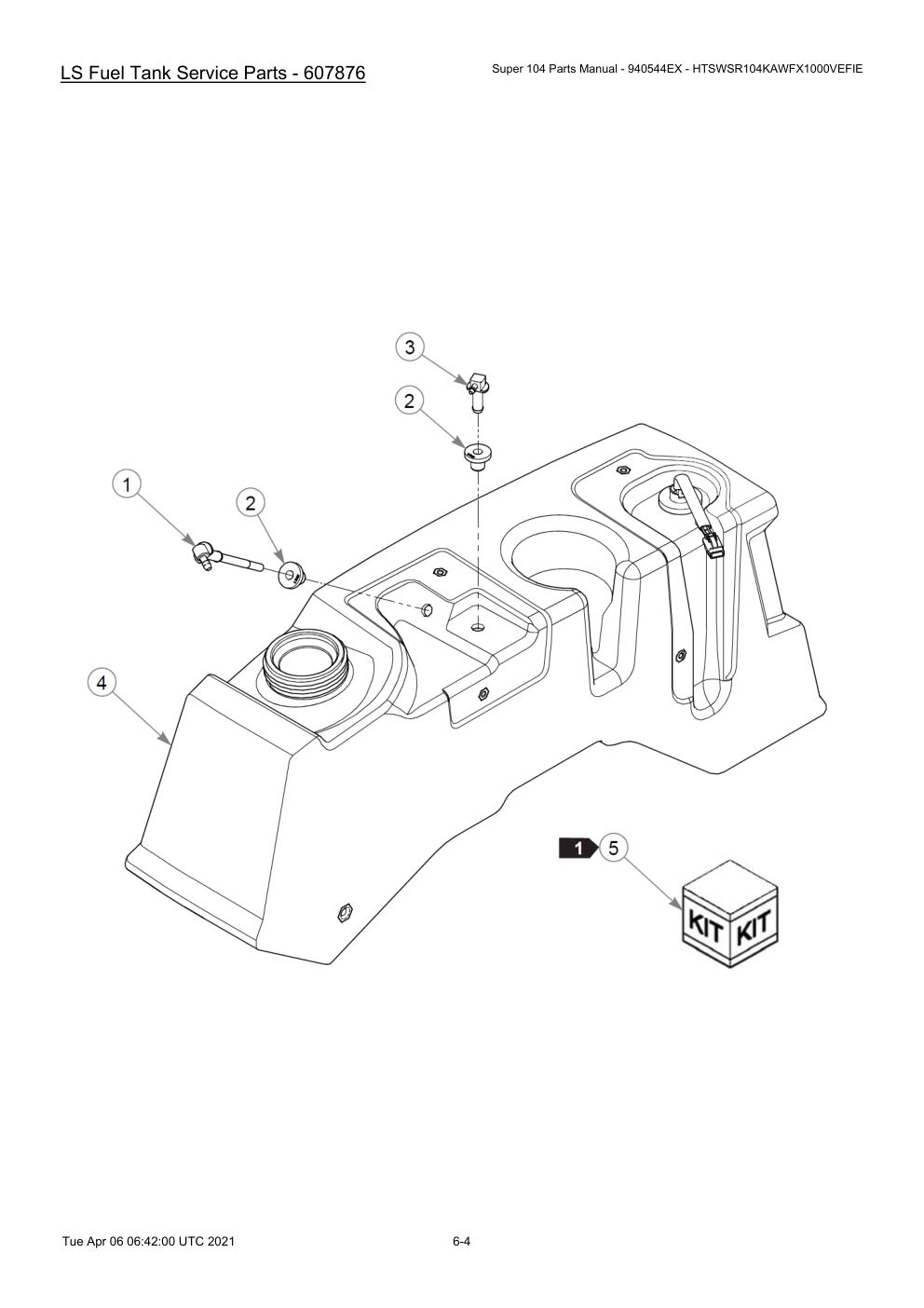

LS Fuel Tank Service Parts - 607876
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SUCTION HOSE SVC KIT | 605159K | 1 | 605159K-Online |
| 2 | GROMMET SVC KIT | 604200K | 2 | 604200K-Online |
| 3 | VENT FITTING SVC KIT | 604287K | 1 | 604287K-Online |
| 4 | TANK, FENDER LH | 606434 | 1 | 606434-Online |
| 5 | SENDER SVC KIT | 607456K | 1 | 607456K-Online |
| Not Shown | FUEL GAUGE & SENDER KIT | 608041 | 1 | 608041-Online |
RS Fuel Tank Service Parts - 607877
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | VENT FITTING SVC KIT | 604287K | 1 | 604287K-Online |
| 2 | GROMMET SVC KIT | 604200K | 2 | 604200K-Online |
| 3 | SUCTION HOSE SVC KIT | 605159K | 1 | 605159K-Online |
| 4 | TANK, FENDER RH | 606433 | 1 | 606433-Online |
| 5 | SENDER SVC KIT | 607456K | 1 | 607456K-Online |
| Not Shown | FUEL GAUGE & SENDER KIT | 608041 | 1 | 608041-Online |

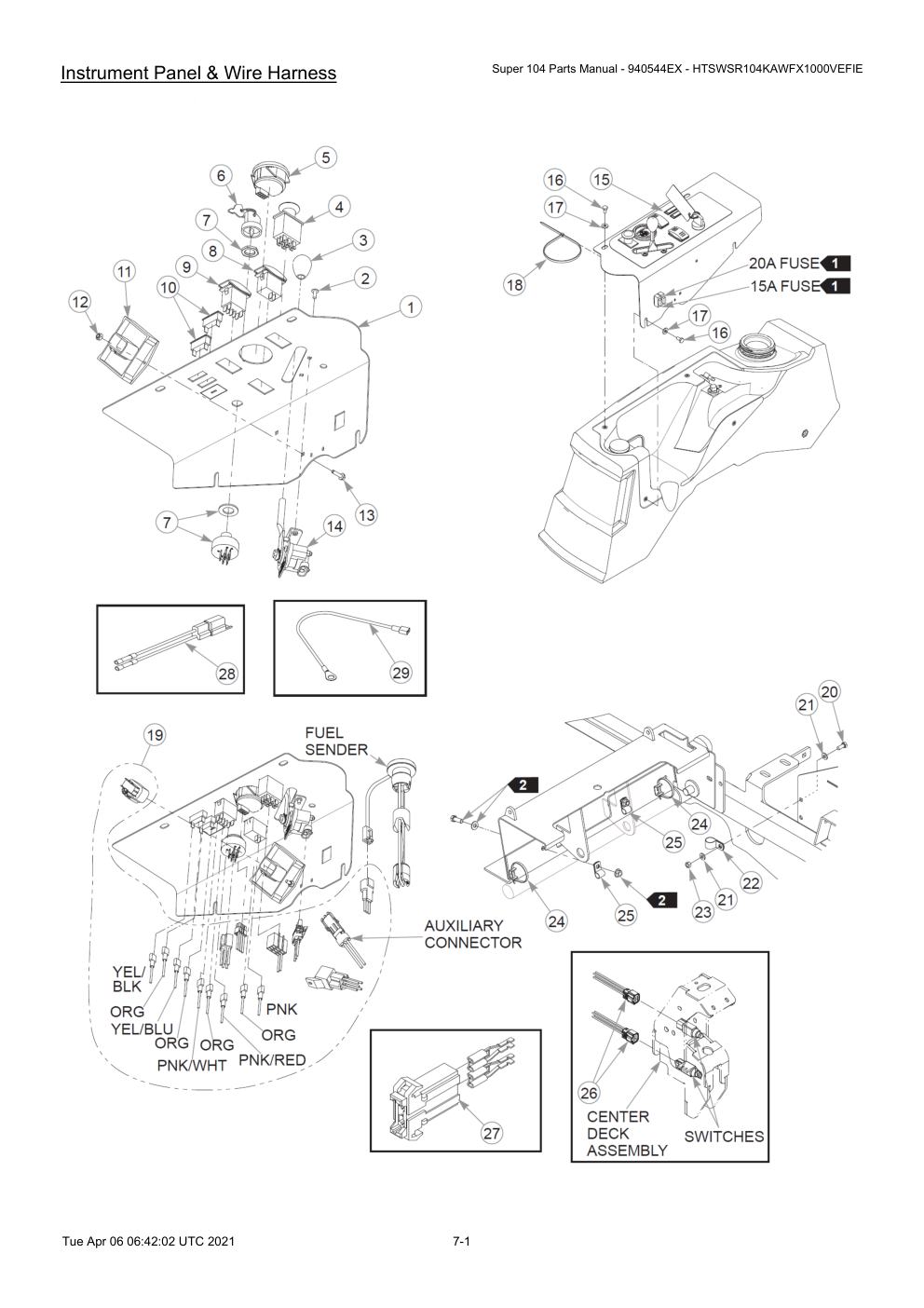

Instrument Panel & Wire Harness
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SVC, INSTR PANEL | 555779 | 1 | HT555779-Online |
| 2 | CS 10-24X .500 PH SH ZN | 606851 | 2 | 606851-Online |
| 3 | KNOB | 603523 | 1 | 603523-Online |
| 4 | SWITCH, PTO 6201-321 | 776476 | 1 | HT776476-Online |
| 5 | GAUGE, DUAL NEEDLE 12V | 607451 | 1 | 607451-Online |
| 6 | KEY ASSEMBLY | 785808 | 1 | 785808-Online |
| 7 | IGNITION SWITCH | 045898 | 1 | HT045898-Online |
| 8 | SWITCH, ROCKER | 604885 | 1 | 604885-Online |
| 9 | SWITCH, ROCKER SPDT | 797308 | 1 | HT797308-Online |
| 10 | INDICATOR LIGHT, RED(FS) | 712257 | 2 | HT712257-Online |
| 11 | RELAY CONTROL MODULE | 604373 | 1 | 604373-Online |
| 12 | NT #10-24 HX NL ZN | 059832 | 2 | 059832-Online |
| 13 | CS #10-24X0.750FLKG5 | 063198 | 2 | 063198-Online |
| 14 | THROTTLE CONTROL, EFI | 606592 | 1 | 606592-Online |
| 15 | DECAL, INSTR PANEL | 607688 | 1 | 607688-Online |
| 16 | CS .250-20X0.50 HX G5 ZN | 055947 | 4 | 055947-Online |
| 17 | FW 0.281SAE | 768515 | 4 | HT768515-Online |
| 18 | WIRE TIE, SMALL/LONG | 000430 | 1 | 000430-Online |
| 19 | WIRE HARNESS, S104 | 607654 | 1 | 607654-Online |
| 20 | CS .312-18X0.750HXG5 | 034280 | 1 | HT034280-Online |
| 21 | FW 0.343SAE | 768523 | 2 | HT768523-Online |
| 22 | CLIP - HOSE - SINGLE(FS) | 043570 | 1 | 043570-Online |
| 23 | NT .312-18HXG5 | 034272 | 1 | HT034272-Online |
| 24 | WIRE TIE, SMALL/SHORT | 000331 | 8 | 000331-Online |
| 25 | CLAMP - 50 CNT BAGS | 000398 | 2 | HT000398-Online |
| 26 | WIRE HARNESS, WING | 604085 | 1 | 604085-Online |
| 27 | HOLDER, FUSE | 601047 | 1 | HT601047-Online |
| 28 | KIT, CLUTCH CONN. REP. | 114052 | 1 | HT114052-Online |
| 29 | WIRE HARNESS | 604430 | 1 | 604430-Online |
Battery
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .312-18X5.000HXG5 | 050823 | 2 | 050823-Online |
| 2 | FW 0.343SAE | 768523 | 2 | HT768523-Online |
| 3 | BATTERY STRAP, SZ GRP 45 | 124387-1 | 1 | 124387-1-Online |
| 4 | CN .312-18x.200 MAX THK | 601069 | 2 | HT601069-Online |
| 5 | WIRE TIE, SMALL/SHORT | 000331 | 3 | 000331-Online |
Deck, Deck Belt & Wing (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | DECK BELT | 603885 | 2 | 603885-Online |
| 2 | SPRING, TENSION1.25X6.00 | 603966 | 4 | 603966-Online |
| 3 | CB .750-10X3.500 G5 ZN | 603953 | 4 | 603953-Online |
| 4 | FW SQ 0.781X1.50X.13 ZN | 606199 | 4 | 606199-Online |
| 5 | NT .750-10 HX ZN NL GR B | 061101 | 4 | HT061101-Online |
| 6 | FW .760X1.63X0.08 ZN | 025296 | 8 | HT025296-Online |
| 7 | GREASE FITTING STRAIGHT | 015495 | 4 | HT015495-Online |
| 8 | LINK W/A, WING PIVOT | 116555 | 4 | 116555-Online |
| 9 | BUSHING, PIVOT LINK | 116558 | 4 | 116558-Online |
| 10 | CS .750-10X3.000HXG5 | 051169 | 4 | 051169-Online |
| 11 | NT .750-10 NL JAM | 604495 | 4 | 604495-Online |
| 12 | SPACER, CYLINDER | 604290 | 2 | 604290-Online |
| 13 | NT .375-16NLG8 | 086660 | 4 | HT086660-Online |
| 14 | FW 0.406X1.00X.06 ZN | 076422 | 4 | 076422-Online |
| 15 | CS .375-16X2.500HXG5 | 016428 | 2 | 016428-Online |
| 16 | CS .312-18X1.00 FLTSH ZN | 604086 | 8 | 604086-Online |
| 17 | SLIDE, PULLEY COVER | 604028 | 4 | 604028-Online |
| 18 | KNOB,5/16-18 X 3/4"MALE | 792002 | 10 | HT792002-Online |
| 19 | COVER PNT, LEFT | 125966-1 | 1 | 125966-1-Online |
| 20 | PULLEY COVER PNT, RH | 125963-1 | 1 | 125963-1-Online |
| 21 | FW 0.343SAE | 768523 | 8 | HT768523-Online |
| 22 | NT .312-18NLG5 | 058776 | 8 | HT058776-Online |
| 23 | FLEXIBLE TRIM UNI-GRIP | 033001 | 34" | 033001-Online |
| 24 | COVER, LH WING INT | 116601 | 1 | 116601-Online |
| 25 | COVER, RH WING INT | 116600 | 1 | 116600-Online |
| 26 | PIN, CHUTE | 602432 | 2 | 602432-Online |
| 27 | SPRING, TORSION | 602435 | 2 | 602435-Online |
| 28 | COVER, WING LH | 116545 | 1 | 116545-Online |
| 29 | COVER, WING RH | 116544 | 1 | 116544-Online |
Center Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SVC, DECK DECAL | 555190 | 1 | 555190-Online |
| 2 | CN .312-18x.200 MAX THK | 601069 | 4 | HT601069-Online |
| 3 | DECAL, BELT ROUTING | 604276 | 1 | 604276-Online |
Center Deck Idlers, Idler Slides, Pulleys & Spindles - S/N 20094353 & HIGHER (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11X1.500HXG5 | 794446 | 10 | HT794446-Online |
| 2 | FW 0.625X1.00X.13 ZN | 028118 | 23 | HT028118-Online |
| 3 | DUST SHIELD W/OFFSET | 603057 | 10 | 603057-Online |
| 4 | PULLEY, 6" HB IDLER RD | 796714 | 3 | HT796714-Online |
| 5 | NT .312-18 HXNL JAM G2ZN | 604251 | 4 | 604251-Online |
| 6 | FW 0.343SAE | 768523 | 4 | HT768523-Online |
| 7 | IDLER SLIDE, SHORT | 603750 | 2 | 603750-Online |
| 8 | CHAIN, 7 LINK | 364315 | 1 | HT364315-Online |
| 9 | IDLER SPRING | 781302 | 1 | 781302-Online |
| 10 | SLIDE, DECK IDLER | 350884 | 1 | HT350884-Online |
| 11 | IDLER, FLAT 4.0" DEEP | 603784 | 2 | 603784-Online |
| 12 | IDLER SLIDE UHMW RT & LT | 601619 | 4 | 601619-Online |
| 13 | IDLER SLED W/A, WING | 117576 | 2 | HT117576-Online |
| 14 | CS .312-18X1.00 FLTSH ZN | 604086 | 8 | 604086-Online |
| 15 | CS .62511X1.750HXG5 | 025007 | 1 | HT025007-Online |
| 16 | SHIELD, DUST | 608144 | 1 | HT608144-Online |
| 17 | IDLER, 6.0" COMMERCIAL | 602821 | 1 | 602821-Online |
| 18 | SB .625 X 2.00 SH.50-13 | 606149 | 2 | 606149-Online |
| 19 | BUSHING, .625 I.D. | 602539 | 2 | 602539-Online |
| 20 | IDLER ARM, DRIVE BELT | 125961-4 | 1 | 125961-4-Online |
| 21 | CHAIN, 13 LINK | 259812 | 1 | HT259812-Online |
| 22 | SPRING, DECK IDLER | 607616 | 1 | 607616-Online |
| 23 | J-LEG, UHMW, .25" | 606351 | 1 | 606351-Online |
| 24 | CS .750-10X9.50 HX G5 ZN | 041475 | 2 | HT041475-Online |
| 25 | FW .760X1.63X0.08 ZN | 025296 | 4 | HT025296-Online |
| 26 | DECK PUSHER W/A | 116105 | 2 | HT116105-Online |
| 27 | GREASE FITTING STRAIGHT | 015495 | 2 | HT015495-Online |
| 28 | NT .750-10 HX ZN NL GR B | 061101 | 2 | HT061101-Online |
| 29 | CB .312-18X .750 FUL ZN | 016253 | 4 | 016253-Online |
| 30 | PULLEY, V-IDLER HBB 5.0" | 602672 | 3 | 602672-Online |
| 31 | PULLEY, SPLIT IDLER | 605978 | 2 | 605978-Online |
| 32 | CS .500-13X1.750HXG5 | 017616 | 3 | HT017616-Online |
| 33 | CW .515X 2.25X .204 BLK | 752386 | 3 | HT752386-Online |
| 34 | KEY 1/4 SQ X 1.00 LG(FS) | 212472 | 3 | HT212472-Online |
| 35 | PULLEY, (711499) PTED B | 524785 | 2 | HT524785-Online |
| 36 | PULLEY, DOUBLE DRIVE | 604036 | 1 | 604036-Online |
| 37 | FW 1.030X1.50X.13 HD ZN | 045765 | 3 | HT045765-Online |
| 38 | DUST SHIELD | 607409-4 | 3 | 607409-4-Online |

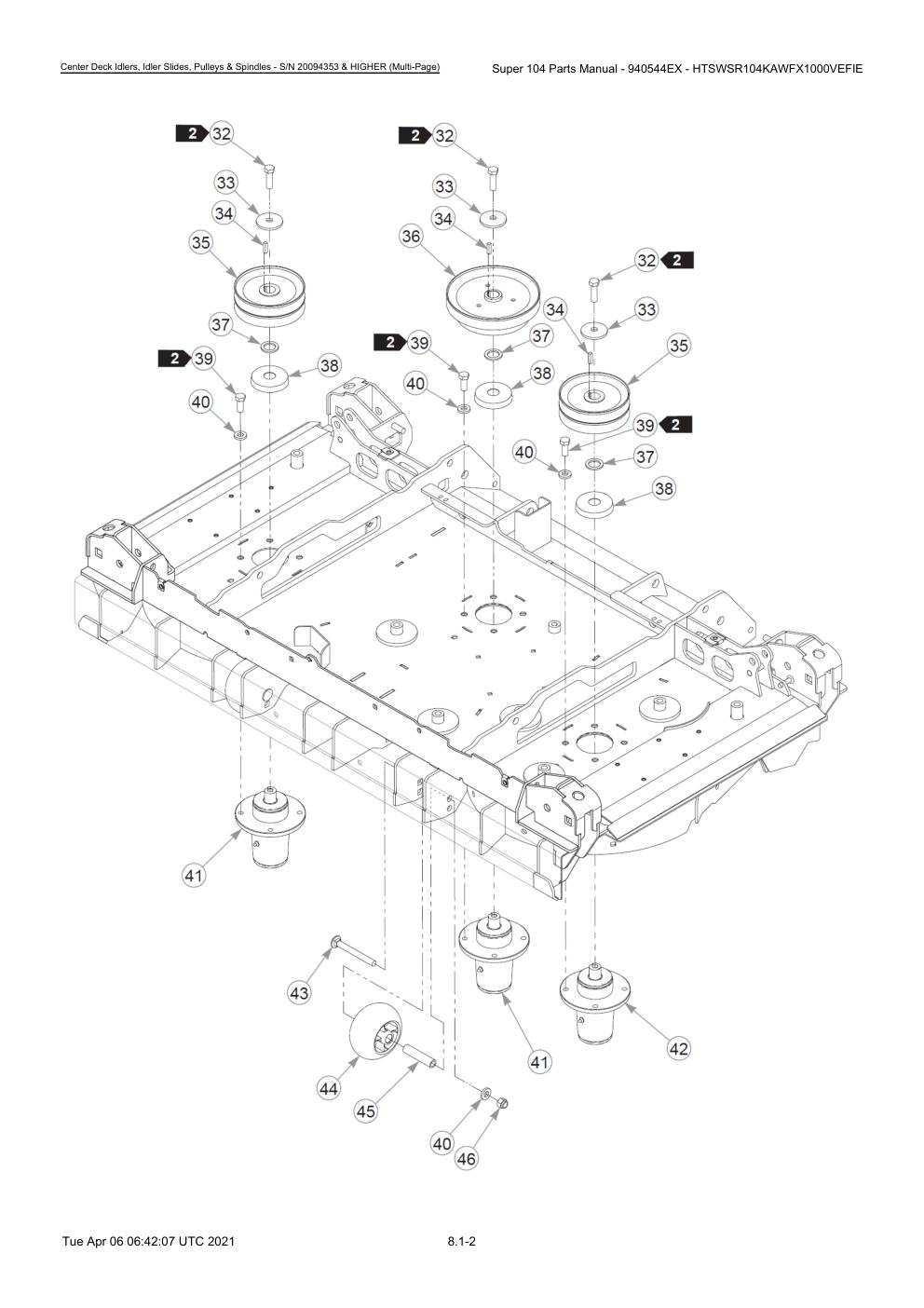

Center Deck Idlers, Idler Slides, Pulleys & Spindles - S/N 20094353 & HIGHER (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 39 | CS .500-13X1.25 HX G5 ZN | 705954 | 12 | HT705954-Online |
| 40 | FW .531 x 1.063 x .175 | 767962 | 17 | HT767962-Online |
| 41 | SPINDLE ASSY, DUCTILE | 607407 | 2 | 607407-Online |
| 42 | SPINDLE ASSY, DUCTILE | 607408 | 1 | 607408-Online |
| 43 | CB .50-13 X 4.50 STD ZN | 602339 | 5 | 602339-Online |
| 44 | WHEEL, ANTI-SCALP | 602263 | 5 | 602263-Online |
| 45 | SPACER, ANTI-SCALP 3.22 | 602345 | 5 | 602345-Online |
| 46 | NT .500-13NLG5 | 781567 | 5 | HT781567-Online |
Center Deck Idlers, Idler Slides, Pulleys & Spindles - S/N PRIOR TO 20094353 (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11X1.500HXG5 | 794446 | 10 | HT794446-Online |
| 2 | FW 0.625X1.00X.13 ZN | 028118 | 23 | HT028118-Online |
| 3 | DUST SHIELD W/OFFSET | 603057 | 10 | 603057-Online |
| 4 | PULLEY, 6" HB IDLER RD | 796714 | 3 | HT796714-Online |
| 5 | NT .312-18 HXNL JAM G2ZN | 604251 | 4 | 604251-Online |
| 6 | FW 0.343SAE | 768523 | 4 | HT768523-Online |
| 7 | IDLER SLIDE, SHORT | 603750 | 2 | 603750-Online |
| 8 | CHAIN, 7 LINK | 364315 | 1 | HT364315-Online |
| 9 | IDLER SPRING | 781302 | 1 | 781302-Online |
| 10 | SLIDE, DECK IDLER | 350884 | 1 | HT350884-Online |
| 11 | IDLER, FLAT 4.0" DEEP | 603784 | 2 | 603784-Online |
| 12 | IDLER SLIDE UHMW RT & LT | 601619 | 4 | 601619-Online |
| 13 | IDLER SLED W/A, WING | 117576 | 2 | HT117576-Online |
| 14 | CS .312-18X1.00 FLTSH ZN | 604086 | 8 | 604086-Online |
| 15 | CS .62511X1.750HXG5 | 025007 | 1 | HT025007-Online |
| 16 | SHIELD, DUST | 608144 | 1 | HT608144-Online |
| 17 | IDLER, 6.0" COMMERCIAL | 602821 | 1 | 602821-Online |
| 18 | SB .625 X 2.00 SH.50-13 | 606149 | 2 | 606149-Online |
| 19 | BUSHING, .625 I.D. | 602539 | 2 | 602539-Online |
| 20 | IDLER ARM, DRIVE BELT | 125961-4 | 1 | 125961-4-Online |
| 21 | CHAIN, 13 LINK | 259812 | 1 | HT259812-Online |
| 22 | SPRING, DECK IDLER | 607616 | 1 | 607616-Online |
| 23 | J-LEG, UHMW, .25" | 606351 | 1 | 606351-Online |
| 24 | CS .750-10X9.50 HX G5 ZN | 041475 | 2 | HT041475-Online |
| 25 | FW .760X1.63X0.08 ZN | 025296 | 4 | HT025296-Online |
| 26 | DECK PUSHER W/A | 116105 | 2 | HT116105-Online |
| 27 | GREASE FITTING STRAIGHT | 015495 | 2 | HT015495-Online |
| 28 | NT .750-10 HX ZN NL GR B | 061101 | 2 | HT061101-Online |
| 29 | CB .312-18X .750 FUL ZN | 016253 | 4 | 016253-Online |
| 30 | PULLEY, V-IDLER HBB 5.0" | 602672 | 3 | 602672-Online |
| 31 | PULLEY, SPLIT IDLER | 605978 | 2 | 605978-Online |
| 32 | CS .500-13X1.750HXG5 | 017616 | 3 | HT017616-Online |
| 33 | CW .515X 2.25X .204 BLK | 752386 | 3 | HT752386-Online |
| 34 | KEY 1/4 SQ X 1.00 LG(FS) | 212472 | 3 | HT212472-Online |
| 35 | PULLEY, (711499) PTED B | 524785 | 2 | HT524785-Online |
| 36 | PULLEY, DOUBLE DRIVE | 604036 | 1 | 604036-Online |
| 37 | FW 1.030X1.50X.13 HD ZN | 045765 | 3 | HT045765-Online |
| 38 | DUST SHIELD | 607409-4 | 3 | 607409-4-Online |
Center Deck Idlers, Idler Slides, Pulleys & Spindles - S/N PRIOR TO 20094353 (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 39 | CS .500-13X1.25 HX G5 ZN | 705954 | 12 | HT705954-Online |
| 40 | FW .531 x 1.063 x .175 | 767962 | 17 | HT767962-Online |
| 41 | SPINDLE ASSY, DUCTILE | 607407 | 2 | 607407-Online |
| 42 | SPINDLE ASSY, DUCTILE | 607408 | 1 | 607408-Online |
| 43 | CB .50-13 X 4.50 STD ZN | 602339 | 5 | 602339-Online |
| 44 | WHEEL, ANTI-SCALP | 602263 | 5 | 602263-Online |
| 45 | SPACER, ANTI-SCALP 3.22 | 602345 | 5 | 602345-Online |
| 46 | NT .500-13NLG5 | 781567 | 5 | HT781567-Online |
Center Deck Belt, Blades & Step (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .312-18X.625 BH ZN | 603022 | 4 | 603022-Online |
| 2 | PLATE, STAMPED TREAD | 116630 | 1 | 116630-Online |
| 3 | CB .375-16X 1.00 G5 ZN | 025395 | 8 | HT025395-Online |
| 4 | STEP W/A | 116625 | 1 | 116625-Online |
| 5 | FW 0.379X.82X.06 HD ZN | 767954 | 15 | HT767954-Online |
| 6 | NT .375-16NLG8 | 086660 | 11 | HT086660-Online |
| 7 | FW 0.343SAE | 768523 | 14 | HT768523-Online |
| 8 | NT .312-18HXG5 | 034272 | 4 | HT034272-Online |
| 9 | CS .312-18X0.625HXG5 | 064006 | 2 | 064006-Online |
| 10 | FW 0.500X1.25X.08 ZN | 704759 | 2 | 704759-Online |
| 11 | NT .500-13JAMG5 | 053199 | 4 | HT053199-Online |
| 12 | ROD W/A, TENSIONER | 115245 | 2 | HT115245-Online |
| 13 | SPRING, COMPRESSION | 603787 | 2 | 603787-Online |
| 14 | FW 0.406X1.00X.06 ZN | 076422 | 4 | 076422-Online |
| 15 | SPACER, CYLINDER | 604290 | 2 | 604290-Online |
| 16 | CS .375-16X2.500HXG5 | 016428 | 2 | 016428-Online |
| 17 | RUBBER FLAP, REAR | 607681 | 2 | 607681-Online |
| 18 | CLAMP PLATE, REAR FLAP | 125844-1 | 2 | 125844-1-Online |
| 19 | CS .375-16X1.00 HX G5 ZN | 036244 | 6 | HT036244-Online |
| 20 | CB .250-20 X .625 ZN | 601503 | 6 | 601503-Online |
| 21 | PLATE, LATCH STRIKER | 116613 | 2 | 116613-Online |
| 22 | TOWER W/A, LATCH | 116575 | 2 | 116575-Online |
| 23 | NUT PLATE, .420 CENTERS | 601822 | 4 | 601822-Online |
| 24 | SWITCH PLUNGER, NC/NO | 602538 | 4 | 602538-Online |
| 25 | FW .250SAE | 017079 | 6 | 017079-Online |
| 26 | NT .250-20HXG5 | 024927 | 6 | HT024927-Online |
| 27 | CN .312-18x.200 MAX THK | 601069 | 8 | HT601069-Online |
| 28 | BRKT, LATCH SWITCH | 116632 | 2 | 116632-Online |
| 29 | MS#10-24X0.625HX | 714998 | 8 | 714998-Online |
| 30 | CS .312-18X0.875HXG5 | 064014 | 8 | 064014-Online |
| 31 | DECK BELT | 084178 | 1 | HT084178-Online |
| 32 | BELT, B SEC 101.25" EL | 606334 | 1 | 606334-Online |
| 33 | NT .500-13NLG5 | 781567 | 4 | HT781567-Online |
| 34 | FW .531 x 1.063 x .175 | 767962 | 6 | HT767962-Online |
| 35 | CS .500-13X4.000HXG5 | 089938 | 2 | 089938-Online |
| 36 | BRACKET, SWITCH MOUNT | 117890 | 2 | 117890-Online |
| 37 | DEFLECTOR, FRONT LH | 116533 | 1 | 116533-Online |
| 38 | DEFLECTOR, FRONT RH | 116532 | 1 | 116532-Online |

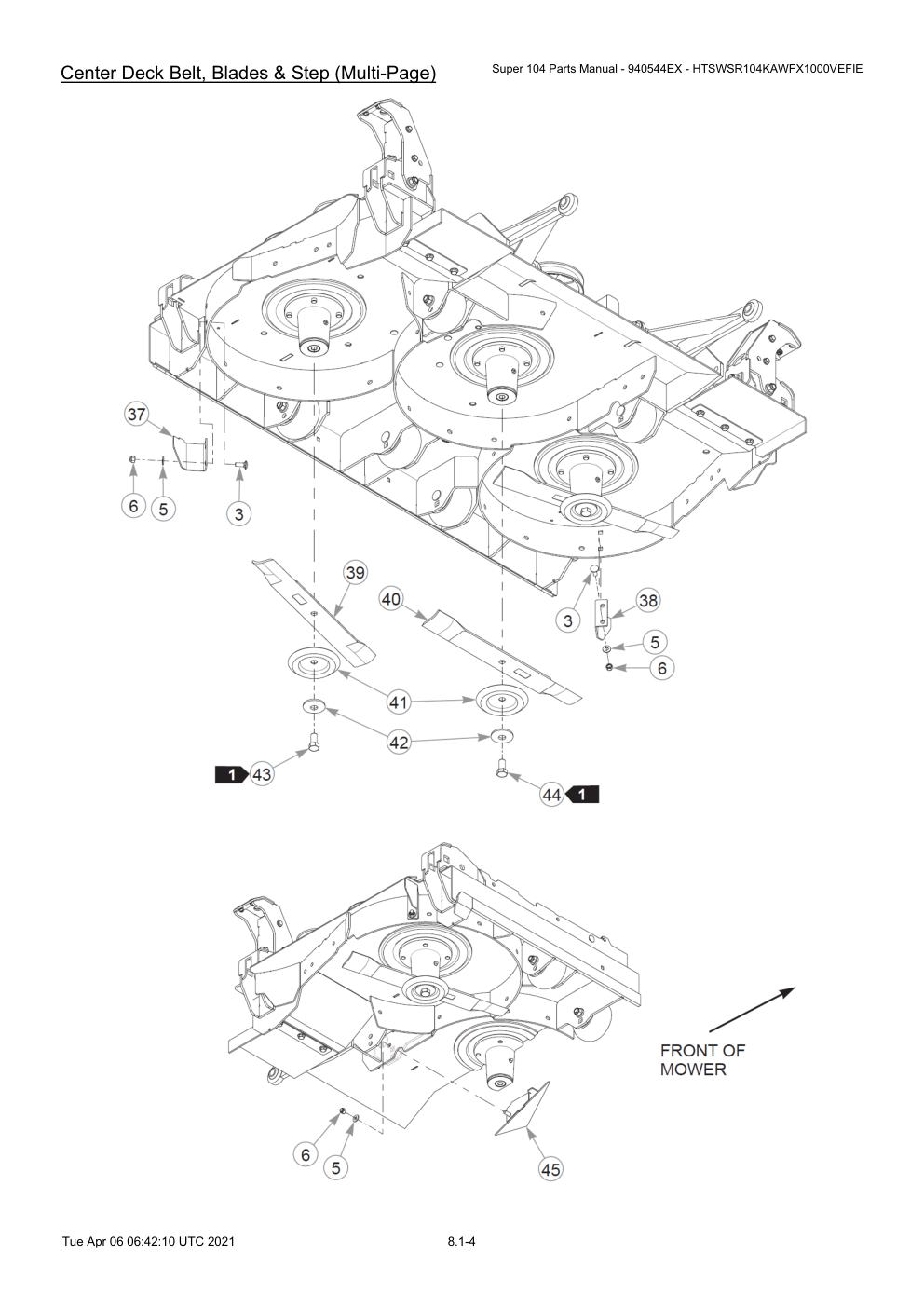

Center Deck Belt, Blades & Step (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 39 | BLADE, F20.50"-L-F-CCW | 795633 | 1 | HT795633-Online |
| Not Shown | BLADE, 20.5"GAT-F-CCW | 601928 | 1 | 601928-Online |
| Not Shown | BLADE, 20.50-MUL-F-CCW | 604163 | 1 | 604163-Online |
| 40 | BLADE, F20.50"-L-F-CW | 600901 | 2 | HT600901-Online |
| Not Shown | BLADE,20.50"GAT-F-CW | 794230 | 2 | HT794230-Online |
| Not Shown | BLADE,20.50"-MUL-F-CW | 794214 | 2 | HT794214-Online |
| 41 | SHIELD, BLADE BOLT | 114988 | 3 | HT114988-Online |
| 42 | CW .678 X 2.250 X .187 | 782474 | 3 | HT782474-Online |
| 43 | CS .625-11X1.250 G5 LHT | 604383 | 1 | 604383-Online |
| 44 | CS .625-11X1.250HXG5 | 781872 | 2 | HT781872-Online |
| 45 | RAMP PNT, DISCHARGE CW | 125949-1 | 1 | 125949-1-Online |
Deck Lift & Mounting Hardware (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | W/A, CUT HT. INDICATOR | 117320 | 1 | 117320-Online |
| 2 | NT .375-16HXG5 | 054502 | 9 | HT054502-Online |
| 3 | FW 0.379X.82X.06 HD ZN | 767954 | 20 | HT767954-Online |
| 4 | CB .375-16X 1.00 G5 ZN | 025395 | 14 | HT025395-Online |
| 5 | NT .625-11 HXZN NY | 058768 | 6 | 058768-Online |
| 6 | LINK SPACER | 117188 | 2 | 117188-Online |
| 7 | W/A, DECK LINK | 116730 | 2 | HT116730-Online |
| 8 | CS .625-11x2.500FLGG5 | 604043 | 8 | 604043-Online |
| 9 | BRACKET W/A, DECK LIFT | 116784 | 1 | 116784-Online |
| 10 | CS .375-16X1.500HXG5 | 080655 | 4 | HT080655-Online |
| 11 | SPACER, LATCH | 117489 | 1 | HT117489-Online |
| 12 | ARM, LATCH | 117488 | 2 | 117488-Online |
| 13 | CB .375-16X 3.500 FUL Z | 041848 | 1 | HT041848-Online |
| 14 | NT .375-16NLG8 | 086660 | 12 | HT086660-Online |
| 15 | FW .531 x 1.063 x .175 | 767962 | 5 | HT767962-Online |
| 16 | CS .500-13X4.000HXG5 | 089938 | 1 | 089938-Online |
| 17 | NT .500-13NLG5 | 781567 | 2 | HT781567-Online |
| 18 | CP .156DX1.000 LG HML Z | 017251 | 2 | HT017251-Online |
| 19 | CE .500X3.50 .156X3.34 | 025965 | 1 | HT025965-Online |
| 20 | FW .516X.88X.09 ZN | 718288 | 2 | 718288-Online |
| 21 | PIN, DECK HEIGHT STOP | 604076 | 1 | 604076-Online |
| 22 | GUARD, RH FRAME | 551809 | 1 | 551809-Online |
| 23 | CB .375-16X .750 STD ZN | 011320 | 5 | 011320-Online |
| 24 | FW .760X1.63X0.08 ZN | 025296 | 6 | HT025296-Online |
| 25 | BUSHING, PLAS .750x1(FS) | 770867 | 2 | HT770867-Online |
| 26 | SPACER, CYLINDER | 604075 | 1 | 604075-Online |
| 27 | S/C TO 607679 | 604073 | 1 | 604073-Online |
| 28 | CE .500X1.50 .150X1.32 | 068056 | 1 | HT068056-Online |
| 29 | SLIDER, DECK LIFT | 604069 | 1 | 604069-Online |
| 30 | NT .750-10HXG5 | 008417 | 2 | 008417-Online |
| 31 | BLOCK, DECK LIFT | 602897 | 1 | 602897-Online |
| 32 | CS .500-13X1.50 HX G5 ZN | 074252 | 1 | HT074252-Online |
| 33 | ROD END ASSEMBLY | 604072 | 1 | 604072-Online |
| 34 | FW 0.531X1.38X.12 ZN | 712976 | 1 | HT712976-Online |
| 35 | FW 0.625X1.500X0.105 | 704783 | 1 | 704783-Online |
| 36 | CS .625-11X1.250HXG5 | 781872 | 1 | HT781872-Online |
| 37 | DECAL, CUT HEIGHT | 604878 | 1 | 604878-Online |
| 38 | DECAL, SAFE OPERATION | 601993 | 1 | 601993-Online |
Deck Lift & Mounting Hardware (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 39 | GUARD, LH FRAME | 551808 | 1 | 551808-Online |
| 40 | W/A, CYLINDER MOUNT | 117318 | 1 | 117318-Online |
| 41 | BRACKET SPACER | 116206 | 1 | 116206-Online |
| 42 | BUSHING,IGUS#0608 (FS) | 765339 | 4 | HT765339-Online |
| 43 | GAS SPRING, DECK LIFT | 604037 | 1 | 604037-Online |
| 44 | CYLINDER BRACKET W/A | 116203 | 1 | 116203-Online |
| 45 | CS .500-13X2.500HXG5 | 008573 | 1 | 008573-Online |
| 46 | CS .375-16X1.750HXG5 | 705178 | 1 | HT705178-Online |
| 47 | FLAP, WHEEL | 604266 | 2 | 604266-Online |
| 48 | ANGLE, FLAP MOUNT RH | 124386-1 | 1 | 124386-1-Online |
| 49 | ANGLE, FLAP MOUNT LH | 124388-1 | 1 | 124388-1-Online |
| 50 | FW 0.391X1.25X.06 ZN | 705137 | 6 | 705137-Online |
| 51 | NT .625-18NLKG5 | 604232 | 4 | 604232-Online |
| 52 | DECK LEVEL SPACER | 603903 | 4 | 603903-Online |
| 53 | DECK LEVEL PIVOT | 603902 | 4 | 603902-Online |
| 54 | CS .750-10X3.500HXG5 | 789115 | 2 | 789115-Online |
| 55 | NT .750-10 HX ZN NL GR B | 061101 | 2 | HT061101-Online |
| 56 | FW 0.625X1.00X.13 ZN | 028118 | 4 | HT028118-Online |
| 57 | W/A, DECK LEVEL ROD END | 116732 | 4 | HT116732-Online |

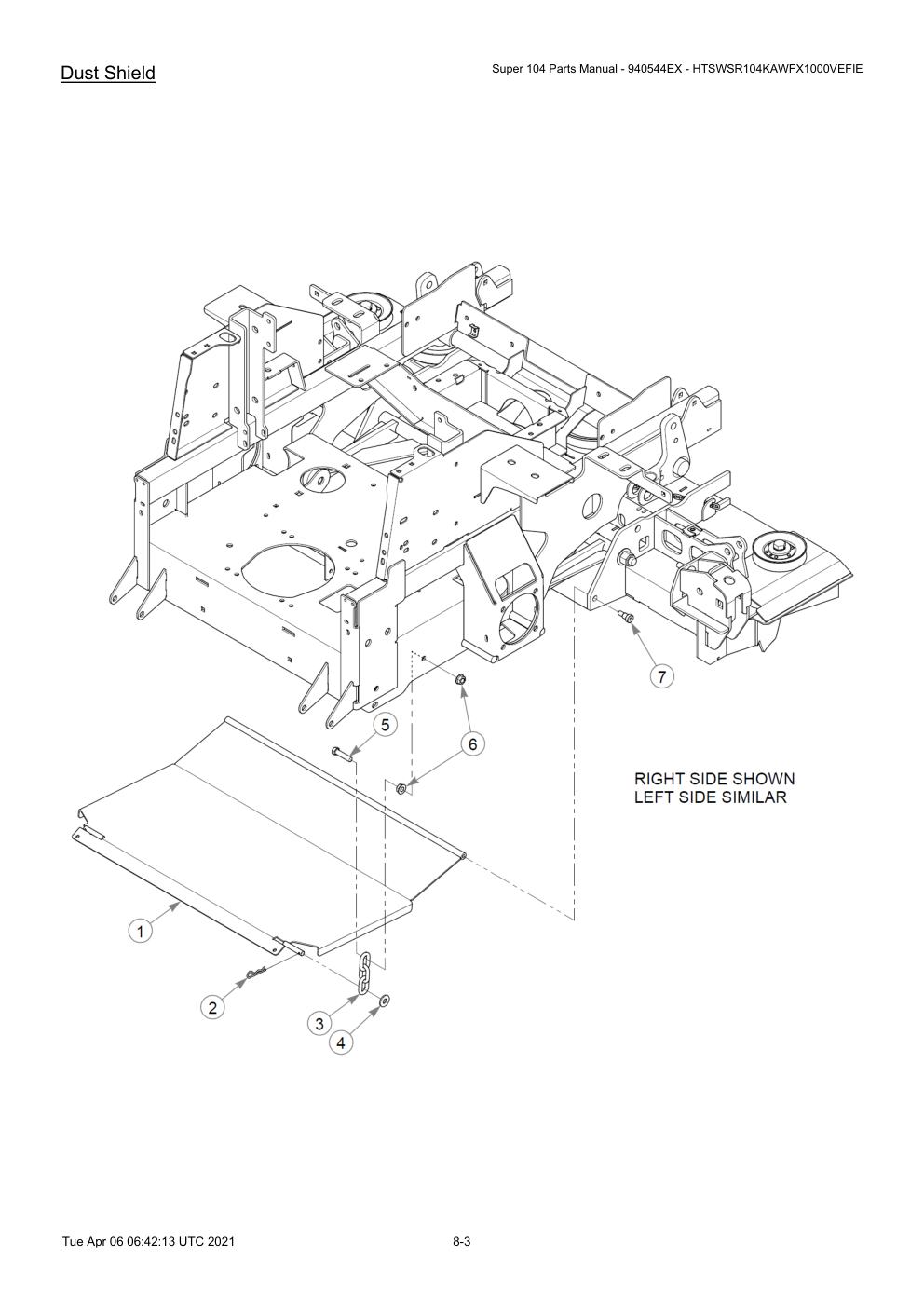

Dust Shield
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | BELLY PAN PNT | 126059-1 | 1 | 126059-1-Online |
| 2 | HP .125 X2.375 ZN | 017301 | 2 | HT017301-Online |
| 3 | CHAIN, DECK LIFT | 360131 | 2 | HT360131-Online |
| 4 | FW .453X1.12X.12 HRD ZN | 602680 | 2 | 602680-Online |
| 5 | CS .437-14X1.750HXG5 | 055749 | 2 | HT055749-Online |
| 6 | NT .437-14FLKG5 | 704643 | 4 | HT704643-Online |
| 7 | SB0.500X0.625SH0.375-16 | 060541 | 2 | 060541-Online |

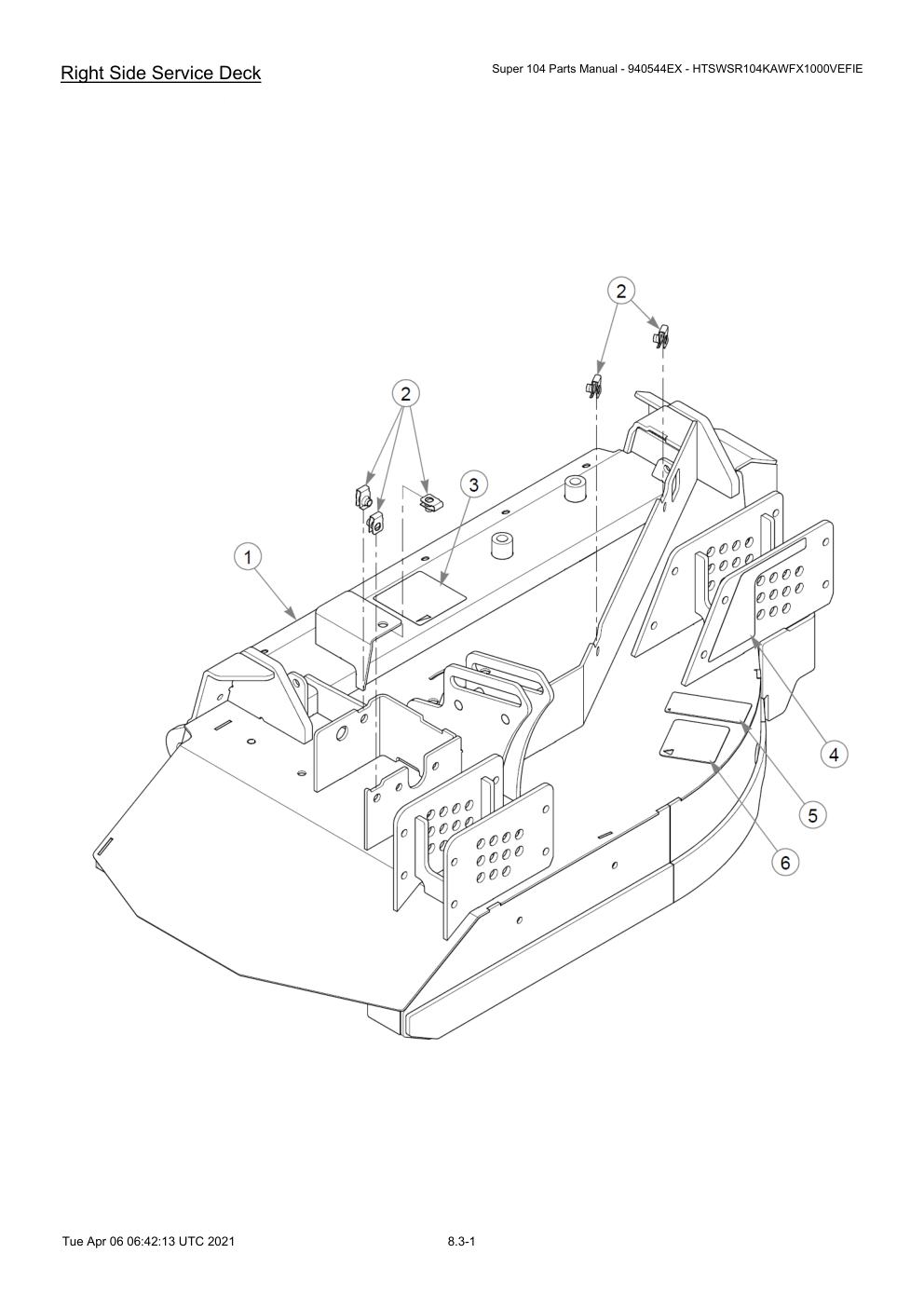

Right Side Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SVC, DECK DECAL | 555191 | 1 | 555191-Online |
| 2 | CN .312-18x.200 MAX THK | 601069 | 5 | HT601069-Online |
| 3 | DECAL, BELT ROUTING | 604277 | 1 | 604277-Online |
| 4 | DECAL, CUT HEIGHT | 607695 | 1 | 607695-Online |
| 5 | DECAL, THROWN OBJECTS | 601892 | 1 | 601892-Online |
| 6 | DECAL, DECK DANGERS | 601837 | 1 | 601837-Online |
Right Side Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11X1.500HXG5 | 794446 | 2 | HT794446-Online |
| 2 | FW 0.625X1.00X.13 ZN | 028118 | 3 | HT028118-Online |
| 3 | DUST SHIELD W/OFFSET | 603057 | 2 | 603057-Online |
| 4 | PULLEY, SPLIT IDLER | 605978 | 1 | 605978-Online |
| 5 | IDLER, FLAT 4.0" DEEP | 603784 | 1 | 603784-Online |
| 6 | CS .500-13X1.750HXG5 | 017616 | 1 | HT017616-Online |
| 7 | CW .515X 2.25X .204 BLK | 752386 | 1 | HT752386-Online |
| 8 | KEY 1/4 SQ X 1.00 LG(FS) | 212472 | 1 | HT212472-Online |
| 9 | PULLEY, DRIVE(723486) B | 538850 | 1 | HT538850-Online |
| 10 | GAGE WHEEL SPACER 1/4" | 469924 | 1 | 469924-Online |
| 11 | DUST SHIELD | 607409-4 | 1 | 607409-4-Online |
| 12 | CS .500-13X1.25 HX G5 ZN | 705954 | 4 | HT705954-Online |
| 13 | FW .531 x 1.063 x .175 | 767962 | 4 | HT767962-Online |
| 14 | CB .375-16X 1.00 G5 ZN | 025395 | 2 | HT025395-Online |
| 15 | FW 0.379X.82X.06 HD ZN | 767954 | 2 | HT767954-Online |
| 16 | NT .375-16NLG8 | 086660 | 2 | HT086660-Online |
| 17 | SPINDLE ASSY, DUCTILE | 607407 | 1 | 607407-Online |
| 18 | NT .375-16 HX NL JAM ZN | 603846 | 2 | 603846-Online |
| 19 | SB0.500X0.625SH0.375-16 | 060541 | 2 | 060541-Online |
| 20 | GRIP, .75X4.00 BLACK | 603964 | 1 | 603964-Online |
| 21 | PIN, LATCH | 116573 | 1 | HT116573-Online |
| 22 | PLATE, LATCH | 116574 | 1 | HT116574-Online |
| 23 | SPRING, COMPRESSION | 603958 | 1 | 603958-Online |
| 24 | RP0.250X1.375 ZN | 005124 | 2 | 005124-Online |
Right Side Deck & Blades (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .500-13X1.25 HX G5 ZN | 705954 | 1 | HT705954-Online |
| 2 | FW .515X1.65X.12 HD ZN | 798603 | 1 | 798603-Online |
| 3 | O-RING, SAE-14 | 601375 | 1 | 601375-Online |
| 4 | DUST CAP, SZ CASTER | 603153 | 1 | 603153-Online |
| 5 | FW 1.030X1.50X.13 HD ZN | 045765 | 2 | HT045765-Online |
| 6 | BEARING DISC, FORK | 603164 | 1 | 603164-Online |
| 7 | BEARING | 784223 | 2 | HT784223-Online |
| 8 | SPACER | 784603 | 1 | HT784603-Online |
| 9 | GAGE WHEEL SPACER 1/4" | 469924 | 1 | 469924-Online |
| 10 | WHEEL TUBE ASSY | 122120 | 1 | 122120-Online |
| 11 | CS .312-18X.625 FLTSH ZN | 604096 | 8 | 604096-Online |
| 12 | PAD, GAUGE WHEEL | 604095 | 4 | 604095-Online |
| 13 | CB .500-13X6.50 STD ZN | 606381 | 2 | 606381-Online |
| 14 | FORK W/A, FRONT S104 | 122123 | 1 | 122123-Online |
| 15 | FW .531 x 1.063 x .175 | 767962 | 7 | HT767962-Online |
| 16 | NT .500-13NLG5 | 781567 | 5 | HT781567-Online |
| 17 | CS .500-13X4.000HXG5 | 089938 | 2 | 089938-Online |
| 18 | FORK W/A, GUAGE | 122127 | 1 | 122127-Online |
| 19 | CS .375-16X1.75 G5 FULTD | 600878 | 1 | 600878-Online |
| 20 | NT .375-16HXG5 | 054502 | 1 | HT054502-Online |
| 21 | TIR/WHL 11X4.00-5 BLK | 606741 | 2 | 606741-Online |
| Not Shown | TIR/WHL 11X4.00-5 SLV | 606113 | 2 | 606113-Online |
| 22 | GAGE WHEEL SPACER | 306969 | 2 | HT306969-Online |
| 23 | CE .500X4.0 LANYARD PIN | 604041 | 2 | 604041-Online |
| 24 | COVER, LATCH RIGHT | 116882 | 1 | 116882-Online |
| 25 | FW 0.343SAE | 768523 | 6 | HT768523-Online |
| 26 | CS .312-18X0.750HXG5 | 034280 | 2 | HT034280-Online |
| 27 | STOP PAD, WING | 604088 | 2 | 604088-Online |
| 28 | CS .312-18X1.00 FLTSH ZN | 604086 | 4 | 604086-Online |
| 29 | CS .312-18X.625 BH ZN | 603022 | 5 | 603022-Online |
| 30 | PLATE, FLAP CLAMP | 116614 | 1 | 116614-Online |
| 31 | FLAP, WING INTERSECTION | 603855 | 1 | 603855-Online |
| 32 | NT .312-18HXG5 | 034272 | 2 | HT034272-Online |
| 33 | NT .312-18NLG5 | 058776 | 2 | HT058776-Online |
| 34 | BUMPER, TRIM EDGE FLAT | 604183 | 1 | 604183-Online |
| 35 | FW 0.344X1.0X0.06 ZN | 079210 | 2 | 079210-Online |
| 36 | CS .312-18X1.000HXG5 | 036236 | 2 | 036236-Online |
| 37 | NT .375-16NLG8 | 086660 | 1 | HT086660-Online |
Right Side Deck & Blades (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 38 | FW 0.379X.82X.06 HD ZN | 767954 | 1 | HT767954-Online |
| 39 | RAMP PNT, RH WING | 125951-1 | 1 | 125951-1-Online |
| 40 | BLADE 23.86" L-F-CW | 606393 | 1 | 606393-Online |
| Not Shown | BLADE, F23.86-L-F-CW | 796839 | 1 | HT796839-Online |
| Not Shown | BLADE, 23.86"-GAT-F-CW | 794867 | 1 | 794867-Online |
| Not Shown | BLADE,23.86"-MUL-F-CW | 793398 | 1 | HT793398-Online |
| 41 | SHIELD, BLADE BOLT | 114988 | 1 | HT114988-Online |
| 42 | CW .678 X 2.250 X .187 | 782474 | 1 | HT782474-Online |
| 43 | CS .625-11X1.250HXG5 | 781872 | 1 | HT781872-Online |
| 44 | CB .50-13 X 4.50 STD ZN | 602339 | 1 | 602339-Online |
| 45 | WHEEL, ANTI-SCALP | 602263 | 1 | 602263-Online |
| 46 | SPACER, ANTI-SCALP 3.22 | 602345 | 1 | 602345-Online |

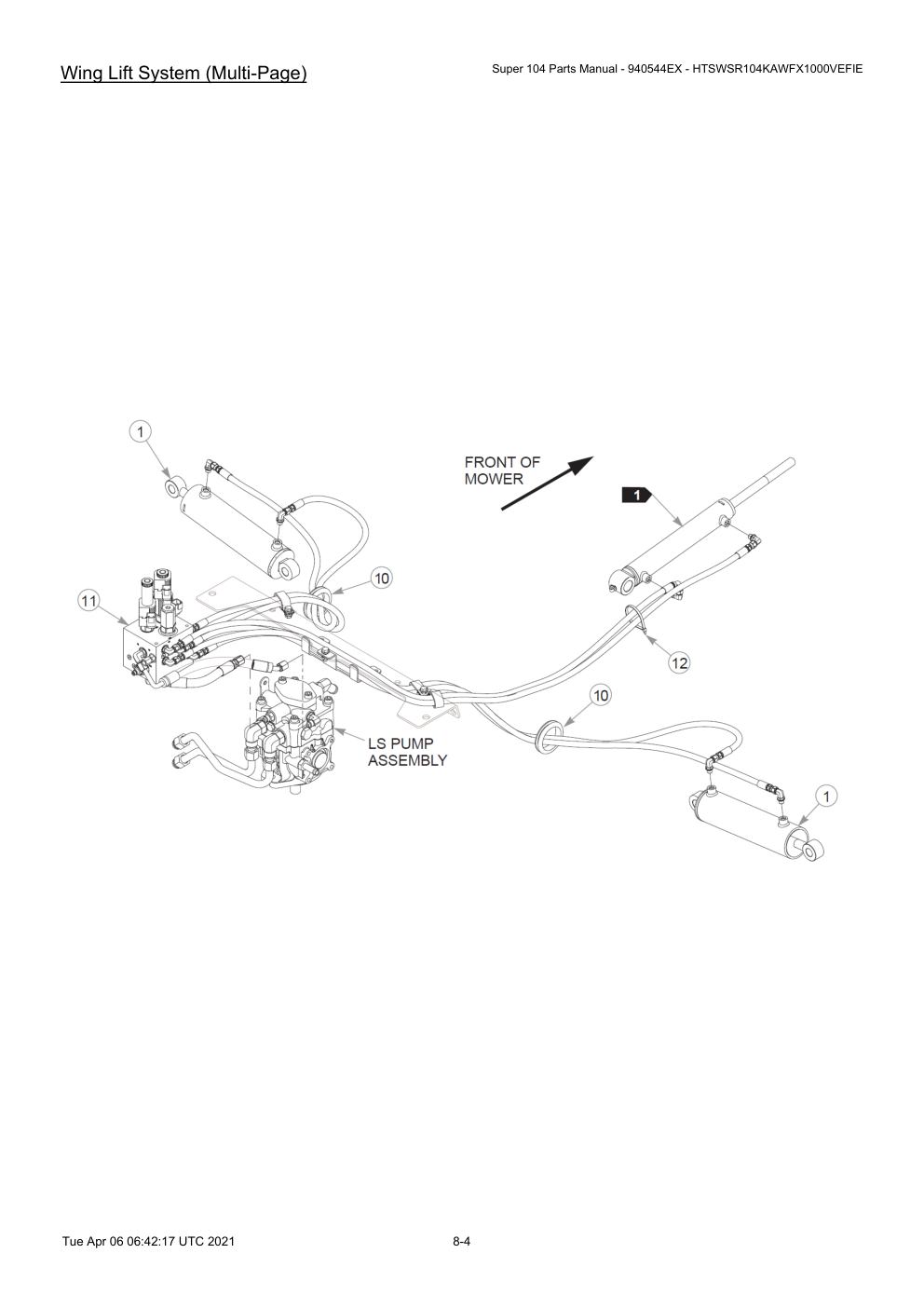

Wing Lift System (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CYLINDER - HYDRAULIC | 607680 | 2 | 607680-Online |
| 2 | BUSHING, .625 I.D. | 602539 | 8 | 602539-Online |
| 3 | CS .312-18X1.000HXG5 | 036236 | 4 | 036236-Online |
| 4 | FW 0.343SAE | 768523 | 4 | HT768523-Online |
| 5 | CLAMP - P, DOUBLE | 607674 | 3 | 607674-Online |
| 6 | NT .312-18FLKG5 | 016832 | 4 | 016832-Online |
| 7 | SUPPORT - HOSES | 125851-1 | 1 | 125851-1-Online |
| 8 | FW 0.379X.82X.06 HD ZN | 767954 | 2 | HT767954-Online |
| 9 | CS .375-16X1.00 HX G5 ZN | 036244 | 2 | HT036244-Online |
| 10 | GM, 2.25IDX 3.0ODX 2.5GD | 603289 | 2 | 603289-Online |
| 11 | REFER TO "MANIFOLD BLOCK BREAKDOWN" | N/A | 1 | No SKU |
| 12 | WIRE TIE, SMALL/SHORT | 000331 | 1 | 000331-Online |
Manifold Block Breakdown
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | FTG, 4MORB / 4MJIC 90 | 604133 | 10 | 604133-Online |
| 2 | MANIFOLD ASM | 607570 | 1 | 607570-Online |
| 3 | FTG, -4MORB/4MJIC STR | 603181 | 3 | 603181-Online |
| 4 | HOSE ASM - HYDRAULIC | 607576 | 1 | 607576-Online |
| 5 | HOSE ASM - HYDRAULIC | 607577 | 1 | 607577-Online |
| 6 | HOSE ASM - HYDRAULIC | 607578 | 1 | 607578-Online |
| 7 | HOSE ASM - HYDRAULIC | 607579 | 1 | 607579-Online |
| 8 | HOSE ASM - HYDRAULIC | 607574 | 1 | 607574-Online |
| 9 | HOSE ASM - HYDRAULIC | 607575 | 1 | 607575-Online |
| 10 | FTG, 4FJIC CAP | 602479 | 1 | 602479-Online |
| 11 | FTG, 90-6MORB/-6MJI | 795922 | 2 | HT795922-Online |
| 12 | HOSE ASM - HYDRAULIC | 607572 | 1 | 607572-Online |
| 13 | HOSE ASM - HYDRAULIC | 607573 | 1 | 607573-Online |
| 14 | VALVE, REEL DRIVE | 602458 | 2 | 602458-Online |
| 15 | RELIEF VALVE CARTRIDGE | 602456 | 1 | 602456-Online |
| 16 | VALVE, COUNTER BALANCE | 605117 | 1 | 605117-Online |
| 17 | VALVE, SOLENOID CARTRIDG | 602454 | 3 | 602454-Online |

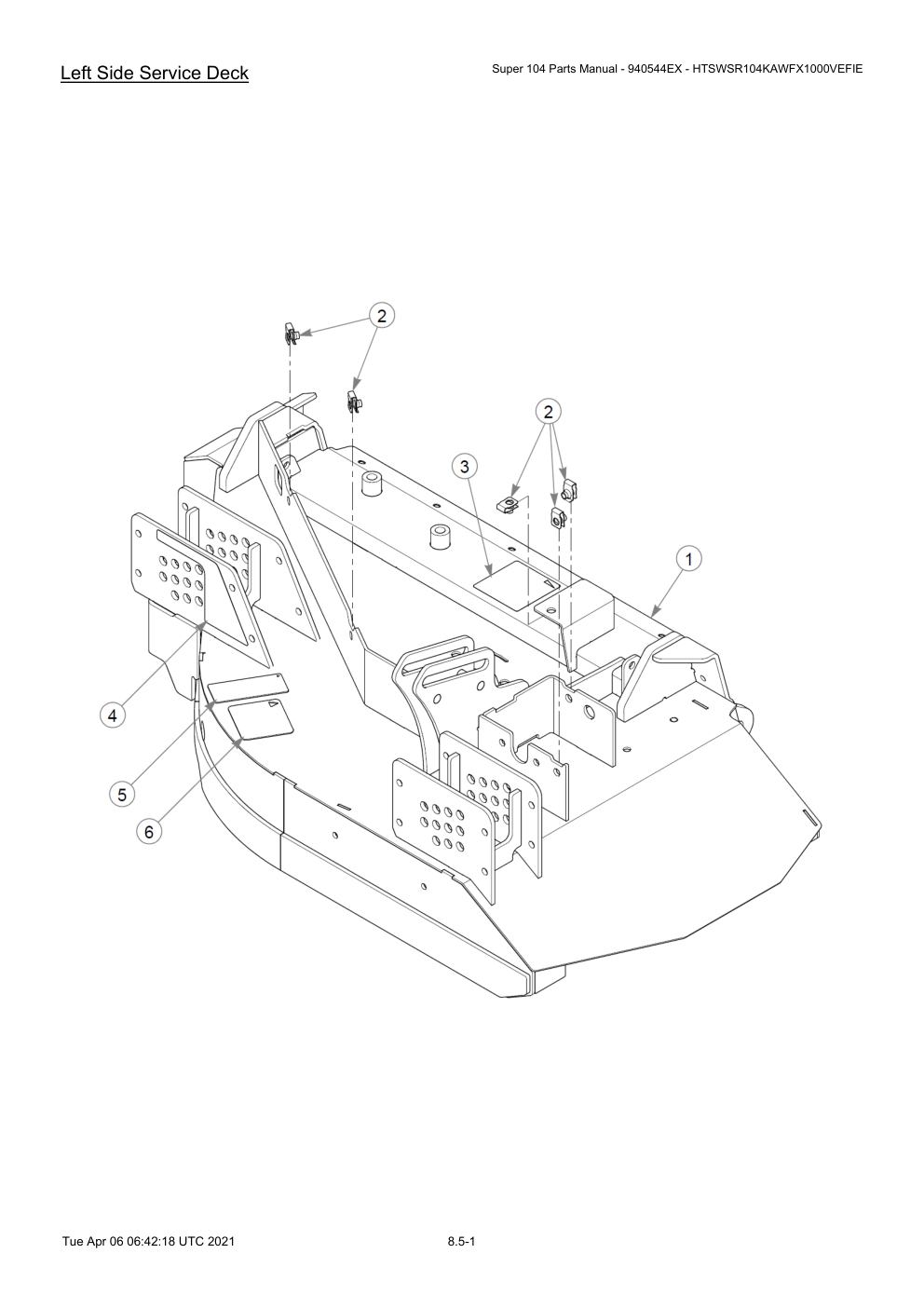

Left Side Service Deck
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SVC, DECK DECAL | 555192 | 1 | 555192-Online |
| 2 | CN .312-18x.200 MAX THK | 601069 | 5 | HT601069-Online |
| 3 | DECAL, BELT ROUTING | 604278 | 1 | 604278-Online |
| 4 | DECAL, CUT HEIGHT | 607696 | 1 | 607696-Online |
| 5 | DECAL, THROWN OBJECTS | 601892 | 1 | 601892-Online |
| 6 | DECAL, DECK DANGERS | 601837 | 1 | 601837-Online |
Left Side Deck Pulleys & Spindles
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .625-11X1.500HXG5 | 794446 | 2 | HT794446-Online |
| 2 | FW 0.625X1.00X.13 ZN | 028118 | 3 | HT028118-Online |
| 3 | DUST SHIELD W/OFFSET | 603057 | 2 | 603057-Online |
| 4 | PULLEY, SPLIT IDLER | 605978 | 1 | 605978-Online |
| 5 | IDLER, FLAT 4.0" DEEP | 603784 | 1 | 603784-Online |
| 6 | CS .500-13X1.750HXG5 | 017616 | 1 | HT017616-Online |
| 7 | CW .515X 2.25X .204 BLK | 752386 | 1 | HT752386-Online |
| 8 | KEY 1/4 SQ X 1.00 LG(FS) | 212472 | 1 | HT212472-Online |
| 9 | PULLEY, DRIVE(723486) B | 538850 | 1 | HT538850-Online |
| 10 | GAGE WHEEL SPACER 1/4" | 469924 | 1 | 469924-Online |
| 11 | DUST SHIELD | 607409-4 | 1 | 607409-4-Online |
| 12 | CS .500-13X1.25 HX G5 ZN | 705954 | 4 | HT705954-Online |
| 13 | FW .531 x 1.063 x .175 | 767962 | 4 | HT767962-Online |
| 14 | CB .375-16X 1.00 G5 ZN | 025395 | 2 | HT025395-Online |
| 15 | FW 0.379X.82X.06 HD ZN | 767954 | 2 | HT767954-Online |
| 16 | NT .375-16NLG8 | 086660 | 2 | HT086660-Online |
| 17 | SPINDLE ASSY, DUCTILE | 607408 | 1 | 607408-Online |
| 18 | NT .375-16 HX NL JAM ZN | 603846 | 2 | 603846-Online |
| 19 | SB0.500X0.625SH0.375-16 | 060541 | 2 | 060541-Online |
| 20 | GRIP, .75X4.00 BLACK | 603964 | 1 | 603964-Online |
| 21 | PIN, LATCH | 116573 | 1 | HT116573-Online |
| 22 | PLATE, LATCH | 116574 | 1 | HT116574-Online |
| 23 | SPRING, COMPRESSION | 603958 | 1 | 603958-Online |
| 24 | RP0.250X1.375 ZN | 005124 | 2 | 005124-Online |
Left Side Deck & Blades (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | CS .500-13X1.25 HX G5 ZN | 705954 | 1 | HT705954-Online |
| 2 | FW .515X1.65X.12 HD ZN | 798603 | 1 | 798603-Online |
| 3 | O-RING, SAE-14 | 601375 | 1 | 601375-Online |
| 4 | DUST CAP, SZ CASTER | 603153 | 1 | 603153-Online |
| 5 | FW 1.030X1.50X.13 HD ZN | 045765 | 2 | HT045765-Online |
| 6 | BEARING DISC, FORK | 603164 | 1 | 603164-Online |
| 7 | BEARING | 784223 | 2 | HT784223-Online |
| 8 | SPACER | 784603 | 1 | HT784603-Online |
| 9 | GAGE WHEEL SPACER 1/4" | 469924 | 1 | 469924-Online |
| 10 | WHEEL TUBE ASSY | 122121 | 1 | 122121-Online |
| 11 | CS .312-18X.625 FLTSH ZN | 604096 | 8 | 604096-Online |
| 12 | PAD, GAUGE WHEEL | 604095 | 4 | 604095-Online |
| 13 | FORK W/A, FRONT S104 | 122123 | 1 | 122123-Online |
| 14 | CB .500-13X6.50 STD ZN | 606381 | 2 | 606381-Online |
| 15 | FW .531 x 1.063 x .175 | 767962 | 7 | HT767962-Online |
| 16 | NT .500-13NLG5 | 781567 | 5 | HT781567-Online |
| 17 | GAGE WHEEL SPACER | 306969 | 2 | HT306969-Online |
| 18 | TIR/WHL 11X4.00-5 BLK | 606741 | 2 | 606741-Online |
| Not Shown | TIR/WHL 11X4.00-5 SLV | 606113 | 2 | 606113-Online |
| 19 | CS .500-13X4.000HXG5 | 089938 | 2 | 089938-Online |
| 20 | FORK W/A, GUAGE | 122127 | 1 | 122127-Online |
| 21 | CS .375-16X1.75 G5 FULTD | 600878 | 1 | 600878-Online |
| 22 | NT .375-16HXG5 | 054502 | 1 | HT054502-Online |
| 23 | FW 0.343SAE | 768523 | 6 | HT768523-Online |
| 24 | CS .312-18X0.750HXG5 | 034280 | 2 | HT034280-Online |
| 25 | COVER, LATCH LEFT | 116883 | 1 | 116883-Online |
| 26 | CE .500X4.0 LANYARD PIN | 604041 | 2 | 604041-Online |
| 27 | NT .312-18HXG5 | 034272 | 2 | HT034272-Online |
| 28 | STOP PAD, WING | 604088 | 2 | 604088-Online |
| 29 | CS .312-18X1.00 FLTSH ZN | 604086 | 4 | 604086-Online |
| 30 | CS .312-18X.625 BH ZN | 603022 | 5 | 603022-Online |
| 31 | PLATE, FLAP CLAMP | 116614 | 1 | 116614-Online |
| 32 | FLAP, WING INTERSECTION | 603855 | 1 | 603855-Online |
| 33 | BUMPER, TRIM EDGE FLAT | 604183 | 1 | 604183-Online |
| 34 | FW 0.344X1.0X0.06 ZN | 079210 | 2 | 079210-Online |
| 35 | CS .312-18X1.000HXG5 | 036236 | 2 | 036236-Online |
| 36 | NT .312-18NLG5 | 058776 | 2 | HT058776-Online |
| 37 | NT .375-16NLG8 | 086660 | 1 | HT086660-Online |
Left Side Deck & Blades (Multi-Page)
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 38 | FW 0.379X.82X.06 HD ZN | 767954 | 1 | HT767954-Online |
| 39 | RAMP PNT, LH WING | 125953-1 | 1 | 125953-1-Online |
| 40 | BLADE, 23.86" L-F-CCW | 606392 | 1 | 606392-Online |
| Not Shown | BLADE, F23.86-L-F-CCW | 796508 | 1 | HT796508-Online |
| Not Shown | BLADE, 23.86" GAT-F-CCW | 601929 | 1 | 601929-Online |
| Not Shown | BLADE, 23.86"-MUL-F-CCW | 604164 | 1 | 604164-Online |
| 41 | SHIELD, BLADE BOLT | 114988 | 1 | HT114988-Online |
| 42 | CW .678 X 2.250 X .187 | 782474 | 1 | HT782474-Online |
| 43 | CS .625-11X1.250 G5 LHT | 604383 | 1 | 604383-Online |
| 44 | CB .50-13 X 4.50 STD ZN | 602339 | 1 | 602339-Online |
| 45 | WHEEL, ANTI-SCALP | 602263 | 1 | 602263-Online |
| 46 | SPACER, ANTI-SCALP 3.22 | 602345 | 1 | 602345-Online |
Spindle Assembly Service Parts - 607407 & 607408
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | GREASE ZERK | 607477 | 1 | 607477-Online |
| 2 | RELIEF FITTING | 607478 | 1 | 607478-Online |
Seat & Floor Pan
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | SEAT, I3M SEATS INC | 607710 | 1 | 607710-Online |
| 2 | SEAT PAN, SERVICE | 550815 | 1 | 550815-Online |
| 3 | DECAL, LEVEL FUEL FILL | 605688 | 1 | 605688-Online |
| 4 | DECAL, Z ARMREST WARNING | 785188 | 1 | 785188-Online |
| 5 | FW 0.344X1.00X.12 HD ZN | 712927 | 4 | HT712927-Online |
| 6 | NT .312-18NLG5 | 058776 | 4 | HT058776-Online |
| 7 | WASHER, FIBER (FS) | 724716 | 2 | 724716-Online |
| 8 | SEAT PAN STOP (PLATED) | 350421 | 2 | 350421-Online |
| 9 | FW 0.379X.82X.06 HD ZN | 767954 | 12 | HT767954-Online |
| 10 | NT .375-16NLG8 | 086660 | 5 | HT086660-Online |
| 11 | CS .375-16X1.00 HX G5 ZN | 036244 | 6 | HT036244-Online |
| 12 | FW 0.406X1.00X.12 HD ZN | 712919 | 4 | HT712919-Online |
| 13 | DECAL, ENGINE COMPART | 601967 | 1 | 601967-Online |
| 14 | DECAL, HYDRAULIC PRESS | 601968 | 1 | 601968-Online |
| 15 | SVC, SEAT SUPPORT | 555243 | 1 | 555243-Online |
| 16 | DECAL, HOT/SYN HYDRO OIL | 601058 | 1 | 601058-Online |
| 17 | VIBRATION MOUNT 70DURO | 601650 | 2 | 601650-Online |
| 18 | DECAL, STEERING L.S. | 785139 | 1 | 785139-Online |
| 19 | FRAME COVER LS, SERVICE | 550823 | 1 | 550823-Online |
| 20 | DECAL, PUMP BELT WARNING | 600899 | 1 | 600899-Online |
| 21 | CN .312-18x.200 MAX THK | 601069 | 5 | HT601069-Online |
| 22 | NT .375-16HXG5 | 054502 | 2 | HT054502-Online |
| 23 | RS FRAME COVER, SERVICE | 551827 | 1 | 551827-Online |
| 24 | DECAL, STEERING R.S. | 785220 | 1 | 785220-Online |
| 25 | GM .50X1.00X.75X.12 | 080358 | 1 | 080358-Online |
| 26 | FW 0.343SAE | 768523 | 7 | HT768523-Online |
| 27 | CS .312-18X1.000HXG5 | 036236 | 5 | 036236-Online |
| 28 | CS .375-16X1.25 HX G5 ZN | 052860 | 3 | HT052860-Online |
| 29 | FLOOR PAN | 124956-1 | 1 | 124956-1-Online |
| 30 | SPACER, DECK LIFT LINK | 118900 | 1 | HT118900-Online |
| 31 | CB .312-18X .750 FUL ZN | 016253 | 2 | 016253-Online |
| 32 | LATCH ASSEMBLY | 605907 | 1 | 605907-Online |
| 33 | DECAL, BATTERY WARNINGS | 601815 | 1 | 601815-Online |
| 34 | NT .312-18HXG5 | 034272 | 2 | HT034272-Online |
| 35 | WIRE TIE, SMALL/SHORT | 000331 | 2 | 000331-Online |

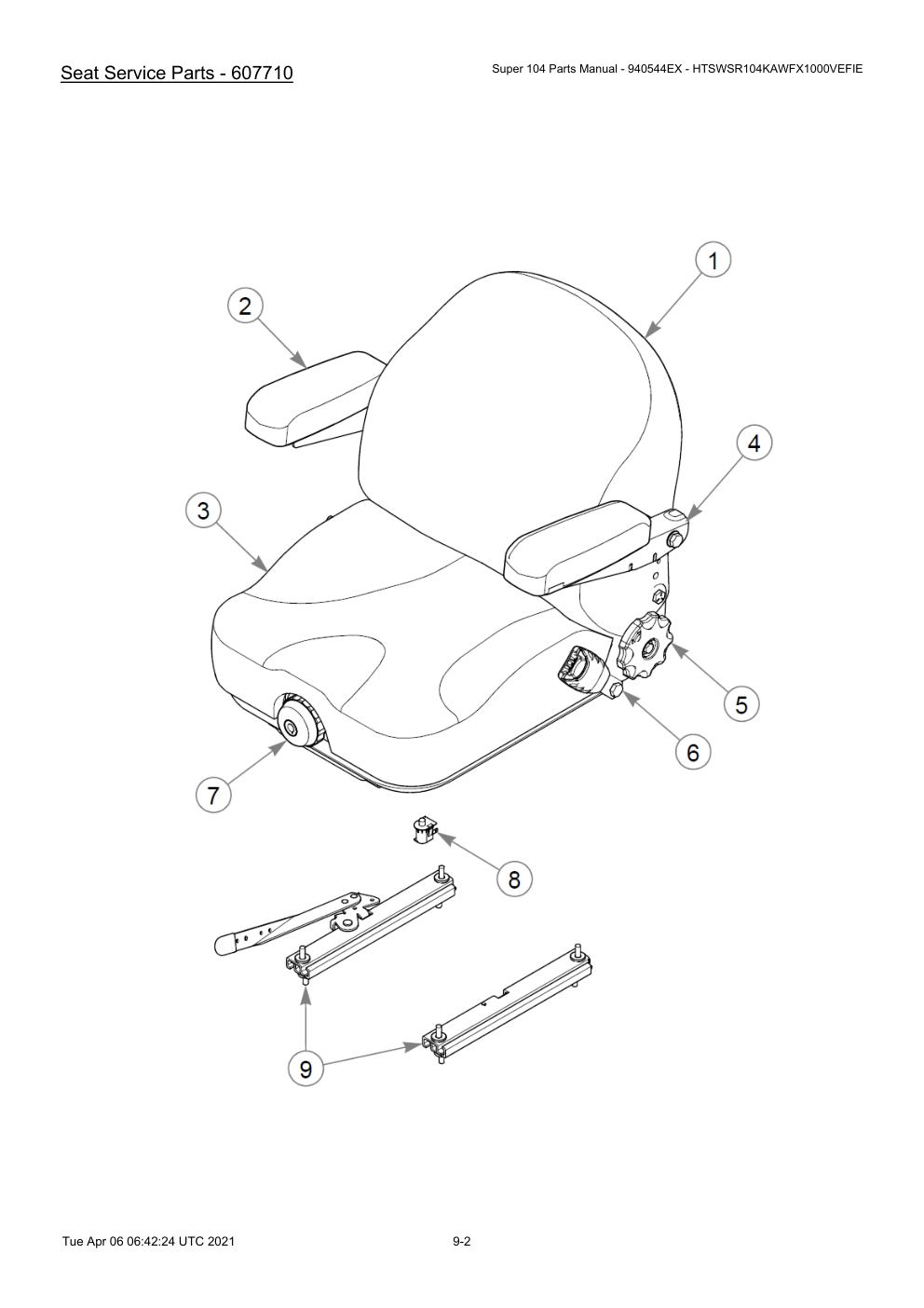

Seat Service Parts - 607710
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| Not Shown | SEAT, I3M SEATS INC | 607710 | 1 | 607710-Online |
| 1 | SVC, SEAT BACK COVER | 607707 | 1 | 607707-Online |
| 2 | SVC, ARM REST PAD KIT | 607715 | 1 | 607715-Online |
| 3 | SVC, SEAT FOAM I3M | 608351 | 1 | 608351-Online |
| Not Shown | SVC, SEAT CUSHION COVER | 607708 | 1 | 607708-Online |
| 4 | SVC, ARM REST KIT | 607711 | 1 | 607711-Online |
| 5 | SVC, RECLINER KNOB | 607709 | 1 | 607709-Online |
| 6 | SVC, SEAT BELT | 607207 | 1 | 607207-Online |
| 7 | SVC, KNOB KIT | 607206 | 1 | 607206-Online |
| 8 | SVC, OPS | 606082 | 1 | 606082-Online |
| 9 | SVC, TRACK KIT | 607204 | 1 | 607204-Online |

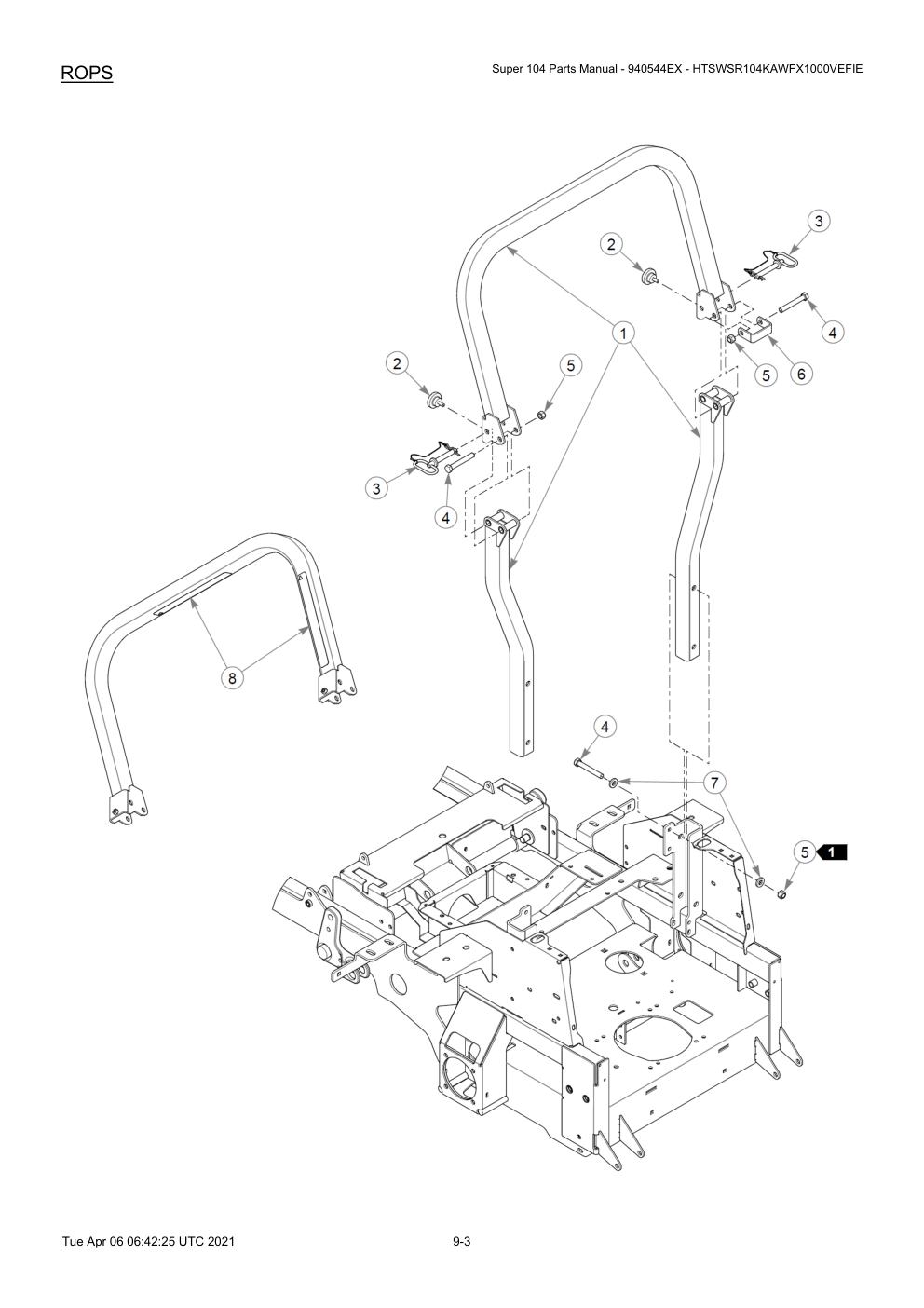

ROPS
Diagram
| Ref | Description | Part number | Qty | Cutsmart SKU |
|---|---|---|---|---|
| 1 | KIT, ROPS SZ | 603338 | 1 | 603338-Online |
| 2 | KNOB, HAND FOR ROPS | 601470 | 2 | 601470-Online |
| 3 | LYNCH PIN W/ LANYARD | 601471 | 2 | 601471-Online |
| 4 | CS .500-13X3.50 HX G5 ZN | 061812 | 6 | 061812-Online |
| 5 | NT .500-13UNTG8 | 023317 | 6 | 023317-Online |
| 6 | ROPS STOP, XONE | 603099 | 1 | 603099-Online |
| 7 | FW .531 x 1.063 x .175 | 767962 | 8 | HT767962-Online |
| 8 | DECAL, ROP'S | 601635 | 2 | 601635-Online |
