Echo EA-410 IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: EA-410-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.

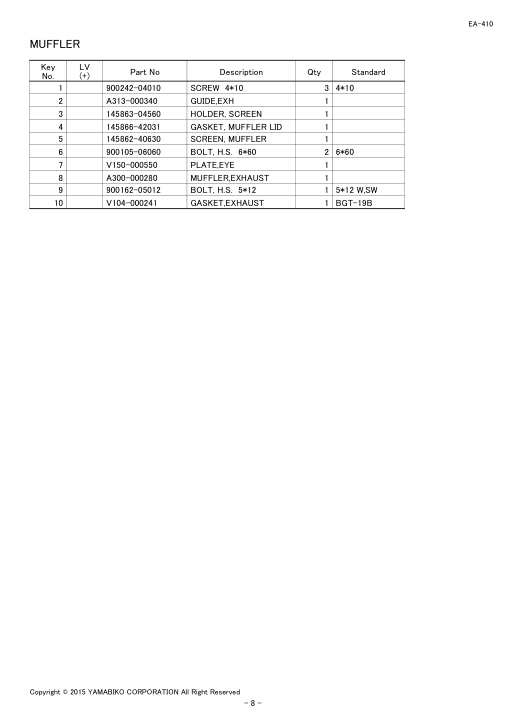

Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.
Page 18
Tap or click the page image to enlarge it.
Page 19
Tap or click the page image to enlarge it.
Page 20
Tap or click the page image to enlarge it.
Page 21
Tap or click the page image to enlarge it.
Page 22
Tap or click the page image to enlarge it.
Page 23
Tap or click the page image to enlarge it.
Page 24
Tap or click the page image to enlarge it.
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Bolt, H.S. 5*25 | 900106-05025 | 900106-05025-Online | 1 5*25 | ||
| 2 | Duct,Air | A161-000080 | A161-000080-Online | 1 AIR | DEFLECTOR | ||
| 3 | Collar,6 | V354-000100 | V354-000100-Online | |||
| 4 | Bolt, H.S. 5*12 | 900106-05012 | 900106-05012-Online | 1 5*12 | ||
| 5 | Cover,Muffler | A320-000111 | A320-000111-Online | |||
| 6 | Bolt, H.S. 5*20 | 900106-05020 | 900106-05020-Online | 1 5*20 | ||
| 7 | Collar,5 | V353-000020 | V353-000020-Online | 1 12*5.5*4.5L | ||
| 8 | Guard,Top | A162-000020 | A162-000020-Online | |||
| 9 | Bolt, H.S. 5*12 | 900106-05012 | 900106-05012-Online | 1 5*12 | ||
| 10 | Cover,Cylinder | A160-000241 | A160-000241-Online | |||
| 11 | Label,Caution | X505-002310 | X505-002310-Online | 1 HOT CAUTION | ENGINE COVER | EA-410 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Lid,Cleaner Asy | P021-012110 | P021-012110-Online | 1 | 2 | + A232-000390 | LID,CLEANER | ||
| 4 | Element, Air Filter | A226-000360 | A226-000360-Online | 1 AFP-2010K-300 | ||
| 5 | Bolt, H.S. 5*55 | 900105-05055 | 900105-05055-Online | 2 5*55 | ||
| 6 | Plate,Prevent | A244-000010 | A244-000010-Online | |||
| 7 | Case, Air Cleaner | P021-009590 | P021-009590-Online | |||
| 8 | Pipe, Intake | A239-000050 | A239-000050-Online | |||
| 9 | Pipe | 132012-39331 | 132012-39331-Online | 1 3*6*105 | ||
| 10 | Pump, Primer | 123181-39130 | 123181-39130-Online | |||
| 11 | Pipe | V471-001560 | V471-001560-Online | 1 2.4*5*80 | ||
| 12 | Carburetor, | A021-001171 | A021-001171-Online | DIAPHRAGM | 1 WYK-226A | ||
| 13 | Gasket,Intake | V103-000080 | V103-000080-Online | |||
| 14 | Bolt, H.S. 5*25 | 900106-05025 | 900106-05025-Online | 2 5*25 | ||
| 15 | Insulator,Intake | A200-000060 | A200-000060-Online | |||
| 16 | Plate,Dust | A128-000060 | A128-000060-Online | |||
| 17 | Gasket,Intake | V103-000070 | V103-000070-Online | |||
| 18 | Label, Choke | 890332-52730 | 890332-52730-Online | 1 | AIR CLEANER | EA-410 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Screw 4*10 | 900242-04010 | 900242-04010-Online | 3 4*10 | ||
| 2 | Guide,Exh | A313-000340 | A313-000340-Online | |||
| 3 | Holder, Screen | 145863-04560 | 145863-04560-Online | |||
| 4 | Gasket, Muffler Lid | 145866-42031 | 145866-42031-Online | |||
| 5 | Screen, Muffler | 145862-40630 | 145862-40630-Online | |||
| 6 | Bolt, H.S. 6*60 | 900105-06060 | 900105-06060-Online | 2 6*60 | ||
| 7 | Plate,Eye | V150-000550 | V150-000550-Online | |||
| 8 | Muffler,Exhaust | A300-000280 | A300-000280-Online | |||
| 9 | Bolt, H.S. 5*12 | 900162-05012 | 900162-05012-Online | 1 5*12 W,SW | ||
| 10 | Gasket,Exhaust | V104-000241 | V104-000241-Online | 1 BGT-19B | MUFFLER | EA-410 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Bolt, H.S. 5*20 | 900106-05020 | 900106-05020-Online | 2 5*20 | ||
| 2 | Bolt, H.S. 5*25 | 900106-05025 | 900106-05025-Online | 2 5*25 | ||
| 3 | Bracket,Fuel Tank | A393-000050 | A393-000050-Online | |||
| 4 | Starter,Recoil | A051-000190 | A051-000190-Online | 1 | 5 | + 177228-27030 | GRIP, STARTER | ||
| 11 | Nut 8 (3N) | 900502-00008 | 900502-00008-Online | 1 3N8 | ||
| 12 | Pulley,Asm Starter | A052-000011 | A052-000011-Online | 1 | 13 | + P022-002100 | E-RING | ||
| 16 | Tank,Fuel | A350-000131 | A350-000131-Online | |||
| 17 | Cap Assy, Fuel Tank | 131004-55530 | 131004-55530-Online | 1 | 18 | + 131016-55830 | GASKET, FUEL CAP | ||
| 20 | Grommet, Fuel | 132115-55930 | 132115-55930-Online | |||
| 21 | Pipe | 132010-53630 | 132010-53630-Online | 1 3*6*180 NBR | ||
| 22 | Clip | 132013-26630 | 132013-26630-Online | 1 6.5MM | ||
| 23 | Strainer, Fuel | 131205-19831 | 131205-19831-Online | |||
| 24 | Pipe 3*6*60 | 437215-20760 | 437215-20760-Online | 1 3*6*60 YL | ||
| 25 | Joint,Pipe | V186-000080 | V186-000080-Online | |||
| 26 | Pipe, Fuel | 132012-02960 | 132012-02960-Online | 1 3*6*120L | ||
| 27 | Clip | 132013-26630 | 132013-26630-Online | 1 6.5MM | ||
| 28 | Valve, Check | 131300-56430 | 131300-56430-Online | |||
| 29 | Seat,Fuel Tank | A390-000010 | A390-000010-Online | |||
| 30 | Seat,Fuel Tank | A390-000000 | A390-000000-Online | |||
| 31 | Bolt, H.S. 5*12 | 900106-05012 | 900106-05012-Online | 4 5*12 | ||
| 32 | Bracket,Fuel Tank | A393-000030 | A393-000030-Online | |||
| 33 | Label,Echo | X547-001460 | X547-001460-Online | 1 EA-410 | FUEL TANK | EA-410 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Plate,Clutch | A551-000041 | A551-000041-Online | |||
| 2 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 4 5*20 W,SW | ||
| 3 | Cover,Fan | A172-000230 | A172-000230-Online | |||
| 4 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 4 5*20 W,SW | ||
| 5 | Clutch Asy | P021-002481 | P021-002481-Online | 1 | 6 | + V451-000480 | SPRING,TENSION |
Page 16 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 2 5*20 W,SW | ||
| 2 | Coil,Ignition | A411-000050 | A411-000050-Online | |||
| 3 | Lead, Ground | 162010-55630 | 162010-55630-Online | 1 170L | ||
| 4 | Grommet | 156114-04920 | 156114-04920-Online | |||
| 5 | Tube | V475-001610 | V475-001610-Online | 1 7*8.6*55 | HST-10 | ||
| 6 | Terminal,Sparkplug | A426-000000 | A426-000000-Online | |||
| 7 | Cap,Spark Plug | A427-000000 | A427-000000-Online | |||
| 8 | Grommet,Plug | V141-000020 | V141-000020-Online | |||
| 10 | Plug, Spark (Bpmr-7A | 159010-10230 | 159010-10230-Online | 1 BPMR-7A | ||
| 11 | Rotor,Magneto Kit | P021-005911 | P021-005911-Online | 1 | 12 | + 900323-03014 | KEY WOODRUFF | ||
| 13 | Nut, Flange 10 | 900519-00010 | 900519-00010-Online | 1 10*1.25 | MAGNETO | EA-410 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 18 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Decomp,Asm | A014-000030 | A014-000030-Online | |||
| 2 | Gasket | 159025-37530 | 159025-37530-Online | |||
| 4 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | 4 5*20 W,SW | ||
| 5 | Cylinder | A130-000880 | A130-000880-Online | |||
| 6 | Gasket,Cyl | V100-000040 | V100-000040-Online | |||
| 7 | Piston Kit | P021-014260 | P021-014260-Online | 1 | 8 | + 100011-10530 | RING, PISTON | ||
| 13 | Crankshaft,Asm | A011-000120 | A011-000120-Online | |||
| 14 | Crankcase Set | P021-002471 | P021-002471-Online | 1 | 15 | + 100213-05530 | OILSEAL |
Page 20 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Grip Asy,F-Handle | P021-002612 | P021-002612-Online | 1 | 2 | + 900253-04016 | SCREW 4*16 | ||
| 5 | Band | 178121-10050 | 178121-10050-Online | 2 CV-150 | ||
| 6 | Switch,On Off | A440-000382 | A440-000382-Online | 1 | 7 | + 91545-03010 | SCREW TAPTITE-P | ||
| 10 | Trigger,Throttle | C450-000022 | C450-000022-Online | |||
| 11 | Spring,Torsion | V452-000050 | V452-000050-Online | |||
| 12 | Cable,Bowden | V430-000490 | V430-000490-Online | |||
| 13 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | 2 3N6 | ||
| 14 | Tube | V475-004360 | V475-004360-Online | 1 7*380 | ||
| 15 | Lockout,Throttle | C460-000011 | C460-000011-Online | |||
| 16 | Spring,Torsion | V452-000060 | V452-000060-Online | 1 | THROTTLE LEVER | EA-410 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 22 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Drum, Clutch | A556-000490 | A556-000490-Online | |||
| 2 | Handle,Asm | C080-000001 | C080-000001-Online | 1 W/CAUTION | LABEL | 3 | + X505-000920 | ||
| 4 | Grip,Handle | C403-000050 | C403-000050-Online | |||
| 5 | Bearing,3/4 Ball | V713-000000 | V713-000000-Online | |||
| 6 | Shaft,Gear | C534-000141 | C534-000141-Online | |||
| 7 | Case,Gear | C531-000150 | C531-000150-Online | |||
| 8 | Bearing,5/8 Ball | V712-000000 | V712-000000-Online | 2 R10 1.375 X .625 | ||
| 9 | Ring,Snap | V582-000000 | V582-000000-Online | 3 ARDISAM 8924 | ||
| 10 | Gear,Spur | V650-000090 | V650-000090-Online | 1 ARDISAM 8914 | ||
| 11 | Pin,Straight 6 | V624-000020 | V624-000020-Online | 2 1/4 X 1/2 | ||
| 12 | Shaft,Gear | C534-000150 | C534-000150-Online | |||
| 13 | Gear,Spur | V650-000100 | V650-000100-Online | 1 44 TEETH | ||
| 14 | Gasket,Gear Case | V110-000020 | V110-000020-Online | |||
| 15 | Case,Gear | C531-000160 | C531-000160-Online | |||
| 16 | Screw,Socket | 95070-17200 | 95070-17200-Online | 4 1/4-20 X 2 | ||
| 17 | Screw,Socket | 95070-17150 | 95070-17150-Online | 2 1/4-20 X 1-1/2 | ||
| 18 | Shaft,Drive | C504-000120 | C504-000120-Online | |||
| 19 | Tool,Wrench | X602-000020 | X602-000020-Online | 1 17*19 L200 | GEAR CASE | EA-410 | Copyright © 2015 YAMABIKO CORPORATION All Right Reserved |
Page 23 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 16 | Bearing, Needle | 100012-12331 | 100012-12331-Online | |||
| 16 | Oilseal | 100213-00310 | 100213-00310-Online | |||
| 16 | Oilseal | 100213-05530 | 100213-05530-Online | |||
| 16 | Pin, Dowel | 100215-03930 | 100215-03930-Online | |||
| 16 | Diaphragm, Pump | 123112-40630 | 123112-40630-Online | |||
| 6 | Screw | 123114-40630 | 123114-40630-Online | |||
| 6 | Spring, Meter. Lever | 123122-05560 | 123122-05560-Online | |||
| 6 | Lever, Metering | 123123-03930 | 123123-03930-Online | |||
| 6 | Screen, Inlet | 123126-10631 | 123126-10631-Online | |||
| 6 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | |||
| 6 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | |||
| 6 | Screw, M. Lever Pin | 123139-05560 | 123139-05560-Online | |||
| 6 | Gasket,M. Diaphragm | 123140-27230 | 123140-27230-Online | |||
| 6 | Ring, Packing | 123143-12110 | 123143-12110-Online | |||
| 6 | Screw | 123144-44330 | 123144-44330-Online | |||
| 6 | Washer | 123149-54230 | 123149-54230-Online | |||
| 6 | Swivel | 123172-45130 | 123172-45130-Online | |||
| 6 | Clip | 123173-07930 | 123173-07930-Online | |||
| 6 | Pump, Primer | 123181-39130 | 123181-39130-Online | |||
| 4 | Cap Assy, Fuel Tank | 131004-55530 | 131004-55530-Online | |||
| 10 | Gasket, Fuel Cap | 131016-55830 | 131016-55830-Online | |||
| 10 | Clip, Fuel Cap | 131051-56030 | 131051-56030-Online | |||
| 10 | Strainer, Fuel | 131205-19831 | 131205-19831-Online | |||
| 10 | Valve, Check | 131300-56430 | 131300-56430-Online | |||
| 10 | Pipe | 132010-53630 | 132010-53630-Online | |||
| 10 | Pipe, Fuel | 132012-02960 | 132012-02960-Online | |||
| 10 | Pipe | 132012-39331 | 132012-39331-Online | |||
| 4 | Clip | 132013-26630 | 132013-26630-Online | |||
| 10 | Grommet, Fuel | 132115-55930 | 132115-55930-Online | |||
| 10 | Screen, Muffler | 145862-40630 | 145862-40630-Online | |||
| 8 | Holder, Screen | 145863-04560 | 145863-04560-Online | |||
| 8 | Gasket, Muffler Lid | 145866-42031 | 145866-42031-Online | |||
| 8 | Grommet | 156114-04920 | 156114-04920-Online | |||
| 14 | Plug, Spark (Bpmr-7A | 159010-10230 | 159010-10230-Online | |||
| 14 | Gasket | 159025-37530 | 159025-37530-Online | |||
| 16 | Lead, Ground | 162010-55630 | 162010-55630-Online | |||
| 14 | Knob, Switch | 163410-49231 | 163410-49231-Online | |||
| 18 | Washer | 175049-03920 | 175049-03920-Online | |||
| 12 | Pawl, Starter | 177218-40630 | 177218-40630-Online | |||
| 10 | Spring, Rewind | 177220-06310 | 177220-06310-Online | |||
| 10 | Rope, Starter | 177226-06310 | 177226-06310-Online | |||
| 10 | Guide, Rope | 177227-42030 | 177227-42030-Online | |||
| 10 | Grip, Starter | 177228-27030 | 177228-27030-Online | |||
| 10 | Spring, Return | 177234-40630 | 177234-40630-Online | 10 | Part No | Part descrition | Page | ||
| 10 | Band | 178121-10050 | 178121-10050-Online | |||
| 18 | Pipe 3*6*60 | 437215-20760 | 437215-20760-Online | |||
| 10 | Label, Switch | 890157-12330 | 890157-12330-Online | |||
| 18 | Label, Choke | 890332-52730 | 890332-52730-Online | |||
| 4 | Bolt, H.S. 5*55 | 900105-05055 | 900105-05055-Online | |||
| 4 | Bolt, H.S. 6*60 | 900105-06060 | 900105-06060-Online | |||
| 8 | Bolt, H.S. 5*12 | 900106-05012 | 900106-05012-Online | |||
| 2 | Bolt, H.S. 5*12 | 900106-05012 | 900106-05012-Online | |||
| 10 | Bolt, H.S. 5*20 | 900106-05020 | 900106-05020-Online | |||
| 2 | Bolt, H.S. 5*20 | 900106-05020 | 900106-05020-Online | |||
| 10 | Bolt, H.S. 5*25 | 900106-05025 | 900106-05025-Online | |||
| 2 | Bolt, H.S. 5*25 | 900106-05025 | 900106-05025-Online | |||
| 4 | Bolt, H.S. 5*25 | 900106-05025 | 900106-05025-Online | |||
| 10 | Bolt, H.S. 5*12 | 900162-05012 | 900162-05012-Online | |||
| 8 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | |||
| 12 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | |||
| 14 | Bolt, H.S. 5*20 | 900162-05020 | 900162-05020-Online | |||
| 16 | Bolt, H.S. 5*35 | 900162-05035 | 900162-05035-Online | |||
| 16 | Screw 5*30 | 900235-05030 | 900235-05030-Online | |||
| 18 | Screw 4*10 | 900242-04010 | 900242-04010-Online | |||
| 8 | Screw 4*16 | 900253-04016 | 900253-04016-Online | |||
| 18 | Key Woodruff | 900323-03014 | 900323-03014-Online | |||
| 14 | Nut 5 | 900500-00005 | 900500-00005-Online | |||
| 18 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | |||
| 18 | Nut 8 (3N) | 900502-00008 | 900502-00008-Online | |||
| 10 | Nut, Flange 10 | 900519-00010 | 900519-00010-Online | |||
| 14 | Bearing, Ball 6202 | 900810-36202 | 900810-36202-Online | |||
| 16 | Screw Taptite-P | 91545-03010 | 91545-03010-Online | |||
| 18 | Bearing Ball | 94035-36201 | 94035-36201-Online | |||
| 16 | Screw,Socket | 95070-17150 | 95070-17150-Online | |||
| 20 | Screw,Socket | 95070-17200 | 95070-17200-Online | |||
| 20 | Crankshaft,Asm | A011-000120 | A011-000120-Online | |||
| 16 | Decomp,Asm | A014-000030 | A014-000030-Online | |||
| 16 | Carburetor, | A021-001171 | A021-001171-Online | DIAPHRAGM | ||
| 4 | Carburetor, | A021-001171 | A021-001171-Online | DIAPHRAGM | ||
| 6 | Starter,Recoil | A051-000190 | A051-000190-Online | |||
| 10 | Pulley,Asm Starter | A052-000011 | A052-000011-Online | |||
| 10 | Plate,Dust | A128-000060 | A128-000060-Online | |||
| 4 | Cylinder | A130-000880 | A130-000880-Online | |||
| 16 | Cover,Cylinder | A160-000241 | A160-000241-Online | |||
| 2 | Duct,Air | A161-000080 | A161-000080-Online | |||
| 2 | Guard,Top | A162-000020 | A162-000020-Online | |||
| 2 | Cover,Fan | A172-000230 | A172-000230-Online | 12 | Part No | Part descrition | Page | ||
| 4 | Element, Air Filter | A226-000360 | A226-000360-Online | |||
| 4 | Lid,Cleaner | A232-000390 | A232-000390-Online | |||
| 4 | Pipe, Intake | A239-000050 | A239-000050-Online | |||
| 4 | Plate,Prevent | A244-000010 | A244-000010-Online | |||
| 4 | Cap,Limiter | A259-000000 | A259-000000-Online | |||
| 6 | Muffler,Exhaust | A300-000280 | A300-000280-Online | |||
| 8 | Guide,Exh | A313-000340 | A313-000340-Online | |||
| 8 | Cover,Muffler | A320-000111 | A320-000111-Online | |||
| 2 | Tank,Fuel | A350-000131 | A350-000131-Online | |||
| 10 | Seat,Fuel Tank | A390-000000 | A390-000000-Online | |||
| 10 | Seat,Fuel Tank | A390-000010 | A390-000010-Online | |||
| 10 | Bracket,Fuel Tank | A393-000030 | A393-000030-Online | |||
| 10 | Bracket,Fuel Tank | A393-000050 | A393-000050-Online | |||
| 10 | Coil,Ignition | A411-000050 | A411-000050-Online | |||
| 14 | Terminal,Sparkplug | A426-000000 | A426-000000-Online | |||
| 14 | Cap,Spark Plug | A427-000000 | A427-000000-Online | |||
| 14 | Switch,On Off | A440-000382 | A440-000382-Online | |||
| 18 | Plate,Clutch | A551-000041 | A551-000041-Online | |||
| 12 | Arm,Clutch | A553-000030 | A553-000030-Online | |||
| 12 | Drum, Clutch | A556-000490 | A556-000490-Online | |||
| 20 | Shaft,Clutch | A557-000000 | A557-000000-Online | |||
| 12 | Handle,Asm | C080-000001 | C080-000001-Online | |||
| 20 | Grip,Handle | C403-000050 | C403-000050-Online | |||
| 20 | Trigger,Throttle | C450-000022 | C450-000022-Online | |||
| 18 | Lockout,Throttle | C460-000011 | C460-000011-Online | |||
| 18 | Shaft,Drive | C504-000120 | C504-000120-Online | |||
| 20 | Case,Gear | C531-000150 | C531-000150-Online | |||
| 20 | Case,Gear | C531-000160 | C531-000160-Online | |||
| 20 | Shaft,Gear | C534-000141 | C534-000141-Online | |||
| 20 | Shaft,Gear | C534-000150 | C534-000150-Online | |||
| 20 | Metering, Diaphragm | P003-000090 | P003-000090-Online | |||
| 6 | Gasket, Pump | P003-000100 | P003-000100-Online | |||
| 6 | Bracket Cable | P003-000180 | P003-000180-Online | |||
| 6 | Needle, High Speed | P003-001130 | P003-001130-Online | |||
| 6 | Body Assembly, Pump | P003-001490 | P003-001490-Online | |||
| 6 | Cover, Primer Pump | P003-001500 | P003-001500-Online | |||
| 6 | Crankcase Set | P021-002471 | P021-002471-Online | |||
| 16 | Clutch Asy | P021-002481 | P021-002481-Online | |||
| 12 | Grip Asy,F-Handle | P021-002612 | P021-002612-Online | |||
| 18 | Rotor,Magneto Kit | P021-005911 | P021-005911-Online | |||
| 14 | Case, Air Cleaner | P021-009590 | P021-009590-Online | |||
| 4 | Lid,Cleaner Asy | P021-012110 | P021-012110-Online | |||
| 4 | Piston Kit | P021-014260 | P021-014260-Online | |||
| 16 | Drum, Starter | P022-002080 | P022-002080-Online | 10 | Copyright © 2015 YAMABIKO CORPORATION All Right ReservedIndex-1 |
Page 24 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 10 | Gasket,Cyl | V100-000040 | V100-000040-Online | |||
| 16 | Gasket,Crankcase | V102-000001 | V102-000001-Online | |||
| 16 | Gasket,Intake | V103-000070 | V103-000070-Online | |||
| 4 | Gasket,Intake | V103-000080 | V103-000080-Online | |||
| 4 | Gasket,Exhaust | V104-000241 | V104-000241-Online | |||
| 8 | Gasket,Gear Case | V110-000020 | V110-000020-Online | |||
| 20 | Grommet,Plug | V141-000020 | V141-000020-Online | |||
| 14 | Plate,Eye | V150-000550 | V150-000550-Online | |||
| 8 | Plug | V162-000130 | V162-000130-Online | |||
| 18 | Joint,Pipe | V186-000080 | V186-000080-Online | |||
| 10 | Screw,5 | V253-000100 | V253-000100-Online | |||
| 4 | Washer,Circular 10 | V307-000060 | V307-000060-Online | |||
| 16 | Washer,Wave | V346-000000 | V346-000000-Online | |||
| 12 | Collar,5 | V353-000020 | V353-000020-Online | |||
| 2 | Collar,6 | V354-000100 | V354-000100-Online | |||
| 2 | Cable,Bowden | V430-000490 | V430-000490-Online | |||
| 18 | Spring,Tension | V451-000480 | V451-000480-Online | |||
| 12 | Spring,Torsion | V452-000050 | V452-000050-Online | |||
| 18 | Spring,Torsion | V452-000060 | V452-000060-Online | |||
| 18 | Pipe | V471-001560 | V471-001560-Online | |||
| 4 | Tube | V475-001610 | V475-001610-Online | |||
| 14 | Tube | V475-004360 | V475-004360-Online | |||
| 18 | Ring,End | V580-000010 | V580-000010-Online | |||
| 16 | Ring,Snap | V582-000000 | V582-000000-Online | |||
| 20 | Pin,Eng 10 | V608-000000 | V608-000000-Online | |||
| 16 | Pin,Straight 6 | V624-000020 | V624-000020-Online | |||
| 20 | Gear,Spur | V650-000090 | V650-000090-Online | |||
| 20 | Gear,Spur | V650-000100 | V650-000100-Online | |||
| 20 | Bearing,5/8 Ball | V712-000000 | V712-000000-Online | |||
| 20 | Bearing,3/4 Ball | V713-000000 | V713-000000-Online | |||
| 20 | Label,Caution | X505-000920 | X505-000920-Online | |||
| 20 | Label,Caution | X505-002310 | X505-002310-Online | |||
| 2 | Label,Echo | X547-001460 | X547-001460-Online | |||
| 10 | Tool,Wrench | X602-000020 | X602-000020-Online | 20 | Copyright © 2015 YAMABIKO CORPORATION All Right ReservedIndex-2 |
Source PDF: 20200226-302_EA-410_36_36000001_24FEB2020.pdf. Generated 2026-06-25 14:39.
