Echo PAS-2620ES IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: PAS-2620ES-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.
Page 18
Tap or click the page image to enlarge it.
Page 19
Tap or click the page image to enlarge it.
Page 20
Tap or click the page image to enlarge it.
Page 21
Tap or click the page image to enlarge it.
Page 22
Tap or click the page image to enlarge it.
Page 23
Tap or click the page image to enlarge it.
Page 24
Tap or click the page image to enlarge it.
Page 25
Tap or click the page image to enlarge it.
Page 26
Tap or click the page image to enlarge it.
Page 27
Tap or click the page image to enlarge it.
Page 28
Tap or click the page image to enlarge it.

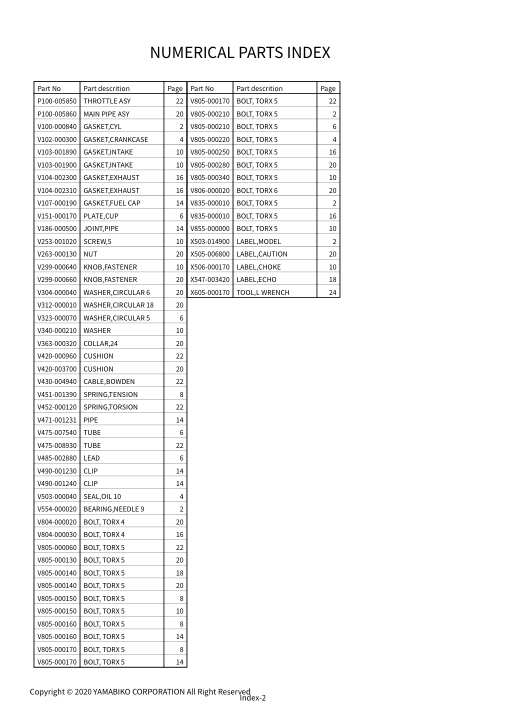

Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Crankshaft,Asy | A011-001460 | A011-001460-Online | |||
| 2 | Cylinder | A130-002330 | A130-002330-Online | |||
| 3 | Gasket,Cyl | V100-000840 | V100-000840-Online | |||
| 4 | Bolt, Torx 5 | V805-000210 | V805-000210-Online | 4 TB-5*20 12.9 | ||
| 5 | Piston Kit | P021-050840 | P021-050840-Online | |||
| 6 | + | Ring,Piston | A101-000010 | A101-000010-Online | ||
| 7 | + | Pin, Piston | 100013-35430 | 100013-35430-Online | 1 6*9*27.8 | |
| 8 | + | Circlip, Piston Pin | 100015-03931 | 100015-03931-Online | ||
| 9 | + | Bearing,Needle 9 | V554-000020 | V554-000020-Online | 1 KTV-91212EG14-B2 | |
| 10 | + | Spacer, Piston Pin | 100014-53630 | 100014-53630-Online | ||
| 11 | Cover,Cylinder | A160-003280 | A160-003280-Online | |||
| 12 | Bolt, Torx 5 | V835-000010 | V835-000010-Online | 2 TB-5*12 10.9 | ||
| 13 | Label,Model | X503-014900 | X503-014900-Online | 1 PAS-2620ES | D | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Crankcase Kit | P021-050850 | P021-050850-Online | |||
| 2 | + | Bearing, Ball | 900800-36001 | 900800-36001-Online | 1 6001 | |
| 3 | + | Oilseal | 100212-42031 | 100212-42031-Online | 1 ISCD 12*22*4.5 | |
| 4 | + | Bearing, Ball | 900810-36000 | 900810-36000-Online | 1 6000 | |
| 5 | + | Seal,Oil 10 | V503-000040 | V503-000040-Online | 1 ISCD 10*20*5F | |
| 6 | + | Gasket,Crankcase | V102-000300 | V102-000300-Online | ||
| 7 | + | Bolt, Torx 5 | V805-000220 | V805-000220-Online | 3 TB-5*25 12.9 | C | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Rotor, Magneto | A409-001320 | A409-001320-Online | |||
| 2 | Coil, Ignition | A411-001790 | A411-001790-Online | 1 ID#A10073A | ||
| 3 | Tube | V475-007540 | V475-007540-Online | |||
| 4 | Nut, Flange 8 | 900515-00008 | 900515-00008-Online | 1 8 | ||
| 5 | Connector | C152-001030 | C152-001030-Online | |||
| 6 | Washer,Circular 5 | V323-000070 | V323-000070-Online | 2 5.2*10*3 | ||
| 7 | Bolt, Torx 5 | V805-000210 | V805-000210-Online | 2 TB-5*20 12.9 | ||
| 8 | Bushing | 156110-04920 | 156110-04920-Online | |||
| 9 | Key, Woodruff | 100142-12330 | 100142-12330-Online | |||
| 10 | Sparkplug | A425-000060 | A425-000060-Online | 1 CMR7H | ||
| 11 | Plug Cap | A427-000090 | A427-000090-Online | |||
| 12 | Plate,Cup | V151-000170 | V151-000170-Online | |||
| 13 | Plug Cap Cover | A429-000110 | A429-000110-Online | |||
| 14 | Piece,Cover | J473-000120 | J473-000120-Online | |||
| 15 | O-Ring 22 | 900720-00022 | 900720-00022-Online | 1 P-22 | ||
| 16 | Coil, Spark Plug | 159011-03432 | 159011-03432-Online | |||
| 17 | Lead | V485-002880 | V485-002880-Online | 1 | C | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Arm,Clutch Set | P100-002270 | P100-002270-Online | |||
| 2 | Spring,Tension | V451-001390 | V451-001390-Online | 1 172N/34MM | ||
| 3 | Shaft, Clutch | 175046-56030 | 175046-56030-Online | |||
| 4 | Washer | 175049-56030 | 175049-56030-Online | 2 8.5*16*0.5 | ||
| 5 | Washer (I) | 175048-05530 | 175048-05530-Online | 2 6.2*19*1.0 | ||
| 6 | Fan Cover Asy | P100-005340 | P100-005340-Online | |||
| 7 | + | Cover,Fan | A172-003142 | A172-003142-Online | 1 | C | 8 | ++ | |
| 8 | Pin F 4*8 | 900330-40080 | 900330-40080-Online | 2 4*8 | ||
| 9 | + | Bearing, Ball 6001 | 900807-06001 | 900807-06001-Online | 2 6001V(LB) | |
| 10 | + | Drum,Clutch | A556-001760 | A556-001760-Online | ||
| 11 | + | Circlip 28 | 900702-00028 | 900702-00028-Online | 1 CR-28 | |
| 12 | + | Circlip 12 | 900701-00012 | 900701-00012-Online | 1 CS-12 | |
| 13 | Bolt, Torx 5 | V805-000150 | V805-000150-Online | 2 TB-5*16 10.9 | ||
| 14 | Boot | A413-000080 | A413-000080-Online | |||
| 15 | Bolt, Torx 5 | V805-000160 | V805-000160-Online | 2 TB-5*20 10.9 | ||
| 16 | Fixture, Main Pipe | A575-000640 | A575-000640-Online | |||
| 17 | Bolt, Torx 5 | V805-000170 | V805-000170-Online | 1 TB-5*25 10.9 | ||
| 18 | Circlip 42 | 900702-00042 | 900702-00042-Online | 1 CR-42 | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed | CLUTCH |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Bellows, Intake | A202-000300 | A202-000300-Online | |||
| 2 | Holder, Bellows | A206-000040 | A206-000040-Online | |||
| 3 | Screw,5 | V253-001020 | V253-001020-Online | 2 TB2411 10MM | ||
| 4 | Plate, Insulator | A209-001010 | A209-001010-Online | |||
| 5 | Bolt, Torx 5 | V805-000150 | V805-000150-Online | 2 TB-5*16 10.9 | ||
| 6 | Bolt, Torx 5 | V855-000000 | V855-000000-Online | 1 TB-5*20 | ||
| 7 | Plate, Insulator | A209-001000 | A209-001000-Online | |||
| 8 | Gasket,Intake | V103-001890 | V103-001890-Online | |||
| 9 | Carburetor,Diaphragm | A021-004600 | A021-004600-Online | 1 WYG-9 | ||
| 10 | Gasket,Intake | V103-001900 | V103-001900-Online | |||
| 11 | Cleaner Case Asy | P021-050880 | P021-050880-Online | |||
| 12 | Plate,Prevent | A244-000370 | A244-000370-Online | |||
| 13 | Bolt, Torx 5 | V805-000340 | V805-000340-Online | 2 TB-5*60 10.9 | ||
| 14 | Cleaner Cover Asy | P100-003601 | P100-003601-Online | |||
| 15 | + | Knob,Fastener | V299-000640 | V299-000640-Online | ||
| 20V | + | Washer | V340-000210 | V340-000210-Online | 2 5.6*11.3 | |
| 16 | Label,Choke | X506-000170 | X506-000170-Online | 1 SYMBOLS + T | ||
| 17 | Plate, Element | A227-000050 | A227-000050-Online | |||
| 18 | Element, Air Filter | A226-002030 | A226-002030-Online | |||
| 19 | Element, Air Filter | A226-002040 | A226-002040-Online | 1 HP-70 | A | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Carburetor,Diaphragm | A021-004601 | A021-004601-Online | 1 WYG-9"・・ | ||
| 2 | + | Body Assembly, Pump | P003-006120 | P003-006120-Online | ||
| 3 | + | Clip | 123173-07930 | 123173-07930-Online | ||
| 4 | + | Cover, M. Diaphragm | 123142-03930 | 123142-03930-Online | ||
| 5 | + | Cover, Fuel Pump | P003-006500 | P003-006500-Online | ||
| 6 | + | Valve, Throttle | P003-006140 | P003-006140-Online | 1 | 7 | ++ | |
| 7 | O-Ring | P003-004480 | P003-004480-Online | |||
| 8 | + | Swivel | P003-005850 | P003-005850-Online | ||
| 9 | + | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | ||
| 10 | + | Gasket, Fuel Pump | P003-004530 | P003-004530-Online | ||
| 11 | + | Gasket,M. Diaphragm | 123140-27230 | 123140-27230-Online | ||
| 12 | + | Diaphragm, Fuel Pump | P003-004540 | P003-004540-Online | ||
| 13 | + | Diaphragm, Metering | P003-001670 | P003-001670-Online | ||
| 14 | + | Screw | P003-005860 | P003-005860-Online | ||
| 15 | + | Screw | P003-004560 | P003-004560-Online | ||
| 16 | + | Screw | P003-004570 | P003-004570-Online | ||
| 17 | + | Spring | P003-005870 | P003-005870-Online | ||
| 18 | + | Washer | P003-001710 | P003-001710-Online | ||
| 19 | + | Needle | P003-005880 | P003-005880-Online | ||
| 20 | + | Screen, Inlet | 123126-10631 | 123126-10631-Online | ||
| 21 | + | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | ||
| 22 | + | Lever, Metering | P003-001630 | P003-001630-Online | ||
| 23 | + | Pump, Primer | 123181-09560 | 123181-09560-Online | ||
| 24 | + | Clip | P003-005890 | P003-005890-Online | ||
| 25 | + | Screw | 123114-40630 | 123114-40630-Online | ||
| 26 | + | Plate | P003-005900 | P003-005900-Online | 1 | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed | CARBURETOR |
Page 16 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Tank, Fuel | A350-002350 | A350-002350-Online | |||
| 2 | Cap,Fuel Asy | P021-012211 | P021-012211-Online | |||
| 3 | + | Gasket,Fuel Cap | V107-000190 | V107-000190-Online | 1 37.9*Ｔ2.2 | |
| 4 | + | Connector,Cap | A365-000060 | A365-000060-Online | 1 L=123 | |
| 5 | Grommet, Fuel | 132115-55931 | 132115-55931-Online | 1 3 Φ5 | ||
| 6 | Pipe | V471-001231 | V471-001231-Online | 1 3*5*210 | ||
| 7 | Pipe 3* 6* 85 | 132010-06531 | 132010-06531-Online | 1 3*6*85 | ||
| 8 | Pipe | 132012-56030 | 132012-56030-Online | 1 3*6*80 YL | ||
| 9 | Joint,Pipe | V186-000500 | V186-000500-Online | |||
| 10 | Valve,Check | A356-000031 | A356-000031-Online | |||
| 11 | Clip | V490-001230 | V490-001230-Online | |||
| 12 | Strainer, Fuel | A369-000470 | A369-000470-Online | |||
| 13 | Clip | V490-001240 | V490-001240-Online | |||
| 14 | Stand | A175-000040 | A175-000040-Online | |||
| 15 | Bolt, Torx 5 | V805-000160 | V805-000160-Online | 1 TB-5*20 10.9 | ||
| 16 | Bolt, Torx 5 | V805-000170 | V805-000170-Online | 2 TB-5*25 10.9 | ||
| 17 | Washer 5 | 900602-00005 | 900602-00005-Online | 2 5.3*10*1 | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed | FUEL TANK |
Page 18 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Muffler Asy | P100-004021 | P100-004021-Online | |||
| 2 | + | Guide, Exhaust | A313-002060 | A313-002060-Online | ||
| 3 | + | Screen, Muffler | 145862-40630 | 145862-40630-Online | ||
| 4 | + | Gasket,Exhaust | V104-002300 | V104-002300-Online | ||
| 5 | + | Bolt, Torx 4 | V804-000030 | V804-000030-Online | 5 TB-4*8 10.9 | |
| 6 | Bolt, Torx 5 | V805-000250 | V805-000250-Online | 2 TB-5*16 12.9 | ||
| 7 | Gasket,Exhaust | V104-002310 | V104-002310-Online | |||
| 8 | Cover,Muffler | A320-001200 | A320-001200-Online | |||
| 9 | Bolt, Torx 5 | V835-000010 | V835-000010-Online | 2 TB-5*12 10.9 | C | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 20 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Starter,Recoil Asy | A051-003220 | A051-003220-Online | |||
| 2 | + | Stater Case | P022-043670 | P022-043670-Online | 1 | 3 | ++ | |
| 3 | Guide, Rope | P022-045770 | P022-045770-Online | 1 | 4 | ++ | ||
| 4 | Nut | 900565-00005 | 900565-00005-Online | 2 5 | ||
| 5 | + | Drum, Starter | P022-033320 | P022-033320-Online | ||
| 6 | + | Plate, Cam | P022-033310 | P022-033310-Online | ||
| 7 | + | Spring,Damper | P022-008270 | P022-008270-Online | ||
| 8 | + | Spring, Rewind | 177220-40630 | 177220-40630-Online | ||
| 9 | + | Screw | 177236-61830 | 177236-61830-Online | ||
| 10 | + | Rope, Starter | P022-022110 | P022-022110-Online | ||
| 11 | + | Grip, Starter | 177228-27030 | 177228-27030-Online | ||
| 12 | + | Stopper, Rope | P022-037670 | P022-037670-Online | ||
| 13 | Pulley,Asm Starter | A052-000180 | A052-000180-Online | |||
| 14 | + | Pawl, Starter | P022-006850 | P022-006850-Online | ||
| 15 | + | Spring, Pawl | 177234-12220 | 177234-12220-Online | ||
| 16 | + | E-Ring | P022-002100 | P022-002100-Online | 2 4 | |
| 17 | Cover,Dust | A127-000470 | A127-000470-Online | |||
| 18 | Bolt, Torx 5 | V805-000140 | V805-000140-Online | 3 TB-5*12 10.9 | ||
| 19 | Label,Echo | X547-003420 | X547-003420-Online | 1 ECHO+PAS-2620ES | D | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 22 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Coupling, Main Pipe | C510-000330 | C510-000330-Online | 1 FINAL COUPLING | ||
| 2 | Latch Asy | P100-005150 | P100-005150-Online | |||
| 3 | + | Knob,Fastener | V299-000660 | V299-000660-Online | 1 M6X1 WING ASS''Y | |
| 4 | + | Bolt | 91085-06040 | 91085-06040-Online | 1 6*40 | |
| 5 | + | Washer,Circular 6 | V304-000040 | V304-000040-Online | 1 6.6*20*1.6 | |
| 6 | + | Nut 6 | 900514-00006 | 900514-00006-Online | 1 6 | |
| 7 | + | Bolt, Torx 6 | V806-000020 | V806-000020-Online | 1 TB-6*25 10.9 | |
| 8 | + | Bolt, Torx 5 | V805-000130 | V805-000130-Online | 1 TB-5*10 10.9 | |
| 9 | + | Washer,Circular 18 | V312-000010 | V312-000010-Online | 1 18*21.85*.203 | |
| 10 | Main Pipe Asy | P100-005860 | P100-005860-Online | |||
| 11 | + | Label,Caution | X505-006800 | X505-006800-Online | 1 ISO 3-SYMBOL | |
| 12 | Shaft, Flexible | C506-000550 | C506-000550-Online | 1 L:31.58" / 802MM | ||
| 13 | Hook Asy | P021-051240 | P021-051240-Online | |||
| 14 | + | Ring, Harness | C646-000060 | C646-000060-Online | 1 3-PIECE ASM | |
| 15 | + | Bolt, Torx 5 | V805-000140 | V805-000140-Online | 1 TB-5*12 10.9 | |
| 16 | Label, Caution | 890152-04930 | 890152-04930-Online | |||
| 17 | Collar,24 | V363-000320 | V363-000320-Online | |||
| 18 | Bolt, Torx 4 | V804-000020 | V804-000020-Online | 2 TT-4*20 DG 10.9 | ||
| 19 | Handle Asy | P021-047681 | P021-047681-Online | |||
| 20 | + | Handle,Front | C400-001021 | C400-001021-Online | ||
| 21 | + | Piece,Handle | C401-000280 | C401-000280-Online | ||
| 22 | + | Fixture, Cushion | C610-000050 | C610-000050-Online | ||
| 23 | + | Cushion | V420-003700 | V420-003700-Online | ||
| 24 | + | Bolt, Torx 5 | V805-000280 | V805-000280-Online | 1 TB-5*45 10.9 | |
| 25 | + | Washer 5 | 900603-00005 | 900603-00005-Online | 1 5.5*12*0.8 | |
| 26 | + | Nut | V263-000130 | V263-000130-Online | 1 | C | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 24 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Throttle Asy | P100-005850 | P100-005850-Online | |||
| 2 | + | Trigger,Throttle | C450-000110 | C450-000110-Online | ||
| 3 | + | Spring, Thr. Return | 178043-42230 | 178043-42230-Online | ||
| 4 | + | Lockout, T. Control | 178090-52632 | 178090-52632-Online | ||
| 5 | + | Latch,Throttle | C461-000000 | C461-000000-Online | ||
| 6 | + | Spring, Thr. Lock | 178013-52630 | 178013-52630-Online | ||
| 7 | + | Bolt, Torx 5 | V805-000060 | V805-000060-Online | 1 TB-5*35 10.9 | |
| 8 | + | Bolt, Torx 5 | V805-000170 | V805-000170-Online | 3 TB-5*25 10.9 | |
| 9 | + | Nut 5 | 900500-00005 | 900500-00005-Online | 4 5 | |
| 10 | + | Latch,Throttle | C461-000010 | C461-000010-Online | ||
| 11 | + | Spring,Torsion | V452-000120 | V452-000120-Online | ||
| 12 | + | Switch, On Off | A440-002780 | A440-002780-Online | ||
| 13 | Tube | V475-008930 | V475-008930-Online | |||
| 14 | Cable,Bowden | V430-004940 | V430-004940-Online | |||
| 15 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | 1 3N6 | ||
| 16 | Nut, Flange | 900518-00006 | 900518-00006-Online | 1 6 | ||
| 17 | Cushion | V420-000960 | V420-000960-Online | |||
| 18 | Handle Fixture Asy | P021-050990 | P021-050990-Online | |||
| 19 | + | Bolt, Torx 5 | V805-000170 | V805-000170-Online | 4 TB-5*25 10.9 | C | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 26 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Wrench, Spcket | 895415-66630 | 895415-66630-Online | |||
| 2 | Tool,L Wrench | X605-000170 | X605-000170-Online | |||
| 3 | Harness, Shoulder | C062-000700 | C062-000700-Online | 1 SINGLE SLING | ||
| 4 | Barrier | C405-000420 | C405-000420-Online | 1 | C | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 27 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | Spacer, Piston Pin | 100014-53630 | 100014-53630-Online | |||
| 2 | Circlip, Piston Pin | 100015-03931 | 100015-03931-Online | |||
| 2 | Key, Woodruff | 100142-12330 | 100142-12330-Online | |||
| 6 | Oilseal | 100212-42031 | 100212-42031-Online | |||
| 4 | Screw | 123114-40630 | 123114-40630-Online | |||
| 12 | Screen, Inlet | 123126-10631 | 123126-10631-Online | |||
| 12 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | |||
| 12 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | |||
| 12 | Gasket,M. Diaphragm | 123140-27230 | 123140-27230-Online | |||
| 12 | Cover, M. Diaphragm | 123142-03930 | 123142-03930-Online | |||
| 12 | Clip | 123173-07930 | 123173-07930-Online | |||
| 12 | Pump, Primer | 123181-09560 | 123181-09560-Online | |||
| 12 | Pipe 3* 6* 85 | 132010-06531 | 132010-06531-Online | |||
| 14 | Pipe | 132012-56030 | 132012-56030-Online | |||
| 14 | Grommet, Fuel | 132115-55931 | 132115-55931-Online | |||
| 14 | Screen, Muffler | 145862-40630 | 145862-40630-Online | |||
| 16 | Bushing | 156110-04920 | 156110-04920-Online | |||
| 6 | Coil, Spark Plug | 159011-03432 | 159011-03432-Online | |||
| 6 | Shaft, Clutch | 175046-56030 | 175046-56030-Online | |||
| 8 | Washer (I) | 175048-05530 | 175048-05530-Online | |||
| 8 | Washer | 175049-56030 | 175049-56030-Online | |||
| 8 | Spring, Rewind | 177220-40630 | 177220-40630-Online | |||
| 18 | Grip, Starter | 177228-27030 | 177228-27030-Online | |||
| 18 | Spring, Pawl | 177234-12220 | 177234-12220-Online | |||
| 18 | Screw | 177236-61830 | 177236-61830-Online | |||
| 18 | Spring, Thr. Lock | 178013-52630 | 178013-52630-Online | |||
| 22 | Spring, Thr. Return | 178043-42230 | 178043-42230-Online | |||
| 22 | Lockout, T. Control | 178090-52632 | 178090-52632-Online | |||
| 22 | Label, Caution | 890152-04930 | 890152-04930-Online | |||
| 20 | Wrench, Spcket | 895415-66630 | 895415-66630-Online | |||
| 24 | Pin F 4*8 | 900330-40080 | 900330-40080-Online | |||
| 8 | Nut 5 | 900500-00005 | 900500-00005-Online | |||
| 22 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | |||
| 22 | Nut 6 | 900514-00006 | 900514-00006-Online | |||
| 20 | Nut, Flange 8 | 900515-00008 | 900515-00008-Online | |||
| 6 | Nut, Flange | 900518-00006 | 900518-00006-Online | |||
| 18 | Washer 5 | 900602-00005 | 900602-00005-Online | |||
| 14 | Washer 5 | 900603-00005 | 900603-00005-Online | |||
| 20 | Circlip 12 | 900701-00012 | 900701-00012-Online | |||
| 8 | Circlip 28 | 900702-00028 | 900702-00028-Online | |||
| 8 | Circlip 42 | 900702-00042 | 900702-00042-Online | |||
| 8 | O-Ring 22 | 900720-00022 | 900720-00022-Online | |||
| 6 | Bearing, Ball | 900800-36001 | 900800-36001-Online | 4 | Part No | Part descrition | Page | ||
| 8 | Bearing, Ball | 900810-36000 | 900810-36000-Online | |||
| 4 | Bolt | 91085-06040 | 91085-06040-Online | |||
| 20 | Crankshaft,Asy | A011-001460 | A011-001460-Online | |||
| 2 | Carburetor, | A021-004600 | A021-004600-Online | DIAPHRAGM | ||
| 10 | Carburetor, | A021-004601 | A021-004601-Online | DIAPHRAGM | ||
| 12 | Starter,Recoil Asy | A051-003220 | A051-003220-Online | |||
| 18 | Pulley,Asm Starter | A052-000180 | A052-000180-Online | |||
| 18 | Ring,Piston | A101-000010 | A101-000010-Online | |||
| 2 | Cover,Dust | A127-000470 | A127-000470-Online | |||
| 18 | Cylinder | A130-002330 | A130-002330-Online | |||
| 2 | Cover,Cylinder | A160-003280 | A160-003280-Online | |||
| 2 | Cover,Fan | A172-003142 | A172-003142-Online | |||
| 8 | Stand | A175-000040 | A175-000040-Online | |||
| 14 | Bellows, Intake | A202-000300 | A202-000300-Online | |||
| 10 | Holder, Bellows | A206-000040 | A206-000040-Online | |||
| 10 | Plate, Insulator | A209-001000 | A209-001000-Online | |||
| 10 | Plate, Insulator | A209-001010 | A209-001010-Online | |||
| 10 | Element, Air Filter | A226-002030 | A226-002030-Online | |||
| 10 | Element, Air Filter | A226-002040 | A226-002040-Online | |||
| 10 | Plate, Element | A227-000050 | A227-000050-Online | |||
| 10 | Plate,Prevent | A244-000370 | A244-000370-Online | |||
| 10 | Guide, Exhaust | A313-002060 | A313-002060-Online | |||
| 16 | Cover,Muffler | A320-001200 | A320-001200-Online | |||
| 16 | Tank, Fuel | A350-002350 | A350-002350-Online | |||
| 14 | Valve,Check | A356-000031 | A356-000031-Online | |||
| 14 | Connector,Cap | A365-000060 | A365-000060-Online | |||
| 14 | Strainer, Fuel | A369-000470 | A369-000470-Online | |||
| 14 | Rotor, Magneto | A409-001320 | A409-001320-Online | |||
| 6 | Coil, Ignition | A411-001790 | A411-001790-Online | |||
| 6 | Boot | A413-000080 | A413-000080-Online | |||
| 8 | Sparkplug | A425-000060 | A425-000060-Online | |||
| 6 | Plug Cap | A427-000090 | A427-000090-Online | |||
| 6 | Plug Cap Cover | A429-000110 | A429-000110-Online | |||
| 6 | Switch, On Off | A440-002780 | A440-002780-Online | |||
| 22 | Drum,Clutch | A556-001760 | A556-001760-Online | |||
| 8 | Fixture, Main Pipe | A575-000640 | A575-000640-Online | |||
| 8 | Harness, Shoulder | C062-000700 | C062-000700-Online | |||
| 24 | Connector | C152-001030 | C152-001030-Online | |||
| 6 | Handle,Front | C400-001021 | C400-001021-Online | |||
| 20 | Piece,Handle | C401-000280 | C401-000280-Online | |||
| 20 | Barrier | C405-000420 | C405-000420-Online | |||
| 24 | Trigger,Throttle | C450-000110 | C450-000110-Online | |||
| 22 | Latch,Throttle | C461-000000 | C461-000000-Online | 22 | Part No | Part descrition | Page | ||
| 22 | Shaft, Flexible | C506-000550 | C506-000550-Online | |||
| 20 | Coupling, Main Pipe | C510-000330 | C510-000330-Online | |||
| 20 | Fixture, Cushion | C610-000050 | C610-000050-Online | |||
| 20 | Ring, Harness | C646-000060 | C646-000060-Online | |||
| 20 | Piece,Cover | J473-000120 | J473-000120-Online | |||
| 6 | Lever, Metering | P003-001630 | P003-001630-Online | |||
| 12 | Diaphragm, Metering | P003-001670 | P003-001670-Online | |||
| 12 | Washer | P003-001710 | P003-001710-Online | |||
| 12 | O-Ring | P003-004480 | P003-004480-Online | |||
| 12 | Gasket, Fuel Pump | P003-004530 | P003-004530-Online | |||
| 12 | Diaphragm, Fuel | P003-004540 | P003-004540-Online | PUMP | ||
| 12 | Screw | P003-004560 | P003-004560-Online | |||
| 12 | Screw | P003-004570 | P003-004570-Online | |||
| 12 | Swivel | P003-005850 | P003-005850-Online | |||
| 12 | Screw | P003-005860 | P003-005860-Online | |||
| 12 | Spring | P003-005870 | P003-005870-Online | |||
| 12 | Needle | P003-005880 | P003-005880-Online | |||
| 12 | Clip | P003-005890 | P003-005890-Online | |||
| 12 | Plate | P003-005900 | P003-005900-Online | |||
| 12 | Body Assembly, Pump | P003-006120 | P003-006120-Online | |||
| 12 | Valve, Throttle | P003-006140 | P003-006140-Online | |||
| 12 | Cover, Fuel Pump | P003-006500 | P003-006500-Online | |||
| 12 | Cap,Fuel Asy | P021-012211 | P021-012211-Online | |||
| 14 | Handle Asy | P021-047681 | P021-047681-Online | |||
| 20 | Piston Kit | P021-050840 | P021-050840-Online | |||
| 2 | Crankcase Kit | P021-050850 | P021-050850-Online | |||
| 4 | Cleaner Case Asy | P021-050880 | P021-050880-Online | |||
| 10 | Handle Fixture Asy | P021-050990 | P021-050990-Online | |||
| 22 | Hook Asy | P021-051240 | P021-051240-Online | |||
| 20 | E-Ring | P022-002100 | P022-002100-Online | |||
| 18 | Pawl, Starter | P022-006850 | P022-006850-Online | |||
| 18 | Spring,Damper | P022-008270 | P022-008270-Online | |||
| 18 | Rope, Starter | P022-022110 | P022-022110-Online | |||
| 18 | Plate, Cam | P022-033310 | P022-033310-Online | |||
| 18 | Drum, Starter | P022-033320 | P022-033320-Online | |||
| 18 | Stopper, Rope | P022-037670 | P022-037670-Online | |||
| 18 | Stater Case | P022-043670 | P022-043670-Online | |||
| 18 | Guide, Rope | P022-045770 | P022-045770-Online | |||
| 18 | Arm,Clutch Set | P100-002270 | P100-002270-Online | |||
| 8 | Cleaner Cover Asy | P100-003601 | P100-003601-Online | |||
| 10 | Muffler Asy | P100-004021 | P100-004021-Online | |||
| 16 | Latch Asy | P100-005150 | P100-005150-Online | |||
| 20 | Fan Cover Asy | P100-005340 | P100-005340-Online | 8 | Copyright © 2020 YAMABIKO CORPORATION All Right Reserved | Index-1 |
Page 28 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 22 | Main Pipe Asy | P100-005860 | P100-005860-Online | |||
| 20 | Gasket,Cyl | V100-000840 | V100-000840-Online | |||
| 2 | Gasket,Crankcase | V102-000300 | V102-000300-Online | |||
| 4 | Gasket,Intake | V103-001890 | V103-001890-Online | |||
| 10 | Gasket,Intake | V103-001900 | V103-001900-Online | |||
| 10 | Gasket,Exhaust | V104-002300 | V104-002300-Online | |||
| 16 | Gasket,Exhaust | V104-002310 | V104-002310-Online | |||
| 16 | Gasket,Fuel Cap | V107-000190 | V107-000190-Online | |||
| 14 | Plate,Cup | V151-000170 | V151-000170-Online | |||
| 6 | Joint,Pipe | V186-000500 | V186-000500-Online | |||
| 14 | Screw,5 | V253-001020 | V253-001020-Online | |||
| 20 | Knob,Fastener | V299-000640 | V299-000640-Online | |||
| 10 | Knob,Fastener | V299-000660 | V299-000660-Online | |||
| 20 | Washer,Circular 6 | V304-000040 | V304-000040-Online | |||
| 20 | Washer,Circular 18 | V312-000010 | V312-000010-Online | |||
| 20 | Washer,Circular 5 | V323-000070 | V323-000070-Online | |||
| 6 | Washer | V340-000210 | V340-000210-Online | |||
| 10 | Collar,24 | V363-000320 | V363-000320-Online | |||
| 20 | Cushion | V420-000960 | V420-000960-Online | |||
| 22 | Cushion | V420-003700 | V420-003700-Online | |||
| 20 | Cable,Bowden | V430-004940 | V430-004940-Online | |||
| 22 | Spring,Tension | V451-001390 | V451-001390-Online | |||
| 8 | Spring,Torsion | V452-000120 | V452-000120-Online | |||
| 22 | Pipe | V471-001231 | V471-001231-Online | |||
| 14 | Tube | V475-007540 | V475-007540-Online | |||
| 6 | Tube | V475-008930 | V475-008930-Online | |||
| 22 | Lead | V485-002880 | V485-002880-Online | |||
| 6 | Clip | V490-001230 | V490-001230-Online | |||
| 14 | Clip | V490-001240 | V490-001240-Online | |||
| 14 | Seal,Oil 10 | V503-000040 | V503-000040-Online | |||
| 4 | Bearing,Needle 9 | V554-000020 | V554-000020-Online | |||
| 2 | Bolt, Torx 4 | V804-000020 | V804-000020-Online | |||
| 20 | Bolt, Torx 4 | V804-000030 | V804-000030-Online | |||
| 16 | Bolt, Torx 5 | V805-000060 | V805-000060-Online | |||
| 22 | Bolt, Torx 5 | V805-000130 | V805-000130-Online | |||
| 20 | Bolt, Torx 5 | V805-000140 | V805-000140-Online | |||
| 18 | Bolt, Torx 5 | V805-000140 | V805-000140-Online | |||
| 20 | Bolt, Torx 5 | V805-000150 | V805-000150-Online | |||
| 8 | Bolt, Torx 5 | V805-000150 | V805-000150-Online | |||
| 10 | Bolt, Torx 5 | V805-000160 | V805-000160-Online | |||
| 8 | Bolt, Torx 5 | V805-000160 | V805-000160-Online | |||
| 14 | Bolt, Torx 5 | V805-000170 | V805-000170-Online | |||
| 8 | Bolt, Torx 5 | V805-000170 | V805-000170-Online | 14 | Part No | Part descrition | Page | ||
| 22 | Bolt, Torx 5 | V805-000210 | V805-000210-Online | |||
| 2 | Bolt, Torx 5 | V805-000210 | V805-000210-Online | |||
| 6 | Bolt, Torx 5 | V805-000220 | V805-000220-Online | |||
| 4 | Bolt, Torx 5 | V805-000250 | V805-000250-Online | |||
| 16 | Bolt, Torx 5 | V805-000280 | V805-000280-Online | |||
| 20 | Bolt, Torx 5 | V805-000340 | V805-000340-Online | |||
| 10 | Bolt, Torx 6 | V806-000020 | V806-000020-Online | |||
| 20 | Bolt, Torx 5 | V835-000010 | V835-000010-Online | |||
| 2 | Bolt, Torx 5 | V835-000010 | V835-000010-Online | |||
| 16 | Bolt, Torx 5 | V855-000000 | V855-000000-Online | |||
| 10 | Label,Model | X503-014900 | X503-014900-Online | |||
| 2 | Label,Caution | X505-006800 | X505-006800-Online | |||
| 20 | Label,Choke | X506-000170 | X506-000170-Online | |||
| 10 | Label,Echo | X547-003420 | X547-003420-Online | |||
| 18 | Tool,L Wrench | X605-000170 | X605-000170-Online | 24 | Copyright © 2020 YAMABIKO CORPORATION All Right Reserved | Index-2 |
Source PDF: 20210804-427_PAS-2620ES_38_38000001_EN.pdf. Generated 2026-06-25 14:40.
