Echo DHC-310 IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: DHC-310-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.

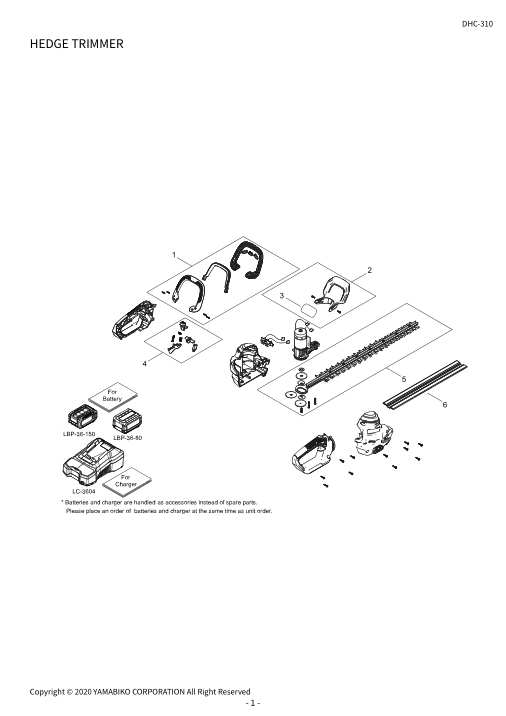

Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Front Handle Asy | P022-061080 | P022-061080-Online | |||
| 2 | Guard, Hand Kit | P022-061720 | P022-061720-Online | |||
| 3 | + | Label,Caution | P022-061760 | P022-061760-Online | ||
| 4 | Lever, Switch Kit | P022-061730 | P022-061730-Online | |||
| 5 | Cutter,Asm | P022-061740 | P022-061740-Online | |||
| 6 | Scabbard,Blade | P022-061750 | P022-061750-Online | 1 | D | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | Guard, Hand Kit | P022-061720 | P022-061720-Online | |||
| 2 | Lever, Switch Kit | P022-061730 | P022-061730-Online | |||
| 2 | Cutter,Asm | P022-061740 | P022-061740-Online | |||
| 2 | Scabbard,Blade | P022-061750 | P022-061750-Online | |||
| 2 | Label,Caution | P022-061760 | P022-061760-Online | 2 | Copyright © 2020 YAMABIKO CORPORATION All Right Reserved | Index-1 |
Source PDF: 20220721-792-DHC-310_35_00000001_EN.pdf. Generated 2026-06-25 14:40.
