Echo SRM-22GES IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: SRM-22GES-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.

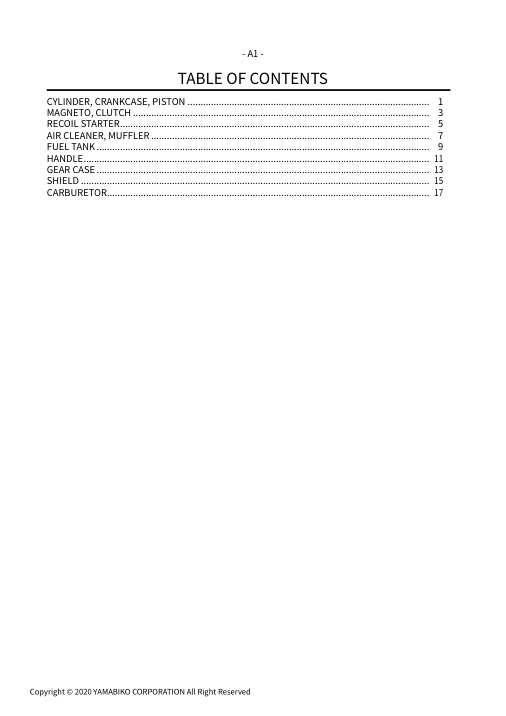

Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.
Page 18
Tap or click the page image to enlarge it.
Page 19
Tap or click the page image to enlarge it.
Page 20
Tap or click the page image to enlarge it.
Page 21
Tap or click the page image to enlarge it.
Page 22
Tap or click the page image to enlarge it.
Page 23
Tap or click the page image to enlarge it.
Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Cylinder | A130-000021 | A130-000021-Online | |||
| 2 | Bolt, H.S. 5*22 | 900162-05022 | 900162-05022-Online | 2 5*22 W,SW | ||
| 3 | Gasket, Cyl. Base | 101010-44332 | 101010-44332-Online | |||
| 4 | Piston Kit | P021-009950 | P021-009950-Online | |||
| 5 | + | Ring,Piston | A101-000000 | A101-000000-Online | ||
| 6 | + | Pin, Piston | 100013-11520 | 100013-11520-Online | ||
| 7 | + | Circlip, Piston Pin | 100015-04630 | 100015-04630-Online | ||
| 8 | + | Washer,Circular 8 | V306-000150 | V306-000150-Online | 2 8.2*13*0.8 | |
| 9 | Crankcase Kit | 100204-52132 | 100204-52132-Online | |||
| 10 | + | Oilseal | 100212-42031 | 100212-42031-Online | 2 ISCD 12*22*4.5 | |
| 11 | + | Bolt, H.S. 5*28 | 900162-05028 | 900162-05028-Online | 3 5*28 W,SW | |
| 12 | + | Gasket, Crankcase | 100242-42030 | 100242-42030-Online | ||
| 13 | + | Bearing Ball | 94035-36201 | 94035-36201-Online | 2 6201X3JR2C3 | |
| 14 | + | Pin, Dowel | 100215-03930 | 100215-03930-Online | ||
| 15 | Crankshaft,Asm | A011-000002 | A011-000002-Online | |||
| 16 | + | Bearing,Needle 8 | V553-000010 | V553-000010-Online | 1 HK0810 | |
| 17 | Screw 5*20 | 900253-05020 | 900253-05020-Online | 1 5*20 | ||
| 18 | Guard,Top | A162-000060 | A162-000060-Online | |||
| 19 | Cover,Cylinder | A160-000630 | A160-000630-Online | |||
| 19 | Cover,Cylinder | A160-000620 | A160-000620-Online | |||
| 20 | Screw 4*16 | 900238-04016 | 900238-04016-Online | 2 4*16 | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed | CYLINDER, CRANKCASE, PISTON |
Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Plug, Spark (Bpmr-7A | 159010-10230 | 159010-10230-Online | 1 BPMR-7A | ||
| 2 | Coil, Spark Plug | 159011-03432 | 159011-03432-Online | |||
| 3 | Cap, Spark Plug | 159012-03433 | 159012-03433-Online | |||
| 4 | Grommet | 156112-40630 | 156112-40630-Online | |||
| 5 | Coil, Ignition | 156601-52130 | 156601-52130-Online | |||
| 6 | Bolt, H.S. 4*22 | 900162-04022 | 900162-04022-Online | 2 4*22 W,SW | ||
| 7 | Lead, Ground | 162010-52830 | 162010-52830-Online | |||
| 8 | Clip | 660316-55630 | 660316-55630-Online | |||
| 9 | Washer,Circular 30 | V315-000030 | V315-000030-Online | 1 33.5*41.0*T0.5 | ||
| 10 | Holder, Main Pipe | 610922-55931 | 610922-55931-Online | |||
| 11 | Bolt, H.S. 5*28 | 900162-05028 | 900162-05028-Online | 1 5*28 W,SW | ||
| 12 | Label,Echo | X547-000490 | X547-000490-Online | 1 SRM-22GES | ||
| 12 | Label,Echo | X547-001660 | X547-001660-Online | 1 SRM-22GES | ||
| 13 | Cover,Fan | A172-000340 | A172-000340-Online | |||
| 13 | Cover,Fan | A172-000320 | A172-000320-Online | |||
| 14 | Screw | 91363-04016 | 91363-04016-Online | 3 SMB-4*16/W,SW | ||
| 15 | Ring, Felt | 175313-20430 | 175313-20430-Online | |||
| 16 | Drum, Clutch | 175005-44331 | 175005-44331-Online | |||
| 17 | Clutch Assy | 175000-56830 | 175000-56830-Online | |||
| 18 | Rotor,Magneto | A409-000000 | A409-000000-Online | 1 | C | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Pulley,Asm Starter | A052-000180 | A052-000180-Online | |||
| 2 | + | E-Ring | P022-002100 | P022-002100-Online | 2 4 | |
| 3 | + | Spring, Return | P022-006510 | P022-006510-Online | ||
| 4 | + | Pawl, Starter | P022-006850 | P022-006850-Online | ||
| 5 | Starter,Recoil | A051-000740 | A051-000740-Online | |||
| 5V | Starter,Recoil Asy | A051-001410 | A051-001410-Online | |||
| 5W | Starter,Recoil Asy | A051-001411 | A051-001411-Online | |||
| 6 | + | Screw | 177236-61830 | 177236-61830-Online | ||
| 7 | + | Plate, Cam(Ti12-511) | P022-008280 | P022-008280-Online | ||
| 7V | + | Plate, Cam | P022-034030 | P022-034030-Online | ||
| 8 | + | Spring,Damper | P022-008270 | P022-008270-Online | ||
| 9 | + | Rope | P022-008260 | P022-008260-Online | 1 3M/M | |
| 9V | + | Rope, Starter | P022-025730 | P022-025730-Online | ||
| 10 | + | Drum | P022-006830 | P022-006830-Online | ||
| 10V | + | Drum, Starter | P022-034040 | P022-034040-Online | ||
| 11 | + | Spring, Rewind | 177220-42030 | 177220-42030-Online | ||
| 11V | + | Spring, Spiral | P022-019680 | P022-019680-Online | ||
| 12 | + | Stopper, Rope | P022-037670 | P022-037670-Online | ||
| 13 | + | Grip, Starter | 177228-27030 | 177228-27030-Online | ||
| 13V | + | Grip, Starter | P022-023170 | P022-023170-Online | ||
| 14 | + | Guide, Rope | 177227-42030 | 177227-42030-Online | ||
| 15 | Screw 4*16 | 900238-04016 | 900238-04016-Online | 2 4*16 | ||
| 16 | Label, Echo | 890118-49130 | 890118-49130-Online | 1 | D | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Gasket,Intake | V103-000240 | V103-000240-Online | |||
| 2 | Nut 5 | 900500-00005 | 900500-00005-Online | 2 5 | ||
| 3 | Insulator | 130017-44330 | 130017-44330-Online | |||
| 4 | Screw 5*20 | 900238-05020 | 900238-05020-Online | 2 5*20 | ||
| 5 | Gasket,Intake | V103-000250 | V103-000250-Online | |||
| 6 | Carburetor,Diaphragm | A021-000550 | A021-000550-Online | 1 WYL-170 | ||
| 7 | O-Ring 15 | 900720-00015 | 900720-00015-Online | 1 P-15 | ||
| 8 | Cleaner,Asm Air | A027-000010 | A027-000010-Online | |||
| 9 | + | Sleeve | 130327-44330 | 130327-44330-Online | ||
| 10 | + | Filter, Air | 130310-44330 | 130310-44330-Online | ||
| 11 | Screw 5*64 | 900242-05064 | 900242-05064-Online | 2 5*64 | ||
| 12 | Bolt, H.S. 5*55 | 900105-05055 | 900105-05055-Online | 2 5*55 | ||
| 13 | Washer 5 | 900600-00005 | 900600-00005-Online | 2 5 | ||
| 14 | Muffler,Exhaust | A300-000350 | A300-000350-Online | |||
| 15 | Gasket,Exhaust | V104-000160 | V104-000160-Online | |||
| 16 | Cover,Muffler | A320-000251 | A320-000251-Online | 1 | C | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 13 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Valve, Check | 131300-56430 | 131300-56430-Online | |||
| 2 | Clip | 130111-00530 | 130111-00530-Online | 1 5.5 | ||
| 3 | Pipe | V471-001200 | V471-001200-Online | 1 3*5*70 NBR | ||
| 4 | Pipe | V471-001190 | V471-001190-Online | 1 3*5*180 NBR | ||
| 5 | Pipe 3* 6* 70 | 132717-50430 | 132717-50430-Online | 1 3*6*70 YL | ||
| 6 | Grommet, Fuel | 132115-46730 | 132115-46730-Online | |||
| 7 | Clip | 132013-09820 | 132013-09820-Online | 1 6MM | ||
| 8 | Strainer, Fuel | 131205-07320 | 131205-07320-Online | |||
| 9 | Cap Assy, Fuel Tank | 131004-55830 | 131004-55830-Online | |||
| 10 | + | Gasket, Fuel Cap | 131016-55830 | 131016-55830-Online | ||
| 11 | Tank,Fuel | A350-000031 | A350-000031-Online | |||
| 12 | Screw 5*16 | 900243-05016 | 900243-05016-Online | 2 5*16 | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed | FUEL TANK |
Page 15 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Label,Caution | 890617-43130 | 890617-43130-Online | |||
| 2 | Handle Assy, Loop | 351201-40830 | 351201-40830-Online | |||
| 3 | + | Screw 5*35 | 900242-05035 | 900242-05035-Online | 4 5*35 | |
| 4 | + | Nut 5 | 900500-00005 | 900500-00005-Online | 4 5 | |
| 5 | Shaft, Flexible | 610013-44730 | 610013-44730-Online | |||
| 6 | Tube | 178127-24430 | 178127-24430-Online | 1 10*11*180L | ||
| 7 | Cable,Bowden | V430-001520 | V430-001520-Online | |||
| 8 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | 2 3N6 | ||
| 9 | Band Assy | 301200-29430 | 301200-29430-Online | |||
| 10 | + | Screw 5*14 | 900242-05014 | 900242-05014-Online | 1 5*14 | |
| 11 | Bracket Set,Throttle | 178003-52130 | 178003-52130-Online | |||
| 12 | + | Screw 5*25 | 900242-05025 | 900242-05025-Online | 1 5*25 | |
| 13 | Lockout, T. Control | 178090-52632 | 178090-52632-Online | |||
| 14 | Spring, Thr. Lock | 178013-52630 | 178013-52630-Online | |||
| 15 | Switch, On Off | A440-000651 | A440-000651-Online | |||
| 16 | Lockout, Throttle | 178012-52630 | 178012-52630-Online | |||
| 17 | Control, Throttle | 178010-52130 | 178010-52130-Online | |||
| 18 | Spring, Thr. Return | 178043-42230 | 178043-42230-Online | |||
| 19 | Grip, Handle | C403-000140 | C403-000140-Online | 1 L129.5*28 | ||
| 20 | Band | 610272-52130 | 610272-52130-Online | |||
| 21 | + | Screw 5*28 | 900242-05028 | 900242-05028-Online | 1 5*28 | |
| 22 | Housing Assy, D.Shft | 610206-44730 | 610206-44730-Online | |||
| 23 | Label, Caution | 890152-04930 | 890152-04930-Online | 1 | D | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 17 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Case Asy, Gear | P021-009541 | P021-009541-Online | |||
| 2 | + | Retaining Ring | 900706-00012 | 900706-00012-Online | 1 WR-12 | |
| 3 | + | Retaining Ring | 900702-00022 | 900702-00022-Online | 1 CR-22 | |
| 4 | + | Bearing, Ball | 900858-06900 | 900858-06900-Online | 1 6900Z | |
| 5 | + | Bearing, Ball | 900855-06900 | 900855-06900-Online | 1 6900 | |
| 6 | + | Gear Set | 610300-44830 | 610300-44830-Online | ||
| 7 | + | Washer | 900600-00005 | 900600-00005-Online | 2 5 | |
| 8 | + | Bolt Hsh | 91119-05035 | 91119-05035-Online | 2 5*35 | |
| 9 | + | Bolt 8* 8 | 610434-50031 | 610434-50031-Online | 1 M8*8 | |
| 10 | + | Screw | 900242-05010 | 900242-05010-Online | 1 5*10 | |
| 11 | + | Housing, Gear | 610460-27431 | 610460-27431-Online | ||
| 12 | + | Washer, Shim | 610239-04130 | 610239-04130-Online | ||
| 13 | + | Retaining Ring | 900706-00010 | 900706-00010-Online | 1 WR-10 | |
| 14 | + | Bearing, Ball | 900800-00609 | 900800-00609-Online | 1 609 | |
| 15 | + | Shaft, P.T.O. | 610360-08931 | 610360-08931-Online | ||
| 16 | + | Bearing, Ball | 900810-06201 | 900810-06201-Online | 1 6201 | |
| 17 | + | Retaining Ring | 900702-00032 | 900702-00032-Online | 1 CR-32 | |
| 18 | + | Spacer | 610315-07130 | 610315-07130-Online | ||
| 19 | + | Oilseal | 610413-07130 | 610413-07130-Online | ||
| 20 | + | Plate, Adapter (U) | 610313-07132 | 610313-07132-Online | ||
| 21 | Cutter,Asm Line | X047-000370 | X047-000370-Online | 1 B4-L | ||
| 22 | + | Top Plate | P022-000670 | P022-000670-Online | 1 T4 | |
| 23 | + | Housing | P022-010710 | P022-010710-Online | ||
| 24 | + | Nut | P022-000680 | P022-000680-Online | 1 M10*1.25 T4 | |
| 25 | + | Spring | P022-000720 | P022-000720-Online | 1 T4 | 26 | + | REFER | |
| 27 | + | Eyelet | P022-000710 | P022-000710-Online | 2 T4 | |
| 28 | + | Bobbin | P022-000700 | P022-000700-Online | 1 T4 | |
| 29 | + | Cover | P022-010720 | P022-010720-Online | 1 | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed | GEAR CASE |
Page 19 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Shield Kit | P021-009531 | P021-009531-Online | |||
| 2 | + | Shield,Blade | C550-000031 | C550-000031-Online | ||
| 3 | + | Screw 5*12 | 900238-05012 | 900238-05012-Online | 2 5*12 | |
| 4 | + | Knife, Cord | C554-000021 | C554-000021-Online | ||
| 5 | + | Nut 5 | 900500-00005 | 900500-00005-Online | 2 5 | |
| 6 | + | Plate,Shield | C552-000110 | C552-000110-Online | ||
| 7 | + | Screw 5*16 | 900238-05016 | 900238-05016-Online | 3 5*16 | |
| 8 | Goggles | P021-002861 | P021-002861-Online | |||
| 9 | Wrench, W/S. Driver | 895410-02830 | 895410-02830-Online | |||
| 10 | Tool,Bar | X606-000080 | X606-000080-Online | 1 5*120 | ||
| 11 | L-Wrench (4Mm) | 895610-00130 | 895610-00130-Online | |||
| 12 | Bag, Tool | 898510-39130 | 898510-39130-Online | |||
| 13 | Tool,Case | X698-000040 | X698-000040-Online | 1 400*500 | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed | SHIELD |
Page 21 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | + | Swivel | 123172-45130 | 123172-45130-Online | ||
| 2 | + | Screw | 123114-44330 | 123114-44330-Online | 2 M3*10 | |
| 3 | + | Valve Asy Throttle | P003-000840 | P003-000840-Online | ||
| 4 | + | Clip | 123173-07930 | 123173-07930-Online | ||
| 5 | + | O-Ring | 123183-40630 | 123183-40630-Online | ||
| 6 | + | Jet #37 | 123184-44330 | 123184-44330-Online | 1 #37 | |
| 7 | + | Gasket, Pump | 123125-40630 | 123125-40630-Online | ||
| 8 | + | Diaphragm, Pump | 123112-40630 | 123112-40630-Online | ||
| 9 | + | Body Assy, Pump | 123179-05560 | 123179-05560-Online | 1 | 10 | ++ | |
| 10 | Screen, Inlet | 123126-10631 | 123126-10631-Online | 1 | B | 11 | ++ | ||
| 11 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | 1 | D | 12 | ++ | ||
| 12 | Spring, Meter. Lever | 123122-05560 | 123122-05560-Online | 1 | D | 13 | ++ | ||
| 13 | Lever, Metering | 123123-03930 | 123123-03930-Online | 1 | D | 14 | ++ | ||
| 14 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | 1 | D | 15 | ++ | ||
| 15 | Screw, M. Lever Pin | 123139-05560 | 123139-05560-Online | |||
| 16 | + | Gasket, M. Diaphragm | 123140-05560 | 123140-05560-Online | ||
| 17 | + | Metering, Diaphragm | P003-000090 | P003-000090-Online | ||
| 18 | + | Body, Air Purge | 123180-05560 | 123180-05560-Online | ||
| 19 | + | Pump, Primer | 123181-40630 | 123181-40630-Online | ||
| 20 | + | Cover, Primer Pump | 123142-05560 | 123142-05560-Online | ||
| 21 | + | Screw, Pump Cover | 123110-05560 | 123110-05560-Online | 4 | D | Class : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 22 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | Circlip, Piston Pin | 100015-04630 | 100015-04630-Online | |||
| 2 | Crankcase Kit | 100204-52132 | 100204-52132-Online | |||
| 2 | Oilseal | 100212-42031 | 100212-42031-Online | |||
| 2 | Pin, Dowel | 100215-03930 | 100215-03930-Online | |||
| 2 | Gasket, Crankcase | 100242-42030 | 100242-42030-Online | |||
| 2 | Gasket, Cyl. Base | 101010-44332 | 101010-44332-Online | |||
| 2 | Screw, Pump Cover | 123110-05560 | 123110-05560-Online | |||
| 18 | Diaphragm, Pump | 123112-40630 | 123112-40630-Online | |||
| 18 | Screw | 123114-44330 | 123114-44330-Online | |||
| 18 | Spring, Meter. Lever | 123122-05560 | 123122-05560-Online | |||
| 18 | Lever, Metering | 123123-03930 | 123123-03930-Online | |||
| 18 | Gasket, Pump | 123125-40630 | 123125-40630-Online | |||
| 18 | Screen, Inlet | 123126-10631 | 123126-10631-Online | |||
| 18 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | |||
| 18 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | |||
| 18 | Screw, M. Lever Pin | 123139-05560 | 123139-05560-Online | |||
| 18 | Gasket, M. Diaphragm | 123140-05560 | 123140-05560-Online | |||
| 18 | Cover, Primer Pump | 123142-05560 | 123142-05560-Online | |||
| 18 | Swivel | 123172-45130 | 123172-45130-Online | |||
| 18 | Clip | 123173-07930 | 123173-07930-Online | |||
| 18 | Body Assy, Pump | 123179-05560 | 123179-05560-Online | |||
| 18 | Body, Air Purge | 123180-05560 | 123180-05560-Online | |||
| 18 | Pump, Primer | 123181-40630 | 123181-40630-Online | |||
| 18 | O-Ring | 123183-40630 | 123183-40630-Online | |||
| 18 | Jet #37 | 123184-44330 | 123184-44330-Online | |||
| 18 | Insulator | 130017-44330 | 130017-44330-Online | |||
| 8 | Clip | 130111-00530 | 130111-00530-Online | |||
| 10 | Filter, Air | 130310-44330 | 130310-44330-Online | |||
| 8 | Sleeve | 130327-44330 | 130327-44330-Online | |||
| 8 | Cap Assy, Fuel Tank | 131004-55830 | 131004-55830-Online | |||
| 10 | Gasket, Fuel Cap | 131016-55830 | 131016-55830-Online | |||
| 10 | Strainer, Fuel | 131205-07320 | 131205-07320-Online | |||
| 10 | Valve, Check | 131300-56430 | 131300-56430-Online | |||
| 10 | Clip | 132013-09820 | 132013-09820-Online | |||
| 10 | Grommet, Fuel | 132115-46730 | 132115-46730-Online | |||
| 10 | Pipe 3* 6* 70 | 132717-50430 | 132717-50430-Online | |||
| 10 | Grommet | 156112-40630 | 156112-40630-Online | |||
| 4 | Coil, Ignition | 156601-52130 | 156601-52130-Online | |||
| 4 | Plug, Spark (Bpmr-7A | 159010-10230 | 159010-10230-Online | |||
| 4 | Coil, Spark Plug | 159011-03432 | 159011-03432-Online | |||
| 4 | Cap, Spark Plug | 159012-03433 | 159012-03433-Online | |||
| 4 | Lead, Ground | 162010-52830 | 162010-52830-Online | |||
| 4 | Clutch Assy | 175000-56830 | 175000-56830-Online | |||
| 4 | Drum, Clutch | 175005-44331 | 175005-44331-Online | 4 | Part No | Part descrition | Page | ||
| 4 | Spring, Rewind | 177220-42030 | 177220-42030-Online | |||
| 6 | Guide, Rope | 177227-42030 | 177227-42030-Online | |||
| 6 | Grip, Starter | 177228-27030 | 177228-27030-Online | |||
| 6 | Screw | 177236-61830 | 177236-61830-Online | |||
| 6 | Bracket Set, | 178003-52130 | 178003-52130-Online | THROTTLE | ||
| 12 | Control, Throttle | 178010-52130 | 178010-52130-Online | |||
| 12 | Lockout, Throttle | 178012-52630 | 178012-52630-Online | |||
| 12 | Spring, Thr. Lock | 178013-52630 | 178013-52630-Online | |||
| 12 | Spring, Thr. Return | 178043-42230 | 178043-42230-Online | |||
| 12 | Lockout, T. Control | 178090-52632 | 178090-52632-Online | |||
| 12 | Tube | 178127-24430 | 178127-24430-Online | |||
| 12 | Band Assy | 301200-29430 | 301200-29430-Online | |||
| 12 | Handle Assy, Loop | 351201-40830 | 351201-40830-Online | |||
| 12 | Shaft, Flexible | 610013-44730 | 610013-44730-Online | |||
| 12 | Housing Assy, D.Shft | 610206-44730 | 610206-44730-Online | |||
| 12 | Washer, Shim | 610239-04130 | 610239-04130-Online | |||
| 14 | Band | 610272-52130 | 610272-52130-Online | |||
| 12 | Gear Set | 610300-44830 | 610300-44830-Online | |||
| 14 | Plate, Adapter (U) | 610313-07132 | 610313-07132-Online | |||
| 14 | Spacer | 610315-07130 | 610315-07130-Online | |||
| 14 | Shaft, P.T.O. | 610360-08931 | 610360-08931-Online | |||
| 14 | Oilseal | 610413-07130 | 610413-07130-Online | |||
| 14 | Bolt 8* 8 | 610434-50031 | 610434-50031-Online | |||
| 14 | Housing, Gear | 610460-27431 | 610460-27431-Online | |||
| 14 | Holder, Main Pipe | 610922-55931 | 610922-55931-Online | |||
| 4 | Clip | 660316-55630 | 660316-55630-Online | |||
| 4 | Label, Echo | 890118-49130 | 890118-49130-Online | |||
| 6 | Label, Caution | 890152-04930 | 890152-04930-Online | |||
| 12 | Label,Caution | 890617-43130 | 890617-43130-Online | |||
| 12 | Wrench, W/S. Driver | 895410-02830 | 895410-02830-Online | |||
| 16 | L-Wrench (4Mm) | 895610-00130 | 895610-00130-Online | |||
| 16 | Bag, Tool | 898510-39130 | 898510-39130-Online | |||
| 16 | Bolt, H.S. 5*55 | 900105-05055 | 900105-05055-Online | |||
| 8 | Bolt, H.S. 4*22 | 900162-04022 | 900162-04022-Online | |||
| 4 | Bolt, H.S. 5*22 | 900162-05022 | 900162-05022-Online | |||
| 2 | Bolt, H.S. 5*28 | 900162-05028 | 900162-05028-Online | |||
| 4 | Screw 4*16 | 900238-04016 | 900238-04016-Online | |||
| 2 | Screw 4*16 | 900238-04016 | 900238-04016-Online | |||
| 6 | Screw 5*12 | 900238-05012 | 900238-05012-Online | |||
| 16 | Screw 5*16 | 900238-05016 | 900238-05016-Online | |||
| 16 | Screw 5*20 | 900238-05020 | 900238-05020-Online | |||
| 8 | Screw | 900242-05010 | 900242-05010-Online | 14 | Part No | Part descrition | Page | ||
| 12 | Screw 5*25 | 900242-05025 | 900242-05025-Online | |||
| 12 | Screw 5*28 | 900242-05028 | 900242-05028-Online | |||
| 12 | Screw 5*35 | 900242-05035 | 900242-05035-Online | |||
| 12 | Screw 5*64 | 900242-05064 | 900242-05064-Online | |||
| 8 | Screw 5*16 | 900243-05016 | 900243-05016-Online | |||
| 10 | Screw 5*20 | 900253-05020 | 900253-05020-Online | |||
| 2 | Nut 5 | 900500-00005 | 900500-00005-Online | |||
| 8 | Nut 5 | 900500-00005 | 900500-00005-Online | |||
| 12 | Nut 5 | 900500-00005 | 900500-00005-Online | |||
| 16 | Nut 6 (3N) | 900502-00006 | 900502-00006-Online | |||
| 12 | Washer 5 | 900600-00005 | 900600-00005-Online | |||
| 8 | Washer | 900600-00005 | 900600-00005-Online | |||
| 14 | Retaining Ring | 900702-00022 | 900702-00022-Online | |||
| 14 | Retaining Ring | 900702-00032 | 900702-00032-Online | |||
| 14 | Retaining Ring | 900706-00010 | 900706-00010-Online | |||
| 14 | Retaining Ring | 900706-00012 | 900706-00012-Online | |||
| 14 | O-Ring 15 | 900720-00015 | 900720-00015-Online | |||
| 8 | Bearing, Ball | 900800-00609 | 900800-00609-Online | |||
| 14 | Bearing, Ball | 900810-06201 | 900810-06201-Online | |||
| 14 | Bearing, Ball | 900855-06900 | 900855-06900-Online | |||
| 14 | Bearing, Ball | 900858-06900 | 900858-06900-Online | |||
| 14 | Bolt Hsh | 91119-05035 | 91119-05035-Online | |||
| 14 | Screw | 91363-04016 | 91363-04016-Online | |||
| 4 | Bearing Ball | 94035-36201 | 94035-36201-Online | |||
| 2 | Crankshaft,Asm | A011-000002 | A011-000002-Online | |||
| 2 | Carburetor, | A021-000550 | A021-000550-Online | DIAPHRAGM | ||
| 8 | Carburetor, | A021-000550 | A021-000550-Online | DIAPHRAGM | ||
| 18 | Cleaner,Asm Air | A027-000010 | A027-000010-Online | |||
| 8 | Starter,Recoil | A051-000740 | A051-000740-Online | |||
| 6 | Starter,Recoil Asy | A051-001410 | A051-001410-Online | |||
| 6 | Starter,Recoil Asy | A051-001411 | A051-001411-Online | |||
| 6 | Pulley,Asm Starter | A052-000180 | A052-000180-Online | |||
| 6 | Ring,Piston | A101-000000 | A101-000000-Online | |||
| 2 | Cylinder | A130-000021 | A130-000021-Online | |||
| 2 | Cover,Cylinder | A160-000620 | A160-000620-Online | |||
| 2 | Cover,Cylinder | A160-000630 | A160-000630-Online | |||
| 2 | Guard,Top | A162-000060 | A162-000060-Online | |||
| 2 | Cover,Fan | A172-000320 | A172-000320-Online | |||
| 4 | Cover,Fan | A172-000340 | A172-000340-Online | |||
| 4 | Muffler,Exhaust | A300-000350 | A300-000350-Online | |||
| 8 | Cover,Muffler | A320-000251 | A320-000251-Online | |||
| 8 | Tank,Fuel | A350-000031 | A350-000031-Online | |||
| 10 | Rotor,Magneto | A409-000000 | A409-000000-Online | 4 | SRM-22GES | Copyright © 2020 YAMABIKO CORPORATION All Right Reserved | Index-1 |
Page 23 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 12 | Grip, Handle | C403-000140 | C403-000140-Online | |||
| 12 | Shield,Blade | C550-000031 | C550-000031-Online | |||
| 16 | Plate,Shield | C552-000110 | C552-000110-Online | |||
| 16 | Knife, Cord | C554-000021 | C554-000021-Online | |||
| 16 | Metering, Diaphragm | P003-000090 | P003-000090-Online | |||
| 18 | Valve Asy Throttle | P003-000840 | P003-000840-Online | |||
| 18 | Goggles | P021-002861 | P021-002861-Online | |||
| 16 | Shield Kit | P021-009531 | P021-009531-Online | |||
| 16 | Case Asy, Gear | P021-009541 | P021-009541-Online | |||
| 14 | Piston Kit | P021-009950 | P021-009950-Online | |||
| 2 | Top Plate | P022-000670 | P022-000670-Online | |||
| 14 | Bobbin | P022-000700 | P022-000700-Online | |||
| 14 | Eyelet | P022-000710 | P022-000710-Online | |||
| 14 | Spring | P022-000720 | P022-000720-Online | |||
| 14 | E-Ring | P022-002100 | P022-002100-Online | |||
| 6 | Spring, Return | P022-006510 | P022-006510-Online | |||
| 6 | Drum | P022-006830 | P022-006830-Online | |||
| 6 | Pawl, Starter | P022-006850 | P022-006850-Online | |||
| 6 | Rope | P022-008260 | P022-008260-Online | |||
| 6 | Spring,Damper | P022-008270 | P022-008270-Online | |||
| 6 | Plate, Cam(Ti12-511) | P022-008280 | P022-008280-Online | |||
| 6 | Housing | P022-010710 | P022-010710-Online | |||
| 14 | Cover | P022-010720 | P022-010720-Online | |||
| 14 | Spring, Spiral | P022-019680 | P022-019680-Online | |||
| 6 | Grip, Starter | P022-023170 | P022-023170-Online | |||
| 6 | Rope, Starter | P022-025730 | P022-025730-Online | |||
| 6 | Plate, Cam | P022-034030 | P022-034030-Online | |||
| 6 | Drum, Starter | P022-034040 | P022-034040-Online | |||
| 6 | Stopper, Rope | P022-037670 | P022-037670-Online | 6 | REFER | PRODUCT CATALOGUE | ||
| 14 | Gasket,Intake | V103-000240 | V103-000240-Online | |||
| 8 | Gasket,Intake | V103-000250 | V103-000250-Online | |||
| 8 | Gasket,Exhaust | V104-000160 | V104-000160-Online | |||
| 8 | Washer,Circular 8 | V306-000150 | V306-000150-Online | |||
| 2 | Washer,Circular 30 | V315-000030 | V315-000030-Online | |||
| 4 | Cable,Bowden | V430-001520 | V430-001520-Online | |||
| 12 | Pipe | V471-001190 | V471-001190-Online | |||
| 10 | Pipe | V471-001200 | V471-001200-Online | |||
| 10 | Bearing,Needle 8 | V553-000010 | V553-000010-Online | |||
| 2 | Cutter,Asm Line | X047-000370 | X047-000370-Online | |||
| 14 | Label,Echo | X547-000490 | X547-000490-Online | |||
| 4 | Label,Echo | X547-001660 | X547-001660-Online | |||
| 4 | Tool,Bar | X606-000080 | X606-000080-Online | 16 | Part No | Part descrition | Page |
Source PDF: 20240325-550-SRM-22GES_24_00000000_EN-(2).pdf. Generated 2026-06-25 14:41.
