Echo MTA-PP IPL / Parts List

Echo MTA-PP IPL / Parts List

Echo MTA-PP IPL / Parts List

Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.

Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.

View machine SKU: MTA-PP-Online

Source Pages

Page 1

Echo MTA-PP IPL / Parts List source page 1

Tap or click the page image to enlarge it.

Page 2

Echo MTA-PP IPL / Parts List source page 2

Tap or click the page image to enlarge it.

Page 3

Echo MTA-PP IPL / Parts List source page 3

Tap or click the page image to enlarge it.

Page 4

Echo MTA-PP IPL / Parts List source page 4

Tap or click the page image to enlarge it.

Page 5

Echo MTA-PP IPL / Parts List source page 5

Tap or click the page image to enlarge it.

Page 6

Echo MTA-PP IPL / Parts List source page 6

Tap or click the page image to enlarge it.

Page 7

Echo MTA-PP IPL / Parts List source page 7

Tap or click the page image to enlarge it.

Page 8

Echo MTA-PP IPL / Parts List source page 8

Tap or click the page image to enlarge it.

Page 9

Echo MTA-PP IPL / Parts List source page 9

Tap or click the page image to enlarge it.

Page 10

Echo MTA-PP IPL / Parts List source page 10

Tap or click the page image to enlarge it.

Page 11

Echo MTA-PP IPL / Parts List source page 11

Tap or click the page image to enlarge it.

Page 12

Echo MTA-PP IPL / Parts List source page 12

Tap or click the page image to enlarge it.

Page 13

Echo MTA-PP IPL / Parts List source page 13

Tap or click the page image to enlarge it.

Page 14

Echo MTA-PP IPL / Parts List source page 14

Tap or click the page image to enlarge it.

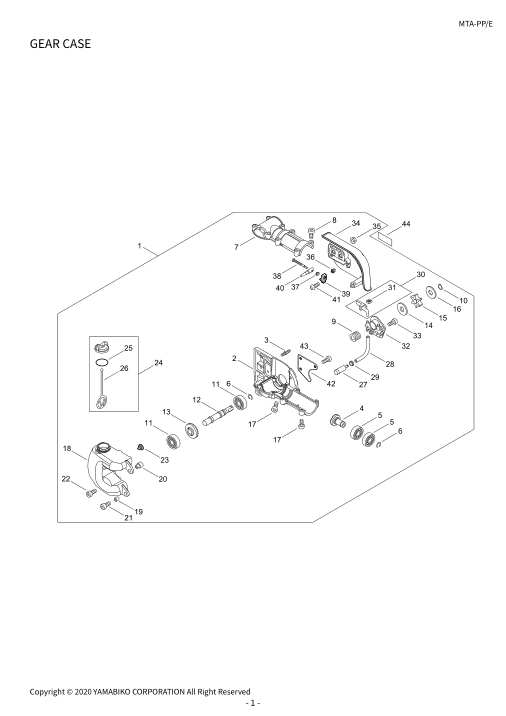

Page 5 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
1Case Asy, GearP100-005830P100-005830-Online
2+Case,GearC531-000460C531-000460-Online
3+Bolt,Stud 6V224-000040V224-000040-Online2 15MM*19MM | M6
4+Gear,BevelV651-000230V651-000230-Online1 MG | 80.2310.001
5+Bearing, Ball94052-0600194052-06001-Online2 6001LLU | (DDU) PEER
6+Retaining Ring900706-00012900706-00012-Online2 WR-12
7+Case,GearC531-000010C531-000010-Online1 25.5
8+Bolt, Torx 5V805-000170V805-000170-Online8 TB-5*25 10.9
9+Gear, Worm437063-38330437063-38330-Online
10+RingV583-000090V583-000090-Online1 EXTERNAL | RING
11+Bearing, Ball94052-0600194052-06001-Online2 6001LLU | (DDU) PEER
12+Shaft, GearC534-000430C534-000430-Online
13+Gear,BevelV651-000201V651-000201-Online1 MG 0600.2259
14+Washer, Clutch175014-39131175014-39131-Online1 10.2*24.5*1.2
15+Sprocket,DriveC580-000070C580-000070-Online
16+Washer,CircularV307-000160V307-000160-Online10 | 1 10.2*29.5* | T=1.2
17+Bolt, Torx 5V805-000130V805-000130-Online2 TB-5*10 10.9
18+Tank, OilC200-000081C200-000081-Online1 POWER | PRUNER
19+Collar131045-28230131045-28230-Online
20+Collar,6V354-000010V354-000010-Online
21+Bolt, Torx 5V805-000160V805-000160-Online2 TB-5*20 10.9
22+Bolt, Torx 5V805-000170V805-000170-Online1 TB-5*25 10.9
23+Valve, Check131314-06320131314-06320-Online
24+Cap AsyP021-005591P021-005591-Online1 ORANGE | C | 25 | ++
25O-Ring900720-00018900720-00018-Online1 P-18 | 26 | ++
26Connector,CapA365-000050A365-000050-Online
27+Strainer, OilP100-001900P100-001900-Online
28+Pipe, Impulse130110-12330130110-12330-Online1 3*6*70L
29+Grommet132115-01461132115-01461-Online
30+Pipe Oil AsyP100-003330P100-003330-Online1 | 31 | ++
31Pad, Form437244-39130437244-39130-Online
32+Oiler,Asm AutoC022-000010C022-000010-Online
33+Bolt, Torx 5V805-000130V805-000130-Online2 TB-5*10 10.9
34+Guard, SprocketC300-000920C300-000920-Online1 COVER W/ | SCREW
35+Nut, Flange 6433019-03933433019-03933-Online2 6
36+Gear,BevelV651-000320V651-000320-Online1 14 TEETH | 10MM LG
37+Gear,BevelV651-000310V651-000310-Online1 14 TEETH 3.0 | SQ.
38+Bolt,5V203-000041V203-000041-Online1 | C | CL : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed

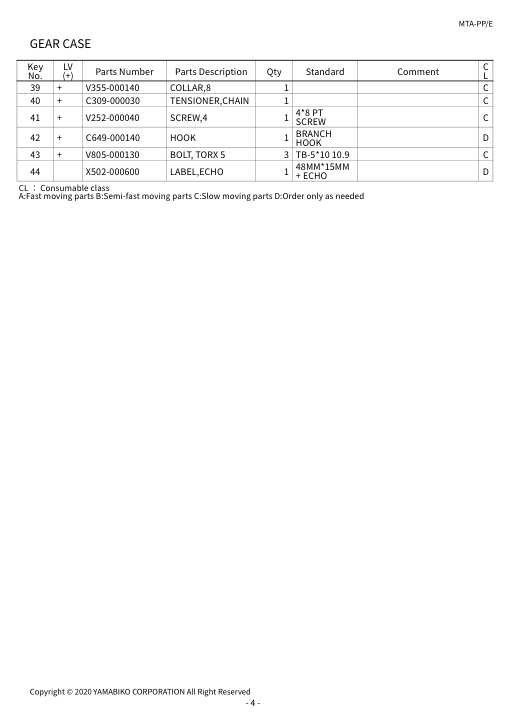

Page 7 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
39+Collar,8V355-000140V355-000140-Online
40+Tensioner,ChainC309-000030C309-000030-Online
41+Screw,4V252-000040V252-000040-Online1 4*8 PT | SCREW
42+HookC649-000140C649-000140-Online1 BRANCH | HOOK
43+Bolt, Torx 5V805-000130V805-000130-Online3 TB-5*10 10.9
44Label,EchoX502-000600X502-000600-Online1 48MM*15MM | + ECHO | D | CL : Consumable class

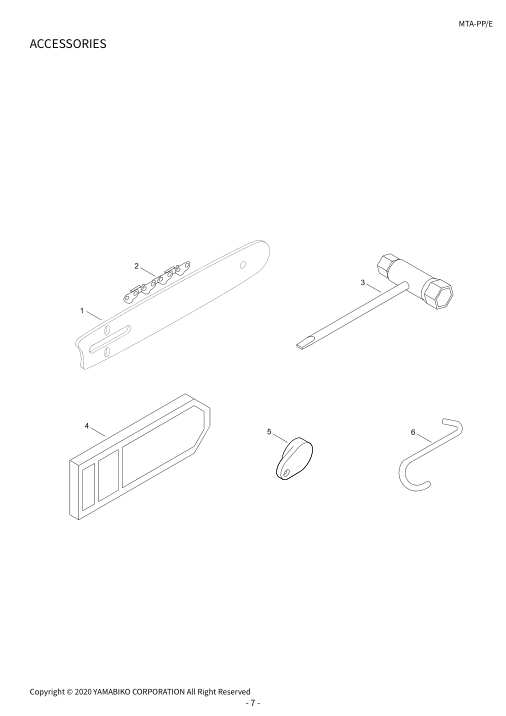

Page 9 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
1Main Pipe AsyP100-005840P100-005840-Online
2+Label,CautionX505-001822X505-001822-Online1 ISO | WARNINGS
3Grip, Handle351012-21560351012-21560-Online
4Shaft, FlexibleC506-000530C506-000530-Online1 L:43.58"/ | 1107MM | B | CL : Consumable class

Page 11 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
1Bar,Guide 25X121-000270X121-000270-Online1 10A0CD3739
2Chain,SawX221-000070X221-000070-Online1 91VXL-39E
3Wrench, W/S-895410-39132895410-39132-OnlineDRIVER
4Scabbard,ChainX490-000060X490-000060-Online
5Cap,Main PipeC525-000012C525-000012-Online1 25MM PIPE
6HookC649-000121C649-000121-Online1 8 DEGREE | BEND | D | CL : Consumable class

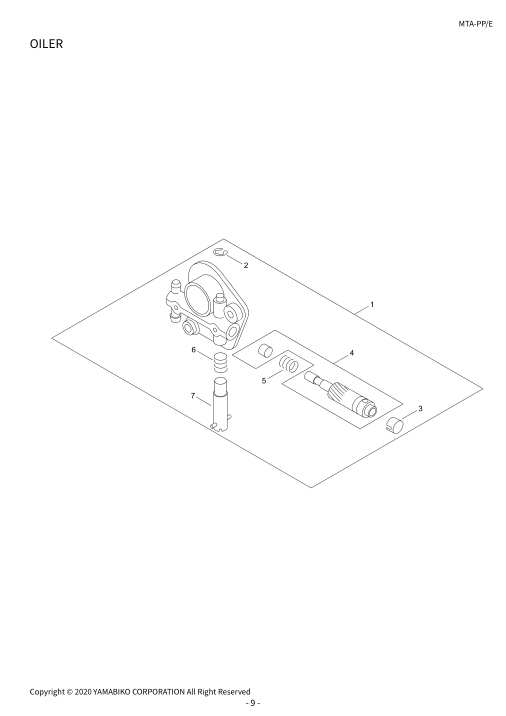

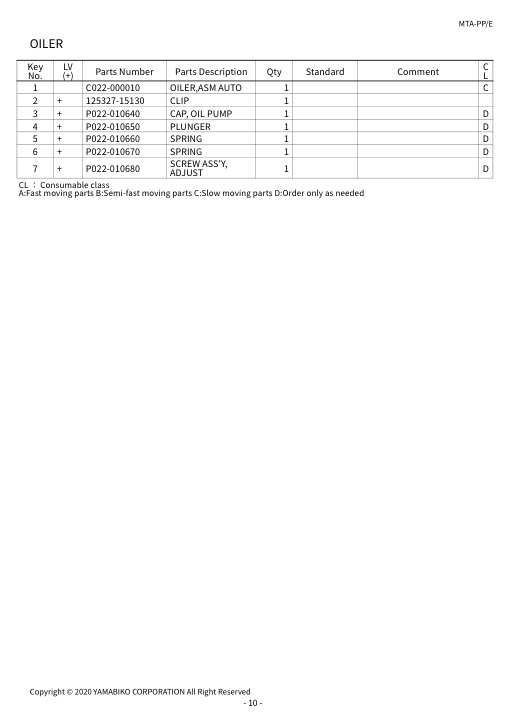

Page 13 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
1Oiler,Asm AutoC022-000010C022-000010-Online
2+Clip125327-15130125327-15130-Online
3+Cap, Oil PumpP022-010640P022-010640-Online
4+PlungerP022-010650P022-010650-Online
5+SpringP022-010660P022-010660-Online
6+SpringP022-010670P022-010670-Online
7+Screw Ass'Y,P022-010680P022-010680-OnlineADJUST | 1 | D | CL : Consumable class

Page 14 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
10Pipe, Impulse130110-12330130110-12330-Online
2Collar131045-28230131045-28230-Online
2Valve, Check131314-06320131314-06320-Online
2Grommet132115-01461132115-01461-Online
2Washer, Clutch175014-39131175014-39131-Online
2Grip, Handle351012-21560351012-21560-Online
6Nut, Flange 6433019-03933433019-03933-Online
2Gear, Worm437063-38330437063-38330-Online
2Pad, Form437244-39130437244-39130-Online
2Wrench, W/S-Driver895410-39132895410-39132-Online
8Retaining Ring900706-00012900706-00012-Online
2O-Ring900720-00018900720-00018-Online
2Bearing, Ball94052-0600194052-06001-Online
2Connector,CapA365-000050A365-000050-Online
2Oiler,Asm AutoC022-000010C022-000010-Online
10Tank, OilC200-000081C200-000081-Online
2Guard, SprocketC300-000920C300-000920-Online
2Tensioner,ChainC309-000030C309-000030-Online
4Shaft, FlexibleC506-000530C506-000530-Online
6Cap,Main PipeC525-000012C525-000012-Online
8Case,GearC531-000010C531-000010-Online
2Case,GearC531-000460C531-000460-Online
2Shaft, GearC534-000430C534-000430-Online
2Sprocket,DriveC580-000070C580-000070-Online
2HookC649-000121C649-000121-Online
8HookC649-000140C649-000140-Online
4Cap AsyP021-005591P021-005591-Online
2Cap, Oil PumpP022-010640P022-010640-Online
10PlungerP022-010650P022-010650-Online
10SpringP022-010660P022-010660-Online
10SpringP022-010670P022-010670-Online
10Screw Ass'Y, AdjustP022-010680P022-010680-Online
10Strainer, OilP100-001900P100-001900-Online
2Pipe Oil AsyP100-003330P100-003330-Online
2Case Asy, GearP100-005830P100-005830-Online
2Main Pipe AsyP100-005840P100-005840-Online
6Bolt,5V203-000041V203-000041-Online
2Bolt,Stud 6V224-000040V224-000040-Online
2Screw,4V252-000040V252-000040-Online
4Washer,Circular 10V307-000160V307-000160-Online
2Collar,6V354-000010V354-000010-Online
2Collar,8V355-000140V355-000140-Online
4RingV583-000090V583-000090-Online2 | Part No | Part descrition | Page
2Gear,BevelV651-000230V651-000230-Online
2Gear,BevelV651-000310V651-000310-Online
2Gear,BevelV651-000320V651-000320-Online
2Bolt, Torx 5V805-000130V805-000130-Online
4Bolt, Torx 5V805-000160V805-000160-Online
2Bolt, Torx 5V805-000170V805-000170-Online
2Bar,Guide 25X121-000270X121-000270-Online
8Chain,SawX221-000070X221-000070-Online
8Scabbard,ChainX490-000060X490-000060-Online
8Label,EchoX502-000600X502-000600-Online
4Label,CautionX505-001822X505-001822-Online6 | MTA-PP/E | Copyright © 2020 YAMABIKO CORPORATION All Right Reserved | Index-1

Source PDF: 20250121-121-MTA-PP_E_35_35001001_EN.pdf.pdf. Generated 2026-06-25 14:41.
