Echo CS-621SX IPL / Parts List

Echo CS-621SX IPL / Parts List

Echo CS-621SX IPL / Parts List

Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.

Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.

View machine SKU: CS-621SX-Online

Source Pages

Page 1

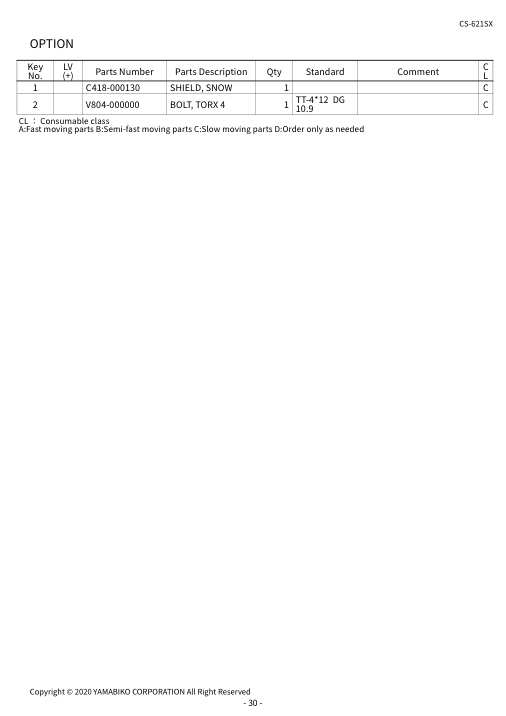

Echo CS-621SX IPL / Parts List source page 1

Tap or click the page image to enlarge it.

Page 2

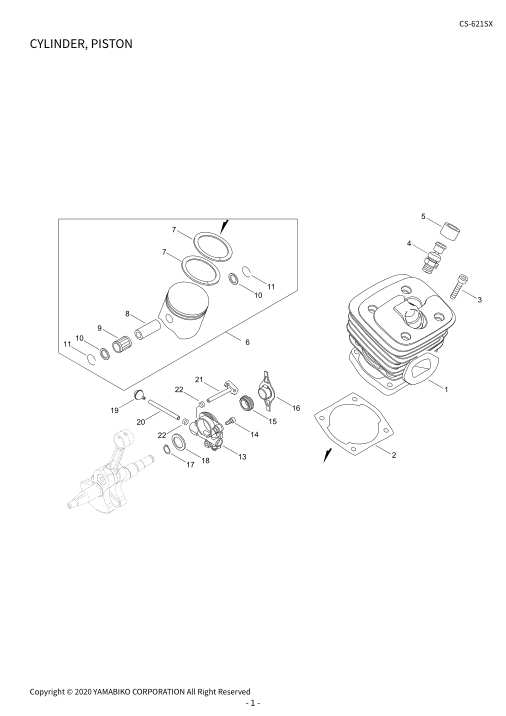

Echo CS-621SX IPL / Parts List source page 2

Tap or click the page image to enlarge it.

Page 3

Echo CS-621SX IPL / Parts List source page 3

Tap or click the page image to enlarge it.

Page 4

Echo CS-621SX IPL / Parts List source page 4

Tap or click the page image to enlarge it.

Page 5

Echo CS-621SX IPL / Parts List source page 5

Tap or click the page image to enlarge it.

Page 6

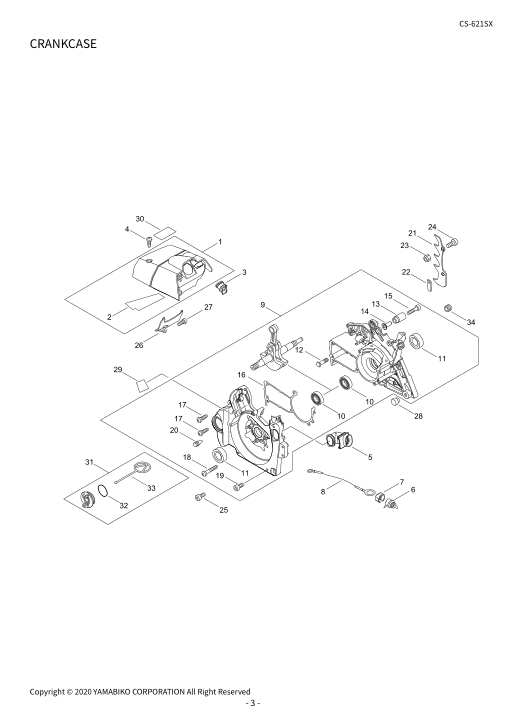

Echo CS-621SX IPL / Parts List source page 6

Tap or click the page image to enlarge it.

Page 7

Echo CS-621SX IPL / Parts List source page 7

Tap or click the page image to enlarge it.

Page 8

Echo CS-621SX IPL / Parts List source page 8

Tap or click the page image to enlarge it.

Page 9

Echo CS-621SX IPL / Parts List source page 9

Tap or click the page image to enlarge it.

Page 10

Echo CS-621SX IPL / Parts List source page 10

Tap or click the page image to enlarge it.

Page 11

Echo CS-621SX IPL / Parts List source page 11

Tap or click the page image to enlarge it.

Page 12

Echo CS-621SX IPL / Parts List source page 12

Tap or click the page image to enlarge it.

Page 13

Echo CS-621SX IPL / Parts List source page 13

Tap or click the page image to enlarge it.

Page 14

Echo CS-621SX IPL / Parts List source page 14

Tap or click the page image to enlarge it.

Page 15

Echo CS-621SX IPL / Parts List source page 15

Tap or click the page image to enlarge it.

Page 16

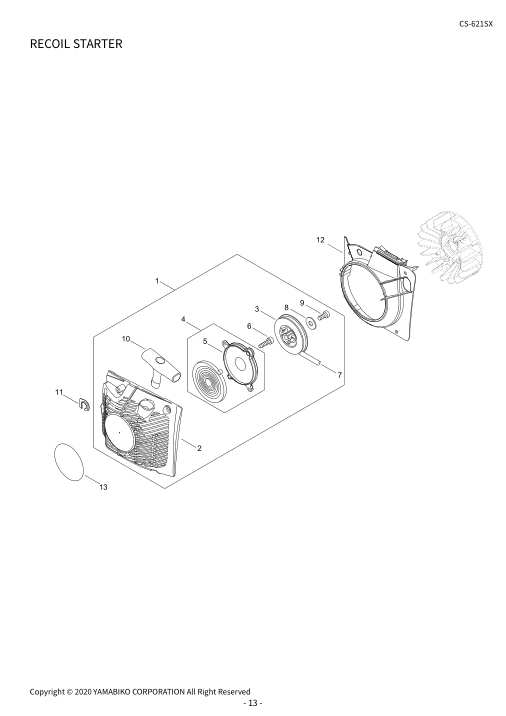

Echo CS-621SX IPL / Parts List source page 16

Tap or click the page image to enlarge it.

Page 17

Echo CS-621SX IPL / Parts List source page 17

Tap or click the page image to enlarge it.

Page 18

Echo CS-621SX IPL / Parts List source page 18

Tap or click the page image to enlarge it.

Page 19

Echo CS-621SX IPL / Parts List source page 19

Tap or click the page image to enlarge it.

Page 20

Echo CS-621SX IPL / Parts List source page 20

Tap or click the page image to enlarge it.

Page 21

Echo CS-621SX IPL / Parts List source page 21

Tap or click the page image to enlarge it.

Page 22

Echo CS-621SX IPL / Parts List source page 22

Tap or click the page image to enlarge it.

Page 23

Echo CS-621SX IPL / Parts List source page 23

Tap or click the page image to enlarge it.

Page 24

Echo CS-621SX IPL / Parts List source page 24

Tap or click the page image to enlarge it.

Page 25

Echo CS-621SX IPL / Parts List source page 25

Tap or click the page image to enlarge it.

Page 26

Echo CS-621SX IPL / Parts List source page 26

Tap or click the page image to enlarge it.

Page 27

Echo CS-621SX IPL / Parts List source page 27

Tap or click the page image to enlarge it.

Page 28

Echo CS-621SX IPL / Parts List source page 28

Tap or click the page image to enlarge it.

Page 29

Echo CS-621SX IPL / Parts List source page 29

Tap or click the page image to enlarge it.

Page 30

Echo CS-621SX IPL / Parts List source page 30

Tap or click the page image to enlarge it.

Page 31

Echo CS-621SX IPL / Parts List source page 31

Tap or click the page image to enlarge it.

Page 32

Echo CS-621SX IPL / Parts List source page 32

Tap or click the page image to enlarge it.

Page 33

Echo CS-621SX IPL / Parts List source page 33

Tap or click the page image to enlarge it.

Page 34

Echo CS-621SX IPL / Parts List source page 34

Tap or click the page image to enlarge it.

Page 35

Echo CS-621SX IPL / Parts List source page 35

Tap or click the page image to enlarge it.

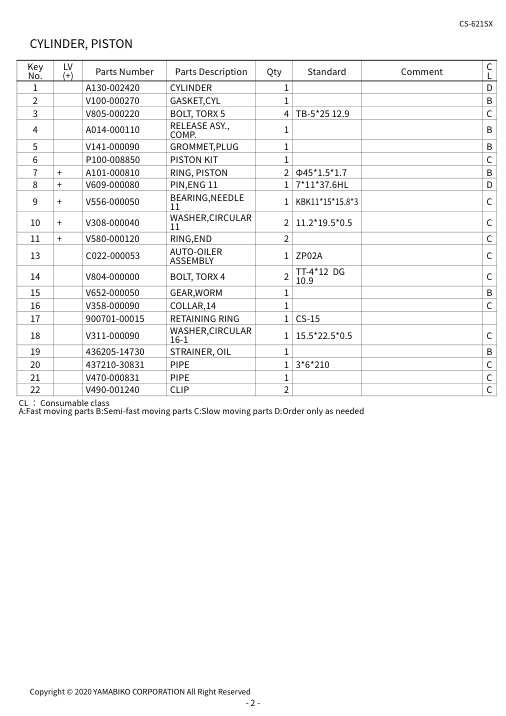

Page 5 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
1CylinderA130-002420A130-002420-Online
2Gasket,CylV100-000270V100-000270-Online
3Bolt, Torx 5V805-000220V805-000220-Online4 TB-5*25 12.9
4Release Asy.,A014-000110A014-000110-OnlineCOMP.
5Grommet,PlugV141-000090V141-000090-Online
6Piston KitP100-008850P100-008850-Online
7+Ring, PistonA101-000810A101-000810-Online2 Φ45*1.5*1.7
8+Pin,Eng 11V609-000080V609-000080-Online1 7*11*37.6HL
9+Bearing,NeedleV556-000050V556-000050-Online11 | 1 | KBK11*15*15.8*3
10+Washer,CircularV308-000040V308-000040-Online11 | 2 11.2*19.5*0.5
11+Ring,EndV580-000120V580-000120-Online
13Auto-OilerC022-000053C022-000053-OnlineASSEMBLY | 1 ZP02A
14Bolt, Torx 4V804-000000V804-000000-Online2 TT-4*12 DG | 10.9
15Gear,WormV652-000050V652-000050-Online
16Collar,14V358-000090V358-000090-Online
17Retaining Ring900701-00015900701-00015-Online1 CS-15
18Washer,CircularV311-000090V311-000090-Online16-1 | 1 15.5*22.5*0.5
19Strainer, Oil436205-14730436205-14730-Online
20Pipe437210-30831437210-30831-Online1 3*6*210
21PipeV470-000831V470-000831-Online
22ClipV490-001240V490-001240-Online2 | C | CL : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed

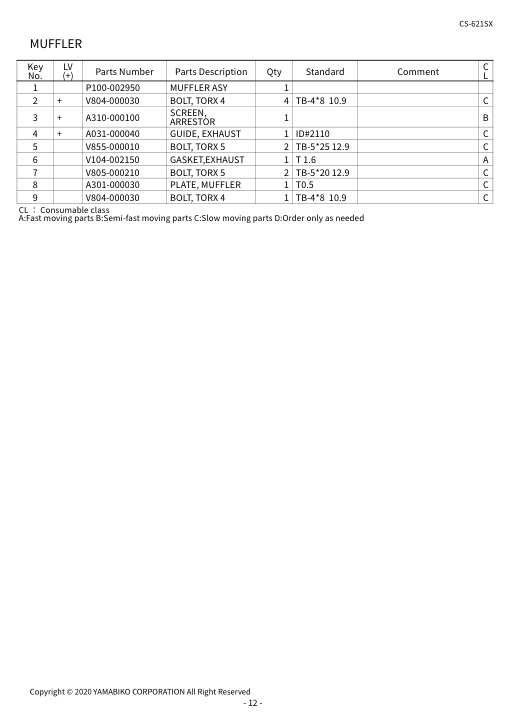

Page 7 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
1Cylinder CoverP100-002830P100-002830-Online
2+Washer,SquareV341-000140V341-000140-Online1 75*32*0.15
3Pipe, IntakeA239-000070A239-000070-Online
4Bolt, Torx 5V805-000000V805-000000-Online3 TT-5*16 DG | 10.9
5Pipe, IntakeA239-000060A239-000060-Online
6Switch, On OffA440-001190A440-001190-Online
7Case,SwitchA472-000091A472-000091-Online
8LeadV485-001101V485-001101-Online1 L:170/LA105
9Crankcase AsyP200-001410P200-001410-Online
10+Bearing, Ball94036-4620294036-46202-Online2 6202
11+Seal,Oil 15V508-000100V508-000100-Online2 ISCD 15*25*7
12+Stud, Guide Bar433011-19831433011-19831-Online
13+Catcher,ChainC310-000030C310-000030-Online
14+Collar,6V354-000650V354-000650-Online
15+Bolt,Torx 6V856-000010V856-000010-Online1 12.9
16+Gasket,V102-000060V102-000060-OnlineCRANKCASE | 1 T0.4
17+Bolt, Torx 5V805-000010V805-000010-Online2 TT-5*20 DG | 10.9
18+Bolt, Torx 5V805-000020V805-000020-Online4 TT-5*35 DG | 10.9
19+Bolt, Torx 5V805-000160V805-000160-Online4 TB-5*20 10.9
20+Valve, Check436114-13930436114-13930-Online
21SpikedC304-000290C304-000290-Online
22SpacerV376-001890V376-001890-Online
23Nut, Lock900560-00005900560-00005-Online1 5
24Bolt, Torx 5V805-000250V805-000250-Online2 TB-5*16 12.9
25Bolt, Torx 5V805-000170V805-000170-Online1 TB-5*25 10.9
26Guide,AirE106-000020E106-000020-Online
27Bolt, Torx 5V805-000000V805-000000-Online1 TT-5*16 DG | 10.9
28CushionV420-003800V420-003800-Online
29SpacerV376-001780V376-001780-Online
30Label,Caution890345-39231890345-39231-Online
31Cap,Oil AsyP100-004881P100-004881-Online
32+O-Ring900720-20029900720-20029-Online1 P-29
33+Connector,CapA365-000050A365-000050-Online
34Grommet132115-01462132115-01462-Online1 | C | CL : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed

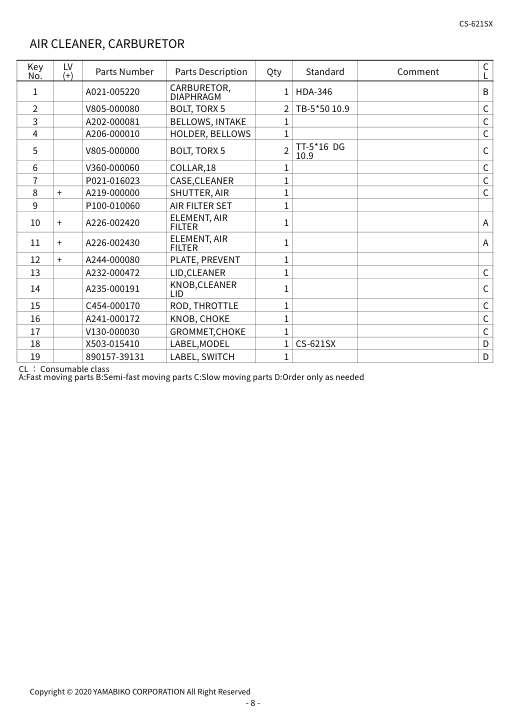

Page 9 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
1Rotor, MagnetoA409-000360A409-000360-Online
2Coil, IgnitionP100-008870P100-008870-Online
3Nut, Flange900515-00008900515-00008-Online1 8
4Bolt, Torx 5V805-000000V805-000000-Online2 TT-5*16 DG | 10.9
5Bushing156110-04920156110-04920-Online
6TubeV475-004130V475-004130-Online
7Key, Woodruff100142-30830100142-30830-Online
8SparkplugA425-000000A425-000000-Online1 BPMR8Y
9Terminal,A426-000010A426-000010-OnlineSPARKPLUG
10Cap,Spark PlugA427-000013A427-000013-Online
11Cover,CapA429-000040A429-000040-Online
12LeadV485-001091V485-001091-Online1 AVX0.75F
13Pawl, Starter177218-19830177218-19830-Online
14Washer900603-00005900603-00005-Online2 5
15Spring, Return177234-35430177234-35430-Online
16Bolt, Torx 5V835-000000V835-000000-Online
17Spacer, Ratchet177247-04630177247-04630-Online2 5.2*8*2.1 | C | CL : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed

Page 11 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
1Carburetor,A021-005220A021-005220-OnlineDIAPHRAGM | 1 HDA-346
2Bolt, Torx 5V805-000080V805-000080-Online2 TB-5*50 10.9
3Bellows, IntakeA202-000081A202-000081-Online
4Holder, BellowsA206-000010A206-000010-Online
5Bolt, Torx 5V805-000000V805-000000-Online2 TT-5*16 DG | 10.9
6Collar,18V360-000060V360-000060-Online
7Case,CleanerP021-016023P021-016023-Online
8+Shutter, AirA219-000000A219-000000-Online
9Air Filter SetP100-010060P100-010060-Online
10+Element, AirA226-002420A226-002420-OnlineFILTER
11+Element, AirA226-002430A226-002430-OnlineFILTER
12+Plate, PreventA244-000080A244-000080-Online
13Lid,CleanerA232-000472A232-000472-Online
14Knob,CleanerA235-000191A235-000191-Online
15Rod, ThrottleC454-000170C454-000170-Online
16Knob, ChokeA241-000172A241-000172-Online
17Grommet,ChokeV130-000030V130-000030-Online
18Label,ModelX503-015410X503-015410-Online1 CS-621SX
19Label, Switch890157-39131890157-39131-Online1 | D | CL : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed

Page 13 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
1Carburetor,A021-005220A021-005220-OnlineDIAPHRAGM | 1 HDA-346
2+Screen, Inlet123126-10631123126-10631-Online
3+Diaphragm, Fuel123112-12330123112-12330-OnlinePUMP
4+Gasket, Fuel123125-12330123125-12330-OnlinePUMP
5+Cover, Fuel Pump123124-19830123124-19830-Online
6+Screw, Pump123110-16130123110-16130-OnlineCOVER
7+Valve, Inlet123137-19830123137-19830-OnlineNEEDLE
8+Spring, Meter.123122-32630123122-32630-OnlineLEVER
9+Diaphragm AssyP003-004920P003-004920-Online1 95-649
10+Cover, M.123142-17330123142-17330-OnlineDIAPHRAGM
11+Gasket, M.123140-16130123140-16130-OnlineDIAPHRAGM
12+Screw, M. Lever123139-03930123139-03930-Online
13+Pin, Metering123138-03930123138-03930-OnlineLEVER
14+Lever, Metering123123-18330123123-18330-Online
15+Plug, Welch123146-10631123146-10631-Online
16+Limiter CapP003-000010P003-000010-Online
17+NeedleP003-006160P003-006160-Online
18+NeedleP003-006160P003-006160-Online
19+Stop, Throttle123156-30830123156-30830-Online
20+Screw123114-38830123114-38830-Online
21+Screw, Idle123134-04260123134-04260-OnlineADJUST
22+Spring, Idle123133-04260123133-04260-OnlineADJUST
23+ScrewP003-002380P003-002380-Online
24+Valve, Choke123132-16130123132-16130-Online
25+Spring, Thrt.P003-000560P003-000560-OnlineRETURN
26+Shaft,ThrottleP003-002280P003-002280-Online
27+Valve, Throttle123116-16130123116-16130-Online
28+Ring123127-15030123127-15030-Online
29+Shaft, ChokeP003-002290P003-002290-Online
30+Lever, ChokeP003-002300P003-002300-Online
31+SpringP003-000610P003-000610-Online
32+Washer123149-26030123149-26030-Online
33+Lever-Fast IdleP003-000620P003-000620-Online
34+Screw123130-02960123130-02960-Online4 | D | CL : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed

Page 15 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
1Muffler AsyP100-002950P100-002950-Online
2+Bolt, Torx 4V804-000030V804-000030-Online4 TB-4*8 10.9
3+Screen,A310-000100A310-000100-OnlineARRESTOR
4+Guide, ExhaustA031-000040A031-000040-Online1 ID#2110
5Bolt, Torx 5V855-000010V855-000010-Online2 TB-5*25 12.9
6Gasket,ExhaustV104-002150V104-002150-Online1 T 1.6
7Bolt, Torx 5V805-000210V805-000210-Online2 TB-5*20 12.9
8Plate, MufflerA301-000030A301-000030-Online1 T0.5
9Bolt, Torx 4V804-000030V804-000030-Online1 TB-4*8 10.9 | C | CL : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed

Page 17 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
1Starter AsyP100-007950P100-007950-Online
2+Case,StarterP100-007940P100-007940-Online
3+Reel, RopeA506-000112A506-000112-Online
4+Spring Kit,P100-002890P100-002890-OnlineREWIND | 1 | B | 5
5Plate, StarterA503-000032A503-000032-Online
6+Bolt, Torx 4V804-000000V804-000000-Online2 TT-4*12 DG | 10.9
7+RopeA509-000460A509-000460-Online
8+Washer177214-02830177214-02830-Online1 5.2*16*1.0T
9+Bolt, Torx 5V805-000130V805-000130-Online1 TB-5*10 10.9
10+Grip,StarterA511-000300A511-000300-Online
11Plate,EyeV150-003800V150-003800-Online
12Cover,FanA172-000843A172-000843-Online
13Label,EchoX502-000900X502-000900-Online1 | D | CL : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed

Page 19 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks

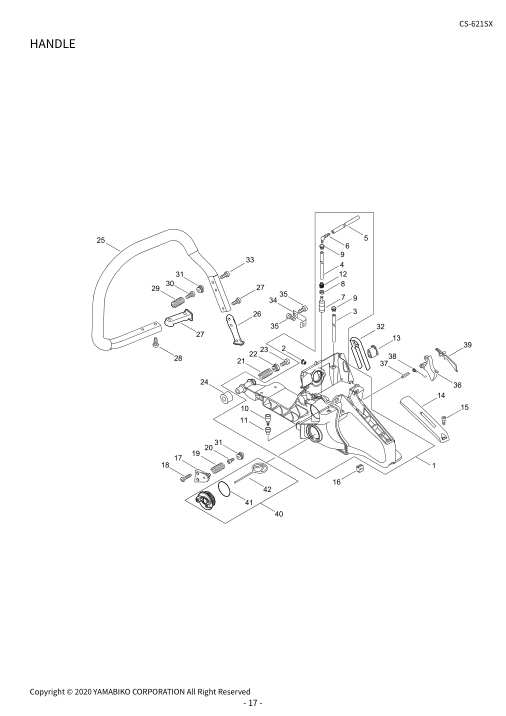

1Rear Handle AsyP100-007321P100-007321-Online
2+Nut,5V263-000450V263-000450-Online
3+Pipe130110-30831130110-30831-Online1 3*6(8)*160
4+PipeV471-000601V471-000601-Online1 3*5*120
5+Pipe, Impulse130110-14530130110-14530-Online1 3*6*135L
6+Joint,PipeV186-000500V186-000500-Online
7+Strainer, FuelA369-000450A369-000450-Online
8+ClipV490-001240V490-001240-Online
9+Grommet132115-01462132115-01462-Online
10+Vent Assembly,131300-56431131300-56431-OnlineFUEL
11+Cover,VentA359-000001A359-000001-Online1 22.5*D18* | D8.5
12+BootA413-000190A413-000190-Online
13Grommet,NeedleV131-000020V131-000020-Online
14Lid,HandleC411-000001C411-000001-Online
15Bolt, Torx 4V804-000000V804-000000-Online1 TT-4*12 DG | 10.9
16Bushing150114-04920150114-04920-Online
17Holder,SpringV456-000090V456-000090-Online
18Bolt, Torx 5V805-000010V805-000010-Online2 TT-5*20 DG | 10.9
19Spring,V450-000760V450-000760-OnlineCOMPRESSION | 1 17*36.7*2.6
20Bolt, Torx 5V805-000230V805-000230-Online1 TT-5*25 DG | 10.9
21Spring,V450-000771V450-000771-OnlineCOMPRESSION | 1 20*40*3.3
22Holder,SpringV456-000101V456-000101-Online
23Bolt, Torx 6V806-000000V806-000000-Online1 TT-6*20 DG | 10.9
24Cushion,10V404-000210V404-000210-Online
25Handle, FrontC400-001171C400-001171-Online
26Bracket,HandleC405-000560C405-000560-Online
27Bracket,HandleC405-000570C405-000570-Online
28Bolt, Torx 5V805-000010V805-000010-Online4 TT-5*20 DG | 10.9
29Spring,V450-000730V450-000730-OnlineCOMPRESSION | 1 17*38.4
30Bolt, Torx 5V805-000000V805-000000-Online1 TT-5*16 DG | 10.9
31Holder,SpringV456-000080V456-000080-Online2 14.4
32Holder,SpringV456-000280V456-000280-Online
33Bolt, Torx 6V806-000000V806-000000-Online1 TT-6*20 DG | 10.9
34StopperC617-000362C617-000362-Online
35Bolt, Torx 5V805-000000V805-000000-Online2 TT-5*16 DG | 10.9
36Control,C450-000360C450-000360-OnlineTHROTTLE | 1 | C | CL : Consumable class

Page 21 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
37Pin, Spring900345-40025900345-40025-Online1 4*25
38Spring,TorsionV452-000260V452-000260-Online
39Lockout, T.178090-37930178090-37930-OnlineCONTROL
40Cap,Fuel AsyP100-004891P100-004891-Online
41+Ring,OV581-000600V581-000600-Online1 P29
42+Connector,CapA365-000050A365-000050-Online1 | B | CL : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed

Page 23 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks

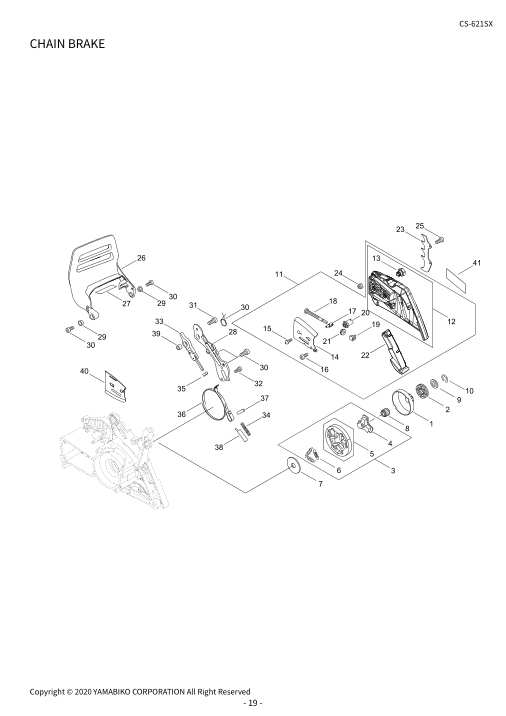

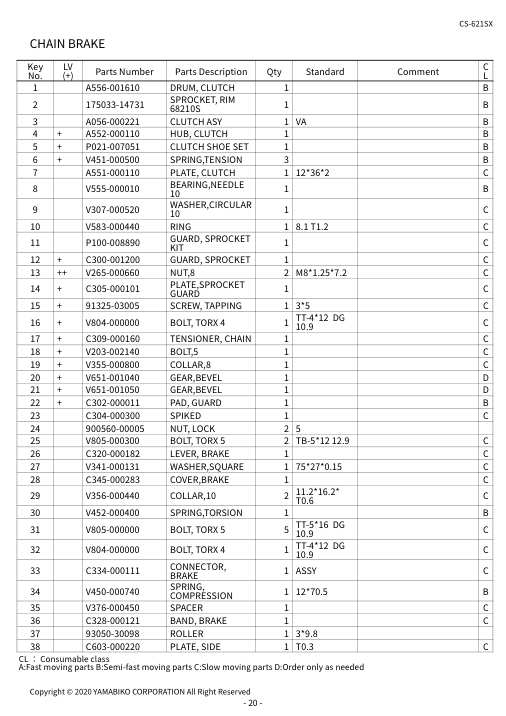

1Drum, ClutchA556-001610A556-001610-Online
2Sprocket, Rim175033-14731175033-14731-Online68210S
3Clutch AsyA056-000221A056-000221-Online1 VA
4+Hub, ClutchA552-000110A552-000110-Online
5+Clutch Shoe SetP021-007051P021-007051-Online
6+Spring,TensionV451-000500V451-000500-Online
7Plate, ClutchA551-000110A551-000110-Online1 12*36*2
8Bearing,NeedleV555-000010V555-000010-Online
9Washer,CircularV307-000520V307-000520-Online
10RingV583-000440V583-000440-Online1 8.1 T1.2
11Guard, SprocketP100-008890P100-008890-Online
12+Guard, SprocketC300-001200C300-001200-Online1 | C | 13 | ++
13Nut,8V265-000660V265-000660-Online2 M8*1.25*7.2
14+Plate,SprocketC305-000101C305-000101-OnlineGUARD
15+Screw, Tapping91325-0300591325-03005-Online1 3*5
16+Bolt, Torx 4V804-000000V804-000000-Online1 TT-4*12 DG | 10.9
17+Tensioner, ChainC309-000160C309-000160-Online
18+Bolt,5V203-002140V203-002140-Online
19+Collar,8V355-000800V355-000800-Online
20+Gear,BevelV651-001040V651-001040-Online
21+Gear,BevelV651-001050V651-001050-Online
22+Pad, GuardC302-000011C302-000011-Online
23SpikedC304-000300C304-000300-Online
24Nut, Lock900560-00005900560-00005-Online2 5
25Bolt, Torx 5V805-000300V805-000300-Online2 TB-5*12 12.9
26Lever, BrakeC320-000182C320-000182-Online
27Washer,SquareV341-000131V341-000131-Online1 75*27*0.15
28Cover,BrakeC345-000283C345-000283-Online
29Collar,10V356-000440V356-000440-Online2 11.2*16.2* | T0.6
30Spring,TorsionV452-000400V452-000400-Online
31Bolt, Torx 5V805-000000V805-000000-Online5 TT-5*16 DG | 10.9
32Bolt, Torx 4V804-000000V804-000000-Online1 TT-4*12 DG | 10.9
33Connector,C334-000111C334-000111-OnlineBRAKE | 1 ASSY
34Spring,V450-000740V450-000740-OnlineCOMPRESSION | 1 12*70.5
35SpacerV376-000450V376-000450-Online
36Band, BrakeC328-000121C328-000121-Online
37Roller93050-3009893050-30098-Online1 3*9.8
38Plate, SideC603-000220C603-000220-Online1 T0.3 | C | CL : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed

Page 25 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
39Collar,10V356-000470V356-000470-Online1 12*10*T1.0
40Plate,SprocketC305-000111C305-000111-OnlineGUARD
41Label,EchoX502-000340X502-000340-Online1 ECHO(WHITE) | D | CL : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed

Page 27 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
1Tool,WrenchX602-000080X602-000080-Online1 13*19 L180
2Tool,L WrenchX605-000190X605-000190-Online1 T27 120*80
3Driver, Screw 50895812-03930895812-03930-Online
4Scabbard,ChainX490-000720X490-000720-Online1 | D | CL : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed

Page 29 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks

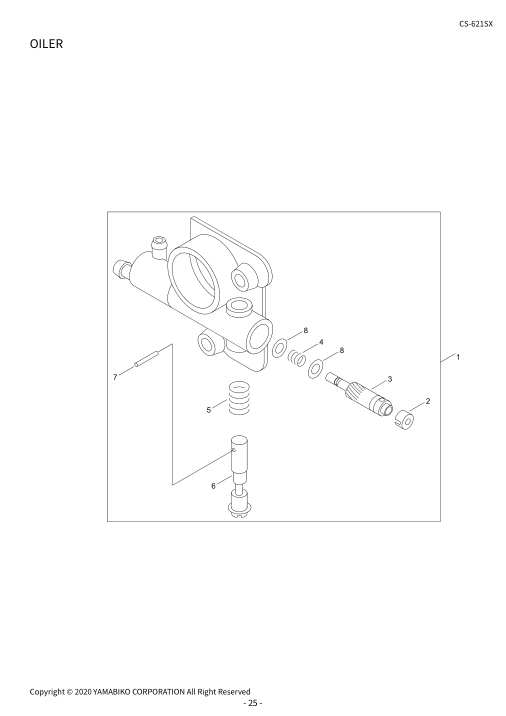

1Auto-OilerC022-000053C022-000053-OnlineASSEMBLY | 1 ZP02A
2+Cap, PlungerP022-038170P022-038170-Online
3+Shaft Asy-P022-038180P022-038180-OnlinePLUNGER
4+Spring, PlungerP022-049820P022-049820-Online
5+SpringP022-010670P022-010670-Online
6+Screw Kit,P022-038200P022-038200-OnlineADJUST
7+Spring PinP022-038210P022-038210-Online
8+WasherP022-049140P022-049140-Online2 | D | CL : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed

Page 31 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
LBar,Guide 45X125-000261X125-000261-Online1 S45R73-64AA- | ED | A | A2
AChain,SawX265-000060X265-000060-Online1 73LPX-64 | A | A3
AScabbard,ChainX490-000720X490-000720-Online1 | D | B1
DBar,Guide 45X125-000261X125-000261-Online1 S45R73-64AA- | ED | A | B2
AChain,SawX265-000070X265-000070-Online1 73EXL064E | A | B3
DBar,Guide 50X126-000191X126-000191-Online1 S50R73-72AA- | ED | A | C2
AChain,SawX266-000060X266-000060-Online1 73LPX-72 | A | C3
AChain,SawX266-000090X266-000090-Online1 73EXL-72 | A | D3
DBar,Guide 60X128-000051X128-000051-Online1 S60R73-84AA- | ED | A | E2
AChain,SawX268-000040X268-000040-Online1 73LPX-84 | A | E3
AScabbard,ChainX490-000710X490-000710-Online1 | D | F1
AChain,SawX268-000060X268-000060-Online1 73EXL-84 | A | F3

Page 33 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
1Shield, SnowC418-000130C418-000130-Online
2Bolt, Torx 4V804-000000V804-000000-Online1 TT-4*12 DG | 10.9 | C | CL : Consumable class

Page 34 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
6Screw, Pump Cover123110-16130123110-16130-Online
10Diaphragm, Fuel123112-12330123112-12330-OnlinePUMP
10Screw123114-38830123114-38830-Online
10Valve, Throttle123116-16130123116-16130-Online
10Spring, Meter. Lever123122-32630123122-32630-Online
10Lever, Metering123123-18330123123-18330-Online
10Cover, Fuel Pump123124-19830123124-19830-Online
10Gasket, Fuel Pump123125-12330123125-12330-Online
10Screen, Inlet123126-10631123126-10631-Online
10Ring123127-15030123127-15030-Online
10Screw123130-02960123130-02960-Online
10Valve, Choke123132-16130123132-16130-Online
10Spring, Idle Adjust123133-04260123133-04260-Online
10Screw, Idle Adjust123134-04260123134-04260-Online
10Valve, Inlet Needle123137-19830123137-19830-Online
10Pin, Metering Lever123138-03930123138-03930-Online
10Screw, M. Lever Pin123139-03930123139-03930-Online
10Gasket, M. Diaphragm123140-16130123140-16130-Online
10Cover, M. Diaphragm123142-17330123142-17330-Online
10Plug, Welch123146-10631123146-10631-Online
10Washer123149-26030123149-26030-Online
10Stop, Throttle123156-30830123156-30830-Online
10Pipe, Impulse130110-14530130110-14530-Online
16Pipe130110-30831130110-30831-Online
16Vent Assembly, Fuel131300-56431131300-56431-Online
16Grommet132115-01462132115-01462-Online
4Grommet132115-01462132115-01462-Online
16Bushing150114-04920150114-04920-Online
16Bushing156110-04920156110-04920-Online
6Sprocket, Rim 68210S175033-14731175033-14731-Online
20Washer177214-02830177214-02830-Online
14Pawl, Starter177218-19830177218-19830-Online
6Spring, Return177234-35430177234-35430-Online
6Spacer, Ratchet177247-04630177247-04630-Online
6Lockout, T. Control178090-37930178090-37930-Online
18Stud, Guide Bar433011-19831433011-19831-Online
4Valve, Check436114-13930436114-13930-Online
4Strainer, Oil436205-14730436205-14730-Online
2Pipe437210-30831437210-30831-Online
2Label, Switch890157-39131890157-39131-Online
8Label,Caution890345-39231890345-39231-Online
4Driver, Screw 50895812-03930895812-03930-Online
24Pin, Spring900345-40025900345-40025-Online18 | Part No | Part descrition | Page
6Nut, Lock900560-00005900560-00005-Online
4Nut, Lock900560-00005900560-00005-Online
20Washer900603-00005900603-00005-Online
6Retaining Ring900701-00015900701-00015-Online
2O-Ring900720-20029900720-20029-Online
4Screw, Tapping91325-0300591325-03005-Online
20Roller93050-3009893050-30098-Online
20Bearing, Ball94036-4620294036-46202-Online
4Release Asy., Comp.A014-000110A014-000110-Online
2Carburetor,A021-005220A021-005220-OnlineDIAPHRAGM
8Carburetor,A021-005220A021-005220-OnlineDIAPHRAGM
10Guide, ExhaustA031-000040A031-000040-Online
12Clutch AsyA056-000221A056-000221-Online
20Ring, PistonA101-000810A101-000810-Online
2CylinderA130-002420A130-002420-Online
2Cover,FanA172-000843A172-000843-Online
14Bellows, IntakeA202-000081A202-000081-Online
8Holder, BellowsA206-000010A206-000010-Online
8Shutter, AirA219-000000A219-000000-Online
8Element, Air FilterA226-002420A226-002420-Online
8Element, Air FilterA226-002430A226-002430-Online
8Lid,CleanerA232-000472A232-000472-Online
8Knob,Cleaner LidA235-000191A235-000191-Online
8Pipe, IntakeA239-000060A239-000060-Online
4Pipe, IntakeA239-000070A239-000070-Online
4Knob, ChokeA241-000172A241-000172-Online
8Plate, PreventA244-000080A244-000080-Online
8Plate, MufflerA301-000030A301-000030-Online
12Screen, ArrestorA310-000100A310-000100-Online
12Cover,VentA359-000001A359-000001-Online
16Connector,CapA365-000050A365-000050-Online
4Connector,CapA365-000050A365-000050-Online
18Strainer, FuelA369-000450A369-000450-Online
16Rotor, MagnetoA409-000360A409-000360-Online
6BootA413-000190A413-000190-Online
16SparkplugA425-000000A425-000000-Online
6Terminal,SparkplugA426-000010A426-000010-Online
6Cap,Spark PlugA427-000013A427-000013-Online
6Cover,CapA429-000040A429-000040-Online
6Switch, On OffA440-001190A440-001190-Online
4Case,SwitchA472-000091A472-000091-Online
4Plate, StarterA503-000032A503-000032-Online
14Reel, RopeA506-000112A506-000112-Online14 | Part No | Part descrition | Page
14Grip,StarterA511-000300A511-000300-Online
14Plate, ClutchA551-000110A551-000110-Online
20Hub, ClutchA552-000110A552-000110-Online
20Drum, ClutchA556-001610A556-001610-Online
20Auto-Oiler AssemblyC022-000053C022-000053-Online
2Auto-Oiler AssemblyC022-000053C022-000053-Online
26Guard, SprocketC300-001200C300-001200-Online
20Pad, GuardC302-000011C302-000011-Online
20SpikedC304-000290C304-000290-Online
4SpikedC304-000300C304-000300-Online
20Plate,SprocketC305-000101C305-000101-OnlineGUARD
20Plate,SprocketC305-000111C305-000111-OnlineGUARD
22Tensioner, ChainC309-000160C309-000160-Online
20Catcher,ChainC310-000030C310-000030-Online
4Lever, BrakeC320-000182C320-000182-Online
20Band, BrakeC328-000121C328-000121-Online
20Connector, BrakeC334-000111C334-000111-Online
20Cover,BrakeC345-000283C345-000283-Online
20Handle, FrontC400-001171C400-001171-Online
16Bracket,HandleC405-000560C405-000560-Online
16Bracket,HandleC405-000570C405-000570-Online
16Lid,HandleC411-000001C411-000001-Online
16Shield, SnowC418-000130C418-000130-Online
30Control, ThrottleC450-000360C450-000360-Online
16Rod, ThrottleC454-000170C454-000170-Online
8Plate, SideC603-000220C603-000220-Online
20StopperC617-000362C617-000362-Online
16Guide,AirE106-000020E106-000020-Online
4Limiter CapP003-000010P003-000010-Online
10Spring, Thrt. ReturnP003-000560P003-000560-Online
10SpringP003-000610P003-000610-Online
10Lever-Fast IdleP003-000620P003-000620-Online
10Shaft,ThrottleP003-002280P003-002280-Online
10Shaft, ChokeP003-002290P003-002290-Online
10Lever, ChokeP003-002300P003-002300-Online
10ScrewP003-002380P003-002380-Online
10Diaphragm AssyP003-004920P003-004920-Online
10NeedleP003-006160P003-006160-Online
10Clutch Shoe SetP021-007051P021-007051-Online
20Case,CleanerP021-016023P021-016023-Online
8SpringP022-010670P022-010670-Online
26Cap, PlungerP022-038170P022-038170-Online
26Shaft Asy-PlungerP022-038180P022-038180-Online26 | CS-621SX | Copyright © 2020 YAMABIKO CORPORATION All Right Reserved | Index-1

Page 35 - Parts

RefLVQtyDescriptionPart NumberCutsmart SKURemarks
26Spring PinP022-038210P022-038210-Online
26WasherP022-049140P022-049140-Online
26Spring, PlungerP022-049820P022-049820-Online
26Cylinder Cover AsyP100-002830P100-002830-Online
4Spring Kit, RewindP100-002890P100-002890-Online
14Muffler AsyP100-002950P100-002950-Online
12Cap,Oil AsyP100-004881P100-004881-Online
4Cap,Fuel AsyP100-004891P100-004891-Online
18Rear Handle AsyP100-007321P100-007321-Online
16Case,StarterP100-007940P100-007940-Online
14Starter AsyP100-007950P100-007950-Online
14Piston KitP100-008850P100-008850-Online
2Coil, IgnitionP100-008870P100-008870-Online
6Guard, Sprocket KitP100-008890P100-008890-Online
20Air Filter SetP100-010060P100-010060-Online
8Crankcase AsyP200-001410P200-001410-Online
4Gasket,CylV100-000270V100-000270-Online
2Gasket,CrankcaseV102-000060V102-000060-Online
4Gasket,ExhaustV104-002150V104-002150-Online
12Grommet,ChokeV130-000030V130-000030-Online
8Grommet,NeedleV131-000020V131-000020-Online
16Grommet,PlugV141-000090V141-000090-Online
2Plate,EyeV150-003800V150-003800-Online
14Joint,PipeV186-000500V186-000500-Online
16Bolt,5V203-002140V203-002140-Online
20Nut,5V263-000450V263-000450-Online
16Nut,8V265-000660V265-000660-Online
20Washer,Circular 10V307-000520V307-000520-Online
20Washer,Circular 11V308-000040V308-000040-Online
2Washer,Circular 16-1V311-000090V311-000090-Online
2Washer,SquareV341-000131V341-000131-Online
20Washer,SquareV341-000140V341-000140-Online
4Collar,6V354-000650V354-000650-Online
4Collar,8V355-000800V355-000800-Online
20Collar,10V356-000440V356-000440-Online
20Collar,10V356-000470V356-000470-Online
22Collar,14V358-000090V358-000090-Online
2Collar,18V360-000060V360-000060-Online
8SpacerV376-000450V376-000450-Online
20SpacerV376-001780V376-001780-Online
4SpacerV376-001890V376-001890-Online
4Cushion,10V404-000210V404-000210-Online
16CushionV420-003800V420-003800-Online
4Spring,CompressionV450-000730V450-000730-Online16 | Part No | Part descrition | Page
20Spring,CompressionV450-000760V450-000760-Online
16Spring,CompressionV450-000771V450-000771-Online
16Spring,TensionV451-000500V451-000500-Online
20Spring,TorsionV452-000260V452-000260-Online
18Spring,TorsionV452-000400V452-000400-Online
20Holder,SpringV456-000080V456-000080-Online
16Holder,SpringV456-000090V456-000090-Online
16Holder,SpringV456-000101V456-000101-Online
16Holder,SpringV456-000280V456-000280-Online
16PipeV470-000831V470-000831-Online
2PipeV471-000601V471-000601-Online
16TubeV475-004130V475-004130-Online
6LeadV485-001091V485-001091-Online
6LeadV485-001101V485-001101-Online
4ClipV490-001240V490-001240-Online
2ClipV490-001240V490-001240-Online
16Seal,Oil 15V508-000100V508-000100-Online
4Bearing,Needle 10V555-000010V555-000010-Online
20Bearing,Needle 11V556-000050V556-000050-Online
2Ring,EndV580-000120V580-000120-Online
2Ring,OV581-000600V581-000600-Online
18RingV583-000440V583-000440-Online
20Pin,Eng 11V609-000080V609-000080-Online
2Gear,BevelV651-001040V651-001040-Online
20Gear,BevelV651-001050V651-001050-Online
20Gear,WormV652-000050V652-000050-Online
2Bolt, Torx 4V804-000000V804-000000-Online
14Bolt, Torx 4V804-000000V804-000000-Online
16Bolt, Torx 4V804-000000V804-000000-Online
20Bolt, Torx 4V804-000000V804-000000-Online
30Bolt, Torx 4V804-000030V804-000030-Online
12Bolt, Torx 5V805-000000V805-000000-Online
4Bolt, Torx 5V805-000000V805-000000-Online
6Bolt, Torx 5V805-000000V805-000000-Online
8Bolt, Torx 5V805-000000V805-000000-Online
16Bolt, Torx 5V805-000000V805-000000-Online
20Bolt, Torx 5V805-000010V805-000010-Online
4Bolt, Torx 5V805-000010V805-000010-Online
16Bolt, Torx 5V805-000020V805-000020-Online
4Bolt, Torx 5V805-000080V805-000080-Online
8Bolt, Torx 5V805-000130V805-000130-Online
14Bolt, Torx 5V805-000160V805-000160-Online
4Bolt, Torx 5V805-000170V805-000170-Online4 | Part No | Part descrition | Page
12Bolt, Torx 5V805-000220V805-000220-Online
2Bolt, Torx 5V805-000230V805-000230-Online
16Bolt, Torx 5V805-000250V805-000250-Online
4Bolt, Torx 5V805-000300V805-000300-Online
20Bolt, Torx 6V806-000000V806-000000-Online
16Bolt, Torx 5V835-000000V835-000000-Online
6Bolt, Torx 5V855-000010V855-000010-Online
12Bolt,Torx 6V856-000010V856-000010-Online
4Bar,Guide 45X125-000261X125-000261-Online
28Bar,Guide 50X126-000191X126-000191-Online
28Bar,Guide 60X128-000051X128-000051-Online
28Chain,SawX265-000060X265-000060-Online
28Chain,SawX265-000070X265-000070-Online
28Chain,SawX266-000060X266-000060-Online
28Chain,SawX266-000090X266-000090-Online
28Chain,SawX268-000040X268-000040-Online
28Chain,SawX268-000060X268-000060-Online
28Scabbard,ChainX490-000710X490-000710-Online
28Scabbard,ChainX490-000720X490-000720-Online
24Scabbard,ChainX490-000720X490-000720-Online
28Label,EchoX502-000340X502-000340-Online
22Label,EchoX502-000900X502-000900-Online
14Label,ModelX503-015410X503-015410-Online
8Tool,WrenchX602-000080X602-000080-Online
24Tool,L WrenchX605-000190X605-000190-Online24 | CS-621SX | Copyright © 2020 YAMABIKO CORPORATION All Right Reserved | Index-2

Source PDF: 20251014-201-CS-621SX_40_00000001_EN.pdf.pdf. Generated 2026-06-25 14:41.

×Enlarged Echo CS-621SX IPL / Parts List source page 1
Echo CS-621SX IPL / Parts List - source page 1
×Enlarged Echo CS-621SX IPL / Parts List source page 2
Echo CS-621SX IPL / Parts List - source page 2
×Enlarged Echo CS-621SX IPL / Parts List source page 3
Echo CS-621SX IPL / Parts List - source page 3
×Enlarged Echo CS-621SX IPL / Parts List source page 4
Echo CS-621SX IPL / Parts List - source page 4
×Enlarged Echo CS-621SX IPL / Parts List source page 5
Echo CS-621SX IPL / Parts List - source page 5
×Enlarged Echo CS-621SX IPL / Parts List source page 6
Echo CS-621SX IPL / Parts List - source page 6
×Enlarged Echo CS-621SX IPL / Parts List source page 7
Echo CS-621SX IPL / Parts List - source page 7
×Enlarged Echo CS-621SX IPL / Parts List source page 8
Echo CS-621SX IPL / Parts List - source page 8
×Enlarged Echo CS-621SX IPL / Parts List source page 9
Echo CS-621SX IPL / Parts List - source page 9
×Enlarged Echo CS-621SX IPL / Parts List source page 10
Echo CS-621SX IPL / Parts List - source page 10
×Enlarged Echo CS-621SX IPL / Parts List source page 11
Echo CS-621SX IPL / Parts List - source page 11
×Enlarged Echo CS-621SX IPL / Parts List source page 12
Echo CS-621SX IPL / Parts List - source page 12
×Enlarged Echo CS-621SX IPL / Parts List source page 13
Echo CS-621SX IPL / Parts List - source page 13
×Enlarged Echo CS-621SX IPL / Parts List source page 14
Echo CS-621SX IPL / Parts List - source page 14
×Enlarged Echo CS-621SX IPL / Parts List source page 15
Echo CS-621SX IPL / Parts List - source page 15
×Enlarged Echo CS-621SX IPL / Parts List source page 16
Echo CS-621SX IPL / Parts List - source page 16
×Enlarged Echo CS-621SX IPL / Parts List source page 17
Echo CS-621SX IPL / Parts List - source page 17
×Enlarged Echo CS-621SX IPL / Parts List source page 18
Echo CS-621SX IPL / Parts List - source page 18
×Enlarged Echo CS-621SX IPL / Parts List source page 19
Echo CS-621SX IPL / Parts List - source page 19
×Enlarged Echo CS-621SX IPL / Parts List source page 20
Echo CS-621SX IPL / Parts List - source page 20
×Enlarged Echo CS-621SX IPL / Parts List source page 21
Echo CS-621SX IPL / Parts List - source page 21
×Enlarged Echo CS-621SX IPL / Parts List source page 22
Echo CS-621SX IPL / Parts List - source page 22
×Enlarged Echo CS-621SX IPL / Parts List source page 23
Echo CS-621SX IPL / Parts List - source page 23
×Enlarged Echo CS-621SX IPL / Parts List source page 24
Echo CS-621SX IPL / Parts List - source page 24
×Enlarged Echo CS-621SX IPL / Parts List source page 25
Echo CS-621SX IPL / Parts List - source page 25
×Enlarged Echo CS-621SX IPL / Parts List source page 26
Echo CS-621SX IPL / Parts List - source page 26
×Enlarged Echo CS-621SX IPL / Parts List source page 27
Echo CS-621SX IPL / Parts List - source page 27
×Enlarged Echo CS-621SX IPL / Parts List source page 28
Echo CS-621SX IPL / Parts List - source page 28
×Enlarged Echo CS-621SX IPL / Parts List source page 29
Echo CS-621SX IPL / Parts List - source page 29
×Enlarged Echo CS-621SX IPL / Parts List source page 30
Echo CS-621SX IPL / Parts List - source page 30
×Enlarged Echo CS-621SX IPL / Parts List source page 31
Echo CS-621SX IPL / Parts List - source page 31
×Enlarged Echo CS-621SX IPL / Parts List source page 32
Echo CS-621SX IPL / Parts List - source page 32
×Enlarged Echo CS-621SX IPL / Parts List source page 33
Echo CS-621SX IPL / Parts List - source page 33
×Enlarged Echo CS-621SX IPL / Parts List source page 34
Echo CS-621SX IPL / Parts List - source page 34

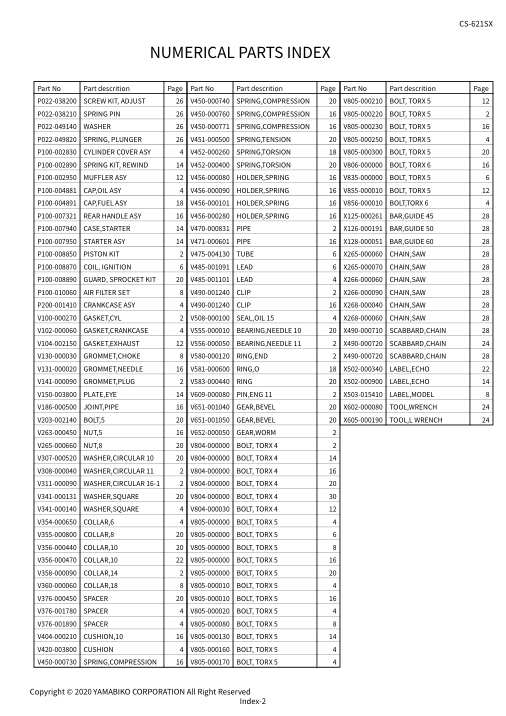

×Enlarged Echo CS-621SX IPL / Parts List source page 35
Echo CS-621SX IPL / Parts List - source page 35
\n
\n
