Echo PB-580 IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: PB-580-Online
Source Pages
Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.
Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.
Page 5
Tap or click the page image to enlarge it.
Page 6
Tap or click the page image to enlarge it.
Page 7
Tap or click the page image to enlarge it.
Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.
Page 10
Tap or click the page image to enlarge it.
Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.
Page 14
Tap or click the page image to enlarge it.
Page 15
Tap or click the page image to enlarge it.
Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.
Page 18
Tap or click the page image to enlarge it.
Page 19
Tap or click the page image to enlarge it.
Page 20
Tap or click the page image to enlarge it.
Page 21
Tap or click the page image to enlarge it.
Page 22
Tap or click the page image to enlarge it.
Page 23
Tap or click the page image to enlarge it.
Page 24
Tap or click the page image to enlarge it.
Page 25
Tap or click the page image to enlarge it.
Page 26
Tap or click the page image to enlarge it.
Page 27
Tap or click the page image to enlarge it.
Page 28
Tap or click the page image to enlarge it.
Page 29
Tap or click the page image to enlarge it.
Page 30
Tap or click the page image to enlarge it.
Page 31
Tap or click the page image to enlarge it.
Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Crankshaft,Asy | A011-001390 | A011-001390-Online | |||
| 2 | Piston Kit | P021-048140 | P021-048140-Online | |||
| 3 | + | Ring, Piston | 100011-32330 | 100011-32330-Online | ||
| 4 | + | Pin,Eng 10 | V608-000000 | V608-000000-Online | ||
| 5 | + | Bearing,Needle | V555-000010 | V555-000010-Online | ||
| 6 | + | Spacer, Piston | 100014-17330 | 100014-17330-Online | ||
| 7 | + | Ring,End | V580-000010 | V580-000010-Online | 2 10 | |
| 8 | Cylinder | A130-002250 | A130-002250-Online | 1 46 4TW | ||
| 9 | Gasket,Cyl | V100-000811 | V100-000811-Online | 1 T=0.5 | ||
| 10 | Bolt, Torx 5 | V805-000210 | V805-000210-Online | 4 TB-5*20 12.9 | ||
| 11 | Bolt, Torx 5 | V805-000040 | V805-000040-Online | 1 TT-5*55 DG | 10.9 | ||
| 12 | Cover,Engine | A190-001480 | A190-001480-Online | |||
| 13 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | 3 TT-5*20 DG | 10.9 | C | CL : Consumable class |
Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Crankcase Set | P021-048151 | P021-048151-Online | |||
| 2 | + | Bearing, Ball | 94000-36302 | 94000-36302-Online | 1 6302 | |
| 3 | + | Oilseal | 100213-00310 | 100213-00310-Online | 1 ISCD 15 25 7 | |
| 4 | + | Bearing, Ball | 900810-36202 | 900810-36202-Online | 1 6202 | |
| 5 | + | Seal,Oil 15 | V508-000100 | V508-000100-Online | 1 ISCD 15*25*7 | |
| 6 | + | Gasket, | V102-000270 | V102-000270-Online | CRANKCASE | 1 T=0.3 | |
| 7 | + | Bolt, Torx 5 | V805-000180 | V805-000180-Online | 4 TB-5*30 12.9 | |
| 8 | Cushion,5 | V401-000600 | V401-000600-Online | |||
| 9 | Bolt, Torx 5 | V805-000140 | V805-000140-Online | 1 TB-5*12 10.9 | ||
| 10 | Bolt, Torx 5 | V805-000250 | V805-000250-Online | 1 TB-5*16 12.9 | ||
| 11 | Cover,Dust | A127-000420 | A127-000420-Online | |||
| 12 | Bolt, Torx 5 | V805-000180 | V805-000180-Online | 6 TB-5*30 12.9 | ||
| 13 | Lead | V485-002770 | V485-002770-Online | 1 | C | CL : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Rotor, Magneto | A409-001270 | A409-001270-Online | 1 ID#R10025 | ||
| 2 | Coil, Ignition | A411-001621 | A411-001621-Online | 1 ID#A10058 | ||
| 3 | Lead | V485-002780 | V485-002780-Online | 1 L250 CB104 | ||
| 4 | Nut | 900501-00010 | 900501-00010-Online | 1 10 P1.25 | ||
| 5 | Washer | 900602-00010 | 900602-00010-Online | 1 10 | ||
| 6 | Washer, Spring | 900605-00010 | 900605-00010-Online | 1 10 | ||
| 7 | Bolt, Torx 5 | V805-000250 | V805-000250-Online | 2 TB-5*16 12.9 | ||
| 8 | Key, Woodruff | 900323-03014 | 900323-03014-Online | 1 3*14 | ||
| 9 | Bushing | 151112-04630 | 151112-04630-Online | |||
| 10 | Sparkplug | A425-000000 | A425-000000-Online | 1 BPMR8Y | ||
| 11 | Cap, Spark Plug | 159012-03433 | 159012-03433-Online | |||
| 12 | Coil, Spark Plug | 159011-03432 | 159011-03432-Online | |||
| 13 | Tube | V475-008320 | V475-008320-Online | 1 6.3*8*350 | C | CL : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Insulator, | A200-001180 | A200-001180-Online | INTAKE | ||
| 2 | Gasket,Intake | V103-001770 | V103-001770-Online | 1 NP4190 T:1.0 | ||
| 3 | Bolt, Torx 5 | V805-000220 | V805-000220-Online | 2 TB-5*25 12.9 | ||
| 4 | Carburetor, | A021-004331 | A021-004331-Online | DIAPHRAGM | 1 WTA-35 | ||
| 5 | Gasket,Intake | V103-001780 | V103-001780-Online | 1 NP6630 T:1.0 | ||
| 6 | Gasket,Intake | V103-001790 | V103-001790-Online | 1 NP7010 T:1.2 | ||
| 7 | Case,Cleaner | P021-047960 | P021-047960-Online | |||
| 8 | Plate, Prevent | A244-000300 | A244-000300-Online | |||
| 9 | Bolt, Torx 5 | V805-000340 | V805-000340-Online | 2 TB-5*60 10.9 | ||
| 10 | Cleaner Cover | P100-001090 | P100-001090-Online | |||
| 11 | + | Knob,Cleaner | A235-000380 | A235-000380-Online | ||
| 12 | Element,Air | A226-000032 | A226-000032-Online | FILTER | 1 | A | CL : Consumable class |
Page 13 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Carburetor, | A021-004331 | A021-004331-Online | DIAPHRAGM | 1 WTA-35 | ||
| 2 | + | Screen, Inlet | 123126-10631 | 123126-10631-Online | ||
| 3 | + | Cover, Fuel Pump | P003-005960 | P003-005960-Online | ||
| 4 | + | Screw, Pump | 123110-03930 | 123110-03930-Online | COVER | |
| 5 | + | Diaphragm, Fuel | 123112-15030 | 123112-15030-Online | PUMP | |
| 6 | + | Gasket, Fuel | 123125-15030 | 123125-15030-Online | PUMP | |
| 7 | + | Valve, Inlet | 123137-19830 | 123137-19830-Online | NEEDLE | |
| 8 | + | Gasket, M. | P003-003840 | P003-003840-Online | DIAPHRAGM | |
| 9 | + | Body, Air Purge | 123180-46130 | 123180-46130-Online | ||
| 10 | + | Spring, Meter. | 123122-03660 | 123122-03660-Online | LEVER | |
| 11 | + | Cover, Primer | 123142-05560 | 123142-05560-Online | PUMP | |
| 12 | + | Pump, Primer | 123181-40630 | 123181-40630-Online | ||
| 13 | + | Diaphragm, | P003-001850 | P003-001850-Online | METERING | |
| 14 | + | Pin, Metering | 123138-03930 | 123138-03930-Online | LEVER | |
| 15 | + | Screw | P003-005400 | P003-005400-Online | ||
| 16 | + | Lever, Metering | 123123-03930 | 123123-03930-Online | ||
| 17 | + | Plug, Welch | 123146-10631 | 123146-10631-Online | ||
| 18 | + | Screw, Idle | P003-001400 | P003-001400-Online | ADJUST | |
| 19 | + | Spring, Idle | 123133-04260 | 123133-04260-Online | ADJUST | |
| 20 | + | Needle | P003-005880 | P003-005880-Online | ||
| 21 | + | Shaft Asy, | P003-005530 | P003-005530-Online | THROTTLE | |
| 22 | + | Spring | P003-003890 | P003-003890-Online | ||
| 23 | + | Valve, Throttle | 123116-10530 | 123116-10530-Online | ||
| 24 | + | Screw | 123114-38830 | 123114-38830-Online | ||
| 25 | + | Ring | 123127-15030 | 123127-15030-Online | ||
| 26 | + | Throttle, Lever | P003-003910 | P003-003910-Online | ||
| 27 | + | Screw | 123144-02960 | 123144-02960-Online | 1 | CL : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed | CARBURETOR |
Page 15 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Tank,Fuel | A350-000151 | A350-000151-Online | |||
| 2 | Cap,Fuel Asy | P100-006640 | P100-006640-Online | |||
| 3 | + | Gasket,Fuel Cap | V107-000190 | V107-000190-Online | 1 37.9*Ｔ2.2 | |
| 4 | + | Clip, Fuel Cap | 131051-56030 | 131051-56030-Online | 1 100L | |
| 5 | Grommet, Fuel | 132115-55931 | 132115-55931-Online | 1 3 φ5 | ||
| 6 | Pipe | V471-005830 | V471-005830-Online | 1 3*6*325 | ||
| 7 | Strainer, Fuel | A369-000440 | A369-000440-Online | 1 125-952 | ||
| 8 | Clip | V490-001230 | V490-001230-Online | |||
| 9 | Valve,Check | A356-000031 | A356-000031-Online | |||
| 10 | Cover, Vent | 131328-40630 | 131328-40630-Online | |||
| 11 | Pipe | V471-004781 | V471-004781-Online | 1 3*6*40 | ||
| 12 | Clip | V490-001230 | V490-001230-Online | |||
| 13 | Pipe | V471-004760 | V471-004760-Online | 1 3*6*180 | ||
| 14 | Band, Fuel Tank | A392-000390 | A392-000390-Online | |||
| 15 | Cushion | V420-004620 | V420-004620-Online | |||
| 16 | Bolt, Torx 5 | V805-000160 | V805-000160-Online | 4 TB-5*20 10.9 | ||
| 17 | Washer | 613019-07350 | 613019-07350-Online | 5.5*16*2T | 4 5.5*16*2T | C | CL : Consumable class |
Page 17 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Muffler Asy | P100-007180 | P100-007180-Online | |||
| 2 | + | Guide, Exhaust | A313-001630 | A313-001630-Online | ||
| 3 | + | Screen, Muffler | 145862-06720 | 145862-06720-Online | ||
| 4 | + | Gasket,Exhaust | V104-002220 | V104-002220-Online | 1 T1.0 | |
| 5 | + | Bolt, Torx 4 | V804-000040 | V804-000040-Online | 5 TB-4*10 10.9 | |
| 6 | Gasket,Exhaust | V104-002280 | V104-002280-Online | 1 T=1.0 | ||
| 7 | Bolt Hsh | 900105-06020 | 900105-06020-Online | 2 6*20 | ||
| 8 | Bolt, Torx 5 | V805-000250 | V805-000250-Online | 1 TB-5*16 12.9 | C | CL : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 19 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Starter,Recoil | A051-002981 | A051-002981-Online | |||
| 2 | + | Starter Case | P022-045270 | P022-045270-Online | 1 | 3 | ++ | |
| 3 | Guide, Rope | P022-045770 | P022-045770-Online | |||
| 4 | + | Drum, Starter | P022-045280 | P022-045280-Online | ||
| 5 | + | Spring, Spiral | P022-036640 | P022-036640-Online | ||
| 6 | + | Screw | 177236-61830 | 177236-61830-Online | ||
| 7 | + | Washer, Thrust | P022-045230 | P022-045230-Online | ||
| 8 | + | Washer | P022-045240 | P022-045240-Online | ||
| 9 | + | Spring, Friction | P022-045250 | P022-045250-Online | ||
| 10 | + | Plate, Friction | P022-010221 | P022-010221-Online | ||
| 11 | + | Rope | P022-045260 | P022-045260-Online | ||
| 12 | + | Grip, Starter | P022-045290 | P022-045290-Online | ||
| 13 | Pulley,Asm | A052-000491 | A052-000491-Online | STARTER | ||
| 14 | + | Pawl,Starter | P022-036620 | P022-036620-Online | ||
| 15 | + | Spring, Return | 177234-40630 | 177234-40630-Online | ||
| 16 | + | E-Ring | P022-002100 | P022-002100-Online | 2 4 | |
| 17 | Bolt, Torx 5 | V805-000160 | V805-000160-Online | 4 TB-5*20 10.9 | ||
| 18 | Label,Echo | X502-000410 | X502-000410-Online | 1 | D | CL : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |

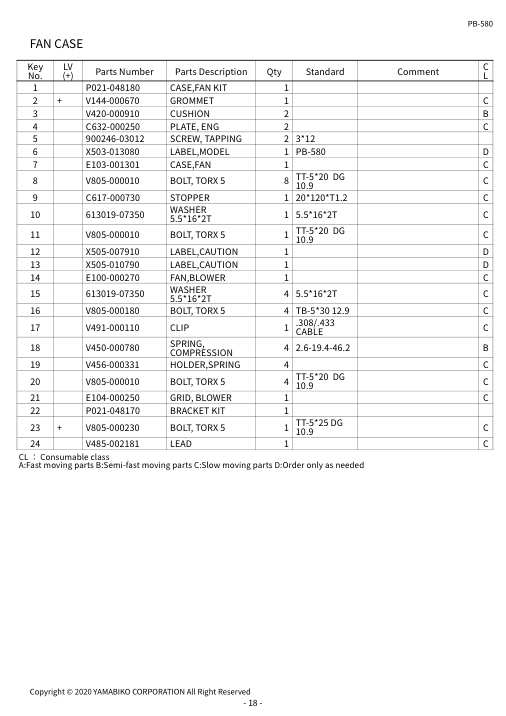

Page 21 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Case,Fan Kit | P021-048180 | P021-048180-Online | |||
| 2 | + | Grommet | V144-000670 | V144-000670-Online | ||
| 3 | Cushion | V420-000910 | V420-000910-Online | |||
| 4 | Plate, Eng | C632-000250 | C632-000250-Online | |||
| 5 | Screw, Tapping | 900246-03012 | 900246-03012-Online | 2 3*12 | ||
| 6 | Label,Model | X503-013080 | X503-013080-Online | 1 PB-580 | ||
| 7 | Case,Fan | E103-001301 | E103-001301-Online | |||
| 8 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | 8 TT-5*20 DG | 10.9 | ||
| 9 | Stopper | C617-000730 | C617-000730-Online | 1 20*120*T1.2 | ||
| 10 | Washer | 613019-07350 | 613019-07350-Online | 5.5*16*2T | 1 5.5*16*2T | ||
| 11 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | 1 TT-5*20 DG | 10.9 | ||
| 12 | Label,Caution | X505-007910 | X505-007910-Online | |||
| 13 | Label,Caution | X505-010790 | X505-010790-Online | |||
| 14 | Fan,Blower | E100-000270 | E100-000270-Online | |||
| 15 | Washer | 613019-07350 | 613019-07350-Online | 5.5*16*2T | 4 5.5*16*2T | ||
| 16 | Bolt, Torx 5 | V805-000180 | V805-000180-Online | 4 TB-5*30 12.9 | ||
| 17 | Clip | V491-000110 | V491-000110-Online | 1 .308/.433 | CABLE | ||
| 18 | Spring, | V450-000780 | V450-000780-Online | COMPRESSION | 4 2.6-19.4-46.2 | ||
| 19 | Holder,Spring | V456-000331 | V456-000331-Online | |||
| 20 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | 4 TT-5*20 DG | 10.9 | ||
| 21 | Grid, Blower | E104-000250 | E104-000250-Online | |||
| 22 | Bracket Kit | P021-048170 | P021-048170-Online | |||
| 23 | + | Bolt, Torx 5 | V805-000230 | V805-000230-Online | 1 TT-5*25 DG | 10.9 | |
| 24 | Lead | V485-002181 | V485-002181-Online | 1 | C | CL : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 23 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Frame, Backpack | C620-000480 | C620-000480-Online | |||
| 2 | Seat, Backpack | C630-000190 | C630-000190-Online | 1 PB-765LN | ||
| 3 | Clip | V491-000090 | V491-000090-Online | |||
| 4 | Washer | 613019-07350 | 613019-07350-Online | 5.5*16*2T | 1 5.5*16*2T | ||
| 5 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | 1 TT-5*20 DG | 10.9 | ||
| 6 | Harness Kit | P021-049472 | P021-049472-Online | |||
| 7 | + | Clip | V491-000480 | V491-000480-Online | ||
| 8 | + | Buckle, Harness | C645-000080 | C645-000080-Online | ||
| 9 | Harness Kit | P021-049482 | P021-049482-Online | |||
| 10 | + | Clip | V491-000480 | V491-000480-Online | ||
| 11 | + | Buckle, Harness | C645-000080 | C645-000080-Online | 1 | C | CL : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 25 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Connector, | C482-000101 | C482-000101-Online | CABLE | ||
| 2 | Cable Asy, | V043-001191 | V043-001191-Online | CONTROL | 1 FLANGE W/ | ||
| 3 | Handle,Front | C400-001532 | C400-001532-Online | 1 LEFT GRIP | 2SHOT | ||
| 4 | Handle,Front | C400-001541 | C400-001541-Online | 1 RIGHT GRIP | 2SHOT | ||
| 5 | Pin,Straight 3 | V621-000040 | V621-000040-Online | 1 3*32 | ||
| 6 | Lever, Throttle | C453-000580 | C453-000580-Online | |||
| 7 | Lever, Throttle | C453-000560 | C453-000560-Online | |||
| 8 | Control, | C450-000921 | C450-000921-Online | THROTTLE | ||
| 9 | Washer, Wave 12 | 429752-01850 | 429752-01850-Online | |||
| 10 | Spring,Torsion | V452-001630 | V452-001630-Online | 1 SPRING | ||
| 11 | Nut, Lock | 900562-50005 | 900562-50005-Online | 2 5 | ||
| 12 | Bolt, Torx 5 | V805-000050 | V805-000050-Online | 1 TB-5*30 10.9 | ||
| 13 | Bolt, Torx 5 | V805-000160 | V805-000160-Online | 1 TB-5*20 10.9 | ||
| 14 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | 4 TT-5*16 DG | 10.9 | ||
| 15 | Bracket,Handle | C405-000231 | C405-000231-Online | 1 LEFT SIDE | ||
| 16 | Bracket,Handle | C405-000241 | C405-000241-Online | 1 RIGHT SIDE | ||
| 17 | Knob,Fastener | V299-000630 | V299-000630-Online | |||
| 18 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | 1 TT-5*20 DG | 10.9 | C | CL : Consumable class |
Page 27 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Pipe,Main | E160-000131 | E160-000131-Online | |||
| 2 | Pipe,Flexible | E164-000080 | E164-000080-Online | |||
| 3 | Band | V495-000430 | V495-000430-Online | 1 58.7MM / | 82.5MM | ||
| 4 | Band | V495-000440 | V495-000440-Online | 1 77.8MM | /101.6MM | ||
| 5 | Pipe,Blower | E165-000800 | E165-000800-Online | |||
| 6 | Pipe,Blower | E165-000141 | E165-000141-Online | 1 418MM * | 73/79MM | ||
| 7 | Pipe,Blower | E165-000790 | E165-000790-Online | |||
| 8 | Label, Echo | 890118-04262 | 890118-04262-Online | 2 194*44 | ||
| 9 | Pipe,Blower | E165-000160 | E165-000160-Online | 1 | 418MM*65/79MM | ||
| 10 | Holder, Cable | C487-000420 | C487-000420-Online | 1 CABLE | HOLDER ASM | C | CL : Consumable class |
Page 29 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | Tool,Wrench | X602-000120 | X602-000120-Online | 1 19-13 | D | CL : Consumable class | A:Fast moving parts B:Semi-fast moving parts C:Slow moving parts D:Order only as needed |
Page 30 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 2 | Spacer, Piston Pin | 100014-17330 | 100014-17330-Online | |||
| 2 | Oilseal | 100213-00310 | 100213-00310-Online | |||
| 4 | Screw, Pump Cover | 123110-03930 | 123110-03930-Online | |||
| 10 | Diaphragm, Fuel | 123112-15030 | 123112-15030-Online | PUMP | ||
| 10 | Screw | 123114-38830 | 123114-38830-Online | |||
| 10 | Valve, Throttle | 123116-10530 | 123116-10530-Online | |||
| 10 | Spring, Meter. Lever | 123122-03660 | 123122-03660-Online | |||
| 10 | Lever, Metering | 123123-03930 | 123123-03930-Online | |||
| 10 | Gasket, Fuel Pump | 123125-15030 | 123125-15030-Online | |||
| 10 | Screen, Inlet | 123126-10631 | 123126-10631-Online | |||
| 10 | Ring | 123127-15030 | 123127-15030-Online | |||
| 10 | Spring, Idle Adjust | 123133-04260 | 123133-04260-Online | |||
| 10 | Valve, Inlet Needle | 123137-19830 | 123137-19830-Online | |||
| 10 | Pin, Metering Lever | 123138-03930 | 123138-03930-Online | |||
| 10 | Cover, Primer Pump | 123142-05560 | 123142-05560-Online | |||
| 10 | Screw | 123144-02960 | 123144-02960-Online | |||
| 10 | Plug, Welch | 123146-10631 | 123146-10631-Online | |||
| 10 | Body, Air Purge | 123180-46130 | 123180-46130-Online | |||
| 10 | Pump, Primer | 123181-40630 | 123181-40630-Online | |||
| 10 | Clip, Fuel Cap | 131051-56030 | 131051-56030-Online | |||
| 12 | Cover, Vent | 131328-40630 | 131328-40630-Online | |||
| 12 | Grommet, Fuel | 132115-55931 | 132115-55931-Online | |||
| 12 | Screen, Muffler | 145862-06720 | 145862-06720-Online | |||
| 14 | Bushing | 151112-04630 | 151112-04630-Online | |||
| 6 | Coil, Spark Plug | 159011-03432 | 159011-03432-Online | |||
| 6 | Cap, Spark Plug | 159012-03433 | 159012-03433-Online | |||
| 6 | Spring, Return | 177234-40630 | 177234-40630-Online | |||
| 16 | Screw | 177236-61830 | 177236-61830-Online | |||
| 16 | Washer, Wave 12 | 429752-01850 | 429752-01850-Online | |||
| 22 | Washer 5.5*16*2T | 613019-07350 | 613019-07350-Online | |||
| 12 | Washer 5.5*16*2T | 613019-07350 | 613019-07350-Online | |||
| 18 | Washer 5.5*16*2T | 613019-07350 | 613019-07350-Online | |||
| 20 | Label, Echo | 890118-04262 | 890118-04262-Online | |||
| 24 | Bolt Hsh | 900105-06020 | 900105-06020-Online | |||
| 14 | Screw, Tapping | 900246-03012 | 900246-03012-Online | |||
| 18 | Key, Woodruff | 900323-03014 | 900323-03014-Online | |||
| 6 | Nut, Lock | 900562-50005 | 900562-50005-Online | |||
| 22 | Washer | 900602-00010 | 900602-00010-Online | |||
| 6 | Washer, Spring | 900605-00010 | 900605-00010-Online | |||
| 6 | Bearing, Ball | 900810-36202 | 900810-36202-Online | |||
| 4 | Bearing, Ball | 94000-36302 | 94000-36302-Online | |||
| 4 | Crankshaft,Asy | A011-001390 | A011-001390-Online | 2 | Part No | Part descrition | Page | ||
| 8 | Carburetor, | A021-004331 | A021-004331-Online | DIAPHRAGM | ||
| 10 | Starter,Recoil Asy | A051-002981 | A051-002981-Online | |||
| 16 | Pulley,Asm Starter | A052-000491 | A052-000491-Online | |||
| 16 | Cover,Dust | A127-000420 | A127-000420-Online | |||
| 4 | Cylinder | A130-002250 | A130-002250-Online | |||
| 2 | Cover,Engine | A190-001480 | A190-001480-Online | |||
| 2 | Insulator, Intake | A200-001180 | A200-001180-Online | |||
| 8 | Element,Air Filter | A226-000032 | A226-000032-Online | |||
| 8 | Knob,Cleaner Lid | A235-000380 | A235-000380-Online | |||
| 8 | Plate, Prevent | A244-000300 | A244-000300-Online | |||
| 8 | Guide, Exhaust | A313-001630 | A313-001630-Online | |||
| 14 | Tank,Fuel | A350-000151 | A350-000151-Online | |||
| 12 | Valve,Check | A356-000031 | A356-000031-Online | |||
| 12 | Strainer, Fuel | A369-000440 | A369-000440-Online | |||
| 12 | Band, Fuel Tank | A392-000390 | A392-000390-Online | |||
| 12 | Rotor, Magneto | A409-001270 | A409-001270-Online | |||
| 6 | Coil, Ignition | A411-001621 | A411-001621-Online | |||
| 6 | Sparkplug | A425-000000 | A425-000000-Online | |||
| 6 | Handle,Front | C400-001532 | C400-001532-Online | |||
| 22 | Handle,Front | C400-001541 | C400-001541-Online | |||
| 22 | Bracket,Handle | C405-000231 | C405-000231-Online | |||
| 22 | Bracket,Handle | C405-000241 | C405-000241-Online | |||
| 22 | Control, Throttle | C450-000921 | C450-000921-Online | |||
| 22 | Lever, Throttle | C453-000560 | C453-000560-Online | |||
| 22 | Lever, Throttle | C453-000580 | C453-000580-Online | |||
| 22 | Connector, Cable | C482-000101 | C482-000101-Online | |||
| 22 | Holder, Cable | C487-000420 | C487-000420-Online | |||
| 24 | Stopper | C617-000730 | C617-000730-Online | |||
| 18 | Frame, Backpack | C620-000480 | C620-000480-Online | |||
| 20 | Seat, Backpack | C630-000190 | C630-000190-Online | |||
| 20 | Plate, Eng | C632-000250 | C632-000250-Online | |||
| 18 | Buckle, Harness | C645-000080 | C645-000080-Online | |||
| 20 | Fan,Blower | E100-000270 | E100-000270-Online | |||
| 18 | Case,Fan | E103-001301 | E103-001301-Online | |||
| 18 | Grid, Blower | E104-000250 | E104-000250-Online | |||
| 18 | Pipe,Main | E160-000131 | E160-000131-Online | |||
| 24 | Pipe,Flexible | E164-000080 | E164-000080-Online | |||
| 24 | Pipe,Blower | E165-000141 | E165-000141-Online | |||
| 24 | Pipe,Blower | E165-000160 | E165-000160-Online | |||
| 24 | Pipe,Blower | E165-000790 | E165-000790-Online | |||
| 24 | Pipe,Blower | E165-000800 | E165-000800-Online | |||
| 24 | Screw, Idle Adjust | P003-001400 | P003-001400-Online | |||
| 10 | Diaphragm, Metering | P003-001850 | P003-001850-Online | 10 | Part No | Part descrition | Page | ||
| 10 | Spring | P003-003890 | P003-003890-Online | |||
| 10 | Throttle, Lever | P003-003910 | P003-003910-Online | |||
| 10 | Screw | P003-005400 | P003-005400-Online | |||
| 10 | Shaft Asy,Throttle | P003-005530 | P003-005530-Online | |||
| 10 | Needle | P003-005880 | P003-005880-Online | |||
| 10 | Cover, Fuel Pump | P003-005960 | P003-005960-Online | |||
| 10 | Case,Cleaner | P021-047960 | P021-047960-Online | |||
| 8 | Piston Kit | P021-048140 | P021-048140-Online | |||
| 2 | Crankcase Set | P021-048151 | P021-048151-Online | |||
| 4 | Bracket Kit | P021-048170 | P021-048170-Online | |||
| 18 | Case,Fan Kit | P021-048180 | P021-048180-Online | |||
| 18 | Harness Kit | P021-049472 | P021-049472-Online | |||
| 20 | Harness Kit | P021-049482 | P021-049482-Online | |||
| 20 | E-Ring | P022-002100 | P022-002100-Online | |||
| 16 | Plate, Friction | P022-010221 | P022-010221-Online | |||
| 16 | Pawl,Starter | P022-036620 | P022-036620-Online | |||
| 16 | Spring, Spiral | P022-036640 | P022-036640-Online | |||
| 16 | Washer, Thrust | P022-045230 | P022-045230-Online | |||
| 16 | Washer | P022-045240 | P022-045240-Online | |||
| 16 | Spring, Friction | P022-045250 | P022-045250-Online | |||
| 16 | Rope | P022-045260 | P022-045260-Online | |||
| 16 | Starter Case | P022-045270 | P022-045270-Online | |||
| 16 | Drum, Starter | P022-045280 | P022-045280-Online | |||
| 16 | Grip, Starter | P022-045290 | P022-045290-Online | |||
| 16 | Guide, Rope | P022-045770 | P022-045770-Online | |||
| 16 | Cleaner Cover Asy | P100-001090 | P100-001090-Online | |||
| 8 | Cap,Fuel Asy | P100-006640 | P100-006640-Online | |||
| 12 | Muffler Asy | P100-007180 | P100-007180-Online | |||
| 14 | Cable Asy, Control | V043-001191 | V043-001191-Online | |||
| 22 | Gasket,Cyl | V100-000811 | V100-000811-Online | |||
| 2 | Gasket,Crankcase | V102-000270 | V102-000270-Online | |||
| 4 | Gasket,Intake | V103-001770 | V103-001770-Online | |||
| 8 | Gasket,Intake | V103-001780 | V103-001780-Online | |||
| 8 | Gasket,Intake | V103-001790 | V103-001790-Online | |||
| 8 | Gasket,Exhaust | V104-002220 | V104-002220-Online | |||
| 14 | Gasket,Exhaust | V104-002280 | V104-002280-Online | |||
| 14 | Gasket,Fuel Cap | V107-000190 | V107-000190-Online | |||
| 12 | Grommet | V144-000670 | V144-000670-Online | |||
| 18 | Knob,Fastener | V299-000630 | V299-000630-Online | |||
| 22 | Cushion,5 | V401-000600 | V401-000600-Online | |||
| 4 | Cushion | V420-000910 | V420-000910-Online | |||
| 18 | Cushion | V420-004620 | V420-004620-Online | |||
| 12 | Spring,Compression | V450-000780 | V450-000780-Online | |||
| 18 | Spring,Torsion | V452-001630 | V452-001630-Online | 22 | PB-580 | Copyright © 2020 YAMABIKO CORPORATION All Right Reserved | Index-1 |
Page 31 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 18 | Pipe | V471-004760 | V471-004760-Online | |||
| 12 | Pipe | V471-004781 | V471-004781-Online | |||
| 12 | Pipe | V471-005830 | V471-005830-Online | |||
| 12 | Tube | V475-008320 | V475-008320-Online | |||
| 6 | Lead | V485-002181 | V485-002181-Online | |||
| 18 | Lead | V485-002770 | V485-002770-Online | |||
| 4 | Lead | V485-002780 | V485-002780-Online | |||
| 6 | Clip | V490-001230 | V490-001230-Online | |||
| 12 | Clip | V491-000090 | V491-000090-Online | |||
| 20 | Clip | V491-000110 | V491-000110-Online | |||
| 18 | Clip | V491-000480 | V491-000480-Online | |||
| 20 | Band | V495-000430 | V495-000430-Online | |||
| 24 | Band | V495-000440 | V495-000440-Online | |||
| 24 | Seal,Oil 15 | V508-000100 | V508-000100-Online | |||
| 4 | Bearing,Needle 10 | V555-000010 | V555-000010-Online | |||
| 2 | Ring,End | V580-000010 | V580-000010-Online | |||
| 2 | Pin,Eng 10 | V608-000000 | V608-000000-Online | |||
| 2 | Pin,Straight 3 | V621-000040 | V621-000040-Online | |||
| 22 | Bolt, Torx 4 | V804-000040 | V804-000040-Online | |||
| 14 | Bolt, Torx 5 | V805-000000 | V805-000000-Online | |||
| 22 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | |||
| 2 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | |||
| 18 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | |||
| 20 | Bolt, Torx 5 | V805-000010 | V805-000010-Online | |||
| 22 | Bolt, Torx 5 | V805-000040 | V805-000040-Online | |||
| 2 | Bolt, Torx 5 | V805-000050 | V805-000050-Online | |||
| 22 | Bolt, Torx 5 | V805-000140 | V805-000140-Online | |||
| 4 | Bolt, Torx 5 | V805-000160 | V805-000160-Online | |||
| 12 | Bolt, Torx 5 | V805-000160 | V805-000160-Online | |||
| 16 | Bolt, Torx 5 | V805-000160 | V805-000160-Online | |||
| 22 | Bolt, Torx 5 | V805-000180 | V805-000180-Online | |||
| 4 | Bolt, Torx 5 | V805-000180 | V805-000180-Online | |||
| 18 | Bolt, Torx 5 | V805-000210 | V805-000210-Online | |||
| 2 | Bolt, Torx 5 | V805-000220 | V805-000220-Online | |||
| 8 | Bolt, Torx 5 | V805-000230 | V805-000230-Online | |||
| 18 | Bolt, Torx 5 | V805-000250 | V805-000250-Online | |||
| 4 | Bolt, Torx 5 | V805-000250 | V805-000250-Online | |||
| 6 | Bolt, Torx 5 | V805-000250 | V805-000250-Online | |||
| 14 | Bolt, Torx 5 | V805-000340 | V805-000340-Online | |||
| 8 | Label,Echo | X502-000410 | X502-000410-Online | |||
| 16 | Label,Model | X503-013080 | X503-013080-Online | |||
| 18 | Label,Caution | X505-007910 | X505-007910-Online | |||
| 18 | Label,Caution | X505-010790 | X505-010790-Online | |||
| 18 | Tool,Wrench | X602-000120 | X602-000120-Online | 26 | PB-580 | Copyright © 2020 YAMABIKO CORPORATION All Right Reserved | Index-2 |
Source PDF: 20260114-132-PB-580_40_00000001_EN.pdf.pdf. Generated 2026-06-25 14:41.
