Echo HCAA-2400A IPL / Parts List
Illustrated Echo parts list. Click any Cutsmart SKU to open the matching product by SKU.
Customer note: Use the reference number on the source page to find the correct part in the table below. SKU links use Ech- prefix and @online suffix.
View machine SKU: HCAA-2400A-Online
Source Pages

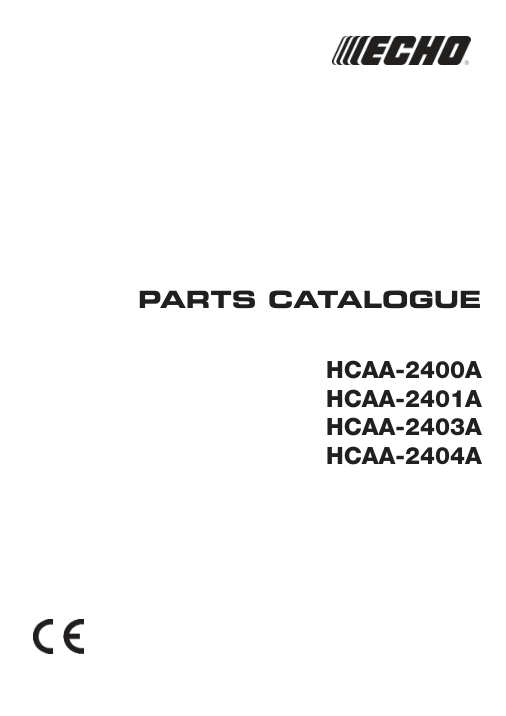

Page 1
Tap or click the page image to enlarge it.
Page 2
Tap or click the page image to enlarge it.

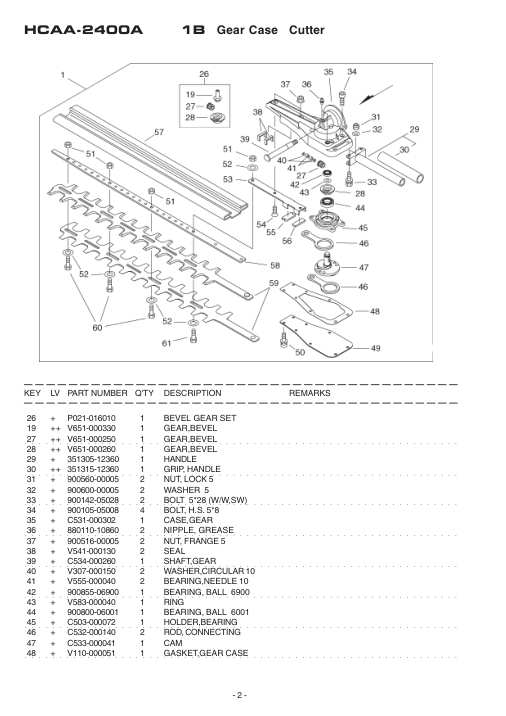

Page 3
Tap or click the page image to enlarge it.
Page 4
Tap or click the page image to enlarge it.

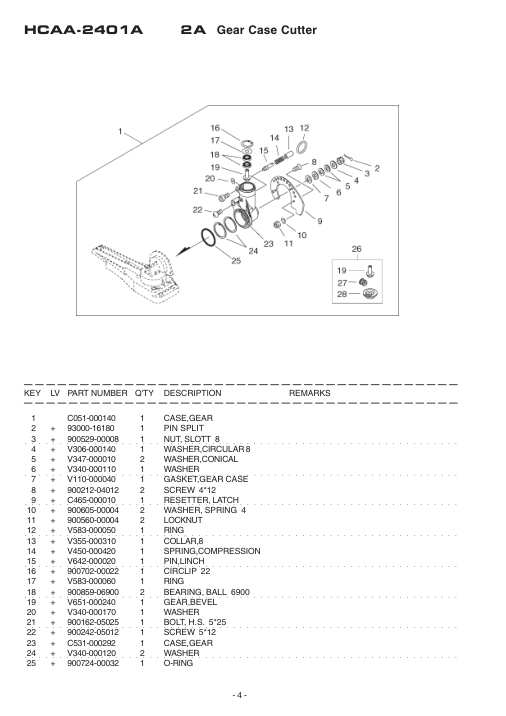

Page 5
Tap or click the page image to enlarge it.

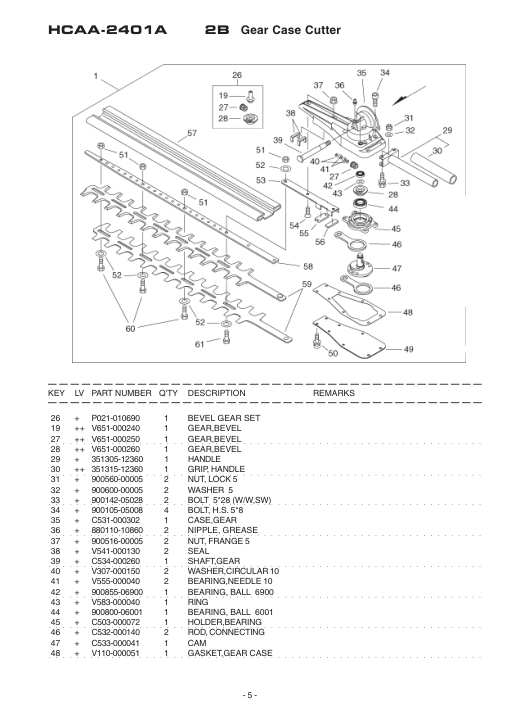

Page 6
Tap or click the page image to enlarge it.

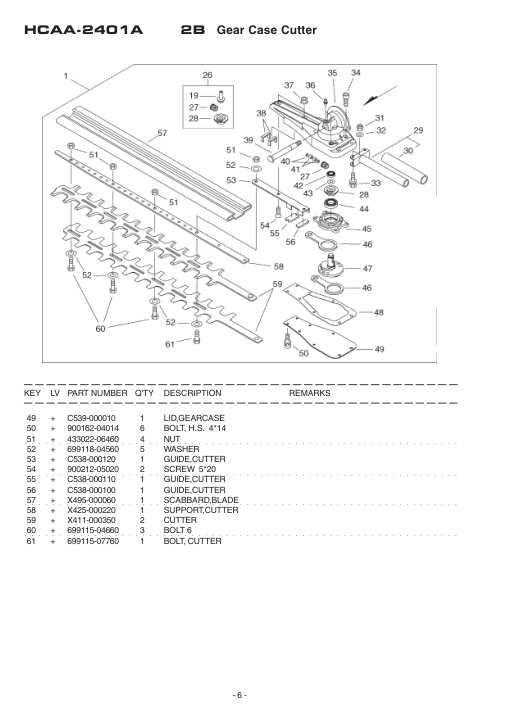

Page 7
Tap or click the page image to enlarge it.

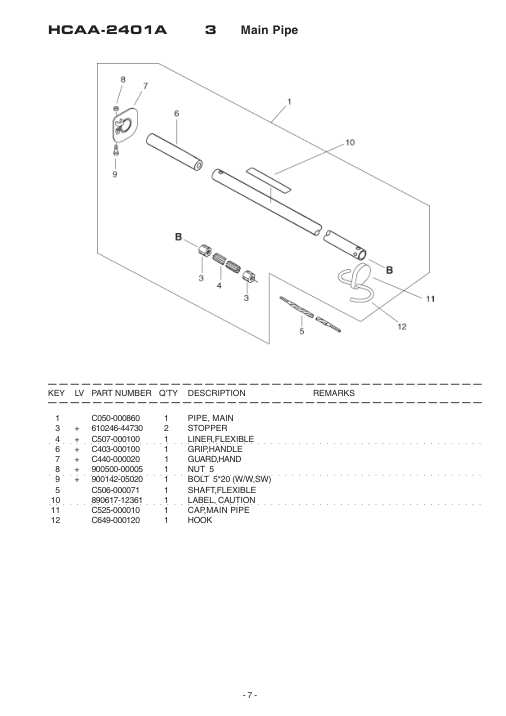

Page 8
Tap or click the page image to enlarge it.
Page 9
Tap or click the page image to enlarge it.

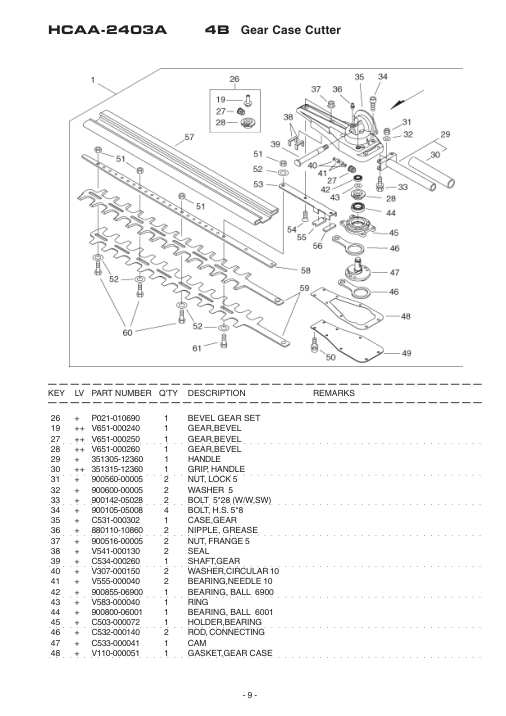

Page 10
Tap or click the page image to enlarge it.

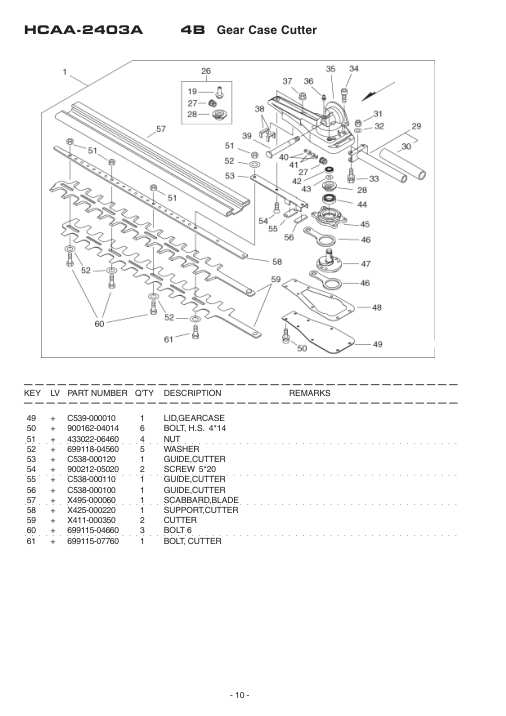

Page 11
Tap or click the page image to enlarge it.
Page 12
Tap or click the page image to enlarge it.
Page 13
Tap or click the page image to enlarge it.

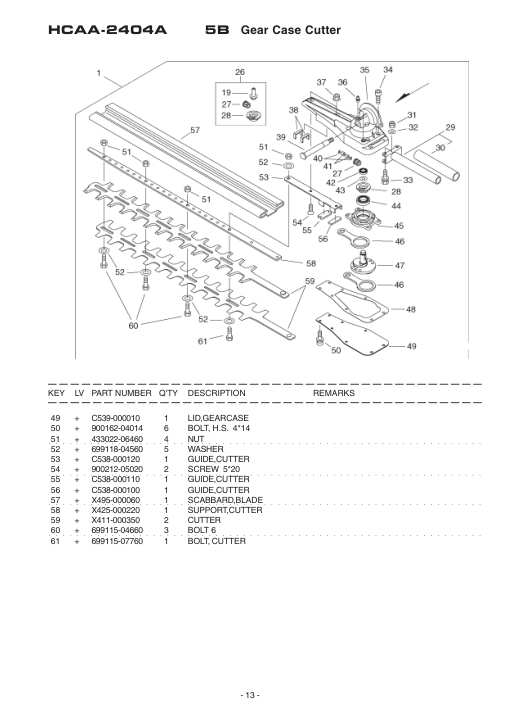

Page 14
Tap or click the page image to enlarge it.

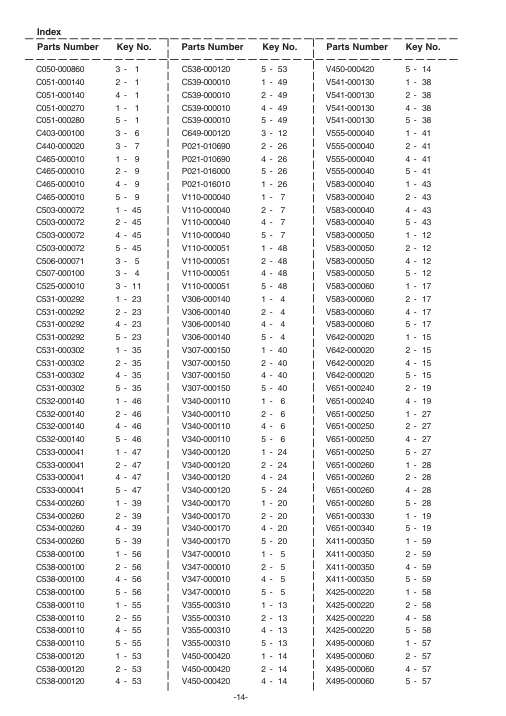

Page 15
Tap or click the page image to enlarge it.

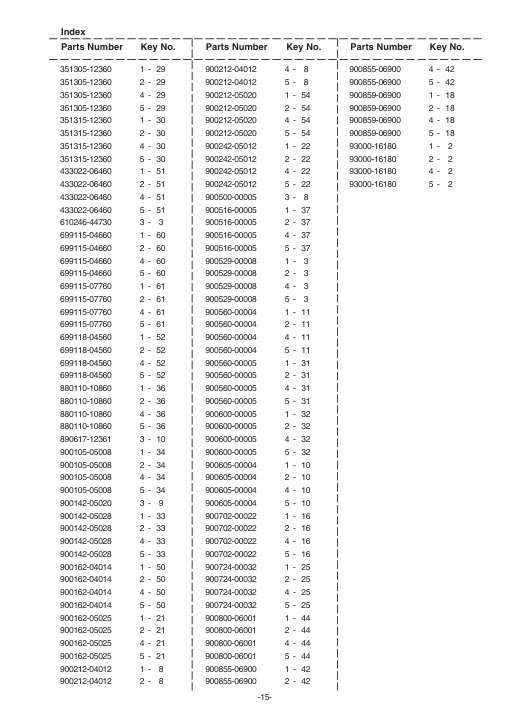

Page 16
Tap or click the page image to enlarge it.
Page 17
Tap or click the page image to enlarge it.
Page 2 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Case,Gear | C051-000270 | C051-000270-Online | ||
| 2 | + | 1 | Pin Split | 93000-16180 | 93000-16180-Online | |
| 3 | + | 1 | Nut, Slott 8 | 900529-00008 | 900529-00008-Online | |
| 4 | + | 1 | Washer,Circular 8 | V306-000140 | V306-000140-Online | |
| 5 | + | 2 | Washer,Conical | V347-000010 | V347-000010-Online | |
| 6 | + | 1 | Washer | V340-000110 | V340-000110-Online | |
| 7 | + | 1 | Gasket,Gear Case | V110-000040 | V110-000040-Online | |
| 8 | + | 2 | Screw 4*12 | 900212-04012 | 900212-04012-Online | |
| 9 | + | 1 | Resetter, Latch | C465-000010 | C465-000010-Online | |
| 10 | + | 2 | Washer, Spring 4 | 900605-00004 | 900605-00004-Online | |
| 11 | + | 2 | Locknut | 900560-00004 | 900560-00004-Online | |
| 12 | + | 1 | Ring | V583-000050 | V583-000050-Online | |
| 13 | + | 1 | Collar,8 | V355-000310 | V355-000310-Online | |
| 14 | + | 1 | Spring,Compression | V450-000420 | V450-000420-Online | |
| 15 | + | 1 | Pin,Linch | V642-000020 | V642-000020-Online | |
| 16 | + | 1 | Circlip 22 | 900702-00022 | 900702-00022-Online | |
| 17 | + | 1 | Ring | V583-000060 | V583-000060-Online | |
| 18 | + | 2 | Bearing, Ball 6900 | 900859-06900 | 900859-06900-Online | |
| 19 | + | 1 | Gear,Bevel | V651-000330 | V651-000330-Online | |
| 20 | + | 1 | Washer | V340-000170 | V340-000170-Online | |
| 21 | + | 1 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | |
| 22 | + | 1 | Screw 5*12 | 900242-05012 | 900242-05012-Online | |
| 23 | + | 1 | Case,Gear | C531-000292 | C531-000292-Online | |
| 24 | + | 2 | Washer | V340-000120 | V340-000120-Online | |
| 25 | + | 1 | O-Ring | 900724-00032 | 900724-00032-Online |
Page 3 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 26 | + | 1 | Bevel Gear Set | P021-016010 | P021-016010-Online | 19 | ++ V651-000330 | 1 | GEAR,BEVEL |
| 29 | + | 1 | Handle | 351305-12360 | 351305-12360-Online | 30 | ++ 351315-12360 | 1 | GRIP, HANDLE |
| 31 | + | 2 | Nut, Lock 5 | 900560-00005 | 900560-00005-Online | |
| 32 | + | 2 | Washer 5 | 900600-00005 | 900600-00005-Online | |
| 33 | + | 2 | Bolt 5*28 (W/W,Sw) | 900142-05028 | 900142-05028-Online | |
| 34 | + | 4 | Bolt, H.S. 5*8 | 900105-05008 | 900105-05008-Online | |
| 35 | + | 1 | Case,Gear | C531-000302 | C531-000302-Online | |
| 36 | + | 2 | Nipple, Grease | 880110-10860 | 880110-10860-Online | |
| 37 | + | 2 | Nut, Frange 5 | 900516-00005 | 900516-00005-Online | |
| 38 | + | 2 | Seal | V541-000130 | V541-000130-Online | |
| 39 | + | 1 | Shaft,Gear | C534-000260 | C534-000260-Online | |
| 40 | + | 2 | Washer,Circular 10 | V307-000150 | V307-000150-Online | |
| 41 | + | 2 | Bearing,Needle 10 | V555-000040 | V555-000040-Online | |
| 42 | + | 1 | Bearing, Ball 6900 | 900855-06900 | 900855-06900-Online | |
| 43 | + | 1 | Ring | V583-000040 | V583-000040-Online | |
| 44 | + | 1 | Bearing, Ball 6001 | 900800-06001 | 900800-06001-Online | |
| 45 | + | 1 | Holder,Bearing | C503-000072 | C503-000072-Online | |
| 46 | + | 2 | Rod, Connecting | C532-000140 | C532-000140-Online | |
| 47 | + | 1 | Part | C533-000041 | C533-000041-Online | |
| 48 | + | 1 | Gasket,Gear Case | V110-000051 | V110-000051-Online | HCAA-2400A | 1B | Gear Case | Cutter |
Page 4 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 49 | + | 1 | Lid,Gearcase | C539-000010 | C539-000010-Online | |
| 50 | + | 6 | Bolt, H.S. 4*14 | 900162-04014 | 900162-04014-Online | |
| 51 | + | 4 | Part | 433022-06460 | 433022-06460-Online | |
| 52 | + | 5 | Washer | 699118-04560 | 699118-04560-Online | |
| 53 | + | 1 | Guide,Cutter | C538-000120 | C538-000120-Online | |
| 54 | + | 2 | Screw 5*20 | 900212-05020 | 900212-05020-Online | |
| 55 | + | 1 | Guide,Cutter | C538-000110 | C538-000110-Online | |
| 56 | + | 1 | Guide,Cutter | C538-000100 | C538-000100-Online | |
| 57 | + | 1 | Scabbard,Blade | X495-000060 | X495-000060-Online | |
| 58 | + | 1 | Support,Cutter | X425-000220 | X425-000220-Online | |
| 59 | + | 2 | Cutter | X411-000350 | X411-000350-Online | |
| 60 | + | 3 | Bolt 6 | 699115-04660 | 699115-04660-Online | |
| 61 | + | 1 | Bolt, Cutter | 699115-07760 | 699115-07760-Online | HCAA-2400A | 1B | Gear Case | Cutter |
Page 5 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Case,Gear | C051-000140 | C051-000140-Online | ||
| 2 | + | 1 | Pin Split | 93000-16180 | 93000-16180-Online | |
| 3 | + | 1 | Nut, Slott 8 | 900529-00008 | 900529-00008-Online | |
| 4 | + | 1 | Washer,Circular 8 | V306-000140 | V306-000140-Online | |
| 5 | + | 2 | Washer,Conical | V347-000010 | V347-000010-Online | |
| 6 | + | 1 | Washer | V340-000110 | V340-000110-Online | |
| 7 | + | 1 | Gasket,Gear Case | V110-000040 | V110-000040-Online | |
| 8 | + | 2 | Screw 4*12 | 900212-04012 | 900212-04012-Online | |
| 9 | + | 1 | Resetter, Latch | C465-000010 | C465-000010-Online | |
| 10 | + | 2 | Washer, Spring 4 | 900605-00004 | 900605-00004-Online | |
| 11 | + | 2 | Locknut | 900560-00004 | 900560-00004-Online | |
| 12 | + | 1 | Ring | V583-000050 | V583-000050-Online | |
| 13 | + | 1 | Collar,8 | V355-000310 | V355-000310-Online | |
| 14 | + | 1 | Spring,Compression | V450-000420 | V450-000420-Online | |
| 15 | + | 1 | Pin,Linch | V642-000020 | V642-000020-Online | |
| 16 | + | 1 | Circlip 22 | 900702-00022 | 900702-00022-Online | |
| 17 | + | 1 | Ring | V583-000060 | V583-000060-Online | |
| 18 | + | 2 | Bearing, Ball 6900 | 900859-06900 | 900859-06900-Online | |
| 19 | + | 1 | Gear,Bevel | V651-000240 | V651-000240-Online | |
| 20 | + | 1 | Washer | V340-000170 | V340-000170-Online | |
| 21 | + | 1 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | |
| 22 | + | 1 | Screw 5*12 | 900242-05012 | 900242-05012-Online | |
| 23 | + | 1 | Case,Gear | C531-000292 | C531-000292-Online | |
| 24 | + | 2 | Washer | V340-000120 | V340-000120-Online | |
| 25 | + | 1 | O-Ring | 900724-00032 | 900724-00032-Online | HCAA-2401A | 2A | Gear Case Cutter |
Page 6 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 26 | + | 1 | Bevel Gear Set | P021-010690 | P021-010690-Online | 19 | ++ V651-000240 | 1 | GEAR,BEVEL |
| 29 | + | 1 | Handle | 351305-12360 | 351305-12360-Online | 30 | ++ 351315-12360 | 1 | GRIP, HANDLE |
| 31 | + | 2 | Nut, Lock 5 | 900560-00005 | 900560-00005-Online | |
| 32 | + | 2 | Washer 5 | 900600-00005 | 900600-00005-Online | |
| 33 | + | 2 | Bolt 5*28 (W/W,Sw) | 900142-05028 | 900142-05028-Online | |
| 34 | + | 4 | Bolt, H.S. 5*8 | 900105-05008 | 900105-05008-Online | |
| 35 | + | 1 | Case,Gear | C531-000302 | C531-000302-Online | |
| 36 | + | 2 | Nipple, Grease | 880110-10860 | 880110-10860-Online | |
| 37 | + | 2 | Nut, Frange 5 | 900516-00005 | 900516-00005-Online | |
| 38 | + | 2 | Seal | V541-000130 | V541-000130-Online | |
| 39 | + | 1 | Shaft,Gear | C534-000260 | C534-000260-Online | |
| 40 | + | 2 | Washer,Circular 10 | V307-000150 | V307-000150-Online | |
| 41 | + | 2 | Bearing,Needle 10 | V555-000040 | V555-000040-Online | |
| 42 | + | 1 | Bearing, Ball 6900 | 900855-06900 | 900855-06900-Online | |
| 43 | + | 1 | Ring | V583-000040 | V583-000040-Online | |
| 44 | + | 1 | Bearing, Ball 6001 | 900800-06001 | 900800-06001-Online | |
| 45 | + | 1 | Holder,Bearing | C503-000072 | C503-000072-Online | |
| 46 | + | 2 | Rod, Connecting | C532-000140 | C532-000140-Online | |
| 47 | + | 1 | Part | C533-000041 | C533-000041-Online | |
| 48 | + | 1 | Gasket,Gear Case | V110-000051 | V110-000051-Online | HCAA-2401A | 2B | Gear Case Cutter |
Page 7 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 49 | + | 1 | Lid,Gearcase | C539-000010 | C539-000010-Online | |
| 50 | + | 6 | Bolt, H.S. 4*14 | 900162-04014 | 900162-04014-Online | |
| 51 | + | 4 | Part | 433022-06460 | 433022-06460-Online | |
| 52 | + | 5 | Washer | 699118-04560 | 699118-04560-Online | |
| 53 | + | 1 | Guide,Cutter | C538-000120 | C538-000120-Online | |
| 54 | + | 2 | Screw 5*20 | 900212-05020 | 900212-05020-Online | |
| 55 | + | 1 | Guide,Cutter | C538-000110 | C538-000110-Online | |
| 56 | + | 1 | Guide,Cutter | C538-000100 | C538-000100-Online | |
| 57 | + | 1 | Scabbard,Blade | X495-000060 | X495-000060-Online | |
| 58 | + | 1 | Support,Cutter | X425-000220 | X425-000220-Online | |
| 59 | + | 2 | Cutter | X411-000350 | X411-000350-Online | |
| 60 | + | 3 | Bolt 6 | 699115-04660 | 699115-04660-Online | |
| 61 | + | 1 | Bolt, Cutter | 699115-07760 | 699115-07760-Online | HCAA-2401A | 2B | Gear Case Cutter |
Page 8 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Pipe, Main | C050-000860 | C050-000860-Online | ||
| 3 | + | 2 | Stopper | 610246-44730 | 610246-44730-Online | |
| 4 | + | 1 | Liner,Flexible | C507-000100 | C507-000100-Online | |
| 6 | + | 1 | Grip,Handle | C403-000100 | C403-000100-Online | |
| 7 | + | 1 | Guard,Hand | C440-000020 | C440-000020-Online | |
| 8 | + | 1 | Nut 5 | 900500-00005 | 900500-00005-Online | |
| 9 | + | 1 | Bolt 5*20 (W/W,Sw) | 900142-05020 | 900142-05020-Online | |
| 5 | 1 | Shaft,Flexible | C506-000071 | C506-000071-Online | ||
| 10 | 1 | Label, Caution | 890617-12361 | 890617-12361-Online | ||
| 11 | 1 | Cap,Main Pipe | C525-000010 | C525-000010-Online | ||
| 12 | 1 | Hook | C649-000120 | C649-000120-Online | HCAA-2401A | 3 | Main Pipe |
Page 9 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Case,Gear | C051-000140 | C051-000140-Online | ||
| 2 | + | 1 | Pin Split | 93000-16180 | 93000-16180-Online | |
| 3 | + | 1 | Nut, Slott 8 | 900529-00008 | 900529-00008-Online | |
| 4 | + | 1 | Washer,Circular 8 | V306-000140 | V306-000140-Online | |
| 5 | + | 2 | Washer,Conical | V347-000010 | V347-000010-Online | |
| 6 | + | 1 | Washer | V340-000110 | V340-000110-Online | |
| 7 | + | 1 | Gasket,Gear Case | V110-000040 | V110-000040-Online | |
| 8 | + | 2 | Screw 4*12 | 900212-04012 | 900212-04012-Online | |
| 9 | + | 1 | Resetter, Latch | C465-000010 | C465-000010-Online | |
| 10 | + | 2 | Washer, Spring 4 | 900605-00004 | 900605-00004-Online | |
| 11 | + | 2 | Locknut | 900560-00004 | 900560-00004-Online | |
| 12 | + | 1 | Ring | V583-000050 | V583-000050-Online | |
| 13 | + | 1 | Collar,8 | V355-000310 | V355-000310-Online | |
| 14 | + | 1 | Spring,Compression | V450-000420 | V450-000420-Online | |
| 15 | + | 1 | Pin,Linch | V642-000020 | V642-000020-Online | |
| 16 | + | 1 | Circlip 22 | 900702-00022 | 900702-00022-Online | |
| 17 | + | 1 | Ring | V583-000060 | V583-000060-Online | |
| 18 | + | 2 | Bearing, Ball 6900 | 900859-06900 | 900859-06900-Online | |
| 19 | + | 1 | Gear,Bevel | V651-000240 | V651-000240-Online | |
| 20 | + | 1 | Washer | V340-000170 | V340-000170-Online | |
| 21 | + | 1 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | |
| 22 | + | 1 | Screw 5*12 | 900242-05012 | 900242-05012-Online | |
| 23 | + | 1 | Case,Gear | C531-000292 | C531-000292-Online | |
| 24 | + | 2 | Washer | V340-000120 | V340-000120-Online | |
| 25 | + | 1 | O-Ring | 900724-00032 | 900724-00032-Online | HCAA-2403A | 4A | Gear Case Cutter |
Page 10 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 26 | + | 1 | Bevel Gear Set | P021-010690 | P021-010690-Online | 19 | ++ V651-000240 | 1 | GEAR,BEVEL |
| 29 | + | 1 | Handle | 351305-12360 | 351305-12360-Online | 30 | ++ 351315-12360 | 1 | GRIP, HANDLE |
| 31 | + | 2 | Nut, Lock 5 | 900560-00005 | 900560-00005-Online | |
| 32 | + | 2 | Washer 5 | 900600-00005 | 900600-00005-Online | |
| 33 | + | 2 | Bolt 5*28 (W/W,Sw) | 900142-05028 | 900142-05028-Online | |
| 34 | + | 4 | Bolt, H.S. 5*8 | 900105-05008 | 900105-05008-Online | |
| 35 | + | 1 | Case,Gear | C531-000302 | C531-000302-Online | |
| 36 | + | 2 | Nipple, Grease | 880110-10860 | 880110-10860-Online | |
| 37 | + | 2 | Nut, Frange 5 | 900516-00005 | 900516-00005-Online | |
| 38 | + | 2 | Seal | V541-000130 | V541-000130-Online | |
| 39 | + | 1 | Shaft,Gear | C534-000260 | C534-000260-Online | |
| 40 | + | 2 | Washer,Circular 10 | V307-000150 | V307-000150-Online | |
| 41 | + | 2 | Bearing,Needle 10 | V555-000040 | V555-000040-Online | |
| 42 | + | 1 | Bearing, Ball 6900 | 900855-06900 | 900855-06900-Online | |
| 43 | + | 1 | Ring | V583-000040 | V583-000040-Online | |
| 44 | + | 1 | Bearing, Ball 6001 | 900800-06001 | 900800-06001-Online | |
| 45 | + | 1 | Holder,Bearing | C503-000072 | C503-000072-Online | |
| 46 | + | 2 | Rod, Connecting | C532-000140 | C532-000140-Online | |
| 47 | + | 1 | Part | C533-000041 | C533-000041-Online | |
| 48 | + | 1 | Gasket,Gear Case | V110-000051 | V110-000051-Online | HCAA-2403A | 4B | Gear Case Cutter |
Page 11 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 49 | + | 1 | Lid,Gearcase | C539-000010 | C539-000010-Online | |
| 50 | + | 6 | Bolt, H.S. 4*14 | 900162-04014 | 900162-04014-Online | |
| 51 | + | 4 | Part | 433022-06460 | 433022-06460-Online | |
| 52 | + | 5 | Washer | 699118-04560 | 699118-04560-Online | |
| 53 | + | 1 | Guide,Cutter | C538-000120 | C538-000120-Online | |
| 54 | + | 2 | Screw 5*20 | 900212-05020 | 900212-05020-Online | |
| 55 | + | 1 | Guide,Cutter | C538-000110 | C538-000110-Online | |
| 56 | + | 1 | Guide,Cutter | C538-000100 | C538-000100-Online | |
| 57 | + | 1 | Scabbard,Blade | X495-000060 | X495-000060-Online | |
| 58 | + | 1 | Support,Cutter | X425-000220 | X425-000220-Online | |
| 59 | + | 2 | Cutter | X411-000350 | X411-000350-Online | |
| 60 | + | 3 | Bolt 6 | 699115-04660 | 699115-04660-Online | |
| 61 | + | 1 | Bolt, Cutter | 699115-07760 | 699115-07760-Online | HCAA-2403A | 4B | Gear Case Cutter |
Page 12 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 1 | 1 | Case,Gear | C051-000280 | C051-000280-Online | ||
| 2 | + | 1 | Pin Split | 93000-16180 | 93000-16180-Online | |
| 3 | + | 1 | Nut, Slott 8 | 900529-00008 | 900529-00008-Online | |
| 4 | + | 1 | Washer,Circular 8 | V306-000140 | V306-000140-Online | |
| 5 | + | 2 | Washer,Conical | V347-000010 | V347-000010-Online | |
| 6 | + | 1 | Washer | V340-000110 | V340-000110-Online | |
| 7 | + | 1 | Gasket,Gear Case | V110-000040 | V110-000040-Online | |
| 8 | + | 2 | Screw 4*12 | 900212-04012 | 900212-04012-Online | |
| 9 | + | 1 | Resetter, Latch | C465-000010 | C465-000010-Online | |
| 10 | + | 2 | Washer, Spring 4 | 900605-00004 | 900605-00004-Online | |
| 11 | + | 2 | Locknut | 900560-00004 | 900560-00004-Online | |
| 12 | + | 1 | Ring | V583-000050 | V583-000050-Online | |
| 13 | + | 1 | Collar,8 | V355-000310 | V355-000310-Online | |
| 14 | + | 1 | Spring,Compression | V450-000420 | V450-000420-Online | |
| 15 | + | 1 | Pin,Linch | V642-000020 | V642-000020-Online | |
| 16 | + | 1 | Circlip 22 | 900702-00022 | 900702-00022-Online | |
| 17 | + | 1 | Ring | V583-000060 | V583-000060-Online | |
| 18 | + | 2 | Bearing, Ball 6900 | 900859-06900 | 900859-06900-Online | |
| 19 | + | 1 | Gear,Bevel | V651-000340 | V651-000340-Online | |
| 20 | + | 1 | Washer | V340-000170 | V340-000170-Online | |
| 21 | + | 1 | Bolt, H.S. 5*25 | 900162-05025 | 900162-05025-Online | |
| 22 | + | 1 | Screw 5*12 | 900242-05012 | 900242-05012-Online | |
| 23 | + | 1 | Case,Gear | C531-000292 | C531-000292-Online | |
| 24 | + | 2 | Washer | V340-000120 | V340-000120-Online | |
| 25 | + | 1 | O-Ring | 900724-00032 | 900724-00032-Online | HCAA-2404A | 5A | Gear Case Cutter |
Page 13 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 26 | + | 1 | Bevel Gear Set | P021-016000 | P021-016000-Online | 19 | ++ V651-000340 | 1 | GEAR,BEVEL |
| 29 | + | 1 | Handle | 351305-12360 | 351305-12360-Online | 30 | ++ 351315-12360 | 1 | GRIP, HANDLE |
| 31 | + | 2 | Nut, Lock 5 | 900560-00005 | 900560-00005-Online | |
| 32 | + | 2 | Washer 5 | 900600-00005 | 900600-00005-Online | |
| 33 | + | 2 | Bolt 5*28 (W/W,Sw) | 900142-05028 | 900142-05028-Online | |
| 34 | + | 4 | Bolt, H.S. 5*8 | 900105-05008 | 900105-05008-Online | |
| 35 | + | 1 | Case,Gear | C531-000302 | C531-000302-Online | |
| 36 | + | 2 | Nipple, Grease | 880110-10860 | 880110-10860-Online | |
| 37 | + | 2 | Nut, Frange 5 | 900516-00005 | 900516-00005-Online | |
| 38 | + | 2 | Seal | V541-000130 | V541-000130-Online | |
| 39 | + | 1 | Shaft,Gear | C534-000260 | C534-000260-Online | |
| 40 | + | 2 | Washer,Circular 10 | V307-000150 | V307-000150-Online | |
| 41 | + | 2 | Bearing,Needle 10 | V555-000040 | V555-000040-Online | |
| 42 | + | 1 | Bearing, Ball 6900 | 900855-06900 | 900855-06900-Online | |
| 43 | + | 1 | Ring | V583-000040 | V583-000040-Online | |
| 44 | + | 1 | Bearing, Ball 6001 | 900800-06001 | 900800-06001-Online | |
| 45 | + | 1 | Holder,Bearing | C503-000072 | C503-000072-Online | |
| 46 | + | 2 | Rod, Connecting | C532-000140 | C532-000140-Online | |
| 47 | + | 1 | Part | C533-000041 | C533-000041-Online | |
| 48 | + | 1 | Gasket,Gear Case | V110-000051 | V110-000051-Online | HCAA-2404A | 5B | Gear Case Cutter |
Page 14 - Parts
| Ref | LV | Qty | Description | Part Number | Cutsmart SKU | Remarks |
|---|---|---|---|---|---|---|
| 49 | + | 1 | Lid,Gearcase | C539-000010 | C539-000010-Online | |
| 50 | + | 6 | Bolt, H.S. 4*14 | 900162-04014 | 900162-04014-Online | |
| 51 | + | 4 | Part | 433022-06460 | 433022-06460-Online | |
| 52 | + | 5 | Washer | 699118-04560 | 699118-04560-Online | |
| 53 | + | 1 | Guide,Cutter | C538-000120 | C538-000120-Online | |
| 54 | + | 2 | Screw 5*20 | 900212-05020 | 900212-05020-Online | |
| 55 | + | 1 | Guide,Cutter | C538-000110 | C538-000110-Online | |
| 56 | + | 1 | Guide,Cutter | C538-000100 | C538-000100-Online | |
| 57 | + | 1 | Scabbard,Blade | X495-000060 | X495-000060-Online | |
| 58 | + | 1 | Support,Cutter | X425-000220 | X425-000220-Online | |
| 59 | + | 2 | Cutter | X411-000350 | X411-000350-Online | |
| 60 | + | 3 | Bolt 6 | 699115-04660 | 699115-04660-Online | |
| 61 | + | 1 | Bolt, Cutter | 699115-07760 | 699115-07760-Online | HCAA-2404A | 5B | Gear Case Cutter |
Source PDF: 20111007-909_HCAA-2400A_1A_3A_4A_(0811).pdf. Generated 2026-06-25 14:37.
